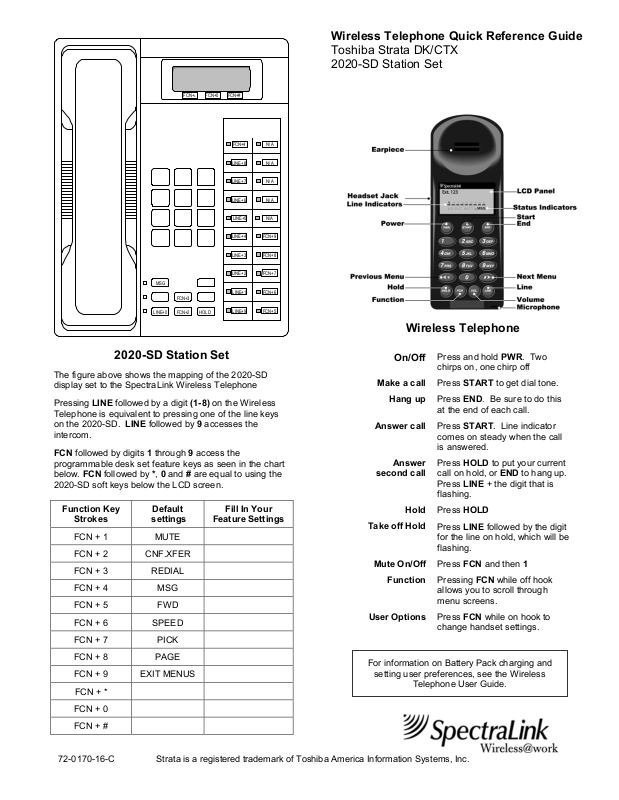

Toshiba DK-CTX 2020-SD User Guide

Wireless Telephone Quick Reference Guide

Toshiba Strata DK/CTX 2020-SD Station Set

FCN+*FCN+0 FCN+#

N/A

FCN+9

FCN+8

FCN+7

FCN+6

FCN+5

MSG

LINE+0

FCN+3

FCN+2 HOLD

FCN+4

LINE+8

LINE+7

LINE+6

LINE+5

LINE+4

LINE+3

LINE+2

LINE+1

LINE+9

2020-SD Station Set

The figure above shows the mapping of the 2020-SD display set to the SpectraLink Wireless Telephone

Pressing LINE followed by a digit (1-8) on the Wireless Telephone is equivalent to pressing one of the line keys on the 2020-SD. LINE followed by 9 accesses the intercom.

FCN followed by digits 1 through 9 access the programmable desk set feature keys as seen in the chart below. FCN followed by *, 0 and # are equal to using the 2020-SD soft keys below the LCD screen.

Function Key

Strokes

FCN + 1 MUTE

FCN + 2 CNF.XFER

FCN + 3 REDIAL

FCN + 4 MSG

FCN + 5 FWD

FCN + 6 SPEED

FCN + 7 PICK

FCN + 8 PAGE

FCN + 9 EXIT MENUS

FCN + *

FCN + 0

FCN + #

Default

settings

Fill In Your

Feature Settings

Wireless Telephone

On/Off

Make a call Press START to get dial tone.

Hang up

Answer call

Answer

second call

Hold Press HOLD

Take off Hold

Mute On/Off Press FCN and then 1

Function

User Options

Press and hold PWR. Two chirps on, one chirp off

Press END. Be sure to do this at the end of each call.

Press START. Line indicator comes on steady when the call is answered.

Press HOLD to put your current call on hold, or END to hang up. Press LINE + the digit that is flashing.

Press LINE followed by the digit for the line on hold, which will be flashing.

Pressing FCN while off hook allows you to scroll through menu screens.

Press FCN while on hook to change handset settings.

For information on Battery Pack charging and

setting user preferences, see the Wireless

Telephone User Guide.

72-0170-16-C Strata is a registered trademark of Toshiba America Information Systems, Inc.
