Camileo Pro
User’s Manual
Content
Section 1 Getting to Know Your Camera .................................................. 2
Section 2 Getting Up and Running ........................................................... 5
Section 3 Record Mode ........................................................................... 7
Section 4 Playback Mode ...................................................................... 35
Section 5 Listening to MP3 Music .......................................................... 48
Section 6 Reading eBook....................................................................... 51
Section 7 Viewing MPEG4 Movie on PC ................................................. 53
Section 8 Viewing Pictures and Movies on a TV ...................................... 54
Section 9 Video File Converter................................................................ 55
Section 10 Burning the Recorded Clip into DVD...................................... 59
Section 11 Transferring Data to a Computer........................................... 61
Section 12 Specifications and System Requirements .............................. 63
1
Section 1
Getting to Know Your Camera
Overview
The camera with 7 Mega Pixel sensor can take MPEG-4 movies. By way of using MPEG-4
technology, more videos can be taken within certain amount of memory. High quality images with
up to 11 mega-pixels can also be delivered smoothly. With a color LCD monitor, users can
compose images and examine them easily.
Exposure and color balance can either be adjusted automatically or allowed to be changed
manually. The 3x Optical Zoom plus 4x digital zoom increase user control over the movies and
pictures you take. The camera is also ideally suited for using as a PC camera hooked up to your
home computer via high speed USB 2.0 port
Biuld-in 64 MB memory allows you to take pictures and movies without memory card. The
memory card slot allows users to increase the storage capacity up to 4GB.
Note
Partial memory of the built-in 64MB memory is used for
Firmware code
Standard Accessories
Unpack the package and make sure all standard accessories listed are included:
z Camera
z USB Cable
z Power Adaptor
z AV Cable
z Lithium-ion Rechargeable Battery
z Quick Guide
z CD-ROM ( Driver, Arcsoft Software and User Manual)
z Earphone
z Strap
z Pouch
z Tripod
z SD Card (Optional)
2
Front View
Lens
Flash
IR Receiver
Power Button
KeyPad illustration
LCD Panel
Mini USB 2.0 port
Direction Buttons
Enter Button
Picture Shutter Button
Movie Shutter Button
Tele-Wide/AEL Button
RECORD/PLAY Button
TV Out Port
Strap Hole
Note
Please note that the LCD monitor can only be rotated
by 270 degrees in one direction, otherwise it will be
broken! Please do not try to rotate the monitor by more
than 270 degrees.
3
Side View
Battery/SD Card Cover
Speaker
Microphone
4
Loading the Battery
Before using the camera, end users must load
NP60 rechargeable Li-ion Battery.
1. Follow the arrow direction and slide to eject the
battery cover.
2. Insert the batteries according to the correct
polarity marks ( + or -)
Section 2
Getting Up and Running
3. Close the battery cover firmly.
Inserting and Removing an SD Card（Optional）
The camera comes with 64 MB built-in memory which allows you to store pictures, movies,
recorded voice and music. You can expand the memory capacity by using an optional SD or
MMC memory card up to 4G. To insert a memory card, refer to the figure above and:
1. Insert the memory card into the right position.
2. To remove an installed SD card, press the card inwards to release
it.
3. When the card pops out, gently remove it from its slot.
Note
When a memory card is fitted, movies and pictures are
saved on card rather than on the built-in memory.
Protecting Data on an SD Card
SD card is read-only by locking the SD card. No pictures, movies and voice can be recorded
when the SD card is locked. Make sure the lock is on writeable position before recording any
media.
Write-Protected
Writeable position
Writeable position
5
Write-Protected
Position
Position
Turning the Camera On and Getting Started
To turn on the camera:
(1) Flip out the LCD panel; the camera will turn on automatically.
(2) Or press Power Button for one second to turn on it.
Ö To take a movie, press the Movie Shutter Button (
Ö To take a picture, press the Picture Shutter Button (
Ö To record the voice, press the Upper Button of Direction Buttons and press the Movie
Shutter Button (
Ö To view stored movies, pictures, listen to stored MP3 and voice recordings, or read eBook,
press RECORD/PLAY Button once to switch to Playback Mode. Press a second time to
return to Record Mode.
) to start voice recording.
).
).
Turning the Camera Off
To turn off the Camera, you can either press the Power Button for one second, or you can place
the LCD panel back to its original position.
6
Button Function
AEL
Section 3
Record Mode
Enter Button
Button
Right Button : Auto Flash/Flash ON/OFF/Red-Eye
Reduction/Light ON
Left Button :Self-Timer ON/OFF
Up Button : Voice Recording Mode
Down Button: LCD Information ON/OFF
Enter Button : Menu ON
Power Button: Press down for one second to turn
on or turn off the camera.
RECORD/PLAY Button functions:
1. Switch between Record /Playback Mode.
2. Return to the previous page.
Tele-Wide Button: Digital Zoom in and out.
AEL Button: Auto Exposure Lock
Movie Shutter Button:
1. Start to take movie, or record voice.
2. To stop recording, press it again.
Picture Shutter Button:
1. First Shutter: Auto Focus
2. Second Shutter: Take the picture
7
LCD Monitor Information
The indicator shows below may display on LCD when movies and pictures are recorded：
(1)
Record Mode
Movie Record Mode
Picture Record Mode
Voice Record Mode
Motion Stabilization
Two in One Mode
Photo Frame
Multi-Snap Mode
(2) Resolution
Movie :
Picture:
(3)
Number of images or recording time of movie that can still be taken at current resolution.
(4)
(5)
(6)
(7)
(8)
Battery indicator：
(9)
Backlight Mode
Night Mode
D1 / High / Standard / Low
High / Standard / Low
Auto Exposure Lock
SD card inserted
Macro Position Focusing
White Balance
Auto Flash
Flash On
Flash Off
full power / medium power / low power /
power empty
8
(10)
(11)
(12)
Red Eye Reduction
Light on
Self-timer enabled
12X Zoom (3X Optical Zoom x 4X Digital Zoom)
/
Date/Time: YYYY/MM/DD HH:MM
(13)
Motion Detection
MPEG4 Movie Recording
Press Movie Shutter button ( ) to start recording. When a movie is recording, a time indicator
will display on LCD monitor. To stop recording, press Movie Shutter Button (
RECORD/PLAY Button to view the recorded movie.
Three resolution settings are available:
) again. Press
Quality
D1
High Quality
Standard Quality
Low Quality
Picture Recording
Press the Picture Shutter Button ( ) to focus and press it again in sequence to take a picture.
Press RECORD/PLAY Button to view the picture.
Three resolution settings are available:
Image Quality
High Quality
Standard Quality
Low Quality
9
Voice Recording
1. Press Upper Button ( ) of Direction Buttons to switch to
Voice Record Mode.
2. Press Movie Shutter Button (
3. Press Movie Shutter Button (
4. Press RECORD/PLAY Button to view the recorded
voice.
) to record voice.
) again to stop.
Using Optical & Digital Zoom
The optical & digital zoom magnifies images, when recording movies or taking pictures.
1. To zoom in/out, press the Tele/Wide Button.
2. The zoom could be set from 1x to 12x (3x optical * 4x digital) and the magnification ratio is
indicated in the T/W bar on the LCD monitor.
10
Options for Record Mode
Movie Mode Picture Mode Voice Pen Effect Set
z Resolution
z Macro Mode
z Exposure
z Light
z Sharpness
z White Balance
z Stabilization
z Motion Detect
z Night Mode
z Exit
z Resolution
z Macro Mode
z Exposure
z Two in One
z Photo Frame
z Flash
z Self-timer
z Sharpness
z White Balance
z Multi-snap
z Backlight
z Date printing
z Night Mode
z Exit
z Enter
z Exit
z Normal
z B/W
z Classic
z Negative
z Exit
z Sound
z Start-up Screen
z Time Setting
z Format Memory
z TV System
z Language
z Default Setting
z Exit
Operations for Record Mode
Operation Screen
1. Press Enter Button when in Movie/Picture Record
Mode.
2. Use Right/Left Buttons to move between main menu
options, which are Movie Mode, Camera Mode, Voice
Mode, Effect, and Set. Submenu will pop out while
move to each main option.
3. Press Enter Button to validate sub option you select.
4. Select Exit option to exit submenu.
Enter Button
11
Default Setting and Validation
The following table indicates the camera’s default setting as well as its validation.
1. Always: The setting always keeps valid.
2. One Time: The setting is only valid either once or till camera power off.
Validation Default Factory Setting
Resolution Always High for Movie
Standard for Picture
Macro Mode One Time Normal
Exposure One Time 0EV
Light Always Off
Sharpness One Time Level 5
White Balance One Time Auto
Motion Stabilization Always Off
Motion Detect One Time Off
Two in One One Time Off
Photo Frame One Time Off
Flash Always Off
Self-Timer One Time Off
Multi-Snap One Time Off
Backlight Mode One Time Off
Date Printing Always Off
Night Mode Always Off
Effect One Time Normal
Sound Always On
Format Card One Time Off
TV System Always Depends on shipping area
Language Always Depends on shipping area
Volume Always Level 6
12
Movie Mode submenu Setting
Record main menu includes camera setting and other advanced setting. You can use Right/Left
Buttons to move between options and press Enter Button to validate the setting.

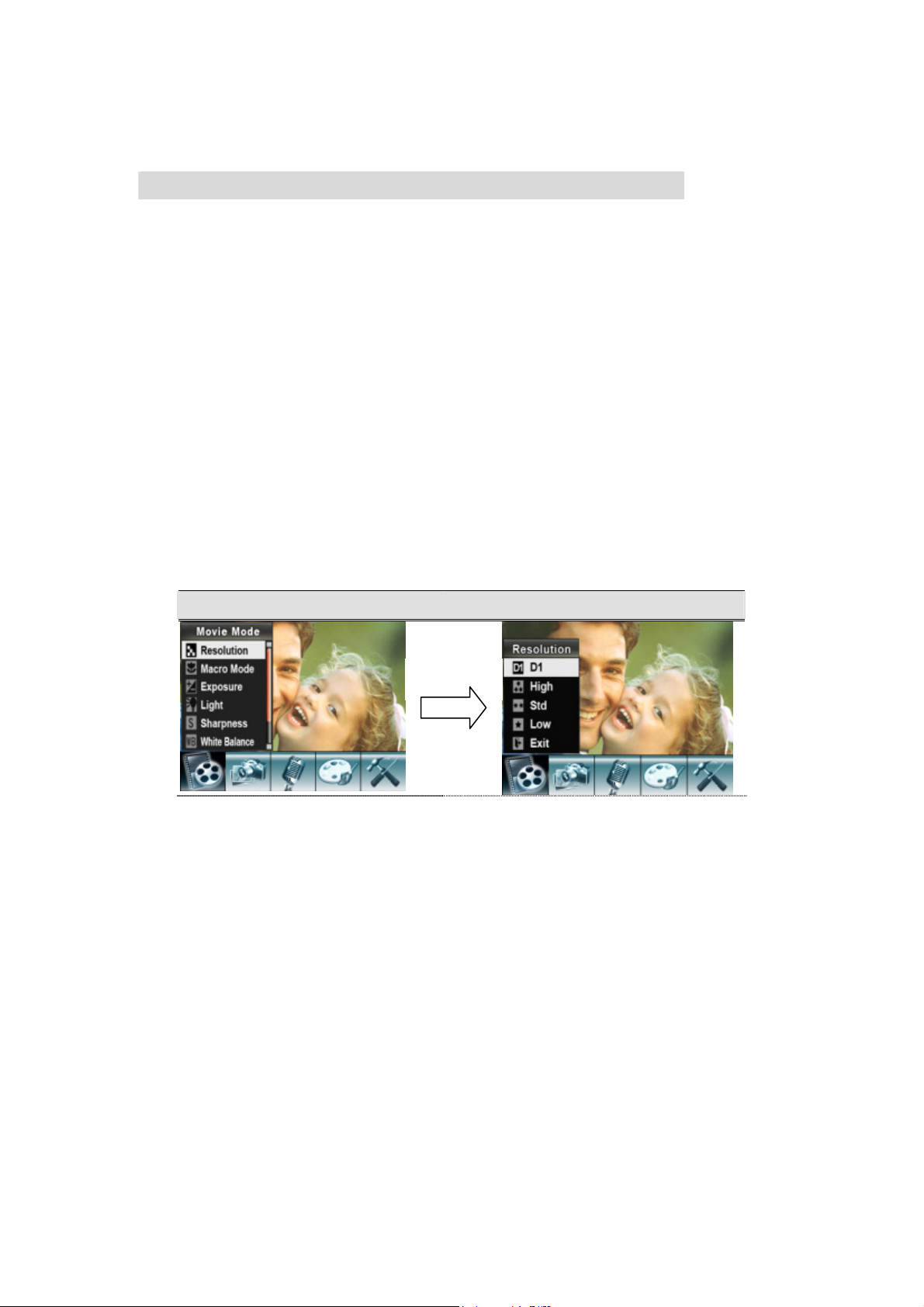

Movie Resolution
To change Movie Resolution:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to select Resolution then press Enter Button to switch to Resolution
submenu.
4. Use Up/Down Buttons to move between four settings.
5. Press Enter Button to validate the setting and exit.
Display Screen Video Resolution Option
Enter Button
13
Macro Mode
With Macro Mode set to Macro, you could take closer images of objects in distance of 10cm to
infinite.
To enable Macro Mode:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to select Macro Mode then press Enter Button to switch to Macro
Mode submenu.
4. Use Up/Down Buttons to move between two settings.
5. Press Enter Button to validate the setting and exit.
6. To switch back to the default value, select ‘Normal’ in the Macro Mode submenu.
Display Screen Video Resolution Option
Enter Button
Exposure
The camera adjusts image exposure automatically. In certain circumstances you may wish to
adjust the exposure compensation setting.
To change Exposure setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to move to Exposure Option. Press the Enter Button and then
Exposure Submenu will pop out on the screen.
4. Use Up/Down Buttons to choose preferred EV value. The change can be previewed
immediately.
5. Press Enter Button to validate the setting and exit.
14
Display Screen Exposure Option
Enter Button
Light
There is light support in Movie Mode. To enable the light, press the hot key (Right Button) or
select from the option menu.
On( ): The LED will be turned on and keeps providing light in the low light environment
Off: The LED is turned off
To enable Light:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to select Light then press Enter Button to switch to Light submenu.
4. Use Up/Down Buttons to choose ON or OFF.
5. Press Enter Button to validate the setting and exit.
Display Screen Flash Options
Enter Button
Note
z The light will be disabled automatically
when battery power is low (
)
15
Sharpness
You can soften and sharpen images to achieve different effects.
To change Sharpness setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to select Sharpness then press Enter Button to switch to Sharpness
submenu.
4. Use Up/Down Buttons to move between nine levels. The change can be previewed
immediately.
5. Press Enter Button to validate the setting and exit.
Display Screen Change Sharpness Setting
Enter Button
16
White Balance
The camera adjusts the color balance of images automatically. Three manual white balance
settings are available:
1. Auto (Default): The camera automatically adjusts white balance.
2. Daylight: Under outdoors
3. Fluorescent: Under fluorescent light condition.
4. Tungsten: Under tungsten light condition.
To change White Balance Setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to select White Balance, then press Enter Button to switch to White
Balance submenu.
4. Use Up/Down Buttons to move between four settings. The change can be previewed
immediately.
5. Press Enter Button to validate the setting and exit.
Display Screen W/B Option
Enter Button
17
Motion Stabilization
To enable Motion Stabilization:
6. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
7. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
8. Use Up/Down Buttons to select Motion Stabilization then press Enter Button to switch to
Motion Stabilization submenu.
9. Use Up/Down Buttons to choose ON or OFF.
10. Press Enter Button to validate the setting and exit.
Motion Stabiization Motion Stabilization Option
Enter Button
Note
1. The captured screen will be smaller when
2. Digital Zoom is disabled when motion
motion stabilization is enabled.
stabilization is activated.
Motion Detection
To enable Motion Detection:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to select Motion Detect then press Enter Buttons to switch to Motion
Detect submenu.
18
4. Use Up/Down Buttons to choose ON or OFF.
5. Press Enter Button to validate the setting and exit.
6. Camera will start to record video once if there is a movement for 3 consecutive seconds.
Stop recording if there is no movement for 3 seconds.
Motion Detect Motion Detect Option
Enter Button
Night Mode
With the camera set to Night Mode, you can take images in a low-light environment.
To enable the Night Mode:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Movie Mode. Submenu of Movie Mode will pop out on the
screen.
3. Use Up/Down Buttons to select Night Mode, then press Enter Buttons to switch to Night
Mode submenu.
4. Use Up/Down Buttons to choose ON or OFF.
5. Press Enter Button to validate the setting and exit.
Night Mode Night Mode Option
Enter Button
19
Camera Mode Setting
Picture Resolution
To change Picture Resolution:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Camera Mode. Submenu of Camera Mode will pop out on
the screen.
3. Use Up/Down Buttons to select Resolution then press Enter Button to switch to Resolution
submenu.
4. Use Up/Down Buttons to move between three settings.
5. Press Enter Button to validate the setting and exit.
Display Screen Video Resolution Option
Enter Button
Macro Mode
With Macro Mode set to Macro, you could take closer images of objects in distance of 10cm to
infinite.
To enable Macro Mode:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Camera Mode. Submenu of Camera Mode will pop out on
the screen.
3. Use Up/Down Buttons to select Macro Mode then press Enter Button to switch to Macro
Mode submenu.
4. Use Up/Down Buttons to move between two settings.
5. Press Enter Button to validate the setting and exit.
6. To switch back to the default value, select ‘Normal’ in the Macro Mode submenu.
20
Display Screen Video Resolution Option
Enter Button
Exposure
The camera adjusts image exposure automatically. In certain circumstances you may wish to
adjust the exposure compensation setting.
To change Exposure setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Camera Mode. Submenu of Camera Mode will pop out on
the screen
3. Use Up/Down Buttons to move to Exposure Option. Press the Enter Button and then
Exposure Submenu will pop out on the screen.
4. Use Up/Down Buttons to choose preferred EV value. The change can be previewed
immediately.
5. Press Enter Button to validate the setting and exit.
Display Screen Exposure Option
Enter Button
21

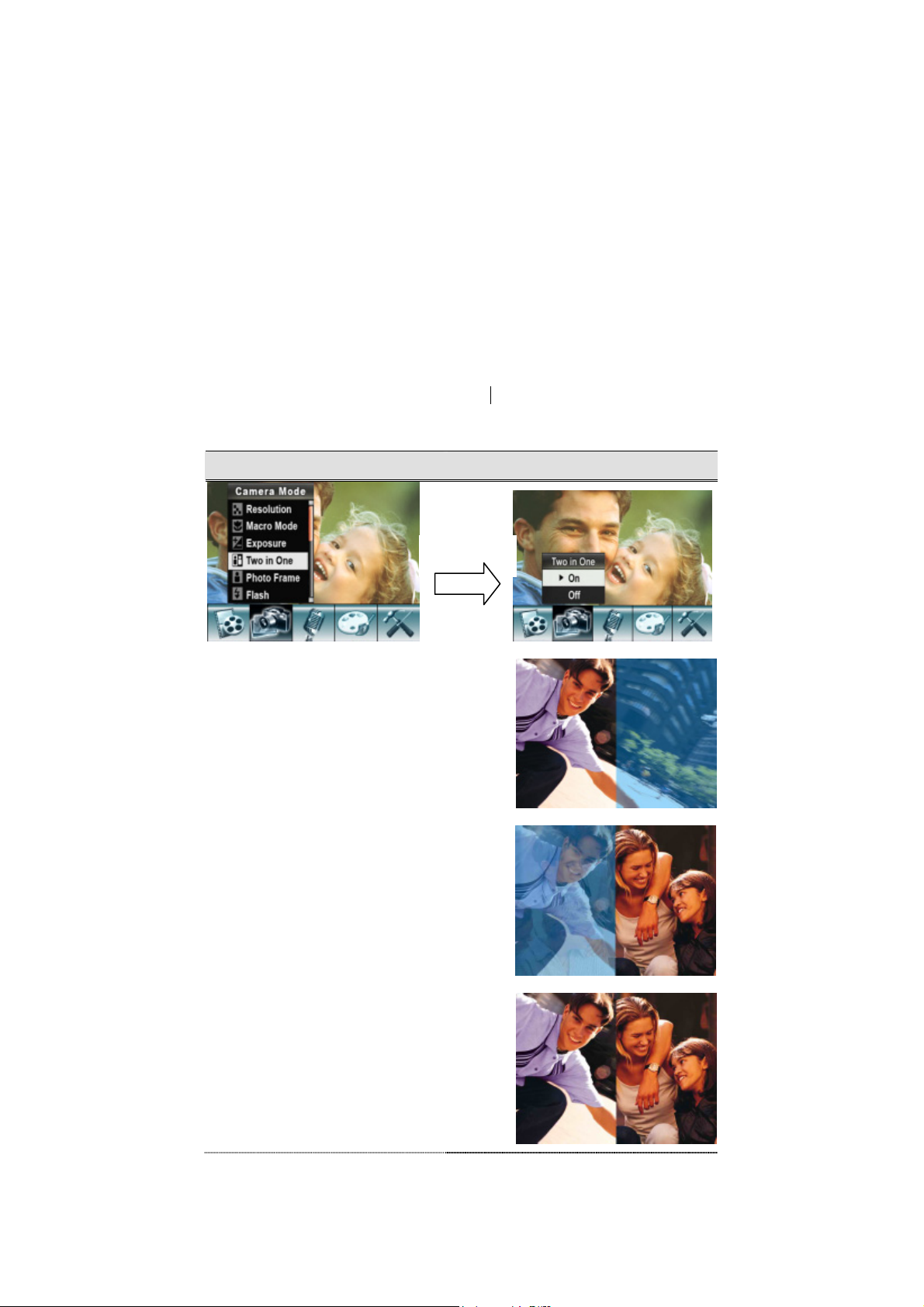

Two in One ( Picture Record Mode Only)
With camera set to Two in One mode, you can combine two snapshots into one picture. To
enable Two in One:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Camera Mode. Submenu of Camera Mode will pop out on the
screen.
3. Use Up/Down Buttons to select Two in One then press Enter Button to switch to Two in One
submenu.
4. Use Up/Down Buttons to choose ON or OFF.
5. Press Enter Button to validate the setting and exit.
Display Screen Two in One Option
Enter Button
1. Press Picture Shutter Button
to take first picture.
2. Press Picture Shutter Button
to take second picture.
3. Press the RECORD/PLAY
Button to view the Two in
One picture.
22
Photo Frame (Picture Record Mode Only)
Your camera features popular electronic photo frame. You can take your picture with preferred
electronic photo frame. To enable Photo Frame:
1. When in Camera Mode, use Up/Down Buttons to select Photo Frame option, then press Enter
Button to switch to Photo Frame submenu.
2. Use Up/Down Buttons to locate preferred photo frame. Then select Set option and press Enter
Button to validate the setting and exit.
Display Screen Photo Frame Option
Enter Button
23
Flash
There are four flash settings under Camera Mode. To change flash settings, press the hot key
(Right Button) or select from the option menu.
Auto Flash( )：The flash fires automatically according to light conditions. Use this mode for
general photography.
Flash On( )：The flash will fire in every shot.
Flash Off( )：The flash will not fire under any circumstances. Use this mode when taking
images in a place where flash photography is prohibited, or when the subject is distant (beyond
the range of the flash).
Red-Eye Reduction( ): The flash fires twice before the picture is taken
To change Flash setting:
1. When in Camera Mode, use Up/Down Buttons to select Flash Option, then press Enter Button
to switch to Flash submenu.
2. Use Up/Down Buttons to move between 4 settings.
3. Press Enter Button to validate the setting and exit.
Note
z The flash will be disabled automatically
when battery power is low (
)
Display Screen Flash Options
Enter Button
24
Self-timer (Picture Record Mode Only)
The self-timer allows you to take pictures with a ten-second time delay. To activate Self-timer by
either hot key (Left Button) or Option Setting. The self-timer LED on the front of the camera
beneath the flash light will also blink. The speed of blinking will increase just before the picture is
taken.
To enable Self-timer:
1. When in Camera Mode, use Up/Down Buttons to select Self-timer, then press Enter Button to
switch to Self-timer submenu.
2. Use Up/Down Buttons to choose On or Off.
3. Press Enter Button to validate the setting and exit.
Display Screen Self-timer Options
Enter Button
Sharpness
You can soften and sharpen images to achieve different effects.
To change Sharpness setting:
1. When in Camera Mode, use Up/Down Buttons to select Sharpness Option, then press Enter
Button to switch to Sharpness submenu.
2. Use Up/Down Buttons to select Sharpness then press Enter Button to switch to Sharpness
submenu.
3. Use Up/Down Buttons to move between nine levels. The change can be previewed
immediately.
4. Press Enter Button to validate the setting and exit.
Display Screen Change Sharpness Setting
Enter Button
25
White Balance
The camera adjusts the color balance of images automatically. Three manual white balance
settings are available:
1. Auto (Default): The camera automatically adjusts white balance.
2. Daylight: Under outdoors
3. Fluorescent: Under fluorescent light condition.
4. Tungsten: Under tungsten light condition.
To change White Balance Setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Camera Mode. Submenu of Camera Mode will pop out on
the screen.
3. Use Up/Down Buttons to select White Balance, then press Enter Button to switch to White
Balance submenu.
4. Use Up/Down Buttons to move between four settings. The change can be previewed
immediately.
5. Press Enter Button to validate the setting and exit.
Display Screen W/B Option
Enter Button
26
Multi-Snap (Picture Record Mode Only)
With the camera set to Multi-Snap Mode, you can take five continuous pictures.
To enable Multi-Snap:
1. When in Camera Mode, use Up/Down Buttons to select Multi-Snap, then press Enter Button
to switch to Multi-Snap submenu.
2. Use Up/Down Buttons to choose On or Off.
3. Press Enter Button to validate the setting and exit.
Display Screen Multi-Snap Option
Enter Button
Backlight (Picture Record Mode Only)
With the camera set to backlight Mode, you can take shots when bright light is behind the
subject.
To enable Backlight:
1. When in Camera Mode, use Up/Down Buttons to select Backlight, then press Enter Buttons to
switch to Backlight submenu.
2. Use Up/Down Buttons to choose On or Off.
3. Press Enter Button to validate the setting and exit.
Display Screen Backlight Option
Enter Button
27
Date Printing
To enable Date Printing:
1. When in Camera Mode, use Up/Down Buttons to select Date Printing, then press Enter
Buttons to switch to Date Printing submenu.
2. Use Up/Down Buttons to choose On or Off.
3. Press Enter Button to validate the setting and exit.
Display Screen Date Printing Option
Enter Button
Note
Date would be shown on the printed picture
once date printing is enabled.
Night Mode
With the camera set to Night Mode, you can take images in a low-light environment.
To enable the Night Mode:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to select Camera Mode. Submenu of Camera Mode will pop out on
the screen.
3. Use Up/Down Buttons to select Night Mode, then press Enter Buttons to switch to Night
Mode submenu.
4. Use Up/Down Buttons to choose ON or OFF.
5. Press Enter Button to validate the setting and exit.
Night Mode Night Mode Option
Enter Button
28
Voice Pen
To enable voice recording:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to move to Voice Pen Option. Then Voice Pen Submenu will pop out on
the screen.
3. Use Up/Down Button to move between Enter and Exit Option.
4. Choose Enter option to enable voice recording and press Enter Button to validate the setting
and exit.
Display Screen Voice Pen Option
Enter Button
29
Effect Setting
There are four modes which are Normal, Black/White, Classic and Negative.
To change Effect setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to move to Effect Option. Then Effect Submenu will pop out on the
screen.
3. Use Up/Down Buttons to move between four settings. The change can be previewed
immediately.
4. Press Enter Button to validate the setting and exit.
Display Screen
30
Setting Menu
The Setting submenu contains options for configuring your camera set up.
To change advanced setting:
1. In Movie/Picture Record Mode, press Enter Button to switch to record menu screen.
2. Use Right/Left Buttons to move to Setting option, then Setting Submenu will pop out on the
screen.
3. Use Up/Down Buttons to move between settings.
Display Screen Setting Option
z Sound (operation sound)
z Start-Up Screen
z Time Setting
z Format Card
z TV System
z Language
z Default Setting
z Sound Setting
Enable or disable KeyPad tone and operation sound by using Up/Down Buttons, the press Enter
Button to validate the setting.
Submenu Display Screen Sound Setting
Sound
31
z Start-up Screen
Customize the Start-Up Screen with your favorite pictures. Press Right/Left Buttons to select the
picture you want and press Enter Button to validate the setting and exit.
Submenu Display Screen Start-Up Screen
Start-Up Screen
If you do not want to customize the start up screen, press Left/Right Buttons and select No
Start-Up Screen.
No Start-Up Screen
)
z Time Setting
z Move between Date, Time, Set and Exit by using Left/Right Buttons.
z Adjust date and time by using Up/Down Buttons, then select Set to validate each change.
z Select Exit to leave Time Setting without any change.
Submenu Display Screen Time Setting
Time Setting
32
z Format Memory/Card
Submenu Display Screen Format Card Options
Format
Memory/Card
Yes：Format the SD Card / built-in memory
No (Default)：Do not format SD Card / built in memory
Note
z All the data will be erased if the SD card is
formatted. Make sure all the data are
duplicated to PC before formatting SD
card.
33
z TV System
Ensure that the appropriate TV standard of your area is selected – either NTSC or PAL.
Wrong TV system setting may cause image flicker.
NTSC standard: USA, Canada, Japan, South Korea and Taiwan etc.
PAL standard: UK, Europe, China, Australia, Singapore and Hong Kong etc.
Submenu Display Screen TV System Option
TV System
z Selecting Interface Language
Submenu Display Screen
Language
z Default Setting
To restore the default factory setting, select this option.
Submenu Display Screen Default Setting Options
Default Setting
34
Section 4
Playback Mode
Press RECORD/PLAY Button to switch from Record Mode to Playback Mode.
The Playback Mode is for viewing and managing movies and pictures as well as listening to voice
and music, or read eBook on the built-in memory or on an optional memory card.
Operation Display Screen
Press RECORD/PLAY Button to switch from Record
Mode to Playback Mode Main Menu.
z There are five options in the Playback Mode, movie,
picture, voice, music, and eBook.
z Direction Buttons can be used to select the specific
option.
z Press Enter Button to view movies/pictures, listen to
voice/music, or read eBook.
Note
When any recorded movie, picture, voice, music,
or eBook is stored in the camera, a folder will be
shown on the respective playback mode.
35
Button Functions
The Direction Buttons have the following functions in Movie and Picture Playback Modes.
Enter Button
Right Button : Go to the next movie/ picture.
Left Button : Go to the previous movie/ picture.
Up Button : Invalid
Down Button : Information ON/OFF
Enter Button : Enter to movie, picture, voice, music
or e-Book option menu.
RECORD/PLAY Button functions:
1. Switch between Record and Playback modes.
2. Return to the previous page.
Tele-Wide Button: Digital Zoom in and out.
Movie Shutter Button：
Start playing the recorded movie or voice
36
LCD Monitor Information
Indicators on the LCD screen while in Playback Mode：
(4)
(1)
Mode Indicator
Movie Playback Mode
Picture Playback Mode
(2) Resolution Indicator
D1
High Resolution
Standard Resolution
(3)
(2)
(1)
(5)
(3)
Low Resolution
Indicate the selected movie/picture is locked.
(4) Current Number/ Total number of movie, picture, voice, or MP3.
(5)
Magnification Indicator.
37
Movie Playback
Operation Display Screen
1. Use Direction Buttons to select the Movie option.
2. Press Enter Button to go to Movie Playback Mode.
3. Use Right/Left Buttons to go to the next or last movie.
4. Press Movie Shutter Button to play and press it again to
pause.
5. While playing movie, press Right/Left Buttons to fast
forward/backward, then release the button to stop.
6. Use Up/Down Buttons to adjust volume.
7. Press Enter Button to go to the movie option menu.
8. Use Direction Buttons to select six options, Delete,
Thumbnail, Lock, Repeat One, Repeat All, or Exit.
38
Delete Movies
Operation Display Screen
1. Use Direction Buttons to select the Delete option ( ).
2. Press Enter Button to go to the Delete menu.
3. Use Right/Left Buttons to select the movie.
4. Use Up Button to delete all movies and Down Button to
delete single movie.
5. Before a movie is deleted, a confirmation screen will
appear; choosing “Yes” will execute the operation and
“No” to cancel the operation.
6. Press Enter Button to exit.
Note
If a memory card is fitted, you can delete only
those movies stored on the card.
Note
Movies on a written-protected memory card
cannot be deleted.
Note
The delete function will only erase unlocked
movies. Locked movies must be unlocked before
being deleted.
39
Thumbnail Function
Operation Display Screen
1. Use Direction Buttons to select the Thumbnail option (
2. Press Enter Button to view nine thumbnail movies.
3. To play a movie, use Direction Buttons to select the movie
and press Enter Button to view.
).
Lock Movies
Single or all movies can be locked. This function can prevent the movies from being deleted
accidentally.
Operation Display Screen
1. Use Direction Buttons to select the Lock option ( ).
2. Press Enter Button to go to the Lock menu.
3. Use Right/Left Buttons to select the movie.
4. Use Up Button to lock/unlock all movies and Down Button to
lock/unlock single movie.
5. Before a movie is locked/unlocked, a confirmation screen will
appear; choosing “Yes” will execute the operation, “No” will
cancel the operation.
6. Press Enter Button to exit.
40
Repeat Movies
This function automatically repeats playing single movie or all movies in order.
Operation Display Screen
1. Use Direction Buttons to select the Repeat One option ( )
or Repeat All option (
2. Press Enter Button to start repeating.
).
41
Picture Playback
Operation
1. Use Direction Buttons to select the Picture option.
2. Press Enter Button to go to Picture Playback Mode.
3. Use Right/Left Buttons to go to the next or last picture.
4. While the picture is selected, use Tele/Wide Buttons to
magnify.
5. Use Direction Buttons to navigate the magnified picture.
6. Press Enter Button to go to the picture option menu.
7. Use Direction Buttons to select five options, Delete,
Thumbnail, Lock, Slideshow, or Exit.
Display Screen
42
Delete Picture
Operation Display Screen
1. Use Direction Buttons to select the Delete option ( ).
2. Press Enter Button to go to the Delete menu.
3. Use Right/Left Buttons to select the picture.
4. Use Up Button to delete all pictures and Down Button to
delete single picture.
5. Before a picture is deleted, a confirmation screen will
appear; choosing “Yes” will execute the operation, “No” will
cancel the operation.
6. Press Enter Button to exit.
Note
If a memory card is fitted, you can delete only
those pictures stored on the card.
Note
Pictures on a written-protected memory card
cannot be deleted.
Note
The delete function will only erase unlocked
pictures. Locked pictures must be unlocked
before being deleted.
43
Thumbnail Function
Operation Display Screen
1. Use Direction Buttons to select the Thumbnail option ( ).
2. While selecting Thumbnail option, press Enter Button to view
nine thumbnail pictures.
3. To view a picture, use Direction Buttons to select the picture.
4. Press Enter Button to view the selected picture.
Lock Pictures
Single or all pictures can be locked. This function can prevent the pictures from being deleted
accidentally.
Operation Display Screen
1. Use Direction Buttons to select the Lock option ( ).
2. Press Enter Button to go to the Lock menu.
3. Use Right/Left Buttons to select the picture.
4. Use Up Button to lock/unlock all pictures and Down
Button to lock/unlock single picture.
5. Before a picture is locked/unlocked, a confirmation
screen will appear; choosing “Yes” will execute the
operation, “No” will cancel the operation.
6. Press Enter Button to exit.
44
Make Slide Show
This function automatically repeats all pictures in order.
Operation Display Screen
1. Use Direction Buttons to select the Slide option ( ).
2. Press Enter Button to start the slide show; Press it again to
stop.
45
Voice Playback
Direction Buttons Function
In Voice Playback Mode, the Direction Buttons have the following functions:
Right/ Left Buttons：Select the last or next voice.
Up/Down Buttons ：Adjust the voice playback
volume.
Enter Button：Switch to voice option menu.
Operation
1. Use Direction Buttons to select the Voice option.
2. Press Enter Button to go to Voice Playback
Mode.
3. Use Right/Left Buttons to go to the next or last
voice recording.
4. Press Movie Shutter Button to start playing back
the selected voice. Press it again to stop.
Display Screen
5. Use Up/Down Buttons to adjust the volume.
6. Press Enter Button to go to the voice playback
option menu.
7. Use Up Button to select Delete option and Down
Button to select Repeat option.
46
8. Press Up Button once to repeat single voice;
Press twice to repeat all voice recording.
9. Press it again to disable the repeat function.
10. The repeat icons will be different while selecting
Repeat One option and Repeat All option.
11. To delete a voice, use Right/Left Buttons to
select the voice.
12. Use Up Button to delete all voice recordings and
Down Button to delete single voice recording.
13. Before a voice is deleted, a confirmation screen
will appear; choosing “Yes” will execute the
operation, “No” will cancel the operation.
14. Press Enter Button to return to the previous
page.
15. Press Record / Play Button to exit Voice mode.
47
Section 5
Listening to MP3 Music
MP3 Music
MP3 is a compressed audio file format. The MP3 music can be downloaded from some MP3 web
sites. This DV includes the feature of MP3 play with lyrics display. To enable this function, make
sure both .mp3 and .lrc files with the same file name are copied to the memory.
Transfer MP3 Music to the camera
1. Install the camera driver on your computer.
2. Connect your camera to the computer USB port.
3. The Red LED will light when the camera is connected to the computer and in Mass Storage
Mode.
4. Transfer MP3 music to My Computer\Removable Disk\MP3.
5. Once all the music is transferred, disconnect the USB cable from the PC.
Listen to MP3 Music

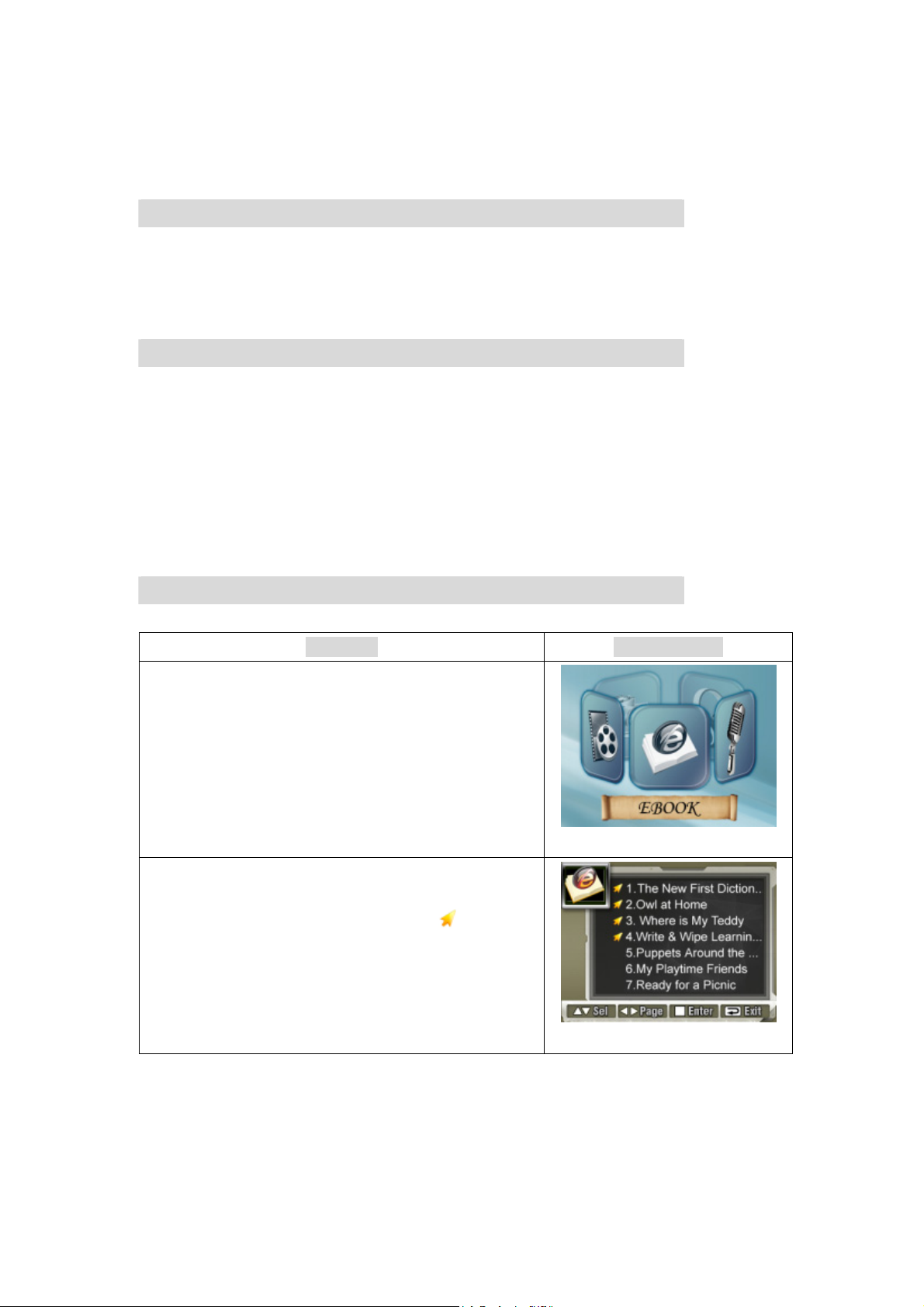

Operation Display Screen
1. In Playback Mode, use Direction Buttons to select
the Music option
[LIST_MENU]
2. Use Up/Down Buttons to locate MP3 you want to
play, or press Right/Left Buttons to jump to the
next/previous page. There is an icon
for those MP3 with Lyrics display.
[PLAY/STOP_MENU]
in the front
3. Press Movie Shutter Button to play MP3
4. Press Movie Shutter Button again to stop playing.
5. Press Up/Down Buttons to adjust volume.
6. Press RECORD/PLAY button to return to LIST
MENU when MP3 stops playing.
48
[REPEAT_MENU]
7. Press Enter Button to go to repeat menu.
8. Press Down Button once to repeat current
MP3(
9. Press Down Button twice to repeat all MP3(
10. Press Enter Button to return to PLAY/STOP MENU.
).
).
Listen to MP3 Music with earphone
MP3 stored in the camera can be played either by built-in speaker, or Earphone, or TV.
When the earphone cable is plugged in the camera, the option menu of Earphone/TV pops out
on the LCD Screen. Choose earphone or TV and press Enter Button to validate the setting.
49
Important Safety Information
Avoiding water and wet locations
Do not use the product in rain, or near washbasins or other wet locations. Take care not to spill
any food or liquid into the product. In case the product gets wet, unplug all cables, turn it off and
allow it to dry thoroughly before turning it on again.
Avoid hearing damage
Permanent hearing loss may occur if earphones are used at high volume. Set the volume
to a safe level. You can adapt over time to a higher volume of sound that may sound
normal but can be damaging to your hearing. If you experience ringing in your ears of muffled
speech, stop listening and have your hearing checked. The louder the volume, the less time is
required before your hearing could be affected. Hearing experts suggest that to protect your
hearing:
- limit the amount of time you use earphones at high volume
- avoid turning up the volume to block out noisy surroundings
- turn the volume down if you can’t hear people speaking near you
Note
The sound level is below 100 db, in
accordance with the European legislation.
50
Section 6
Reading eBook
eBook
An eBook is an electronic edition of a physical book. eBooks in your camera have many features
that traditional paper books do not: you have the freedom to control the look and feel of your
eBook through colors, your own bookmarks, carrying your eBooks anywhere with your camera.
Transfer eBooks to the camera
1. Install the camera driver on your computer.
2. Connect your camera to the computer USB port.
3. The Red LED will light when the camera is connected to the computer and in Mass Storage
Mode.
4. Transfer eBooks, .txt file format only, to My Computer\Removable Disk\eBook.
5. Once all the files is transferred, disconnect the USB cable from the PC.
Read eBooks
Operation Display Screen
1. In Playback Mode, use Direction Buttons to select
the eBook option
2. Use Up/Down Buttons to select eBook you want to
read, or press Right/Left Buttons to jump to the
next/previous page. There is an icon
for those eBooks with bookmark added.
in the front
51
3. Press Enter Button to read the eBook.
4. Press Up/Down Buttons to scroll up/down the text
5. Select to jump to the first page
6. Select
7. Select
background.
8. Select
9. Select
to jump to the last page
to change the color of text and
to auto scroll down the text.
to add a bookmark.
52
Section 7
Viewing MPEG4 Movie on PC
MPEG4 Movie
MPEG4, the multimedia format and compression standards, is a cutting-edge compression
technology developed by MPEG (Motion Picture Expert Group). It not only enhances the image
quality but also improves the efficiency of recording capacity.
MPEG4 is adopted in this camera to take MPEG4 movies. The MPEG4 movie format of AVI is
used in this camera.
View MPEG4 Movie on PC
When playing an MPEG4 movie for the first time, MPEG4 Video Codec Xvid should be installed in
PC. To do this:
(1) Insert the CD-ROM into the computer’s CD-ROM drive. Click “Install Device Driver” (Install
MPEG4 Video Codec Xivd) and follow the on-screen instructions to complete the installation.
(2) Start video player such as Widows Media Player to view MPEG4 AVI Movies.
Share MPEG4 Movie
You can share the recorded MPEG4 movies to your friends via internet or CD. Make sure MPEG4
Video Codec Xvid is installed in your friends’ PC. MPEG4 Video Codec Xvid is available in the
provided CD or can be downloaded from Internet.
53
Viewing Pictures and Movies on a TV
s
s
You can view stored movies and pictures on a television. To connect to a television:
1. Connect one end of the AV cable to your camera’s AV Out port.
2. Connect the other end of the cable to a television.
3. The option menu of Earphone/TV pops out on the LCD Screen.
4. Choose TV option and press Enter Button to validate the setting.
5. The steps for viewing stored pictures and movie on a TV are exactly the same as for
Section 8
viewing them on the LCD monitor.
Note
1. The LCD monitor does not work when the
camera is connected to a television.
2. Taking picture with high re
upported while the camera connects to a
TV.
olution is not
54
Section 9
Video File Converter
Bundled software CD contains Acrsoft Media Converter that features video file converter to
convert multiple video formats into MPEG4 Xvid compatible format with your camera. In this way,
you can convert various video files formats and playback your favorite movies on your camera.
To convert a video file:
(1) Install Arcsoft Media Converter2 ( Refer to section 11)
(2) Click Start Æ Select ProgramsÆArcsoft Media Converter2ÆMedia Converter2
(3) Media Converter main Screen will appear on your desktop
(4) Select “Zoran Coach Compatible” at “Select Device” column. The “Select Conversion
Parameter” will change to “Coach 7 Camera” respectively.
Compatible Device Selection
55
(5) Click “Add Media”
(6) Select Video file you want to convert
56
(7) You can preview your media files before converting. To preview media files, use the
following control functions.
* Click
*Click
to start previewing
to stop previewing
Make sure your media files can be previewed before converting
57
(8) Click on
to begin converting files
(9) Task Report window will pop out after the task is completed.
(10) Before transferring the converted file to your camera, rename the converted file to
“ Clip0001.avi”. (Please note: if Clip0001.avi exists in the camera, then the converted file
has to be renamed to clip0002.avi)
(11) Connect your camera to PC and transfer the converted video to “My
Computer\Removable Disk\DCIM\200Movie” in your camera. (Refer to Section
11Transferring Data to a Computer)
(12) After transferring the converted video to the camera, press RECORD/Play Æ REC/PLAY
Button to enjoy your favorite movie.
58
Section 10
Burning the Recorded Clip into DVD
Bundled software CD contains ArcSoft Showbiz DVD also feathers burning the movie clip into
DVD. You can preserve your precious movies on DVD to share with family and friends. To create
a DVD:
(1) Install Arcsoft Showbiz DVD ( Refer to section 11)
(2) Click StartÆ Select ProgramsÆ Acrsoft Showbiz DVDÆ Showbiz DVD
(3) Showbiz DVD main Screen will appear on your desktop.
(4) Drag Video File to “ Drag Video Here”
59
(5) Click ” Create ”
(6) Click “ Start “ to start DVD burning
60
Section 11
Transferring Data to a Computer
Installing the Digital Camera Driver
Before connecting this camera to a computer for the first time, you should install a driver on the
computer. The driver is on the CD-ROM disc provided in the package. To install the driver:
1. Insert the CD-ROM into the computer’s CD-ROM drive. The autorun screen will
appear.
2. Click “Install Device Driver”. Follow the on-screen instructions to complete the
installation. Depending on your operating system, you may have to restart your
computer after installing the driver.
Connecting Your Camera to a Computer
You can transfer pictures, movies or voice recordings stored on your camera to a computer and
send them in emails to friends or post them on websites. To do this you should:
1. Install the camera driver on your computer.
2. Connect the computer and camera with the supplied mini USB 2.0 cable.
3. Default mode is Mass Storage Mode when the camera connects to PC
4. Transfer pictures or movies or MP3 or voice recordings
Mass Storage Device Mode
The RED LED will light up when the camera is connected to the computer. Movies, pictures
and voice recordings can be found on your computer at “My Computer\Removable
Disk\DCIM\”. Under this mode, you can read, delete, move, or copy any movie/picture/voice
recording you want. Use the bundled Ulead application software to edit the movies or
pictures.
PC Camera Mode
When in Mass Storage Device Mode, press RECORD/PLAY Button to switch to PC Camera
Mode and the GREEN LED will light up. Under this mode, you can implement live video
conference meetings or use video email over the Internet.
61
Installing Bundled Software
The CD-ROM supplied with this camera contains 5 pieces of software.
Ö Acrsoft PhotoImpression is a user-friendly application that helps you read, edit
and organize images.
Ö Acrsoft Show Biz allows you to edit movies and is equally easy to use.
Ö Arcsoft Media Converter can convert multiple video formats into MPEG4 Xvid
compatible format with your camera
Ö Adobe Reader is a popular program that you need to have installed to read the
User’s Manual. Many computer users will find they already have this software
installed on their computer.
Ö MPEG4 Video Codec Xvid, this decode software has to be installed for correctly
viewing the movies you record.
The detail information can be found in online help of all the bundled software.
To install the bundled software:
1. Insert the CD-ROM into your computer’s CD-ROM drive. The autorun screen appears.
2. Select the piece(s) of software you want to install from the list, then click Install Application
Software. Follow the on-screen instructions to complete the installation.
62
Specification
Image Sensor 7 Mega Pixel Sensor
Operation Modes
Lens F3.0~5.0 (f = 6.0~15.8 mm)
Section 12
Specifications and System Requirements
Movie Record、Picture Record、Voice
Record、e-Book、MP3 Player、PC Camera、
Mass Storage Device
Focus Range
Zoom Optical: 3X; Digital: 4X
Shutter Mechanical
LCD monitor 2.5" LTPS TFT LCD
Storage Media
Image Resolution
Movie Resolution
White Balance Auto/Manual (Daylight, Fluorescent, Tungsten)
Exposure
60cm~infinite (Normal Mode)
10cm~infinite (Macro Mode)
Built-in 64MB Memory (partial memory is used
for Firmware code);
SD/MMC Card Slot support (up to 4GB)
3744x2808 (11M Pixels)
3072x2304 (7M Pixels)
2048x1536 (3M Pixels)
D1 720x480 pixels 30fps
VGA 640x480 pixels 30 fps
QVGA 320X240 pixels 30 fps
Auto/Manual
Light
Self-Timer
Flash
File Format
Image play
PC Interface
TV out
Battery
Dimension
Weight
On/Off
10 second delay
Auto/On/Off/Red-Eye Reduction
Picture： JPEG
Movie ： AVI (Xvid)
Voice ： WAV
Music ： MP3
Single Image/Thumbnails/Slideshow
Mini USB 2.0 Port
NTSC/PAL Selectable
Lithium-ion Rechargeable Battery
119mm×64mm×30.5mm
165g（without battery）
63
System Requirement
Windows 2000/XP/Vista
Pentium III 800MHz or higher
256 MB RAM
CD ROM
1GB free HDD space
Available USB port
Operating Environment Conditions
Operating temperature: 5 to 35° C
Operating humidity: 20 to 80 %
(no condensation allowed)
EU Declaration of Conformity
Toshiba declares, that this product conforms to the following Standards:
Supplementary Information:
“The product complies with the requirements of the Low Voltage Directive 2006/95/EC and the
EMC Directive 2004/108/EC”
This product is carrying the CE-Mark in accordance with the related European Directives.
Responsible for CE-Marking is Toshiba Europe, Hammfelddamm 8, 41460 Neuss, Germany.
Manufacturer: Toshiba Corporation, 1-1 Shibaura 1-chome, Minato-ku, Tokyo, 105-8001, Japan
Following information is only for EU-member states:
The use of the symbol indicates that this product may not be treated as household waste. By
ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.
64
Need help?
TOSHIBA options & services support page:
computers.toshiba.eu/options-support
Please see
computers.toshiba.eu/options-warranty
for the TOSHIBA hotline numbers
65
Loading...
