XC74UL4066
ETR1308_002
CMOS Logic
■DESCRIPTION
XC74UL4066 is CMOS analog switch manufactured using silicon gate CMOS processes. The small supply current, which is
one of the features of the CMOS logic, gives way to high speed analog or digital signal switching.
As the series is integrated into a mini molded, SSOT-25 and SON-6 package, high density mounting is possible.
■APPLICATIONS
●Palmtops
●Digital equipment
■PIN CONFIGURATION
SSOT-25
（TOP VIEW）
XC74UL4066N
IN/OUT
GND
Vcc
SON-6
（TOP VIEW）
XC74UL4066R
■FEATURES
High Speed Operation : tpd = 2ns (TYP.)
Operating Voltage Range : 2V ~ 5.5V
Low Power Consumption : 1μA ( MAX.)
Low ON Resistance
CMOS Logic Analog Switch
Ultra Small Packages : SSOT-25, SON-6*
* Under Development
OUT/IN
CONT
: 22Ω(TYP.)
■LOGIC DIAGRAM
■FUNCTIONS
CONTROL STATE
L OFF
H ON
H=High level
L=Low level
1/11
XC74UL4066
■ABSOLUTE MAXIMUM RATINGS
PARAME T E R SYMBOL RATINGS UNITS
Supply Voltage VCC -0.5~+6.0 V
Control Input Voltage VCONT -0.5~+6.0 V
Switch Output Voltage VOUT -0.5~VCC+0.5 V
Control Input Diode Current IIK -20 mA
Switch Output Diode Current IOK ±20 mA
Switch Output Current IOUT ±25 mA
VCC,GND Current ICC,IGND ±50 mA
Power Dissipation＊
SSOT-25 150
SON-6
Pd
200
Storage Temperature Range Tstg -65~+150 ℃
■RECOMMENDED OPERATING CONDITIONS
Voltage is all ground standardized.
＊Ta =2 5℃
Ta =- 40 ℃~85℃
mW
PARAME T E R SYMBOL VCC(V) CONDITIONS UNITS
Supply Voltage VCC － 2~5.5 V
Input Voltage VIN － 0~5.5 V
Output Voltage VOUT － 0~VCC V
Operating Temperature Range Topr － -40~+85 ℃
Input Rise and Fall Time tr,tf
■DC ELECTRICAL CHARACTERISTICS
PARAMETER SYMBOL
“High” Level Control
Input Voltage”
“Low” Level Control
Input Voltage”
Peak ON Resistance RONmax
ON Resistance RON(1)
Power Off Leak Current IS(OFF) 5.5 VCONT=VIL, VIN=VCC, VOUT=GND
Power On Leak Current IS(ON) 5.5 VCONT=VIH, VIN=VCC, OR GND
Control Input Current ICONT 5.5 VIN=VCC or GND
Static Supply Current ICC 5.5 VIN=VCC or GND
V
IH
IL
V
VCC(V)
2.0 1.5
3.0 2.1
5.5
2.0
3.0
5.5
2.0 VCONT=VIH
3.0 VIN=0~VCC
4.5 I
2.0 VCONT=VIH 23 50 65
3.0
4.5 I
3.3 0~100
5.0 0~20
CONDITIONS
IN/OUT=1mA
IN=GND or VCC
V
IN/OUT=1mA 10 20 25
Ta =2 5℃ Ta= -4 0℃~85℃
MIN. TYP. MAX. MIN. MAX.
0.5
0.9
1.0
1.5
2.1
3.85
－
－
－
－
－
－
－
－ －
－ －
3.85
－ －
－ －
－ －
－ －
－
－
－
14 30 40
－ － ±0.1 － ±1.0 μA
－ － ±0.1 － ±1.0 μA
－ － ±0.1 － ±1.0 μA
－ －
1.65
130 350
22 50
12 25
ns/V
－
－
－
0.5
0.9
1.65
550
65
35
5.0
UNITS
V
V
Ω
μA
2/11
■SWITCHING ELECTRICAL CHARACTERISTICS
PAR AME TER SYMBOL
tPLH
Delay Time
tPHL
Output Enable Time
Output Disable Time
tZL
tZH
tLZ
tHZ
Sine Wave Distortion Rate 3.0
VCC(V)
2.0
3.3
5.0
2.0
3.3
5.0
2.0
3.3
5.0
CONDITIONS
R
L=10kΩ
C
L=50pF
L=1kΩ
R
C
L=50pF
R
L=1kΩ
CL=50pF
L=10kΩ
R
C
L=50pF
f
IN=1kHz
MIN. TYP. MAX. MIN. MAX.
Ta =2 5℃
－
－
－
－
－
－
－
－
－
－
4 20
3 6
2 5
9 50
5 10
3 8
12 60
10 23
8 20
0.05
－ － －
XC74UL4066
Ta =- 4 0℃~85℃
－
－
－
－
－
－
－
－
－
23
8
6
65
12
10
75
27
25
(tr=tf=3ns)
UNITS
ns
ns
ns
%
-3dB Band Width 3.0
Feed Through
(Switch- off)
Cross Talk
(Control Switch)
Maximum Control
Input Frequency
Control Input Capacitance CiN
Switch Input/Output Capacitance CIN/OUT
Feed Through Capacitance CIN-OUT
Power Dissipation Capacitance CPD
Note: C
PD is defined as the value of the internal equivalent capacitance which is derived from the operating supply current at times of
"No Load".
Ensure that the average operating supply current at times of "No Load" meets the following conditions:
CC (opr)=CPD･VCC･FIN+ICC
I
RL=600kΩ, CL=50pF
20log 10
L=600kΩ
R
3.0
2.0
3.0
4.5
2.0
3.0
4.5
－
－
－
－
C
L=50pF
IN=1kHz
f
L=600kΩ
R
C
L=50pF
f
IN=1kHz
R
L=1kΩ
C
L=15pF
OUT=VCC/2
V
VOUT
V
200
=- 3dB
IN
－
－
-60
－
100
－
150
－
－
－
－
－
－
0.5
－
－
－ － －
－ － －
60
－ － －
－ － －
－ － －
30
－ － －
30
－ － －
30
－ － －
5 10
6
－ － －
－ － －
13
－ － －
－
10 pF
MHz
dB
mV
MHz
pF
pF
pF
3/11
XC74UL4066

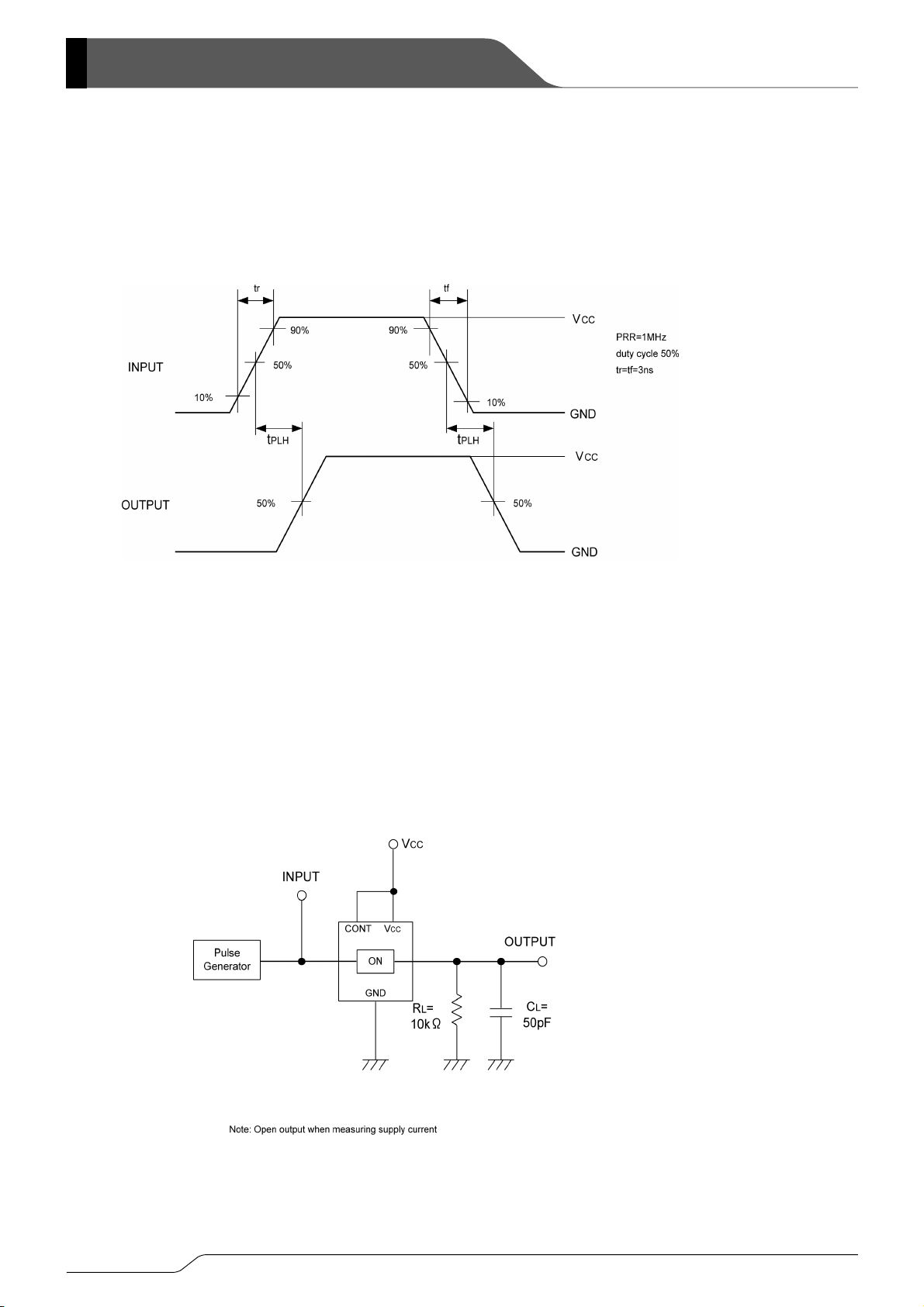

■DELAY TIME
●WAVEFORM
●TEST CIRCUIT
4/11
■OUTPUT ENABLE TIME, OUTPUT DISABLE TIME
●WAVEFORM
XC74UL4066
●TEST CIRCUIT
5/11
XC74UL4066
■SINE WAVE DISTORTION RATE
■-3dB BAND WIDTH
6/11
■FEED THROUGH TEST CIRCUIT
■CROSS TALK
XC74UL4066
●WAVEFORM
●TEST CIRCUIT
7/11
Y
XC74UL4066
■MAXIMUM CONTROL INPUT FREQUENC
●WAVEFORM
●TEST CIRCUIT
8/11
■ON RESISTANCE
■VOLTAGE DEPENDANCIES OF ON RESISTANCE
XC74UL4066
9/11
XC74UL4066
■POWER OFF LEAK CURRENT
■POWER ON LEAK CURRENT
10/11
XC74UL4066
