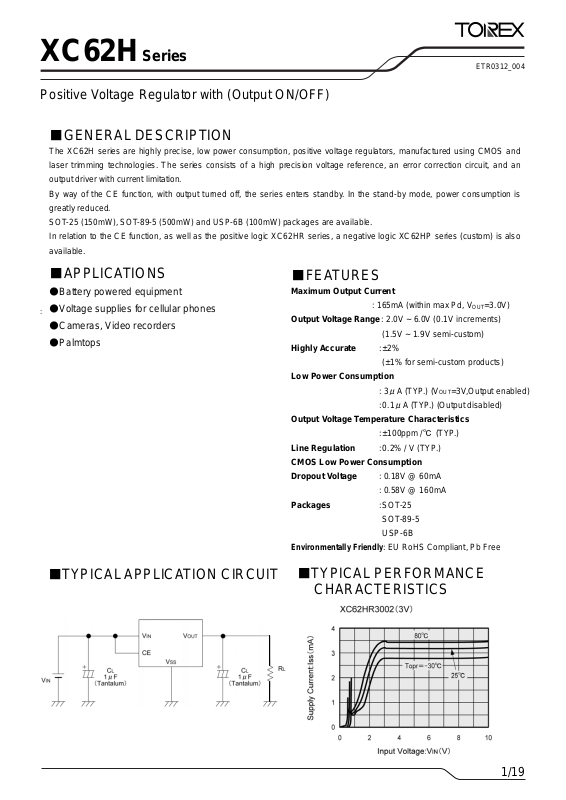

XC62H Series

ETR0312_004

Positive Voltage Regulator with (Output ON/OFF)

■GENERAL DESCRIPTIO N

The XC62H series are highly precise, low power consumption, positiv e voltage regulators, manufactured using CMOS and laser trimming technologies. The series consists of a high precision voltage r eference, an error correction circuit, and an output driver with current limitation. By way of the CE function, with output turned off, the series enters standby. In the stand-by mode, power consumption is greatly reduced. SOT-25 (150mW), SOT-89-5 (500mW) and USP-6B (100mW) In relation to the CE function, as well as the positive logic XC62HR series, a negative logic XC62HP series (custom) is also available.

■

●Battery powered equipment

●Voltage supplies for cellular phones

●Cameras, Video recorders

●Palmtops

■TYPICAL APPLICATION CIRCUIT

PPLICATIONS

packages are available.

■FEATURES

Maximum Output Current : 165mA (within max Pd, V Output Voltage Range : 2.0V ~ 6.0V (0.1V increments)

(1.5V ~ 1.9V semi-custom) Highly Accurate : ±2% (±1% for semi-custom products)

Low Power Consumption

: 3μA (TYP.) (V

: 0.1μA (TYP.) (Output disabled)

Output Voltage Temperature Characteristics

: ±100ppm /℃ (TYP.)

Line Regulation : 0.2% / V (TYP.) CMOS Low Power Consumption Dropout Voltage : 0.18V @ 60mA

: 0.58V @ 160mA Packages : SOT-25 SOT-89-5 USP-6B

Environmentally Friendly

: EU RoHS Compliant, Pb Free

OUT

=3V,Output enabled)

■TYPICAL PERFORMANCE CHARACTERISTICS

=3.0V)

1/19

Page 2

XC62H Series

■PIN CONFIGURATION

■PIN ASSIGNMENT

PIN NUMBER

SOT-25 SOT-89-5 USP-6B

PIN NAME FUNCTION

1 4 2, 5 NC No Connection 2 2 1 VIN Supply Voltage Input 3 3 6 CE Chip Enable 4 1 4 VSS Ground 5 5 3 V

■FUNCTION

OUT

Regulated Output Voltage

SERIES CE VOLTAGE OUTPUT

XC62HR

XC62HP

■PRODUCT CLASSIFICATION

●Ordering Information

XC62H①②③④⑤⑥⑦-⑧

(*1)

H ON

L OFF

H OFF

L ON

DESIGNATOR DESCRIPTION SYMBOL DESCRIPTION

①

②③

④ ⑤

CE Pin Logic

Output Voltage 20~60

Temperature Characteristics

Output Voltage Accuracy

R Positive P Negative (Custom)

e.g. VOUT 3.0V → ②=3, ③=0

OUT 5.0V → ②=5, ③=0

0 + 100ppm (TYP.) 1 + 1% (semi-custom) 2 + 2%

MR SOT-25

MR-G SOT-25

⑥⑦-⑧

Packages

Taping Type

(*2)

PR SOT-89-5

PR-G SOT-89-5

DR USP-6B

DR-G USP-6B

(*1)

The “-G” suffix indicates that the products are Halogen and Antimony free as well as being fully RoHS compliant.

(*2)

The device orientation is fixed in its embossed tape pocket. For reverse orientation, please contact your local Torex sales office or

representative. (Standard orientation: ⑥R-⑧, Reverse orientation: ⑥L-⑧)

*The dissipation pad for the USP-6B package should be solder-plated in recommended mount pattern and metal masking so as to enhance mounting strength and heat release. If the pad needs to be connected to

other pins, it should be connected to the V

IN (No.1) pin.

H = High level L = Low level

2/19

Page 3

■BLOCK DIAGRAM

XC62H

Series

3/19

Page 4

XC62H Series

■

BSOLUTE MAXIMUM RATINGS

PARAMETER SYMBOL RATINGS UNITS

Input Voltage VIN 12.0 V Output Current IOUT 500 mA Output Voltage VOUT VSS -0.3 ~ VIN +1.3 V

CE Input Voltage VCE VSS -0.3 ~ VIN +1.3 V

SOT-25 150

Power Dissipation

SOT-89-5 500

USP-6B

100

Operating Temperature Range Topr -30 ~ +80 ℃

Storage Temperature Range Tstg -40 ~ +125 ℃

■ELECTRICAL CHARACTERISTICS

(*3)

(*1)

(*2)

OUT=40mA

1mA≦I

IN=3.0V

OUT≦60mA

1,960 2,000 2,040 V ①

- 45 90 mV ①

Vdif1 IOUT=40mA - 180 360 mV ① Vdif2 I

△V

OUT

△V

IN・△VOUT

△VOUT

△Topr・△V

OUT

OUT=100mA - 580 880 mV ①

OUT=40mA

3.0V≦V

IN≦10.0V

OUT=40mA

-30℃≦Topr≦80℃

- 0.2 0.3 % / V ①

- ±100 -

ppm /

XC62HR2002 V

OUT(T)=2.0V

PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT

Output Voltage VOUT (E)

Maximum Output Current IOUT max VIN=3.0V, VOUT(E)≧1.8V 115 - - mA ①

Load Regulation △VOUT

Dropout Voltage

Supply Current 1 ISS1 VIN=VCE=3.0V - 2.9 7.9 μA ② Supply Current 2 ISS2 VIN=3.0V, VCE=VSS - 0.1 μA ②

Line Regulation

Input Voltage △VIN - - 10.0 V -

Output Voltage

Temperature Characteristics

CE "High" Voltage VCEH 1.5 - - V ①

CE "Low" Voltage VCEL - - 0.25 V ①

CE "High" Current ICEH VCE=VIN - - 0.1 μA ②

CE "Low" Current ICEL VCE=VSS -0.2 -0.05 0 μA ②

NOTE:

OUT(T)=Specified output voltage .

*1: V

OUT(E)=Effective output voltage (i.e. the output voltage when "VOUT(T)+1.0V" is provided at the VIN pin while maintaining a

*2: V

OUT value).

certain I

*3: Vdif= {V

OUT1= A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input.

*4: V *5: V

IN1= The input voltage when VOUT1 appears as input voltage is gradually decreased.

IN1

(*5)

-VOUT1 (*4)}

Ta=25℃

℃

①

4/19

Page 5

■ELECTRICAL CHARACTERISTICS (Continued)

C62HR3002 VOUT(T)=3.0V

(*1)

PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT

Output Voltage VOUT (E)

(*2)

OUT=40mA

IN=4.0V

2,940 3,000 3,060 V ①

Maximum Output Current IOUT max VIN=4.0V, VOUT(E)≧2.7V 165 - - mA ①

Load Regulation △VOUT

Dropout Voltage

(*3)

Vdif1 IOUT=60mA - 180 360 mV ① Vdif2 IOUT=160mA - 580 880 mV ①

1mA≦I

IN=4.0V

OUT≦80mA

- 45 90 mV ①

Supply Current 1 ISS1 VIN=VCE=4.0V - 3.0 8.0 μA ② Supply Current 2 ISS2 VIN=4.0V, VCE=VSS - - 0.1 μA ②

Line Regulation

△V

IN・△VOUT

OUT

OUT=40mA

4.0V≦V

IN≦10.0V

- 0.2 0.3 % / V ①

△V

Input Voltage △VIN - - 10.0 V -

Output Voltage

Temperature Characteristics

△VOUT

△Topr・△V

OUT

OUT=40mA

-30℃≦Topr≦80℃

- ±100 -

ppm /

CE "High" Voltage VCEH 1.5 - - V ①

CE "Low" Voltage VCEL - - 0.25 V ①

CE "High" Current ICEH VCE=VIN - - 0.1 μA ②

CE "Low" Current ICEL VCE=VSS -0.2 -0.05 0 μA ②

XC62HR4002 V

OUT(T)=4.0V

(*1)

PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT

Output Voltage VOUT (E)

(*2)

OUT=40mA

IN=5.0V

3,920 4,000 4,080 V ①

Maximum Output Current IOUT max VIN=5.0V, VOUT(E)≧3.6V 200 - - mA ①

Load Regulation △VOUT

Dropout Voltage

(*3)

Vdif1 IOUT=80mA - 170 340 mV ① Vdif2 I

IN=5.0V

1mA≦I

OUT≦100mA

OUT=180mA - 560 840 mV ①

- 45 90 mV ①

Supply Current 1 ISS1 VIN=VCE=5.0V - 3.1 8.1 μA ② Supply Current 2 ISS2 VIN=5.0V, VCE=VSS - - 0.1 μA ②

Line Regulation

△V

IN・△VOUT

OUT

OUT=40mA

5.0V≦V

IN≦10.0V

- 0.2 0.3 % / V ①

△V

Input Voltage △VIN - - 10.0 V -

Output Voltage

Temperature Characteristics

△VOUT

△Topr・△V

OUT

OUT=40mA

-30℃≦Topr≦80℃

- ±100 -

ppm /

CE "High" Voltage VCEH 1.5 - - V ①

CE "Low" Voltage VCEL - - 0.25 V ①

CE "High" Current ICEH VCE=VIN - - 0.1 μA ②

CE "Low" Current ICEL VCE=VSS -0.2 -0.05 0 μA ②

NOTE:

OUT(T)=Specified output voltage .

*1: V

OUT(E)=Effective output voltage (i.e. the output voltage when "VOUT(T)+1.0V" is provided at the VIN pin while maintaining a

*2: V

OUT value).

certain I

*3: Vdif= {V

OUT1= A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input.

*4: V *5: V

IN1= The input voltage when VOUT1 appears as input voltage is gradually decreased.

IN1

(*5)

-VOUT1

(*4)

}

XC62H

Ta=25℃

℃

Ta=25℃

℃

Series

①

5/19

Page 6

XC62H Series

■ELECTRICAL CHARACTERISTICS (Continued)

XC62HR5002 V

OUT(T)=5.0V

PARAMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNITS CIRCUIT

Output Voltage VOUT (E)

Maximum Output Current IOUT max VIN=6.0V, VOUT(E)≧4.5V 220 - - mA ①

Load Regulation △VOUT

Dropout Voltage

Supply Current1 ISS1 VIN=VCE=6.0V - 3.1 8.1 μA ② Supply Current2 ISS2 VIN=6.0V, VCE=VSS - - 0.1 μA ②

Line Regulation

Input Voltage △VIN - - 10.0 V -

Output Voltage

Temperature Characteristics

CE "High" Voltage VCEH 1.5 - - V ①

CE "Low" Voltage VCEL - - 0.25 V ①

CE "High" Current ICEH VCE=VIN - - 0.1 μA ②

CE "Low" Current ICEL VCE=VSS -0.2 -0.05 0 μA ②

NOTE:

OUT(T)=Specified output voltage .

*1: V

OUT(E)=Effective output voltage (i.e. the output voltage when "VOUT(T)+1.0V" is provided at the VIN pin while maintaining a

*2: V

OUT value).

certain I

*3: Vdif= {V

OUT1= A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input.

*4: V *5: V

IN1= The input voltage when VOUT1 appears as input voltage is gradually decreased.

IN1

(*5)

-VOUT1

(*3)

(*4)

(*1)

(*2)

OUT=40mA

1mA≦I

IN=6.0V

OUT≦100mA

4,900 5,000 5,100 V ①

- 40 80 mV ①

Vdif1 IOUT=100mA - 165 320 mV ① Vdif2 IOUT=200mA - 540 820 mV ①

△V

OUT

△V

IN・△VOUT

△VOUT

△Topr・△V

}

OUT

OUT=40mA

6.0V≦V

IN≦10.0V

OUT=40mA

-30℃≦Topr≦80℃

- 0.2 0.3 % / V ①

- ±100 -

ppm /

Ta=25℃

℃

①

6/19

Page 7

■TYPICAL APPLICATION CIRCUIT

●Standa rd Circuit

■TEST CIRCUITS

Circuit 1

Circuit 2 Circuit 2

XC62H

Series

7/19

Page 8

XC62H Series

■TYPICAL PERFORMANCE CHARACTERISTICS

(1) Output Voltage vs. Output Current

(2) Output Voltage vs. Input Voltage

8/19

Page 9

■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

(2) Output Voltage vs. Input Voltage (Continued)

(3) Dropout Voltage vs. Output Current

XC62H

Series

9/19

Page 10

XC62H Series

■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

(4) CE Pin Threshold Voltage vs. Input Voltage

(5) Supply Current vs. Input Voltage

10/19

Page 11

■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

(5) Supply Current vs. Input Voltage (Continued)

XC62H

Series

(6) Output Voltage vs. Ambient Temperature

11/19

Page 12

XC62H Series

■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

(7) Supply Current vs. Ambient Temperature

(8) Input Transient Respon se 1

Tim e (ms) Tim e (ms) Time (ms)

12/19

Tim e (ms) Tim e (ms) Time (ms)

Page 13

■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

(8) Input Transient Respon se 1 (Continued)

Tim e (ms) Tim e (ms) Time (ms)

XC62H

Series

(9) Input Transient Respon se 2

Tim e (ms) Tim e (ms) Time (ms)

13/19

Page 14

XC62H Series

■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

(9) Input Transient Respon se 2 (Continued)

Tim e (ms) Tim e (ms) Time (ms)

(10) Load Transient Response

Tim e (ms) Tim e (ms)

14/19

Tim e (ms) Tim e (ms)

Page 15

■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

(10) Load Transient Response (Continued)

Tim e (ms) Tim e (ms)

XC62H

Series

(11) CE Pin Transient Response

Tim e (ms) Tim e (ms) Tim e (ms)

15/19

Page 16

XC62H Series

■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

(11) CE Pin Transient Response (Conti nued)

(12) Ripple Rejection Rate

16/19

Tim e (ms) Tim e (ms) Tim e (ms)

Page 17

■PACKAGING INFORMATION

●USP-6B

XC62H

Series

●SOT-89-5 ●SOT-25

17/19

Page 18

XC62H Series

■PACKAGING INFORMATION (Continued)

●USP-6B Reference Pattern Layout ●USP-6B Reference metal mask design

■ MARKING RULE

●SOT-25, SOT-89-5

18/19

① ② ③ ④

123

SOT-25

(TOP VIEW)

524

②①

④③

123

SOT-89-5

(TOP VIEW)

① represents integer of the output voltage

MARK VOLTAGE (V) MARK VOLTAGE (V)

0 0.x －0 0.x 1 1.x －1 1.x

2 2.x －2 2.x 3 3.x －3 3.x 4 4.x －4 4.x 5 5.x －5 5.x 6 6.x －6 6.x 7 7.x －7 7.x 8 8.x －8 8.x 9 9.x －9 9.x

② represents decimal number of the output voltage

MARK

VOLTAGE (V)

MARK 0 x.0 －0 x.0 1 x.1 －1 x.1 2 x.2 －2 x.2 3 x.3 －3 x.3 4 x.4 －4 x.4 5 x.5 －5 x.5 6 x.6 －6 x.6 7 x.7 －7 x.7 8 x.8 －8 x.8 9 x.9 －9 x.9

③ based on internal standards

④ represents assembly lot number.

0 to 9, A to Z repeated (G, I, J, O, Q, W excluded)

VOLTAGE (V)
