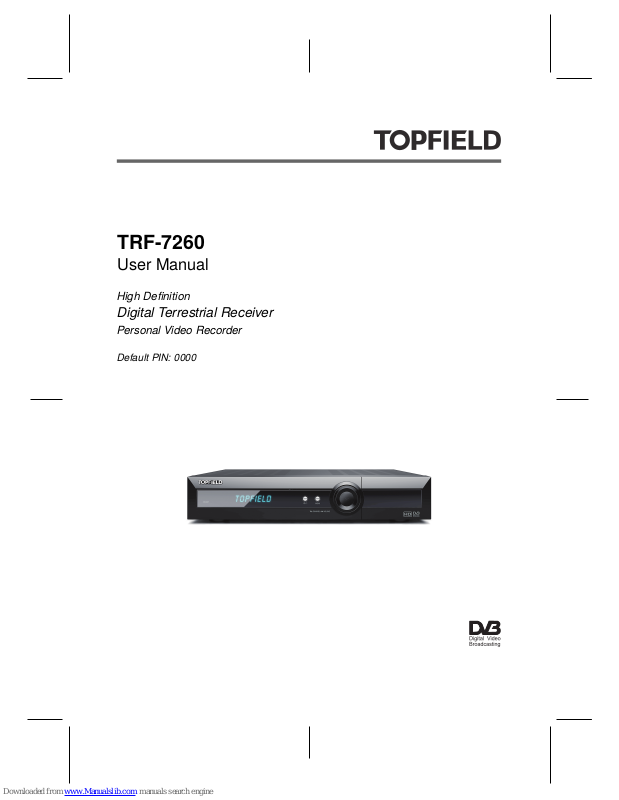

Topfield TRF-7260 User Manual
TRF-7260
User Manual
High Definition
Digital Terrestrial Receiver
Personal Video Recorder
Default PIN: 0000
.
2
- The TF RCU app for iPhone
The RCU application is available to download from the App Store.
(currently for iPhone only)
Download the TF RCU app to control this unit with your smart phone.
* iPhone and App Store are registered trademarks of Apple, Inc.
- Compatible RCU support
The TRF-7260 supports compatible RCU usage for the PVR set.
Menu > Settings > Miscellaneous > Type of RCU
* The RCU code is required for this feature.
** Please visit http://topfield.com.au/ for more information.
3
Precautions
• Clean with a dry cloth only.
• Do not block any of the ventilation openings.
• When placed in a cabinet, make sure there is a minimum space of 10
centimetres around it.
• Do not install near any heat sources or in direct sunlight as this will
impair cooling.
• Do not operate this product near water.
• Do not try to change the plug or defeat its safety purpose.
• This product is designed for indoor use only.
• Place the digital receiver on a firm and level surface.
• Do not lay any objects such as magazines on this unit.
• Do not overload power outlets. Doing so may result in a risk of fire or
electrical shock.
• Never open thisunit’s casing underany circumstances, orthe warranty
will be void.
• Unplug this unit during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Reverse engineering
or disassembly is prohibited.
• Batteries, including those which contain no heavy metals, may not be
disposed with other household wastes. Please dispose of used batteries in an environmentally sound manner. Find out the legal regulations
which apply in your area.
• The mains plugshall remainreadily operable so that it can be removed
easily to disconnect the power.
• Operate the digital receiver at temperatures between 0 to 45◦C.
• The mains voltage must range between 90 and 250 volts. Check it before plugging the digital receiver to the wall socket. For the power
specification, refer to the table below.
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 30 W at maximum in active
Under 5 W in passive standby
4
Front Panel
CHANNEL VOLUME
STANDBY
MENU
STANDBY
STANDBY light lights up while the digital receiver is in standby mode.
switches the digital receiver between standby mode and active mode.
MENU displays the main menu. Also, returns to previous menu from a sub-
menu.
c,a
CHANNEL switch to the previous or next service.
Also, navigate in menus and interactive screens.
b,d
VOLUME decrease or increase the volume. Also, change values for menu options.
OK displays the services list. Also, selects a menu item.
5
