TRF-7170
User Guide
High Definition
Digital Terrestrial Receiver
Personal Video Recorder
Page 2
ii
Quick Setup in five easy steps
1. Connect aerial antenna to ANT IN on back of Toppro unit.
2. Connect your desired audio-video cables from back of
Toppro to rear of television (Composite, Component,
HDMI).
3. Plug into power point and turn Toppro unit ON using
the switch on the back of the unit.
4. Switch television on, then use the television remote to
select the correct video input channel for the Toppro (for
example, AV1, AV2, Component, HDMI, etc).
5. On the main menu go to Installation/Searching then
scroll to Start Search, press
OK .
Wait till progress bar on bottom of screen reaches 100 %
then press
OK to save and
EXIT .
Page 3
CONTENTS iii
Contents
Contents iii
1 Introduction 1
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Controlling the digital receiver . . . . . . . . . . . . . . . . . . 2
1.2.1 Front panel . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2.2 Remote control . . . . . . . . . . . . . . . . . . . . . . 5
2 Setup 8
2.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Rear panel connections . . . . . . . . . . . . . . . . . . . . . . 10
2.4 Connecting up your digital receiver . . . . . . . . . . . . . . . 11
2.4.1 Connecting to the antenna . . . . . . . . . . . . . . . . 12
2.4.2 Connecting to your television set . . . . . . . . . . . . 12
2.5 Switching on for the first time . . . . . . . . . . . . . . . . . . 14
3 Service Search 17
3.1 Searching for broadcasting services . . . . . . . . . . . . . . . 17
3.2 Resetting to factory settings . . . . . . . . . . . . . . . . . . . 18
3.3 Resetting to user settings . . . . . . . . . . . . . . . . . . . . . 19
3.4 Clearing the services list . . . . . . . . . . . . . . . . . . . . . 19
4 Preference Settings 20
4.1 Video and audio settings . . . . . . . . . . . . . . . . . . . . . 20
4.1.1 High definition television . . . . . . . . . . . . . . . . 20
Page 4
iv CONTENTS
4.1.2 Television aspect ratio . . . . . . . . . . . . . . . . . . 21
4.1.3 Audio mode . . . . . . . . . . . . . . . . . . . . . . . . 22
4.2 Local time setting . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.3 Parental control . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.4 Options for recording . . . . . . . . . . . . . . . . . . . . . . . 26
4.5 Options for playback . . . . . . . . . . . . . . . . . . . . . . . 27
4.6 Options for on-screen display . . . . . . . . . . . . . . . . . . 28
4.7 Options for the front display . . . . . . . . . . . . . . . . . . . 29
4.8 Options for Photo Album . . . . . . . . . . . . . . . . . . . . . 30
4.9 Options for standby mode . . . . . . . . . . . . . . . . . . . . 30
5 Every Day Use 31
5.1 Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.2 Watching television . . . . . . . . . . . . . . . . . . . . . . . . 31
5.2.1 The services list . . . . . . . . . . . . . . . . . . . . . . 31
5.2.2 The favourite service lists . . . . . . . . . . . . . . . . 33
5.2.3 Viewing programme information . . . . . . . . . . . . 34
5.2.4 Selecting audio tracks . . . . . . . . . . . . . . . . . . 34
5.2.5 Selecting subtitle tracks . . . . . . . . . . . . . . . . . 35
5.3 Viewing electronic programme guide . . . . . . . . . . . . . . 35
5.4 Using time-shift . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6 Organising Services 38
6.1 Editing the favourite lists . . . . . . . . . . . . . . . . . . . . . 38
6.2 How to use on-screen keyboard . . . . . . . . . . . . . . . . . 40
7 Recording and Playback 41
7.1 Recording a programme . . . . . . . . . . . . . . . . . . . . . 42
7.1.1 Instant recording . . . . . . . . . . . . . . . . . . . . . 43
7.1.2 Timer recording . . . . . . . . . . . . . . . . . . . . . . 44
7.1.3 Scheduling recordings using the programme guide . . 47
7.1.4 Recording a time-shifted programme . . . . . . . . . . 48
7.2 File archive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
7.2.1 To delete a recording . . . . . . . . . . . . . . . . . . . 49
7.2.2 To sort recordings . . . . . . . . . . . . . . . . . . . . . 49
7.2.3 To lock a recording . . . . . . . . . . . . . . . . . . . . 50
Page 5
CONTENTS v
7.2.4 To rename a recording . . . . . . . . . . . . . . . . . . 50
7.2.5 To make a new folder . . . . . . . . . . . . . . . . . . . 50
7.2.6 To move a recording to another folder . . . . . . . . . 50
7.3 Playing back a recording . . . . . . . . . . . . . . . . . . . . . 51
7.3.1 To navigate using the progress bar . . . . . . . . . . . 52
7.3.2 To play in slow motion . . . . . . . . . . . . . . . . . . 52
7.3.3 To play in fast motion . . . . . . . . . . . . . . . . . . . 52
7.3.4 To make a bookmark . . . . . . . . . . . . . . . . . . . 53
7.3.5 To play back a recording repeatedly . . . . . . . . . . 53
7.3.6 To play back recordings in sequence . . . . . . . . . . 54
7.4 Editing a recording . . . . . . . . . . . . . . . . . . . . . . . . 54
7.5 Copying a recording . . . . . . . . . . . . . . . . . . . . . . . 55
7.6 Formatting the hard disk . . . . . . . . . . . . . . . . . . . . . 55
8 Entertainment 56
8.1 Copying files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
8.2 Playing back MP3 files . . . . . . . . . . . . . . . . . . . . . . 57
8.3 Viewing image files . . . . . . . . . . . . . . . . . . . . . . . . 58
8.3.1 How to move a file to the photo album . . . . . . . . . 58
8.4 Playing back a video file . . . . . . . . . . . . . . . . . . . . . 59
8.5 Google weather forecast (optional) . . . . . . . . . . . . . . . 60
8.6 Network game . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
8.6.1 Single mode . . . . . . . . . . . . . . . . . . . . . . . . 61
8.6.2 Network mode . . . . . . . . . . . . . . . . . . . . . . 65
9 Accessing via Network 67
9.1 Configuring the router . . . . . . . . . . . . . . . . . . . . . . 68
9.1.1 To access within the local area network . . . . . . . . . 68
9.1.2 To access over the Internet . . . . . . . . . . . . . . . . 69
9.2 Network setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
9.2.1 For a wired connection . . . . . . . . . . . . . . . . . . 70
9.2.2 For a wireless connection . . . . . . . . . . . . . . . . 71
9.3 Accessing the web server . . . . . . . . . . . . . . . . . . . . . 71
9.4 Accessing the FTP server . . . . . . . . . . . . . . . . . . . . . 73
10 Toppro Application Program 76
Page 6
vi CONTENTS
11 Firmware Update 79
11.1 From a memory stick . . . . . . . . . . . . . . . . . . . . . . . 79
11.2 From the firmware server via the Internet . . . . . . . . . . . 80
A Troubleshooting 81
Page 7
1 Introduction
1
Chapter 1
Introduction
The TRF-7170 digital receiver is fully compliant with the international Digital Video Broadcasting (DVB) standard, and thus
is able to receive digital broadcasts of that standard. For its
operation you need an antenna, which must be installed appropriately.
For the latest news and information, join the Toppro forum at
http://www.topfield.com.au.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all
assigned to their own frequencies; instead, multiple television broadcasts are transmitted through a single frequency.
The frequency in digital broadcasting is usually called transponder or multiplex. To reduce confusion in this manual,
the word service is preferably used than channel as a term
to indicate one television or radio broadcast.
1.1 Features
This digital receiver has the following features:
Page 8
2 Introduction
• Can store up to 2,000 television and radio services.
• Can create lists of your favourite services.
• Can view information about the current television or radio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
• You can record up to four services while you are currently watching another.
• You can record many programmes using a built-in hard
drive with large storage capacity.
• Time-shift is a special technical feature available on this
digital receiver. You can pause a programme you are
watching and resume it again at a later time. Then you
can quickly go to any part of the current programme by
fast forward or rewind search.
• If you have an external hard drive connected to the digital receiver via the USB or eSATA port, you can record
television programmes into it.
• You can play back video files of various formats including DivX.
• You can play a built-in network game with other users
via the Internet.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control or
the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall
socket, we say that it is in standby mode; on the other hand,
when it is on, it is in active mode. Even when you are not
using the digital receiver, you should keep it plugged into
Page 9
1 Introduction
1.2 Controlling the digital receiver 3
a wall socket to be in standby mode so that it can run timer
events at any time.
1.2.1 Front panel
The front panel of the digital receiver has buttons to control
the digital receiver, specific lights and a display to indicate its
status. The following indicates what they mean.
CHANNEL
VOLUME
button switches the digital receiver between standby mode
and active mode.
CHANNELc,
a
buttons switch to the previous or next ser-
vice.
VOLUMEb,
d
buttons decrease or increase the volume.
Front display shows the current time in standby mode, and
displays the current service in active mode.
There is a tiny flap on the bottom right side that protects the
USB port behind it from dust, into which you can plug an external storage such as a memory stick or an external hard drive.
Page 10
4 Introduction
1.2.2 Remote control
3
1
2
5
6
20
15
17
16
9
22
25
26
29
30
34
33
4
7
8
14
17
18
19
23
24
27
28
31
32
21
16
35
39
36
37
38
40
10
13
11
12
...
1
button switches the digital
receiver between standby mode
and active mode.
...
2
mutes the sound. Press again
to switch it back on.
...
3
V.Format changes video resolu-
tion. See §4.1.1 for more details.
...
4
A/R changes aspect ratio. See
§4.1.2 for more details.
...
5
AUX is not used in this model.
...
6
switches over between televi-
sion services and radio services.
...
7
Numeric buttons are used to enter a service number for service
change or to specify values for
menu options.
...
8
switches over between the
current service and the previously viewed one.
...
9
displays the service information box. It is also used to display more information about a
programme.
...
10
is used to select an audio track
and a sound mode.
...
11
is not used in this model.
...
12
is used to select a subtitle
track.
...
13
is used to set a sleep timer in 10 minute increments.
...
14
MENU displays the main menu. It is also used to return to
Page 11
1 Introduction
1.2 Controlling the digital receiver 5
the previous menu from a submenu.
...
15
GUIDE displays the electronic programme guide.
...
16
c,a
allow you to choose an item from the menu. They
are also used to navigate through the electronic programme guide, and in interactive services.
...
17
b,d
allow you to change the options for a menu item.
They are also used to navigate through the electronic programme guide, and in interactive services.
...
18
OK displays the services list. See §5.2.1 for more details.
It is also used to select a menu item.
...
19
EXIT is used to exit a menu or to hide on-screen informa-
tion.
...
20
LIST displays the services list. See §5.2.1 for more details.
It is also used to select a menu item.
...
21
V− ,
V+ buttons decrease or increase the volume.
...
22
P− ,
P+ buttons switch to the previous or next service.
...
23
is used to start reverse playback. Subsequent presses
increase the rewind speed.
...
24
pauses live television or playback of a recorded pro-
gramme.
...
25
resumes normal playback speed, or displays the
progress bar for navigation on playback or time-shift. To
play a recorded programme, see button
...
30
.
...
26
is used to start fast forward playback. Subsequent
presses increase the playback speed.
...
27
is used to start recording.
...
28
is used to stop playback, to stop recording, or to jump
back to live television from time-shifted television.
...
29
is used to start slow motion playback. Subsequent
presses change the playback speed.
...
30
is used to display the list of recorded programmes that
are stored in the internal hard drive. See §7.2 for more
details.
Page 12
6 Introduction
...
31
has different functions per menu.
...
32
is used to jump back to the beginning of the recording
on playback.
...
33
is used to jump to the end of the recording on playback.
...
34
SAT is used for multi purpose functions.
...
35
F1 has different functions per menu.
...
36
F2 is used to make a bookmark on playback or time-shift.
...
37
F3 is used to jump to next bookmark position.
...
38
F4 is used to edit a recording.
...
39
is not used in this model.
...
40
FAV displays the favourite lists.
Functions of the colour buttons will be guided on the screen.
NOTE
When using the remote control, point it at the remote sensor
on the front panel of the digital receiver.
Page 13
2 Setup
7
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the following items with the digital receiver.
• Remote control
• Two batteries for the remote control (AAA 1.5 V)
• One Component cable (RCA cable)
• One Composite cable (RCA cable)
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
• The mains voltage must range between 90 and 250 volts.
Check it before plugging the digital receiver to the wall
socket. For the power consumption of the digital receiver, refer to Table 2.1.
Page 14
8 Setup
• The wall socket should be near the equipment. Do not
run an extension lead to the unit.
• The mains plug shall remain readily operable so that it
can be removed easily to disconnect the power.
• The digital receiver shall not be exposed to dripping or
splashing water, and no objects filled with liquids, such
as vases, shall be placed on it.
• Do not expose the digital receiver to any moisture. The
digital receiver is designed for indoor use only. Use dry
cloth to clean the digital receiver.
• Place the digital receiver on a firm and level surface.
• Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling. Do
not lay any objects such as magazines on the digital receiver.
• When placed in a cabinet, make sure there is a minimum
space of 10 centimetres around it. For the physical specification of the digital receiver, refer to Table 2.2.
• Protect the power cord from being walked on or pinched.
If the cord is damaged, do not use the digital receiverand
get the cord replaced.
• Never open the digital receiver casing under any circumstances, or the warranty will be void.
• Refer all servicing to a qualified service technician.
• To maintain proper ventilation, always leave sufficient
space around the digital receiver.
• Batteries, including those which contain no heavy metals, may not be disposed with other household wastes.
Please dispose of used batteries in an environmentally
sound manner. Find out the legal regulations which apply in your area.
Page 15
2 Setup
2.3 Rear panel connections 9
Table 2.1: Power specification
Input voltage 90 to 250 VAC, 50/60 Hz
Power consumption 42 W at maximum in active
Under 1 W in passive standby
Table 2.2: Physical specifications
Size 430× 60× 265 mm
Weight 3.2 kg
Operating temperature 0 to 45◦C
Storage relative humidity 5 to 90 %
2.3 Rear panel connections
The TRF-7170 has a wide range of connections on the back.
Check what connections your television set has in comparison
with the digital receiver.
...
1
ANT IN Terrestrial broadcasting signal input socket
(5V, Max.100mA)
...
2
ANT OUT Terrestrial broadcasting signal output socket
through the ANT IN socket for another digital receiver
...
3
VIDEO Composite video outputsocket for the tele-
vision set (yellow)
...
4
AUDIO L/R Stereo audio output socket for the televi-
sion set or the audio-video receiver (white/red)
Page 16
10 Setup
...
5
Y/Pb/Pr Component video output socket for the tele-
vision set
(green/blue/red)
...
6
S/PDIF COAXIAL Coaxial-type digital audio output socket
for the audio-video receiver
...
7
S/PDIF OPTICAL Optical-type digital audio output socket
for the audio-video receiver
...
8
HDMI Audioand video output socket for the high
definition television set
...
9
eSATA eSATA port for connection to an external
hard drive
...
10
LAN Local area network port
...
11
USB USB port for firmware update and data trans-
fer
...
12
ON/OFF Power switch (You have to turn on this switch
first to use this digital receiver.)
Table 2.3: Connectors specifications
HDMI High definition video output
Left & right audio output
Dolby Digital audio output
YPbPr Component video output
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
S/PDIF Dolby Digital audio output
LAN 10/100 Ethernet
USB 2.0 Host (5 V DC, 500 mA)
eSATA External SATA 2.0
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other devices.
Page 17
2 Setup
2.4 Connecting up your digital receiver 11
If you have any problem with your setup or need help, contact
your dealer.
2.4.1 Connecting to the antenna
Whatever sort of connection you have between the digital receiver and the television,
you need to connect the digital receiver to the
antenna so that it can receive digital television broadcasts. Connect the antenna cable
to the ANT IN connector. If you have another digital receiver, you may link it from
the ANT OUT connector.
NOTE
ANT OUT may also be linked to your television, VCR, or
DVD recorder to loop an analogue signal.
2.4.2 Connecting to your television set
For all the following connections of the digital receiver, we recommend you to use the first connector to get the best picture
quality. If your television does not have a matching connector,
then use the next connector in the following order for a better
picture quality.
1. HDMI connector (HDMI)
2. Component connector (YPbPr)
3. Composite connector (VIDEO)
You should configure audio and video settings after connecting up the digital receiver. See §4.1 for a detailed description.
Page 18
12 Setup
To use the HDMI output
If you have a high definition television set,
you should use an HDMI cable for best results. Plug one end of the cable into the HDMI
socket on the digital receiver, and plug the
other end into the matching socket on your
television. In this case, you do not have to
make audio connection because it can output
stereo audio or digital audio as well.
To use the Component video output
Y
Pb
Pr
You need to obtain a Component video cable (RCA cable) to use the Component video
output. Plug one ends of the cable into the Y
(green), Pb (blue) and Pr (red) sockets on the
digital receiver, and plug the other ends into
the matching sockets on your television.
NOTE
When connecting with the Component video cable, remember to also plug in the additional white and red audio
cables from the digital receiver to the back of your television.
To use the Composite video output
You need to obtain a Composite video cable
(RCA cable) to use the Composite video output. Plug one end of the cable into the VIDEO
(yellow) socket on the digital receiver, and
plug the other end into the matching socket
on your television.
Page 19
2 Setup
2.5 Switching on for the first time 13
NOTE
You cannot view high definition video by means of the Composite video output.
To make the audio connection
You need to obtain an audio cable (RCA cable) to link the audio connectors. Plug one
ends of the cable into the AUDIO L (white)
and AUDIO R (red) sockets on the digital receiver, and plug the other ends into
the matching sockets on your television or
audio-video receiver.
To enjoy Dolby Digital audio, your television
or audio-video receiver must be able to decode Dolby Digital audio, and you need to
obtain an S/PDIF cable.
If you want to use the COAXIAL connector, prepare a coaxial S/PDIF cable (RCA cable); otherwise to use the OPTICAL connector, prepare an optical S/PDIF cable. Plug
one end of the cable into the S/PDIF socket
on the digital receiver, and plug the other end
into the matching socket on your audio-video
receiver.
NOTE
Enable Dolby Digital output by changing the audio setting
to bitstream. See §4.1.3 for more details.
2.5 Switching on for the first time
Now that you have your digital receiver connected, you should
plug it into a wall socket. Ensure that your television set is
Page 20
14 Setup
turned on and on the correct video channel so that you will be
able to see the display from the digital receiver.
Before switching on the digital receiver, you should insert batteries into the remote control. Open the battery compartment
by removing the lid, and then insert the batteries observing the
polarity, which is marked on the base of the battery compartment.
Press the button on the top left corner on the remote control. In a little time, you may see a picture displaying a menu.
If you do not see a picture, try pressing the
V.Format button on
the remote control. If after several tries you still get no picture,
check that the television is set to the correct input. If the picture
is good, you can skip to §3.1 to search for available television
and radio services. Otherwise, you may need to temporarily
connect the Composite video connector (VIDEO) to your television set so that you can see the menu in order to configure
the video settings.
CAUTION
If the digital receiver no longer reacts properly to the remote
control commands, the batteries may be flat. Be sure to replace only with 1.5 V AAA size batteries, and observe the
following precautions.
• Do not mix different types of batteries, or new and old
batteries.
• Do not use rechargeable batteries.
• Do not recharge the old batteries.
• In order to avoid any risk of explosion, observe the polarities indicated inside the battery compartment.
• Do not subject to excessive heat such as the sun and
fire.
• If you are not using the remote control for a long period of time, remove the batteries. The manufacturer
Page 21
2 Setup
2.5 Switching on for the first time 15
accepts no liability for the damage resulting from leaking batteries.
• Batteries, including those which contain no heavy
metals, may not be disposed with other household
wastes. Please dispose of used batteries in an environmentally sound manner. Find out the legal regulations
which apply in your area.
Page 22
16 Service Search
Chapter 3
Service Search
After connecting up the digital receiver, you will need to perform a service search.
NOTE
If there is no service stored, you will be not able to access all
menus. A is another name for a .
3.1 Searching for broadcasting services
To perform service search, select the Installation > Searching
menu. You should see a screen
like the left figure.
Page 23
3 Service Search
3.2 Resetting to factory settings 17
You should set the Search Mode option to Auto for the first
time after connecting up the digital receiver, then the digital
receiver will search for all available services.
You may choose to only search for the services of a specific
transponder since more than one service are provided via each
transponder. Set the Search Mode option to Manual, then select your desired transponder at the Channel option. The number ranges from 6 to 12 in VHF and 28 to 69 in UHF.
It is possible to search single service in a certain transponder
only if you know the desired service’s audio and video packet
identification (PID). Set the Search Mode option to Advanced,
then the PID option becomes enabled. Specify the PIDs of your
desired service with the numeric buttons.
To start service search, move down to the Start Search item,
and press the
OK button. The digital receiver will start to
search for services and display a list of television and radio
services as they are found. It is common for no channels to be
found until quite late in the process. When the scan is complete, you will see a message telling you how many services
have been found. Press the
OK button to save the list.
3.2 Resetting to factory settings
The digital receiver maintains the following data:
• Services list
• Favourite list
• Timer list
• Preference settings
You can reset all data of the digital receiver. Select the Instal-
lation > System Recovery > Factory Setting menu, and then
you get asked for confirmation. With the choice of Yes, the
services list, favourite list and timer list will all be cleared, and
preference options will be reset to the manufacturer’s factory
settings.
Page 24
18 Service Search
NOTE
A factory reset will not delete any recorded programmes.
However, you have to search services again after a factory
reset.
3.3 Resetting to user settings
You can store your own data including the following:
• Services list
• Favourite lists
• Preference settings
Also you can restore them at any time.
To store your data, select the Installation > System Recovery >
Store System Data menu, then you get asked for confirmation.
If you select Yes, your data will be stored. Whenever you store
your data, they are all overwritten. To restore your data, select
the Installation > System Recovery > Recover System Data
menu, then you get asked for confirmation. With the choice of
Yes, your data will be restored.
3.4 Clearing the services list
If you only want to clear the services list, select Installation >
System Recovery > Reset Service List , then you get asked for
confirmation. With the choice of Yes, the services list will be
cleared. After this, you have to do service search again.
Page 25
4 Preference Settings
19
Chapter 4
Preference Settings
4.1 Video and audio settings
You have to configure the video
and audio settings appropriately
for your television set and other
devices. Select the Settings >
A/V Output menu. You should
see a screen like the left figure.
4.1.1 High definition television
The digital receiver supports various video resolutions from
576 to 1080. In general, a resolution of 720 or more is considered high definition. The higher the resolution is, the better
the quality is. However, if your television set does not support high definition, you cannot enjoy high definition quality
picture.
Set the Video Format option as you desire. If you set this op-
Page 26
20 Preference Settings
tion to 576P, the digital receiver will present even high definition programmes in resolution of 576. On the contrary, if you
set it to 1080I, the digital receiver will present even standard
definition programmes in resolution of 1080.
It is recommended to set it to Auto if you have a high definition
television. With that setting the digital receiver will present a
programme as it is without any resolution conversion. While
watching television you can change the resolution with the
V.Format button. Whenever you press it, the video resolution
is changed in turn.
NOTE
You can enjoy only standard definition video with the Composite video output (AV-OUT VIDEO).
4.1.2 Television aspect ratio
If you have a wide-screen television, set the TV Aspect Ratio
option to 16:9.
You can enjoy both wide-screen programmes and normalscreen programmes with your wide-screen television as the
above figures show. To watch normal-screen programmes
in full screen like the left figure, set the Display Format option
to Full. Normal-screen pictures then will be inflated to fit to
the width of the wide screen. Otherwise, to watch them in the
original ratio like the right figure, set it to Center. If you have
a normal-screen television, set the TV Aspect Ratio option to
4:3.
Page 27
4 Preference Settings
4.1 Video and audio settings 21
You cannot fully enjoy wide-screen programmes with your
normal-screen television as the above figures show. The left
figure shows a normal picture displayed in the normal screen.
To watch wide-screen programmes in the shape like the centre figure, set the Display Format option to Letter Box. Widescreen pictures then will be reduced to fit to the width of the
normal screen. Otherwise, to watch them in the shape like the
right figure, set it to Center extract. Then wide-screen pictures
will be cut out on the left and right sides equally to fit to the
width of the normal screen.
4.1.3 Audio mode
Basically, there are two audio sources as you can find two audio
sockets on the back panel of the digital receiver. You can enjoy
only one source or both of them in either stereo or mono. Set
the Sound Mode option as you desire.
Apart from this setting, you can change the sound mode with
the button. See §5.2.4 for a detailed description.
The digital receiver can output two types of digital audio signals via the S/PDIF output. One is an encoded signal, and
the other is a decoded signal. If you have the digital receiver
linked to your audio-video receiver via the S/PDIF output, you
have to set the Dolby Digital option to On, which means that the
digital receiver will output encoded Dolby Digital audio without decoding so that your audio-video receiver can decode it.
Otherwise, set it to Off, then the digital receiver will output
decoded Dolby Digital audio, scaling it down to two channels.
Page 28
22 Preference Settings
NOTE
Only if the service you are currently watching provides
a Dolby Digital audio track, you can enjoy Dolby Digital
sound.
4.2 Local time setting
You should set your local time for timer events.
Select the Settings > Time
menu. You should see a screen
like the left figure. You can set
the clock manually or use the
time signal, Greenwich Mean
Time (GMT), carried as part of
the digital television broadcast.
To use Greenwich Mean Time,
take the following steps:
1. Set the Mode option to Auto, then the Time Offset option
becomes enabled.
2. Set the Time Offset option to the time difference between
your time zone and GMT referring to Table 4.1.
3. Make sure that your local time is correctly displayed on
the Local Time item.
To set the local time manually, set the Mode option to Man-
ual and enter your local time to the Local Time option with
the numeric buttons. The time format is day/month/year 24-
hour:minute.
If daylight saving time is observed in your state at the moment,
set the Daylight Saving Time option to On.
Page 29
4 Preference Settings
4.3 Parental control 23
NOTE
Daylight saving time adds one hour to the time when the option is set to On. When setting the time offset from Greenwich Mean Time, make sure that time offset does not include
daylight saving time.
Table 4.1: Time offset table
Time offset City
GMT − 12:00 Eniwetok, Kwajalein
GMT − 11:00 Midway Island, Samoa
GMT − 10:00 Hawaii
GMT − 09:00 Alaska
GMT − 08:00 Pacific Time US, Canada
GMT − 07:00 Mountain Time US, Canada
GMT − 06:00 Central Time US, Canada, Mexico City
GMT − 05:00 Eastern Time US, Canada, Bogota, Lima
GMT − 04:00 Atlantic Time Canada, La Paz, Dominican Republic
GMT − 03:30 Newfoundland
GMT − 03:00 Brazil, Georgetown, Buenos Aires
GMT − 02:00 Mid-Atlantic
GMT − 01:00 Azores, Cape Verde Islands
GMT London, Lisbon, Casablanca
GMT + 1:00 Paris, Brussels, Copenhagen, Madrid
GMT + 2:00 South Africa, Kaliningrad
GMT + 3:00 Baghdad, Riyadh, Moscow, St. Petersburg
GMT + 3:30 Tehran
GMT + 4:00 Abu Dhabi, Muscat, Baku, Tbilisi
GMT + 4:30 Kabul
GMT + 5:00 Ekaterinburg, Islamabad, Karachi, Tashkent
GMT + 5:30 Bombay, Calcutta, Madras, New Delhi
GMT + 6:00 Almaty, Dhaka, Colombo
GMT + 7:00 Bangkok, Hanoi, Jakarta
GMT + 8:00 Beijing, Perth, Singapore, Hong Kong
GMT + 9:00 Tokyo, Seoul, Osaka, Sapporo, Yakutsk
GMT + 9:30 Adelaide, Darwin
GMT + 10:00 Eastern Australia, Guam, Vladivostok
GMT + 11:00 Magadan, Solomon Islands, New Caledonia
GMT + 12:00 Fiji, Auckland, Wellington, Kamchatka
4.3 Parental control
In general, television programmes are classified according to
the level of violence, nudity and language of their content.
Page 30
24 Preference Settings
When you are watching a programme, you can check its programme classification on the information box. For the information box, see §5.2.3. You can prevent your children from
watching specific programmes by specifying a maximum permissible level.

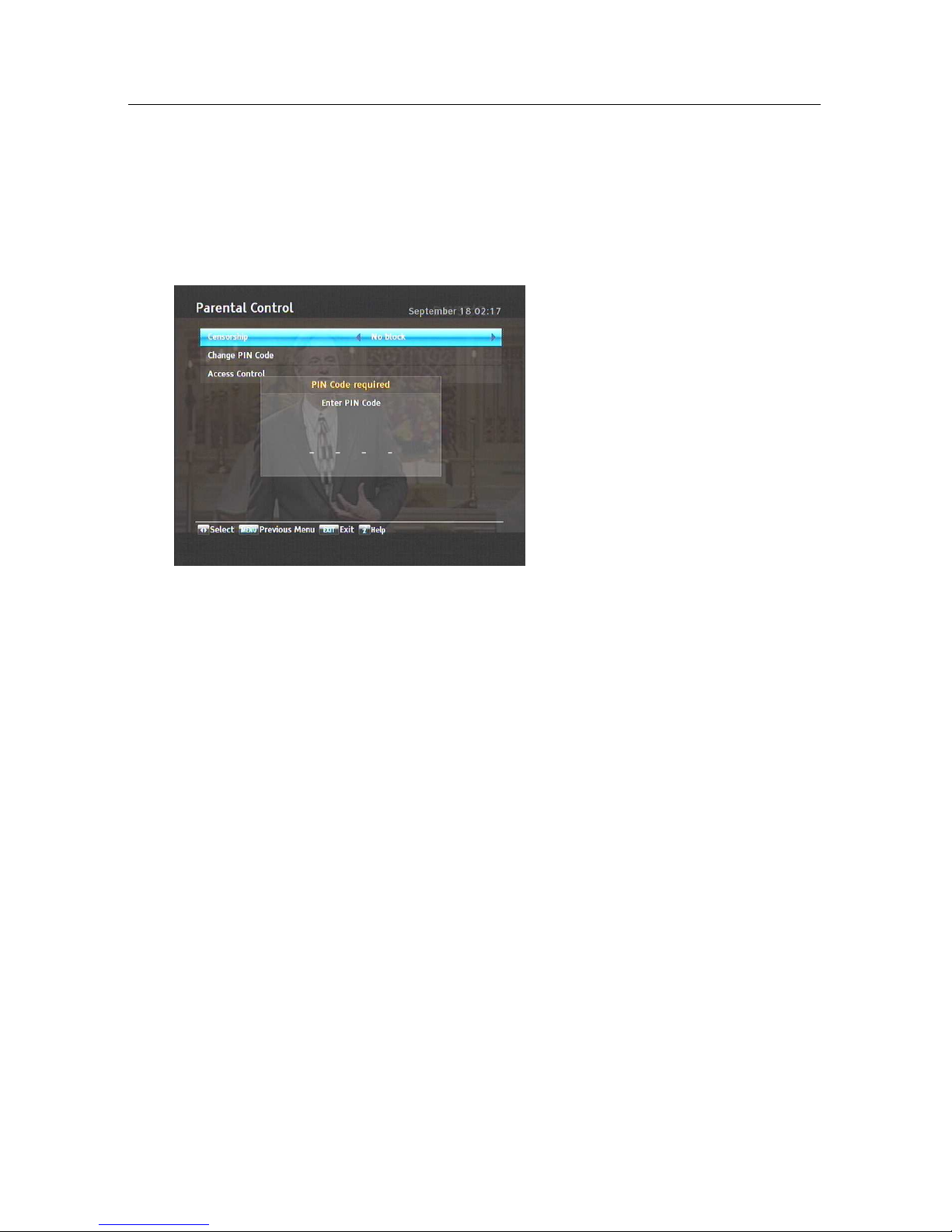

Select the Settings > Parental
Control menu. You should see
a screen like the left figure,
and you will be asked your
Personal Identification Number
(PIN). The number is initially set
to ‘0000’ as default.
To block programmes with undesired content for family viewing, set the Censorship option to your desired level among the
following:
No block restricts no prorgramme.
Total block restricts every programme, even those with no pro-
gramme classification.
G restricts to G or above. G rated programmes are suitable
for all audiences.
PG restricts to PG or above rated programmes. PG stands for
Parental Guidance, the content of which is mild.
M restricts to M or above rated programmes. M stands for
Mature, the content of which is moderate in impact.
MA restricts to MA or above rated programmes. MA stands
for Mature Audience, the content of which is strong.
R restricts to R rated programmes. R stands for Restricted to
adults aged 18 years or over, the content of which is very
strong.
AV restricts to AV rated programmes. AV stands for Adult
Page 31
4 Preference Settings
4.4 Options for recording 25
Viewing, the content of which is deep hardcore.
NOTE
If a programme has no rating information, your censorship
setting will not take effect.
If anyone is trying to watch a programme that is of or above the
censorship setting, the person has to enter the personal identification number to override. To change the number, select the
Change PIN Code menu, then a box pops up, asking a new
PIN. Enter a desired number twice for confirmation.
You can also restrict uses of some menus. Selecting the Access
Control menu displays a list of menus that you can lock. If the
Time item is set to Locked, you have to enter the PIN when
accessing the Time menu. If you enter a wrong number, you
cannot use the menu. To release a locked item, set it to Un-
locked.
4.4 Options for recording

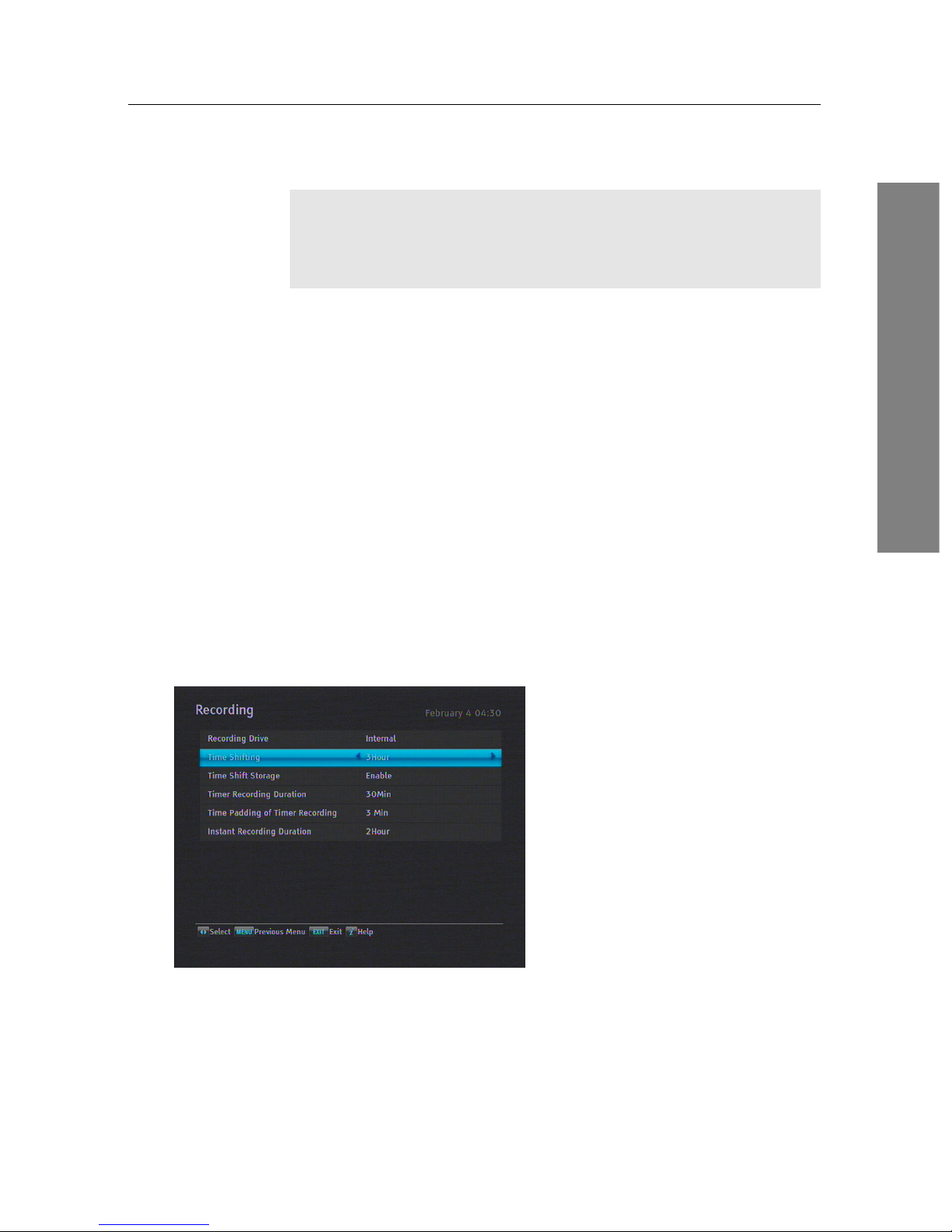

To set the options for recording,
select the Settings > Recording
menu. You should see a screen
like the left figure.
To enable the time-shift function, you should set the Time Shift-
ing option to anything other than Disable. The available range
for this option is 30 minutes to 5 hours. You will have the latest
of the current programme as long as the duration specified at
this option.
Page 32
26 Preference Settings
You can record a programme into both an external and the
built-in hard drive. If you want to record a programme into
an external hard drive, set Recording Drive option to External;
otherwise, set this option to Internal.
If you set the Time Shift Storage option to Enable, the timeshifted programme will be saved in the TimeShift folder of the
hard drive.
You can set the duration of the timer recording. Set the Timer
Recording Duration option as you desire. Its available range is
10 minutes to 3 hours.
Time padding is the feature of adding extra recording time to
the beginning or end of a programme, so that you do not miss
any part of the programme. Set the Time Padding of Timer
Recording option as you desire.
You can adjust the duration of the instant recording. Set the
Instant Recording Duration option as you desire. Its available
range is 30 minutes to 5 hours.
4.5 Options for playback

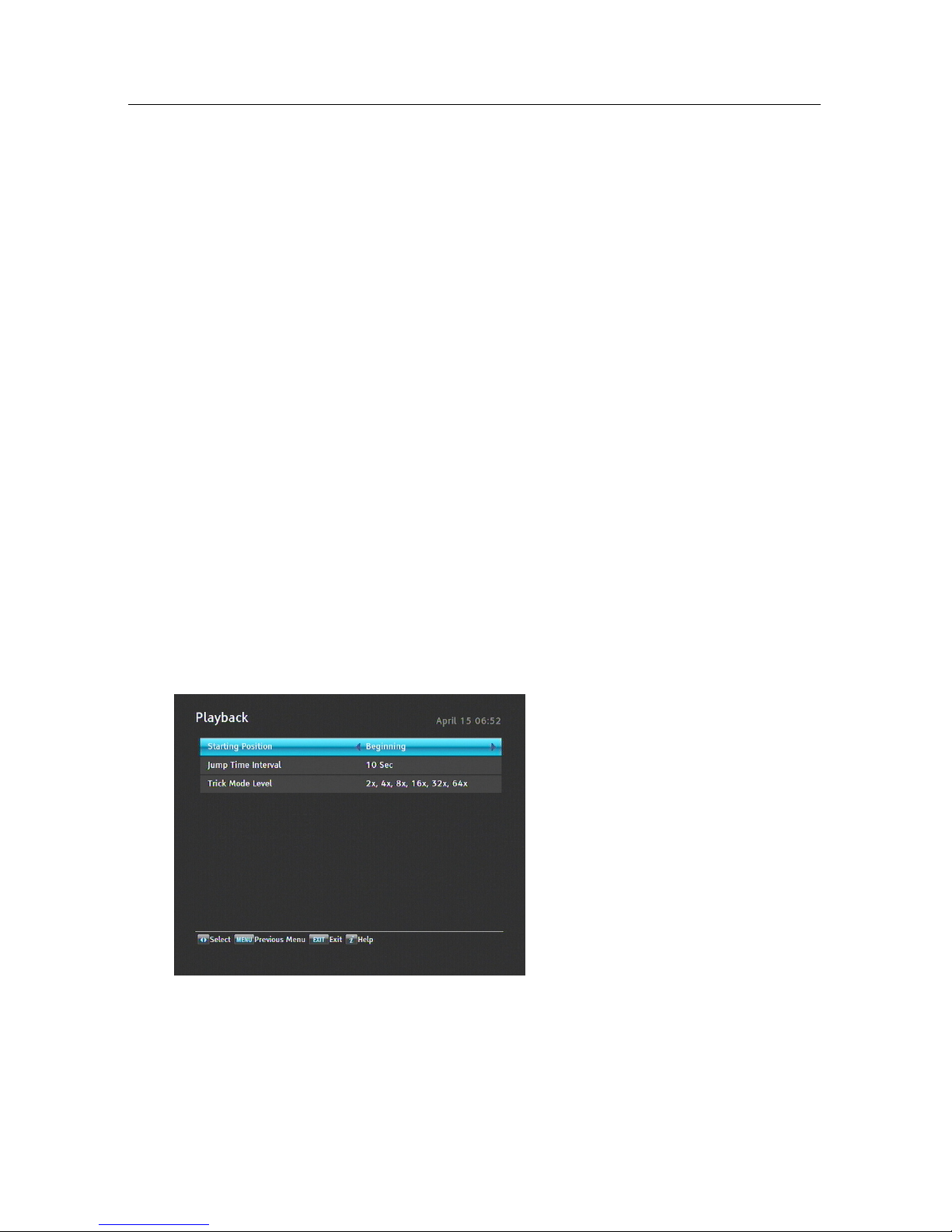

To set the options for playback,
select the Settings > Playback
menu. You should see a screen
like the left figure.
If you want to play back a recorded file from beginning, set
Starting Position option to Beginning. To play back a recorded
file from the part where you were watching, set this option to
Continuing.
Page 33
4 Preference Settings
4.6 Options for on-screen display 27
If you want to enjoy more levels of playback speed, set the Trick
Mode Level option to 2x, 4x, 8x, 16x, 32x, 64x; otherwise, set
it to 4x, 16x, 64x.
NOTE
You can enjoy video files such as DivX with the digital receiver. However, the above options might not be effective
depending on the video files to be played. For detailed description on how to play back a video file, refer to §8.4.
4.6 Options for on-screen display

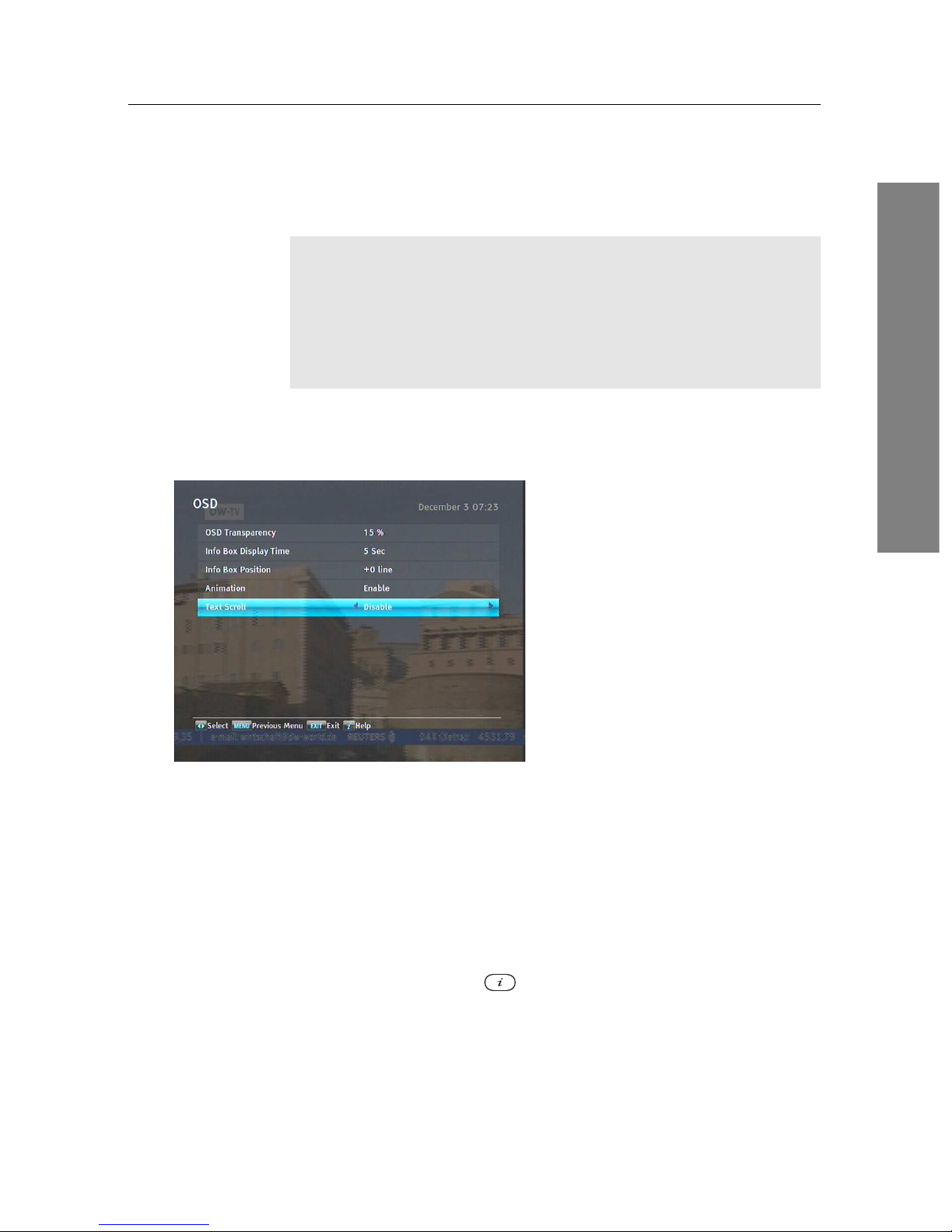

To set the options for the onscreen display (OSD), select the
Settings > OSD menu. You
should see a screen like the left
figure.
To adjust the transparency level of the OSD, set the OSD Trans-
parency option as you desire. Its available range is 0 to 50 percent.
To adjust the display time of the information box, set the Info
Box Display Time option as you desire. Its available range is
1 to 30 seconds. If you set this option to No Info Box, the information box will not be displayed when you switch services.
However, pressing the button will display the information
box. If you set this option to Never Hide, the information box
will always be displayed. For the information box, see §5.2.3.
In addition, you can raise or lower the position of the information box. Set the Info Box Position option as you desire. Its
Page 34
28 Preference Settings
available range is −10 to +3 lines. The higher you set the option, the lower the information box will be positioned.
To use an animation effect when changing menu, set the Ani-
mation option to Enable.
If any service’s name is too long to fit the width of the service
name column on the services list screen, you can get it to scroll
by setting the Text Scroll option to anything other than Disable.
With the choice of Full Scroll, it will be fully scrolled until its
end disappears; with the choice of Part Scroll, it will be scrolled
only to its end.
4.7 Options for the front display

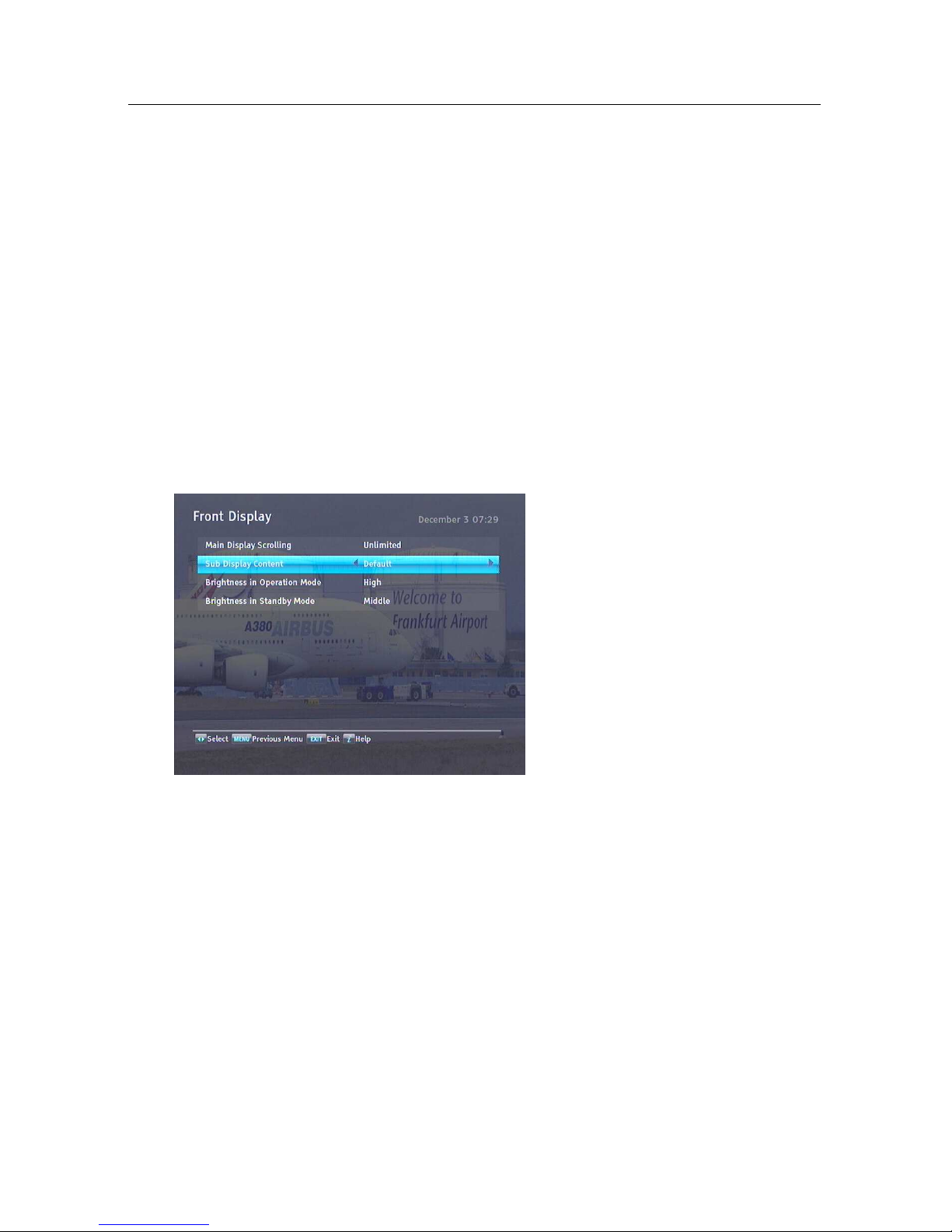

To set the options for the front
display, select the Settings >
Front Display menu. You should
see a screen like the left figure.
The front display shows the currently viewed service’s number
and name. If any service’s name is too long to fit the width of
the service name column, you can get it to scroll by setting the
Main Display Scrolling option to anything other than Disable.
With the choice of Unlimited, it will be repeatedly scrolled; with
the choice of Once, it will be scrolled only once. If you want to
have the current time displayed instead of the service number,
set the Sub Display Content option to Time.
You can also adjust the brightness of the front display in active
mode and standby mode by setting the Brightness in Operation
Mode option and the Brightness in Standby Mode option to any
as you like.
Page 35
4 Preference Settings
4.8 Options for Photo Album 29
4.8 Options for Photo Album
You can change a time interval and effect of slideshow in the
photo album. For the photo album feature, see §8.3.
To change the time interval of slideshow, select the Settings >
Miscellaneous menu, and then set the Slideshow Time Interval
option as you desire. Its available range is 3 to 10 seconds.
To change the effect of slideshow, select the Settings > Mis-
cellaneous menu, and then set the Slideshow Effect option as
you desire. There are four types of effects as follows:
Overlap overlaps the current picture and a following picture.
Cover covers the current picture with a following picture.
Move moves the current picture and displays a following pic-
ture.
Mosaic displays a following picture with a mosaic effect.
To use those effects ramdomly, set this option to Random. The
default value is Random.
4.9 Options for standby mode
You can have the current time displayed on the front display
in standby mode. Select the Settings > Miscellaneous menu
and set the Standby Mode option to Active; otherwise, set it to
Passive. When you set the Standby Mode option to Active, the
receiver can also bypass the signal from the antenna.
Page 36
30 Every Day Use
Chapter 5
Every Day Use
5.1 Volume control
Use the
V− and
V+ buttons to alter the volume to a comfort-
able level. You may need to adjust the volume on your televi-
sion set too. To temporarily switch off the sound, press the
button. Press it again to restore the sound to previous level.
5.2 Watching television
To change services, press the
P− or
P+ button. Pressing the
button switches to the previously viewed service. In addition, you can switch to your desired service by entering its
service number with the numeric buttons. You can also select
a service to watch in the services list.
5.2.1 The services list
To view the services list, press the
OK button.
Page 37
5 Every Day Use
5.2 Watching television 31
On the services list, you can see
the service information as follows:
• Service number and name
• Multiplex information
To select a desired service, put the highlight bar on its entry
with the
a
or
c
button and press the
OK button, then the
selected service will be presented.
Pressing thebordbutton skips over 10 entries up or down.
Entering a service number with the numeric buttons puts the
highlight bar on its entry.
You can switch between the television services list and the radio services list by pressing the button.

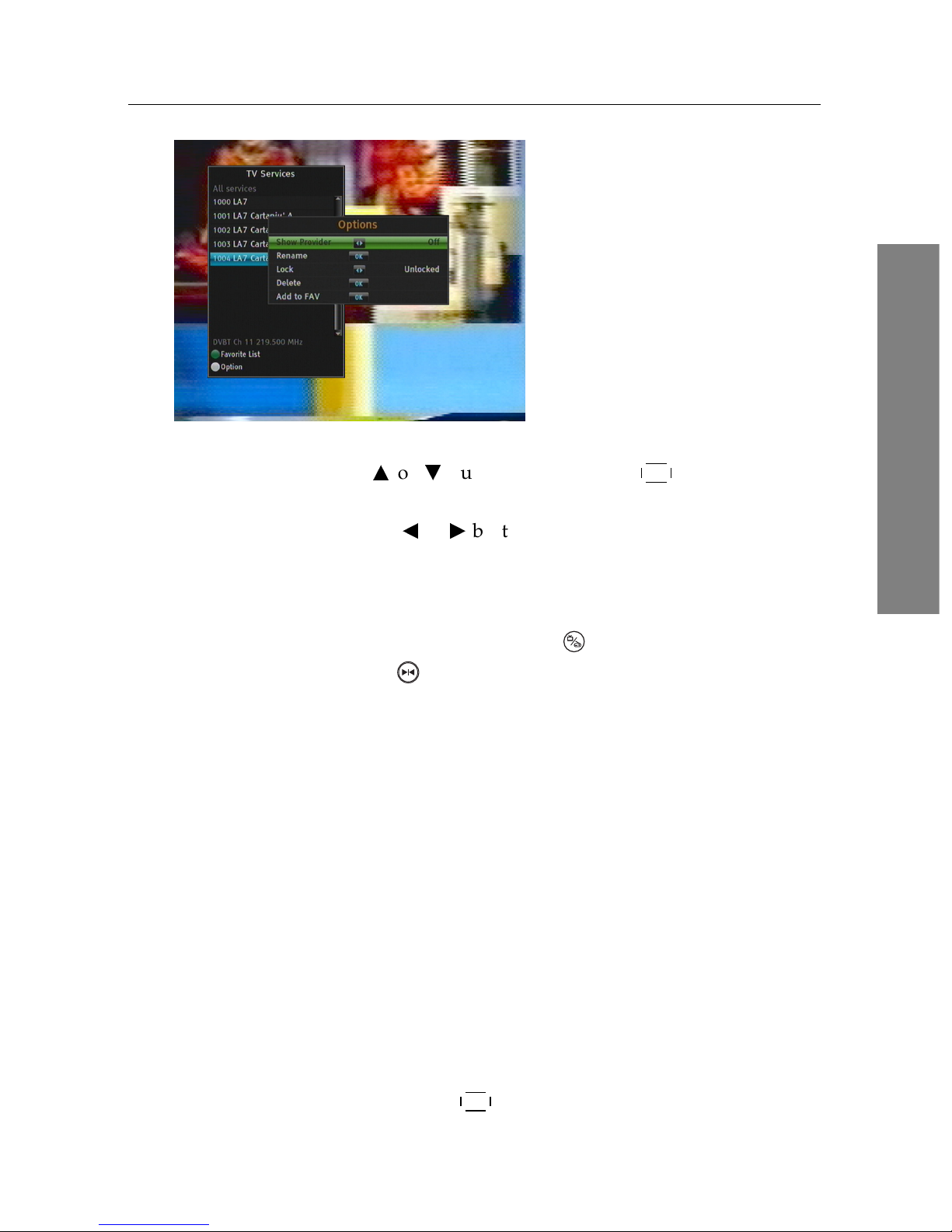

Pressing the button displays additional options, with which
you can do the following:
• By setting the Show Provider option to On, you can view
service entries by groups of broadcasters.
• To change the name of the highlighted service, select the
Rename option, then the on-screen keyboard appears,

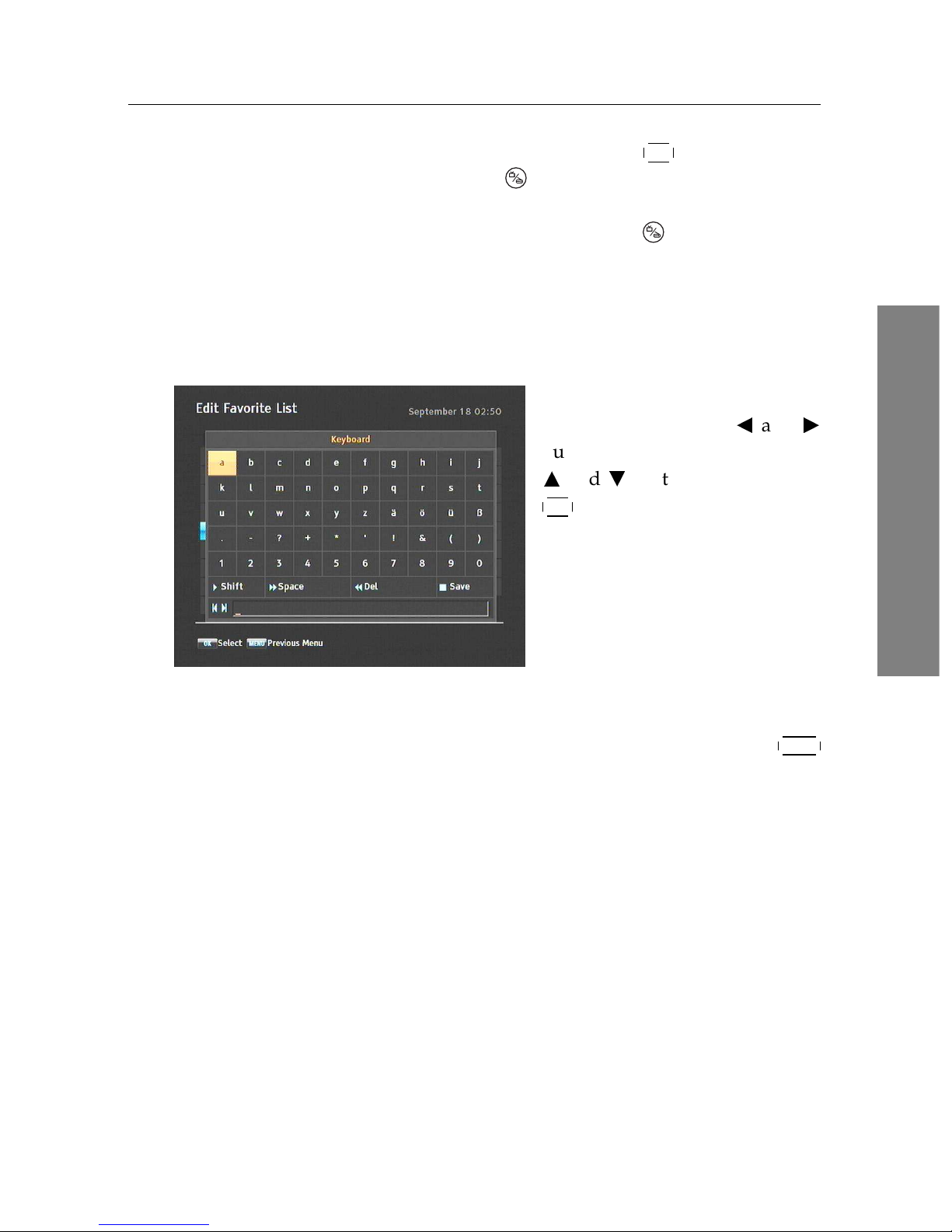

with which you can enter a new name. See §6.2 as to
how to use the on-screen keyboard.
• You can prevent other family members from watching
the highlighted service by setting the Lock option to
Locked. You have to enter your personal identification
number to watch or unlock it.
• To add the highlighted service into a favourite group, se-
lect the Add to Fav option, then the favourite groups will
be displayed. Put the highlight bar on a desired group
and press the
OK button.
Page 38
32 Every Day Use
• To delete the highlighted service, select the Delete op-
tion, then you get asked for confirmation. With the
choice of Yes, it will be deleted. If you want to restore
it as before, you have to perform service search again.
5.2.2 The favourite service lists
You can select a service on a favourite list as well as on the
services list.

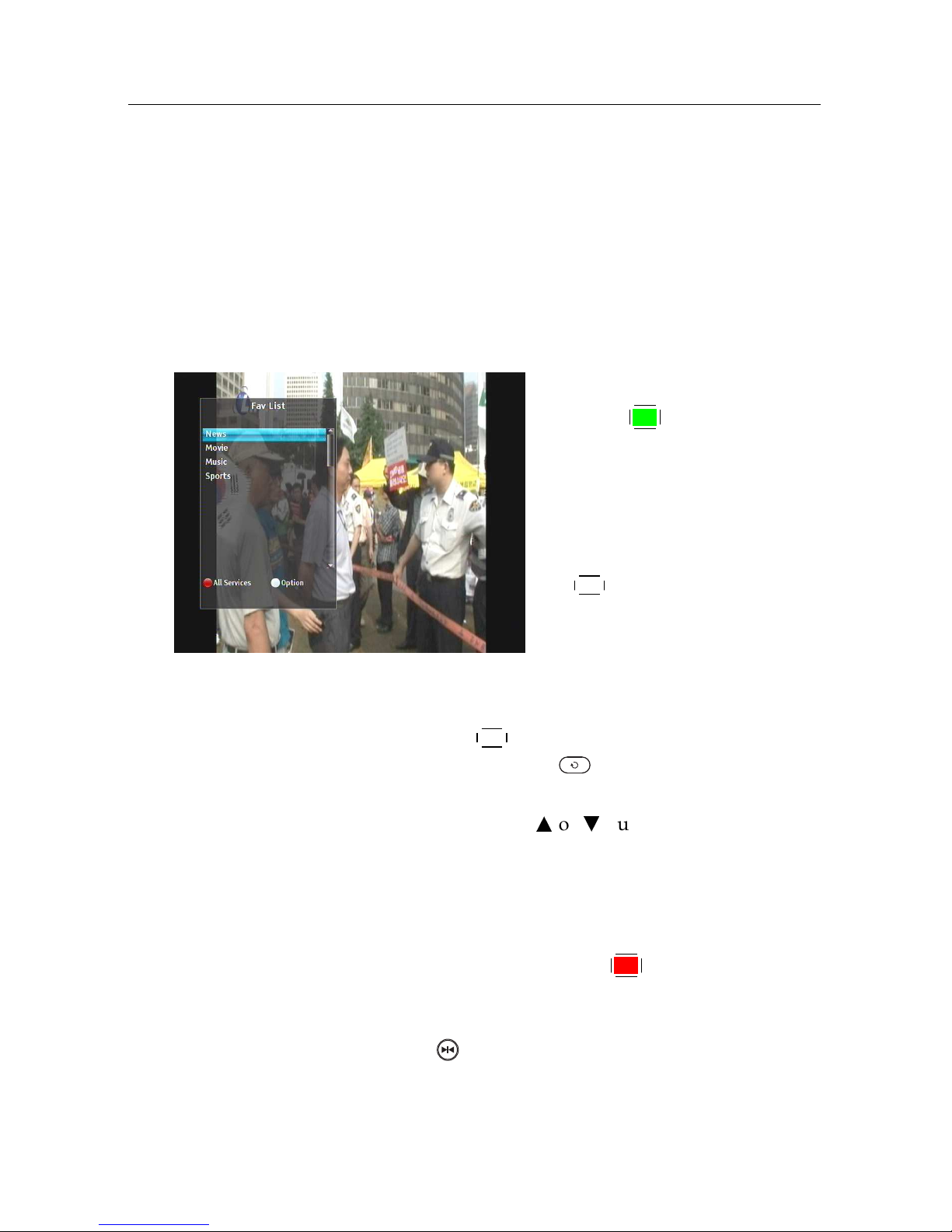

To display the favourite lists,
press the
F2 button at the ser-
vices list screen. For the services
list, see §5.2.1.
To select a favourite list, put
the highlight bar on a desired
favourite group list and press
the
OK button, then the selected
favourite group’s services will be
listed.
As to how to edit the favourite lists, refer to §6.1.
To select a favourite service, put the highlight bar on a desired
service and press the
OK button, then it will be displayed. To
select another group, press the button.
After you have selected a favourite service, if you then switch
to another service using theaorcbutton, it will be also another favourite service of the selected group. The digital receiver will remind you what group you have selected by displaying its name at the top right of the screen whenever you
switch services.
To return to the services list, press the
F1 button. Besides that,
you can add or delete a favourite group or service.
To add the service you are currently watching into a favourite
group, press the button to display additional options, and
then select Add this service item.
Page 39
5 Every Day Use
5.2 Watching television 33
To remove the currently highlighted favourite grop or service,
select Delete item in the additional option box, then you get
asked for confirmation; with the choice of Yes, it will be re-
moved.

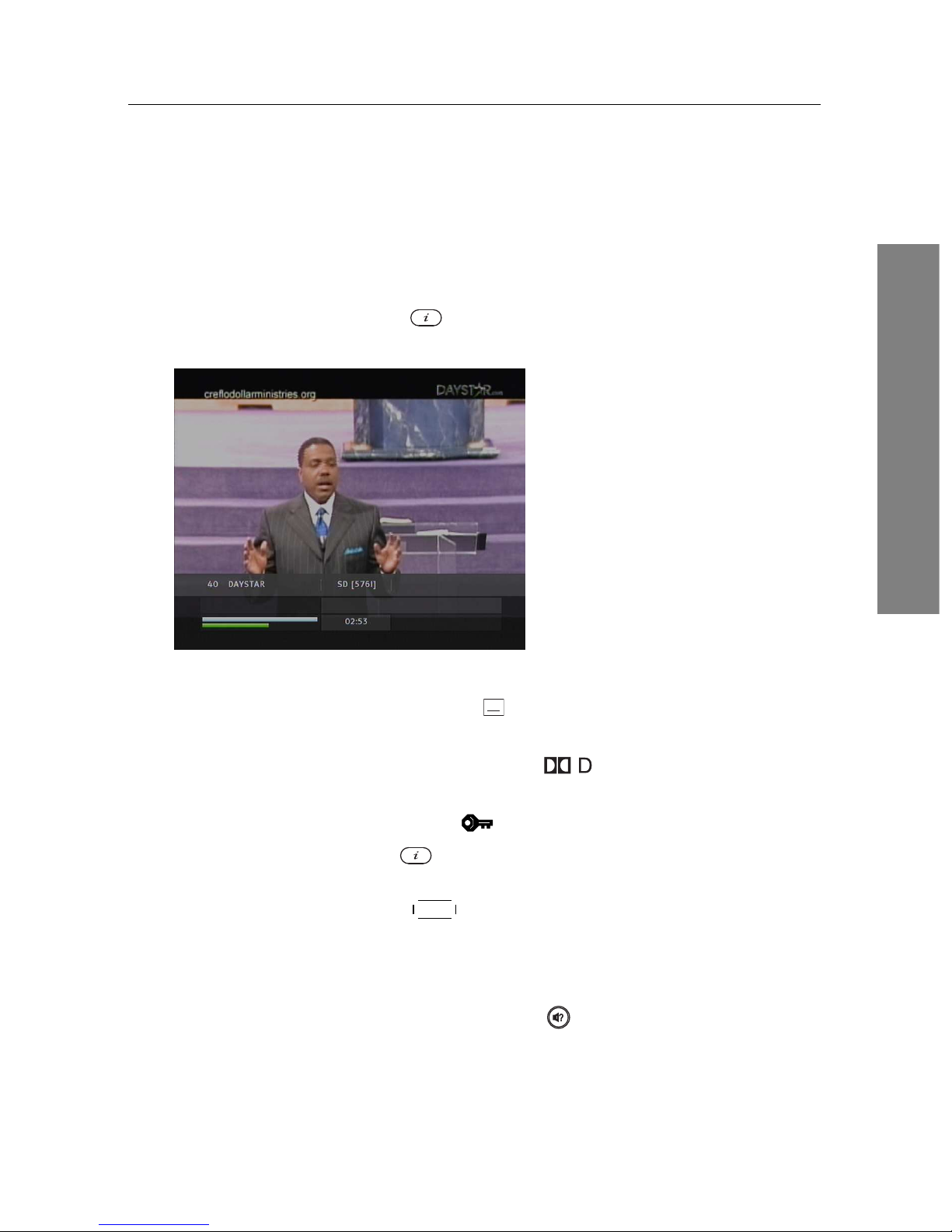

5.2.3 Viewing programme information
Pressing the button displays the information box, on
which you can see all of the following:
• Service number and name
• Signal level and quality
• Programme name
• Programme classification sign
• Programme summary
• Broadcasting time
• Current time
In addition, you might see the following symbols:
• Subtitle symbol ( ) if subtitle tracks are provided on the
current programme.
• Dolby Digital symbol ( ) if a Dolby Digital audio
track is provided on the current programme.
• Lock symbol ( ) if the current service is locked.
Pressing the button once more displays detailed information about the current programme. To hide the information
box, press the
EXIT button.
5.2.4 Selecting audio tracks
Some programmes are provided with audio tracks in one or
more languages. Pressing the button displays available audio tracks. Once you select an audio track, that track will be
heard. In addition, you can enjoy audio tracks in four sound
modes: Stereo, Mono, Left or Right.
Page 40
34 Every Day Use
5.2.5 Selecting subtitle tracks
Some programmes are provided with subtitle tracks in one or
more languages. If the current programme provides subtitle
tracks, the subtitle symbol ( ) will be marked on the information box. Pressing the button displays available subtitle
tracks. Once you select a subtitle track, it will be displayed.
5.3 Viewing electronic programme guide
The Electronic Programme Guide (EPG) shows the current and
scheduled programmes that are or will be available on each
service with a short summary for each programme.

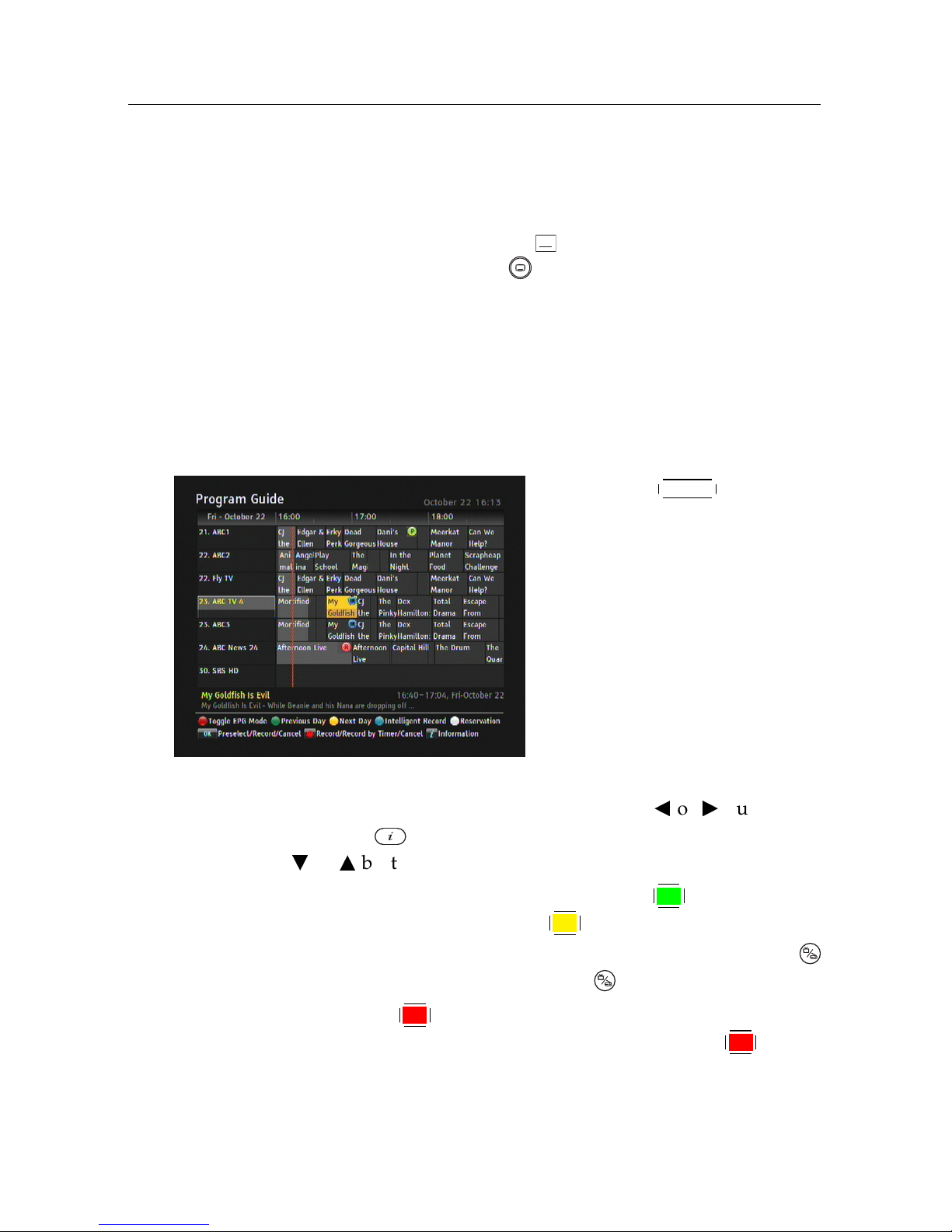

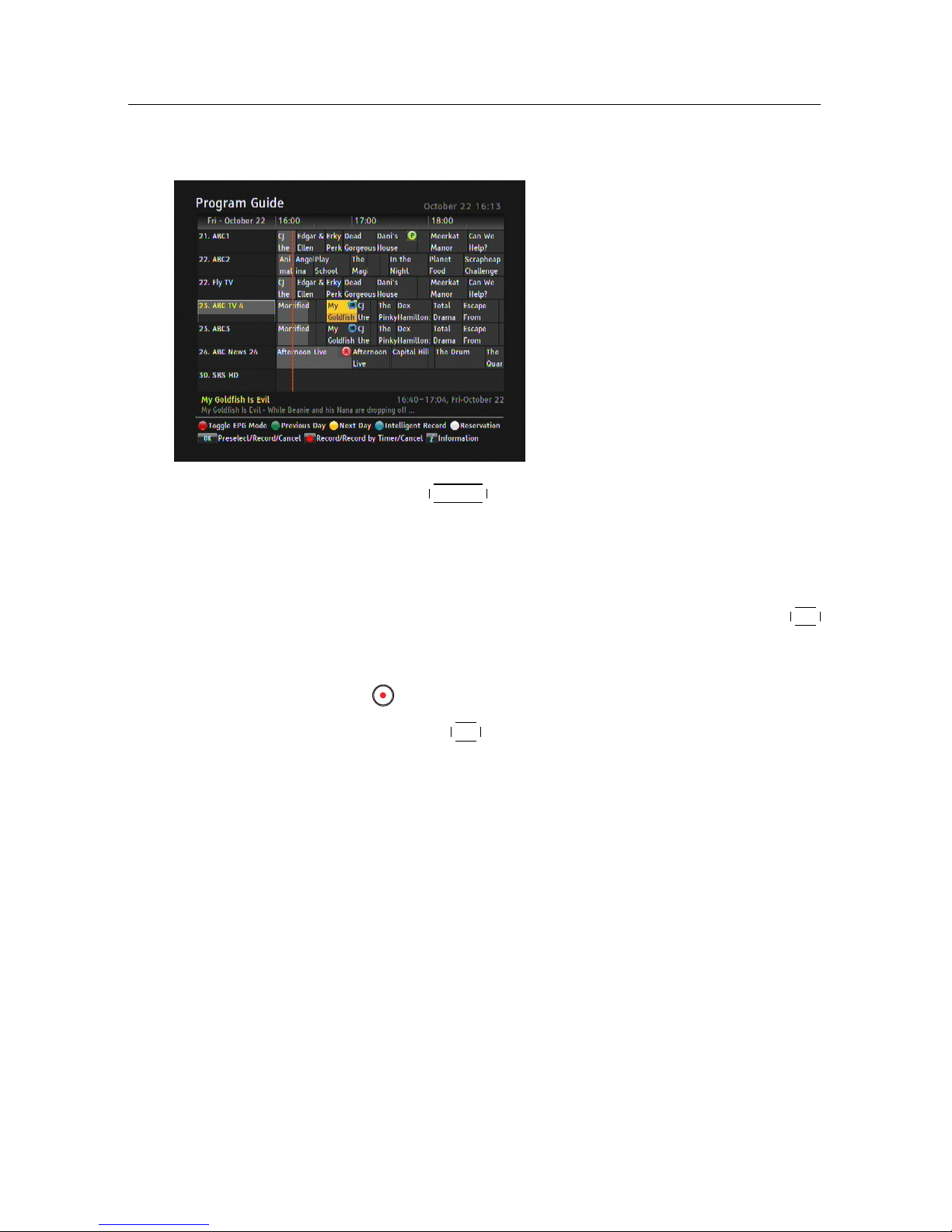

Pressing the
GUIDE button dis-
plays the electronic programme
guide, on which you can see the
following:
• Scheduled programmes
• programme summary
• Broadcasting date
• Broadcasting time
To see detailed information of a desired programme, put the
highlight bar on the programme with thebordbutton and
press the button. To switch to another service, press the
cora
button.
You can travel over previous days with the
F2 button, and can
travel over next days with the
F3 button.
To see the programme guide for radio broadcasts, press the
button. To switch it back, press the button again.
Pressing the
F1 button will rearrange the form, swapping the
columns and rows. To switch it back, press the
F1 button
again.
Page 41
5 Every Day Use
5.4 Using time-shift 35
You can make a timer recording on the electronic programme
guide. See §7.1.3 for detailed description.
5.4 Using time-shift
You can pause and resume a live television programme, and
even rewind and replay it. When you are watching a programme and you miss something, you can rewind and replay
it. Or when your attention is needed elsewhere, you can pause
a live TV and resume a short time later without losing any of
the programme.

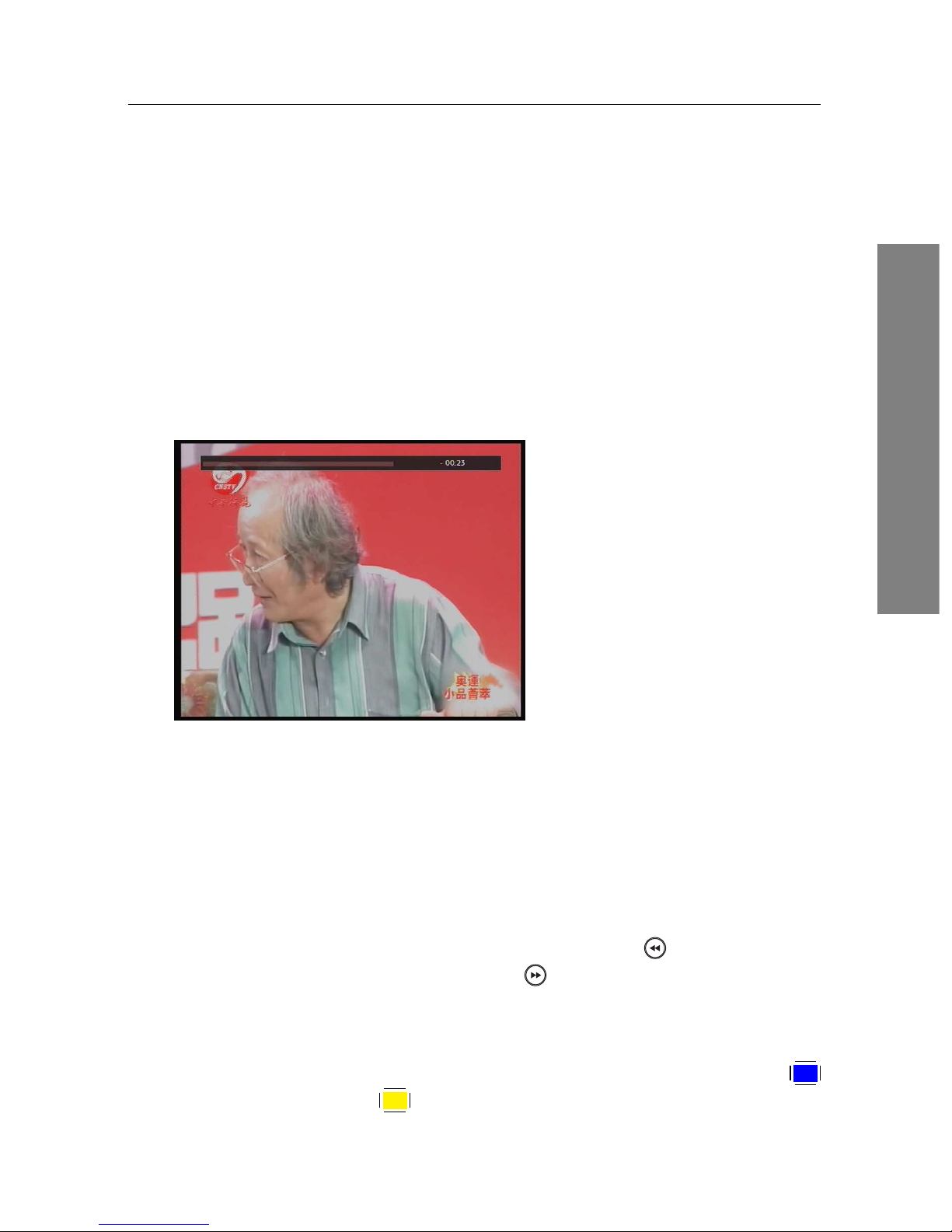

When you do this, you are no
longer watching the live programme, instead you are watching a delayed presentation. This
is called time-shifted television.
You can skip commercials until
you catch up to the live broadcast.
In order to use the time-shift feature, set the Time Shifting option to desired duration of time. Then the digital receiver will
archive the programme as much time as you set in the option.
See §4.4.
The time-shift will be reset each time you change to another
service. With the time-shift, the following operations are possible:
• To go back in time, hold down the button; to go forward, hold down the button. The progress bar is displayed momentarily with a preview window.
• You can navigate using the progress bar, refer to §7.3.1.
• You can jump backward and forward by pressing the
F4
and
F3 buttons. You can change the jump time at the
Page 42
36 Every Day Use
Jump Time Interval option. See §4.5.
• You can change playback speed. See §7.3.2 for slow motion. For fast motion, see §7.3.3.
• To check your current position in time-shift, press the
button. The time difference compared to live pro-
gramme is displayed momentarily in top right corner of
the screen. A value of −02:00 means two minutes behind the live programme.
• To make a recording of the time-shifted programme„ see
§7.1.4.
• To end time-shift, press the button. The live programme will be displayed.
NOTE
You can adjust some options for time-shift. Refer to §4.4.
Page 43
6 Organising Services
37
Chapter 6
Organising Services
6.1 Editing the favourite lists
You can make your own favourite service lists. In fact, you can
define multiple favourite service lists, each being a ‘group’ of
chosen services.

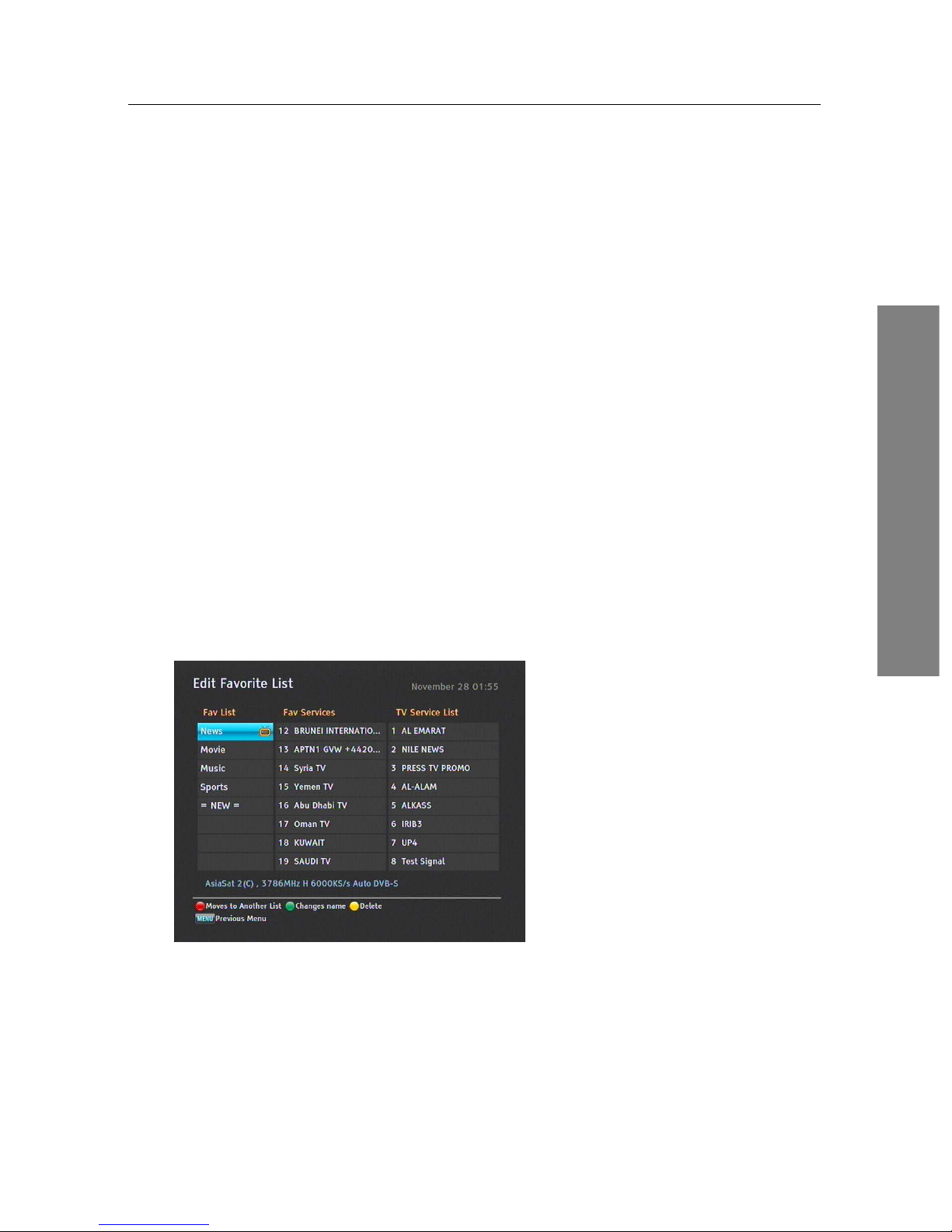

Select the installation > Edit Ser-
vices > Edit Favorite List menu.
You should see a screen like
the left figure. There are three
columns:
• Group name (left)
• Favourites list (centre)
• Services list (right)
The services list contains all available services, whereas the
favourites list contains only chosen services that have been
added to the highlighted group. As you move the highlight
bar up or down on the group list, favourite services belonging
to the highlighted group get shown in the favourites list.
Page 44
38 Organising Services
NOTE
To load guide, go to the specific channel, press the
GUIDE
button, then the guide will populate. Do this to every single
channel upon starting up PVR.
You can add up to 30 groups. To add a new group, select the
NEW item in the group list, then the on-screen keyboard appears. See §6.2 as to how to use the on-screen keyboard.
To rename a group, put the highlight bar on the group entry
you want and press the
F2 button, then the on-screen key-
board likewise appears.
To delete a group, put the highlight bar on the group entry you
want and press the
F3 button, then a message box appears,
asking you for confirmation. With the choice of Yes, it will be
deleted.
You can add a favourite service to a group by taking the following steps:
1. Put the highlight bar on a desired group entry in the
group list and press the
OK button to select it. The high-
light bar then moves to the services list.
2. To add a service to the selected group, put the highlight
bar on a desired service entry and press the
OK button.
The selected service entry gets added to the favourite list.
Repeat this step to add more entries.
3. Press the
F1 button, and the highlight bar gets moved
to the favourite list. You can delete a favourite entry with
the
OK button.
4. To select another group, press the
F1 button again, then
the highlight bar gets moved to each column.
Furthermore, you can rearrange a group’s favourites by moving a favourite entry. To move a favourite entry, put the highlight bar on the favourite entry you want and press the
F2
button. Press the
b
and
d
buttons or
a
and
c
buttons to
Page 45
6 Organising Services
6.2 How to use on-screen keyboard 39
move it to a desired place and press the
OK button. To add
radio services, press the button, then radio service entries
get listed in the services list. To recall the television services
list after adding radio services, press the button again.
As to how to use the favourite service lists you organised, refer
to §5.2.2.
6.2 How to use on-screen keyboard
You can move the highlight key
horizontally with the
b
and
d
buttons and vertically with the
a
and
c
buttons. Pressing the
OK button on a key enters its let-
ter in the input line. To type a
space, select the Space key. To
type lower case letters or numerals, select the Shift key.
To delete a letter, put the cursor to the right of the desired letter
on the input line and then select the Del key. You must select
the Save key to store the name; otherwise if you press the
EXIT
button, the name will not be stored.
Page 46
40 Recording and Playback
Chapter 7
Recording and Playback
You can record TV programmes into an external hard drive as
well as the built-in hard drive.
NOTE
To use an external hard drive, you must connect the external
hard drive to the USB port or the eSATA port of the digital
receiver. You cannot play back the recordings with a regular MPEG player on your computer because they are formatted differently from the standard MPEG format. Visit
http://www.kmplayer.com where you can find an MPEG
player able to play them back.
CAUTION
Do not disconnect the external hard drive while recording
or playing back. It may cause damage to recorded programmes. You should disconnect the external hard drive in
standby mode only.
Avoid transferring files while the unit is set to record.
This recorder can record four channels simultaneously, however, this is controlled by the channel frequency. Each channel
Page 47
7 Recording and Playback
7.1 Recording a programme 41
has other programmes under the one frequency (E.g. Channel Nine has 9, 9HD, GO, GEM) (Channel ABC has ABC
News 24, ABC1, ABC2, ABC3, etc.). This recorder can record
two programmes on each channel frequency simutaneously.
(E.g. 10.TEN Digital plus 11.One HD and 90.GEM plus 99.Go!)
Whilst recording the above combination of programmes you
can also playback a pre-recorded show.
7.1 Recording a programme
Once a recording gets started, a symbol like the left figure will be displayed at the top right of the screen for
a few seconds.
When you are watching a different service from the service
being recorded, you will see a number on the centre of the
symbol, this indicates the order that the recording has started.
When you record two different channels from two different
stations, what you are actually doing is locking each tuner to
two separate station bandwidths.
For example, if you record channel 7TWO and channel 9 Digital, you have locked the first tuner into all the channels from 7
which includes: 7 Digital, 7 Digital 1, 7TWO and 7Mate. While
on the second tuner you have locked in all the channels from 9
which includes: 9 Digital, Gem and Go.
With this in mind, while the above two channels (eg. 7TWO
and 9 Digital) are being recorded, you can watch a third channel which can be only one of the following: 7 Digital, 7 Digital
1, 7Mate, Gem or Go.
The same can be said for recording for four channels (eg.
7TWO, 7Mate, 9 Digital and Go). You can watch an additional
channel which can be only one of the following: 7 Digital, 7
Digital 1 or Gem.
Page 48
42 Recording and Playback
CAUTION
Do not move the digital receiver nor pull out the power
plug while it is running. It may cause damage to recorded
programmes. Toppro is not responsible for damages inflicted on files that are stored on the hard drive.
7.1.1 Instant recording
To instantly record a programme you are watching at present,
press the button.
Pressing the button will not pause the current recording
like it does with a video recorder. Instead, pressing the button will pause the live show and begin time-shifting within the
current recording even with the Time Shifting option disabled.
In short, it is still possible to pause a recording, but literally
recording continues in the digital receiver.

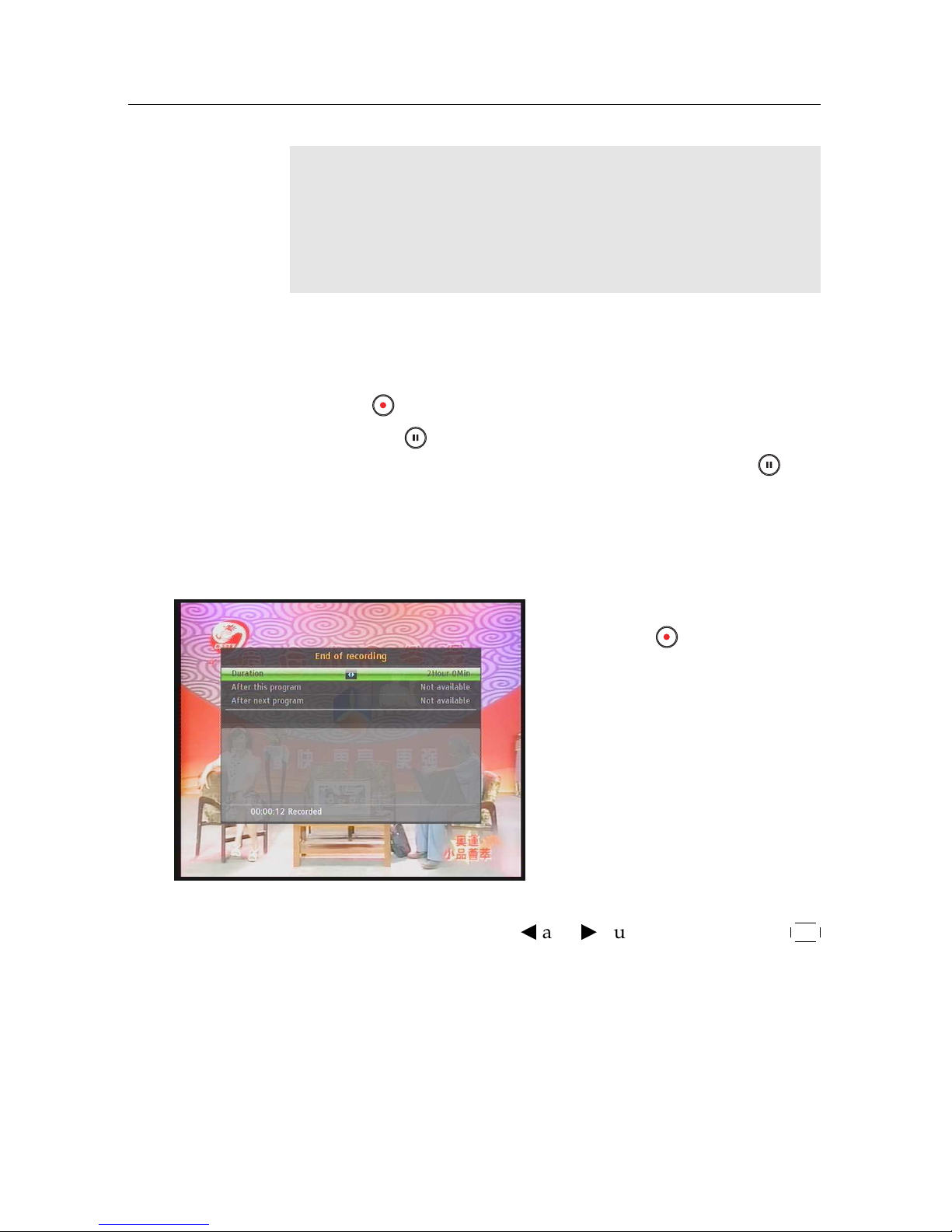

After a recording has started,
pressing the button displays
a menu like the left figure, in
which you can set the recording
duration.
To specify an arbitrary recording duration, set the Duration option as you desire with thebanddbuttons and press the
OK
button; the recording will end at the specified time.
If the information about the next programme is provided by
the electronic programme guide, the After this program and
After next program options will be enabled. Once the After this
program option is selected, the current recording will stop at
the time when the current programme is scheduled to end.
Page 49
7 Recording and Playback
7.1 Recording a programme 43
Likewise, once the After next program option is selected, the
current recording will stop at the time when the next programme is scheduled to end.

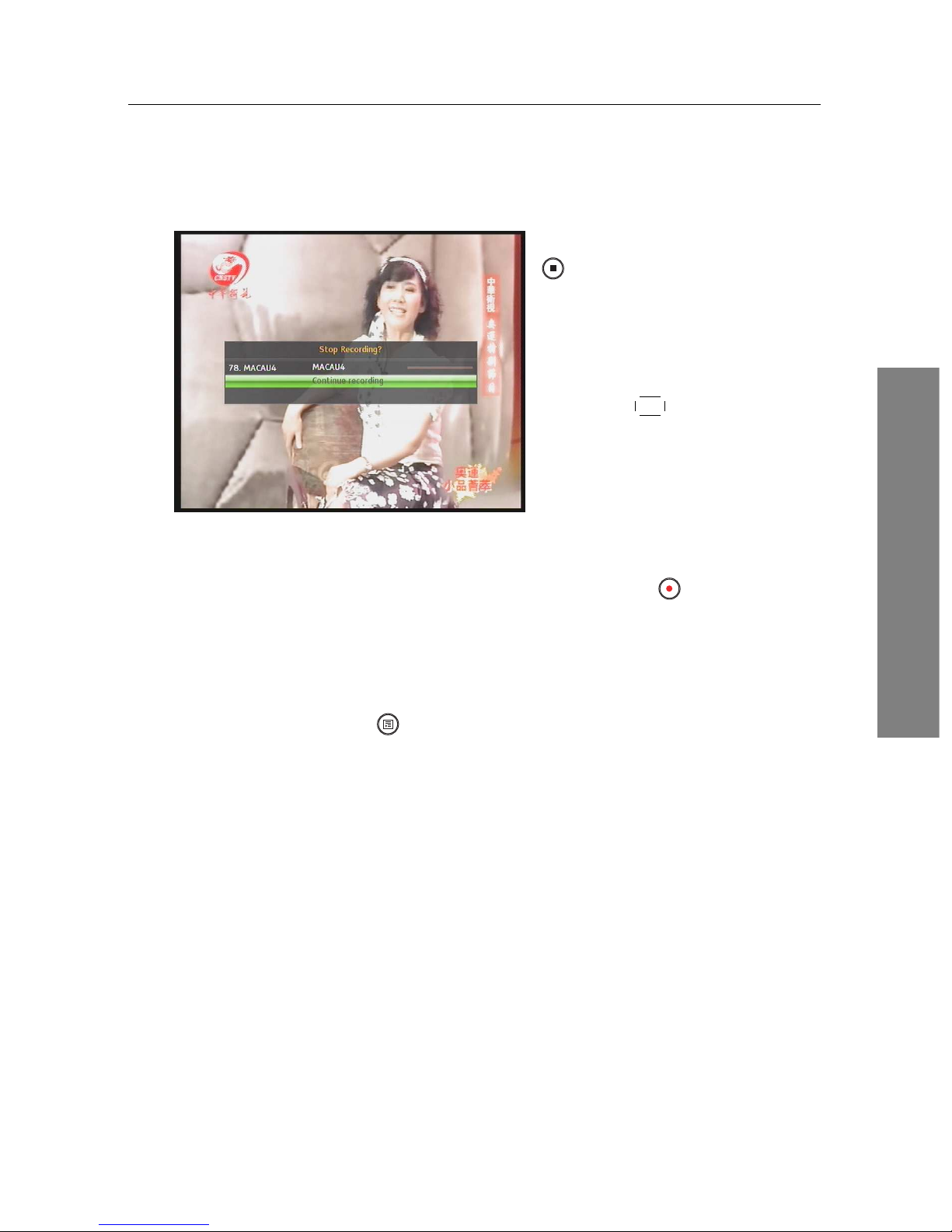

To stop recording, press the
button; then a box like the
left figure appears, which shows
the programmes currently being recorded. Select recording by using navigation buttons
then press
OK button to stop the
recording.
While a recording is going on, you can watch or record another
service. To additionally record another service, switch to the
service you want to record, and press the button. Once a
recording is started, it is put on the recorded programme list
even though it is not finished yet. The recording file is named
the program name if available or after its service name with
a suffix of a number. To view the recorded programme list,
press the button or alternatively select the Recording >
Recorded Program menu. See §7.2 for detailed description
about the recorded programme list.
7.1.2 Timer recording
You can set a programme to be recorded at a specific time.
Even if the digital receiver is in standby mode, it will switch
into active mode and start recording at a specified time. When
the recording comes to the end, the digital receiver will switch
back into standby mode again in one minute. However, if you
press any button on the remote control or on the front panel
even just one time, the digital receiver will not switch into
standby mode.
Page 50
44 Recording and Playback

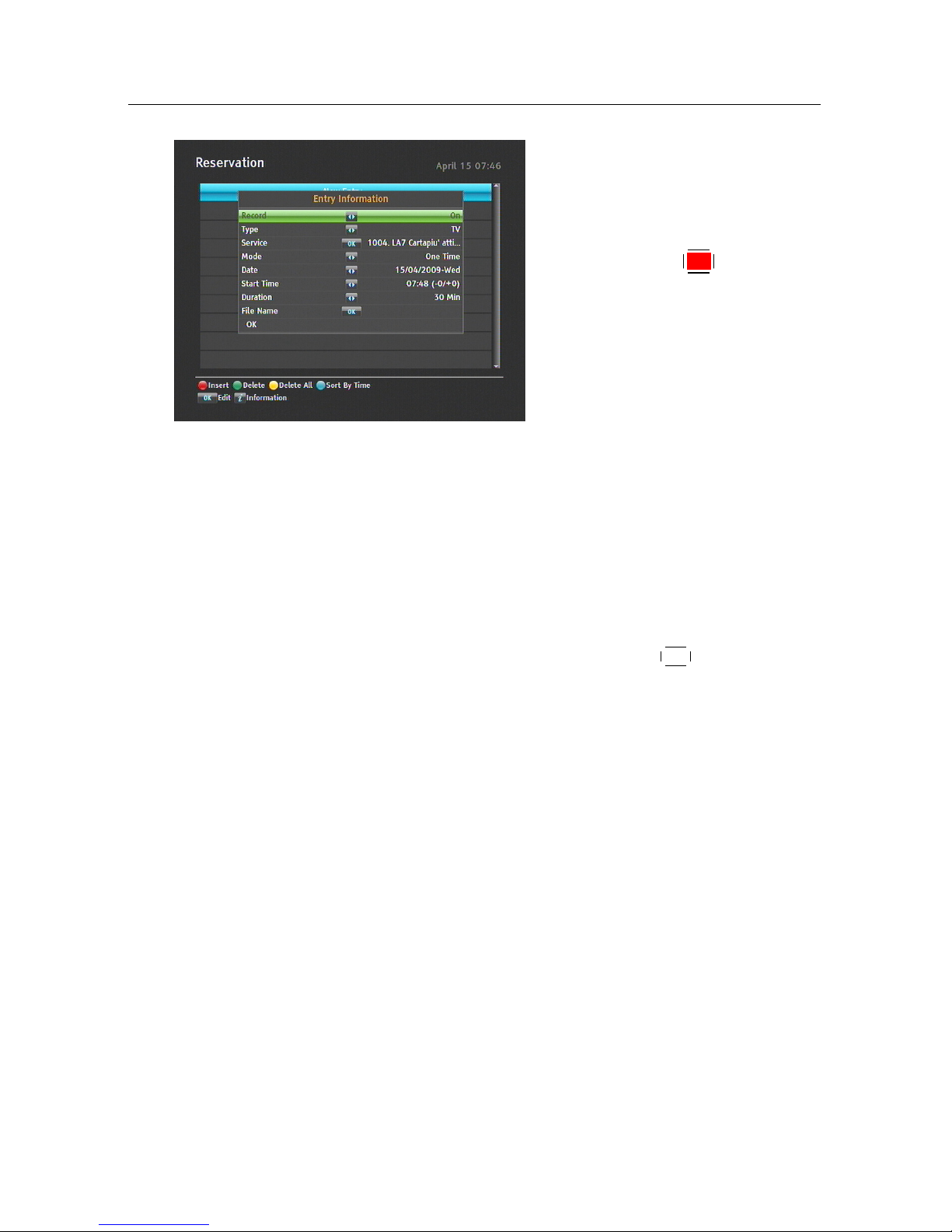

To add a timer recording, select the Recording > Reserva-
tion menu, then the timer list will
be displayed. To adda new timer
event, press the
F1 button, and
a box like the left figure appears.
Take the following steps:
1. Set the Record option to On to make a recording. If this
option is set to Off, the digital receiver will turn on at the
specified time but not record; instead, you may record
with your video recorder or suchlike in this case.
2. You may have two sources for recording, TV and radio.
Set the Type option to your desired source.
3. Set the Service option to the service which provides the
programme you want. Pressing the
OK button on this
option displays a services list, from which you can select
your desired service.
4. Set the Mode option as you desire. There are five timer
modes:
One Time means literally ‘one time’.
Every Day means literally ‘every day’.
Every Weekend means ‘Saturday and Sunday every week’.
Weekly means ‘one day every week’.
Every Weekday means ‘from Monday to Friday every
week’.
If your favourite programme is broadcast at weekends
and you wish to record every episode of the programme,
set the Mode option to Every Weekend.
5. Set the Date option to a desired date, on which the digital
Page 51
7 Recording and Playback
7.1 Recording a programme 45
receiver will turn on. The date format is day/month/yearday of the week.
Set the Start Time option to a desired time, at which the
recording will be started. The time format is hour:minute.
6. Set the Duration option to a desired time, in which the
recording will be finished.
7. Pressing the
OK button on the File Name option displays
the on-screen keyboard, with which you can specify a
file name for the timer recording. If you do not specify
anything, it will be named after the service name. See
§6.2 as to how to use the on-screen keyboard.
8. To set a recording reservation with the above settings,
select the OK item; otherwise, it will not be saved and
will not occur.
You can also edit or delete timer events in the timer list. To edit
a timer entry, put the highlight bar on the entry you want and
press
OK button; then appears a box in which you can change
its settings in the same manner as making a new one.
To delete a timer event, put the highlight bar on the entry you
want to remove and press the
F2 button, then you get asked
for confirmation. With the choice of Yes, it will be deleted. To
delete all timer event, press the
F3 button.
You can sort timer events by time with the
F4 button.
Page 52
46 Recording and Playback
7.1.3 Scheduling recordings using the programme guide
If the electronic programme
guide is properly provided,
you can make timer events on
it. The instructions on how to
make timer recordings using the
electronic programme guide are
as follows:
1. Press the
GUIDE button to display the electronic pro-
gramme guide.
2. Select a programme you want to record with the navigation buttons.
3. To make a timer event without recording, press the
OK
button; the letter P is displayed. To make a timer event
with recording, press it once more or alternatively press
the button, then the letter R is displayed.
4. Pressing the
OK button once more will cancel the timer.
Intelligent Recording(IR)
Once you choose a show in the program guide and select Intelligent Record, it not only records the selected show, but also
makes timer recordings for all other episodes of the show that
can be found on the EPG.
Page 53
7 Recording and Playback
7.1 Recording a programme 47

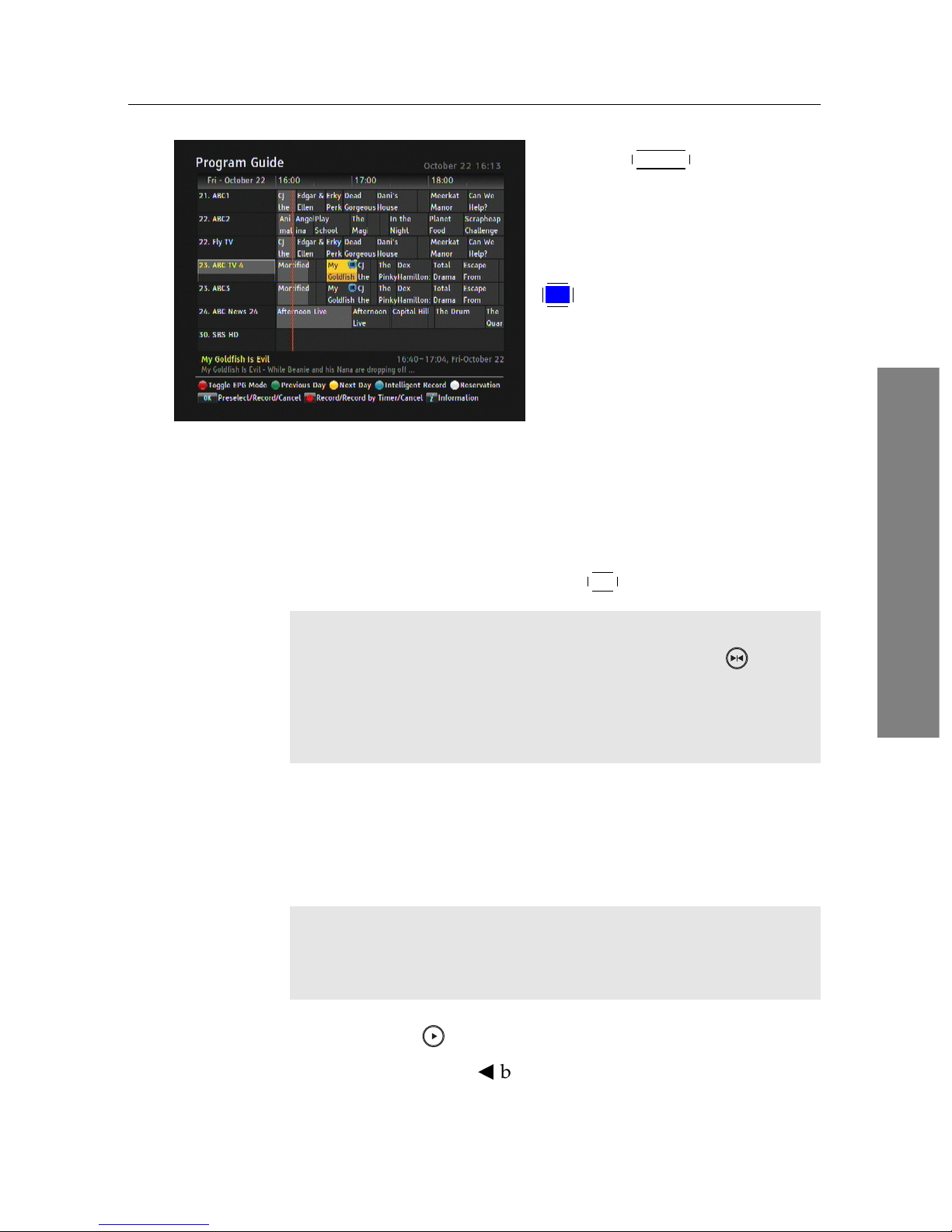

Press the
GUIDE button to dis-
play the EPG and highlight a
show you want to record with
the navigation buttons. To make
intelligent recording, press the
F4 button on the selected show,
then the letter IR is displayed in
blue circle.
At the same time you set the IR on your favorite show, the receiver will automatically detect the same service name on the
EPG. And then, on all other episodes of the show, the letter IR
in gray circle will be displayed that indicate the entire series of
the show are automatically scheduled to be recorded. If you
want to cancel the timer, press the
OK button.
NOTE
You can check the reservation list by pressing the button
on the EPG. IR is applied only to the shows that are properly
provided on the EPG. You can record up to 4 programs that
start at the same time simultaneously with IR.
7.1.4 Recording a time-shifted programme
While watching a programme with time-shift, you can record
it by performing the following steps:
NOTE
The whole timeshift buffer is recorded as one single file on
the hard drive.
1. Press the button to display the progress bar.
2. Hold down thebbutton to move back in timeshift.
Page 54
48 Recording and Playback
3. Press the button to start recording. When you get
prompted to save the timeshift programme, select YES
at the same time a new live recording will begin from
the end of your timeshift file on the same channel.
4. If you wish to stop the live recording, press the button
on the remote.
See §5.4 for detailed description about the time-shift feature.
7.2 File archive
When a programme is recorded, it is stored as a file on the hard
drive of the digital receiver. You can select a recording to play
back from the recorded programme list.

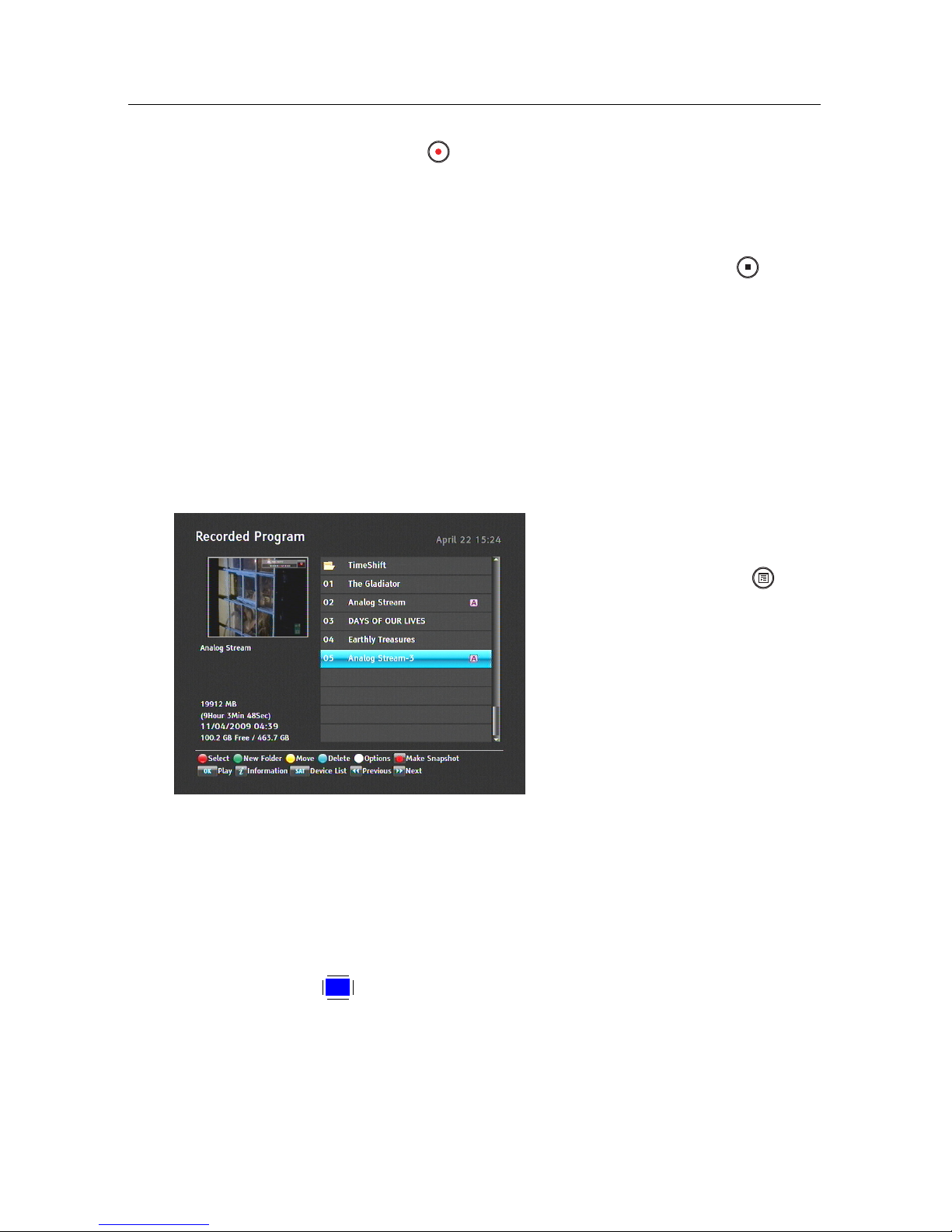

Select the Recording >
Recorded Program menu or
alternatively press the button to display the recorded
programme list. The file information is comprised of the
following elements: file number, file name, recording time,
running time, file size and so on.
You can play, move, delete, rename and lock a recording file.
You can also sort the recording files by file name, running time
or file size. In addition, you can make a new folder.
7.2.1 To delete a recording
To delete a recording, put the highlight bar on it and press
the
F4 button, then you get asked for confirmation. With the
choice of Yes, it will be deleted.
7.2.2 To sort recordings
To sort the recordings, take the following steps:
Page 55
7 Recording and Playback
7.2 File archive 49
1. Press the button to display additional options.
2. Set the Sorting option to Alphabetic, Time or Size as you
want.
3. Press the
EXIT button.
4. They will be sorted by the specified option.
7.2.3 To lock a recording
To lock a recording so that other persons cannot play or delete
it, take the following steps:
1. Put the highlight bar on a desired recording.
2. Press the button to display additional options.
3. Set the Lock option to Locked.
4. Press the
EXIT button.
5. The lock symbol ( ) is displayed on it.
If you select a locked recording to play it back, you will be
asked for your personal identification number.
7.2.4 To rename a recording
To change a recording’s name, take the following steps:
1. Put the highlight bar on a desired recording.
2. Press the button to display additional options.
3. Select the Rename option, and the on-screen keyboard
appears. Change the name and save it. See §6.2 as to
how to use the on-screen keyboard.
7.2.5 To make a new folder
To make a new folder, press the
F2 button, then a new folder
named GROUP # is created. You can change its name in the
same manner as renaming a recording. See above.
7.2.6 To move a recording to another folder
To move a recording to another folder, put the highlight bar on
a desired recording and press the
F3 button. If an external
Page 56
50 Recording and Playback
hard drive is connected to the digital receiver, you get asked
to select between the built-in and external hard drive. Select
Internal, then the folders are listed. Once you choose a folder,
the recording is moved to it.
7.3 Playing back a recording
When a programme is recorded, its additional contents such
as audio track or subtitle track are also recorded together. So
you can enjoy them while playing back a recording.
The instructions on how to play a recording are as follows:
1. Select the Recording > Recorded Program menu or
alternatively press the button to display the list of
recorded programmes.
2. Put the highlight bar on a desired recording and press
the
OK button, then an option box pops up.
3. To play from beginning, set the Starting Position option to Beginning; to play from the point that you have
stopped at the last time, set it to Continuing. To start playback, select the Play item.
4. To stop playback, press the button.
During playback, you can enjoy the following tricks:
• To see the detailed information about the currently
played recording, press the button; then the information box appears and shows its file name, running
time, programme information, and so on.
• To pause playback, press the button. To resume it,
press the button.
• To view the progress bar, press the button; to hide it,
press the button again.
• When the progress bar is hidden, you can move to a desired scene by entering a progress percentage with the
numeric buttons.
Page 57
7 Recording and Playback
7.3 Playing back a recording 51
7.3.1 To navigate using the progress bar
First press the button to display the progress bar.
• To go forward, hold down thedbutton; to go backward,
hold down thebbutton.
• If there are no bookmarks, you can jump forward by the
minute set to the Jump time Interval option with the
F3
button. See §4.5 for that option. Refer to §7.3.4 as to how
to bookmark a position.
• To jump to the beginning, press the button.
• To jump to the end, press the button.
• To hide the progress bar, press the button again.
7.3.2 To play in slow motion
To watch in slow motion during a playback, press the button. If you press it repeatedly, the playback speed changes in 4
steps: 1/2, 1/4, 1/8 and 1/16 times. To resume normal speed,
press the button.
7.3.3 To play in fast motion
To watch in fast motion during a playback, press the button. If you press it repeatedly, the playback speed changes. To
resume normal speed, press the button.
You can play not only forward but also backward in fast motion. To play backward, press the button. If you press it
repeatedly, the playback speed changes. To resume normal
speed, press the button.
You can change the playback speed in 3 steps (4, 16 and 64
times) or in 6 steps (2, 4, 8, 16, 32 and 64 times). See §4.5.
Page 58
52 Recording and Playback
7.3.4 To make a bookmark

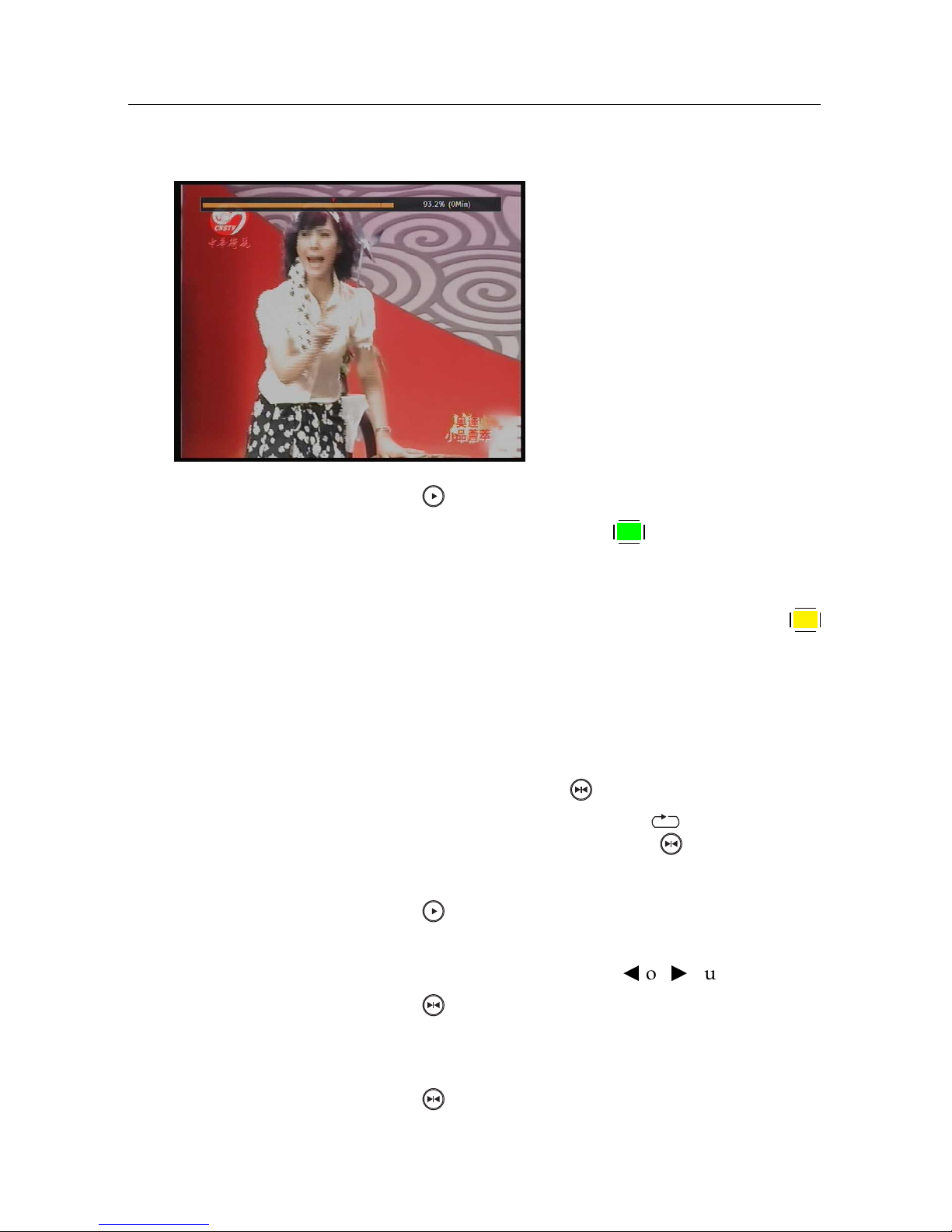

You can mark favourite parts of
a recording by creating bookmarks and then jump to them in
sequence. Bookmarks are stored
with the recording so that you
can use them again afterwards.
To make bookmarks, take the following steps during playback:
1. Press the button to display the progress bar.
2. To add a bookmark, press the
F2 button at a desired
scene, then you will see a small pointer appear above the
progress bar like in the picture above.
3. To jump forward to the next bookmark, press the
F3
button.
7.3.5 To play back a recording repeatedly
You can play back a recording repeatedly both in whole and in
part.
To play back in whole, press the button when the progress
bar is hidden, then the repetition symbol ( ) is displayed on
the information box. To cancel it, press the button again.
To play back in part, take the following steps:
1. Press the button to display the progress bar.
2. Move to the beginning scene of the part you want to play
repeatedly by holding down thebordbutton.
3. Press the button, then the pointer starts to blink.
4. Move to the end scene; the selected part is marked in
black.
5. Press the button again to start repeated playback.
Page 59
7 Recording and Playback
7.4 Editing a recording 53
6. To cancel it, press the button when the progress bar
is displayed.
7.3.6 To play back recordings in sequence
You can play several recordings continuously in sequence by
performing the following steps:
1. Press the button or alternatively select the Record-
ing > Recorded Program menu to display the list of
recorded programmes.
2. Select each desired recording with the
F1 button. Once
a recording is selected, it gets numbered.
3. Press the button to start playback.
4. The selected recordings are played in the sequence that
they are numbered.
5. To jump to the beginning of the next recording in the
queue, press the button to display the progress bar,
then press the button.
7.4 Editing a recording
You can cut out or save a part such as commercial from a
recording by performing the following steps:
1. Press the button to display the progress bar during a
playback.
2. Move to the beginning scene of the part you want to edit
by holding down thebordbutton.
3. Press the button, then the pointer starts to blink.
4. Move to the end scene; the part is marked in black.
5. Press the
F4 button, then the edit options are displayed.
6. If you choose the Cut option, it will be removed from the
original recording and discarded.
7. If you choose the Save option, the cut will be saved in a
new file which is named after the original recording with
a suffix of ‘CUT’ and a number.
Page 60
54 Recording and Playback
NOTE
Edited files cannot be fast-forwarded and rewinded. The
F4 and
F3 buttons are still active for this feature.
7.5 Copying a recording
You can record the file in whole or in part during a playback
by performing the following steps:
1. Start playback of a recording you want.
2. Move to a scene from which you want to start copying by
holding down thebordbutton.
3. Press the button, then it will be copied in a new file
which is named after the original recording with a suffix
of ‘COPY’ and a number.
4. To stop copying, press the button.
7.6 Formatting the hard disk
If a new hard drive is installed, it must be formatted because
you can neither record nor use time-shift with an unformatted
hard disk.
You can delete permanently all contents stored in a hard drive
by formatting it. Select the Installation > System Recovery >
Format Hard Disk menu, and then select the hard drive you
want to format. To format the built-in hard drive, select the
option to Internal; otherwise to format the external hard drive
which is connected to the digital receiver, select the option to
External. With pressing the
OK button, you get asked for con-
firmation. Formatting will start with the choice of Yes.
NOTE
The hard drive on the digital receiver will be formatted in
the JFS file system.
Page 61
8 Entertainment
55
Chapter 8
Entertainment
This digital receiver provides several special features for entertainment.
NOTE
To fully enjoy all of the features described in this chapter,
you had better configure the network settings properly. As
to how to configure the network settings, refer to §9.2.
8.1 Copying files
NOTE
To copy files to the external hard drive, it must be preformatted in the JFS file system. After this, the external hard drive
can be used with the Toppro PVR and your PC.
You can copy files between the built-in hard drive and external
hard drive. To copy from the internal to the external hard
drive take the following steps:
1. Connect an external hard drive to the digital receiver.
Page 62
56 Entertainment
2. Press the button and then press the or button
to select a desired file list except the External list.
3. Put the highlight bar on a desired file and press the
F3
button, then you get asked to select between the built-in
and external hard drive.
4. Select External, then the folders are listed.
5. Select a destination folder and press the
OK button, then
the selected file will be copied into the external hard
drive.
To copy from the external to the internal hard drive, take the
following steps:
1. Connect an external hard drive to the digital receiver.
2. Press the button and then press the or button
to select the External List.
3. Put the highlight bar on a desired file and press the
F3
button, then the list of folders gets displayed.
4. Select a folder in the built-in hard drive.
5. Press the
OK button, then the selected file will be copied
into the built-in hard drive.

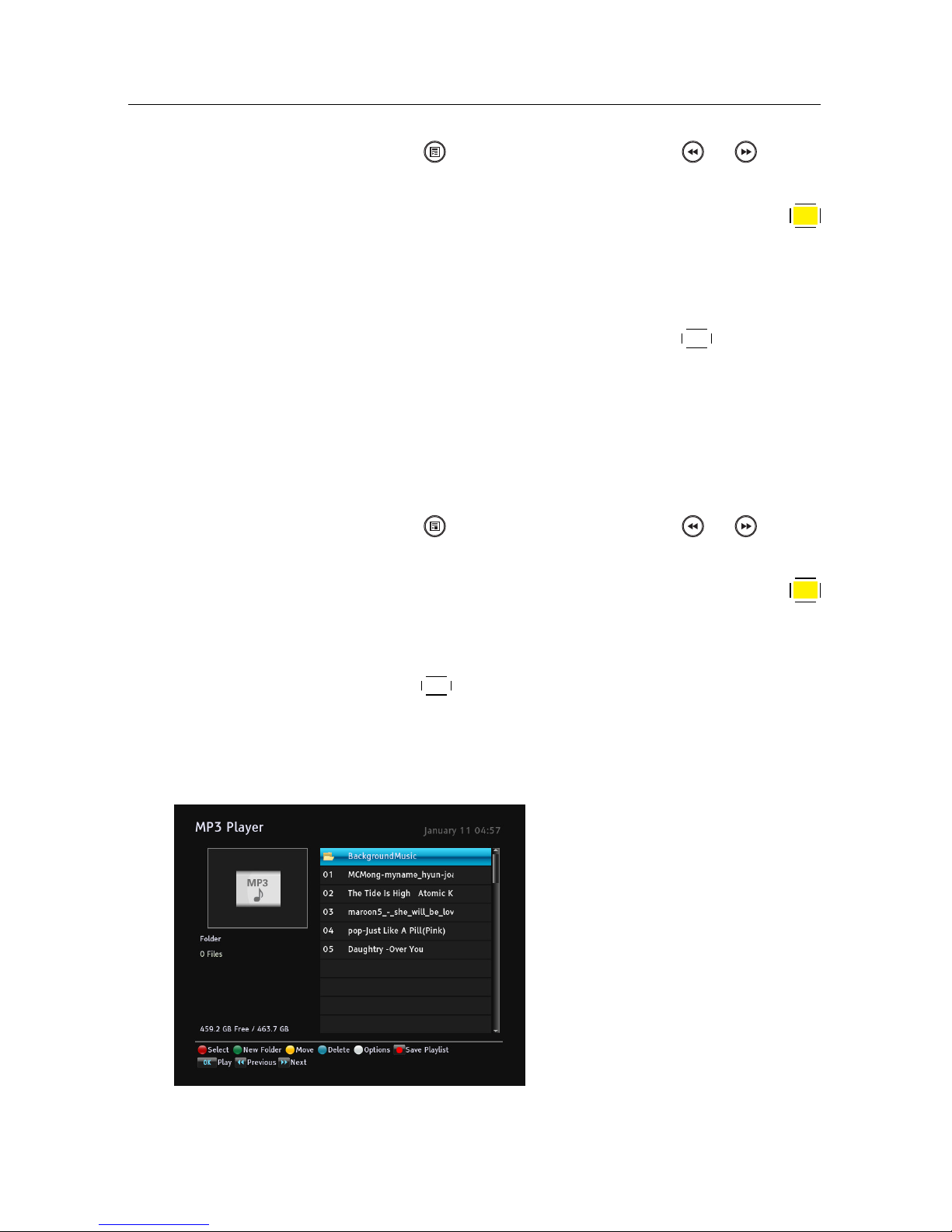

8.2 Playing back MP3 files
You can enjoy music or audio
books in MP3 format on the digital receiver. Refer to §8.1 as to
how to copy a file from an external hard drive into the built-in
hard drive of the digital receiver.
To play an MP3 file, take the following steps:
Page 63
8 Entertainment
8.3 Viewing image files 57
1. Select the Entertainment > MP3 Player or press the
button and then the or button to display the MP3
file list.
2. Put the highlight bar on a desired file; if you want to play
several files, select them with the
F1 button.
3. Press the button to start playback.
4. To stop playback, press the button.
To play all MP3 files in a subfolder, put the highlight bar on a
desired folder, and press the button. To change from one
file to the next or previous file, use the or buttons.
8.3 Viewing image files
8.3.1 How to move a file to the photo album
You must move the jpg files into the Photo Album folder first.
Please ensure your external hard drive is connected to your
unit.
1. Select
MENU button on your remote then go to Enter-
tainment > Media Player.
2. Press the
SAT button on your remote to bring up your
external hard drive.
3. Select the external hard drive name and then press
OK .
4. You will then get access to your external hard drive. Navigate through the external hard drive file and folders until you have selected the image file you want to transfer.
5. With the file selected, press the
F3 button, then another
screen will appear. Select Photo Album and press
OK .
Page 64
58 Entertainment

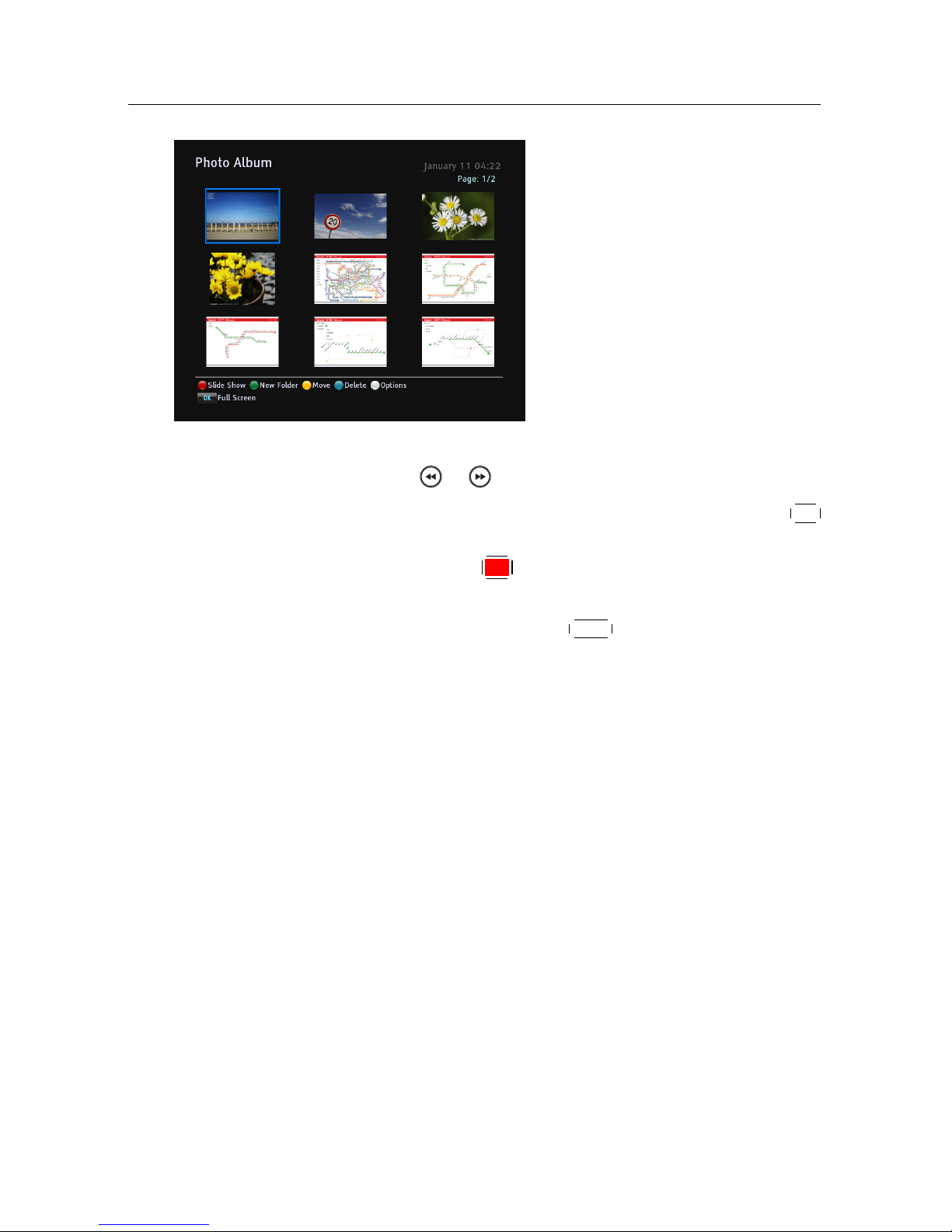

Now, you can view the image
files in jpg format by performing
the following steps:
1. Select the Entertainment > Photo Album menu, and then
press the or button to display the list of image files.
2. Put the highlight bar on a desired file and press the
OK
button; if you want to view several files using a slide
show, press the
F1 button. You can change a time in-
terval and effect of slideshow. See §4.8.
3. To stop viewing, press the
EXIT button.
8.4 Playing back a video file
You can play back media files such as photos, videos and music
with this digital receiver. Media file formats that you can play
back with the digital receiver are as follows:
• video: DivX, XviD, VOB, MKV, MP4, and AVI
• photo: JPG
• music: MP3
Page 65
8 Entertainment
8.5 Google weather forecast (optional) 59

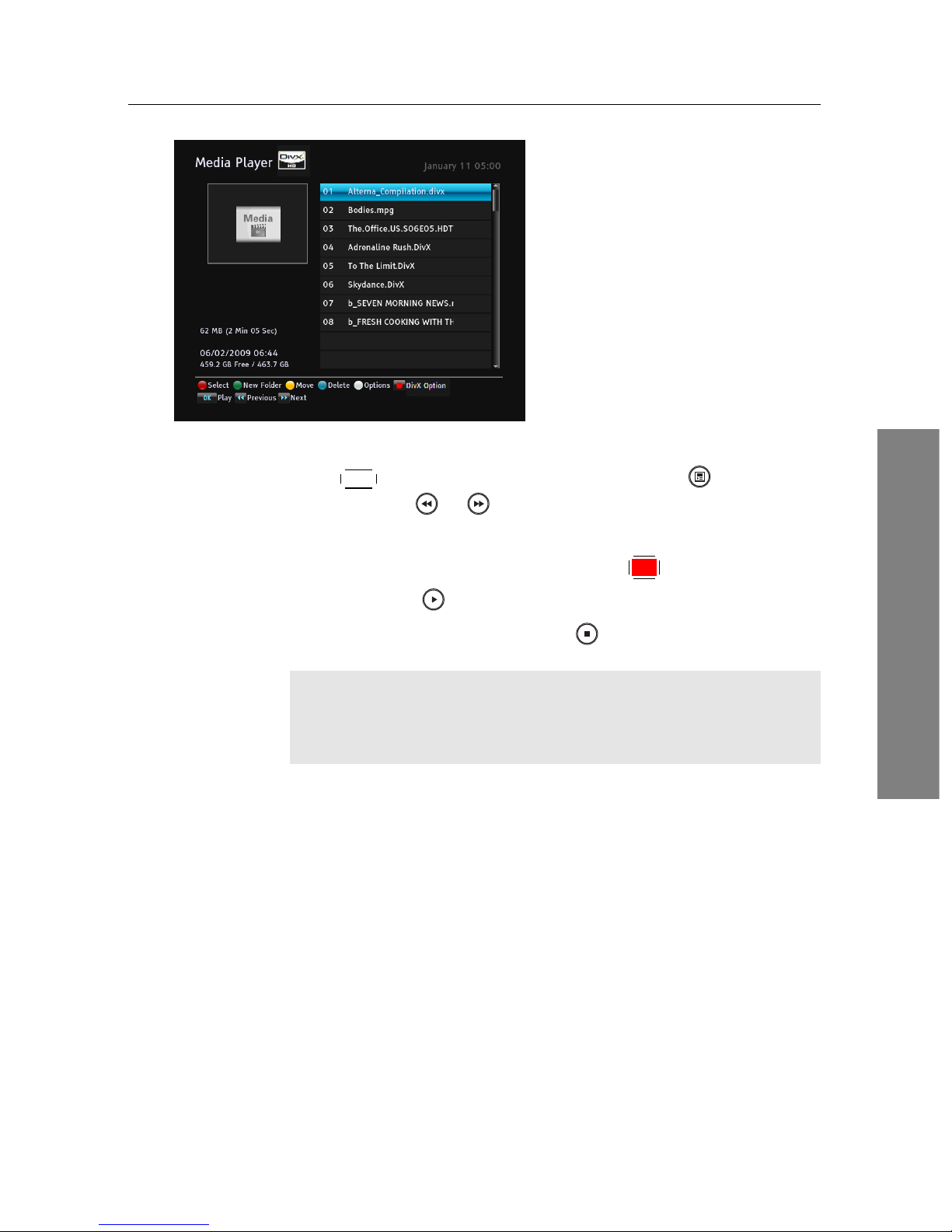

Refer to §8.1 as to how to copy a
file from an external hard drive
into the built-in hard drive of the
digital receiver. To play a video
file, take the following steps:
1. Select the Entertainment > Media Player, then press the
SAT button on the remote or press the button, and
then the or button to display the video file list.
2. Put the highlight bar on a desired file; if you want to play
several files, select them with the
F1 button.
3. Press the button to start playback.
4. To stop playback, press the button.
NOTE
This digital receiver supports only version 3.x, 4.x, 5.x, and
6.x of the Divx format.
8.5 Google weather forecast (optional)
You can view the weather of your city or other cities.
Page 66
60 Entertainment

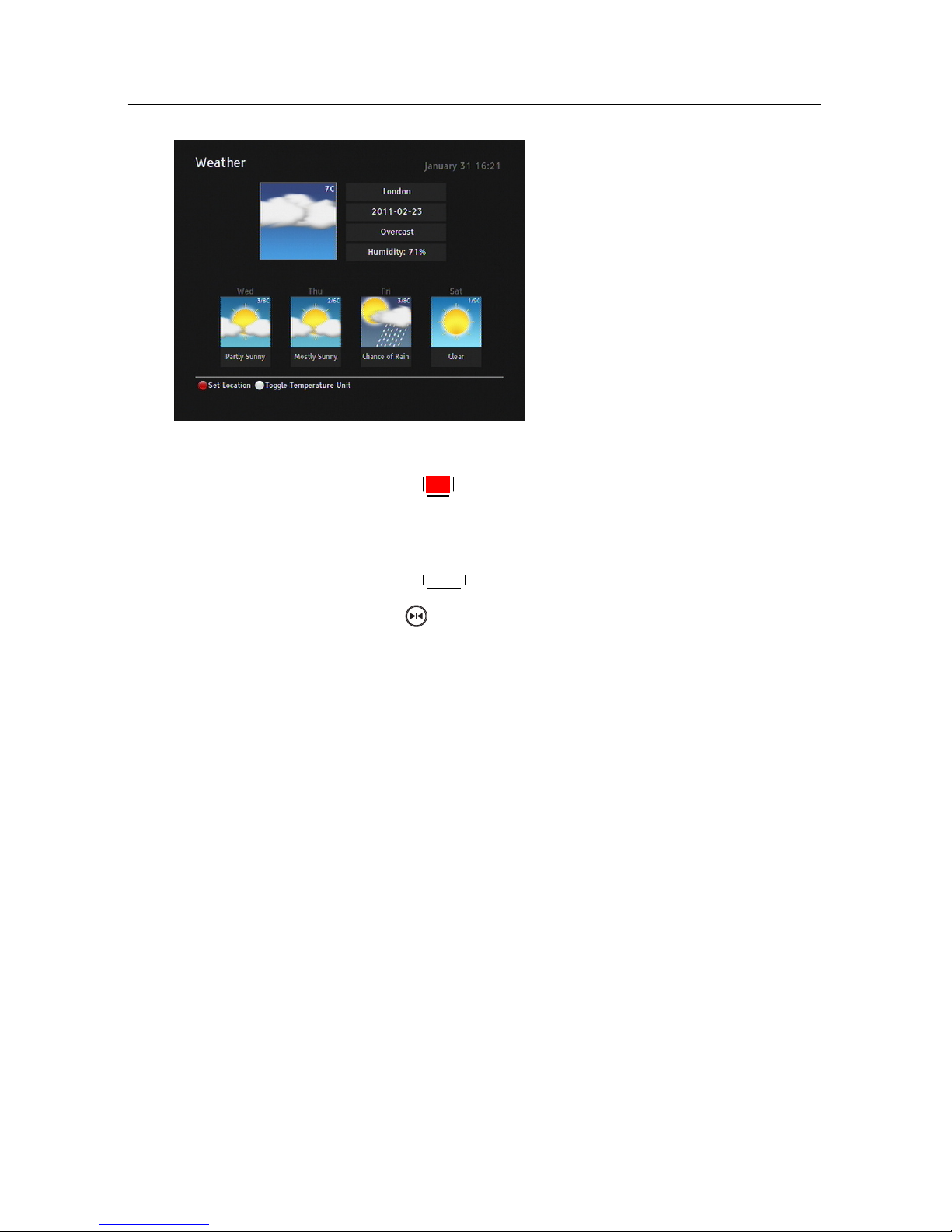

To view the weather, select the
Entertainment > Weather, then
you should see a screen like the
left figure.
To change a city, take the following steps:
1. Press the
F1 button to see additional options.
2. Set the Continent, Country and City options as you desire
with the navigation buttons.
3. Press the
EXIT button.
Pressing the button toggles between the Centigrade and
Fahrenheit.
8.6 Network game
You can play a network game named Battle Tank on the digital
receiver. You can play the game by yourself or with others via
the network.
8.6.1 Single mode
To play the game in single mode, select the Entertainment >
Game > Battle Tank (Single), then take the following steps:
1. Select game mode.
2. Select a character.
3. Buy items as you desire.
4. Select a map. If you play the game by yourself, you do
not need to select a map.
5. Start playing.
Page 67
8 Entertainment
8.6 Network game 61
If you want to out of the game while palying, press the
EXIT
button on the remote control.

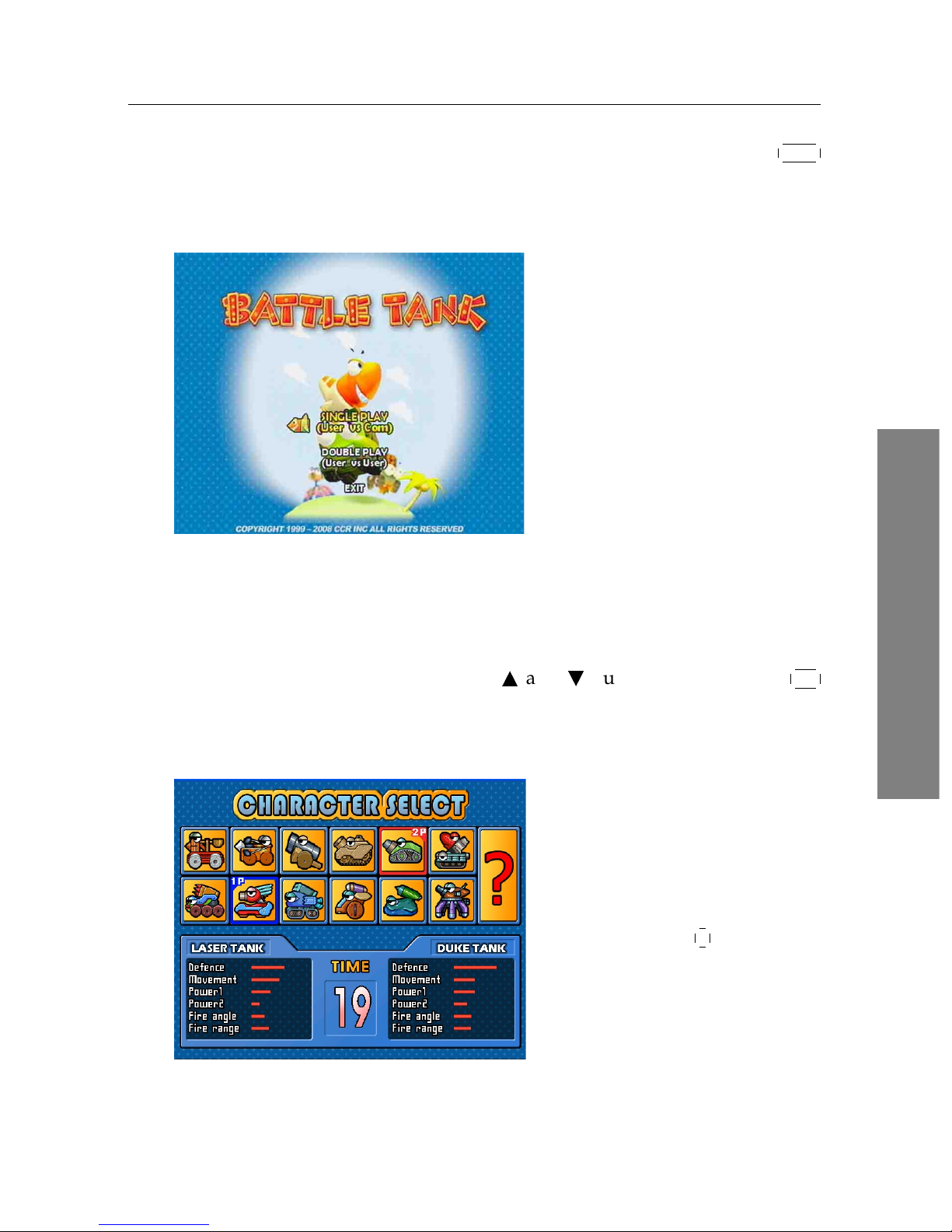

Selecting game mode
When you select the Entertainment > Game > Battle Tank (Single), you should see a screen like
the left figure.
You can select game mode as you
desire. If you want to out of the
game, select the EXIT option.
There are two modes as below:
Single play playing by yourself.
Double play playing with another user.
Select a mode with the
a
and
c
buttons and press the
OK
button.
Selecting a character
After selecting game mode, you
should see a screen like the left
figure.
Select a character referring to Table 8.1.
If you select the
? , a character
will be chosen randomly.
When you play the game for the first time, you can select only
Page 68
62 Entertainment
two characters. To get a new character, you have to play in
single mode and clear all 13 stages.

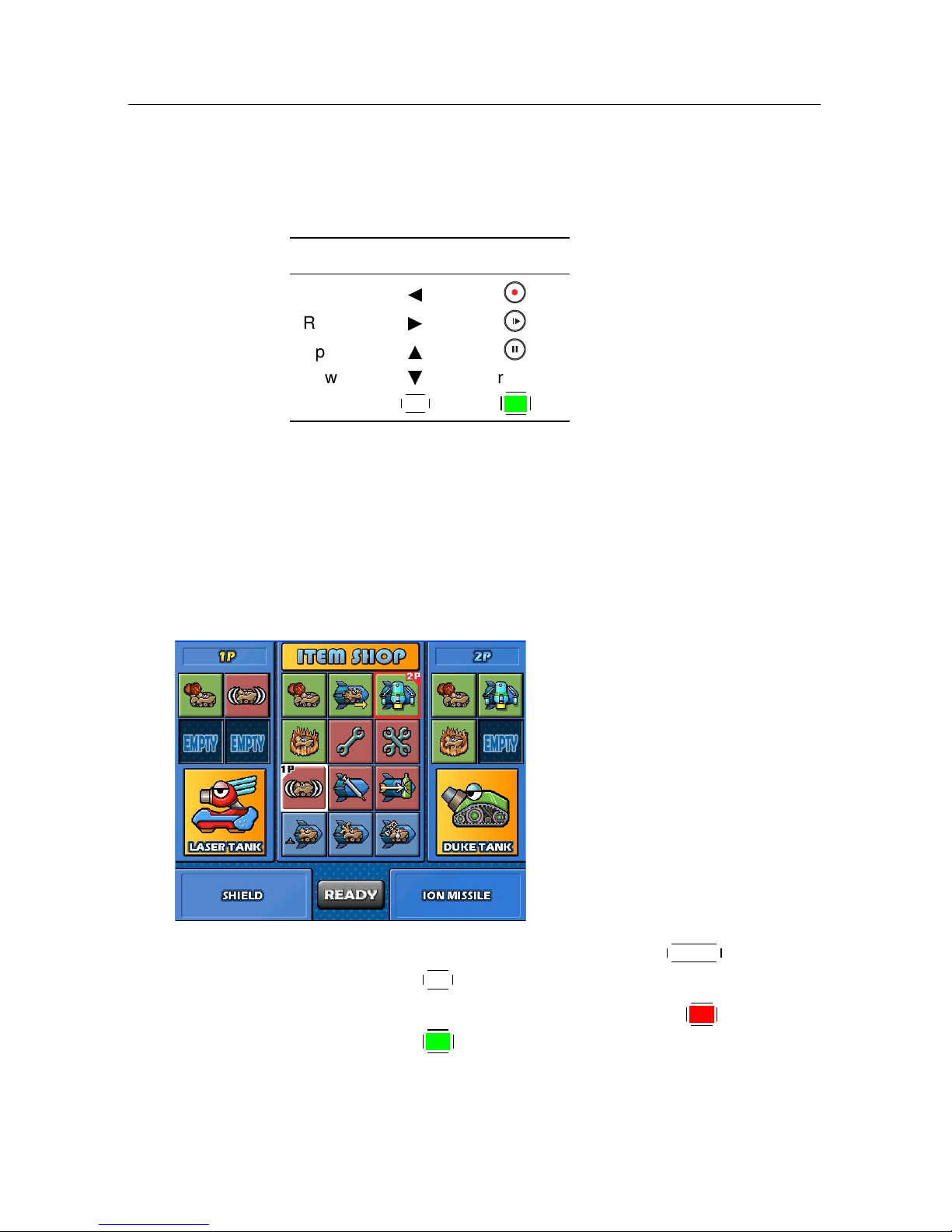

Table 8.1: Buttons for selection
Action 1 Player 2 Player
Left
b
Right
d
Up
a
Down
c
startbutton
Select
OK
F2
You can see the selected character’s information of the 1 Player
on the left bottom of the screen. Also you can see the selected
character’s information of the COM or 2 Player on the right bot-
tom of the screen. You have to select a character in 30 seconds;
otherwise, the character will be selected automatically.
Buying items
After selecting a character, you
should see a screen like the left
figure. Buy a item referring to
Table 8.1.
When you finish selecting items,
select the READY on the screen
as follows:
• 1 Player : Select the READY using the
MENU button and
press the
OK button.
• 2 Player : Select the READY using the
F1 button and
press the
F2 button.
Page 69
8 Entertainment
8.6 Network game 63

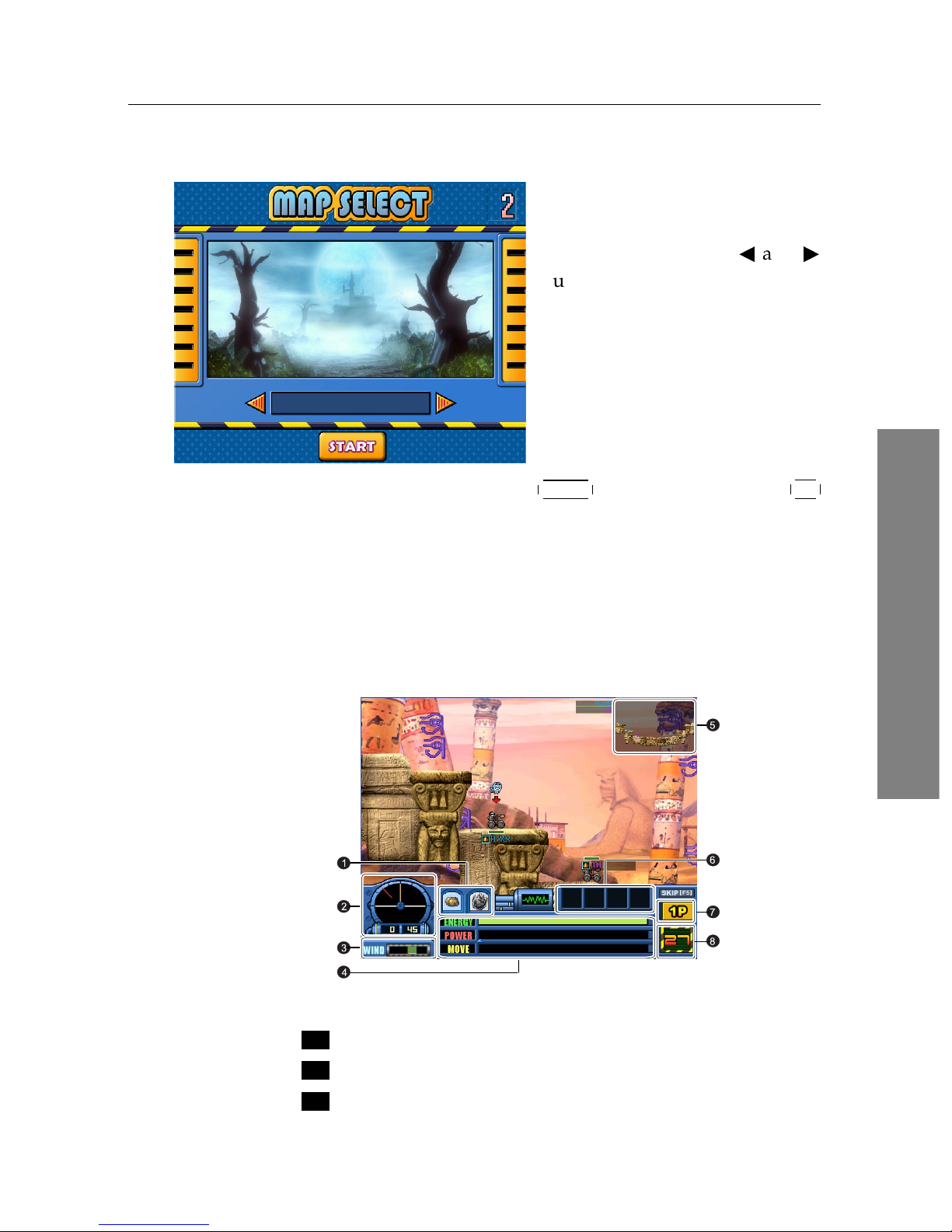

Selecting a map
After buying items, you should
see a screen like the left figure.
Select a map with theband
d
buttons.
After selecting a map, select the
START on the screen.
Select the START using the
MENU button and press the
OK
button. If you play the game by yourself, you do not need to
select a map.
Playing the Battle Tank
When you start the game, you should see a sceen like the following figure. Play the game referring to Table 8.2.
...
1
The character’s weapons.
...
2
The angle of the character.
...
3
You can see the direction and speed of wind.
Page 70
64 Entertainment
...
4
You can see the information of the character as follows:
ENERGY displays the character’s energy.
POWER displays the power of shot.
MOVE displays the movement bar.
...
5
You can check your position and enemy’s position on this
mini-map.
...
6
You can use those items during playing game.
...
7
Displays current player.
...
8
Displays the turn time. If the time is over, turn will be
changed to the other player.
Table 8.2: Buttons for playing
Action Remote Control
Changing weapon
3
4
Changing angle
a c
Moving character
b d
Using items
7
8
9
0
Skipping turn
5
Changing view of map startbutton
Firing a shot
OK
8.6.2 Network mode
To play the game in network mode, select the Entertainment
> Game > Battle Tank (Network), and then take the following
steps:
1. Select a game server.
2. Log on to the game server.
3. Joining a game.
4. Selecting a character, map and items for playing.
5. Start playing.
Page 71
8 Entertainment
8.6 Network game 65
NOTE
Refer to the Battle Tank user guide as to how to play Battle
Tank in network mode. You can download it from the Toppro website, http://www.topfield.com.au.
Page 72
66 Accessing via Network
Chapter 9
Accessing via Network
NOTE
The following section describes complex functions that
should only be used by owners with advanced computer
knowledge.
This digital receiver provides features of web service and FTP
service, by which through the network you can make scheduled recordings, or transfer recording files to your computer.
Here you need a router, which will connect the digital receiver
to your computer or to the Internet. If you want to have a wireless connection, you need a wireless router.
To use the network features of the digital receiver, you should
take the following steps:
1. Configuring your router for the digital receiver.
2. Configuring the network settings on the digital receiver.
3. Accessing the home page of the digital receiver. Refer to
§9.3 for detailed description about things you can do by
using the web service of the digital receiver.
4. Accessing the FTP Server of the digital receiver.
Page 73
9 Accessing via Network
9.1 Configuring the router 67
NOTE
The web server and FTP server of the digital receiver do not
work in standby mode. So it must be powered up at all times
if you wish to use the web service at any time.
9.1 Configuring the router
In this section, the setup program of WRT54G, which is a router
manufactured by Linksys, will be referred to as an example of
how to configure the router for network access.
NOTE
For detailed description about how to set up the router, refer
to the manual of your router.
9.1.1 To access within the local area network
Once your router is powered up, a local area network gets created whether or not it is connected to the Internet.

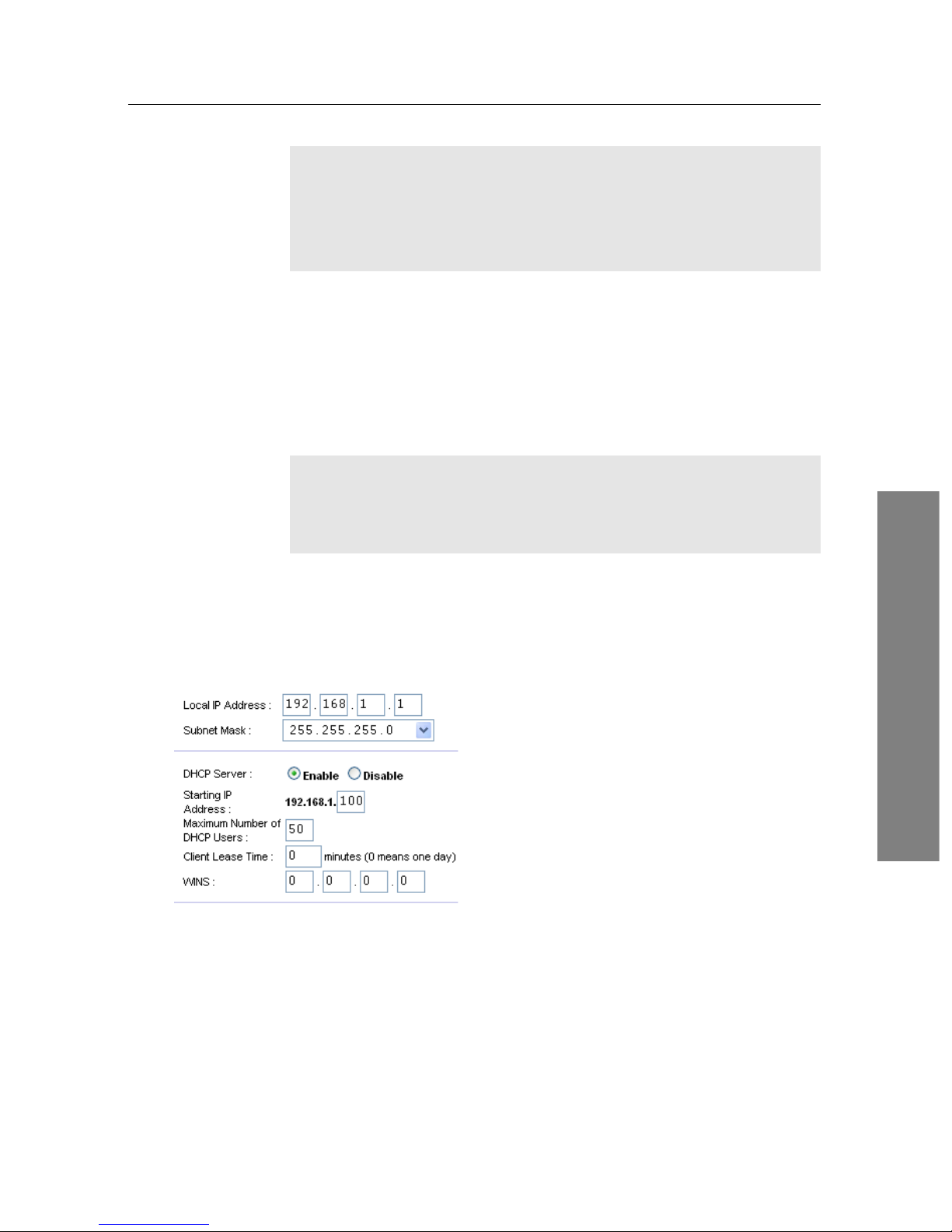

You can let the router automatically assign a dynamic IP address to the computers or devices connected to the network by enabling the DHCP server of
the router. In this case, you can access
the digital receiver with the IP address
which is assigned to the digital receiver
by the router.
If the digital receiver reboots, a new dynamic IP address will
be assigned to it. You had better assign a static IP address to
the digital receiver to avoid this inconvenience. As to how to
assign a static IP address, refer to the manual of your router;
as to how to specify a static IP address on the digital receiver,
see §9.2.
Page 74
68 Accessing via Network

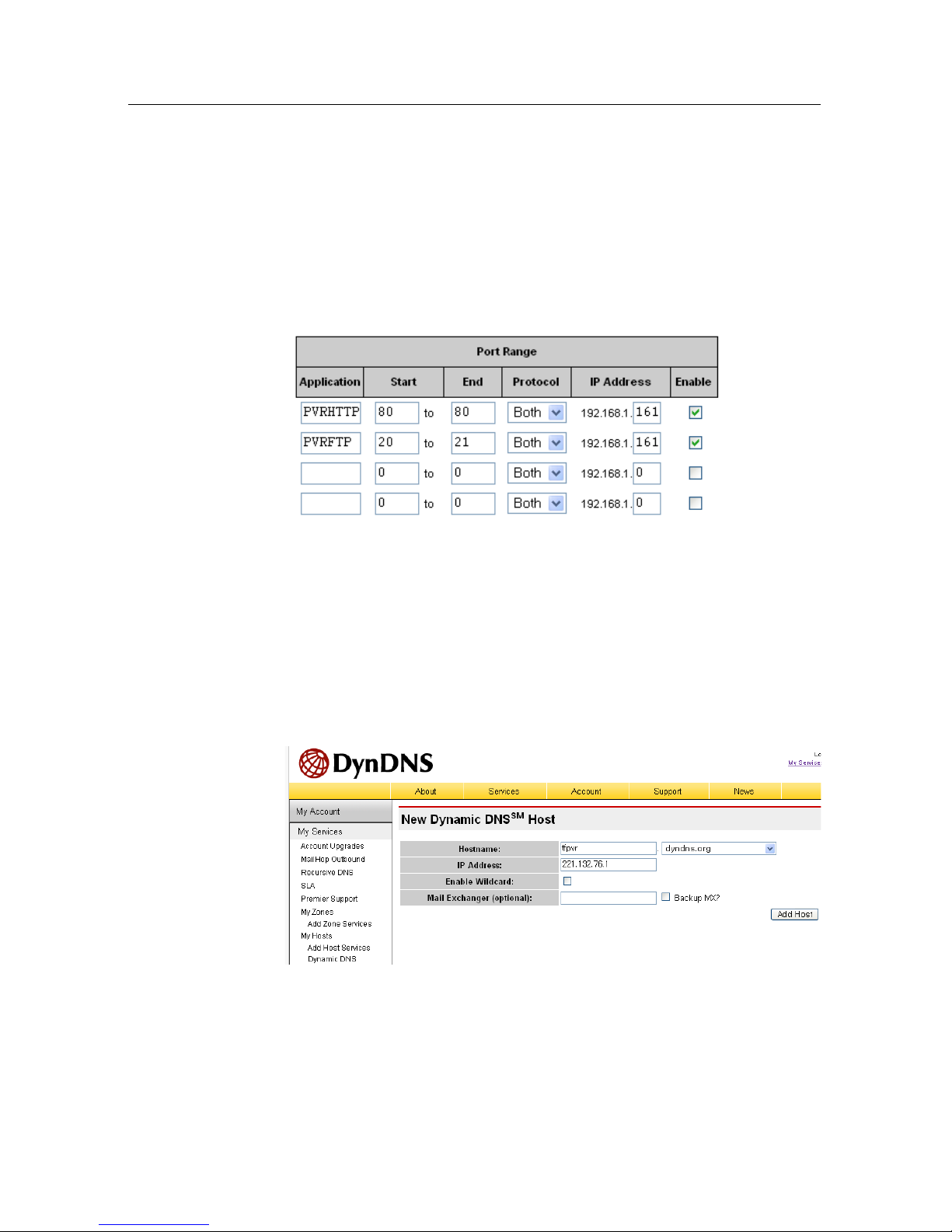

9.1.2 To access over the Internet
When you are away from home, you can access the digital receiver inside your home if your router is configured to route
access to the digital receiver by means of port forwarding. Via
this feature, your router will lead you to the digital receiver
when you access your router with its IP address.
Your router may be assigned to a dynamic IP address by an
Internet service provider. So if the router has rebooted, you
cannot access it unless someone in your home can inform you
of the changed IP address. However, many routers support
Dynamic Domain Name System (DDNS) service, which can
settle this problem. The following image is an example of one
such DDNS service provider.
If you use a DDNS service, you can access your router with
a domain name. The instructions on how to use the DDNS
service are as follows:

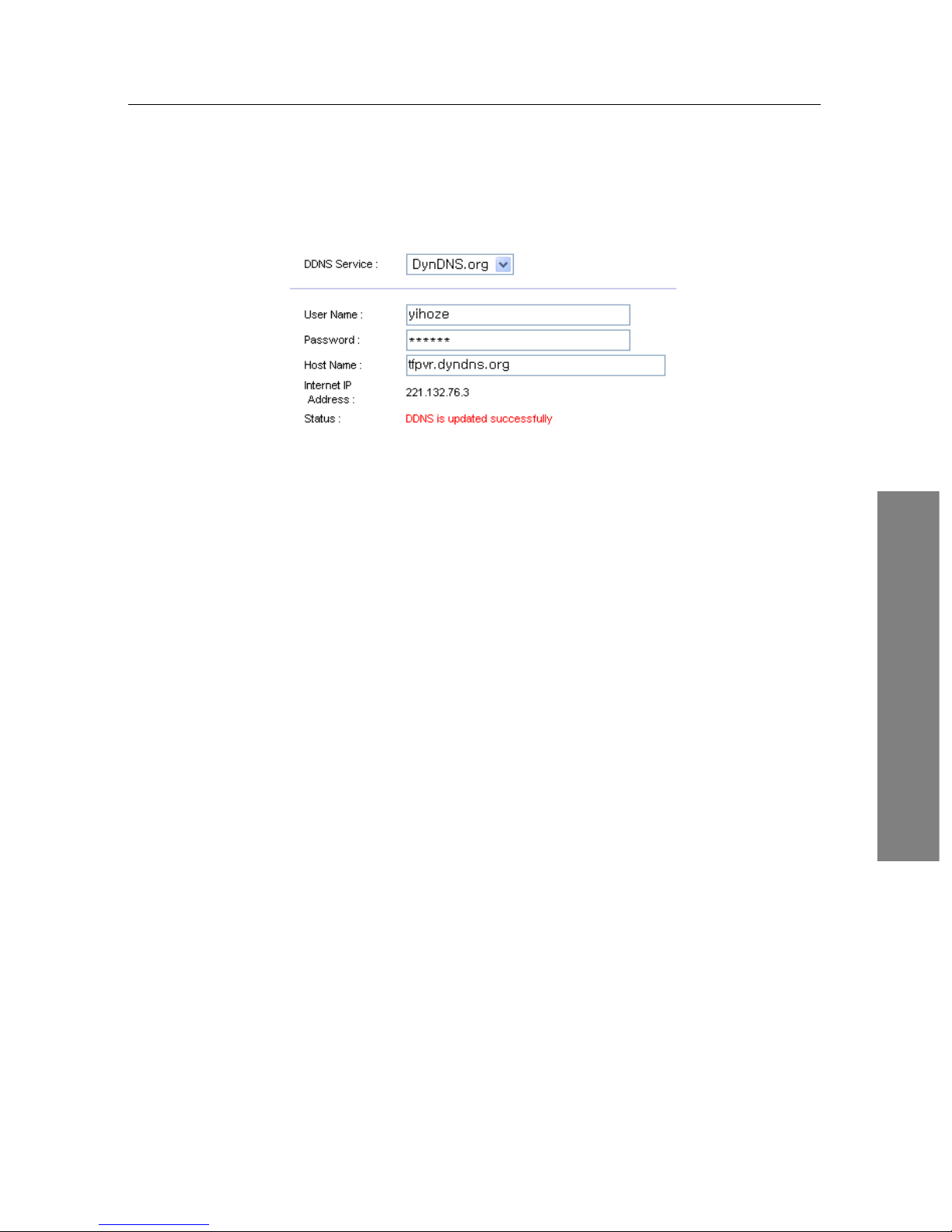

1. Make an account on a web site providing DDNS service,
Page 75
9 Accessing via Network
9.2 Network setup 69
which should be supported by your router.
2. Configure your router with the account so that it can
communicate with the web site.
Whenever a new dynamic IP address is assigned to the router,
it will inform the DDNS service provider of the new IP address. This makes it possible that you access the router with a
domain name at any time.
9.2 Network setup
9.2.1 For a wired connection
1. Connect your Ethernet cable from your router to the Toppro recorder.
2. Press Installation > Network Setting > IP Setting.
3. Select Wired/Wireless LAN. Then select Wired as the preferred connection.
4. It is recommended to use a dynamic IP address by the
router therefore select DHCP as the connection type.
However if a static connection is set then please refer to
your router for an IP address, Subnet Mask, Gateway,
Primary DNS, Secondary DNS.
5. Once a connection has been set scroll down to activate
profile and press the OK button on the remote.
6. A successful connection will populate all the IP settings
and the Level/Quality bars on the TV screen will show
a high percentage level.
Page 76
70 Accessing via Network
9.2.2 For a wireless connection

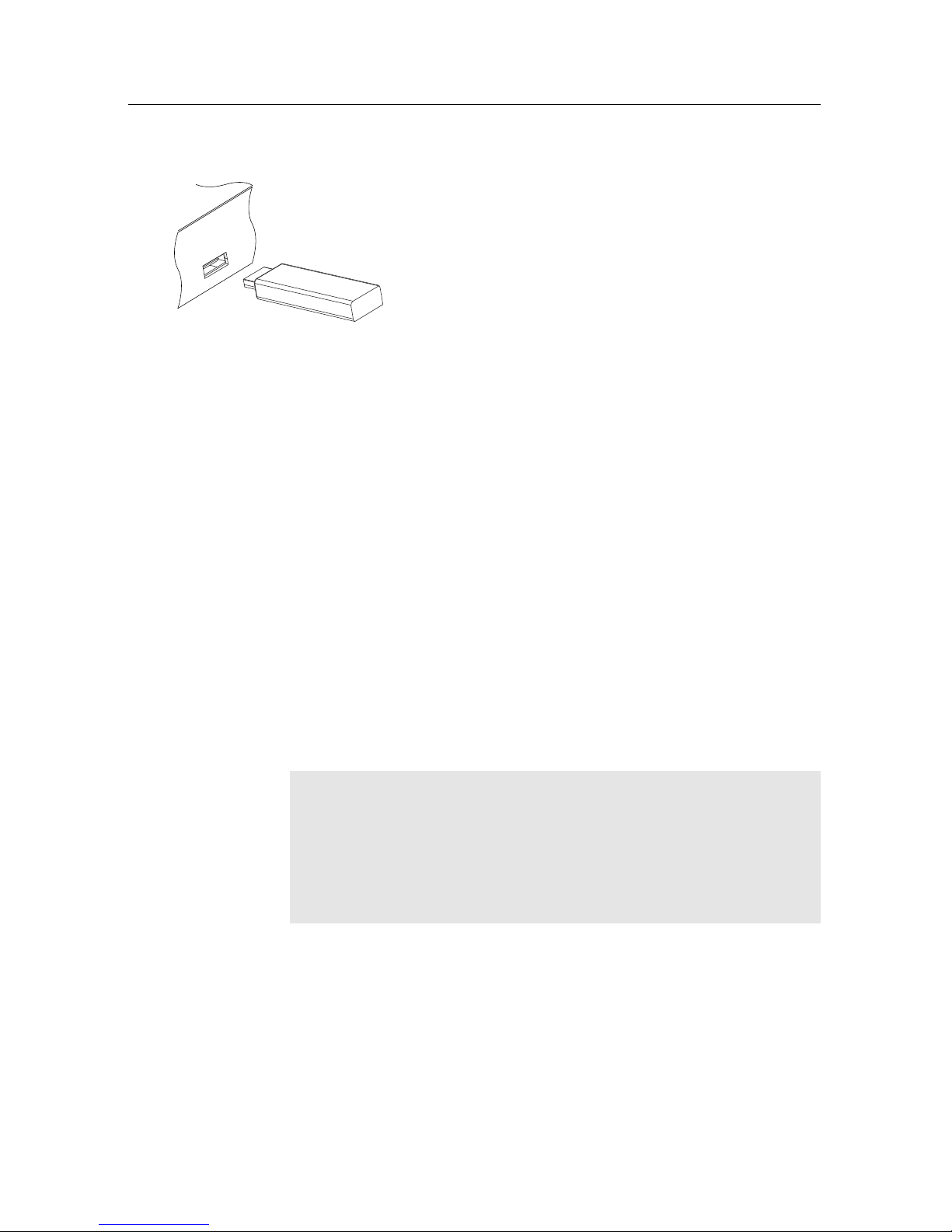

1. Connect the USB wireless dongle to the USB
port on the PVR.
2. Press Installation > Network Setting > IP
Setting.
3. Select Wired/Wireless LAN. Then select
Wireless as the preferred connection.
4. Select AP list and press OK. A list of available networks
will be shown, then select your personal network.
5. Once network is selected choose the security mode
WPA / WPA2 / WEP. Select your WPA / WPA2 / WEP
algorithm according to your router setting.
6. Entre the pre-shared key which is also known as your
network password. Network password must be exactly
the same as your router setting including Upper/Lower
case and any numbers used.
7. A successful connection will populate all the IP settings
and the Level/Quality bars on the TV screen will show
a high percentage level. If the fields are not populated
check the password and any security settings.
NOTE
After selecting activate please allow up to 5 seconds for fields
to populate. Most routers can be accessed via a web browser.
Refer to your Router user guide on how to access router setting.
9.3 Accessing the web server
To Access to the web server, set the Installation > Network Set-
ting > Web Server option to Enable.
Page 77
9 Accessing via Network
9.3 Accessing the web server 71
Select the Installation > Network Setting > User Info menu.
At this time, you have to enter Personal Identification Number (PIN). Then set the User ID and Password options as you
desire. And select OK to save the settings. When you access
to the web server, you will be asked for the account that was
made with these options.
In way of the web server of the digital receiver, you can do the
following:
• Download recording files.
• Create new recording timers.
• View information about the programme currently being
recorded.
• View the system information of the digital receiver.

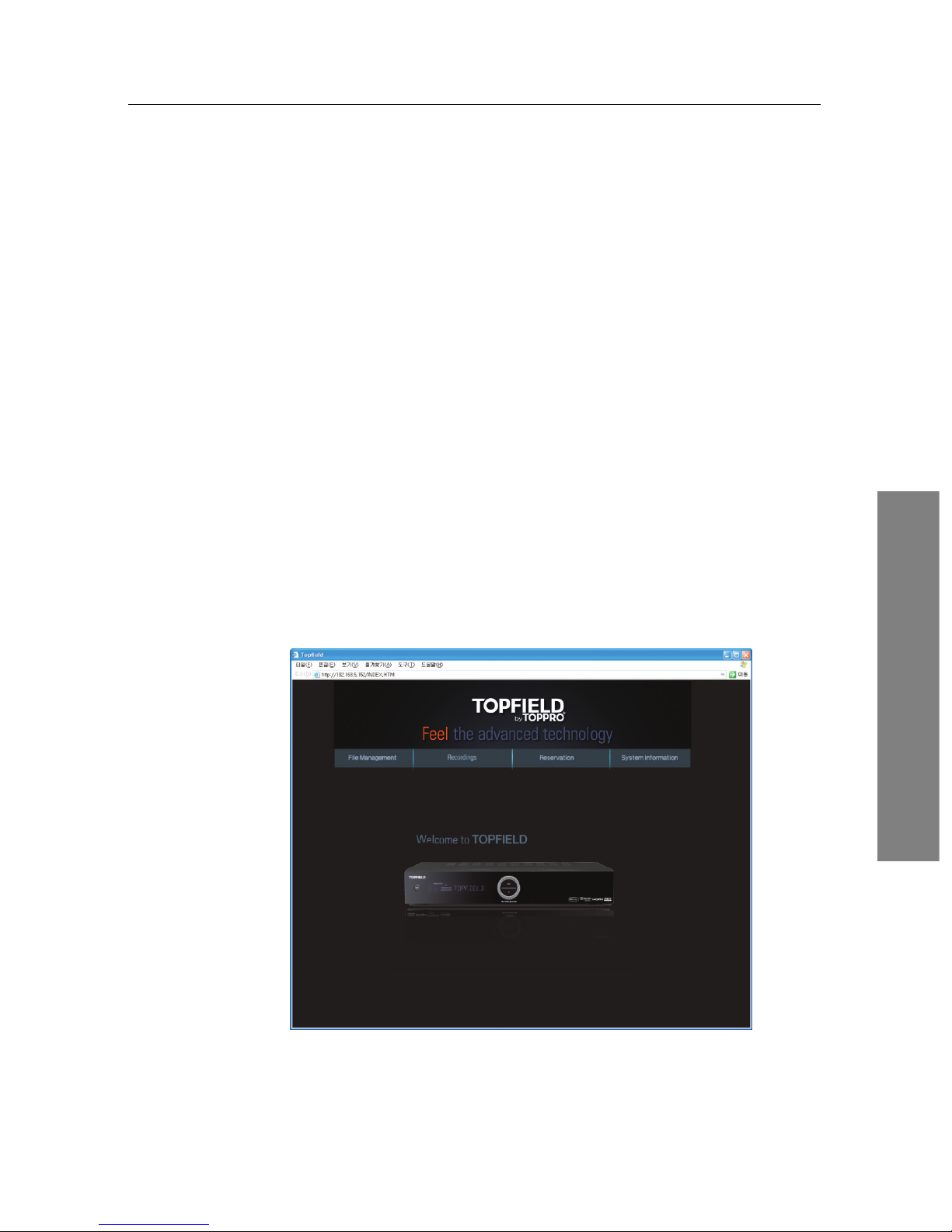

To access the digital receiver’s home page through your web
browser, enter its IP address, or domain name if you use a
DDNS service. For the DDNS service, refer to the user manual of your router.

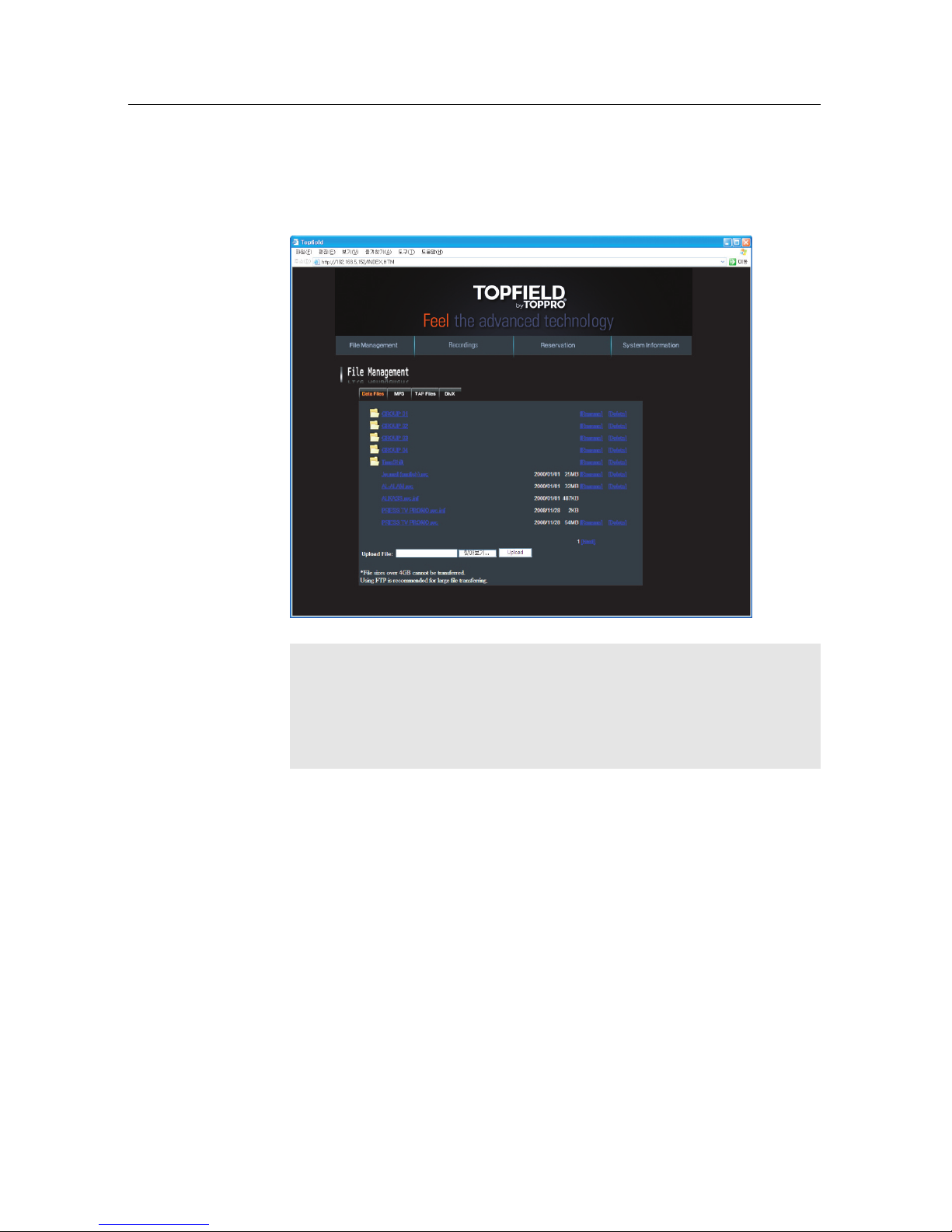

You cannot only download but also upload recording files or
MP3 files in the File Management page. However, if you
Page 78
72 Accessing via Network
wish to download or upload a file of which size is 2 gigabyte
or more, it is recommended using the FTP server rather than
the web server.
NOTE
The maximum number of user connections is one. This
means that you cannot access the web server while someone
else is occupying it.
9.4 Accessing the FTP server
To Access to the FTP server, set the Installation > Network Set-
ting > FTP Server option to Enable.
Select the Installation > Network Setting > User Info menu.
At this time, you have to enter Personal Identification Number (PIN). Then set the User ID and Password options as you
desire. And select OK to save the settings. When you access
to the FTP server, you will be asked for the account that was
made with these options.
Page 79
9 Accessing via Network
9.4 Accessing the FTP server 73
NOTE
You can access the FTP server with an anonymous account.
However, with an anonymous account you can only download files. You cannot upload files.

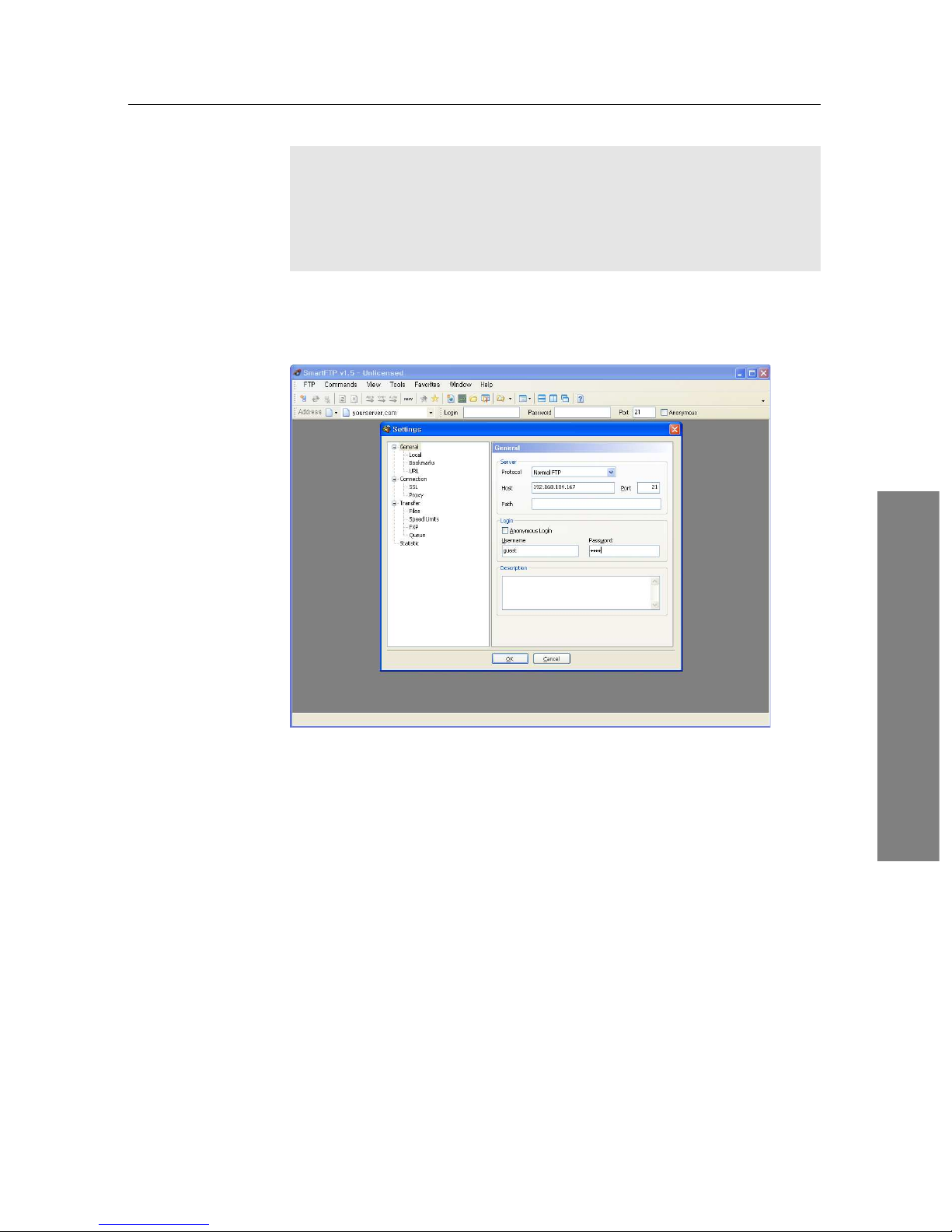

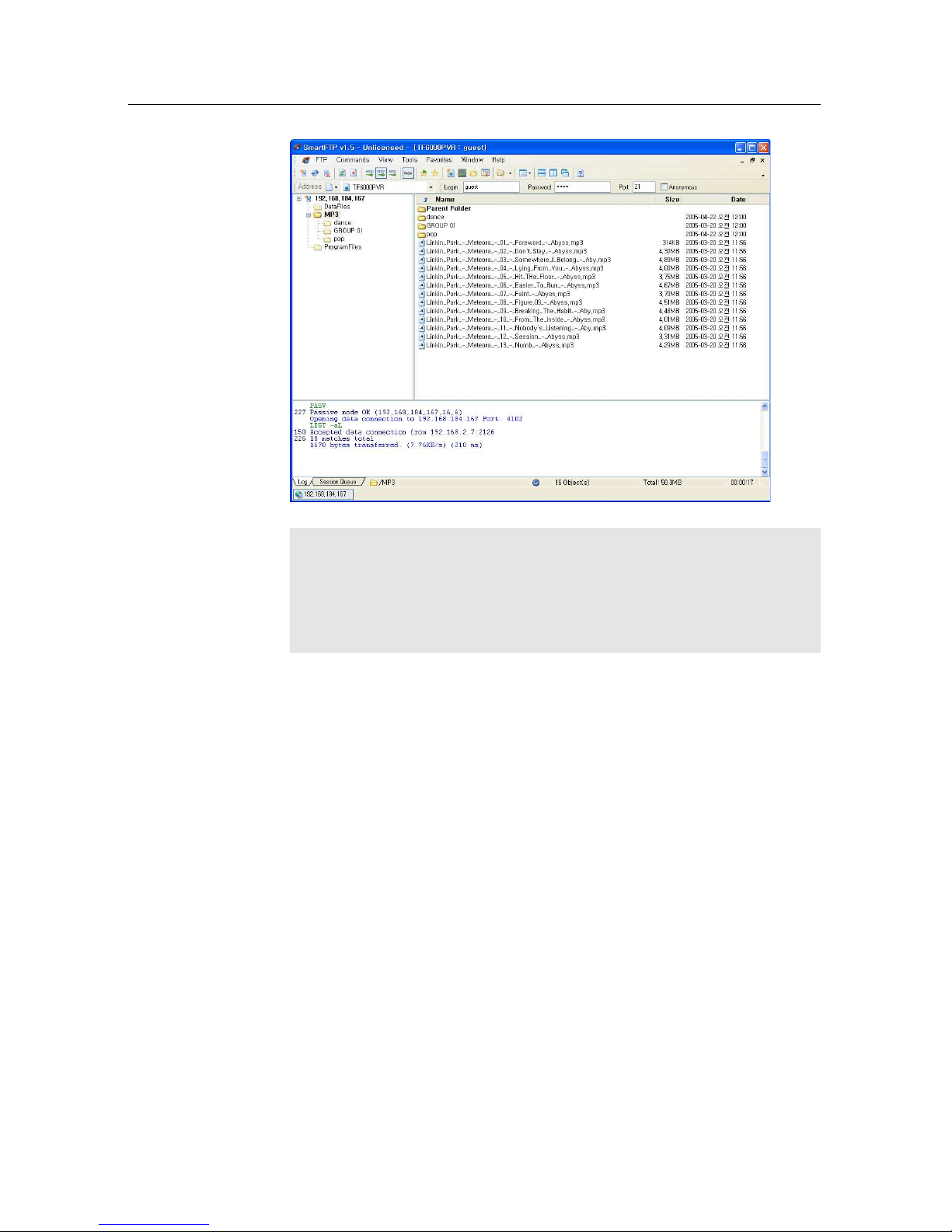

You need an FTP client program to access the FTP server of the
digital receiver.
You can log into the FTP server with the user name and password specified in the Installation > Network Setting > User
Info menu.
Page 80
74 Accessing via Network
NOTE
The maximum number of user connections is one. This
means that you cannot access the FTP server while someone
else is occupying it.
Page 81
10 Toppro Application Program
75
Chapter 10
Toppro Application Program
If you are good at programming with C/C++ language, you
may make an executable program to run on the digital receiver. We call user-made programs TopproApplication Programs (TAP).
For TAPs writers, Toppro provides two versions of gcc compilier and TAP API (Application Program Interface) libraries
that are available from Toppro’s
website, http://www.topfield.
com.au. One is Linux version,
and the other is Cygwin version.
Cygwin is a Unix-like environment and command-line interface for Microsoft Windows.
Your TAPs will be run with the following conditions:
• A TAP’s file extension must be tap; if it has any other extension name, it will be ignored.
• TAPs must be situated in the Program Files folder; if they
Page 82
76 Toppro Application Program
are placed in any other folder, they will be ignored.

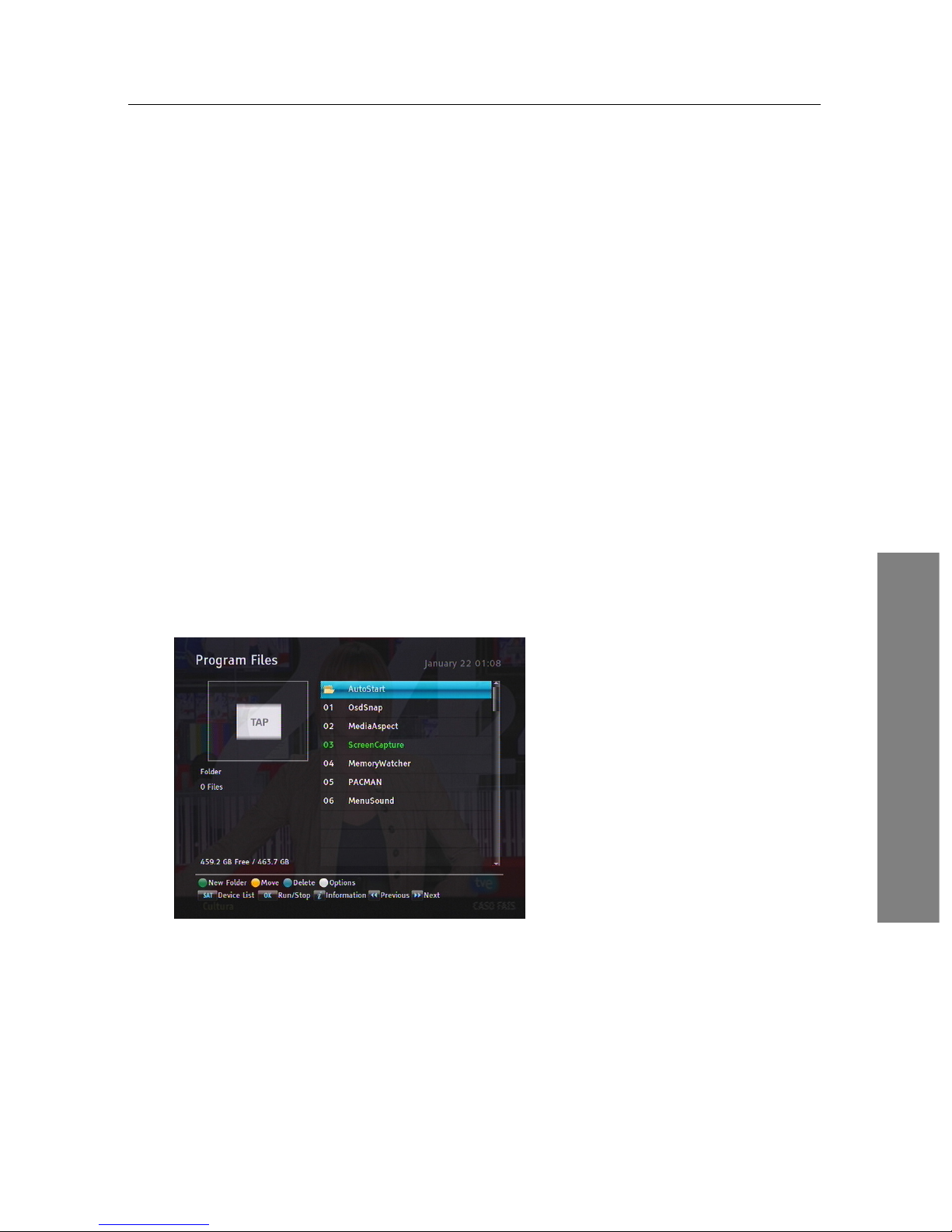

Before you start the TAP, you will need to load the TAP file into
the program file menu by doing the following:
1. Press the button and then the or button to display the program files list.
2. Insert the USB with the TAP file into your unit.
3. On the remote, press the
SAT button. Press the
OK on
top of the name of your external hard disk.
4. Use the navigation keys to highlight the TAP file.
5. Press the yellow button on top of the file.
6. It will prompt you that the file will be moved into the
program files folder. Press
OK .
NOTE
If you would like the TAP to start when the unit starts up,
move the TAP file into the Auto Start folder in the Program
Files menu.
To run a TAP in the digital receiver, take the following steps:
1. Press the button and then the or button to display the program files list.
2. Place the highlight bar on a program file you want to run,
and press the
OK button to start it up.
3. If it is a running-in-the-background program, its entry
in the list gets marked in green when it starts. You may
have several programs run in the background at a time.
4. To stop a program running in the background, place the
highlight bar on its entry in the list, and press the
OK
button; otherwise you can stop it with the
EXIT button.
Page 83
10 Toppro Application Program
77

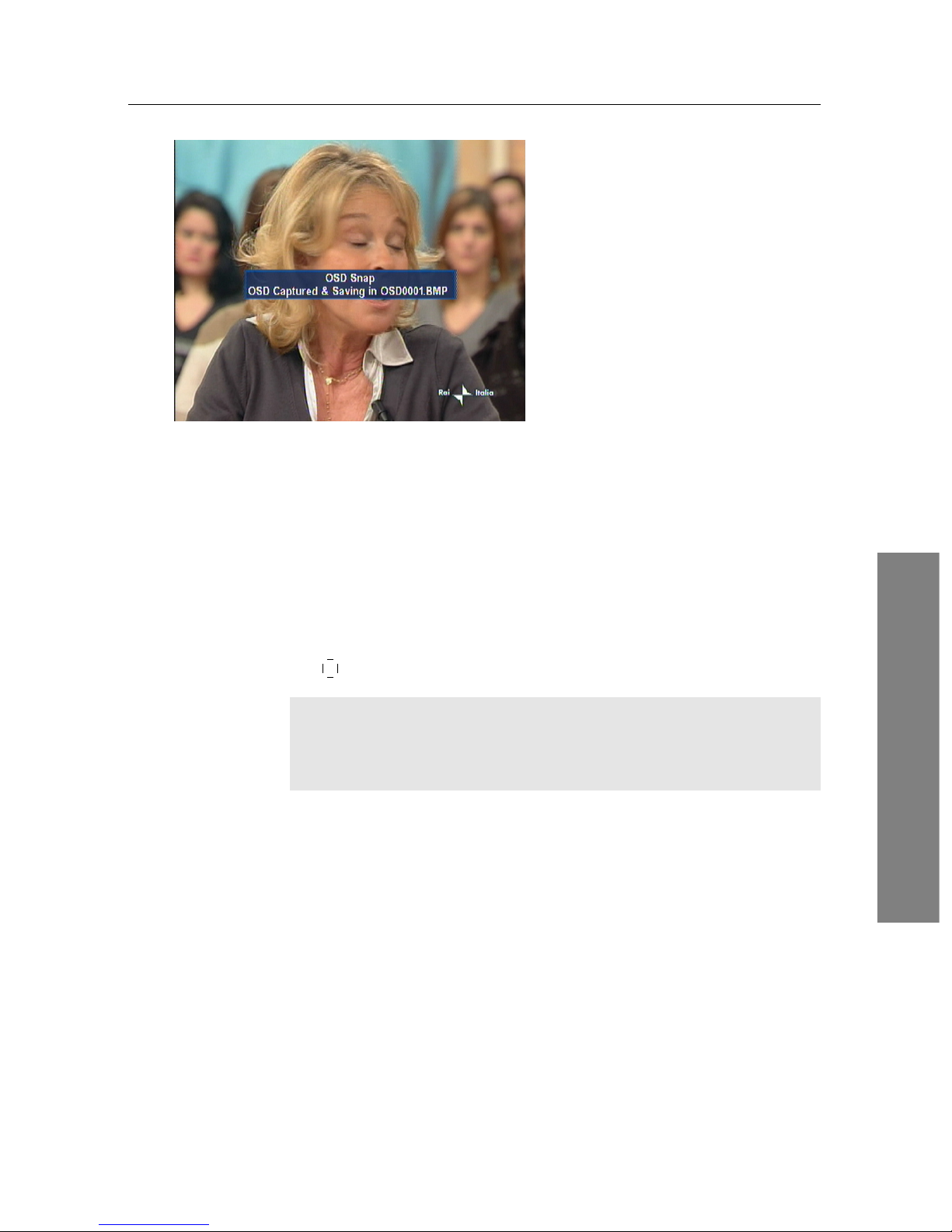

The figure on the left is a screenshot of ScreenCapture.tap, with
which you can capture screen in
bmp format from the digital receiver. Not only this TAP but a
lot of sample TAPs are available
in the TAP API.
By the way, the digital receiver will not show the list of the
screenshots savedby the ScreenCapture.tapbecause bmp files are
supposed to be ignored by the digital receiver. So, to view the
screenshots, you need to transfer them to your computer via
FTP.
If you want to have a program automatically run when the digital receiver starts up, then move the program file to the Au-
toStart folder. If you want to abort the execution of it, press
the
0 button at start-up.
NOTE
Toppro is not responsible for any results caused by a use of
unauthorised TAPs.
Page 84
78 Firmware Update
Chapter 11
Firmware Update
The digital receiver has a stable and convenient firmware to
use. However, once in a while a new firmware may be released
to improve the digital receiver. You can get the latest firmware
and the firmware update tool, which runs on most versions of
Windows, from the Toppro website, http://www.topfield.
com.au.
11.1 From a memory stick
If you have a USB memory stick, you can update the firmware
from it by taking the following steps:

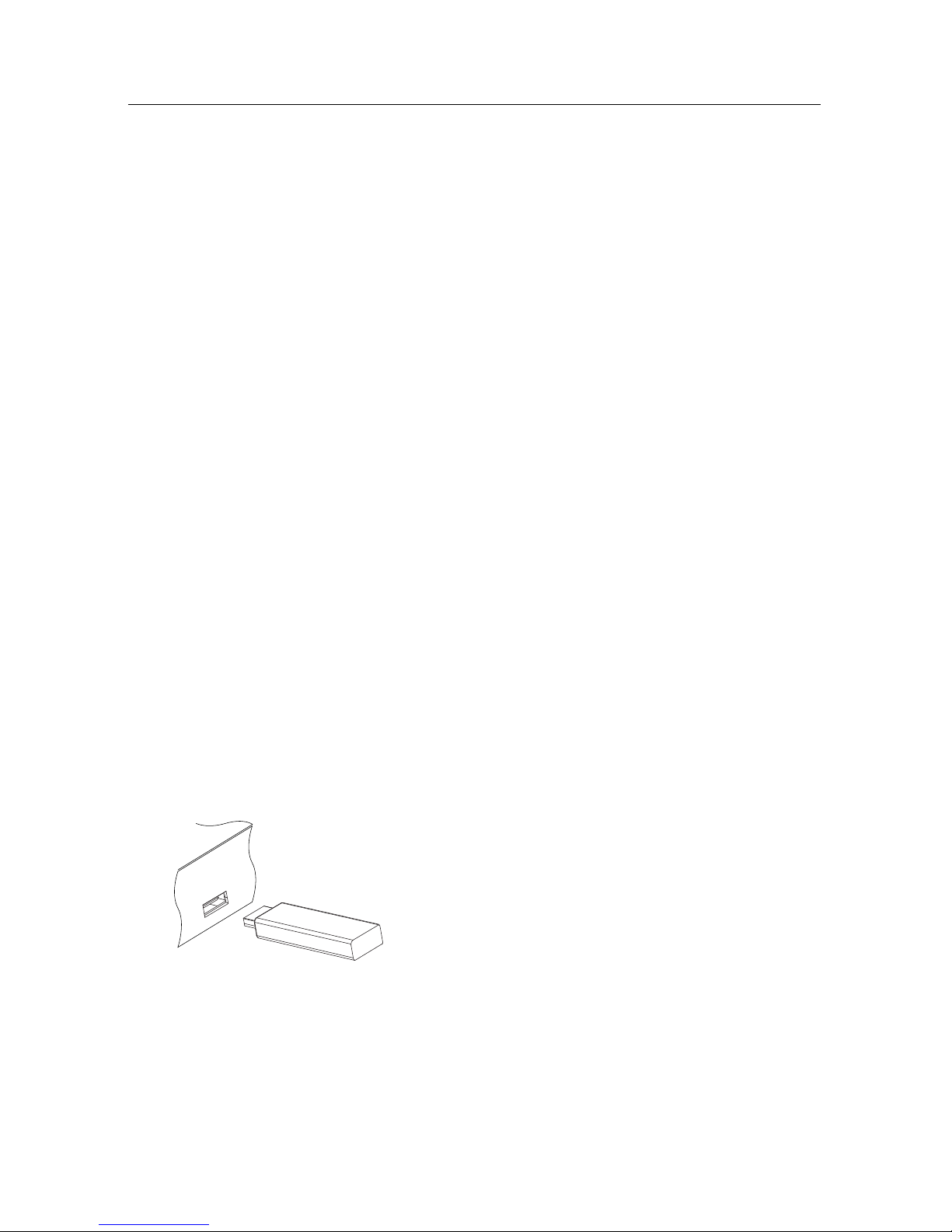

1. Download a new firmware from the Toppro
website.
2. Copy the firmware file to your memory
stick.
3. Insert the USB memory stick into the USB
port on the digital receiver.
4. Select the Installation > Firmware Upgrade > USB
Firmware Upgrade menu, and the files in the USB memory will be listed.
Page 85
11 Firmware Update
11.2 From the firmware server via the Internet 79
5. Place the highlight bar on the right firmware file and
press the
OK button, and a countdown will be displayed
on the front display of the digital receiver.
6. When the message of ‘END’ appears, restart the digital
receiver.
11.2 From the firmware server via the Internet
You can update the firmware from the firmware server which
is being run by Toppro via the Internet. Make sure that the
digital receiver is connected to your router before configuring
the network settings on the digital receiver.
NOTE
For detailed description about how to set up the router, refer
to the manual of your router.

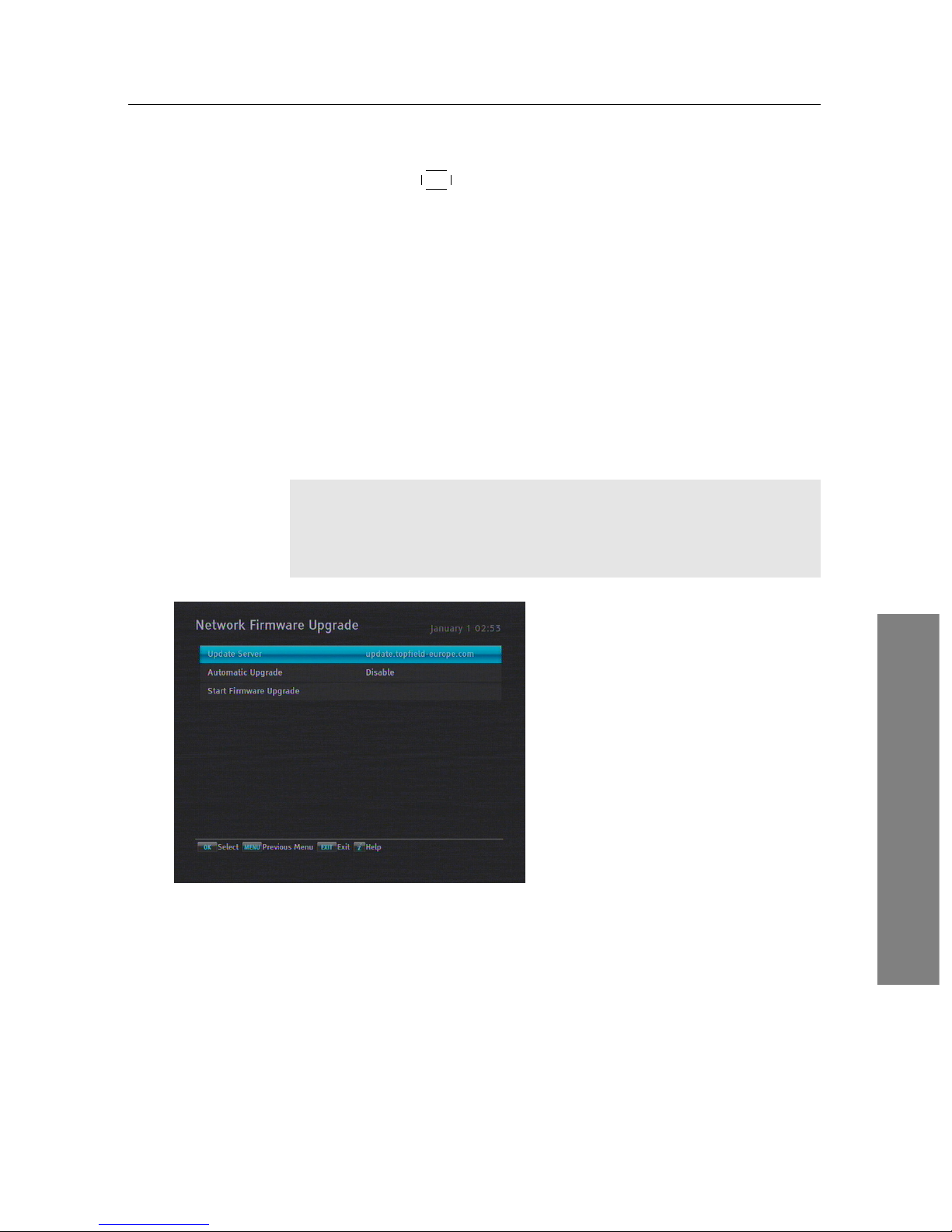

Select the Installation >
Firmware Upgrade > Network Firmware Upgrade menu.
You should see a screen like the
left figure.
To enable the digital receiver to update the firmware automatically when a new firmware is available, set the Automatic Up-
grade option to Enable. Otherwise if you want to do that by
yourself, select the Start firmware upgrade option, then you get
asked for confirmation. With the choice of Yes, it will check up
whether a new firmware is available, and it starts firmware update if any.
Page 86
80 Troubleshooting
Appendix A
Troubleshooting
List of Symptoms
No power / No front display . . . . . . . . . . . . . . . . 81
I have connected my Toppro and get no picture on the
Television . . . . . . . . . . . . . . . . . . . . . . . 82
When the Service Scan is finished I get zero channels . . 82
I get a pixilated image on the my Television . . . . . . . 82
Can not receive or adjust sound through Toppro unit . . 83
Can not rewind live Television . . . . . . . . . . . . . . . 83
The Free to Air Guide is blank . . . . . . . . . . . . . . . 83
I can not set the correct aspect ratio . . . . . . . . . . . . 83
Lost part of my show because it went longer then the
recording time set . . . . . . . . . . . . . . . . . . . 83
Can not get a network connection . . . . . . . . . . . . . 84
Can not connect my external HDD . . . . . . . . . . . . . 84
Page 87
A Troubleshooting
81
Can not get the time to show on the front of the Toppro . 84
I am unable to get out of the MENU . . . . . . . . . . . . 85
No picture through RF loop out to my Television . . . . 85
My Toppro recorder doesn’t go to standby after instant
recording (non timer recording) . . . . . . . . . . . 85
Cannot view guide content . . . . . . . . . . . . . . . . . 85
Before you call a repair person for your Toppro product, check
the list of possible problems and solutions.
No power/ No front display
• Make sure the main switch on the back of Toppro is
switched to ON.
• Properly insert the power plug into the power socket.
• If the power outlet is controlled by a switch, make sure
the wall switch is ON.
• Remove the power plug from the wall and wait 10 seconds, then plug back in.
• Plug another appliance into the outlet, if the other appliance doesn’t work then have a qualified electrician repair
the outlet.
• Plug the Toppro into a different outlet.
I have connected my Toppro and get no picture on the Television
• Check that you have connected the cables from the Toppro to the TV
• The connection must be via an AV output out of the Toppro to an AV input of the TV.
• Check that you are in the correct AV setting on the TV.
For example if you connected the Toppro box to AV2 on
the TV make sure you set your TV with the TV remote to
AV2 before the Toppro can be used.
• Press the
V.Format button on the remote and set to the
correct resolution.
Page 88
82 Troubleshooting
576i/576p/720/1080i/AUTO. You may need to press the
V.Format button multiple times to cycle through all the
different formats. All formats will be displayed on the
front screen of the Toppro.
When the Service Scan is finished I get zero channels
• Make sure the antenna is plugged into the wall socket.
• Check that there is a signal coming from the antenna by
connecting it directly to the TV or another device.
• You must have signal strength between 50%–90%
• Indoor antenna is not recommended as the signal is not
enough to display channels when a service is scanned.
I get a pixilated image on the my Television
• Check the plug on the Toppro and on the wall making
sure that it’s a tight connection.
• Check that there is a signal coming from the antenna by
connecting it directly to the TV or another device.
• You must have signal strength between 50%–90%
Can not receive or adjust sound through Toppro unit
• Adjust volume using the
V− and the
V+ on the Toppro
Remote.
• Use the TV remote to adjust the sound to approx 50%
then use the Toppro remote to adjust volume.
• Check the connection between the TV and the Toppro
product.
• Make sure you are in the correct AV on the TV
Can not rewind live Television
• Make sure that Timeshift is enabled, Settings > Record-
ing.
• Check that Hard Disc Drive is working by playing back
a previous recorded program.
Page 89
A Troubleshooting
83
The Free to Air Guide is blank
• Move to every channel and give the recorder a few minutes to populate the guide for each channel.
• Factory reset and re scan all the services in the INSTALLATION part of the MENU.
• Check the broadcaster sends a Free to Air guide for that
service.
I can not set the correct aspect ratio
• Change the aspect ratio on the Toppro box by pressing
the
A/R button on the Toppro remote. 16:9/4:3
• Check the aspect ratio on your TV. Refer to the user guide
of you TV for information about this procedure.
• Check the broadcast of the program. For example some
programs are only broadcasted in 4:3
Lost part of my show because it went longer then the recording time set
• When setting a Reservation add an extra few minutes to
the Duration to cover for programs going over the predicted time.
• When recording off the Free to Air guide press the
button twice on the Toppro remote and adjust the duration to cover for programs going over the predicted time.
• Adjust the Padding in the Settings > Recording > Time
Padding of Timer Recording. Adjust according to personal preference.
Can not get a network connection
• Make sure you are using a Router and not a Modem.
• You can only establish a connection by using the Network cable directly to the Toppro OR Using a USB wireless dongle.
• You are using a 3rd part USB wireless dongle.
Page 90
84 Troubleshooting
• Your router settings are not set up correctly in the Toppro.
• The router is not switched on.
• Check connection of Ethernet cable and USB wireless
dongle, making sure they are a tight fit in the socket.
• Re start Router and try again.
Can not connect my external HDD
• Make sure external HDD is formatted in NTFS, then reformatted to the system when it is connected. This will
ensure that the hard drive is ready to use and the full
capacity is available.
• The HDD must not be more then 1000 GB (1 TB)
• You must make sure that the external HDD is self powered
Can not get the time to show on the front of the Toppro
The Toppro is designed to save power when in standby mode
as per the Australian MEPS standard. This reduces power consumption to less then 1W when in STAND BY. This can be adjusted in the Settings > Others > Standby Mode, from Passive
to Active.
I am unable to get out of the MENU
• With all Toppro product you are unable to exit from
the MENU unless channels have been tuned in to the
recorder.
• Check the antenna connection.
No picture through RF loop out to my Television
To output an RF signal in standby mode the recorder must be
set to Active. This can be adjusted in the Settings > Others >
Standby Mode, from Passive to Active.
Page 91
A Troubleshooting
85
My Toppro recorder doesn’t go to standby after instant recording (non timer
recording)
When an instant recording has been activated the recorder
will need to stay on until the recording finishes. To place the
recorder into Standby after the recording has finished press the
Power button on the remote during a recording and the following message is displayed “RECORDER NOT FINISHED, DO
YOU WANT TO POWER OFF?” move green tab to YES and
leave recorder ON, do not execute the function. The television
may be turned off and the recorder will go into standby (sleep
mode) when the recording has finished.
Cannot view guide content
Perform a factory reset and service search to allow the unit to
restart the guide. Be sure to save your settings in the Installation section before applying a factory reset.
Page 92
Manufactured under license from Dolby Laboratories. “Dolby” and
the double-D symbol are trademarks of Dolby Laboratories.
ABOUT DIVX VIDEO: DivX
R
is a digital video format created by
DivX,Inc. This is an official DivX Certified
R
device that plays DivX
video. Visit divx.com for more information and software tools to
convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified
R
de-
vice must be registered in order to play purchased DivX Video-on-
Demand (VOD) movies. To obtain your registration code, locate the
DivX VOD section in your device setup menu. Go to vod.divx.com
for more information on how to complete your registration.
DivX
R
, DivX Certified
R
and associated logos are trademarks of DivX, Inc. and
are used under license.
Correct disposal of this product
This marking shown on the product or its literature indicates that
it should not be disposed with other household wastes at the end
of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources. Household users should
contact either the retailer where they purchased this product or their
local government office for details of where and how they can dis-
pose this product for environmentally safe recycling. Business users
should contact their supplier and check the terms and conditions of
the purchase contract. This product should not be mixed with other
commercial wastes for disposal.
At any time during the life of a product Toppro Pty Ltd may change or modify the hardware
or software on any product to introduce new features or improve the functionality of the
product.
Copyright © 2011, Toppro Pty. Ltd. All rights reserved. English version
http://www.topfield.com.au
Loading...
