TomTom CK-7W User Manual
Advanced Car Kit CK-7W
User Guide
Installation Guide
9310692
Issue 5 EN
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION, declares that this HF-5 product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. The product is
in conformity with the limits defined in Directive 2004/104/EC (amending Directive 72/245/
EEC), Annex I, paragraph 6.5, 6.6, 6.8 and 6.9. A copy of the Declaration of Conformity can be
found at http://www.nokia.com/phones/declaration_of_conformity/.
0434
Copyright © 2007 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents of this document
in any form without the prior written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are trademarks or registered trademarks of Nokia
Corporation. Other products and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products and services may vary by region. Please check with the
Nokia dealer nearest to you.
Export Controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
9310692 / Issue 5 EN
Contents
For your safety......................... 4
Introduction ............................. 5
Your Nokia Advanced Car Kit
CK-7W ...................................................... 5
Bluetooth wireless technology .......... 6
Bluetooth passcode............................... 6
1. Getting started..................... 7
Overview .................................................. 7
Use of enhancements........................... 7
Phone holder ....................................... 8
Antenna coupler................................. 8
GSM antenna ...................................... 8
2. Installation ........................... 9
Safety information................................ 9
Configuration........................................ 11
Connecting a mobile phone
using Bluetooth wireless
technology ......................................... 11
Connecting a mobile phone
using the data cable and
a phone holder.................................. 12
Installing the Advanced Car Kit....... 12
Handsfree unit .................................. 13
Remote control button................... 13
Loudspeaker....................................... 14
Microphone........................................ 14
Cable set............................................. 15
Data cable .......................................... 16
Charger cable .................................... 16
Function test......................................... 16
3. Putting the Advanced
Car Kit into service................. 17
Connecting a mobile phone
using Bluetooth wireless
technology............................................. 17
Pairing using a Bluetooth
passcode................................................. 17
Automatic pairing with
a compatible mobile phone .......... 18
Connecting a mobile phone
over the data cable ............................. 18
4. Operation ............................ 19

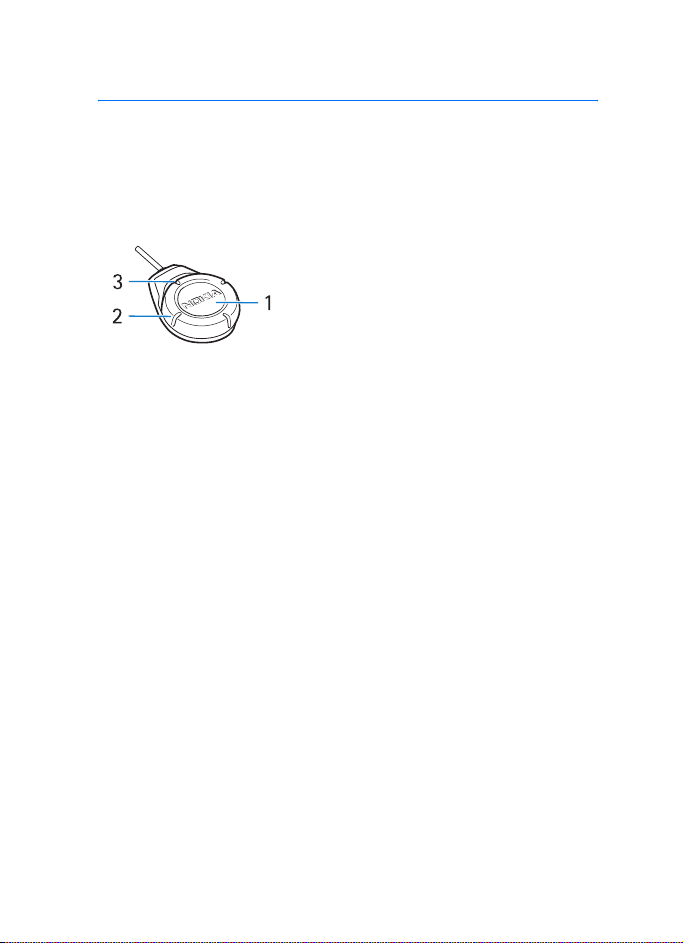

Remote control button ...................... 19
Switching the Advanced
Car Kit on/off........................................ 20
Operating the Advanced Car Kit ..... 20
Accepting a call................................ 20
Ending a call...................................... 20
Rejecting a call................................. 20
Making a call..................................... 20
Redialling ........................................... 21
Voice dialling..................................... 21
Adjusting the volume...................... 21
Manual search for Bluetooth
devices................................................. 21
Resetting paired Bluetooth
devices................................................. 21
Switching from handsfree mode
to the mobile phone........................ 22
Care and maintenance ........... 23
3
For your safety
For your safety
Read these simple guidelines. Breaking the rules may be dangerous or illegal.
Further detailed information is given in this user guide.
Keep all miniature SIM cards and accessories out of the reach of small children.
ROAD SAFETY COMES FIRST
Remember that the safety of operating a motor vehicle in traffic
requires the full attention of all motorists. Only use your Advanced
Car Kit if traffic conditions permit safe use and check if local laws/
regulations restrict the use of mobile phones while driving.
INTERFERENCE
All wireless phones may get interference, which could affect
performance.
QUALIFIED INSTALLATION AND SERVICE
Only a qualified professional may install or repair phone equipment.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read the relevant user guide
for detailed safety instructions. Do not connect incompatible
products.
FUSE REPLACEMENT
Replace a blown fuse with a fuse of the same type and size. Never use
a fuse with a higher rating!
4
Introduction
Introduction
■ Your Nokia Advanced Car Kit CK-7W
Advanced Car Kit equipment installation in the cockpit
The Nokia Advanced Car Kit was developed for installation in motor
vehicles to enable handsfree operation of mobile phones and use of
individual phone features.
A special emphasis was placed on quick and easy installation. A mobile
phone can be connected to the Advanced Car Kit in one of two ways:
using an optional phone holder with a cable or over a Bluetooth wireless
connection.
In some countries, use of the Advanced Car Kit may be restricted by law.
Please observe the applicable rules/regulations.
5
Introduction
■ Bluetooth wireless technology
Bluetooth wirteless technology is an international standard for shortrange wireless communication. It allows you to establish a wireless
connection within a range of 10 metres between your Advanced Car Kit
and a compatible device.
The Advanced Car Kit is intended for use with any mobile phone that
supports the Bluetooth Handsfree Profile (Bluetooth HFP).
The wireless connection between the compatible devices established
using Bluetooth technology is free of charge for the user. In some
countries, there may be restrictions on using Bluetooth devices. Check
with your local authorities.
■ Bluetooth passcode
The first time you wish to establish a wireless connection to a
compatible device using Bluetooth technology, you will need to input a
passcode to pair the devices.
The passcode is 0000.
6
Getting started
1. Getting started
■ Overview
The Advanced Car Kit includes the components shown above.
• 1 Handsfree unit HF-5 with mounting plate MK-2
• 2 Remote control button CU-7
• 3 Loudspeaker HFS-12
• 4 Microphone MP-2
• 5 Cable set PCU-4
• 6 Data cable CA-27
• 7 Charger cable CA-116
■ Use of enhancements
Depending on the setup, a variety of optional enhancements are
available to extend your Advanced Car Kit. Before any installation work
is started, ask for professional advice on the enhancements that would
7
