Tokai LT-VHS-36 Service Manual

SERVICE MANUAL

Sec. 1: Main Section

I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA’s
I Exploded views
I Parts List

Sec. 2: Deck Mechanism Section

I Standard Maintenance
I Alignment for Mechanism
I Disassembly/Assembly of Mechanism
I Alignment Procedures of Mechanism
I Deck Exploded Views
I Deck Parts List

14" COLOR TV/VCR COMBINATION

LT-VHS-36

SECAMPAL

MAIN SECTION

14" COLOR TV/VCR COMBINATION

LT-VHS-36

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Preparation for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

Mechanical Trouble Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-7

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

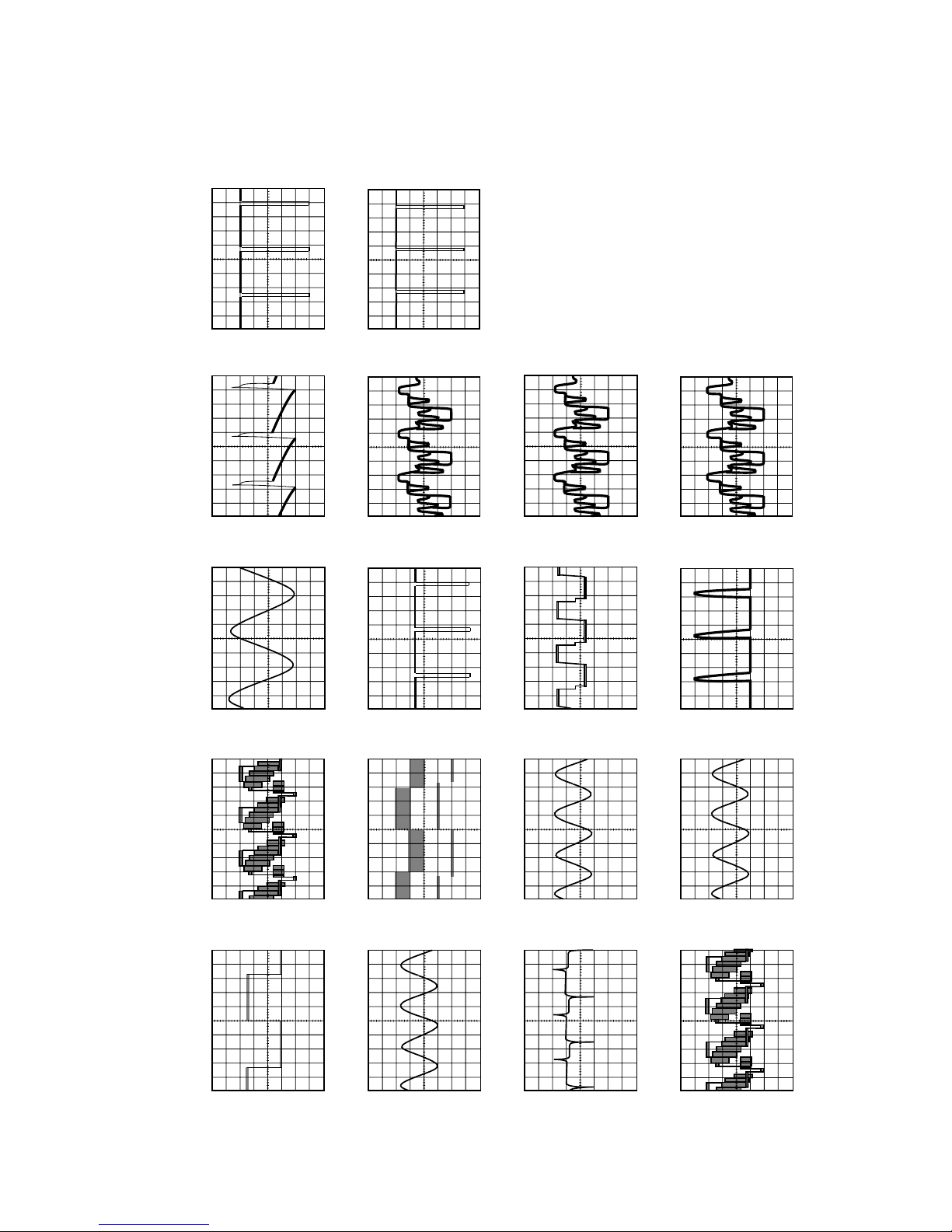

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

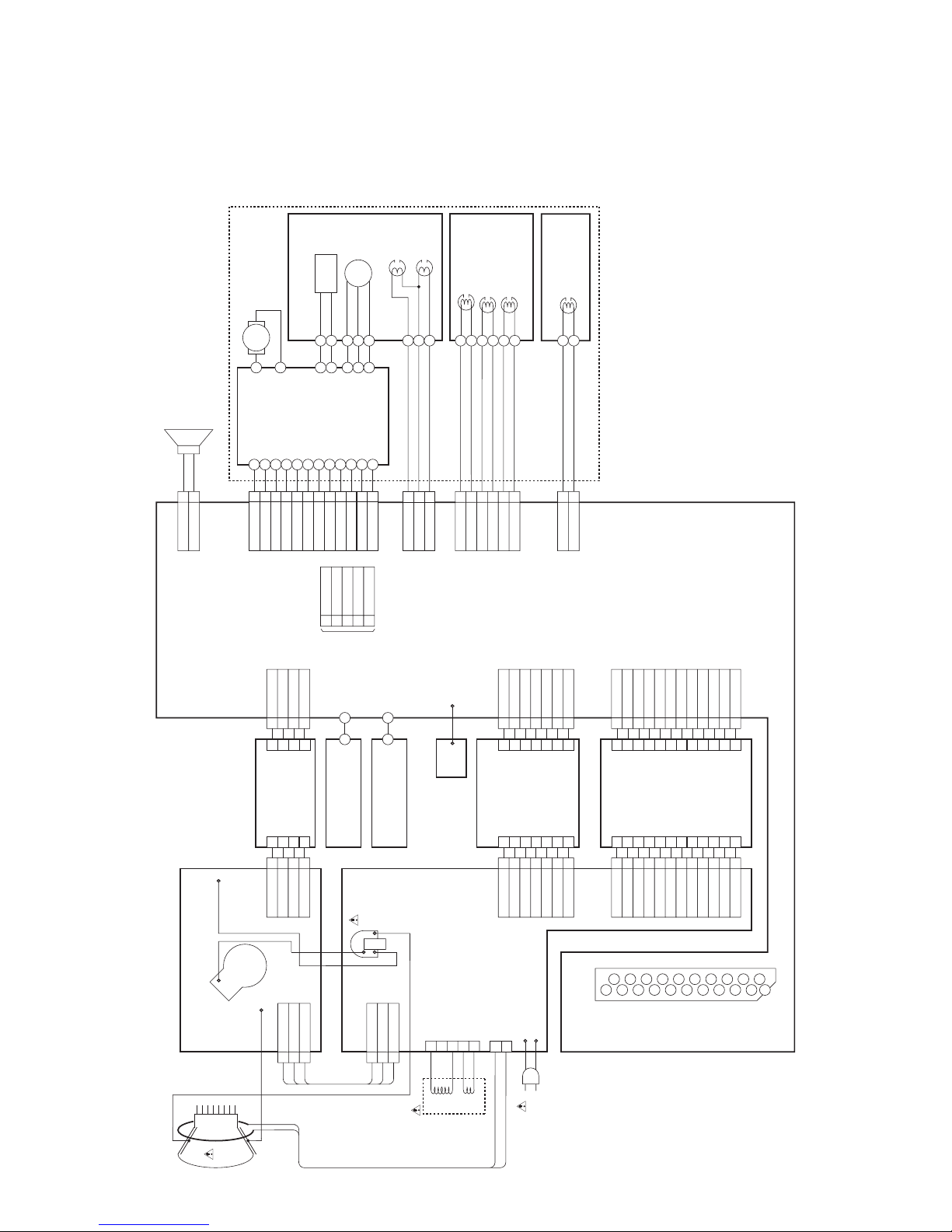

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

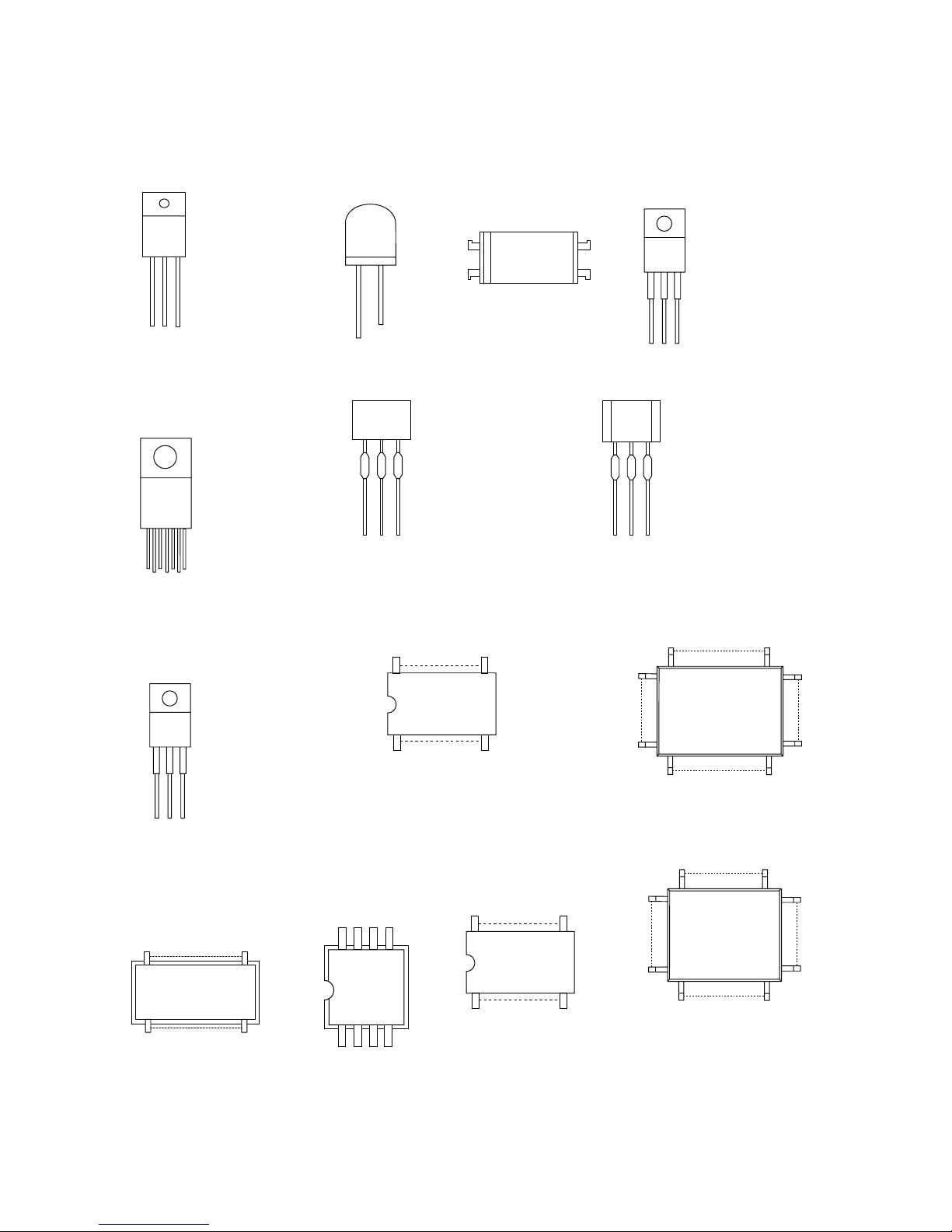

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

Cabinet Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

Packing Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-3

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

Sec. 1: Main Section

I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA’s
I Exploded Views
I Parts List

1-1-1 T6608SP

SPECIFICATIONS

*ˆMode---------SP mode unless otherwise specified
*Test input terminal

<Except Tuner>-------------Video input (1Vp-p)
Audio input (-10dB)
<Tuner>-----------------------Ant. input (80dBµV) Video: 87.5% mod.(BG/DK), 80.0% mod.(I)
Audio: 30kHz div (1kHz Sin)

<DEFLECTION>

<VIDEO & CHROMA>

<VCR>

<TUNER>

Description Condition Unit Nominal Limit

1. Over Scan — % 90 85/95

2. Linearity Horizontal % — ±15

Ver ti ca l % — ± 10

3. High Voltage — kV 22 —

Description Condition Unit Nominal Limit

1. Misconvergence Center m/m — 0.6

Corner m/m — 2.0

Side m/m — 1.5

2. Contrast Control Range — dB — 6

3. Brightness APL 100% ft-L 55 40

4. Color Temperature — K 8500 —

Description Condition Unit Nominal Limit

1. Horizontal Resolution (R/P) Line 230 200

2. Jitter (Low) (R/P) µS 0.05 0.2

3. S/N Chroma AM(SP) (R/P) dB 38 33

PM(SP) (R/P) dB 36 33

4. Wow & Flutter (RMS) (R/P) % 0.25 0.5

Description Condition Unit Nominal Limit

1. Video S/N — dB 45 40

2. Audio S/N (W/LPF) — dB 43 40

1-1-2 T6608SP

<AUDIO>

All items are measured across 8Ω resistor at speaker output terminal.

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.
Some will exceed and some may drop slightly below these specifications. Limit specifications represent the abso­lute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifica­tions.

<TV NORM, TUNER SENSIVITY, RECEPTIVE TV CHANNELS>

Description Condition Unit Nominal Limit

1. Audio Output Power (Max.) (R/P) W 1.0 0.8

2. Audio S/N (W/LPF) (R/P) dB 40 36

3. Audio Distortion (W/LPF) (R/P) % 3.0 5.0

4. Audio Freq. Response
(-20dB Ref. 1kHz)

200Hz (R/P)

6kHz (R/P)

dB
dB

—
—

5.0/-10

5.0/-10

TV Norm Tuner Sensivity Receptive TV Channels

SECAM-L/L’

NOM: VHF 47dBµV / UHF 47dBµV
MAX: VHF 54dBµV / UHF 57dBµV

F1 - F10, E21 - E69, FB - FQ, S4 - S41

PA L- B /G

NOM: VHF 46dBµV / UHF 47dBµV
MAX: VHF 53dBµV / UHF 56dBµV

E2 - E12, IA - IH, E21 - E69, S01 - S03,
Z+1, Z+2, S1 - S41, gap2

1-2-1 T6600SFTY

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the custom­er, always make a safety check of the entire instru-

ment, including, but not limited to, the following
items:

a. Be sure that no built-in protective devices are de-

fective and have been defeated during servicing.
(1) Protective shields are provided on this chassis
to protect both the technician and the customer.
Correctly replace all missing protective shields, in­cluding any removed for servicing convenience.
(2) When reinstalling the chassis and/or other as­sembly in the cabinet, be sure to put back in place
all protective devices, including but not limited to,
nonmetallic control knobs, insulating fishpapers,
adjustment and compartment covers/shields, and
isolation resistor/capacitor networks. Do not oper-

ate this instrument or permit it to be operated
without all protective devices correctly in­stalled and functioning. Servicers who defeat
safety features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings through

which an adult or child might be able to insert their
fingers and contact a hazardous voltage. Such
openings include, but are not limited to, (1) spac­ing between the picture tube and the cabinet
mask, (2) excessively wide cabinet ventilation
slots, and (3) an improperly fitted and/or incorrectly
secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug prongs.
Place the instrument AC switch in the on position.
Connect one lead of an ohmmeter to the AC plug
prongs tied together and touch the other ohmme­ter lead in turn to each tuner antenna input ex­posed terminal screw and, if applicable, to the
coaxial connector. If the measured resistance is
less than 1.0 megohm or greater than 5.2 mego­hm, an abnormality exists that must be corrected
before the instrument is returned to the customer.
Repeat this test with the instrument AC switch in
the off position.

d. Leakage Current Hot Check - With the instru-

ment completely reassembled, plug the AC line
cord directly into a 120V AC outlet. (Do not use an
isolation transformer during this test.) Use a leak-

age current tester or a metering system that com­plies with American National Standards Institute
(ANSI) C101.1 Leakage Current for Appliances
and Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on posi­tion and then in the off position, measure from a
known earth ground (metal water pipe, conduit,
etc.) to all exposed metal parts of the instrument
(antennas, handle brackets, metal cabinet, screw
heads, metallic overlays, control shafts, etc.), es­pecially any exposed metal parts that offer an elec­trical return path to the chassis. Any current
measured must not exceed 0.5 milli-ampere. Re­verse the instrument power cord plug in the outlet
and repeat the test.

ANY MEASUREMENTS NOT WITHIN THE LIMITS
SPECIFIED HEREIN INDICATE A POTENTIAL
SHOCK HAZARD THAT MUST BE ELIMINATED
BEFORE RETURNING THE INSTRUMENT TO
THE CUSTOMER OR BEFORE CONNECTING
THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits - Because

the picture tube is the primary potential source of
X-radiation in solid-state TV receivers, it is special­ly constructed to prohibit X-radiation emissions.
For continued X-radiation protection, the replace­ment picture tube must be the same type as the
original. Also, because the picture tube shields
and mounting hardware perform an X-radiation
protection function, they must be correctly in place.
High voltage must be measured each time servic-

DEVICE

LEAKAGE

CURRENT

TESTER

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG

AS REQUIRED

TEST ALL EXPOSED

METAL SURFACES

READING SHOULD
NOT BE ABOVE 0.5 mA

EARTH
GROUND

BEING

TESTED

1-2-2 T6600SFTY

ing is performed that involves B+, horizontal de­flection or high voltage. Correct operation of the
X-radiation protection circuits also must be recon­firmed each time they are serviced. (X-radiation
protection circuits also may be called "horizontal
disable" or "hold down.") Read and apply the high
voltage limits and, if the chassis is so equipped,
the X-radiation protection circuit specifications giv­en on instrument labels and in the Product Safety
& X-Radiation Warning note on the service data
chassis schematic. High voltage is maintained
within specified limits by close tolerance safety-re­lated components/adjustments in the high-voltage
circuit. If high voltage exceeds specified limits,
check each component specified on the chassis
schematic and take corrective action.

2. Read and comply with all caution and safety-relat­ed notes on or inside the receiver cabinet, on the
receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV re­ceiver. Design alterations and additions, including,
but not limited to circuit modifications and the ad­dition of items such as auxiliary audio and/or video
output connections, might alter the safety charac­teristics of this receiver and create a hazard to the
user. Any design alterations or additions will void
the manufacturer's warranty and may make you,
the servicer, responsible for personal injury or
property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning -

The picture tube in this receiver employs integral
implosion protection. For continued implosion pro­tection, replace the picture tube only with one of
the same type number. Do not remove, install, or
otherwise handle the picture tube in any manner
without first putting on shatterproof goggles
equipped with side shields. People not so
equipped must be kept safely away while picture
tubes are handled. Keep the picture tube away
from your body. Do not handle the picture tube by
its neck. Some "in-line" picture tubes are equipped
with a permanently attached deflection yoke; be­cause of potential hazard, do not try to remove
such "permanently attached" yokes from the pic­ture tube.

5. Hot Chassis Warning -

a. Some TV receiver chassis are electrically connect-

ed directly to one conductor of the AC power cord
and maybe safety-serviced without an isolation
transformer only if the AC power plug is inserted
so that the chassis is connected to the ground side
of the AC power source. To confirm that the AC
power plug is inserted correctly, with an AC volt­meter, measure between the chassis and a known

earth ground. If a voltage reading in excess of 1.0V
is obtained, remove and reinsert the AC power
plug in the opposite polarity and again measure
the voltage potential between the chassis and a
known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground re­gardless of the AC plug polarity. This chassis can
be safety-serviced only with an isolation transform­er inserted in the power line between the receiver
and the AC power source, for both personnel and
test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not iso­lated from the AC power line. The two ground sys­tems are electrically separated by insulation
material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to as­sure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch ther­mally hot parts, c. the AC supply, d. high voltage,
and e. antenna wiring. Always inspect in all areas
for pinched, out of place, or frayed wiring. Check
AC power cord for damage.

7. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or wir­ing that meet original specifications. Additionally,
determine the cause of overheating and/or dam­age and, if necessary, take corrective action to re­move any potential safety hazard.

8. Product Safety Notice - Some electrical and me­chanical parts have special safety-related charac­teristics which are often not evident from visual
inspection, nor can the protection they give neces­sarily be obtained by replacing them with compo­nents rated for higher voltage, wattage, etc.. Parts
that have special safety characteristics are identi­fied by a ( ! ) on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or
other hazards. The Product's Safety is under re­view continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are strictly inspected to con­firm with the recognized product safety and electri­cal codes of the countries in which they are to be
sold. However, in order to maintain such compli­ance, it is equally important to implement the fol­lowing precautions when a set is being serviced.

1-2-3 T6600SFTY

Precautions during Servicing

A. Parts identified by the ( ! ) symbol are critical for

safety.

Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations ap­plying to spurious radiation. These must also be re­placed only with specified replacements.

Examples: RF converters, RF cables, noise block­ing capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder­ing.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fus­ible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set.

K. Crimp type wire connector

When replacing the power transformer in sets
where the connections between the power cord
and power transformer primary lead wires are per­formed using crimp type connectors, in order to
prevent shock hazards, perform carefully and pre­cisely the following steps.

Replacement procedure

1) Remove the old connector by cutting the wires at a
point close to the connector.

Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. In­sert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at
the center position. Be sure to crimp fully to the
complete closure of the tool.

L. When connecting or disconnecting the VCR con-

nectors, first, disconnect the AC plug from AC sup­ply socket.

1-2-4 T6600SFTY

Safety Check after Servicing

Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts
and wires have been returned to original positions.
Afterwards, perform the following tests and confirm the
specified values in order to verify compliance with
safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

Note: This table is unofficial and for reference only.

Be sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current be­tween B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals, an­tenna terminals, video and audio input and output ter­minals, microphone jacks, earphone jacks, etc.).

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across both terminals of load
Z. See Fig. 2 and following table.

Table 2: Leakage current ratings for selected areas

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

AC Line Voltage Clearance Distance (d), (d’)

220 to 240 V

≥ 3mm(d)

≥ 6 mm(d’)

Chassis or Secondary Conductor

dd’

Primary Circuit Terminals

Fig. 1

Fig. 2

AC Voltmeter
(High Impedance)

Exposed Accessible Part

B

One side of
Power Cord Plug Prongs

Z

AC Line Voltage Load Z Leakage Current (i)

One side of power cord plug

prongs (B) to:

220 to 240 V

2kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

RF or

Antenna terminals

50kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

A/V Input, Output

1-3-1 T6600STA

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indi­cated as shown:

2. For other ICs, pin 1 and every 5th pin is indicated
as shown:

3. The 1st pin of every pin connector are indicated as
shown:

Instructions for Connectors

1. When you connect or disconnect FFC cable (con­nector), be sure to disconnect the AC cord.

2. FFC cable (connector) should be inserted parallel
into the connector, not at an angle.

[ CBA= Circuit Board Assembly ]

How to Read the Values of the Rect­angular Type Chip Components

Example:
(a) Resistor

(b) Capacitor

Caution:

Once chip parts (Resistors, Capacitors, Transistors,
etc.) are removed, they must not be reused. Always
use a new part.

Pb (Lead) Free Solder

Pb free mark will be found on PCBs used Pb free
solder. (Refer to figure.) For PCBs with Pb free
mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.

Replacement Procedures for
Leadless (Chip) Components

The Following Procedures are Recom­mended for the Replacement of the Lead­less Components Used in this Unit.

1. Preparation for replacement

1.1. Pb free solder

a. Soldering Iron

Use a soldering iron for Pb free solder.

b. Solder

Be sure to use Pb free solder.

c. Soldering time

Do not apply heat for more than 4 seconds.

d. Preheating

Leadless capacitor must be preheated before
installation. (130°C~150°C, for about two minutes.)

Top View

Out

In

Bottom View

Input

5

10

Pin 1

Pin 1

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

(Top View)

473

= 473 = 47 [kΩ]

(Top View)

= Not Shown

Pb free mark

1-3-2 T6600STA

1.2. Standard solder

e. Soldering Iron

Use a pencil-type soldering iron (less than 30
watts).

f. Solder

Eutectic solder (Tin 63%, Lead 37%) is recom­mended.

g. Soldering time

Do not apply heat for more than 4 seconds.

h. Preheating

Leadless capacitor must be preheated before
installation. (130°C~150°C, for about two minutes.)

Notes:

a. Leadless components must not be reused after

removal.

b. Excessive mechanical stress and rubbing for the

component electrode must be avoided.

2. Removing the leadless component

Grasp the leadless component body with tweezers
and alternately apply heat to both electrodes. When
the solder on both electrodes has melted, remove
leadless component with a twisting motion.

Notes:

a. Do not attempt to lift the component off the board

until the component is completely disconnected
from the board by the twisting action.

b. Take care not to break the copper foil on the printed

board

3. Installing the leadless component

a. Presolder the contact points of the circuit board.

b. Press the part downward with tweezers and solder

both electrodes as shown below.

Note:

Do not glue the replacement leadless component to
the circuit board.

How to Remove / Install Flat Pack IC

Caution:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering ma­chine, whose shape matches that of the Flat Pack­IC.

2. Do not apply the hot air to the chip parts around the

Flat Pack-IC for over 6 seconds as damage may
occur to the chip parts. Put Masking Tape around
the Flat Pack-IC to protect other parts from dam­age. (Fig. S-1-2)

3. The Flat Pack-IC on the CBA is affixed with glue, so

be careful not to break or damage the foil of each
pin or solder lands under the IC when removing it.

1. Removal

With Hot - Air Flat Pack - IC Desoldering Machine:

a. Prepare the Hot - Air Flat Pack - IC Desoldering

Machine, then apply hot air to Flat Pack - IC (about
5~6 seconds). (Fig. S-1-1)

b. Remove the Flat Pack- IC with tweezers while

applying the hot air.

With Soldering Iron:

a. Using desoldering braid, remove the solder from all

pins of the Flat Pack - IC. When you use solder flux
which is applied to all pins of the Flat Pack - IC, you
can remove it easily. (Fig. S-1-3)

b. Lift each lead of the Flat Pack - IC upward one by

one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air Desoldering
Machine. (Fig. S-1-4)

With Iron Wire:

a. Using desoldering braid, remove the solder from all

pins of the Flat Pack - IC. When you use solder flux
which is applied to all pins of the Flat Pack - IC, you
can remove it easily. (Fig. S-1-3)

Chip

Tweezers

Soldering Iron

Soldering Iron

Tweezers

Solder

Soldering Iron

Presolder

1-3-3 T6600STA

b. Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

c. Pull up on the wire as the solder melts so as to lift

the IC leads from the CBA contact pads, while
heating the pins using a fine tip soldering iron or
hot air blower.

Note:

When using a soldering iron, care must be taken
to ensure that the Flat Pack - IC is not being held
by glue, or when it is removed from the CBA, it
may be damaged if force is used.

2. Installation

a. Using desoldering braid, remove the solder from

the foil of each pin of the Flat Pack - IC on the CBA,
so you can install a replacement Flat Pack - IC
more easily.

b. The "I" mark on the Flat Pack - IC indicates pin 1

(See Fig. S-1-6). Make sure this mark matches the
1 on the CBA when positioning for installation.
Then pre - solder the four corners of the Flat Pack­IC (See Fig. S-1-7).

c. Solder all pins of the Flat Pack - IC. Make sure that

none of the pins have solder bridges.

Fig. S-1-1

Fig. S-1-2

Hot-air
Flat Pack-IC
Desoldering
Machine

CBA

Flat Pack-IC

Tweezers

Masking
Tape

Fig. S-1-3

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-4

Fine Tip
Soldering Iron

Sharp
Pin

Fig. S-1-5

To Solid
Mounting Point

Soldering Iron

Iron Wire

or

Hot Air Blower

Fig. S-1-6

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

1-3-4 T6600STA

Instructions for Handling
Semiconductors

Electrostatic breakdown of the semiconductors may
occur due to a potential difference caused by electro­static charge during unpacking or repair work.

Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is prop­erly grounded to remove any static electricity that may
be charged on the body.

Ground for Work Bench

Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the work bench or
other surface, where the semiconductors are to be
placed. Because the static electricity charge on the
clothing will not escape through the body grounding
band, be careful to avoid contacting semiconductors to
clothing.

Fig. S-1-7

Presolder

CBA

Flat Pack-IC

<Incorrect>

CBA

Grounding Band

Conductive Sheet or
Copper Plate

1MΩ

1MΩ

<Correct>

CBA

1-4-1 T6600PFS

PREPARATION FOR SERVICING

How to Enter the Service Mode

Caution: 1

1. Optical sensors system are used for Tape Start and
End Sensor on this equipment. Read this page
carefully and prepare as described on this page
before starting to service; otherwise, the unit may
operate unexpectedly.

Preparing: 1

1. Cover Q202 (START SENSOR) and Q201 (END
SENSOR) with Insulation Tape or enter the service
mode to activate Sensor Inhibition automatically.

Note: Avoid playing, rewinding or fast forwarding the
tape to its beginning or end, because both Tape End
Sensors are not active.

How to Enter the Service Mode

1. Turn the power on. (Use main power on the TV
unit.)

2. Press [STANDBY/ON], [2], [7], [1], and [MUTE] but­tons on the remote control unit in that order within 5
seconds. When entering the service mode, “4” will
display at corners of the screen.

3. During the service mode, electrical adjustment
mode can be selected by remote control key.

Details are as follows.

Caution: 2

1. The deck mechanism assembly is mounted on the
Main CBA directly, and SW211 (REC-SAFETY
SW) is mounted on the Main CBA. When deck
mechanism assembly is removed from the Main
CBA due to servicing, this switch can not be oper­ated automatically.

Preparing: 2

1. To eject the tape, press the STOP/EJECT button
on the unit (or Remote Control).

2. When you want to record during the Service mode,
press the Rec button while depressing SW211
(REC-SAFETY SW) on the Main CBA.

Key Adjustment Mode

MENU

Picture adjustment mode: Press the
MENU button to change from BRT
(Bright), *CNT (Contrast), *COL
(Color), *TNT(Tint) and SHP(SHARP).
Press PROG+/PROG- key to adjust
Initial Value. *Marked items are not
necessary to adjust normally.

VOL-

SECAM Black Level adjustment mode:
See adjustment instructions page
1-6-3.
Cut-Off adjustment mode: See adjust­ment instructions page 1-6-4.
White Balance adjustment mode: See
adjustment instructions page 1-6-5.

0

C-Trap adjustment mode: See adjust­ment instructions page 1-6-3.

1 No need to use.

2

H adjustment mode: See adjustment
instructions page 1-6-2.

3

Head switching point adjustment mode
(Auto adjustment): See adjustment
instructions page 1-6-7.

4

Auto record mode: Perform recording
(15 Sec.)-->Stop-->Rewind (Zero
return) automatically.

5

Head switching point adjustment mode
(Manual adjustment): See adjustment
instructions page 1-6-7.

6 No need to use.

7 No need to use.

8

H. Shift adjustment mode: See adjust­ment instructions page 1-6-4.

9

V.size/V. shift adjustment: See adjust­ment instructions page 1-6-4.

Key Adjustment Mode

(START SENSOR)

(END SENSOR)

(REC-SAFETY SW)

MAIN CBA

Q201

SW211

Q202

1-5-1 T6608DC

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

Caution !!

When removing the CRT, be sure to discharge the
Anode Lead of the CRT with the CRT Ground Wire
before removing the Anode Cap.

2. Disassembly Method

(1): Order of steps in Procedure. When reassembling,

follow the steps in reverse order.These numbers
are also used as the identification (location) No. of

parts in Figures.
(2): Parts to be removed or installed.
(3): Fig. No. showing Procedure of Part Location.
(4): Identification of part to be removed, unhooked,

unlocked, released, unplugged, unclamped, or

desoldered.

S=Screw, P=Spring, L=Locking Tab, CN=Connec-

tor, *=Unhook, Unlock, Release, Unplug, or Desol-

der

2(S-2) = two Screw (S-2)
(5): Refer to the following "Reference Notes in the

Ta bl e ."

Reference Notes in the Table

1. Removal of the Rear Cabinet.

Remove four screws (S-1) and two screws (S-2).
Disconnect connector CN151 and remove the Rear
Cabinet.

Caution !!

Discharge the Anode Lead of the CRT with the CRT
Ground Wire before removing the Anode Cap.

2. Removal of the Power Unit and Tray Chassis Unit.

Discharge the Anode Lead of the CRT with the
CRT Ground before removing the Anode Cap.
Disconnect the following: Anode Cap, CN501,
CN551, CN601, CRT CBA, and Power Button.
Then pull the Power Unit and Tray Chassis Unit out
backward.

3. Removal of the Power Unit.

Disconnect connectors CN502, CN552, and
CN602. Then slide the Power Unit out.

4. Removal of the H.V./Power Supply CBA.

Remove six screws (S-3) and pull up the H.V./
Power Supply CBA.

5. Removal of the Top Cover.

Remove five screws (S-4) and CL604, and remove
the Top Cover.

ID/

LOC.

No.

PAR T

REMOVAL

Fig.

No.

REMOVE/
*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/
DESOLDER

Note

[1]

Rear
Cabinet

1,2,5

4(S-1), 2(S-2),
*CN151

1

[2]

Power Unit
and Tray
Chassis
Unit

3,4,5

Anode Cap, *CN501,
*CN551, *CN601,
CRT CBA, Power
Knob

2

[3] Power Unit 3,5

*CN502, *CN552,
*CN602

3

[4]

Tr ay
Chassis
Unit

3 ---------- -

[5]

H.V./Power
Supply
CBA

36(S-3) 4

[6] Top Cover 3 5(S-4), CL604 5

[7]

Bottom
Plate

3(S-5) 6

[1] Rear Cabinet

[2] Power Unit and Tray Chassis Unit

[3] Power Unit[5] H.V./Power

Supply CBA

[4] Tray Chassis Unit

[6] Top Cover

[7] Bottom Plate

[8] Deck Unit

[9] Main CBA

[10] CRT

[8] Deck Unit 3, 5

7(S-6), (S-7), (S-8),
Desolder *(CN201,
CL401, CL402,
CL403)

7

[9] Main CBA 3 4(S-9) 8

[10] CRT 4 4(S-10) 9

↓

(1)

↓

(2)

↓

(3)

↓

(4)

↓

(5)

ID/

LOC.

No.

PA RT

REMOVAL

Fig.

No.

REMOVE/
*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/
DESOLDER

Note

1-5-2 T6608DC

6. Removal of the Bottom Plate.
Remove a screw (S-5). Then slide the Bottom Plate
out front.

7. Removal of the Deck Unit.
Remove seven screws (S-6), screw (S-7) and
screw (S-8). Then, desolder connectors (CN201,
CL401, CL402, CL403) and lift up the Deck Unit.

8. Removal of the Main CBA.
Remove four screws (S-9) and pull up the Main
CBA.

9. Removal of the CRT.
Remove four screws (S-10) and pull the CRT back­ward.

(S-1)

(S-2)

(S-2)

[1] REAR CABINET

(S-1)

Fig. 1

(S-1)

(S-1)

(S-1)

(S-2)

(S-1)

(S-2)

[1] REAR CABINET

Fig. 2

1-5-3 T6608DC

A

A

(S-7)

(S-8)

Fig. 3

[2] Power Unit and
Tray Chassis Unit

[5] H.V./Power
Supply CBA

(S-3)

(S-3)

[3] Power Unit

Power Button

(S-3)

(S-4)

(S-4)

(S-4)

(S-5)

[7] Bottom Plate

CL604

(S-4)

(S-6)

(S-9)

(S-9)

(S-9)

(S-9)

(S-6)

(S-6)

(S-6)

[8] Deck Unit

[6] Top Cover

[10] Main CBA

[4] Tray
Chassis Unit

1-5-4 T6608DC

Fig. 4

(S-10)

(S-10)

(S-10)

(S-10)

Anode Cap

[11] CRT

CRT CBA

1-5-5 T6608DC

CN151

TO SPEAKER

FE HEAD

CYLINDER
ASSEMBLY

ACE HEAD
ASSEMBLY

CAPSTAN
MOTOR

DECK UNIT

CN201

CL402

CL401

CL403

CL302A

CL603A

CL301A

MAIN CBA

CN501

SCREEN

FOCUS

CN502

CN501B

CL501A

CN601

CN552

CN551

CN602

CRT

ANODE

GND

H.V./POWER SUPPLY CBA

TO DEGAUSS
COIL

CRT CBA

Fig. 5

CL604

TO TOP COVER

1-6-1 T6608EA

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note:

"CBA" is abbreviation for "Circuit Board
Assembly."

NOTE:

Electrical adjustments are required after replacing
circuit components and certain mechanical parts.
It is important to perform these adjustments only
after all repairs and replacements have been com­pleted.
Also, do not attempt these adjustments unless the
proper equipment is available.

Test Equipment Required

1. PAL Pattern Generator (Color Bar, Monoscope,
Black Raster, White Raster, Sympte)

2. SECAM Pattern Generator (Gray Scale)

3. AC Milli Voltmeter (RMS)

4. Alignment Tape (FL6A), Blank Tape (E180)

5. DC Voltmeter

6. Oscilloscope: Dual-trace with 10:1 probe,

V-Range: 0.001~50V/Div,
F-Range: DC~AC-60MHz

7. Frequency Counter

8. Plastic Tip Driver

9. RF input (at each broadcasting system)
Receiving Channel : VHF Low
Input level : 80dBµV

10.Ext.input
FRONT VIDEO-IN JACK or REAR SCART JACK

How to Set up the Service mode:

NOTE:

After replacing the IC202 (Memory) or Main CBA,
the set value in IC202 (Memory) will be lost. So it
is necessary to set up or adjust in the Service
mode after its replacement.

Service Mode:

1. Turn the power on. (Use main power on the TV
unit.)

2. Press [STANDBY/ON], [2], [7], [1], and [MUTE] but­tons on the remote control unit in that order within 5
seconds.

- To cancel the service mode, press [STANDBY/ON]
button on the remote control.

How to set up the option code

1. Enter the Service mode.

2. Press the [STATUS] button on the remote control
unit. The option code appears on the display.

3. If needed, input the option code (0129) using num­ber buttons on the remote control unit.

4. To reset the software, press [PAUSE] and [5] but­tons on the remote control unit.
The option code is changed.

1-6-2 T6608EA

1. DC 105V (+B) Adjustment

Purpose: To obtain correct operation.

Symptom of Misadjustment: The picture is dark and

unit does not operate correctly.

Note: TP503(+B), TP504(GND), VR601 --- H.V./Power
Supply CBA

1. Connect the unit to AC Power Outlet. (exact
AC230V)

2. Input a color bar signal from RF (or Ext.) input and
leave it for at least 20 minutes.

3. Connect DC Volt Meter to TP503(+B) and
TP504(GND).

4. Adjust VR601 so that the voltage of TP503(+B)
becomes +105±0.5V DC.

2. H Adjustment

Purpose: To get correct horizontal position and size of

screen image.

Symptom of Misadjustment: Horizontal position and
size of screen image may not be properly displayed.

Note: R590 --- H.V./Power Supply CBA

1. Connect Frequency Counter to R590.

2. Set the unit to the Ext. mode and no input is neces­sary. Enter the Service mode.
(See page 1-6-1.)

3. Operate the unit for at least 20 minutes.

4. Press [2] button on the remote control unit and
select H-Adj mode.

5. Press [PROG+/PROG-] buttons on the remote con­trol unit so that the display will change [0] to [7.]
At this moment, choose display [0] to [7] when the
Frequency counter display is closest to

15.625kHz±250Hz.

6. Turn the power off and on again.

Test point Adj. Point Mode Input

TP503

(+B),

TP504

(GND)

VR601

RF

(or Ext.)

Color

Bar

Tape M. EQ . Spe c .

---

DC Voltmeter,

Plastic Tip Driver

+105±0.5V DC

Test point Adj. Point Mode Input

R590

PROG+/PROG-

buttons

Ext. ---

Tape M. EQ. Spec.

--- Frequency Counter 15.625kHz±250Hz

1-6-3 T6608EA

3. C-Trap Adjustment

Purpose: To get minimum leakage of the color signal

carrier.

Symptom of Misadjustment: If C-Trap Adjustment is
incorrect, stripes will appear on the screen.

Note: J349F3 (B-Out)--- Main CBA

1. Connect Oscilloscope to J349F3.

2. Input a color bar signal from RF (or Ext.) input.
Enter the Service mode. (See page 1-6-1.)

3. Press [0] button on the remote control unit and
select C-TRAP mode.

4. Press [PROG+/PROG-] buttons on the remote con­trol unit so that the carrier leakage B-Out
(4.43MHz) value becomes minimum on the oscillo­scope.

5. Turn the power off and on again.

4. SECAM Black Level Adjustment

Purpose: To set Black Level of the SECAM signal R-

Y/B-Y to Ref. level.

Symptom of Misadjustment: If Black Level of the
SECAM signal R-Y/B-Y is incorrect, the picture is blu­ish or reddish in grayscale compared with PAL signal.

1. Degauss the CRT and allow CRT to operate for 20
minutes before starting the alignment.

2. Input the SECAM Gray Scale signal from Ext.
input.

3. Enter the service mode. (See page 1-6-1.)

4. To enter the C/D/S mode, press [VOL-] on the
remote control unit.

5. To select SBR (SECAM Black Level R-Y), press [6]
button on the remote control unit.

6. Press [PROG+/PROG-] buttons to adjust Y signal
to the black ref. level.

7. To select SBB (SECAM Black Level B-Y), press [7]
button on the remote control unit.

8. Press [PROG+/PROG-] buttons to adjust Y signal
to the black ref. level.

Test point Adj. Point Mode Input

J349F3

(B-OUT)

PROG+/PROG-

buttons

RF

(or Ext.)

Color Bar

Tape M. EQ. Spec.

---

Oscilloscope,

Pattern Generator

200mVp-p Max.

Figure

minimum

Fig. 1

Tes t

point

Adj. Point Mode Input

J361G4

PROG+/PROG-

buttons

Ext.

SECAM

Gray

Scale

Tape M. EQ. Spec.

---

Pattern Generator,

Analog Oscilloscope (unus-

able Digital Oscilloscope)

---

5mV/Div (10:1 Prove)

Y Signal

1H

1H

1H

Black REF. Level

Fig. 4

1-6-4 T6608EA

5. V. Size Adjustment

Purpose: To obtain correct vertical height of screen

image.

Symptom of Misadjustment: If V. Size is incorrect,
vertical height of image on the screen may not be
properly displayed.

1. Enter the Service mode. (See page 1-6-1.)
Press [9] button on the remote control unit and
select V-S mode. (Press [9] button then display will
change to V-P and V-S).

2. Input monoscope pattern and leave it for at least 20
minutes.

3. Press [PROG+/PROG-] buttons on the remote con­trol unit so that the monoscope pattern is 90±5% of
display size and the circle is round.

6. V. Shift Adjustment

Purpose: To obtain correct vertical position of screen

image.

Symptom of Misadjustment: If V. position is incor­rect, vertical position of image on the screen may not
be properly displayed.

1. Enter the Service mode. (See page 1-6-1.)
Press [9] button on the remote control unit and
select V-P mode. (Press [9] button then display will
change to V-P and V-S).

2. Input monoscope pattern and leave it for at least 20
minutes.

3. Press [PROG+/PROG-] buttons on the remote con­trol unit so that the top and bottom of the mono­scope pattern are equal to each other.

7. H. Shift Adjustment

Purpose: To obtain correct horizontal position and

size of screen image.

Symptom of Misadjustment: Horizontal position and
size of screen image may not be properly displayed.

1. Enter the Service mode. (See page 1-6-1.)
Press [8] button on the remote control unit and
select H-P mode.

2. Input monoscope pattern and leave it for at least 20
minutes.

3. Press [PROG+/PROG-] buttons on the remote con­trol unit so that the left and right side of the mono­scope pattern are equal to each other.

4. Turn the power off and on again.

8. Cut-off Adjustment

Purpose: To adjust the beam current of R, G, B, and

screen voltage.

Symptom of Misadjustment: White color may be
reddish, greenish or bluish.

Notes:

Screen Control (FBT) --- H.V./Power Supply CBA
FBT= Fly Back Transformer
Use the Remote Control Unit

1. Degauss the CRT and allow CRT to operate for 20
minutes before starting the alignment.

2. Set the screen control to minimum position. Input
the Black raster signal from RF (or Ext.) input.

3. Enter the service mode. (See page 1-6-1.)
Dimmed horizontal line appears on the CRT.

4. To enter the C/D/S mode, press the [VOL-] button
on the remote control unit.

5. To enter the CUT OFF (R) mode, press [1] button
on the remote control unit.

6. Turn the screen control up until dimmed horizontal
line appears.

Test point Adj. Point Mode Input

Screen

PROG+/PROG-

buttons

RF

(or Ext.)

Monoscope

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

Test point Adj. Point Mode Input

Screen

PROG+/PROG-

buttons

RF

(or Ext.)

Monoscope

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

Test point Adj. Point Mode Input

Screen

PROG+/PROG-

buttons

RF

(or Ext.)

Monoscope

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

Test point Adj. Point Mode Input

Screen

Screen-Control,
PROG+/PROG-

buttons

RF

(or Ext.)

Black Ras-

ter

Tape M. EQ. Spec.

--- Pattern Generator

See Reference

Notes below

1-6-5 T6608EA

7. Press the [PROG+/PROG-] buttons until the hori­zontal line becomes white.

8. To enter the CUT OFF (G) mode, press [2] button
on the remote control unit.

9. Press the [PROG+/PROG-] buttons until the hori­zontal line becomes white.

10.To enter the CUT OFF (B) mode, press [3] button
on the remote control unit.

11.Press the [PROG+/PROG-] buttons until the hori­zontal line becomes white.

12.Turn the screen control so that the horizontal line
adjusted white looks lightly.

13.Turn the power off and on again.

9. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white.
Symptom of Misadjustment: White becomes bluish

or reddish.

Note: Use remote control unit

1. Operate the unit more than 20 minutes.

2. Face the unit to east. Degauss the CRT using De­gaussing Coil.

3. Input the White Raster (APL 100%).

4. Set the color analyzer to the CHROMA mode and
after zero point calibration, bring the optical recep­tor to the center on the tube surface (CRT).

5. Enter the Service mode. Press [VOL-] button on
the remote control.

6. Press [4] button on the remote control unit for Red
adjustment. Press [5] button on the remote control
unit for Blue adjustment.

7. In each color mode, Press [PROG+/PROG-] but­tons to adjust the values of color.

8. Adjusting Red and Blue color so that the tempera­ture becomes 8500K (x : 290 / y : 300) ±3%.

9. At this time, Re-check that Horizontal line is white.
If not, Re-adjust Cut-off Adjustment until the Hori­zontal Line becomes pure white.

10. Turn off and on again to return to normal mode. Re­ceive APL 100% white signal and Check Chroma
temperatures become 8500K (x : 290 / y : 300) ±3%.

Note: Confirm that Cut Off Adj. is correct after this
adjustment, and attempt Cut Off Adj. if needed.

Test point Adj. Point Mode Input

Screen

Screen-Control,
PROG+/PROG-

buttons

RF

(or Ext.)

White

Raster

(APL 100%)

Tape M. EQ . Spec.

---

Pattern Generator,

Color analyzer

See below

Figure

Color Ajalyzer

Fig. 5

1-6-6 T6608EA

10. Sub-Brightness Adjustment

Purpose: To get proper brightness.
Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by
adjusting the Brightness Control.

Note: Bar (A) in Fig. 7 --- 0 IRE

1. Enter the service mode. (See page 1-6-1.)
Then input SYMPTE signal from RF (or Ext.) input
and leave it for at least 20 minutes.

2. Press [MENU] button. (Each time [MENU] button is
pressed, display will change BRT, CNT, COL, TNT,
and SHP in that order.) Select BRT and press
[PROG+/PROG-] buttons so that the bar (A) in Fig.
6 is just visible.

3. Turn the power off and on again.

11. Setting for CONTRAST,
COLOR, TINT and SHARP
Data Values

General

1. Enter the Service mode. (See page 1-6-1)

2. Press [MENU] button. (Each time [MENU] button is
pressed, display will change BRT, CNT, COL, TNT,
and SHP in that order.)

CONTRAST (CNT)

1. Press [MENU] button on the remote control unit.
Then select CNT display.

2. Press [PROG+/PROG-] buttons on the remote
control unit so that the value of "CONTRAST"
(CNT) becomes 83.

COLOR (COL)

1. Press [MENU] button on the remote control unit.
Then select "COLOR" (COL) display.

2. Press [PROG+/PROG-] buttons on the remote
control unit so that the value of "COLOR" (COL)
becomes 65.

TINT (TNT)

1. Press [MENU] button on the remote control unit.
Then select "TINT" (TNT) display.

2. Press [PROG+/PROG-] buttons on the remote
control unit so that the value of "TINT" (TNT) be­comes 68.

SHARP (SHP)

1. Press [MENU] button on the remote control unit.
Then select "SHARP" (SHP) display.

2. Press [PROG+/PROG-] buttons on the remote
control unit and select "1."

Test point Adj. Point Mode Input

Screen

PROG+/PROG-

buttons

RF

(or Ext.)

SYMPTE

Tap e M. EQ. S p e c .

---

Pattern

Generator

See below

Figure

Black

White

This bar
(A) just
visible

ABC

Fig. 6

1-6-7 T6608EA

12. Focus Adjustment

Purpose: Set the optimum Focus.

Symptom of Misadjustment: If Focus Adjustment is

incorrect, blurred images are shown on the display.

Note: Focus VR (FBT) --- H.V./Power Supply CBA

FBT= Fly Back Transformer

1. Operate the unit more than 30 minutes.

2. Face the unit to the East and degauss the CRT
using a Degaussing Coil.

3. Input the monoscope pattern.

4. Adjust the Focus Control on the FBT to obtain clear
picture.

13. Head Switching Position Adjustment

Purpose: Determine the Head Switching Position dur-

ing Playback.

Symptom of Misadjustment: May cause Head
Switching Noise or Vertical Jitter in the picture.

Note: Unit reads Head Switching Position automati­cally and displays it on the screen (Upper Left Corner).

Manual Adjustment

1. Enter the service mode. (See page 1-6-1.)

2. Playback the test tape (FL6A).

3. Press the number [5] button on the remote control
unit.

4. The Head Switching position will display on the
screen; if adjustment is necessary follow step 4.

7.0H (448µs) is preferable.

5. Press [PROG+/PROG-] buttons on the remote con­trol unit if necessary. The value will be changed in

0.5H steps up or down. Adjustable range is up to

9.5H. If the value is beyond adjustable range, the
display will change as:

Lower out of range: 0.0H
Upper out of range: -.-H

6. Turn the power off and on again.

Auto Adjustment

1. Load the test tape (FL6A) that have been recorded
the Head Switching Position Value.

2. Enter the service mode.

3. Press [3] button on the remote control unit in the
tape stop mode. The unit playback and adjust the
Head Switching Position automatically.

4. The adjusting report appears on upper left corner
of the screen with blueback.
In case of adjusting correctly: the Head Switching
Position Value recorded in the test tape (FL6A) is
indicated with green.
In case of adjusting incorrectly: "NG" (red) is indi­cated with ejecting tape.

l

Test point Adj. Point Mode Input

Screen Focus Control

RF

(or Ext.)

Monoscope

Tape M . E Q. Spec.

--- Pattern Generator See below.

NG

Incorrect

7.0H

Correct

TVCR TVCR

Fig. 7

1-7-1

BLOCK DIAGRAMS

Servo/System Control Block Diagram

T6608BLS

CONTROL

HEAD

CL402

AC HEAD ASSEMBLY

MAIN CBA

KEY-2

RF-SW

ST-SENS.

T-REEL

KEY-1

DV-SYNC

C-SYNC

C-SYNC

V-ENV

REMOTE

CTL(+)

RESET

C-ROTA

REC-SAFETY

A-MUTE-H

SCL

SDA

A-MUTE-H

CTL(-)

RF-SW

DV-SYNC

V-ENV

C-ROTA

END-SENS.

IC201

(SERVO/SYSTEM CONTROL)

14

94

95

10480

34

18

15613

74

31

20

72

8

7

RS201

REMOTE

SENSOR

CTL AMP-OUT

97

AL+5V

D201

S-LED

CTL

TP001

(DECK

ASSEMBLY

)

END-SENS.

T-REEL

ST-SENS.

Q202 Q205Q201

Q204

RESET

TIMER+5V

32

33

47

EXT-L

SP-MUTE

SP-MUTE

44

SW211

REC

SAFETY

TO

VIDEO BLOCK

TO

AUDIO BLOCK

KEY SWITCH

KEY SWITCH

SW201 SW205

SCL

(MEMORY)

SDA

6

5

REC-LED

24

REC-LED

23

P-DOWN-L

85

P-ON-H

P-DOWN-L

P-ON-H

67

D202 REC

AL+5V

LD-SW9

I

2

C-OPEN

45

71

AL+5V

SW212

LD-SW

CS7

TO POWER

SUPPLY BLOCK

SW206 SW210

SDA

SCL

TO

TV BLOCK

SDA

SCL

IC202

WF3

I

2

C-OPEN

M

M

LOADING

MOTOR

CAPSTAN MOTOR

SENSOR CBA

(ST-SENSOR)

SENSOR CBA

(END-SENSOR)

4C-F/R

1CM+12V

11AL+12V(1)

2P-ON+5V(3)

6FG-GND

3C-FG

5

C-CONT

10M-GND

7LD-CONT

8D-CONT

9

D-PFG

12VG

CN201

C-FG

C-CONT

D-PFG

C-F/R

90

76

87

78

LD-CONT81D-CONT

77

CM+12V

AL+12V(1)

P-ON+5V(3)

CAPSTAN

MOTOR

D-REC-H

SECAM-H

TRICK-H

D-REC-H

SDA

SCL

424829

EXT-L

SCART-H

SCART-MUTE

SCART-H

SCART-MUTE

D204 STANDBY

2CTL(+)

1CTL(-)

+33V

CYLINDER ASSEMBLY

DRUM

MOTOR

PG

SENSOR

M

1-7-2

T6608BLV

Video Block Diagram

CYLINDER ASSEMBLY

V(R)

V-COM

V(L)

CL401

123

(DECK ASSEMBLY)

VIDEO (R)

HEAD

SP

HEAD

AMP

REC FM

AGC

TO SERVO/SYSTEM

CONTROL BLOCK

TO

SERVO/SYSTEM

CONTROL BLOCK

C-SYNC

TRICK-H

RF-SW

D-REC-H

C-ROTA

DV-SYNC

V-ENV

SECAM-H

LUMINANCE

SIGNAL

PROCESS

CHROMINANCE

SIGNAL

PROCESS

PB-H OUT

C-SYNC

V-ENV

DV-SYNC

RF-SW/C-ROTA

VIDEO (L)

HEAD

IC401

(VIDEO/AUDIO SIGNAL PROCESS)

REC-VIDEO SIGNAL PB-VIDEO SIGNAL MODE: SP/REC

SERIAL

DECORDER

IC471 (PAL/SECAM DECTECOTR)

PAL/SECAM

DETECTOR

485254

56

61

63

969593

94

CHARA.

INS.

CCD 1H DELAY

BYPASS

MUTE

PB/EE

TUNER

TUNER

MUTE

PB/EE

LINE

SCART

LINE

SCART

AGC

PR

R

Y

C

P

RPRP

Y. DELAY

Y/C

MIX

+

21

7978

AGC VXO

FBC

1/2

58 59

65

2928 44

17

12216

29128

SDA

SCL

69684643

67

84

62

70

D-REC-H

80

TP003

V-OUT

WF5

TP008

C-PB

WF6

MAIN CBA

TP002

RF-SW

WF1

14

X401

4.43MHz

17

Q703

JK701

V-IN

VIDEO OUT

TU001

20

BUFFER

BUFFER

Q401

TP010

GND

TO

TV BLOCK

VIDEO

TU-VIDEO

TO

TV BLOCK

C-VIDEO

JK703

V-IN

V-OUT

19

WF4

WF2

1-7-3

T6608BLA

Audio Block Diagram

REC

AMP

100

3

AUTO

BIAS

2

1

+5V

+5V

Q854

Q856

BIAS

OSC

Q855

Q853(PB=ON)

Q852(PB=ON)

Q851

SWITCHING

D-REC-OFF

5

EQ

AMP

98

7

LINE

AMP

REC-ON

TP007

AUDIO HD-SW

CONTROL

MUTE

11

6

PB-ON

SW CTL

SP/LP-ON

P

R

ALC

DET

ALC

IC401

(AUDIO SIGNAL PROCESS)

IC701 (SW)

13

17

3 A-PB/REC

CL402

4 A-COM

6 AE-H/FE-H

5 FE-H

AUDIO

HEAD

AUDIO

ERASE

HEAD

ACE HEAD ASSEMBLY

FE HEAD

1 FE-H

2 FE-H-GND

CL403

MAIN CBA

PB-AUDIO SIGNAL REC-AUDIO SIGNAL

Mode : SP/REC

71

A-MUTE-H

SCL

SDA

TO

SERVO/SYSTEM

CONTROL BLOCK

TO SERVO

/SYSTEM

CONTROL

BLOCK

FULL

ERASE

HEAD

68 69

SERIAL

DECODER

(DECK ASSEMBLY)

12

16

INV

ATT

IC301

7

1

IC151 (AMP)

(VIDEO/AUDIO/CHROMA/DEFLECTION/IF)

SP2SP-GND 1

JK151

HEADPHONE JACK

SP151

SPEAKER

CN804

CL801

SP-MUTE

OUTPUT

AMP

50

52

53

54

MUTE

5

1

2155

3

4

12

14

6

2

1

AUDIO OUT

TU001

JK702

A-IN

JK703

SCART

LINE

SCART

LINE

A-IN

A-OUT

Q701

1011 9

SCART-H

EXT-L

SCART-MUTE

TUNER

TUNER

LINE

LINE

N-A-PB

ATT

AUDIO

MUTE

WF7

WF9

WF8

TO

SERVO/SYSTEM

CONTROL BLOCK

1-7-4

T6608BLT

TV Block Diagram

X301

4.43MHz

CL301A

CL302A

IC301 (VIDEO/AUDIO/CHROMA/DEFLECTION/IF)

IC201

(SYSTEM CONTROL/OSD)

V-SYNC

TEXT-L

OSD-R

OSD-G

OSD-B

OSD-BLK

H-SYNC

SLOW-SW

C-VIDEO

C-VIDEO

RAPID-SW

OSD-G

OSD-R

OSD-B

59

58

6062636482

TU-VIDEO

TO

VIDEO BLOCK

TO

CRT/H.V. BLOCK

CL301B

TO

CRT/H.V. BLOCK

CL302B

BLUE2

GREEN1

RED

SDA

SCL

TO

SERVO/SYSTEM

CONTROL BLOCK

TO

VIDEO

BLOCK

REC VIDEO SIGNAL PB VIDEO SIGNAL

Mode : SP/REC

WF18

WF17

WF10

WF11

CN303

(NO CONNECTION)

CN303 is used for

adjustment at factory

I

2

C-OPEN

3

FBP2

H-DRIVE1

ACL5

V-RAMP-FB4

V-DRIVE3

MAIN CBA

32

21

17

12

13

302820

27

11

10

143115

16

6

7

43

36

VIDEO

34

CHROMA

TRAP

SERIAL

I/F

INTELLIGENT

MONITORING

CHROMA

BPF

PAL

DECODER

SECAM

DECODER

BASE BAND

1H DELAY LINE

SYNC

SEPARATION

LUMA

SIGNAL

PROCESS

CIRCUIT

H-SYNC

PROCESS

CIRCUIT

V-SYNC

PROCESS

CIRCUIT

OSD MIX/RBG MATRIX/

BLANKING

TUNER

LINE/PB

TUNER

LINE/PB

CLOCK

CONTROL

CIRCUIT

SW CTL

IC703 (SW)

341 15

13

14

7

16811

15

56

616568

JK703

109 11

Q710

Q702

Q706

Q704

+5V

+5V

Q711

SLOW-SW-IN

RGB CONT

RAPID-SW-IN

INV

INT.MONITOR

1

I

2

C-OPEN 2

SDA 4

SCL 5

1-7-5

CRT/H.V. Block Diagram

T6608BLCRT

PUMP

UP

AMP

THERMAL

PROTECTION

3

6

7

1

5

810796

GREEN AMP

BLUE AMP

Q501

Q502

Q503

H.DRIVE

Q533

Q551

T552

V-

DRIVEH-DRIVE

L551

DEFLECTION-YOKE

IC551 (V-DEFLECTION CONTROL)

T551 F.B.T.

ANODE

FOCUS

SCREEN

CRT CBA

RGB

HEATER

ANODE

GND

V501

CRT

GND

FOCUS

SCREEN

JK501

HEATER 11

CN501

CL501BCL501A

REC VIDEO SIGNAL PB VIDEO SIGNAL

CN551

P-ON+160V 33

TO TV

BLOCK

CL302A

11

S

F

HV

FOCUS VR

SCREEN VR

+B

TO

POWER SUPPLY

BLOCK

DEF+B

H.OUTPUT

1

5

3

4

543

1

WF12

WF15WF14

WF16

WF13

RED AMP

Mode : SP/REC

CN502

2

VCC

321

CN301CL301B

TO TV

BLOCK

CL301A

JUNCTION-C

CBA

JUNCTION-B

CBA

CN552

CN302CL302B

H.V./POWER SUPPLY CBA

32RED

14GREEN

23BLUE

33V-DRIVE

11H-DRIVE

22FBP

55ACL

44V-RAMP-FB

3

125

4

1-7-6

Power Supply Block Diagram

T6608BLP

6

4

2

1

14

13

11

10

9

8

LINE

FILTER

BRIDGE

RECTIFIER

T601

IC601

ERROR

VOLTAGE DET

W601

F601

T4A/250V

L601

D601 - D604

SWITCHING

Q604

VR601

DEGAUSSING

COIL

CN601

Q602

+B ADJ.

FEED

BACK

LIMITER

Q603

PS602

4 1

3 2

HOT COLD

Q608

DG601

MAIN CBA

NOTE :

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CAUTION !

Fixed voltage power supply circuit is used in this unit.

If Main Fuse (F601) is blown, check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

TIMER+5V

P-DOWN-L

(TO PIN85 OF IC201)

P-ON-ON

AL+9V

P-ON+8V

AL+12V(2)

AL+12V(1)

AL+5V

+5.7V

REG.

IC301

3955

+B

DEF+B

POWER

SW601

+5V REG.

Q606

Q605

+8V REG.

Q607

AL+5V

P-ON+8V

P-ON-L

P-DOWN-L

12

546

AL+12V(1)3

AL+12V(2)
7

AL+9V
8

AL+33V

11

12

546

3

7

8

11

TO

CRT/H.V.

BLOCK

TP503

+B

TP504

GND

CN602

12

JUNCTION-A

CBA

H.V./POWER SUPPLY CBA

CL603BCN603

P-ON-H

(TO PIN67 OF IC201)

+5V

REG.

+5V

REG.

+5V

REG.

IC681

Q684

Q686

P-ON+5V(1)

P-ON+5V(3)

P-ON+5V(2)

AL+33V

CM+12V

CL603A

12

546

3

7

8

11

12

546

3

7

8

11

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE T4A/250V FUSE.

Q682

Q206

CL604

TOP

COVER

1-7-7 T6550MTI

MECHANICAL TROUBLE INDICATOR

1, Each Malfunction Indication

If the MONITOR is turned ON right after the Mechani­cal Malfunction occurs or POWER SAFETY/X-RAY is
turned ON, display the following character to show
Malfunction after the EJECT display.

Example: If REEL Malfunction

2, Each Malfunction evaluation
method

X-RAY protect

If X-RAY port becomes continuously 2.5V or more for
120 msec. (4 times 40 msec. interval), the unit shall
immediately turn OFF the POWER/MONITOR and
switch over to the Mechanical Malfunction mode with
POWER OFF.

(To return from this mode shall become possible only
by POWER Key as in the case of the Mechanical Mal­function).

POWER SAFETY

1) POWER SAFETY 1

If P-SAFETY 1 port becomes continuously 2.5V or
less for 120 msec. (4 times 40 msec. interval) when
MONITOR is ON, the unit shall be assumed to be
the Power Malfunction 1 and immediately turn OFF
the POWER/MONITOR and switch over the
Mechanical Malfunction mode with POWER OFF.

(To return from this mode shall become possible
only by POWER Key as in the case of the Mechan­ical Malfunction).

* However the POWER SAFETY 1 function shall be
disabled during 500 msec. right after the MONI­TOR tu r ns ON.

2) POWER SAFETY 2

If P-SAFETY 2 port becomes continuously 2.5V or
less for 120 msec. (4 times 40 msec. interval) when
P-ON-H port is ON, the unit shall be assumed to be
the Power Malfunction 2 and immediately turn OFF
the POWER/MONITOR and switch over the
Mechanical Malfunction mode with POWER OFF.

(To return from this mode shall become possible
only by POWER Key as in the case of the Mechan­ical Malfunction).

* However the POWER SAFETY 2 function shall be
disabled during 500 msec. right after the P-ON-H
port turns ON.

Immediately preceding

Malfunction

Display character

REEL Malfunction R

DRUM Malfunction D

CASSETTE LOADING Mal­function

C

TAPE LOADING Malfunction T

P-SAFETY 1 1

P-SAFETY 2 2

X-RAY X

EJECT R

1-7-8 T6550MTI

Mechanical Malfunction determination

1) REEL Malfunction detection

Countermeasure for REEL and CAPSTAN motor
rotation malfunction (Except CASSETTE LOAD­ING function)

After the Malfunction detection with REEL/CAP­STAN sensor, the unit shall switch over to STOP
(B) and be REEL Mechanical Malfunction.

a) If the T-REEL pulse is not impressed after a lapse

of 7 sec. at SP, 14 sec. at LP, or more in the REEL
Rotation Mode like PLAY/REC, FS/RS Mode, and
the T-REEL or S-REEL pulse is not impress after a
lapse of 4 sec. or more in REEL Rotation Mode of
FF/REW, it shall be assumed to stop the rotation
and switch over to STOP (B) position, then
POWER be turned OFF and the unit be REEL
Mechanical Malfunction. (T-REEL and S-REEL for
the models on S-REEL and only T-REEL for other
models)

b) If the C-FG pulse is not impressed for a lapse of 1

sec. or more during the CAPSTAN MOTOR rota­tion, it shall be MOTOR Rotation Malfunction
(REEL Malfunction).

2) DRUM Malfunction detection

Detect the DRUM rotation at the D-FG input termi­nal.

If the variation of D-FG input level is not detected
for a lapse of 1 sec. or more when D-CONT is "H",
it shall be assumed to be Rotation Malfunction and
be DRUM Malfunction.

When detect Drum Malfunction, POWER shall be
turned OFF after the unit switches over to STOP
(B) Mode.

3) Countermeasure for TAPE LOADING Malfunction

Detect the Malfunction with the LOADING Switch.

a) TAPE LOADING Malfunction

If LD-SW does not go to the established position
after a lapse of 7 sec. or more from TAPE LOAD­ING or TAPE UNLOADING start, the LOADING
function shall immediately be stopped and POWER
be turned OFF, and inform the Timer about the
LOADING Mechanical Malfunction.

b) LD-SW Position Malfunction at each mode

When the unit operates at each mode, even if the
LD-SW position changes from the established one
in its mode, it keeps the function according to its
mode.

4) Countermeasure for CASSETTE LOADING Mal­function

a) CASSETTE IN operating Malfunction

If LD-SW does not go to SB position after a lapse
of 5 sec. or more from the CASSETTE insertion
start, the unit starts the CASSETTE OUT opera­tion.

After switch over to CASSETTE OUT operation and
then a laps of 5 sec. or more from the CASSETTE
OUT operation start, if LD-SW does not go to the
EJ position or if START Sensor and END Sensor
does not turn "ON" at the EJ position, the unit
starts again to insert CASSETTE.

(However in S-INH state, the START/END Sensor
shall be disabled).

b) CASSETTE OUT operating Malfunction

After a lapse of 5 sec. or more from CASSETTE
OUT operation start, if LD-SW does not go to the
EJ position or if START Sensor and END Sensor
does not turn "ON" at the EJ position, the unit
starts to insert CASSETTE.

(However in S-INH state, the START/END Sensor
shall be disabled).

When the unit switches over to CASSETTE inser­tion at CASSETTE IN or CASSETTE OUT Mal­function, if LD-SW does not go to the SB position
after a lapse of 5 sec. or more from CASSETTE
insertion start, the function shall immediately be
stopped and POWER be turned OFF, and the unit
be CASSETTE LOADING Malfunction.

c) When POWER is turned ON, if the CL position or

GC position cannot be detected after 5 sec. LD­REV operation and 5 sec. LD-FWD operation, the
function shall immediately be stopped and POWER
be turned OFF, and the unit be CASSETTE LOAD­ING Malfunction.

d) When POWER is turned ON without CASSETTE

(EJ position) and LD-SW is monitored all the time,
if the CL or GC position is detected continuously for
1 sec. or more, the POWER shall be turned OFF
and the unit be CASSETTE LOADING Malfunction.

Countermeasure for Mechanical
Malfunction

If the unit detects Mechanical Malfunction, turn the
POWER OFF. If the unit is Mechanical Malfunction,
Key input except POWER key shall be disabled and
CASSETTE insertion disabled. When POWER Key is
entered, the POWER is turned ON and the unit
switches over the EJECT Mode. (Return with POWER
ON)

1-8-1 SC_1

(Top View) (Bottom View)

(Bottom View)

Electrolytic Capacitor

+

Transistor or Digital Transistor

NPN Transistor

PNP Transistor

NPN Digital Transistor

PNP Digital
Transistor

(Top View)

(Top View)

E C B

E C B

Digital Transistor

CBA Symbols

Schematic Diagram Symbols

E C B

(Top View)

(Top View)

E C B

E C B

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

Warning

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using replace­ment components rated for higher voltage, wattage,
etc. Replacement parts that have these special safety
characteristics are identified in this manual and its
supplements; electrical components having such fea­tures are identified by the mark " ! " in the schematic
diagram and the parts list. Before replacing any of
these components, read the parts list in this manual
carefully. The use of substitute replacement parts that
do not have the same safety characteristics as speci­fied in the parts list may create shock, fire, or other
hazards.

Capacitor Temperature Markings

Capacitors and transistors are represented by the fol­lowing symbols.

Note:

1. Do not use the part number shown on these draw­ings for ordering. The correct part number is shown
in the parts list, and may be slightly different or
amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K=10

3

,

M=10

6

).

3. Resistor wattages are 1/4W or 1/6W unless other­wise specified.

4. All capacitance values are indicated in µF
(P=10

-6

µF).

5. All voltages are DC voltages unless otherwise
specified.

Mark

Capacity

change rate

Standard

temperature

Temperature

range

(B)

±10%

20°C -25~+85°C

(F) +30 -80% 20°C -25~+85°C

(SR)

±15%

20°C -25~+85°C

(Z) +30 -80% 20°C -10~+70°C

1-8-2 SC_2

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the
power supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts

list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only original replacement parts which are listed

with their part numbers in the parts list section of the service manual.

4. Wire Connectors

(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect).

(2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Mode: SP/REC

6. Voltage indications for PLAY and REC modes on the schematics are as shown below:

7. How to read converged lines

8. Test Point Information

231

5.0
(2.5)

PLAY mode
REC mode

5.0

The same voltage for
both PLAY & REC modes

Indicates that the voltage
is not consistent here.

Unit: Volts

3

2

1

ABCD

1-B1

1-D3

AREA D3

AREA B1

1-D3

Distinction Area
Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Main 1/5 Schematic Diagram

1-8-3

1-8-4

T6608SCM1

Main 2/5 Schematic Diagram

1-8-5

1-8-6

T6608SCM2

Main 3/5 Schematic Diagram

1-8-7

1-8-8

T6608SCM3

Main 4/5 Schematic Diagram

1-8-9 1-8-10

T6608SCM4

1-8-11

1-8-12

T6608SCM5

Main 5/5 Schematic Diagram

1-8-13

1-8-14

T6608SCP1

H.V./Power Supply 1/2 Schematic Diagram

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE FUSE.

VOLTAGE CHART (Power off mode)

Ref. No.

IC601

Ref. No.

Q602

Ref. No.

Q603

Q604

Q605

Q606

Q607

Q608

13.1 12.1 0. 2 1. 6

1234

1.2

0

5.5

0.1 0. 7

12.0

10.3

9.7

9.6

6.5

7.36.7

10.3

5.9

1.2

ECB

00.21.8

SDG

1.80304.0

1-8-15 1-8-16

H.V./Power Supply 2/2 Schematic Diagram

T6608SCP2

1-8-17

1-8-18 T6608SCCRT

CRT Schematic Diagram

TO SENSOR CBA
(END-SENSOR)

TO SENSOR CBA
(START-SENSOR)

CTL

TP001

RF-SW

TP002

WF3

WF1

N-A-PB

TP007

WF8

J361G4
(SECAM Black Level
Adjustment)

C-PB

TP008

WF6

V-OUT

TP003

WF5

J349F3
(C-Trap Adjustment)

1-8-19

1-8-20

BT6600F01012

Main CBA Top View

BHF300F01011-A

BHF300F01011-B

Sensor CBA Top View

PIN 52
OF IC301

WF7

PIN 13
OF IC301

WF10

PIN 8
OF IC401

WF9

PIN 58
OF IC201

WF17

PIN 29
OF IC401

PIN 59
OF IC201

WF18

PIN 7
OF IC301

WF11

WF2

PIN 48
OF IC401

WF4

Main CBA Bottom View

1-8-21

1-8-22

BT6600F01012

(H Adjustment)

R590

+B

TP503

GND

TP504

+B ADJ

VR601

H.V./Power Supply CBA Top View

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER

SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.

ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT

SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY

CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE FUSE.

1-8-23

1-8-24

BT6600F01022-A

WF13

PIN 5
OF CN551

WF12

Q551
Collector

H.V./Power Supply CBA Bottom View

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER

SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.

ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT

SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY

CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE FUSE.

1-8-25

1-8-26

BT6600F01022-A

WF14

Q501
Collector

WF15

Q502
Collector

WF16

Q503
Collector

BT6600F01022-B

CRT CBA Top View CRT CBA Bottom View

1-8-27

1-8-28

Junction-A CBA Top View

BT6600F01012

Junction-A CBA Bottom View

Junction-B CBA Top View Junction-B CBA Bottom View

Junction-C CBA Top View Junction-C CBA Bottom View

1-8-29

1-8-30

1-9-1

WAVEFORMS

Z13PWF

WAVEFORM NOTES

INPUT: COLOR BAR SIGNAL

OTHER CONTROLS: CENTER POSITION

VOLTAGES SHOWN ARE RANGE OF

OSCILLOSCOPE SETTING

WF1

1DIV: 2V 5ms

TP002 RF-SW

WF2

1DIV: 0.2V 0.1

µs

IC401 PIN 29

WF3

1DIV: 1V 10ms

TP001 CTL

WF4

1DIV: 0.25V 20

µs

IC401 PIN 48

WF5

1DIV: 0.5V 20

µs

TP003 V-OUT

Upper: WF6 Lower: WF1

1DIV: 0.2V 2DIV: 5V 5ms

TP008 C-PB

WF7

1DIV: 0.2V 0.5ms

IC301 PIN 52

WF8

1DIV: 0.5V 0.5ms

TP007 N-A-PB

WF9

1DIV: 0.5V 0.5ms

IC401 PIN 8

WF10

1DIV: 2V 5ms

IC301 PIN 13

WF11

1DIV: 1V 20

µs

IC301 PIN7

WF12

1DIV: 200V 20

µs

Q551 COLLECTOR

WF13

1DIV: 10V 5ms

CN551 PIN 5

WF14

1DIV: 20V 20

µs

Q501 COLLECTOR

WF15

1DIV: 20V 20

µs

Q502 COLLECTOR

WF16

1DIV: 20V 20

µs

Q503 COLLECTOR

WF17

1DIV: 1V 20

µs

IC201 PIN 58

WF18

1DIV: 1V 5ms

IC201 PIN 59

T6608WI

1-10-1

WIRING DIAGRAM

FULL ERASE HEAD

WIRING DIAGRAM FOR SECTION 2 (DECK MECHANISM)

CRT CBA

BT6600F01022-B

FOCUS

SCREEN

GND

D.Y.

HD

VD

CL403

MAIN CBA

CN501

1

2

CN601

W601

T551

FBT

CRT

1

2

3

4

5

CN551

ANODE

FE HEAD

SP151

SPEAKER

CL801

CN303

AUDIO HEAD

CONTROL HEAD

AC HEAD ASSEMBLY

AUDIO ERASE

HEAD

(NO CONNECTION)

CN303 IS USED FOR

ADJUSTMENT AT

FACTORY

M

LOADING

MOTOR

CYLINDER ASSEMBLY

CN201

CL401

CL402

CAPSTAN MOTOR

VIDEO

(R)

HEAD

VIDEO

(L)

HEAD

CL603A

CL603B

CN603

JUNCTION-A CBA

BT6600F01012

CN602

CL302A

12345

6

123456789

101112

123456789

101112

12345

6

CL302BCN302

JUNCTION-B CBA

BT6600F01012

CN552

CL301A

CL501B

HEATER1

GND2P-ON+160V3

CL501A

HEATER1

GND2P-ON+160V3

123

4

CL301B

123

4

CN301

JUNCTION-C CBA

BT6600F01012

CN502

H.V. / POWER SUPPLY CBA

BT6600F01022-A

SENSOR CBA

(END-SENSOR)

BHF300F01011-A,B

SENSOR CBA

(ST-SENSOR)

BHF300F01011-A,B

3

V(L)

V-COM

2

V(R)

1

VG

12

AL+12V(1)

11

M-GND

10

D-PFG

9

D-CONT

8

LD-CONT

7

FG-GND

6

C-CONT

5

C-F/R

4

3

C-FG

P-ON+5V(3)

2

1

CM+12V

BT6600F01012

123456789

1011121314151617181920

21

JK703

GREEN 4

BLUE 3

RED 2

GND 1

GREEN1

BLUE2

RED3

GND4

INT.MONITOR1I

2

C-OPEN2

GND3

SDA4

SCL5

CTL(-) 1

CTL(+) 2

A-PB/REC 3

A-COM 4

AE-H/FE-H 5

AE-H 6

FE-H 1

FE-H-GND 2

H-DRIVE1

FBP2

V-DRIVE3

V-RAMP-FB4

ACL5

P-SAFETY16

H-DRIVE 1

FBP 2

V-DRIVE 3

V-RAMP-FB 4

ACL 5

P-SAFETY1 6

GND1

NU2

AL+12V(1)3

P-DOWN-L4

AL+5V5

P-ON-L6

AL+12V(2)7

AL+9V8

GND9

GND10

AL+33V11

P-ON+8V12

GND 1

NU 2

AL+12V(1) 3

P-DOWN-L 4

AL+5V 5

P-ON-L 6

AL+12V(2) 7

AL+9V 8

GND 9

GND 10

AL+33V 11

P-ON+8V 12

1

SP

SP-GND

2

CN804

TOP

COVER

CL604

77 GND7GND 7

M

DRUM

MOTOR

PG

SENSOR

1-11-1 T6608TI

SYSTEM CONTROL TIMING CHARTS

Chart 1

0.2S

1. EJECT (POWER OFF) -> CASSETTE IN (POWER ON) -> STOP(B) -> STOP(A) -> PLAY -> RS -> FS -> PLAY -> STILL(N-CANCEL) -> PLAY -> STOP(A)

EJECT

CASS.LOAD

ST-S
"OFF"

REC
SFT-SW

POWER

PLAY

REW

FF

PLAY

PLAY

STOP
/EJECT

0.2S

STOP(B)

0.4S

0.2S

LD-FWD

STOP(A)

STOP(A)

LD-FWD

LD-REV

0.2S

LD-FWD

LD-FWD

LD-FWD

STILL

STILL

STILL

RS1(RS2)

FS1(FS2)

PLAY

PLAY

PLAY

LD-REV

LD-FWD

LD-FWD

LD-REV

LD-REV

LD-REV

0.2S

0.5S

PIN NO.

CLEJ

SS

SS

AU

AU

TL

LD-SW

CL/SS

LD-CONT

C-DRIVE

"Z"

ON

ON

C-F/R

DRUM

ROTATION

P-ON

A-MUTE-H

D-REC-H

D-PB-H

PAUSE
ON

PAUSE

PAUSE
ON

PAUSE
OFF

PAUSE
OFF

AU

AL AU

SF

SM

EJ

AU

RS

SF

SM

TL

FB

AL

SB

9

81

78

67

20

47

POWER

-OFF

STOP

PLAY RS

FS

PLAY STILL STOPPLAY

DISPLAY

SB

TL SB

FB

SM

SMSF AL AL RS AU AL SM

0.8S

0.2S

0.3S

1.0S

0.2S

+100mS(NTSC)

after channel setting

+620mS(PAL)

1.0S

0.12S

0.8S

0.2S

1.2S

0.2S

20mS

0.4S

40mS

0.2S

0.2S

0.2S

0.2S

0.3S

NOISE
CANCEL

NOISE
CANCEL

6mS 6mS240mS80mSNTSC

6mS 6mS160mS80mSPA L

>5.0S 5.0S

SP MODE

LP/SLP MODE

0.3S

0.2S

20mS0.4S

40mS

1-11-2 T6608TI

Chart 2

PIN NO.

LD-SW

CL/SS

LD-CONT

C-DRIVE

"Z"

ON

ON

C-F/R

DRUM

ROTATION

P-ON

A-MUTE-H

D-REC-H

D-PB-H

EJAURS

SF

SM

TL

FB

AL

SB

9

81

78

67

20

47

DISPLAY

ST-S
"ON"

REC

REW

FF

STOP
/EJECT

0.5S

1.0S

0.2S

0.2S

0.5S

0.2S

0.5S

0.5S

0.5S

0.2S

0.2S

0.2S

1.5S

2.5S Short REV

1.0S

0.2S

0.2S

LD-FWD

REV

LD-FWD

STOP(A)

STOP(A)

STOP(A)

CASS. UNLD

EJECT

STOP(A)

LD-REV

FF

LD-REV

LD-REV

LD-FWD

LD-FWD

LD-FWD

LD-FWD

LD-FWD

LD-FWD

LD-FWD

REC PAUSE

REC

REC

REW
LD-REV

LD-REV

LD-REV

LD-REV

LD-REV

LD-REV

LD-REV

PAUSE

REC or
PAUSE

STOP
/EJECT

STOP
/EJECT

STOP
/EJECT

2. STOP(A) -> FF -> STOP(A) -> REW -> STOP(A) -> REC -> PAUSE -> PAUSE or REC -> STOP(A) -> EJECT

STOPFF

STOP

REW STOP

REC

RECREC PAUSE STOP

TL TL SMSM SF SFAL AL SM AL AL ALAU AU SM TL SB EJRS RSSM

SM SF FB SM AU AU SS

SS SS SF

AU

AL AL AUSS FB CL

SF FB SM

FB SF AU AUFB SF

1.0S

1.2S

0.2S

40mS

0.4S

0.2S

0.4S

20mS

40mS

0.2S

20mS

0.2S

0.4S

1.5S(NTSC)

1.0S(PAL)

40mS

20mS

0.1S

1-12-1 T6608PIN

IC PIN FUNCTION DESCRIPTIONS

IC 201 (TV/VCR Micro Controller)

“H” ≥ 4.5V, “L” ≤ 1.0V

Pin
No.

IN/

OUT

Signal

Name

Function

1-

NU Not Used

2IN

P-SAFETY 2

Power Supply Failure
Detection 2

3IN

P-SAFETY 1

Power Supply Failure
Detection 1

4IN

END-SENS End-Sensor

5

IN AFC

Automatic Frequency
Control Signal

6IN

V-ENV Video Envelope Input

7IN

KEY-1 Key 1 Input

8IN

KEY-2 Key 2 Input

9IN

LD-SW Loading Switch Input

10 IN

ST-SENS Start-Sensor

11 -

NU Not Used

12 -

NU Not Used

13

IN/

OUT

DV SYNC Artificial V-Sync Output

14 IN

REMOTE Remote Signal Input

15 OUT

C-ROTA

Color Phase Rotary
Changeover SIgnal

16

OUT

H-A-SW

Video Head Amp
Switching Pulse

17 -

NU Not Used

18 OUT

RF-SW

Video Head Switching
Pulse

19 -

NU Not Used

20

OUT A-MUTE-H

Audio Mute Control Signal
(Mute = “H”)

21 -

NU Not Used

22 -

NU Not Used

23

IN/

OUT

REC-LED

Recording LED Control
Signal

24

IN/

OUT

REC-LED

Recording LED Control
Signal

25 -

NU Not Used

26 -

NU Not Used

27 -

NU Not Used

28 -

NU Not Used

29 OUT

SCART­MUTE

RAPID-Switch Input
Signal from Scart Jack

30 -

NU Not Used

31 IN

REC­SAFETY

Record Protection Tab
Detection

32

IN SECAM-H SECAM Mode at High

33

OUT TRICK-H

Special Playback = “H” in
SECAM Mode

34 IN

RESET

System Reset Signal
(Reset=”L”)

35 IN

XCIN Sub Clock 32 kHz

36 OUT

XCOUT Sub Clock 32 kHz

37 -

TIMER+5V Vcc

38 IN

XIN Main Clock Input

39 OUT

XOUT Main Clock Output

40 -

GND GND

41 OUT

SPOT-KILL Counter-measure for Spot

42 OUT

EXT-L

External Input or Playback
= Output

43 IN

CLKSEL Clock Select (GND)

44 OUT

SP-MUTE Speaker Mute Signal

45

IN/

OUT

I2C-OPEN

White Balance Adjust
Mode Judgment

46 -

GND GND

47

OUT D-REC-H Delayed Record Signal

48 OUT

SCART-H

Switching Signal of Scart
Jack and RCA Jack

49 -

OSD-GND OSD GND

50 -

NU Not Used

51 -

NU Not Used

52 -

NU Not Used

53

- OSDVcc OSDVcc

54 -

HLF HLF

55 -

NU Not Used

56 IN

CV-IN Video Signal Input

57 -

GND GND

58 IN

H-SYNC H-SYNC Input

59 IN

V-SYNC V-SYNC Input

60 OUT

OSD-BLK Output for Picture Cut off

61 OUT

RGB-CONT RGB Control Signal

62 OUT

OSD-B Blue Output

63 OUT

OSD-G Green Output

64 OUT

OSD-R Red Output

65 IN

RAPIT-SW-IN

RAPID-Switch Input
Signal

66 -

NU Not Used

67 OUT

P-ON-H Power On Signal at High

Pin
No.

IN/

OUT

Signal

Name

Function

1-12-2 T6608PIN

68 IN

SLOW-SW-IN Slow Switch Input Signal

69 -

NU Not Used

70 OUT

TEXT-IN-H

Tele Text Input Signal at
High

71 OUT

SCL

E2PROM/CHROMA IC
Tuner Communication
Clock

72

IN/

OUT

SDA

E2PROM/CHROMA IC
Tuner Communication
Data

73 -

NU Not Used

74 IN

C-SYNC C-Sync Input

75 -

NU Not Used

76 OUT

C-CONT

Capstan Motor Control
Signal

77 OUT

D-CONT

Drum Motor Control
Signal

78

OUT C-F/R

Capstan Motor FWD/REV
Control Signal (FWD=”L”/
REV=”H”)

79 -

NU Not Used

80

IN/

OUT

T- R E E L

Take Up Reel Rotation
Signal

81

IN/

OUT

LD-CONT

Loading Motor Control
Signal

82 OUT

TEXT-L Teletext Control Signal

83 -

NU Not Used

84 -

NU Not Used

85 IN

P-DOWN-L

Power Voltage Down
Detector Signal at Low

86 -

NU Not Used

87 IN

C-FG

Capstan Motor Rotation
Detection Pulse

88

- AMPVss AMPVss (GND)

89 -

NU Not Used

90

IN D-PFG

Drum Motor Phase/
Frequency Generator

91 OUT

AMP VREF­OUT

Standard Voltage Output

92 IN

AMP VREF­IN

Standard Voltage Input

93

-C C Terminal

94

IN/

OUT

CTL (-) CTL (-)

95

IN/

OUT

CTL (+) CTL (+)

96 -

AMPC AMPC

97 OUT

CTL AMP­OUT

Control Amp Output

Pin
No.

IN/

OUT

Signal

Name

Function

98

- AMPVcc AMPVcc

99

-AVcc

A/D Converter Power
Input/ Standard Voltage
Input

100

IN AGC Tuner IF Output Signal

Pin
No.

IN/

OUT

Signal

Name

Function

1-13-1 T6608LE

LEAD IDENTIFICATIONS

S: Souce
D: Drain
G: Gate

S D G

E C B

E C B

IN G OUT

KE

AC

80

51

81

100

1

30

50

31

48

33

49

32

17

16

1

64

IN G OUT

8

5

1

4

5

4

8

1

E

C

16

9

8

1

30

16

15

1

B C E

2SA1015-GR(TPE2)
2SA1175(F)
2SA950(Y,O)
2SC1627Y-TPE2
2SC2482 TPE6
2SC2785(F,H,J)
2SC3468(D,E)-AE
BN1F4M-T
KTA1267(GR)
KTA1271(Y)
KTC3198(GR)
KTC3199(GR)

MID-32A22F
PT204-6B-12

2SA1346
2SC1815-GR(TPE2)
2SC2120-O(TPE2)
2SC2120-Y(TPE2)
2SC3331(T,U)
KRA103M
KTA1266(GR)
KTC3203(Y)
KTC3207

KA7805A
KIA7805API

PS2561L1-1-VL
PS2561L1-1-VW

LA71750EM-MPB-E
M37762MCA-BB0GP

2SK2647

M61209BFP

LA78040A

LA4224

AT24C04N-10SC
BR24C04F
BR24C04F-W
BR24L04F-WE2
CAT24WC04JI
M24C04-MN6
M24C04-WMN6

CD4053BCSJX
CD4053BNSR
TC4053BF(N)

LA70100M-MPB

2SC5884000RF
2SD1913(R)
KTC2026Y
TT2084LS-YB11
TT2138LS-YB11

EXPLODED VIEWS

Cabinet

L1

L2

L1

L1

L1

A12

L8

L8

TL1

TL1

TL1

TL1

TL1

TL1

TL1

TL1

L9

TL1

TL1

TL1

Scotch Tape

TL1

TL18

TL14

TL14

TB1

TB23

B2

B2

B2

B2

TB10

A2

A3

A1-5

A1-4

A1-1

A1X

Scotch
Tape #880

B1

B3

TB2

B10

SP151

CL801

1B1

A

A

L2

PB5

PB1

PB4

PL2

PL2

PL2

PL1

TB3

CL604

TB21

TB7

PL1

PL1

H.V./Power
Supply CBA

Sensor
CBA

CRT CBA

Sensor CBA

Main CBA

Junction A CBA

Junction C CBA

Junction B CBA

V501

CLN551

DG601

L551

A1-3

A1-2

V501-1

L551

Details for L551
and surrounding parts

SHINWHA
TAPE SGT-730
(WHITE)

SHINWHA
TAPE SGT-730
(BLACK)

V501-3

V501-2

See Electrical Parts List
for parts with this mark.

Some Ref. Numbers are
not in sequence.

1-14-1 1-14-2 T6608CEX

1-14-3 T6608PEX

Packing

S3

S6

X3

S2

X1

TAPE

S1

FRONT

S4

X2-1 X2-2 X2-6

20040511 1-15-1 T6608CA

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a !

have special characteristics important to safety. Before
replacing any of these components, read carefully the
product safety notice in this service manual. Don't
degrade the safety of the product through improper ser­vicing.

NOTE:
Parts that are not assigned part numbers (---------) are
not available.

Ref. No. Description Part No.

A1X FRONT CABINET ASSEMBLY T6608FJ 1EM120015

A1-1 FRONT CABINET T6608FJ 1EM120016

A1-2 CONTROL PLATE T6608FJ 1EM320019

A1-3 BRAND PLATE T6608FJ 1EM420093

A1-4 CASSETTE DOOR T6600EA 0EM408804

A1-5 SPRING DOOR(Z10) T5200UA 0EM406687

A2 REAR CABINET T6600EA 0EM000864

A3! RATING LABEL T6608FJ ----------

A12 POWER BUTTON T6600EA 0EM302029

1B1 DECK ASSEMBLY CZD013/VM2326 N2326FT

B1 SPRING TENSION B0080B0:EM40808 26WH006

B2 M5 CRT SCREW(B) B4000UA 0VM403923

B3 SHIELD PLATE (PAL 14V) T6600EA 0EM408803

B10 CLOTH(10X30XT0.5) B5900UA 0EM404486

CL801 WIRE ASSEMBLY (SPEAKER) 2P/200 WX1T6300-002

CLN551 CRT GND WIRE CRT GND WX1L7720-001

DG601! DEGAUSSING COIL F-056 LLBH00ZTM056

L1 SCREW, P-TIGHT 4X18 BIND HEAD + GBMP4180

L2 SCREW, P-TIGHT M4X12 BIND HEAD+ GBUP4120

L8 FLAT HEAD SCREW T4000UA 0EM404793

L9 SCREW, S-TIGHT 3X4 BIND HEAD+ GBMS3040

L551! DEFLECTION YOKE LLBY00ZSY005 or LLBY00ZSY005

! DEFLECTION YOKE KDY3GDA82X LLBY00ZMS011

SP151 SPEAKER S08F02B or DSD0808XQ010

SPEAKER J-F097-C5 DSD0808DCP01

TB1 TRAY CHASSIS T6400RA 0EM000697

TB2 TOP COVER T6300RA 0EM101155

TB10 RCA HOLDER T6400RA 0EM407753

TB23 BOTTOM PLATE T6300RA 0EM101156

TL1 SCREW, P-TIGHT 3X12 WASHER HEAD+ GCMP3120

TL14 SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080

TL18 SCREW, P-TIGHT M3X8 BIND HEAD+ GBCP3080

V501! CRT A34AGT13X TCRT190CP036

V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003

V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

PACKING

S1 CARTON T6608FJ 1EM420098

S2 STYROFOAM TOP ASSEMBLY T6600EA 0EM409185

S3 STYROFOAM BOTTOM ASSEMBLY T6600EA 0EM409186

S4 SERIAL NO. LABEL T6608FJ ---------

S6 SET SHEET B5506UG:800X1500 0EM402369

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420

X2-1! OWNER'S MANUAL LT-VHS-36:?EN? 1EMN20079

X2-2! OWNER'S MANUAL LT-VHS-36:?FR? 1EMN20044

X2-6! OWNER'S MANUAL LT-VHS-36:?DU? 1EMN20080

X3 REMOTE CONTROL 512/ERC001/NE136RD NE136RD

Ref. No. Description Part No.

20040511 1-16-1 T6608EL

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a !

have special characteristics important to safety. Before
replacing any of these components, read carefully the
product safety notice in this service manual. Don't
degrade the safety of the product through improper ser­vicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

MMA CBA

MAIN CBA

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Ref. No. Description Part No.

MMA CBA 0ESA06008

Consists of the following

MAIN CBA ------------

JUNCTION A CBA ------------

JUNCTION B CBA ------------

JUNCTION C CBA ------------

SENSER CBA 0ESA06133

Ref. No. Description Part No.

MAIN CBA

Consists of the following

------------

CAPACITORS

C001 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103

C002 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470

C006 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C008 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C009 PCB JUMPER D0.6-P5.0 JW5.0T
C151 ELECTROLYTIC CAP. 330µF/16V M or CE1CMASDL331

ELECTROLYTIC CAP. 330µF/16V M CE1CMASTL331

C152 CERAMIC CAP.(AX) X M 2200pF/16V CCA1CMT0X222
C154 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471

C155 ELECTROLYTIC CAP. 0.22µF/50V M H7 CE1JMAVSLR22

C156 CHIP CERAMIC CAP. B K 4700pF/50V or CHD1JKB0B472

CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472

C157 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100

C160 CHIP CERAMIC CAP. CH J 270pF/50V or CHD1JJBCH271

CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271

C203 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103

C205 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103
C207 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C208 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103

C209 CHIP CERAMIC CAP. CH J 22pF/50V or CHD1JJBCH220

CHIP CERAMIC CAP.(1608) CH J 22pF/50V CHD1JJ3CH220

C210 CHIP CERAMIC CAP. CH J 22pF/50V or CHD1JJBCH220

CHIP CERAMIC CAP.(1608) CH J 22pF/50V CHD1JJ3CH220
C211 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C212 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103
C213 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C214 ELECTROLYTIC CAP. 330µF/6.3V M or CE0KMASDL331

ELECTROLYTIC CAP. 330µF/6.3V M CE0KMASTL331

C217 CHIP CERAMIC CAP. CH D 10pF/50V or CHD1JDBCH100

CHIP CERAMIC CAP.(1608) CH D 10pF/50V CHD1JD3CH100

C218 CHIP CERAMIC CAP. CH D 10pF/50V or CHD1JDBCH100

CHIP CERAMIC CAP.(1608) CH D 10pF/50V CHD1JD3CH100
C221 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C222 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103

C223 CHIP CERAMIC CAP.(MELF) Y K 4700pF/16V or CZM1CKB0Y472

CHIP CERAMIC CAP.(MELF) Y K 4700pF/16V CZM1CK30Y472
C224 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C225 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJBCH561

CHIP CERAMIC CAP. CH J 560pF/50V CHD1JJ3CH561
C226 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C227 CHIP CERAMIC CAP. CH D 10pF/50V or CHD1JDBCH100

CHIP CERAMIC CAP.(1608) CH D 10pF/50V CHD1JD3CH100

C228 CHIP CERAMIC CAP. CH D 10pF/50V or CHD1JDBCH100

CHIP CERAMIC CAP.(1608) CH D 10pF/50V CHD1JD3CH100

C229 CHIP CERAMIC CAP.(MELF) Y K 4700pF/16V or CZM1CKB0Y472

CHIP CERAMIC CAP.(MELF) Y K 4700pF/16V CZM1CK30Y472
C230 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C231 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103

C233! CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V or CZM1GKB0Y102

! CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V CZM1GK30Y102
C234 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C235 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C236 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C237 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C238 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

Ref. No. Description Part No.

20040511 1-16-2 T6608EL

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C239 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJBCH561

CHIP CERAMIC CAP. CH J 560pF/50V CHD1JJ3CH561

C240 CHIP CERAMIC CAP.(MELF) Y K 4700pF/16V or CZM1CKB0Y472

CHIP CERAMIC CAP.(MELF) Y K 4700pF/16V CZM1CK30Y472

C241 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASDL220

ELECTROLYTIC CAP. 22µF/50V M CE1JMASTL220

C242 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103
C243 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C244 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103
C245 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C248 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C253 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C254 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJBCH561

CHIP CERAMIC CAP. CH J 560pF/50V CHD1JJ3CH561

C255 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJBCH561

CHIP CERAMIC CAP. CH J 560pF/50V CHD1JJ3CH561
C256 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100
C301 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103
C302 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471
C303 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C304 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C305 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0
C307 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C308 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C309 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029
C310 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C311 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471

C312 CHIP CERAMIC CAP.(MELF) B K 180pF/50V or CZM1JKB0B181

CHIP CERAMIC CAP.(MELF) B K 180pF/50V CZM1JK30B181
C313 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C314 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C315 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

Ref. No. Description Part No.

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C316 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C317 CHIP CERAMIC CAP. CH J 150pF/50V or CHD1JJBCH151

CHIP CERAMIC CAP. CH J 150pF/50V CHD1JJ3CH151

C318 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C319 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C320 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C321 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C322 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASDL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471

C323 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470

C324 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103

C325 MYLAR CAP. 0.22µF/50V J or CMA1JJS00224

FILM CAP.(P) 0.22µF/50V J or CA1J224MS029
TF CAP. 0.22µF/50V J CT1J224MS045

C326 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C327 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C328 MYLAR CAP. 0.22µF/50V J or CMA1JJS00224

FILM CAP.(P) 0.22µF/50V J or CA1J224MS029
TF CAP. 0.22µF/50V J CT1J224MS045

C330 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103

C331 ELECTROLYTIC CAP. 47µF/10V M or CE1AMASDL470

ELECTROLYTIC CAP. 47µF/10V M CE1AMASTL470

C332 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C333 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C334 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C336 ELECTROLYTIC CAP. 47µF/10V M or CE1AMASDL470

ELECTROLYTIC CAP. 47µF/10V M CE1AMASTL470

C338 CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V or CZM1GKB0Y102

CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V CZM1GK30Y102

C340 CHIP CERAMIC CAP.(MELF) B K 180pF/50V or CZM1JKB0B181

CHIP CERAMIC CAP.(MELF) B K 180pF/50V CZM1JK30B181

C341 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V or CZM1CZB0F103

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZ30F103

C344 CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V or CZM1GKB0Y102

CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V CZM1GK30Y102

C350 ELECTROLYTIC CAP. 220µF/10V M or CE1AMASDL221

Ref. No. Description Part No.

20040511 1-16-3 T6608EL

ELECTROLYTIC CAP. 220µF/10V M CE1AMASTL221
C401 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C402 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C403 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C404 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101
C405 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C406 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C407 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C408 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C409 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C410 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C411 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C412 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C413 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C414 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C415 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C416 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C417 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C418 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C419 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C420 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C421 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100
C424 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C425 CHIP CERAMIC CAP. CH J 68pF/50V or CHD1JJBCH680

CHIP CERAMIC CAP.(1608) CH J 68pF/50V CHD1JJ3CH680
C426 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C427 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

Ref. No. Description Part No.

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C430 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470

C431 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C432 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C433 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100
C434 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220
C435 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0

C436 CHIP CERAMIC CAP. CH J 120pF/50V or CHD1JJBCH121

CHIP CERAMIC CAP. CH J 120pF/50V CHD1JJ3CH121

C438 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJBCH221

CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C440 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C441 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C442 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C443 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0

C444 CHIP CERAMIC CAP. B K 2200pF/50V or CHD1JKB0B222

CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C445 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100

C452 CHIP CERAMIC CAP. CH J 68pF/50V or CHD1JJBCH680

CHIP CERAMIC CAP.(1608) CH J 68pF/50V CHD1JJ3CH680
C471 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C472 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C473 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C474 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C475 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C476 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C478 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C479 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C480 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C481 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMAVSLR47
C483 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

Ref. No. Description Part No.

20040511 1-16-4 T6608EL

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C484 CHIP CERAMIC CAP. CH J 820pF/50V or CHD1JJBCH821

CHIP CERAMIC CAP. CH J 820pF/25V or CHD1EJBCH821

CHIP CERAMIC CAP. CH J 820pF/50V or CHD1JJ3CH821

CHIP CERAMIC CAP. CH J 820pF/25V CHD1EJ3CH821

C485 CHIP CERAMIC CAP. CH J 820pF/50V or CHD1JJBCH821

CHIP CERAMIC CAP. CH J 820pF/25V or CHD1EJBCH821

CHIP CERAMIC CAP. CH J 820pF/50V or CHD1JJ3CH821

CHIP CERAMIC CAP. CH J 820pF/25V CHD1EJ3CH821

C486 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMAVSL2R2
C681 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221

C682 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221

C683 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASTL100

C684! CHIP CERAMIC CAP.(MELF) B K 180pF/50V or CZM1JKB0B181

! CHIP CERAMIC CAP.(MELF) B K 180pF/50V CZM1JK30B181
C687 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470

C688 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470

C691 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASTL2R2

C694 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASTL101

C703 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASDL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASTL4R7

C707 ELECTROLYTIC CAP. 0.22µF/50V M or CE1JMASDLR22

ELECTROLYTIC CAP. 0.22µF/50V M CE1JMASTLR22

C708 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASDLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASTLR47

C709 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASDLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASTLR47

C710 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASDLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASTLR47

C711 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASDL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471

C713 PCB JUMPER D0.6-P5.0 JW5.0T
C715 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASDL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASTL4R7

C716 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C719 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C723 CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V or CZM1GKB0Y102

CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V CZM1GK30Y102

C724 ELECTROLYTIC CAP. 47µF/10V M or CE1AMASDL470

ELECTROLYTIC CAP. 47µF/10V M CE1AMASTL470
C851 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C855 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221

C856 CERAMIC CAP. B K 470pF/100V or CCD2AKS0B471

CERAMIC CAP. B K 470pF/500V CCD2JKS0B471
C857 FILM CAP.(P) 0.018µF/100V J or CMA2AJS00183

FILM CAP.(P) 0.018µF/50V J CA1J183MS029

C858 CHIP CERAMIC CAP. B K 2200pF/50V or CHD1JKB0B222

CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222

C859 CHIP CERAMIC CAP.(MELF) SL J 33pF/50V or CZM1JJBSL330

Ref. No. Description Part No.

CHIP CERAMIC CAP.(MELF) SL J 33pF/50V CZM1JJ3SL330

C860 PCB JUMPER D0.6-P5.0 JW5.0T

C861 CERAMIC CAP.(AX) X M 1800pF/16V CCA1CMT0X182
C862 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100
C863 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C864 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C865 CHIP CERAMIC CAP. B K 0.022µF/50V or CHD1JKB0B223

CHIP CERAMIC CAP. B K 0.022µF/25V or CHD1EKB0B223
CHIP CERAMIC CAP.(1608) B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223
C866 ELECTROLYTIC CAP. 33µF/10V H7 CE1AMAVSL330
C867 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7
C869 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C871 CHIP CERAMIC CAP.(MELF) B K 180pF/50V or CZM1JKB0B181

CHIP CERAMIC CAP.(MELF) B K 180pF/50V CZM1JK30B181
C872 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C874 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C875 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJBCH221

CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C876 CHIP CERAMIC CAP. B K 0.01µF/50V or CHD1JKB0B103

CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C877 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101

CONNECTORS

CN201 FFC/FPC CONNECTOR, 12P 04 6232 112 103

800

JC62D12TM003

CN303 CONNECTOR BASE, 5P TUC-P05P-B1 J3TUA05TG001

CN804 STRAIGHT CONNECTOR BASE 00 8283 0212 00

000 or

J383C02UG002

STRAIGHT PIN HEADER, 2P 173981-2 1770258

DIODES

D151! ZENER DIODE MTZJT-777.5B or QDTB0MTZJ7R5

! ZENER DIODE DZ-7.5BSBT265 NDTB0DZ7R5BS

D152! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D201 LED SIR-563ST3F P or QPQPS1R563ST

LED SIR-563ST3F Q QPQQS1R563ST

D202 LED (RED) L53IT NP4Z000L531T

D204 LED (RED) L53IT NP4Z000L531T

D205 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D206 PCB JUMPER D0.6-P5.0 JW5.0T

D210 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D211 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D212 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D213 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D214 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

Ref. No. Description Part No.

20040511 1-16-5 T6608EL

D302 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D303 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D304 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D305 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS

D306 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D401! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148
D402 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

D471 PCB JUMPER D0.6-P5.0 JW5.0T

D682! PCB JUMPER D0.6-P10.0 JW10.0T

D686 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D687 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D688! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D691! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D694 ZENER DIODE MTZJT-7715B or QDTB00MTZJ15

ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS

D695 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

D696 ZENER DIODE MTZJT-7718B or QDTB00MTZJ18

ZENER DIODE DZ-18BSBT265 NDTB00DZ18BS

D697 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS

D706 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS

D711 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D712 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D713 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D715 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D716 ZENER DIODE MTZJT-7715B or QDTB00MTZJ15

ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS

ICS

IC151! AUDIO AMP LA4224 QSZAA0SSY005

IC201! MICRO COMPUTER M37762MCA-BB0GP QSZAA0RHT016

IC202! IC:MEMORY BR24C04F-W or QSMBA0SRM004

! IC:MEMORY AT24C04N-10SC or NSMMA0SAZ013

! IC(EEPROM) M24C04-MN6 or NSMMA0SSS029

! IC:MEMORY BR24C04F or QSMMA0SRM004

! IC(EEP-ROM) M24C04-WMN6 or NSZAA0SSS005

! IC:EEPROM CAT24WC04JI or NSZBA0SBG002

! IC:EEPROM(4K) BR24L04F-WE2 QSZBA0TRM066

IC301! IC:CHROMA/IF 1 CHIP M61209BFP QSZBA0RMB017

IC401! IC:Y/C/A LA71750EM-MPB-E QSZBA0RSY020

IC471! IC:SECAM LA70100M-MPB QSZBA0SSY019

IC681! VOLTAGE REGULATOR KIA7805API or NSBBA0SJY011

! VOLTAGE REGULATOR KA7805A NSZBA0SF3052

IC701! IC:SWITCH TC4053BF(N) or QSMBA0STS002

! IC:ANALOG MULTIPLEXERS CD4053BCSJX or NSZBA0TF3071

Ref. No. Description Part No.

! IC:ANALOG MULTIPLEXER CD4053BNSR NSZBA0TTY093

IC703! IC:SWITCH TC4053BF(N) or QSMBA0STS002

! IC:ANALOG MULTIPLEXERS CD4053BCSJX or NSZBA0TF3071

! IC:ANALOG MULTIPLEXER CD4053BNSR NSZBA0TTY093

COILS

L001 PCB JUMPER D0.6-P5.0 JW5.0T
L151 IND UCTOR 1.8µH-J-26T or LLAXJATTU1R8

INDUCTOR 1.8µH-K-26T LLAXKDTKA1R8
L152 IND UCTOR 1.0µH-J-26T or LLAXJATTU010

INDUCTOR 1.0µH-K-26T LLAXKDTKA1R0
L201 IND UCTOR 0.10µH-K-26T or LLAXKATTUR10

INDUCTOR 0.1µH-M-26T LLAXMDTKAR10
L302 IND UCTOR 33µH-J-26T or LLAXJATTU330

INDUCTOR 33µH-K-26T LLAXKDTKA330

L303 PCB JUMPER D0.6-P7.5 JW7.5T

L304 PCB JUMPER D0.6-P7.5 JW7.5T

L305 PCB JUMPER D0.6-P5.0 JW5.0T

L401 PCB JUMPER D0.6-P5.0 JW5.0T
L402 IND UCTOR 33µH-J-26T or LLAXJATTU330

INDUCTOR 33µH-K-26T LLAXKDTKA330
L403 IND UCTOR 100µH-J-26T or LLAXJATTU101

INDUCTOR 100µH-K-26T LLAXKDTKA101

L681 PCB JUMPER D0.6-P7.5 JW7.5T

L682 PCB JUMPER D0.6-P7.5 JW7.5T
L701 IND UCTOR 12µH-J-26T or LLAXJATTU120

INDUCTOR 12µH-K-26T LLAXKDTKA120

L702 PCB JUMPER D0.6-P5.0 JW5.0T
L852 IND UCTOR 47µH-K-5FT or LLARKBSTU470

INDUCTOR 47µH-K-5FT LLARKDSKA470
L854 IND UCTOR 0.22µH-K-26T or LLAXKATTUR22

INDUCTOR 0.22µH-M-26T LLAXMDTKAR22

TRANSISTORS

Q204 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q205 PHOTO TRANSISTOR MID-32A22F or NPWZ1D32A22F

PHOTO TRANSISTOR PT204-6B-12 NPWZT2046B12

Q206 RES. BUILT-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR 2SA1346 or 2SA1346Z

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M

Q401 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q682 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q684 TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q685! TRANSISTOR 2SC2785(F) or QQSF02SC2785

! TRANSISTOR 2SC2785(H) or QQSH02SC2785

! TRANSISTOR 2SC2785(J) or QQSJ02SC2785

! TRANSISTOR KTC3199(GR) or NQS10KTC3199

Ref. No. Description Part No.

20040511 1-16-6 T6608EL

! TRANSISTOR KTC3198(GR) or NQS40KTC3198

! TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q686! TRANSISTOR 2SD1913(R) or Q2SD1913R***

! TRANSISTOR KTC2026Y NQWY0KTC2026

Q701 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q702 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q703 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q704 RES. BUILT-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR 2SA1346 or 2SA1346Z

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M

Q705 PCB JUMPER D0.6-P5.0 JW5.0T

Q706 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q707 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q708 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q709 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q710 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q711 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q851 RES. BUILT-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR 2SA1346 or 2SA1346Z

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M

Ref. No. Description Part No.

Q852 TRANSISTOR 2SC3331(T) or QSC3331TNPAA

TRANSISTOR 2SC3331(U) or QSC3331UNPAA

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q853 TRANSISTOR 2SC3331(T) or QSC3331TNPAA

TRANSISTOR 2SC3331(U) or QSC3331UNPAA

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q854 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q855 TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q856 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R003 PCB JUMPER D0.6-P5.0 JW5.0T

R004 PCB JUMPER D0.6-P5.0 JW5.0T
R151! METAL OXIDE FILM RES. 1W J 12 Ω or RN01JZLZ0120
! FIXED METAL OXIDE FILM RES. 1W J 12 Ω RN01JZPZ0120
R152! CHIP RES.(1608) 1/10W J 5.6k Ω or RRXAJB5Z0562
! CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R153 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R154 CHIP RES.(1608) 1/10W J 5.6k Ω or RRXAJB5Z0562

CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R155 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470
R156 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470
R157 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100
R201 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R202 CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R203 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R204 CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R205 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R206 CHIP RES.(1608) 1/10W J 390k Ω or RRXAJB5Z0394

CHIP RES.(1608) 1/10W J 390k Ω RRXAJR5Z0394
R207 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R208 CHIP RES.(1608) 1/10W J 1.5k Ω or RRXAJB5Z0152

CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R209 CHIP RES.(1608) 1/10W J 1.5k Ω or RRXAJB5Z0152

CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R210 CARBON RES. 1/4W G 4.7k Ω or RCX4GATZ0472

CARBON RES. 1/6W G 4.7k Ω RCX6GATZ0472
R211 CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R212 CHIP RES.(1608) 1/10W J 2.7k Ω or RRXAJB5Z0272

CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R213 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R214 CHIP RES.(1608) 1/10W J 1.5k Ω or RRXAJB5Z0152

CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R215 CHIP RES.(1608) 1/10W J 1.5k Ω or RRXAJB5Z0152

CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152

Ref. No. Description Part No.

20040511 1-16-7 T6608EL

R216 CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222

R217 CHIP RES.(1608) 1/10W J 2.7k Ω or RRXAJB5Z0272

CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272

R218 CHIP RES.(1608) 1/10W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561
R219 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R220 CHIP RES.(1608) 1/10W J 390k Ω or RRXAJB5Z0394

CHIP RES.(1608) 1/10W J 390k Ω RRXAJR5Z0394
R221 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R222 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R223 CHIP RES.(1608) 1/10W J 680 Ω or RRXAJB5Z0681

CHIP RES.(1608) 1/10W J 680 Ω RRXAJR5Z0681
R224 CHIP RES.(1608) 1/10W J 680 Ω or RRXAJB5Z0681

CHIP RES.(1608) 1/10W J 680 Ω RRXAJR5Z0681
R227 CHIP RES.(1608) 1/10W J 47 Ω or RRXAJB5Z0470

CHIP RES.(1608) 1/10W J 47 Ω RRXAJR5Z0470
R228 CHIP RES.(1608) 1/10W J 100k Ω or RRXAJB5Z0104

CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R229 CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R230 CHIP RES.(1608) 1/10W J 1.5k Ω or RRXAJB5Z0152

CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R231 CHIP RES.(1608) 1/10W J 330k Ω or RRXAJB5Z0334

CHIP RES.(1608) 1/10W J 330k Ω RRXAJR5Z0334
R232 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R233 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R234 CHIP RES.(1608) 1/10W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561
R235 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R236 CHIP RES.(1608) 1/10W J 470 Ω or RRXAJB5Z0471

CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R237 CHIP RES.(1608) 1/10W J 1M Ω or RRXAJB5Z0105

CHIP RES.(1608) 1/10W J 1M Ω RRXAJR5Z0105
R238 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101

R239 PCB JUMPER D0.6-P5.0 JW5.0T

R240 PCB JUMPER D0.6-P5.0 JW5.0T
R241 CHIP RES.(1608) 1/10W J 220 Ω or RRXAJB5Z0221

CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R242 CHIP RES.(1608) 1/10W J 220 Ω or RRXAJB5Z0221

CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R243 CHIP RES.(1608) 1/10W J 39k Ω or RRXAJB5Z0393

CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R244 CHIP RES.(1608) 1/10W J 220k Ω or RRXAJB5Z0224

CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224
R248 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R249 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R250 CHIP RES.(1608) 1/10W J 33k Ω or RRXAJB5Z0333

CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R254 CHIP RES.(1608) 1/10W J 100k Ω or RRXAJB5Z0104

CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R255 CHIP RES.(1608) 1/10W J 680 Ω or RRXAJB5Z0681

CHIP RES.(1608) 1/10W J 680 Ω RRXAJR5Z0681
R256 CHIP RES.(1608) 1/10W J 1.8k Ω or RRXAJB5Z0182

CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R257 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682

Ref. No. Description Part No.

R258 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R259 PCB JUMPER D0.6-P5.0 JW5.0T
R260 CARBON RES. 1/4W G 1.5k Ω or RCX4GATZ0152

CARBON RES. 1/6W G 1.5k Ω RCX6GATZ0152

R261 CARBON RES. 1/4W G 22k Ω or RCX4GATZ0223

CARBON RES. 1/6W G 22k Ω RCX6GATZ0223

R262 CARBON RES. 1/4W G 470 Ω or RCX4GATZ0471

CARBON RES. 1/6W G 470 Ω RCX6GATZ0471

R263 CARBON RES. 1/4W G 10k Ω or RCX4GATZ0103

CARBON RES. 1/6W G 10k Ω RCX6GATZ0103

R264 CARBON RES. 1/4W G 3.6k Ω or RCX4GATZ0362

CARBON RES. 1/6W G 3.6k Ω RCX6GATZ0362

R265 PCB JUMPER D0.6-P5.0 JW5.0T

R266 PCB JUMPER D0.6-P5.0 JW5.0T
R267 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103

R268 CHIP RES.(1608) 1/10W J 3.3k Ω or RRXAJB5Z0332

CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332

R269 CHIP RES.(1608) 1/10W J 3.3k Ω or RRXAJB5Z0332

CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332

R270 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101

R271 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103

R272 CHIP RES.(1608) 1/10W J 18k Ω or RRXAJB5Z0183

CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183

R273 CHIP RES.(1608) 1/10W J 18k Ω or RRXAJB5Z0183

CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183

R274 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103

R275 CHIP RES.(1608) 1/10W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561

R276 CHIP RES.(1608) 1/10W J 1.5k Ω or RRXAJB5Z0152

CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152

R277 CHIP RES.(1608) 1/10W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561

R278 CHIP RES.(1608) 1/10W J 1.5k Ω or RRXAJB5Z0152

CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152

R279 CHIP RES.(1608) 1/10W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561

R280 CHIP RES.(1608) 1/10W J 1.5k Ω or RRXAJB5Z0152

CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152

R281 CHIP RES.(1608) 1/10W J 3.3k Ω or RRXAJB5Z0332

CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R282 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331
R288 CHIP RES.(1608) 1/10W J 10 Ω or RRXAJB5Z0100

CHIP RES.(1608) 1/10W J 10 Ω RRXAJR5Z0100
R289 CHIP RES.(1608) 1/10W J 10 Ω or RRXAJB5Z0100

CHIP RES.(1608) 1/10W J 10 Ω RRXAJR5Z0100
R301 CHIP RES.(1608) 1/10W J 1.2k Ω or RRXAJB5Z0122

CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R302 CHIP RES.(1608) 1/10W J 8.2k Ω or RRXAJB5Z0822

CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R303 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R304 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R305 CHIP RES.(1608) 1/10W J 1.2k Ω or RRXAJB5Z0122

CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R306 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101

Ref. No. Description Part No.

20040511 1-16-8 T6608EL

R307 CHIP RES.(1608) 1/10W J 1.2k Ω or RRXAJB5Z0122

CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122

R308 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101

R309 CHIP RES.(1608) 1/10W J 1.2k Ω or RRXAJB5Z0122

CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122

R310 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R311 CARBON RES. 1/4W J 12 Ω RCX4JATZ0120
R312 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R313 CHIP RES.(1608) 1/10W J 220k Ω or RRXAJB5Z0224

CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224
R314 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R315 CHIP RES.(1608) 1/10W J 150k Ω or RRXAJB5Z0154

CHIP RES.(1608) 1/10W J 150k Ω RRXAJR5Z0154
R316 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R317 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224
R318 CHIP RES.(1608) 1/10W J 6.8k Ω or RRXAJB5Z0682

CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R320 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R321 CHIP RES.(1608) 1/10W J 220 Ω or RRXAJB5Z0221

CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R322 CHIP RES.(1608) 1/10W J 3.3k Ω or RRXAJB5Z0332

CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R323 CHIP RES.(1608) 1/10W J 15k Ω or RRXAJB5Z0153

CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153
R324 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R325 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R326 CHIP RES.(1608) 1/10W J 6.8k Ω or RRXAJB5Z0682

CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682

R327 PCB JUMPER D0.6-P5.0 JW5.0T
R332 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R333 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R334 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R335 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R336 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R339 CHIP RES.(1608) 1/10W 0 Ω or RRXAZB5Z0000

CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R340 CHIP RES.(1608) 1/10W 0 Ω or RRXAZB5Z0000

CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R401 CHIP RES.(1608) 1/10W J 1.2k Ω or RRXAJB5Z0122

CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R402 CHIP RES.(1608) 1/10W J 8.2k Ω or RRXAJB5Z0822

CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R405 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R406 CHIP RES.(1608) 1/10W J 1.2k Ω or RRXAJB5Z0122

CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R407 CHIP RES.(1608) 1/10W J 390k Ω or RRXAJB5Z0394

CHIP RES.(1608) 1/10W J 390k Ω RRXAJR5Z0394
R408 CHIP RES.(1608) 1/10W J 330 Ω or RRXAJB5Z0331

CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331

Ref. No. Description Part No.

R409 CHIP RES.(1608) 1/10W J 330 Ω or RRXAJB5Z0331

CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331

R410 CHIP RES.(1608) 1/10W J 220 Ω or RRXAJB5Z0221

CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221

R411 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472

R412 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472

R413 CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222

R414 CHIP RES.(1608) 1/10W J 6.8k Ω or RRXAJB5Z0682

CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682

R415 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472

R416 CHIP RES.(1608) 1/10W J 1.2k Ω or RRXAJB5Z0122

CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122

R418 CHIP RES.(1608) 1/10W J 56k Ω or RRXAJB5Z0563

CHIP RES.(1608) 1/10W J 56k Ω RRXAJR5Z0563

R420 CHIP RES.(1608) 1/10W J 1.5k Ω or RRXAJB5Z0152

CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152

R422 CHIP RES.(1608) 1/10W J 120 Ω or RRXAJB5Z0121

CHIP RES.(1608) 1/10W J 120 Ω RRXAJR5Z0121

R423 CHIP RES.(1608) 1/10W J 47 Ω or RRXAJB5Z0470

CHIP RES.(1608) 1/10W J 47 Ω RRXAJR5Z0470

R424 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102

R425 CHIP RES.(1608) 1/10W 0 Ω or RRXAZB5Z0000

CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R426 CHIP RES.(1608) 1/10W 0 Ω or RRXAZB5Z0000

CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

R471 CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222

R683 METAL OXIDE FILM RES. 1W J 2.2 Ω or RN012R2ZU001

METAL OXIDE FILM RES. 1W J 2.2 Ω RN012R2DP003

R684 CHIP RES.(1608) 1/10W J 10 Ω or RRXAJB5Z0100

CHIP RES.(1608) 1/10W J 10 Ω RRXAJR5Z0100
R685 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R686 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R689! CARBON RES. 1/4W J 82 Ω RCX4JATZ0820
R690! CARBON RES. 1/4W J 82 Ω RCX4JATZ0820
R691! CARBON RES. 1/4W J 2.7 Ω RCX4JATZ02R7
R692 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R693! CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5Z0223
! CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R694 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R695! CARBON RES. 1/4W J 2.7 Ω RCX4JATZ02R7
R696! METAL OXIDE FILM RES. 1W J 2.2 Ω or RN012R2ZU001
! METAL OXIDE FILM RES. 1W J 2.2 Ω RN012R2DP003
R697 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R698 CHIP RES.(1608) 1/10W J 8.2k Ω or RRXAJB5Z0822

CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R701 CHIP RES.(1608) 1/10W J 75 Ω or RRXAJB5Z0750

CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R702 CHIP RES.(1608) 1/10W J 3.3k Ω or RRXAJB5Z0332

CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R703 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R704 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

Ref. No. Description Part No.

20040511 1-16-9 T6608EL

R707 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102

R709 CHIP RES.(1608) 1/10W J 75 Ω or RRXAJB5Z0750

CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750

R710 CHIP RES.(1608) 1/10W J 33k Ω or RRXAJB5Z0333

CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333

R711 CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R712 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R714 CHIP RES.(1608) 1/10W J 75 Ω or RRXAJB5Z0750

CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R723 CHIP RES.(1608) 1/10W J 75 Ω or RRXAJB5Z0750

CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R724 CHIP RES.(1608) 1/10W J 33k Ω or RRXAJB5Z0333

CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R725 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R726 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R727 CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R728 CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R729 CHIP RES.(1608) 1/10W J 47k Ω or RRXAJB5Z0473

CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R730 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R731 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R732 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R733 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391
R737 CHIP RES.(1608) 1/10W J 75 Ω or RRXAJB5Z0750

CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R738 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R739 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R740 CHIP RES.(1608) 1/10W J 33k Ω or RRXAJB5Z0333

CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R741 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R742 CHIP RES.(1608) 1/10W J 47k Ω or RRXAJB5Z0473

CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R743 CHIP RES.(1608) 1/10W J 6.2k Ω or RRXAJB5Z0622

CHIP RES.(1608) 1/10W J 6.2k Ω RRXAJR5Z0622
R744 CHIP RES.(1608) 1/10W J 47k Ω or RRXAJB5Z0473

CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R745 CHIP RES.(1608) 1/10W J 6.2k Ω or RRXAJB5Z0622

CHIP RES.(1608) 1/10W J 6.2k Ω RRXAJR5Z0622
R746 CHIP RES.(1608) 1/10W J 47k Ω or RRXAJB5Z0473

CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R747 CHIP RES.(1608) 1/10W J 6.2k Ω or RRXAJB5Z0622

CHIP RES.(1608) 1/10W J 6.2k Ω RRXAJR5Z0622
R748 CHIP RES.(1608) 1/10W J 1.8k Ω or RRXAJB5Z0182

CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R749 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R751 CHIP RES.(1608) 1/10W J 1.8k Ω or RRXAJB5Z0182

CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R752 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R753 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182

Ref. No. Description Part No.

R754 CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223

R755 CHIP RES.(1608) 1/10W J 470 Ω or RRXAJB5Z0471

CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471

R756 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102

R757 CHIP RES.(1608) 1/10W J 1M Ω or RRXAJB5Z0105

CHIP RES.(1608) 1/10W J 1M Ω RRXAJR5Z0105

R851 CHIP RES.(1608) 1/10W J 5.6k Ω or RRXAJB5Z0562

CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562

R852 CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223

R853 CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222

R854 CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R856 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R857 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R858 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R859 CHIP RES.(1608) 1/10W J 680 Ω or RRXAJB5Z0681

CHIP RES.(1608) 1/10W J 680 Ω RRXAJR5Z0681
R860 CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R861 CHIP RES.(1608) 1/10W J 330k Ω or RRXAJB5Z0334

CHIP RES.(1608) 1/10W J 330k Ω RRXAJR5Z0334
R862 CHIP RES.(1608) 1/10W J 12k Ω or RRXAJB5Z0123

CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R863 CHIP RES.(1608) 1/10W J 120 Ω or RRXAJB5Z0121

CHIP RES.(1608) 1/10W J 120 Ω RRXAJR5Z0121
R864 CHIP RES.(1608) 1/10W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561
R865 CHIP RES.(1608) 1/10W J 1.8k Ω or RRXAJB5Z0182

CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R866 CHIP RES.(1608) 1/10W J 12k Ω or RRXAJB5Z0123

CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R867 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R869 CHIP RES.(1608) 1/10W J 2.7k Ω or RRXAJB5Z0272

CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R870 CHIP RES.(1608) 1/10W J 56k Ω or RRXAJB5Z0563

CHIP RES.(1608) 1/10W J 56k Ω RRXAJR5Z0563
R871 CHIP RES.(1608) 1/10W J 1M Ω or RRXAJB5Z0105

CHIP RES.(1608) 1/10W J 1M Ω RRXAJR5Z0105
R874 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R876 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R877 CHIP RES.(1608) 1/10W J 15k Ω or RRXAJB5Z0153

CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153
R878 CHIP RES.(1608) 1/10W J 12k Ω or RRXAJB5Z0123

CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R879 CHIP RES.(1608) 1/10W J 5.6k Ω or RRXAJB5Z0562

CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R884 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102

SWITCHES

SW201 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW202 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW203 TACT SWITCH SKQNAED010 or SST0101AL055

Ref. No. Description Part No.

20040511 1-16-10 T6608EL

JUNCTION A CBA

JUNCTION B CBA

JUNCTION C CBA

SENSOR CBA

POWER CBA

H.V./POWER SUPPLY CBA

TACTILE SWITCH KSHG612BT SST0101HH027

SW204 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW205 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW206 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW207 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW208 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW209 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW210 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW211 LEAF SWITCH LSA-1142-2AU or SSC0101KB014

LEAF SWITCH MXS00052MPP0 or SSC0101MCE01

LEAF SWITCH MXS00981MPP0 SSC0101MCE02

SW212 ROTARY MODE SWITCH SSS-50MD or SSR0106KB002

ROTARY MODE SWITCH R8100245 SSR0106U3002

MISCELLANEOUS

CL301A LEAD WI RE 4P/300 WX1T6300-102

CL302A LEAD WI RE 7P/190 WX1T6450-103

CL603A LEAD WIRE 12P/190 WX1T6450-102

CL604 WIRE ASSEMBLY 1P/45 WX1T6400-001

JK151 HEADPHONE JACK MSJ-035-10A B or JYSL020LY002

HEADPHONE JACK DP3-26-7-001 JYSL020RP001

JK701 RCA JACK(YELLOW) MSP-281V4-B or JXRL010LY003

RCA JACK(YELLOW) AV1-15-3 JXRL010RP013

JK702 RCA JACK(WHITE) MSP-281V1-B or JXRL010LY005

RCA JACK(WHITE) AV1-15-4 JXRL010RP014

JK703 SKIRT JACK 21P HRC-21V-02P or JXGL210RP001

SKIRT JACK 21P MRC-021-02 or JXGL210LY001

SKIRT JACK 21P MRC-021V-02 3.4 ABS or JXGL210LY005

SKIRT JACK 21P DSS1020NPC001 JXGL210RP002

RS201 REMOTE RECEIVER PIC-37042LU or USESJRSKK033

REMOCON RESEVER MIM-0BM6DKF-C USESJRSUNT06

TB3 HEAD SHIELD S T6400RA 0EM301753

TB7 LED HOLDER T6400RA 0EM407754

TB21 BUSH, LED(F) H3700UD 0VM409508

TP001 PCB JUMPER D0.6-P12.5 JW12.5T

TP002 PCB JUMPER D0.6-P12.5 JW12.5T

TP003 PCB JUMPER D0.6-P12.5 JW12.5T

TP007 PCB JUMPER D0.6-P10.0 JW10.0T

TP008 PCB JUMPER D0.6-P12.5 JW12.5T

TP009 PCB JUMPER D0.6-P12.5 JW12.5T

TP010 PCB JUMPER D0.6-P22.5 JW22.5T

TU001 TUNER UNIT TMQZ2-413A UTUNPSGAL009

X201 X'TAL 32.768kHz(20PPM) or FXC323LJNY01

X'TAL 32.768kHz(20PPM) or FXC323LCT001

X'TAL 32.768kHz(20PPM) or FXC323LDS002

X'TAL 32.768kHz(20PPM) FXC323LQUA01

X202 X'TAL 12.000MHz FXD126LDS001

X301 X'TAL 4.433619MHz or FXB445LNL001

X'TAL 4.433619MHz or FXB445LDS002

X'TAL 4.433619MHz FXB445LCHE01

X401 X'TAL 4.433619MHz or FXC445LLN001

X'TAL 4.433619MHz 1811388

Ref. No. Description Part No.

Ref. No. Description Part No.

JUNCTION A CBA

Consists of the following

----------

CONNECTOR

CN603 CONNECTOR 12P TUC-P12X-B1 JCTUS12TG001

Ref. No. Description Part No.

JUNCTION B CBA

Consists of the following

----------

CONNECTOR

CN302 CONNECTOR, 7P TUC-P07X-B1 JCTUS07TG001

Ref. No. Description Part No.

JUNCTION C CBA

Consists of the following

----------

CONNECTOR

CN301 CONNECTOR 4P TUC-P04X-B1 JCTUS04TG001

Ref. No. Description Part No.

SENSOR CBA

Consists of the following

0ESA06133

TRANSISTORS

Q201 PHOTO TRANSISTOR MID-32A22F or NPWZ1D32A22F

PHOTO TRANSISTOR PT204-6B-12 NPWZT2046B12

Q202 PHOTO TRANSISTOR MID-32A22F or NPWZ1D32A22F

PHOTO TRANSISTOR PT204-6B-12 NPWZT2046B12

Ref. No. Description Part No.

POWER CBA 0ESA06011

Consists of the following

H.V./POWER SUPPLY CBA ----------

CRT CBA ----------

Ref. No. Description Part No.

H.V./POWER SUPPLY CBA
Consists of the following

----------

CAPACITORS

C551 ELECTROLYTIC CAP. 2.2µF/50V M LL or CE1JMASLL2R2

ELECTROLYTIC CAP. 2.2µF/50V LL CE1JMASLH2R2

C552 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPTL102
C553 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C554 ELECTROLYTIC CAP. 220µF/25V M or CE1EMASDL221

ELECTROLYTIC CAP. 220µF/25V M CE1EMASTL221
C555 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470
C556 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASTL2R2
C558 FILM CAP.(P) 0.047µF/50V J or CMA1JJS00473

FILM CAP.(P) 0.047µF/50V J CA1J473MS029
C560! P.P. CAP 0.0082µF/1.6K J or CA3C822VC010

! PP CAP. 0.0082µF/1.6KV J or CT3C822MS039
! PP CAP. 0.0082µF/1.6KV J or CBH3CJQ00822

20040511 1-16-11 T6608EL

! METALLIZED FILM CAP. 0.0082µF/1.6KV J CT3C822F7004
C561 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J CA1J103MS029

C562 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470
C565! ELECTROLYTIC CAP. 47µF/160V M W/F or CE2CMZPDL470
! ELECTROLYTIC CAP. 47µF/160V M CE2CMZPTL470
C567 ELECTROLYTIC CAP. 1µF/160V M or CE2CMASDL1R0

ELECTROLYTIC CAP. 1µF/160V M CE2CMASTL010
C569! ELECTROLYTIC CAP. 4.7µF/250V M CE2EMASDL4R7
C570! ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

! ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
! ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0
C572! ELECTROLYTIC CAP. 22µF/50V M or CE1JMASDL220
! ELECTROLYTIC CAP. 22µF/50V M CE1JMASTL220

C575 P.P. CAP 0.33µF/200V J or CA2D334VC013

PP CAP. 0.33µF/250V J or CT2E334MS041

METALLIZED FILM CAP. 0.33µF/200V J CT2D334F7003

C602! SAFETY CAP. 2200pF/250V KX CA2E222MR050
C604! METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037

! FILM CAP.(MP) 0.1µF/250V K or CT2E104DC011
! METALLIZED FILM CAP. 0.1µF/275V K or CT2E104HJE06

! LINE ACROSS CAP. 0.1U/275V CT2E104DC016
C611! ELECTROLYTIC CAP. 100µF/400V M or CA2H101S6016
! ELECTROLYTIC CAP. 100µF/400V M CE2HMZPTL101

C613 FILM CAP.(P) 0.039µF/50V J or CMA1JJS00393

FILM CAP.(P) 0.039µF/50V J CA1J393MS029
C614 FILM CAP.(P) 0.0012µF/50V J or CMA1JJS00122

FILM CAP.(P) 0.0012µF/50V J CA1J122MS029
C615! FILM CAP.(P) 0.068µF/50V J or CMA1JJS00683
! FILM CAP.(P) 0.068µF/50V J CA1J683MS029

C616 CERAMIC CAP. R K 220pF/2KV(HR) or CCD3DKA0R221

CERAMIC CAP. BN J 220pF/2KV or CCD3DKA0B221

CERAMIC CAP. 220pF/2KV or CA3D221PAN04

CERAMIC CAP. RB 220pF/2KV CA3D221TE006
C618 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0
C619 ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102

ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPTL102
C621 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471
C622 ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102

ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPTL102

C624! CERAMIC CAP.(AX) SL J 68pF/50V CCA1JJTSL680
C625 ELECTROLYTIC CAP. 470µF/35V M or CE1GMZPDL471

ELECTROLYTIC CAP. 470µF/35V M CE1GMZPTL471

C626 CERAMIC CAP. R K 680pF/2KV(HR) or CCD3DKA0R681

CERAMIC CAP. BN 680pF/2KV or CCD3DKA0B681

CERAMIC CAP. 680pF/2KV or CA3D681PAN04

CERAMIC CAP. RB 680pF/2KV CA3D681TE006
C627! ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPDL101
! ELECTROLYTIC CAP. 100µF/160V M CE2CMZPTL101
C629 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C630 ELECTROLYTIC CAP. 1000µF/6.3V M or CE0KMASDL102

ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASTL102
C632 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101
C633 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470
C634 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASDL4R7

Ref. No. Description Part No.

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASTL4R7

C636 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASTL101

CONNECTORS

CN551 CONNECTOR BASE, 5P TV-50P-05-V3 or J3TVC05TG002

CONNECTOR BASE, 5P RTB-1.5-5P J3RTC05JG001

CN552 CONNECTOR BASE, 7P TUC-P07P-B1 J3TUA07TG001

CN601 CONNECTOR BASE, 2P TV-50P-02-V3 or J3TVC02TG002

CONNECTOR BASE, 2P RTB-1.5-2P J3RTC02JG001

CN602 CONNECTOR BASE 12P TUC-P12P-B1 J3TUA12TG001

DIODES

D551 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

D553! ZENER DIODE MTZJT-7720B or QDTB00MTZJ20

! ZENER DIODE DZ-20BSBT265 NDTB00DZ20BS

D554! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D555 PCB JUMPER D0.6-P12.5 JW12.5T

D556! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D557! DIODE FR104-B or NDLZ000FR104

! RECTIFIER DIODE 10ELS2 or QDQZ0010ELS2

! RECTIFIER DIODE ERA22-02 QDPZ0ERA2202

D558! DIODE FR104-B or NDLZ000FR104

! RECTIFIER DIODE 10ELS2 or QDQZ0010ELS2

! RECTIFIER DIODE ERA22-02 QDPZ0ERA2202

D560! ZENER DIODE MTZJT-7736B or QDTB00MTZJ36

! ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS

D562 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D563 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS

D565! ZENER DIODE MTZJT-7736A or QDTA00MTZJ36

! ZENER DIODE DZ-36BSAT265 NDTA00DZ36BS

D601! DIODE 1N5399-B/P NDLZ001N5399

D602! DIODE 1N5399-B/P NDLZ001N5399

D603! DIODE 1N5399-B/P NDLZ001N5399

D604! DIODE 1N5399-B/P NDLZ001N5399

D605 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D609 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D610! ZENER DIODE MTZJT-7724C or QDTC00MTZJ24

! ZENER DIODE DZ-24BSCT265 NDTC00DZ24BS

D612! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D615! DIODE FR104-B or NDLZ000FR104

! RECTIFIER DIODE 10ELS2 or QDQZ0010ELS2

! RECTIFIER DIODE ERA22-02 QDPZ0ERA2202

D616 ZENER DIODE MTZJT-7722B or QDTB00MTZJ22

ZENER DIODE DZ-22BSBT265 NDTB00DZ22BS

D617! SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

! SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D618! SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

! SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D619! SCHOTTKY BARRIER DIODE 21DQ04 or QDQZ0021DQ04

! SCHOTTKY BARRIER DIODE ERB81-004 AERB81004***

D620! DIODE FR104-B or NDLZ000FR104

! RECTIFIER DIODE 10ELS2 or QDQZ0010ELS2

! RECTIFIER DIODE ERA22-02 QDPZ0ERA2202

Ref. No. Description Part No.

20040511 1-16-12 T6608EL

D622! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D623! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D624! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D625! ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

! ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

D626 FAST RECOVERY DIODE CA201-4 or QDWZ00CA2014

RECOVERY DIODE ERC18-04 QDZZ0ERC1804

D627! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D629 ZENER DIODE MTZJT-7733C or QDTC00MTZJ33

ZENER DIODE DZ-33BSCT265 NDTC00DZ33BS

D630 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D631 ZENER DIODE MTZJT-776.2C or QDTC0MTZJ6R2

ZENER DIODE DZ-6.2BSCT265 NDTC0DZ6R2BS
D634 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

D635 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS

D636! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D637 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D638 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D641 ZENER DIODE MTZJT-7715B or QDTB00MTZJ15

ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS

D642 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

ICS

IC551! VERTICAL OUTPUT IC LA78040A QSBBA0SSY003

IC601! PHOTOCOUPLER PS2561L1-1-VL or QPEL2561L11V

! PHOTOCOUPLER PS2561L1-1-VW QPEW2561L11V

COILS

L552 PCB JUMPER D0.6-P7.5 JW7.5T
L553! CHOKE COIL 22µH-K or LLBD00PKV006

! CHOKE COIL LGB0810T-220K LLBD00PU6005

L554! PCB JUMPER D0.6-P7.5 JW7.5T

L601! LINE FILTER ELF15N005A or LLBG00ZMS039

! LINE FILTER LF-048 LLBG00ZKV008
L603 CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K LLBD00PKV005

TRANSISTORS

Q551! TRANSISTOR TT2084LS-YB11 or QQZZ00TT2084

! TRANSISTOR TT2138LS-YB11 or QQZZ00TT2138

! TRANSISTOR 2SC 5884000RF QQZZ02SC5884

Q553 TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627

Q554! TRANSISTOR 2SC2785(F) or QQSF02SC2785

! TRANSISTOR 2SC2785(H) or QQSH02SC2785

! TRANSISTOR 2SC2785(J) or QQSJ02SC2785

! TRANSISTOR KTC3199(GR) or NQS10KTC3199

! TRANSISTOR KTC3198(GR) or NQS40KTC3198

! TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q602! MOS FET 2SK2647 QFWZ02SK2647

Q603! TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

! TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

! TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q604! TRANSISTOR 2SC2785(F) or QQSF02SC2785

Ref. No. Description Part No.

! TRANSISTOR 2SC2785(H) or QQSH02SC2785

! TRANSISTOR 2SC2785(J) or QQSJ02SC2785

! TRANSISTOR KTC3199(GR) or NQS10KTC3199

! TRANSISTOR KTC3198(GR) or NQS40KTC3198

! TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q605 TRANSISTOR 2SA950(O) or Q2SA9500TPE2

TRANSISTOR 2SA950(Y) or Q2SA950YTPE2

TRANSISTOR KTA1271(Y) NQSY0KTA1271

Q606! TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

! TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

! TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q607! TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

! TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

! TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q608 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R550! CARBON RES. 1/4W J 680k Ω RCX4JATZ0684
R551 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R552 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R553 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R554! CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R555 CARBON RES. 1/4W J 8.2 Ω RCX4JATZ08R2
R556 CARBON RES. 1/4W J 8.2 Ω RCX4JATZ08R2
R557! CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R558! PCB JUMPER D0.6-P5.0 JW5.0T
R559! CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0
R560! CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0
R561! CARBON RES. 1/4W J 2.2 Ω RCX4JATZ02R2
R562 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R564! CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682

R565 PCB JUMPER D0.6-P5.0 JW5.0T
R566 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471
R568 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R569 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R572 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391
R574 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R576! CARBON RES. 1/4W J 39 Ω RCX4JATZ0390
R577! METAL OXIDE FILM RES. 2W J 560 Ω or RN02561ZU001
! METAL OXIDE FILM RES. 2W J 560 Ω RN02561DP004
R578! CARBON RES. 1/4W J 39 Ω RCX4JATZ0390
R579! CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R580! CARBON RES. 1/4W J 39 Ω RCX4JATZ0390
R581 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R583 PCB JUMPER D0.6-P5.0 JW5.0T
R584! CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R585! CARBON RES. 1/4W J 180k Ω RCX4JATZ0184
R586 CARBON RES. 1/4W J 68k Ω RCX4JATZ0683
R587 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R588! CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R589! CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R590! METAL OXIDE FILM RES. 2W J 2.2 Ω or RN022R2ZU001
! METAL OXIDE FILM RES. 2W J 2.2 Ω RN022R2DP004
R591! CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R592! CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R593 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822

Ref. No. Description Part No.

20040511 1-16-13 T6608EL

CRT CBA

R594 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R595 PCB JUMPER D0.6-P5.0 JW5.0T
R596 CARBON RES. 1/4W J 8.2 Ω RCX4JATZ08R2
R597! CARBON RES. 1/4W J 220k Ω RCX4JATZ0224
R598! CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R601! ANTI-SURGE RESISTOR 1/2W J 3.3M Ω or RMX2335KA011

! CARBON RES. 1/2W J 3.3M Ω or RCX2335DP001
! CARBON RES. 1/2W K 3.3M Ω or RCX2335FS001
! GLASS GLAZE RES. 1/2W J 3.3M Ω RXX2JZLZ0335
R604! CEMENT RESISTOR 5W K 1.8 Ω or RW051R8PG001
! CEMENT RES. 5W K 1.8 Ω or RW051R8DP005
! CEMENT RESISTOR 5W J 1.8 Ω RW051R8PAK10

R605 CARBON RES. 1/4W J 56 Ω RCX4JATZ0560
R611 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R612 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R613 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R615 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R616! CARBON RES. 1/4W J 22 Ω RCX4JATZ0220
R617! CEMENT RESISTOR 5W K 0.68 Ω or RW05R68PG001

! CEMENT RES. 5W K 0.68 Ω or RW05R68DP005
! CEMENT RESISTOR 5W J 0.68 Ω RW05R68PAK10

R618 PCB JUMPER D0.6-P5.0 JW5.0T
R619 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R620! CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R621 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564
R622 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684
R624 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684
R626! CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122

R627 PCB JUMPER D0.6-P5.0 JW5.0T
R628! CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R631! CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R632! CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R633! CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R634! CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R635! CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R636! CARBON RES. 1/4W G 1k Ω or RCX4GATZ0102
! CARBON RES. 1/6W G 1k Ω RCX6GATZ0102
R637! CARBON RES. 1/4W G 5.6k Ω or RCX4GATZ0562
! CARBON RES. 1/6W G 5.6k Ω RCX6GATZ0562
R638! CARBON RES. 1/4W G 39k Ω or RCX4GATZ0393
! CARBON RES. 1/6W G 39k Ω RCX6GATZ0393
R639! CARBON RES. 1/4W G 39k Ω or RCX4GATZ0393
! CARBON RES. 1/6W G 39k Ω RCX6GATZ0393
R640! CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R641! METAL OXIDE FILM RES. 1W J 1k Ω or RN01102ZU001
! METAL OXIDE FILM RES. 1W J 1k Ω RN01102DP003
R642! CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R643! CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R644! CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R645! CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R646! CARBON RES. 1/4W J 15 Ω RCX4JATZ0150
R647! CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R649! CARBON RES. 1/4W J 390 Ω RCX4JATZ0391
R651 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R652! PCB JUMPER D0.6-P15.0 JW15.0T
R653! CARBON RES. 1/4W J 150 Ω RCX4JATZ0151
R654! CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R655 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562
R656 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R657! CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R658! METAL OXIDE FILM RES. 2W J 10k Ω or RN02103ZU001

Ref. No. Description Part No.

! METAL OXIDE FILM RES. 2W J 10k Ω RN02103DP004
R659! METAL OXIDE FILM RES. 2W J 10k Ω or RN02103ZU001
! METAL OXIDE FILM RES. 2W J 10k Ω RN02103DP004

R660 PCB JUMPER D0.6-P5.0 JW5.0T
R661 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R662 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R663 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470

SWITCHES

SW601! POWER SWITCH SDKVA30100 or SPP0AZZAL001

! POWER SWITCH AAPY2211 SPP0AAZMS003

MISCELLANEOUS

BC551 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026

BC602 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC604 PCB JUMPER D0.6-P5.0 JW5.0T

BC605 PCB JUMPER D0.6-P5.0 JW5.0T

CL501A LEAD WIRE 3P/230 WX1T6400-101

F601! FUSE 4A/250V 215004 PAGF20BAG402

FH601 FUSE HO LDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 XH01Z00DK001

FH602 FUSE HO LDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 XH01Z00DK001

PB1 POWER PCB HOLDER T6400RA 0EM000696A

PB4 13V POW HEAT SINK PAL PHKT6400RA 0EM407687

PB5 13V P H/S PAL PHM ASSEMBLY T6400RA 0EM407691

PL1 SCREW, P-TIGHT 3X12 WASHER HEAD+ GCMP3120

PL2 SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080

PS602! THERMISTOR ZPB31BL9R0A QNWZ31BL9R0A

SA601! SURGE ABSORBER 470V+-10PER NVQZ10D471KB

T551! FLYBACK TRANS BSC23-2603S or LTF00CPS2054

! FLYBACK TRANSFORMER JF0501-3101B LTF00CPXB039

T552! H0RIZONTAL DRIVE TRANS LP2-005 LTH00CPA5005

T601! SWITCHING TRANS 04705 LTT00EPKT119

TP501 PCB JUMPER D0.6-P7.5 JW7.5T

TP502 PCB JUMPER D0.6-P7.5 JW7.5T

TP503 PCB JUMPER D0.6-P15.0 JW15.0T

TP504 PCB JUMPER D0.6-P15.0 JW15.0T
VR601! CARBON P.O.T. 20k Ω B or VRCB203KA011
! CARBON P.O.T. 20k Ω B VRCB203HH014

W601! AC CORD PE8G2CG9G0A-055 WAE0162LW001

Ref. No. Description Part No.

CRT CBA
Consists of the following

----------

CAPACITORS

C501 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221

C502 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221

C503 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221

C504 CERAMIC CAP. B K 1000pF/2KV or CCD3DKP0B102

CERAMIC CAP. B K 1000pF/2KV or CA3D102MR030

CERAMIC CAP. B K 1000pF/2KV CCD3DKD0B102

C505 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0

CONNECTORS

CN501 PIN CONNECTOR 005P-5100 or JTEA001TG001

CONNECTOR PIN, 1P LV or 1700576

CONNECTOR PIN, 1P RT-01N-2.3A 1730688

CN502 CONNECTOR BASE, 4P TUC-P04P-B1 J3TUA04TG001

COIL

L501 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Ref. No. Description Part No.

20040511 1-16-14 T6608EL

Q501 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468

TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468

TRANSISTOR KTC3207 NQSZ0KTC3207

Q502 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468

TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468

TRANSISTOR KTC3207 NQSZ0KTC3207

Q503 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468

TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468

TRANSISTOR KTC3207 NQSZ0KTC3207

RESISTORS

R501! METAL OXIDE FILM RES. 1W J 18k Ω or RN01183ZU001
! METAL OXIDE FILM RES. 1W J 18k Ω RN01183DP003
R502! METAL OXIDE FILM RES. 1W J 18k Ω or RN01183ZU001
! METAL OXIDE FILM RES. 1W J 18k Ω RN01183DP003
R503! METAL OXIDE FILM RES. 1W J 18k Ω or RN01183ZU001
! METAL OXIDE FILM RES. 1W J 18k Ω RN01183DP003

R504 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R505 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R506 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R507 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R510 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R511 PCB JUMPER D0.6-P5.0 JW5.0T

R512 PCB JUMPER D0.6-P5.0 JW5.0T

R513 PCB JUMPER D0.6-P5.0 JW5.0T
R514 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R515 CARBON RES. 1/4W J 120k Ω RCX4JATZ0124
R516 CARBON RES. 1/4W J 15 Ω RCX4JATZ0150
R517 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561
R518 CARBON RES. 1/4W J 120k Ω RCX4JATZ0124
R519 CARBON RES. 1/4W J 15 Ω RCX4JATZ0150
R520 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561
R521 CARBON RES. 1/4W J 120k Ω RCX4JATZ0124
R522 CARBON RES. 1/4W J 15 Ω RCX4JATZ0150
R523 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561

MISCELLANEOUS

JK501! CRT SOCKET ISMS01S JSCC220PK007

Ref. No. Description Part No.

DECK MECHANISM SECTION

14" COLOR TV/VCR COMBINATION

LT-VHS-36

TABLE OF CONTENTS

Standard Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1-1

Service Fixture and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2-1

Mechanical Alignment Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3-1

Disassembly / Assembly Procedures of Deck Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4-1

Alignment Procedures of Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5-1

Deck Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6-1

Deck Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7-1

Sec. 2: Deck Mechanism Section

I Standard Maintenance
I Mechanism Alignment Procedures
I Disassembly / Assembly of Mechanism
I Deck Exploded Views
I Deck Parts List

2-1-1 U29PMEN

STANDARD MAINTENANCE

Service Schedule of Components

This maintenance chart shows you the standard of replacement and cleaning time for each part.
Because those may replace depending on environment and purpose for use, use the chart for reference.

Notes:

1.Clean all parts for the tape transport (Upper Drum with Video Head / Pinch Roller / ACE Head / FE Head) using
90% lsopropyl Alcohol.

2.After cleaning the parts, do all DECK ADJUSTMENTS.

3.For the reference numbers listed above, refer to Deck Exploded Views.

h: Hours : Cleaning I: Replace

Deck Periodic Service Schedule

Ref.No. Part Name 1,000 h 2,000 h 3,000 h 4,000 h

B2

Cylinder Assembly

II

B3

Loading Motor Assembly

I

B8 Pulley Assembly I

I

B587

Tension Lever Assembly

II

B31

ACE Head Assembly

I

B573, B574 Reel (SP)(D2), Reel (TU)(D2)

I

B37

Capstan Motor

II

B52

Cap Belt

II

B73 FE Head

I

B133, B134

Idler Gear, Idler Arm

II

B410

Pinch Arm(A) Assembly

II

B414 M Brake (SP) Assembly II

B416

M Brake (TU) Assembly

II

B525

LDG Belt

II

B569

(2 head only)

Cam Holder

II

B593

(4 head,

4 head HiFi

only)

Cam Holder Assembly

II

2-1-2 U29PMEN

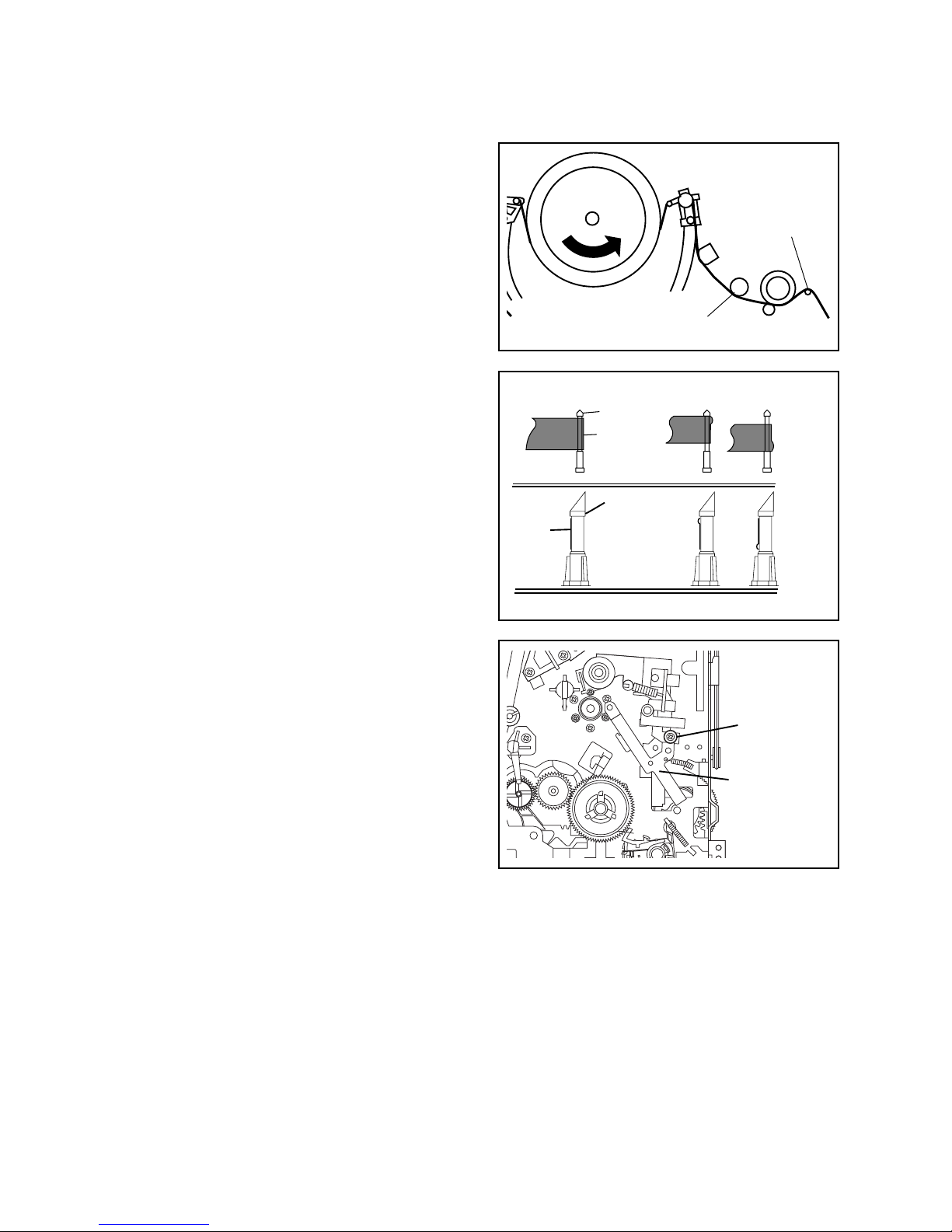

Cleaning

Cleaning of Video Head

Clean the head with a head cleaning stick or chamois
cloth.

Procedure

1.Remove the top cabinet.

2.Put on a glove (thin type) to avoid touching the
upper and lower drum with your bare hand.

3.Put a few drops of 90% Isopropyl alcohol on the
head cleaning stick or on the chamois cloth and,
by slightly pressing it against the head tip, turn the
upper drum to the right and to the left.

Notes:

1.The video head surface is made of very hard
material, but since it is very thin, avoid cleaning it
vertically.

2.Wait for the cleaned part to dry thoroughly before
operating the unit.

3.Do not reuse a stained head cleaning stick or a
stained chamois cloth.

Cleaning of ACE Head

Clean the head with a cotton swab.

Procedure

1.Remove the top cabinet.

2.Dip the cotton swab in 90% isopropyl alcohol and
clean the ACE Head. Be careful not to damage the
upper drum and other tape running parts.

Notes:

1.Avoid cleaning the ACE Head vertically.

2.Wait for the cleaned part to dry thoroughly before
operating the unit or damage may occur.

Do Not !

Cleaning Stick

Upper
Cylinder

Video Head

Do Not touch
with your bare
hand!

ACE Head

2-2-1 U29PFIX

SERVICE FIXTURE AND TOOLS

J-1-1, J-1-2

J-2

J-3

J-4

J-5

Ref. No. Name Part No. Adjustment

J-1-1 Alignment Tape FL6A Head Adjustment of ACE Head

J-1-2 Alignment Tape FL6N8

(2 Head model)
FL6NS8
(4 Head model)

Azimuth and X Value Adjustment of ACE Head /
Adjustment of Envelope Waveform

J-2 Guide Roller Adj. Screwdriver Available

Locally

Guide Roller

J-3 Mirror Available

Locally

Tape Transportation Check

J-4 Azimuth Adj. Screwdriver + Available

Locally

ACE Head Height

J-5 Flat Screwdriver - Available

Locally

X Value

2-3-1 Z13P2HMA

MECHANICAL ALIGNMENT PROCEDURES

Explanation of alignment for the tape to correctly run
starts on the next page. Refer to the information below
on this page if a tape gets stuck, for example, in the
mechanism due to some electrical trouble of the unit.

Service Information

A. Method for Manual Tape Loading/Unloading

To load a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Insert a cassette tape. Though the tape will not be
automatically loaded, make sure that the cassette
tape is all the way in at the inlet of the Cassette
Holder. To confirm this, lightly push the cassette
tape further in and see if the tape comes back out,
by a spring motion, just as much as you have
pushed in.

4. Turn the LDG Belt in the appropriate direction
shown in Fig. M1 for a minute or two to complete
this task.

To unload a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Make sure that the Moving guide preparations are
in the Eject Position.

4. Turn the LDG Belt in the appropriate direction
shown in Fig. M1 until the Moving guide prepara­tions come to the Eject Position. Stop turning when
the preparations begin clicking or can not be
moved further. However, the tape will be left wound
around the cylinder.

5. Turn the LDG Belt in the appropriate direction con­tinuously, and the cassette tape will be ejected.
Allow a minute or two to complete this task.

B. Method to place the Cassette Holder in the tape-

loaded position without a cassette tape

1. Disconnect the AC Plug.

2. Remove the Top Case and Front Assembly.

3. Turn the LDG Belt in the appropriate direction
shown in Fig. M1. Release the locking tabs shown
in Fig. M1 and continue turning the LDG Belt until
the Cassette Holder comes to the tape-loaded
position. Allow a minute or two to complete this
task.

Moving guide T preparation
(Eject Position)

LDG Belt

Push the locking tab gently to unlock
when loading without a cassette.

Side View

Moving guide S preparation
(Eject Position)

Push the tape
to load it.

UNLOAD
/EJECT

LOAD

Fig. M1

Top View

Cam Gear

LDG Belt (B)

UNLOAD
/EJECT

Fig. M2

Bottom View

2-3-2 Z13P2HMA

1. Tape Interchangeability Alignment

Note:
To do these alignment procedures, make sure that the
Tracking Control Circuit is set to the preset position
every time a tape is loaded or unloaded. (Refer to
page 2-3-4, procedure 1-C, step 2.)

Equipment required:

Dual Trace Oscilloscope
VHS Alignment Tape (FL6N8)
Guide Roller Adj. Screwdriver
Flat Screwdriver (Purchase Locally)

Note: Before starting this Mechanical Alignment, do all
Electrical Adjustment procedures.

Adjust the X Value for maximum envelope.
(Page 2-3-3) (Use Alignment Tape.)

Check to see that the tape is not creasing
and that there is no slack on the supply
and take-up side Guide Rollers.
(Use a blank tape.)

Adjust the height of the Guide Rollers
(Supply side and take-up side).
(Use a blank tape.) (Page 2-3-3)

Loading (Use a blank tape.)

Adjust the envelope. (Page 2-3-4)

Check the envelope.

Adjust the Audio Section.
(Azimuth Alignment) (Page 2-3-4)

Check the audio output.

Check the following:

1. X Value (Page 2-3-3)

2. Envelope (Page 2-3-4)

Adjust the X value and envelope.

No good

Completion

No good

OK

OK

OK

No good

No good

OK

Flowchart of Alignment for tape traveling

1-A

1-A

1-B

1-C

1-C

1-D

1-D

1-B, 1-C

1-B, 1-C

Do the final tape-traveling test to see that
the tape runs normally in play mode with­out creasing or slacking.

OK

Check to see that the tape is not creasing
and that there is no slack on the REV Post.
(Use a blank tape.)

1-E

1-A

2-3-3 Z13P2HMA

1-A. Preliminary/Final Checking and

Alignment of Tape Path

Purpose:

To make sure that the tape path is well stabilized.

Symptom of Misalignment:

If the tape path is unstable, the tape will be damaged.

Note: Do not use an Alignment Tape for this proce­dure. If the unit is not correctly aligned, the tape may
be damaged.

1. Playback a blank cassette tape and check to see
that the tape runs without creasing at Guide Rollers
[2] and [3], and at points A and B on the lead sur­face. (Refer to Fig. M3 and M4.)

2. If creasing is apparent, align the height of the guide
rollers by turning the top of Guide Rollers [2] and
[3] with a Guide Roller Adj. Screwdriver. (Refer to
Fig. M3 and M5.)

3. Check to see that the tape runs without creasing at
Take-up Guide Post [4] or without snaking between
Guide Roller [3] and ACE Head. (Fig. M3 and M5)

4. If creasing or snaking is apparent, adjust the Tilt
Adj. Screw of the ACE Head. (Fig. M6)

1-B. X Value Alignment

Purpose:

To obtain maximum PB FM envelope signal at the pre­set position of the Tracking Control Circuit, align the
Horizontal Position of the ACE Head.

Symptom of Misalignment:

If the Horizontal Position of the ACE Head is not prop­erly aligned, maximum PB FM envelope cannot be
obtained at the preset position of the Tracking Control
Circuit.

1. Connect the oscilloscope to TP008 (C-PB) and
TP001 (CTL) on the Main CBA. Use TP002 (RF­SW) as a trigger.

2. Playback the Gray Scale of the Alignment Tape
(FL6N8) and confirm that the PB FM signal is
present.

3. Set the Tracking Control Circuit to the preset posi­tion by pressing CH UP button on the remote con­trol unit then “PLAY” button on the unit. (Refer to
note on bottom of page 2-3-4.)

4. Use the Flat Screwdriver so that the PB FM signal
at TP008 (C-PB) is maximum. (Fig. M6)

Guide Roller [2]

Guide Roller [3]

A

B

Take-up Guide Post [4]

ACE Head

Fig. M3

Lead Surface of Cylinder

Tape

Fig. M4

Take-up Guide
Post

Tape

Guide Roller

Tape

Correct

Incorrect

Fig. M5

Azimuth Adj. Screw

Flat
Screwdriver

Tilt Adj. Screw

ACE Head

Fig. M6

2-3-4 Z13P2HMA

5. To shift the CTL waveform, press CH UP or CH
DOWN button on the remote control unit. Then
make sure that the maximum output position of PB
FM envelope signal become within

±2ms from pre-

set position.

6. Set the Tracking Control Circuit to the preset posi­tion by pressing CH UP button on the remote con­trol unit. and then “PLAY” button.

1-C. Checking/Adjustment of Envelope

Waveform

Purpose:

To achieve a satisfactory picture, adjust the PB FM
envelope becomes as flat as possible.

Symptom of Misalignment:

If the envelope output is poor, noise will appear in the
picture. The tracking will then lose precision and the
playback picture will be distorted by any slight varia­tion of the Tracking Control Circuit.

1. Connect the oscilloscope to TP008 (C-PB) on the
Main CBA. Use TP002 (RF-SW) as a trigger.

2. Playback the Gray Scale on the Alignment Tape
(FL6N8). Set the Tracking Control Circuit to the
preset position by pressing CH UP button and then
“PLAY” button on the unit. Adjust the height of
Guide Rollers [2] and [3] (Fig. M3, Page 2-3-3)
watching the oscilloscope display so that the enve­lope becomes as flat as possible. To do this adjust­ment, turn the top of the Guide Roller with the
Guide Roller Adj. Screwdriver.

3. If the envelope is as shown in Fig. M7, adjust the
height of Guide Roller [2] (Refer to Fig. M3) so that
the waveform looks like the one shown in Fig. M9.

4. If the envelope is as shown in Fig. M8, adjust the
height of Guide Roller [3] (Refer to Fig. M3) so that
the waveform looks like the one shown in Fig. M9.

5. When Guide Rollers [2] and [3] (Refer to Fig. M3)
are aligned properly, there is no envelope drop
either at the beginning or end of track as shown in
Fig. M9.

Note: Upon completion of the adjustment of Guide
Rollers [2] and [3] (Refer to Fig. M3), check the X
Value by pushing the CH UP or DOWN buttons alter­nately, to check the symmetry of the envelope. Check
the number of pushes to ensure preset position. The
number of pushes CH UP button to achieve 1/2 level of
envelope should match the number of pushes CH
DOWN button from center. If required, redo the “X
Value Alignment.”

No Good

Good

FM envelope output signal is low.

2ms

FM envelope signal

CTL signal

Center Position

FM envelope output signal
is adjusted at maximum.

Fig. M7

Dropping envelope level at the beginning of track.

Fig. M8

Dropping envelope level at the end of track.

Fig. M9

Envelope is adjusted properly. (No envelope drop)

Fig. M10

2-3-5 Z13P2HMA

1-D. Azimuth Alignment of Audio/Con-

trol/ Erase Head

Purpose:

To correct the Azimuth alignment so that the Audio/
Control/Erase Head meets tape tracks properly.

Symptom of Misalignment:

If the position of the Audio/Control/Erase Head is not
properly aligned, the Audio S/N Ratio or Frequency
Response will be poor.

1. Connect the oscilloscope to the audio output jack
on the rear side of the deck.

2. Playback the alignment tape (FL6N8) and confirm
that the audio signal output level is 8kHz.

3. Adjust Azimuth Adj. Screw so that the output level
on the AC Voltmeter or the waveform on the oscillo­scope is at maximum. (Fig. M6)

Note: Upon completion of the adjustment of Azimuth
Adj. Screw, check the X Value by pushing the CH UP
or DOWN buttons alternately, to check the symmetry
of the envelope. Check the number of pushes to
ensure preset position. The number of pushes CH UP
button to achieve 1/2 level of envelope should match
the number of pushes CH DOWN button from center. If
required, redo the “X Value Alignment.”

1-E. Checking and Alignment of Tape

Path during reversing

Purpose:

To make sure that the tape path is well stabilized dur­ing reversing.

Symptom of Misalignment:

If the tape path is unstable during reversing, the tape
will be damaged.

Note: Do not use an Alignment Tape for this proce­dure. If the unit is not correctly aligned, the tape may
be damaged.

1. Insert a black cassette tape into the tray and set
the unit to REV. Then confirm if the tape has been
curled up or bent at the Take-up Guide Post[4] or
REV Post[5]. (Refer to Fig. M11 and M12.)

2. When the tape has been curled up or bent, turn the
alignment screw to adjust the height of REV Post.
(Refer to Fig. M11 and M13.)

Take-up Guide Post [4]

REV Post [5]

Fig. M11

Take-up Guide
Post

Tape

REV Post

Tape

Correct

Incorrect

Fig. M12

Fig. M13

Tape Guide
Assembly

Alignment
Screw

2-4-1 Z13PDA

DISASSEMBLY/ASSEMBLY PROCEDURES

OF DECK MECHANISM

Before following the procedures described below, be sure to remove the deck assembly from the cabinet. (Refer to
CABINET DISASSEMBLY INSTRUCTIONS on page 1-5-1 of Main Section.)
All the following procedures, including those for adjustment and replacement of parts, should be done in Eject
mode; see the positions of [41] and [42] in Fig. DM1 on page 2-4-3. When reassembling, follow the steps in reverse
order.

STEP
/LOC.

No.

START-

ING
No.

PAR T

REMOVAL INSTALLATION

Fig. No.

REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER

ADJUSTMENT

CONDITION

[1] [1] Guide Holder A T DM3 2(S-1)

[2] [1]

Cassette Holder
Assembly

T DM4 (S-10)

[3] [2] Slider (SP) T DM5 (S-1A), *(L-1)

[4] [2] Slider (TU) T DM5 *(L-2)

[5] [4] Lock Lever T DM5 *(L-3), *(P-1)

[6] [2] Cassette Plate T DM5

[7] [7] Cylinder Assembly T DM1, DM6 Desolder, 3(S-2)

[8] [8] Loading Motor Assembly T DM1, DM7

Desolder, LDG Belt,
2(S-3)

[9] [9] ACE Head Assembly T DM1, DM7 (S-4)

[10] [2]

Tape Guide Arm
Assembly

TDM1, DM8-1 *(P-2)

[11] [10] C Door Opener T DM1, DM8-1 (S-4A), *(L-4)

[12] [11] Pinch Arm (B) T

DM1, DM8-1,
DM8-2

*(P-3)

[13] [12] Pinch Arm (A) Assembly T

DM1, DM8-1,
DM8-2

[14] [14] FE Head T DM1, DM9 (S-5)

[15] [15] Prism T DM1, DM9 (S-6)

[16] [2],[15] Sensor Gear T DM1, DM9

[17] [2] Slider Shaft T DM10 *(L-5)

[18] [17] C Drive Lever (SP) T DM10

[19] [17] C Drive Lever (TU) T DM10 (S-7), *(P-4)

[20]

[7],[8],

[10]

Capstan Motor B DM2, DM11 3(S-8), Cap Belt

[21] [21] Clutch Assembly B DM2, DM12 (C-1)

[22] [22] Cam Holder Assembly B DM2, DM12 *(L-6)

[23] [23] Cam Gear (B) B DM2, DM12 (C-2), *(P-5)

[24] [24] Mode Gear B DM2, DM13-1 (C-3)

[25]

[21],[23],

[24]

Mode Lever B

DM2, DM13-1,
DM13-2

(C-4), *(L-8)

[26] [22] Worm Holder B DM2, DM13-1 (S-9), *(L-9), *(L-10)

[27] [26] Pulley Assembly B DM2, DM13-1

[28] [25],[26] Cam Gear (A) B

DM2, DM13-1,
DM13-2

[29] [25] Idler Gear B DM1, DM14

[30] [29] Idler Arm B DM1, DM14 *(L-11)

[31] [25] BT Arm B DM2, DM14 *(P-6)

2-4-2 Z13PDA

(1): Follow steps in sequence. When reassembling, follow the steps in reverse order.

These numbers are also used as identification (location) No. of parts in the figures.

(2): Indicates the part to start disassembling with in order to disassemble the part in column (1).

(3): Name of the part

(4): Location of the part: T=Top B=Bottom R=Right L=Left

(5): Figure Number

(6): Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered.

P=Spring, W=Washer, C=Cut Washer, S=Screw, *=Unhook, Unlock, Release, Unplug, or Desolder

e.g., 2(L-2) = two Locking Tabs (L-2).

(7): Adjustment Information for Installation

(+):Refer to Deck Exploded Views for lubrication.

[32] [25]

Loading Arm (SP)
Assembly

BDM2, DM14

(+)Refer to Alignment
Sec.Page 2-5-1

[33]

[32]

Loading Arm (TU)
Assembly

BDM2, DM14

(+)Refer to Alignment
Sec.Page 2-5-1

[34] [2],[25] M Brake (TU) Assembly T DM1, DM15 *(P-7), Brake Belt

[35] [2],[25] M Brake (SP) Assembly T DM1, DM15 *(P-8)

[36] [35] Tension Lever Assembly T DM1, DM15

[37] [36] T Lever Holder T DM15 *(L-12)

[38] [34] Reel (TU)(D2) T DM1, DM15

[39] [38] M Gear T DM1, DM15

[40] [36] Reel (SP)(D2) T DM1, DM15

[41] [32],[36]

Moving Guide S
Preparation

TDM1, DM16

[42] [33]

Moving Guide T
Preparation

TDM1, DM16

[43] [19] TG Post Assembly T DM1, DM16 *(L-13)

[44] [28] Rack Assembly R DM17 *(P-9)

(+)Refer to Alignment
Sec.Page 2-5-1

[45] [44] F Door Opener R DM17

[46] [46] Cleaner Assembly T DM1, DM6

[47] [46] CL Post T DM6 *(L-14)

↓

(1)

↓

(2)

↓

(3)

↓

(4)

↓

(5)

↓

(6)

↓

(7)

STEP
/LOC.

No.

START-

ING
No.

PAR T

REMOVAL INSTALLATION

Fig. No.

REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER

ADJUSTMENT

CONDITION

2-4-3 Z13PDA

[14]

[13]

[11]

[10]
[12]

[7] [8]

[30][40] [16] [39] [38]

[42][41] [43][9]

[34]

[15]

[36]

[35]

[29]

Fig. DM1

Top View

[46]

[32]

[20]

[33]

[24]

[25]

[27]

[26]

[23]

[28]

[31][21][22]

Bottom View

Fig. DM2

2-4-4 Z13PDA

[1]

(S-1)

(S-1)

Fig. DM3

Fig. DM4

Locking tab

View for A

First, while pushing the locking tab as
shown at right, slide and pull up the right
side on [2] to release Pin A and Pin B from
the slots A.
Then, remove Pin C and Pin D on [2] from
the slots B as shown.

Slot A

Slots B

Pin A

Slot A

Pin B

[2]

Pin C

Pin D

Pull up

Slide

1

2

A

(S-10)

[3]

[6]

[6]

(L-2)

Pin A

Hole A

Pin B

Hole B

(L-1)

First, insert [6] diagonally in [3] as shown below. Then,
install [6] in [3] while pushing (L-1) in a direction of
arrow. After installing [6] in [3], confirm that pin A of [3]
enters hole A of [6] properly.

Installation of [3] and [6]

View for A

2

1

[4]

Install [6] in [4] while pulling (L-2) in a direction of
arrow. After installing [6] in [4], confirm that pin B of [4]
enters hole B of [6] properly.

Installation of [4] and [6]

View for B

[3]

[4]

[5]

[6]

(L-1)

(L-2)

(P-1)

(L-3)

(S-1A)

A

B

Fig. DM5

2-4-5 Z13PDA

Fig. DM6

Desolder
from bottom

Lead with
Red Stripe

View for A

(S-2)

[7]

(L-14)

[46]

[47]

A

View for A

Desolder
from bottom

Lead with White Stripe

Fig. DM7

A

[8]

[9]

(S-4)

(S-3)

LDG
Belt

[8]

Pin of [12]

Pin of [10]

Groove of [28]

View for A

Fig. DM8-1

When reassembling [10] and
[12], confirm that pin of [10]
and pin of [12] are in the
groove of [28] as shown.

[28]

[11]

[13]

[12]

A

[10]

(L-4)

(S-4A)

(P-3)

(P-2)

Removal of [11]

1) Remove screw (S-4A).

2) Unhook spring (P-2).

3) Release (L-4) while

holding [12] with a
finger.

4) Loosen a finger

holding [12] and
remove [11].

2-4-6 Z13PDA

Installation of [13] and [12]

Pin of [12]

Groove of [28]

Hook spring (P-3) up to [12]
and [13], then install then to
the specified position so that
[12] will be floated slightly
while holding [12] and [13].
(Refer to Fig. A.)

Fig. A

[13]

[12]

(P-3)

Fig. B (Top view)

Install pin of [12] in groove of [28].
(Refer to Fig. B.)

[28]

Hold [12] and [13] till groove of
pin of chassis looks and fit [13]
in notch of chassis. Then, turn
a few [13] while holding [12].
(Refer to Fig. C.)

Fig. C

Groove of
pin of chassis

Notch of
chassis

turn

[13]

[12]

Install [11] and [10] while holding [12].
(Refer to Fig. DM8-1.)

Fig. DM8-2

Fig. DM9

[14]

[15]

(S-6)

(S-5)

[16]

Fig. DM10

[18]

[17]

[19]

(S-7)

(L-5)

(P-4)

2-4-7 Z13PDA

[20]

(S-8)

Cap Belt

[20]

[21] Cap Belt

A

Installation position of Cap Belt

View for A

Fig. DM11

Fig. DM12

(L-6)

[22]

[23]

(P-5)

[21]

(C-1)

(C-2)

(P-5)

[28]

When installing [23], install
the spring (P-5) to [28] as
shown in the left figure, and
then install [23] while
pressing the spring (P-5) to
the direction of the arrow in
the left figure and confirming
that the position of the
spring (P-5) is placed as
shown in the left figure.

Pin on
bottom
of [23]

[23]

[28]

Pin on [22]

Position of pin on [22]

Top View

2-4-8 Z13PDA

[24]

(C-4)

(S-9)

[25]

[27]

[26]

[28]

(C-3)

(L-8)

(L-9)

(L-10)

Fig. DM13-1

Pin of [34]

Pin of [31]

Position of Mode Lever when installed

Pin of [35]

Align [25] and [28] as shown.

Bottom View

[28]

[25]

[28]

Top View

First tooth on [44]

First groove on [28]

Installation of [25]

When reassembling [28],
align the first groove on
[28] to the first tooth on
[44] as shown.

Fig. DM13-2

Fig. DM14

Refer to the Alignment
Section, Page 2-5-1.

[30]

[29]

(L-11)

(P-6)

[32]

[33]

[31]

Fig. DM15

turn

turn

Break belt

[35]

[38]

[39]

[40]

[36]

(P-8)

(P-7)

turn

[34]

[37]

(L-12)

2-4-9 Z13PDA

Fig. DM16

[43]

[41]

[42]

(L-13)

Fig. DM17

[44]

[45]

Slide

(P-9)

2-5-1 U29PAPM

ALIGNMENT PROCEDURES OF MECHANISM

The following procedures describe how to align the
individual gears and levers that make up the tape load­ing/unloading mechanism. Since information about the
state of the mechanism is provided to the System
Control Circuit only through the Mode Switch, it is
essential that the correct relationship between individ­ual gears and levers be maintained.

All alignments are to be performed with the mech­anism in Eject mode, in the sequence given. Each

procedure assumes that all previous procedures have
been completed.

IMPORTANT:

If any one of these alignments is not performed
properly, even if off by only one tooth, the unit will
unload or stop and it may result in damage to the
mechanical or electrical parts.

Alignment points in Eject Position

Alignment 1

Loading Arm (SP) and (TU) Assembly

Install Loading Arm (SP) and (TU) Assembly so
that their triangle marks point to each other as
shown in Fig. AL2.

Alignment 2

Mode Gear

Keeping the two triangles pointing at each other,

install the Loading Arm (SP) Assembly so that the
last tooth of the gear meets the most inside teeth
of the Mode Gear. See Fig. AL2.

Alignment 3

Cam Gear (A), Rack Assembly

Install the Rack Assembly so that the first tooth on
the gear of the Rack Assembly meets the first
groove on the Cam Gear (A) as shown in Fig. AL3.

Alignment 3

Alignment 1

Top View

Fig. AL1

Bottom View

Alignment 2

Fig. AL2

Loading Arm
(TU) Assembly

Triangle Marks

Loading Arm
(SP) Assembly

Mode Gear

Last Tooth

Alignment 1

Alignment 2

Most inside teeth
of Mode Gear

Fig. AL3

Cam Gear (A)

First tooth

First groove
on the Cam Gear (A)

Alignment 3

Top View

Gear on Rack Assembly

2-6-1 Z13P2HDEX

DECK EXPLODED VIEWS

Deck Mechanism View 1

Mark Description

Floil G-684G or Multemp MH-D

(Blue grease)

SLIDUS OIL #150

B12

B492

B11

B571

B37

Some Ref. Numbers are not in sequence.

B126

B8

B121

B426

B560

L1450

L1450

L1466

B501

Chassis Assembly
Top View (Lubricating Point)

Chassis Assembly
Bottom View (Lubricating Point)

B410

B74

L1051

B35

B411

B494

B567

L1053

L1191

B73

B9

L1467

B553

B2

B10

2-6-2 Z13P2HDEX

Deck Mechanism View 2

Mark Description

Floil G-684G or Multemp MH-D
(Blue grease)

SLIDUS OIL #150
SANKOUL FG84M (Yellow grease)

B508

B414

View for A

(Grease point)

B516

B559

B52

B134

B133

B568

B569

B565

B417

Some Ref. Numbers are not in sequence.

Bottom Side (Grease point)

B507

B488

B570

B491

B513

B502

Bottom Side
(Grease point)

L1151

B525

B592

B31

L1406

B148

B558

B557

B3

B522

B521

B520

B590

B564

B573

B574

B591

B416

A

B487

B499

B587

2-6-3 Z13P2HDEX

Deck Mechanism View 3

Mark Description

Floil G-684G or Multemp MH-D

(Blue grease)

SLIDUS OIL #150

B563

B300

B562

B482

B355

B354

B483

B425

L1321

B347

L1321

B313

L1341

B303

B555

B514

Some Ref. Numbers are not in sequence.

B361

B359

B529

B360

B561

L1474

20040511 2-7-1 T6608DPL

DECK PARTS LIST

NOTE:

Five different, but interchangeable, types of B558
(LOADING MOTOR) may be installed in these models.
Please confirm B558 (LOADING MOTOR) type by a
part number on it. B558 (LOADING MOTOR) type var­ies in combination with L1151. Please see Table 1 for
details and combination.

Table 1 (B558 and L1151 Combination)

LOADING MOTOR (B558) SCREW (L1151)

Description Parts No. Description Parts No.

LOADING MOTOR
M31E-1 R-14 7376

MMDZB12MM003

SCREW, SEMS
M2.6X4 PAN HEAD+

CPM39040

LOADING MOTOR
M31E-1 R-14 7391

MMDZB12MM004

LOADING MOTOR
M31E-1 R-14 7377

MMDZB12MM006

LOADING MOTOR
MDB2B80

MMDZB12SJ008

SCREW, SEMS
M3X4 PAN HEAD+

CPM33040
LOADING MOTOR
MDB2B82

MMDZB10SJ001

Ref. No. Description Part No.

B2 CYLINDER ASSEMBLY MK12.5 PAL 2HD 2SP N2328CYL

B3 LOADING MOTOR ASSEMBLY MK11 TVCR 0VSA13465

B8 PULLEY ASSEMBLY MK12 0VSA13500

B9 MOVING GUIDE S PREPARATION MK12 0VSA13560

B10 MOVING GUIDE T PREPARATION MK12 0VSA13562

B11 LOADING ARM(TU) ASSEMBLY MK12 0VSA13300

B12 LOADING ARM(SP) ASSEMBLY MK12 0VSA13299

B31 AC HEAD ASSEMBLY(PB FREE) MK12(TVCR) 0VSA14902

B35 TAPE GUIDE ARM ASSEMBLY MK12.5 0VSA15014

B37 CAPSTAN MOTOR 288/VCZC1303 N9683CML

B52 CAP BELT MK10 0VM411138

B73 FE HEAD ASSEMBLY MK11 or N9742FEL

FE HEAD ASSEMBLY MK11 or N9743FEL

FE HEAD(MK11) MH-131SF11 or DHVEC01Z0005

FE HEAD(MK11) VTR-1X2ERS11-148 or DHVEC01TE004

FE HEAD(MK12) VTR-1X2ERS11-155 or DHVEC01TE005

FE HEAD(MK12) HVFHP0047A DHVEC01AL007

B74 PRISM MK10 0VM202870

B121 WORM MK12 0VM414091

B126 PULLEY MK12 0VM414330B

B133 IDLER GEAR MK12 0VM305738

B134 IDLER ARM MK12 0VM305739

B148 TG CAP MK11 0VM412972

B300 C DRIVE LEVER(TU) MK12 0VM203773

B303 F DOOR OPENER MK12 0VM203751C

B313 C DRIVE SPRING MK12 0VM414145

B347 GUIDE HOLDER A MK10 0VM304920

B354 SLIDER(TU) MK12 0VM101172F

B355 SLIDER(SP) MK12 0VM101182K

B359 CLEANER LEVER MK10 0VM304413

B360 CLEANER ROLLER MK9 0VM410032C

B361 CL POST MK10 0VM411114

B410 PINCH ARM(A) ASSEMBLY(4) MK12 or 0VSA13572

PINCH ARM(A) ASSEMBLY(5) MK12 0VSA13788

B411 PINCH SPRING MK12 0VM414644

B414 M BRAKE(SP) ASSEMBLY MK12.5 0VSA14994

B416 M BRAKE(TU) ASSEMBLY MK12 0VSA13283

B417 TENSION SPG(3002645) MK12.5 0VM414221G

B425 LOCK LEVER SPRING MK10 0VM411110

B426 KICK PULLEY MK10 0VM411095

B482 CASSETTE PLATE MK12 0VM203749

B483 LOCK LEVER MK12 0VM414095

B487 BAND BRAKE(SP) MK12 0VM305723

B488 MODE LEVER MK12.5 0VM101351

B491 CAM GEAR(A) MK12 0VM101174

B492 MODE GEAR MK12 0VM203769

B494 C DOOR OPENER MK12 0VM305719

B499 T LEVER HOLDER MK12 0VM305729

B501 WORM HOLDER MK12 0VM203767

B502 CAM GEAR(B) MK12 0VM305721

B507 REEL WASHER MK9 5*2.1*0.5 0VM410058

B508 S BRAKE SPRING MK10 0VM411121

B513 CAM WASHER MK12 0VM414741

B514 SCREW RACK MK10 0VM411535

B516 REEL WASHER MK9 5*2.1*0.5 0VM410058

B520 TU BRAKE SPRING MK12 0VM414285

B521 REV BRAKE SPRING MK12 0VM414222

B522 TG POST ASSEMBLY MK11 0VSA12080

B525 LDG BELT MK11 0VM412804

B529 CLEANER ASSEMBLY MK10 0VSA11161

B553 REV SPRING MK11 0VM412555

B555 RACK ASSEMBLY MK12 0VSA13289

B557 MOTOR PULLEY U5 or 0VM403205A

MOTOR PULLEY U5 0VM403205A

B558 LOADING MOTOR MDB2B82 or MMDZB10SJ001

LOADING MOTOR MDB2B80 or MMDZB12SJ008

LOADING MOTOR M31E-1 R-14 7376 or MMDZB12MM003

LOADING MOTOR M31E-1 R14 7391 or MMDZB12MM004

LOADING MOTOR M31E-1 R-14 7377 MMDZB12MM006

B559 CLUTCH ASSEMBLY MK12 or 0VSA13284

CLUTCH ASSEMBLY(64) MK12 0VSA14459

B560 KICK SPRING MK10 0VM411475A

B561 F DOOR SPRING MK10 0VM411430

B562 C DRIVE LEVER(SP) MK12 0VM203772

B563 SLIDER SHAFT MK12 0VM305762

B564 M GEAR MK12 0VM305735

B565 SENSOR GEAR MK12 0VM305736

B567 PINCH ARM(B) MK12 0VM305718

B568 BT ARM MK12 0VM305728

B569 CAM HOLDER(F) MK12 0VM305722

B570 CAM RACK SPRING(HI) MK11 0VM412923

B571 P.S.W CUT 1.6X4.0X0.5T 0VM408485A

B573 REEL(SP)(D2) MK12 0VM203755

B574 REEL(TU)(D2) MK12 0VM203756

B587 TENSION LEVER ASSEMBLY MK12 0VSA13279

B590 BRAKE ARM(TU) MK12 0VM203752E

B591 BAND BRAKE(TU) MK12 0VM305724C

B592 TG POST MK11 0VM412550

L1051 SCREW, B-TIGHT M2.6X6 PAN HEAD+ GPMB9060

L1053 SCREW, S-TIGHT M2.6X8 WASHER HEAD+ GCMS9080

Ref. No. Description Part No.

20040511 2-7-2 T6608DPL

L1151 SCREW, SEMS M3X4 PAN HEAD + or CPM33040

SCREW, SEMS M2.6X4 PAN HEAD+ CPM39040

L1191 SCREW, S-TIGHT M2.6X8 WASHER HEAD+ GCMS9080

L1321 SCREW, S-TIGHT M3X6 BIND HEAD+ GBMS3060

L1341 SCREW, P-TIGHT M2X6 PAN HEAD+ GPMP2060

L1406 AC HEAD SCREW MK9 0VM410964

L1450 SCREW, SEMS M2.6X5 PAN HEAD+ CPM39050

L1466 SCREW, S-TIGHT M2.6X6 BIND HEAD+ GBMS9060

L1467 SCREW M2.6X5 WASHER HEAD+ SCM39050

L1474 SCREW, P-TIGHT M2.6X12 WASHER HEAD+ GCMP9120

Ref. No. Description Part No.

LT-VHS-36

T6608FJ

2004-06-03
