TOA Electronics C-RM1000 CU User Manual

Thank you for purchasing TOA's Remote Controller. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

REMOTE CONTROLLER C-RM1000 CU

OPERATING INSTRUCTIONS

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS .................................................................................. 5

2. GENERAL DESCRIPTION ............................................................................... 7

3. FUNCTIONS .......................................................................................................... 7

4. HANDLING PRECAUTIONS ............................................................................ 8

5. CONNECTABLE EQUIPMENT AND THEIR MAXIMUM NUMBERS

5.1. Equipment that can be controlled by the Remote Controller ............................... 8

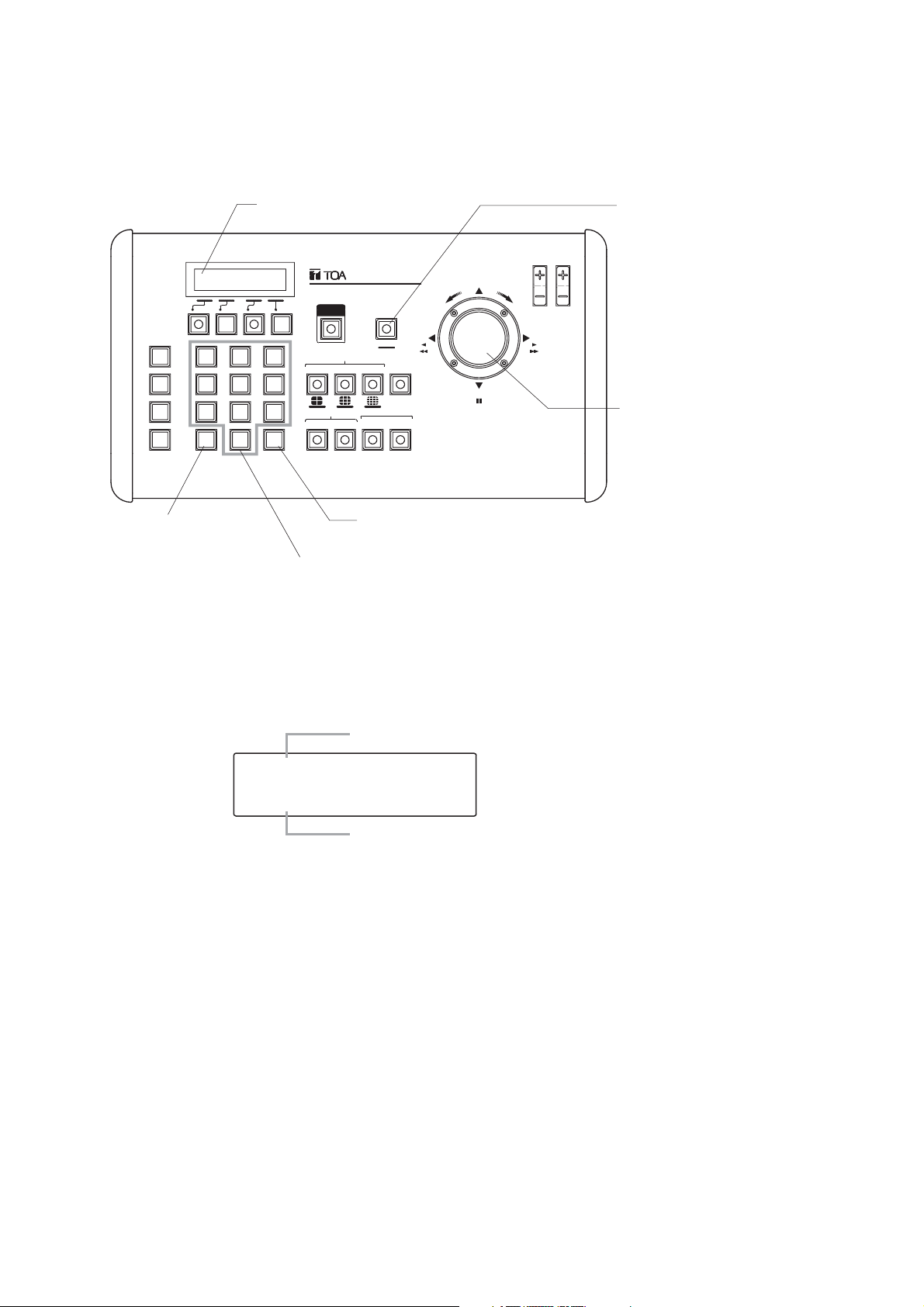

6. NOMENCLATURE AND FUNCTIONS

[ Top Panel ] ............................................................................................................. 10

[ Rear Panel ] ........................................................................................................... 12

7. EQUIPMENT SELECTION

7.1. Digital Video Recorder Selection ...................................................................... 13

7.1.1. Group selection (cascade connection only) ............................................ 13

7.2. Monitor Selection .............................................................................................. 13

7.3. Camera Selection .............................................................................................. 14

7.3.1. Quick group camera selection

(available only when cascade-connected) ............................................. 14

8. MONITOR DISPLAY

8.1. Full Screen Display ........................................................................................... 15

8.2. Multi-Screen Display ......................................................................................... 16

8.3. 4-Segment Split-Screen Display ....................................................................... 16

8.4. 9-Segment Split-Screen Display ....................................................................... 17

8.5. 16-Segment Split-Screen Display ..................................................................... 17

8.6. Changing the Multi-Screen Display Position ..................................................... 18

8.7. Sequential Display ............................................................................................ 18

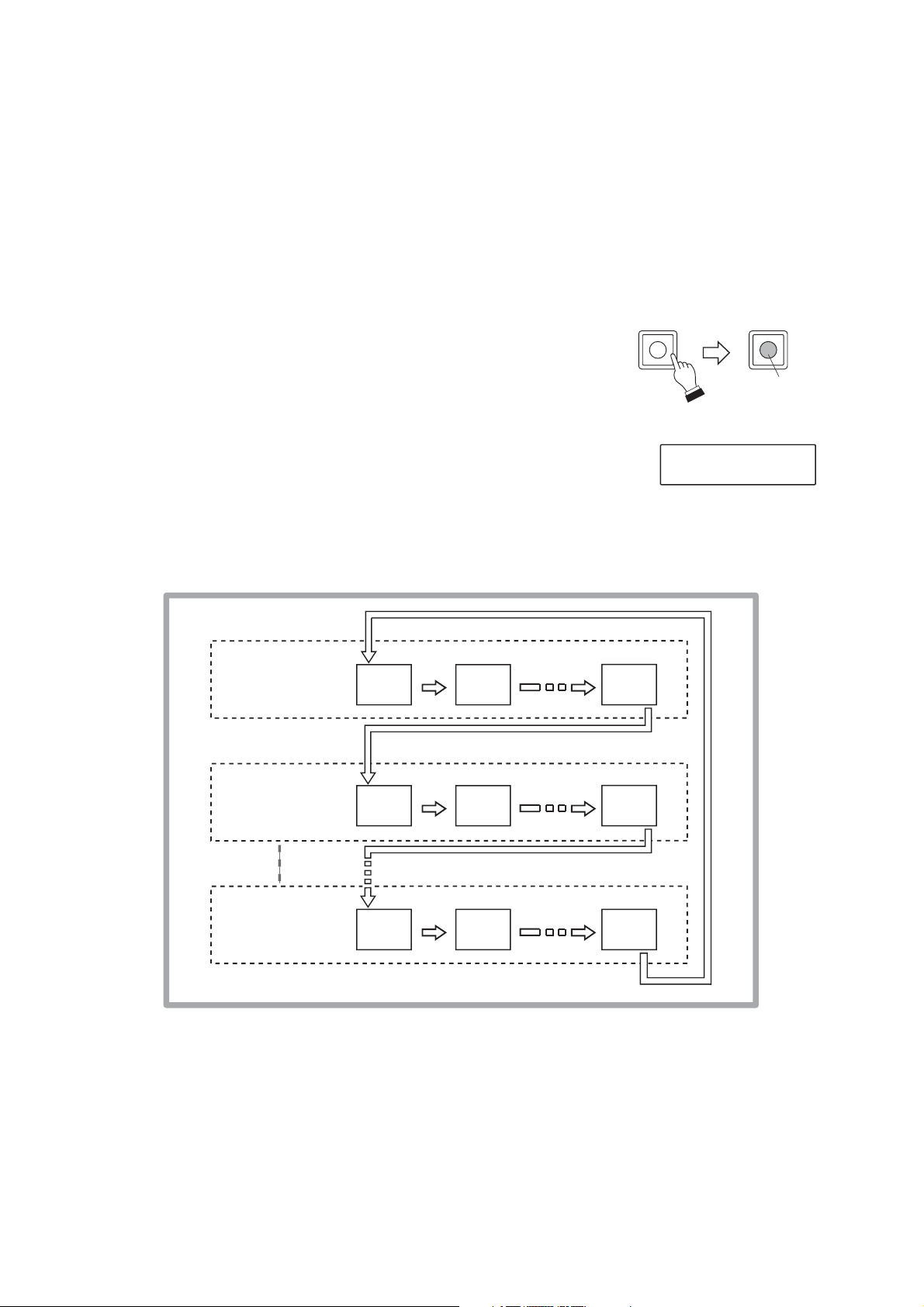

8.8. Group Sequential Display ................................................................................. 19

8.9. Zoom Display (Electronic zoom) ....................................................................... 20

9. COMBINATION CAMERA OPERATION

9.1. Camera Rotation and Zoom Operation Using the Joystick ............................... 21

9.2. Focus Adjustment ............................................................................................. 21

9.3. Iris Operation (Communication method: Type B only) ...................................... 22

9.4. Auto-Function Operation ................................................................................... 22

9.5. Camera Position Selection ................................................................................ 22

9.6. Focus Speed Settings ....................................................................................... 23

9.7. Utilization of the Abbreviation Number Function ............................................... 23

SETTINGS

GENERAL DESCRIPTION

9.8. Combination Camera Menu Display ................................................................. 23

9.9. Storing the Preset Positions .............................................................................. 24

9.10. Deleting Preset Position Data (Communication method: Type B only) ........... 24

10. DIGITAL VIDEO RECORDER OPERATION

10.1. Video Recording ................................................................................................ 25

10.1.1. LED indication during recording ............................................................ 25

10.1.2. Priority recording operation ................................................................... 25

10.1.3. Resetting alarm event recording ........................................................... 26

10.1.4. Making normal recording ...................................................................... 26

10.2. Playback Operation

10.2.1. Playback mode settings ........................................................................ 26

10.2.2. Reverse playback ................................................................................. 26

10.2.3. Stop operation ....................................................................................... 27

10.2.4. Forward/reverse quick playback ........................................................... 27

10.2.5. Time skip forward/reverse playback ..................................................... 27

10.2.6. Pause operation .................................................................................... 27

10.2.7. Frame advance/reverse playback ......................................................... 28

10.2.8. Instant event access playback .............................................................. 28

10.2.9. Earliest image playback ........................................................................ 28

10.2.10. Lastest image revers playback .............................................................. 28

10.3. Search Operation .............................................................................................. 29

10.4. Digital Video Recorder Menu Display ................................................................ 29

10.5. Motion Detection Area Settings ......................................................................... 30

10.6. Archiving ............................................................................................................ 30

10.7. Triplex Settings .................................................................................................. 31

10.8. Entering the Digital Video Recorder Password

10.8.1. Log-in .................................................................................................... 32

10.8.2. Log-out .................................................................................................. 32

11. OTHER OPERATIONS

11.1. Log-In and Log-Out ........................................................................................... 33

11.1.1. Log-in .................................................................................................... 33

11.1.2. Log-out .................................................................................................. 33

11.2. Abbreviation Number ......................................................................................... 34

11.3. Alarm Operations

11.3.1. When alarm is triggered ........................................................................ 34

11.3.2. To stop a buzzer tone ........................................................................... 35

11.3.3. To reset alarm ....................................................................................... 35

11.3.4. Putting screen switching on hold when an alarm occurs ...................... 35

12. SETTINGS

12.1. Setting Item Summaries .................................................................................... 36

12.1.1. Remote controller menu list .................................................................. 37

12.2. Setting Keys and Display Screen ...................................................................... 38

12.3. Basic Setting Operations ................................................................................... 39

12.3.1. Displaying the menu ............................................................................. 39

12.3.2. Operation during menu display ............................................................. 39

12.3.3. Closing the menu .................................................................................. 39

OPERATION

12.4. Function Settings ............................................................................................... 40

12.4.1. Group settings ....................................................................................... 40

12.4.2. Abbreviation .......................................................................................... 41

12.4.3. Abbreviation (Quick display function) .................................................... 42

12.4.4. Abbreviation (Function programming) ................................................... 43

12.4.5. Camera protocol ................................................................................... 45

12.4.6. Password .............................................................................................. 46

12.4.7. Focus speed ......................................................................................... 48

12.4.8. Buzzer tone ........................................................................................... 48

12.4.9. Key operation tone ................................................................................ 49

12.4.10. I/O speed ............................................................................................... 49

12.4.11. DVR check ............................................................................................ 49

12.4.12. Monitor lock ........................................................................................... 50

12.4.13. Language .............................................................................................. 51

12.4.14. Initial status ........................................................................................... 51

12.4.15. Joystick position adjustment .................................................................. 51

12.4.16. Expansion .............................................................................................. 51

13. CONNECTIONS

13.1. Equipment Connections .................................................................................... 52

13.1.1. Combination camera ............................................................................. 52

13.1.2. Digital video recorder ............................................................................ 52

13.1.3. Interface unit ......................................................................................... 52

13.2. System Example

13.2.1. Basic system ......................................................................................... 53

13.2.2. Expanded Digital video recorder system (Cascade-connection) .......... 54

13.2.3. Connections between the Remote controller

and the Digital video recorder ...................................... 55

14. DIGITAL VIDEO RECORDER FAILURE INDICATION

14.1. Remote Controller Indication and Status ........................................................... 56

14.1.1. Stopping the buzzer tone ...................................................................... 56

15. TROUBLESHOOTING ..................................................................................... 57

16. OPERATION GUIDE ......................................................................................... 58

17. SPECIFICATIONS ............................................................................................. 60

Accessories .............................................................................................................. 60

Optional products ..................................................................................................... 60

WHEN YOU NEED HELP

CONNECTIONS

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.

• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included.

• We also recommend you keep this instruction manual handy for future reference.

Safety Symbol and Message Conventions

Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. Before operating your product, read this manual first and understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.

Indicates a potentially hazardous situation which, if mishandled, could result in death or serious personal injury.

WARNING

When Installing the Unit

• This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

• Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.

• Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects -- including the unit itself -- on the power cord, as doing so may result in fire or electric shock.

• Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the unit falling down and causing personal injury and/or property damage.

When the Unit is in Use

• If any of the following irregularities occurs, immediately switch off the power, disconnect the power supply plug from the AC outlet and inform the shop from where the unit was purchased. Further using the unit may result in fire or electric shock.

· If you detect smoke or a strange smell coming form the unit

· If water or any metallic object gets into the unit

· If the unit falls, or the unit case breaks

· If the power supply cord is damaged (exposure of the core, disconnection, etc.)

· If no audio signal outputs

· If no image appears

• To prevent a fire or electric shock, never open the unit case nor modify the unit as there are high voltage components inside the unit. Refer all servicing to your nearest TOA dealer.

• Do not place cups, bowls, or other containers of liquid or metallic objects on top of the unit. If they accidentally spill into the unit, this may cause a fire or electric shock.

• Do not touch the power supply plug or control line during thunder and lightning, as this may result in electric shock.

Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in fire or electric shock.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor personal injury, and/or property damage.

CAUTION

When Installing the Unit

• Never plug in nor remove the power supply plug with wet hands, as doing so may cause electric shock.

• When unplugging the power supply cord, be sure to grasp the power supply plug; never pull on the cord itself. Operating the unit with a damaged power supply cord may cause a fire or electric shock.When removing the power cord, be sure to hold its plug to pull.

• When moving the unit, be sure to remove its power supply cord from the wall outlet. Moving the unit with the power supply cord connected to the outlet may cause damage to the power supply cord, resulting in fire or electric shock.

• Avoid installing the unit in humid or dusty locations, in locations exposed to the direct sunlight, near the heaters, or in locations generating sooty smoke or steam as doing otherwise may result in fire or electric shock.

• Do not connect a network terminal exposed to excessive voltage to the DVR control output terminal A, as doing so may result in fire or electric shock.

When the Unit is in Use

• Do not place heavy objects on the unit as this may cause it to fall or break which may result in personal injury and/or property damage. In addition, the object itself may fall off and cause injury and/or damage.

• Use the dedicated AC adapter for the unit. Note that the use of other adapter may cause a fire.

• Clean the unit periodically. Contact your TOA dealer regarding the cleaning. If dust is allowed to accumulate in the unit over a long period of time, a fire may result.

• If dust accumulates on the power supply plug or in the wall AC outlet, a fire may result. Clean it periodically. In addition, insert the plug in the wall outlet securely.

• Switch off the power, and disconnect the power supply plug from the AC outlet when cleaning or leaving the unit unused for long periods of time. Doing otherwise may cause a fire or electric shock.

Note

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Modifications

Any modifications made to this device that are not approved by TOA Corporation may void the authority granted to the user by the FCC to operate this equipment.

CU version complies with Part 15 of the FCC Rules.

2. GENERAL DESCRIPTION

TOA's C-RM1000 Remote Controller is used to remotely control TOA's 9-channel (C-DR091 series) or 16channel (C-DR161 series) Digital Video Recorders. It can also remotely control operation of Combination cameras connected to the Digital Video Recorder. The C-RM1000 is equipped with a 3-axis joystick that permits main operation to be performed with one hand.

3. FUNCTIONS

Digital Video Recorder Control

Digital Video Recorder's recording and playback operation can be remotely controlled by the Remote Controller. It is also possible to display the Digital Video Recorder's menu to change settings.

Screen Display Operation

Camera images can be viewed in full-screen, 4-segment, 9-segment, or 16-segment split screen displays or in sequential displays. (Monitor 2 output can provide only full-screen, 4-segment split screen, and sequential displays.)

Combination Camera Operation

The Combination Camera's pan, tilt, and zoom operation, as well as focus and iris adjustments can be remotely controlled. It is also possible to display the Combination Camera's menu to change settings.

Preset Position Programming and Playback

The Combination Camera's preset positions can be easily programmed. Images set to the preset position can also be displayed on the monitor screen.

Abbreviation Number Function (Quick Display Function)

Digital video recorder numbers, camera numbers, and position numbers can be programmed into a function key (F1 - F4) or number (1 - 508). Pressing the programmed key or number permits the corresponding camera image to be displayed on the full screen.

Abbreviation Number Function (Function Programming)

Functions, such as Auto-focus, Auto operation, and electronic zoom, can be programmed into a function key (F1 - F4) or number (1 - 508).

Digital Video Recorder Grouping

Two or more cascade-connected Digital Video Recorders can be grouped, allowing images of all Digital Video Recorders in the group to be displayed on one master monitor. Further, multiple Digital Video Recorders can be viewed in sequential order through group sequence.

Password Setting

Accessible functions can be restricted by setting a password. There are 3 operation levels and different passwords can be set for each level.

Monitor Lock

Restricts operable monitors connected to the digital video recorder’s monitor outputs 1 and 2. This eliminates the necessity of operation for switching the monitors and prevents malfunctions.

4. HANDLING PRECAUTIONS

• Do not connect the AC adapter when using the supplied modular cable since the power is supplied from the Digital Video Recorder.

• Do not connect the DVR Control Output Terminal A (RJ-11) to the telephone line.

• Do not lift the Remote Controller by joystick or subject the Controller to strong shocks. Damage may be caused to the Controller.

• To clean the front panel, wipe with a soft cloth. Do not use thinner or alcohol.

• The Remote Controller is designed for indoor use, and cannot be used outdoors.

5. CONNECTABLE EQUIPMENT AND THEIR MAXIMUM NUMBERS

5.1. Equipment that can be controlled by the Remote Controller

The following equipment can be controlled by the Remote Controller.

Communication method

Communications method Type A: C-CC501, C-CC504, C-CC551, and C-CC554

Communications method Type A/B: C-CC514, C-CC564, C-CC714, and C-CC764

Up to 16 cameras (9 cameras when the 9-channel Digital Video Recorder is used) can be connected per Digital Video Recorder for remote control.

Notes

• The Digital Video Recorder is required to perform control. Cameras cannot be connected directly to the Remote Controller for remote control.

• Avoid connecting more cameras than the number of Digital Video Recorder channels to the camera's control line. Any connected cameras exceeding the maximum number of available channels cannot be controlled.

• The combination camera available for type A and B is factory preset to type A (TOA-A). Use the DIP switch to change to Type B, as required. (Refer to p. 45; Camera Protocol.)

• Multiple combination cameras using different communication methods cannot be connected to a single digital video recorder. Match the communication methods of all connected cameras.

C-DR091 and C-DR161 Series Digital Video Recorders

Up to 8 C-DR091 or C-DR161 Series Digital Video Recorders can be connected to the Remote Controller to remotely control cameras. The Digital Video Recorder's Camera Protocol is factory-preset to Type A (TOA-A).

C-RF1000 Interface Unit

Connecting the C-RF1000 Interface Unit to the Digital Video Recorder permits up to 4 Remote Controllers to be connected. Connected remote controllers are operated on the last-in-first-out basis.

Digital Video Recorder number (DVR):

Refers to the DVR-ID number when the Digital Video Recorders are cascadeconnected.

Monitor number (MON): Refers to the Digital Video Recorder's monitor output number.

There are two monitor outputs: Monitor outputs 1 and 2.

Camera number (CAM): Refers to the camera video input terminal number connected to the Digital

Video Recorder.

Position number (POS): The Combination Camera's orientation can be programmed into a number (1 –

255).

Group number (G): Multiple cascade-connected Digital Video Recorders can be grouped. Up to 8

groups can be set.

Group sequence: A sequence of images from multiple Digital Video Recorders in the same group

can be displayed on the master monitor.

Cascade connection: Images of up to 8 Digital Video Recorders can be monitored on a single

monitor. Images of up to 8 Digital Video Recorders can be switched and cameras can be controlled by a single Remote Controller. (Refer to p.54; Expanded Digital Video Recorder system, (Cascade-connection.))

Priority Recording: Refers to the highest Priority Recording mode. Press the unit's Priority

Recording key to start recording.

Alarm Event Recording: Refers to the Alarm Recording and Motion-detected Recording.

Alarm Recording starts when an alarm signal enters an alarm input terminal of the Digital Video Recorder or Combination Camera. Motion-detected Recording starts when the Digital Video Recorder detects the movement of the camera images.

Alarm hold: The monitor display automatically switches when an alarm signal is received.

The Alarm Hold refers to the mode that prevents the screen from being switched. Digital Video Recorder's Alarm Event Recording is performed even in Alarm Hold mode.

Multi-segment split screen display:

Refers to the 4-segment, 9-segment, or 16-segment split screen.

Live mode: Refers to the mode that displays the current camera images.

Playback mode: Refers to the mode that displays images recorded on a hard disk.

Triplex mode: Refer to the mode that simultaneously displays both playback and live screens.

Playback, live display, and video recording can be simultaneously performed.

Communication method: There are two types, A (TOA-A) and B (TOA-B). Operable functions differ

depending on the type. The camera, Digital Video Recorder and Remote Controller must be identical in communication method. (Refer to p. 45; Camera Protocol.)

Auto-function: Auto-pan, Auto-trace, Preset sequence, and Tour. (Refer to p. 22; Auto-function

Operation.)

Monitor Lock: Restricts operable monitors connected to the digital video recorder’s monitor

outputs 1 and 2. This eliminates the necessity of operation for switching the monitors and prevents malfunctions.

Definition

6. NOMENCLATURE AND FUNCTIONS

[ Top Panel ]

(1) LCD Screen

Displays the setting menu and data of operation status, etc. using characters.

(2) Digital Video Recorder Key [DVR/DVR MENU]

Selects the Digital Video Recorder to be controlled, and the DVR group number. Holding down this key for 2 seconds or more displays the menu of the Digital Video Recorder being selected. This key lights red when the selected Digital Video Recorder is in recording mode.

(3) Monitor Key [MON]

Switches the monitor to be operated by the Remote Controller. The monitor toggles between Monitor 1 and Monitor 2 each time the Monitor key is pressed.

(4) Camera Key [CAM/CAM MENU]

Selects the camera number. Selected cameras can be operated if they are Combination Cameras. Holding down this key for 2 seconds or more displays the menu of the Combination Camera being selected.

(5) Position Key [POS]

Use this key to play back or program the Combination Camera's preset positions.

(6) Priority Recording Key [PRIORITY REC]

Perform priority recording. This key flashes during priority recording. Holding down this key for 2 seconds or more stops priority recording, causing the key to remain unlit. (Refer to p. 25; Video Recording.)

(7)Menu/Shift Key [MENU/SHIFT]

Holding down this key for 2 seconds or more displays the menu screen on the LCD screen. (Refer to p. 36; Settings.)

Shift

Use this key when viewing camera images in multi-segment split screen displays of (19), (20) and (21) or when selecting the DVR group number

Password

When passwords are valid, holding down this key for 2 seconds or more displays the password entry screen.

2 3 4 5 6

REMOTE CONTROLLER C-RM1000

DVR MON CAM POS

PRIORITY

REC

7 8

IRISFOCUS

TELEWIDE

CAM MENUDVR MENU

11 12

SET

14 15 16

DVR

RIGHTLEFT

SEQUENCE

AUTO

SCREEN

MULTIFULL

PLAY / LIVE

SEQUENCE

BUZZER STOP

RESET

SHIFT

ALARM

AUTO

HOLD

DOWN

MULTIFULL

(8) Joystick

In live mode

Performs pan, tilt, and zoom operation of connected Combination Cameras.

In playback mode

Performs playback, reverse playback, fast forward playback, and pause operation.

In menu display mode

Moves the cursor (lever position: up, down, left, or right) and confirms (clockwise lever rotation) or cancels (counterclockwise lever rotation) the setting.

Note

Settings cannot be confirmed (clockwise lever rotation) or cancelled (counterclockwise rotation) while the camera menu is displayed. Use the SET key or C key for confirmation or cancellation.

(9) Focus Key [FOCUS]

In live mode

Adjusts the Combination Camera's focus.

In playback mode (only when temporarily stopped)

Performs instant event access playback.

In menu display mode

Changes set values.

(10) Iris Key [IRIS]

In live mode

Adjusts the camera iris.

Note

This key cannot be used when the communication method is set to Type A. (Refer to p. 45; Camera Protocol.)

In playback mode

Performs playback from the earliest image, or reverses playback from the latest image.

(11) Function Keys [F1

F4]

Abbreviation numbers are assigned to these keys to perform quick display or function programming. (Refer to p. 42; Abbreviation Quick display function, Refer to p. 43; Abbreviation Function programming.)

(12) Clear Key [C]

Use this key to correct the wrong entry of a tenkey numerical pad. While the menu is displayed, this key is used to cancel settings.

(13) Ten-Key Numerical Pad [0

Use this key to enter the DVR number, DVR group number, camera number, position number, or abbreviated number.

(14) Set Key [SET]

Use this key in conjunction with a ten-key numerical pad to enter abbreviation numbers. This key does not work even when pressed without designating the abbreviated number. While the menu is displayed, this key is used to confirm settings.

(15) Search Key [SEARCH]

Displays the search menu.

(16) Playback/Live Key [PLAY/LIVE]

In playback mode

Switches playback to live mode. The key remains lit while in playback mode.

In live mode

Switches live to playback mode, and playback begins.

(17) Alarm Reset Key [BUZZER STOP/RESET]

Stops the buzzer tone. Holding down this key for 2 seconds or more stops alarm event recording. The key flashes during alarm event recording or when the Digital Video Recorder fails.

(18) Alarm Hold Key [HOLD]

Prevents the Digital Video Recorder from changing the screen when it receives an alarm signal. The key lights while in alarm hold mode.

(19) Full-Screen [FULL] /

4-Segment Split-Screen Key

Displays the designated camera output on the full screen. Pressing this key while the Shift key continuously lights switches the screen to 4segment split -screen display.

(20) Multi-Screen [MULTI] /

9-Segment Split-Screen Key

Displays connected camera outputs on the multi-split monitor screen. The multi-split screen display changes in sequence whenever this key is pressed. Pressing this key while the Shift key continuously lights switches the screen to 9segment split-screen display.

(21) Sequence [SEQUENCE] /

16-Segment Split-Screen Key

Executes the sequential switching operation set at the Digital Video Recorder. This key remains lit during sequence operation. Pressing this key while the Shift key continuously lights switches the screen to 16-segment split-screen display.

(22) Auto Key [AUTO]

Sets the Combination Camera's auto function to ON or OFF. This key continuously lights while the camera is in auto operation mode.

Note

Operation differs depending on the communications method. (Refer to p. 22; Auto-function Operation.)

[ Rear Panel ]

[ Bottom Surface Indications ]

(23) DVR Control Output Terminal B

(screwless type)

Use this terminal when the supplied modular cable cannot be used or when connecting the Remote Controller to the interface unit. The supplied AC adapter is required when using this terminal.

(24) DVR Control Output Terminal A (RJ-11)

Use this terminal when connecting a single Remote Controller to the Digital Video Recorder within the distance of 3 meters (9.8 ft). Use the supplied modular cable for connection.

(25) AC Adapter Power Input Terminal

[DC IN 13.8 V]

Connect the DC plug of the dedicated AC adapter to this terminal. Connect the AC adapter when using the DVR Control Output Terminal B (23).

23 24 25

SER.

REMOTE CONTROLLER model C-RM1000 CU 12/13.8V 250mA

TOA Corporation

MADE IN JAPAN

GND

DVR CONTROL

OUTPUT-B

DVR CONTROL

OUTPUT-A

Do not connect this jack

to telephone line.

DC IN

7.1.1. Group Selection (cascade connection only)

Notes

• Group settings must be performed in advance. (Refer to p. 40; Group Settings.)

• Screens are not switched during group selection even when an alarm signal is received or the priority

recording button is pressed.

1. Press the Shift key.

2. Press the desired Digital Video Recorder group number.

3. Press the DVR key.

The indication "G_Group No." is displayed in the DVR section of the LCD screen.

7. EQUIPMENT SELECTION

7.1. Digital Video Recorder Selection

1. Press the desired Digital Video Recorder number using a

ten-key numerical pad.

2. Press the DVR key.

The selected Digital Video Recorder number is displayed on the LCD screen. (The key cannot be used if the Digital Video Recorder is not connected.) For monitors and cameras, Monitor 1 and Camera 1 are automatically selected.

[Example]

7.2. Monitor Selection

Functions that can be displayed differ depending on the monitor output. (Refer to p. 15; Monitor display.)

Press the MON key. The monitor output alternates between 1 and 2 each time the MON key is pressed, and the monitor number is displayed on the LCD screen.

Note:

Be sure to set Monitor Lock if multiple Remote Controllers are connected in the system. (Refer to p.50; Monitor Lock.)

[Example]

DVR

DVR MENU

SHIFT

LCD screen

71 1

DVR MON CAM POS

SHIFT

DVR

LCD screen

DVR MENU

G2 1 1

DVR MON CAM POS

MON MON

LCD screen

71 1

DVR MON CAM POS DVR MON CAM POS

LCD screen

72 1

7.3. Camera Selection

Select the camera to be displayed or operated.

1. Press the camera number to be selected using the ten-key

numerical pad.

2. Press the CAM key.

The selected camera number is displayed on the LCD screen (CAM section).

[Example]

7.3.1. Quick group camera selection (available only when cascade-connected)

Specified cameras within the group can be selected using straight number entry. The selected camera images are displayed in full-screen through the Monitor Output 1. Select the camera's serial number referring to the system example below.

Note: Group settings must be performed in advance. (Refer to p. 40; Group Settings.)

1. Enter the serial number for the camera you want to select

using the ten-key numerical pad during group selection.

Select the 10th camera connected to the Digital Video Recorder 2 as in the system example. In a serial numbering system, the 10th camera connected to the Digital Video Recorder 2 becomes No. 26 by counting 16 cameras connected to the Digital Video Recorder 1 and 10 cameras connected to the Digital Video Recorder 2 (16 + 10 = 26).

2. Press the CAM key.

The selected number is displayed on the LCD screen (CAM).

[Example]

CAM

LCD screen

7115

CAM MENU

DVR MON CAM POS

Camera No. displayed on the full screen

( System example )

Group 1

1-16

16-channel DVR 1

10th

Combination Camera

16-channel DVR 2

Remote Controller

CAM

CAM MENU

LCD screen

G1 1 26

DVR MON CAM POS

8.1. Full Screen Display

1. After selecting the Digital Video Recorder, enter the

camera number to be displayed.

2. Press the FULL key.

The designated camera's image is displayed on the full screen and the FULL key lights. The camera number is displayed on the LCD screen.

Note

If only the FULL key is pressed, the camera image corresponding to the number shown in the CAM section of the LCD screen is displayed on the full screen.

8. MONITOR DISPLAY

Functions that can be displayed differ between Monitor outputs 1 and 2.

[Example]

Note

Perform the monitor lock setting for the system using two or more remote controllers .This eliminates the necessity of operation for switching the monitors and prevents malfunctions. (Refer to p.50; Monitor Lock)

Function

Monitor output 1

Monitor output 2

Function

Monitor output 1

Monitor output 2

* Only the C-DR161 Series (16-channel versions) can display.

Full

4 Seg

Digital Recorder

Live mode

9 Seg

16 Seg* Sequence

Display position

setting screen

Full 9 Seg

Playback mode

4 Seg

Triplex setting

screen

16 Seg*

Archive

Electronic

Zoom

Combination Camera

Cascade

output

LCD screen

71 1

DVR MON CAM POS

FULL

Lights

LCD screen

FULL

7115

DVR MON CAM POS

Camera number displayed on the full screen

1. Press the MULTI key after selecting the Digital

Video Recorder. The MULTI key lights and camera Nos. 1

4 (4-segment split-screen A) are displayed on the monitor.

2. Press the MULTI key. Camera Nos. 5-8 (4-segment split-screen B) are displayed on the monitor.

3. Repeat Step 2 to display the camera numbers to be monitored. The display cycles through multi-segment split screens with each depression of the MULTI key.

Monitor screen (4-segment split-screen A)

4 3

2 1

Camera No.

8.2. Multi-Screen Display

The screen switches as follows each time the MULTI key is pressed while in live or playback mode.

8.3. 4-Segment Split-Screen Display

1. Press the SHIFT key. The key lights.

2. Press the FULL (4-Split-Screen) key. The MULTI key lights and camera Nos. 1

4 (4-segment split-screen A) are displayed on the monitor.

3. Repeat Steps 1 and 2 to display the camera number to be monitored. The display cycles through individual 4segment split screens each time both the SHIFT key and the FULL key are pressed.

Monitor screen (4-segment split-screen A)

4 3

2 1

Camera No.

Note: Monitor output 2 can display only live images in full-screen and 4-segment split-screen displays.

9-channel recorder

4 Seg A 4 Seg B

9 Seg 4 Seg C

4 Seg A 4 Seg B 4 Seg C 4 Seg D

16-channel recorder

16 Seg 9 Seg B 9 Seg A

MULTI

Lights

MULTI

Monitor screen (4-segment split-screen B)

6 5

FULL

SHIFT

MULTI

8 7

LCD screen

4-SEGMENT

7115

Lights

8.4. 9-Segment Split Screen Display

1. Press the SHIFT key.

The SHIFT key lights.

2. Press the MULTI (9-Split-Screen) key.

The MULTI key lights and Camera Nos. 1-9 (9-segment split screen A) are displayed on the monitor.

2-1. When the 16-channel recorder is used

Repeat Steps 1 and 2 to display the camera numbers to be monitored. The display cycles through individual multi-segment split screens each time both the SHIFT key and the MULTI key are pressed.

8.5. 16-Segment Split-Screen Display

1. Press the SHIFT key . The SHIFT key lights.

2. Press the SEQUENCE (16-Split-Screen) key. The MULTI key lights, displaying all connected cameras on the monitor screen.

MULTI

SHIFT

MULTI

Lights

Camera No.

LCD screen

9-SEGMENT

7115

Monitor screen (9-segment split screen A)

1 2 3

4 5 6

7 8 9

SEQUENCE

SHIFT

MULTI

Lights

Monitor screen (9-segment split screen B)

10 11 12

13 14 15

LCD screen

1 2

16-SEGMENT

7115

Monitor screen

1 2 3 4

6 5 7 8

Camera No.

9101112

1413 15 16

8.7. Sequential Display

Note

Sequential display settings must be performed for the Digital Video Recorder in advance. Please refer to the instruction manual enclosed with the Digital Video Recorder for more information.

Press the SEQUENCE key after selecting the Digital Video Recorder. The SEQUENCE key lights, commencing sequential screen switching programmed into the Digital Video Recorder.

8.6. Changing the Multi-Screen Display Position

Live and recorded images can be set to be displayed on user-specified split screen segments, and the display position of the multi-segment split screen can be freely changed. For more information, please read the Digital Video Recorder's instruction manual.

1. With the display mode set to live mode, display the multi-

segment split screen to be changed. (Refer to p. 16: MultiScreen Display.)

2. Hold down the MULTI key for 2 seconds or more. The display position setting screen is displayed.

3. Move the cursor to the desired display position by tilting the joystick up, down, left or right.

4. Enter the camera number using the ten-key numerical pad, then press the FULL key.

5. Rotate the joystick counterclockwise or press the C key to exit the position setting screen.

Notes

• If a live camera image is assigned to a split-screen segment that has already been set to display another camera live image, the original camera image will be replaced with the new camera image.

• Display positions cannot be changed for Monitor output 2 images.

L1 L2

L3 L4

In multi-screen display mode

MULTI

L1 L2 POSITION SETTING

L3 L4

[Example] Monitor screen

Camera No. 1

Camera No. 2

Camera No. 16

SEQUENCE SEQUENCE

Lights

LCD screen

SEQUENCE

71 15

8.8. Group Sequential Display

Group sequential displays can be performed if "Group" has been selected in the Cascade Connection setting. The Monitor 1 sequential display setting is used for the group sequence function.

Notes

• Sequential display settings must be performed in advance for the Digital Video Recorder. For the sequence

setting method, please refer to the instruction manual enclosed with the Digital Video Recorder.

• Set the security function of all digital video recorders within the group to operation level 1, 2 or 3. If the

operation level of a digital video recorder in the system is set to “full-lock,” the group sequence function cannot be operated.

• Do not turn off the power to the digital video recorder or remote controller while the group sequence function

is in operation. If power is switched off, reactivate the power to all equipment components within the system.

Press the SEQUENCE key after selecting "Group." The SEQUENCE key lights, commencing the group sequence.

Group sequence operation is shown below. (1) DVR 1 performs its sequence. (2) DVR 2 begins its sequence when DVR 1's sequence is completed. (3) After the group’s last DVR’s sequence is completed, operation

returns to DVR 1, allowing the sequence to cycle through all DVRs in the group.

SEQUENCE SEQUENCE

[Example]

When DVR 1-4 are assigned to Group 1;

Group sequence (Master Monitor 1’s display oder

DVR 1

Monitor 1

sequence setting

DVR 2

Monitor 1

sequence setting

Lights

LCD screen

SEQUENCE

G1 1 15

)

End

DVR 4

Monitor 1

sequence setting

End

"DVR" represents the Digital Video Recorder.

End

8.9. Zoom Display (Electronic zoom)

Live or recorded full-screen images can be viewed in 2X zoom display. Multiple-segment split-screens cannot be zoomed.

Note

"Zoom ON" and "Zoom OFF" must be preprogrammed into a function key or abbreviation number. (Refer to p. 43; Abbreviation (Function programming).)

1. Press the "Zoom ON"-preprogrammed function key or abbreviation number. The arrow is displayed in the center of the screen.

2. Using the joystick, move the pointer arrow to the center of the area to be zoomed.

3. Press the SET key. The screen can be viewed in 2X zoom display with the pointer arrow as a center.

Note

Operating the joystick still permits the zoomed position to be moved even after being zoomed.

4. Press the "Zoom OFF"-preprogrammed function key or abbreviation number to cancel the zoom display.

SET

9.2. Focus Adjustment

When the Combination camera is connected, the lens focus can be adjusted using the FOCUS key.

After selecting the camera, press the FOCUS (+) or (-) key. Focus operation continues as long as the key is pressed. Pressing the (+) key focuses the lens on distant objects, and pressing the (-) key focuses on near objects.

9. COMBINATION CAMERA OPERATION

The following camera operations can be performed when the Digital Video Recorder is in live mode and the Combination camera is selected.

9.1. Camera Rotation and Zoom Operation Using the Joystick

Connected Combination cameras can be rotated in the desired direction and their zoom lenses operated using the joystick.

After selecting the camera, tilt the joystick in the desired direction of movement. The camera moves in the direction in which the joystick has been tilted.

[Example] Clockwise camera rotation

After selecting the camera, rotate the joystick. Clockwise rotation selects the telephoto lens and counterclockwise rotation selects the wide-angle lens.

LCD screen

MANUAL

7115

DVR MON CAM POS

Joystick

Wide angle Telephoto

FOCUS

9.3. Iris Operation (Communication method: Type B only)

This iris can be adjusted using the IRIS key when the Combination camera is connected.

After selecting the camera, press the IRIS (+) or (

) key. Iris operation continues as long as the key is pressed. The (+) key opens the iris, and the (-) key closes the iris.

9.4. Auto-Function Operation

Auto-functions can be operated using the AUTO key when the Combination camera is connected.

Note

Auto-functions operated with the AUTO key differ depending on the Combination camera's communication method and setting contents. The auto function cannot be used for Type B (TOA-B) combination cameras, even when “Auto key” is selected in the camera menu.

Auto-pan function: Automatically pans the Combination cameras.

Auto-trace function: Play back camera operations set at the Combination Camera.

Preset sequence function: Automatically displays camera images in preset sequential order set at the

Combination Camera.

Tour: Plays back the images in conjunction with Preset Positions and Trace.

(C-CC514, C-CC564, C-CC714 and C-CC764 only)

9.5. Camera Position Selection

1 After selecting the camera, press the position number

using the ten-key numerical pad.

2. Press the Position Selector key.

The selected camera position image is displayed.

Note

If the communication method is Type B, pressing only the Position key (or Position 0) displays the home position image.

[Example]

The AUTO key remains lit during auto operation, and extinguishes when auto operation is completed.

IRIS

Press the AUTO key.

Hold down the AUTO key

for 2 seconds or more.

Press the abbreviation

number or function key.

Type A

(TOA-A)

Type B

(TOA-B)

Commences auto-pan, auto-trace or preset sequence operation. (depending on the Combination camera's AUTO key function setting.)

Commences auto-pan operation.

Terminates auto operation.

Commences auto-pan, auto-trace or preset sequence operations. (Auto functions can be programmed into an abbreviation number in the Remote Controller abbreviation number setting.)

POS

LCD screen

7115255

DVR MON CAM POS

9.6. Focus Speed Settings

Camera focus speed can be set. (Refer to p. 48; Focus Speed.)

9.7. Utilization of the Abbreviation Number Function

By pressing the SET key after entering the preprogrammed abbreviation number using the ten-key numerical pad, or by simply pressing the function key, the following camera operations can be performed: (Refer to p. 34; Abbreviation (Function programming).) (Refer to p. 41; Abbreviation.)

• Display of the set camera image (DVR No., Camera No. and Position No.) on the monitor.

• Display of Digital Video Recorder number on the monitor.

• Auto-focus operation.

• Auto function operation.

• Camera’s auxiliary contact control.

• Electronic zooming.

9.8. Combination Camera Menu Display

The Combination Camera's menu screen can be displayed to perform preset position programming and other settings. For details, please refer to the instruction manual enclosed with the camera.

Note

The menu screen can be displayed for the following camera model: C-CC501, C-CC504, C-CC514, C-CC551, C-CC554, C-CC564, C-CC714 and C-CC764.

1. Select the camera for menu display. (Refer to p. 13; Equipment

Selection.)

2. Hold down the CAM MENU key for 2 seconds or more to display

the menu screen.

Operate the Remote Controller as follows while the camera is displayed:

• To change the setting contents, tilt the joystick up, down, left or right.

• To select the setting item, tilt the joystick up, down, left or right.

• To set the setting item, press the SET key.

• To return to the previous screen, press the C key.

• To clear numbers, press the C key.

• To enter camera numbers, use a ten-key numerical pad.

• To enter position numbers, use a ten-key numerical pad.

• To set zoom, rotate the joystick clockwise or counterclockwise.

• To set focus, use the FOCUS (+) or (

) key.

Notes

• Settings cannot be cancelled or confirmed by rotating the joystick clockwise or counterclockwise while the camera menu is displayed. Use either the C or Set key.

• When the camera’s communication system is set to Type B, if the cursor does not stop at each item in the camera menu, but instead moves past, press the SHIFT key and operate the joystick while the SHIFT key indicator is illuminated. This allows the cursor to stop at each item. When setting preset positions or storing camera movement for a trace function, press the SHIFT key again to extinguish the indicator first before performing such settings.

3. Hold down the CAM MENU key for 2 seconds or more to exit the menu screen.

CAM

CAM MENU

C A M E R A M E N U

P R E S E T

I D S E T T I N G

C A M E R A S E T T I N G

A U T O M O D E

A L A R M

A U X

T I M E R

M A N U A L

M A I N T E N A N C E

C A M

9.9. Storing the Preset Positions

The preset position can be stored on the camera menu, however it can be easily stored by performing the following operation;

1. Select the camera for which the preset position is programmed. (Refer to p. 13; Equipment Selection.)

2. Rotate the Combination camera to set it to the desired angle of view.

3. Enter a preset position number using the ten-key numerical pad.

4. Press the SHIFT key. The key lights.

5. Hold down the POS key for 2 seconds or more. The “PRESET MEMORY” indication is displayed on the LCD screen.

9.10. Deleting preset position data (Communication method: Type B only)

Preset position data can be deleted by performing the following operations.

1. Enter the preset position number to be deleted using the ten-key numerical pad.

2. Press the SHIFT key. The key lights.

3. Hold down the C key for 2 seconds or more. The “PRESET ERASE” indication is displayed on the LCD screen.

[Example]

LCD screen

7115

SHIFT

POS

SHIFT

LCD screen

PRESET MEMORY

[Example]

LCD screen

7115

Lights

SHIFT

LCD screen

PRESET ERASE

10.1.2. Priority recording operation

For details, please refer to the instruction manual enclosed with the Digital Video Recorder.

1. Press the PRIORITY REC key. The PRIORITY REC key flashes and the buzzer tone sounds, commencing Priority recording.

2. Hold down the PRIORITY REC key for 2 seconds or more. The key extinguishes, terminating Priority recording.

Notes

• Press the Alarm reset key to stop a buzzer during Priority recording.

• The PRIORITY REC key continuously lights when Priority recording is terminated by the Digital Video Recorder. To extinguish it, hold down the PRIORITY REC key for 2 seconds or more.

10. DIGITAL VIDEO RECORDER OPERATION

The following Digital Video Recorder operations can be performed using the Remote Controller:

10.1. Video Recording

Priority recording and auto-recording (Alarm event recording and Normal recording) modes are made available to the Digital Video Recorder. For details, please refer to the instruction manual enclosed with the Digital Video Recorder.

10.1.1. LED indication during recording

: Lights red: Lights green : Flashes red : Remains unlit

DVR key

* 1

PRIORITY

REC key

RESET key

ALARM

* 2

Status

Normal recording in progress.

Priority recording in progress.

• Priority recording has been terminated by other Remote Controller connected to the same system.

• Priority recording has been terminated by the Digital Video Recorder.

• Termination by the Digital Video Recorder's front panel-mounted Priority recording key.

• Termination by the Digital Video Recorder's rear panel-mounted Priority recording terminal.

• Termination due a lapse of the Priority recording time preset at the Digital Video Recorder.

Alarm event recording in progress. (The Digital Video Recorder in alarm event recording mode is displayed on the LCD screen.)

• Alarm event recording has been terminated by other Remote Controller connected to the same system.

• Alarm event recording has been terminated by the Digital Video Recorder.

• Termination by the Digital Video Recorder's front panel-mounted Alarm

* 1

Continuously lights red during auto-recording.

* 2

The Alarm reset key also flashes red when the Digital Video Recorder fails. (Refer to p. 56 : Digital Video Recorder failure indication.)

reset key.

• Termination due a lapse of the alarm recording time preset at the Digital Video Recorder.

PRIORITY

REC

PRIORITY

REC

Flashes

PRIORITY

REC

PRIORITY

REC

Extinguishes

Flashes

10.1.3. Resetting alarm event recording

The Alarm reset key flashes and the buzzer tone sounds during Alarm event recording. Alarm event recording cannot be initiated by the Remote Controller. For the method of starting the Alarm event recording, refer to the instruction manual enclosed with the Digital Video Recorder. For the operations of the unit while in alarm mode, refer to p. 34; Alarm Operations.

Hold down the Alarm reset key for 2 seconds or more. The Alarm reset key extinguishes and the buzzer stops, terminating Alarm event recording.

Notes

• Press the Alarm reset key to stop a buzzer during Alarm event recording.

• The Alarm reset key lights when Alarm recording is terminated by the Digital Video Recorder. To extinguish it, hold down the Alarm reset key for 2 seconds or more.

10.1.4. Making normal recording

By performing the menu setting for the Digital Video Recorder, the schedule of Normal recording can be set. Using the Remote Controller, display the Digital Video Recorder menu to set it. For details, please refer to the instruction manual enclosed with the Digital Video Recorder.

10.2. Playback Operation

10.2.1. Playback mode settings

Press the PLAY/LIVE key. Live mode is switched to the playback mode, commencing playback. The PLAY/LIVE key remains lit while in playback mode. Pressing the PLAY/LIVE key again switches playback to live mode.

Notes

• Tilting the joystick to the right while in playback mode also permits playback to begin.

• Playback begins from the position at which playback last stopped.

10.2.2. Reverse playback

Tilt the joystick to the left while in playback mode. Reverse playback begins.

BUZZER STOP

RESET

BUZZER STOP

RESET

Live mode Playback mode

L4 L5

L6 L7

"L" stands for the live screen while "PB" stands for the playback screen.

PLAY / LIVE

Lights

PB4 PB5

PB6 PB7

10.2.3. Stop operation

Press the PLAY/LIVE key while in playback mode. Playback stops, switching to live mode. The PLAY/LIVE key remains unlit while in live mode.

10.2.4. Forward/reverse quick playback

Leave the joystick tilted to the left or right during playback. The left-tilt position permits fast reverse playback and the right-tilt position permits fast forward playback. Depending on the angle of joystick tilt, playback speed varies 2-fold (2X), 4-fold (4X), or 8-fold (8X). Returning the joystick to the central position causes playback to progress at normal speed.

Note

Playback speed can be fixed by pressing the SET key during 2-fold (4-fold or 8-fold) playback. To reset, tilt the joystick to the left or right.

10.2.6. Pause operation

To temporarily stop playback, tilt the joystick down during playback. Tilting the joystick up while playback is temporarily stopped cancels pause mode, commencing playback (reverse playback).

10.2.5. Time skip forward/reverse playback

Rotate the joystick clockwise. Playback skips forward in 1-minute/10-minute segments.

Rotate the joystick counterclockwise. Playback skips backward in 1-minute/10-minute segments.

Note

Pressing the SET key during time skip (1 or 10 minutes) playback causes time skip playback to continue even if the joystick is returned to the central position. To reset, tilt the joystick to the left or right.

PLAY / LIVE

Lights

PLAY / LIVE

Extinguishes

Playback mode

PB4 PB5

PB6 PB7

Reverse playback Playback

8-fold 4-fold 2-fold Standard Standard 2-fold 4-fold 8-fold

Live mode

L4 L5

L6 L7

Reverse playback

1-minute skip reverse

10-minute skip reverse

Playback

1-minute skip advance

10-minute skip advance

Cancels pause mode.

Pause mode

10.2.7. Frame advance/reverse playback

Tilt the joystick to the left or right while playback is temporarily stopped. The left-tilt position permits frame reverse playback, and the right-tilt position permits frame forward playback.

10.2.8. Instant event access playback

Press the FOCUS (+) key while playback is temporarily stopped. Playback temporarily stops at the beginning of the next event.

Press the FOCUS (-) key while playback is temporarily stopped. Playback temporarily stops at the beginning of the previous event. In pause

10.2.9. Earliest image playback

Press the IRIS (+) key. Playback is started with the earliest recorded image.

Note

Earliest image playback cannot be operated during recording if the Digital Video Recorder's mode is set to Overwrite.

10.2.10. Latest image revers playback

Press the IRIS (-) key. Reverse playback is started with the latest recorded image.

Frame reverse Frame advance

In pause

FOCUS

In pause

FOCUS

In pause

IRIS

10.3. Search Operation

It is possible to search recorded images by date, time, or event. For details, please refer to the instruction manual enclosed with the Digital Video Recorder.

1. Press the Search key. The search menu is displayed

Operate the Remote Controller as follows while the search menu is being displayed:

• To move the cursor, tilt the joystick up, down, left, or right.

• To confirm settings, rotate the joystick clockwise or press the SET

key.

• To cancel settings, rotate the joystick counterclockwise or press the

C key.

• To change settings, use the FOCUS (+) or (

) key.

Note

Executing a search places the display in playback mode, causing playback to temporarily stop at the searched position.

2. Tilt the joystick to the left to exit the search menu. It is also possible to search the search menu by rotating the joystick counterclockwise or pressing the C key.

10.4. Digital Video Recorder Menu Display

Display the Digital Video Recorder's menu and perform various settings for the Digital Video Recorder.

1. Select the Digital Video Recorder for menu display. (Refer to p. 13; Equipment Selection.)

2. Hold down the Menu key for 2 seconds or more to display the Digital Video Recorder's menu. The menu is displayed on the monitor.

Operate the Remote Controller as follows while the menu is being displayed:

• To move the cursor, tilt the joystick up, down, left, or right.

• To confirm the setting, rotate the joystick clockwise or press the

SET key.

• To cancel the setting, rotate the joystick counterclockwise or press

the C key.

• To change the setting, use the FOCUS (+) or (

) key.

3. Tilt the joystick to the left to exit the menu. It is also possible to exit the menu by rotating the joystick counterclockwise or pressing the C key. If any change has been made to the settings, save the changed setting before exiting the menu.

SEARCH SEARCH

DVR

DVR MENU

10.6. Archiving

Images recorded on the Digital Video Recorder can be archived to a DVD-R disk or USB flash drive. For details, please refer to the instruction manual enclosed with the Digital Video Recorder.

1. Hold down the Menu key for 2 seconds or more during a playback pause. The archive menu is displayed.

Operate the Remote Controller as follows while the archive menu is being displayed:

• To move the cursor, tilt the joystick up or down.

• To set the start (end) position, rotate the joystick clockwise or press

the SET key.

• To select the camera, use the FOCUS (+) or (

) key.

• To transfer files, rotate the joystick clockwise or press the SET key.

Note

The pause time is entered for the start (end) position time. To change the time, return to playback mode, temporarily stop at the desired time, and then display the archive menu again.

2. Tilt the joystick to the left. The archive menu is closed, returning the display to playback mode. It is also possible to exist the archive menu by rotating the joystick counterclockwise or pressing the C key.

Notes

• Recorded images cannot be played back during archiving.

• To stop archiving, press the SHIFT key, then press the ALARM RESET key after the LED has lit.

10.5. Motion Detection Area Settings

Motion detection areas can be set on the digital video recorder menu. For more information, please refer to the digital video recorder’s instruction manual.

1. Display the motion detection area setting screen using the digital video recorder menu.

Operate the Remote Controller as follows while the menu is being displayed:

• To move the cursor, tilt the joystick up, down, left, or right.

• To select or cancel an area plotting square, rotate the joystick

clockwise or press the SET key. (ON: Green; OFF: Nothing displayed.)

• To select or cancel a wide range detection areas diagonally, rotate

the joystick clockwise or press the SET key at a starting point. Move the cursor to an ending point. Then, press the SEARCH key, or rotate the joystick clockwise after lighting the SHIFT key. (ON: Green; OFF: Nothing displayed.)

• To change the sensitivity, press the FOCUS (+) key.

• To change the motion activation mode, press the FOCUS (–) key.

2. Rotate the joystick counterclockwise or press the C key. The message to confirm if set data is saved is displayed and the display returns to the previous screen.

In pause

SHIFT

10.7. Triplex Settings

Live images can be assigned to any segment of the screen while recorded images are played back on the multi-segment split screen. For details, please read the instruction manual enclosed with the Digital Video Recorder.

1 Hold down the MULTI key for 2 seconds or more while recorded

images are played back on the multi-segment split screen. The Triplex setting screen is displayed.

Operate the Remote Controller as follows while the Triplex setting screen is being displayed:

• To move the cursor, tilt the joystick up, down, left or right.

• To view live images, enter the camera number for live display using

the ten-key numerical pad, then press the FULL key.

• To return to recorded image playback, select the live image, then

press the SEQUENCE key.

2. Rotate the joystick counterclockwise or press the C key to exit the Triplex setting screen.

Note

Reset all live images to recorded images on the Triplex setting screen in order to switch Triplex mode to playback mode.

In multi-screen display mode

MULTI

10.8.2. Log-out

1. Hold down the DVR MENU key for 2 seconds or more. The “LOGOUT”/”LOGIN” selection screen is displayed on the monitor.

Note

When the operation level is set to Level1, holding down the DVR MENU key for 2 seconds or more displays the screen for selecting either LOGOUT or MENU.

2. Select LOGOUT using the joystick, then press the SET key. Operation level changes to the lowest set operation level.

10.8. Entering the Digital Video Recorder Password

When “Remote access restriction” is set to ON in the Digital Video Recorder’s security settings and a password is valid, only the Digital Video Recorder’s current operation level can be accessed. To change the Digital Video Recorder’s operation level, perform the following procedure. For the Remote Controller’s login and logout method, refer to p.33; Login and Logout.

Note

When “Remote access restriction” is set to OFF, the Remote Controller can operate the Digital Video Recorder.

10.8.1. Log-in

1. Hold down the DVR MENU key for 2 seconds or more. The “LOGOUT”/”LOGIN” selection screen is displayed on the monitor.

Note

If logged out, the password entry screen is immediately displayed when the DVR MENU key is continuously pressed for 2 seconds or more.

2. Select “LOGIN” using the joystick and press the SET key. The password entry screen is displayed.

3. Select [_ _ _ _ _ _] using the joystick, enter a password, and press the SET key. When entering the password, press the FULL key after entering each numeral for confirmation. The [ ] mark is displayed for each entered numeral.

___

DVR

DVR MENU

LOGOUT LOGI N CANCEL

[Example] When the password is “123456”.

FULL FULL FULL FULL FULL

123456

DVR

DVR MENU

PLEASE PASSWORD ENTRY.

___ CLEAR CANCEL

FULL

SET

LOGOUT MENU CANCEL

11. OTHER OPERATIONS

11.1. Log-In and Log-Out

If a password has been set, it is possible to log in to or log out of each operation level by following the procedures below. For password settings, please refer to p. 46; Password. For the Digital Video Recorder’s login and logout method, refer to p. 32; Entering the Digital Video Recorder Password.

11.1.1. Log-in

1. Hold down the Menu key for 2 seconds or more. The “PASSWORD” indication is displayed on the LCD screen.

Note

Holding down the Menu key for 2 seconds or more when set to the lowest operation level immediately displays the password entry screen.

2. Select LOGIN using the joystick and press the SET key. The password entry screen is displayed.

3. Enter one of password 1

3, and press the SET key. Access is given to the operation level corresponding to the entered password. (Refer to p. 46; Password.)

11.1.2. Log-out

1. Hold down the Menu key for 2 seconds or more. The “PASSWORD” indication is displayed on the LCD screen.

Note

Holding down the Menu key for 2 seconds or more when the operation level is set to Level 1 displays the screen for selecting either “LOGOUT” or “RM MENU”.

2. Using the joystick, select LOGOUT, then press the SET key. The system logs out to the lowest set operation level. (Refer to p.

46; Password.)

SHIFT

PASSWORD LOG I N

PASSWORD

SHIFT

PASSWORD LOGOU T

11.2. Abbreviation Number

This function permits quick dialing preprogrammed into a number. Camera images (DVR No., monitor No., camera No., and position No.) and the functions of the Combination Camera and Digital Video Recorder can be programmed into a number. (Refer to p. 43; Abbreviation (Function programming).)

1. Enter the abbreviation number using the tenkey numerical pad.

2. Press the SET key. Operation preprogrammed into the selected number is executed.

Note

Abbreviated numbers are assigned by default. (Refer to p. 44; Default abbreviation number settings.)

[Example]

11.3. Alarm Operations

11.3.1. When alarm is triggered

The Alarm Reset key flashes red and a buzzer tone sounds, causing the alarm-activated Digital Video Recorder number to be displayed on the LCD screen. The Digital Video Recorder begins alarm event recording and displays the alarm-activated camera image on the full screen through Monitor Output 1.

Note

The number of the camera displayed full-screen on the monitor is not displayed on the remote controller’s liquid crystal display. To display it in order to operate that camera, change the camera number displayed on the remote controller’s LCD.

Notes

• For Monitor Output 2 images, the screen display is not switched even when an alarm signal is received.

• When digital video recorders are connected to remote controllers in cascade, the digital video recorder

currently in alarm mode is displayed on the master monitor screen. However, it is not automatically displayed when the digital video recorder group has been selected for the remote controller.

LCD screen

SET

AUTO FOCUS

BUZZER STOP

RESET

• Normal display • Indicates the number of the

LCD screen

11 1

BUZZER STOP

RESET

Flashes

Digital Recorder recording an alarm event

1 second 1 second

ALARM

DVR 1

• Alarm type indication

Digital Recorder’s alarm input terminal received an alarm signal.

ALM TM

Digital Recorder’s motion detector activated.

ALM MD

Combination Camera’s alarm input terminal received an alarm signal.

ALM CM

1 second

11.3.3. To reset alarm

Hold down the RESET key for 2 seconds or more while alarm is being activated. The RESET key extinguishes, canceling the alarm mode.

Note

Alarm cannot be reset when “Level” has been selected in the Digital Video Recorder’s alarm settings. The alarm status continues as long as the alarm signal is received.

11.3.4. Putting screen switching on hold when an alarm occurs

When an alarm occurs, the screen display is automatically switched from the camera images through Monitor Output 1 to the alarm triggered camera images in full-screen. Press the HOLD key to put the current screen display on hold, disabling automatic screen switching.

Notes

• Camera shift to the preset position programmed on the Digital Video Recorder is also put on hold. Alarm

action programmed on the Combination Camera cannot be put on hold.

• When digital video recorders are connected to remote controllers in cascade, the display on the master

monitor cannot be retained.

1. Press the HOLD key. The HOLD key lights, putting the automatic screen switching to the alarm-triggered screen display on hold.

Note

The screen cannot be switched due to alarm signal reception, alarm reset nor elapse of post-time while the HOLD key lights.

2. Hold down the HOLD key for 2 seconds or more. The HOLD key extinguishes, enabling automatic screen switching when an alarm signal is received.

11.3.2. To stop a buzzer tone

Press the RESET key to stop the buzzer tone.

BUZZER STOP

RESET

BUZZER STOP

RESET

BUZZER STOP

RESET

HOLD

Lights

HOLD

Extinguishes

12. SETTINGS

12.1. Setting Item Summaries

Remote Controller Menu Display (Hold down the Menu key for 2 seconds or more.)

Setting Item Description

Group

1. Setting

Two or more cascade-connected Digital Recorders can be assigned to a group. It is also possible to restrict access to operation of the Remote Controllers in each group.

2. Transfer Transfers data to copy already programmed group settings to two or more Remote Controllers

3. Erase Deletes all group settings at a time.

Abbreviation

Camera Protocol

Password

Focus Speed

Buzzer The buzzer tone can be set to ON or OFF.

Key Operation Tone

I/O Speed

1. Setting

2. Transfer

3. Erase Deletes all abbreviation settings at a time.

1. Operation Level 1 Permits access to all function operations. Menus can be displayed, settings can be performed,

2. Operation Level 2

3. Operation Level 3 Permits only live image screen viewing.

4. Log-out time.

5. Priority recording operator Level 3

via the C-RF1000 Interface Unit.

Operations and functions can be programmed into a function key (F1-F4) and a number (1-508).

Transfers data to copy already programmed abbreviation settings to two or more Remote Controllers via the C-RF1000 Interface Unit.

Selecting the Camera protocol converts the data programmed into F1 - F4 keys and abbreviation number settings into the data for the selected protocol.

and data can bearchived to a USB flash drive or DVD.

Access is restricted to live mode and playback mode operations, camera operations, and alarm reset. Menus cannot be displayed, settings cannot be changed nor can data be archived to the USB flash drive or DVD.

The interval from log-in to log-out can be set. If no operations areperformed for a pre-set period of time after log-in, the systemautomatically logs out, moving to the lowest set operation level.

Either “Valid” (ON) or “Invalid” (OFF) can be selected for authorization of access to the Priority Recording key.

Lens speed when using the Focus key can be adjusted in 4 steps.

The key operation tone can be set to ON or OFF.

Sets the transfer rate of data from the control output terminal.

DVR Check Confirms whether or not the Digital Recorder is connected to the Remote Controller.

Hold

Monitor Lock

Language

Initial Status

Joystick Position Adjustment

Expansion

1. Key Permits the current screen to be held or switched to an alarm screen by key operation when

2. Always Continues to retain the screen displayed before alarm activation without switching when alarm

1. English

2. French

alarm is activated.

is activated.

Multiple Remote Controllers can be individually set to enable ordisable remote operation of the Digital Recorder's connected monitor.

Selects the language to be displayed on the LCD screen.

Returns settings to default conditions.

Automatically adjusts the joystick's central position.

Cannot be used.

12.1.1. Remote controller menu list

Group 1. Setting

2. Transfer

3. Erase

Abbreviation 1. Setting

2. Transfer

3. Erase

Camera Protocol

Password Menu 1. Operation level 1

Focus Speed

TOA-A TOA-B BOSCH PELCO-D

2. Operation level 2

3. Operation level 3

4. Log-out time

5. Priority recording operator level 3

Group No. – Control ON/OFF DVR No.– Channel No. selection

RM RF RM RF

NO YES

Abbreviation No. – Quick display settings

RM RF RM RF

NO YES

Invalid

Valid – Password entry

Invalid

Valid – Password entry

Invalid

Valid – Password entry

OFF/ 1MIN / 5MIN/ 10MIN/ 30MIN/ 60MIN

1. ON

2. OFF

Buzzer

Key Operation Tone

I / O Speed

DVR Check

Hold 1. Key

Monitor Lock DVR No. – MON No. entry

Language

Initial Status

Joystick Position Adjustment

Expansion

(Cannot be used.)

1. ON

2. OFF

1. ON

2. OFF

9600 19200 36400

2. Always

1. English

2. French

Execution

DVR No. entry — ON/OFF

LOCK UNLOCK

12.2. Setting Keys and Display Screen

[Keys to be used for settings]

[ LCD screen display ]

LCD screen

Displays setting items and contents.

REMOTE CONTROLLER C-RM1000

PRIORITY

REC

SCREEN

MULTIFULL

PLAY / LIVE

SEQUENCE

BUZZER STOP

RESET

SHIFT

ALARMDVR

AUTO

HOLD

DVR MON CAM POS

CAM MENUDVR MENU

SET

DOWN

Shift/ Menu key

Displays the Remote Controller menu on the LCD screen or

IRISFOCUS

TELEWIDE

RIGHTLEFT

closes the menu. (Refer to p. 33; Log-In and Log-Out.)

Joystick

Moves the cursor or selects the setting items or contents.

Clear Key

Cancels the setting items or contents or numerical values entered with a numerical keypad.

Set Key

Confirms the setting items or contents.

Ten-Key Numerical Pad

Used to enter a number.

Setting item

GROUP

1.SET

Setting content

12.3. Basic Setting Operations

Here, basic operating procedures for each setting item are described. Enter a password to log in to Operation Level 1 and display the Remote Controller’s menu. Refer to p. 33; Log-in and Log-out for the log-in method.

12.3.1. Displaying the menu

Note

While the digital video recorder is displaying each menu (Search Menu, Triplex Menu, or Archive Menu) or while the combination camera’s camera menu is being displayed by the remote controller, the remote controller’s menu cannot be activated even if the remote controller’s menu key is pressed.

1. Hold down the Menu key for 2 seconds or more. If no password has been set, the Remote Controller’s menu screen is displayed.

2. Select “RM MENU” using the joystick.

3. Rotate the joystick clockwise or press the SET key to confirm the selection. The menu screen is displayed.

12.3.2. Operation during menu display

1. Select the setting item using the joystick.

2. Confirm the selected setting item by rotating the joystick clockwise or using the SET key. Rotate the joystick counterclockwise or press the C key to cancel the selection.

3. Select the setting contents using the joystick.

4. Press the SET key to confirm the selected setting contents.

5. To continue settings of other items, repeat Steps 2-5. Hold down the Menu key again for 2 seconds or more to return to the normal screen after setting completion.

Note

Numerals can be entered using the joystick or numerical keypad.

12.3.3. Closing the menu

Hold down the Menu key for 2 seconds or more while the menu is displayed. The display reverts to the screen shown before the menu was displayed.

SHIFT

SET

PASSWORD LOGOUT

PASSWORD RM MENU

GROUP

(Example)

BUZ ZER

1.ON

BUZ ZER

1.ON

BUZ ZER

2.OFF

SET

BUZ ZER

2.OFF

When selecting “Setting” …

1. Select [GROUP] while the menu is displayed and press the SET key. The setting content is displayed on the second line.

2. Select [1. SET] and Press the SET key. The group number flashes, permitting the current group setting contents to be checked.

3. Press the SET key to perform settings in succession from Group 1.

4. Select Control ON or OFF and press the SET key. ON: The group being set can be operated. OFF: The group being set cannot be operated.

5. Select the DVR number and press the SET key.

6. Set the number of DVR channels by selecting either 9 or 16 and press the SET key.

7. To continue to assign the next DVR to the group, select the DVR number and press the SET key.

Repeat Steps 5 and 6 to perform settings.

8. To set the next group, select [NEXT] and press the SET key. The next group number is displayed, and the Control ON/OFF selection screen appears. Repeat Steps 4-6.

9. Assign all of DVRs 1-8 to any group, then press the SET key.

[ Setting contents ]

1. Setting Performs settings of the Digital Video Recorder groups and their control.

2. Transfer

Transfers group setting data to other Remote Controller via the C-RF1000 Interface Unit.

3. Erase Deletes all group settings.

12.4. Function Settings

Follow the instructions in p. 39; Basic Setting Operations to perform the following menu displays and operations.

12.4.1. Group settings

Assigning two or more Digital Video Recorders to the same group permits their images to be viewed on a single monitor. Up to 8 groups can be set.

Notes

• The group setting can only be performed in DVR ID numerical order, and can only be performed in consecutive numbers.

• When multiple Remote Controllers are connected, match the group settings of each Remote controller. Otherwise, the camera images cannot be displayed correctly on the monitor.

Group No.

SET 1 ON DVR 2 16

No. of DVR channels

DVR No. or “Next”

GROUP

1.SET

SET 1 1

SET 1 ON

SET 1 ON DVR 1

SET 1 ON DVR 1 1 6

SET 1 ON DVR NEXT

Control

[ON] [OFF]

SET 3 ON DVR 8 1 6

When selecting “Transfer”…

1. Select [GROUP] while the menu is displayed and press the SET key. The setting content is displayed on the second line.

2. Select [2. TRANSFER] and press the SET key.

3. Select EITHER [RM RF] or [RM RF] and press the SET key. The “TRANSFERRING...” indication is displayed while data is being transferred, and the “TRANSFER COMPLET” indication is displayed when the transfer is completed.

[RM RF] : Transmits data to the interface unit. [RM RF] : Receives data from the interface unit.

When selecting “Erase”…

1. Select [GROUP] while the menu is displayed and press the SET key. The setting content is displayed on the second line.

2. Select [ERASE] and press the SET key.

3. Select [YES] or [NO] and press the SET key.

[YES] : Deletes the setting and resets to default conditions. [NO] : Does not delete the setting.

Note

Default settings: Group: 1, DVR: 1 - 8, Control: ON, Number of the Channels: 16

Note

Abbreviation settings programmed into a single Remote Controller can be easily transferred to multiple Remote Controllers. Set Monitor Lock for each Remote Controller. If an abbreviation-set monitor is locked, camera images are displayed in full screen on an unlocked Monitor instead when the abbreviation-set monitor is called. So, you do not need to change the abbreviated number to call the unlocked monitor. Follow the procedures below to perform settings.

1. Set Monitor lock for the monitor not to be operated by each Remote Controller. (Refer to p.50; Monitor Lock)

2. Program the abbreviation number setting into one Remote Controller. (Refer to p.42; Abbreviation, "Quick Display function.")

3. Transfer the abbreviation number settings to each Remote Controller. (Refer to p.41; When selecting "Transfer"...)

[ Setting contents ]

1. Setting

Programs the abbreviation numbers into the Remote Controller. The following two functions can be assigned to abbreviation settings: Quick display function and Function programming.

2. Transfer

Transfers Abbreviation settings to other Remote Controllers via the C-RF1000 Interface unit. Transfer method is the same as that of group settings.

3. Erase

Erases all abbreviation settings. Function programming settings return to the default setting.

12.4.2. Abbreviation

GROUP

2.TRANSFER

TRANSFER

1.RM RF

GROUP

3.ERASE

12.4.3. Abbreviation (Quick display function)

Camera images (DVR, monitor, camera and position numbers) can be displayed in the full screen on the monitor by simply pressing a preprogrammed abbreviation number (numerical keypad entry and the SET key). The abbreviation numbers that can be used for this function are Nos. 1

508 and functions keys F1-F4,

totaling 512 possible selections.

1. Select [ABBREVIATION] while the menu is displayed and press the SET key.

2. Select [1. SET] and press the SET key.

3. Enter an abbreviation number and press the SET key. Numbers from 1-508 can be entered, and function keys F1

F4 can be selected with the joystick. Pressing the SET key moves the flashing cursor to the second line.

4. Display the quick display setting screen and press the SET key.

5. Enter a DVR number and press the SET key. Use numbers 1-8. The flashing cursor moves to the monitor number indication.

6. Enter a monitor number and press the SET key. The flashing cursor moves to the camera number indication.

Note

If the entered monitor number is the number of the monitor locked, the camera images are quickly displayed on the unlocked monitor.

7. Enter a camera number and press the SET key. Use numbers 1-16. The flashing cursor moves to the position number indication.

8. Enter a position number and press the SET key. Use numbers 0-255.

Notes

• Do not enter the position number for cameras for

which no camera position has been set.

• Pressing “0” sets the Combination Camera to the

home position.

9. To continue abbreviation number settings, repeat Steps 3

8. Press the C key to return to the setting

item display.

Note

To delete the displayed abbreviation setting, hold on the C key for 2 seconds or more.

Quick display setting screen

SET 1

Abbreviation Nos.

508 and F1-F4

DM CP

DVR No.

Monitor No.

Camera No.

SET 1 DM CP

(Example)

SET 18

DM CP

(Example)

SET 18

D7M C P

(Example)

SET 18 D7M1 C P

(Example)

Position No.

SET

SET 18 D7M1 C11P

(Example)

SET 18 D7M1 C11P25

SET

12.4.4. Abbreviation (Function programming)

The functions of the Combination Camera and Digital Video Recorder can be programmed into an abbreviation number (1-508 and F1-F4 keys).

Note

The Combination Camera's protocol must be selected before performing abbreviation number settings. If the protocol is selected, this permits the available functions to be selected for the camera.

1. Select [ABBREVIATION] while the menu is displayed and press the SET key.

2. Select [1. SET] and press the SET key.

3. Enter an abbreviation number and press the SET key. Use numbers 1

508. The F1-F4 keys can be selected with the joystick. Pressing the SET key moves the flashing cursor to the second line.

4. Select the function to be programmed and press the SET key. Functions that can be set are as shown in the table below.

5. To continue to set abbreviation numbers, repeat Steps 3 and 4. To return to the setting item display, press the C key.

When the camera's protocol is TOA-A (Type A)...

Function programming screen

SET 1

AUTO FOCUS

Function name

Abbreviation Nos. 1

508 and F1-F4

Function Name Function Name

D M C P

DVR NAME DISPLAY

DVR NAME HIDE

ZOOM ON

ZOOM OFF

AUTO FOCUS

AUX1 ON

Description Description

Quick display setting screen

DVR Name display

DVR Name hide

Zoom ON

Zoom OFF

Auto focus

Contact 1 ON

AUX1 OFF

AUX2 ON

AUX2 OFF

AUTO PAN

PRESET SEQUENCE

AUTO TRACE

FUNCTION A-Z

Contact 1 OFF

Contact 2 ON

Contact 2 OFF

Auto pan start

Preset sequence start

Trace start

Cannot be used

Default abbreviation number settings

Functions are assigned to abbreviation numbers by the factory as shown below. Each function can be performed by entering the corresponding number using the ten-key numerical pad, and pressing the SET key.

When the camera's protocol is TOA-B (Type B)...

Function Name Function Name

D M C P

DVR NAME DISPLAY

DVR NAME HIDE

ZOOM ON

ZOOM OFF

AUTO FOCUS

AUX1 ON

AUX1 OFF

AUX2 ON

AUX2 OFF

AUTO PAN DEF

AUTO PAN INV

AUTO PAN SKIP

AUTO PAN RANDOM

Description Description

Quick display setting screen

DVR Name display

DVR Name hide

Zoom ON

Zoom OFF

Auto focus

Contact 1 ON

Contact 1 OFF

Contact 2 ON

Contact 2 OFF

Auto pan (preprogrammed) start

Auto pan (reverse) start

Auto pan (skip) start

Auto pan (random) start

AUTO PAN PIVOT

SET PAN LEFT

SET PAN RIGHT

PRESET SEQ NUM

PRESET SEQ RND

PRESET SEQ TEST

AUTO TRACE 1

AUTO TRACE 2

MEMORY TRACE 1

MEMORY TRACE 2

FINISH MEM TRACE

TOUR 1 - 16

ALARM ACT PERMIT

FUNCTION A

Auto pan (pivot) start

Auto pan end point setting (left)

Auto pan end point setting (right)

Preset sequence (numerical order) start

Preset sequence (random) start

Preset sequence (test) start

Trace 1 start

Trace 2 start

Trace 1 memory start

Trace 2 memory start

Trace memory end

Tours 1-16 start

Alarm action allowed

Cannot be used

Abbreviation

Default Setting Description Description

No.

For TOA-A (Type A)

AUTO FOCUS

AUTO PAN

PRESET SEQUENCE

AUTO TRACE

251

DVR NAME DISPLAY

252

DVR NAME HIDE

253

ZOOM ON

254

ZOOM OFF

255

AUTO FOCUS

256

AUX1 ON

257

AUX1 OFF

258

AUX2 ON

259

AUX2 OFF

260

AUTO PAN

261

PRESET SEQUENCE

262

AUTO TRACE

For TOA-B (Type B)

AUTO FOCUS

PRESET SEQ NUM

TOUR 1

TOUR 2

301

DVR NAME DISPLAY

302

DVR NAME HIDE

303

ZOOM ON

304

ZOOM OFF

305

AUTO FOCUS

306

AUX1 ON

307

AUX1 OFF

308

AUX2 ON

309

AUX2 OFF

310

PRESET SEQ NUM

Auto focus

Auto pan start

Preset sequence start

Trace start

DVR Name display

DVR Name hide

Zoom ON

Zoom OFF

Auto focus

Contact 1 ON

Contact 1 OFF

Contact 2 ON

Contact 2 OFF

Auto pan start

Preset sequence start

Trace start

Auto focus

Preset sequence (numerical order) start

Tour 1 start

Tour 2 start

DVR Name display

DVR Name hide

Zoom ON

Zoom OFF

Auto focus

Contact 1 ON

Contact 1 OFF

Contact 2 ON

Contact 2 OFF

Preset sequence (numerical order) start

Abbreviation

Default Setting

No.

For TOA-B (Type B)

311

PRESET SEQ RND

312

PRESET SEQ TEST

313

AUTO PAN DEF

314

AUTO PAN INV

315

AUTO PAN SKIP

316

AUTO PAN RANDOM

317

AUTO PAN PIVOT

318

SET PAN LEFT

319

SET PAN RIGHT

320

AUTO TRACE 1

321

AUTO TRACE 2

322

MEMORY TRACE 1

323

MEMORY TRACE 2

324

FINISH MEM TRACE

325

TOUR 1

326

TOUR 2

327

TOUR 3

328

TOUR 4

329

TOUR 5

330

TOUR 6

331

TOUR 7

332

TOUR 8

333

TOUR 9

334

TOUR 10

335

TOUR 11

336

TOUR 12

337

TOUR 13

338

TOUR 14

339

TOUR 15

340

TOUR 16

341

ALARM ACT PERMIT

Preset sequence (random) start

Preset sequence (test) start

Auto pan (preprogrammed)

Auto pan (reverse) start

Auto pan (skip) start

Auto pan (random) start

Auto pan (pivot) start

Auto pan end point setting (left)

Auto pan end point setting (right)

Trace 1 start

Trace 2 start

Trace 1 memory start

Trace 2 memory start

Trace memory end

Tour 1 start

Tour 2 start

Tour 3 start

Tour 4 start

Tour 5 start

Tour 6 start

Tour 7 start

Tour 8 start

Tour 9 start

Tour 10 start

Tour 11 start

Tour 12 start

Tour 13 start

Tour 14 start

Tour 15 start

Tour 16 start

Alarm action allowed

12.4.5. Camera Protocol

Selecting protocol of the Combination Camera connected to the Digital Video Recorder only displays the abbreviation function that can be used for each protocol. The abbreviation function table is factory-preset to those for the model of TOA-A.

Note

Multiple combination cameras using different communication methods cannot be connected to a single digital video recorder. Match the communication methods of all connected cameras.

TOA-A : Select this model when connecting TOA’s Combination Camera to the Digital Video

Recorder using Type A communications method. (The Digital Video Recorder’s Camera Protocol: TOA-A)

TOA-B : Select this model when connecting TOA’s Combination Camera to the Digital Video

Recorder using Type B communications method. (The Digital Video Recorder’s Camera Protocol: TOA-B)

BOSCH : Select this model when using BOSCH’s Combination Camera in conjunction with the Digital

Video Recorder.

PELCO-D : Select this model when using PELCO’s Combination Camera in conjunction with the Digital

Video Recorder.

Some functions or operations are not available depending on the communications method. Determine the communications method referring to the following table.

Note

As shown below, TOA’s Combination Cameras are divided into two groups: one using the Type A (TOA-A) communications method and the other using the communications method of both Types A and B (selectable by DIP switch). The communications method is factory-preset to Type A (TOA-A). For the DIP switch position and settings, refer to the setup manual enclosed with the Combination Camera.

TOA-A (Type A) : C-CC501, C-CC504, C-CC551, and C-CC554

TOA-A/B (Types A/B selectable) : C-CC514, C-CC564, C-CC714, and C-CC764

Iris key Position 0 *

TOA

(Type A)

TOA

(Type B)

Operation for returning the camera to home position. Enter 0, then press the POS key.

Begins and terminates operations set in the Combination Camera’ s “Auto Function”

* settings with each depression of the key. (Refer to p. 22 ; Auto Function Operations.)

Begins auto pan operation when pressed, and terminates all auto operations when

* pressed again during auto pan operation.

AUTO key

12.4.6. Password

The Remote Controller's operation level can be set using passwords. The table below shows the available and unavailable functions of each operation level. Please set the appropriate operation level referring to this table.

High Low

Menu Setting

Archive

Recording/Playback

Priority Recording

Triplex

Camera Operation

Live Screen Operation

Alarm Reset

Buzzer Reset

Operation Level 1 Operation Level 2 Operation Level 3

)

Full-Lock

Operation Level 1

All functions available, including setting changes and archiving. Entering the corresponding password gives access to Operation Level 1 from any other operation level.

Operation Level 2

Live and recorded images can be monitored, however setting changes and archiving cannot be operated. Entering a password for operation level 2 allows login to operation level 2.

Operation Level 3

Full-Lock

Only recorded images can be monitored. The Priority Recording key can be used if settings are performed(*

). Entering a password for operation level 3 allows login to operation level 3.

No operation possible. If Operation Level 3 is valid (Password #3 has been set), the system automatically switches to “Full-Lock” mode when the user logs out of Operation Level 3 or when the log-out interval elapses.

Log-Out Time Can be set to 1, 5, 10, 30 or 60 minutes or OFF.

If no operations areperformed for a pre-set period of time after log-in, the systemautomatically logs out, moving to the lowest set operation level.

[Example] When Operation Levels 1 and 2 are valid (Passwords 1 and 2 have been set), the operation level after log-out is Level 3.

Priority recording operator Level 3

Selecting ON permits the Priority Recording key to be used even when Operation Level 3 is valid. If OFF is selected, the Priority Recording key cannot be used when Operation Level 3 is valid. Regardless of this ON/OFF setting, the Priority Recording key can always be used at Operation Levels 1 and 2, and cannot be used when in Full-Lock mode.

(Factory-preset to OFF.)

) Whether or not to make the Priority Recording key usable at Operation Level 3 can be set in the “Priority Recording

Operation Level 3” settings.

) The Camera menu cannot be displayed.

[ Passwords and operation levels ]

If no passwords have been set, Operation Level is “1.” Refer to the table below if a password has been set.

Enter the password corresponding to the desired operation level. Operation levels after log-out are shown enclosed in a bold rectangle.

Password 1

Password 2 Password 3

Set Password

Pattern

Password 1

Password 2

Password 3

Password 1 and 2

Password 2 and 3

Password 1 and 3

Password 1, 2, and 3

Operation Level 1 Operation Level 2 Operation Level 3

Full-Lock

: Level after log-out. : No operation level exists since no password has been set.

• Pattern 1

Operation

Level 2

Password 1

entered

Operation

Level 1

• Pattern 3

Full-lock

Password 3

entered

Operation

Level 1

• Pattern 4

Operation

Level 3

• Pattern 7

Full-lock

Password 2

entered

Password 3

entered

Password 2

entered

Password 1 entered

Operation

Level 2

Password 1

Operation

Level 1

Operation

Level 3

Password 2

Operation

Level 2

Password 1

Operation

Level 1

entered

Password 1

entered

• Pattern 6

Full-lock

Password 3

entered

Password

ntere

Operation

Level 2

Password 1

entered

Operation

Level 1

12.4.8. Buzzer tone

The buzzer tone can be set to ON or OFF.

1. Select [BUZZER] while the menu is displayed and press the SET key. The setting content is displayed on the second line.

2. Select the setting content and press the SET key.

[Setting contents]

.ON

1. ON

The buzzer tone is sounded when alarm is triggered, when priority recording is performed, or when the Digital Video Recorder fails.

2. OFF

The buzzer tone is not sounded when alarm is triggered, when priority recording is performed, or when the Digital Video Recorder fails.

(Factory-preset to ON.)

12.4.7. Focus speed

Lens speed when the FOCUS key is pressed can be adjusted in 4 steps.

1. Select [FOCUS SPEED] while the menu is displayed and press the SET key.

2. Tilt the joystick to the left or right to select the desired speed and press the SET key.

(Factory-preset to [>>>>], maximum.)

[ Password Settings ]

1. Select [PASSWORD] while the menu is displayed and press the SET key.

2. Select the operation level and press the SET key.

3. Select [ON] and press the SET key.

4. Enter a password (6-digit number).

5. To continue to set Operation Levels 2 and 3, repeat Steps 2-4.

PASSWORD

1.LEVEL1 ON

PASSWORD

1.LEVEL1

FOCUS SPEED >>>>

BUZ ZER

1.ON

12.4.9. Key operation tone

The tone generated whenever the key is pressed can be set to sound or not to sound.

1. Select [KEY CLICK ON/OFF] while the menu is displayed and press the SET key. The setting content is displayed on the second line.

2. Select the setting content and press the SET key.

[Setting Contents]

.ON

1. ON The key operation tone is sounded when the key is pressed.

2. OFF The key operation tone is not sounded when the key is pressed.

(Factory-preset to ON.)

12.4.10. I/O Speed

Set the DVR control output terminal's transmission rate. (Factory-preset to [38400].)

1. Select [I/O SPEED] while the menu is displayed and press the SET key.

2. Tilt the joystick to the left or right to select the transmission rate: [9600], [19200] or [38400].

Note

Set the same transmission rate for the components connected to the control terminal. The Digital Video Recorder (C-DR091 and CDR161 Series) and the C-RF1000 Interface Unit are factory preset to 38400 bps.

3. Press the SET key to confirm the selected transmission rate.

192

12.4.11. DVR check

Check the Digital Video Recorder connected to the control terminal.

Select [DVR CHECK] while the menu is displayed and press the SET key. The connected Digital Video Recorder number is displayed.

Note

Performing the DVR check during cascade connection displays all connected Digital Video Recorder numbers. If the number of the connected Digital Video Recorder is not displayed, communications may not have been established. In such cases, check to see if:

• The connection terminal is correctly connected.

• The Remote Controller’s transmission rate matches that of the Digital Video Recorder.

• The Digital Video Recorder’s DVR-ID number is correctly set.

KEY CL I CK ON / OFF

1.ON

I/O SPEED

38400

I/O SPEED

19200

DVR CHECK

12.4.12. Monitor lock

Set the Monitor Lock function for the system in which multiple remote controllers are connected. This restricts operable monitors and eliminates the necessity for switching monitors, allowing malfunctions to be avoided. Using the Monitor lock function in combination with the abbreviation number function makes the abbreviation number settings simple. (Refer to p.41; Abbreviation. ) Set Monitor Lock, as shown in the system example below.

1. Select [MONITOR LOCK] while the menu is displayed and press the SET key. A DVR number option is displayed on the second line.

2. Select the [DVR NO.] and press the SET key. A monitor number (MON No.) option is displayed on the second line.

3. Select the [MON NO.] and press the SET key.

4. Select the setting content and press the SET key.

[Setting Contents]

1. LOCK Images are displayed, however set monitors cannot be operated or selected.

2. UNLOCK Set monitors can be operated and selected.

(Factory-preset to 2. UNLOCK.)

[ Setting example ]

MON I T OR L OCK

DVR NO . 1

MON I T OR L OCK MON NO . 1

MON I T OR L OCK

1.LOCK

[ System Example ]

DVR : Digital Video Recorder RM : Remote Controller RF : Interface Unit : Monitor Output 1 : Monitor Output 2 : Remote Controller control line

DVR3

DVR2

Monitor 2

RM4

RM3

Remote controller

Digital Video Recorder

DVR1

DVR2

DVR3

To operate the master monitor, do not set the Monitor Lock to "LOCK” for any cascade-connected

Digital Video Recorders’ (DVR1

Set the Monitor lock to "UNLOCK” for only the monitors to be operated and "LOCK” for other

monitors not to be operated.

Caretaker's room

Master monitor

RM1

LOCK

Monitor 2

UNLOCK

Monitor 1

DVR1

LOCK

Monitor 1

Monitor

3) Monitor 1.

RM2

UNLOCK

Monitor 2 Monitor

1, 2

Monitor 2

LOCK

Monitor 1

Monitor

RM3

1, 2

UNLOCK

Monitor 2

RM2

Monitor

RM4

LOCK

1, 2

Monitor 1 Monitor 2

UNLOCK

12.4.15. Joystick position adjustment

Adjust the joystick’s central position.

1. Select [JOYSTICK CAL] while the menu is displayed.

2. Press the SET key to confirm the selection. The current joystick position is assumed to be a center. To cancel, press the C key.

Note: Do not press the SET key with the joystick tilted.

ION

12.4.16. Expansion

Cannot be used.

12.4.13. Language

Set the language to be displayed on the LCD screen.

1. Select [LANGUAGE] while the menu is displayed and press the SET key. The setting content is displayed on the second line.

2. Select the setting content and press the SET key.

[Setting Contents]

12.4.14. Initial status

Returns settings to default conditions.

Note: Abbreviation number contents are not erased even if the settings are returned to their initial status.

1. Select [SET TO DEFAULT] while the menu is displayed, and press the SET key.

2. Press the SET key to confirm the selection. To cancel the selection, press the C key.

.ENGL

ISH

ION

(Factory-preset to 1. ENGLISH.)

1. ENGLISH The English language is displayed on the LCD screen.

2. FRENCH The French language is displayed on the LCD screen.

LANGUAGE

1.ENGLISH

SET TO DEFAULT EXECUT I ON

EXE

JOYST I CK CAL

EXECUT I ON

EXE

13. CONNECTIONS

13.1. Equipment Connections

• Use the CPEV-S cable (twisted pair shielded cable) with diameter larger than 0.65 mm (AWG22) for connection between control terminals. Be sure to connect the shielded cable to the GND terminal.

• The control cable length between the Remote Controller and the farthest Digital Video Recorder must be shorter than 1.2 km (3,937 ft).

• All connected components must be identical in transmission rate.

• When using the supplied modular cable (3 m (9.8 ft)) for connection to the Digital Video Recorder, the supplied AC adapter is not required since the power is supplied from the Digital Video Recorder. When using the Remote Controller’s screwless terminal, connect the supplied AC adapter to supply the power.

13.1.1. Combination camera

• Up to 16 Combination Cameras can be operated per Digital Video Recorder (up to 9 cameras per 9-channel Digital Video Recorder). Avoid connecting more cameras than the number of Digital Video Recorder channels to the Digital Video Recorder’s camera control terminal.

• The Digital Video Recorder must be used to control the Combination Camera. It is impossible to control the camera by connecting the Remote Controller directly to the camera.

• There are two communications methods of the Combination Camera: Type A and Type B.(Refer to p. 45; Camera Protocol.) Multiple combination cameras using different communication methods cannot be connected to a single digital video recorder. Match the communication methods of all connected cameras.

• Match the transmission rate among the combination camera, digital video recorder, and remote controller. (Refer to p. 49; I/O Speed.)

• Match the Combination Camera’s address to the Digital Video Recorder’s video input number. The camera number entered at the Remote Controller is the Combination Camera’s address number.

13.1.2. Digital video recorder

• Up to 8 Digital Video Recorders can be cascade-connected and controlled by the Remote Controller.

• When cascade-connecting the Digital Video Recorder, set the termination switch of the last connected Digital Connector to ON.

• Be sure to select “ON” in the digital video recorder’s controller response setting.

• The Digital Video Recorder’s “DVR-ID” settings must be performed when cascade-connecting the recorder. For more information, please read the Digital Video Recorder’s instruction manual.

Note

Two setting methods are available: one from the Digital Video Recorder's menu and the other using the Digital Video Recorder's front-mounted keys. For more information, refer to the operation manual enclosed with the Digital Video Recorder.

• Do not connect 2 Remote Controllers simultaneously to each Remote Controller Input Terminals A and B, as they could not be operated correctly. Use the Interface Unit when connecting multiple Remote controllers to the Digital Video Recorder.

13.1.3. Interface unit

• Up to 4 Remote Controllers can be expanded with the use of the Interface Unit. (Up to 3 controllers when the RS-232C terminal is in use.) Set the Monitor Lock when connecting multiple Remote Controllers to the interface unit. (Refer to p.50; Monitor Lock.)

• When multiple connected remote controllers are operated simultaneously, the most recently operated remote controller takes precedence.

• The transmission rate between the Interface Unit and the Digital Video Recorder is fixed to 38,400 bps. When using the Interface Unit, set the Digital Video Recorder’s remote control transmission rate to 38,400 bps.

• Make sure to match the transmission rate of all components connected to the Interface Unit. Also, match the Interface Unit’s DIP switching settings to the Remote Controller’s transmission rate settings.

• When the Interface Unit is used, the power to the Remote Controller is supplied from the supplied AC adapter.

13.2. System Example

13.2.1. Basic system

Color camera

Combination

Camera

To AC Mains

RS-485

Digital Video Recorder

C-DR091 or C-DR161 Series

1ARCHIVE

KEY LOCK

RS-485

1681571461351241131029

RM IN-A

Termination: ON

REC

FAILURE

HD FULL

DIGITAL VIDEO RECORDER C-DR161

DISK

ARRAY

10BASE-T 100BASE-TX

DVR CONTROL

OUTPUT-A

LAN

Remote Controller

C-RM1000

Monitor 1

Live display

only

Monitor 2

HDD expansion unit

C-DA1000 Series

Match the Combination Camera’ s address to the Digital Video

Recorder’ s video input number.

: Coaxial cable (video signal)

: CPEV-S 0.65-2C (RS-485 control line)

: Modular cable, 3 m (9.8 ft). (supplied with the C-RM1000)

: Modular cable, 1 m (3.3 ft) (supplied with HDD expansion unit)

: S-ATA cable, 1 m (3.3 ft) (supplied with HDD expansion unit)

13.2.2. Expanded Digital video recorder system (Cascade-connection)

REMOTE

POWER/DVR4321

DIGITAL VIDEO RECORDER C-DR161

To LAN

DIGITAL VIDEO RECORDER C-DR161

REC

FAILURE

HD FULL

CONTROLLER

LINK

REC

FAILURE

HD FULL

INPUT-B

Monitor output 1

Monitor output 2

Monitor output 1

Monitor output 2

Live display

Group 1

Combination Camera

To AC Main

RS-485

1-16

RS-485

1-16

Interface Unit C-RF1000

DVR CONTROL

OUTPUT-A

Digital Video Recorder 1

C-DR091 or C-DR161 Series

1ARCHIVE

KEY LOCK

RM OUT-B

RS-485

Digital Video Recorder 2

1ARCHIVE

KEY LOCK

RM OUT-B

REMOTE CONTROLLER

INTERFACE UNIT C-RF1000

Supplied modular cable (3 m (9.8 ft))

RM IN-A

Termination: OFF

1681571461351241131029

RM IN-B

Termination: OFF

1681571461351241131029

Group 1

Master monitor

DVR 1

only

DVR 2

only

Remote

Controller 1

C-RM1000

AC adapter

Remote

Controller 2

REMOTE

CONTROLLER

OUTPUT-B

Group 2

1-16

RS-485

Digital Video Recorder 3

1ARCHIVE

KEY LOCK

RM OUT-B

Digital Video Recorder 8

1ARCHIVE

KEY LOCK

RM IN-B

Termination: OFF

1681571461351241131029

RM IN-B

Termination: ON

1681571461351241131029

To LAN

REC

FAILURE

HD FULL

DIGITAL VIDEO RECORDER C-DR161

To LAN

REC

FAILURE

HD FULL

DIGITAL VIDEO RECORDER C-DR161

To LAN

LINK

Monitor output 1

Monitor output 2

Monitor output 1

Monitor output 2

Group 2

Master monitor

DVR 3

Live display

only

DVR 8

Live display

only

Remote

Controller 3

Remote

Controller 4

: Coaxial cable (video signal)

: CPEV-S 0.65-2C (RS-485 control line)

: Modular cable, 3 m (9.8 ft). (supplied with the C-RM1000)

*1 Match the Combination Camera’s address to the Digital Video Recorder’ s video input number.

LAN

[Remote Controller connections using the dedicated cable]

13.2.3. Connections between the Remote controller and the Digital video recorder

Note: Do not connect the AC adapter.

[C-RF1000 Interface Unit Connections]

The maximum cable length is 1.2 km (3,937 ft) for each distance between the Remote Controller and the Interface Unit and between the Interface Unit and the farthest Digital Video Recorder.

Notes

*1. Match the transmission rate of all components connected to the Interface Unit. The Interface Unit's DIP

switch settings must also be identical with the Remote Controller's bit rate settings.

*2. Remote Controller Input Terminal 4 cannot be used simultaneously with the RS-232C port. Connect

either.

The maximum cable length is 1.2 km (3,937 ft) for each distance between the Remote Controller and the Interface Unit.

Interface unit C-RF1000

Remote controller 1

Screwless terminal

1234

Remote controller 2

Remote controller 3

Remote controller 4

Screwless terminal

(Screwless terminal)

REMOTE CONTROLLER INPUT-B

RS-232C

The maximum cable length is 1.2 km (3,937 ft) for distance between the Remote Controller and the Digital Video Recorder of which termination switch is set to ON.

No AC adapter required

Remote

Controller

RJ-11

terminal

Power supply

Supplied modular cable (3 m (9.8 ft))

Termination switch: OFF Termination switch: OFF Termination switch: ON

RJ-11

terminal

Digital Video

Recorder

Screwless

terminal

Screwless

terminal

Digital Video

Recorder

Screwless

terminal

Digital Video

Recorder

Screwless

terminal

CPEV-S larger than AWG22 (Ø0.65 mm)

14. DIGITAL VIDEO RECORDER FAILURE INDICATION

The Digital Video Recorder's failures can be confirmed at the Remote Controller.

14.1. Remote Controller Indication and Status

Note

When the Digital Video Recorder recovers from the failure, the Alarm Reset key lights to indicate the occurrence of an error. Hold down the key for 2 seconds or more to extinguish it.

14.1.1. Stopping the buzzer tone

Press the Alarm Reset key to stop the buzzer tone.

Note: Do not connect the supplied modular cable.

[Cable length extension between the Remote Controller and Digital Video Recorder]

Power to the Remote Controller is supplied from the AC adapter.

The maximum cable length is 1.2 km (3,937 ft) for distance between the Remote Controller and the Digital Video Recorder of which termination switch is set to ON.

Termination switch: OFF Termination switch: OFF Termination switch: ON

Remote

Controller

Digital Video

Recorder

Digital Video

Recorder

Digital Video

Recorder

AC adapter

required

Screwless

terminal

Screwless

terminal

Screwless

terminal

Screwless

terminal

CPEV-S larger than AWG22 (Ø0.65 mm)

Screwless

terminal

LCD Screen

FA I LURE

DVR 1

HD F UL L DVR 1

ALARM RESET

Key

Buzzer *

Digital VideoRecorder Failure Status

A hard disk error, video loss or fan failure has occurred at the Digital Video Recorder number displayed on the LCD screen. Check the Digital Video Recorder’s failure log to take appropriate steps. For details, please read the Digital Video Recorder’s instruction manual.

The hard disk of the Digital Video Recorder number displayed on the LCD screen is full. Check the Digital Video Recorder’s failure log to take appropriate steps. For details, please read the Digital Video Recorder’s instruction manual.

Screwless

terminal

: Flashes red

* Available when the Remote Controller’s buzzer settings are set to ON.

BUZZER STOP

RESET

15. TROUBLESHOOTING

Remedy

• Connect correctly.

• Connect to the AC outlet. (The Digital Video Recorder supplies power to the Remote Controller even when in standby mode.)

• Connect correctly.

• Switch on the power.

• Connect equipment correctly. (Refer to p.

13; Equipment Selection.)

• Enter the password and log in to the desired operation level. (Refer to p. 33; Log-In and Log-Out.)

• Enter the password and log in to the desired operation level. (Refer to p. 32; Entering the Digital Video Recorder Password.)

• Insert the USB key.

• Set “Control” in the group settings to ON. (Refer to p. 40; Group Settings.)

• Set the Monitor lock settings to [UNLOCK]. (Refer to p. 50; Monitor Lock.)

• Perform DVR check to confirm that the Digital Video Recorder to be operated is recognized. (Refer to p. 49; DVR Check.)

• Select equipment correctly. (Refer to p.

13; Equipment Selection.)

• Match the camera address and the Digital Video Recorder’s video input number. (Refer to p. 52; Equipment Connections.)

• Match the transmission rate. (Refer to p.

45; Camera Protocol.)

Symptom Power not supplied to the Remote Controller.

Cannot operate the Digital Video Recorder from the Remote Controller.

Cannot operate the Combination Camera from the Remote Controller.

Possible Cause

[If the supplied modular cable is used]

• The Remote Controller is not correctly connected to the Digital Video Recorder using the supplied modular cable.

• The Digital Video Recorder’s power source is not connected to the wall AC outlet.

[If the AC adapter is used]

• AC adapter not correctly connected.

• The Digital Video Recorder’s power not switched on.

• The Digital Video Recorder to be operated not selected.

• Password for the Remote Controller not set.

• Password for the Digital Video Recorder not set.

• The Digital Video Recorder’s USB key detached.

• Access to the Digital Video Recorder to be operated not allowed.

• Monitor lock function enabled.

• Communications not performed between the Remote Controller and Digital Video Recorder.

• The Combination Camera to be operated not selected.

• Camera address not matched.

• Transmission rate not matched.

16. OPERATION GUIDE

Operation Item

Operation Method

(Key Operation)

Display Status

Remark

Reference

• Equipment selection

Digital Video recorder selection

Camera selection

Group selection Shift + Numerical keypad

Numerical keypad (DVR No.) + DVR

MON

Numerical keypad (camera No.) + CAM

(group No.) + DVR

DVR No. displayed on the LCD and DVR lights.

Monitor No. displayed on the LCD.

Camera No. displayed on the LCD and CAM lights.

Group No. (G_) displayed on the LCD. Only when setting groups P. 13

Monitor alternates between 1 and 2 as the key is pressed.

• Monitor display

Full-screen display

Multi-screen display MULTI MULTI lights. P. 16

4-segment split screen display

9-segment split screen display

16-segment split screen display

Display position change

Sequential display SEQUENCE SEQUENCE lights. P. 18

Numerical keypad (camera No.) + FULL

SHIFT + FULL MULTI lights. P. 16

SHIFT + MULTI MULTI lights. P. 17

SHIFT + SEQUENCE MULTI lights. P. 17

Live mode + Multi-screen display + continuous depression of MULTI

FULL light.

Multi-segment split screen switches as the key is pressed.

Split screen segment switches with repetition of the same operation.

Performs sequential display as set at the Digital Video Recorder.

• Combination Camera operation (available only while the live screen is displayed)

Full-screen camera operation

Multi-screen camera operation

Camera rotation

Camera telephoto (wide angle) operation

Numerical keypad (camera No.) + FULL

keypad (camera No.) + CAM

Camera selection + Up, Down, Left or Right

Camera selection + TELE (WIDE)

Camera selection + FOCUS (+) or (–)

Camera selection + IRIS (+) or (–)

Camera selection + numerical keypad (position No.) + SHIFT + POS (continuous depression)

Camera selection + numerical keypad (position No.) + SHIFT + C (continuous depression)

keypad (position No.) + POS

CAM MENU key

FULL light.

MULTI light.Multi-screen display + Numerical

PRESET MEMORY indication displayed on the LCD.

PRESET CLEAR indication displayed on the LCD.

Position number displayed on the LCD.

Camera menu displayed on Monitor 1.

Combination Camera only

Combination Camera type B only

Auto operation terminated by continuously pressing the AUTO key.

Combination Camera only

Camera menu closed by continuously pressing the CAM MENU key again.

• Digital Video Recorder operation

Priority recording PRIORITY REC PRIORITY REC flashes. P. 25

Stopping a buzzer tone

Playback PLAY/LIVE

Reverse playback Playback + LEFT

ALARM RESET

PLAY/LIVEStopping playback

Monitor 1 PLAY

PLAY/LIVE extinguishes.

Monitor 1 REV

Priority recording stopped by continuously pressing the PRIORITY REC

Switches to playback mode.

Switches to live mode.

key again.

Page

P. 13

P. 14Monitor selection

P. 14

P. 15

P. 18

P. 15

P. 16

P. 21

P. 21Focus adjustment

P. 22Iris adjustment

P. 22Auto-pan operation Camera selection + AUTO Auto lights.

P. 24Preset position storing

P. 24Preset position erasure

P. 22Preset position selection Camera selection + numerical

P. 23Camera menu display Continuous depression of the

P. 35

P. 26

P. 27

P. 26

Operation Item

Operation Method

(Key Operation)

Display Status

Remark

Reference

• Digital Video Recorder operation

Forward quick playback Playback + RIGHT P. 27

Reverse quick playback Playback + LEFT

1-minute/10-minute skip forward playback

1-minute/10-minute skip reverse playback

Pause Playback + DOWN

Pause reset Pause mode + UP

Instant event access (forward)

Instant event access (reverse)

Lastest image reverse playback

Digital Video Recorder menu display

Archive menu display

Triplex settings

Digital Recorder's password entry

TELE P. 27

WIDE

Pause mode + FOCUS (+)

Pause mode + FOCUS (–)

IRIS (–)

SEARCH Search menu displayed on Monitor 1.Search

Continuous depression of DVR MENU

Pause mode + continuous depression of MENU

Playback mode + multi-screen display + continuous depression of MULTI

Monitor 1 PLAYX2 (X4, X8)

Monitor 1 REVX2 (X4, X8)

Monitor 1 PLAYX1M (X10M)

Monitor 1 REVX1M (X10M)

Monitor 1 PAUSE

Digital Video Recorder menu displayed on Monitor 1.

Archive menu displayed on Monitor 1.

The [ entered numeral.

] mark is displayed for

******

Speed changes as the joystick is tilted. (Can be fixed with the SET key.)

Skip time changes depending on the joystick rotation angle. (Can be fixed with the SET key.)

Cannot be used during recording in overwrite mode.

Select search method and confirm the method using TELE.

Page

P. 27

P. 28Frame advance playback Pause mode + RIGHT

P. 28Frame reverse playback Pause mode + LEFT

P. 28

P. 28Earliest image playback IRIS (+)

P. 28

P. 29

P. 30

P. 31

P. 32

• Other operations

Log-in

Log-out Continuous depression of MENU

Abbreviation

Alarm reset

Continuous depression of MENU Select LOGIN and enter password.

Select LOGOUT.

Numerical keypad (abbreviation number) + SET

Alarm mode + continuous depression of RESET

HOLDAlarm hold

Continuous depression of HOLDAlarm Hold reset

• Settings and basic operations

Menu display Continuous depression of MENU

Selection item movement

Setting confirmation Menu display + TELE or SET

Setting cancellation Menu display + WIDE or C P. 39

Continuous depression: Hold down the key for 2 seconds or more.

Note:

Menu display + UP, DOWN, LEFT or RIGHT

Continuous depression of MENU

Can be displayed only for Operation Level 1 when a password has been set.

Only the

SET used while the camera menu is displayed.

Only the C key can be used while the camera menu is displayed.

key can be

P. 33

P. 34

P. 35

P. 39

P. 39Exiting the menu

133-12-992-40

17. SPECIFICATIONS

* Applies to the system where the unit and digital video recorder are connected in a matched pair. Represents

the total of connected cable distances if multiple digital video recorders or Interface units are connected in the system.

Note: The design and specifications are subject to change without notice for improvement.

• Accessories

AC adapter (1.8 m (5.9 ft)) ...................... 1

Modular cable (3 m (9.8 ft)) ..................... 1

• Optional products

Digital video recorder: C-DR091/C-DR161 Series Interface unit: C-RF1000

Power Source 12 V AC, 60 Hz (use of the supplied AC adapter)

or 12 V DC (supplied from the digital video recorder) Current Consumption 80 mA (use of the supplied AC adapter) Digital Video Recorder RS-485, RJ11 (6P 6C)

Control (when the included 3-meters (9.8 ft) modular cable is used)

RS-485, screwless connector (3 pins)

(with cable length of 3-meters (9.8 ft) and more, or when C-RF1000 (option) is used) Alarm Signal Continuous alarm tone (can be turned on and off through the menu) Maximum Cable Distance 1.2 km (3,937 ft) * Function Password setting, DVR Group setting, Abbreviation function (512 types),

Preset position setting, Language choice (English/French) Operating Temperature 0°C to +40°C (32°F to 104°F) Operating Humidity Under 80%RH (no condensation) Finish Panel: Surface-treated steel plate, silver, paint

Sides: Rubber Dimensions 323.6 (W) x 112.7 (H) x 181 (D) mm (12.7 (W) x 4.4 (H) x 7.1 (D) inch) Weight 1.6 kg (3.5 lb) (excluding AC adapter)
