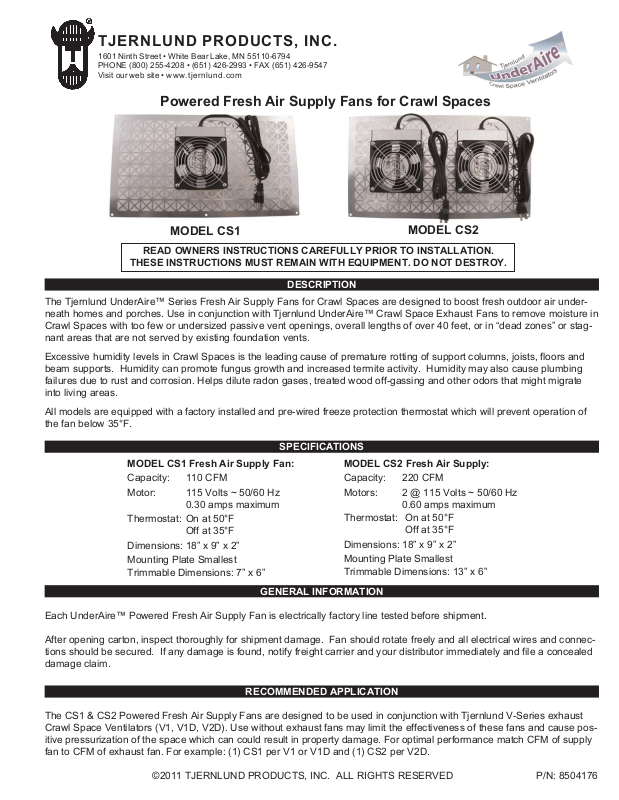

DESCRIPTION

The Tjernlund UnderAire™ Series Fresh Air Supply Fans for Crawl Spaces are designed to boost fresh outdoor air under­neath homes and porches. Use in conjunction with Tjernlund UnderAire™ Crawl Space Exhaust Fans to remove moisture in
Crawl Spaces with too few or undersized passive vent openings, overall lengths of over 40 feet, or in “dead zones” or stag­nant areas that are not served by existing foundation vents.

Excessive humidity levels in Crawl Spaces is the leading cause of premature rotting of support columns, joists, floors and
beam supports. Humidity can promote fungus growth and increased termite activity. Humidity may also cause plumbing
failures due to rust and corrosion. Helps dilute radon gases, treated wood off-gassing and other odors that might migrate
into living areas.

All models are equipped with a factory installed and pre-wired freeze protection thermostat which will prevent operation of
the fan below 35°F.

SPECIFICATIONS

SPECIFICA-

TIONS

GENERAL INFO

GENERAL INFORMATION

Each UnderAire™ Powered Fresh Air Supply Fan is electrically factory line tested before shipment.

After opening carton, inspect thoroughly for shipment damage. Fan should rotate freely and all electrical wires and connec­tions should be secured. If any damage is found, notify freight carrier and your distributor immediately and file a concealed
damage claim.

RECOMMENDED APPLICATION

The CS1 & CS2 Powered Fresh Air Supply Fans are designed to be used in conjunction with Tjernlund V-Series exhaust
Crawl Space Ventilators (V1, V1D, V2D). Use without exhaust fans may limit the effectiveness of these fans and cause pos­itive pressurization of the space which can could result in property damage. For optimal performance match CFM of supply
fan to CFM of exhaust fan. For example: (1) CS1 per V1 or V1D and (1) CS2 per V2D.

Powered Fresh Air Supply Fans for Crawl Spaces

©2011 TJERNLUND PRODUCTS, INC. ALL RIGHTS RESERVED P/N: 8504176

TJERNLUND PRODUCTS, INC.

1601 Ninth Street • White Bear Lake, MN 55110-6794
PHONE [phone] • [phone] • FAX [phone]
Visit our web site • www.tjernlund.com

READ OWNERS INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION.

THESE INSTRUCTIONS MUST REMAIN WITH EQUIPMENT. DO NOT DESTROY.

MODEL CS1

MODEL CS1 Fresh Air Supply Fan:

Capacity: 110 CFM
Motor: 115 Volts ~ 50/60 Hz

0.30 amps maximum

Thermostat: On at 50°F

Off at 35°F
Dimensions: 18” x 9” x 2”
Mounting Plate Smallest

Trimmable Dimensions: 7” x 6”

MODEL CS2 Fresh Air Supply:

Capacity: 220 CFM
Motors: 2 @ 115 Volts ~ 50/60 Hz

0.60 amps maximum

Thermostat: On at 50°F

Off at 35°F
Dimensions: 18” x 9” x 2”
Mounting Plate Smallest

Trimmable Dimensions: 13” x 6”

MODEL CS2

INSTALLATION

The Fresh Air Supply Fan must be installed by a qualified installer in accordance with these instructions and all local codes
or in their absence in accordance with the latest editions of the International Residential Code and International Electrical
Code. Improper installation can create a hazardous condition such as fire, electric shock or personal injury. To reduce
these risks significantly, use this unit only in the manner intended by the manufacturer. If you have questions, contact
Tjernlund Products. Always disconnect the Fresh Air Supply Fan from its power source before installation and servicing.

CAUTION: For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

TOOLS REQUIRED

• 5/16" Nut Runner or Flat Head Screw Driver

• Drill with 5/16" Masonry Bit if mounting on brick or foundation block

• Grounded Electrical Outlet within 6 feet of fan location.

INSTALLATION

LOCATION

Mount Fresh Air Supply Fan from the outside (remove existing vents if necessary) or inside the crawl space behind existing
foundation ventilation openings, (See Diagram A). Alternately, attach to joist to act as a “dead zone” circulation or stagnant
area fan, (See Diagram B).

IMPORTANT: Crawl Space Supply Fan must be mounted with the electrical control box and motor facing the interior of the
crawl space. Improper installation can create a hazardous condition such as fire, electric shock or personal injury.

1. Remove existing doors or covers on ventilation openings around the perimeter of the building.

2. Position the Crawl Space Supply Fan over the ventilation opening. To minimize moisture accumulation near power
supply, the unit should be oriented with the cord coming out on the top side of the fan(s), (See Diagrams Below).

3. If installing on foundation block or brick, mark location in the (6) mounting locations of the metal face plate and drill 5/16"
holes with masonry bit. Install wall anchors into openings and secure Fresh Air Supply Fan to the wall with (6) screws.
If installing on rim joist or mesh on existing crawl space vent, secure Fresh Air Supply Fan with (6) screws, washers and
nuts in the (6) mounting locations on metal face plate, (See Diagram A).

If installing on a joist / truss secure Fresh Air Supply Fan with (3) screws and washers in the top (3) mounting locations on
metal face plate, (See Diagram B).

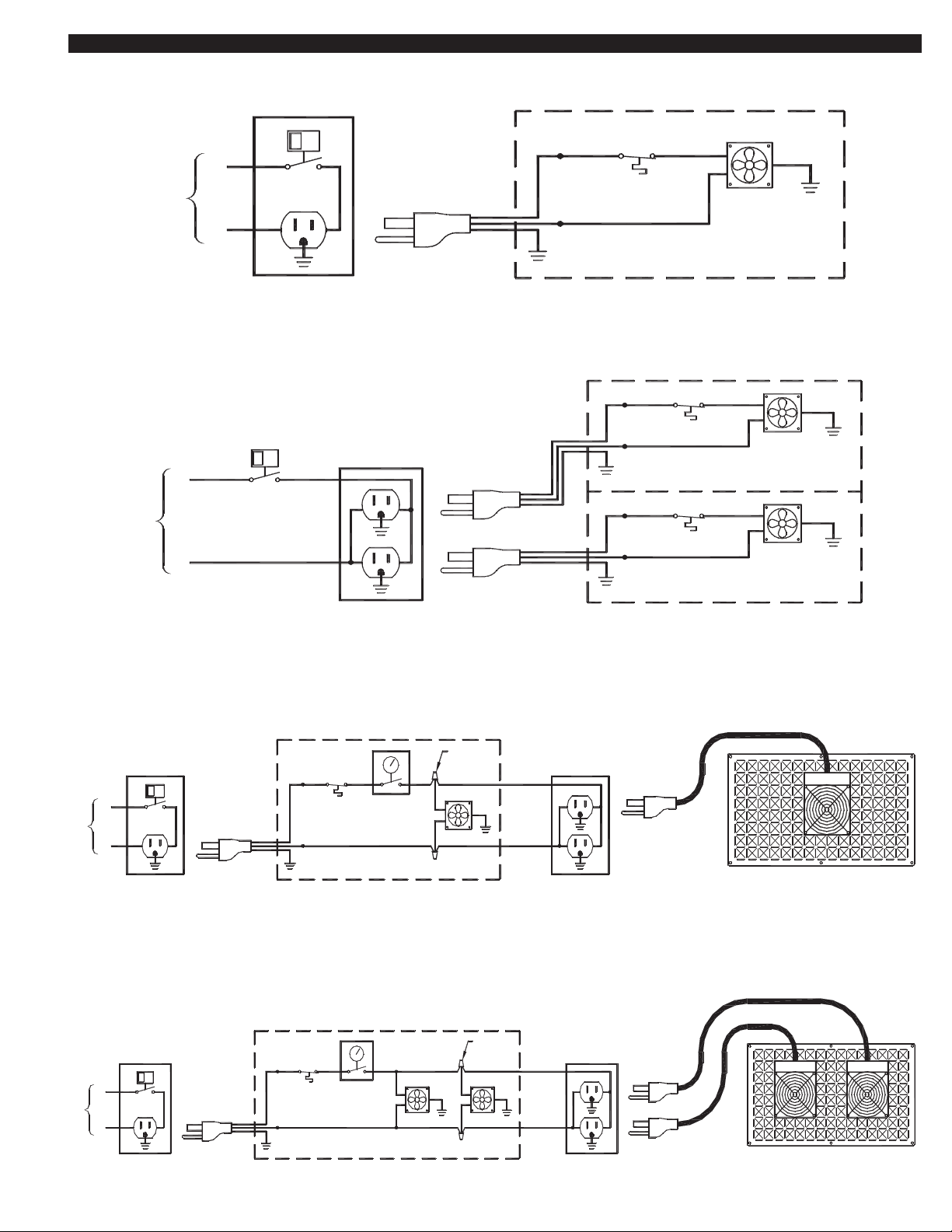

4. Plug unit(s) into electrical outlet or use the optional Tjernlund DH2P Dehumidistat Control.

TYPICAL MODEL CS1 & CS2 MOUNTING

FOUNDATION OPENING (Model CS1 Shown) - DIAGRAM A

TYPICAL MODEL CS1 & CS2 JOIST / TRUSS

INSTALLATION (Model CS1 Shown) - DIAGRAM B
