Timberk AC TIM 09C P6 User Manual [ru]

Instruction manual

Руководство по эксплуатации

Электрический кондиционер

Portable type electric air conditioner

воздуха мобильного типа

Модели/Models:

Электрический кондиционер воздуха мобильного типа Portable type electric air conditioner

• AC TIM 07C P6

• AC TIM 09C P6

• AC TIM 12C P6

Outlook of devices, aslo colour scores can be revised without any special advance notices.

Производитель вправе менять внешний вид прибора и цветовую гамму прибора без специального уведомления.

CONTENTS

1. Important information .......................................................................2

2. Precautions ......................................................................................3

3. Technical characteristics ................................................................... 3

4. Device description ............................................................................ 4

5. Delivery set ....................................................................................... 4

6. Appliance control ..............................................................................4

7. Operating modes .............................................................................. 6

8. Maintenance ..................................................................................... 8

9. Troubleshooting ................................................................................ 9

10. Transportatiom and storage ............................................................ 10

11. Service life ...................................................................................... 10

12 Utilization rules.................................................................................10

Dear customer!

We thank you for your happy choice and buying of a domestic air conditioner Timberk. It will serve you for a long time.

Is intended for cooling, heating, dehydration of air in domestic premises.

1. IMPORTANT INFORMATION

1.Please read this instruction manual carefully prior to installation and operation of a portable air conditioner.

2.To avoid damage to the air conditioner and voiding your guarantee, before start using the air conditioner put the device in a vertical position (as shown on the cover of this instruction manual) for at least 2 hours prior to operation.

3.There may be misprints in the text and digital symbols in this manual.

4.If after reading the manual you would still have questions regarding functioning and operation of the device, please contact the seller or a specialized service center for clarifications.

5.The device has a tag indicating all necessary technical data and other useful information about the device.

6. Use the device only as designated by this manual.

7. Prior to installation of the portable air conditioner, not connecting it to the mains, check and make sure that the mains socket for the air conditioner has a grounding pin and is properly grounded.

8. In case there is no grounding pin in your mains, operation of the portable air conditioner is lifethreatening.

www.timberk.com • Electric air conditioner

9. Do not use adapters and extension cords to connect your portable air conditioner.

10. Improper installation and use of this air conditioner may lead to severe injuries or damage to your property.

11. Any maintenance must be performed by a specialized company and qualified specialists

2. PRECAUTIONS

1. Do not block vents!

2. Make sure the inlet and outlet vent is not blocked.

3. Do not insert foreign objects into the air diffuser of the air conditioner. It is very dangerous since the fan rotates at high speed.

4. Install the device only on a horizontal surface to prevent condensed water leakage.

5. Do not install the floor-mounted air conditioner in the following places:

- in places exposed to direct sunlight;

- in the vicinity of open fire sources;

- in the vicinity of other operating heating devices;

- in places where water or steam splashes can contact the device;

- in rooms with increased humidity;

- close to swimming pools, bathrooms and shower rooms.

6. Do not use the device in an explosive or corrosive environment. Do not store gasoline and other volatile flammable liquids near the air conditioner – it is very dangerous!

7. Use the device to cool down air at ambient temperature 17-32°C. To use the device as a heater the room temperature must be 5-23°C.

8. Regularly clean filters to ensure efficient operation of the device.

9. To ensure reliable operation of the compressor, do not tilt the air conditioner.

10. If the device is disconnected, restarting must be performed not sooner than in 3.5 minutes to prevent the compressor failure.

11. At least 10 A current is required for the compressor to operate. To avoid overheating and fire risk, as well as damage to the inner electrical circuit, do not connect the device through extension cords.

12. The device is designed to cool, heat and dry air only in residential conditions and cannot be used for industrial purposes.

13. To avoid electric shock, a damaged power cord must be replaced only by an authorized service center and qualified specialists.

14. Prior to disposal of the device, it is necessary to remov

15. The appliance is not intended for use by children and persons with reduced physical, sensory or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an individual responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

IMPORTANT!

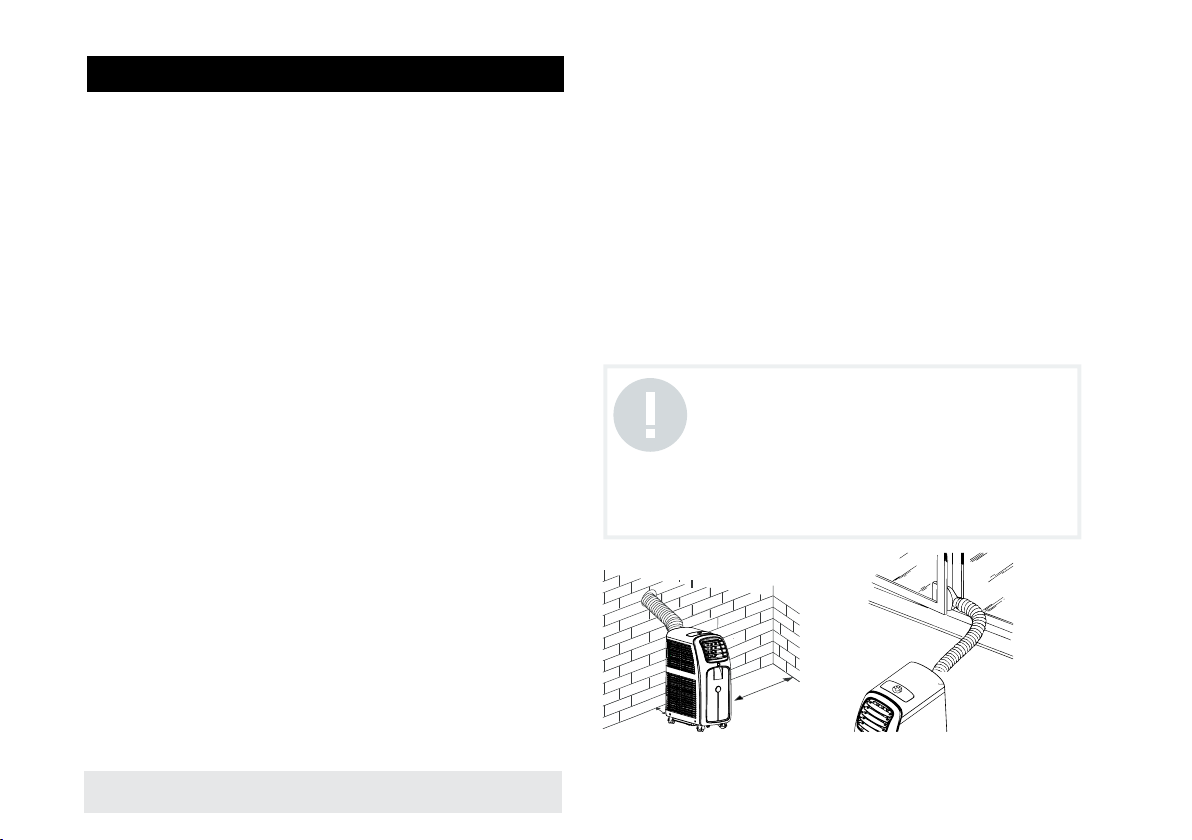

Efficient heating and cooling require to:

1) Ensure at least 30 cm of free space on the

filtering side of the unit (Fig. 1).

2) Adjust the length of the hose to reach the window. Make sure the air exhaust hose is unobstructed. Open the window or French window slightly and position the

outlet (fig. 2).

30cm

Fig. 1. Fig. 2.

www.timberk.com • Electric air conditioner

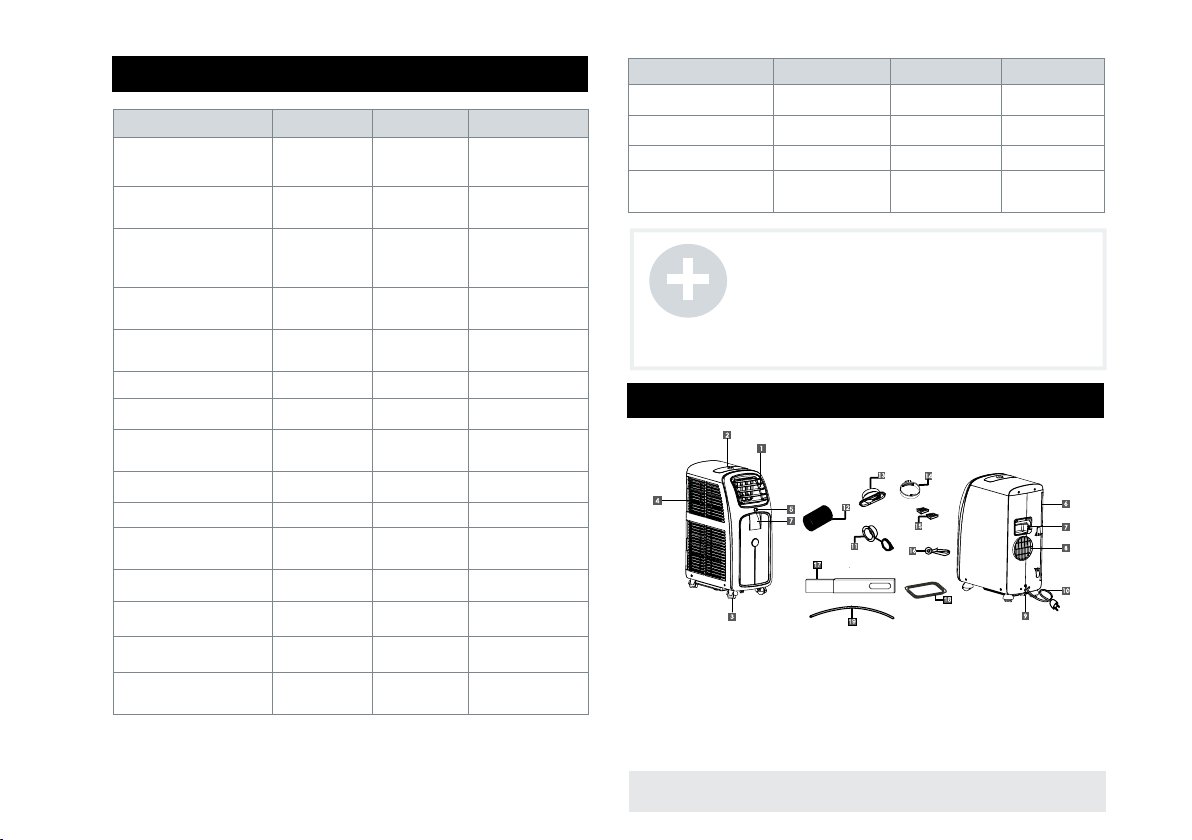

3. TECHNICAL CHARACTERISTICS

Model

Capacity (cooling) BTU

(kW)

Capacity (heating) BTU

(kW)

Rated power consumption

(cooling) W

Power supply, V/Hz 220-240~/50 220-240~/50 220-240/~50

Rated power current

(cooling/heating)

Air circulation m3/h 330 330 330

Water tank volume, L 3 3 3

Capacity of draining (L/d) 35 45 56

Noise level, dB(A) 53/48/45 53/48/45 53/49/46

Refregerant R410A R410A R410A

Energy effeciency

(cooling/heating)

Electrical protection class I class I class I class

Degree of moisture

protection

Filling of Freon, g 360 420 560

Operating temperature

range: cooling, °C

Net weight, kg 24 24,7 28

Gross weiht, kg 28 28,7 32

Net dimensions (mm) 270x480x695 270x480x695 270x480x695

Packing dimensions (mm) 335x540x865 335x540x865 335x540x865

AC TIM 07C P6 AC TIM 09C P6 AC TIM 12C P6

7000 (2,05) 9000 (2,63) 12000 (3,52)

- - -

785 950 1250

2,61 2,63 2,64

A A A

IPX0 IPX0 IPX0

18~35 18~35 18~35

NOTICE:

The manufacturer reserves the right to make changes in the design, scope of delivery, product manufacturing technology, as well as change its technical characteristics to improve its consumer and technical properties without prior notice.

4. DEVICE DESCRIPTION

Fig. 3.

1. Air outlet grille

2. Control panel

3. Castors

4. Intake grille

5. Remote control receiver

6. Filter

7. Handles

8. Air exhaust hose housing

9. Condensate drain

10. Power cable

11. Flange Cap*

12. Air exhaust hose

13. Hose outlet

14. Hose inlet

15. Castor locks*

16. Suckers*

17. Window bracket

18. Drain pan*

19. Drain hose* *the accessary is optional (not in the set)

www.timberk.com • Electric air conditioner

5. DELIVERY SET

1. Household air conditioner 1 pc.

2. Air outlet 1 pc.

3. Giftbox - 1pc.

4. Manual - 1 pc.

5. Options (accessories) - depends of delivery

6. APPLIANCE CONTROL

AIR-CONDITIONING WITHOUT INSTALLATION Just a few simple steps and your comfort is ensured with your appliance: Fit the air exhaust hose in the housing at the back of the appliance (fig. 1). Fit the window outlet to the end of the hose. Place the air conditioner near a window or French window. Adjust the length of the hose to reach the window. Make sure the air exhaust hose is unobstructed. Open the window or French window slightly and position the outlet (fig. 2). If you have a sash (window), place the bracket on the window sill, extend

the bracket fully within the window frame fix the bracket by using the pin, then lower the window into the bracket. Insert the window outlet of the exhaust hose into the slot, then connect the hose to the air conditioner (fig. 3).

If you have a double window, use the sucker provided to hold the two parts of the window together (fig. 4).

Keep the air hose as short and free of curves as possible to avoid bottlenecks.

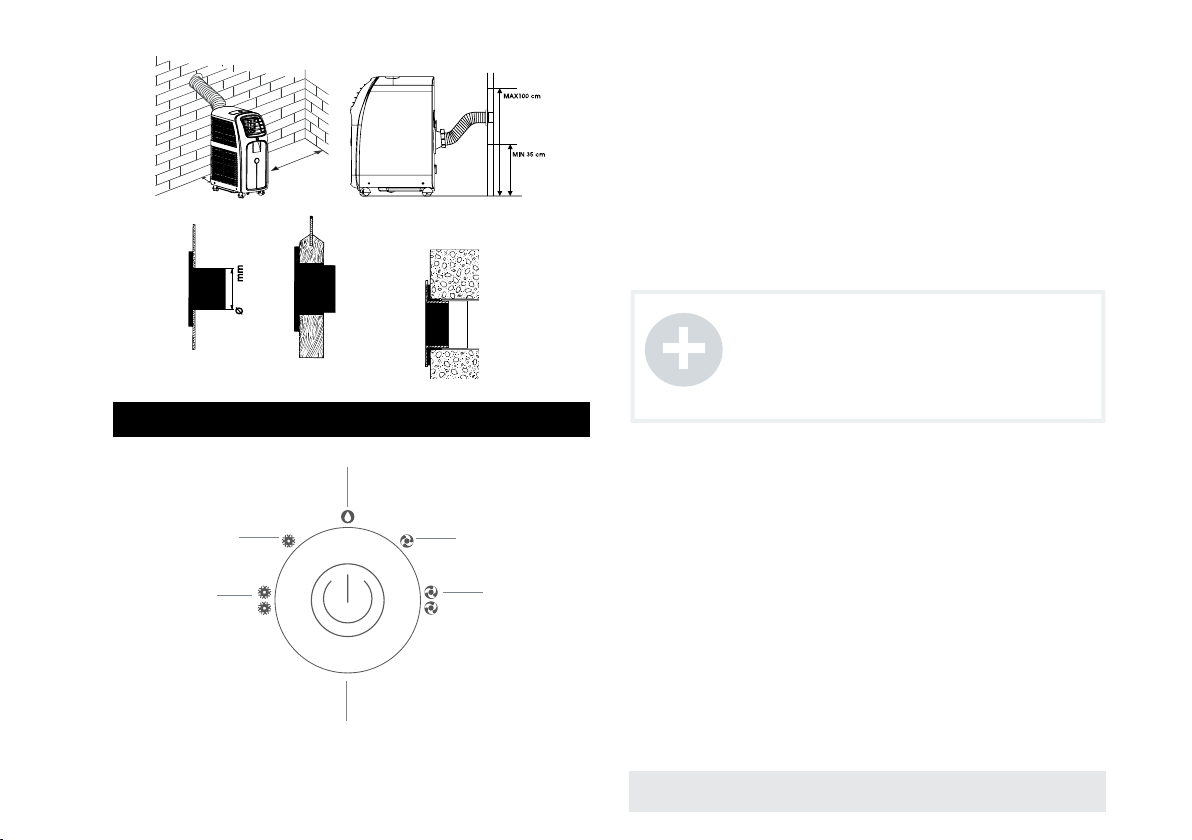

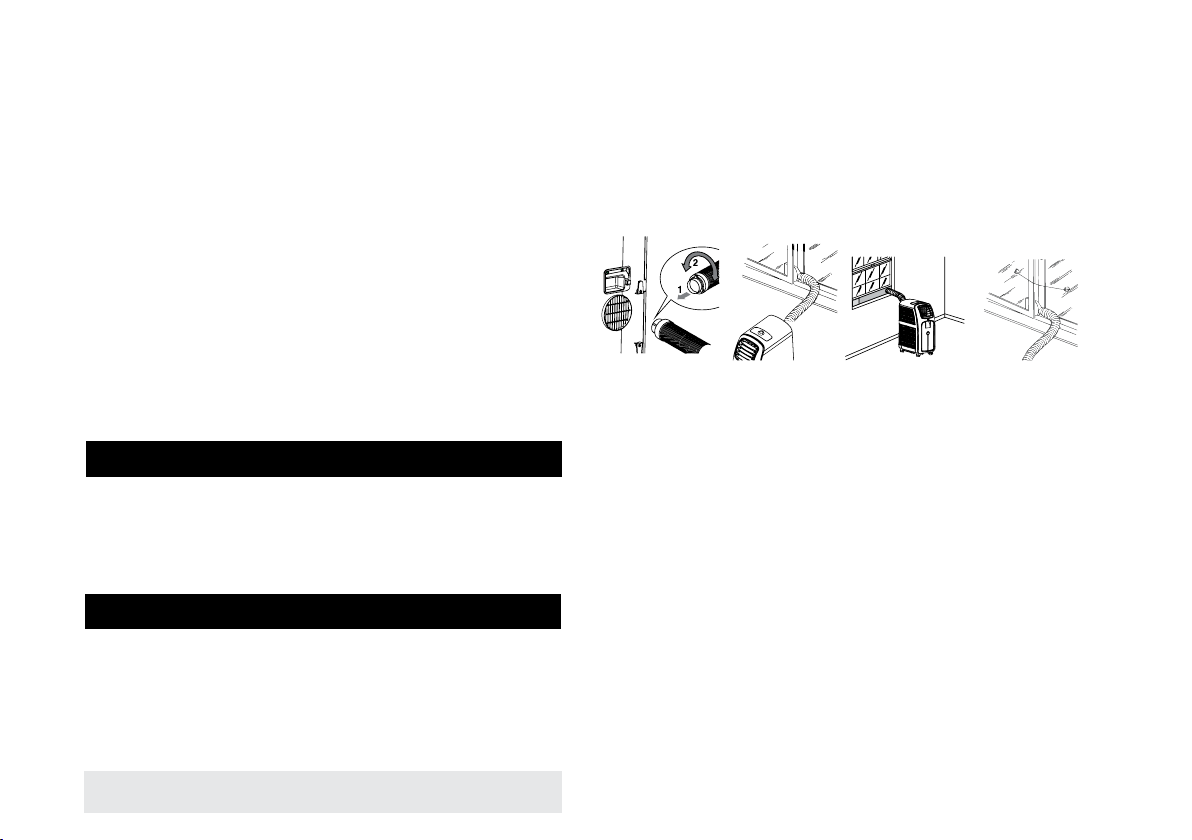

AIR-CONDITIONING WITH INSTALLATION If required, your appliance can also be installed semi-permanently (Fig. 5). Proceed as follows: Drill in an outside wall or in the window pane a 134 mm dia. hole

respecting the heights shown in fig.6. Fit the flange accessory provided in the hole following the indications in

figs. 7, 8 and 9. Fit the hose in the housing at the back of the appliance (fig. 1). Fit the end of the hose to the flange as shown in fig. 6. When the hose

is not fitted, the hole can be closed with the flange cap. Keep the air hose as short and free of curves as possible to avoid bottlenecks. When installing the air conditioner semi-permanently, you should leave a

door slightly open (as little as 1 cm) to guarantee correct ventilation.

30cm

Fig. 5. Fig. 6.

134

Fig.3.Fig.2.Fig. 1.

Fig. 4.

Fig. 7.

Fig. 8.

Fig. 9.

www.timberk.com • Electric air conditioner

7. OPERATING MODES

CONTROL PANEL & DESCRIPTION OF FUNCTION

NOTICE:

Never turn the air conditioner off by unplugging from the mains. Always press the button 1, then wait for a few minutes before unplugging. This allows the appliance to perform a cycle of checks to verify operation.

1. Power button. Press this button to switch on or off the unit

2. Light of high cooling. The appliance will work in cooling mode with high fan speed.

3. Light of low cooling. The appliance will work in cooling mode with low fan speed.

4. Light of alarm

5. Light of low fan speed. The appliance will work in low fan speed.

6. Light of high fan speed. The appliance will work in high fan speed.

www.timberk.com • Electric air conditioner

ATTENTION!

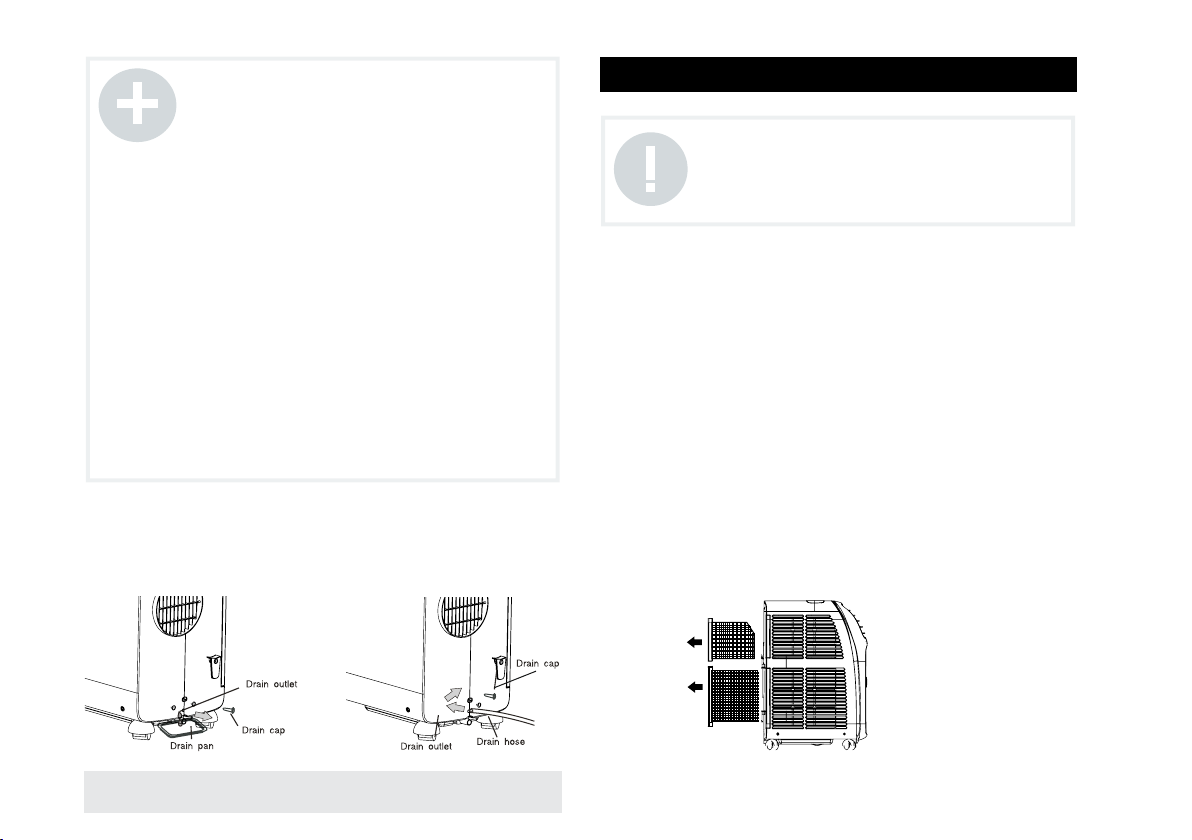

The unit can evaporate condensed water and automatically drain it through the hose*.

When the unit is in cooling mode, it is not necessary to install the condensate drainage pipe since condensate evaporates automatically. Make sure that when the unit is operating, the rubber plug of the drainage hose is securely fixed.

Disconnect the air outlet hose, connect the drainage hose to the drainage hole and drain water from the unit to ensure maximum dehumidification efficiency.

When drain hose not attached water collects in the tank for condensate. When the tank is filled on the

LCD display shows the E4.

To resume the operation, remove the rubber plug of the drainage hose to drain water at first. After water is drained…
