Timberk AC TIM 07H S22 User manual

Instruction manual

Руководство по эксплуатации

Universe

SERIES

Электрический кондиционер воздуха, сплит-система

Electric air conditioner, split system

Модели/Models:

Электрический кондиционер воздуха, сплит система (внутренний блок) Electrical air conditioner, split system (indoor unit)

• AC TIM 07H S22

• AC TIM 09H S22

• AC TIM 12H S22

• AC TIM 18H S22

• AC TIM 24H S22

Электрический кондиционер воздуха, сплит система (наружный блок) Electrical air conditioner, split system (outdoor unit)

• AC TIM 07H S22-01

• AC TIM 09H S22-01

• AC TIM 12H S22-01

• AC TIM 18H S22-01

• AC TIM 24H S22-01

Руководство по эксплуатации включает в себя гарантийный талон

Outlook of devices, aslo colour scores can be revised without any special advance notices.

Производитель вправе менять внешний вид прибора и цветовую гамму прибора без специального уведомления.

CONTENTS

1. Important information .......................................................................2

2. Safeguards .......................................................................................2

3. Specifications ................................................................................... 4

4. Appliance description .......................................................................6

5. Delivery set ....................................................................................... 6

6. Appliance control ..............................................................................6

7. Operating modes .............................................................................. 8

8. Maintenance ..................................................................................... 9

9. Troubleshooting ................................................................................ 10

10. Transportatiom and storage ............................................................ 10

11. Service life ...................................................................................... 10

12. Utilization rules................................................................................10

Dear customer!

We thank you for your happy choice and buying of a domestic air conditioner TIMBERK. It will serve you for a long time.

Is intended for cooling, heating, dehydration of air in domestic premises.

1. IMPORTANT INFORMATION

The appliance is designed for air cooling in domestic premises. The manufacturer reserves the right to introduce changes in design, configuration and processing of the article with a view to improve its properties without any prior notification of customers. There may be some misprints in text and digital notations of the present manual.

If after reading of this manual you have any questions concerning work and operation of the appliance, please, refer to a shop assistant or to a specialized service center for further explanations.

The article has a label with all the needed technical data and other useful information about the appliance. Use the appliance only for its intended purpose indicated in this manual.

www.timberk.com • Electric air conditioner

2. SAFEGUARDS

1. Don’t try to install the conditioner by yourself. Call for a qualified installation specialist.

2. While using the air conditioner, it is necessary to observe several precautions. Incorrect operation due to ignoring of precautions may result in personal injury of a user and other people, as well as in damaging of their property.

3. The electric appliance should be under observation while operated, especially if there are any children near it.

4. Don’t pass your fingers or foreign objects through an air outlet grille of indoor and outdoor units, since it may result in a trauma caused by a revolving fan.

5. Don’t let children turn the conditioner on by themselves. Children may turn the conditioner on only under the care of adults.

6. Don’t try to repair the conditioner by yourself. Internal units of the conditioner carry a voltage and it is life-threatening! For repair of the appliance refer to an authorized service center.

7. Don’t use the appliance if it is faulty, or if it was dropped or damaged.

8. Don’t open a front panel of the appliance during its work.

9. Don’t dismantle and modify the appliance.

10. Unplug the conditioner immediately, if it emits strange odours or smoke.

11.Don’t splash and pour water and other liquids on the conditioner.

12. Always unplug the conditioner during a lighting storm.

13. Always unplug the conditioner, when it is not used.

14. Before cleaning and maintenance of the conditioner unplug it. Cleaning and maintenance should be performed in accordance with instructions of this manual.

15.To ensure the effective work of the conditioner, operate it in environment described in the present manual.

16. Don’t use dangerous chemicals for cleaning of the appliance and don’t let them on the appliance.

17. When removing an air filter, don’t touch metal parts of the appliance.

18. To avoid overheating and risk of flash fire, as well as damage of internal electric network, don’t change the length of a power cord and don’t

connect the appliance via extension cords.

19. To avoid electrical hazards, damaged power cord must be changed only at authorized service centers qualified professionals.

20. To avoid risk of electric shock, do not place the power cord near a heater and flammable or combustible substances.

21. Do not start or stop the unit by connecting or disconnecting electrical power.

22. To avoid electric shock, a damaged power cord should be replaced only in authorized service centers by qualified specialists.

23. To avoid electric shock, don’t place the power cord near heating appliances and flammable or combustible substances.

24. Don’t start and stop the appliance by power-up and down.

25. Don’t press the buttons of the remote control board by anything but your fingers.

26. Don’t use the appliance for purposes not intended by this user manual.

www.timberk.com • Electric air conditioner

3. SPECIFICATIONS

Model

Indoor unit

Outdoor unit

Capacity (cooling) BTU (W) 7438 (2180) 9212 (2700) 12454 (3650) 18766 (5500) 24396 (7150)

Capacity (heating) BTU (W)

Rated power consumption

(cooling) (W)

Rated power consumption

(heating) (W)

Power supply, V/Hz

Rated power current (cooling/

heating) (W)

Air circulation

(indoor unit) m3/h

Air circulation (outdoor unit)

m3/h

Noise level (indoor unit) dB(A) 35/33/31 35/33/31 38/35/33 47/45/43 47/45/43

Noise level (outdoor unit)

dB(A)

Refrigerant R410A R410A R410A R410A R410A

Electrical protection class I class I class I class I class I class

Energy efficiency (cooling/heating)

Degree of protection against

moisture

(indoor unit)

Degree of protection against

moisture (outdoor unit)

AC TIM 07H S22 AC TIM 09H S22 AC TIM 12H S22 AC TIM 18H S22 AC TIM 24H S22

AC TIM 07H S22-01 AC TIM 09H S22-01 AC TIM 12H S22-01 AC TIM 18H S22-01 AC TIM 24H S22-01

7848 (2300) 9554 (2800) 12897 (3780) 19107 (5600) 24839 (7280)

681 841 1121 1751 2339

638 761 1035 1542 2121

220~/50 220~/50 220~/50 220~/50 220~/50

2,96/2,77 3,66/3,31 4,87/4,50 7,61/6,70 10,17/9,22

430 430 530 780 780

1415 1415 2040 2340 3350

48 50 54 56 58

A/A A/A A/A B/A B/B

IPX0 IPX0 IPX0 IPX0 IPX0

IPX4 IPX4 IPX4 IPX4 IPX4

www.timberk.com • Electric air conditioner

Model

Indoor unit

Outdoor unit

Refrigerant piping, Liquid

side / Gas side, (inch)

Max. refrigerant pipe

length, m

Maximum difference in

level, m

Filling of Freon, g 440 480 670 1050 1380

Operating temperature

range: cooling, °C

Operating temperature

range: heating, °C

Net weight,

indoor unit (kg)

Net weight,

outdoor unit (kg)

Gross weight,

indoor unit (kg)

Gross weight,

outdoor unit (kg)

Net dimensions,

indoor unit (mm)

Net dimensions,

outdoor unit (mm)

Packing dimensions,

indoor unit (mm)

Packing dimensions,

outdoor unit (mm)

AC TIM 07H S22 AC TIM 09H S22 AC TIM 12H S22 AC TIM 18H S22 AC TIM 24H S22

AC TIM 07H S22-01 AC TIM 09H S22-01 AC TIM 12H S22-01 AC TIM 18H S22-01 AC TIM 24H S22-01

1/4 / 3/8 1/4 / 3/8 1/4 / 3/8 1/4 / 1/2 3/8 / 5/8

15 15 15 15 15

5 5 5 5 5

+18 ~ +43 +18 ~ +44 +18 ~ +45 +18 ~ +46 +18 ~ +47

-7 ~ + 24 -7 ~ + 25 -7 ~ + 26 -7 ~ + 27 -7 ~ + 28

6,5 6,5 7,0 9,0 9,0

19,2 21,5 28,0 33,0 46,0

8,0 8,0 9,0 12,0 12,0

21,0 23,2 30,0 35,0 51,0

764x253x202 764x253x202 816x265x200 946x308x226 946x308x226

600x232x500 600x232x500 700x552x256 760x256x552 902x650x307

818x332x265 818x332x265 870x332x265 1013x379x311 1013x379x311

705x300x550 705x300x550 803x325x585 863x325x585 1028x430x705

www.timberk.com • Electric air conditioner

4. APPLIANCE DESCRIPTION

The conditioner consists of indoor and outdoor units connected by pipelines. The conditioner may be controlled from a remote control board or from an indoor unit control panel. In the air conditioner of this series is built Ionize.

Remote control board -1 piece Batteries for remote control board - 2 pcs. User manual -1 piece Guarantee slip -1 piece Packing of indoor-installation unit -1 piece Packing of outdoor-installation unit -1 piece

* not supplied

6. APPLIANCE CONTROL

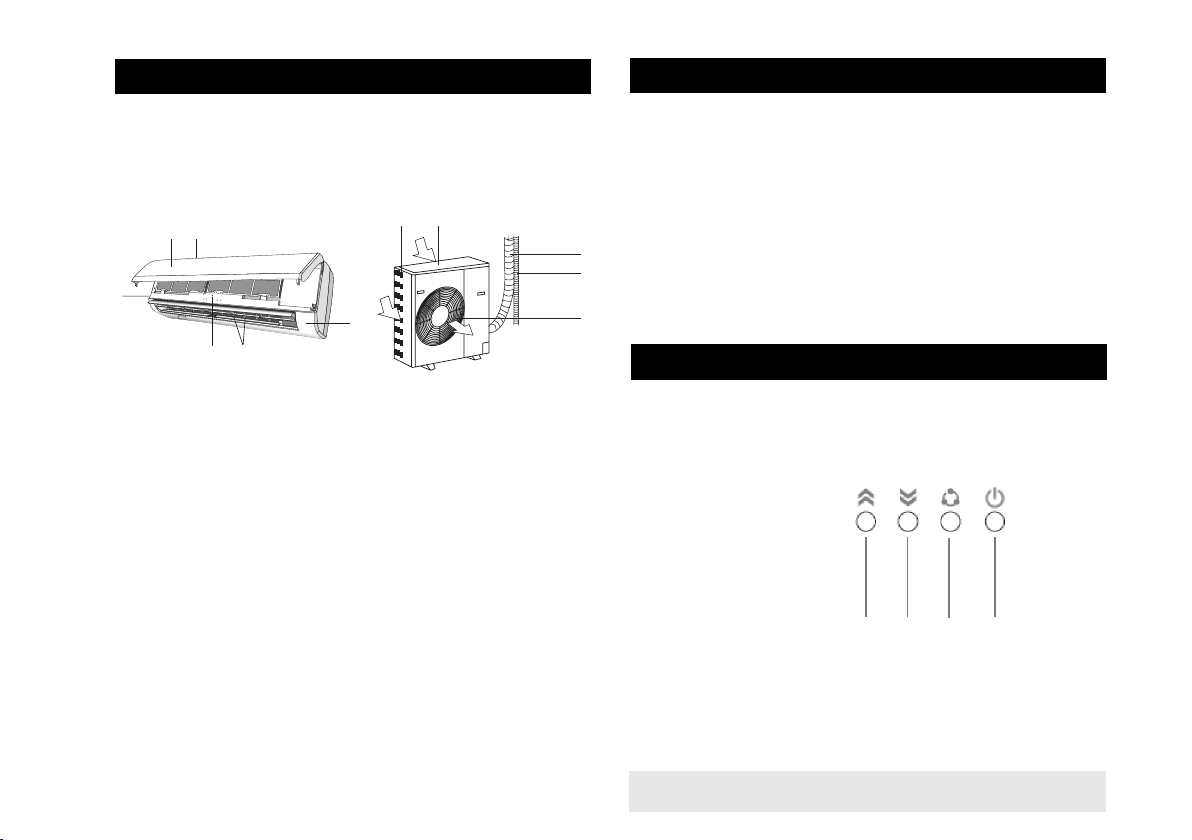

Fig. 1

1. Conditioner unit for indoor installation.

2. Front panel.

3. Air-intake grille of the indoor unit.

4. Сontrol panel of the indoor unit.

5. Blinds (deflectors) for distribution of treated air.

6. Air outlet of the indoor unit.

7. Copper tube for gas (freon), connection line*.

8. Tube for condensate removal*.

9. Air-outlet grille of the outdoor unit.

10. Conditioner unit for outdoor installation.

11. Air-intake grilles of the outdoor unit.

5. DELIVERY SET

Complete set of air conditioner (split system) includes: Conditioner unit for indoor installation -1 piece Conditioner unit for outdoor installation -1 piece

www.timberk.com • Electric air conditioner

The conditioner may be controlled from a remote control board or from an indoor unit control panel.

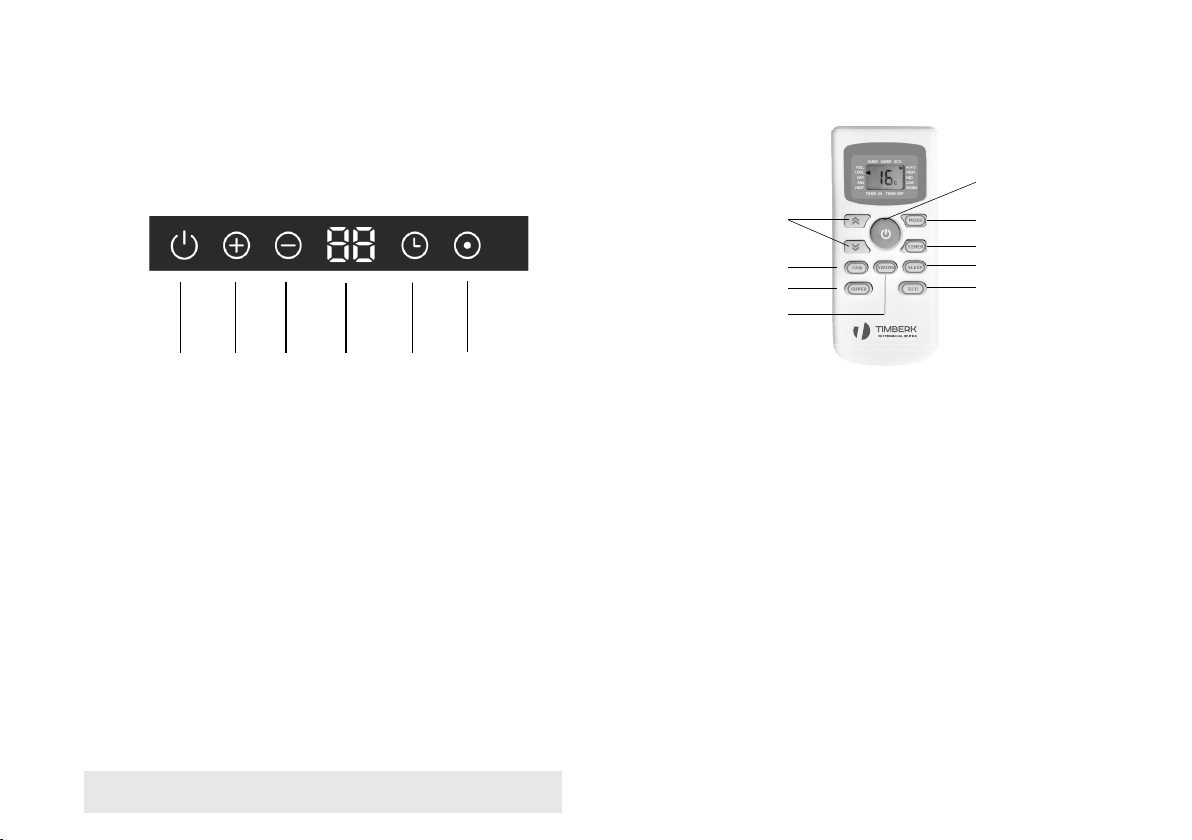

Description of indoor unit control panel

1 2 3 4

Fig. 2

1,2. Buttons «TEMP» (increase/decrease). Using this button, you may set needed air temperature indoors.

3. SET button. Press this button to select ventilation, drying heating or cooling mode.

4. Button «ON/OFF» (Power). Using this button, you may turn the conditioner on or off.

а) Power supple indicator b) Heating mode indicator c) Cooling mode indicator d) Temperature indicator e) Timer indicator

a b c d e f

f) Operation indicator

Fig. 3

*use of particular indicators depends on model and series. ** design of indicator symbols may differ depending on model

and series.

Description of remote control board

Fig. 4

12.Button «ON/OFF» (Power). Using this button, you may turn the conditioner on or off.

13.Buttons «TEMP» (increase/decrease). Using this button, you may set needed air temperature indoors.

14.Button «FAN». Using this button, you may select rotation speed of the indoor unit fan: «Auto», «High», «Middle», «Low».

In “Auto” mode the fan speed will change automatically. In dry mode the fan speed will remain unchanged – “Low”.

15.Button «SWING». Using this button, you may regulate position of airoutlet blinds and forward treated air up and down.

16.Button «TIMER». Pressing this button, you may set the time for turning

the conditioner on and off (set the time by pressing “TEMP» buttons up and down). If the conditioner is off, you may set the time for automatic turning on in a set time interval. And vice versa, if the conditioner is on, you may set the time for automatic turning off. Before activation of the Timer function you may specify the needed settings.

17.Button «SUPPER». Using this button, you may turn the turbo mode on and off. In this mode the conditioner shows the maximum cooling (in cool mode) or heating (in heat mode) capacity.

18.Button «ECO» (Economic). Using this button, you may turn the economic mode on and off. In this mode temperature will increase (in cool mode) or decrease (in heat mode) slightly – by 2°С from the specified one.

19.Button «SLEEP» (Night Care). Using this button, you may turn the sleep mode on and off. In this mode, if working for cooling, the conditioner will increase temperature by 1 °С from the specified one within two hours. If working for heating, the conditioner will decrease temperature by 1 °С from the specified one within two hours. After 10 hours of operation the conditioner will turn off automatically.

20.Button for selection of operating mode – «MODE». Using this button, you may select a needed operating mode: AUTO, COOL, DRY, HEAT, FAN.

Indication of the control board display shall correspond to selected modes.

Work with remote control board Mounting and replacement of batteries: mount two LR03 alkaline batteries,

according to polarity indicated on the remote control board. In order to avoid malfunction of the remote control board do not insert used

batteries or batteries of various types. If the conditioner is not used for a long time, remove batteries from the

board or else electrolyte may leak and damage the board. In normal operation of the conditioner average service life of batteries will

be about a half-year. Replace batteries, if command receiving is not confirmed with an audio

signal, or if the display does not show a sign of command transfer. When generating commands from the remote control board, point an IR-radiator at a remote-control signal receiver situated on the indoor unit. Hold the remote control board at the distance of no more than 8 m from the indoor unit. The remote control board will not work, if there are any curtains, doors or other things between it and the indoor unit. Protect the board from water and exposure to direct sunlight and heat sources.

www.timberk.com • Electric air conditioner

NOTE:

After installing the batteries in the remote control for a few seconds will alternately flashing heating and cooling. To select the mode of the console «cooling only» press any key on the remote control during display cooling mode.

To select the operation mode of the remote control «cooling-heating» press any key during the display of the heating mode, or do not press any key to stop the flashing indicator.

7. OPERATING MODES

AUTO mode (SMART)

The auto mode is turned on and off with the use of the button “MODE” on the remote control board.

1. While working in the AUTO mode, a microprocessor will automatically select COOL, FAN, HEAT or DRY modes based on the difference between actual and preset air temperature indoors.

2. If the AUTO mode does not provide comfort conditions, select the mode manually. In automatic mode, depending on air temperature in the room, the conditioner will select needed temperature parameters of its operation in the following order:

Temperature indoors Automatic mode sele ction Automatically maintained temperature

if <20° С then HEAT mode shall be turned on 23° С

if <20° С - 26° С then DRY mode shall be turned on 18° С

if <26° С

ASmart mode allows changing threshold of switching from mode to mode. During operation in Smart mode you see «-» on the display. Press keys Temp +/-. «-» will change by +(-) 2. The range shift of this threshold

-2...+2 of default temperatures.

then COOL mode shall be turned on

23° С

COOL, HEAT and FAN

1. Turn the conditioner on pressing the «ON/OFF» button.

2. Pressing the «MODE» button, select COOL, HEAT or FAN mode manually.

3. Pressing the «TEMP» button (up-down), set the desired air temperature indoors (except for FAN mode).

4.Pressing the «FAN SPEED» button on the remote control board, select the fan rotation speed: AUTO, LOW, MIDDLE, HIGH, and the conditioner will start working in accordance with the selected setting. In the Smart mode fan speed automatically selected.

5.To turn the conditioner off, press the «ON/OFF» button once again. In the FAN mode air temperature indoors is not set. DRY Turn the conditioner on pressing the «ON/OFF» button. Pressing the

«MODE» button, select the DRY mode. The conditioner will start working in the set mode. To turn the conditioner off, press the «ON/OFF» button once again.

NOTE:

If there is a difference between set and actual air temperature in DRY mode, the conditioner will automatically turn on in COOL or FAN modes.

«SUPER» mode (TURBO)

When pressing the «TURBO» button on the remote control board, the conditioner will start working in turbo mode – for maximum cooling (in cool mode) or for maximum heating (in heat mode).

TIMER mode

Procedure of timing: – If the conditioner is off, then press the “TIMER” button to activate the

automatic turning on. Pressing this button once again, set the time for turning the conditioner on in the set time interval. To cancel the timer mode, press the “TIMER” button once again.

–If the conditioner is working, then press the “TIMER” button to activate the automatic turning off. Pressing this button once again, set the time for turning the conditioner off in the set time interval. To cancel the timer mode, press the “TIMER” button once again.

www.timberk.com • Electric air conditioner

«SLEEP» mode

Button «SLEEP» (Night Care). Using this button, you may turn the sleep mode on and off. In this mode, if working for cooling, the conditioner will increase temperature by 1 °С an hour from the specified one within two hours. If working for heating, the conditioner will decrease temperature by 1 °С an hour from the specified one within two hours. After 10 hours of operation the conditioner will turn off automatically.

Regulation of treated air flow direction

Regulating the position of deflectors (blinds), set the direction of treated air flow ensuring uniform distribution of temperature and the most comfort conditions in the room. To change the position of deflectors, use the «SWING» button.

8. MAINTENANCE

• Before cleaning unplug the conditioner.

• Cleaning of the indoor unit and remote control board:

• Indoor unit and remote control board should be cleaned with a dry soft cloth.

• If the indoor unit is too unclean, moisten the cloth with cold water.

• It is prohibited to clean the remote control board with moist cloth.

• In order to avoid the damage of paint or details of the conditioner, do not clean it with brushes and do not leave them on the surface of indoor unit.

• In order to avoid the damage of surface or deformation of the conditioner details, do not clean it with petrol, solvents, cleaning powders or other chemically active substances.

• Before a sustained interruption in the conditioner work:

• Turn the conditioner on for several hours in the FAN mode. It will allow you to dry its inner cavities

• Unplug the conditioner. Remove the batteries from the remote control board.

• Checks before starting:

• Make sure that an air filter is installed.

• Make sure that air inlet and outlet grilles of the outdoor unit are not blocked by foreign objects.

• Cleaning of air filter

• Air filter cleans the air entering the conditioner from dust and foreign particles. If the filter is contaminated, the conditioner capacity decreases sharply.

• If the conditioner is operated permanently, the filter should be cleaned once per two weeks.

• If the conditioner is installed in a room with dusty atmosphere, then the air filter should be cleaned more often.

• To remove the filter, open the indoor unit panel.

• Remove air filters. Clean the filter with a vacuum cleaner or rinse it in clean water. If the filter is contaminated heavily, clean it with a soft brush and wash in diluted washing solution, then dry it in a cool place.

• While cleaning the filter with the vacuum cleaner, hold it with contaminated surface up. While washing the filter in water, hold it with contaminated surface down.

• Do not dry the filter in the sun or near a fire.

• Set the air filter to initial position and close the panel.

www.timberk.com • Electric air conditioner

9. TROUBLESHOOTING

In case of emergency, please, use the troubleshooting methods shown in tables. If it is impossible to solve problems with these methods, apply to the service center.

Failures and their possible reasons:

* This product must have storage in dry, well-ventilated space of warehouse at the temperature not lower than -30°C.

11.SERVICE LIFE

Service life of the appliance is 10 years provided that the respective installation and operation rules are observed.

Failure Possible reason Actions

Wait for restoration of power supply

Replace the batteries

Wait till the conditooner turns on by the timer or cancel the timer setting

Set the air temperature correctly

Remove foreign objects

Wait a little

Set the temperature correctly

The conditioner does

not work

Insufficient cooling or

heating capacity

The conditioner works,

but does not cool or

heat the room

Interruptions in power supply

Batteries in the remote control board are low

Time of tuming on is set by the timer

The set air temperature is too high or too low

The air filter is clogged with dust Clean the air filter

Foreign objects block the air intel and retum air grillages of the outdoor unit

A three-minute delay of compressor tuming on

The air temperature is set incorrectly

10. TRANSPORTATIOM AND STORAGE

Temperature requirements*

Humidity requirements*

Transportation and storage

We are exploring new technologies and we constantly improving the quality of our products. That’s why specifications, design and accessories are subject to change without any specific notice.

From -30° to +50°

From 15% to 85%

(without a condensate)

Date of the conditioner manufacture is shown in a serial number of the device. For more details, please, ask a shop assistant.

12. UTILIZATION RULES

Upon expiration of the service life, the appliance should be utilized in accordance with norms, regulations and procedures effective in the place of utilization.

www.timberk.com • Electric air conditioner

Содержание*

1. Важная информация ...................................................................... 11

2. Меры предосторожности ...............................................................12

3. Технические характеристики .........................................................13

4. Описание прибора .......................................................................... 16

5. Комплект поставки .........................................................................16

6. Управление прибором ....................................................................16

7. Режимы работы ..............................................................................18

8. Уход и обслуживание ......................................................................20

9. Гарантийный талон .........................................................................20

* Руководство по эксплуатации может быть дополнено приложением №1, которое является неотъемлемой частью Руководства по эксплуатации.

Уважаемый покупатель!

Благодарим Вас за удачный выбор и приобретение бытового кондиционера воздуха TIMBERK.

Он прослужит Вам долго. Электрический кондиционер воздуха предназначен для ох-

лаждения, обогрева и осушения воздуха в бытовом помещении.

Просим вас внимательно ознакомиться с руководством по эксплуатации перед тем, как вы начнете эксплуатацию изделия

1. ВАЖНАЯ ИНФОРМАЦИЯ

Прибор предназначен для охлаждения воздуха в бытовых помещениях.

Производитель оставляет за собой право без предварительного уведомления покупателя вносить изменения в конструкцию, комплектацию или технологию изготовления изделия с целью улучшения его свойств. В тексте и цифровых обозначениях данного руководства могут быть допущены опечатки.

Если после прочтения руководства у Вас останутся вопросы по работе и эксплуатации прибора, обратитесь к продавцу или в специализированный сервисный центр для получения разъяснений.

ПРИМЕЧАНИЕ

На изделии присутствует этикетка, на которой указаны все необходимые технические данные и другая полезная информация о приборе. Используйте прибор только по назначению, указанному в данном руководстве.

www.timberk.сom • Электрический кондиционер воздуха

+ 25 hidden pages
