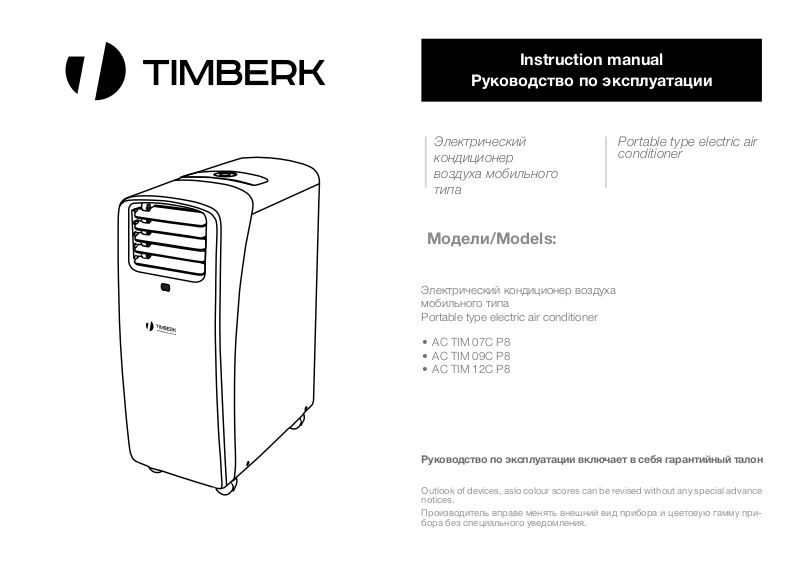

Timberk AC TIM 07C P8 User Manual [ru]
Instruction manual
Руководство по эксплуатации
Электрический
кондиционер
Portable type electric air
conditioner
воздуха мобильного
типа
Модели/Models:
Электрический кондиционер воздуха
мобильного типа
Portable type electric air conditioner
• AC TIM 07C P8
• AC TIM 09C P8
• AC TIM 12C P8
Руководство по эксплуатации включает в себя гарантийный талон
Outlook of devices, aslo colour scores can be revised without any special advance
notices.
Производитель вправе менять внешний вид прибора и цветовую гамму прибора без специального уведомления.
CONTENTS
1. Important information .......................................................................2
2. Precautions ......................................................................................3
3. Technical characteristics ................................................................... 3
4. Device description ............................................................................ 4
5. Delivery set ....................................................................................... 4
6. Appliance control ..............................................................................4
7. Operating modes .............................................................................. 6
8. Maintenance ..................................................................................... 8
9. Troubleshooting ................................................................................ 9
10. Transportatiom and storage ............................................................ 10
11. Service life ...................................................................................... 10
12 Utilization rules.................................................................................10
Dear customer!
We thank you for your happy choice and buying of a domestic air
conditioner Timberk. It will serve you for a long time.
Is intended for cooling dehydration of air in domestic premises.
1. IMPORTANT INFORMATION
1.Please read this instruction manual carefully
prior to installation and operation of a portable air
conditioner.
2.To avoid damage to the air conditioner and voiding
your guarantee, before start using the air conditioner
put the device in a vertical position (as shown on the
cover of this instruction manual) for at least 2 hours
prior to operation.
3.There may be misprints in the text and digital
symbols in this manual.
4.If after reading the manual you would still have
questions regarding functioning and operation of
the device, please contact the seller or a specialized
service center for clarifications.
5.The device has a tag indicating all necessary
technical data and other useful information about
the device.
6. Use the device only as designated by this manual.
7. Prior to installation of the portable air conditioner,
not connecting it to the mains, check and make sure
that the mains socket for the air conditioner has a
grounding pin and is properly grounded.
8. In case there is no grounding pin in your mains,
operation of the portable air conditioner is lifethreatening.
2
www.timberk.com • Electric air conditioner
9. Do not use adapters and extension cords to
connect your portable air conditioner.
10. Improper installation and use of this air
conditioner may lead to severe injuries or damage
to your property.
11. Any maintenance must be performed by a
specialized company and qualified specialists
2. PRECAUTIONS
1. Do not block vents!
2. Make sure the inlet and outlet vent is not blocked.
3. Do not insert foreign objects into the air diffuser of the air conditioner.
It is very dangerous since the fan rotates at high speed.
4. Install the device only on a horizontal surface to prevent condensed
water leakage.
5. Do not install the floor-mounted air conditioner in the following
places:
- in places exposed to direct sunlight;
- in the vicinity of open fire sources;
- in the vicinity of other operating heating devices;
- in places where water or steam splashes can contact the device;
- in rooms with increased humidity;
- close to swimming pools, bathrooms and shower rooms.
6. Do not use the device in an explosive or corrosive environment.
Do not store gasoline and other volatile flammable liquids near the air
conditioner – it is very dangerous!
7. Use the device to cool down air at ambient temperature 17-35°C.
8. Regularly clean filters to ensure efficient operation of the device.
9. To ensure reliable operation of the compressor, do not tilt the air
conditioner.
10. If the device is disconnected, restarting must be performed not
sooner than in 3.5 minutes to prevent the compressor failure.
11. At least 10 A current is required for the compressor to operate. To
avoid overheating and fire risk, as well as damage to the inner electrical
circuit, do not connect the device through extension cords.
12. The device is designed to cool and dry air only in residential
conditions and cannot be used for industrial purposes.
13. To avoid electric shock, a damaged power cord must be replaced
only by an authorized service center and qualified specialists.
14. Prior to disposal of the device, it is necessary to remov
15. The appliance is not intended for use by children and persons with
reduced physical, sensory or mental capabilities, or a lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by an individual responsible for their
safety. Children should be supervised to ensure that they do not play
with the appliance.
IMPORTANT!
Efficient cooling require to:
1) Ensure at least 30 cm of free space on the
filtering side of the unit (Fig. 1).
2) Adjust the length of the hose to reach the window.
Make sure the air exhaust hose is unobstructed.
Open the window or French window slightly and
position the
outlet (fig. 2).
Fig. 1. Fig. 2.
www.timberk.com • Electric air conditioner
3

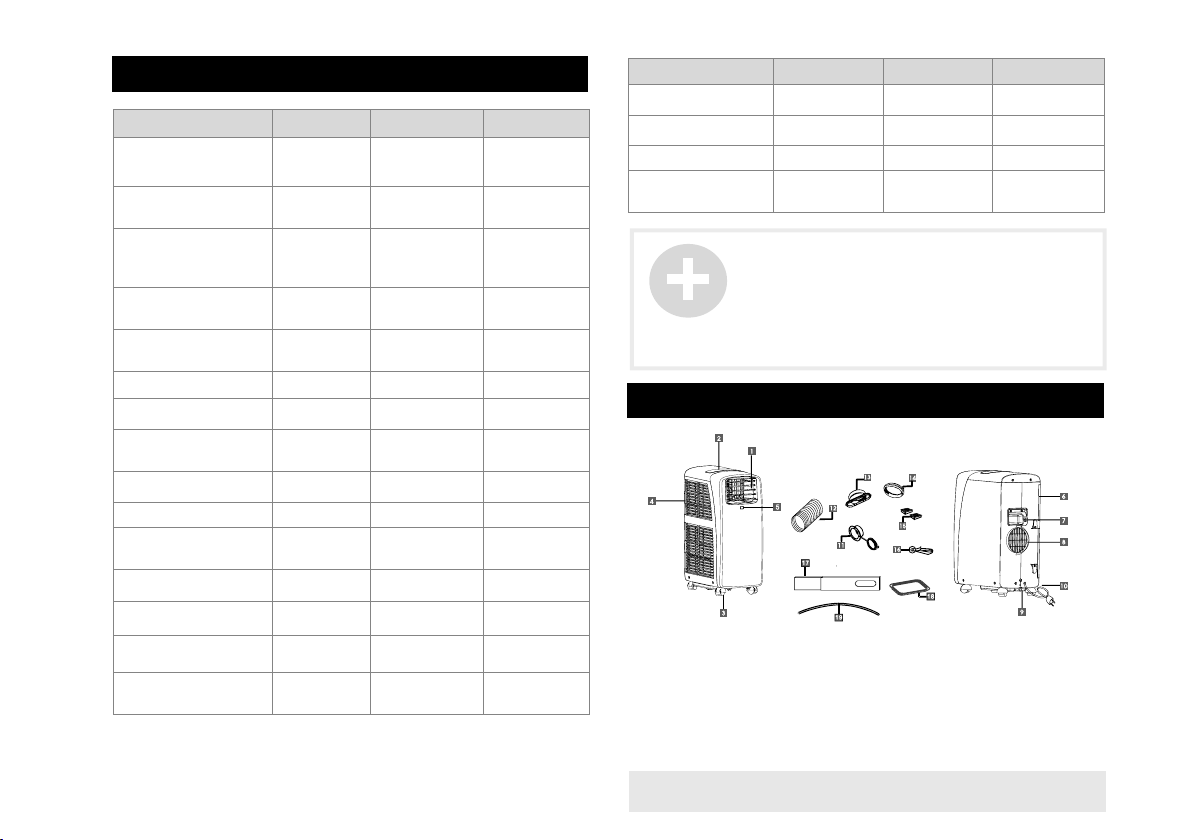

3. TECHNICAL CHARACTERISTICS
Model
Capacity (cooling)
BTU (W)
Capacity (heating)
BTU (W)
Rated power
consumption
(cooling) W
Power supply, V/Hz 220-240~/50 220-240~/50 220-240~/50
Rated power current
(cooling) A
Air circulation m
Water tank volume, L 1 1 1
Capacity of draining
(L/d)
Noise level, dB(A) 53/48/45 53/48/45 53/49/46
Refregerant R410A R410A R410A
Energy effeciency
(cooling)
Electrical protection
class
Degree of moisture
protection
Filling of Freon, g 360 420 420
Operating
temperature range:
cooling, °C
Net weight, kg 24 24,7 28
Gross weiht, kg 28 28,7 32
Net dimensions
(mm)
Packing dimensions
(mm)
AC TIM 07C P8 AC TIM 09C P8 AC TIM 12C P8
7000 (2,05) 9000 (2,63) 12000 (3,52)
- - -
785 950 1250
3,41 4,13 5,43
3
/h 330 330 330
35 45 56
A A A
I class I class I class
IPX0 IPX0 IPX0
18~35 18~35 18~35
270x480x695 270x480x695 270x480x695
335x540x865 335x540x865 335x540x865
NOTICE:
The manufacturer reserves the right to make
changes in the design, scope of delivery, product
manufacturing technology, as well as change its
technical characteristics to improve its consumer
and technical properties without prior notice.
4. DEVICE DESCRIPTION
Fig. 3.
1. Air outlet grille
2. Control panel
3. Castors
4. Intake grille
5. Remote control receiver
6. Filter
7. Handles
8. Air exhaust hose housing
9. Condensate drain
10. Power cable
11. Flange Cap*
12. Air exhaust hose
13. Hose outlet
14. Hose inlet
15. Castor locks*
16. Suckers*
17. Window bracket
18. Drain pan*
19. Drain hose*
*the accessary is optional (not in the set)
4
www.timberk.com • Electric air conditioner
5. DELIVERY SET
1. Household air conditioner 1 pc.
2. Air outlet 1 pc.
3. Giftbox - 1pc.
4. Manual - 1 pc.
5. Options (accessories) - depends of delivery
6. APPLIANCE CONTROL
AIR-CONDITIONING WITHOUT INSTALLATION

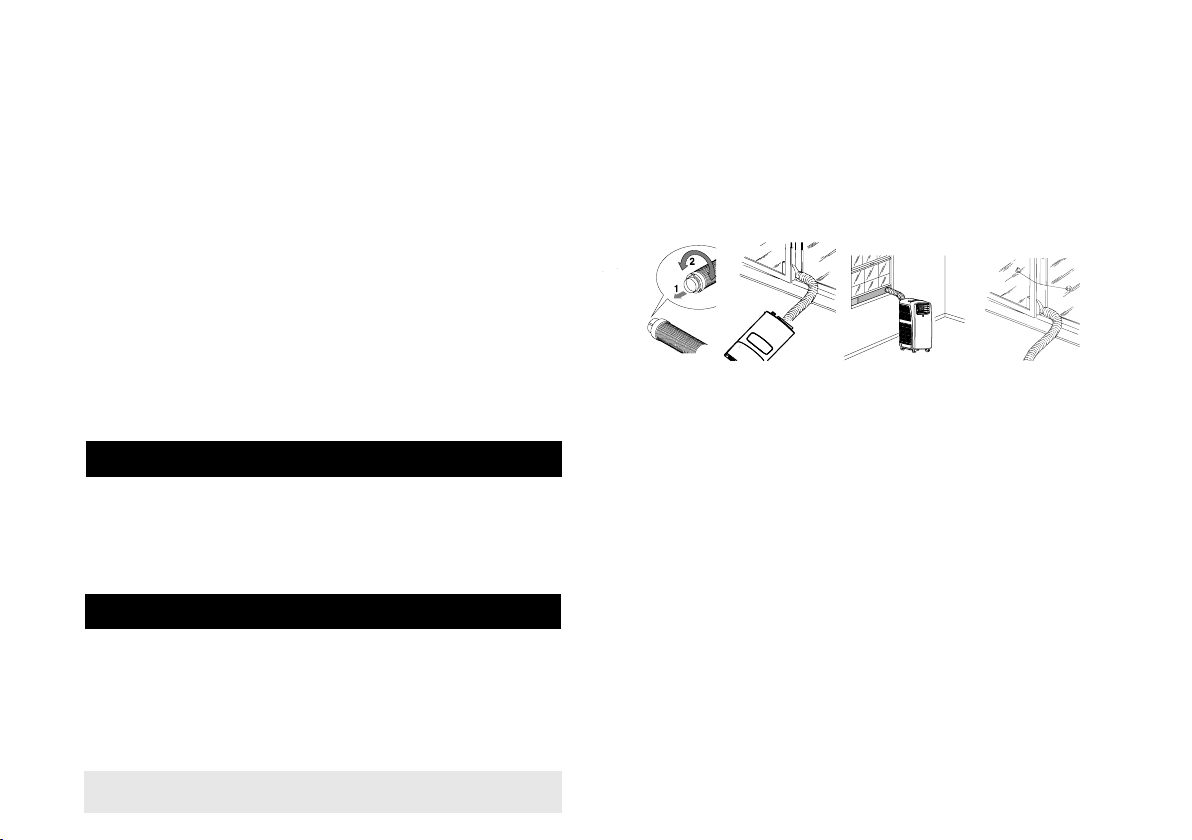

Just a few simple steps and your comfort is ensured with your appliance:
Fit the air exhaust hose in the housing at the back of the appliance (fig. 1).
Fit the window outlet to the end of the hose.
Place the air conditioner near a window or French window.
Adjust the length of the hose to reach the window.
Make sure the air exhaust hose is unobstructed.
Open the window or French window slightly and position the outlet (fig. 2).
If you have a sash (window), place the bracket on the window sill, extend
the bracket fully within the window frame fix the bracket by using the pin,
then lower the window into the bracket. Insert the window outlet of the
exhaust hose into the slot, then connect the hose to the air conditioner
(fig. 3).
If you have a double window, use the sucker provided to hold the two
parts of the window together (fig. 4).
Keep the air hose as short and free of curves as possible to avoid
bottlenecks.
AIR-CONDITIONING WITH INSTALLATION

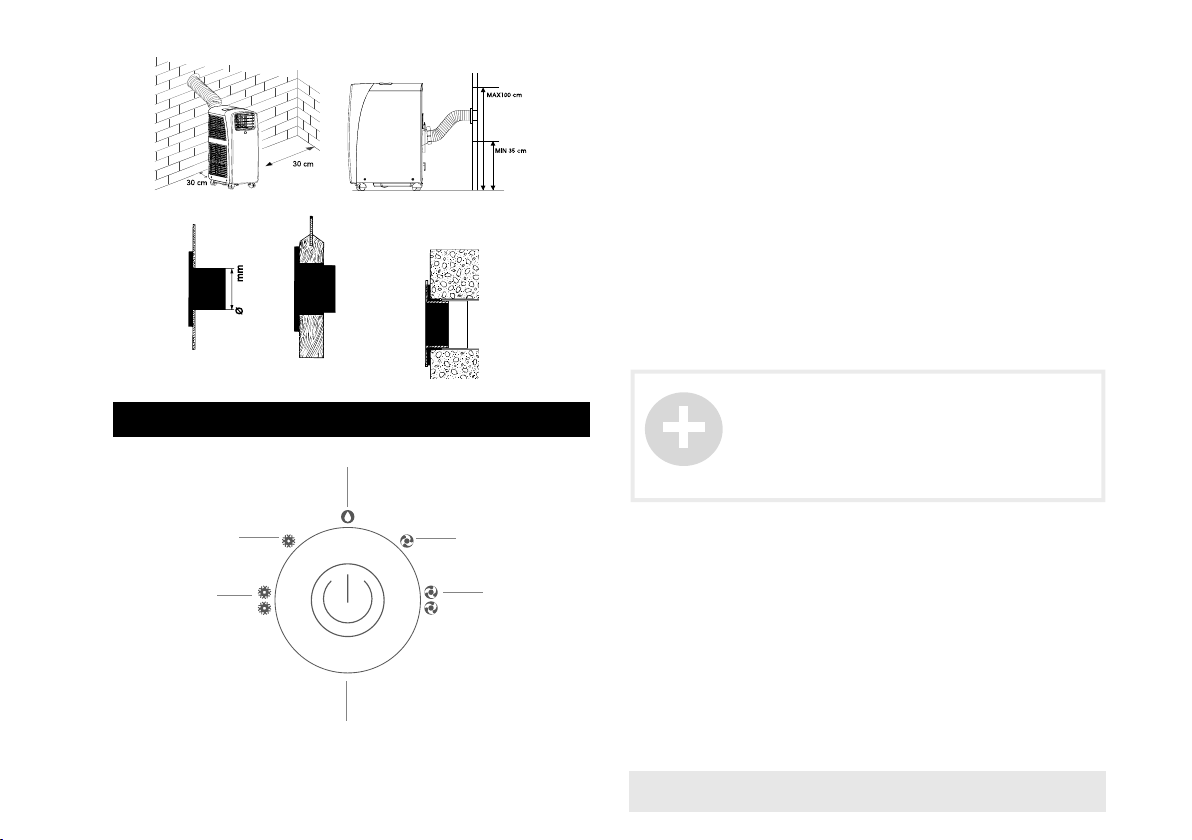

If required, your appliance can also be installed semi-permanently
(Fig. 5).
Proceed as follows:
Drill in an outside wall or in the window pane a 134 mm dia. hole
respecting the heights shown in fig.6.
Fit the flange accessory provided in the hole following the indications in
figs. 7, 8 and 9.
Fit the hose in the housing at the back of the appliance (fig. 1).
Fit the end of the hose to the flange as shown in fig. 6. When the hose
is not fitted, the hole can be closed with the flange
cap.
Keep the air hose as short and free of curves as possible to avoid
bottlenecks.
When installing the air conditioner semi-permanently, you should leave a
door slightly open (as little as 1 cm) to guarantee
correct ventilation.
Fig. 5. Fig. 6.
134
Fig. 4.Fig.3.Fig.2.Fig. 1.
Fig. 7.
Fig. 8.
Fig. 9.
www.timberk.com • Electric air conditioner
5
7. OPERATING MODES
CONTROL PANEL & DESCRIPTION OF FUNCTION
4
NOTICE:
Never turn the air conditioner off by unplugging
from the mains. Always press the button 1,
then wait for a few minutes before unplugging.
This allows the appliance to perform a cycle of
checks to verify operation.
3
2
5
6
1
1. Power button. Press this button to switch on or off the unit
2. Light of high cooling. The appliance will work in cooling mode with
high fan speed.
3. Light of low cooling. The appliance will work in cooling mode with
low fan speed.
4. Light of alarm
5. Light of low fan speed. The appliance will work in low fan speed.
6. Light of high fan speed. The appliance will work in high fan speed.
6
www.timberk.com • Electric air conditioner
ATTENTION!
The unit can evaporate condensed water and
automatically drain it through the hose*.
When the unit is in cooling mode, it is not necessary
to install the condensate drainage pipe since
condensate evaporates automatically. Make sure
that when the unit is operating, the rubber plug of
the drainage hose is securely fixed.

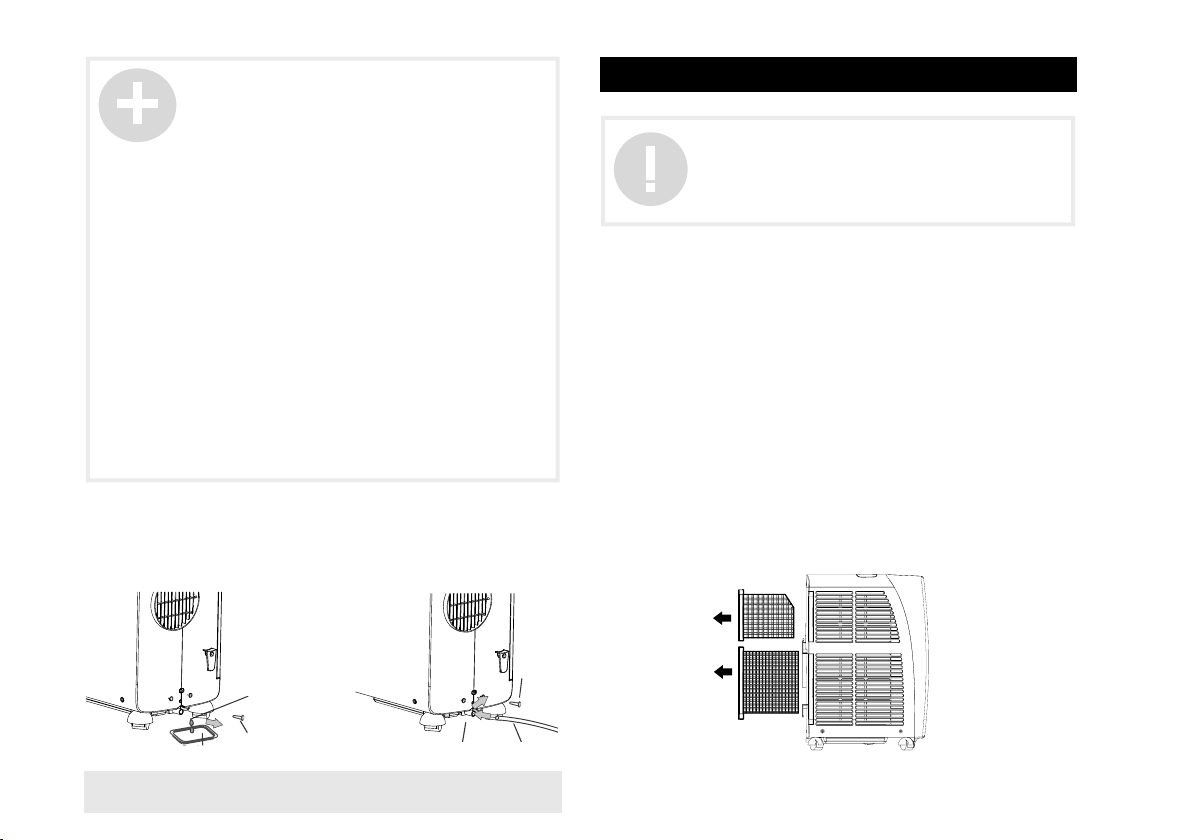

Disconnect the air outlet hose, connect the
drainage hose to the drainage hole and drain water
from the unit to ensure maximum dehumidification
efficiency.
When drain hose not attached water collects in the
tank for condensate. When the tank is filled on the
LCD display shows the E4.
To resume the operation, remove the rubber plug of
the drainage hose to drain water at first. After water
is drained…
8. MAINTENANCE
ATTENTION!
Disconnect the unit from the mains prior to
cleaning.
1. When cleaning the air conditioner, do not use
gasoline, solvents and other chemically active
substances.
2. To avoid electric shock and damage to electrical
components, do not pour water on the air conditioner
from a tap or a hose.
3. Do not use the air conditioner if the power cord is
damaged. On the
subject of replacing a damaged power cord, contact
an authorized service center.
Air filter
Air filter clogging with dust particles impairs the air
conditioner operation efficiency, therefore clean the
filter no less than once in two weeks.
Filter removal/installation
Remove the air filter in the direction, indicated by the
arrow. Slightly push it and then take it out from the
device for cleaning.
Installation of the filter is performed in the reverse order.
Filter cleaning
At first, carefully clean the filters by means of vacuum cleaners. Then
immerse the filter in warm water (about 40°C) with a soft detergent,
wash it and dry it without exposure to direct sunlight.
Air intakes (heat exchangers)
Use a vacuum cleaner for cleaning.
Case
Wipe the surface by a damp cloth and dry it by a soft dry cloth.
Automatic condensate removal
Condensate is automatically removed from the unit. Moisture inside the
unit starts to evaporate and is removed from the unit through an air duct
(or an air diffuser) in the form of steam.
9. TROUBLESHOOTING
Trouble Cause Troubleshooting method
The tank fill-up
The air conditioner is not switched on
when Power button is pressed
Loud noise or strong vibration
A noise, resembling a gurgle of water
indicator is flashing, the
condensate collection
tray is filled up
Actual room temperature
is higher than the set one
(in heating mode)
The air conditioner is
installed on an inclined or
unsmooth surface
Noise emerges due to
refrigerant flow in pipes
Drain water from the tray
Set the temperature correctly
Install the air conditioner on a
smooth horizontal surface
It is normal
www.timberk.com • Electric air conditioner
7
Error codes for LCD-display models
Trouble Cause Troubleshooting method
Probe Failure (sensor damaged)
Low Temperature (frost prevention)
Full Tank (safety tank full)
Short circuit on a
temperature sensor
or a processor board
The appliance is
fitted with a frost
protectio device
t avoid excessive
formation of ice.
It indicates the tank is
filled up with water or
the plug is connected
incorrecrly
Contact an authorized
service center
The appliance starts up
again automatically when
the defrosting process is
completed
Remove the rubber plug,
located at the bottom of
the unit, and drain water.
Then check it the plug is
connected correctly
10. TRANSPORTATION AND STORAGE
11. SERVICE LIFE
Service life of the appliance is 10 years provided that the respective
installation and operation rules are observed.
Date of the conditioner manufacture is shown in a serial number of the
device. For more details, please, ask a shop assistant.
12. UTILIZATION RULES
Upon expiration of the service life, the appliance should be utilized in
accordance with norms, regulations and procedures effective in the
place of utilization.
*not included
Temperature
requirements*
Humidity
requirements*
Transportation and
storage
From -30° to +50°
From 15% to 85%
(without a condensate)
We are exploring new technologies and we constantly improving
the quality of our products. That’s why specifications, design and
accessories are subject to change without any specific notice.
* This product must have storage in dry, well-ventilated space of
warehouse at the temperature not lower than -30°
8
www.timberk.com • Electric air conditioner
СОДЕРЖАНИЕ *
1. Важная информация ......................................................9
2. Меры предосторожности .............................................10
3. Технические характеристики .......................................11
4. Описание прибора ........................................................11
5. Комплект поставки .......................................................12
6. Управление прибором ..................................................12
7. Режимы работы ............................................................13
8. Обслуживание ..............................................................14
9. Гарантийный талон .......................................................16
Уважаемый покупатель!
Благодарим Вас за удачный выбор и приобретение бытового
кондиционера воздуха TIMBERK.
Он прослужит Вам долго.
Электрический кондиционер воздуха предназначен для ох-
лаждения и осушения воздуха в бытовом помещении.
Просим вас внимательно ознакомиться с руководством по
эксплуатации перед тем, как вы начнете эксплуатацию изделия.
1. ВАЖНАЯ ИНФОРМАЦИЯ
Прибор предназначен для охлаждения воздуха в бытовых помещениях.
Производитель оставляет за собой право без предварительного уведомления покупателя вносить изменения в конструкцию,
комплектацию или технологию изготовления изделия с целью улучшения его свойств. В тексте и цифровых обозначениях данного
руководства могут быть допущены опечатки.
Если после прочтения руководства у Вас останутся вопросы по работе и эксплуатации прибора, обратитесь к продавцу или в специализированный сервисный центр для получения разъяснений.
ПРИМЕЧАНИЕ.
На изделии присутствует этикетка, на которой
указаны все необходимые технические данные и
другая полезная информация о приборе. Используйте прибор только по назначению, указанному
в данном руководстве.
* Руководство по эксплуатации дополнено приложением №1, которое является
неотъемлемой частью Руководства по эксплуатации.
www.timberk.сom • Электрический кондиционер воздуха
9
2. МЕРЫ ПРЕДОСТОРОЖНОСТИ
1. Не закрывайте вентиляционные отверстия!
2. Убедитесь, что входное и выходное вентиляционное отверстие
свободно.
3. Не засовывайте посторонние предметы в воздуховыпускные решетки кондиционера. Это очень опасно, т.к. вентилятор вращается
с высокой скоростью.
4. Устанавливайте устройство на горизонтальную поверхность во
избежание утечки конденсата (воды).
5. Не устанавливайте напольный кондиционер в следующих
местах:
- в местах воздействия прямых солнечных лучей;
- вблизи источников открытого пламени;
- вблизи других работающих нагревательных приборов;
- в местах, где возможно попадание брызг воды или пара на
прибор;
- в помещениях с повышенной влажностью;
- вблизи бассейнов, ванных и душевых комнат.
6. Не используйте устройство во взрывоопасной или коррозионной среде. Не храните рядом с кондиционером бензин и другие
летучие легковоспламеняющиеся жидкости – это очень опасно!
7. Используйте устройство для охлаждения воздуха при температуре окружающей среды 17-35°С.
8. Периодически очищайте фильтры для обеспечения эффективной работы устройства.
9. Для обеспечения надежной работы компрессора не наклоняйте
кондиционер.
10. Если устройство отключено, повторное включение должно
осуществляться не ранее чем через 3,5 минуты во избежание
выхода из строя компрессора.
11. Для работы компрессора необходим ток силой как минимум
10А. Во избежание перегрева и риска возникновения пожара, а
также повреждения внутренней электрической сети, не включайте
устройство в удлинители.
12. Устройство предназначено для охлаждения и осушения
воздуха только в домашних условиях и не может применяться в
промышленных целях.
13. Во избежание опасности поражения электрическим током,
поврежденный силовой шнур должен заменяться только авторизованным сервисным центром изготовителя, квалифицированными
специалистами.
14. Перед утилизацией устройства необходимо извлечь из него
батареи, после чего они подлежат безопасной утилизации.
15. Устройство не предназначено для использования лицами
(включая детей) с ограниченными физическими, сенсорными или
умственными возможностями, обладающими недостаточным
опытом и знаниями, если они не находятся под наблюдением и не
получили инструкций по использованию устройства от лица, ответственного за их безопасность. Необходимо следить, чтобы дети не
играли с устройством.
ПРИМЕЧАНИЕ.
Для эффективного охлаждения необходимо:
1) Обеспечить свободное пространство не менее 30
см с фильтрующей стороны устройства. (рис.1).
2) Устанавливайте кондиционер рядом с окном.
Отрегулируйте длину шланга, чтобы добраться до
окна. Убедитесь, что вытяжному шлангу нет препятствий (рис. 2).
Рис. 1.
Рис. 2.
10
www.timberk.сom • Электрический кондиционер воздуха
Loading...
