TIANMA TM190MCS01 Specification

Global LCD Panel Exchange Center

SHANGHAI AVIC OPTOELECTRONICS co-Q/S1014-2011

MODEL NO. : TM190MCS01

ISSUED DATE: 2011/08/28

VERSION : 1.1

www.panelook.com

ƑPreliminary Specification

ŶFinal Product Specification

Customer :

Approved by Notes

SHANGHAI AVIC Confirmed :

Prepared by Checked by Approved by

James xiao Haijun he Xiaoping sun

This technical specification is subjected to change without notice

The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS

Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Page 1 of 33

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SHANGHAI AVIC OPTOELECTRONICS co-Q/S1014-2011

TABLE OF CONTENTS

TABLE OF CONTENTS ............................................................................................................................................................ 2

RECORD

1.

OUTLINE

1.1 STRUCTURE AND PRINCIPLE

1.2 APPLICATIONS

1.3 FEATURES

2.

GENERAL SPECIFICATIONS

3.

ABSOLUTE MAXIMUM RATINGS

4.

BLOCK DIAGRAM

5.

MECHANICAL SPECIFICATIONS

6.

ELECTRICAL CHARACTERISTICS

6.1 DRIVING FOR LCD

6.2 DRIVING FOR BACKLIGHT

7.

CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS

7.1 LVDS

7.2 BACKLIGHT

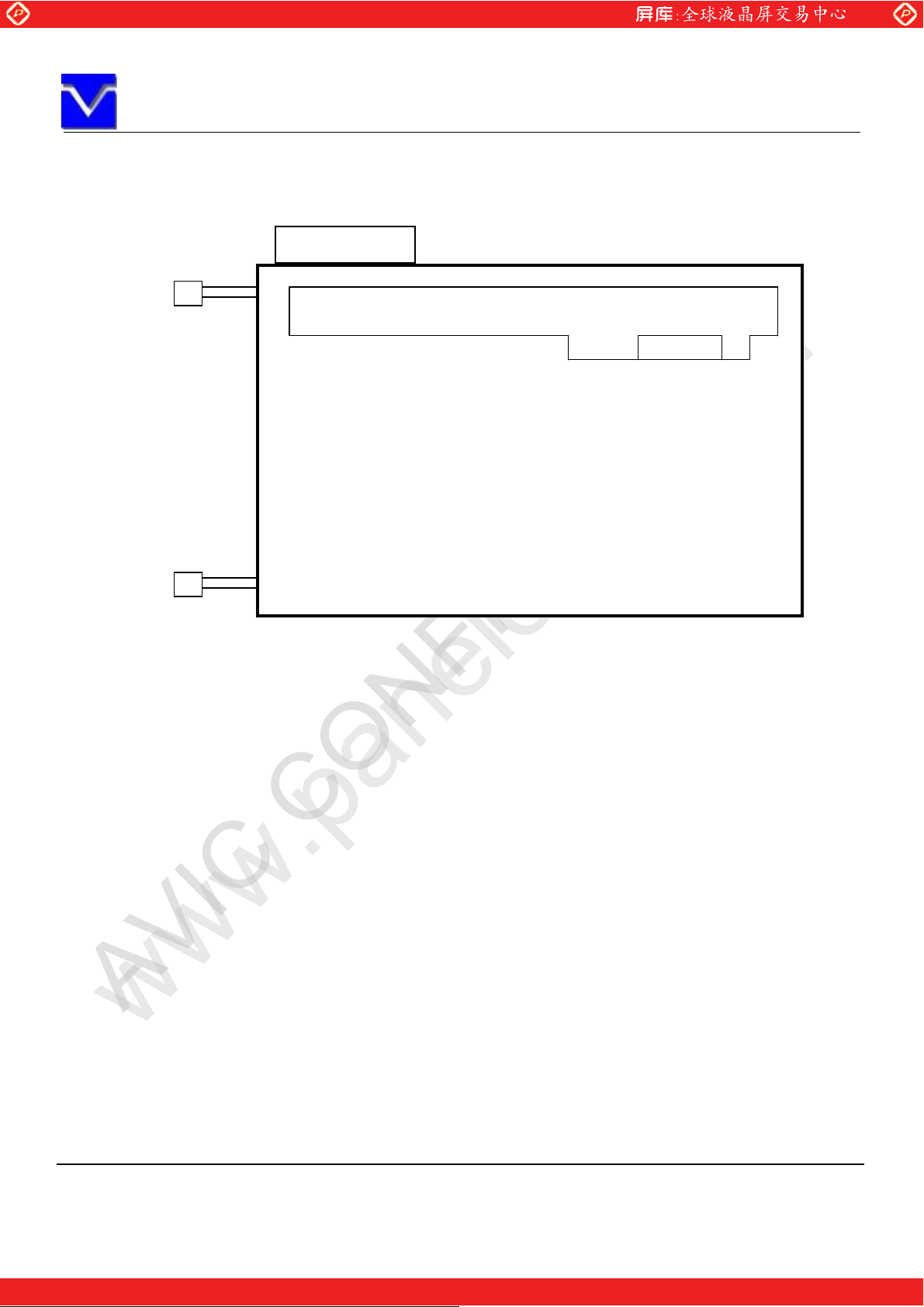

7.3 POSITION OF PLUGS AND A SOCKET

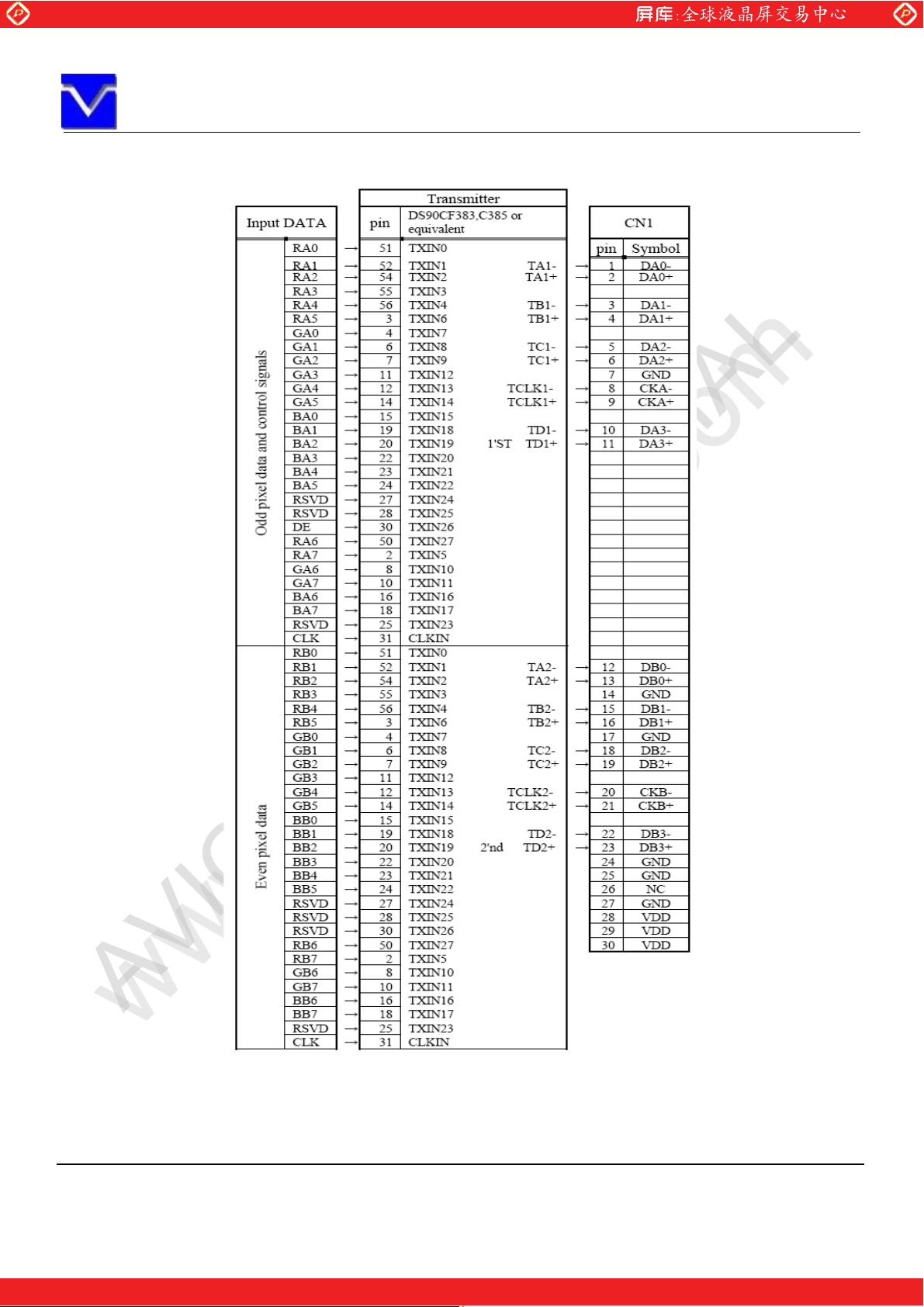

7.4 CONNECTION BETWEEN RECEIVER AND TRANSMITTER FOR LVDS

8.

DISPLAY COLORS AND INPUT DATA SIGNALS

9.

INTERFACE TIMING

9.1 TIMING CHARACTERISTICS

9.2 INPUT SIGNAL TIMING CHART

9.3 PIXEL DATA ALIGNMENT OF DISPLAY IMAGE

9.4. POWER SUPPLY VOLTAGE SEQUENCE

10.

OPTICS

11.

RELIABILITY TESTS

12.

MARKINGS

12.1 PRODUCT LABEL

12.2 INDICATION LOCATIONS

13.

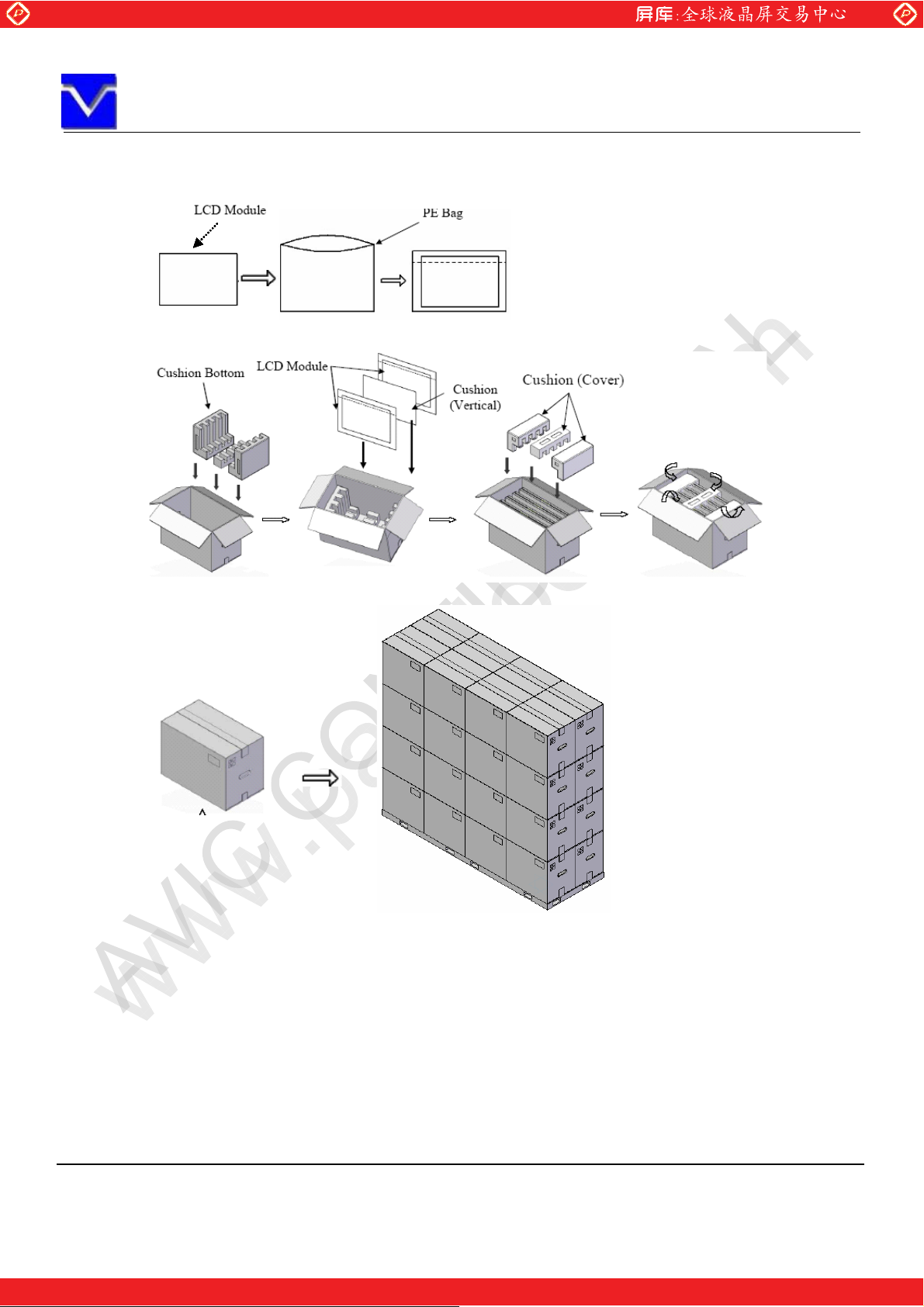

PACKING, TRANSPORTATION AND DELIVERY

14.

PRECAUTIONS

15.

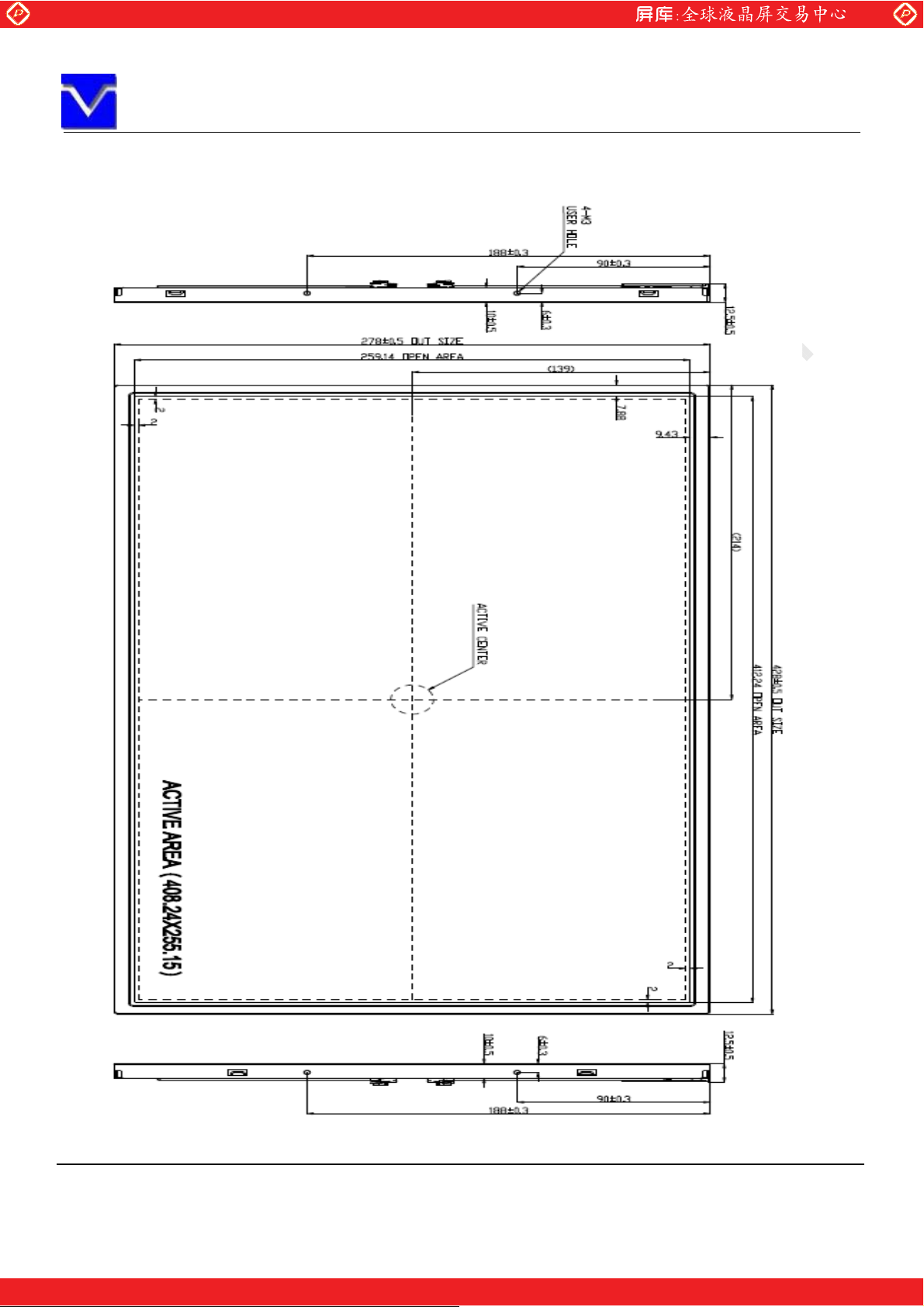

OUTDRAWING

OF REVISION

....................................................................................................................................................... 3

............................................................................................................................................................................ 4

............................................................................................................................... 4

........................................................................................................................................................... 4

................................................................................................................................................................... 4

......................................................................................................................................... 5

................................................................................................................................ 6

............................................................................................................................................................ 7

................................................................................................................................. 8

............................................................................................................................. 9

.................................................................................................................................................... 9

................................................................................................................................... 10

................................................................................... 11

........................................................................................................................................................................... 11

.............................................................................................................................................................. 12

.............................................................................................................. 12

..................................................... 13

...................................................................................................... 14

..................................................................................................................................................... 15

................................................................................................................................. 15

......................................................................................................................... 16

............................................................................................. 17

.......................................................................................................... 18

............................................................................................................................................................................ 20

................................................................................................................................................... 23

.................................................................................................................................................................... 25

.................................................................................................................................................. 25

.................................................................................................................................... 26

................................................................................................... 27

.............................................................................................................................................................. 29

.............................................................................................................................................................. 32

The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS

Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Page 2 of 33

www.panelook.com

Global LCD Panel Exchange Center

SHANGHAI AVIC OPTOELECTRONICS co-Q/S1014-2011

Rev Issued Date Description Editor

1.0 2011-02-20 Preliminary Release Wei Zhang

1.1 2011-08-28

www.panelook.com

RECORD OF REVISION

Modify view angle from L/R/U/D:45/45/45/25

to 45/45/25/45; Final Release ; t5 >200ms

change to t5 >500ms ; Add Reliability test

James xiao

The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS

Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Page 3 of 33

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SHANGHAI AVIC OPTOELECTRONICS co-Q/S1014-2011

1. OUTLINE

1.1 STRUCTURE AND PRINCIPLE

TM190MCS01 module is composed of the amorphous silicon thin film transistor liquid crystal display

(a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a

backlight. The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the

TFT array glass substrate and a color-filter glass substrate.

Color (Red, Green, Blue) data signals from a host system (e.g. PC, signal generator, etc.) are

modulated into best form for active matrix system by a signal processing board, and sent to the driver LSIs

which drive the individual TFT arrays. The TFT array as an electro-optical switch regulates the amount of

transmitted light from the backlight assembly, when it is controlled by data signals. Color images are created

by regulating the amount of transmitted light through the TFT array of red, green and blue dots.

1.2 APPLICATIONS

• Monitor for PC

1.3 FEATURES

• a-Si TFT active matrix

• LVDS interface

• R.G.B input 8bit, 16.7 millions colors

• Resolution WXGA+ (1,440× 900 pixels)

• Wide viewing angle 45°/45° (L/R); 25°/45° (U/D)

• High contrast ratio 600:1

• Module size 428.0 (H) ×278.0 (V) ×12.5 (D) mm

• Fast response time (Ton+ Toff= 5 ms˅

• High gamut (72%)

• Edge light type backlight (2CCFL Lamps)

• Inverter less

• RoHS compliance

• TCO 5.0 compliance

The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS

Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Page 4 of 33

www.panelook.com

Global LCD Panel Exchange Center

SHANGHAI AVIC OPTOELECTRONICS co-Q/S1014-2011

2. GENERAL SPECIFICATIONS

Display area 408.24 (H) × 255.15 (V) mm (typ.)

Diagonal size of display 48.1 cm

Drive system a-Si TFT active matrix

Display color 16.7 M colors (6bit+ Hi-FRC)

Pixel 1,440 (H) × 900(V) pixels

www.panelook.com

Pixel arrangement

Dot pitch 0.0945 (H) × 0.2835(V) mm

Pixel pitch 0.2835 (H) × 0.2835 (V) mm

Module size

Weight 1.9KG

Contrast ratio

Viewing angle

Color gamut

Response time

Luminance

Transmissive Mode

Surface Treatment

Signal system

Power supply voltage LCD panel signal processing board: 5.0V

Backlight 2CCFL Lamps

Power consumption

RGB vertical stripe

428.0 (H) ×278.0 (V) ×12.5 (D) mm

600 :1 (typ.)

90°/ 70° (typ.)

72 % (typ.)

5 ms (typ.)

200 cd/m

Normally White

Anti Glare

LVDS 2port

(16.0W)˄Typ.˅

2

(typ.)

The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS

Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Page 5 of 33

www.panelook.com

Global LCD Panel Exchange Center

ć)

˄ˁRH˅

SHANGHAI AVIC OPTOELECTRONICS co-Q/S1014-2011

3. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Rating Unit Remarks

www.panelook.com

Power

supply

voltage

Power voltage

Lamp voltage V 666 ~ 814

VDD -0.3 ~ +6.0 V Ta = 25°C

BLH

Vrms Ta = 25°C

Input voltage for signals Vi -0.3 ~ +3.3 V Ta = 25°C

Lamp current I 3.0~8.0

BL

mArms

Ta = 25°C

For each lamp

Lamp Oscillation frequency FO 30~80 kHz Ta = 25°C

Storage temperature Tst -20 ~ +60 °C Note 3

Operating temperature Top 0 ~ +50 °C Note 3, 4

Absolute humidity AH  g/m Ta > 50°C

3

Operating altitude -  4,850 m 0°C Ta 50°C

Storage altitude -  13,600 m -20°C Ta  60°C

Note1: Display signals are DA0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-,

and CKB+/-.

Note2: Function signal is MSL.

Note3: Temperature and relative humidity range is shown in the figure below.

(a) 90%RH Max. (Ta 40°C)

(b) Wet-bulb temperature should be39°C Max. (Ta> 40°C)

(c) No condensation.

Note4: The temperature of panel display surface area should be 0°C Min and 60°C Max.

Relative Humidity

80

60

Operating Range

40

20

Temperature (ć

5

Storage Range

-40 -20 0 20 40 60 80

The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS

Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.

Page 6 of 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

SHANGHAI AVIC OPTOELECTRONICS co-Q/S1014-2011

4. BLOCK DIAGRAM

LCD MODULEI/F

www.panelook.com

DA0+

DA0-

DA1+

DA1-

DA2+

DA2-

CKA+

CKA-

DA3+

DA3-

DB0+

DB0-

DB1+

DB1-

DB2+

DB2-

CKB+

CKA-

DB3+

DB3-

100ȍ

100ȍ

100ȍ

100ȍ

100ȍ

100ȍ

100ȍ

100ȍ

100ȍ

100ȍ

LVDS Receiver

Timing Controller

Source Driver



Gate Driver

LCD Panel
H: 1440× 3˄R,G,B˅
V: 900

VDD

VBLH1

`

VBLH2

DC/DC

Power

Edge side backlight

VBLC1
VBLC2

FG

GND

Note: System ground (GND), FG (Frame ground) in the product should be connected together in customer

equipment.

The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS

Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Page 7 of 33

www.panelook.com

Global LCD Panel Exchange Center

SHANGHAI AVIC OPTOELECTRONICS co-Q/S1014-2011

5. MECHANICAL SPECIFICATIONS

Parameter Specification Unit

Module size 428.0± 0.5 (W) × 278.0 ± 0.5 (H) × 12.5± 0.5 (D) mm

Display area 408.24(H) × 255.15(V) mm (typ.), [48.1 cm] mm

www.panelook.com

Weight

1.9˄typ.˅

kg

The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS

Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Page 8 of 33

www.panelook.com

Global LCD Panel Exchange Center

5V

SHANGHAI AVIC OPTOELECTRONICS co-Q/S1014-2011

6. ELECTRICAL CHARACTERISTICS

6.1 DRIVING FOR LCD

Parameter Symbol min. typ. max. Unit Remarks

Power supply voltage VDD 4.5 5.0 5.5 V -

Power supply current IDD -

Permissible ripple voltage VRP - - 200 mV VDD

Differential input voltage

Differential input threshold

voltage for LVDS receiver

Low VTL -100 - - mV

High VTH - - 100 mV

Input voltage width for LVDS

receiver

Terminating resistor RT - 100 - ȍ -

Rush current I -

ΊVidΊ

www.panelook.com

700

Note1

200 600 mV

Vi 0 - 3.3 V -

rush

- 3.0 A Note4

1000

Note 2

mA at VDD = 5.0V

at VCM = 1.2V

Note3

Note 1: Black pattern

Note 2: 1H1V dot inverse pattern

Note 3: Common mode voltage for LVDS receiver

Note4:

Measurement Conditions:

R1

47K

S2

GND

5V

1

2

3

SW- SP DT

12V

Q1

MOSFET-N

R2

1K

R3

20K

C3

Cap
10uF/16V

C2

Cap
1uF/16V

Q2
MOSFET-N

GND

F1

Fuse ( 2A )

GND

C1
Cap
1uF/16V

VDD

The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS

Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Page 9 of 33

www.panelook.com

Global LCD Panel Exchange Center

SHANGHAI AVIC OPTOELECTRONICS co-Q/S1014-2011

6.2 DRIVING FOR BACKLIGHT

Parameter

Symbo

www.panelook.com

(Ta=25 °C) Note1

l

min. typ. max. Unit Remarks

Lamp voltage

(for reference)

Lamp current I 3.0

Lamp starting voltage

Note1

V-

BLH

BL

740 - Vrms For each lamp

7.5 8.0 mArms at L = 200cd/ m2

1680 - -

VS

1460

- -

Vrms

Ta = 0°C Note2 Note3

Ta =25°C Note2 Note3

Lamp operating lifetime Hr - 50000 - Hour Note5

Oscillation frequency FO 30 50 80 kHz Note4

Note1: The backlight of this product is made up of 4 lamps. The specification above is only for one lamp.

Note2: The voltage timing cycle of each lamp should be set as the same phase. [Vs] and [VBLH] is the

voltage between the high port and low port, the value is the characteristic of lamp. The starting

voltage of inverter should be higher than the value. The possibility of not lighting exists by the lower

voltage, so the suitable voltage should considered by the test.

Note3: The asymmetric ratio of working waveform for lamps (Lamp voltage peak ratio, Lamp current peak

ratio and waveform area ratio) should be less than 5% (See the following figure). If the waveform is

asymmetric, DC (Direct current) element applies into the lamp. In this case, a lamp lifetime may be

shortened, because a distribution of a lamp enclosure substance inclines toward one side between

low voltage terminal (Cold terminal) and high voltage terminal (Hot terminal).

Pa

Sa

Sb

Pb

|Pa - Pb| / Pb × 100 İ 5%
|Sa - Sb| / Sb × 100 İ 5%

Pa: Supply voltage/current peak for positive, Pb: Supply voltage/current peak for negative

Sa: Waveform space for positive part, Sb: Waveform space for negative part

Note4: In case “FO” is not the recommended value, beat noise may display on the screen, because of

interference between “FO” and “1/th”. Recommended value of “FO” is as following.

FO = 1/4 × 1/th × (2n-1)

Th: Horizontal signal period (See

“9.0Timing characteristics”.)

n: Natural number (1, 2, 3 ……)

Note5: Lamp operating lifetime is mean time to half-luminance. In case the product works under room

temperature environment.

The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS

Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Page 10 of 33

www.panelook.com
