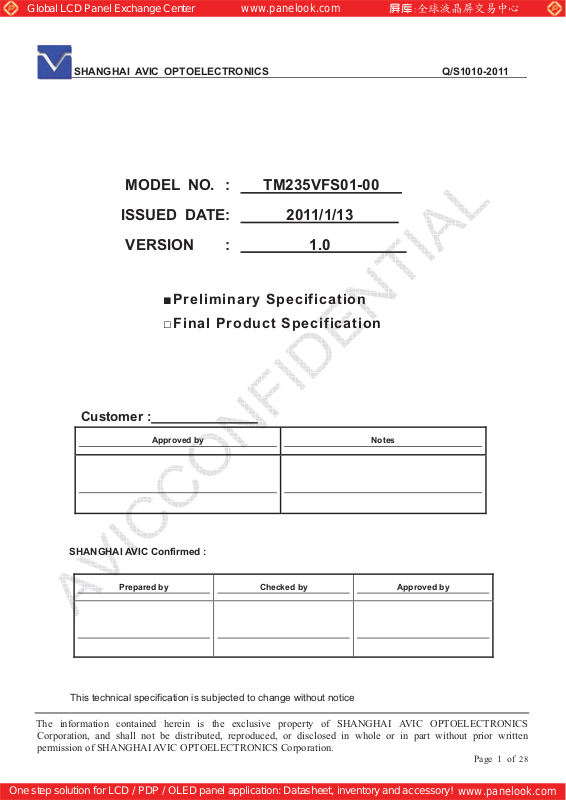

Page 1
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
www.panelook.com
MODEL NO. : TM235VFS01-00
ISSUED DATE: 2011/1/13
VERSION : 1.0
Preliminary Specification
Final Product Specification
Customer :
Approved by Notes
SHANGHAI AVIC Confirmed :
Prepared by Checked by Approved by
This technical specification is subjected to change without notice
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 1 of 28
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
TABLE OF CONTENTS
TABLE OF CONTENTS ........................................................................................................................................... 2
RECORD OF REVISION .......................................................................................................................................... 3
1. OUTLINE .............................................................................................................................................................. 4
1.1 STRUCTURE AND PRINCIPLE ............................................................................................................... 4
1.2 APPLICATIONS ........................................................................................................................................ 4
1.3 FEATURES ............................................................................................................................................... 4
2. GENERAL SPECIFICATIONS .............................................................................................................................. 5
3. ABSOLUTE MAXIMUM RATINGS ....................................................................................................................... 6
4. BLOCK DIAGRAM ............................................................................................................................................... 7
5. MECHANICAL SPECIFICATIONS ....................................................................................................................... 8
6. ELECTRICAL CHARACTERISTICS .................................................................................................................... 8
6.1 DRIVING FOR LCD .................................................................................................................................. 8
6.2 DRIVING FOR BACKLIGHT ..................................................................................................................... 9
7. CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS ............................................................................ 10
7.1 LVDS ....................................................................................................................................................... 10
7.2 BACKLIGHT ........................................................................................................................................... 11
7.3 POSITION OF PLUGS AND A SOCKET ................................................................................................ 11

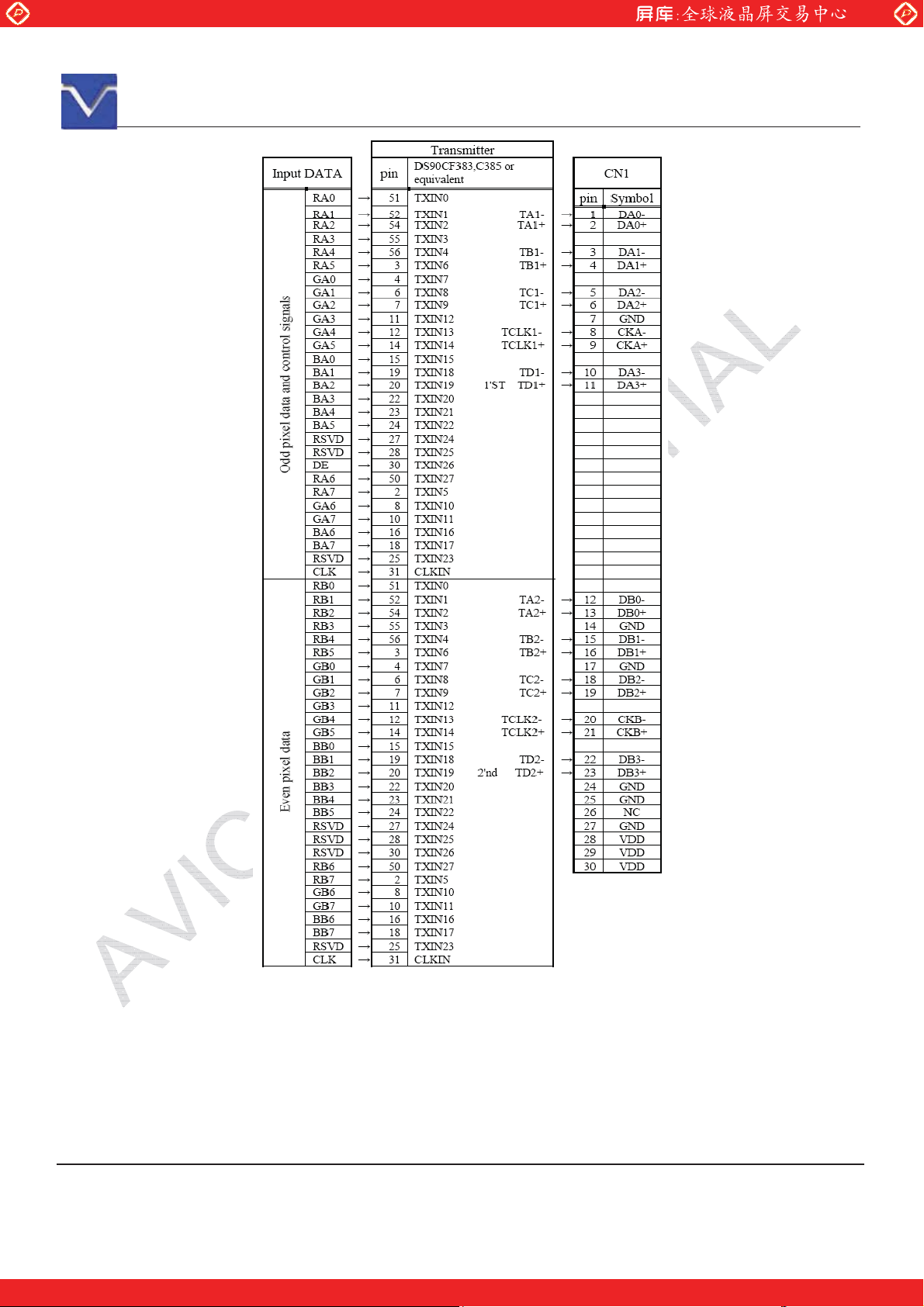

7.4 CONNECTION BETWEEN RECEIVER AND TRANSMITTER FOR LVDS ........................................... 11
8. DISPLAY COLORS AND INPUT DATA SIGNALS .............................................................................................. 13
9. INTERFACE TIMING .......................................................................................................................................... 14
9.1 TIMING CHARACTERISTICS ................................................................................................................ 14

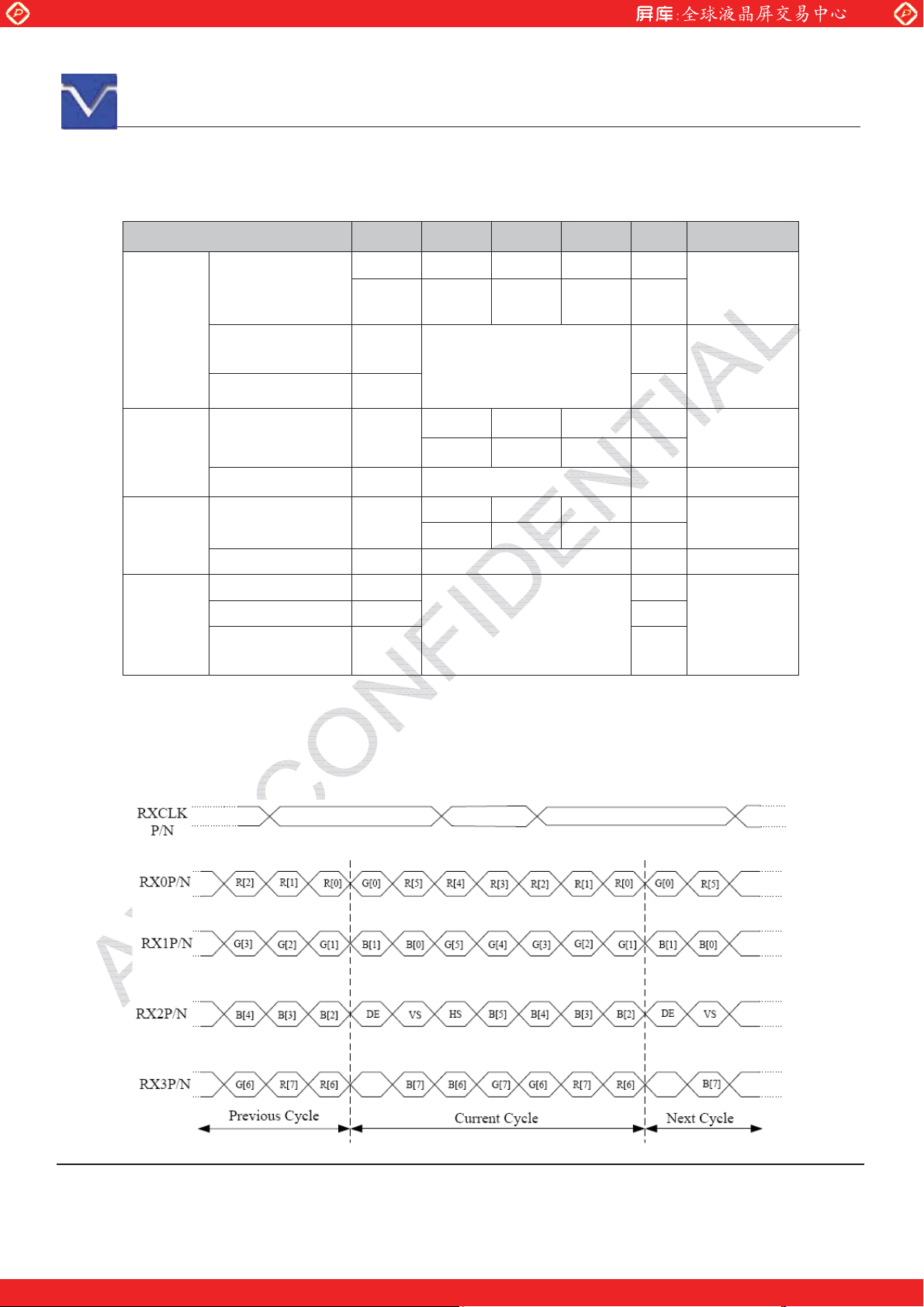

9.2 INPUT SIGNAL TIMING MAPPING ........................................................................................................ 14

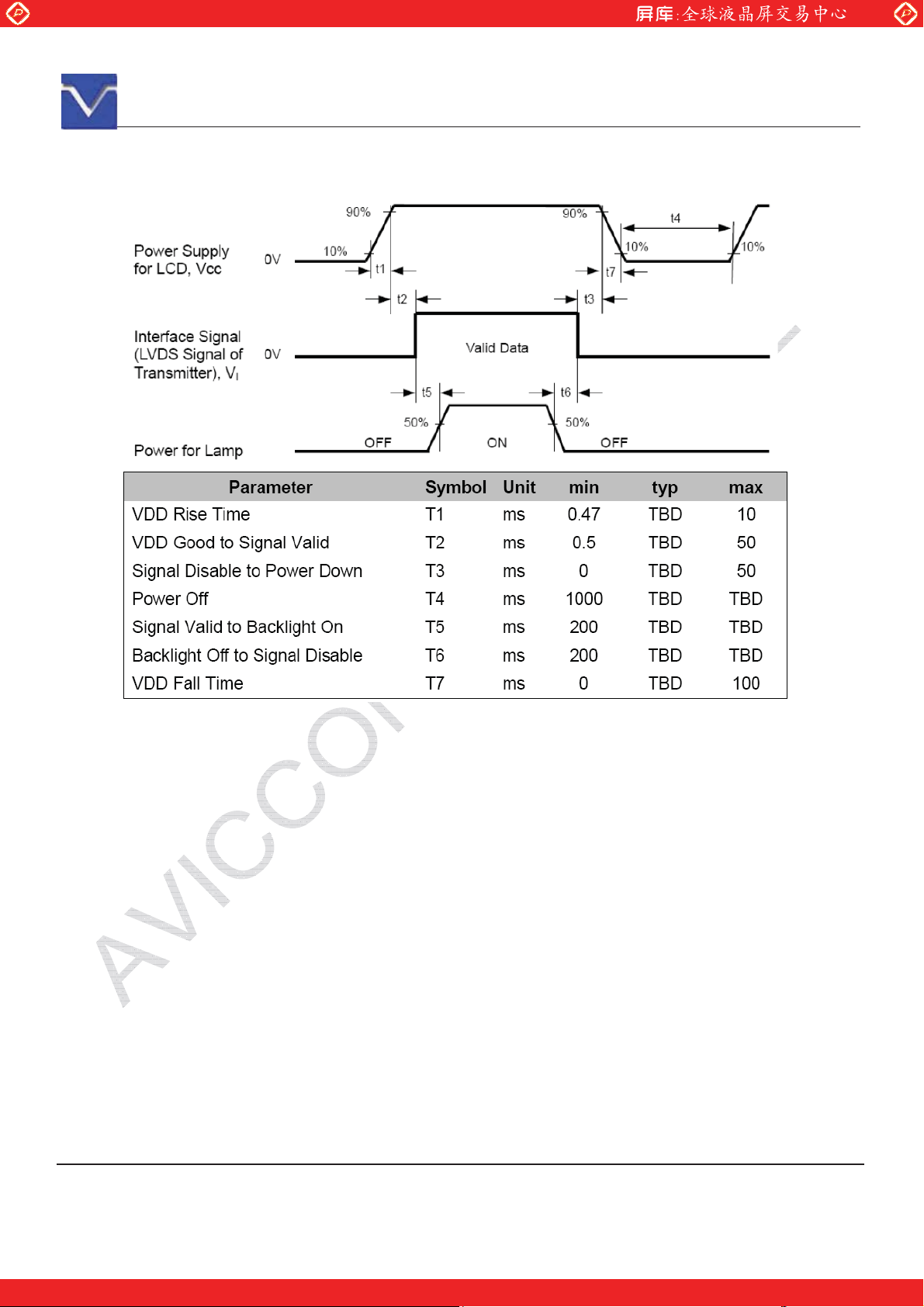

9.3 POWER ON/OFF SEQUENCE .............................................................................................................. 15
9.4.POWER SUPPLY VOLTAGE SEQUENCE ............................................................................................ 16
9.5.FUSE ...................................................................................................................................................... 16

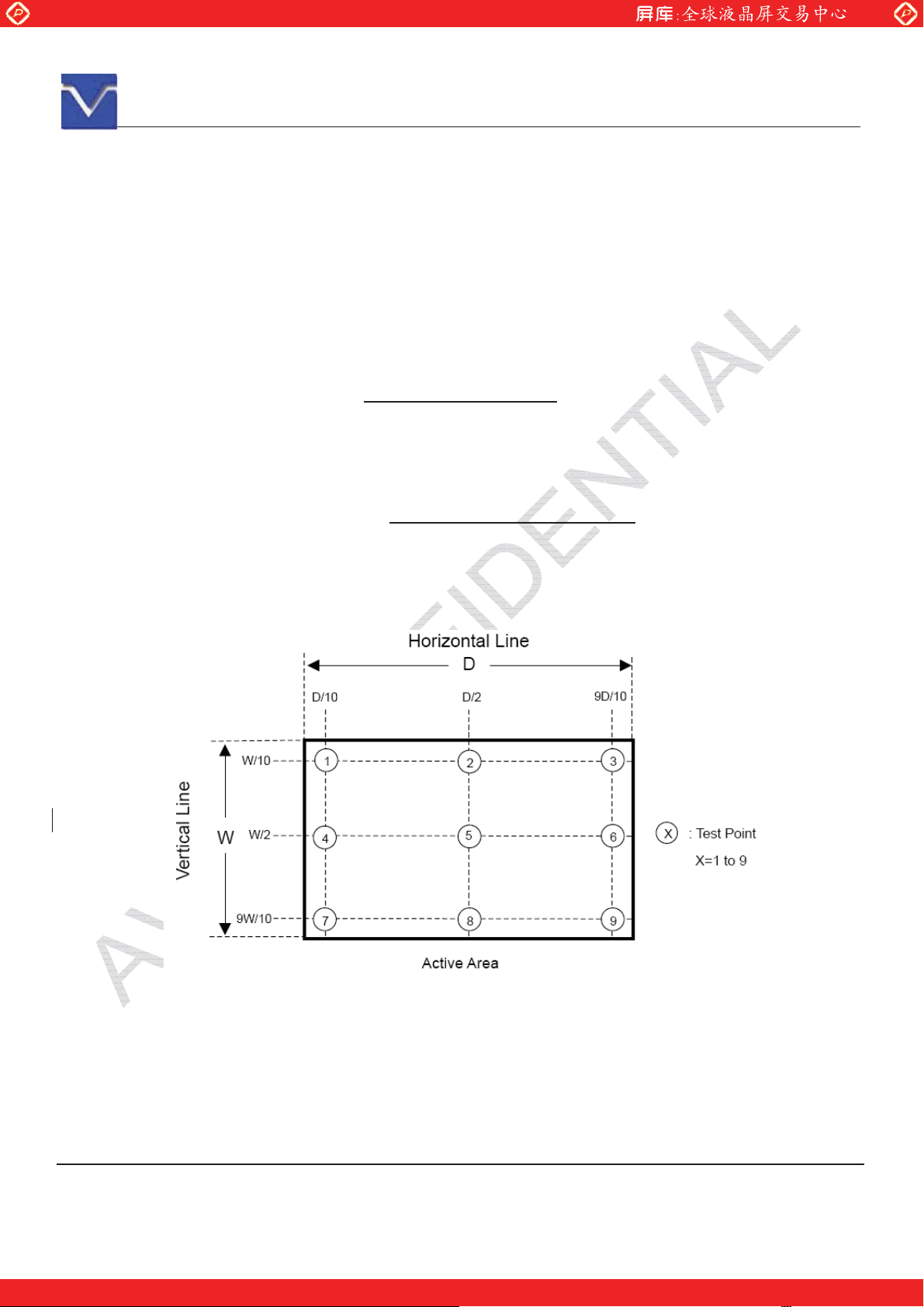

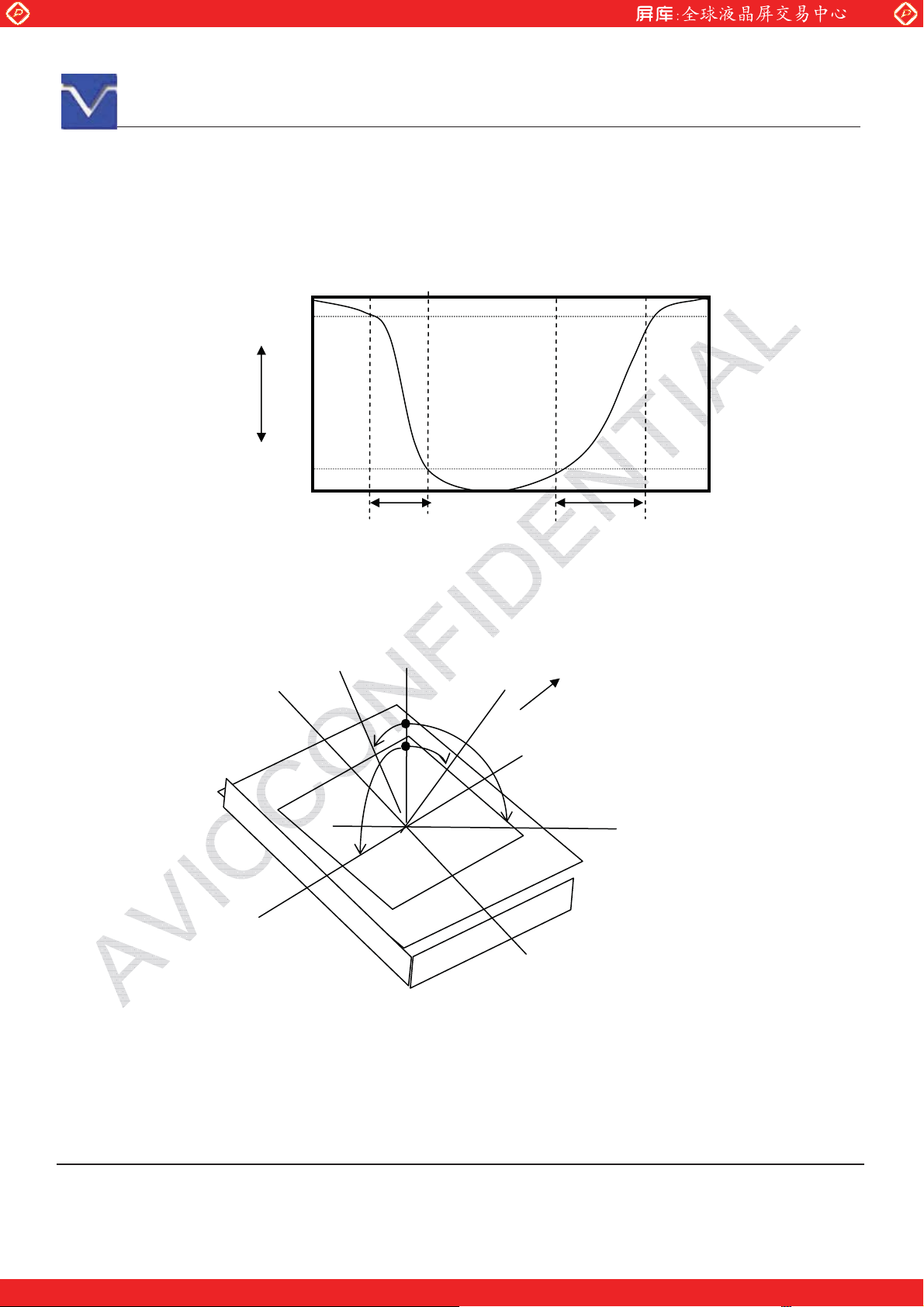

10. OPTICS ............................................................................................................................................................ 17
11. MARKINGS ...................................................................................................................................................... 20

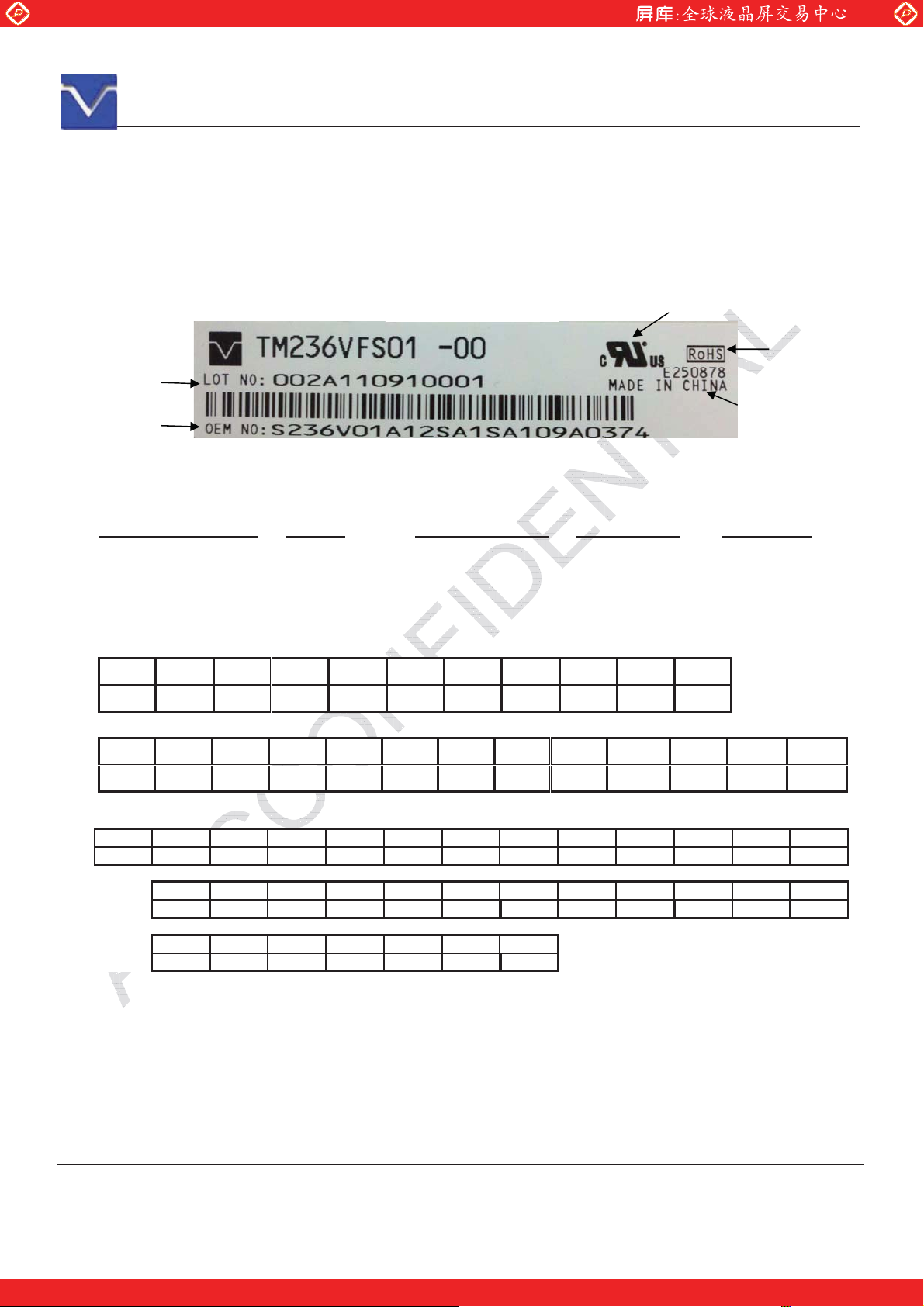

11.1 PRODUCT LABEL ................................................................................................................................ 20

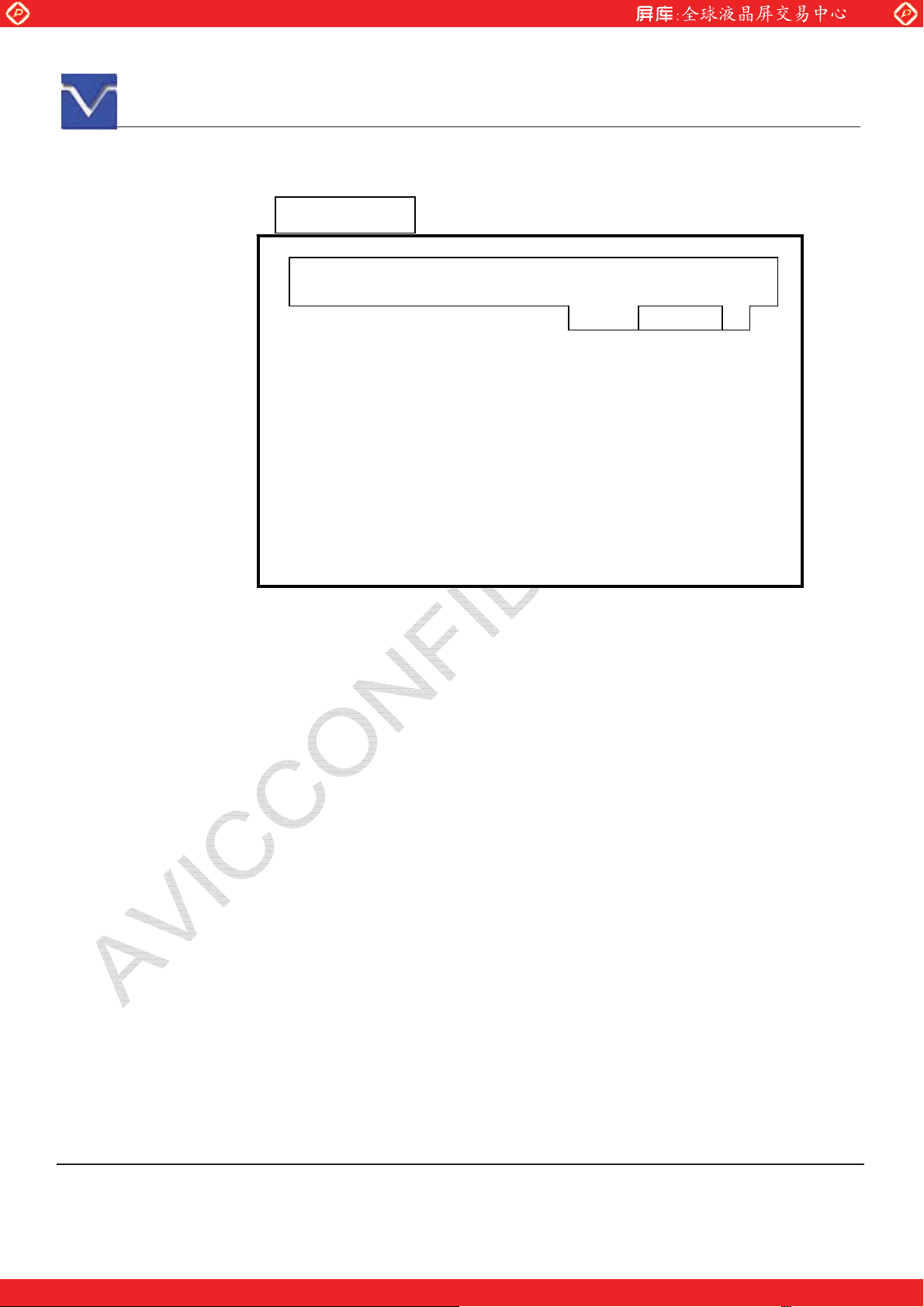

11.2 INDICATION LOCATIONS .................................................................................................................... 21

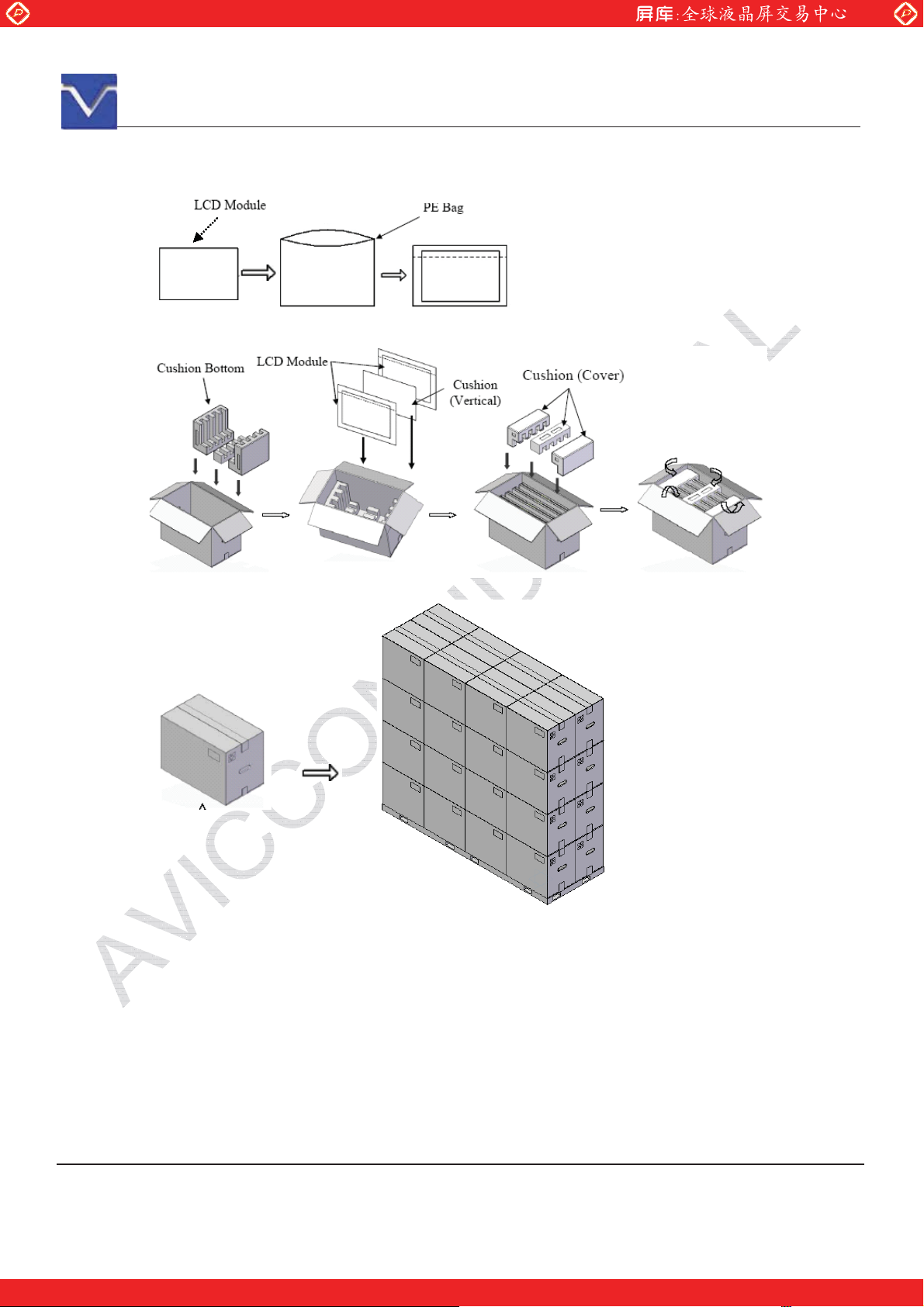

12. PACKING, TRANSPORTATION AND DELIVERY ............................................................................................ 22
13. PRECAUTIONS ............................................................................................................................................... 24

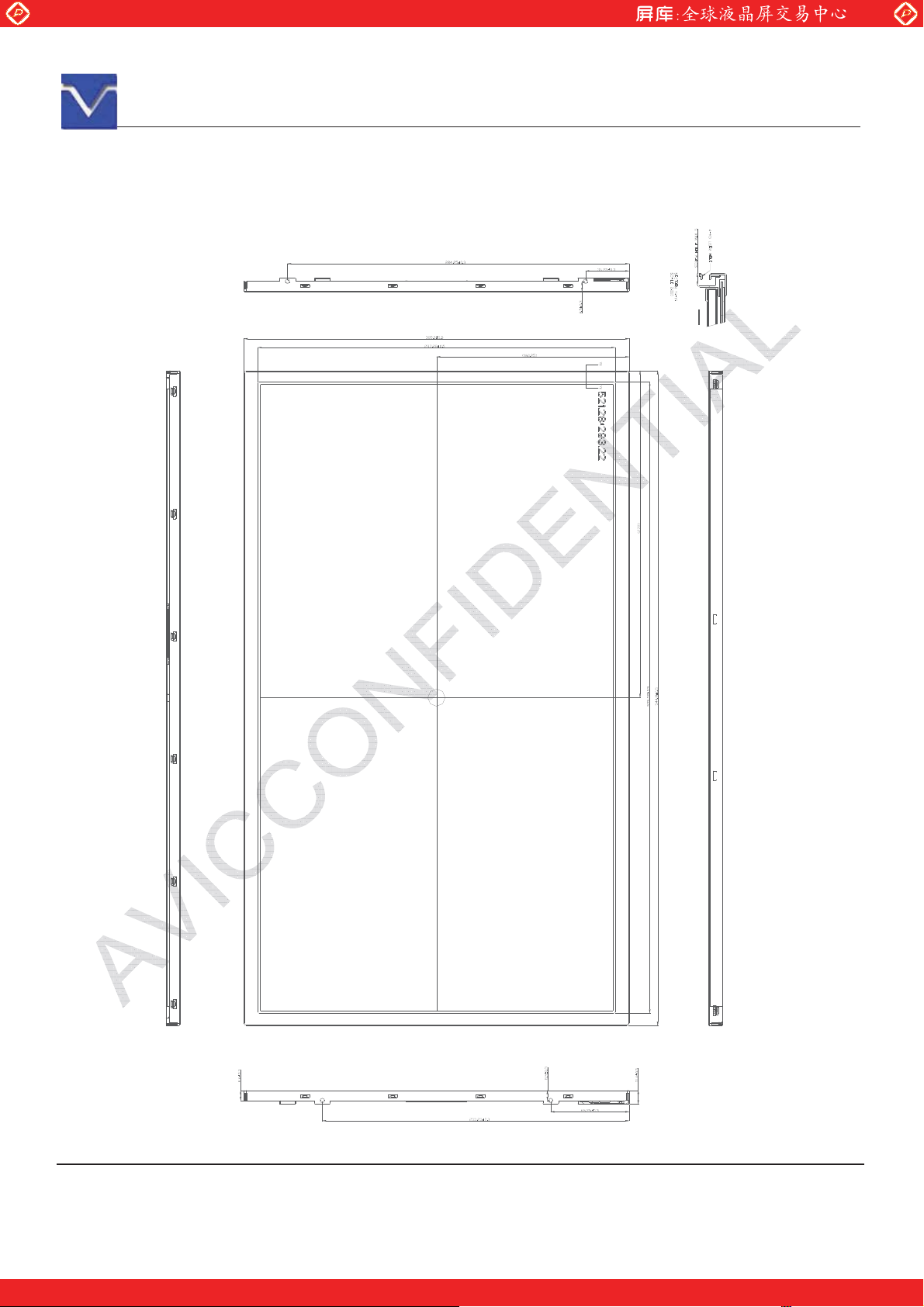

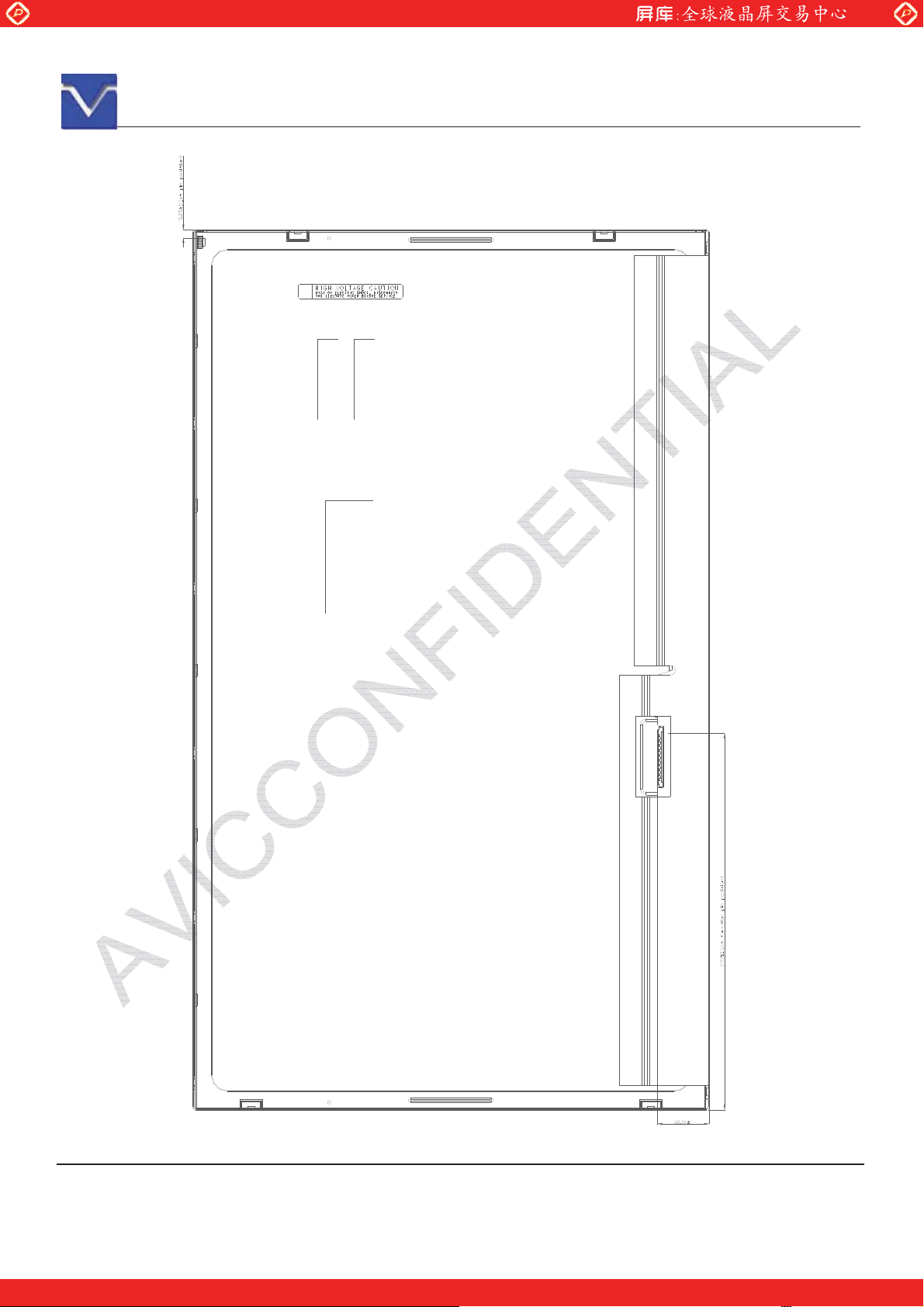

14. OUTDRAWING ................................................................................................................................................ 27
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 2 of 28
www.panelook.com
Page 3
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
Rev Issued Date Description Editor
1.0 2011-1-13 Preliminary Release Stephen Sun
www.panelook.com
RECORD OF REVISION
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 3 of 28
www.panelook.com
Page 4
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
www.panelook.com
1. OUTLINE
1.1 STRUCTURE AND PRINCIPLE
TM236VFS01-00 module is composed of the amorphous silicon thin film transistor liquid crystal
display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a
backlight. The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the
TFT array glass substrate and a color-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. PC, signal generator, etc.) are
modulated into best form for active matrix system by a signal processing board, and sent to the driver LSIs
which drive the individual TFT arrays. The TFT array as an electro-optical switch regulates the amount of
transmitted light from the backlight assembly, when it is controlled by data signals. Color images are created
by regulating the amount of transmitted light through the TFT array of red, green and blue dots.
1.2 APPLICATIONS
• Monitor for PC
1.3 FEATURES
• a-Si TFT active matrix
• LVDS interface
• R.G.B input 8bit, 16.7 millions colors (6bit+Hi-FRC)
• Resolution WXGA+ (1,920× 1,080 pixels)
• Wide viewing angle 85°/85° (L/R); 80°/80° (U/D)
• High contrast ratio 1000 :1
• Module size 544.8 (H) ×320.5 (V) ×11.4 (D) mm
• Fast response time (Ton+ Toff= 5 ms˅
• High gamut (68%)
• Edge light type backlight (White-LED)
• Inverter less
• RoHS compliance
• TCO’03 compliance
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 4 of 28
www.panelook.com
Page 5
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
2. GENERAL SPECIFICATIONS
Display area 521.28 (H) × 293.22 (V) mm (typ.)
Diagonal size of display 60.0 cm (23.6 inches)
Drive system a-Si TFT active matrix
Display color 16.7 M colors (6bit+ Hi-FRC)
Pixel 1,920 (H) × 1,080(V) pixels
www.panelook.com
Pixel arrangement
Dot pitch 0.2715 (H) × 0.2715(V) mm
Pixel pitch 0.0905 (H) × 0.2715 (V) mm
Module size
Weight TBD
Contrast ratio
Viewing angle
Color gamut
Response time
Luminance
Transmissive Mode
Surface Treatment
Signal system
Power supply voltage LCD panel signal processing board: 5.0V
Backlight White-LED
Power consumption
RGB vertical stripe
544.8 (H) ×320.5 (V) ×11.4 (D) mm
1000 :1 (typ.)
170°/ 160° (typ.)
68 % (typ.)
5 ms (typ.)
2
250 cd/m
Normally White
Anti Glare
LVDS 2port
TBD
(typ.)
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 5 of 28
www.panelook.com
Page 6
˄ˁRH˅
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
3. ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Rating Unit Remarks
www.panelook.com
Power supply
voltage
Input voltage for signals Vi -0.3 ~ +3.3 V Ta = 25°C
Light bar peak forward current IF 150 mArms Note 3
Storage temperature Tst -20 ~ +60 °C Note 4
Operating temperature Top 0 ~ +50 °C Note 4, 5
Absolute humidity AH 70 g/m3 Ta > 50°C
Operating altitude - 4,850 m 0°C Ta 50°C
Storage altitude - 13,600 m -20°C Ta 60°C
Note1: Display signals are DA0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-,
Power voltage
Light bar voltage V
VDD -0.3 ~ +6.0 V Ta = 25°C
33 Vrms Ta = 25°C
LED
and CKB+/-.
Note2: Function signal is MSL.
Note3: Pulse width 10msec, and duty 1/10.
Note4: Temperature and relative humidity range is shown in the figure below.
(a) 90%RH Max. (Ta 40°C)
(b) Web-bulb temperature should be39°C Max. (Ta> 40°C)
(c) No condensation.
Note5: The temperature of panel display surface area should be 0°C Min and 60°C Max.
-40 -20 0 20 40 60 80
Relative Humidity
Tem
pera
80
60
Operating Range
40
20
5
Storage Range
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 6 of 28
www.panelook.com
Page 7
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
4. BLOCK DIAGRAM
LCD MODULE I/F
DA0+
DA0-
DA1+
DA1-
DA2+
DA2-
CKA+
CKA-
DA3+
DA3-
DB0+
DB0-
DB1+
DB1-
DB2+
DB2-
CKB+
CKA-
DB3+
DB3-
VDD
`
V
LED
FG
GND
Note: System ground (GND), FG (Frame ground) in the product should be connected together in
customer equipment.
1/2
100
100
100
100
100
100
100
100
100
100
LVDS Receiver
DC/DC
www.panelook.com
Tming Controller
Source Driver
Gate Driver
Power
LCD Panel
H:1,920× 3˄R,G,B˅
V: 1,080
Edge side backlight
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 7 of 28
www.panelook.com
Page 8
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
5. MECHANICAL SPECIFICATIONS
Parameter Specification Unit
Module size 544.8± 0.5 (W) × 320.5 ± 0.5 (H) × 11.4 (D) mm
Display area 521.28(H) × 293.22(V) mm (typ.), [60cm (23.6 inches)] mm
Weight TBD g
6. ELECTRICAL CHARACTERISTICS
6.1 DRIVING FOR LCD
www.panelook.com
Parameter Symbol min. typ. max. Unit Remarks
Power supply voltage VDD 4.5 5.0 5.5 V 25°C
Power supply current IDD -
900
Note1
1080
Note 2
mA at VDD = 5.0V
Permissible ripple voltage VRP - - 300 mV 25°C,Vp-p
Differential input voltage
Differential input threshold
voltage for LVDS receiver
Low VTL -100 - - mV
High VTH - - 100 mV
Input voltage width for LVDS
receiver
ΊVidΊ
Vi 0 - 3.3 V -
100 600 mV
at VCM = 1.2V
Terminating resistor RT - 100 - -
Rush current I
- - 2.5 A Note4
rush
Note 1: Checkered flag pattern (EIAJ ED-2522)
Note 2: 2H1V dot inverse pattern
Note 3: Common mode voltage for LVDS receiver
Note4:
Measurement Conditions:
S2
GND
5V
1
3
2
SW- SPD T
5V
R1
47K
R2
1K
Q1
MOSFET-N
Q2
MOSFE T- N
F1
Fuse ( 2A)
GND
C1
Cap
1uF/16V
VDD
12V
R3
20K
C3
Cap
10uF/16V
C2
Cap
1uF/16V
GND
Note3
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 8 of 28
www.panelook.com
Page 9
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
6.2 DRIVING FOR BACKLIGHT
Parameter Symbol min. typ. max. Unit Remarks
www.panelook.com
(Ta=25°C) Note1
Light bar operation
voltage
(for reference)
Light bar
operation current (pin)
Light bar
operating lifetime
25 - 33 Vrms
V
LED
- 120 150 mArms Note1
I
LED
Hr - 30000 - Hour I
Operating with fixed
driving current
=120mA,Note3
LED
Note1: The backlight of this product is made up of 1 light bar, LED to be 4014, 72pieces, 9 serials and 4*2
parallels.
Note2: The light bar can work normally if the PWM dimming ratio range is from 0% to 100% and the
operation current is 120mA.
Note3: The operating lifetime is mean time to half-luminance. In case the product works under room
temperature environment.
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 9 of 28
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
7. CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS
7.1 LVDS CONNECTOR
CN1: FI-XB30SSRLA-HF16 (Produced by JAE) or equivalent.
Pin Name Description
1 RXO0- Negative LVDS differential data input. Channel O0 (odd)
2 RXO0+ Positive LVDS differential data input. Channel O0 (odd)
3 RXO1- Negative LVDS differential data input. Channel O1 (odd)
4 RXO1+ Positive LVDS differential data input. Channel O1 (odd)
5 RXO2- Negative LVDS differential data input. Channel O2 (odd)
6 RXO2+ Positive LVDS differential data input. Channel O2 (odd)
7 GND Ground
8 RXOC- Negative LVDS differential clock input. (odd)
9 RXOC+ Positive LVDS differential clock input. (odd)
10 RXO3- Negative LVDS differential data input. Channel O3(odd)
11 RXO3+ Positive LVDS differential data input. Channel O3 (odd)
12 RXE0- Negative LVDS differential data input. Channel E0 (even)
13 RXE0+ Positive LVDS differential data input. Channel E0 (even)
14 GND Ground
15 RXE1- Negative LVDS differential data input. Channel E1 (even)
16 RXE1+ Positive LVDS differential data input. Channel E1 (even)
17 GND Ground
18 RXE2- Negative LVDS differential data input. Channel E2 (even)
19 RXE2+ Positive LVDS differential data input. Channel E2 (even)
20 RXEC- Negative LVDS differential clock input. (even)
21 RXEC+ Positive LVDS differential clock input. (even)
22 RXE3- Negative LVDS differential data input. Channel E3 (even)
23 RXE3+ Positive LVDS differential data input. Channel E3 (even)
24 GND Ground
25 GND Ground
26 NC Not connection.
27 GND Ground
28 VIN +5.0V power supply
29 VIN +5.0V power supply
30 VIN +5.0V power supply
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 10 of 28
www.panelook.com
Page 11
6
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011

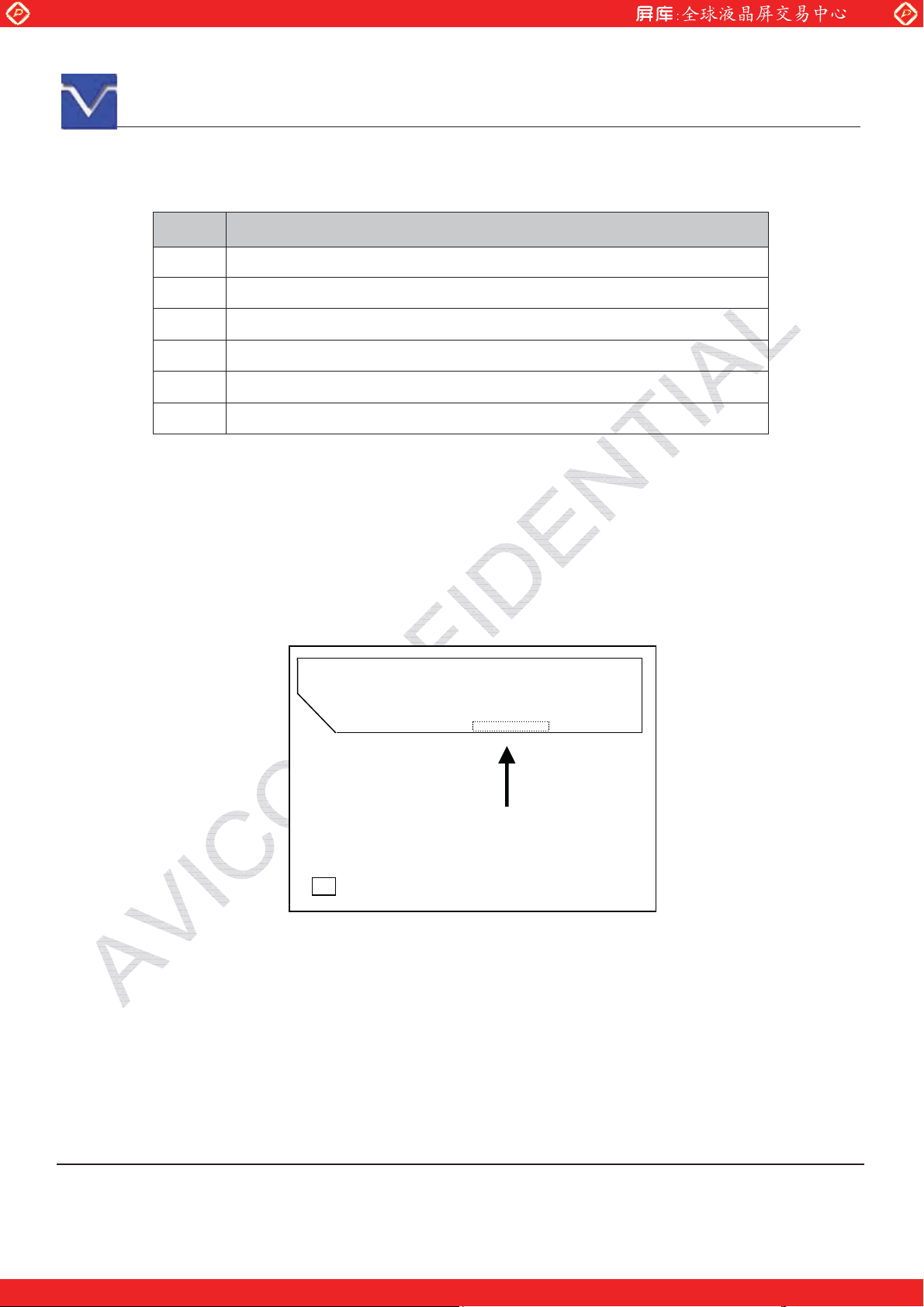

7.2 BACKLIGHT
CN2:
www.panelook.com
Pin
1 Cathode of LED string
2 Cathode of LED string
3 VLED
4 VLED
5 Cathode of LED string
6 Cathode of LED string
Description
Note1: The ports of VDD and GND should be all used. As for the input of LVDS, please use the twisted
pair wire of the transmission impedance 100.
7.3 POSITION OF PLUGS AND A SOCKET
1 CN1 30
Insert direction
CN2
1
7.4 CONNECTION BETWEEN RECEIVER AND TRANSMITTER FOR LVDS
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 11 of 28
www.panelook.com
Page 12
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
www.panelook.com
Note1: The lowest bit (RA0, GA0, BA0, RB0, GB0, BB0), the most upper bit (RA7, GA7, BA7, RB7, GB7,
BB7)
Note2:Connecting cable between LCD panel’s connector and transmitter should use 100 twisted line.
Note3: If only Hsync and Vsync, the product don’t work. Make sure DE signal has been input.
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 12 of 28
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
8. DISPLAY COLORS AND INPUT DATA SIGNALS
This product can display in equivalent to 16,777,216 colors in 256 scales. Also the relation between
display colors and input data signals is as the following table.
Display
colors
Black 0 00 0 0 0 000000000000 0 0 0 0 00
Blue 0 00 0 0 0 000000000011 1 1 1 1 11
Red 1 11 1 1 1 110000000000 0 0 0 0 00
Magenta 1 11 1 1 1 110000000011 1 1 1 1 11
Green 0 00 0 0 0 001111111100 0 0 0 0 00
Basic Color
Cyan 0 00 0 0 0 001111111111 1 1 1 1 11
Yellow 1 11 1 1 1 111111111100 0 0 0 0 00
White 1 11 1 1 1 111111111111 1 1 1 1 11
Black
Dark
Bright
Red grayscale
Red
Black
Dark
Bright
Green grayscale
Green
Black
Dark
Bright
Blue grayscale
Blue
R7 R6 R5 R4 R3 R2 R1
R0
0 00 0 0 0 000000000000 0 0 0 0 00
0 00 0 0 0 010000000000 0 0 0 0 00
0 00 0 0 0 100000000000 0 0 0 0 00
1 11 1 1 1 010000000000 0 0 0 0 00
1 11 1 1 1 100000000000 0 0 0 0 00
1 11 1 1 1 110000000000 0 0 0 0 00
0 00 0 0 0 000000000000 0 0 0 0 00
0 00 0 0 0 000000000100 0 0 0 0 00
0 00 0 0 0 000000001000 0 0 0 0 00
0 00 0 0 0 001111110100 0 0 0 0 00
0 00 0 0 0 001111111000 0 0 0 0 00
0 00 0 0 0 001111111100 0 0 0 0 00
0 00 0 0 0 000000000000 0 0 0 0 00
0 00 0 0 0 000000000000 0 0 0 0 01
0 00 0 0 0 000000000000 0 0 0 0 10
0 00 0 0 0 000000000011 1 1 1 1 01
0 00 0 0 0 000000000011 1 1 1 1 10
0 00 0 0 0 000000000011 1 1 1 1 11
: : :
: : :
: : :
: : :
: : :
: : :
G7 G6 G5 G4 G3 G2 G1
G0
B7 B6 B5 B4 B3 B2 B1
B0
Data signal ˄0:Low levelˈ1:High Level˅
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 13 of 28
www.panelook.com
Page 14
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
9. INTERFACE TIMING
9.1 TIMING CHARACTERISTICS
Parameter Symbol min. typ. max. Unit Remarks
www.panelook.com
Frequency
Clock
Horizontal
signals
Vertical
signals
DE/Data
Rise time, Fall
time
Duty - -
Cycle th
Display period thd 960
Cycle tv
Dis p lay p e riod tv d 1080
Setup time -
Hold time - ns
Rise time, Fall
time
Note1: See the data sheet of LVDS transmitter.
1/tc 69.30 73.26 77.35 MHz
tc 14.43 13.65 12.93 ns
-
- ns
Refer to the timing
characteristics of LVDS
transmitter
14.8 18.0 26.5 μs
1050 1100 1150 CLK
13.3 16.67 20 ms
1100 1110 1121 H
Refer to the timing
characteristics of LVDS
transmitter
ns
ns
LVDS
transmitter
input
Note 1
55.5kHz(typ.)
-
60.0Hz(typ.)
-
Note 1
9.2 Input signal timing mapping
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
Page 14 of 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
www.panelook.com
9.3 Power On/Off Sequence
Note1˖ When VDD is on, but the value is lower than 4.5V, a protection circuit may work, then the module
may not display.
Note2˖The signal line is not connected with the module, at the end of cable the terminal resistor of 100
should be added.
Note3: Display signals (D0+/-, D1+/-, D2+/-, D3+/- and CK+/-) must be “0” voltage, exclude the VALID period
(See above sequence diagram). If these signals are higher than 0.3 V, the internal circuit is damaged.
If some of display signals of this product are cut while this product is working, even if the signal input to it
once again, it might not work normally. If customer stops the display signals, they should cut VDD.
Note4: When VDD is on, it should be set above 4.0V.
Note5: The backlight power supply voltage should be inputted within the valid period of display and function
signals, in order to avoid unstable data display.
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 15 of 28
www.panelook.com
Page 16
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
www.panelook.com
9.4 POWER SUPPLY VOLTAGE RIPPLE
When the power supply is designed, the next form can give the reference. If the voltage ripple is
over the value in next form, the noise should be seen in display area.
Ripple (Measured at input terminal of power supply)
Ripple voltage
VDD (5V to drive the panel)
300mVP-P˄Including spike noise˅
9.5 Fuse
Parameter
Type Supplier
VDD F0603FA2000V032T AEM
Note1: There are different power supply systems from the power input terminal. The power supply
capacity should be less than the fusing current. If the power supply capacity is above the fusing current, the
fuse may blow in a short time, and then nasty smell, smoking and so on may occur.
Fuse
Rating Fusing current Remarks
2A
32V
-
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 16 of 28
www.panelook.com
Page 17
(Product)
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011

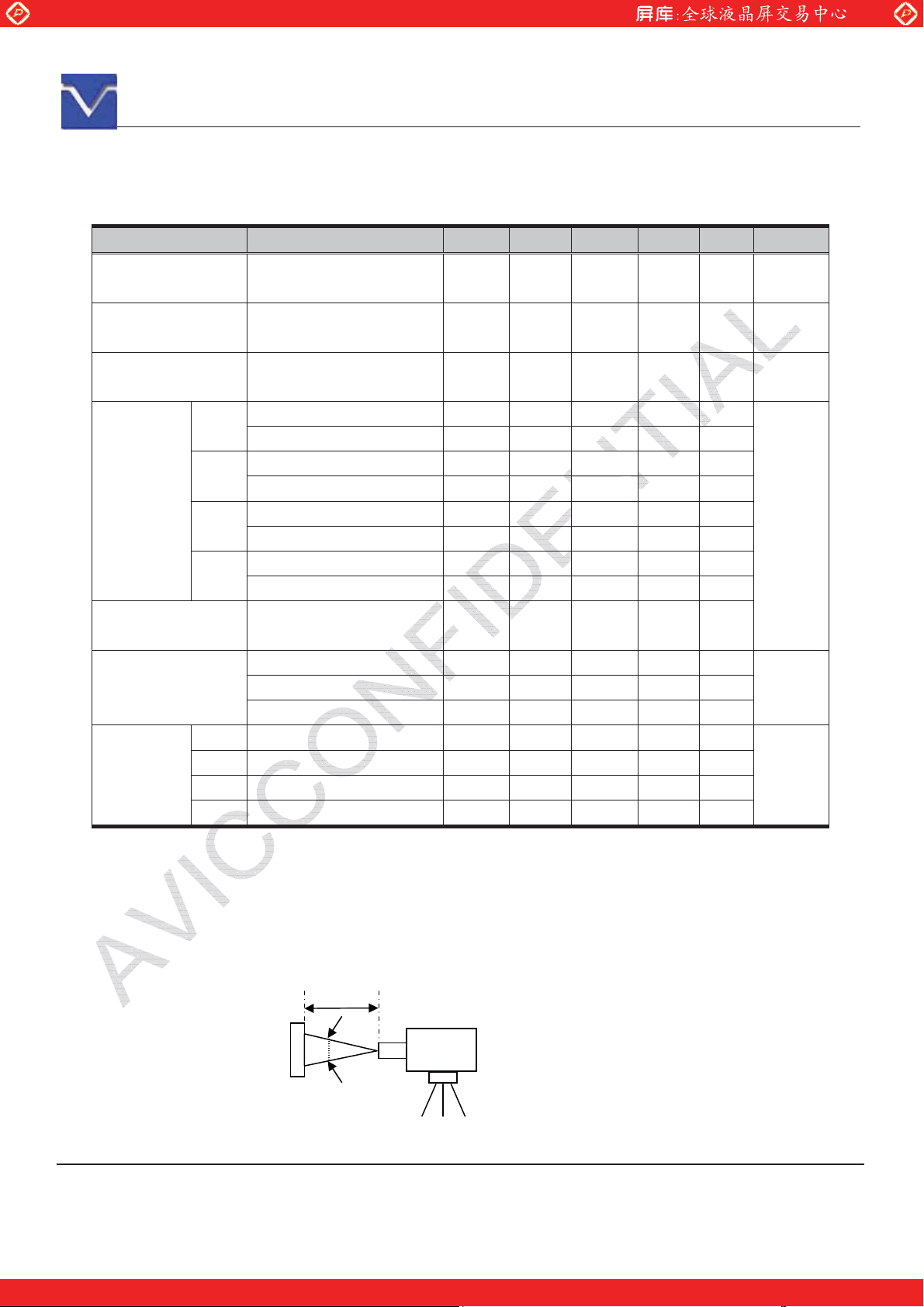

10. OPTICS
10.1 Optical characteristics
Parameter Note1 Condition Symbol min. typ. max. Unit Remarks
www.panelook.com
Note1 ,Note2
Luminance
Contrast ratio
Luminance uniformity
White
Red
Chromaticity
Green
Blue
Color gamut
Response time
Right U=0°, D=0°, CR10 R (75) 85 -
Viewing
angle
Left U=0°, D=0°, CR10 L (75) 85 -
Up R=0°, L=0°, CR10 U (70) 80 -
Down R=0°, L=0°, CR10 D (70) 80 -
White at center
R=0
°, L=0°, U=0°, D=0°
White/Black at center
R=0
°, L=0°, U=0°, D=0°
White
R=0
°, L=0°, U=0°, D=0
X coordinate Wx 0.283 0.313 0.343 -
Y coordinate Wy 0.299 0.329 0.359 -
X coordinate Rx -
Y coordinate Ry - TBD - -
X coordinate Gx -
Y coordinate Gy - TBD - -
X coordinate Bx -
Y coordinate By - TBD - -
R=0
°, L=0°, U=0°, D=0
At center,against NTSC
White to black Ton - 1.3 (2.6) ms
Black to white Toff - 3.7 (7.4) ms
Ton+ Toff - - 5 (10) ms
L (200) 250 -
CR (700) 1000 - - Note3
LU - 1.25 (1.33) - Note4
TBD - -
TBD - -
TBD - -
C -
68 - %
cd/
m
DŽ
DŽ
DŽ
DŽ
2
-
Note5
Note6
Note7
Note8
Note1: The values in upper table are only initial characteristics.
Note2: Measurement conditions are as follows.
Ta= 25
°C, VDD= 5.0V, IBL= 6.5mArms/lamp, Display mode: WXGA+,
Horizontal cycle=55.56KHz, Vertical cycle=60.0Hz
Optical characteristics are measured at luminance saturation after 30minutes from
working the product in the dark room. Also measurement method for luminance is as
follows.
50cm
Luminance Meter (TOPCON BM-5A)
rri
m
T
P
R-
LCD module
1Ϩ
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
Page 17 of 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
ķ
ĸ
Ĺ
ĺ
Ļ
Global LCD Panel Exchange Center
www.panelook.com
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
Note 3: See“10.2 Definition of contrast ratio”.
Note 4: See“10.3 Definition of luminance uniformity”.
Note 5: CIE 1931 Chromaticity Diagram Standard.
Note 6: Product surface temperature: TopF = 33.0 °C
Note 7: See “10.4 Definition of response time”.
Note 8: See “10.5 Definition of viewing angle”.
10.2 Definition of contrast ratio
The contrast ratio is calculated by using the following formula.
Contrast ratio˄CR˅= Luminance of white screen
Luminance of black screen
10.3 Definition of luminance uniformity
The luminance uniformity is calculated by using the following formula.
Luminance uniformity˄LU˅=Maximum luminance from to ķĿ
Minimum luminance from toķ Ŀ
The luminance is measured at near the 9 points shown below.
171 512 853
128
384
640
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 18 of 28
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
10.4 Definition of response times
Response time is measured, the luminance changes from “white” to “black”, or “black” to
“white” on the same screen point, by photo-detector. Ton is the time it takes the luminance
change from 90% down to 10%. Also Toff is the time it takes the luminance change from 10% up
to 90%. (See the following diagram.)
100%
90%
White
Luminance
Black
10%
0%
Ton Toff
Normal axis (Perpendicular)
10.5 Definition of viewing angles
Left
Lower
D
L
Upper
U
R
Right
12 o’clock
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 19 of 28
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
11. MARKINGS
The various markings are attached to this product. See “11.2 INDECATION LOCATIONS” for attachment
positions.
11.1 PRODUCT LABEL
Product label
LOT number
OEM number
Note 1
Note1: The meaning of OEM number, Example: S236V01A12SA1SA109A0374
UL Mark
ROHS Mark
Country of manufacture
Note2
S236V01A 12 SA1SA1 09A 0374
Module Number Source & Gate
Driver IC Code
Date code:
1st Character Year Codes
Month
Code
2010 2011 2012 2013 2014 2015 2016 2017 2018 So on
0 1 2 3 4 5 6 7 8
2nd Character Month Codes
Month January February March April May June July August SeptemberOctober NovemberDecember
Code 1 2 3 4 5 6 7 8 9 A B C
3rd Character Day Codes
Day 1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th 11st 12nd
Code123456789ABC
13rd 14th 15th 16th 17th 18th 19th 20th 21st 22nd 23rd 24th
DEFGHJKLMNPQ
25th 26th 27th 28th 29th 30th 31st
RSTUVWX
Note2: Do not attach anything such as label and so on, on the product label! In case repair the product,
AVIC needs the contents of product label such as the lot number, inspection date and so on, to identify the
warranty period with individual product. If AVIC cannot decipher the contents of product label, such repair shall
be entitled to charge. Also AVIC may give a new lot number to reconditioned products.
Location Line# Date code Serial Number
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 20 of 28
www.panelook.com
Page 21
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
11.2 INDICATION LOCATIONS
Product rear side
Disposal method marking Barcode label Product label
www.panelook.com
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 21 of 28
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
12. PACKING, TRANSPORTATION AND DELIVERY
AVIC will pack products to deliver to customer in accordance with AVIC packing specifications, and will
deliver products to customer in such a state that products will not suffer from a damage during
transportation .The delivery conditions are as follows.
12.1 PACKING
(1) Packing box
6 products are packed up with the maximum in a packing box(See “12.5 OUTLINE FIGURE FOR
PACKING “).
Products are put into a plastic bag for prevention of moisture with cushion, and then the bag is sealed up
with heat sealing.
The type name and quality are shown on outside of the packing box, either labeling or printing.
(2) Pallet Packing (See”12.5 OUTLINE FIGURE FOR PACKING “)
Packing boxes are tired on a cardboard pallet.(ķ 8 boxes×4 tiers maximum)
ĸ Cardboard sleeve and top cap are attached to the packing boxes, then they are fixed by a band.
12.2 INSPECTION RECORD SHEET
Inspection record sheets are included in the packing box with delivery products to customer. It is
summarized to a number of products for pass/fail assessment.
12.3 TRANSPORTATION
The product is transported by vehicle, aircraft or shipment in the state of pallet packing.
12.4 SIZE AND WEIGHT FOR PACKING BOX
Parameter Packing box Unit
Size
Weight TBD kg
Total weight TBD kg
604˄L˅× 274˄W˅× 417˄H˅˄typ.˅
mm
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 22 of 28
www.panelook.com
Page 23
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
12.5 OUTLINE FIGURE FOR PACKING
www.panelook.com
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 23 of 28
www.panelook.com
Page 24
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
www.panelook.com
13. PRECAUTIONS
13.1 MEANING OF CUTION SIGNS
The following caution signs have very important meaning .Be sure to read “9.2 CAUTIONS” and “9.3
ATTENTIONS”, after understanding these contents!
This sign have the meaning that customer will be injured by himself or the product will
sustain a damage, if customer has wrong operations.
This sign has the meaning that customer will get an electrical shock, if customer has
wrong operations.
This sign has the meaning that customer will be injured by himself, if customer has
wrong operations.
13.2 CAUTIONS
Do not touch lamp cables while turn on .Customers will be in danger of an electric shoc
*
because they are made of glass.(shock :To be not greater 294m/s
* Do not touch the working backlight and IC. Customers will be in danger of burn injury.
* Do not shock and press the LCD panel and the backlight! There is a danger of breaking,
2
and to be not greater
11ms, Pressure: To be not greater 19.6N)
13.3 ATTENTIONS
13.3.1 Handling of the product
ķ Take hold of both ends without touch the circuit board when customer pulls out products (LCD
modules) from inner packing box. If customer touches it, products may be broken down or out of
adjustment, because of stress to mounting parts.
ĸ Do not hook cables nor pull connection cables such as flexible cable and so on , for fear of
damage.
Ĺ If customer puts down the product temporarily, the product puts on flat subsoil as a display side
turns down.
ĺ Take the measures of electrostatic discharge such as earth band, ionic shower and so on, when
customer deal with the product, because products may be damaged by electrostatic.
k
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 24 of 28
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
Ļ The torque for mounting screws must never exceed 0.34N-m. Higher torque values might result
in distortion of the bezel.
ļ The product must be installed using mounting holes without undue stress such as bends or twist
(See outline drawings).And do not add undue stress to any portion (such as bezel flat area)
except mounting hole portion.
Ľ Bends or twist described above and undue stress to any portion except mounting hole portion
may cause display un-uniformity.
ľ Do not press or rub on the sensitive display surface .If customer clean on the panel surface, AVIC
recommends using the cloth with ethanolic liquid such as screen cleaner for LCD.
Ŀ Do not push-pull the interface connectors while the product is working, because wrong power
sequence may break down the product.
ŀ Do not bend or unbend the lamp cable at the near part of the lamp holding rubber, to avoid the
damage for high voltage side of the lamp. This damage may cause a lamp breaking and
abnormal operation of high voltage circuit.
13.3.2 Environment
ķ Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive
gases. Keep the product in antistatic pouch in room temperature, because of avoidance for dusts
and sunlight, if customer stores the product.
ĸ In order to prevent dew condensation occurring by temperature difference, the product packing
box must be opened after leave under the environment of an unpacking room temperature
enough. Because a situation of dew condensation occurring is changed by the environment
temperature and humidity, evaluate the leaving time sufficiently. (Recommendation leaving time:
6 hour or more with packing state)
Ĺ Do not operate in a high magnetic field .Circuit boards may be broken down by it.
ĺ This product is not designed as radiation hardened.
Ļ Use an original protection sheet on the product surface (polarizer). Adhesive type protection
sheet should be avoided, because it may change color or properties of the polarizer.
The following items are neither defects nor failures.
13.3.3 Characteristics
ķ ambient temperature.
ĸ The LCD may be seemed luminance non-uniformity, flicker, vertical seam or small spot by display
patterns.
Ĺ Optical characteristics (e.g. luminance, display uniformity, etc.) gradually is going to change
depending on operating time ,and especially low temperature, because the LCD has cold
cathode fluorescent lamps.
ĺ Do not display the fixed pattern for a long time because it may cause image sticking .Use a
screen saver, if the fixed pattern is displayed on the screen.
Ļ The display color may be changed by viewing angle because of the use of condenser sheet in the
backlight.
ļ Optical characteristics may be changed by input signal timings.
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 25 of 28
www.panelook.com
Page 26
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
Ľ The interference noise of input signal frequency for this product and luminance control frequency
of customer’s backlight inverter may appear on a display. Set up luminance control frequency of
backlight inverter so that the interference noise doses not appear.
13.4 Other
ķ All GND and VCC terminals should be used without a non-connected line.
ĸ Do not disassemble a product or adjust volume without permission of AVIC.
Ĺ Pay attention not to insert waste materials inside of products, if customer uses screw nails.
ĺ Pack the product with original shipping package, because of avoidance of some damages during
transportation, when customer returns it to AVIC for repair and so on .
Ļ Not only the module but also the equipment should be packed and transported as the module.
becomes vertical .Otherwise, there is the fear that a display dignity decreases by an impact or
vibrations.
www.panelook.com
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 26 of 28
www.panelook.com
Page 27
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
14.OUTDRAWING
www.panelook.com
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 27 of 28
www.panelook.com
Page 28
Global LCD Panel Exchange Center
SHANGHAI AVIC OPTOELECTRONICS Q/S1010-2011
www.panelook.com
The information contained herein is the exclusive property of SHANGHAI AVIC OPTOELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI AVIC OPTOELECTRONICS Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page 28 of 28
www.panelook.com
Loading...
