INTRODUCTION
Congratulations on your purchase of the Raptor 30 V2 helicopter. This model was designed and
engineered by the World-renowned Mr. Shigetada Taya. It combines elements of his previously
successful designs with today's advanced technologies. Since the introduction of the original
Raptor 30 in 1998, many have been sold around the world. It is the most popular 30-size helicopter
in the world. The Raptor 30 has helped beginners master the art of RC helicopter flying. The
Raptor 30 has helped experienced pilots learn new 3-D maneuvers. This is truly a versatile model
helicopter for everyone. We did not just sat on our laurel, our team of engineers and test pilots
have collected feedbacks from around the world and have now made the Raptor 30 an even better
helicopter. We made new molds and tooling for new parts. Many area have subtle changes to
increase strength and durability.
As one of the largest R/C manufacturers in the world, Thunder Tiger has spared no expense to
bring you this incredible new machine. All production parts are manufactured by use of the most
modern technology available and meets or exceeds the standards as set forth by ISO-9001.
In the last few years we have spend time and resource to develop a new Thunder Tiger PRO39H(R) ring engine for the Raptor 30 V2 and for other 30-size helicopters. The new PRO-39H(R)
has much better transition characteristics than the Pro 36H ABC engine. The needles are easy
to set. The ring design eliminates the criticalness of ABC engines. You will find the new 39H
engine produce more power than any other available 30-size engines. Together, the new Raptor
30 V2 and the PRO 39H(R) engine will provide you with many hours of enjoyment. Thank you
again for purchasing our fine products.
CONTENTS
Introduction......................................... p.1
Contents..............................................p.1
Warnings.............................................p.1
Additional Items Needed.....................p.3
Tools Needed...................................... p.3
Assembling Section............................ p.4
Flight Training Section........................ p.22
Maintenance Section.......................... p.30
Blade Modification............................. p.35
WARNING
This radio controlled helicopter is not a toy. It is a sophisticated piece of equipment and
is designed for hobby use only. If not properly assembled and operated, it is capable of
causing property damage and bodily harm to both the operator and/or spectators. Thunder
Tiger and its duly authorized distributors assume no liability for damage that could occur
from the assembly and/or use/misuse of this product.
AMA INFORMATION
Operating a model helicopter requires a high degree of diligence and skill. If you are a
newcomer to the hobby, it is best to seek help and guidance from accomplished model
helicopter pilots. This will greatly speed up the learning process and have you flying
successfully in a reasonable time. We also would strongly urge you to join the Academy
of Model Aeronautics. The AMA is a non-profit organization that provides its members
1
with a liability insurance plan as well as monthly magazine entitled Model Aviation. All
AMA charter aircraft clubs require all pilots to hold a current AMA sporting license prior
to operation of their models at club fields. For further information, contact the AMA at:
Academy of Model Aeronautics
5151 East Memorial Drive
Muncie, IN 47302
(317) 287-1256
FLIGHT SAFETY CHECKLIST
1. Make sure both the transmitter and receiver batteries are fully charged prior to operation the
helicopter.
2. Make sure all flight controls operate properly prior to flying.
3. Range check the radio before the first flight. The servos must operate properly with the
transmitter antenna collapsed at a range of at least 50 ft.(15 meters).
4. Check to make sure there is no radio interference on your radio channel before operating the
helicopter.
5. Use only the recommended engine fuel as specified by the engine manufacturer.
6. Make sure the transmitter and receiver are turned on before starting the engine.
7. The engine throttle must be in the idle position before starting the engine.
8. Model helicopter main and tail rotors operate at high RPM. Make sure nothing can come in
contact with the rotor blades during flight.
9. After starting the helicopter, maintain a safe distance during the flight.
10. Never operate the helicopter in rain or excessive wind conditions.
11. Always operate and fly your helicopter in a safe and responsible manner.
12. Never fly a model helicopter over other pilots, spectators or cars.
POST FLIGHT INSPECTION
1. Inspect the model thoroughly to insure no parts have come loose or become damaged during
the flight and landing. Replace damaged parts and tighten loose screws before flying again.
2. Pump out any remaining fuel from the fuel tank.
3. Wipe off excess oil and fuel from helicopter body and other exposed parts.
4. Lubricate all moving parts ensure smooth operation for the next time you fly.
5. Store model in a cool, dry place. Avoid storage in direct sunlight or near a source of heat.
Following these few, simple safety rules will allow you to enjoy the thrill of model helicopter flying
for many years to come.
2
RADIO SET
OTHER ITEMS REQUIRED
Transmitter
(helicopter type only
6 or more channels)
ENGINE
HELI ENGINE(39-size)
12V Battery
Glow Plug
1.5V Glow starter
(1.2V~1.5V)
Receiver
Servo x 5
Glow Fuel(15%-30%)
Fuel Pump
Battery
1000mAh
Rubber Band
Switch harness
Gyro
12V Electric starter
Extended 6mm Hex
Starting Tool
Foam
Remote Glow Plug
Extension
Hobby Knife
Training Gear
(for beginners only)
Glow Plug Wrench
TOOLS REQUIRED FOR ASSEMBLY
Ball Link Pliers
7mm
Instant Glue
Blue Locktite
3
Epoxy
ScissorsNipper5.5mm WrenchNeedle Nose PliersScrew Driver
Hex WrenchGrease
Metric
4-way Wrench
5.5mm
7mm
8mm
5.5mm
7mm
8mm
Socket Drivers
10mm
ASSEMBLING SECTION
The parts in the Raptor kit are packed according to the assembly steps. The part number and quantity contained
in each are always shown in the square box on each page. Do not open all the bags at once. Open only the bag
that is needed for the current assembly step.
4
1 Fuel Tank Assembly
Note: After assembly, check to make sure the Fuel Tank
clunk can move from top to bottom without touching the
back of tank. Also, a fuel filter (available from any hobby
shop, TTR1164) should be placed between the fuel tank
and the carburetor.
To Engine
(6) BB362-2
(6) BB362-2
To Muffler
(1) BK0605 Fuel Tank .....................1
(2)BK0062 Fuel Tank Grommet.......1
(3)BK0463 Fuel Tank Nipple .......... 1
(4)BE1867 Clunk.............................1
(5)CB0363-1 Silicone Fuel Tube.....1
(6)BB0362-2 Silicone Fuel Tube.....2
(3 )BK0463
(2 )BK0062
(5 )CB0363-1
(4 )BE1867
2 Clutch Bell Assembly
(1) HMV1680 Bearing (d8xD16xW5).....1
(2) HMV1260Y Bearing (d6xD12xW4)...1
(3) BK0591 Clutch Bell..........................1
(4) BK0593 Drive Gear(Pinion).............1
(5) BK0590 Clutch Liner........................1
(2) HMV1260Y
(5) BK0590
(1) BK0605
(1) HMV1680
(4) BK0593
(3) BK0591
The liner comes glued in the
clutch bell already.
5
3 Main Frame Assembly-Part1
Please insert the frame spacers, bearings, pulley and parts in the frames according the drawing below. Tighten the
screws snugly, but do not over torque them which could strip the plastic.
Insert starter shaft through the center of the clutch bell assembly, through the top starter shaft bearing and into the
starter coupling. Secure with the two set screws. Make sure this is tightly secured.
(1) HSE3-12B Self Tapping Screw (M3x12).. 30
(2) HMV696Z Bearing (d6xD15xW5).......... 1
(3) HMV6800 Bearing (d10xD19xW5).......... 2
(4) BK0059 Frame Spacer (S)....................... 8
(5) BK0058 Frame Spacer (L)...................... 4
(6) HME4-5B Set Screw (M4x5)................... 2
(7) BK0081 Pin............................................. 2
(8) BK0057 Servo Frame.............................. 1
(9) BK0599 Main Frame Left Side.............. 1
(10) BK0600
(14) BK0594
(6) HME4-5B
(1) HSE3-12B
(2) HMV696Z
Top Starter Shaft
Bearing
(1) HSE3-12B
(10) BK0600 Main Frame Right Side..........1
(11) BV0035 Guide Pulley.......................... 2
(12) BK0036 Pulley Collar.......................... 4
(13) BK0592 Starter Shaft.......................... 1
(14) BK0594 Starter Coupling.................... 1
(15) Fuel Tank Assembly
(16) Clutch Assembly
(17) HMS5 E-CLIP..................................... 1
(18) BK0584 Thrust Washer.......................1
(3) HMV6800 Upper Main Shaft bearing
(4) BK0059 Main Frame Spacer(S)
(5) BK0058 Main Frame Spacer (L)
(7) BK0081
(12) BK0036
(11) BV0035
(8) BK0057
(16) Clutch Bell
Assembly
(18) BK0584
(17) HMS5
(13) BK0592
(15) Fuel Tank Ass'y
6
(9) BK0599
(1) HSE3-12B
(3) HMV6800
Lower Main Shaft Bearing
4 Main Drive Gear Assembly
(1) HMC3-12B Socket Screw (M3x12).......... 4
(2) HMQ14 Snap Ring.................................... 2
(3) BV0033 One Way Clutch Housing.............1
(4) BK0031 Main Spur Gear........................... 1
(5) BK0032 Tail Drive Pulley........................... 1
(6) BK0034 One Way Clutch Shaft..................1
(4) BK0031
(5) BK0032
Add a drop of Blue Locktite on the
thread of each of these four screws.
(2) HMQ14
(3) BV0033
(1) HMC3-12B
5 Washout Assembly
(1) HMJ2-10N Self Tapping Screw(M2x10).. 2
(2) HMC3-10B Socket Screw (M3x10)......... 2
(3) HMV740ZZ Bearing (d4xD7xW2.5)........ 4
(4) BK0077 Collar ........................................ 2
(5) BK0079 Pin............................................. 2
(6) BK0075 Linkage Ball.............................. 2
(7) BK0015 Flybar Control Lever.................. 2
(8) BK0016 Washout Linkage ..................... 2
(9) BK0014 Washout Base............................1
Make sure Linkage Balls are attached to the
inside hole of each stabilizer control lever.
(1) HMJ2-10N
(3) HMV740ZZ
(8) BK0016
(2) HMQ14
(6) BK0075
(6) BK0034
(2) HMC3-10B
(4) BK0077
(3) HMV740ZZ
(7) BK0015
(5) BK0079
(3) HMV740ZZ
(9) BK0014
(5) BK0079
(2) HMC3-10B
For sport kit (29BB) version, (3) will be replaced by Bushing(BK0107x4)
(4) BK0077
(3) HMV740ZZ
7
(6) BK0075
(7) BK0015
(1) HMJ2-10N
(8) BK0016
6 Main Frame Assembly-Part2
Add a drop of CA to the two screws at the pivoting point of the collective pitch control arm.
Attach the linkage rod to the parallel elevator linkage balls.
(1) HSE3-18B Self Tapping Screw(M3x18)....4
(2) HSE3-12B Self Tapping Screw(M3x12)... 1
(3) HMJ3-22B Self Tapping Screw(M3x22)....1
(4) HMJ2-14N Self Tapping Screw(M2x14)... 1
(5) HMJ2-10N Self Tapping Screw(M2x10)... 6
(6) HMV1280 Bearing (d8xD12xW3.5)......... 2
(7) HMV740ZZ Bearing (d4xD7xW2.5)........ 6
(8) HMV840ZZ Bearing (d4xD8xW3)............ 2
(9) BK0076 Collar......................................... 3
(10) BK0078 Collar ...................................... 2
(11) BK0088 Flat Washer ......................... 1
For sport kit (29BB) version,
(7) will be replaced by Bushing(BK0107x6)
(8) will be replaced by Bushing(BK0108x2)
(14) BK0023
(12) BK0084
(6) HMV1280
(18) BK0019
(21) BK0021
(13) BK0075
(1) HSE3-18B
(5) HMJ2-10N
(7) HMV740ZZ
(5) HMJ2-10N
(13) BK0075
(7) HMV740ZZ
(9) BK0076
(1) HSE3-18B
(19) BK0086
(20) BK0093
(12) BK0084 Pin .......................................... 2
(13) BK0075 Linkage Ball..............................8
(14) BK0023 Elevator Control Arm Link........ 2
(15) BK0018 Elevator Control Arm................ 1
(16) BK0020 Elevator Arm Control Shaft.......1
(17) BK0022 Aileron Control Lever................2
(18) BK0019 Elevator Arm Parallel Lever......1
(19) BK0086 Ball Link....................................2
(20) BK0093 Linkage Rod ............................ 1
(21) BK0021 Elevator Control Lever..............1
(22) BK0017 Collective Pitch Control Arm.....1
(15) BK0018
(14) BK0023
(6) HMV1280
(16) BK0020
(1) HSE3-18B
(5) HMJ2-10N
(13) BK0075
(2) HSE3-12B
(10) BK0078
(8) HMV840ZZ
(8) HMV840ZZ
(10) BK0078
(11) BK0088
(7) HMV740ZZ
(9) BK0076
(7) HMV740ZZ
(17) BK0022
(7) HMV740ZZ
(5) HMJ2-10N
(13) BK0075
(22) BK0017
(1) HSE3-18B
66mm
(3) HMJ3-22B
Warning, do not over-torque the self-tapping screws.
(4) HMJ2-14N
(9) BK0076
(7) HMV740ZZ
(13) BK0075
8
7 Main Frame Assembly-Part3
Insert Main Shaft through the shaft bearings making sure that the end with the holes closest to the end is
pointed down. Next, slide main gear assembly into position on the shaft and line up the holes in the main
shaft with the holes in one way clutch shaft of the main gear assembly. Insert the socket head screw and
secure with the lock nut. Next, slide on the mainshaft lock ring on top of the main shaft bearing and secure
with the two set screws. Then slide on the swash plate assembly and attach the elevator and aileron
control linkages to the outside swash plate linkage balls. Next, slide on washout assembly and attach
washout linkage to the inner linkage balls of the swash plate.
(1) BK0616 Socket Screw(M3x20)............1
(2) HMM3Z Lock Nut (M3)........................ 1
(3) HME4-5B Set Screw (M4x5)............... 2
(4) BK0086 Ball Link ................................ 4
(5) BK0092 Linkage Rod ......................... 2
(6) BK0030 Main Shaft Lock Ring............ 1
(7) BK0029 Main Shaft ............................ 1
(8) Wash Out Assembly
(9) BV0601 Swash Plate Assembly...........1
(10) Main Gear Assembly
(6) BK0030
55mm
(10) Main Gear Assembly
8 Landing Skid Assembly
(7) BK0029
(8) Washout Assembly
(9) BV0601
(3) HME4-5B
(4) BK0086
(5) BK0092
(4) BK0086
(2) HMM3Z
(1) BK0616
(1) HSE3-18B Self Tapping Screw(M3x18).4
(2) HME4-5B Set Screw(M4x5)..................4
(3) BK0066 Skid Brace...............................2
(4) BK0064 Skid Pipe.................................2
(5) BK0065 Skid Pipe End Cap..................4
(2) HME4-5B
(2) HME4-5B
(3) BK0066
(2) HME4-5B
(3) BK0066
(4) BK0064
(5) BK0065
(5) BK0065
(1) HSE3-18B
9
9 Engine Assembly
Note: A piston lock purchased from your dealer will make this a
much easier task. You must replace the standard throttle arm
w/the extended throttle arm and attach the linkage ball.
(1) HMC3-10B
(1) HMC3-10B Socket Screw(M3x10)..... 2
(2) BV0589 Clutch Shoe..........................1
(3) BV0038 Cooling Fan..........................1
(4) No.9604 TT PRO-39H(R) Engine.......1
(5) BK0170 Shim.....................................1
(1) HMC3-10B
Tighten the engine nut securely by
grabbing the plastic fan with a towel.
(3) BV0038
Add Blue Locktite
(4) No.9604
10 Main Frame Assembly-Part4
Add blue Loctite to all metal to metal screw surfaces.
After installing the engine, connect the silicone fuel tube
to the carburator and muffler.
(1) HMC3-14B Socket Screw(M3xH)....... 8
(2) HMC3-35B Socket Screw(M3x32)..... 2
(3) BK0087 Flat Washer........................ 4
(4) BK0037 Engine Mount........................ 1
(5) No.9219 Muffler...................................1
(6) Engine Assembly
(7) BA1578 Muffler Gasket.......................1
(3) BK0087
(1) HMC3-14B
Add Blue Locktite
(3) BK0087
(2) BV0589
(5) BK0170
Linkage Ball to
throttle Arm
(3) BK0087
(1) HMC3-14B
Add Blue Locktite
(3) BK0087
(6) Engine Ass'y.
(2) HMC3-35B
(1) HMC3-14B
10
(4) BK0037
(5) No.9219
(7) BA1578
Engine mount
Attachment
11 Main Rotor Head Assembly
Assembly Hint: Start from the bottom of the main Rotor Hub and work your way up to the flybar assembly. When
screwing on the flybar paddles to the flybar, stop when you can see the rod in the window of the paddle. Then, lay
the assembly on a flat surface and align the paddles so they are exactly parallel. Insert and tighten the set screws.
Attach the flybar control rod to the flybar control arm and use the Double Link to connect the mixing lever (short side)
to the Main rotor Pitch Housing.
(1) HMC3-14B Socket Screw(M3x14)........... 2
(2) HMC3-8B Socket Screw(M3x8)................ 2
(3) HMJ2-10N Self Tapping Screw(M2x10).... 8
(4) HME4-5B Set Screw(M4x5)...................... 2
(5) HME3-10B Set Screw(M3x10).................. 2
(6) BK0435 Washer (d4xD11xW1.7)............ 2
(7) HMC4-8B Socket Screw (M4x8)............. 2
(8) HMV830ZZ Bearing (d3xD8xW4)............ 2
(9) HMV740ZZ Bearing (d4xD7xW2.5)......... 4
(10) HMV840ZZ Bearing (d4xD8xW3).......... 2
(11) HMX0612 Thrust Bearing...................... 2
(12) HMV1360Z Bearing (d6xD13xW5).......... 4
(13) BK0076 Collar..........................................2
(14) BK0078 Collar.......................................... 2
(15) BK0581 Flap Collar..................................2
(16) BK0088 Flat Washer................................ 2
(17) BK0067 Flybar Paddle............................ 2
(18) BK0010 Flybar Rod..................................1
(19) BK0002 Flybar Control Arm.................... 2
(20) BK0005 Flybar Arm Bushing................... 2
(21) BK0004 Flybar Seesaw Hub....................1
(22) BK0006 Mixing Lever.............................. 2
For Sport kit (29BB) version,
(9) will be replaced by Bushing(BK0107x4)
(10) will be replaced by Bushing(BK0108x2)
(18) BK0010
(4) HME4-5B
(19) BK0002
(31) BK0075
(3) HMJ2-10N
(31) BK0075
(22) BK0006
(9) HMV740ZZ
(13) BK0076
(1) HMC3-14B
(31) BK0075
(9) HMV740ZZ
(3) HMJ2-10N
(16) BK0088
(23) BK0596
(11) HMX0612
(32) BK0584
(7) HMC4-8B
(6) BK0435
(12) HMV1360Z
(5) HME3-10B
(17) BK0067
(10) HMV840ZZ
(14) BK0078
(30) BK0595
(25) BK0007
(23) BK0596 Main Rotor Pitch Housing...........
(24) BK0583 Feathering Shaft................ 1
(25) BK0007 Flybar Control Rod............. 2
(26) BV0085 Double Link ...................... 2
(27) BK0582 Flap Damper...................... 2
(28) BK0012 Pin..................................... 2
(29) BK0587 Main Rotor Hub Pin............1
(30) BK0595 Main Rotor Hub.................. 1
(31) BK0075 Ball Link............................. 8
(32) BK0584 Thrust Washer.................... 2
(17) BK0067
(5) HME3-10B
(20) BK0005
(8) HMV830ZZ
(21) BK0004
(3) HMJ2-10N
(31) BK0075
(9) HMV740ZZ
(13) BK0076
(1) HMC3-14B
(22) BK0006
(2) HMC3-8B
(26) BV0085
(3) HMJ2-10N
(31) BK0075
(23) BK0596
2
(25) BK0007
(29) BK0587
(26) BV0085
(28) BK0012
(11) HMX0612
(15) BK0581
(27) BK0582
Small Internal Diameteralways go toward the Blade
Large Internal Diameteralways go toward the Main
Rotor Hub
Diagram for Thrust Bearing Assembly
11
(24) BK0583
(12 ) HMV1360Z
(11) HMX0612
(32) BK0584
(12) HMV1360Z
(6) BK0435
(7) HMC4-8B
12 Main Frame Assembly-Part5
Slide the main Rotor assembly over the main shaft and align the two pins to
slide in the washout assembly. Make sure the holes in the main shaft line up
with the holes in the main rotor head. Insert the socket screw and secure with
locknut. Attach the ball linkage rods to the long end of the mixing lever and
to the remaining inside linkage balls of the swash plate.
(1) BK0616 Socket Screw(M3x20)..... 1
(2) HMM3Z Lock Nut(M3)........................1
(3) HME3-18B Set Screw(M3x18)........... 1
(4) BK0095 Linkage Rod......................... 2
(5) BK0086 Ball Link............................... 4
(6) BK0626 Canopy Retaining Post........ 2
(7) Main Rotor Head Assembly
(1) BK0616
(4) BK0095
(2) HMM3Z
(6) BK0626
(3) HME3-18B
(7) Main Rotor Head Ass'y.
(5) BK0086
(4) BK0095
(5) BK0086
99mm
(3) HME3-18B
(6) BK0626
13 Tail Unit Assembly
Assembly Tip: Work from left to right when assembling the parts. The tail pitch
control lever screws into the arm extending from the tail unit housing.
(1) HSE3-18B Self Tapping Screw(M3x18).1
(2) HMC2610B
(3) HSE2-10B Self Tapping Screw(M2x10).2
(4) HMF2-8N Screw(M2x8).........................2
(5) HME3-18B Set Screw(M3x18).............. 2
(6) HMM3Z Lock Nut(M3)........................... 2
(7) HMV1150X Bearing (d5xD11xW5)....... 1
(8) HMV1050 Bearing (d3xD8xW4)........ 4
(9) HMV1060 Bearing (d6xD10xW3)........ 2
(10) HMV740ZZ Bearing (d4xD7xW2.5)... 2
(11) BK0082 Collar(2x3x4)......................... 2
(12) BK0076 Collar(3x4x10)....................... 1
(13) BK0083 Pin(2x9)................................. 2
(14) BK0414 Pin(2x12)............................... 1
(15) BK0088 Flat Washer............................1
(16) BK0302-1 Tail Pitch Housing (A)........ 2
(17) BK0303-1 Tail Pitch Housing (B)........ 2
(18) BK0307 Tail Rotor Hub....................... 1
(19) BK0026 Tail Pitch Control Link........... 2
(20) BK0025Tail Pitch Control Fork............ 1
Self Tapping Screw(M2x10)
For sport kit (29BB) version,
(10) will be replaced by
Bushing(BK0107x2)
(27) BK0047
(7) HMV1150X
(14) BK0414
(24) BK0050
(30) HME3-4B
(21) BK0027 Tail Pitch Control Slider..................1
4
(22) BK0028 Tail Pitch Control Slide Bushing..... 1
(23) BK0053 Tail Rotor Shaft.............................. 1
(24) BK0050 Tail Pulley.......................................1
(25) BK0051 Tail Pulley Flange...........................1
(26) BK0024 Tail Pitch Control Lever.................. 1
(27) BK0047 Tail Unit Housing (R)...................... 1
(28) BK0075 Link Ball......................................... 2
(29)HMM26B Lock Nut(M2).................................4
(30)HME3-4B Set Screw(M3x4)...........................1
(3) HSE2-10B
(11) BK0082
(19) BK0026
(20) BK0025
(9) HMV1060
(22) BK0028
(23) BK0053
(28) BK0075
(15) BK0088
(10) HMV740Z
(25) BK0051
(10) HMV740ZZ
(28) BK0075
(4) HMF2-8N
(12) BK0076
(1) HSE3-18B
(16) BK0302-1
(29) HMM26B
(4) HMF2-8N
(26) BK0024
(5) HME3-18B
(8) HMV1050
(8) HMV1050
(13) BK0083
(29) HMM26B
(6) HMM3Z
(5) HME3-18B
(21) BK0027
(17) BK0303-1
(2) HMC2610B
(18) BK0307
(2) HMC2610B
(16) BK0303-1
(6) HMM3Z
12
14 Tail Boom Assembly
Assembly Tip: Slide the 3 rod guides onto the boom and space them out evenly as shown. Then slide the tail linkage
rod into the rod guides. Next, insert the tail rotor drive belt into the boom so that it comes out of both ends. Place
drive belt over tail drive pulley and complete balance of tail boom assembly. Remember to connect the tail linkage
rod to the tail control lever.
(1) HMC3-20B Socket Screw(M3x20)..4
(2) HMC3-25B Socket Screw(M3x25)..2
(3)
HSE3-12B Self Tapping Screw(M3x12)
(4) HMM3Z Lock Nut(M3).................... 6
(5) HMV1150X Bearing (d5xD11xW5)..1
(6) BK0046 Tail Unit Housing (L)..........1
(7) BK0071 Vertical Fin........................1
(8) BK0069 Stabilizer Fin..................... 1
(9) BK0070 Stabilizer Fin Bracket........ 1
(10) BK0540 Tail Support Rod..............2
(11) BK0060 Tail Boom........................ 1
(12) BK0091 Rod Guide........................3
(13) BK0089 Tail Rotor Drive Belt... .....1
(14) BK0100-2 Tail Linkage Rod.......... 1
(15) BK0086 Ball Link.......................... 1
(16) BV0052 Tail Idle Pulley................. 1
(17) Tail Unit
(18)
HMJ2-8N Seif Tapping Screw(M2x8)..4
(19) BK0447 Tail Support Rod End........... 4
(13) BK0089
.. 4
(15) BK0086
(8) BK0069
(14) BK0100-2
(12) BK0091
(1) HMC3-20B
(2) HMC3-25B
(12) BK0091
(11) BK0060
(17) Tail Unit
(16) BV0052
(5) HMV1150X
(6) BK0046
(3) HSE3-12B
(9) BK0070
(4) HMM3Z
(7) BK0071
(10) BK0540
15 Main Frame Assembly-Part6
(5) BK0068
(4) HMM3Z
(4) HMM3Z
(5) BK0068
(1) HMC3-14B
Insert the four 3x20 socket screws into the tail base of the Main Frame
and secure with lock nuts. Do not tighten at this point.
Hold the tail boom in one hand and hook your index finger on your free
hand through the exposed loop of the tail rotor drive belt. Hold it so the
belt is vertical and parallel to the tail drive pulley.
Boom Drive belt
Important: Next, rotate the belt 90-degree counter clockwise.
90-degree
Pull the belt through the tail base, keeping the belt correctly aligned.
Push the tail boom into the tail base all the way to the end. Place the
drive belt over the tail drive spur gear. Then, gently pull back on the tail
boom until the tension on the belt allows no more than 5mm(3/16") of
free play in the belt. Tighten the locknuts and proceed with the rest of
the assembly.
(18) HMJ2-8N
(19) BK0447
(1) HMC3-14B Socket Screw(M3x14)......2
(2) HMC3-20B Socket Screw(M3x20)......4
(3)
HSE3-12B Self Tapping Screw(M3x12)....
(4) HMM3Z Lock Nut(M3)........................ 6
(5) BK0068 Tail Rotor Blade.................... 2
(6)Tail Assembly
(6)Tail Ass'y
(3) HSE3-12B
(4) HMM3Z
2
(2) HMC3-20B
13
16 Servo Installation-Part1
Assembly Tip: Remove all the servo wheels prior to attaching the steel linkage
balls. Make sure all linkages are the correct length.
(1) HSE2612N Self Tapping Screw(M2.6x12)....12
(2) HMF2-8N Screw(M2x8)................................. 4
(3) HML2 Hex Nut(M2)....................................... 4
(4) HME4-5B Set Screw(M4x5).......................... 2
(5) BK0093 Linkage Rod.................................... 2
(6) BK0094 Linkage Rod..................................... 1
(7) BK0100-1 Linkage Rod................................. 1
(8) BK0105 Tail Control Rod Joint....................... 1
(9) BK0075 Linkage Ball..................................... 4
(10) BK0086 Ball Link......................................... 7
FUTABA
(1) HSE2612N
Before installing Aileron Servo, tape the
wire as shown.
72mm
Mount the Steel Linkage Balls at
10.5mm(approx 7/16") from the center of
the servo horn.
(4) HME4-5B
(8) BK0105
(7) BK0100-1
(10) BK0086
(6) BK0094
(10) BK0086
84mm
(9) BK0086
(5) BK0093
(2) HMF2-8N
(1) HSE2612N
Aileron Servo
Elevator Servo
(1) HSE2612N
Rudder Servo
(1) HSE2612N
(2) HMF2-8N
(1) HSE2612N
(9) BK0075
14
17 Servo Installation-Part2
Assembly Tip: Remove all the servo wheels prior to attaching the steel linkage
balls. Make sure all linkages are the correct length.
(1) HSE2612N Self Tapping Screw(M2.6x12).... 8
(2) HMF2-8N Screw(M2x8)................................ 3
(3) HML2 Hex Nut(M2)...................................... 3
(4) BK0075 Linkage Ball.................................... 3
(5) BK0094 Linkage Rod .................................. 1
(6) BK0092 Linkage Rod .................................. 1
(7) BK0086 Ball Link.......................................... 4
Pitch Servo
(7) BK0086
52mm
(1) HSE2612N
(2) HMF2-8N
(6) BK0092
(3) HML2
(4) BK0075
Throttle Servo
(1) HSE2612N
(3) HML2
(4) BK0075
(2) HMF2-8N
Mount the Steel Link
Ball at 10.5mm(approx
7/16") from the center
of the servo horn.
(3) HML2
(4) BK0075
(2) HMF2-8N
(7) BK0086
(5) BK0094
(1) HSE2612N
75mm
18 Receiver/Gyro Installation
Thunder Tiger recognizes that there are many brands of radios and gyros to choose from. You are encouraged to
seek the advice of experienced helicopter pilots when making this decision. We do recommend the use of the Thunder
Tiger TG-8000 piezo Gyro since it was designed expressly for this machine.
(1) BE1052 Antenna Tube................... 1
(2) BK0106 Double Side Tape............ 2
On/Off Switch Face Plate
On/Off Switch
Gyro Amplifier
Thunder Tiger TG-8000 piezo
gyro is recommended
(2) BK0106
(1) BE1052
15
(2) BK0106
Receiver
(2) BK0106
Battery Pack
(2) BK0106
19 Body/Canopy Assembly
Cut off the bubble from the body leaving the lip all the way
around. Neatness counts, so take your time. Next trim the
flange from the canopy leaving a clean edge. You can lightly
sand the edges to get it smooth and even. On the lip of the
opening in the body, mark six points for drilling holes to secure
canopy: 1-in front, 1-in rear and 2 on each side.
Using double stick tape secure canopy to body. Take a very
sharp awl and make pilot holes through the canopy and body
lip. Make sure all holes line up. Remove double stick tape
and put in the self tapping screws. Install the body clip, decals,
and rubber grommets.
(1) HMJ2-6B
(7) BK0612
(1) HMJ2-6B
(1) HMJ2-6B Self Tapping Screw(M2x4).. 6
HSE3-12B Self Tapping Screw(M3x12)....
(2)
(3) BK0611 Body...................................... 1
(4) BK0102 Rubber Grommet ................. 2
(5) BK0098 Body Clip-A........................... 1
(6) BK0099 Body Clip-B........................... 1
(7) BK0612 Canopy..................................1
(8)JV0093 Decal...................................... 1
2
(1) HMJ2-6B
(4) BK0102
(4) BK0102
(6) BK0099
(5) BK0098
(4) BK0611
(2) HSE3-12B
(1) HMJ2-6B
20 Main Rotor Assembly
Important-While Thunder Tiger takes great care to manufacture the most balanced blades available, no two rotor
blades are exactly the same. It is highly recommended that you purchase a blade balancer from your hobby dealer.
Follow the manufacturers instructions for balancing the blades and install on helicopter.
(1) BK0072 Main Rotor Blade.................2
(2)
HMD2612B Self Tapping Screw (M2.6x12).......
(3) BK0073 Upper Blade Grip... ............. 2
(4) BK0074 Lower Blade Grip................ 2
(5) HMM4Z Lock Nut(M4)...................... 2
(6) HMC4-27B Socket Screw.................. 2
2
(1) BK0072
(6) HMC4-27B
(2) HMD2612B
(3) BK0073
(4) BK0074
(5) HMM4Z
16
Setting up Main Rotor Blades Pitch Angle
•On the left side frame, there are
three pitch scales molded onto
the plastic frame. The three
different scales are designed for
beginner, intermediate or expert
F3C and 3D pilots.
•Use the "pointer" on the collective
tray and the plastic molded scales
to set up the initial collective
control.
•The actual blade angle in degrees
can be checked using a pitch
gauge (sold seperately).
(Hint for beginners)
For Beginners
For Intermediates
For F3C or 3D
Top End Pitch 12˚
Hover 6˚
Beginners 0˚
Intermediates -4˚
Pointer
The hoveing pitch angle should be at 6˚. To get the 0˚ to 12˚
collective range, mount the steel linkage ball at 10.5mm away
from the center of the collective servo horn.
Bottem End Pitch -8˚
Mount the Steel
FUTABA
6˚ hovering pitch angle is used for beginners, intermediates and experts. The throttle/collective must be
in the center position when adjusting the collective pushrod length to make the "point" line up with the 6˚
hover point on the molded scale(see above diagrams).
Linkage Ball at
10.5mm from the
center of the servo
horn.
Throttle Stick in the center
position
17
•High End Blade Pitch Setting
Linkage Position for beginner
Throttle at High Position
•Move the throttle/collective stick to the full throttle position(see upper right diagram). The molded "pointer"
should now line up with the upper limit mark, which should provide about 12˚ of blade pitch.
•Low End Blade Pitch Setting
Throttle at Low Position
•Move the throttle/collective stick to the low stick position. Use the ATV function of your transmitter to make
the "pointer" line up with the 0˚ mark for beginners(with the -4˚ mark for intermediates, and -8-degree
mark for experts).
18
Collective Travel for F3C and 3D Flying
•To achieve +12˚ to -8˚ of collective travel range, the steel linkage ball must be moved to the inner
location as shown in the figure.
•Use ATV function of the transmittler to get the necesary servo travel.
•High End Blade Pitch Setting
Linkage Position for F3C or 3D
Throttle at High Position
The molded "pointer" should line up with the upper limit mark, which
should provide about 12˚ of blade pitch.
•Low End Blade Pitch Setting
Position for F3C or 3D
Throttle at Low Position
For intermediates set the low end to -4˚. For advanced F3C and 3D flying,
set the low end to -8˚.
19
30mm
58mm
lengths
measured from
ball link center
to
ball link center
58mm
CONFIGURING THE RAPTOR FOR 3D
5-Point Throttle Curves
Normal 0 30 50 75 100
Idle-up1 100 85 60 85 100
Idle-up2 100 60 55 80 100
5-Point Pitch Curves
Normal 18 38 55 75 94
Idle-up1 0 22 46 70 90
Idle-up2 0 22 46 70 90
105mm
use inner hole
for beginner to 3D
use outer hole
for extreme 3D
73mm73mm
10-12mm
Hold 15 38 55 75 100
Blade Pitch Angles (degrees)
Normal -4 5.5 9.5
Idle-up1 -9 0 9
Idle-up2 -9 0 9
Hold -6 5.5 10.5
collective control
for intermediates
and 3D
+10˚- –10˚
for beginnners
51mm
54mm
66mm66mm
66mm86mm
15mm
make a 15˚ angle
bend on tail rotor
pushrod
10mm
10mm
The above pushrod lengths will permit 3D with the Raptor.
Use these lengths as a starting point. Beginners can also use those pushrod lengths, but just connect the
collective control to the outside point on the pitch control arm. Pushrod lengths are measured from ball link
center to ball link center.
Suggested throttle and collective pitch set up: Idle-up1 is used for continuous 3-D flips and aerobatics.
Idle-up2 is used for switchless inverted hover. Use a pitch gauge to check blade angles. It is easier to start
setting up idle-up2 blade pitch angles first. Beginners should inhibit idle-up1, idle-up2 and throttle hold.
Beginners should only use the Normal mode values. The model should hover at around 1550 rpm in Normal
mode, and flies at 1800 in idle-up1. Rotorspeed can be checked using TTR2000 MTF-301 helicopter
tachometer.
20
Engine Throttle Control Linkage
Mount the steel linkage ball to the outer hole on the metal throttle arm. At full throttle stick, the
carburetor hole should open completely. At low throttle and with the throttle trim all the way down,
the carburetor hole should close completely. Adjust the ATV function in your transmitter to achieve
the above requirement. Listen to the servo, it should not make any binding noise. Try keep the
throttle ATV between 90% and 110%. If your radio does not have ATV, then adjust the location
of the steel link ball on the throttle servo horn to get the correct throttle travel.
21
THROTTLE FULLY OPENTHROTTLE CLOSE
FLIGHT TRAINING SECTION
22
Preflight Adjustments
Relationship between the control motion and radio transmitter.
Always check all the controls to make sure they move
in the correct direction and there is no mechanical
binding or noise from the servos.
23
Preflight Checklist and Starting Procedure
(1) Check to make sure there is no radio interfence before operating the model helicopter.
(2) Make sure the transmitter and receiver are on and all controls operate properly before flight.
Range check the radio.
(3) The engine carburetor must be in the idle position before starting the engine. Please read
the engine instruction manual on how to properly adjust the engine. Set the carburetor main
needle according to the engine instruction. Depending on the fuel and glow plug used, the
carburetor idle screw may require fine adjustment of 1/4 to 1/2 turn away from the factory
setting.
(4) Fill the fuel tank, move the throttle stick to idle, and connect the glow plug battery to the glow
plug.
(5) Use a 12 volt electric starter along with
a 6 mm hex starter extension (sold
seperately) to start the engine.
•Always grab on the helicopter
main rotor head when
starting the engine.
Otherwise, the main rotor
may start spinning
immediately after the
engine is started.
24
Flying Adjustments (1)
Tracking adjustment ... When the two main rotor blades are in track it means their blade tips
should follow the same path as they rotate.
(1) Rev up the motor until the helicopter becomes
light on its skids. Stand about 15 feet(4 meters)
alway from the helicopter.
(2) When the two main rotor blades are in
track it means the blade tips should follow
the same path as they rotate.
(3) When both blades are in track, the blade
tips will appear to overlap as seen from
the edge of the rotor plane.
out of track
If the blades are out of track, then adjust
one of the pushrods that connects to the
main rotor blade pitch arm.
increase
throttle gently
and not too
much
Redo steps (1) to (3) until
the blades are tracking
properly.
In hover, the main blades should be
around 5.5 to 6 degrees in pitch.
in track
25
Flying Adjustments (2)
Trimming: All helicopters are inherently unstable. But when a helicopter is properly trimmed, it
will not drift away or yaw by itself quickly. Use the following procedure to trim your
helicopter.
(1) If the helicopter nose starts to yaw left or right,
then
use the transmitter trim to compensate:
yaw right
yaw left
(A) situation: move to (b)
(B) situation: move to (a)
(2) If the helicopter rolls to left or right, then:
rolls right
rolls left
(3) If the helicopter noses down or up, then:
Noses down
(C) situation: move to (d)
(d) situation: move to (c)
(E) situation: move to (f)
(F) situation: move to (e)
Noses up
26
Hover Training (1)
Hovering is when the helicopter is floating in a stationary position in the air. Hovering is the
fundamental manuever to learn first. Here is the procedure to practice hovering:
(1) Make sure there are no spectators anywhere
near the model helicopter. You, the pilot,
should stand at least 10 meters (30 feet)
behind and slightly to the side of the model
helicopter.
(2) Prior to lifting off, while the main rotor is spinning and the helicopter is
on the ground, check the main rotor fore/aft and left/right cyclic to make
sure the main rotor is tilting in the correct direction according to your
cyclic command. Move the tail rotor control stick to make sure the
helicopter nose will swing in the desired direction.
(3) Increase the throttle/collective to lift the model helicopter skids off the
ground to no more than 10 cm(4 inches). Initially, it will be very difficult
to control the model to prevent it from moving. For a beginner it will
also be difficult to determine whether the helicopter is in trim or not.
But with repeated practice close to the ground you will develop a feel
for the controls. It is recommended to let a more experienced model
helicopter pilot trim out your new model before you attempt to learn to
hover.
27
Hover Training (2)
(1) It will take a few hours of hover practice with the helicopter skids at 10 to 20 cm (4-8 inches)
off the ground in order to comfortably control the model.
Do not try to lift the model to more than 10 to 20 cm(4-8 inches) in the beginning because
then the model may tip over readily when the beginner panics and an incorrect command is
given. Once you can keep the model in one place, then it is time to slowly increase the height
by a few centimeters (inches) each flight. Soon, you will be able to hover the helicopter
confidently a few feet high. Beginners should always practice hovering close to the ground
because in an emergency, throttle and collective can be reduced rapidly without causing a
large drop or damage to the model. If the model is hovering beyond one meter(3 feet) altitude,
always descend slowly. A panic drop can damage the helicopter.
(2) Always stand behind the model helicopter when learning how to hover. Then you can watch
the nose of the helicopter. A left tail rotor command will yaw the helicopter nose to the left,
and a right command will yaw to the right. Similarly, a left cyclic command will cause the
helicopter to translate left. After you can comfortably hover the model at one meter high
without drifting, then start practice hovering while standing to either side of the model.
Eventually, you need to be comfortable at hovering
the model from any orientation, including with
the helicopter nose pointing at you. This is
challenging because control directions are
reversed.
(3) Once you can confidently hover a model helicopter at any altitude and at any orientation, then
congratulate yourself because you have mastered 80% of the fundamental control movements
of a helicopter.
28

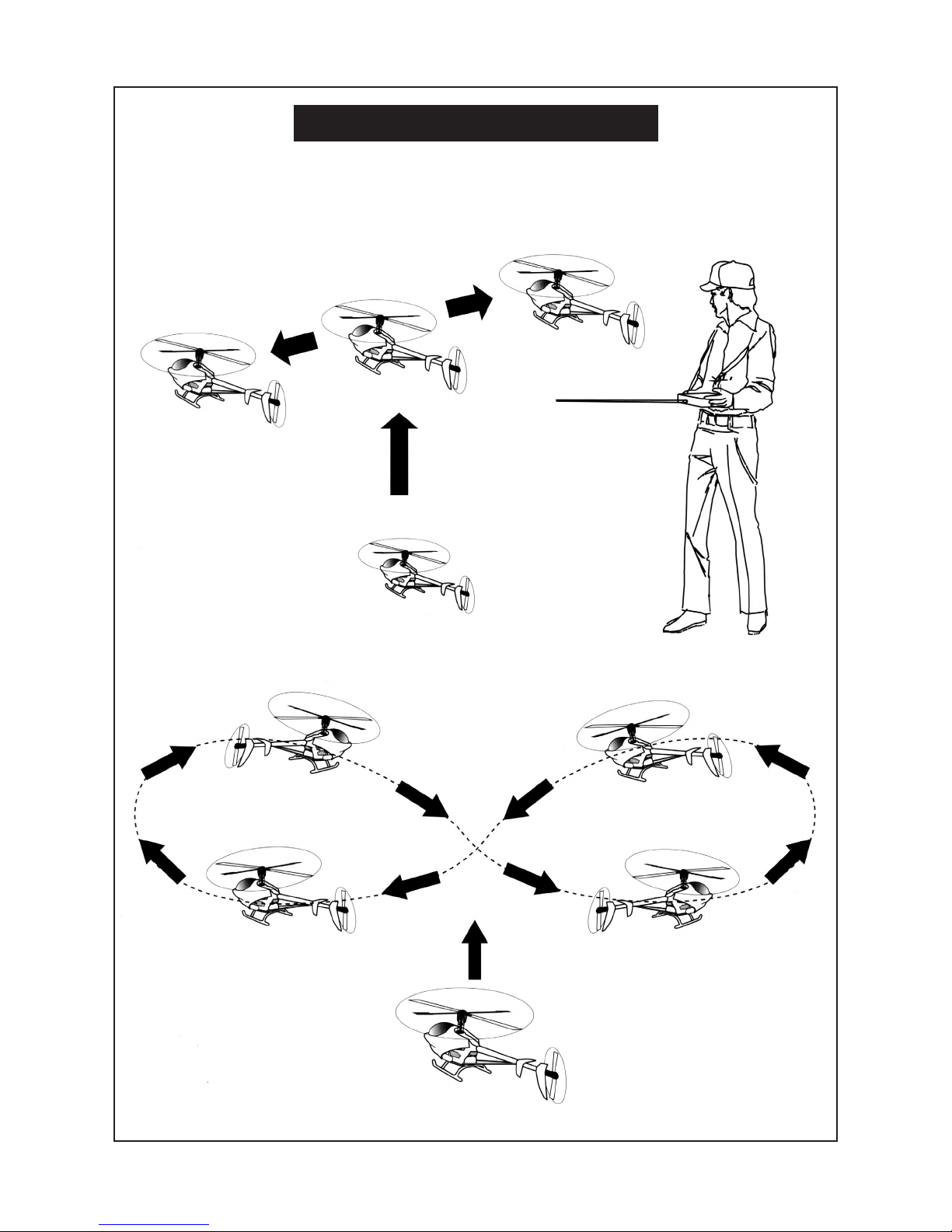

Forward Flight Training
After mastering hovering flight:
(1) Start practicing moving the helicopter laterally to the left or right slowly from a 1.5 meter (60
inches) high hover. This is the beginning exercise of translational flight.
hovering at 1-1.5 meter
(2) After a few hours of practicing step (1) and you are comfortable with translational movement,
start using some tail rotor control so the helicopter nose will point slightly to the left or right as
you fly it to the left or right. Eventually, this pattern will become a figure-eight in front of you.
Please visualize these movements in your mind.
29
MAINTENANCE SECTION
30
After Flight Checklist
(1) Check every screw and bolt to make sure none has loosened due to vibration.
(2) Check every rotating and movable part to ensure they still move smoothly and
normally.
(3) Clean off the exhaust residue from the muffler, engine, and helicopter.
(4) Check all movable parts, such as gears, ball links, belt, etc. for unusual wear.
Trouble Shooting
[1]The engine will not start.
* The engine starting shaft will not turn:
The engine may be flooded with too much fuel. Please remove the glow plug first, then turn the engine
with the electric starter until the excess fuel spits out of the glow plug hole.
* The engine turns when the electric starter is applied, but the engine will not start:
(1) Is the glow plug working? Remove the glow plug and does the platinum coil glow red when a 1.5
volt battery is applied to the plug? If not, then the glow plug battery may be weak and old.
(2) Is the carburetor needle properly set? Please refer to the engine instruction manual for the proper
needle setting.
(3) Does the throttle control arm move properly and in the correct direction according your transmitter
command?
* Engine will start, but quits immediately.
(1) Use the transmitter to increase the carburetor opening slightly. The throttle stick should never exceed
the 1/3 positiom when starting the engine.
(2) Try a new or different type of glow plug. There are different types of glow plugs on the market for
different types of fuel and operating conditions. Seek the advice of experienced fliers and also
experiment with different types of glow plugs until you find the one that suits your operating condition
the best.
*Engine runs, but the helicopter will not lift off.
(1) Check the main rotor blade pitch angle, they should be set at 5.5 to 6 degrees when the transmitter
throttle/collective stick is at the center position.
(2) Does the engine throttle arm move properly? The carburetor opening should be fully open when
the transmitter throttle/collective stick is moved up. The carburetor opening should be nearly closed
when the transmitter throttle/collective stick is moved down. And the opening should be completely
closed when the transmitter throttle/collective stick is moved down and the throttle trim is also
moved down.
(3) The carburetor needle is not set properly. Close the needle (turn it clockwise) all the way, then open
the needle (turn it counter clockwise) 1 and 1/2 turns and try again. If the model still will not lift,
then the engine maybe running too rich. If the symptom is the engine exhaust has a lot of smoke
and the engine coughs and wants to quit when the transmitter throttle/collective stick is moved up,
then close the needle 1/8 turn at a time, until the model will lift off. Do not turn the needle too far
inward, that will make the engine run too lean and over-heat and damage the engine.
[2] Helicopter problems.
* The helicopter shakes.
(1) Is the blade spindle bent?
(2) Is the flybar bent?
(3) Is the main rotor shaft bent?
(4) Are the two control paddles mounted at the same distance from the rotor shaft, and the paddles
are parallel to each other, and in the proper direction?
(5) Is the tail rotor shaft bent? The tail rotor blades mounted properly or damaged?
(6) Are the main rotor blades damaged or mounted in the proper orientation? The blades may require
additional balancing. The blade balance can be checked by removing both blades and then use
one of the 4mm blade bolt and nut to hold the two blades together like a teeter totter. Then, hold
the blade bolt with your thumb and index finger. The two blades should teeter and remain in a level
position. If not, then add some tape to the lighter blade near the blade tip until the two blades teeter
in a level position. Hobby shops also sell blade balancers that are designed solely for balancing
model helicopter blades.
31
In the event the model has crashed.
Inspect the flybar, rotor shaft and the blade spindle to make sure they are not bent at all. If any item is
damaged, it must be replaced with a new part to ensure safe operation. Do not glue any broken or damaged
plastic part. Do not repair broken rotor blades. Always inspect the following items immediately:
Engine starting shaft.
All the gears.
Main shaft, flybar and blade spindle.
Tail boom and support.
Vertical and horizontal fins.
Tail rotor shaft and control system.
Main and tail rotor blades.
Changing the main rotor shaft:
(1)
(1) Disconnect the control rods to the washout arms.
(2) Disconnect the washout link to the swashplate.
(3) Loosen the set screws on the collar.
(4) Remove the 3mm x 20 bolt.
(5) Hold on to the plastic main gear and pull the 10mm
main rotor shaft upward.
(4)
(4)
(3)
(3)
(2)
(2)
(1)
(1)
(1)
(2)
(2)
(3)
(3)
(2)
Changing the blade feathering spindle:
(1) Disconnect the linkage rods to the blade grips.
(2) Remove the 4mmx8 bolt.
(3) Pull out the blade grips gently.
(3)
(1)
32
Changing the tail drive belt:
(1)Loosen and remove all the necessary
screws.
(2)After installing the new belt, make sure
the belt is rotated 90˚ counter clockwise.
(1)
(2)
Changing the flybar:
(1) Loosen or remove the M3x10 set screws.
(2) Unscrew the control paddles.
* After reinstalling the flybar and paddles, make
sure the paddles are level and flat.
(1)
(1)
(1)
(1)
(2)
* Make sure the distance from the rotor shaft to
both paddles are the same.
(1)
* If the flybar is not perfectly straight or
smooth, it can be lightly sanded.
33
Changing tail rotor shaft:
1. Remove the tail rotor gear box from the tail boom.
2. Take apart the blade grips and remove or loosen the
M3x18 set screws.
3. Remove the tail rotor hub.
4. Pull out the tail rotor shaft.
5. Remove the plastic pulley by pushing out the 2mm
steel pin.
(1)
(4)
(2)
(3)
(5)
34
Blade Modification
Idea and original art submitted by Randy Wishon,
Progressive Technologies, inc.
1. Mark around blade grips with a felt-tip marker.
2. Remove blade grips and cut covering lightly .125”
inside of mark, being careful not to cut into the blade.
3. Repeat for opposite side.
4. Trim bosses if necessary to allow tight fit to the blades.
5. Lightly sand inside of grips for better adhesion.
Apply Epoxy to blades in area shown top and bottom.
6. Attach blade grips and tighten screws.
7. Wipe off the excess Epoxy.
Dear Raptor Customers:
The stock wood blades should be operated with a main rotorspeed of no more than 1700 RPM. If the blades
are going to be operated at more than 1700 RPM, such as for aerobatics, then it is recommended reinforcing the
blade root section with epoxy. The enclosed drawing illustrate how to remove the plastic blade grips and then
carefully slice away some of the covering material, and add the "thin" type CA glue to further strengthen the wood.
After installing the plastic blade grips, apply epoxy around the seem of the plastic grip and the wood to seal it
off. This adds more strength and prevent oil from seeping through. For beginners, the best rotorspeed is around
1550 RPM. For advanced fliers, a good hovering RPM is around 1550, and a constant 1800RPM in idle-up for
3-D aerobatics. We recommend using the Thunder Tiger TR-2000 optical tachometer to help you check the
rotorspeed and to help you set the engine mixture. This tachometer is especially helpful for the beginners and
we highly recommend it.
35
Loading...
