THOMSON THS 845 User Manual
Evolution. Emotion. Passion.
www.thomsonstb.net
THS 845
Digitaler HD+
SmartTV
Satelliten
Receiver
Bedienungsanleitung
User Manual
MODEL DIGITAL SATELLITE HD+ SMARTTV RECEIVER THS845
ETHERNET
ON
OFF
COAXIAL
S/PDIF
VIDEO
AUDIO
L
D
AUDIO
R
OPTICAL
S/PDIF
400 mA
13/18 V
500 mAUSB: 5 V
DC IN
USB
SAT IN
SAT OUT
12 V
2 A
24 W max.
MANUFACTURED UNDER LICENSE FROM DOLBY
LABORATORIES. DOLBY AUDIO AND THE DOUBLE
D-SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES
MODEL DIGITAL SATELLITE HD+ SMARTTV RECEIVER THS845
ETHERNET
ON
OFF
COAXIAL
S/PDIF
VIDEO
AUDIO
L
D
AUDIO
R
OPTICAL
S/PDIF
400 mA
13/18 V
500 mAUSB: 5 V
DC IN
USB
SAT IN
SAT OUT
12 V
2 A
24 W max.
MANUFACTURED UNDER LICENSE FROM DOLBY
LABORATORIES. DOLBY AUDIO AND THE DOUBLE
D-SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES
MODEL DIGITAL SATELLITE HD+ SMARTTV RECEIVER THS845
400 mA
13/18 V
500 mAUSB: 5 V
USB
SAT IN
SAT OUT
MANUFACTURED UNDER LICENSE FROM DOLBY
LABORATORIES. DOLBY AUDIO AND THE DOUBLE
D-SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES
MODEL DIGITAL SATELLITE HD+ SMARTTV RECEIVER THS845
ETHERNET
ON
OFF
COAXIAL
S/PDIF
VIDEO
AUDIO
L
D
AUDIO
R
OPTICAL
S/PDIF
400 mA
13/18 V
500 mAUSB: 5 V
DC IN
USB
SAT IN
SAT OUT
12 V
2 A
24 W max.
MANUFACTURED UNDER LICENSE FROM DOLBY
LABORATORIES. DOLBY AUDIO AND THE DOUBLE
D-SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES
MODEL DIGITAL SATELLITE HD+ SMARTTV RECEIVER THS845
400 mA
13/18 V
500 mAUSB: 5 V
USB
SAT IN
SAT OUT
MANUFACTURED UNDER LICENSE FROM DOLBY
LABORATORIES. DOLBY AUDIO AND THE DOUBLE
D-SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES
Vertreten durch THOMSON Ges.m.b.H. • Franz-Josefs-Kai 1 • 1010 Wien • Österreich
Email: support_at@thomsonstb.net
THOMSON ist eine Marke von TECHNICOLOR S.A. lizenziert zur Nutzung an STRONG Europa
22 Oct 2015 12:18
P1
English
20 Oct 2015 18:41
Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products
may change. ASTRA is a registered trademark of SES ASTRA. NagraVision is a trademark of Kudelski SA. Manufactured under license from Dolby
Laboratories. Dolby Audio, Dolby Digital, Dolby Digital Plus and the double-D symbol are registered trademarks of Dolby Laboratories. HDMI,
the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States
and other countries. The HD+ card and the HD+SmartTV portal are subject of use within the Federal Republic of Germany. Microsoft
PlayReady is a registered trademark of Microsoft Corporation in the United States and/or other countries. HbbTV and the logo are trademarks
of the HbbTV Association. Unicable is a trademark of FTA Comunications SARL. All other product names are trademarks or registered
trademarks of their respective owners.
© THOMSON 2015. All rights reserved.
TABLE OF CONTENT
1.0 INTRODUCTION 2
1.1 Safety Instructions 2
1.2 Storage 3
1.3 Equipment Set-up 3
1.4 Accessories 3
1.5 Usage of external USB devices 3
2.0 YOUR RECEIVER 4
2.1 DEFAULT PIN-CODE: 0000 4
2.2 Front Panel 4
2.3 Side Panel 4
2.4 Rear Panel 4
2.5 Remote Control 4
2.6 Using the mouse cursor 6
2.7 Using the remote control 6
2.8 Using the keyboard 6
3.0 BASIC CONNECTIONS 6
3.1 Connecting the Antenna and LNB
(Low Noise Block) to the receiver 6
3.2 Connecting the TV set 7
3.3 Connecting to the world wide web 7
3.4 Connection to a DVD or VCR recorder 7
3.5 Connection to main power supply 7
4.0 STARTING UP FOR THE FIRST TIME 7
4.1 Menu Language and Tuner type 8
4.2 Antenna Settings 8
4.3 Advanced Satellite Settings 8
4.4 Channel Search 9
5.0 BASIC OPERATION 9
5.1 Programme Navigation 9
5.2 Volume Control 9

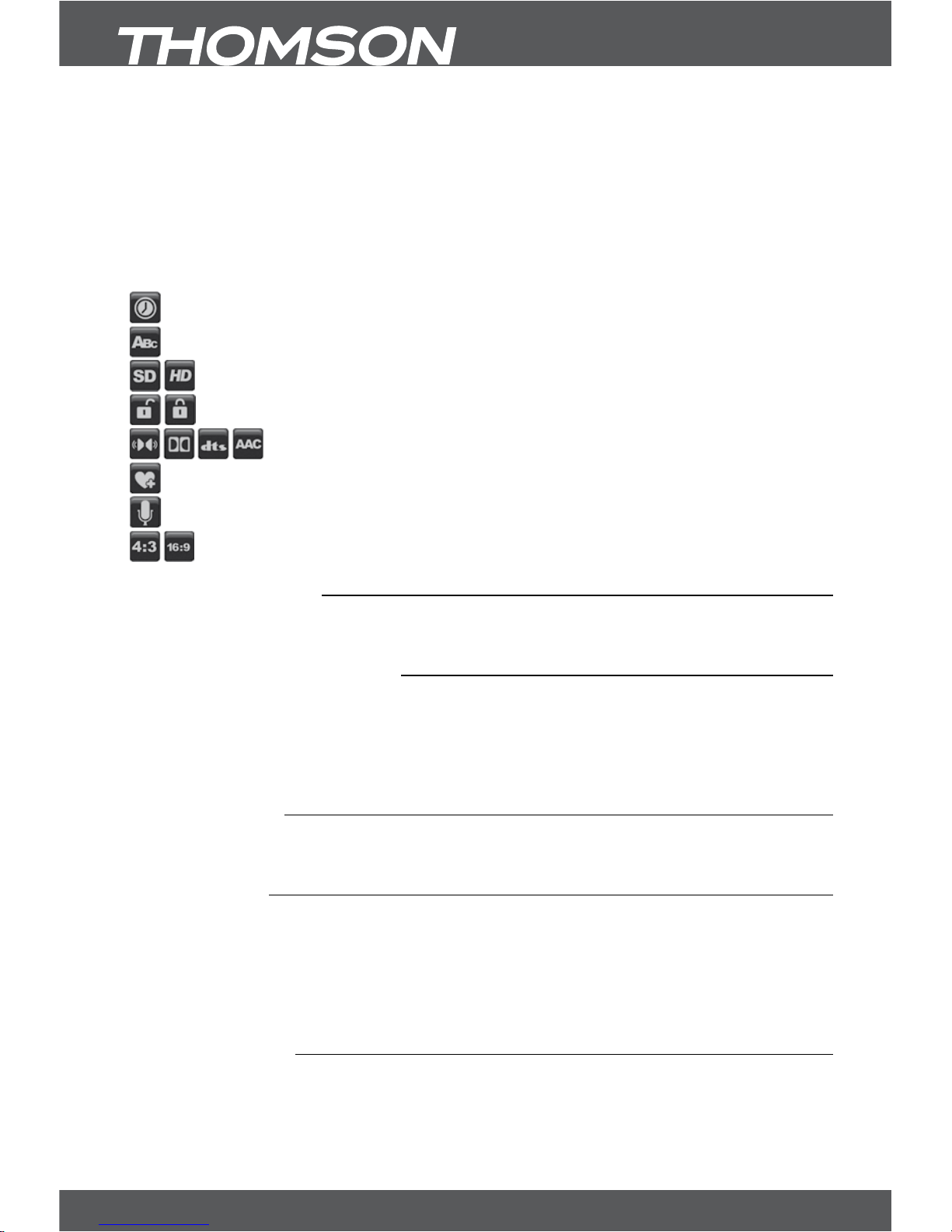

5.3 Programme Information (Info banner) 9
5.4 Add to Favourite 10
5.5 Subtitels and Soundtracks 10
5.6 Aspect Ratio 10
5.7 Resolution 10
5.8 Audio Format 10
5.9 Sleep Timer 11
5.10 Teletext 11
5.11 Standby Mode 11
6.0 THE MAIN MENU 11
6.1 TV 11
6.2 EPG (Electronic Programme Guide) 11
6.3 MEDIA 11
6.4 WEB 12
6.5 Control Panel 12
7.0 HBBTV APPLICATIONS 12
8.0 PROGRAMME GUIDE 12
8.1 Full Guide – Grid View 12
8.2 Single Channel View 13
8.3 Mini Guide 13
9.0 CONTROL PANEL 13
9.1 User Preferences 13
9.2 Time/Date 14
9.3 Languages 14
9.4 Recording USB power during
standby mode 15
9.5 Parental Control 15
9.6 Network Settings 15
9.7 Web Browser 15
9.8 Channel Search 16
9.9 Factory Settings 17
9.10 System Update 17
9.11 System Information 18
9.12 Audio/Video Settings 18
9.13 Antenna Settings 18
9.14 Smart Card 19
10.0 CHANNEL LISTS EDITING 19
10.1 Favourite lists 19
11.0 VIDEO, PHOTO AND MUSIC STREAMING
OVER YOUR HOME NETWORK 20
11.1 Flash content support
by the web browser 20
12.0 TROUBLESHOOTING 20
13.0 TECHNICAL SPECIFICATIONS 21
14.0 ALLGEMEINE GESCHÄFTSBEDINGUNGEN
HD+ 23
15.0 ALLGEMEINE GESCHÄFTSBEDINGUNGEN
HD+ SMARTTV 26
P2
INTRODUCTION
Licenses
ANY USE OF THIS PRODUCT IN ANY MANNER OTHER THAN PERSONAL USE THAT COMPLIES WITH
THE MPEG-2 STANDARD FOR ENCODING VIDEO INFORMATION FOR PACKAGED MEDIA IS EXPRESSLY
PROHIBITED WITHOUT A LICENSE UNDER APPLICABLE PATENTS IN THE MPEG-2 PATENT PORTFOLIO,
WHICH LICENSE IS AVAILABLE FROM MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite 400E, Greenwood
Village, Colorado 80111 U.S.A.
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND
NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC
STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE
HTTP://WWW.MPEGLA.COM
This product contains one or more programs protected under international and U.S. copyright laws as
unpublished works. They are confidential and proprietary to Dolby® Laboratories. Their reproduction
or disclosure, in whole or in part, or the production of derivative works therefrom without the express
permission of Dolby® Laboratories is prohibited. Copyright 2003-2009 by Dolby® Laboratories. All rights
reserved.
1.0 INTRODUCTION
1.1 Safety Instructions
DO NOT INSTALL YOUR RECEIVER:
• In a closed or poorly ventilated cabinet; directly on top of or under any other equipment; on a surface
which might obstruct the ventilation slots.
DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES:
• To direct sunlight or any other equipment that generates heat; to rain or intense moisture; to intense
vibration and to any shock which may cause permanent damage to your receiver or to any magnetic
objects, such as loudspeakers, transformers, etc.
• Do not use a damaged power cord. It may cause a fire or an electric shock. Do not touch a power cord
with wet hands. It may cause an electric shock.
• When the receiver is not used for a long period of time, you should unplug the power cord from the wall
socket.
• Do not use alcohol or ammonia based liquids to clean the receiver. If you wish, you may clean your
receiver with a soft lint-free cloth slightly made damp with a mild soap solution, and only after
disconnecting from the mains voltage supply. Make sure no foreign objects fall through the ventilation
slots because this could cause fire or an electric shock.
• Do not place any objects on top of the receiver because this might prevent proper cooling of the
components inside.
Safety Precautions
• Never try to open the receiver. It is dangerous to touch the inside of the receiver due to high voltages
and possible electrical hazards. Opening the receiver will void the warranty of the product. Refer all
maintenance or servicing to suitably qualified personnel.
• When you are connecting cables, be sure that the receiver is disconnected from the mains supply voltage.
Wait a few seconds after switching off the receiver before you move the receiver or disconnect any
equipment.
INTRODUCTION
P3
English
• It is a necessity that you only use an approved extension and compatible wiring that is suitable for the
electrical power consumption of the installed equipment. Please ensure that the electrical power supply
corresponds with the voltage on the electrical identification plate at the back of the receiver.
If the receiver does not operate normally, even after strictly following the instructions in this user manual it
is recommended to consult your dealer or the appropriate service for your country.
1.2 Storage
Your receiver and its accessories are stored and delivered in a packaging designed to protect against
electric shocks and moisture. When unpacking it, make sure that all the parts are included and keep the
packaging away from children. When transporting the receiver from one place to another or if you are
returning it under warranty conditions, make sure to repack the receiver in its original packaging with its
accessories. Failing to comply with such packaging procedures could damage the product and void your
warranty.
1.3 Equipment Set-up
We recommend you to consult a professional installer to set up your equipment. Otherwise, please follow
the instructions below:
• Refer to the user manual of your TV and your antenna.
• Make sure that the HDMI cable and outdoor components are in a good condition and the HDMI
connections are well shielded and from good quality.
This user manual provides complete instructions for installing and using this receiver. The symbols serve as
follows.
WARNING: Indicates warning information.
NOTE: Indicates any other additional important or helpful information.
MENU Represents a button on the remote control or the receiver.
(Bold characters)
Move to Represents a menu item within a screen.
(Italic characters)
1.4 Accessories
• 1x user manual
• 1x remote control unit
• 2x 3 V Lithium CR2032 batteries
• 1x adapter 12 Volt DC, 2 Ampere
• 1x HD+ smart card
1.5 Usage of external USB devices
• It is recommended to use USB 2.0 storage devices. If your device is not compatible to USB 2.0
specifications, recording and playback with your receiver might not work properly.
• If you are going to use external USB HDD (Hard Disk Drive) please consider that the power specifications
might exceed the supported output of your receiver (5V/500 mA). If so, please connect your USB HDD to
an according external power adapter.
• THOMSON cannot guarantee compatibility with all types of USB storage devices.
• It is advised not to store important information on USB storage devices used with the receiver. Always
make backups of data on your USB storage device before using it with this receiver. THOMSON will not
take responsibility for any loss of information or circumstances caused by loss of information.
• Please ensure that either the USB device is already formatted to NTFS or FAT32 or format the USB device
via your receiver. Formatting requires entering the PIN code (default ‘0000’)
• THOMSON cannot guarantee the playback of all files although extensions are listed, as it depends on file
size, codec, bit rate and resolution.
P4
YOUR RECEIVER
2.0 YOUR RECEIVER
2.1 DEFAULT PIN-CODE: 0000
2.2 Front Panel
Fig.1
1. Standby/ON button Turns the receiver ON or into Standby
2. Navigations buttons Menu navigation
3. LED Display Displays channel number, time, videotext page or PVR modes
4. Indicator LED GREEN indicates that the receiver is currently ON
5. IR Sensor Receives the RCU commands
2.3 Side Panel
Fig.2
1. Smart card slot To insert your HD+ smart card with the golden chip to bottom side.
2.4 Rear Panel
Fig. 3
1. SAT OUT To loop through the satellite signal to a second receiver
2. SAT IN To connect to the LNB of your satellite antenna for reception of satellite
broadcast signal
3. USB To connect your USB storage device
4. HDMI To connect to the HDMI input of your TV set using a good quality HDMI
cable
5. OPTICAL S/PDIF To connect to a digital amplifier or home theatre using an optical cable
6. VIDEO To connect to the TV or DVD/VCR recorder for analogue video signals. (This
connection supports Standard Definition TV resolutions only.)
7. COAXIAL S/PDIF To connect to a digital amplifier or home theatre using a coaxial cable
8. AUDIO L/R To connect to the TV or DVD/VCR recorder for analogue stereo audio
9. ETHERNET To connect to a Local Area Network (LAN) at home.
10. DC POWER To connect to the original included main power adapter (Input ~230 V
50~60 Hz/ Output 12 V, 2 A DC
)
11. Power switch To power switch ON or OFF your receiver
2.5 Remote Control
2.5.1 Batteries
Fig. 4
First time Use
Two 3 V Lithium CR2032 batteries come pre-installed in your remote control. When using the remote for
the first time, pull out the plastic tab from the remote to activate the batteries.
Replacing the Batteries
With screwdriver, remove the battery tray. Insert the batteries with the “+” marking facing up into the
battery tray. Slide the tray back into the remote until it clicks.
ATTENTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
YOUR RECEIVER
P5
English
2.5.2 Front side
Your receiver is supplied with an advanced keyboard remote control that makes Internet browsing simple
and convenient.
Fig. 5
1. q Switches the receiver into standby mode
2. ! Mutes the audio outputs of the receiver
3. COLOUR BUTTONS Used for selection in on-screen menus
4. TV/Radio Displays the TV/Radio channel list
5. Subtitles/Audio Displays the list of available subtitle or sound-track languages
6. Media Access connected media devices
7. Web Access your bookmarks, homepage or and HD+ SmartTV web portals.
8. Guide Displays the TV programme guide
9. Info Displays detailed programme information
10. Fav Selects the favourite list the user wants to be active
11. Exit Leaves the menu currently on screen
12. p q t u Navigation and select buttons: Channel next/previous, Cursor up/down;
Decrease and increase of volume level, change settings
13. OK Displays the current channel list or opens the highlighted setting
14. Back Toggles through recently watched channels
15. VOL +/ - Adjust volume up/down
16. P+/P- Switch channel up/down
17. Menu Brings up the Main Menu on the screen
18. 0~9 For numerical and textual input
19. 4 Starts recording the current broadcast
20.
Launches the teletext browser
21. V-Format Selects the picture resolution
22. Enlarges picture format to full screen
23. Playback Use the navigation buttons (see details below)
Fig. 6
1. 7 5 Rewind / Slow motion - press to change the speed
2. 2 1 Enabling Play/Pause
3. 3 Stops the current recording or playback of the selected file
4. 6 8 Forward / Slow forward - press to change the speed
5. { Jumps to start of playback
6. } Jumps to end of playback
2.5.3 The keyboard
Fig. 7
1.
Unlock keyboard / backlit button press indication led
2. ALTGr Activate ALTGr function
3. ALT Activate ALT function
4. ALTGr + / ALT +
Tab forward/Tab backward
5. CAPS Use Capital letter function button
6. ALTGr + Back Go to previous page
7. ALT + Menu Show Main menu / Top web browsing bar
8. ALTGr + Fwd Move to next page
9. ALT + OK Select the page/button
10. ALT + Esc Escape page loading or exit page
11. ALTGr + / ALTGr +
Zoom In or Zoom Out in web browser window
P6
BASIC CONNECTIONS
12. ALTGr + Select starting page
13. For usage, see instructions on display
14. ALTGr + Select your favourite web sites and add bookmarks
15. ALTGr + Activate the cursor function
16. Battery compartment
NOTE: Buttons in YELLOW require use of ALTGr button to operate, buttons in BLUE require the ALT
button.
2.6 Using the mouse cursor
Fig. 8
1. Make sure the keyboard side is unlocked by pressing the unlock button
.
2. Press ALTGr and
button to activate/deactivate the mouse cursor.
3. Use the t u p q to move the mouse cursor over the screen.
4. Press ALT +
button to click on links or buttons on the web page.
NOTE: The mouse cursor will disappear from the screen if the mouse is idle for over 10 seconds. Press
any of the pq tu buttons to re-display the mouse cursor on the screen.
2.7 Using the remote control
To use the remote control, point it towards the front of the digital receiver. The remote control has a range
of up to 5 metres from the receiver, if properly aligned towards the IR eye on the front panel.
Fig. 9
NOTE: The remote control will not operate if its path is blocked or affected by bright/stroboscopic light.
2.8 Using the keyboard
To use the keyboard, point it towards the front of the receiver and type in your letters, just like using a PC
keyboard.
3.0 BASIC CONNECTIONS
Fig. 10
This section explains the most important functions to ensure that you can directly watch television with
your new receiver. Please note, additional adjustments may be required.
NOTE: Do not connect the receiver to the main power yet.
3.1 Connecting the Antenna and LNB (Low Noise Block) to the receiver
Connect the LNB of your satellite antenna to the SAT IN connector of your receiver using a good quality
coaxial cable and suitable ‘F-connector’ plugs. You may use the SAT OUT connector to connect to a
second receiver.
3.1.1 Connection of multiple fixed antennas via DiSEqC 1.0/1.1
Fig. 11
• Connect the LNBs of your fixed antenna to the desired inputs of a DiSEqC 1.0/1.1 switch using a good
quality coaxial cable and suitable ‘F-connectors’.
• Connect the output or “to receiver” of the DiSEqC 1.0/1.1 switch to the SAT IN connector on your receiver.
• Plug the power adapter jack to the receiver and the other end to a suitable wall outlet.
STARTING UP FOR THE FIRST TIME
P7
English
3.2 Connecting the TV set
Fig. 10
Connect one end of a good quality HDMI cable to the HDMI connector of your receiver and the other
end to the HDMI input of your TV set. Plug the power adapter jack to the receiver and the other end to a
suitable wall outlet.
3.3 Connecting to the world wide web
Fig. 10
The receiver connects to the Internet through the Internet router or DSL/cable modem in your home
network. The receiver can connect to the home network over its Ethernet port - through direct connection
to the router, over PLC (Power Line Communication) adapters or compatible USB WLAN adapters.
3.3.1 Connecting via the Ethernet port
Fig. 10
Connect one end of the Ethernet cable to the receiver and the other end to the LAN port at the router or
DSL/cable modem.
3.3.2 Connecting via a compatible USB WLAN adapter
Fig. 10
Connect the USB adapter to one of the USB ports on the back panel of the receiver. On the Network menu,
set the options for the WLAN as follows:
Network name (SSID): Select the network name of your WLAN access point from the list.
Security Type (WEP, WPA, WPA2):
The receiver supports WEP 40/128bit ASclI, WEP 40/128bit HEX, WPA and WPA2.
The settings of the security type of the WLAN and the receiver shall be the same.
Password: When using the security type, you must set the password. Enter the same
password in the WLAN setting menu.
NOTE: To improve quality of service, keep the distance between the WLAN access point and the
receiver close.
3.4 Connection to a DVD or VCR recorder
Fig. 10
The DVD or video recorder may be connected to the receiver via the video and analogue stereo audio
outputs.
NOTE: The A/V output of the DVD recorder or VCR recorder needs to be connected to the TV directly
and cannot be connected to the receiver.
3.5 Connection to main power supply
Fig. 10
After all the connections are done you can connect your receiver to power using the supplied external
AC/DC adapter. Now plug the adapter into the wall socket. Then set the power switch on the rear panel in
position 1 (ON).
4.0 STARTING UP FOR THE FIRST TIME
The first time you turn on the receiver, a Quick Start Guide menu will be open to assist you with the initial
settings. This menu will also appear after you do a Factory Reset. Use the GREEN and RED buttons on
the remote control to navigate forward or back through the wizard steps. Press the OK button to edit a
parameter and select its value from the drop list that will appear on the right side of the screen.
Loading...
