About your device

Your device is a digital video player.It can read most DVD +R/+RW / -R/-RW / VCD/S-VCD discs
(8 and 12 cm except for DVD Ram and DVD audio) as well as JPEG, mp3, wma and DivX ultra files.

This simplified manual is designed for a quick integration into your audio video
installation and to help you get started immediately with your digital player. Consult our
site www

.thomsonlink.com for more information.

DTH270E

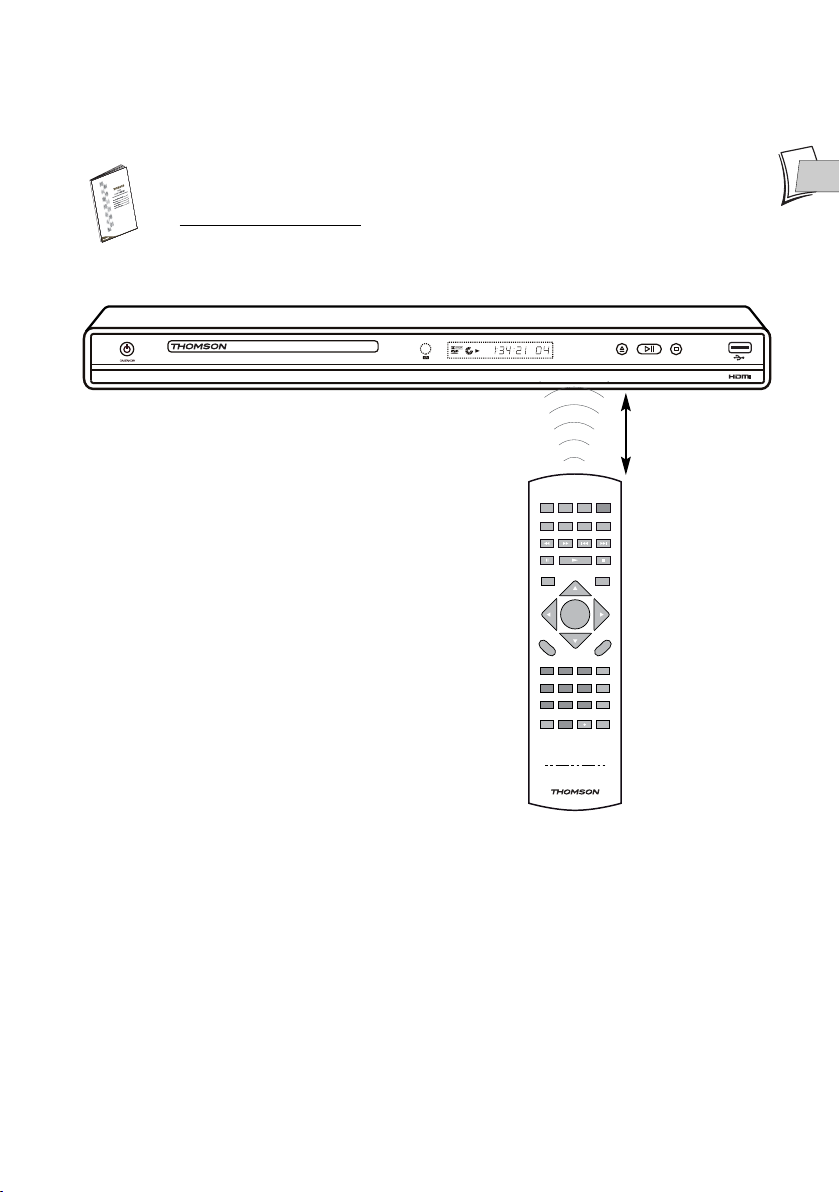

Your remote control lets you command your player from a
distance using infrared signals. Make sure that you are
pointing the remote control at your player’s window,
ensuring that there are no obstacles (chest of drawers,
person, animal, furniture, etc.) between it and the appliance.
The remote control operates with 2 AA batteries which are
delivered separately. Install the batteries in the remote
control before use.Change the batteries when you see that
the player takes time to react or that the remote control
must be brought closer or pointed more specifically at the
window of your player.

Please dispose of batteries in accordance with current
legislation.

OPEN •

ZOOM

ANGLE

CLOSE

REPEAT

RANDOM HDMI

PROGRAM

A-B

REVERSE FORWARD SKIP

CLEAR

OK

PREVIEW

1

2

4

5

7

8

CD>>mp3

DVD/USB

0

ON • OFF

STOPPLAYPAU SE

DISC

MENU

SET UP

DISPLAY

3

AUDIO

6

SUBTITLE

9

TITLE
MENU

OPEN/CLOSE

PLAY

8 m maximum
with new
batteries.

EN

EN

STOP

RCT195D 1

In this manual you will find...

A few precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10

Installation

Basic connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11

Use

Displaying your player’s menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12

The buttons and their functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13

The sockets and their uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14

Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15

Main functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16

9

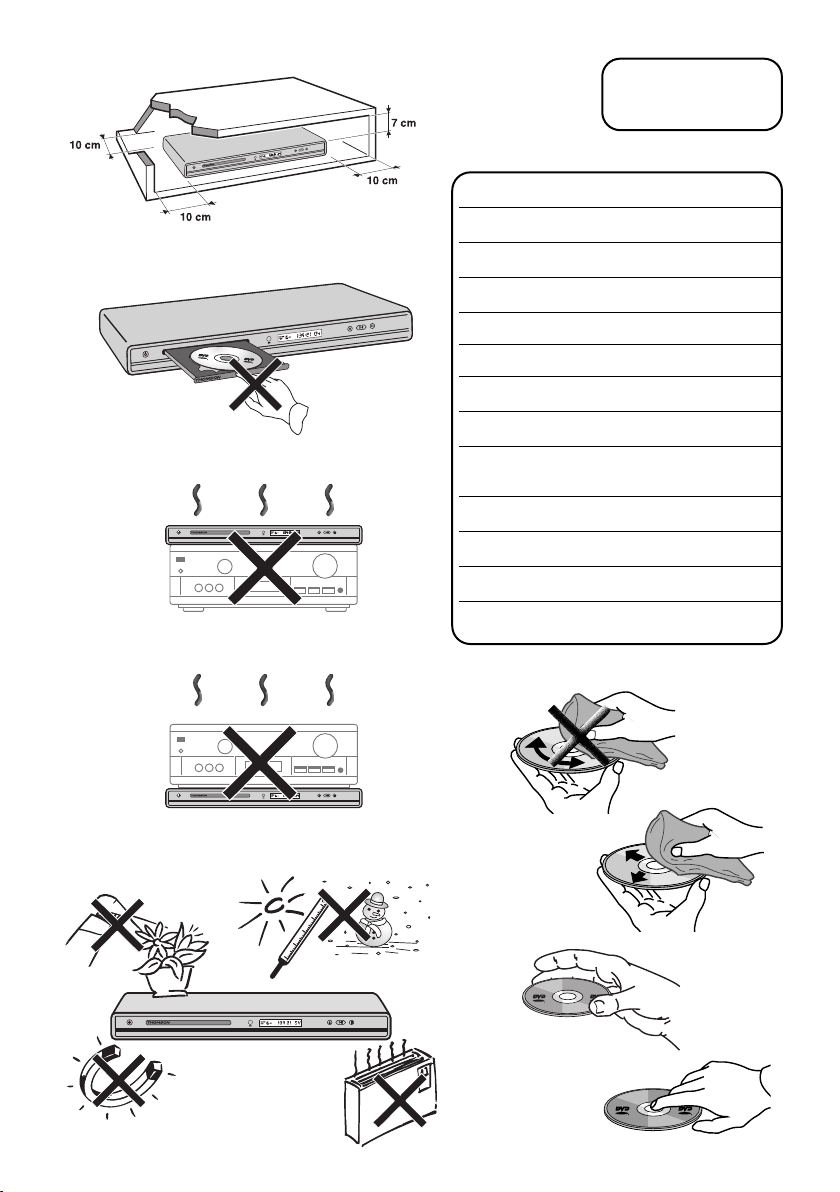

A few precautions

✓ Ensure that the mains supply in your house

complies with that indicated on the
identification sticker located at the back of
your device.

✓ Install your device horizontally, on a suitable

base (furniture), with enough space around it
for ventilation (7 to 10 cm)

✓ Ensure that the ventilation slots,and the

device itself, are not covered by objects such
as a mat, newspapers, curtain, etc.

✓ Do not place another item of equipment on

top.

✓ Do not place the device on top of an

amplifier or any other equipment that gives
off heat

✓ The appliance should not be in contact with

liquids or exposed to the risk of dripping or
splashing.Therefore be careful not to place
any object containing a liquid (vase, glass,
bottle, …) on or near your appliance

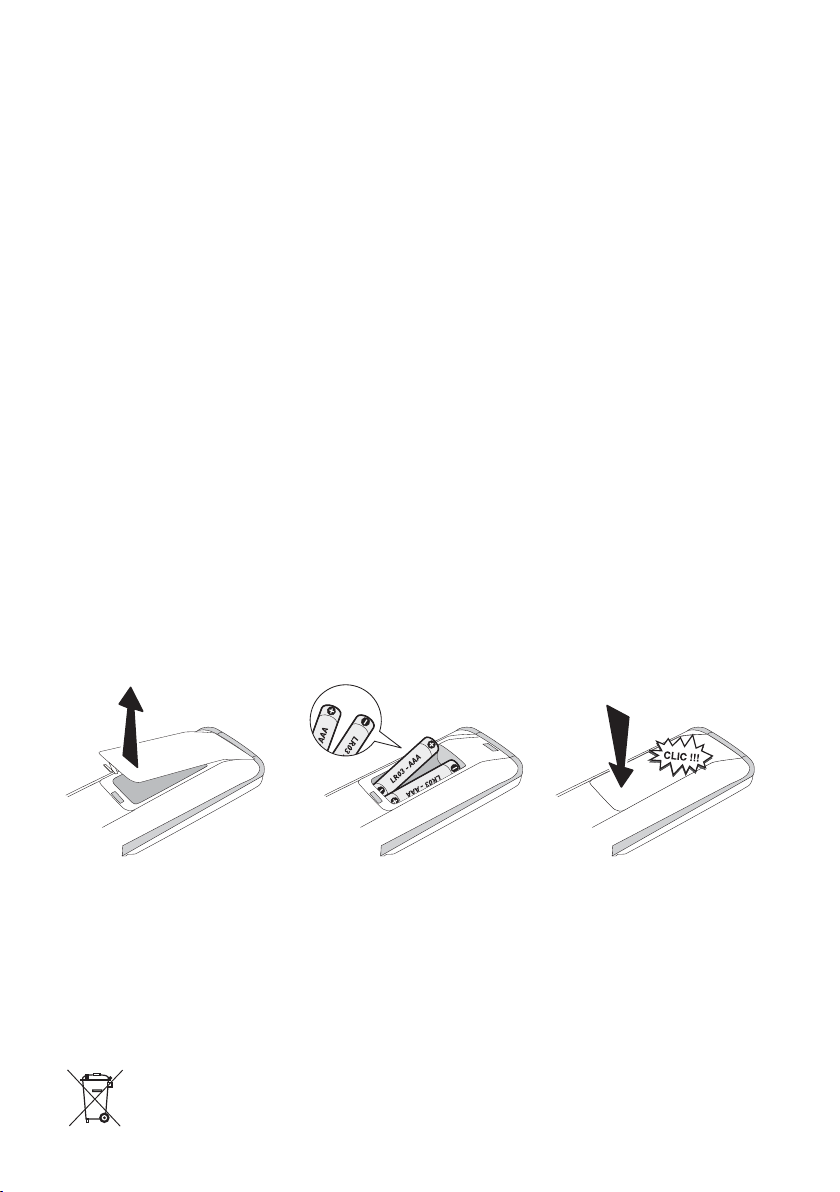

Inserting the batteries

✓ The appliance should not be in contact with

or exposed to a flame. Therefore, please do
not place any candles on or near the
appliance.

✓ Protect your appliance from moisture and

excess heat (e.g. fireplace) or equipment
creating strong magnetic or electric fields (i.
e. speakers…). Before moving your
equipment, make sure that the disc drawer is
empty. Setting the equipment to standby
does not cut off the electricity supply. In
order to separate the device completely
from the mains, it has to be disconnected by
unplugging the mains plug; this is
recommended if you haven’t used the device
for a certain time.When connecting, ensure
that the plugs of the various cables are
pushed securely into their corresponding
sockets.

✓ Your appliance is not intended for industrial

use but for domestic purposes only.This
product is intended for purely personal use.

12 3

Important information regarding batteries

• Respect the polarities. Do not mix different types of batteries or new and old batteries. Do not
use rechargeable batteries. Do not expose batteries to excessive heat, do not incinerate them
and do not recharge them. Do not try to open them as they may leak or explode. Remove the
batteries from the remote control unit if you are not going to use it for several weeks.
Immediately remove any leaking batteries. Take care in doing this, as leaking batteries may cause
burns to the skin or other physical injury.

• Please respect the environment and prevailing regulations! Before you dispose of
batteries ask your dealer whether they are subject to special recycling and if he
accepts to take them back.

10

Installation

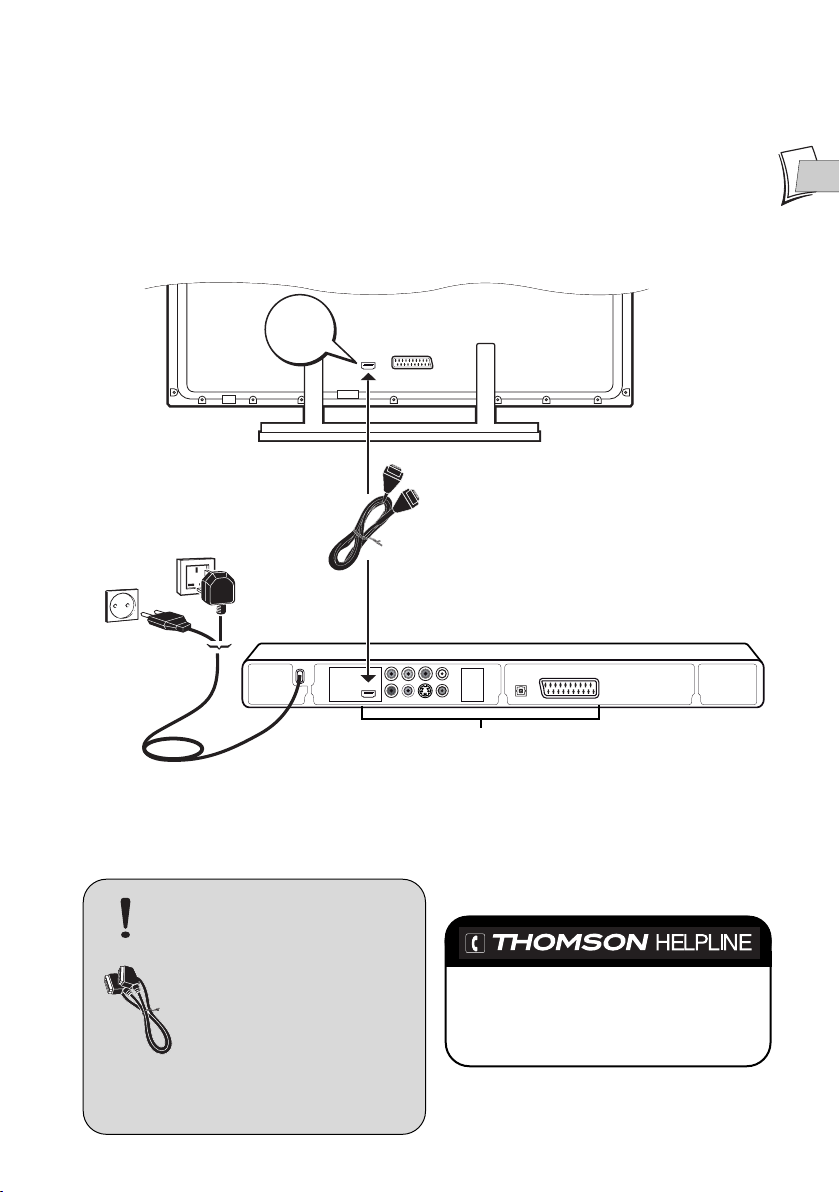

Basic connections

By following, the instructions in this page you will avoid any setup problems related to the
interaction between several devices.If you have any other audio video devices, do not connect
them now; add them afterwards.

HDMI

INPUT

HDMI

United Kingdom

Europe

AC 220 V / 240 V

50/60 Hz

Ireland

VIDEO

Y

R

P

~

AC

B

P

HDMI

L

R

AUDIO

COAXIAL

S-VIDEO

OPTICAL

AV CONNECTOR (RGB)-TV

Details of the sockets

on page 14

EN

EN

Tip(s)

The HDMI cable replaces the
scart/péritel cable that is
generally used to connect audio
video appliances.The HDMI
cable transmits pictures and
digital sound from your player

to a TV set. Remember to set
the HDMI output signals (images and sound)
in the General Setup Menu (page 15).

You can contact THOMSON by dialling:

0871 500 0520

(call to this number

will be charged at 10 pence per minute)

http://www.thomsonlink.com

11

OK

CLEAR

DISC
MENU

PREVIEW

SET UP

Usage

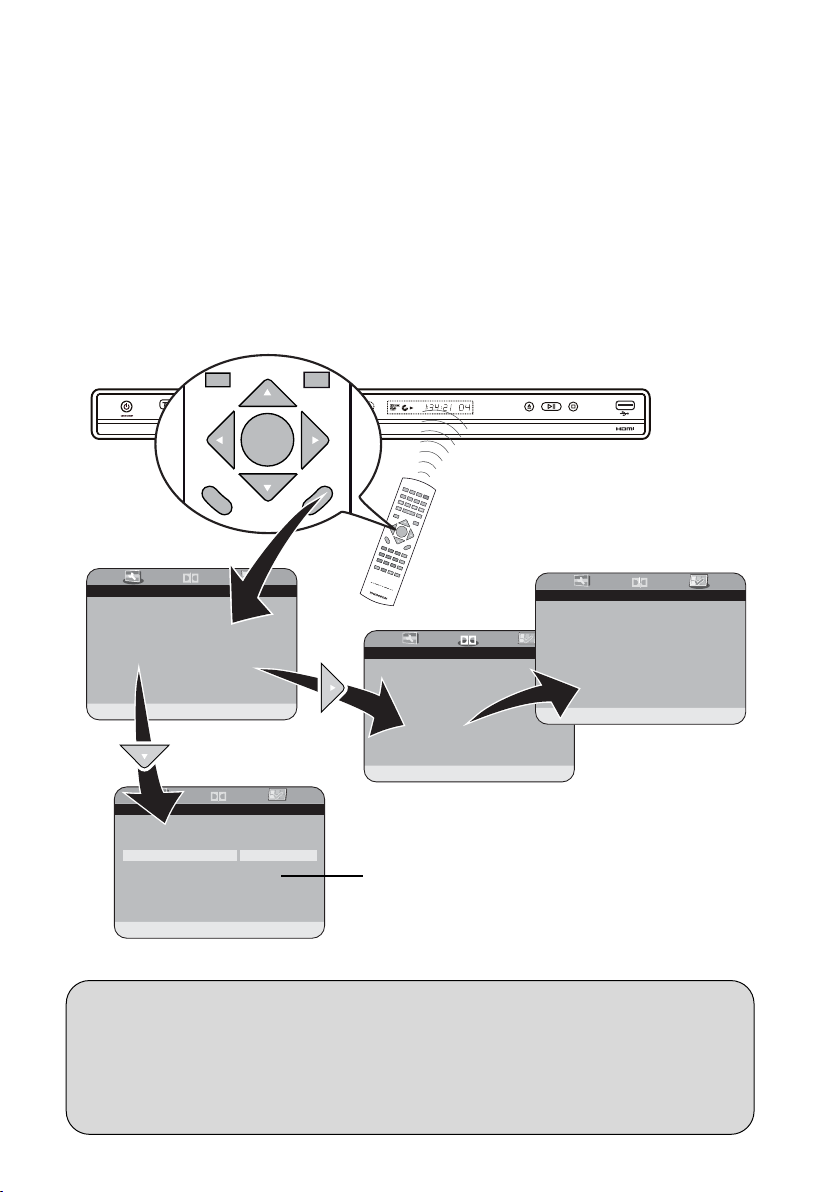

Displaying your player’s menus

Your player has a large numbre of functions which can only be accessed by its menus and from a
main menu which can be displayed using the SET UP key on the remote control.Your player’s
menus are always displayed on your TV screen.

Note: the main functions which cannot be accessed by menus but which are accessed by keys are detailed
on page 13.

Other menus are proposed when the main menu is displayed on the screen.All the menus and
their functions can be accessed using the 5 navigation jeys and most frequently via the
keys.

▼ and OK

DTH270E

Dolby

General Setup Menu

TV Display
TV Type
Video Out
Menu Language
HDMI Setup
HDMI Audio
VOD

PS
PAL

ENG
OFF
PCM
VOD

General Setup Menu, Press OK

Dolby

General Setup Menu

TV Display
TV Type
Video Out
Menu Language
HDMI Setup
HDMI Audio
VOD

PS
PAL

ENG
OFF
PCM
VOD

Set Menu Language To English

English
Español
Deutsch
Français
Italiano

OPEN/CLOSE

STOP

PLAY

Z

O
OM

AN

G

L
E

O

P
E
N

C

•

LOSE

P

R
O

G

O

R

N

A

• OFF

M

R
A

N
D

O
M

R
E

P
E

A
T

R

A

EV

­B

E

R
S

HD

E

M

F

I
O
RW

A

R
D

P
AU

S
K

S

I
P

E

P
L

AY

CL

STO

E

A

P

R

D
IS

C
M
E
NU

O

K

P
R

E
V
I

E
W

S

E
T

U
P

1

2

3

D

4

I
S
P

L
A
Y

5

6

7

A

U
D

IO

8

9

D

VD

S

/US

UBT

B

I
T

LE

0

C
D
>>m

p
3

T

I
T
L

E

M

E
NU

RC

T
1

9
5
D

1

- - Dolby Digital - -

Dynamic

- - Preferences Setup - -

Audio
Subtitle

Dolby

Disc Menu
Ratings
Password

Dolby

ENG
OFF
ENG

Preferences Setup, Press OK.

Dolby Digital Setup, Press OK.

Select a menu display language using the CB
and OK keys.

Languages available:
English, Spanish, German, French and Italian.

▼▲

Tip(s): No picture or menu on the screen?

• Select (on the TV or with its remote control) the HDMI socket to which your player
is connected.

• Select the correct output video signal format in the General Setup Menu, function:

- HDMI Setup: Choose a setting according to the TV (480p to 1080i).

- HDMI Audio: Choose one of te SPDIF or PCM settings depending on the TV.

12

Usage

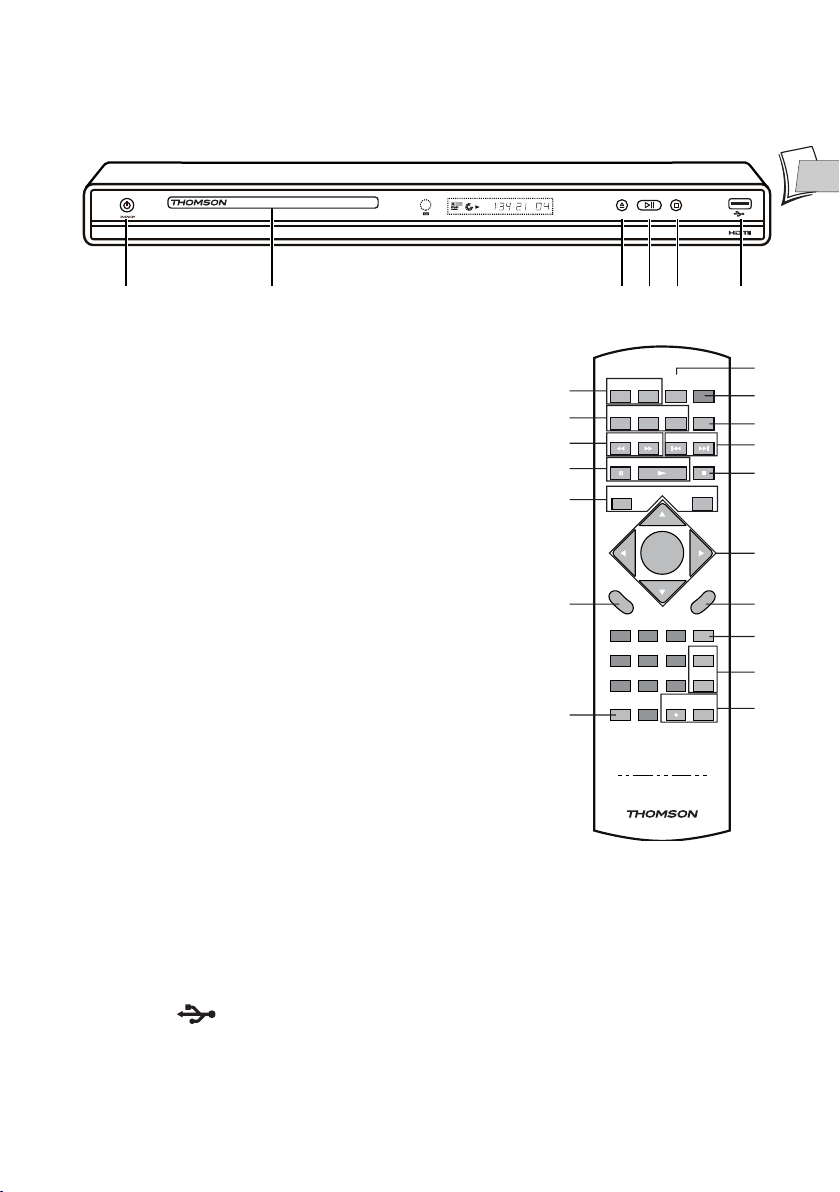

The buttons and their functions

DTH270E

OPEN/CLOSE

EN

EN

STOP

PLAY

1 3 4 5

1

2

3

4

5

6

7
8

9 I

0

B ON/OFF

Disc tray

O OPEN/CLOSE

KB PLAY

L STOP

CC REVERSE

BB FORWARD

HDMI

DVD/USB

CC BB

PROGRAM, RANDOM,

I SKIP

2

On / Off

Open / close the disc tray

Play Disc / Pause

Stop playback

Quick reverse
Fast forward

Source selection: selection
of the connected appliances
(AV, USB, HDMI sockets)

Chapter skip

Access playback modes

#

0
6
4

#

#

REPEAT A-B

!

@

#

SET UP

Play functions

AUDIO

SUBTITLE

Other functions

DISPLAY

Access menus

Select a DVD disc language
DVD disc subtitle selection

Display information
or playback functions

8

ZOOM,ANGLE,

TITLE MENU, CD>>mp3,

PREVIEW, CLEAR,

DISC MENU

$

Navigation keys

Function selection in the menus

OK ▼▲CB

%

USB input socket

OPEN •

ZOOM

ANGLE

CLOSE

REPEAT

PROGRAM

RANDOM HDMI

A-B

REVERSE FORWARD SKIP

CLEAR

OK

PREVIEW

1

2

3

4

5

6

7

8

9

CD>>mp3

DVD/USB

0

RCT195D 1

ON • OFF

STOPPLAYPAUSE

DISC

MENU

SET UP

DISPLAY

AUDIO

SUBTITLE

TITLE
MENU

%

3

1

7
9

5

$

!

#

@

#

13

Usage

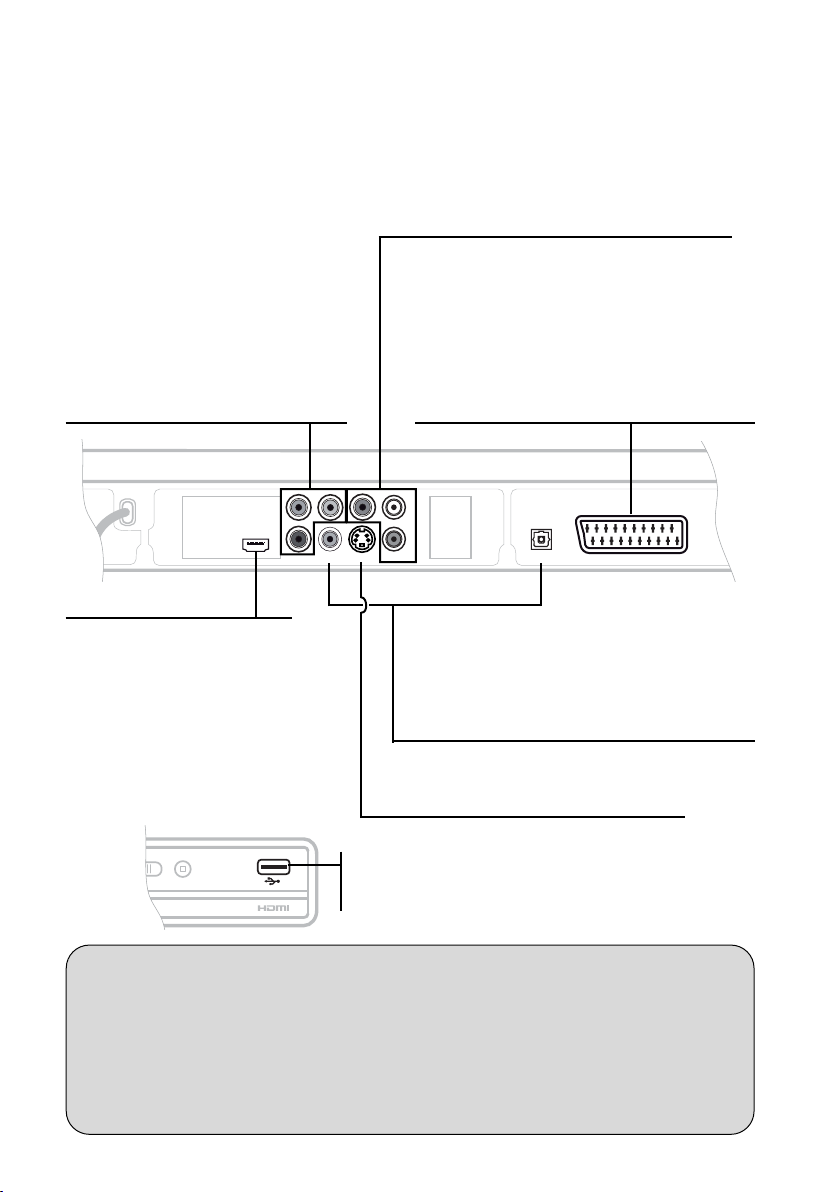

The sockets and their uses

COMPONENT VIDEO OUT - The Y,
Pb, Pr sockets deliver an optimum

★★★


of the video signal into 3 signals
(comparable to the RGB separation in the
Peritel (Scart) cable).To obtain the best
image quality possible, use very high quality
cables for the connections.Your dealer will
have YUV cables which are sold together
and respect the colour code (red, green
and blue) for this type of socket and cable.

quality thanks to the separation

~

AC

VIDEO

Y

R

P

B

P

HDMI

COAXIAL

S-VIDEO

★

OUTPUT - The analog sound

and the
composite images (CVBS)★of a disc being player
are permanently available on the 2 audio sockets L
and R and the video socket of your player.

AV CONNECTOR (RGB)-TV - This socket

allows you to transfer Audio and Video

★★★

(images

and sound★★) from your DVD player

to a television set or other device (flat screen,

audio-video amplifier, etc.) that is fitted with the

same type of socket.This transfer is performed in

RGB which ensures good image quality.

L

R

AUDIO

OPTICAL

AV CONNECTOR (RGB)-TV

HDMI OUT - The HDMI
socket permanently delivers very
high quality digital sound and

pictures

★★★★★

.
This connection is strongly
recommended with a digital

OPTICAL/COAXIAL - The digital sound
dof a DVD Video disk when played is permanently
available on the OPTICAL and COAXIAL sockets on
your player. Use these sockets by connecting them to
a decoder or Dolby Digital amplifier or DTS.

television which is fitted with the
same socket and is compatible.

S-VIDEO socket -to playimages★★from a
camcorder or other S-Vidéo appliance.

E

STOP

PLAY

USB socket - The USB socket is used to
play pictures

★★★★

and sound

★★★★

(JPEG, MP3 or AVI files).

Tip(s)

- Use high quality cables and/or known brand cables to connect your appliances via the
different sockets on your player.

★ on this page inform you of the quality of the video (images) and audio (sound)

The
signals, from the lowest quality (

★

) to the highest (

★★★★★

)

- Depending on the sockets used and the appliances that are connected to them, you must
set the sockets’ output signals according to the appliances’ possibilities.The settings must be
made in the General Setup Menu (accessed with the SET UP key).

14

★★★★

Usage

Menus

General Setup Menu

TV Display (Normal/PS - Normal/LB ­Wide Screen) - Adapts the pictures to your

TV’s screen format.

TV Type (NTSC - PAL) - Adapts the “colour
standard” according to the TV signals received.

Video Out - Adapts the pictures output from
the scart/péritel AV CONNECTOR (RGB) – TV
socket or the Y, Pr, Pb sockets to the type of
connection made to the TV (RGB,YUV
interleaved or YUV progressive signal).

Menu Language - To select the appliance’s
menu languages.

HDMI Setup - Adapts the pictures output by
the HDMI socket to the possibilities of your TV
connected via an HDMI socket.Try one of the
suggested settings to obtain the best result.
Position this setting to Off if you are not using
the HDMI socket.

HDMI Audio - Adapts the sound output by
the HDMI socket or the COAXIAL and
OPTICAL sockets to the possibilities of the
connected appliance (amplifier equippmed with
a Dolby Digital, DTS or MPEG amplifier).Try
one of the suggested settings to obtain the best
result.

VOD - Displays the DivX registration code of
your equipment.This code is vital when
purchasing VOD on line (VOD means Video on
Demand).

Note: DivX VOD files can be downloaded from
various commercial websites on payment of a
fee. Before downloading a video on demand file
(VOD), you must enter the registration number of
your DVD player on the purchase form of the site
in question.

Dolby

Dolby Digital

Dynamic - Dolby Digital sound configuration.

Preferences Setup

Audio - Choose the language for film dialogue.

Languages available: English, Spanish, German,
French, Italian, Swedish and Portuguese.

Subtitle - Stop or choose a preferential
language to display the subtitles on your DVD
discs.

Languages available: English, Spanish, German,
French, Italian, Swedish and Portuguese.

Disc Menu - Choose the language for the disc
menus.

Languages available: English, Spanish, German,
French, Italian, Swedish and Portuguese.

Ratings - Parental control enables you to
control the playing of a disc the contents of
which have been certified as unsuitable for a
young audience.The 8 setting levels enable
control to be optimised, from the most
restrictive (8) to no restrictions (1).

Note: the code for restricting access per scene is
determined by the disc editor. In Europe, very few
discs offer restricted levels of access.

1. Select a level of restriction using the ▼▲
keys, then press OK.

2. Enter a password.

Password - Lets you define or modify a
password.

To change a password:

1. Enter the current password after Old
Password.

2. Enter a new password after New
Password.

3. Enter the new password again after
Confirm Password.

Forgotten your password?

Open the disc tray; press the CLEAR key;
type 0 0 0 0 1. Switch the player off then switch it
back on again.

All the settings made since the first time you
commissioned the appliance are cancelled; the
menus are displayed in English again.

EN

EN

15

Usage

Main functions

READABLE DISCS

Video DVD-RW/-R/+R/+RW + S-VCD / VCD
Audio Multisession CD + CD-R/-RW
DVD video disc (region code) 2
Disc dimensions 8 / 12 cm

READABLE FILES

Audio/Video jpeg, mp3, wma, divx

PLAY FUNCTIONS

DVD repeat Disc / Title / A-B
CD repeat Disc / Track / A-B / Programme
mp3 repeat Track / Folder
Programmed play
Random play
Parental control
Zoom DVD / jpeg
Memory recovery (1 disc)
Introscan (CD)
Play the last scene again (Scene again)
Scan jpeg photos (diaporama)
Scan Kodak CD photos
mp3/jpeg simultaneous play mp3 during slideshow

MENUS

Languages available: FR/EN/DE/ES/IT

Dolby Digital is a sound compression
technique developed by Dolby for multi-channel
digital audio signals. The Dolby Digital system
enables any audio channel configuration, from a
stereo sound (2 channels) up to the digital
“surround” sound 5.1. Manufactured under
license from Dolby Laboratories. “Dolby” and the
double-D symbol are trademarks of Dolby
Laboratories. • DTS is a digital sound
compression technique developed by Digital
Theater Sound Systems for digital audio
multichannel signals. “DTS”and “DTS Digital Out”
are registered trademarks of Digital Theater
Systems inc • PCM - If the device connected to
the DIGITAL AUDIO OUT sockets does not
support Dolby, DTS or MPEG signals, your DVD
player will deliver PCM (Pulse Code Modulation)
signals. In this case neither Dolby Digital, DTS nor
MPEG should be selected. Linear PCM is an
uncompressed audio recording format used for
CDs. The CDs are recorded in 44.1kHz /16bits.
DVDs are recorded in 48kHz / 16 bits,or even up
to 96kHz / 24 bits.

HDMI - the HDMI and High Definition
Multimedia Interface logos are commercial trade

marks registered by HDMI Licencing LLC.

This symbol indicates that your unusable
electronic appliance must be collected
separately and not thrown away with
household waste.Therefore, the European

Union has created a specific collection
and recycling system for which producers are
responsible. This appliance is designed and
manufactured with high quality materials and
components which can be recycled and reused.The
electrical and electronic appliances are likely to
contain elements which, although vital for the
system to operate, may be dangerous for health
and the environment if they are handled or
eliminated incorrectly. Please take care therefore
not to dispose of unwanted equipment with your
household rubbish. If you own the appliance, you
must leave it at the appropriate local collection
point or hand it back to your retailer in exchange for
a new product. If you are a professional user, please
refer to your supplier’s instructions. If you rent the
appliance or it is deposited to you, contact your
service provider. Please help us to protect the
environment we live in!

Technical data

Power supply:220V/240V - 50 Hz • Weight :1,2 kg• Dimensions (W x H x L):
430 x 220 x 44 mm • Power consumed: In operation = 15 W max, On standby < 1 W

• Operating temperature: +5°C to + 35°C• Ambient humidity :80 % maximum • 2 laser
diode playback system: 655 / 780 nm, CLASS 2 laser • Infrared Remotecontrol: 33 Khz ­2 x 1.5 V (AA) batteries

Nominal Specification - THOMSON reserves the right to change the specifications without notice. Product characteristics and appearance
are subject to change without notice.The colour and aspect of the product may differ from that represented in this manual.
Thomson waives its responsibility if the recorder is used in any way which does not conform to this document.

16

DTH 270 / EN - RST - AWS / 03-2007

3A

EN

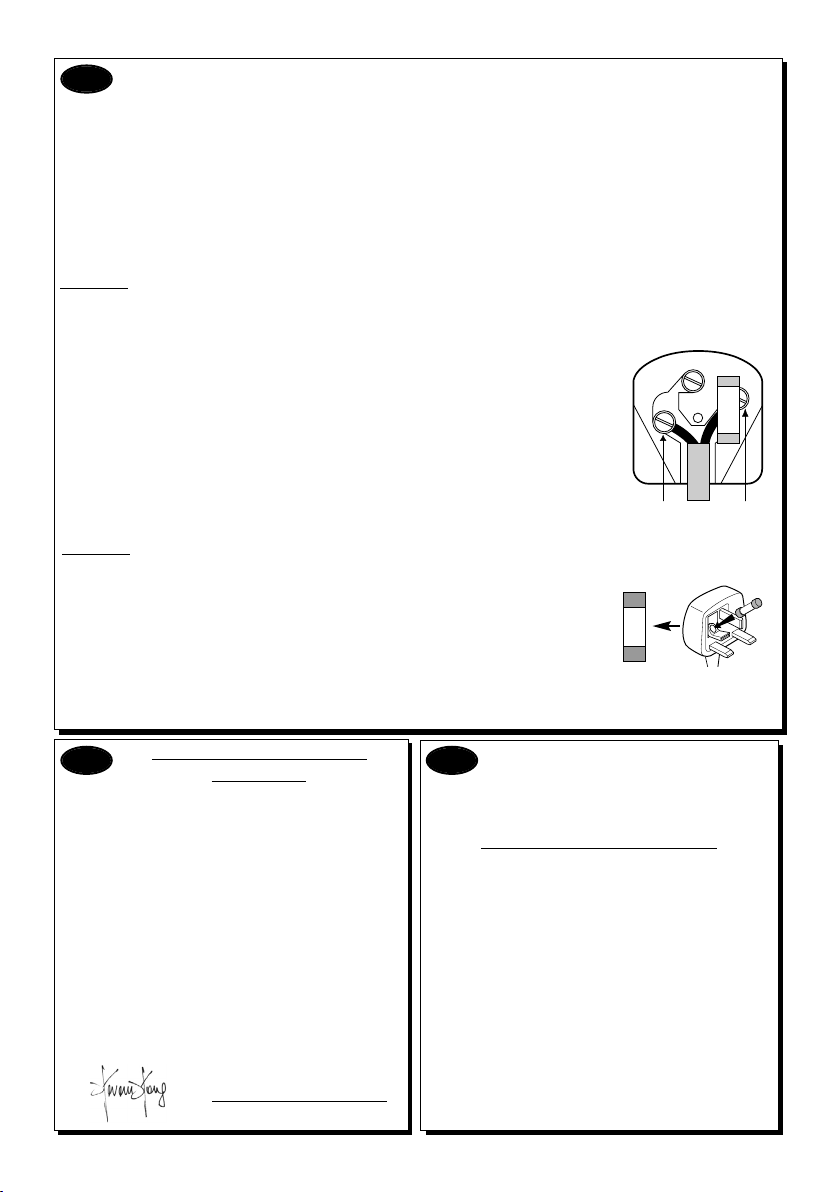

Safety information - UK socket

Equipment for the UK is supplied with a mains cable fitted with a moulded plug.

Mains connection

This appliance is suitable for use on A.C. mains supply, 230 V - 50 Hz only.It must not be connected
to D.C . mains.

Note:The mains lead of the appliance is fitted with a moulded plug. If the mains sockets are not
compatible or if for any reason the plug is removed please follow the directions below.

The moulded plug cannot be rewired and if removed must be disposed of safely.Remove the fuse to
make it safer.

T under any circumstances plug the severed plug into any mains socket as this

Do NO
could result in an electric shock.

Important!

If the plug is removed,rewire new plug as follows:The wires in the mains plug are
coloured in accordance with the following code:

BLUE - NEUTRAL
BROWN - LIVE

E

N

3A

As the colours of the wires in the mains lead of this apparatus may not
correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:

BLUE wire to the terminal coded N (Neutral) or coloured black.
BROWN wire to the terminal coded L (Live) or coloured red.

T make any connection to the terminal in the plug which is marked by the letter E

Do NO

BLUE

BROWN

or by the safety symbol llor coloured green and yellow.

A fused plug must be fitted with a 3A fuse approved by ASTA or BSI to BS
1362 and fuse covers must always be securely replaced.

If the fuse blows,check the mains cable for damage or call a qualified

3A

technician. Do not try to bridge the fuse or increase its rating!

L

The OFF button BBon the remote control and appliance does not completely disconnect the unit

!

from the mains supply,but switches operating on and off.

ES IT

El que suscribe, en nombre y representación de Thomson
multimedia (Dongguan) Ltd. declara bajo su propia
responsabilidad que el:

Fabricado por: Thomson multimedia (Dongguan) Ltd.
En: P.R.C.
Marca: Ver portada
Modelo: Ver portada

objeto de esta declaración, cumple con la normativa siguiente:

- Artículo 9.2 del Reglamento Técnico del Servicio de
Difusión de Televisión aprobado en el Real Decreto
1160/89.

- Anexo V del Reglamento sobre perturbaciones
radioeléctricas aprobado en el Real Decreto 138/89.

DECLARATION DE CONFORMIDAD

CON NORMAS

DICHIARAZIONE DI CONFORMITA

Si dichiara che l’apparecchio DVD RECORDER,

(la cui marca ed il codice commerciale

sono indicati in copertina)

risponde alle prescrizioni dell’art. 2

comma 1 del D.M. 28 Agosto 1995 n° 548.

Fatto a MILANO, il 01/03/2007.

THOMSON Multimedia Sales - Italy S.p.A.

Via L. Da Vinci, 43

20090 Trezzano sul Naviglio (MI).

Quality Assurance Manager

DTH 270

THOMSON Sales Europe

46, quai A. Le Gallo

92648 Boulogne Cedex

FRANCE

322 019 464 RCS NANTERRE

www.thomsonlink.com

Model and serial number

36251210 © Copyright THOMSON 2007

Dealer's address
