EN
MusicMatch
TM
Software

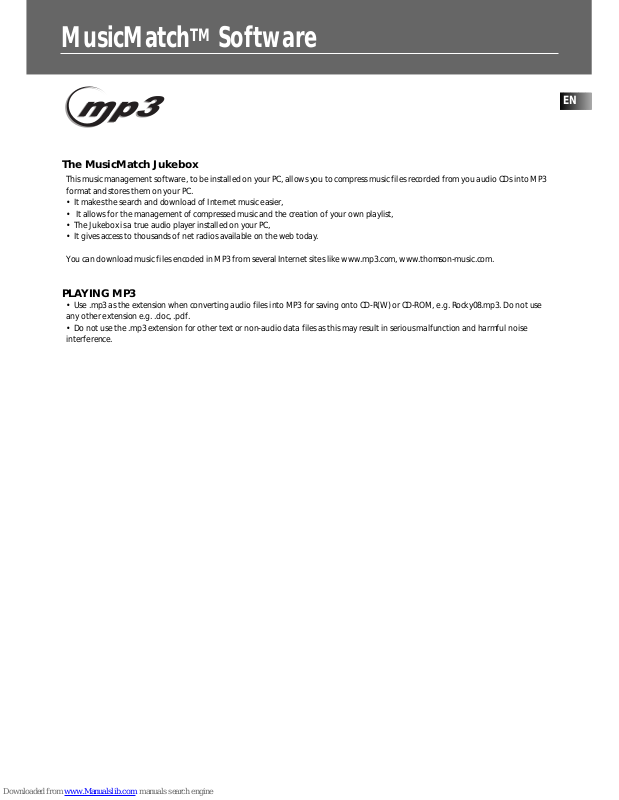

The MusicMatch Jukebox
This music management software, to be installed on your PC, allows you to compress music files recorded from you audio CDs into MP3
format and stores them on your PC.
• It makes the search and download of Internet music easier ,
• It allows for the management of compressed music and the creation of your own playlist,
• The Jukebox is a true audio player installed on your PC,
• It gives access to thousands of net radios available on the web today.
Y ou can download music files encoded in MP3 from several Internet sites like www.mp3.com, www.thomson-music.com.
PLAYING MP3
• Use .mp3 as the extension when converting audio files into MP3 for saving onto CD-R(W) or CD-ROM, e.g. Rocky08.mp3. Do not use
any other extension e.g. .doc, .pdf.
• Do not use the .mp3 extension for other text or non-audio data files as this may result in serious malfunction and harmful noise
interference.
SO
POWER / ECO
Thomson multimedia
46/47 quai A. Le Gallo
92648 Boulogne Cedex
FRANCE
RCS nanterre
B322 019 464
55199360
www.thomson-multimedia.com
VOLUME
OURCE SURROUND
PRESET
-
PRESET
+
DIGITAL
mp3
PHONES
BAND/APP
RPT/PGM TEST
TREBLE
TUNE
-
TUNE
+
usermanual
DPL900VD
Safety Information
Thomson Information
CAUTION!
Invisible laser radiation when open. Avoid exposure to
beam. Class 3B laser product. This system must be opened
only by qualified technicians to prevent accidents caused
by the laser beam.
LASER λ = 780 nm, P max = 5 mW
Rating Information: At bottom of the unit
this unit comply with the existing requirements
In accordance with the rating plate of the
unit, this unit complies with current
standards concerning electrical safety and
electromagnetlc compatibility.
Please respect the environment Before
throwing any batteries away, consult your
distributor who may be able to take them
back for specific recycling.
Have a Blast- Just Not in Your Eardrums
Make sure you turn down the volume on
the unit before you put on headphones.
Increase the volume to the desired level
only after headphone are in place.
ADVARSEL!
USYNLIG LASERSTRÅLNING VED
ÅBNING NAR SIKKERHEDSAFBRYDERE
ER UDE AF FUNKTION. UNGDÅ
UDSAETTELSE FOR STRÅLNING.
VORSICHT!
UNSICHTBARE LASERSTRALUNG
WENN ABDECKUNG GEÖFFNET UND
SICHERHEITS– VERRIEGELUNG
ÜBERBRÜCKT.
NICHT DEM LASERSTRAHL AUSSETZEN!
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL A LASER DE CLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
CAUTION – INVISIBLE LASER
RADIATION WHEN OPEN AND
INTERLOCKS FAILED OR DEFEATED.
AVOID EXPOSURE TO BEAM.
ATTENTION – RAYONNEMENT LASER
INVISIBLE DANGEREUX EN CAS
D'OUVERTURE ET LORSQUE LA
SECURITE EST NEUTRALISEE.
EXPOSITION DANGEREUSE AU
FAISCEAU.
VARNING–
OSYNLIG LASERSTRÅLNING NÄR
DENNA DEL ÄR ÖPPNAD OCH
SPÄRRAN ÄR URKOPPLADE.
BETRAKTA EJ STRÅLEN.
VARO!
AVATTAESSA JA SOUJALUKITUS
OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE.
LASERSÄTEILYLLE ÄLÄ KATSO
SÄTEESEEN.
For UK Only
CONNECT THE MAIN LEAD INTO A MAINS POWER
SOCKET
POWER SUPPLY 230V. It must not be connected to D.C.
mains.
Note; The mains lead of the set is fitted with a molded
plug. If the mains socket are not compatible or if for any
reason the plug is removed please follow the directions
below. The molded plug cannot be rewired and if
removed must be disposed of safely.
DO NOT under any circumstances plug the severed plug
into any mains socket as this could result in electric shock.
Important: If the plug is removed, rewire the new plug
as follow:
The wires in the mains plug are coloured in accordance
to the following code:
BLUE = NEUTRAL/BROWN = LIVE
If the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
BLUE wire to the terminal coded N (Neutral) or coloured
black.
BROWN wire to the terminal coded L (Live) or coloured
red.
DO NOT
make any connection to the
terminal in the plug which is marked by
the letter E or by the earth symbol or
coloured green or green and yellow.
A fused plug must be fitted with a 3A
fuse approved by ASTA or BS1362 and
fuse covers must be always be securely
replaced. If you set does not work, the
fuse may be blown.
WARNING: TO PREVENT FIRE
OR ELECTRICAL SHOCK HAZARD,
DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
SEE MARKING ON BOTTOM / BACK OF PRODUCT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE EXCLAMATION
POINT WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
IMPORTANT
INSTRUCTIONS
ACCOMPANYING
THE PRODUCT.
THE LIGHTNING
FLASH AND ARROWHEAD WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
"DANGEROUS
VOLTAGE" INSIDE
THE PRODUCT.
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE
PERSONNEL.
1
Table of Content
Safety Information
Getting Started
Unpacking the DVD Receiver . . . . . . . . .2
Unpacking the Speakers . . . . . . . . . . . . .2
Inserting Batteries into Remote Control .3
Set Up and Maintenance of the
Receiver . . . . . . . . . . . . . . . . . . . . . . . . . .3
Protect your Components from
Overheating . . . . . . . . . . . . . . . . . . . . . . .3
Connecting to Audio-Visual
Components . . . . . . . . . . . . . . . . . . . . . .4
Digital Connection . . . . . . . . . . . . . . . . .5
Connecting Antennas . . . . . . . . . . . . . . .5
Connecting the Speakers . . . . . . . . . . . . .6
Connecting the Subwoofer . . . . . . . . . . .6
Positioning your Speaker . . . . . . . . . . . . .7
Front Speaker Placement . . . . . . . . . . . . .7
Preferred Surround Placement . . . . . . . .8
Advanced Surround Setting . . . . . . . . . .8
Test Tone / Channel Balance . . . . . . . . . .9
Connecting for Power . . . . . . . . . . . . . . .9
Using Headphones . . . . . . . . . . . . . . . . . .9
Factory Setting . . . . . . . . . . . . . . . . . . . . .9
Operating your Receiver
Receiver Controls . . . . . . . . . . . . . . . . . .10
Your Remote Control . . . . . . . . . . . . . . .11
Display . . . . . . . . . . . . . . . . . . . . . . . . . .12
Switching On/Off . . . . . . . . . . . . . . . . . .13
Selection of Audio/Video Source . . . . . .13
Using the Remote to Control Additional
Components . . . . . . . . . . . . . . . . . . . . . .14
Advanced Sound Control
Sound Enhancement Systems . . . . . . . .15
Fine Setting of Components . . . . . . . . .16
Fine Setting of the Speakers . . . . . . . . .17
Advanced Setting . . . . . . . . . . . . . . . . .17
DVD Player
Basic Playback Features . . . . . . . . . . . . .19
Quick Search . . . . . . . . . . . . . . . . . . . . .19
Freeze Frame and Frame Advance . . . .19
Slow Motion Playback . . . . . . . . . . . . .20
On-Screen Banner Display . . . . . . . . . . .20
Setup Menu . . . . . . . . . . . . . . . . . . . . . .25
CD/MP3 Player
MP3 Recommendations . . . . . . . . . . . . .30
Loading and Playing an Audio CD . . . .30
On-Screen Banner Display for CD
Playback . . . . . . . . . . . . . . . . . . . . . . . . .32
On-Screen Display for MP3 playback . . .35
Radio
Operating the Radio . . . . . . . . . . . . . . .37
Troubleshooting Tips . . . . . . . . . .40
Care and Maintenance . . . . . . . . .42
Universal Remote Control
TV functions . . . . . . . . . . . . . . . . . . . . .43
VCR/SAT Functions . . . . . . . . . . . . . . . . .43
Universal Remote Control
Programming . . . . . . . . . . . . . . . . . . . .44
Remote Codes . . . . . . . . . . . . . . . . . . . .44
Language Codes . . . . . . . . . . . . . .45
EN
Getting Started
Unpacking the DVD Receiver
You should receive the following items:
2
VOLUME
SOURCE SURROUND
PRESET
- PRESET +
POWER / ECO
DIGITAL
mp3
PHONES
BAND/APP
RPT/PGM
TREBLE
TUNE - TUNE +
+ -
+ -
One DVD receiver unit
One pair of “AA”
batteries
One Pig-Tail
antenna wire
One external AM loop
antenna
one video cable (single wire)
with yellow RCA connectors;
TV
SAT/
CAB
VIDEO/
VCR
• one instruction book;
• one safety leaflet;
• one Quick
Connection Guide
One RCA Universal
Remote Control
(RC800D)
Unpacking The Speakers
• one set of speakers including 1 set of left and right front
speakers, 1 centre speaker, 1 subwoofer and 1 set of left
and right rear speakers.
• 6 speaker cables including:
FRONT SPEAKERS
CENTER SPEAKER
SUBWOOFER
REAR SPEAKERS
(SURROUND SOUND)
2 X grey/black cable
for rear speakers
1 X brown/black
cable for subwoofer
1 X blue/black cable
for center speaker
2 X red/black cable
for front speakers
one SCART cable;
Getting Started
Inserting Batteries into Remote Control
1. Press the part indicated and
push in the direction of the arrow
to opent the battery compartment door.
2. Insert two AA(LR06) batteries
according to the + and - signs on
the battery compartment.
3. Press to close the cover.
To use the remote control, point it
directly at your receiver.
Set up and Maintenance of the Receiver
IMPORTANT NOTE
• Provide spaces for sufficient ventilation as indicated
below. If the space is insufficient, the unit may overheat
resulting in malfunction and shorter life time.
• Do not connect to the AC power cords until all connections are completed.
• Do not use your set immediately after transferring it from
a cold place to a warm place: there is risk of condensation.
• Do not expose your set to water and excessively high
temperatures.
• After having disconnected your set, clean the case with a
soft cloth, or with a slightly damp leather chamois. Never
use strong solvents.
Protect your Components from
Overheating
• Do not block ventilation holes in any component.
Arrange the components so that air can circulate freely.
• Do not stack components directly on top of each other.
• Allow adequate ventilation when placing your components in a stand.
• Place the receiver near the top shelf of the stand so
heated air rising from it will not affect other components.
EN
3
10 cm/4"
10 cm/
4"
10 cm/
4"
VOLUME
SOURCE SURROUND
PRESET
- PRESET +
POWER
DIGITAL
mp3
PHONES
BAND/APP
RPT/PGM
BASS/TREBLE
TUNE - TUNE +
10 cm/4"
5 cm/
2"
About CDR, CDRW, Audio MP3, Compact
Disk Audio (CDA), DVD Video, DVD Audio
This model DPL900VD is compatible to play CDR,
CDRW, Audio MP3, Compact Disk Audio (CDA),
Video Compact Disk (VCD) and DVD Audio.
DTS: This unit cannot playback the DTS sound
format. Image may appear but no sound will be
output.
When playback a DVD-Audio disk, this model is
able to play any Dolby Digital 5.1 (AC3) Surround
mix content only, but not the DVD-Audio Advanced
Resolution Surround sound (6 channels) or Stereo
sound (2 channels) content.
Please watch the format of your disk and read the
disk information for further contents information.
NOTES ON CD-R/RW DISC
This unit is compatible with CD-RW/ CD-R discs for
playback.
• Do not affix any type of labels to either side
(recordable or labeled side) of a CD-R/RW disc as
this may result in the unit malfunctioning.
• To avoid damages to the CD-R/RW disc, do not
open the disc compartment door while the disc is
being read.
• Do not load an unrecorded CD-R/RW disc into the
unit. This may take a longer time to read the disc.
• Playback capability for CD-RW discs may
vary due to variations in the quality of the
CD-RW disc and the recorder used to create
the disc.
Loading...
