PCS

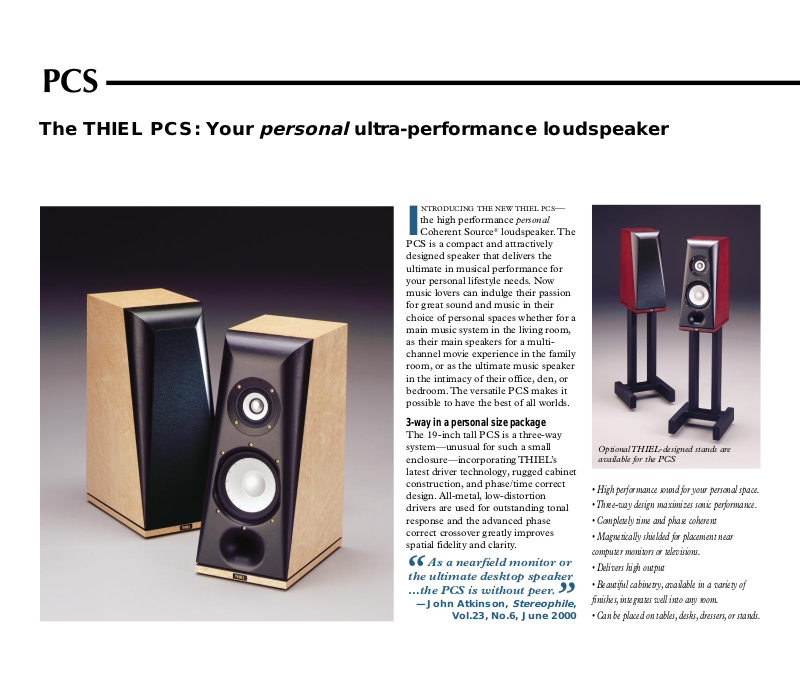

The THIEL PCS: Your
personal
ultra-performance loudspeaker
NTRODUCING THE NEW THIEL PCS—
the high performance personal
I
Coherent Source
PCS is a compact and attractively
designed speaker that delivers the
ultimate in musical performance for
your personal lifestyle needs. Now
music lovers can indulge their passion
for great sound and music in their
choice of personal spaces whether for a
main music system in the living room,
as their main speakers for a multichannel movie experience in the family
room, or as the ultimate music speaker
in the intimacy of their office, den, or
bedroom. The versatile PCS makes it
possible to have the best of all worlds.
3-way in a personal size package
The 19-inch tall PCS is a three-way
system—unusual for such a small
enclosure—incorporating THIEL’s
latest driver technology, rugged cabinet
construction, and phase/time correct
design. All-metal, low-distortion
drivers are used for outstanding tonal
response and the advanced phase
correct crossover greatly improves
spatial fidelity and clarity.
As a nearfield monitor or
the ultimate desktop speaker
“
…the PCS is without peer.
—John Atkinson,
Vol.23, No.6, June 2000
®
loudspeaker. The
Stereophile
”
Optional THIEL-designed stands are
available for the PCS
• High performance sound for your personal space.
• Three-way design maximizes sonic performance.
• Completely time and phase coherent
• Magnetically shielded for placement near
computer monitors or televisions.
• Delivers high output
• Beautiful cabinetry, available in a variety of
finishes, integrates well into any room.
,
• Can be placed on tables, desks, dressers, or stands.
Tweeter/Midrange coaxial array
One of the PCS’s most innovative design features
is a coaxial tweeter/midrange array where the two
drivers’ diaphragms share the
technique allows the elimination of the midrange/tweeter
section of the electrical
crossover network as the
drivers incorporate a
cal
driver mounting results in
perfect time coherence
regardless of listener position,
greatly improving imaging and
transient fidelity.
same
voice coil. This
mechani-
crossover. The coaxial
Woofer
The PCS’s 6.5-inch woofer
uses a metal diaphragm to
eliminate resonances in the
operating range for very
clear and open reproduction.
Expensive short coil/long
gap, copper-stabilized motor
systems in all the PCS
drivers dramatically reduce
distortion. The 2.5 pound
woofer magnet increases output capability and all
the PCS drivers are shielded to allow placement
near televisions and computer monitors.
The PCS’s sound performance is
virtually unbeatable …one of the best
“
systems we have seen.
—
Audiophile
(Hong Kong), February 2000
”
Award winning sound
• Consumer Electronics Show’s Innovations ’99
Design and Engineering Award winner
• Stereophile magazine’s Class C “Recommended
Component”
Cabinet construction
The compact, ported cabinet is built with a 2-inch thick
front baffle, 1-inch thick cabinet walls, and is internally
braced for extreme rigidity to reduce unwanted vibration,
improving clarity and spatial performance. The rounded
baffle’s shape reduces diffraction effects, also improving
transient and spatial performance, and its sloped front
correctly time aligns the coaxial driver with the woofer.
