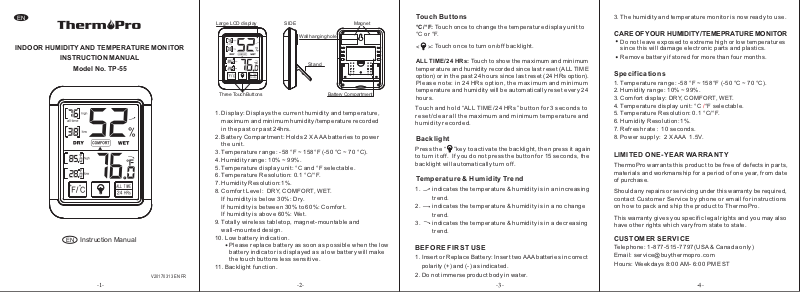

Thermopro TP-55 User Manual

EN		Magnet
Large LCD display	SIDE
		Wall hanging hole
INDOOR HUMIDITY AND TEMPERATURE MONITOR
INSTRUCTION MANUAL		Stand
Model No. TP-55
Three Touch Buttons		Battery Compartment

	1	.Display: Displays the current humidity and temperature,
		maximum and minimum humidity/temperature recorded
		in the past or past 24hrs.
	2	.Battery Compartment: Holds 2 X AAA batteries to power
		the unit.
	3	.Temperature range: -58 °F ~ 158°F (-50 °C ~ 70 °C).
	4.Humidity range: 10% ~ 99%.
	5	.Temperature display unit: °C and °F selectable.
	6	.Temperature Resolution: 0.1 °C/°F.
	7	.Humidity Resolution:1%.
	8.Comfort Level: DRY, COMFORT, WET.
		If humidity is below 30%: Dry.
		If humidity is between 30% to 60%: Comfort.
		If humidity is above 60%: Wet.
	9	.Totally wireless tabletop, magnet-mountable and
		wall-mounted design.
EN Instruction Manual	10.Low battery indication.
		Please replace battery as soon as possible when the low
		battery indicator is displayed as a low battery will make
		the touch buttons less sensitive.
	11.Backlight function.
	V20170313 EN FR
-1-		-2-

Touch Buttons

°C/°F: Touch once to change the temperature display unit to °C or °F.

<>: Touch once to turn on/off backlight.

ALL TIME/24 HRs: Touch to show the maximum and minimum temperature and humidity recorded since last reset (ALL TIME option) or in the past 24 hours since last reset (24 HRs option). Please note: in 24 HRs option, the maximum and minimum temperature and humidity will be automatically reset every 24 hours.

Touch and hold “ALL TIME/24 HRs” button for 3 seconds to reset/clear all the maximum and minimum temperature and humidity recorded.

Backlight

Press the “”key to activate the backlight, then press it again to turn it off. If you do not press the button for 15 seconds, the backlight will automatically turn off.

Temperature & Humidity Trend

1. indicates the temperature & humidity is in an increasing trend.

2. indicates the temperature & humidity is in a no change trend.

3. indicates the temperature & humidity is in a decreasing trend.

BEFORE FIRST USE

1.Insert or Replace Battery: Insert two AAA batteries in correct polarity (+) and (-) as indicated.

2.Do not immerse product body in water.

-3-

3.The humidity and temperature monitor is now ready to use.

CARE OF YOUR HUMIDITY/TEMEPRATURE MONITOR

Do not leave exposed to extreme high or low temperatures since this will damage electronic parts and plastics.

Remove battery if stored for more than four months.

Specifications

1.Temperature range: -58 °F ~ 158°F (-50 °C ~ 70 °C). 2.Humidity range: 10% ~ 99%.

3.Comfort display: DRY, COMFORT, WET.

4.Temperature display unit: °C /°F selectable.

5.Temperature Resolution: 0.1 °C/°F.

6.Humidity Resolution:1%.

7.Refresh rate 10 seconds.

8.Power supply: 2 X AAA 1.5V.

LIMITED ONE-YEAR WARRANTY

ThermoPro warrants this product to be free of defects in parts, materials and workmanship for a period of one year, from date of purchase.

Should any repairs or servicing under this warranty be required, contact Customer Service by phone or email for instructions on how to pack and ship the product to ThermoPro.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

CUSTOMER SERVICE

Telephone: [phone](USA & Canada only) Email: [e-mail]

Hours: Weekdays 8:00 AM- 6:00 PM EST

-4-
