Thermon Terminator ZP Installation Procedures Manual

TM
Terminator
ZP
Power Connection Kit
INSTALLATION PROCEDURES
For Power Connection, In-Line Splice Connection,
T-Splice Connection, or End Termination Applications
TerminatorTM ZP INSTALLATION PROCEDURES
Receiving, Storing and Handling . . .
1. Inspect materials for damage incurred during shipping.
2. Report damages to the carrier for settlement.
3. Identify parts against the packing list to ensure the proper type and quantity has been received.
4. Store in a dry location.
Kit Contents . . .
1
Item Quantity Description
1 1
2 1 Junction Box Lid
3 1 Junction Box Base with O-Ring
4 1 Nut
5 1 Banding
6 1 Banding Guide
7 1
8 1 Junction Box Cord
2
3
Expediter Assembly Support Cap with O-Ring Threaded Grommet Compressor Grommet Support Base with O-Ring
Terminal Blocks with DIN Rail (Refer to terminal specifications for maximum allowable wire size)
4
6
8
5
7
Order Separately . . . PETK Power and End Termination Kits (per cable)
PETK-1 for BSX, RSX, VSX PETK-2 for KSX, HTSX PETK-3 for HPT, FP
Dimensions . . .
Installation Precautions . . .
• To minimize the potential for arcing and fire caused by product damage or improper installation use ground-fault protection. The National Electrical Code (NEC) and Canadian Electrical Code (CEC) require ground-fault protection of equipment for each branch circuit supplying electric heat tracing.
• Installation must comply with Thermon requirements and be installed in accordance with the NEC, CEC, or any other applicable national and local codes.
• Component approvals and performance ratings are based on the use of Thermon specified parts only. User supplied power connection fittings must be listed or certified for intended use.
• Avoid electrostatic charge. Clean only with a damp cloth.
• De-energize all power sources before opening enclosure.
• Keep ends of heating cable and kit components dry before and during installation.
• Individuals installing these products are responsible for complying with all applicable safety and health guidelines. Proper personal protective equipment, or PPE, should be utilized during installation. Contact Thermon if you have any additional questions.
Tools Required . . .
1
2 64
Item Quantity Description
1 1 RTV Tube
2 1 Power Connection Boot
3 1 End Cap
4 1 Tape Strip 6" (PETK-3 only)
5 1 End Termination Caution Label
6 1 GRW-G Grommet (PETK-3 only)
7 1 Ground Sleeve
3 5
7
Certifications/Approvals . . .
IP66/Type 4X -60°C Ta +55°C Listed Heat Tracing Cable System 137M Ordinary & Hazardous Locations Class I, Division 2, Groups A, B, C, & D Class II, Division 2, Groups F & G, Class III Class I, Zone 1, AEx eb IIC T4-T6
09.2238691,-G,-S, Ex e IIC T4-T6 FMG 10.0022X Ex eb IIC T4-T6, Ex tb IIIC T135°C-T85°C
1725 II 2 GD Ex eb IIC T4-T6, Ex tb IIIC T135°C-T85°C FM 10ATEX0058X
TerminatorTM ZP INSTALLATION PROCEDURES

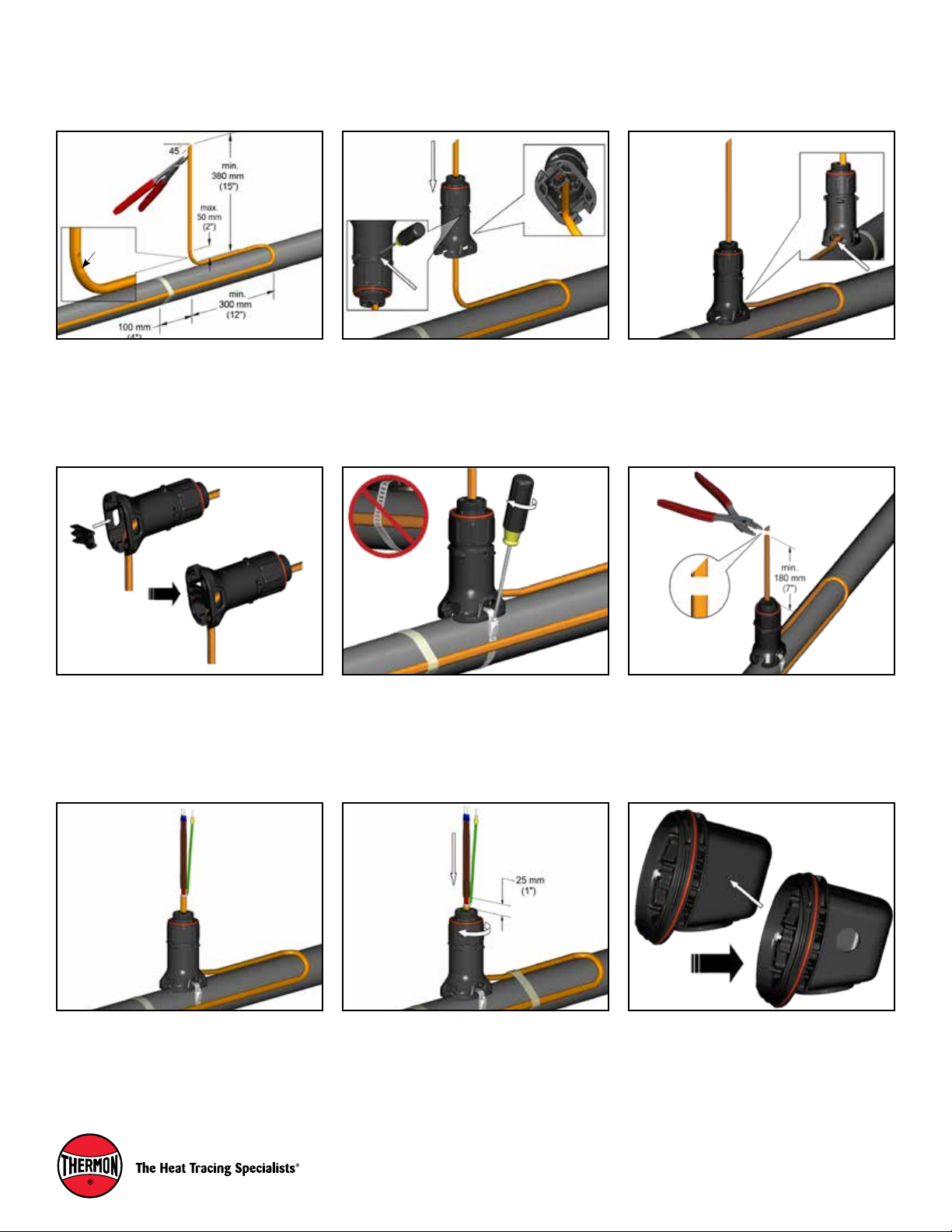

HPT and FP Only
Bus
Connection
1. Locate bus connection (HPT and FP only) and
cable as shown. Cut end of cable at angle to aid in piercing grommet. Leave additional cable for expansion loop. See page 5 for multiple cable installation tips.
4. Insert banding guide into expediter and snap into
place.
2. Insert cable into expediter. If mounted on
bottom or side of pipe, punch out weep hole. Note: For HPT and FP cable, exchange grommet
in Terminator with GRW-G provided in PETK-3.
5. Mount expediter to pipe using pipe band. Do not
band over cable.
3. Slide expediter toward pipe and route cable
through support base entry.
6. Cut off end of cable.
7. Terminate cable with appropriate P ETK termination
kit. Refer to PETK installation instructions.
8. Push excess cable back through expediter. Tighten
cap securely. Tape cable expansion loop to pipe.
9. For power connection applications: Use dimple
molded into side of junction box base to locate center of hole, drill for user supplied power connection fittings per manufacturer’s recommendations.
TerminatorTM ZP INSTALLATION PROCEDURES

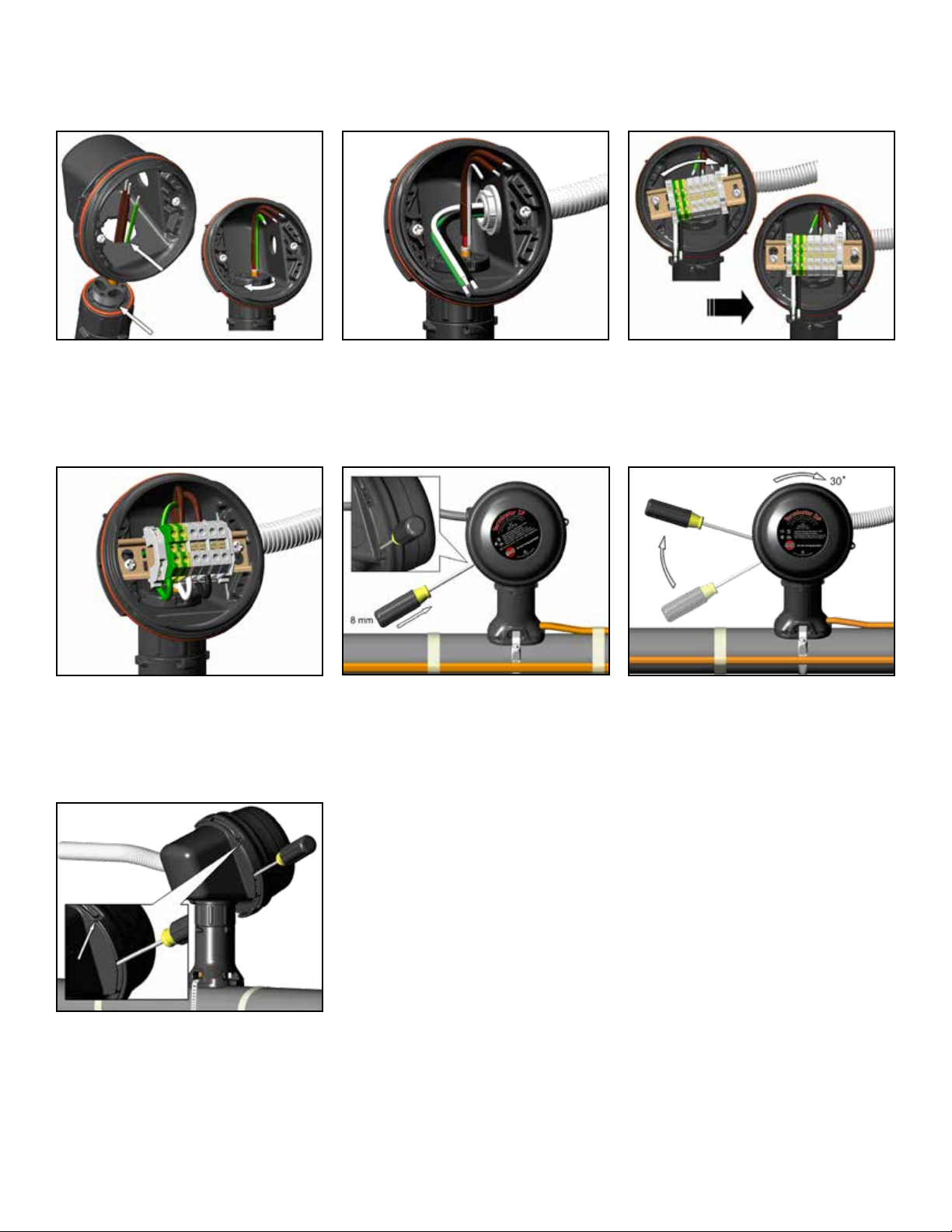

10. Mount junction box base on expediter. Make sure
to align slots to properly orient junction box base. Tighten nut securely.
13. Complete system wiring. Refer to typical wiring
details on page 5. Tighten terminal screws to a minimum torque value of 1.5 Nm (13.3 lb-in).
11. For power connection applications: Install power
connection fittings (user supplied) and pull in power and ground wires.
14. Install junction box lid and twist hand tight. Insert
screwdriver into ratchet slots located on side of junction box base.
12. Install quick mount terminal blocks.
15. Use screwdriver to ratchet on junction box lid. Lid
will rotate 30 degrees.
16. Lid latch mechanism fully engaged. To remove
lid, repeat steps 14 and 15 but in the opposite direction.
TerminatorTM ZP INSTALLATION PROCEDURES

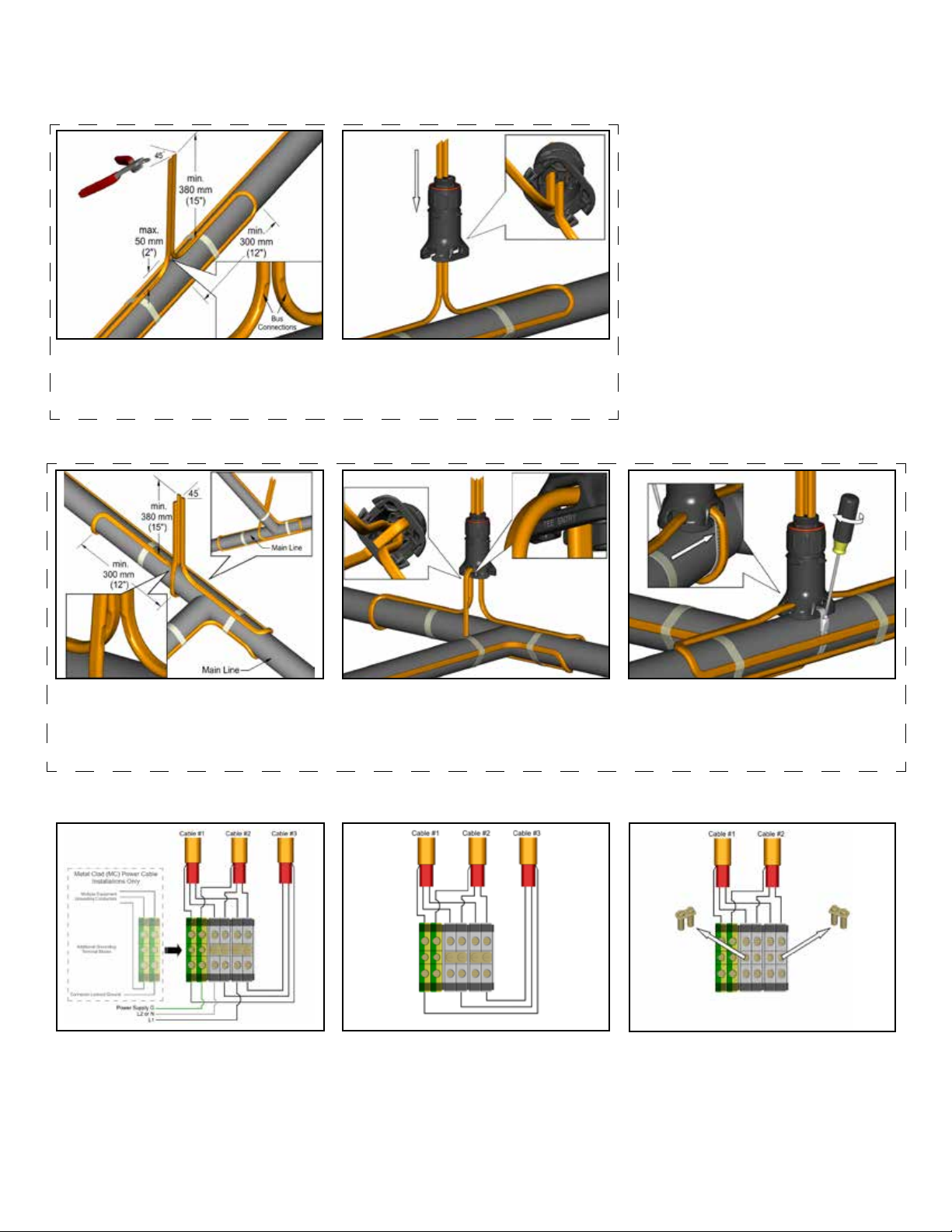

Two Cable Layout Tips
Locate bus connection (HPT and FP only) and cable as shown. Cut end of cable at angle to aid in piercing grommet. Leave additional cable for expansion loop.
Three Cable Layout Tips
Locate bus connection (HPT and FP only) and cable as shown. Cut end of cable at angle to aid in piercing grommet. Leave additional cable for expansion loop.
Insert two cables into expediter. Note: For HPT and FP cable, exchange grommet
in Terminator with GRW-G provided in PETK-3.
Insert three cables into expediter. Note: For HPT and FP cable, exchange grommet
in Terminator with GRW-G provided in PETK-3.
Mount expediter with three cables. Do not band over cable.
Typical Wiring Details
Power Connection (1 to 3 Cables). For 3 cable power connections, additional terminal blocks will be required when using 10mm2 (#8 AWG) power supply wiring.
In-Line Splice and T-Splice
End Termination (1 to 2 Heating Cables) Remove jumpers for 2 cable terminations.
THERMON . . . The Heat Tracing Specialists
®
100 Thermon Dr. • PO Box 609 • San Marcos, TX 78667-0609 Phone: 512-396-5801 • Facsimile: 512-396-3627 • 1-800-820-HEAT www.thermon.com In Canada call 1-800-563-8461
Specifications and information are subject to change without notice. Form No. 50845-0115
