TOWERCHRON QM1 and QM2
EN
Installation and user instructions
OFF
ON
2
Page 2
Safety Instructions �������������������������������������������������������������3 What is a programmer? �����������������������������������������������������4 General installation instructions ����������������������������������������� 5 Specications ��������������������������������������������������������������������5
“TOWERCHRON QM1” ������������������������������������6
Applications (QM1) ������������������������������������������������������������6 Programming your “TOWERCHRON QM1” ��������������������������7 Internal wiring diagram (QM1) �������������������������������������������8 Wiring installation instruction (QM1)�����������������������������������9
“TOWERCHRON QM2” ����������������������������������13
Applications (QM2) ����������������������������������������������������������13 Programming your “TOWERCHRON QM2” ������������������������14 Internal wiring diagram (QM2) �����������������������������������������15 Wiring installation instruction (QM2)���������������������������������16
2
Page 3
Safety Instructions
Danger! Risk of electric shock!
WARNING
• Installation must be carried out by a qualied electrician and conformed to current IEE Regulations!
• Mains supply must be suitably fused (usually 3 amps) and provision made for Class A circuit disconnection�
• Control is suitable for xed wiring only�
• If the unit is to be surface wired: – Remove backplate by slackening xing screw and separating plate and timeswitch� – Remove the knock out from the backplate and the timeswitch� – Screw backplate to wall with counter sunk number 8� (Wood screws using xing holes provided�)
• For switch mounting: – Use the centre two holes and x backplate to box using machine screws� – To ensure clearence for the down ap, ensure that there is a minimum of 4 cm clearance under the unit when mounted�
Connection and mounting must be performed by a professional electrician!
EN
3
Page 4
What is a programmer?
Programmers allow you to set ’On’ and ’Off’ time periods� Some models switch the central heating and domestic hot water on and off at the same time, while others allow the domestic hot water and heating to come on and go off at different times�
Set the ’On’ and ’Off’ time periods to suit your own lifestyle� On some programmers you must also set whether you want the heating and hot water to run continuously, run under the chosen ’On’ and ’Off’ heating periods, or be permanently off�
The time on the programmer must be correct� Some types have to be adjusted in spring and autumn at the changes between Greenwich Mean Time and British Summer Time�
You may be able to temporarily adjust the heating programme, for example, ’Override’, ’Advance’ or ’Boost’� These are explained in the manufacturer`s instructions�
The heating will not work if the room thermostat has switched the heating off� And, if you have a hot water cylinder, the water heating will not work if the cylinder thermostat detects that the hot water has reached the correct temperature�
4
Page 5
General installation instructions
Backplate
Fixing Screw
Terminal Block
Earth Terminal
N
L 1 2 3 4
Fixing Holes
Cable Knockout
The TOWERCHRON QM1 and QM2 are both double insulated so earth protection is not required� However in the backplate a terminal for earth continuity is provided which should be used if earth conductors are present in your cable� Make sure that the earth conductors are sleeved to prevent accidental contact with live parts�
GBEN
Specications
Installation double insulated
Rating 5 amps (2 amps) at 240
Fitting surface mounted or to a
Dimensions 156 x 85 x 42
Maximum ambient temperature
Type 1 action Micro disconnection
Pollution protection Normal pollution situation
volts 50 hertz
single gang plaster depth socket outlet
50° centigrade
Type 1B
5
Page 6
“TOWERCHRON QM1”
OFF
ON
6
Applications (QM1)
• Any simple time switching application
TIMED
OFF
CONST.
up to the stated rating�
• Domestic heating system where both heating and hot water services are required to switch ON and OFF at the same time�
• Controlling a “combi” or “combination boiler”�
Page 7

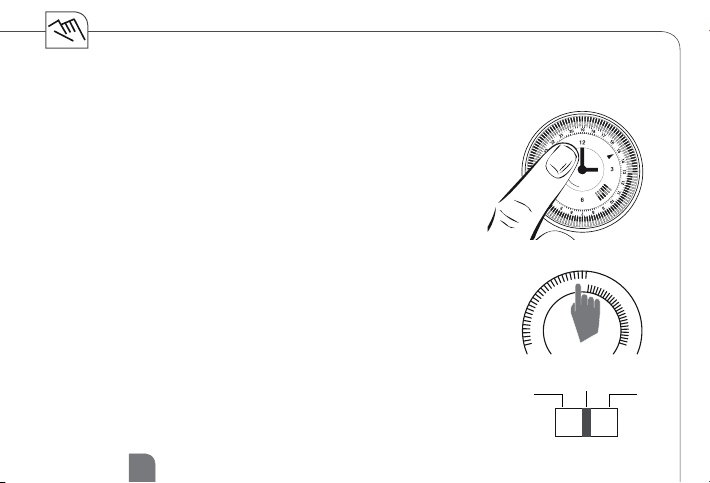

Programming your “TOWERCHRON QM1”
Setting time of day
Rotate the minute hand of the clock until the arrowhead in clock face aligns with the correct time on the outer dial, i�e� 8 = 8�00 a�m�, 14 = 2�00 p�m�

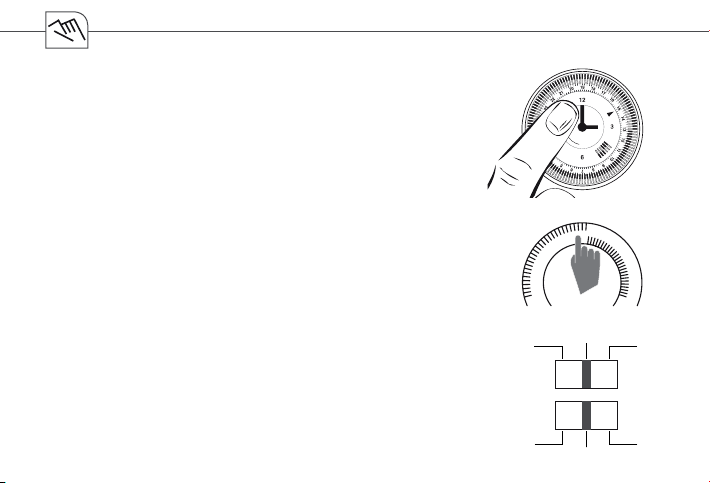

Setting ON/OFF times
Move all tappets between ON and OFF times required to outer position� The minimum switching time is 15 minutes� Set any other ON/OFF periods in a similar manner
Slide switches (under drop down cover)
Pull top edge of drop down cover to gain access to slide switch� The slide switch provide following functions: – OFF service off completely – TIMED service comes on between ON and OFF periods as set on tappets on clock face – CONST� service is on continuously
EN
OFF
TIMED
OFF
ON
OFFON
CONST.
7
Page 8

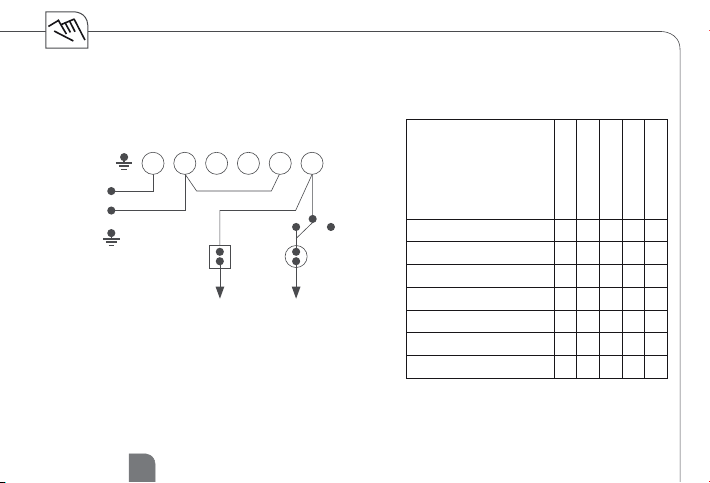

Internal wiring diagram (QM1)
=
~
N
L
1 2 3 4
OFF ON
• Carry out wiring installation using appropriate diagram as shown�
• When the TOWERCHRON QM1 timeswitch is to be used with a combination boiler, always refer to the boiler manufacturers instructions concerning electrical wiring before using the information contained in this leaet� In some cases the boilers manufacturers instructions will contain information regarding removal of certain link wires and will always indicate the fuse rating for the mains electrical supply�
• Plug in unit and secure to the base by tightening xing screw�
8
Page 9

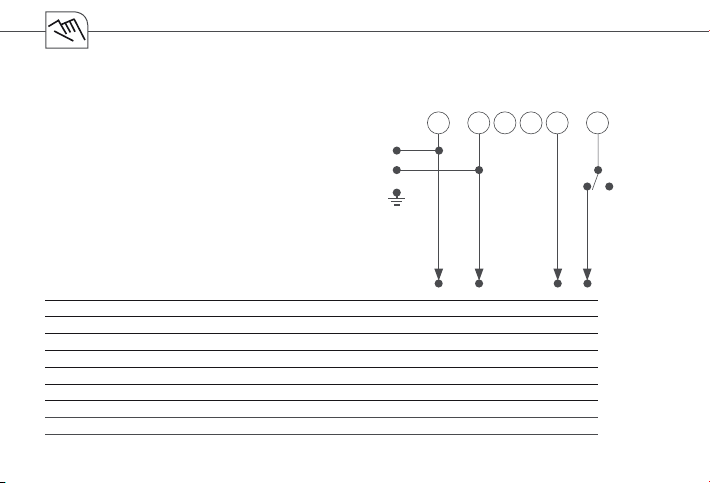

Wiring installation instruction (QM1)
Simple circuit for for domestic central heating boiler with gravity fed hot water supply
220/240V 50 Hz AC main supply
N L
1 2 3 4
boiler pump
neutral
room stat
D S
D = demand S = satisfy
neutral
This diagram is correct for mains operated systems� The link wire L-3 must be tted by the installer�
TOWERCHRON QM1 is ideally suited for controlling combination boilers� The following basic circuit diagrams apply for the range indicated�
EN
Room stat conversation chart
EEN4C
O
M
TOWER SS
1 TOWER SSTRS E 4 1 3 ACL TS 142 E 4 1 2 DRAYTON RTE E 4 1 2 3 HONEYWELL T 6160B 2 1 3 4 LANDIS&GYR RAD 5 4 6 2 SWITCHMASTER SRT2 5 1 3 2 SUNVIC TLX2259 E 4 3 1
D
S
E
A
M
T
2
9
Page 10
Important note:
It is important that you always refer to the Boiler Manufacturers Instructions concerning electrical wiring before using the information contained in this leaet� In some cases the Boiler Manufacturers Instructions will contain information
220-240V AC 50 Hz FUSED SUPPLY
regarding removal of certain link wires and will always indicate the fuse rating for the main electrical supply�
Combination Boiler Model
Chaffoteux Celtix 2�20 OFF N PH 7 6 FIM Leblanc GVM 420 see special circuit Glowworm Fuelsaver N L 8 7 Ravenheat N L C D Saunier Duval SD 620 F N L 2 3 Saunier Duval SD 123C N L 2 1 Saunier Duval SD 235C N L 2 1 Saunier Duval SD 135C N L 2 1
10
QM1 Terminals
N
L 1 2 3 4
room stat
D S
D = demand S = satisfy
Page 11
Saunier Duval SD 625M see special circuit Vaillant VCW 20/1 T3W 1MP 2R 3 4 Vaillant VCW 25/1 T3W 1MP 2R 3 4 Vaillant VCW Sine 18 T3W 1MPN2R
Vaillant VCW GB 182 EH 1 2 3 4 Vaillant VCW GB 242 EH 1 2 3 4 Vokera 18/72 MCF N L 4 5 Vokera 21/84 MCF N L 4 5 Vokera 21/84 TURBO N L 4 5 Vokera 18/72 DMCF N L 3 4 Vokera 21/84 DMCF N L 3 4 Vokera 21/84 DC TURBO N L 3 4 Vokera 20/80 RS TURBO N L 3 4 Worcester Heatslave Senior 12 N L 2 4 Worcester Heatslave Senior 20430 N L 2 4 Worcester Heatslave Senior 6 N L 2 6 Worcester Heatslave 9-24 RSF N L 1 2 Worcester Heatslave 9-24 BF N L 1 2 Worcester Heatslave 9-24 OF N L 1 2 Worcester Heatslave High Flow BF N L 2 2 Worcester Heatslave High Flow OF N L 2 3
EN
L
Boiler Terminal Numbers
3 4
11
Page 12

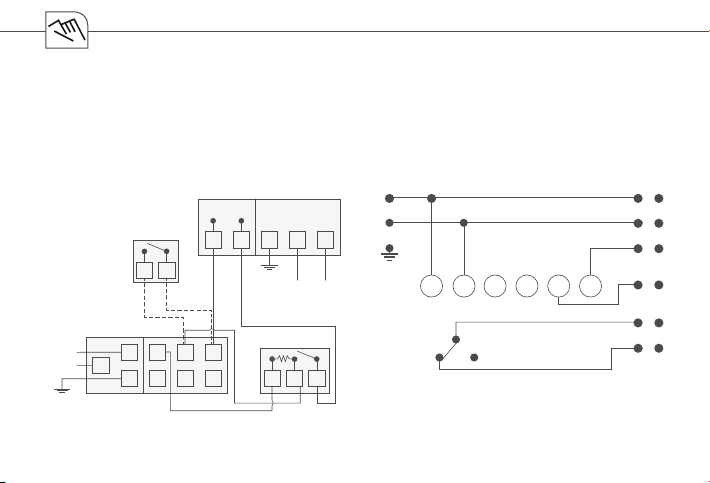

Saunier Duval SD625M
Always use special 24V thermostat supplied with this boiler, and wire as indicated in boiler instructions substituting time switch terminals A and B for terminals 3 and 4 respectively on QM1�
Elm Leblanc GVM 420Boiler with timeswitch and room thermostat
220/240V
50 Hz AC
main supply
room stat
N
COM�
D
D = demand S = satisfy COM = common
boiler terminals
1L 2 3 4
S
frost protection thermostat (if required)
240V 3 AMP fused supply
L
boiler connection box
12
timeswitch
E NLBA
J
1
N
E
342
6
5
ground
240V 3 AMP fused supply
thermostat
CKD H
N
L
Page 13
“TOWERCHRON QM2”
OFF
ON
CH
TIMED
OFF
OFF
HW
CONST.
CH
HW
CONST.
TIMED
• Fully pumped central heating systems using mid position valves, spring return valves or “power open”, “power closed” valves�
• Gravity hot water, pumped heating systems with or without motorised valves tted into the domestic hot water primary circuit�
• Unit, as supplied is suitable for gravity hot water systems� For use on pumped primary systems, separate the backplate from the unit by slackening the securing screw and remove the red pin in the back of the programmers chassis�
Applications (QM2)
EN
13
Page 14
Programming your “TOWERCHRON QM2”
OFF
CH
TIMED
CONST.
Setting time of day
Rotate the minute hand of the clock until the arrowhead in clock face aligns with the correct time on the outer dial, i�e� 8 = 8�00 a�m�, 14 = 2�00 p�m�
Setting ON/OFF times
Move all tappets between ON and OFF times required to outer position� The minimum switching time is 15 minutes� Set any other ON/OFF periods in a similar manner

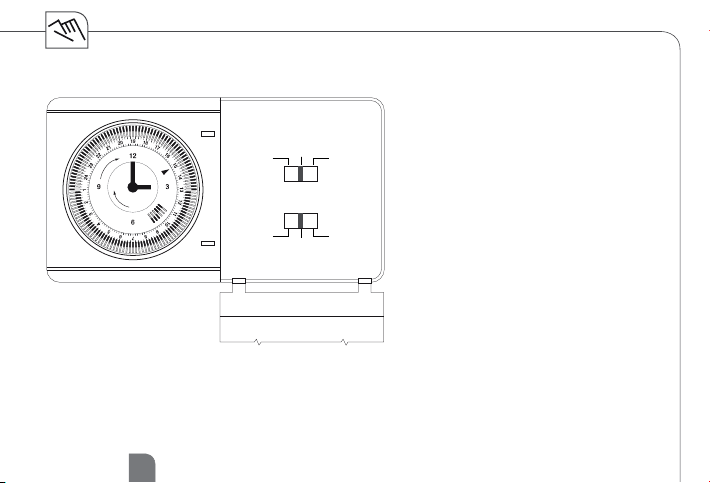

Slide switches (under drop down cover)
Pull top edge of drop down cover to gain access to slide switches� Two switches are provided, one for heating, the other for hot water� Depending on system installed, each switch provides following functions: – OFF service off completely – TIMED service comes on between ON and OFF periods as set on tappets on clock face – CONST� service is on continuously
14
OFF
OFF
TIMED
TIMED
OFF
ON
OFFON
CONST.
CH
HW
CONST.
Page 15

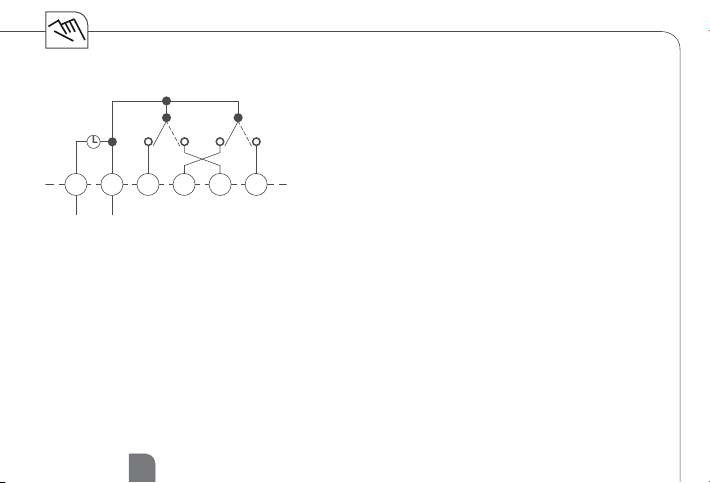

Internal wiring diagram (QM2)
N L
220/240V
AC 50 Hz fused 3A
1 2 3 4
HW OFFCHOFFHWONCHON
• Carry out wiring installation using appropriate diagram as shown�
• Plug in unit and secure to the base by tightening xing screw�
EN
15
Page 16
Wiring installation instruction (QM2)
Gravity Hot Water / Pumped Heating - System with Room Stat to Control Pump
• With the above system, the following combination can not be selected on the slide switches:
– Heating TIMED, hot water off – Heating CONST, hot water off – Heating CONST, hot water timed
• Fully pumped systems
– Remove red pin (see applications
TOWERCHRON QM2)
EARTH NEUTRAL LINE
BOILER SWITCHED LIVE
REFER TO BOILER MANUFACTURER INSTRUCTIONS
TOWERCHRON QM2
N L 1 2 3 4
N
N
ROOMSTAT
EARTH NEUTRAL COMMON DEMAND
PUMP EARTH
NEUTRAL LINE
The following wiring diagrams are schematic only (for clarity the earth and neutral connections are omitted)� We suggest when wiring systems a suitable wiring centre is used (the Tower Controls wiring centre is purpose made and gives full information for wiring this programmer into systems using compatible equipment)�
16
Page 17
Gravity Hot Water / Pumped Heating System - Two Port Valve in D�H�W� with Room and Cylinder Stats
Note: Only valves with “change over“ end switches are suitable�
TOWERCHRON QM2
N L 1 2 3 4
EARTH NEUTRAL LINE
CYLINDER STAT EARTH
COMMON DEMAND
VALVE GREEN/YELLOW
BLUE BROWN GREY WHITE ORANGE
N
ROOMSTAT
EARTH NEUTRAL
N
COMMON DEMAND
PUMP EARTH
N
NEUTRAL LINE
BOILER SWITCHED LIVE
REFER TO BOILER MANUFACTURER
EN
17
Page 18
Fully Pumped System using 2 Port Spring Return
Fully Pumped System using 3 Port Mid-Position Valve
220-240V 50HZ main fused 3 AMP
EARTH NEUTRAL LINE
HEATING VALVE GREEN/YELLOW
BLUE BROWN WHITE or GREY BLACK or ORANGE
HOT WATER VALVE GREEN/YELLOW
BLUE BROWN WHITE or GREY BLACK or ORANGE
18
TOWERCHRON QM2
E
N
N
N
L 1 2 3 4
ROOMSTAT
EARTH NEUTRAL
N
COMMON DEMAND
CYLINDERSTAT EARTH
COMMON SATISFIED DEMAND
PUMP LINE
N
NEUTRAL EARTH
BOILER SWITCHED LIVE
REFER TO BOILER MANUFACTURER INSTRUCTIONS
TOWERCHRON QM2
220-240V 50HZ main fused 3 AMP
EARTH NEUTRAL LINE
MID-POSITION VALVE * GREEN/YELLOW
BLUE WHITE or BROWN GREY ORANGE
BOILER SWITCHED LIVE
REFER TO BOILER MANUFACTURER INSTRUCTIONS
* TOWER MP322C ACL 697B340 DRAYTON FLOW SHARE 2
E
N
N
L 1 2 3 4
ROOMSTAT
EARTH NEUTRAL
N
COMMON DEMAND
CYLINDERSTAT EARTH
COMMON SATISFIED DEMAND
PUMP LINE
N
NEUTRAL EARTH
HONEYWELL V4073A LANDIS & GYR SK 3L SUN VIC SD 1701
Page 19
Conversion Chart for different Room / Cylinder Thermostats
Cylinder Stats Room Stats
E C
D
S
O
E
A
M
M
T TOWER CS1 ACL HTS 2 DRAYTON CS1 E 1 2 3 HONEYWELL L641 A C 1 2 LANDIS&GYR RAM 21 1 2 3 SWITCHMASTER SCT 1 2 3 SUNVIC SA 2451 E 3 1 2
RED
BLK
YEL
TOWER SS E 4 1 2 TOWER RS E 4 1 3 ACL TS 142 E 4 1 2 DRAYTON RTE E 4 1 2 3 HONEYWELL T 6160B 2 1 3 4 LANDIS&GYR RAD 5 4 6 2 2 SWITCHMASTER SRT2 5 1 3 SUNVIC TLX2259 E 4 3 1
E N C
D
S
O
E
A
M
M
T
EN
19
