12

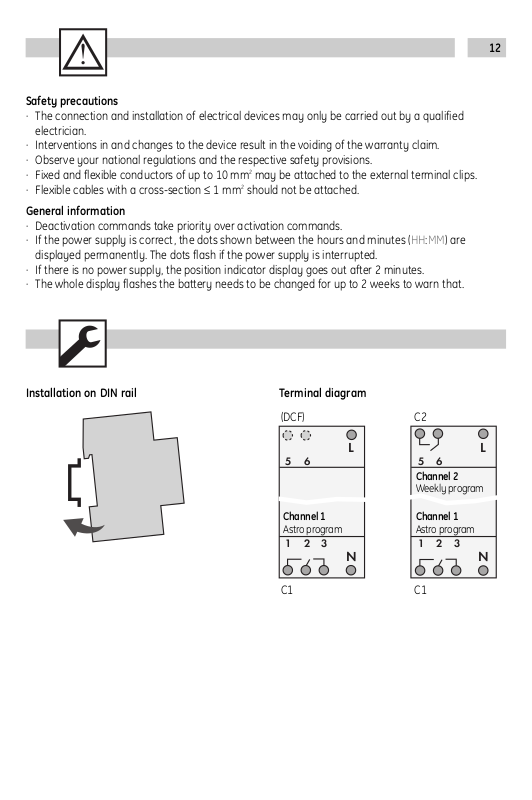

Safety precautions
· The connection and installation of electrical devices may only be carried out by a qualified
electrician.
·Interventions in and changes to the device result in the voiding of the warranty claim.
· Observe your national regulations and the respective safety provisions.
· Fixed and flexible conductors of up to 10 mm
2
may be attached to the external terminal clips.
· Flexible cables with a cross-section ≤ 1 mm
2
should not be attached.
General information
· Deactivation commands take priority over activation commands.
· If the power supply is correct, the dots shown between the hours and minutes (HH:MM) are
displayed permanently. The dots flash if the power supply is interrupted.
· If there is no power supply, the position indicator display goes out after 2 minutes.
· The whole display flashes the battery needs to be changed for up to 2 weeks to warn that.
Installation on DIN rail Terminal diagram
C1
C2(DCF)
C1
Channel 2
Weekly program
Channel 1
Astro program
Channel 1
Astro program
56
123
L
N
56
123
L
N
13
GB
OK
reset
Display
A Function displays of the two left-hand
buttons
B Channel status displays
= Channel 1 ON
= Channel 1 OFF
Channel 1 = C1, Channel 2 = C2
C 3 communication lines for time display,
menu items, entry prompts etc.
D Day-of-week display
E Overview of daily switching program
F Radio antenna
G Display of summer/winter time
H Operating voltage (permanently lit dots)
Reserve power operation (dots fl ash)
I Function displays of the two right-hand
buttons
Buttons
J Reset
The programs are retained in the case of a
reset. The date and time must be set again.
Press reset button with a blunt object (pen).
K Right-hand buttons
L Left-hand buttons with manual switch
function in Automatic mode
General information
· The middle communication line shows the
selectable menu item. If confirmed with OK,
this item is activated.
· Flashing texts or symbols require an entry.
· If no entries are made within the next
2 minutes, the clock reverts to Auto mode.
Function displays of the two left-hand
buttons:
scroll up in menu
scroll down in menu
Select/reject suggestion
Select/accept suggestion
+Pressing briefly = +1
Pressing long (approx. 2 sec) = +5
-Pressing briefly = -1
Pressing long (approx. 2 sec) = -5
Function displays of the two right-hand
buttons:
MENU Exits the Automatic mode and enters
the Programming mode
ESC Pressing briefly = one step back
Pressing long (approx. 2 sec) = return
to Automatic mode
OK Make selection and apply
EDT Change request in Read mode
NO Do not execute command
YES Execute command
DEL Delete
16121824
D
C1
C
15:26:38
B
A
1
MENU
Res.
E
F
G
H
I
J
K
L
1.
14
Info
In the delivered state the time switch is in the
Auto mode with a preset time, date and the
menu language English.
Initial start-up - selection of menu language
16121824
C1
15:26:38
1
Res.
MENU
MENU
12H 24H
LANGUAGE
ESC
DATETIME
ESC OK
Prog.
16121824
C1
15:26:38
1
MENU
DATETIME
PROGRAM
MENU
DAYLIGHT
Res.
ESC OK
OK
DEUTSCH
ENGLISH
OK
FRANCAIS
REVIEW
NEW
DELETE
ESC
ESC OK
DEUTSCH
ENGLISH
OK
OK
FRANCAIS
ESC OK
15
GB
Info
·Once the co-ordinates (longitude/latitude) of
the site have been entered, the astro program
automatically calculates the daily time of
sunrise and sunset. ON command at sunset .
OFF command at sunrise.
· The activation and deactivation times can be
shifted +/- 90 minutes in one-minute
increments using the OFFSET function.
This is used to adapt to local circumstances
etc.
· The astro program cannot be deleted. It can
only be deactivated using the manual switch
or changed by entering new coordinates for
longitude/latitude etc.
· The activation and deactivation times are
recalculated every day. The program cannot
therefore be read.
· The activation and
deactivation times can
be read off from the
overview of the daily
switching program (D)
or upon completion of
programming and once
confirmed by pressing
OK.
Prog.

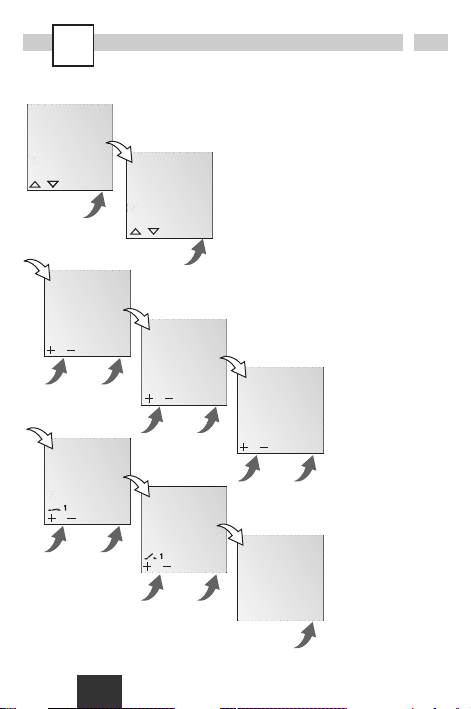

Astro program
max. +90 minutes
min. - 90 minutes
REVIEW
NEW
OK
DELETE
ESC OK
LONGIT
- 009
MINUTES
+00
OK
OFFSET
ESC OK
ESC OK
WEEKLY
ASTRO
OK
LATITUDE
+ 51
MINUTES
+00
OFFSET
ESC OK
ESC OK
ESC OK
HOURS
+01
TIMEZONE
ESC OK
OFF 08:05
ON 21:31
OK
Prog.
16
Aberdeen +2 +57
Belfast +6 +55
Birmingham +2 +52
Brighton +0 +51
Cardiff +3 +51
Cork +8 +52
Coventry +2 +52
Dublin +6 +53
Dundee +3 +56
Edinburgh +3 +56
Galway +9 +53
Glasgow +4 +56
Inverness +4 +57
Ipswich -1 +52
Kilkenny +7 +53
Leeds +2 +54
Site Longitude Latitude
Limerick +9 +53
Liverpool +3 +53
London +0 +52
Londonderry +7 +55
Newcastle +2 +55
Norwich -1 +53
Nottingham +1 +53
Oxford +1 +52
Plymouth +4 +50
Sheffield +1 +53
Southampton +1 +51
Southend -1 +52
Stoke +2 +53
Swansea +4 +52
Waterford +7 +52
York +1 +54
Site Longitude Latitude
Definition of location: http://www.multimap.com
Longitude
Latitude
+59
+58
+57
+56
+55
+54
+53
+52
+51
+50
For time zones, see overview
+10 +9 +8 +7 +6 +5 +4 +2 +1 0 -1 -2
Belfast
Dublin
Cork
+3+11
Aberdeen
Glasgow
Edinburgh
Leeds
Liverpool
Birmingham
Cardiff
London
Plymouth
17
GB
Prog.

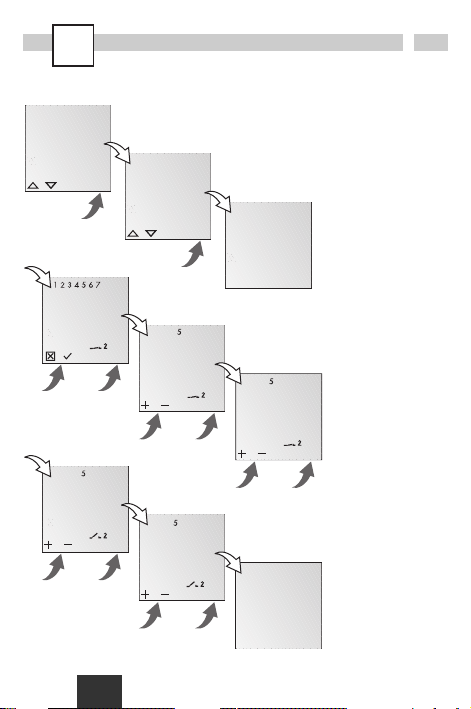

Weekly program (only with 2-channel version)
Info
The time switch has 50
memory spaces.
Example
ON command for channel
2 at 3 pm. OFF command
at 6 pm.
· Select NEW program
and confirm with OK.
· Select WEEKLY and
confirm with OK.
· The free memory spaces
are briefly displayed.
· Select day block or
individual day (block
formation as desired)
and confirm with OK.
· Enter hour for ON
command (+/-) and
confirm with OK.
· Enter minute for ON
command (+/-) and
confirm with OK.
· Enter hour for OFF
command (+/-) and
confirm with OK.
· Enter minute for OFF
command (+/-) and
confirm with OK.
·Program is saved.
·Program jumps to
selection REVIEW, NEW,
DELETE. Now additional
programs can be
created.
REVIEW
NEW
OK
DELETE
ESC OK
ASTRO
WEEKLY
OK
ESC OK
SELECT
DAY
OK
CHL ON
ESC OK
HOURS
00
CHL ON
ESC OK
HOURS
00
OK
CHL OFF
ESC OK
MINUTES
18:00
CHL OFF
ESC OK
FREE 50
OK
MINUTES
15:00
CHL ON
SAVED
P01 P02
ESC OK
Prog.
18

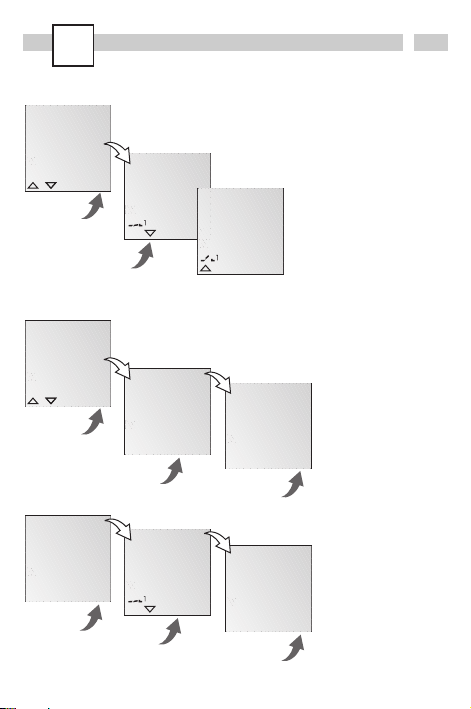

View, edit program
Info
·The program steps can
be scrolled through
with ▼ ▲.
· The respective program
can be edited by
pressing EDT.
The procedure is the
same as when creating
a new program.
Info
· It is possible to delete all
programs with YES
· By pressing NO,
individual programs
can be deleted.
Delete all programs
Delete individual programs
Info
When deleting individual
programs, all associated
program steps are deleted
(e.g. P01 ON and P02 OFF).
DELETE
REVIEW
OK
NEW
ESC OK
ON P01
15:00
OK
HH:MM
NEW
DELETE
OK
REVIEW
DELETE
ALL
OK
ESC OK
YES NO
DELETE
ALL
OK
ON P01
15:00
OK
HH:MM
OFF P02
18:00
EDT OK
OK
HH:MM
YES NO
DEL OK
EDT OK
CONFIRM
OK
CONFIRM
OK
YESNO
YESNO
19
GB
Set date and time
Set AM/PM (12-hour-) or 24-hour display
Info
The date and time are preset at the factory.
LANGUAGE
DATETIME
OK
PROGRAM
ESC OK
YEAR
2004
OK
ESC OK
HOURS
13
OK
ESC OK
MINUTES
13:45
ESC OK
DAYLIGHT
12H 24H
OK
LANGUAGE
ESC OK
AM PM
24H
OK
ESC OK
MONTH
2004:03
ESC OK
DAY
2004:03:25
ESC OK
20
Switchover for summer/winter time
Info
The following settings are
possible:
AUTO
Factory presetting of the
published calendar dates.
This is automatically
recalculated for each year.
NO
No switchover
CALIBRAT
Programming. The start
date of the summer time
and winter time must be
entered for this purpose.
The factory presetting is
overwritten.
The programmed
summer/ winter time is
automatically recalculated
for each year.
The changeover takes
place on the same
specified day of the week
in the same week of each
month.
Example
03/21 Start summer time
10/31 Start winter time
PROGRAM
DAYLIGHT
OK
12H 24H
ESC OK
CALIBRAT
AUTO
OK
NO
NO
CALIBRAT
OK
AUTO
ESC OK
SU START
03
MONTH
WI START
10
MONTH
ESC OK
WI START
10:31
DAY
ESC OK
ESC OK
ESC OK
SU START
03:21
DAY
ESC OK
SU WI
2103:3110
CALIBRAT
ESC OK
21
GB

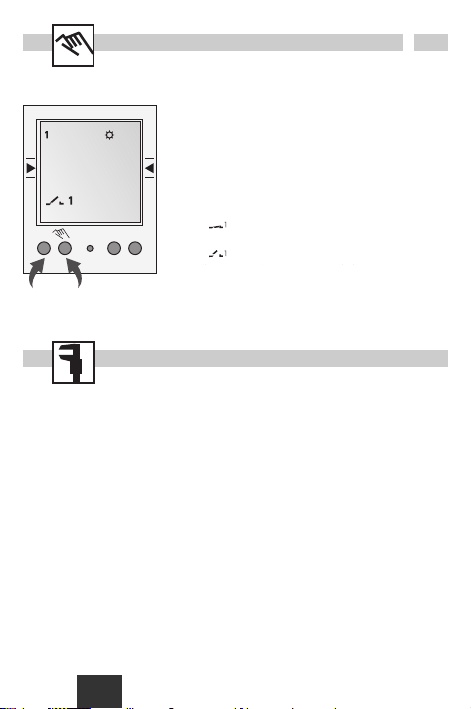

Operating mode
Info
Left-hand button = Channel 1
Right-hand button = Channel 2 (only with
2-channel version)
Press 1 x = FIX ON = continuous ON
Press 2 x = FIX OFF = continuous OFF
Press 3 x = return to Auto mode
Technical Data
Dimensions H x W x D 45 x 35 x 60 mm
Weight g (approx.) 170
Supply voltage see imprint on device
Power consumption 5 VA
Switching capacity
- ohmic load
(VDE, IEC) 16 A/250 VAC
- inductive load
cos
ϕ 0.6 8 A/250 VAC
- Incandescent
lamp load 1,000 W
Switching output potential-free
Switch contacts 1 or 2 changeover
contact(s)
Ambient temperature -13°F to 131°F (25°C
to +55°C)
Protection class II
Accuracy typ. ±2.5 s/day
at 68°F (20°C)
Reserve power 3 years from factory
at +20°C (20°C)
Shortest switching time 1 min.
Memory spaces 50
Block formation of
day of the week fixed/free selection
Switching status
display yes
Sealable yes
(no display) programmed switching times
16121824
C1
15:26:38
MENU
1
Res.
FIX ON:
FIX OFF:
AUTO: (keine Anzeige) programmierte Schaltzeiten
FIX
FIX
