Safety precautions
· The connection and installation of electrical devices may only be carried out by a qualified
electrician.
· Interventions in and changes to the device result in the voiding of the warranty claim.
· Observe your national regulations and the respective safety provisions.
· Fixed and flexible conductors of up to 10 mm
2
may be attached to the external terminal clips.
· Flexible cables with a cross-section ≤ 1 mm
2
should not be attached.
General information
· Deactivation commands take priority over activation commands.
· If the power supply is correct, the dots shown between the hours and minutes (HH:MM) are
displayed permanently. The dots flash if the power supply is interrupted.
· If there is no power supply, the position indicator display goes out after 2 minutes.
· The whole display flashes the battery needs to be changed for up to 2 weeks to warn that.
Installation on DIN rail Terminal diagram
C1
C2
C1
567
L
56
L
123
N
123
N
3
GB
OK
reset
Display
A
Function displays of the two left-hand
buttons
B Channel status displays
= Channel 1 ON
= Channel 1 OFF
Channel 1 = C1, Channel 2 = C2
C 3 Communication lines for time display,
Menu items, entry prompts etc.
D Day-of-week display
E Overview of daily switching program
F Display of summer/winter time
G Operating voltage (permanently lit dots)
Reserve power operation (dots flash)
H Function displays of the two right-hand
buttons
Buttons
I Reset
The programs are retained in the case of a
reset. The date and time must be set again.
Press reset button with a blunt object (pen).
J Right-hand buttons
K Left-hand buttons with manual switch
function in Automatic mode
General information
· The middle communication line shows the
selectable menu item. If confirmed with OK,
this item is activated.
· Flashing texts or symbols require an entry.
· If no entries are made within the next
2 minutes, the clock reverts to auto mode.
Function displays of the two left-hand
buttons:
scroll up in menu
scroll down in menu
Select/reject suggestion
Select/accept suggestion
+ Press briefly = +1
Press and hold (approx. 2 sec) = +5
- Press briefly = -1
Press and hold (approx. 2 sec) = -5
Function displays of the two right-hand
buttons:
MENU Exits the Automatic mode and enters
the Programming mode
ESC Press briefly = one step back
Press and hold (approx. 2 sec) = return
to Automatic mode
OK Make selection and apply
EDT Change request in Read mode
NO Do not execute command
YES Execute command
DEL Delete
16121824
D
C1
C
15:26:38
B
A
MENU
1
Res.
E
F
G
H
I
J
K
4
1.
Info
In the delivered state the time switch is in the
Auto mode with a preset time, date and the
menu language English.

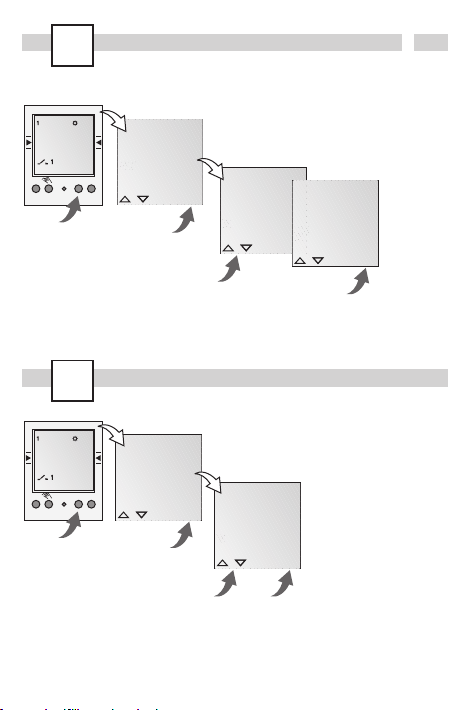

Initial start-up - selection of menu language
16121824
C1
15:26:38
1
Res.
MENU
MENU
12H 24H
LANGUAGE
ESC
DATETIME
ESC OK
Prog.
16121824
C1
15:26:38
1
MENU
DATETIME
PROGRAM
MENU
DAYLIGHT
Res.
ESC OK
OK
SVENSKA
ENGLISH
OK
NORSK
REVIEW
NEW
DELETE
ESC
ESC OK
SVENSKA
ENGLISH
OK
OK
NORSK
ESC OK
5
GB
Prog.

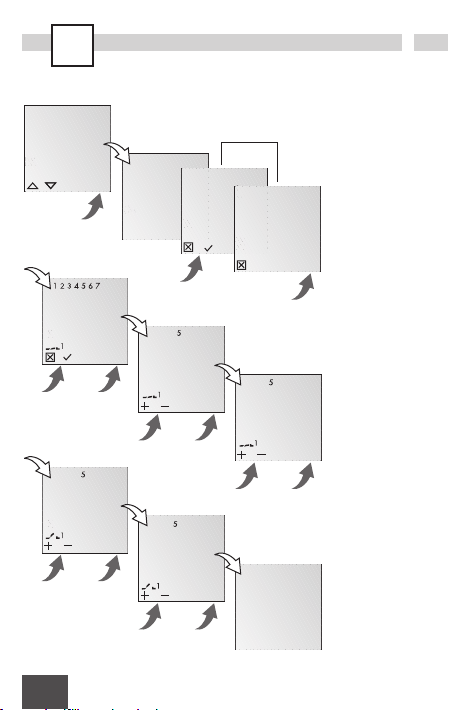

New program
Info
The time switch has 50
memory spaces.
Example
ON command for channel
1 at 3 pm. OFF command
at 6 pm.
· Select NEW program
and confirm with OK.
· The free memory spaces
are briefly displayed.
· Select channel and
confirm with OK.
· Select day block or
individual day (block
formation as desired)
and confirm with OK.
· Enter hour for ON
command (+/-) and
confirm with OK.
· Enter minute for ON
command (+/-) and
confirm with OK.
· Enter hour for OFF
command (+/-) and
confirm with OK.
· Enter minute for OFF
command (+/-) and
confirm with OK.
· Program is saved.
· Program jumps to
selection REVIEW, NEW,
DELETE. Now additional
programs can be
created.
only with 2-channel version
REVIEW
NEW
OK
DELETE
SELECT
DAY
OK
CHL ON
HOURS
OK
CHL OFF
ESC OK
ESC OK
00
ESC OK
FREE 50
OK
HOURS
CHL ON
MINUTES
18:
CHL OFF
CHANNEL
SELECT
CHANNEL
OK
I
SELECT
OK
I
ESC
00
MINUTES
ESC OK
15:00
CHL ON
00
SAVED
ESC OK
P01 P02
ESC OK
ESC OK
6
Prog.

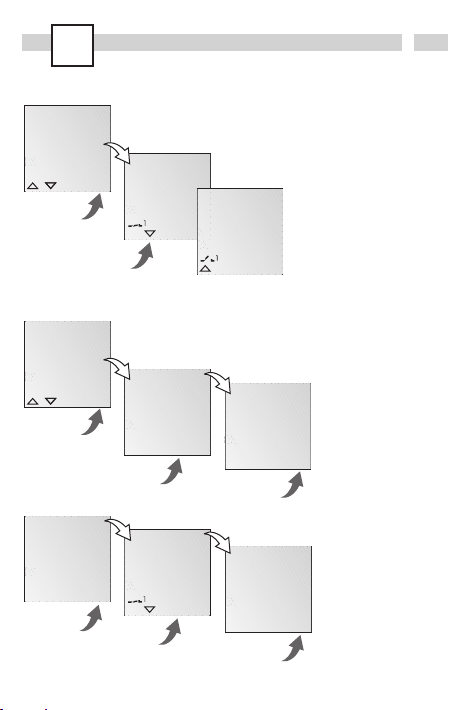

View, edit program
Info
· The program steps can
be scrolled through
with .
· The respective program
can be edited by
pressing EDT.
The procedure is the
same as when creating
a new program.
Info
· It is possible to delete all
programs with YES
· By pressing NO,
individual programs
can be deleted.
Delete all programs
Delete individual programs
Info
When deleting individual
programs, the corresponding program steps
are deleted (e.g. P01 ON
and P02 OFF).
DELETE
REVIEW
OK
NEW
ESC OK
ON P01
15:00
OK
HH:MM
NEW
DELETE
OK
REVIEW
DELETE
ALL
OK
ESC OK
YES NO
DELETE
ALL
OK
ON P01
15:00
OK
HH:MM
OFF P02
18:00
EDT OK
OK
HH:MM
YES NO
DEL OK
EDT OK
CONFIRM
OK
CONFIRM
OK
YESNO
YESNO
7
GB

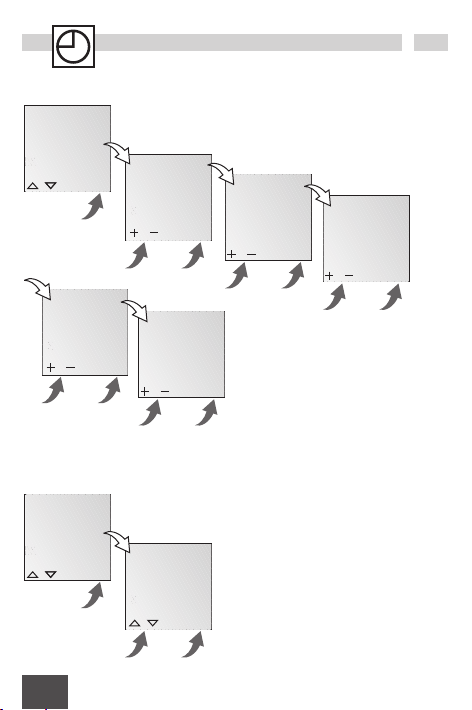

Set date and time
Set AM/PM (12-hour) or 24-hour display
Info
The date and time are preset at the factory.
LANGUAGE
DATETIME
OK
PROGRAM
ESC OK
YEAR
20
OK
04
ESC OK
HOURS
13
OK
ESC OK
MINUTES
13:45
ESC OK
DAYLIGHT
12H 24H
OK
LANGUAGE
ESC OK
AM PM
24H
OK
ESC OK
MONTH
2004:
03
DAY
2004:03:
ESC OK
ESC OK
25
8

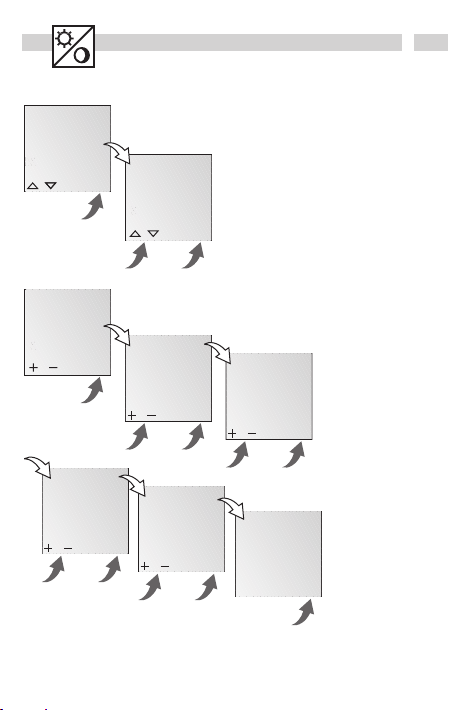

Switchover for summer/winter time
Info
The following settings are
possible:
AUTO
Factory presetting of the
published calendar dates.
This is automatically
recalculated for each year.
NO
No switchover
CALIBRAT
Programming. The start
date of the summer time
and winter time must be
entered for this purpose.
The factory presetting is
overwritten.
The programmed
summer/ winter time is
automatically recalculated
for each year.
The changeover takes
place on the same
specified day of the week
in the same week of each
month.
Example
03/21 Start summer time
10/31 Start winter time
PROGRAM
DAYLIGHT
OK
12H 24H
ESC OK
CALIBRAT
AUTO
OK
NO
NO
CALIBRAT
OK
AUTO
ESC OK
SU START
03
MONTH
WI START
10
MONTH
ESC OK
WI START
10:
DAY
ESC OK
ESC OK
ESC OK
31
SU START
03:21
DAY
ESC OK
SU WI
2103:3110
CALIBRAT
ESC OK
9
GB
m
Operating mode
Info
Left-hand button = Channel 1
Right-hand button = Channel 2 (only with
2-channel version)
Press 1 x = FIX ON = continuous ON
Press 2 x = FIX OFF = continuous OFF
Press 3 x = return to Auto mode
Technical Data
Dimensions H x W x D 45 x 35 x 60 mm
Weight g (approx.) 170
Supply voltage see imprint on device
Power consumption 5 VA
Switching capacity
- ohmic load
(VDE, IEC) 16 A/250 VAC
- inductive load
cos
ϕ 0.6 8 A/250 VAC
- Incandescent
lamp load 1,000 W
Switching output potential-free
Switch contacts 1 or 2 changeover
contact(s)
Ambient temperature -13°F to 131°F (25°C
to +55°C)
Protection class II
Accuracy typ. ±2.5 s/day
at 68°F (20°C)
Reserve power 3 years from factory
at +20°C (20°C)
Shortest switching time 1 min.
Memory spaces 50
Block formation of
day of the week fixed/free selection
Switching status
display yes
Sealable yes
(no display) programmed switching times
16121824
C1
15:26:38
1
MENU
Res.
FIX ON:
FIX OFF:
AUTO: (keine Anzeige) progra
