TRF7960A Multiprotocol Fully Integrated 13.56-MHz RFID Reader/Writer IC

1 Device Overview

1.1 Features

• Completely Integrated Protocol Handling for ISO/IEC 15693, ISO/IEC 18000-3, ISO/IEC 14443A, ISO/IEC 14443B, NFC Forum Device Types 2 to 5, and FeliCa™

• Input Voltage Range: 2.7 VDC to 5.5 VDC

• Programmable Output Power: +20 dBm (100 mW) or +23 dBm (200 mW)

• Programmable I/O Voltage Levels:

1.8 VDC to 5.5 VDC

• Programmable System Clock Frequency Output (RF, RF/2, RF/4)

1.2 Applications

• Secure Access Control

• Product Authentication

• Digital Door Locks

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

• Programmable Modulation Depth

• Dual Receiver Architecture With RSSI for Elimination of "Read Holes" and Adjacent Reader System or Ambient In-Band Noise Detection

• Programmable Power Modes for Ultra-Low-Power System Design (Power Down <0.5 µA)

• Parallel or SPI Interface

• Integrated Voltage Regulator for Microcontroller Supply

• Temperature Range: –40°C to 110°C

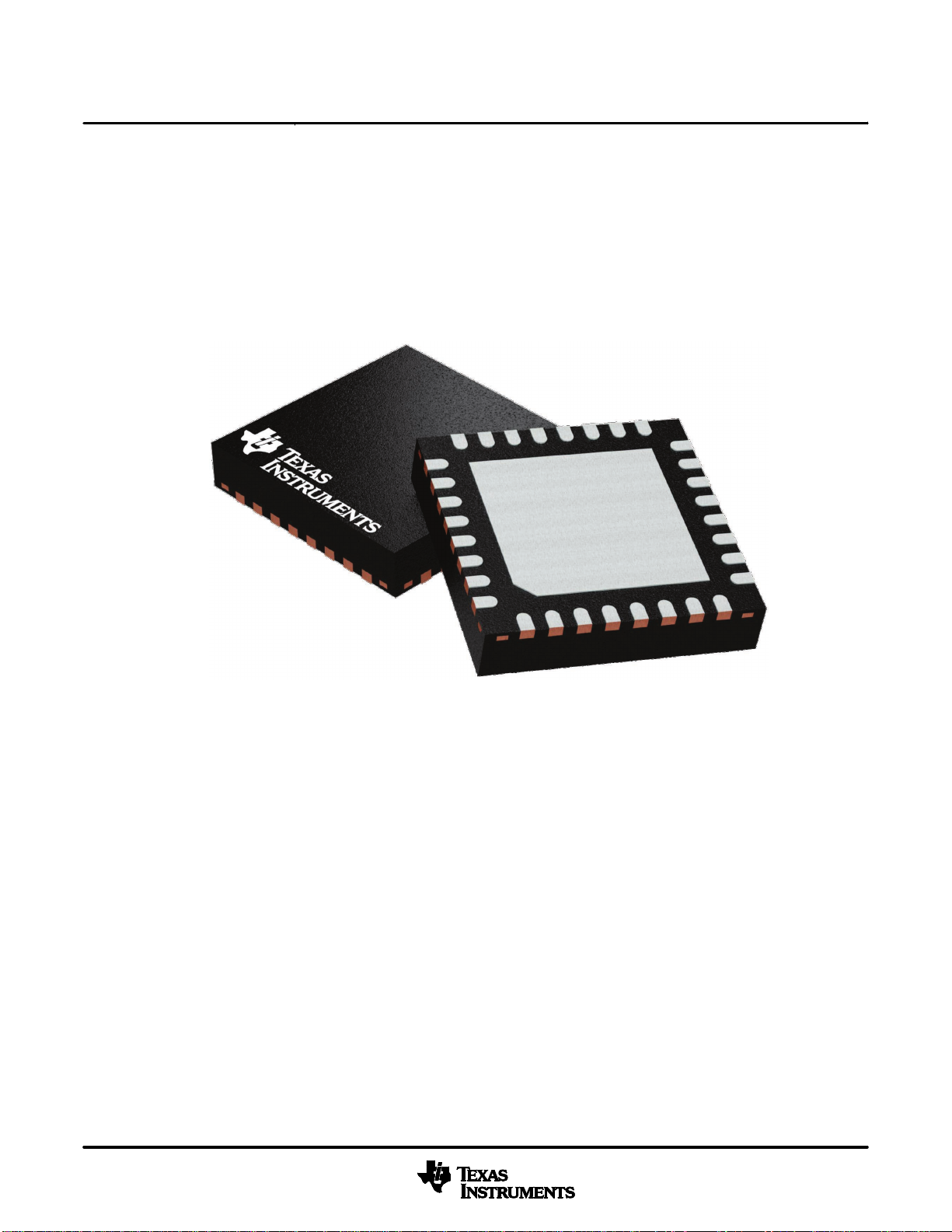

• 32-Pin QFN Package (5 mm × 5 mm) (RHB)

• Public Transport or Event Ticketing

• Medical Systems

• Remote Sensor Applications

1.3 Description

The TRF7960A device is an integrated analog front-end (AFE) and multiprotocol data-framing device for a

13.56-MHz RFID reader/writer system that supports ISO/IEC 14443 A and B, Sony FeliCa, and ISO/IEC 15693. Built-in programming options make it suitable for a wide range of applications for proximity and vicinity identification systems.

The reader is configured by selecting the desired protocol in the control registers. Direct access to all control registers allows fine tuning of various reader parameters as needed.

The TRF7960A device supports data rates up to 848 kbps with all framing and synchronization tasks for the ISO protocols onboard. The device also supports reader/writer mode for NFC Forum tag types 1, 2, 3, 4, and 5. NFC Forum tag types 2, 3, 4, and 5 are supported with the built-in protocol decoders used in Direct Mode 2. NFC Forum tag type 1 requires the use of Direct Mode 0. Other standards and custom protocols can also be implemented by using Direct Mode 0. Direct Mode 0 lets the user fully control the AFE and also gain access to the raw subcarrier data or the unframed, but already ISO-formatted, data and the associated (extracted) clock signal.

The receiver system has a dual-input receiver architecture to maximize communication robustness. The receivers also include various automatic and manual gain control options. The received signal strength from transponders, ambient sources, or internal levels is available in the RSSI register.

A SPI or parallel interface can be used for the communication between the MCU and the TRF7960A reader. When the built-in hardware encoders and decoders are used, transmit and receive functions use a 12-byte FIFO register. For direct transmit or receive functions, the encoders or decoders can be bypassed so the MCU can process the data in real time.

The TRF7960A device supports a wide supply voltage range of 2.7 V to 5.5 V and data communication levels from 1.8 V to 5.5 V for the MCU I/O interface.

The transmitter has selectable output power levels of 100 mW (+20 dBm) or 200 mW (+23 dBm) equivalent into a 50-Ω load when using a 5-V supply and supports OOK and ASK modulation with selectable modulation depth.

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA.

TRF796xA

MCU

(MSP430 or ARM)

Matching

VDD_X VDD_I/O

TX_OUT

RX_IN 1

RX_IN 2

VSS

VIN

Parallel

or SPI

Supply

2.7 V to 5.5 V

VDD

Crystal

13.56 MHz

XIN

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

The built-in programmable auxiliary voltage regulator delivers up to 20 mA to supply an MCU and additional external circuits within the reader system.

To evaluate the latest products in the TRF79xx product family – TRF7970A and TRF7964A – see the NFC

Transceiver Booster Pack. Documentation, Tools, Reference Designs, and Software, Samples

www.ti.com

PART NUMBER PACKAGE BODY SIZE

TRF7960ARHB VQFN (32) 5 mm × 5 mm

(1) For more information, see Section 9, Mechanical Packaging and Orderable Information.

1.4 Application Block Diagram

Figure 1-1 shows a typical application block diagram.

Figure 1-1. Application Block Diagram

Device Information

(1)

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

1 Device Overview ......................................... 1

1.1 Features .............................................. 1

1.2 Applications........................................... 1

1.3 Description............................................ 1

1.4 Application Block Diagram ........................... 2

2 Revision History ......................................... 4

3 Device Characteristics.................................. 5

3.1 Related Products ..................................... 5

4 Terminal Configuration and Functions.............. 6

4.1 Pin Diagrams ......................................... 6

4.2 Signal Descriptions ................................... 6

5 Specifications ............................................ 8

5.1 Absolute Maximum Ratings .......................... 8

5.2 ESD Ratings.......................................... 8

5.3 Recommended Operating Conditions ................ 8

5.4 Electrical Characteristics ............................. 9

5.5 Thermal Resistance Characteristics ................ 10

5.6 Switching Characteristics ........................... 10

6 Detailed Description ................................... 11

6.1 Functional Block Diagram........................... 11

6.2 Power Supplies ..................................... 11

6.3 Supply Arrangements ............................... 12

6.4 Supply Regulator Settings .......................... 13

6.5 Power Modes ....................................... 14

6.6 Receiver – Analog Section .......................... 17

6.7 Receiver – Digital Section........................... 18

6.8 Oscillator Section ................................... 21

6.9 Transmitter - Analog Section........................ 22

6.10 Transmitter - Digital Section ........................ 22

6.11 Transmitter – External Power Amplifier or

Subcarrier Detector ................................. 23

6.12 Communication Interface............................ 23

6.13 Direct Commands from MCU to Reader ............ 42

6.14 Register Description................................. 45

7 Applications, Implementation, and Layout........ 62

7.1 TRF7960A Reader System Using SPI With SS

Mode ................................................ 62

7.2 System Design ...................................... 63

8 Device and Documentation Support ............... 65

8.1 Getting Started and Next Steps..................... 65

8.2 Device Nomenclature ............................... 65

8.3 Tools and Software ................................. 66

8.4 Documentation Support ............................. 66

8.5 Support Resources.................................. 66

8.6 Trademarks.......................................... 66

8.7 Electrostatic Discharge Caution..................... 67

8.8 Export Control Notice ............................... 67

8.9 Glossary............................................. 67

9 Mechanical, Packaging, and Orderable

Information .............................................. 68

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

www.ti.com

2 Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from May 18, 2017 to March 11, 2020 Page

• Removed references to obsolete EVMs .......................................................................................... 2

• Corrected typo (changed "...and 3.4 V for VDD_A and VDD_A" to "...and 3.4 V for VDD_A and VDD_X") in

Section 6.3, Supply Arrangements................................................................................................ 13

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

3 Device Characteristics

Table 3-1 lists the supported protocols.

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Table 3-1. Supported Protocols

DEVICE

TRF7960A ✓ ✓ ✓ ✓ ✓ ✓ ✓

106 kbps 212 kbps 424 kbps 848 kbps

ISO/IEC 14443 A AND B

ISO/IEC 15693

ISO/IEC 18000-3

MODE 1

3.1 Related Products

For information about other devices in this family of products or related products, see the following links.

Products for TI Wireless Connectivity Connect more with the industry’s broadest wireless connectivity

portfolio.

Products for NFC / RFID TI provides one of the industry’s most differentiated NFC and RFID product

portfolios and is your solution to meet a broad range of NFC connectivity and RFID identification needs.

Companion Products for TRF7960A Review products that are frequently purchased or used with this

product.

Reference Designs for TRF7960A The TI Designs Reference Design Library is a robust reference

design library that spans analog, embedded processor, and connectivity. Created by TI experts to help you jump start your system design, all TI Designs include schematic or block diagrams, BOMs, and design files to speed your time to market. Search and download designs at ti.com/tidesigns.

NFC Forum

TYPES 1 TO 5

Submit Documentation Feedback

Product Folder Links: TRF7960A

2 3

I/O_6

I/O_5

I/O_4

I/O_3

I/O_2

I/O_1

I/O_0

I/O_7

VIN

VDD_RF

VDD_PA

TX_OUT

VSS_PA

VSS_RX

RX_IN1

VDD_A

OSC_IN

OSC_OUT

VSS_D

SYS_CLK

DATA_CLK

EN2

VDD_X

VSS

ASK/OOK

IRQ

MOD

VSS_A

VDD_I/O

RX_IN2

23 22

9 10 11 13 1412 15 16

32 31 30 28 2729 26 25

Thermal Pad

(connect to ground)

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

4 Terminal Configuration and Functions

4.1 Pin Diagrams

Figure 4-1 shows the pinout for the 32-pin RHB package.

www.ti.com

Figure 4-1. 32-Pin RHB Package (Top View)

4.2 Signal Descriptions

Table 4-1 describes the signals.

Table 4-1. Signal Descriptions

TERMINAL

NO. NAME

1 VDD_A OUT Internal regulated supply (2.7 V to 3.4 V) for analog circuitry 2 VIN SUP External supply input to chip (2.7 V to 5.5 V) 3 VDD_RF OUT Internal regulated supply (2.7 V to 5 V); normally connected to VDD_PA (pin 4) 4 VDD_PA INP Supply for PA; normally connected externally to VDD_RF (pin 3) 5 TX_OUT OUT RF output (selectable output power: 100 mW or 200 mW, with VDD= 5 V) 6 VSS_PA SUP Negative supply for PA; normally connected to circuit ground 7 VSS_RX SUP Negative supply for receive inputs; normally connected to circuit ground 8 RX_IN1 INP Main receive input

9 RX_IN2 INP Auxiliary receive input 10 VSS SUP Chip substrate ground 11 BAND_GAP OUT Bandgap voltage (VBG= 1.6 V); internal analog voltage reference

12 ASK/OOK BID

13 IRQ OUT Interrupt request

14 MOD

15 VSS_A SUP Negative supply for internal analog circuits. Connected to GND. 16 VDD_I/O INP Supply for I/O communications (1.8 V to VIN) level shifter. VIN should be never exceeded. 17 I/O_0 BID I/O pin for parallel communication 18 I/O_1 BID I/O pin for parallel communication 19 I/O_2 BID I/O pin for parallel communication

(1) SUP = Supply, INP = Input, BID = Bidirectional, OUT = Output 6

(1)

TYPE

DESCRIPTION

Selection between ASK and OOK modulation (0 = ASK, 1 = OOK) for direct mode 0 and 1. It can be configured as an output to provide the received analog signal output.

INP External data modulation input for direct mode 0 or 1

OUT Subcarrier digital data output (see register 0x1A and 0x1B definitions)

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

SLOS732G –JUNE 2011–REVISED MARCH 2020

Table 4-1. Signal Descriptions (continued)

TERMINAL

NO. NAME

20 I/O_3 BID I/O pin for parallel communication

21 I/O_4 BID

22 I/O_5 BID

23 I/O_6 BID

24 I/O_7 BID

25 EN2 INP 26 DATA_CLK INP Data clock input for MCU communication (parallel and serial)

27 SYS_CLK OUT

28 EN INP Chip enable input (if EN = 0, then the chip is in sleep or power-down mode) 29 VSS_D SUP Negative supply for internal digital circuits 30 OSC_OUT OUT Crystal or oscillator output 31 OSC_IN INP Crystal or oscillator input

32 VDD_X OUT

PAD PAD SUP Chip substrate ground

TYPE

(1)

I/O pin for parallel communication Slave select signal in SPI mode

I/O pin for parallel communication Data clock output in direct mode 1

I/O pin for parallel communication MISO for serial communication (SPI) Serial bit data output in direct mode 1 or subcarrier signal in direct mode 0

I/O pin for parallel communication. MOSI for serial communication (SPI)

Selection of power down mode. If EN2 is connected to VIN, then VDD_X is active during power down mode 2 (for example, to supply the MCU).

If EN = 1 (EN2 = don't care) the system clock for the MCU is configured with register 0x09 (off,

3.39 MHz, 6.78 MHz, or 13.56 MHz). If EN = 0 and EN2 = 1, the system clock is set to 60 kHz.

Internally regulated supply (2.7 V to 3.4 V) for digital circuit and external devices (for example, an MCU)

DESCRIPTION

TRF7960A

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

5 Specifications

www.ti.com

5.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)

(1)

(2)

MIN MAX UNIT

Input voltage range, V Maximum current, I

Maximum operating virtual junction temperature, T

Storage temperature, T

STG

(3)

Any condition 140 Continuous operation, long-term reliability 125

–0.3 6 V

150 mA

°C

–55 150 °C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings

only and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating

Conditions are not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) All voltage values are with respect to substrate ground terminal VSS. (3) The maximum junction temperature for continuous operation is limited by package constraints. Operation above this temperature may

result in reduced reliability or lifetime of the device.

5.2 ESD Ratings

VALUE UNIT

(1)

(2)

±2000

±500

VCharged-device model (CDM), per JEDEC specification JESD22‑C101

Electrostatic discharge

(ESD)

Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001

Machine model (MM) ±200

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

5.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

MIN NOM MAX UNIT

V T T

Operating input voltage 2.7 5 5.5 V

Operating ambient temperature –40 25 110 °C

Operating virtual junction temperature –40 25 125 °C

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

www.ti.com

SLOS732G –JUNE 2011–REVISED MARCH 2020

5.4 Electrical Characteristics

TYP operating conditions are TA= 25°C, VIN= 5 V, full-power mode (unless otherwise noted) MIN and MAX operating conditions are over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

PD1

PD2

STBY

ON1

ON2

ON3

POR

DD_A

DD_X

VDD_Xmax

RFOUT

RFIN

RF_INmax

RF_INmin

SYS_CLK

CRYSTAL

D_CLKmax

OUT

SYS_CLK

Supply current in power down mode 1

Supply current in power down mode 2 (sleep mode)

Supply current in standby mode Supply current without antenna driver

current Supply current in TX (half power)

Supply current in TX (full power) Power-on reset voltage Input voltage at VIN 1.4 2 2.6 V

Bandgap voltage (pin 11) Internal analog reference voltage 1.5 1.6 1.7 V Regulated output voltage for analog

circuitry (pin 1) Regulated supply for external circuitry Output voltage pin 32, VIN= 5 V 3.1 3.4 3.8 V Maximum output current of VDD_X Output current pin 32, VIN= 5 V 20 mA

Antenna driver output resistance

(1)

RX_IN1 and RX_IN2 input resistance 4 10 20 kΩ Maximum RF input voltage at RX_IN1

or RX_IN2 Minimum RF input voltage at RX_IN1

or RX_IN2 (input sensitivity)

(2)

SYS_CLK frequency In power mode 2, EN = 0, EN2 = 1 25 60 120 kHz Carrier frequency Defined by external crystal 13.56 MHz

Crystal run-in time

Maximum DATA_CLK frequency

(4)

Input voltage, logic low

Input voltage threshold, logic high Output resistance, I/O_0 to I/O_7 500 800 Ω

Output resistance R

SYS_CLK

(1) Antenna driver output resistance (2) Measured with subcarrier signal at RX_IN1 or RX_IN2 and measured the digital output at MOD pin with register 0x1A bit 6 = 1 (3) Depending on the crystal parameters and components (4) Recommended DATA_CLK speed is 2 MHz; higher data clock depends on the capacitive load. Maximum SPI clock speed should not

exceed 10 MHz. This clock speed is acceptable only when external capacitive load is less than 30 pF. MISO driver has a typical output

resistance of 400 Ω (12-ns time constant when 30-pF load is used).

All building blocks disabled, including supplyvoltage regulators; measured after 500-ms

<0.5 5 µA

settling time (EN = 0, EN2 = 0) The SYS_CLK generator and VDD_X remain

active to support external circuitry, measured

120 200 µA

after 100-ms settling time (EN = 0, EN2 = 1) Oscillator running, supply-voltage regulators in

low-consumption mode (EN = 1, EN2 = x) Oscillator, regulators, RX, and AGC are active,

TX is off Oscillator, regulators, RX, AGC, and TX

active, P

OUT

= 100 mW

Oscillator, regulators, RX, AGC, and TX active, P

OUT

= 200 mW

1.9 3.5 mA

10.5 14 mA

70 78 mA

130 170 mA

VIN= 5 V 3.1 3.5 3.8 V

Half-power mode, VIN= 2.7 V to 5.5 V 8 12 Full-power mode, VIN= 2.7 V to 5.5 V 4 6

RF_INmax

SUBCARRIER

Time until oscillator stable bit is set (register 0x0F)

Depends on capacitive load on the I/O lines, recommendation is 2 MHz

I/O lines, IRQ, SYS_CLK, DATA_CLK, EN, EN2

should not exceed VIN 3.5 V

= 424 kHz 1.4 2.5 = 848 kHz 2.1 3

(3)

(4)

2 4 10 MHz

5 ms

0.2 ×

DD_I/O

0.8 ×

DD_I/O

200 400 Ω

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

www.ti.com

5.5 Thermal Resistance Characteristics

PACKAGE Rθ

(1)

Rθ

TA≤ 25°C TA≤ 85°C

POWER RATING

RHB (32) 31°C/W 36.4°C/W 2.7 W 1.1 W

(1) This data was taken using the JEDEC standard high-K test PCB. (2) Power rating is determined with a junction temperature of 125°C. This is the point where distortion starts to increase substantially.

Thermal management of the final PCB should strive to keep the junction temperature at or below 125°C for best performance and long-

term reliability.

(2)

5.6 Switching Characteristics

over operating free-air temperature range (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

LO/HI

STE,LEAD

STE,LAG

SU,SI

HD,SI

SU,SO

HD,SO

VALID,SO

DATA_CLK time, high or low (one half of DATA_CLK at 50% duty cycle)

Depends on capacitive load on the I/O lines

Slave select lead time, slave select low to clock

Slave select lag time, last clock to slave select high

MOSI input data setup time 15 ns MOSI input data hold time 15 ns MISO input data setup time 15 ns MISO input data hold time 15 ns MISO output data valid time DATA_CLK edge to MISO valid, CL= <30 pF 30 50 75 ns

(1)

50 62.5 250 ns

200 ns

(1) Recommended DATA_CLK speed is 2 MHz; higher data clock depends on the capacitive load. Maximum SPI clock speed should not

exceed 10 MHz. This clock speed is acceptable only when external capacitive load is less than 30 pF. MISO driver has a typical output

resistance of 400 Ω (12-ns time constant when 30-pF load is used).

Submit Documentation Feedback

Product Folder Links: TRF7960A

MUX

RX_IN1

RX_IN2

Phase and

Amplitude

Detector

Gain

RSSI

(AUX)

Logic

Level Shifter

State

Control

Logic

(Control

Registers and

Command

Logic)

12-Byte

FIFO

MCU

Interface

VDD_I/O

I/O_0

I/O_1

I/O_2

I/O_3

I/O_4

I/O_5

I/O_6

I/O_7

IRQ

SYS_CLK

DATA_CLK

ISO Protocol Handling

Decoder

RSSI

(External)

Gain

RSSI

(Main)

Filter

and AGC

Digitizer

Bit

Framing

Serial

Conversion

CRC and Parity

Transmitter

Analog Front End

TX_OUT

VDD_PA

VSS_PA

Digital Control State Machine

Crystal or Oscillator

Timing System

EN2

ASK/OOK

MOD

OSC_IN

OSC_OUT

Voltage Supply Regulator Systems

(Supply Regulators and Reference Voltages)

VSS_A

VSS_RF

VDD_RF

VDD_X

VSS_D

VSS

VIN

VDD_A

BAND_GAP

Phase and

Amplitude

Detector

www.ti.com

6 Detailed Description

6.1 Functional Block Diagram

Figure 6-1 shows the functional block diagram.

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.2 Power Supplies

The TRF7960A positive supply input VIN (pin 2) sources three internal regulators with output voltages VDD_RF, VDD_A, and VDD_X. All regulators require external bypass capacitors for supply noise filtering and must be connected as indicated in reference schematics. These regulators provide a high power supply reject ratio (PSRR) as required for RFID reader systems. All regulators are supplied by VIN (pin 2).

The regulators are not independent and have common control bits in register 0x0B for output voltage setting. The regulators can be configured to operate in either automatic or manual mode (register 0x0B, bit

7). The automatic regulator setting mode ensures an optimal compromise between PSRR and the highest possible supply voltage for RF output (to ensure maximum RF power output). The manual mode lets the user manually configure the regulator settings.

Figure 6-1. Functional Block Diagram

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.3 Supply Arrangements

Regulator Supply Input: VIN

The positive supply at VIN (pin 2) has an input voltage range of 2.7 V to 5.5 V. VIN provides the supply input sources for three internal regulators with the output voltages VDD_RF, VDD_A, and VDD_X. External bypass capacitors for supply noise filtering must be used (per reference schematics).

VIN must be the highest voltage supplied to the TRF7960A.

RF Power Amplifier Regulator: VDD_RF

The VDD_RF (pin 3) regulator is supplying the RF power amplifier. The voltage regulator can be set for either 5-V or 3-V operation. External bypass capacitors for supply noise filtering must be used (per reference schematics). When configured for 5-V manual operation, the VDD_RF output voltage can be set from 4.3 V to 5 V in 100-mV steps. In 3-V manual operation, the output can be programmed from 2.7 V to

3.4 V in 100-mV steps (see Table 6-2). The maximum output current capability for 5-V operation is 150 mA and for 3-V operation is 100 mA.

Analog Supply Regulator: VDD_A

Regulator VDD_A (pin 1) supplies the analog circuits of the device. The output voltage setting depends on the input voltage and can be set for 5-V and 3-V operation. When configured for 5-V manual operation, the output voltage is fixed at 3.4 V. External bypass capacitors for supply noise filtering must be used (per reference schematics). When configured for 3-V manual operation, the VDD_A output can be set from 2.7 V to 3.4 V in 100-mV steps (see Table 6-2).

www.ti.com

NOTE

The configuration of VDD_A and VDD_X regulators are not independent from each other. The VDD_A output current should not exceed 20 mA.

Digital Supply Regulator: VDD_X

The digital supply regulator VDD_X (pin 32) provides the power for the internal digital building blocks and can also be used to supply external electronics within the reader system. When configured for 3-V operation, the output voltage can be set from 2.7 to 3.4 V in 100-mV steps. External bypass capacitors for supply noise filtering must be used (refer to the reference schematics).

NOTE

The configuration of the VDD_A and VDD_X regulators are not independent from each other. The VDD_X output current should not exceed 20 mA.

The RF power amplifier regulator (VDD_RF), analog supply regulator (VDD_A), and digital supply regulator (VDD_X) can be configured to operate in either automatic or manual mode described in Table 6-

1. The automatic regulator setting mode ensures an optimal compromise between PSRR and the highest

possible supply voltage to ensure maximum RF power output. By default, the regulators are set in automatic regulator setting mode. In this mode, the regulators are

automatically set every time the system is activated by setting EN input High or each time the automatic regulator setting bit, B7 in register 0x0B is set to a 1. The action is started on the 0 to 1 transition. This means that, if the user wants to rerun the automatic setting from a state in which the automatic setting bit is already high, the automatic setting bit (B7 in register 0x0B) should be changed: 1-0-1.

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

By default, the regulator setting algorithm sets the regulator outputs to a "Delta Voltage" of 250 mV below VIN, but not higher than 5 V for VDD_RF and 3.4 V for VDD_A and VDD_X. The "Delta Voltage" in automatic regulator mode can be increased up to 400 mV (for more details, see bits B0 to B2 in register 0x0B).

Power Amplifier Supply: VDD_PA

The power amplifier of the TRF7960A is supplied through VDD_PA (pin 4). The positive supply pin for the RF power amplifier is externally connected to the regulator output VDD_RF (pin 3).

I/O Level Shifter Supply: VDD_I/O

The TRF7960A has a separate supply input VDD_I/O (pin 16) for the build in I/O level shifter. The supported input voltage ranges from 1.8 V to VIN, however not exceeding 5.5 V. Pin 16 is used to supply the I/O interface pins (I/O_0 to I/O_7), IRQ, SYS_CLK, and DATA_CLK pins of the reader. In typical applications, VDD_I/O is directly connected to VDD_X while VDD_X also supplies the MCU. This ensures that the I/O signal levels of the MCU match with the logic levels of the TRF7960A.

Negative Supply Connections: VSS, VSS_RX, VSS_A, VSS_PA

The negative supply connections VSS_X of each functional block are all externally connected to GND. The substrate connection is VSS (pin 10), the analog negative supply is VSS_A (pin 15), the logic

negative supply is VSS_D (pin 29), the RF output stage negative supply is VSS_PA (pin 6), and the negative supply for the RF receiver VSS_RX (pin 7).

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.4 Supply Regulator Settings

The input supply voltage mode of the reader must be selected. This is done in the Chip Status Control register (0x00). Bit 0 in register 0x00 selects either 5-V or 3-V input supply voltage. The default configuration is 5 V, which reflects an operating supply voltage range of 4.3 V to 5.5 V. If the supply voltage is below 4.3 V, the 3-V configuration should be used.

The various regulators can be configured to operate in automatic or manual mode. This is done in the Regulator and I/O Control register (0x0B) (see Table 6-1 and Table 6-2).

Table 6-1. Supply Regulator Setting: 5-V System

ADDRESS

Automatic Mode (default)

0B 1 x x x x x 1 1 Automatic regulator setting with 250-mV difference 0B 1 x x x x x 1 0 Automatic regulator setting with 350-mV difference 0B 1 x x x x x 0 0 Automatic regulator setting with 400-mV difference

Manual Mode

0B 0 x x x x 1 1 1 VDD_RF = 5 V, VDD_A = 3.4 V, VDD_X = 3.4 V 0B 0 x x x x 1 1 0 VDD_RF = 4.9 V, VDD_A = 3.4 V, VDD_X = 3.4 V 0B 0 x x x x 1 0 1 VDD_RF = 4.8 V, VDD_A = 3.4 V, VDD_X = 3.4 V 0B 0 x x x x 1 0 0 VDD_RF = 4.7 V, VDD_A = 3.4 V, VDD_X = 3.4 V 0B 0 x x x x 0 1 1 VDD_RF = 4.6 V, VDD_A = 3.4 V, VDD_X = 3.4 V 0B 0 x x x x 0 1 0 VDD_RF = 4.5 V, VDD_A = 3.4 V, VDD_X = 3.4 V 0B 0 x x x x 0 0 1 VDD_RF = 4.4 V, VDD_A = 3.4 V, VDD_X = 3.4 V 0B 0 x x x x 0 0 0 VDD_RF = 4.3 V, VDD_A = 3.4 V, VDD_X = 3.4 V

(1) x = don't care

OPTION BITS SETTING IN REGULATOR CONTROL

B7 B6 B5 B4 B3 B2 B1 B0

(1)

COMMENTS

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Table 6-2. Supply Regulator Setting: 3-V System

www.ti.com

ADDRESS

Automatic Mode (default)

Manual Mode

0B 0 x x x x 1 1 1 VDD_RF = 3.4 V, VDD_A = 3.4 V, VDD_X = 3.4 V 0B 0 x x x x 1 1 0 VDD_RF = 3.3 V, VDD_A = 3.3 V, VDD_X = 3.3 V 0B 0 x x x x 1 0 1 VDD_RF = 3.2 V, VDD_A = 3.2 V, VDD_X = 3.2 V 0B 0 x x x x 1 0 0 VDD_RF = 3.1 V, VDD_A = 3.1 V, VDD_X = 3.1 V 0B 0 x x x x 0 1 1 VDD_RF = 3.0 V, VDD_A = 3.0 V, VDD_X = 3.0 V 0B 0 x x x x 0 1 0 VDD_RF = 2.9 V, VDD_A = 2.9 V, VDD_X = 2.9 V 0B 0 x x x x 0 0 1 VDD_RF = 2.8 V, VDD_A = 2.8 V, VDD_X = 2.8 V 0B 0 x x x x 0 0 0 VDD_RF = 2.7 V, VDD_A = 2.7 V, VDD_X = 2.7 V

(1) x = don't care

OPTION BITS SETTING IN REGULATOR CONTROL

B7 B6 B5 B4 B3 B2 B1 B0

(1)

COMMENTS

The regulator configuration function adjusts the regulator outputs by default to 250 mV below VIN level, but not higher than 5 V for VDD_RF, 3.4 V for VDD_A and VDD_X. This ensures the highest possible supply voltage for the RF output stage while maintaining an adequate PSRR (power supply rejection ratio).

To further improve the PSRR, it is possible to increase the target voltage difference across VDD_X and VDD_A from its default to 350 mV or even 400 mV (for details, see Regulator and I/O Control register 0x0B definition and Table 6-2.)

6.5 Power Modes

The chip has several power states, which are controlled by two input pins (EN and EN2) and several bits in the Chip Status Control register (0x00).

Table 6-3 lists the configuration for the different power modes when using a 5-V or 3-V system supply.

The main reader enable signal is pin EN. When EN is set high, all of the reader regulators are enabled, the 13.56-MHz oscillator is running, and the SYS_CLK (output clock for external microcontroller) is also available.

The Regulator Control register settings shown are for optimized power out. The automatic setting (normally 0x87) is optimized for best PSRR and noise reduction.

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Table 6-3. Power Modes

CHIP STATUS

MODE EN2 EN

Mode 4

(full power)

5 VDC

Mode 4

(full power)

3.3 VDC Mode 3

(half power)

5 VDC

Mode 3

(half power)

3.3 VDC Mode 2

5 VDC

Mode 2

3.3 VDC Mode 1

5 VDC

Mode 1

3.3 VDC

Standby mode

5 VDC

Standby mode

3.3 VDC

Sleep mode 1 0 x x Off Off Off On On 0.120 — 1.5 ms Power down 0 0 x x Off Off Off Off Off <0.001 — Start

(1) x = don't care

x 1 21 07 On On On x On 130 23 20 to 25 µs

x 1 20 07 On On On x On 67 18

x 1 31 07 On On On x On 70 20 20 to 25 µs

x 1 30 07 On On On x On 53 15

x 1 03 07 Off On On x On 10.5 — 20 to 25 µs

x 1 02 00 Off On On x On 9 —

x 1 01 07 Off Off On x On 5 — 20 to 25 µs

x 1 00 00 Off Off On x On 3

x 1 81 07 Off Off On x On 3 — 4.8 ms

x 1 80 00 Off Off On x On 2 —

CONTROL

(0X00)

REGULATOR

CONTROL

(0X0B)

TRANSMITTER

RECEIVER

(1)

SYS_CLK

(13.56 MHz)

SYS_CLK

(60 kHz)

VDD_X

TYPICAL

CURRENT

(mA)

TYPICAL

POWER

OUT (dBm)

TIME

(FROM

STATE)

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

The input pin EN2 has two functions:

• A direct connection from EN2 to VIN to ensure the availability of the regulated supply VDD_X and an auxiliary clock signal (60 kHz, SYS_CLK) for an external MCU. This mode (EN = 0, EN2 = 1) is intended for systems in which the MCU is also being supplied by the reader supply regulator (VDD_X) and the MCU clock is supplied by the SYS_CLK output of the reader. This lets the MCU supply and clock be available during sleep mode.

• EN2 enables the start-up of the reader system from complete power down (EN = 0, EN2 = 0). In this case, the EN input is being controlled by the MCU (or other system device) that is without supply voltage during complete power down (thus unable to control the EN input). A rising edge applied to the EN2 input (which has an approximately 1-V threshold level) starts the reader supply system and

13.56‑MHz oscillator (identical to condition EN = 1).

When the user MCU controls EN and EN2, use a delay of 5 ms between EN and EN2. When the MCU controls only EN, TI recommends connecting EN2 to either VIN or GND, depending on the application MCU requirements for VDD_X and SYS_CLK.

Using EN = 1 and EN2 = 1 in parallel at start-up should not be done as it may cause incorrect operation.

This start-up mode lasts until all of the regulators have settled and the 13.56-MHz oscillator has stabilized. If the EN input is set high (EN = 1) by the MCU (or other system device), the reader stays active. If the EN input is not set high (EN = 0) within 100 µs after the SYS_CLK output is switched from auxiliary clock (60 kHz) to high-frequency clock (derived from the crystal oscillator), the reader system returns to complete Power-Down Mode 1. This option can be used to wake the reader system from complete power down (PD Mode 1) by using a push-button switch or by sending a single pulse.

www.ti.com

NOTE

After the reader EN line is high, the other power modes are selected by control bits within the Chip Status Control register (0x00). The power mode options and states are listed in Table 6-3.

When EN is set high (or on rising edge of EN2 and then confirmed by EN = 1) the supply regulators are activated and the 13.56-MHz oscillator started. When the supplies are settled and the oscillator frequency is stable, the SYS_CLK output is switched from the auxiliary frequency of 60 kHz to the 13.56-MHz frequency derived from the crystal oscillator. At this time, the reader is ready to communicate and perform the required tasks. The MCU can then program the Chip Status Control register 0x00 and select the operation mode by programming the additional registers.

• Standby mode (bit 7 = 1 of register 0x00), the reader is capable of recovering to full operation in 100 µs.

• Mode 1 (active mode with RF output disabled, bit 5 = 0 and bit 1 = 0 of register 0x00) is a low-power mode that lets the reader recover to full operation within 25 µs.

• Mode 2 (active mode with only the RF receiver active, bit 1 = 1 of register 0x00) can be used to measure the external RF field (as described in RSSI measurements paragraph) if reader-to-reader anticollision is implemented.

• Mode 3 and Mode 4 (active modes with the entire RF section active, bit 5 = 1 of register 0x00) are the modes used for typical transmit and receive operations.

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

6.6 Receiver – Analog Section

6.6.1 Main and Auxiliary Receiver

The TRF7960A has two receiver inputs: RX_IN1 (pin 8) and RX_IN2 (pin 9). Each of the inputs is connected to an external capacitive voltage divider to ensure that the modulated signal from the tag is available on at least one of the two inputs. This architecture eliminates any possible communication holes that may occur from the tag to the reader.

The two RX inputs (RX_IN1 and RX_IN2) are multiplexed into two receivers–the main receiver and the auxiliary receiver. Only the main receiver is used for reception; the auxiliary receiver is used for signal quality monitoring. Receiver input multiplexing is controlled by bit B3 in the Chip Status Control register (address 0x00).

After start-up, RX_IN1 is multiplexed to the main receiver which is composed of an RF envelope detection, first gain and band-pass filtering stage, second gain and filtering stage with AGC. Only the main receiver is connected to the digitizing stage which output is connected to the digital processing block. The main receiver also has an RSSI measuring stage, which measures the strength of the demodulated signal (subcarrier signal).

The primary function of the auxiliary receiver is to monitor the RX signal quality by measuring the RSSI of the demodulated subcarrier signal (internal RSSI). After start-up, RX_IN2 is multiplexed to the auxiliary receiver. The auxiliary receiver has an RF envelope detection stage, first gain and filtering with AGC stage and finally the auxiliary RSSI block.

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

The default MUX setting is RX_IN1 connected to the main receiver and RX_IN2 connected to the auxiliary receiver. To determine the signal quality, the response from the tag is detected by the "main" (pin RX_IN1) and "auxiliary" (pin RX_IN2) RSSI. Both values measured and stored in the RSSI level register (address 0x0F). The MCU can read the RSSI values from the TRF7960A RSSI register and decide if swapping the input signals is preferable or not. Setting B3 in the Chip Status Control register (address 0x00) to 1 connects RX_IN1 (pin 8) to the auxiliary receiver and RX_IN2 (pin 9) to the main receiver.

The main and auxiliary receiver input stages are RF envelope detectors. The RF amplitude at RX_IN1 and RX_IN2 should be approximately 3 VPPfor a VIN supply level greater than 3.3 V. If the VIN level is lower, the RF input peak-to-peak voltage level should not exceed the VIN level.

6.6.2 Receiver Gain and Filter Stages

The first gain and filtering stage has a nominal gain of 15 dB with an adjustable band-pass filter. The band-pass filter has programmable 3-dB corner frequencies from 110 kHz to 450 kHz for the high-pass filter and from 570 kHz to 1500 kHz for the low-pass filter. After the band-pass filter, there is another gainand-filtering stage with a nominal gain of 8 dB and with frequency characteristics identical to the first bandpass stage.

The internal filters are configured automatically depending on the selected ISO communication standard in the ISO Control register (address 0x01). If required, additional fine tuning can be done by writing directly to the RX special setting registers (address 0x0A).

Table 6-4 shows the various settings for the receiver analog section. Setting B4, B5, B6, and B7 to 0

results in a band-pass characteristic of 240 kHz to 1.4 MHz, which is appropriate for ISO/IEC 14443 B data rate of 106 kbps, ISO/IEC 14443 A or B data rates of 212 kbps and 424 kbps, and FeliCa data rate of 424 kbps.

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

www.ti.com

Table 6-4. RX Special Setting Register (0x0A)

BIT FUNCTION COMMENTS

B7 Band-pass filter from 110 kHz to 570 kHz Appropriate for any 212-kHz subcarrier systems like FeliCa B6 Band-pass filter from 200 kHz to 900 kHz Appropriate for 424-kHz subcarrier systems (for example, used in ISO/IEC 15693).

B5 Band-pass filter from 450 kHz to 1.5 MHz

B4 Band-pass filter from 100 kHz to 1.5 MHz B3 00 = No gain reduction

01 = Gain reduction for 5 dB 10 = Gain reduction for 10 dB

11 = Gain reduction for 15 dB B1 Reserved B0 Reserved

Appropriate for Manchester-coded 106-kbps 848-kHz subcarrier systems (for example, used in ISO/IEC 14443 A).

Appropriate for highest bit rate (848 kbps) used in high-bit-rate ISO/IEC 14443 B. Gain is reduced by 7 dB.

Sets the RX digital gain reduction (changing the window of the digitizing comparator).

6.7 Receiver – Digital Section

The output of the TRF7960A analog receiver block is a digitized subcarrier signal and is the input to the digital receiver block, which consists of two sections that partly overlap. The digitized subcarrier signal is a digital representation of the modulation signal on the RF envelope. The two sections of the digital receiver block are the protocol bit decoder section and the framing logic section.

The protocol bit decoder section converts the subcarrier coded signal into a serial bit stream and a data clock. The decoder logic is designed for maximum error tolerance. This tolerance lets the decoder section successfully decode even partly corrupted subcarrier signals that would otherwise be lost due to noise or interference.

The framing logic section formats the serial bit stream data from the protocol bit decoder stage into data bytes. During the formatting process, special signals such as the start of frame (SOF), end of frame (EOF), start of communication, and end of communication are automatically removed. The parity bits and CRC bytes are also checked and removed. The end result is "clean" or "raw" data that is then sent to the 12-byte FIFO register where it can be read by the external microcontroller system. Providing the data this way, in conjunction with the timing register settings of the TRF7960A, means the firmware developer must know about much less of the finer details of the ISO protocols to create a very robust application, especially in low-cost platforms where code space is at a premium and high performance is still required.

The start of the receive operation (successfully received SOF) sets the IRQ flags in the IRQ Status register (0x0C). The end of the receive operation is signaled to the external system MCU by setting pin 13 (IRQ) to high. When data is received in the FIFO, an interrupt is sent to the MCU to signal that there is data to be read from the FIFO. The FIFO Status register (0x1C) should be used to provide the number of bytes that should be clocked out during the actual FIFO read. Additionally, an interrupt is sent to the MCU when the received data occupies 75% of the FIFO capacity to signal that the data should be removed from the FIFO. That interrupt is triggered when the received data packet is longer than 9 bytes.

Any error in the data format, parity, or CRC is detected and notified to the external system by an interrupt request pulse. The source condition of the interrupt request pulse is available in the IRQ Status register (0x0C). The main register controlling the digital part of the receiver is the ISO Control register (0x01). By writing to this register, the user selects the protocol to be used. With each new write in this register, the default presets are reloaded in all related registers, so no further adjustments in other registers are needed for proper operation.

NOTE

If additional register setting changes are needed to fine-tune the system, set the ISO Control register (0x01) before making the additional changes.

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

The framing section also supports the bit-collision detection as specified in ISO/IEC 14443 A and ISO/IEC 15693. When a bit collision is detected, an interrupt request is sent and a flag is set in the IRQ Status register (0x0C). For ISO/IEC 14443 A specifically, the position of the bit collision is written in two registers: partly in the Collision Position register (0x0E) and partly in the Collision Position and Interrupt Mask register (0x0D) (bits B6 and B7).

The collision position is presented as sequential bit number, where the count starts immediately after the start bit. This means a collision in the first bit of a UID would give the value 00 0001 0000 in these registers when their contents are combined after being read. (the count starts with 0 and the first 16 bits are the command code and the number of valid bits [NVB] byte).

The receive section also includes two timers. The RX wait time timer is controlled by the value in the RX Wait Time register (0x08). This timer defines the time interval after the end of the transmit operation in which the receive decoders are not active (held in reset state). This prevents false detections resulting from transients following the transmit operation. The value of the RX Wait Time register (0x08) defines the time in increments of 9.44 µs. This register is preset at every write to ISO Control register (0x01) according to the minimum tag response time defined by each standard.

The RX no response timer is controlled by the RX No Response Wait Time register (0x07). This timer measures the time from the start of slot in the anticollision sequence until the start of tag response. If there is no tag response in the defined time, an interrupt request is sent and a flag is set in the IRQ Status register (0x0C). This enables the external controller to be relieved of the task of detecting empty slots. The wait time is stored in the register in increments of 37.76 µs. This register is also automatically preset for every new protocol selection.

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.7.1 Received Signal Strength Indicator (RSSI)

The TRF7960A incorporates three independent RSSI building blocks: Internal Main RSSI, Internal Auxiliary RSSI, and External RSSI. The internal RSSI blocks are measuring the amplitude of the subcarrier signal, and the external RSSI block measures the amplitude of the RF carrier signal at the receiver input.

6.7.1.1 Internal RSSI – Main and Auxiliary Receivers

Each receiver path has its own RSSI block to measure the envelope of the demodulated RF signal (subcarrier). Internal Main RSSI and Internal Auxiliary RSSI are identical except that they are connected to different RF input pins. The Internal RSSI is intended for diagnostic purposes to set the correct RX path conditions.

The Internal RSSI values can be used to adjust the RX gain settings or decide which RX path (main or auxiliary) provides the greater amplitude and, hence, to decide if the MUX may need to be reprogrammed to swap the RX input signal. The measuring system latches the peak value, so the RSSI level can be read after the end of each receive packet. The RSSI register values are reset with every transmission (TX) by the reader. This guarantees an updated RSSI measurement for each new tag response.

The Internal RSSI has 7 steps (3 bit) with a typical increment of approximately 4 dB. The operating range is 600 mVpp to 4.2 Vpp with a typical step size of approximately 600 mV. Both RSSI values "Internal Main" and "Internal Aux" RSSI are stored in the RSSI Levels and Oscillator Status register (0x0F).

Figure 6-2 shows the nominal relationship between the input RF peak level and the RSSI value.

Submit Documentation Feedback

Product Folder Links: TRF7960A

0 25 50 75 100 125 150 175 200 225 250 275 300 325

RF Input Voltage Level at Pin RF_IN1 (mV )

RSSI Levels and Oscillator Status Register Value (0x0F)

0 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3 3.25 3.5 3.75 4 4.25

Input RF Carrier Level (V )

RSSI Levels and Oscillator Status Register Value (0x0F)

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Figure 6-2. Digital Internal RSSI (Main and Auxiliary) Value vs RF Input Level

This RSSI measurement is done during the communication to the Tag; this means the TX must be on. Bit 1 in the Chip Status Control register (0x00) defines if internal RSSI or the external RSSI value is stored in the RSSI Levels and Oscillator Status register 0x0F. Direct command 0x18 is used to trigger an internal RSSI measurement.

www.ti.com

6.7.1.2 External RSSI

The external RSSI is mainly used for test and diagnostic to sense the amplitude of any 13.56-MHz signal at the receiver's RX_IN1 input. The external RSSI measurement is typically done in active mode when the receiver is on but transmitter output is off. The level of the RF signal received at the antenna is measured and stored in the RSSI Levels and Oscillator Status register (0x0F).

Figure 6-3 shows the relationship between the voltage at the RX_IN1 input and the 3-bit code.

Figure 6-3. Digital External RSSI Value vs RF Input Level

Submit Documentation Feedback

Product Folder Links: TRF7960A

Crystal

TRF796xA

Pin 31

Pin 30

www.ti.com

The relation between the 3-bit code and the external RF field strength (A/m) sensed by the antenna must be determined by calculation or by experiments for each antenna design. The antenna Q-factor and connection to the RF input influence the result. Direct command 0x19 is used to trigger an internal RSSI measurement.

To check the internal or external RSSI value independent of any other operation:

1. Set transmitter to desired state (on or off) using Bit 5 of the Chip Status Control register (0x00) and enable receiver using Bit 1.

2. Check internal or external RSSI using direct commands 0x18 or 0x19, respectively. This action places the RSSI value in the RSSI register.

3. Delay at least 50 µs.

4. Read the RSSI register using direct command 0x0F. Values can range from 0x40 to 0x7F.

5. Repeat steps 1 to 4 as desired; the register is reset after read.

6.8 Oscillator Section

The 13.56-MHz oscillator is controlled by the Chip Status Control register (0x00) and the EN and EN2 signals. The oscillator generates the RF frequency for the RF output stage and the clock source for the digital section. The buffered clock signal is available at pin 27 (SYS_CLK) for external circuits. B4 and B5 inside the Modulation and SYS_CLK register (0x09) can be used to divide the external SYS_CLK signal at pin 27 by 1, 2, or 4.

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Typical start-up time from complete power down is in the range of 3.5 ms. During Power Down Mode 2 (EN = 0, EN2 = 1) the frequency of SYS_CLK is switched to 60 kHz (typical). The 13.56-MHz crystal must be connected between pin 30 and pin 31. The external shunt capacitors

values for C1and C2must be calculated based on the specified load capacitance of the crystal being used. The external shunt capacitors are calculated as two identical capacitors in series plus the stray capacitance of the TRF7960A and parasitic PCB capacitance in parallel to the crystal.

The parasitic capacitance (CS, stray and parasitic PCB capacitance) can be estimated at 4 to 5 pF (typical).

As an example, using a crystal with a required load capacitance (CL) of 18 pF, the calculation is as follows (see Figure 6-4):

C1= C2= 2 × (CL– CS) = 2 × (18 pF – 4.5 pF) = 27 pF

Place a 27-pF capacitor on pins 30 and 31 to ensure proper crystal oscillator operation.

Figure 6-4. Crystal Block Diagram

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Table 6-5 shows the minimum characteristics recommended for any crystal used with TRF7960A.

Table 6-5. Minimum Crystal Recommendations

PARAMETER SPECIFICATION

Mode of operation Fundamental Type of resonance Parallel

Frequency tolerance ±20 ppm

Operation temperature range –40°C to 85°C

As an alternative, an external clock oscillator source can be connected to pin 31 to provide the system clock, and pin 30 can be left open.

6.9 Transmitter - Analog Section

The 13.56-MHz oscillator generates the RF signal for the PA stage. The power amplifier consists of a driver with selectable output resistance of 4 Ω or 8 Ω (typical). The transmit power levels are selectable between 100 mW (half power) or 200 mW (full power) when configured for 5-V automatic operation. Selection of the transmit power level is set by bit B4 in the Chip Status Control register (0x00). When configured for 3-V automatic operation, the transmit power level is typically in the range of 33 mW (half power) or 70 mW (full power).

www.ti.com

Frequency 13.56 MHz

Aging <5 ppm/year

The ASK modulation depth is controlled by bits B0, B1, and B2 in the Modulator and SYS_CLK Control register (0x09). The ASK modulation depth range can be adjusted from 7% to 30% or 100% (OOK).

External control of the transmit modulation depth is possible by setting the ISO Control register (0x01) to direct mode. While operating the TRF7960A in direct mode, the transmit modulation is made possible by selecting the modulation type ASK or OOK at pin 12. External control of the modulation type is made possible only if enabled by setting B6 in the Modulator and SYS_CLK Control register (0x09) to 1.

In normal operation mode, the length of the modulation pulse is defined by the protocol selected in the ISO Control register (0x01). In case of a high-Q antenna, the modulation pulse is typically prolonged, and the tag detects a longer pulse than intended. For such cases, the modulation pulse length must be corrected by using the TX Pulse Length register (0x06).

If the register contains all zeros, then the pulse length is governed by the protocol selection. If the register contains a value other than 0x00, the pulse length is equal to the value of the register multiplied by

73.7 ns. This means the pulse length can be adjusted from 73.7 ns to 18.8 µs in 73.7-ns increments.

6.10 Transmitter - Digital Section

The digital part of the transmitter is a mirror of the receiver. The settings controlled the ISO Control register (0x01) are applied to the transmitter just like the receiver. In the TRF7960A default mode (ISO Mode), the TRF7960A automatically adds all the special signals like start of communication, end of communication, SOF, EOF, parity bits and CRC bytes.

The data is then coded to modulation pulse levels and sent to the RF output stage modulation control unit. Just like with the receiver, this means that the external system MCU only must load the FIFO with data and all the microcoding is done automatically, again saving the firmware developer code space and time. Additionally, all the registers used for transmit parameter control are automatically preset to optimum values when a new selection is entered into the ISO Control register (0x01).

NOTE

The FIFO must be reset before starting any transmission with direct command 0x0F.

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

There are two ways to start the transmit operation:

• Send the transmit command and the number of bytes to be transmitted first, and then start to send the

• Load the number of bytes to be sent into registers 0x1D and 0x1E and load the data to be sent into the

At the end of a transmit operation, the external system MCU is notified by interrupt request (IRQ) with a flag in the IRQ register (0x0C) indicating TX is complete (example value = 0x80).

The TX Length registers also support incomplete byte transmission. The high two nibbles in register 0x1D and the nibble composed of bits B4 to B7 in register 0x1E store the number of complete bytes to be transmitted. Bit B0 in register 0x1E is a flag indicating that there are also additional bits to be transmitted which do not form a complete byte. The number of bits is stored in bits B1 to B3 of the same register (0x1E).

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

data to the FIFO. The transmission starts when first data byte is written into the FIFO.

FIFO (address 0x1F), followed by sending a transmit command (see Direct Commands section). The transmission then starts when the transmit command is received.

NOTE

If the data length is longer than the FIFO, the external system MCU is warned when the majority of data from the FIFO was already transmitted by sending and interrupt request with flag in IRQ register to indicate a FIFO low or high status. The external system should respond by loading next data packet into the FIFO.

Some protocols have options so there are two sublevel configuration registers to select the TX protocol options.

• ISO14443B TX Options register (0x02). It controls the SOF and EOF selection and EGT selection for the ISO/IEC 14443 B protocol.

• ISO14443A High-Bit-Rate and Parity Options register (0x03). This register enables the use of different bit rates for RX and TX operations in ISO/IEC 14443 high-bit-rate protocol. Besides that, it also selects the parity method in case of ISO/IEC 14443 A high bit rate.

The digital section also has a timer. The timer can be used to start the transmit operation at a precise time in accordance with a selected event. This is necessary if the tag expects a replay in exact time window following the tag response. This is normally not the case with existing protocols but is needed in protocols when using 'fixed slot' command.

The TX timer uses two registers (register addresses 0x04 and 0x05). Register 0x04 uses 2 bits (B7 and B6) to define the trigger conditions. The remaining 6 bits of register 0x04 are the upper bits, and the 8 bits in register address 0x05 are the lower bits that preset the counter. The range of this counter is from 590 ns to 9.7 ms, in 590-ns increments.

6.11 Transmitter – External Power Amplifier or Subcarrier Detector

The TRF7960A can be used in conjunction with an external TX power amplifier or external subcarrier detector for the receiver path. If this is the case, Bit B6 of the Regulator and I/O Control register (0x0B) must be set to 1. This setting has two functions: First, to provide a modulated signal for the transmitter, if needed. Second, to configure the TRF7960A receiver inputs for an external demodulated subcarrier input. The design of an external power amplifier requires detailed RF knowledge. There are also readily designed and certified high-power HF reader modules on the market.

6.12 Communication Interface

6.12.1 General Introduction

The communication interface to the reader can be configured in two ways: with a eight line parallel interface (D0:D7) plus DATA_CLK, or with a 3- or 4-wire Serial Peripheral Interface (SPI). The SPI interface uses traditional master out/slave in (MOSI), master in/slave out (MISO), IRQ, and DATA_CLK lines. The SPI can be operated with or without using the slave select line.

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

www.ti.com

These communication modes are mutually exclusive, which means that only one mode can be used at a time in the application.

When the SPI interface is selected, the unused I/O_2, I/O_1, and I/O_0 pins must be hard-wired according to Table 6-6. At power up, the TRF7960A IC samples the status of these three pins and then enters one of the possible SPI modes in Table 6-6.

samples the status of these three pins. If they are not the same (all high or all low), the IC enters one of the possible SPI modes.

The TRF7960A always behaves as the slave, while the microcontroller (MCU) behaves as the master device. The MCU initiates all communications with the TRF7960A. The TRF7960A makes use of the Interrupt Request (IRQ) pin in both parallel and SPI modes to prompt the MCU for servicing attention.

Table 6-6. Pin Assignment in Parallel and Serial Interface Connection or Direct Mode

PIN PARALLEL PARALLEL DIRECT SPI WITH SS SPI WITHOUT SS

DATA_CLK DATA_CLK DATA_CLK DATA_CLK from master DATA_CLK from master

MISO

(1)

= data in (reader in) MOSI

(2)

= data out (MCU out) MISO

(3)

(4)

I/O_7 A/D[7] MOSI I/O_6 A/D[6]

I/O_5 (3) A/D[5] Direct mode, strobe (bit clock out) See

I/O_4 A/D[4] SS (slave select) I/O_3 A/D[3] – – – I/O_2 A/D[2] – At VDD At VDD I/O_1 A/D[1] – At VDD At VSS I/O_0 A/D[0] – At VSS At VSS

IRQ IRQ interrupt IRQ interrupt IRQ interrupt IRQ interrupt

(1) MOSI = Master out, slave in (2) MISO = Master in, slave out (3) The I/O_5 pin is used only for information when data is put out of the chip (for example, reading 1 byte from the chip). It is necessary

first to write in the address of the register (8 clocks) and then to generate another 8 clocks for reading out the data. The I/O_5 pin goes high during the second 8 clocks. But for normal SPI operations I/O_5 pin is not used.

(4) The slave select pin is active low.

Direct mode, data out (subcarrier or bit stream)

See –

(1)

= data in (reader in)

(2)

= data out (MCU out)

(3)

Communication is initialized by a start condition, which is expected to be followed by an Address/Command word (Adr/Cmd). The Adr/Cmd word is 8 bits long, and Table 6-7 describes its format.

Table 6-7. Address/Command Word Bit Distribution

BIT DESCRIPTION BIT FUNCTION ADDRESS COMMAND

B7 Command control bit

B6 Read/Write B5 Continuous address mode 1 = Continuous mode R/W 0

B4 Address/command bit 4 Adr 4 Cmd 4 B3 Address/command bit 3 Adr 3 Cmd 3 B2 Address/command bit 2 Adr 2 Cmd 2 B1 Address/command bit 1 Adr 1 Cmd 1 B0 Address/command bit 0 Adr 0 Cmd 0

Submit Documentation Feedback

Product Folder Links: TRF7960A

0 = Address

1 = Command

1 = Read 0 = Write

0 1

R/W 0

www.ti.com

The MSB (bit 7) determines if the word is to be used as a command or as an address. The last two columns of Table 6-7 list the function of the separate bits if either address or command is written. Data is expected once the address word is sent. In continuous address mode (continuous mode = 1), the first data that follows the address is written (or read) to (from) the given address. For each additional data, the address is incremented by one. Continuous mode can be used to write to a block of control registers in a single stream without changing the address; for example, setup of the predefined standard control registers from the MCU nonvolatile memory to the reader. In noncontinuous address mode (simple addressed mode), only one data word is expected after the address.

Address Mode is used to write or read the configuration registers or the FIFO. When writing more than 12 bytes to the FIFO, the Continuous Address Mode should be set to 1.

The Command Mode is used to enter a command that results in reader action (for example, initialize transmission, enable reader, and turn reader on or off).

The following examples show the expected communications between an MCU and the TRF7960A.

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Table 6-8 lists the format of a continuous address register read, and Figure 6-5 and Figure 6-6 show

examples.

Table 6-8. Continuous Address Mode

Start Adr x Data(x) Data(x+1) Data(x+2) Data(x+3) Data(x+4) ... Data(x+n) StopCont

www.ti.com

Figure 6-5. Continuous Address Register Write Example Starting With Register 0x00 (Using SPI With SS

Mode)

Figure 6-6. Continuous Address Register Read Example Starting With Register 0x00 (Using SPI With SS

Mode)

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

SLOS732G –JUNE 2011–REVISED MARCH 2020

Table 6-9 lists the format of a single address register read, and Figure 6-7 and Figure 6-8 show examples.

Table 6-9. Noncontinuous Address Mode (Single Address Mode)

Start Adr x Data(x) Adr y Data(y) ... Adr z Data(z) StopSgl

Figure 6-7. Single Address Register Write Example of Register 0x00 (Using SPI With SS Mode)

TRF7960A

Figure 6-8. Single Address Register Read Example of Register 0x00 (Using SPI With SS Mode)

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Table 6-10 lists the format of the direct command mode, and Figure 6-9 shows an example.

Table 6-10. Direct Command Mode

Start Cmd x (Optional data or command) Stop

www.ti.com

Figure 6-9. Direct Command Example of Sending 0x0F (Reset) (Using SPI With SS Mode)

The other Direct Command Codes from MCU to TRF7960A are described in Section 6.13.

6.12.2 FIFO Operation

The FIFO is a 12-byte register at address 0x1F with byte storage locations 0 to 11. FIFO data is loaded in a cyclical manner and can be cleared by a reset command (0x0F, see Figure 6-9 showing this Direct Command).

Associated with the FIFO are two counters and three FIFO status flags. The first counter is a 4-bit FIFO byte counter (bits B0 to B3 in register 0x1C) that keeps track of the number of bytes loaded into the FIFO. If the number of bytes in the FIFO is n, the register value is n – 1 (number of bytes in FIFO register). If 8 bytes are in the FIFO, the FIFO counter (bits B0 to B3 in register 0x1C) has the value 7.

A second counter (12 bits wide) indicates the number of bytes being transmitted (registers 0x1D and 0x1E) in a data frame. An extension to the transmission-byte counter is a 4-bit broken-byte counter also provided in register 0x1E (bits B0 to B3). Together these counters make up the TX length value that determines when the reader generates the EOF byte.

FIFO status flags are as follows:

1. FIFO overflow (bit B4 of register 0x1C): Indicates that the FIFO was loaded too soon

2. FIFO level too low (bit B5 of register 0x1C): Indicates that only three bytes are left to be transmitted (Can be used during transmission.)

3. FIFO level high (bit B6 of register 0x1C): Indicates that nine bytes are already loaded into the FIFO (Can be used during reception to generate a FIFO reception IRQ. This is to notify the MCU to service the reader in time to ensure a continuous data stream.)

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

During transmission, the FIFO is checked for an almost-empty condition, and during reception for an almost-full condition. The maximum number of bytes that can be loaded into the FIFO in a single sequence is 12 bytes.

During transmission, the MCU loads the TRF7960A FIFO (or, during reception, the MCU removes data from the FIFO), and the FIFO counter counts the number of bytes being loaded into the FIFO. Meanwhile, the byte counter keeps track of the number of bytes being transmitted. An interrupt request is generated if the number of bytes in the FIFO is less than 3 or greater than 9, so that MCU can send new data or remove the data as necessary. The MCU also checks the number of data bytes to be sent, so as to not surpass the value defined in TX length bytes. The MCU also signals the transmit logic when the last byte of data is sent or was removed from the FIFO during reception. Transmission starts automatically after the first byte is written into FIFO.

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

NOTE

The number of bytes in a frame, transmitted or received, can be greater than 12 bytes.

Figure 6-10. Checking the FIFO Status Register (Using SPI With SS Mode)

6.12.3 Parallel Interface Mode

In parallel mode, the start condition is generated on the rising edge of the I/O_7 pin while the CLK is high. This is used to reset the interface logic. Figure 6-11, Figure 6-12, and Figure 6-13 show the sequence of

the data, with an 8-bit address word first, followed by data. Communication is ended by:

• The StopSmpl condition, where a falling edge on the I/O_7 pin is expected while CLK is high

• The StopCont condition, where the I/O_7 pin must have a successive rising and falling edge while CLK is low to reset the parallel interface and be ready for the new communication sequence

• The StopSmpl condition is also used to terminate the direct mode.

Submit Documentation Feedback

Product Folder Links: TRF7960A

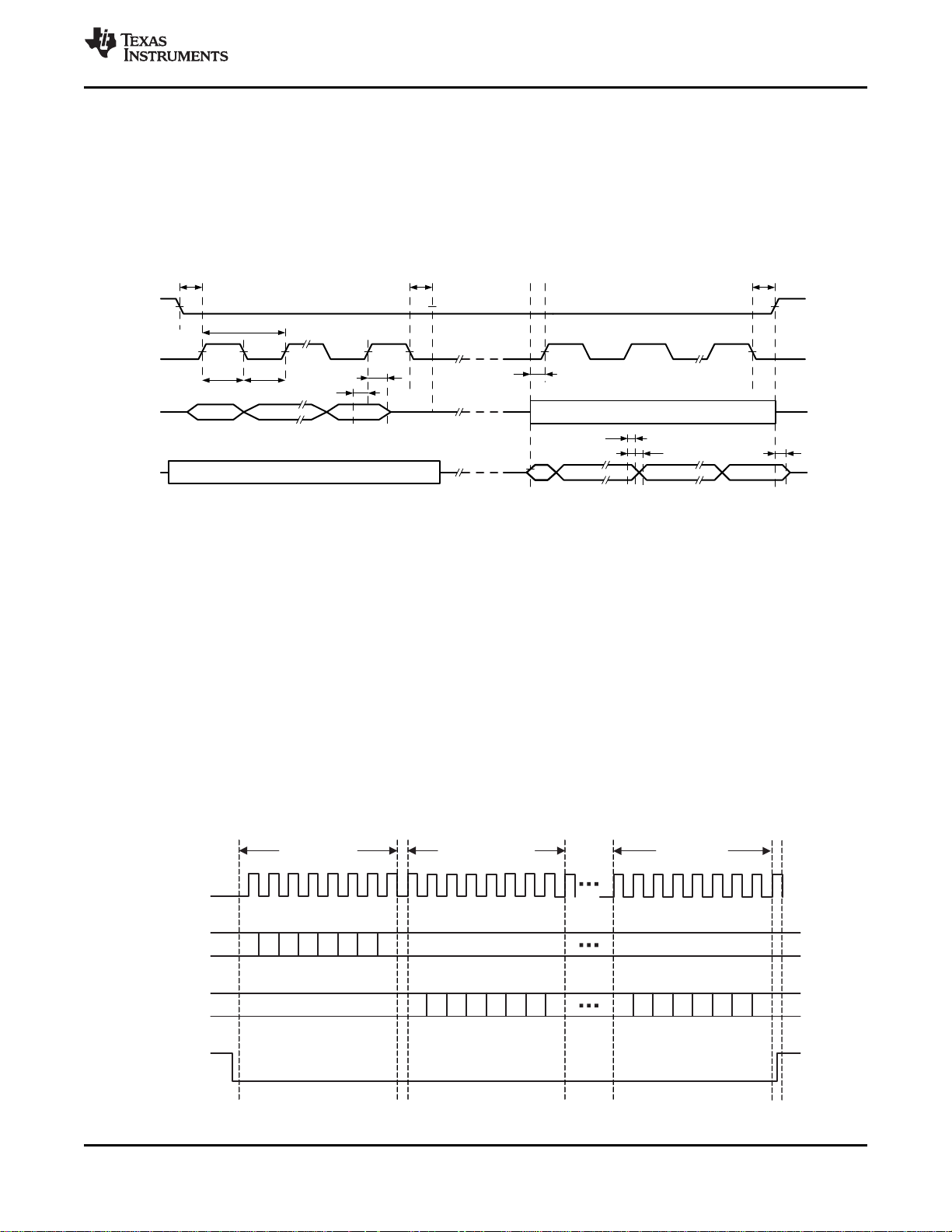

CLK

I/O_[7]

I/O_[6:0]

a0 [7]

d0 [7] d1 [7] d2 [7] d3 [7] dN [7]

a0 [6:0] d0 [6:0] d1 [6:0] d2 [6:0] d3 [6:0] dN [6:0]xx xx

50 ns

Start

Condition

StopCont

Continuous Mode

CLK

I/O_[7]

I/O_[6:0]

a1 [7]

d1 [7] a2 [7] d2 [7] aN [7] dN [7]

a1 [6:0] d1 [6:0] a2 [6:0] d2 [6:0] aN [6:0] dN [6:0]

50 ns

Start

Condition

StopSmpl

Condition

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Figure 6-11. Parallel Interface Communication With Simple Stop Condition (StopSmpl)

Figure 6-12. Parallel Interface Communication With Continuous Stop Condition (StopCont)

www.ti.com

Figure 6-13. Parallel Interface Communication With Continuous Stop Condition

6.12.4 Reception of Air Interface Data

At the start of a receive operation (when SOF is successfully detected), B6 is set in the IRQ Status register. An interrupt request is sent to the MCU at the end of the receive operation if the receive data string was shorter than or equal to 8 bytes. The MCU receives the interrupt request, then checks to determine the reason for the interrupt by reading the IRQ Status register (address 0x0C), after which the MCU reads the data from the FIFO.

If the received packet is longer than 8 bytes, the interrupt is sent before the end of the receive operation when the ninth byte is loaded into the FIFO (75% full). The MCU must read the FIFO status register (0x1C) to determine the number of bytes to be read from the FIFO. Next, the MCU must read the data in the FIFO. It is optional but recommended to read the FIFO Status register (0x1C) after reading the FIFO data to determine if the receive is complete. In the case of an IRQ_FIFO, the MCU should expect either another IRQ_FIFO or RX complete interrupt. This is repeated until an RX complete interrupt is generated.

If the reader detects a receive error, the corresponding error flag is set (framing error, CRC error) in the IRQ Status register, indicating to the MCU that reception was not completed correctly.

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

6.12.5 Data Transmission to MCU

Before beginning data transmission, the FIFO should always be cleared with a reset command (0x0F). Data transmission is initiated with a selected command (see Section 6.13). The MCU then commands the reader to do a continuous write command (0x3D) (see Table 6-7) starting from register 0x1D. Data written into register 0x1D is the TX length byte 1 (upper and middle nibbles), while the following byte in register 0x1E is the TX length byte 2 (lower nibble and broken byte length). The TX byte length determines when the reader sends the EOF byte. After the TX length bytes are written, FIFO data is loaded in register 0x1F with byte storage locations 0 to 11. Data transmission begins automatically after the first byte is written into the FIFO. The loading of TX length bytes and the FIFO can be done with a continuous write command, as the addresses are sequential.

At the start of transmission, the flag B7 (IRQ_TX) is set in the IRQ Status register. If the transmit data is shorter than or equal to 4 bytes, the interrupt is sent only at the end of the transmit operation. If the number of bytes to be transmitted is higher or equal to 5, then the interrupt is generated. This occurs also when the number of bytes in the FIFO reaches 3. The MCU should check the IRQ Status register and FIFO Status register and then load additional data to the FIFO, if needed. At the end of the transmit operation, an interrupt is sent to inform the MCU that the task is complete.

6.12.6 Serial Interface Communication (SPI)

When an SPI interface is used, I/O pins I/O_2, I/O_1, and I/O_0 must be hard-wired as specified in

Table 6-6. On power up, the TRF7960A looks for the status of these pins; if they are not the same (not all

high, or not all low), the reader enters into one of two possible SPI modes:

• SPI with slave select or

• SPI without slave select

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

The choice of one of these modes over the other should be made based on the available GPIOs and the desired control of the system.

The serial communications work in the same manner as the parallel communications with respect to the FIFO, except for the following condition. On receiving an IRQ from the reader, the MCU reads the TRF7960A IRQ Status register to determine how to service the reader. After this, the MCU must to do a dummy read to clear the reader's IRQ Status register. The dummy read is required in SPI mode, because the reader's IRQ Status register needs an additional clock cycle to clear the register. This is not required in parallel mode, because the additional clock cycle is included in the Stop condition.

A procedure for a dummy read is as follows:

1. Starting the dummy read

1. When using slave select (SS): set SS bit low

2. When not using SS: start condition is when SCLK is high

2. Send address word to IRQ Status register (0x0C) with read and continuous address mode bits set to 1

3. Read 1 byte (8 bits) from IRQ Status register (0x0C)

4. Dummy read 1 byte from register 0Dh (collision position and interrupt mask)

5. Stopping the dummy read

1. When using slave select (SS): set SS bit high

2. When not using SS: stop condition when SCLK is high

Submit Documentation Feedback

Product Folder Links: TRF7960A

50 ns

Start

Condition

Stop

Condition

b7 b6 b5 b4 b3 b2 b1 b0

Data Clock

Data In

Data Out

Read Data in

IRQ Status Register

Dummy Read

Write Address

Byte (0x6C)

No Data Transitions

(All High/Low)

Don't Care

Ignore

0 1 1 0 1 1 0 0

B7 B6 B5 B4 B3 B2 B1 B0

SLAVE

SELECT

MISO

MOSI

DATA_CLK

No Data Transitions

(All High/Low)

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

www.ti.com

Figure 6-14. Procedure for Dummy Read

Figure 6-15. Dummy Read Using SPI With SS

6.12.6.1 Serial Interface Mode Without Slave Select (SS)

The serial interface without the slave select pin must use delimiters for the start and stop conditions. Between these delimiters, the address, data, and command words can be transferred. All words must be 8 bits long with MSB transmitted first (see Figure 6-16).

Figure 6-16. SPI Without Slave Select Timing

In this mode, a rising edge on data in (I/O_7, pin 24) while SCLK is high resets the serial interface and prepares it to receive data. Data in can change only when SCLK is low, and it is read by the reader on the SCLK rising edge. Communication is terminated by the stop condition when the data in falling edge occurs during a high SCLK period.

Submit Documentation Feedback

Product Folder Links: TRF7960A

Read

Data Byte 1

Read

Data Byte n

Write

Address Byte

No Data Transitions

(All High or Low)

Don't Care B7 B6 B5 B4 B3 B2 B1 B0

SLAVE

SELECT

MISO

MOSI

DATA_CLK

No Data Transitions

(All High or Low)

B7 B6 B5 B4 B3 B2 B1 B0

Slave

Select

MISO

MOSI

Data

Clock

Write Mode

CKPH = 1, CKPL = 0

Data Transition is on

Data Clock Falling Edge

MOSI Valid on Data Clock Rising Edge

STE,LEAD

STE,LAG

LO/HI

b6 to b1

SU,SI

HD,SI

1/f

UCxCLK

b6... ...b1b7

Don't Care

No Data Transitions

(All High, Low)

Switch

DATA_CLK

Polarity

Read Mode CKPH = 0, CKPL = 0 Data Transition is on

Data Clock Rising Edge

MOSI Valid on Data Clock Falling Edge

STE,LAG

SU,SO

HD,SO

VALID,SO

STE,DIS

www.ti.com

6.12.6.2 Serial Interface Mode With Slave Select (SS)

The serial interface is in reset while the Slave Select signal is high. Serial data in (MOSI) changes on the falling edge and is validated in the reader on the rising edge (see Figure 6-17). Communication is terminated when the Slave Select signal goes high.

All words must be 8 bits long with the MSB transmitted first.

Figure 6-17. SPI With Slave Select Timing

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

The read command is sent out on the MOSI pin, MSB first, in the first eight clock cycles. MOSI data changes on the falling edge, and is validated in the reader on the rising edge, as shown in Figure 6-17. During the write cycle, the serial data out (MISO) is not valid. After the last read command bit (B0) is validated at the eighth rising edge of SCLK, after half a clock cycle, valid data can be read on the MISO pin at the falling edge of SCLK. It takes eight clock edges to read out the full byte (MSB first).

When using the hardware SPI (for example, an MSP430 hardware SPI) to implement this feature, care must be taken to switch the SCLK polarity after write phase for proper read operation. The example clock polarity for the Figure 6-17 shows the MSP430-specific environment in the write-mode and read-mode boxes. See the USART-SPI chapter for any specific microcontroller family for further information on the setting the appropriate clock polarity. This clock polarity switch must be done for all read (single or continuous) operations. The MOSI (serial data out) should not have any transitions (all high or all low) during the read cycle. The Slave Select should be low during the whole write and read operation.

See Section 5.6, Switching Characteristics, for the timing values shown in Figure 6-17.

Figure 6-18 shows the continuous read operation.

Figure 6-18. Continuous Read Operation Using SPI With Slave Select

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Figure 6-19. Continuous Read of Registers 0x00 to 0x05 Using SPI With SS

Figure 6-20 shows performing a Single Slot Inventory Command as an example. Reader registers (in this

example) are configured for 5-VDC input and default operation. Full sequences for other settings and protocols can be downloaded from http://www.ti.com/lit/zip/sloc240.

www.ti.com

Figure 6-20. Inventory Command Sent From MCU to TRF7960A

The TRF7960A reads these bytes from the MCU and then sends out Request Flags, Inventory Command, and Mask over the air to the ISO/IEC 15693 transponder. After these three bytes have been transmitted, an interrupt occurs from the reader to indicate back to the MCU that the transmission has been completed. In the example shown in Figure 6-21, this IRQ occurs approximately 1.6 ms after the SS line goes high after the Inventory command is sent out.

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Figure 6-21. IRQ After Inventory Command

The IRQ Status register read (0x6C) yields 0x80, which indicates that TX is complete. This is followed by dummy clock and reset of FIFO with dummy clock. Then, if a tag is in the field and no error is detected by the reader, a second interrupt is expected and occurs (in this example) approximately 4 ms after first IRQ is read and cleared.

In the continuation of the example (see Figure 6-22), the IRQ Status register is read using method previously recommended, followed by a single read of the FIFO Status register, which indicates that there are at least 9 bytes to be read out.

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

www.ti.com

Figure 6-22. IRQ Status Register Read Followed by FIFO Status Register Read

This is followed by a continuous read of the FIFO (see Figure 6-23). The first byte is 0x00 for no error. The next byte is the DSFID (usually shipped by manufacturer as 0x00), then the UID, shown here up to the next most significant byte (MSByte), the MFG code (0x07 to indicate TI silicon).

Figure 6-23. Continuous Read of FIFO

This is followed by another IRQ approximately 160 µs later, as there is still one byte in FIFO, the MSB of the UID, which must be retrieved (see Figure 6-24). IRQ register read shows RX is complete and FIFO register status shows one byte available, as expected and it is the E0, indicating ISO/IEC 15693 transponder.

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Figure 6-24. IRQ With One Byte in FIFO

TI recommends resetting the FIFO after receiving data. Additionally, the RSSI value of the tag can be read out at this time. In the example in Figure 6-25, the transponder is very close to the antenna, so a value of 0x7E is recovered.

Figure 6-25. Reset FIFO and Read RSSI

Submit Documentation Feedback

Product Folder Links: TRF7960A

Analog Front End (AFE)

14443A

ISO Encoders and Decoders

14443B 15693

FeliCa

Packetization and Framing

Microcontroller

Direct Mode 0:

Raw RF Subcarrier

Data Stream

Direct Mode 1:

Raw Digital ISO Coded

Data Without

Protocol Frame

ISO Mode:

Full ISO Framing

and Error Checking

(Typical Mode)

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.12.7 Direct Mode

Direct mode lets the reader be configured in one of two ways:

Direct mode 0 (bit 6 = 0, as defined in ISO Control register) lets the application use only the front-end functions of the reader, bypassing the protocol implementation in the reader. For transmit functions, the application has direct access to the transmit modulator through the MOD pin (pin 14). On the receive side, the application has direct access to the subcarrier signal (digitized RF envelope signal) on I/O_6 (pin 23).

Direct mode 1 (bit 6 = 1, as defined in ISO Control register) uses the subcarrier signal decoder of the selected protocol (as defined in ISO Control register). This means that the receive output is not the subcarrier signal but the decoded serial bit stream and bit clock signals. The serial data is available on I/O_6 (pin 23), and the bit clock is available on I/O_5 (pin 22). The transmit side is identical; the application has direct control over the RF modulation through the MOD input. This mode is provided so that the application can implement a protocol that has the same bit coding as one of the protocols implemented in the reader, but needs a different framing format.

To select direct mode, first choose which direct mode to enter by writing B6 in the ISO Control register. This bit determines if the receive output is the direct subcarrier signal (B6 = 0) or the serial data of the selected decoder. If B6 = 1, then the application must also define which protocol should be used for bit decoding by writing the appropriate setting in the ISO Control register.

The reader actually enters the direct mode when B6 (direct) is set to 1 in the Chip Status Control register. Direct mode starts immediately. The write command should not be terminated with a stop condition (see communication protocol), because the stop condition terminates the direct mode and clears B6. This is necessary as the direct mode uses one or two I/O pins (I/O_6 and I/O_5). Normal parallel communication is not possible in direct mode. Sending a stop condition terminates direct mode.

www.ti.com

Figure 6-26 shows the different configurations available in direct mode.

• In mode 0, the reader is used as an AFE only, and protocol handling is bypassed.

• In mode 1, framing is not done, but SOF and EOF are present. This allows for a user-selectable framing level based on an existing ISO standard.

• In mode 2, data is ISO standard formatted. SOF, EOF, and error checking are removed, so the microprocessor receives only bytes of raw data through a 12-byte FIFO.

Figure 6-26. User-Configurable Modes

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

The steps to enter direct mode follow, using SPI with SS communication method only as one example, as direct modes are also possible with parallel and SPI without SS. The application must enter direct mode 0 to accommodate non-ISO standard compliant card type communications. direct mode can be entered at any time, so that if a card type started with ISO standard communications, then deviated from the standard after being identified and selected, the ability to go into direct mode 0 becomes very useful.

Step 1: Configure pins I/O_0 to I/O_2 for SPI with SS Step 2: Set pin 12 of the TRF7960A (ASK/OOK pin) to 0 for ASK or 1 for OOK Step 3: Program the TRF7960A registers

The following registers must be explicitly set before going into direct mode.

1. ISO Control register (0x01) to the appropriate standard:

2. Modulator and SYS_CLK Register (0x09) to the appropriate clock speed and modulation:

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

– 0x02 for ISO/IEC 15693 high data rate (26.48 kbps) – 0x08 for ISO/IEC 14443 A (106 kbps) – 0x1A for FeliCa 212 kbps – 0x1B for FeliCa 424 kbps

– 0x21 for 6.78-MHz clock and OOK (100%) modulation – 0x20 for 6.78-MHz clock and ASK 10% modulation – 0x22 for 6.78-MHz clock and ASK 7% modulation – 0x23 for 6.78-MHz clock and ASK 8.5% modulation – 0x24 for 6.78-MHz clock and ASK 13% modulation – 0x25 for 6.78-MHz clock and ASK 16% modulation

See register 0x09 definition for all other possible values.

Example register setting for ISO/IEC 14443 A at 106 kbps: – ISO Control register (0x01) to 0x08 – RX No Response Wait Time register (0x07) to 0x0E – RX Wait Time register (0x08) to 0x07 – Modulator Control register (0x09) to 0x21 (or any custom modulation) – RX Special Settings register (0x0A) to 0x20

Step 4: Enter direct mode The following registers must be reprogrammed to enter direct mode:

1. Set bit B6 of the Modulator and SYS_CLK Control register (0x09) to 1.

2. Set bit B6 of the ISO Control register (0x01) to 0 for direct mode 0 (default its 0)

3. Set bit B6 of the Chip Status Control register (0x00) to 1 to enter direct mode (do not send a Stop condition after this command)

NOTE

• Do not terminate last write with a Stop condition. For SPI, this means that Slave Select (I/O_4) continues to stay low.

• Sending a Stop condition terminates the direct mode and clears bit B6 in the Chip Status Control register (0x00).

NOTE

Access to registers, FIFO, and IRQ is not available during direct mode 0.

Remember that the reader enters direct mode 0 when bit 6 of the Chip Status Control register (0x00) is set to a 1, and it stays in direct mode 0 until a Stop condition is sent from the microcontroller.

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF796xA

Microcontroller

Drive the MOD pin according to the data-coding specified by the standard

Decode the subcarrier information according to the standard

MOD

(pin 14)

IO_6

(pin 23)

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

The write command should not be terminated with a Stop condition (for example, in SPI mode this is done by bringing the SS line high after the register write), because the Stop condition terminates the direct mode and clears bit 6 of the Chip Status Control register (0x00), making it a 0.

www.ti.com

NOTE

Figure 6-27. Entering Direct Mode 0

Step 5: Transmit data using direct mode

The user now has direct control over the RF modulation through the MOD input.

Figure 6-28. Control of RF Modulation Using MOD

The microcontroller is responsible for generating data according to the coding specified by the particular standard. The microcontroller must generate SOF, EOF, data, and CRC. In direct mode, the FIFO is not used and no IRQs are generated. See the applicable ISO standard to understand bit and frame definitions.

Step 6: Receive data using direct mode After the TX operation is complete, the tag responds to the request and the subcarrier data is available on

pin I/O_6. The microcontroller must decode the subcarrier signal according to the standard. This includes decoding the SOF, data bits, CRC, and EOF. The CRC then must be checked to verify data integrity. The receive data bytes must be buffered locally.

Figure 6-29 shows an example of the receive data bits and framing level according to the ISO/IEC 14443

A standard (sourced from the ISO/IEC 14443 specification and TRF7960A air interface).

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Figure 6-29. Receive Data Bits and Framing Level (ISO/IEC 14443 A)

Step 7: Exit direct mode 0

When an EOF is received, data transmission is over, and direct mode 0 can be terminated by sending a Stop condition (the SS signal goes high). The TRF7960A returns to ISO Mode (normal mode).

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.13 Direct Commands from MCU to Reader

6.13.1 Command Codes

Table 6-11 lists the valid commands that the MCU can send to the reader.

Table 6-11. Command Codes

www.ti.com

COMMAND

CODE

0x00 Idle 0x03 Software Initialization Same as power-on reset 0x0F Reset FIFO 0x10 Transmission Without CRC 0x11 Transmission With CRC 0x12 Delayed Transmission Without CRC 0x13 Delayed Transmission With CRC 0x14 End of Frame/Transmit Next Time Slot Used for ISO/IEC 15693 only 0x16 Block Receiver 0x17 Enable Receiver 0x18 Test Internal RF RSSI at RX input with TX off 0x19 Test External RF RSSI at RX input with TX off 0x1A Receiver Gain Adjust

COMMAND COMMENTS

The command code values from Table 6-11 are substituted in Table 6-12, Bits 0 to 4. Also, the most significant bit (MSB) in Table 6-12 must be set to 1.

Table 6-12. Address/Command Word Bit Distribution

BIT DESCRIPTION BIT FUNCTION ADDRESS COMMAND

B7 Command control bit

B6 Read/Write

B5 Continuous address mode B4 Address/Command bit 4 Adr 4 Cmd 4

B3 Address/Command bit 3 Adr 3 Cmd 3 B2 Address/Command bit 2 Adr 2 Cmd 2 B1 Address/Command bit 1 Adr 1 Cmd 1 B0 Address/Command bit 0 Adr 0 Cmd 0

0 = Address

1 = Command

0 = Write

1 = Read

0 1

R/W 0

Continuous

mode

Not used

The MSB determines if the word is to be used as a command or address. The last two columns of

Table 6-12 show the function of separate bits depending on whether address or command is written.

Command mode is used to enter a command resulting in reader action (for example, initialize transmission, enable reader, or turn the reader on or off).

6.13.2 Reset FIFO (0x0F)

The reset command clears the FIFO contents and FIFO Status register (0x1C). It also clears the register storing the collision error location (0x0E).

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

6.13.3 Transmission With CRC (0x11)

The transmission command must be sent first, followed by transmission length bytes, and FIFO data. The reader starts transmitting after the first byte is loaded into the FIFO. The CRC byte is included in the transmitted sequence.

6.13.4 Transmission Without CRC (0x10)

Section 6.13.3, except that the CRC is not included.

6.13.5 Delayed Transmission With CRC (0x13)

The transmission command must be sent first, followed by the transmission length bytes, and FIFO data. The reader transmission is triggered by the TX timer.

6.13.6 Delayed Transmission Without CRC (0x12)

The transmission command must be sent first, followed by the transmission length bytes, and FIFO data. The reader transmission is triggered by the TX timer. This is the same as described in Section 6.13.5, except that the CRC is not included.

6.13.7 Transmit Next Time Slot (0x14)

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

When this command is received, the reader transmits the next slot command. The next slot sign is defined by the protocol selection. This command is used by the ISO/IEC 15693 protocol.

6.13.8 Block Receiver (0x16)

The block receiver command puts the digital part of receiver (bit decoder and framer) in reset mode. This is useful in an extremely noisy environment, where the noise level could otherwise cause a constant switching of the subcarrier input of the digital part of the receiver. The receiver (if not in reset) would try to catch a SOF signal, and if the noise pattern matched the SOF pattern, an interrupt would be generated, falsely signaling the start of an receive operation. A constant flow of interrupt requests can be a problem for the external system (MCU), so the external system can stop this by putting the receive decoders in reset mode.

The reset mode can be terminated in two ways:

The external system can send the enable receiver command (see Section 6.13.9). The reset mode is automatically terminated at the end of a transmit operation.

The receiver can stay in reset after end of transmit if the RX Wait Time register (0x08) is set. In this case, the receiver is enabled at the end of the wait time following the transmit operation.

6.13.9 Enable Receiver (0x17)

This command clears the reset mode in the digital part of the receiver if the reset mode was entered by the block receiver command.

6.13.10 Test Internal RF (RSSI at RX Input With TX On) (0x18)

The level of the RF carrier at RF_IN1 and RF_IN2 inputs is measured. THe operating range is 300 mVPto

2.1 VP(the step size is 300 mV). The two values are reported in the RSSI Levels register (0x0F). The command is intended for diagnostic purposes to set correct RF_IN levels. Optimum RFIN input level is approximately 1.6 VPor code 5 to 6. The nominal relationship between the RF peak level and RSSI code is described in Table 6-13 and in Section 6.7.1.1.

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

NOTE

If the command is executed immediately after power-up and before any communication with tag was performed, the command must be preceded by the Enable RX command. The Check RF commands require full operation, so the receiver must be activated by enable receive or by a normal tag communication for the Check RF command to work properly.

Table 6-13. Test Internal RF

RF_IN1 (mVP): 300 600 900 1200 1500 1800 2100

Decimal Code: 1 2 3 4 5 6 7

Binary Code: 001 010 011 001 101 011 111

6.13.11 Test External RF (RSSI at RX Input With TX Off) (0x19)

This command can be used in active mode when the RF receiver is on but RF output is off. This means bit B1 = 1 in the Chip Status Control register. The level of RF signal received on the antenna is measured and reported in the RSSI Levels register (0x0F). The relation between the 3-bit code and the external RF field strength [A/m] must be determinate by calculation or by experiments for each antenna type, because the antenna Q and connection to the RF input influence the result. Table 6-14 and Section 6.7.1.2 describe the nominal relation between the RF peak-to-peak voltage in the RF_IN1 input and RSSI code, respectively.

www.ti.com

If the command is executed immediately after power-up and before any communication with tag was performed, the command must be preceded by the Enable RX command. The Check RF commands require full operation, so the receiver must be activated by enable RX or by a normal tag communication for the Check RF command to work properly.

RF_IN1 (mVP): 40 60 80 100 140 180 300

Decimal Code: 1 2 3 4 5 6 7

Binary Code: 001 010 011 001 101 011 111

6.13.12 Register Preset

After power-up and the EN pin low-to-high transition, the reader is in the default mode. The default configuration is ISO/IEC 15693, single subcarrier, high data rate, 1-out-of-4 operation. The low-level option registers (0x02 to 0x0B) are automatically set to adapt the circuitry optimally to the appropriate protocol parameters. When entering another protocol (by writing to the ISO Control register), the low-level option registers are automatically configured to the new protocol parameters. After selecting the protocol, it is possible to change some low-level register contents if needed. However, changing to another protocol and then back reloads the default settings; therefore, the custom settings must be reloaded.

The Clo0 and Clo1 bits in the Modulator and SYS_CLK Control register (0x09), which define the microcontroller frequency available on the SYS_CLK pin, are the only 2 bits in the configuration registers that are not cleared during protocol selection.

NOTE

Table 6-14. Test External RF

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

6.14 Register Description

6.14.1 Register Overview

Table 6-15 lists the registers available in the TRF7960A. These registers are described in the following

sections.

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Table 6-15. Register Overview

ADDRESS

(hex)

0x00 Chip Status Control R/W Section 6.14.1.1.1 0x01 ISO Control R/W Section 6.14.1.1.2

0x02 ISO14443B TX Options R/W Section 6.14.1.2.1 0x03 ISO14443A High-Bit-Rate Options R/W Section 6.14.1.2.2 0x04 TX Timer Setting, H-byte R/W Section 6.14.1.2.3 0x05 TX Timer Setting, L-byte R/W Section 6.14.1.2.4 0x06 TX Pulse-Length Control R/W Section 6.14.1.2.5 0x07 RX No Response Wait R/W Section 6.14.1.2.6 0x08 RX Wait Time R/W Section 6.14.1.2.7 0x09 Modulator and SYS_CLK Control R/W Section 6.14.1.2.8 0x0A RX Special Setting R/W Section 6.14.1.2.9

0x0B Regulator and I/O Control R/W

0x0C IRQ Status R Section 6.14.1.3.1 0x0D Collision Position and Interrupt Mask Register R/W Section 6.14.1.3.2 0x0E Collision Position R Section 6.14.1.3.2 0x0F RSSI Levels and Oscillator Status R Section 6.14.1.3.3

0x1A Test R/W Section 6.14.1.4.1 0x1B Test R/W Section 6.14.1.4.2 0x1C FIFO Status R Section 6.14.1.5.1 0x1D TX Length Byte1 R/W Section 6.14.1.5.2 0x1E TX Length Byte2 R/W Section 6.14.1.5.2 0x1F FIFO I/O Register R/W

Main Control Registers

Protocol Subsetting Registers

Section

6.14.1.2.10

Status Registers

FIFO Registers

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.1 Main Configuration Registers

6.14.1.1.1 Chip Status Control Register (0x00)

Table 6-16 describes the bit fields of the Chip Status Control register. This register controls the power

mode, RF on or off, AM or PM, and direct mode.

Default Value: 0x01, set at EN = L or POR = H

Table 6-16. Chip Status Control Register (0x00)

BIT NO. BIT NAME FUNCTION DESCRIPTION

Standby mode keeps all supply regulators and the 13.56-MHz SYS_CLK oscillator running (typical start-up time to full operation is 100 µs).

Provides user direct access to AFE (direct mode 0) or lets the user add custom framing (direct mode 1). Bit 6 of the ISO Control register must be set before entering direct mode 0 or 1.

Uses SPI or parallel communication with automatic framing and ISO decoders

B7 stby

B6 direct

B5 rf_on

1 = Standby mode 0 = Active mode Active mode (default)

1 = Direct mode 0 or 1

0 = ISO mode (default) 1 = RF output active Transmitter on, receivers on

0 = RF output not active Transmitter off

www.ti.com

B4 rf_pwr

B3 pm_on

B2 Reserved

B1 rec_on

B0 vrs5_3

1 = Half output power

0 = Full output power

1 = Selects aux RX input RX_IN2 input is used 0 = Selects main RX

input

1 = Receiver activated for external field measurement

0 = Automatic enable Allows enable of the receiver by bit 5 of this register 1 = 5-V operation 0 = 3-V operation

TX_OUT (pin 5) = 8-Ω output impedance P = 100 mW (+20 dBm) at 5 V, P = 33 mW (+15 dBm) at 3.3 V

TX_OUT (pin 5) = 4-Ω output impedance P = 200 mW (+23 dBm) at 5 V, P = 70 mW (+18 dBm) at 3.3 V

RX_IN1 input is used

Forces enabling of receiver and TX oscillator. Used for external field measurement.

Selects the VIN voltage range

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.1.2 ISO Control Register (0x01)

Table 6-17 describes the bit fields of the ISO Control register. This register controls the selection of ISO

standard protocol, direct mode, and receive CRC.

Default Value: 0x02 (ISO/IEC 15693 high bit rate, one subcarrier, 1 out of 4), reset at EN = L or POR = H

Table 6-17. ISO Control Register (0x01)

BIT NO. BIT NAME FUNCTION DESCRIPTION

TRF7960A

B7 rx_crc_n CRC receive selection

B6 dir_mode

B5 rfid RFID mode

B4 iso_4 RFID B3 iso_3 RFID B2 iso_2 RFID B1 iso_1 RFID B0 iso_0 RFID

Direct mode type selection

1 = No RX CRC (CRC not present in the response) 0 = RX CRC (CRC is present in the response)

0 = Direct mode 0 1 = Direct mode 1

0 = RFID mode 1 = Reserved (should be set to 0)

See Table 6-18 for B0:B4 settings based on the ISO protocol that the application requires.

Table 6-18. ISO Control Register: ISO_4 to ISO_0

iso_4 iso_3 iso_2 iso_1 iso_0 PROTOCOL REMARKS

0 0 0 0 0 ISO/IEC 15693 low bit rate, 6.62 kbps, one subcarrier, 1 out of 4 0 0 0 0 1 ISO/IEC 15693 low bit rate, 6.62 kbps, one subcarrier, 1 out of 256

0 0 0 1 0 ISO/IEC 15693 high bit rate, 26.48 kbps, one subcarrier, 1 out of 4 0 0 0 1 1 ISO/IEC 15693 high bit rate, 26.48 kbps, one subcarrier, 1 out of 256

0 0 1 0 0 ISO/IEC 15693 low bit rate, 6.67 kbps, double subcarrier, 1 out of 4 0 0 1 0 1 ISO/IEC 15693 low bit rate, 6.67 kbps, double subcarrier, 1 out of 256 0 0 1 1 0 ISO/IEC 15693 high bit rate, 26.69 kbps, double subcarrier, 1 out of 4 0 0 1 1 1 ISO/IEC 15693 high bit rate, 26.69 kbps, double subcarrier, 1 out of 256 0 1 0 0 0 ISO/IEC 14443 A RX bit rate, 106 kbps 0 1 0 0 1 ISO/IEC 14443 A RX high bit rate, 212 kbps 0 1 0 1 0 ISO/IEC 14443 A RX high bit rate, 424 kbps 0 1 0 1 1 ISO/IEC 14443 A RX high bit rate, 848 kbps 0 1 1 0 0 ISO/IEC 14443 B RX bit rate, 106 kbps 0 1 1 0 1 ISO/IEC 14443 B RX high bit rate, 212 kbps 0 1 1 1 0 ISO/IEC 14443 B RX high bit rate, 424 kbps 0 1 1 1 1 ISO/IEC 14443 B RX high bit rate, 848 kbps 1 1 0 1 0 FeliCa 212 kbps 1 1 0 1 1 FeliCa 424 kbps

(1) For ISO/IEC 14443 A or B, when bit rate of TX is different from RX, settings can be made in register 0x02 or 0x03.

Default for reader

RX bit rate

(1)

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.2 Protocol Subsetting Registers

6.14.1.2.1 ISO14443B TX Options Register (0x02)

Table 6-19 describes the bit fields of the ISO14443B TX Options register. This register selects the ISO

subsets for ISO/IEC 14443 B transmit.

Default Value: 0x00, set at POR = H or EN = L

Table 6-19. ISO14443B TX Options Register (0x02)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 egt2 B6 egt1 B5 egt0

B4 eof_l0

B3 sof_l1

B2 sof_l0

B1 l_egt B0 Unused

TX EGT time select. B7 is the MSB.

1 = EOF → 0 length 11 etu 0 = EOF → 0 length 10 etu

1 = SOF → 1 length 03 etu 0 = SOF → 1 length 02 etu

1 = SOF → 0 length 11 etu 0 = SOF → 0 length 10 etu

1 = EGT after each byte 0 = EGT after last byte is omitted

This 3-bit code defines the number of etu (0 to 7) that separate two characters. ISO/IEC 14443 B TX only.

ISO/IEC 14443 B TX only

www.ti.com

6.14.1.2.2 ISO14443A High-Bit-Rate and Parity Options Register (0x03)

Table 6-20 describes the bit fields of the ISO14443A High-Bit-Rate and Parity Options register. This

Default Value: 0x00, set at POR = H or EN = L and at each write to ISO Control register

Table 6-20. ISO14443A High-Bit-Rate and Parity Options Register (0x03)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 dif_tx_br B6 tx_br1

B5 tx_br0

B4 parity-2tx

B3 parity-2rx B2 Unused

B1 Unused B0 Unused

TX bit rate different from RX bit rate enable

TX bit rate

1 = Parity odd except last byte, which is even for TX

1 = Parity odd except last byte, which is even for RX

Valid for ISO/IEC 14443 A or B high bit rate

tx_br1 = 0, tx_br = 0: 106 kbps tx_br1 = 0, tx_br = 1: 212 kbps tx_br1 = 1, tx_br = 0: 424 kbps tx_br1 = 1, tx_br = 1: 848 kbps

For ISO/IEC 14443 A high-bit-rate coding and decoding

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.2.3 TX Timer High Byte Control Register (0x04)

Table 6-21 describes the bit fields of the TX Timer High Byte Control register. This register sets timings.

Default Value: 0xC2, set at POR = H or EN = L and at each write to the ISO Control register

Table 6-21. TX Timer High Byte Control Register (0x04)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 tm_st1 Timer start condition

B6 tm_st0 Timer start condition

B5 tm_lengthD Timer length MSB B4 tm_lengthC Timer length B3 tm_lengthB Timer length B2 tm_lengthA Timer length B1 tm_length9 Timer length B0 tm_length8 Timer length LSB

tm_st1 = 0, tm_st0 = 0: beginning of TX SOF tm_st1 = 0, tm_st0 = 1: end of TX SOF tm_st1 = 1, tm_st0 = 0: beginning of RX SOF tm_st1 = 1, tm_st0 = 1: end of RX SOF

See Table 6-22 for timer length description.

6.14.1.2.4 TX Timer Low Byte Control Register (0x05)

TRF7960A

Table 6-22 describes the bit fields of the TX Timer Low Byte Control register. This register sets timings.

Default Value: 0x00, set at POR = H or EN = L and at each write to the ISO Control register

Table 6-22. TX Timer Low Byte Control Register (0x05)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 tm_length7 Timer length MSB B6 tm_length6 Timer length B5 tm_length5 Timer length B4 tm_length4 Timer length B3 tm_length3 Timer length B2 tm_length2 Timer length B1 tm_length1 Timer length B0 tm_length0 Timer length LSB

Defines the time when delayed transmission is started. RX wait range is 590 ns to 9.76 ms (1 to 16383), Step size is 590 ns, All bits low = timer disabled (0x00) Preset to 0x00 for all other protocols.

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.2.5 TX Pulse Length Control Register (0x06)

Table 6-23 describes the bit fields of the TX Pulse Length Control register. This register controls the length

of TX pulse. Default Value: 0x00, set at POR = H or EN = L and at each write to ISO Control register The length of the modulation pulse is defined by the protocol selected in the ISO Control register (0x01).

With a high-Q antenna, the modulation pulse is typically prolonged, and the tag detects a longer pulse than intended. For such cases, the modulation pulse length can be corrected by using the TX pulse length register 0x06. If the register contains all zeros, then the pulse length is governed by the protocol selection. If the register contains a value other than 0x00, the pulse length is equal to the value of the register in

73.7-ns increments. This means the range of adjustment can be 73.7 ns to 18.8 µs.

Table 6-23. TX Pulse Length Control Register (0x06)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 Pul_p2 B6 Pul_p1 B5 Pul_p0 B4 Pul_c4 B3 Pul_c3 B2 Pul_c2 B1 Pul_c1 B0 Pul_c0

Pulse length. B7 is the MSB.

The pulse range is 73.7 ns to 18.8 µs (1 to 255), step size 73.7 ns All bits low (00) = Pulse length control is disabled The following default timings are preset by the ISO Control register (0x01):

9.44 µs for ISO/IEC 15693 (TI Tag-It HF-I)

2.36 µs for ISO/IEC 14443 A at 106 kbps

1.4 µs for ISO/IEC 14443 A at 212 kbps 737 ns for ISO/IEC 14443 A at 424 kbps 442 ns for ISO/IEC 14443 A at 848 kbps; pulse length control disabled

www.ti.com

6.14.1.2.6 RX No Response Wait Time Register (0x07)

Table 6-24 describes the bit fields of the RX No Response Wait Time register. This register defines the

time when no response interrupt is sent; only for ISO/IEC 15693. Default Value: 0x0E, set at POR = H or EN = L and at each write to ISO Control register The RX no response timer is controlled by the RX No Response Wait Time register. This timer measures

the time from the start of slot in the anticollision sequence until the start of tag response. If there is no tag response in the defined time, an interrupt request is sent and a flag is set in IRQ Status Control register (0x0C). This enables the external controller to be relieved of the task of detecting empty slots. The wait time is stored in the register in increments of 37.76 µs. This register is also preset, automatically, for every new protocol selection.

Table 6-24. RX No Response Wait Time Register (0x07)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 NoResp7 B6 NoResp6 B5 NoResp5 B4 NoResp4 B3 NoResp3 B2 NoResp2 B1 NoResp1 B0 NoResp0

No response. B7 is the MSB.

Defines the time when the no response interrupt is sent. Timing starts from the end of TX EOF. RX no response wait range is 37.76 µs to 9628 µs (1 to

255). Step size is 37.76 µs. The following default timings are preset by the ISO Control register (0x01):

529 µs for for all protocols that are supported but not listed here 755 µs for ISO/IEC 15693 high data rate (TI Tag-It HF-I) 1812 µs for ISO/IEC 15693 low data rate (TI Tag-It HF-I)

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.2.7 RX Wait Time Register (0x08)

Table 6-25 describes the bit fields of the RX Wait Time register. This register defines the time after TX

EOF when the RX input is disregarded; for example, to block out electromagnetic disturbance generated by the responding card.

Default Value: 0x1F, set at POR = H or EN = L and at each write to the ISO Control register The RX wait time timer is controlled by the value in the RX Wait Time register. This timer defines the time

after the end of the transmit operation in which the receive decoders are not active (held in reset state). This prevents incorrect detections resulting from transients following the transmit operation. The value of the RX wait time register defines this time in increments of 9.44 µs. This register is preset at every write to ISO Control register according to the minimum tag response time defined by each standard.

Table 6-25. RX Wait Time Register (0x08)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 Rxw7 B6 Rxw6 B5 Rxw5 B4 Rxw4 B3 Rxw3 B2 Rxw2 B1 Rxw1 B1 Rxw0

RX wait time. B7 is the MSB.

Defines the time after the TX EOF during which the RX input is ignored. Time starts from the end of TX EOF.

RX wait range is 9.44 µs to 2407 µs (1 to 255). Step size is: 9.44 µs. The following default timings are preset by the ISO Control register (0x01):

9.44 µs for FeliCa 66 µs for ISO/IEC 14443 A and B 293 µs for ISO/IEC 15693 (TI Tag-It HF-I)

TRF7960A

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.2.8 Modulator and SYS_CLK Control Register (0x09)

Table 6-26 describes the bit fields of the Modulator and SYS_CLK Control register. This register controls

the modulation input and depth, ASK/OOK pin control, and clock output to an external system (an MCU). Default Value: 0x11, set at POR = H or EN = L at each write to the ISO Control register for all bits except

Clo1 and Clo0 The frequency of SYS_CLK (pin 27) is programmable by bits B4 and B5 of this register. The frequency of

the TRF7960A system clock oscillator is divided by 1, 2, or 4 resulting in available SYS_CLK frequencies of 13.56 MHz, 6.78 MHz, or 3.39 MHz, respectively.

The ASK modulation depth is controlled by bits B0, B1, and B2. The range of ASK modulation is 7% to 30% or 100% (OOK). The selection between ASK and OOK (100%) modulation can also be done using direct input OOK (pin 12). The direct control of OOK or ASK using the OOK pin is only possible if the function is enabled by setting B6 = 1 (en_ook_p) in this register (0x09) and the ISO Control register (0x01, B6 = 1). When configured this way, the MOD pin (pin 14) is used as input for the modulation signal.

Table 6-26. Modulator and SYS_CLK Control Register (0x09)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 Unused

Enable ASK/OOK pin (pin 12) for change between any preselected ASK modulation as defined by B0 to B2 and OOK modulation.

If B6 is set to 1, pin 12 is configured as: 1 = OOK modulation 0 = Modulation as defined in B0 to B2 (0x09)

Clo1 Clo0 SYS_CLK Output

0 0 Disabled 0 1 3.39 MHz 1 0 6.78 MHz 1 1 13.56 MHz

B6 en_ook_p

B5 Clo1

B4 Clo0

1 = Enables external selection of ASK or OOK modulation

0 = Default operation as defined in bits B0 to B2 of this register

SYS_CLK output frequency. B5 is the MSB.

www.ti.com

B3 en_ana

B2 Pm2

B1 Pm1

B0 Pm0

1 = Sets pin 12 (ASK/OOK) as an analog output

0 = Default

Modulation depth. B2 is the MSB.

For test and measurement purpose. ASK/OOK pin 12 can be used to monitor the analog subcarrier signal before the digitizing with DC level equal to AGND.

Pm2 Pm1 Pm0 Modulation Type and Percentage

0 0 0 ASK 10% 0 0 1 OOK (100%) 0 1 0 ASK 7% 0 1 1 ASK 8.5% 1 0 0 ASK 13% 1 0 1 ASK 16% 1 1 0 ASK 22% 1 1 1 ASK 30%

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.2.9 RX Special Setting Register (0x0A)

Table 6-27 describes the bit fields of the RX Special Setting register. This register sets the gains and

filters directly. When bits B7, B6, B5, and B4 are all zero, the filters are set for ISO/IEC 14443B (240 kHz to 1.4 MHz).

Default Value: 0x40, set at POR = H or EN = L and at each write to the ISO Control register (0x01)

Table 6-27. RX Special Setting Register (0x0A)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 C212 Band-pass 110 kHz to 570 kHz Appropriate for 212-kHz subcarrier system (FeliCa) B6 C424 Band-pass 200 kHz to 900 kHz

B5 M848 Band-pass 450 kHz to 1.5 MHz

B4 hbt B3 gd1 00 = Gain reduction 0 dB

B2 gd2

B1 Reserved B0 Reserved

Band-pass 100 kHz to 1.5 MHz Gain reduced for 18 dB

01 = Gain reduction for 5 dB 10 = Gain reduction for 10 dB 11 = Gain reduction for 15 dB

Appropriate for Manchester-coded 848-kHz subcarrier used in ISO/IEC 14443 A

Appropriate for highest bit rate (848 kbps) used in high-bit-rate ISO/IEC 14443

Sets the RX gain reduction and reduces sensitivity

TRF7960A

NOTE

The setting of bits B4, B5, B6, and B7 to zero selects band-pass characteristic of 240 kHz to

1.4 MHz. This is appropriate for ISO/IEC 14443 B, FeliCa protocol, and ISO/IEC 14443 A

higher bit rates (212 kbps and 424 kbps).

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.2.10 Regulator and I/O Control Register (0x0B)

Table 6-28 describes the bit fields of the Regulator and I/O Control register. This register controls the

three voltage regulators.

Default Value: 0x87, set at POR = H or EN = L

Table 6-28. Regulator and I/O Control Register (0x0B)

BIT NO. BIT NAME FUNCTION DESCRIPTION

Automatic system settings:

VDD_RF = VIN – 250 mV

B7 auto_reg

B6 en_ext_pa

B5 io_low

B4 Unused No function Default is 0. B3 Unused No function Default is 0. B2 vrs2 B1 vrs1

B0 vrs0

0 = Manual system 1 = Automatic system

Support for external power amplifier

1 = Enable low peripheral communication voltage

Voltage set. B2 is the MSB.

VDD_A = VIN – 250 mV VDD_X = VIN – 250 mV, but not higher than 3.4 V

Manual system settings:

See B2 to B0

Internal peak detectors are disabled, receiver inputs (RX_IN1 and RX_IN2) accept externally demodulated subcarrier. At the same time, the ASK/OOK pin becomes modulation output for external TX amplifier.

When B5 = 1, maintains the output driving capabilities of the I/O pins connected to the level shifter under low-voltage operation. Should be set 1 when VDD_I/O voltage is 1.8 V to 2.7 V.

vrs3_5 = L: VDD_RF, VDD_A, VDD_X range is 2.7 V to 3.4 V. See Table 6-29, Table 6-30, Table 6-31, and Table 6-32.

www.ti.com

Table 6-29. Supply Regulator Setting, Manual 5-V System

00 1 5-V system 0B 0 Manual regulator setting 0B 0 1 1 1 VDD_RF = 5 V, VDD_A = 3.5 V, VDD_X = 3.4 V 0B 0 1 1 0 VDD_RF = 4.9 V, VDD_A = 3.5 V, VDD_X = 3.4 V 0B 0 1 0 1 VDD_RF = 4.8 V, VDD_A = 3.5 V, VDD_X = 3.4 V 0B 0 1 0 0 VDD_RF = 4.7 V, VDD_A = 3.5 V, VDD_X = 3.4 V 0B 0 0 1 1 VDD_RF = 4.6 V, VDD_A = 3.5 V, VDD_X = 3.4 V 0B 0 0 1 0 VDD_RF = 4.5 V, VDD_A = 3.5 V, VDD_X = 3.4 V 0B 0 0 0 1 VDD_RF = 4.4 V, VDD_A = 3.5 V, VDD_X = 3.4 V 0B 0 0 0 0 VDD_RF = 4.3 V, VDD_A = 3.5 V, VDD_X = 3.4 V

OPTION BITS SETTING IN CONTROL REGISTER

B7 B6 B5 B4 B3 B2 B1 B0

ACTION

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Table 6-30. Supply Regulator Setting, Manual 3-V System

00 0 3-V system 0B 0 Manual regulator setting 0B 0 1 1 1 VDD_RF = 3.4 V, VDD_A = 3.4 V, VDD_X = 3.4 V 0B 0 1 1 0 VDD_RF = 3.3 V, VDD_A = 3.3 V, VDD_X = 3.3 V 0B 0 1 0 1 VDD_RF = 3.2 V, VDD_A = 3.2 V, VDD_X = 3.2 V 0B 0 1 0 0 VDD_RF = 3.1 V, VDD_A = 3.1 V, VDD_X = 3.1 V 0B 0 0 1 1 VDD_RF = 3.0 V, VDD_A = 3.0 V, VDD_X = 3.0 V 0B 0 0 1 0 VDD_RF = 2.9 V, VDD_A = 2.9 V, VDD_X = 2.9 V 0B 0 0 0 1 VDD_RF = 2.8 V, VDD_A = 2.8 V, VDD_X = 2.8 V 0B 0 0 0 0 VDD_RF = 2.7 V, VDD_A = 2.7 V, VDD_X = 2.7 V

OPTION BITS SETTING IN CONTROL REGISTER

B7 B6 B5 B4 B3 B2 B1 B0

ACTION

Table 6-31. Supply Regulator Setting, Automatic 5-V System

00 1 5-V system 0B 1 x 1 1 Automatic regulator setting with 250-mV difference 0B 1 x 1 0 Automatic regulator setting with 350-mV difference 0B 1 x 0 0 Automatic regulator setting with 400-mV difference

(1) x = don't care

OPTION BITS SETTING IN CONTROL REGISTER

B7 B6 B5 B4 B3 B2

(1)

B1 B0

ACTION

Table 6-32. Supply Regulator Setting, Automatic 3-V System

00 0 3-V system 0B 1 x 1 1 Automatic regulator setting with 250-mV difference 0B 1 x 1 0 Automatic regulator setting with 350-mV difference 0B 1 x 0 0 Automatic regulator setting with 400-mV difference

(1) x = don't care

OPTION BITS SETTING IN CONTROL REGISTER

B7 B6 B5 B4 B3 B2

(1)

B1 B0

ACTION

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.3 Status Registers

6.14.1.3.1 IRQ Status Register (0x0C)

Table 6-33 describes the bit fields of the IRQ Status register. This register provides information available

about TRF7960A IRQ, TX, and RX status. Default Value: 0x00, set at POR = H or EN = L and at each write to the ISO Control register (0x01). The

register is also automatically reset at the end of a read phase. The reset also removes the IRQ flag. To reset (clear) the register and the IRQ line, the register must be read. During transmit, the decoder is

disabled, and only bits B5 and B7 can be changed. During receive, only bit B6 can be changed, but does not trigger the IRQ line immediately. The IRQ signal is set at the end of the transmit or receive phase.

Table 6-33. IRQ Status Register (0x0C)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 Irq_tx IRQ set due to end of TX

B6 Irg_srx IRQ set due to RX start

B5 Irq_fifo FIFO is high or low

B4 Irq_err1 CRC error B3 Irq_err2 Parity error Indicates parity error for ISO/IEC 14443 A

B2 Irq_err3 Byte framing or EOF error Indicates framing error

Signals that TX is in progress. The flag is set at the start of TX but the interrupt request (IRQ = 1) is sent when TX is finished.

Signals that RX SOF was received and RX is in progress. The flag is set at the start of RX but the interrupt request (IRQ = 1) is sent when RX is finished.

Signals when the FIFO is high or low (more than 8 bits during RX or less than 4 bits during TX). See Section 6.12.2 for details.

Indicates receive CRC error only if B7 (no RX CRC) of ISO Control register is set to 0.

www.ti.com

B1 Irq_col Collision error

B0 Irq_noresp No-response time interrupt

Collision error for ISO/IEC 14443 A and ISO/IEC 15693 single subcarrier. Bit is set if more then 6 or 7 (as defined in register 0x01) are detected inside 1 bit period of ISO/IEC 14443 A 106 kbps.

Collision error bit can also be triggered by external noise. No response within the "No-response time" defined in RX No-

response Wait Time register (0x07). Signals the MCU that next slot command can be sent. Only for ISO/IEC 15693.

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.3.2 Collision Position and Interrupt Mask Registers (0x0D and 0x0E)

Table 6-34 describes the bit fields of the Collision Position and Interrupt Mask register.

Default Value: 0x3E, set at POR = H and EN = L. Collision bits reset automatically after read operation.

Table 6-34. Collision Position and Interrupt Mask Register (0x0D)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 Col9 Bit position of collision MSB Supports ISO/IEC 14443 A B6 Col8 Bit position of collision B5 En_irq_fifo Interrupt enable for FIFO Default = 1 B4 En_irq_err1 Interrupt enable for CRC Default = 1 B3 En_irq_err2 Interrupt enable for Parity Default = 1

B2 En_irq_err3 B1 En_irq_col Interrupt enable for collision error Default = 1

B0 En_irq_noresp Enables no response interrupt Default = 0

Interrupt enable for Framing error or EOF

Default = 1

Table 6-35 describes the bit fields of the Collision Position register. This register displays the bit position of

collision or error.

Default Value: 0x00, set at POR = H and EN = L. The register is also automatically reset after a read.

TRF7960A

Table 6-35. Collision Position Register (0x0E)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 Col7 B6 Col6 B5 Col5 B4 Col4 B3 Col3 B2 Col2 B1 Col1 B0 Col0

Bit position of collision. B7 is the MSB.

ISO/IEC 14443 A mainly supported; in the other protocols, this register shows the bit position of error. Either frame, SOF/EOF, parity, or CRC error.

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.3.3 RSSI Levels and Oscillator Status Register (0x0F)

Table 6-36 describes the bit fields of the RSSI Levels and Oscillator Status register. This register reports

the signal strength on both reception channels and RF amplitude during RF off conditions. The RSSI values are valid from reception start until the start of the next transmission.

RSSI measurement block is measuring the demodulated envelope signal (except in case of direct command for RF amplitude measurement described later in direct commands section). The measuring system is latching the peak value, so the RSSI level can be read after the end of receive packet. The RSSI value is reset during next transmit action of the reader, so the new tag response level can be measured. Section 6.7.1.1 and Section 6.7.1.2 describe the RSSI levels calculated to RF_IN1 and RF_IN2. The RSSI has 7 steps (3 bits) with 4-dB increment. The input level is the peak to peak modulation level of RF signal measured on one side envelope (positive or negative).

Table 6-36. RSSI Levels and Oscillator Status Register (0x0F)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 Unused B6 osc_ok Crystal oscillator stable indicator 13.56-MHz frequency stable (approximately 200 µs)

B5 rssi_x2 B4 rssi_x1 Auxiliary channel RSSI B3 rssi_x0

B2 rssi_2 B1 rssi_1 Main channel RSSI B0 rssi_0

MSB RSSI value of auxiliary RX (RX_IN2)

MSB RSSI value of Main RX (RX_IN1)

LSB RSSI value of Main RX (RX_IN1)

Auxiliary channel is by default RX_IN2. The input can be swapped by B3 = 1 (Chip State Control register). If "swapped", the auxiliary channel is connected to RX_IN1 and the auxiliary RSSI represents the signal level at RX_IN1.

Active channel is the default and can be set with option bit B3 = 0 of the Chip Status Control register (0x00).

www.ti.com

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.4 Test Registers

6.14.1.4.1 Test Register (0x1A)

Table 6-37 describes the bit fields of the Test register at 0x1A.

Default Value: 0x00, set at POR = H and EN = L

Table 6-37. Test Register (0x1A) (for Test or Direct Use)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 OOK_Subc_In Subcarrier input OOK pin becomes decoder digital input B6 MOD_Subc_Out Subcarrier output MOD pin becomes receiver subcarrier output B5 MOD_Direct Direct TX modulation and RX reset MOD pin becomes receiver subcarrier output

0 = First stage output used for analog out and

B4 o_sel First stage output selection

B3 low2 Second stage gain –6 dB, HP corner frequency / 2 B2 low1 First stage gain –6 dB, HP corner frequency / 2 B1 zun Input followers test B0 Test_AGC AGC test, AGC level is seen on rssi_210 bits

digitizing 1 = Second stage output used for analog out and

digitizing

TRF7960A

6.14.1.4.2 Test Register (0x1B)

Table 6-38 describes the bit fields of the Test register at 0x1B. When a test_dec or test_io is set, the IC is

switched to test mode. Test mode persists until a stop condition arrives. At stop condition, the test_dec and test_io bits are cleared.

Default Value: 0x00, set at POR = H and EN = L

Table 6-38. Test Register 2 (0x1B) (for Test or Direct Use)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 test_rf_level RF level test B6 B5 B4 B3 test_io1 I/O test Not implemented B2 test_io0 B1 test_dec Decoder test mode B0 clock_su Coder clock 13.56 MHz For faster test of coders

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

6.14.1.5 FIFO Control Registers

6.14.1.5.1 FIFO Status Register (0x1C)

Table 6-39 describes the bit fields of the FIFO Status register. This register contains the low nibbles of the

complete bytes to be transferred through the FIFO and information about a broken byte and the number of bits to be transferred from it.

Table 6-39. FIFO Status Register (0x1C)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 RFU B7 = 0 Reserved for future use (RFU) B6 Fhil FIFO level high

B5 Flol FIFO level low B4 Fove FIFO overflow error Too many bytes were written to the FIFO

B3 Fb3 FIFO bytes fb[3] B2 Fb2 FIFO bytes fb[2] B1 Fb1 FIFO bytes fb[1] B0 Fb0 FIFO bytes fb[0]

Indicates that 9 bytes are already in the FIFO (for RX) (also see register 0x0C bit 5)

Indicates that only 3 bytes are in the FIFO (for TX) (also see register 0x0C bit 5)

Bits B0:B3 indicate how many bytes that are loaded in FIFO were not read out yet (displays N – 1 number of bytes). If 8 bytes are in the FIFO, this number is 7 (also see register 0x0C bit 6).

www.ti.com

6.14.1.5.2 TX Length Byte1 Register (0x1D) and TX Length Byte2 Register (0x1E)

Table 6-40 describes the bit fields of the TX Length Byte1 register. This register contains the high two

nibbles of complete intended bytes to be transferred through FIFO.

Default Value: 0x00, set at POR and EN = 0. The register is also automatically reset at TX EOF.

Table 6-40. TX Length Byte1 Register (0x1D)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 Txl11 Number of complete byte bn[11] B6 Txl10 Number of complete byte bn[10] B5 Txl9 Number of complete byte bn[9] B4 Txl8 Number of complete byte bn[8] B3 Txl7 Number of complete byte bn[7] B2 Txl6 Number of complete byte bn[6] B1 Txl5 Number of complete byte bn[5] B0 Txl4 Number of complete byte bn[4]

High nibble of complete intended bytes to be transmitted

Middle nibble of complete intended bytes to be transmitted

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

SLOS732G –JUNE 2011–REVISED MARCH 2020

Table 6-41 describes the bit fields of the TX Length Byte2 register. This register contains the low nibble of

the complete bytes to be transferred through FIFO, and information about a broken byte and number of bits to be transferred from it.

Default Value: 0x00, set at POR and EN = 0. The register is also automatically reset at TX EOF.

Table 6-41. TX Length Byte2 Register (0x1E)

BIT NO. BIT NAME FUNCTION DESCRIPTION

B7 Txl3 Number of complete byte bn[3] B6 Txl2 Number of complete byte bn[2] B5 Txl1 Number of complete byte bn[1] B4 Txl0 Number of complete byte bn[0] B3 Bb2 Broken byte number of bits bb[2] B2 Bb1 Broken byte number of bits bb[1] B1 Bb0 Broken byte number of bits bb[0] B0 Bbf Broken byte flag B0 = 1 indicates that last byte is not complete 8 bits wide.

Low nibble of complete intended bytes to be transmitted

Number of bits in the last broken byte to be transmitted. This value is taken into account only when broken byte flag is set.

TRF7960A

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

7 Applications, Implementation, and Layout

NOTE

Information in the following Applications section is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI's customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

7.1 TRF7960A Reader System Using SPI With SS Mode

7.1.1 General Application Considerations

Figure 7-1 shows the TRF7960A application schematic optimized for both ISO/IEC 15693 and

ISO/IEC 14443 systems using the serial port interface (SPI). Short SPI lines, proper isolation to radio frequency lines, and a proper ground area are essential to avoid interference. The recommended clock frequency on the DATA_CLK line is 2 MHz.

This schematic shows matching to a 50-Ω port, which allows connection to a properly matched 50-Ω antenna circuit or RF measurement equipment (for example, a spectrum analyzer or power meter).

7.1.2 Schematic

www.ti.com

Figure 7-1 shows a sample application schematic with a serial interface to the MCU.

Figure 7-1. Application Schematic, SPI With SS Mode MCU Interface

Minimum MCU requirements depend on application requirements and coding style. If only one ISO protocol or a limited command set of a protocol must be supported, MCU flash and RAM requirements can be significantly reduced. Recursive inventory and anticollision commands require more RAM than single slotted operations. For example, an application for ISO/IEC 15693 only that supports anticollision needs approximately 7KB of flash memory and 500 bytes of RAM. In contrast, a full NFC reader/writer application with NDEF message support needs approximately 45KB of flash memory and 3KB of RAM. An MCU that can run its GPIOs at 13.56 MHz is required for direct mode 0 operations.

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

7.2 System Design

7.2.1 Layout Considerations

Keep all decoupling capacitors as close to the IC as possible, with the high-frequency decoupling capacitors (10 nF) closer than the low-frequency decoupling capacitors (2.2 µF).

Place ground vias as close as possible to the ground side of the capacitors and reader IC pins to minimize any possible ground loops.

It is not recommend using any inductor sizes below 0603 as the output power can be compromised. If smaller sized inductors are absolutely necessary, the designer must confirm output performance.

Pay close attention to the required load capacitance of the used crystal and adjust the two external shunt capacitors accordingly. Follow the recommendations of the crystal manufacturer for those values.

There should be a common ground plane for the digital and analog sections. The multiple ground sections or "islands" should have vias that tie the different sections of the planes together.

Ensure that the exposed thermal pad at the center of the IC is properly laid out. It should be tied to ground to help dissipate heat from the package.

Trace line lengths should be minimized whenever possible, particularly the RF output path, crystal connections, and control lines from the reader to the microprocessor. Proper placement of the TRF7960A, microprocessor, crystal, and RF connection/connector help facilitate this.

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Avoid crossing of digital lines under RF signal lines. Also, avoid crossing of digital lines with other digital lines whenever possible. If the crossings are unavoidable, 90° crossings should be used to minimize coupling of the lines.

Depending on the production test plan, the designer should consider possible implementations of test pads or test vias for use during testing. The necessary pads and vias should be placed in accordance with the proposed test plan to help enable easy access to those test points.

If the system implementation is complex (for example, if the RFID reader module is a subsystem of a larger system with other modules such as Bluetooth®, Wi-Fi®, microprocessors, and clocks), special considerations should be taken to ensure that there is no noise coupling into the supply lines. If needed, special filtering or regulator considerations should be used to minimize or eliminate noise in these systems.

For more information and details on layout considerations, see the TRF796x HF-RFID Reader Layout

Design Guide.

7.2.2 Impedance Matching TX_Out (Pin 5) to 50 Ω

The output impedance of the TRF7960A when operated at full power out setting is nominally 4 + j0 Ω (4 Ω real). This impedance must be matched to a resonant circuit, and TI recommends a matching circuit from 4 Ω to 50 Ω, as commercially available test equipment (for example, spectrum analyzers, power meters, and network analyzers) are 50-Ω systems. See Figure 7-2 and Figure 7-3 for an impedance match reference circuit. This section explains how the values were calculated.

Starting with the 4-Ω source, Figure 7-2 and Figure 7-3 shows the process of going from 4 Ω to 50 Ω by showing it represented on a Smith Chart simulator (available from http://www.fritz.dellsperger.net/). The elements are grouped together where appropriate.

Submit Documentation Feedback

Product Folder Links: TRF7960A

TX_OUT

Pin 5

L1 L2

C2 and C3

Combination

C4, C5, and C7

Combination

C8, C9, C10, and C11

Combination

50 W

(4.00 + j0.00) at 13.6 MHzW

3.0 nF

150.0 nH

1.2 nF

330.0 nH

256.0 pF

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

This yields the following Smith Chart simulation.

www.ti.com

Figure 7-2. Impedance Matching Circuit

Figure 7-3. Impedance Matching Smith Chart

Resulting power out can be measured with a power meter, spectrum analyzer with power meter function, or other equipment capable of making a "hot" measurement. Take care to observe maximum power input levels on test equipment and use attenuators whenever available to avoid any possibility of damage to expensive equipment. Table 6-3 lists the expected output power levels under various operating conditions.

7.2.3 Reader Antenna Design Guidelines

For HF antenna design considerations using the TRF7960A, see the following documentation:

Antenna Matching for the TRF7960 RFID Reader

TRF7960TB HF RFID Reader Module User's Guide, with antenna details at end of manual

Submit Documentation Feedback

Product Folder Links: TRF7960A

Device Family

TRF79 = NFC/RFID Transceiver

Revision A = Silicon revision

Package

See or www.ti.com/package

Packaging Information

Distribution R = Large reel

T = Small reel

Feature Set 60 = Feature set

TRF79

A RHB R

Device Family

Feature Set

Revision

Package

Distribution

www.ti.com

8 Device and Documentation Support

8.1 Getting Started and Next Steps

For more information on the TI NFC/RFID devices and the tools and software that are available to help with your development, visit Overview for NFC / RFID.

8.2 Device Nomenclature

To designate the stages in the product development cycle, TI assigns prefixes to the part numbers of devices. Each commercial family member has one of three prefixes: x, p, or no prefix. These prefixes represent evolutionary stages of product development from engineering prototypes (with prefix x) through fully qualified production devices (with no prefix).

Device development evolutionary flow: xTRF... – Experimental device that is not necessarily representative of the electrical specifications of the

final device pTRF... – Final device that conforms to the electrical specifications of the final product but has not

completed quality and reliability verification TRF... – Fully qualified production device Devices with a prefix of x or p are shipped against the following disclaimer:

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

"Developmental product is intended for internal evaluation purposes." Production devices have been characterized fully, and the quality and reliability of the device have been

demonstrated fully. TI's standard warranty applies. Predictions show that prototype devices have a greater failure rate than the standard production devices.

TI recommends that these devices not be used in any production system because their expected end-use failure rate still is undefined. Only qualified production devices are to be used.

TI device nomenclature also includes a suffix with the device family name. This suffix indicates the package type and, optionally, the temperature range. Figure 8-1 provides a legend for reading the complete device name.

Figure 8-1. Device Nomenclature

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

8.3 Tools and Software

Software

TRF7960A C Code Samples Sample source code for direct register control of the device functions.

8.4 Documentation Support

The following documents describe the TRF7960A device. Copies of these documents are available on the Internet at www.ti.com.

Receiving Notification of Document Updates

To receive notification of documentation updates—including silicon errata—go to the product folder for your device on ti.com (for example, TRF7960A). In the upper-right corner, click the "Alert me" button. This registers you to receive a weekly digest of product information that has changed (if any). For change details, check the revision history of any revised document.

Application Notes

TRF79xxA HF-RFID Reader Layout Design Guide Describes some suggested guidelines for use in the

laying out the TRF79xxA family of HF RFID readers.

Antenna Matching for the TRF7960 RFID Reader Describes the design method for determining an

antenna matching circuit.

TRF7960A Firmware Design HintsA reference for the firmware developer using the TRF7960A in

conjunction with microcontroller (for example, an MSP430™ or ARM™ device).

Management of the TRF7960 and TRF7960A Start-up Sequence System developers concerned about

minimizing the current draw of TRF7960, TRF7960A, and their variants systems at start-up time need guidance about handling the Regulator Control register (0x0B) value. Valid application use case for this guidance is battery-powered RFID applications in which controlling the entire system current draw over time is of the utmost concern.

TRF7960A RFID Multiplexer Example System This application report describes the 16-channel high-

frequency (HF) (13.56 MHz) RFID reader system (based on the TRF7960A IC) designed by TI for customer use. The system firmware resides on an MSP430F2370 MCU and supports the ISO/IEC 15693 protocol in addition to communication with a host.

TRF7960A Reference Firmware Description This application report describes the firmware

implemented in the MSP430F2370 for use with the TI TRF7960A evaluation module (EVM). The TRF7960AEVM is a multiple-standard fully integrated 13.56-MHz RFID analog front end and data framing reader system. This document is designed for readers who may or may not be experienced with firmware development for RFID and want to understand the reference firmware and develop their own firmware for the TRF7960A.

Comparison of TRF7960 and TRF7960A This application report helps current and new users of the

TRF7960 high-frequency RFID/NFC reader understand the differences between the TRF7960 and the TRF7960A devices. Understanding these differences in detail and applying this knowledge to application-specific requirements helps designers make informed decisions about whether or not a bill of materials change is needed.

www.ti.com

8.5 Support Resources

TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help —

straight from the experts. Search existing answers or ask your own question to get the quick design help you need.

Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use.

8.6 Trademarks

E2E is a trademark of Texas Instruments. Bluetooth is a registered trademark of Bluetooth SIG. FeliCa is a trademark of Sony Corporation. Wi-Fi is a registered trademark of Wi-Fi Alliance.

Submit Documentation Feedback

Product Folder Links: TRF7960A

www.ti.com

8.7 Electrostatic Discharge Caution

This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.

8.8 Export Control Notice

Recipient agrees to not knowingly export or re-export, directly or indirectly, any product or technical data (as defined by the U.S., EU, and other Export Administration Regulations) including software, or any controlled product restricted by other applicable national regulations, received from disclosing party under nondisclosure obligations (if any), or any direct product of such technology, to any destination to which such export or re-export is restricted or prohibited by U.S. or other applicable laws, without obtaining prior authorization from U.S. Department of Commerce and other competent Government authorities to the extent required by those laws.

8.9 Glossary

TI Glossary This glossary lists and explains terms, acronyms, and definitions.

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

Submit Documentation Feedback

Product Folder Links: TRF7960A

TRF7960A

SLOS732G –JUNE 2011–REVISED MARCH 2020

9 Mechanical, Packaging, and Orderable Information

The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation.

www.ti.com

Submit Documentation Feedback

Product Folder Links: TRF7960A

PACKAGE OPTION ADDENDUM

www.ti.com

10-Dec-2020

PACKAGING INFORMATION

Orderable Device Status

TRF7960ARHBR ACTIVE VQFN RHB 32 3000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 110 TRF

TRF7960ARHBT ACTIVE VQFN RHB 32 250 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 110 TRF

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device.

Package Type Package

(1)

Drawing

Pins Package

Qty

Eco Plan

(2)

Lead finish/ Ball material

(6)

MSL Peak Temp

(3)

Op Temp (°C) Device Marking

(4/5)

7960A

(2)

RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance

do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free".

RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based

flame retardants must also meet the <=1000ppm threshold requirement.

(3)

MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4)

There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5)

Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation

of the previous line and the two combined represent the entire Device Marking for that device.

(6)

Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two

lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

Samples

Addendum-Page 1

PACKAGE OPTION ADDENDUM

www.ti.com

10-Dec-2020

Addendum-Page 2

PACKAGE MATERIALS INFORMATION

www.ti.com 19-Oct-2020

TAPE AND REEL INFORMATION

*All dimensions are nominal

Device Package

Type

TRF7960ARHBR VQFN RHB 32 3000 330.0 12.4 5.3 5.3 1.5 8.0 12.0 Q2

TRF7960ARHBT VQFN RHB 32 250 180.0 12.4 5.3 5.3 1.5 8.0 12.0 Q2

Package Drawing

Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

(mm)B0(mm)K0(mm)P1(mm)W(mm)

Pin1

Quadrant

Pack Materials-Page 1

PACKAGE MATERIALS INFORMATION

www.ti.com 19-Oct-2020

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

TRF7960ARHBR VQFN RHB 32 3000 853.0 449.0 35.0

TRF7960ARHBT VQFN RHB 32 250 210.0 185.0 35.0

Pack Materials-Page 2

GENERIC PACKAGE VIEW

VQFN - 1 mm max heightRHB 32

5 x 5, 0.5 mm pitch

PLASTIC QUAD FLATPACK - NO LEAD

Images above are just a representation of the package family, actual package may vary. Refer to the product data sheet for package details.

www.ti.com

4224745/A

PACKAGE OUTLINE

PIN 1 INDEX AREA

1 MAX

0.05

0.00

28X 0.5

SCALE 3.000

VQFN - 1 mm max heightRHB0032E

PLASTIC QUAD FLATPACK - NO LEAD

5.1

4.9

2X 3.5

3.45 0.1 16

5.1

4.9

EXPOSED THERMAL PAD

OPTIONAL METAL THICKNESS

SEATING PLANE

0.08 C

SEE SIDE WALL

DETAIL

(0.1)

SIDE WALL DETAIL

20.000

(0.2) TYP

3.5

PIN 1 ID

(OPTIONAL)

SYMM

32X

0.5

0.3

SYMM

0.3

32X

0.2

0.1 C A B

0.05

4223442/B 08/2019

NOTES:

1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M.

2. This drawing is subject to change without notice.

3. The package thermal pad must be soldered to the printed circuit board for thermal and mechanical performance.

www.ti.com

32X (0.6)

EXAMPLE BOARD LAYOUT

VQFN - 1 mm max heightRHB0032E

PLASTIC QUAD FLATPACK - NO LEAD

( 3.45)

SYMM

32X (0.25)

28X (0.5)

( 0.2) TYP

(R0.05)

TYP

VIA

(4.8)

(1.475)

SYMM

(4.8)

LAND PATTERN EXAMPLE

SCALE:18X

0.07 MAX

ALL AROUND

METAL

SOLDER MASK OPENING

NON SOLDER MASK

DEFINED

(PREFERRED)

0.07 MIN

ALL AROUND

SOLDER MASK OPENING

METAL UNDER SOLDER MASK

SOLDER MASK

DEFINED

SOLDER MASK DETAILS

4223442/B 08/2019

NOTES: (continued)

4. This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature number SLUA271 (www.ti.com/lit/slua271).

5. Vias are optional depending on application, refer to device data sheet. If any vias are implemented, refer to their locations shown on this view. It is recommended that vias under paste be filled, plugged or tented.

www.ti.com

(R0.05) TYP

32X (0.6)

EXAMPLE STENCIL DESIGN

VQFN - 1 mm max heightRHB0032E

PLASTIC QUAD FLATPACK - NO LEAD

4X ( 1.49)

(0.845)

32X (0.25)

28X (0.5)

METAL TYP

SYMM

(0.845)

SYMM

(4.8)

SOLDER PASTE EXAMPLE

BASED ON 0.125 mm THICK STENCIL

EXPOSED PAD 33:

75% PRINTED SOLDER COVERAGE BY AREA UNDER PACKAGE

NOTES: (continued)

6. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations.

SCALE:20X

4223442/B 08/2019

www.ti.com

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS” AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you permission to use these resources only for development of an application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these resources.

TI’s products are provided subject to TI’s Terms of Sale (www.ti.com/legal/termsofsale.html) or other applicable terms available either on

ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable

warranties or warranty disclaimers for TI products.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Texas Instruments TRF7960A Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Device Overview

1.1 Features

1.2 Applications

1.3 Description

1.4 Application Block Diagram

Table of Contents

2 Revision History

3 Device Characteristics

3.1 Related Products

4 Terminal Configuration and Functions

4.1 Pin Diagrams

4.2 Signal Descriptions

5 Specifications

5.1 Absolute Maximum Ratings

5.2 ESD Ratings

5.3 Recommended Operating Conditions

5.4 Electrical Characteristics

5.5 Thermal Resistance Characteristics

5.6 Switching Characteristics

6 Detailed Description

6.1 Functional Block Diagram

6.2 Power Supplies

6.3 Supply Arrangements

6.4 Supply Regulator Settings

6.5 Power Modes

6.6 Receiver – Analog Section

6.6.1 Main and Auxiliary Receiver

6.6.2 Receiver Gain and Filter Stages

6.7 Receiver – Digital Section

6.7.1 Received Signal Strength Indicator (RSSI)

6.7.1.1 Internal RSSI – Main and Auxiliary Receivers

6.7.1.2 External RSSI

6.8 Oscillator Section

6.9 Transmitter - Analog Section

6.10 Transmitter - Digital Section

6.11 Transmitter – External Power Amplifier or Subcarrier Detector

6.12 Communication Interface

6.12.1 General Introduction

6.12.2 FIFO Operation

6.12.3 Parallel Interface Mode

6.12.4 Reception of Air Interface Data

6.12.5 Data Transmission to MCU

6.12.6 Serial Interface Communication (SPI)

6.12.6.1 Serial Interface Mode Without Slave Select (SS)

6.12.6.2 Serial Interface Mode With Slave Select (SS)

6.12.7 Direct Mode

6.13 Direct Commands from MCU to Reader

6.13.1 Command Codes

6.13.2 Reset FIFO (0x0F)

6.13.3 Transmission With CRC (0x11)

6.13.4 Transmission Without CRC (0x10)

6.13.5 Delayed Transmission With CRC (0x13)

6.13.6 Delayed Transmission Without CRC (0x12)

6.13.7 Transmit Next Time Slot (0x14)

6.13.8 Block Receiver (0x16)

6.13.9 Enable Receiver (0x17)

6.13.10 Test Internal RF (RSSI at RX Input With TX On) (0x18)

6.13.11 Test External RF (RSSI at RX Input With TX Off) (0x19)

6.13.12 Register Preset

6.14 Register Description

6.14.1 Register Overview

6.14.1.1 Main Configuration Registers

6.14.1.2 Protocol Subsetting Registers

6.14.1.3 Status Registers

6.14.1.4 Test Registers

6.14.1.5 FIFO Control Registers

7 Applications, Implementation, and Layout

7.1 TRF7960A Reader System Using SPI With SS Mode

7.1.1 General Application Considerations

7.1.2 Schematic

7.2 System Design

7.2.1 Layout Considerations

7.2.2 Impedance Matching TX_Out (Pin 5) to 50 Ω

7.2.3 Reader Antenna Design Guidelines

8 Device and Documentation Support

8.1 Getting Started and Next Steps
