User's Guide
SLVUBA6–October 2017
TPS1HA08x Evaluation Module
The TPS1HA08x evaluation module is designed to evaluate the TPS1HA08x integrated circuit. This user's
guide provides the connectors and test point description, schematic, bill of materials (BOM), and board
layout of the EVM.
Contents
1 Introduction ................................................................................................................... 2
1.1 Descriptions ......................................................................................................... 2
1.2 Applications.......................................................................................................... 2
1.3 Features.............................................................................................................. 2
2 TPS1HA08x Schematic ..................................................................................................... 3
3 Connections Descriptions................................................................................................... 4
3.1 Connectors and Test Points....................................................................................... 4
3.2 Jumpers.............................................................................................................. 4
4 TPS1HA08x EVM Assembly Drawings and Layout..................................................................... 5
5 Current Limit.................................................................................................................. 6
6 Current Sense................................................................................................................ 6
7 Bill of Materials............................................................................................................... 7
1 TPS1HA08x Schematic ..................................................................................................... 3

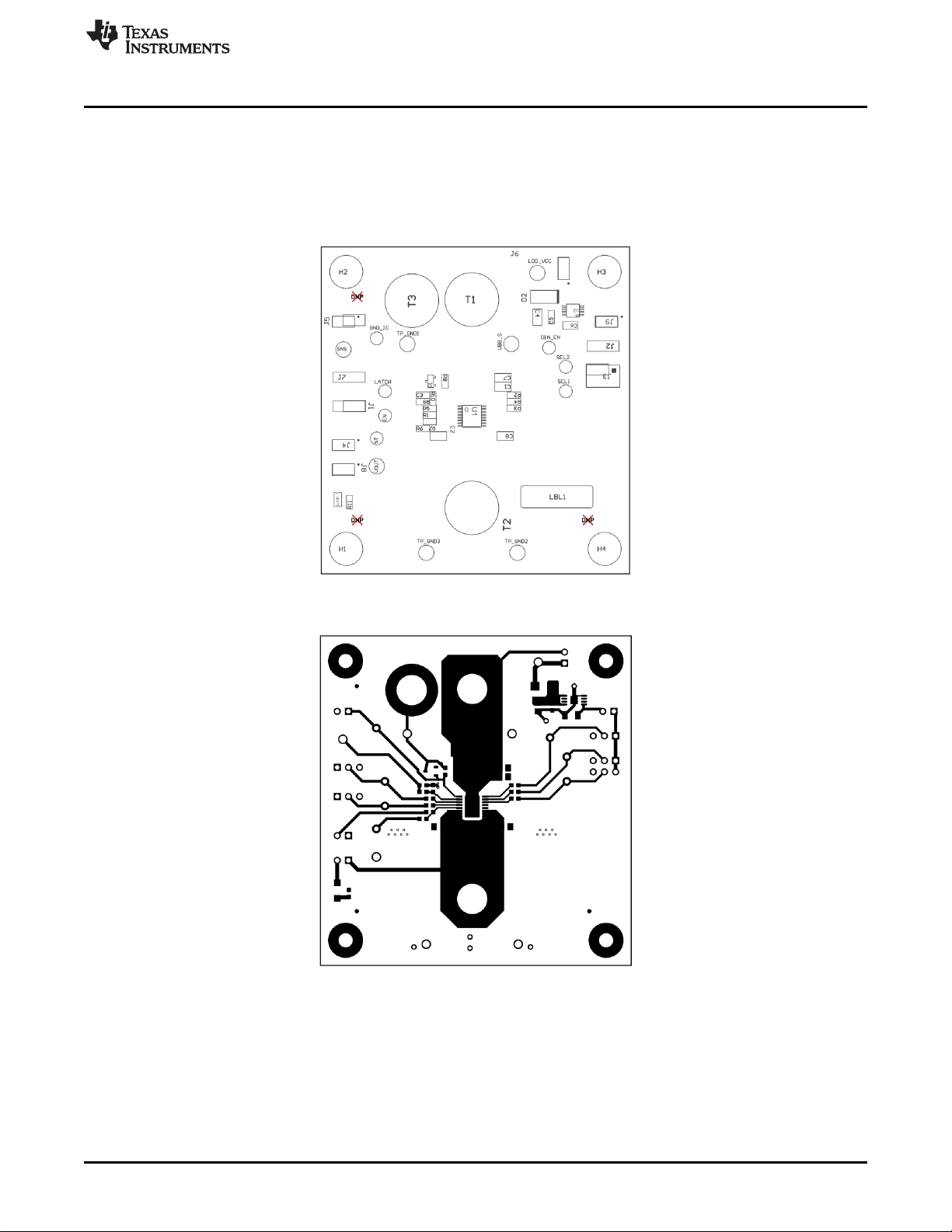

2 TPS1HA08x EVM Component Placement (Top View) ................................................................. 5
3 TPS1HA08xEVM Top Layer (Top View).................................................................................. 5
4 TPS1HA08xEVM Bottom Layer (Bottom View).......................................................................... 6
1 Connector and Test Point Descriptions................................................................................... 4
2 Jumper Descriptions......................................................................................................... 4
3 TPS1HA08x Bill of Materials ............................................................................................... 7
Trademarks
All trademarks are the property of their respective owners.
List of Figures
List of Tables
SLVUBA6–October 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
TPS1HA08x Evaluation Module
1
ADVANCE INFORMATION
Introduction
1 Introduction
Texas Instruments TPS1HA08x evaluation module contains a TPS1HA08x integrated circuit (IC),
supporting single-channel high-side driver applications. The purpose of this EVM is to facilitate evaluation
of the TPS1HA08x for resistive, capacitive, and inductive loads.
1.1 Descriptions
The Texas Instruments TPS1HA08x EVM helps designers evaluate the operation and performance of the
TPS1HA08x.
The TPS1HA08x is a fully-protected high-side switch, with an integrated NMOS power FET, and charge
pump. Full diagnostics and high-accuracy current sense features enable intelligent control of the load.
The device diagnostic reporting has two versions to support both digital status output and analog current
sense report. The diagnostics can be disabled for multiplexing the sense pin between different devices.
1.2 Applications
The EVM is used in the following applications:
• High-side relay drivers
• High-side power switch for submodule power supply
• Bulb driver
• General resistive, inductive, and capacitive loads
• Replace electromechanical relays and fuses
www.ti.com
1.3 Features
The EVM supports the following features:
• Single-channel high-side power switch, tested according to AECQ100-12
• Operating voltage 3 to 36 V
• Operating junction temperature: –40ºC to 150ºC
• Microcontroller input control: 3.3-V and 5-V logic compatible
• High-accuracy current sense
– Analog current sense as a ratio of the load current
• Protection:
– Reverse battery protection with external resistor
– Short-circuit protection
– Overvoltage protection
– Thermal shutdown and thermal swing with self-recovery
– ESD protection
• Diagnostic:
– On and off state output open or short to battery detection
– Overload and short-to-ground detection and power limiting
– Thermal shutdown and thermal swing diagnostic
– Version A, B, or E: Shutdown on current limit
– Version C or D: Constant current output on current limit
– Diagnostic enable function for multiplexing of MCU analog or digital port
2
TPS1HA08x Evaluation Module
Copyright © 2017, Texas Instruments Incorporated
SLVUBA6–October 2017
Submit Documentation Feedback
GND
SH-J5
GND
1.00k
R10
SH-J1
0.022µF
C2
GND
SEL_1
GND
SH-J8GND
EN_1
V_+5V
GND
SH-J2
DIA_EN
V_+5V GND
SH-J3
SEL_2
GND
V_+5V
SH-J4
ST_1
SH-J7
LATCH
V_+5V
GND
2.2k
R11
TP_GND1
GND
GND
VBB
GND
SNS_IC
EN1_IC
EN1_IC
DIA_EN_IC
DIA_EN_IC
SEL1_IC
SEL1_IC
SEL2_IC
SEL2_IC ST1_IC ST1_IC
LATCH_IC L ATCH_IC
VOUT
TP_GND2
VBB_S
TP_GND3
EN
DIA_EN
SEL1
SEL2
LATCH
GND_IC
0.1µF
C7
0.1µF
C8
100pF
C3
10k
R1
10k
R2
10k
R3
10k
R4
10k
R6
10k
R5
10k
R9
10k
R7
ST
V_+5V
J4
90120- 0122
J5
90120- 0122
1
2
3
J1
1
2
3
J2
5-1462 78-3
1
2
3
J7
5-1462 78-3
J8
90120- 0122
1 2
3 4
5 6
J3
V_+5V GND
D1
BAS21-7-F
Green
LED1
4.70k
R8
IOUT Max (DC): 8A.
VIN: 3V- 43V
T1
108-07 40-001
T3
108-07 40-001
SH-J14
SNS
SH-J6
0.1uF
C5
GND
4.7uF
C6
D2
VCC
SH-J10
LDO_VCC
VBB
LDO to Power
I/O pins
V_+5V
GND
OUT
1
DNC
2
PG
3
4
EN
5
NC
6
DELAY
7
IN
8
9
EPGND
U2
TPS7A1650DGNR
GND
J6
90120- 0122
J9
90120- 0122
3.3µF
C4
0.1µF
C1
GND
1
SNS
2
LATCH
3
EN
4
ST
5
VOUT
6
VOUT
7
VOUT
8
VOUT
9
VOUT
10
VOUT
11
NC
12
NC
13
SEL1
14
SEL2
15
DIA_EN
16
VBB
17
U1
TPS1HA08CQPWPRQ1
SNS_IC
T2
108-07 40-001
Copyright © 2017, Texas Instruments Incorporated
ADVANCE INFORMATION
www.ti.com
2 TPS1HA08x Schematic
Figure 1 illustrates the TPS1HA08x schematic.
TPS1HA08x Schematic
Figure 1. TPS1HA08x Schematic
SLVUBA6–October 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
TPS1HA08x Evaluation Module
3
ADVANCE INFORMATION
Connections Descriptions
3 Connections Descriptions
3.1 Connectors and Test Points
Table 1 lists the EVM connector and test point descriptions.
Table 1. Connector and Test Point Descriptions
Connectors and Test Points Descriptions
T1 High current input terminal for VBB
T2 High current output terminal for VOUT
T3 High current input terminal for GND
VBB_S Test point used to measure VBB
VOUT Test point used to measure VOUT
EN Test point used to apply power to EN, only use when J1 is not connected to 5 V or GND
DIA_EN Test point used to apply power to DIA_EN, only use when J2 is not connected to 5 V or GND
SEL1 Test point used to apply power to SEL1, only use when J3 is not connected to 5 V or GND
SEL2 Test point used to apply power to SEL2, only use when J3 is not connected to 5 V or GND
ST Test point used to measure ST
LATCH Test point used to apply power to LATCH, only use when J7 is not connected to 5 V or GND
SNS Test point used to measure SNS
LDO_VCC
GND_IC This is a direct connection to the GND pin of the IC
TP_GND1 This is a connection to the GND plane of the EVM
TP_GND2 This is a connection to the GND plane of the EVM
TP_GND3 This is a connection to the GND plane of the EVM
Test point used to apply power to the 5-V TPS7A1650DGNR LDO, only use when J6 is
disconnected
www.ti.com
3.2 Jumpers
Table 2 lists the EVM jumper descriptions.
Jumpers Description
J1 This jumper is used to connect the EN pin to 5 V (2-3) or GND (1-2)
J2 This jumper is used to connect the DIA_EN pin to 5 V (1-2) or GND (2-3)
J3 This jumper is used to connect the SEL1 and SEL2 pins to 5 V or GND
J4 This jumper connects the ST pin to a 10-kΩ pullup resistance
J5 This jumper is used to bypass the ground network used for reverse polarity protection
J6 This jumper is used to power the 5-V TPS7A1650DGNR LDO with the VBB input for the EVM
J7 This jumper is used to connect the LATCH pin to 5 V (2-3) or GND (1-2)
J8 This jumper connects VOUT to an indication LED, showing the user when VOUT is powered
J9 This jumper connects the output of the TPS7A1650DGNR LDO to the 5-V supply net on the EVM
Table 2. Jumper Descriptions
4
TPS1HA08x Evaluation Module
Copyright © 2017, Texas Instruments Incorporated
SLVUBA6–October 2017
Submit Documentation Feedback
