TEXAS INSTRUMENTS TMP400 Technical data

Download

TMP400

    

DeviceIDRegister

ManufacturerIDRegister

ConsecutiveAlert

ConfigurationRegister

StatusRegister

ConversionRate

N-Factor

Correction

D+

7,8

BusInterface

PointerRegister

ResolutionRegister

ConfigurationRegister

LocalTempLowLimit

LocalTempHighLimit

RemoteTempLowLimit

RemoteTempHighLimit

Remote

Temperature

Local

Temperature

Temperature Comparators

Interrupt

Configuration

SCL

GND

ALERT

V+

SDA

D-

TMP400

RemoteTemperatureMin/MaxRegister

LocalTemperatureMin/MaxRegister

STBY

A1A

± 1 ° C Remote and Local TEMPERATURE SENSOR

with N-Factor and Series Resistance Correction

FEATURES DESCRIPTION

234

• ± 1 ° C REMOTE DIODE SENSOR

• ± 1 ° C LOCAL TEMPERATURE SENSOR

• PROGRAMMABLE NON-IDEALITY FACTOR

• PROGRAMMABLE SERIES RESISTANCE

CANCELLATION

• ALERT FUNCTION

• PROGRAMMABLE RESOLUTION: 9 to 12 Bits

• PROGRAMMABLE THRESHOLD LIMITS

• TWO-WIRE/ SMBus™ SERIAL INTERFACE

• MINIMUM AND MAXIMUM TEMPERATURE

MONITORS

• MULTIPLE INTERFACE ADDRESSES

• ALERT PIN CONFIGURATION

• DIODE FAULT DETECTION

APPLICATIONS

• LCD/ DLP

• SERVERS

• INDUSTRIAL CONTROLLERS

• CENTRAL OFFICE TELECOM EQUIPMENT

• DESKTOP AND NOTEBOOK COMPUTERS

• STORAGE AREA NETWORKS (SAN)

• INDUSTRIAL AND MEDICAL EQUIPMENT

• PROCESSOR/FPGA TEMPERATURE

MONITORING

/LCOS PROJECTORS

The TMP400 is a remote temperature sensor monitor with a built-in local temperature sensor. The remote temperature sensor diode-connected transistors are typically low-cost, NPN- or PNP-type transistors or diodes that are an integral part of microcontrollers, microprocessors, or FPGAs.

Remote accuracy is ± 1 ° C for multiple IC manufacturers, with no calibration needed. The Two-Wire serial interface accepts SMBus write byte, read byte, send byte, and receive byte commands to program the alarm thresholds and to read temperature data.

The TMP400 is customizable with programmable: series resistance cancellation, non-ideality factor, resolution, and threshold limits. Other features are: minimum and maximum temperature monitors, wide remote temperature measurement range (up to +127.9375 ° C), diode fault detection, and temperature alert function.

The TMP400 is available in a QSSOP-16 package.

TMP400

SBOS404 – DECEMBER 2007

2 DLP is a registered trademark of Texas Instruments. 3 SMBus is a trademark of Intel Corp. 4 All other trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

www.ti.com

STBY

SCL

SDA

ALERT

V+

D+

D-

GND

TMP400

SBOS404 – DECEMBER 2007

This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.

ORDERING INFORMATION

(1)

PRODUCT PACKAGE-LEAD PACKAGE DESIGNATOR PACKAGE MARKING

TMP400 QSSOP-16 DBQ TMP400

(1) For the most current package and ordering information see the Package Option Addendum at the end of this document, or see the TI

web site at www.ti.com .

ABSOLUTE MAXIMUM RATINGS

(1)

TMP400 UNIT

Power Supply, V

7 V Input Voltage, pins 3, 4, 6, 10, and 15 only – 0.5 to VS+ 0.5 V Input Voltage, pins 11, 12, and 14 only – 0.5 to +7 V Input Current 10 mA Operating Temperature Range – 55 to +127 ° C Storage Temperature Range – 60 to +130 ° C Junction Temperature (T

max) +150 ° C

Human Body Model (HBM) 3000 V

ESD Rating Charged Device Model (CDM) 1000 V

Machine Model (MM) 200 V

(1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may

degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not supported.

PIN CONFIGURATION

QSSOP-16

Top View

PIN NAME DESCRIPTION

1, 5, 9,

13, 16

TERMINAL FUNCTIONS

NC No internal connection 2 V+ Positive supply (2.7V to 5.5V) 3 D+

4 D –

Positive connection to remote temperature sensor

Negative connection to remote temperature sensor

6 A1 Address pin

7, 8 GND Ground

10 A0 Address pin 11 ALERT

12 SDA

14 SCL

Alert, active low, open-drain; requires pull-up resistor to V+

Serial data line for SMBus, open-drain; requires pull-up resistor to V+

Serial clock line for SMBus, open-drain; requires pull-up resistor to V+

15 STBY Standby pin

Product Folder Link(s): TMP400

www.ti.com

TMP400

SBOS404 – DECEMBER 2007

ELECTRICAL CHARACTERISTICS

At TA= – 40 ° C to +125 ° C and VS= 2.7V to 5.5V, unless otherwise noted.

TMP400

PARAMETER CONDITIONS MIN TYP MAX UNIT

TEMPERATURE ERROR

Local Temperature Sensor TE

Remote Temperature Sensor

(1) (2)

LOCAL

REMOTE

VS= 3.3V, TA= +15 ° C to +75 ° C, TD= – 40 ° C to +125 ° C

VS= 3.3V, TA= – 40 ° C to +100 ° C, TD= – 40 ° C to +125 ° C

TA= – 40 ° C to +125 ° C, TD= – 40 ° C to +125 ° C vs Supply Local/Remote VS= 2.7V to 5.5V ± 0.2 ± 0.5 ° C/V

TEMPERATURE MEASUREMENT

Conversion Time (per channel)

(4)

Resolution

Local Temperature Sensor (programmable) 9 12 Bits Remote Temperature Sensor 12 Bits

Remote Sensor Source Currents

High Series Resistance 3k Ω Maximum 120 µ A Medium High 60 µ A Medium Low 12 µ A Low 6 µ A

Remote Transistor Ideality Factor η TMP400 Optimized Ideality Factor 1.008

SMBus INTERFACE

Logic Input High Voltage (SCL, SDA) V Logic Input Low Voltage (SCL, SDA) V

Hysteresis 500 mV SMBus Output Low Sink Current 6 mA Logic Input Current – 1 +1 µ A SMBus Input Capacitance (SCL, SDA) 3 pF SMBus Clock Frequency 3.4 MHz SMBus Timeout 25 30 35 ms SCL Falling Edge to SDA Valid Time 1 µ s

DIGITAL OUTPUTS

Output Low Voltage V High-Level Output Leakage Current I

ALERT Output Low Sink Current ALERT Forced to 0.4V 6 mA

POWER SUPPLY

Specified Voltage Range V Quiescent Current I

Serial Bus Active, fS= 400kHz, Shutdown Mode 90 µ A

Serial Bus Active, fS= 3.4MHz, Shutdown Mode 350 µ A

Undervoltage Lock Out 2.3 2.4 2.6 V Power-On Reset Threshold POR 1.6 2.3 V

TEMPERATURE RANGE

Specified Range – 40 +125 ° C Storage Range – 60 +130 ° C Thermal Resistance, QSSOP 70 ° C/W

(1) Tested with less than 5 Ω effective series resistance and 100pF differential input capacitance. (2) RC = '1'. (3) TDis the remote temperature measured at the diode. (4) RES1 = '1' and RES0 = '1' for 12-bit resolution.

TA= – 40 ° C to +125 ° C ± 1.25 ± 2.5 ° C

VS= 3.3V, TA= +15 ° C to +85 ° C ± 0.0625 ± 1 ° C

(3)

± 0.0625 ± 1 ° C

± 1 ± 3 ° C ± 3 ± 10 ° C

105 115 125 ms

2.1 V

0.8 V

= 6mA 0.15 0.4 V

OUT

= V

OUT

0.1 1 µ A

2.7 5.5 V

0.0625 Conversions per Second 30 38 µ A Eight Conversions per Second 420 525 µ A

Serial Bus Inactive, Shutdown Mode 3 10 µ A

Product Folder Link(s): TMP400

www.ti.com

-1

-2

-3

AmbientTemperature,T ( C)°

-50 -25 1251007550250

RemoteTemperatureError( C)°

V =3.3V

T =+25 C

REMOTE

30TypicalUnitsShown h =1.008 RC=1

LocalTemperatureError(

)

°C

AmbientTemperature,T (

°C)

3.0

2.0

1.0

-1.0

-2.0

-3.0

-50 125-25 0 25 50 75 100

50UnitsShown

V =3.3V

-20

-40

-60

LeakageResistance(M )W

0 5 10 15 20 25

RemoteTemperatureError(

C)°

R GND-

R VS-

RemoteTemperatureError( )

°C

R W( )

2.0

1.5

1.0

0.5

-0.5

-1.0

-1.5

-2.0

0 3000500 1000 1500 2000 2500

V =2.7V

V =5.5V

RC=1

-1

-2

-3

Capacitance(nF)

0 0.5 1.0 1.5 2.0 2.5 3.0

RemoteTemperatureError( C)°

RemoteTemperatureError( )

°C

R (W )

2.0

1.5

1.0

0.5

-0.5

-1.0

-1.5

-2.0

0 3000500 1000 1500 2000 2500

V =2.7V

V =5.5V

RC=1

TMP400

SBOS404 – DECEMBER 2007

TYPICAL CHARACTERISTICS

At TA= +25 ° C and VS= 5.0V, unless otherwise noted.

REMOTE TEMPERATURE ERROR LOCAL TEMPERATURE ERROR

vs TEMPERATURE vs TEMPERATURE

Figure 1. Figure 2.

REMOTE TEMPERATURE ERROR REMOTE TEMPERATURE ERROR vs SERIES RESISTANCE

vs LEAKAGE RESISTANCE (Diode-Connected Transistor, 2N3906 PNP)

Figure 3. Figure 4.

REMOTE TEMPERATURE ERROR vs SERIES RESISTANCE REMOTE TEMPERATURE ERROR

(GND Collector-Connected Transistor, 2N3906 PNP) vs DIFFERENTIAL CAPACITANCE

Figure 5. Figure 6.

Product Folder Link(s): TMP400

www.ti.com

-5

-10

-15

-20

-25

Frequency(MHz)

0 5 10 15

TemperatureError( C)°

Local100mV Noise

Remote100mV Noise

Local250mV Noise

Remote250mV Noise

500

450

400

350

300

250

200

150

100

ConversionRate(conversions/sec)

0.0625 0.125 0.25 0.5 1 2 4 8

( A)m

V =2.7V

V =5.5V

500

450

400

350

300

250

200

150

100

SCLClockFrequency(Hz)

1k 10k 100k 1M 10M

I ( A)m

V =3.3V

V =5.5V

I )(

V (

4.53.0 3.5 4.0 5.55.02.5

TYPICAL CHARACTERISTICS (continued)

At TA= +25 ° C and VS= 5.0V, unless otherwise noted.

TMP400

SBOS404 – DECEMBER 2007

vs POWER-SUPPLY NOISE FREQUENCY vs CONVERSION RATE

TEMPERATURE ERROR QUIESCENT CURRENT

Figure 7. Figure 8.

SHUTDOWN QUIESCENT CURRENT SHUTDOWN QUIESCENT CURRENT

vs SCL CLOCK FREQUENCY vs SUPPLY VOLTAGE

Figure 9. Figure 10.

Product Folder Link(s): TMP400

www.ti.com

0.1mF 10kW (typ)

10kW (typ)

TMP400

D+

D-

V+

7,8

(2)

(3)

DIFF

(3)

DIFF

(2)

GND

SCL

SDA

ALERT

+5V

Two-WireBus/

SMBus Controller

Diode-connectedconfiguration :

(1)

SeriesResistance

Transistor-connectedconfiguration :

(1)

STBY

TMP400

SBOS404 – DECEMBER 2007

APPLICATION INFORMATION

The TMP400 is a dual-channel digital temperature sensor that combines a local die temperature measurement channel and a remote junction temperature measurement channel in a QSSOP-16 package. The TMP400 is Two-Wire and SMBus interface-compatible, and is specified over a temperature range of – 40 ° C to +125 ° C. The TMP400 contains multiple registers for holding configuration information, temperature measurement results, temperature comparator maximum/minimum limits, and status information.

User-programmed high and low temperature limits stored in the TMP400 can be used to monitor local and remote temperatures to trigger an over/under temperature alarm ( ALERT).

The TMP400 requires only a transistor connected between D+ and D – for proper remote temperature sensing operation. The SCL and SDA interface pins require pull-up resistors as part of the communication bus, while ALERT is an open-drain output that also needs a pull − up resistor. ALERT may be shared with

other devices if desired for a wired-OR implementation. A 0.1 µ F power-supply bypass capacitor is recommended for good local bypassing.

Figure 11 shows a typical configuration for the

TMP400.

SERIES RESISTANCE CANCELLATION

Series resistance in an application circuit that typically results from printed circuit board (PCB) trace resistance and remote line length (see Figure 11 ) can be automatically programmed to be cancelled by the TMP400 by setting the RC bit to '1' in the Resolution Register, preventing what would otherwise result in a temperature offset.

A total of up to 3k Ω of series line resistance is cancelled by the TMP400 if the RC bit is enabled, eliminating the need for additional characterization and temperature offset correction. Upon power-up, the RC bit is disabled (RC = 0).

See the two Remote Temperature Error vs Series Resistance typical characteristics curves (Figure 4 and Figure 5 ) for details on the effect of series resistance and power-supply voltage on sensed remote temperature error.

(1) Diode-connected configuration provides better settling time. Transistor-connected configuration provides better series resistance cancellation.

(2) RSshould be less than 1.5k Ω in most applications. (3) C

DIFF

should be less than 1000pF in most applications.

Figure 11. Basic Connections

Product Folder Link(s): TMP400

www.ti.com

ResolutionRegister

ConfigurationRegister

StatusRegister

IdentificationRegisters

ConsecutiveAlertRegister

LocalTemperatureMin/Max

ConversionRateRegister

RemoteTemperatureMin/Max

LocalandRemoteLimitRegisters

LocalandRemoteTemperatureRegisters

SDA

SCL

PointerRegister

I/O

Control

Interface

TMP400

SBOS404 – DECEMBER 2007

DIFFERENTIAL INPUT CAPACITANCE

The TMP400 tolerates differential input capacitance of up to 1000pF if RC = 1 (if RC = 0, input capacitance can be as high as 2200pF) with minimal change in temperature error. The effect of capacitance on sensed remote temperature error is illustrated in the typical characteristic curve, Remote

Temperature Error vs Differential Capacitance

(Figure 6 ).

TEMPERATURE MEASUREMENT DATA

Temperature measurement data are taken over a default range of – 55 ° C to +127.9375 ° C for both local and remote locations.

Temperature data resulting from conversions within the default measurement range are represented in binary form, as shown in Table 1 , Binary column. Note that any temperature above +127.9375 ° C results in a value of 127.9375 (7Fh/F0h). Temperatures below – 65 ° C results in a value of – 65 (BF/00h). The TMP400 is specified only for ambient temperatures ranging from – 40 ° C to +125 ° C. Parameters in the Absolute Maximum Ratings table must be observed.

Table 1. Temperature Data Format

REMOTE TEMPERATURE REGISTER

DIGITAL OUTPUT

TEMPERATURE

( ° C) HIGH BYTE LOW BYTE HEX

128 0111 1111 1111 0000 7F/F0

127.9375 0111 1111 1111 0000 7F/F0 100 0110 0100 0000 0000 64/00

80 0101 0000 0000 0000 50/00 75 0100 1011 0000 0000 4B/00 50 0011 0010 0000 0000 32/00 25 0001 1001 0000 0000 19/00

0.25 0000 0000 0100 0000 00/40 0 0000 0000 0000 0000 00/00

– 0.25 1111 1111 1100 0000 FF/C0

– 25 1110 0111 0000 0000 E7/00 – 55 1100 1001 0000 0000 C9/00 – 65 1011 1111 0000 0000 BF/00

(BINARY)

byte stores the decimal fraction value of the temperature and allows a higher measurement resolution. The measurement resolution for the remote channel is 0.0625 ° C, and is not adjustable. The measurement resolution for the local channel is adjustable; it can be set for 0.5 ° C, 0.25 ° C, 0.125 ° C, or 0.0625 ° C by setting the RES1 and RES0 bits of the Resolution Register; see the Resolution Register section (Table 5 ).

REGISTER INFORMATION

The TMP400 contains multiple registers for holding configuration information, temperature measurement results, temperature comparator maximum/minimum, limits, and status information. These registers are described in Figure 12 and Table 2 .

POINTER REGISTER

Figure 12 shows the internal register structure of the

TMP400. The 8-bit Pointer Register is used to address a given data register. The Pointer Register identifies which of the data registers should respond to a read or write command on the Two-Wire bus. This register is set with every write command. A write command must be issued to set the proper value in the Pointer Register before executing a read command. Table 2 describes the pointer address of the registers available in the TMP400. The power-on reset (POR) value of the Pointer Register is 00h (0000 0000b).

Both local and remote temperature data use two bytes for data storage. The high byte stores the temperature with 1 ° C resolution. The second (or low)

Figure 12. Internal Register Structure

Product Folder Link(s): TMP400

www.ti.com

TMP400

SBOS404 – DECEMBER 2007

Table 2. Register Map

POINTER

ADDRESS (HEX) BIT DESCRIPTIONS READ WRITE RESET (HEX) D7 D6 D5 D4 D3 D2 D1 D0 REGISTER DESCRIPTIONS

00 NA

01 NA 00 RT11 RT10 RT9 RT8 RT7 RT6 RT5 RT4 02 NA 00 BUSY LHIGH LLOW RHIGH RLOW OPEN 0 0 Status Register

03 09 00 MASK1 SD 0 0 0 0 0 0 Configuration Register 04 0A 02 0 0 0 0 R3 R2 R1 R0 Conversion Rate Register

05 0B 7F LTH11 LTH10 LTH9 LTH8 LTH7 LTH6 LTH5 LTH4

06 0C C9 LTL11 LTL10 LTL9 LTL8 LTL7 LTL6 LTL5 LTL4

07 0D 7F RTH11 RTH10 RTH9 RTH8 RTH7 RTH6 RTH5 RTH4

08 0E C9 RTL11 RTL10 RTL9 RTL8 RTL7 RTL6 RTL5 RTL4

NA 0F XX X

10 NA 00 RT3 RT2 RT1 RT0 0 0 0 0

13 13 00 RTH3 RTH2 RTH1 RTH0 0 0 0 0

14 14 00 RTL3 RTL2 RTL1 RTL0 0 0 0 0

15 NA 00 LT3 LT2 LT1 LT0 0 0 0 0

16 16 00 LTH3 LTH2 LTH1 LTH0 0 0 0 0

17 17 00 LTL3 LTL2 LTL1 LTL0 0 0 0 0 18 18 00 NC7 NC6 NC5 NC4 NC3 NC2 NC1 NC0 N-factor Correction

1A 1A 18 0 0 0 1 1 RC RES1 RES0 Resolution Register

22 22 01 TO_EN 0 0 0 C2 C1 C0 0 Consecutive Alert Register 30 30 7F LMT11 LMT10 LMT9 LMT8 LMT7 LMT6 LMT5 LMT4

31 31 F0 LMT3 LMT2 LMT1 LMT0 0 0 0 0

32 32 80 LXT11 LXT10 LXT9 LXT8 LXT7 LXT6 LXT5 LXT4

33 33 00 LXT3 LXT2 LXT1 LXT0 0 0 0 0

34 34 7F RMT11 RMT10 RMT9 RMT8 RMT7 RMT6 RMT5 RMT4

35 35 F0 RMT3 RMT2 RMT1 RMT0 0 0 0 0

36 36 80 RXT11 RXT10 RXT9 RXT8 RXT7 RXT6 RXT5 RXT4

37 37 00 RXT3 RXT2 RXT1 RXT0 0 0 0 0

NA FC FF X FE NA 55 0 1 0 1 0 1 0 1 Manufacturer ID FF NA 01 0 0 0 0 0 0 0 1 Device ID

(1) NA = not applicable; register is write- or read-only. (2) X = indeterminate state. Writing any value to this register indicates a software reset; see the Software Reset section.

POWER-ON

(1)

00 LT11 LT10 LT9 LT8 LT7 LT6 LT5 LT4

(2)

X X X X X X X One-Shot Start

X X X X X X X Software Reset

Local Temperature

Remote Temperature

Local Temperature High

Limit (High Byte)

Local Temperature Low Limit

Remote Temperature High

Limit (High Byte)

Remote Temperature Low

Limit (High Byte)

Remote Temperature

Remote Temperature High

Limit (Low Byte)

Remote Temperature Low

Limit (Low Byte)

Local Temperature

Local Temperature High

Limit (Low Byte)

Local Temperature Low Limit

Local Temperature Minimum

Local Temperature Maximum

Remote Temperature Minimum (High Byte)

Remote Temperature

Minimum (Low Byte)

Remote Temperature Maximum (High Byte)

Remote Temperature Maximum (Low Byte)

(High Byte)

(Low Byte)

(High Byte)

(Low Byte)

(High Byte)

(Low Byte)

Product Folder Link(s): TMP400

www.ti.com

TMP400

SBOS404 – DECEMBER 2007

TEMPERATURE REGISTERS

The TMP400 has four 8-bit registers that hold temperature measurement results. Both the local channel and the remote channel have a high byte register that contains the most significant bits (MSBs)

byte first) to pointer address 0Bh. The local temperature high limit is obtained by reading the high byte from pointer address 05h and the low byte from pointer address 16h. The power-on reset value of the local temperature high limit is 7Fh/00h (+127 ° C).

of the temperature analog-to-digital converter (ADC) Similarly, the local temperature low limit is set by result, and a low byte register that contains the least writing the high byte to pointer address 0Ch and significant bits (LSBs) of the temperature ADC result. writing the low byte to pointer address 17h, or by The local channel high byte address is 00h; the local using a single two-byte write command to pointer channel low byte address is 15h. The remote channel address 0Ch. The local temperature low limit is read high byte is at address 01h; the remote channel low by reading the high byte from pointer address 06h byte address is 10h. These read-only registers are and the low byte from pointer address 17h, or by updated by the ADC each time a temperature using a two-byte read from pointer address 06h. The measurement is completed. power-on reset value of the local temperature low

The TMP400 contains circuitry to assure that a low

limit register is C9h/00h ( – 55 ° C).

byte register read command returns data from the The remote temperature high limit is set by writing the same ADC conversion as the immediately preceding high byte to pointer address 0Dh and writing the low high byte read command. This assurance remains byte to pointer address 13h, or by using a two-byte valid only until another register is read. For proper write command to pointer address 0Dh. The remote operation, the high byte of a temperature register temperature high limit is obtained by reading the high should be read first. The low byte register should be byte from pointer address 07h and the low byte from read in the next read command. The low byte register pointer address 13h, or by using a two-byte read may be left unread if the LSBs are not needed. command from pointer address 07h. The power-on Alternatively, the temperature registers may be read reset value of the Remote Temperature High Limit as a 16-bit register by using a single two-byte read Register is 7Fh/00h (+127 ° C). command from address 00h for the local channel result or from address 01h for the remote channel result. The high byte is output first, followed by the low byte. Both bytes of this read operation are from the same ADC conversion. The power-on reset value of both temperature registers is 00h.

LIMIT REGISTERS

The TMP400 has eight registers for setting

The remote temperature low limit is set by writing the high byte to pointer address 0Eh and writing the low byte to pointer address 14h, or by using a two-byte write to pointer address 0Eh. The remote temperature low limit is read by reading the high byte from pointer address 08h and the low byte from pointer address 14h, or by using a two-byte read from pointer address 08h. The power-on reset value of the Remote Temperature Low Limit Register is C9h/00h ( – 55 ° C).

comparator limits for both the local and remote measurement channels. These registers have read and write capability. The High and Low Limit Registers for both channels span two registers, as do the temperature registers. The local temperature high limit is set by writing the high byte to pointer address 0Bh and writing the low byte to pointer address 16h,

STATUS REGISTER

The TMP400 has a Status Register to report the state of the temperature comparators. Table 3 shows the Status Register bits. The Status Register is read-only and is read by reading from pointer address 02h.

or by using a single two-byte write command (high

Table 3. Status Register Format

STATUS REGISTER (Read = 02h, Write = NA)

BIT # D7 D6 D5 D4 D3 D2 D1 D0

BIT NAME BUSY LHIGH LLOW RHIGH RLOW OPEN — —

POR VALUE 0

(1) The BUSY bit will change to ‘ 1 ’ almost immediately (<< 100 µ s) following power-up, as the TMP400 begins the first temperature

conversion. It is high whenever the TMP400 converts a temperature reading.

(1)

0 0 0 0 0 0 0

Product Folder Link(s): TMP400

www.ti.com

TMP400

SBOS404 – DECEMBER 2007

The BUSY bit is ‘ 1 ’ if the ADC makes a conversion. It The TMP400 NORs LHIGH, LLOW, RHIGH, RLOW, is ‘ 0 ’ if the ADC is not converting. and OPEN, so a status change for any of these flags

The OPEN bit is ‘ 1 ’ if the remote transistor was detected as open since the last read of the Status Register. The OPEN status is only detected when the ADC attempts to convert a remote temperature.

The LHIGH bit is ‘ 1 ’ if the local high limit was exceeded since the last clearing of the Status Register. The RHIGH bit is ‘ 1 ’ if the remote high limit was exceeded since the last clearing of the Status Register.

The LLOW bit is ‘ 1 ’ if the local low limit was exceeded since the last clearing of the Status Register. The RLOW bit is ‘ 1 ’ if the remote low limit was exceeded since the last clearing of the Status Register.

The values of the LLOW, RLOW, and OPEN bits are status, but the ALERT pin does not go low. latched and read as ‘ 1 ’ until the Status Register is read or a device reset occurs. These bits are cleared by reading the Status Register, provided that the condition causing the flag to be set no longer exists. The BUSY bit is not latched and is not cleared by reading the Status Register. The BUSY bit always indicates the current state and updates appropriately at the end of the corresponding ADC conversion. Clearing the Status Register bits does not clear the state of the ALERT pin; an SMBus alert response address command must be used to clear the ALERT pin.

from ‘ 0 ’ to ‘ 1 ’ automatically causes the ALERT pin to go low.

CONFIGURATION REGISTER

The Configuration Register controls shutdown mode and disables the ALERT pin. The Configuration Register is set by writing to pointer address 09h and read by reading from pointer address 03h.

The MASK bit (bit 7) enables or disables the ALERT pin output. If MASK is set to ‘ 0 ’ , the ALERT pin goes low when one of the temperature measurement channels exceeds its high or low limits for the chosen number of consecutive conversions. If the MASK bit is set to ‘ 1 ’ , the TMP400 retains the ALERT pin

The shutdown (SD) bit (bit 6) enables or disables the temperature measurement circuitry. If SD = 0, the TMP400 converts continuously at the rate set in the conversion rate register. When SD is set to ‘ 1 ’ , the TMP400 immediately stops converting and enters a shutdown mode. When SD is set to ‘ 0 ’ again, the TMP400 resumes continuous conversions.

The remaining bits of the Configuration Register are reserved and must always be set to ‘ 0 ’ . The power-on reset value for this register is 00h. Table 4 summarizes the bits of the Configuration Register.

Table 4. Configuration Register Bit Descriptions

CONFIGURATION REGISTER (Read = 03h, Write = 09h, POR = 00h)

BIT NAME FUNCTION POWER-ON RESET VALUE

7 MASK 0

6 SD 0

5, 4, 3, 2, 1, 0 Reserved — 0

0 = ALERT Enabled 1 = ALERT Masked

0 = Run

1 = Shut Down

Product Folder Link(s): TMP400

www.ti.com

V V =-

BE2 BE1

nkT

n =

eff

1.008 300´

(300 N )-

ADJUST

N =300 -

ADJUST

300 1.008´

eff

TMP400

SBOS404 – DECEMBER 2007

RESOLUTION REGISTER

The RES1 and RES0 bits (resolution bits 1 and 0, respectively) of the Resolution Register set the resolution of the local temperature measurement channel. Remote temperature measurement channel resolution is not affected. Changing the local channel resolution also affects the conversion time and rate of the TMP400. The Resolution Register is set by writing to pointer address 1Ah and is read by reading from pointer address 1Ah. Table 5 shows the resolution bits for the Resolution Register.

Table 5. Resolution Register: Local Channel

Programmable Resolution

RESOLUTION REGISTER

(Read = 1Ah, Write = 1Ah, POR = 18h)

CONVERSION

RES1 RES0 RESOLUTION TIME (Typical)

0 0 9 Bits (0.5 ° C) 12.5ms 0 1 10 Bits (0.25 ° C) 25ms 1 0 11 Bits (0.125 ° C) 50ms 1 1 12 Bits (0.0625 ° C) 100ms

Bits 3 and 4 of the Resolution Register must always be set to ‘ 1 ’ . Bits 5 through 7 of the Resolution Register must always be set to ‘ 0 ’ . The power-on reset value of this register is 18h. Resistance correction (RC) is not automatically enabled on power-on; see the Series Resistance Cancellation section for information on RC.

ONE-SHOT (OS)

The TMP400 features a One-Shot Temperature Measurement Mode. When the device is in Shutdown Mode, writing a ‘ 1 ’ to the OS bit starts a single temperature conversion. The device returns to the shutdown state at the completion of the single

conversion. This mode is useful to reduce power consumption in the TMP400 when continuous temperature monitoring is not required. When the configuration register is read, the OS bit always reads '0'

CONVERSION RATE REGISTER

The Conversion Rate Register controls the rate at which temperature conversions are performed. This register adjusts the idle time between conversions but not the conversion timing itself, thereby allowing the TMP400 power dissipation to be balanced with the temperature register update rate. Table 6 shows the conversion rate options and corresponding current consumption. By default, the TMP400 converts every four seconds.

N-FACTOR CORRECTION REGISTER

The TMP400 allows for a different n-factor value to be used for converting remote channel measurements to temperature. The remote channel uses sequential current excitation to extract a differential V the temperature of the remote transistor. Equation 1 relates this voltage and temperature.

The value n in Equation 1 is a characteristic of the particular transistor used for the remote channel. The default value for the TMP400 is n = 1.008. The value in the N-Factor Correction Register may be used to adjust the effective n-factor according to Equation 2 and Equation 3 .

voltage measurement to determine

(1)

(2)

Table 6. Conversion Rate Register

CONVERSION RATE REGISTER (Read = 04h, Write = 0Ah, POR = 02h)

AVERAGE IQ(TYP)

( µ A)

R7 R6 R5 R4 R3 R2 R1 R0 CONVERSION/SEC VS= 2.7V VS= 5.5V

0 0 0 0 0 0 0 0 0.0625 11 32 0 0 0 0 0 0 0 1 0.125 17 38 0 0 0 0 0 0 1 0 0.25 28 49 0 0 0 0 0 0 1 1 0.5 47 69 0 0 0 0 0 1 0 0 1 80 103 0 0 0 0 0 1 0 1 2 128 155 0 0 0 0 0 1 1 0 4 190 220

07h to 0Fh 8 373 413

Product Folder Link(s): TMP400

(3)

www.ti.com

TMP400

SBOS404 – DECEMBER 2007

The n-correction value must be stored in The Local Temperature Maximum Register may be two ’ s-complement format, yielding an effective data read by reading the high byte from pointer address range from – 128 to +127. The n-correction value may 32h and the low byte from pointer address 33h. The be written to and read from pointer address 18h. The Local Temperature Maximum Register may also be register power-on reset value is 00h; thus, the read by using a two-byte read command from pointer register has no effect unless written to. The n-factor address 32h. The Local Temperature Maximum range is shown in Table 7 . Register is reset at power-on by executing the chip

reset command, or by writing any value to any of

Table 7. N-Factor Range pointer addresses 30h through 37h. The reset value

ADJUST

BINARY HEX DECIMAL N

01111111 7F 127 1.747977 00001010 0A 10 1.042759 00001000 08 8 1.035616 00000110 06 6 1.028571 00000100 04 4 1.021622 00000010 02 2 1.014765 00000001 01 1 1.011371 00000000 00 0 1.008 11111111 FF – 1 1.004651 11111110 FE – 2 1.001325 11111100 FC – 4 0.994737 11111010 FA – 6 0.988235 11111000 F8 – 8 0.981818 11110110 F6 – 10 0.975484 10000000 80 – 128 0.706542

MINIMUM AND MAXIMUM REGISTERS

The TMP400 stores the minimum and maximum temperatures measured since power-on, chip-reset, or minimum and maximum register reset for both the local and remote channels. The Local Temperature Minimum Register may be read by reading the high byte from pointer address 30h and the low byte from pointer address 31h. The Local Temperature Minimum Register may also be read by using a two-byte read command from pointer address 30h. The Local Temperature Minimum Register is reset at power-on, by executing the chip-reset command, or by writing any value to any of pointer addresses 30h through 37h. The reset value for these registers is 7Fh/F0h.

for these registers is 80h/00h. The Remote Temperature Minimum Register may be

read by reading the high byte from pointer address 34h and the low byte from pointer address 35h. The Remote Temperature Minimum Register may also be read by using a two-byte read command from pointer address 34h. The Remote Temperature Minimum Register is reset at power-on by executing the chip reset command, or by writing any value to any of pointer addresses 30h through 37h. The reset value for these registers is 7Fh/F0h.

The Remote Temperature Maximum Register may be read by reading the high byte from pointer address 36h and the low byte from pointer address 37h. The Remote Temperature Maximum Register may also be read by using a two-byte read command from pointer address 36h. The Remote Temperature Maximum Register is reset at power-on by executing the chip reset command, or by writing any value to any of pointer addresses 30h through 37h. The reset value for these registers is 80h/00h.

SOFTWARE RESET

The TMP400 may be reset by writing any value to Pointer Register FCh. A reset restores the power-on reset state to all of the TMP400 registers as well as aborts any conversion in process and clears the ALERT pin.

The TMP400 also supports reset via the Two-Wire general call address (00000000). The TMP400 acknowledges the general call address and responds to the second byte. If the second byte is 00000110, the TMP400 latches the status of the address pins and executes a software reset. A 500 µ s time delay must be observed after a general-call command. The TMP400 takes no action in response to other values in the second byte.

Product Folder Link(s): TMP400

www.ti.com

TMP400

SBOS404 – DECEMBER 2007

CONSECUTIVE ALERT REGISTER SERIAL INTERFACE

The value in the Consecutive Alert Register (address The TMP400 operates only as a slave device on 22h) determines how many consecutive out-of-limit either the Two-Wire bus or the SMBus. Connections measurements must occur on a measurement to either bus are made via the open-drain I/O lines, channel before the ALERT signal is activated. The SDA, and SCL. The SDA and SCL pins feature value in this register does not affect bits in the Status integrated spike suppression filters and Schmitt Register. Values of one, two, three, or four triggers to minimize the effects of input spikes and consecutive conversions can be selected; one bus noise. The TMP400 supports the transmission conversion is the default. This function allows protocol for fast (1kHz to 400kHz) and high-speed additional filtering for the ALERT pin. The consecutive (1kHz to 3.4MHz) modes. All data bytes are alert bits are shown in Table 8 . transmitted MSB first.

Table 8. Consecutive Alert Register

CONSECUTIVE ALERT REGISTER

(READ = 22h, WRITE = 22h, POR = 01h)

NUMBER OF CONSECUTIVE

OUT-OF-LIMIT

C2 C1 C0 MEASUREMENTS

0 0 0 1 0 0 1 2 0 1 1 3 1 1 1 4

(1) Note that bit 7 of the Consecutive Alert Register controls the

enable/disable of the timeout function. See the Timeout

Function section for a description of this feature.

BUS OVERVIEW

The TMP400 is SMBus interface-compatible. In SMBus protocol, the device that initiates the transfer is called a master, and the devices controlled by the master are slaves. The bus must be controlled by a master device that generates the serial clock (SCL), controls the bus access, and generates the START and STOP conditions.

To address a specific device, a START condition is initiated. START is indicated by pulling the data line (SDA) from a high to low logic level while SCL is high. All slaves on the bus shift in the slave address byte, with the last bit indicating whether a read or write operation is intended. During the ninth clock pulse, the slave being addressed responds to the master by generating an Acknowledge and pulling SDA low.

Data transfer is then initiated and sent over eight clock pulses followed by an Acknowledge bit. During data transfer, SDA must remain stable while SCL is high, because any change in SDA while SCL is high is interpreted as a control signal.

Once all data have been transferred, the master generates a STOP condition. STOP is indicated by pulling SDA from low to high, while SCL is high.

SERIAL BUS ADDRESS

To communicate with the TMP400, the master must first address slave devices via a slave address byte. The slave address byte consists of seven address bits, and a direction bit indicating the intent of executing a read or write operation. The address of the TMP400 is set by the A0 and A1 pins. TMP400 addresses and corresponding A0 and A1 configurations are shown in Table 9 .

Table 9. Device Addresses

A0 A1 ADDRESS

GND GND 0011 000 GND High-Z 0011 001

GND V High-Z GND 0101 001 High-Z High-Z 0101 010 High-Z V

GND 1001 100

High-Z 1001 101

0011 010

0101 011

1001 110

READ/WRITE OPERATIONS

Accessing a particular register on the TMP400 is accomplished by writing the appropriate value to the Pointer Register. The value for the Pointer Register is the first byte transferred after the slave address byte with the R/ W bit low. Every write operation to the TMP400 requires a value for the Pointer Register (see Figure 14 ).

When reading from the TMP400, the last value stored in the Pointer Register by a write operation is used to determine which register is read by a read operation. To change the register pointer for a read operation, a new value must be written to the Pointer Register. This transaction is accomplished by issuing a slave address byte with the R/ W bit low, followed by the Pointer Register byte. No additional data are required. The master can then generate a START condition and send the slave address byte with the R/ W bit high to initiate the read command. See

Figure 16 for details of this sequence. If repeated

Product Folder Link(s): TMP400

www.ti.com

SCL

SDA

(LOW)

(HDSTA)

(HDDAT)

(BUF)

(SUDAT)

(HIGH)

(SUSTA)

(SUSTO)

P S S P

TMP400

SBOS404 – DECEMBER 2007

reads from the same register are desired, it is not Stop Data Transfer: A change in the state of the necessary to continually send the Pointer Register SDA line from low to high while the SCL line is high bytes, because the TMP400 retains the Pointer defines a STOP condition. Each data transfer Register value until it is changed by the next write terminates with a repeated START or STOP operation. Note that register bytes are sent MSB first, condition. followed by the LSB.

TIMING DIAGRAMS

Figure 13 to Figure 16 describe various operations on

the TMP400. Bus definitions are given below. Parameters for Figure 13 are defined in Table 10 .

Bus Idle: Both SDA and SCL lines remain high. Start Data Transfer: A change in the state of the

SDA line, from high to low, while the SCL line is high, defines a START condition. Each data transfer initiates with a START condition.

Data Transfer: The number of data bytes transferred between a START and a STOP condition is not limited and is determined by the master device. The receiver acknowledges the transfer of data.

Acknowledge: Each receiving device, when addressed, is obliged to generate an Acknowledge bit. A device that acknowledges must pull down the SDA line during the Acknowledge clock pulse in such a way that the SDA line is stable low during the high period of the Acknowledge clock pulse. Setup and hold times must be taken into account. On a master receive, data transfer termination can be signaled by the master generating a Not-Acknowledge on the last byte that has been transmitted by the slave.

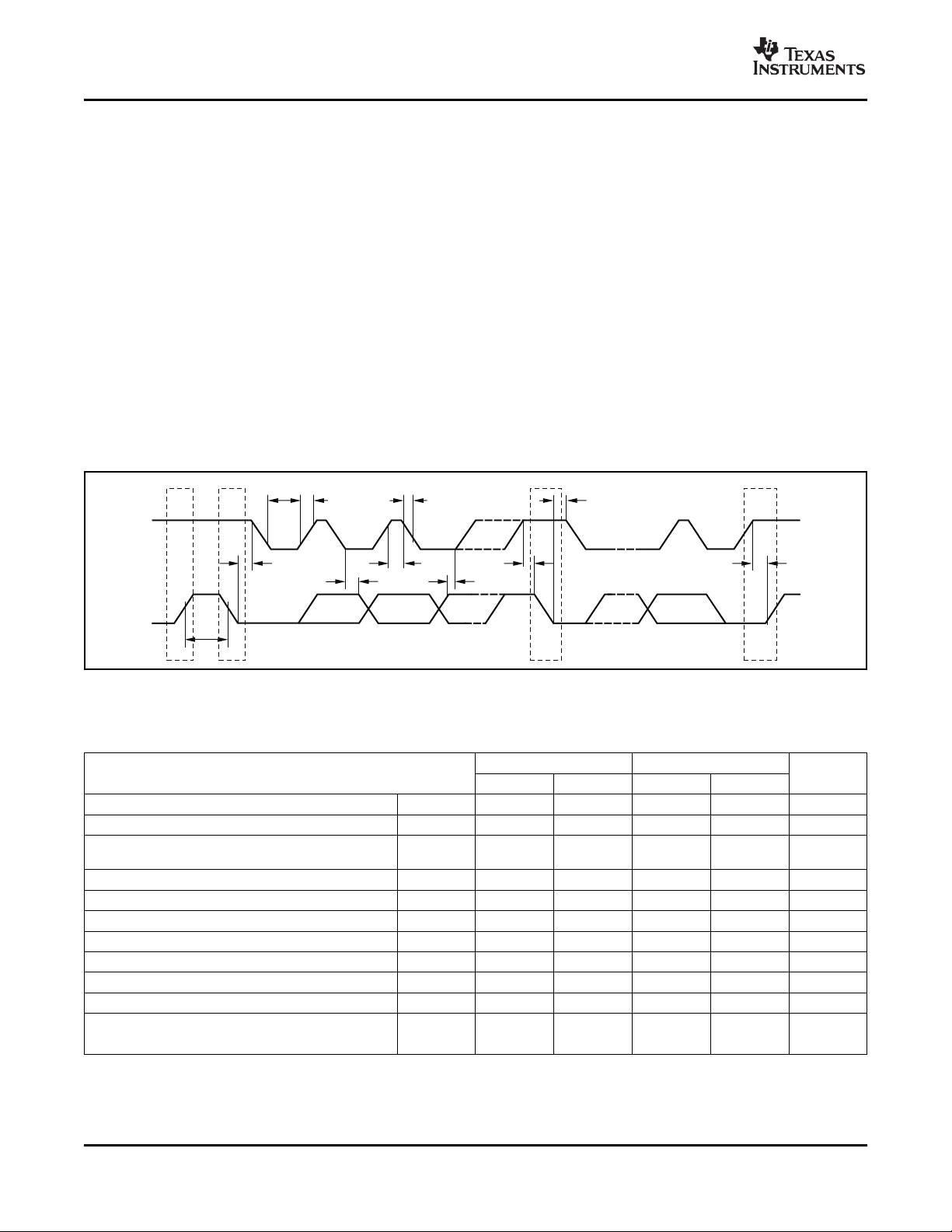

Figure 13. Two-Wire Timing Diagram

Table 10. Timing Diagram Definitions for Figure 13

FAST MODE HIGH-SPEED MODE

PARAMETER MIN MAX MIN MAX UNIT

SCL Operating Frequency f Bus Free Time Between STOP and START Condition t Hold time after repeated START condition.

After this period, the first clock is generated. Repeated START Condition Setup Time t STOP Condition Setup Time t Data Hold Time t Data Setup Time t SCL Clock LOW Period t SCL Clock HIGH Period t

(SCL) (BUF)

(HDSTA)

(SUSTA) (SUSTO) (HDDAT) (SUDAT)

(LOW)

(HIGH)

Clock/Data Fall Time t Clock/Data Rise Time t for SCL ≤ 100kHz t

(1) For cases with fall time of SCL less than 20ns and/or the rise time or fall time of SDA less than 20ns, the hold time should be greater

than 20ns.

(2) For cases with fall time of SCL less than 10ns and/or the rise or fall time of SDA less than 10ns, the hold time should be greater than

10ns.

Product Folder Link(s): TMP400

0.001 0.4 0.001 3.4 MHz 600 160 ns

100 100 ns 100 100 ns

100 100 ns

(1)

0 100 10 ns

1300 160 ns

600 60 ns

F R R

300 ns 300 160

1000 160

(2)

www.ti.com

Frame2PointerRegisterByte

Frame4DataByte2

StartBy

Master

ACKBy

TMP400

ACKBy

TMP400

ACKBy

TMP400

StopBy

Master

1 9 1

D7 D6 D5 D4 D3 D2 D1 D0

Frame3DataByte1

ACKBy

TMP400

SDA

(Continued)

SCL

(Continued)

D6 D5 D4 D3 D2 D1 D0

SDA

SCL

0 0 1 1 0 0 R/W P7 P6 P5 P4 P3 P2 P1 P0

Frame1Two-WireSlaveAddressByte

(1)

Frame2PointerRegisterByte

StartBy

Master

ACKBy

TMP400

ACKBy

TMP400

Frame4DataByte1ReadRegister

StartBy

Master

ACKBy

TMP400

NACKBy

Master

(2)

From

TMP400

1 9 1

1 9 1 9

SDA

SCL

0 0 1 R/

W P7 P6 P5 P4 P3 P2 P1 P0

SDA

(Continued)

SCL

(Continued)

1 0 0 1

1 0 0

W D7 D6 D5 D4 D3 D2 D1 D0

Frame1T WireSlaveAddressBytewo-

(1)

Frame3T WireSlaveAddressBytewo-

(1)

(1) See Table 9 for all available addresses. A0 = 1 and A1 = 0 in this example.

Figure 14. Two-Wire Timing Diagram for Write Word Format

TMP400

SBOS404 – DECEMBER 2007

(1) See Table 9 for all available addresses. A0 = 1 and A1 = 0 in this example. (2) Master should leave SDA high to terminate a single-byte read operation.

Figure 15. Two-Wire Timing Diagram for Single-Byte Read Format

Product Folder Link(s): TMP400

www.ti.com

Frame2PointerRegisterByte

StartBy

Master

ACKBy

TMP400

ACKBy

TMP400

Frame4DataByte1ReadRegister

StartBy

Master

ACKBy

TMP400

ACKBy

Master

From

TMP400

1 9 1

SDA

SCL

0 0 1 R/

W P7 P6 P5 P4 P3 P2 P1 P0

SDA

(Continued)

SCL

(Continued)

SDA

(Continued)

SCL

(Continued)

1 0 0 1

1 0 0

W D7 D6 D5 D4 D3 D2 D1 D0

Frame5DataByte2ReadRegister

StopBy

Master

ACKBy

Master

From

TMP400

D7 D6 D5 D4 D3 D2 D1 D0

Frame1Two-WireSlaveAddressByte

(1)

Frame3Two-WireSlaveAddressByte

(1)

Frame1SMBusALERTResponseAddressByte

StartBy

Master

ACKBy

TMP400

From

TMP400

NACKBy

Master

StopBy

Master

1 9 1

SDA

SCL

ALERT

0 0 0 1 1 0 0 R/

W 1 0 0 1 1 0 0

Status

Frame2Two-WireSlaveAddressByte

(1)

TMP400

SBOS404 – DECEMBER 2007

(1) See Table 9 for all available addresses. A0 = 1 and A1 = 0 in this example.

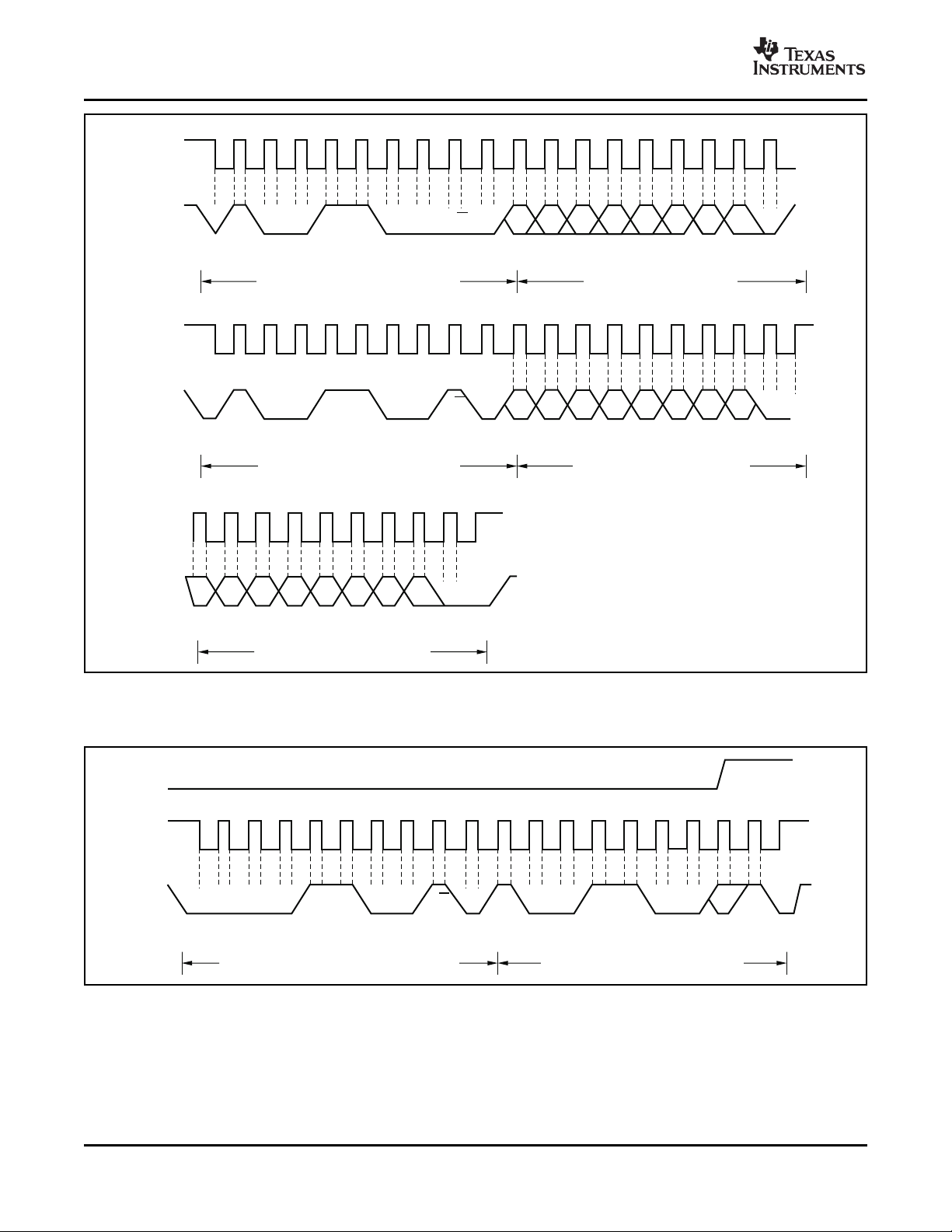

Figure 16. Two-Wire Timing Diagram for Two-Byte Read Format

(1) See Table 9 for all available addresses. A0 = 1 and A1 = 0 in this example.

Figure 17. Timing Diagram for SMBus ALERT

Product Folder Link(s): TMP400

www.ti.com

Measured

Temperature

ALERTHighLimit

ALERTLowLimitHysteresis

ALERT

SMBusALERT

Read Read

Time

Read

TMP400

SBOS404 – DECEMBER 2007

HIGH-SPEED MODE ALERT (PIN 11)

In order for the Two-Wire bus to operate at The ALERT pin of the TMP400 is dedicated to alarm frequencies above 400kHz, the master device must functions. This pin has an open-drain output that issue a High-speed mode (Hs-mode) master code requires a pull-up resistor to V+. It can be wire-ORed (00001XXX) as the first byte after a START condition together with other alarm pins for system monitoring to switch the bus to high-speed operation. The of multiple sensors. The ALERT pin is intended for TMP400 does not acknowledge this byte, but use as an earlier warning interrupt, and can be switches the input filters on SDA and SCL and the software disabled, or masked. output filter on SDA to operate in Hs-mode, allowing transfers at up to 3.4MHz. After the Hs-mode master code has been issued, the master transmits a Two-Wire slave address to initiate a data transfer operation. The bus continues to operate in Hs-mode until a STOP condition occurs on the bus. Upon receiving the STOP condition, the TMP400 switches the input and output filter back to fast-mode operation.

TIMEOUT FUNCTION

When bit 7 of the Consecutive Alert Register is set high, the TMP400 timeout function is enabled. The TMP400 resets the serial interface if either SCL or SDA are held low for 30ms (typical) between a START and STOP condition. If the TMP400 is holding the bus low, it releases the bus and waits for a START condition. To avoid activating the timeout function, it is necessary to maintain a communication speed of at least 1kHz for the SCL operating frequency. The default state of the timeout function is enabled (bit 7 = high).

The ALERT pin (pin 11) asserts low when either the measured local or remote temperature violates the range limit set by the corresponding Local/Remote Temperature High/Low Limit Registers. This alert function can be configured to assert only if the range is violated a specified number of consecutive times (1, 2, 3, or 4). The consecutive violation limit is set in the Consecutive Alert Register. False alerts that occur as a result of environmental noise can be prevented by requiring consecutive faults. ALERT also asserts low if the remote temperature sensor is open-circuit. When the MASK function is enabled (Configuration Register: bit 7 = 1), ALERT is disabled (that is, masked). ALERT resets when the master reads the device address, as long as the condition that caused the alert no longer persists, and the Status Register has been reset.

STBY (PIN 15)

The TMP400 features a standby pin ( STBY) that, when pulled low, disables the device. During normal operation STBY should be tied high (V+). When STBY is pulled low, the TMP400 is immediately disabled. If the TMP400 receives a One-Shot command when STBY is pulled low, the command is ignored and the TMP400 continues to be disabled until STBY is pulled high.

Figure 18. SMBus Alert Timing Diagram

Product Folder Link(s): TMP400

www.ti.com

TMP400

SBOS404 – DECEMBER 2007

SMBUS ALERT FUNCTION UNDERVOLTAGE LOCKOUT

The TMP400 supports the SMBus Alert function. The The TMP400 senses when the power-supply voltage ALERT pin of the TMP400 may be connected as an has reached a minimum voltage level for the ADC SMBus Alert signal. When a master detects an alert converter to function. The detection circuitry consists condition on the ALERT line, the master sends an of a voltage comparator that enables the ADC SMBus Alert command (00011001) on the bus. If the converter after the power supply (V+) exceeds 2.45V ALERT pin of the TMP400 is active, the device (typical). The comparator output is continuously acknowledges the SMBus Alert command and checked during a conversion. The TMP400 does not respond by returning its slave address on the SDA perform a temperature conversion if the power supply line. The eighth bit (LSB) of the slave address byte is not valid. The last valid measured temperature is indicates whether the temperature exceeding one of used for the temperature measurement result. the temperature high limit settings or falling below one of the temperature low limit settings caused the alert condition. This bit is high if the temperature is greater than or equal to one of the temperature high limit settings; this bit is low if the temperature is less than one of the temperature low limit settings. See

Figure 17 for details of this sequence.

If multiple devices on the bus respond to the SMBus Alert command, arbitration during the slave address portion of the SMBus Alert command determines which device will clear its alert status. If the TMP400 wins the arbitration, its ALERT pin becomes inactive at the completion of the SMBus Alert command. If the TMP400 loses the arbitration, the ALERT pin remains active.

SHUTDOWN MODE (SD)

The TMP400 Shutdown Mode allows the user to save maximum power by shutting down all device circuitry other than the serial interface, reducing current consumption to typically less than 3 µ A; see typical characteristic curve Shutdown Quiescent Current vs Supply Voltage (Figure 10 ). Shutdown Mode is enabled when the SD bit of the Configuration Register is high; the device shuts down once the current conversion is completed. When SD is low, the device maintains a continuous conversion state.

GENERAL CALL RESET

The TMP400 supports reset via the Two-Wire General Call address 00h (0000 0000b). The TMP400 acknowledges the General Call address and responds to the second byte. If the second byte is 06h (0000 0110b), the TMP400 executes a software reset, while latching the status of the address pins. This software reset restores the power-on reset state to all TMP400 registers, aborts any conversion in progress, and clears the ALERT pin. If the second byte is 04h ( 0000 0100b), the TMP400 latches the status of the address pins, but does not reset. The TMP400 takes no action in response to other values in the second byte. A 500 µ s time delay must be taken after a general call command.

IDENTIFICATION REGISTERS

The TMP400 allows for the Two-Wire bus controller to query the device for manufacturer and device IDs to allow for software identification of the device at the particular Two-Wire bus address. The manufacturer ID is obtained by reading from pointer address FEh. The device ID is obtained by reading from pointer address FFh. The TMP400 returns 55h for the manufacturer code and 01h for the device ID. These registers are read-only.

SENSOR FAULT

The TMP400 senses a fault at the D+ input resulting from incorrect diode connection or an open circuit. The detection circuitry consists of a voltage comparator that trips when the voltage at D+ exceeds (V+) – 0.6V (typical). The comparator output is continuously checked during a conversion. If a fault is detected, the result reads 7FFh (0111 1111 1111b) and is used for the temperature measurement result; the OPEN bit (Status Register, bit 2) is set high, and, if the alert function is enabled, ALERT asserts low.

When not using the remote sensor with the TMP400, the D+ and D – inputs must be connected together to prevent meaningless fault warnings.

FILTERING

Remote junction temperature sensors are usually implemented in a noisy environment. Noise is most often created by fast digital signals, and it can corrupt measurements. The TMP400 has a built-in 65kHz filter on the inputs of D+ and D – to minimize the effects of noise. However, a bypass capacitor placed differentially across the inputs of the remote temperature sensor is recommended to make the application more robust against unwanted coupled signals. The value of the capacitor should be between 100pF and 1nF. Some applications attain better overall accuracy with additional series resistance; however, this increased accuracy is setup-specific. When series resistance is added, the value should not be greater than 3k Ω and resistance correction must be enabled (RC = 1).

Product Folder Link(s): TMP400

www.ti.com

T =

ERR

n 1.008-

1.008

´ °[273.15+T( C)]

T =

ERR

1.004 1.008-

1.008

´ °(273.15+100 C)

T = 1.48-

ERR

°C

TMP400

SBOS404 – DECEMBER 2007

If filtering is needed, the suggested component 2. Base-emitter voltage < 0.95V at 120 µ A, at the values are 100pF and 50 Ω on each input. Exact lowest sensed temperature. values are application specific. Resistance correction must be enabled to avoid offset correction.

REMOTE SENSING

The TMP400 is designed to be used with either discrete transistors or substrate transistors built into processor chips and ASICs. Either NPN or PNP transistors can be used, as long as the base-emitter junction is used as the remote temperature sense. Either a transistor or diode connection can also be used; see Figure 11 .

Errors in remote temperature sensor readings are generally the consequence of the ideality factor and current excitation used by the TMP400 versus the manufacturer-specified operating current for a given transistor. Some manufacturers specify a high-level and low-level current for the temperature-sensing substrate transistors. The TMP400 uses 6 µ A for I and 120 µ A for I

. The TMP400 allows for different

HIGH

n-factor values; see the N-Factor Correction Register section.

The ideality factor ( n) is a measured characteristic of a remote temperature sensor diode as compared to an ideal diode. The ideality factor for the TMP400 is trimmed to be 1.008. For transistors whose ideality factor does not match the TMP400, Equation 4 can be used to calculate the temperature error. Note that for the equation to be used correctly, actual temperature ( ° C) must be converted to Kelvin ( ° K).

Where: measured temperature directly depends on how

n = Ideality factor of remote temperature sensor T( ° C) = actual temperature T

= Error in TMP400 reading due to n ≠ 1.008

ERR

Degree delta is the same for ° C and ° K

For n = 1.004 and T( ° C) = 100 ° C:

If a discrete transistor is used as the remote temperature sensor with the TMP400, the best accuracy can be achieved by selecting the transistor according to the following criteria:

1. Base-emitter voltage > 0.25V at 6 µ A, at the highest sensed temperature.

LOW

(4)

(5)

3. Base resistance < 100 Ω .

4. Tight control of V small variations in h

characteristics indicated by

(that is, 50 to 150).

Based on these criteria, two recommended small-signal transistors are the 2N3904 (NPN) or 2N3906 (PNP).

MEASUREMENT ACCURACY AND THERMAL CONSIDERATIONS

The temperature measurement accuracy of the TMP400 depends on the remote and/or local temperature sensor being at the same temperature as the system point being monitored. Clearly, if the temperature sensor is not in good thermal contact with the part of the system being monitored, then there will be a delay in the response of the sensor to a temperature change in the system. For remote temperature sensing applications using a substrate transistor (or a small, SOT23 transistor) placed close to the device being monitored, this delay is usually not a concern.

The local temperature sensor inside the TMP400 monitors the ambient air around the device. The thermal time constant for the TMP400 is approximately two seconds. This constant implies that if the ambient air changes quickly by 100 ° C, it would take the TMP400 about 10 seconds (that is, five thermal time constants) to settle to within 1 ° C of the final value. In most applications, the TMP400 package is in electrical (and therefore, thermal) contact with the printed circuit board (PCB), as well as subjected to forced airflow. The accuracy of the

accurately the PCB and forced airflow temperatures represent the temperature that the TMP400 is measuring. Additionally, the internal power dissipation of the TMP400 can cause the temperature to rise above the ambient or PCB temperature. The internal power dissipated as a result of exciting the remote temperature sensor is negligible because of the small currents used. For a 5.5V supply and maximum conversion rate of eight conversions per second, the TMP400 dissipates 1.82mW (PD If the ALERT pin is sinking 1mA, an additional power of 0.4mW is dissipated (PD

0.4mW). Total power dissipation is then 2.22mW (PD

+ PD

) and, with an θ

OUT

the junction temperature to rise approximately

0.333 ° C above the ambient.

= 5.5V × 420 µ A).

= 1mA × 0.4V =

OUT

of 150 ° C/W, causes

Product Folder Link(s): TMP400

www.ti.com

GND

(1)

D+

(1)

D-

(1)

GND

(1)

GroundorV+layer onbottomand/or top,ifpossible.

TMP400

0.1 FCapacitorm

PCBVia

V+

GND

TMP400

SBOS404 – DECEMBER 2007

LAYOUT CONSIDERATIONS

Remote temperature sensing on the TMP400 measures very small voltages using very low currents; therefore, noise at the IC inputs must be minimized. Most applications using the TMP400 will have high digital content, with several clocks and logic level transitions creating a noisy environment. Layout should adhere to the following guidelines:

1. Place the TMP400 as close to the remote junction sensor as possible.

2. Route the D+ and D – traces next to each other and shield them from adjacent signals through the use of ground guard traces, as shown in

Figure 19 . If a multilayer PCB is used, bury these

traces between ground or V them from extrinsic noise sources. 5 mil (0.127mm) PCB traces are recommended.

3. Minimize additional thermocouple junctions caused by copper-to-solder connections. If these junctions are used, make the same number and approximate locations of copper-to-solder connections in both the D+ and D – connections to cancel any thermocouple effects.

4. Use a 0.1 µ F local bypass capacitor directly between the V+ and GND of the TMP400, as shown in Figure 20 . Minimize filter capacitance between D+ and D – to 1000pF or less for optimum measurement performance. This capacitance includes any cable capacitance between the remote temperature sensor and TMP400.

5. If the connection between the remote temperature sensor and the TMP400 is less than 8 inches (203.2mm), use a twisted-wire pair connection. Beyond 8 inches, use a twisted, shielded pair with the shield grounded as close to the TMP400 as possible. Leave the remote sensor connection end of the shield wire open to avoid ground loops and 60Hz pickup.

planes to shield

(1) 5mil traces with 5mil spacing.

Figure 19. Example Signal Traces

Figure 20. Suggested Bypass Capacitor

Placement

Product Folder Link(s): TMP400

PACKAGE OPTION ADDENDUM

www.ti.com

21-Dec-2007

PACKAGING INFORMATION

Orderable Device Status

TMP400AIDBQR ACTIVE SSOP/

TMP400AIDBQT ACTIVE SSOP/

(1)

The marketing status values are defined as follows:

(1)

Package

Type

QSOP

Package Drawing

Pins Package

Qty

Eco Plan

DBQ 16 2500 Green (RoHS &

no Sb/Br)

DBQ 16 250 Green (RoHS &

no Sb/Br)

ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in

a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device.

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check

http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined. Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements

for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-2-260C-1 YEAR

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder

temperature.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

Addendum-Page 1

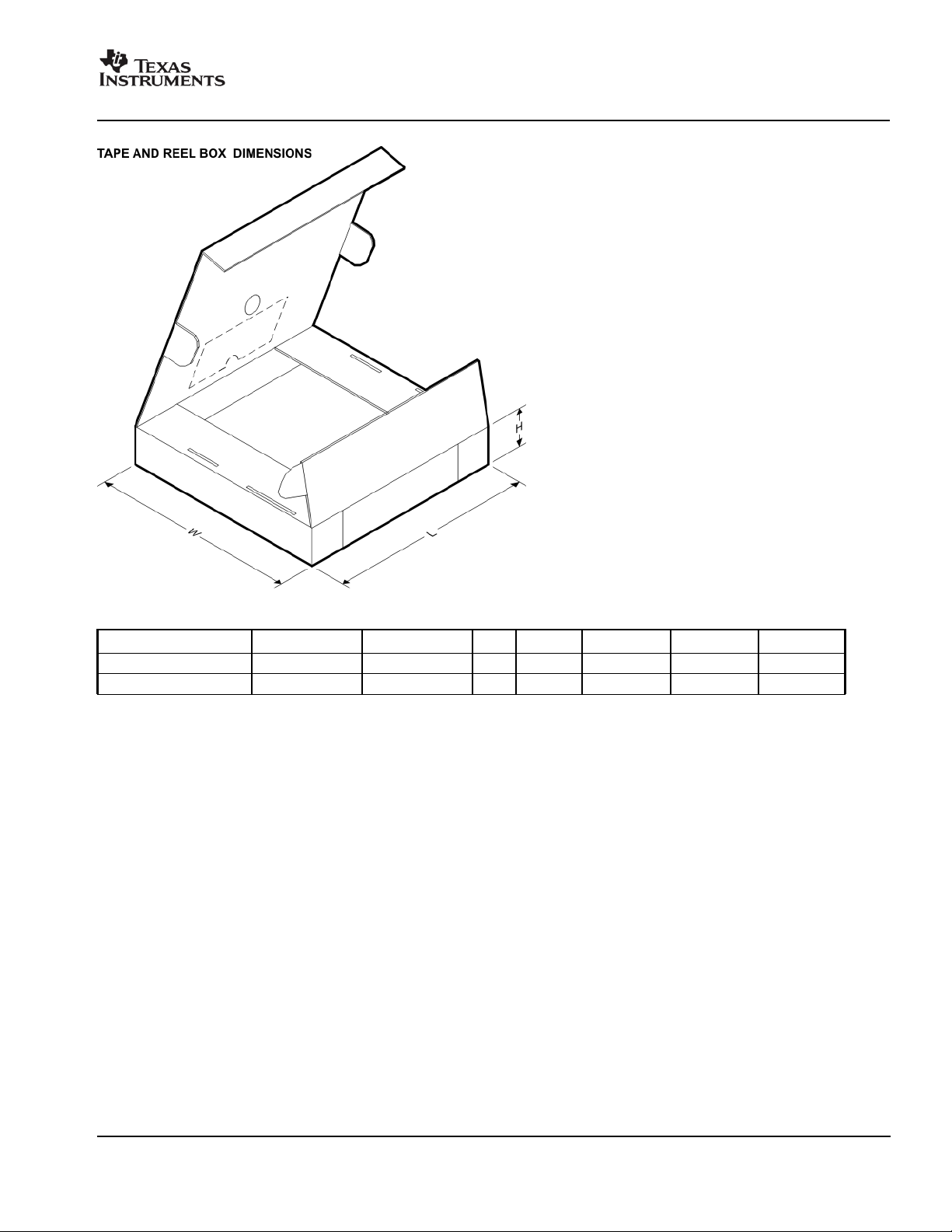

PACKAGE MATERIALS INFORMATION

www.ti.com

TAPE AND REEL INFORMATION

11-Mar-2008

*All dimensions are nominal

Device Package

TMP400AIDBQR SSOP/

TMP400AIDBQT SSOP/

Type

QSOP

Package Drawing

Pins SPQ Reel

Diameter

(mm)

DBQ 16 2500 330.0 12.4 6.4 5.2 2.1 8.0 12.0 Q1

DBQ 16 250 180.0 12.4 6.9 5.4 2.0 8.0 12.0 Q1

Reel

Width

W1 (mm)

A0 (mm) B0 (mm) K0 (mm) P1

(mm)W(mm)

Pin1

Quadrant

Pack Materials-Page 1

PACKAGE MATERIALS INFORMATION

www.ti.com

11-Mar-2008

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

TMP400AIDBQR SSOP/QSOP DBQ 16 2500 346.0 346.0 29.0 TMP400AIDBQT SSOP/QSOP DBQ 16 250 184.0 184.0 50.0

Pack Materials-Page 2

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio Data Converters dataconverter.ti.com Automotive www.ti.com/automotive DSP dsp.ti.com Broadband www.ti.com/broadband Clocks and Timers www.ti.com/clocks Digital Control www.ti.com/digitalcontrol Interface interface.ti.com Medical www.ti.com/medical Logic logic.ti.com Military www.ti.com/military Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork Microcontrollers microcontroller.ti.com Security www.ti.com/security RFID www.ti-rfid.com Telephony www.ti.com/telephony RF/IF and ZigBee® Solutions www.ti.com/lprf Video & Imaging www.ti.com/video

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Wireless www.ti.com/wireless

TEXAS INSTRUMENTS TMP400 Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual

FEATURES DESCRIPTION

APPLICATIONS

ABSOLUTE MAXIMUM RATINGS

PIN CONFIGURATION

ELECTRICAL CHARACTERISTICS

TYPICAL CHARACTERISTICS

APPLICATION INFORMATION

SERIES RESISTANCE CANCELLATION

DIFFERENTIAL INPUT CAPACITANCE

TEMPERATURE MEASUREMENT DATA

REGISTER INFORMATION

POINTER REGISTER

TEMPERATURE REGISTERS

LIMIT REGISTERS

STATUS REGISTER

CONFIGURATION REGISTER

RESOLUTION REGISTER

ONE-SHOT (OS)

CONVERSION RATE REGISTER

N-FACTOR CORRECTION REGISTER

MINIMUM AND MAXIMUM REGISTERS

SOFTWARE RESET

CONSECUTIVE ALERT REGISTER

BUS OVERVIEW

SERIAL BUS ADDRESS

READ/WRITE OPERATIONS

TIMING DIAGRAMS

TIMEOUT FUNCTION

STBY (PIN 15)

SHUTDOWN MODE (SD)

GENERAL CALL RESET

IDENTIFICATION REGISTERS

SENSOR FAULT

FILTERING

REMOTE SENSING

MEASUREMENT ACCURACY AND THERMAL CONSIDERATIONS

LAYOUT CONSIDERATIONS
