1.8-V to 5-V DUAL UART WITH 16-BYTE FIFOS
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
FEATURES
• False-Start Bit Detection
• Programmable Auto-RTS and Auto-CTS • Complete Status Reporting Capabilities
• In Auto-CTS Mode, CTS Controls the • 3-State Output TTL Drive Capabilities for
Transmitter Bidirectional Data Bus and Control Bus
• In Auto-RTS Mode, RCV FIFO Contents, and • Line Break Generation and Detection
Threshold Control RTS
• Serial and Modem Control Outputs Drive a
RJ11 Cable Directly When Equipment is on
the Same Power Drop
• Capable of Running With All Existing
TL16C450 Software
• After Reset, All Registers Are Identical to the
TL16C450 Register Set
• Up to 24-MHz Clock Rate for up to 1.5-Mbaud
Operation With V
= 5 V
CC
• Up to 20-MHz Clock Rate for up to
1.25-Mbaud Operation With V
= 3.3 V
CC
• Up to 16-MHz Clock Rate for up to 1-Mbaud
Operation With V
= 2.5 V
CC
• Up to 10-MHz Clock Rate for up to 625-kbaud
Operation With V
= 1.8 V
CC
• In the TL16C450 Mode, Hold and Shift
Registers Eliminate the Need for Precise
Synchronization Between the CPU and Serial
Data
• Programmable Baud Rate Generator Allows
Division of Any Input Reference Clock by 1 to
16
(2
- 1) and Generates an Internal 16 × Clock
• Internal Diagnostic Capabilities:
– Loopback Controls for Communications
Link Fault Isolation
– Break, Parity, Overrun, and Framing Error
Simulation
• Fully Prioritized Interrupt System Controls
• Modem Control Functions ( CTS, RTS, DSR,
DTR, RI, and DCD)
• Available in 44-Pin PLCC (FN) or 32-Pin QFN
(RHB) Packages
• Each UART's Internal Register Set May Be
Written Concurrently to Save Setup Time
• Multi-Function Output ( MF) Allows Users to
Select Among Several Functions, Saving
Package Pins
APPLICATIONS
• Point-of-Sale Terminals
• Gaming Terminals
• Portable Applications
• Router Control
• Cellular Data
• Factory Automation
• Standard Asynchronous Communication Bits
(Start, Stop, and Parity) Added to or Deleted
DESCRIPTION
From the Serial Data Stream
• 5-V, 3.3-V, 2.5-V, and 1.8 V Operation
• Independent Receiver Clock Input
• Transmit, Receive, Line Status, and Data Set
Interrupts Independently Controlled
• Fully Programmable Serial Interface
Characteristics:
– 5-, 6-, 7-, or 8-Bit Characters
– Even-, Odd-, or No-Parity Bit Generation
and Detection
– 1-, 1 ½-, or 2-Stop Bit Generation
The TL16C2552 is a dual universal asynchronous
receiver and transmitter (UART). It incorporates the
functionality of two TL16C550D UARTs, each UART
having its own register set and FIFOs. The two
UARTs share only the data bus interface and clock
source, otherwise they operate independently.
Another name for the UART function is
Asynchronous Communications Element (ACE), and
these terms will be used interchangeably. The bulk
of this document describes the behavior of each
ACE, with the understanding that two such devices
are incorporated into the TL16C2552.
– Baud Generation (dc to 1 Mbit/s)
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Copyright © 2005–2006, Texas Instruments Incorporated
www.ti.com
RXA
MFA
D5
D6
RIB
DSRB
CDB
TXRDYB
V
CC
INTA
RTSA
DTRA
TXA
39
35
31
29
30
32
33
34
36
37
38
246 1 42 4041434435
7
8
9
10
11
12
13
14
15
16
17
1918 26 2820 21 22 23 24 25 27
A0
XTAL1
GND
XTAL2
A1
A2
CHSEL
INTB
D7
IOW
CS
MFB
RESET
GND
RTSB
IOR
RXB
TXB
DTRB
CTSB
D4
D0
CDA
CTSA
DSRA
RIA
V
CC
TXRDYA
D1
D2
D3
TL16C2552FN
FN PACKAGE
(TOP VIEW)
INTB
CS
IOW
RESET
RTSB
IOR
RXB
TXB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
24
23
22
21
20
19
18
17
D6
D7
A0
XTAL1
XTAL2
A1
A2
CHSEL
RXA
TXA
RTSA
INTA
GND
NC
NC
CTSB
32
31
30
29
28
27
26
25
D5D4D3D2D1D0V
CC
CTSA
RHB PACKAGE
(TOP VIEW)
NC − No internal connection
NOTE: The 32-pin RHB package does not provide access to DSRA
,
DSRB, RIA, RIB, CDA, CDB inputs and MFA, MFB, DTRA , DTRB,
TXRDYA
, TXRDYB outputs.
TL16C2552RHB
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Each ACE is a speed and voltage range upgrade of
the TL16C550C, which in turn is a functional
upgrade of the TL16C450. Functionally equivalent to
the TL16C450 on power up or reset (single character
or TL16C450 mode), each ACE can be placed in an
alternate FIFO mode. This relieves the CPU of
excessive software overhead by buffering received
and to be transmitted characters. Each receiver and
transmitter store up to 16 bytes in their respective
FIFOs, with the receive FIFO including three
additional bits per byte for error status. In the FIFO
mode, a selectable autoflow control feature can
significantly reduce software overload and increase
system efficiency by automatically controlling serial
data flow using handshakes between the RTS output
and CTS input, thus eliminating overruns in the
receive FIFO.
Each ACE performs serial-to-parallel conversions on
data received from a peripheral device or modem
and stores the parallel data in its receive buffer or
FIFO, and each ACE performs parallel-to-serial
conversions on data sent from its CPU after storing
the parallel data in its transmit buffer or FIFO. The
CPU can read the status of either ACE at any time.
Each ACE includes complete modem control
capability and a processor interrupt system that can
be tailored to the application.
Each ACE includes a programmable baud rate
generator capable of dividing a reference clock with
divisors of from 1 to 65535, thus producing a 16×
internal reference clock for the transmitter and
receiver logic. Each ACE accommodates up to a
1.5-Mbaud serial data rate (24-MHz input clock). As
a reference point, that speed would generate a
667-ns bit time and a 6.7-µs character time (for 8,N,1
serial data), with the internal clock running at 24
MHz.
Each ACE has a TXRDY and RXRDY output that
can be used to interface to a DMA controller.
2
Submit Documentation Feedback
www.ti.com
TL16C2552 Block Diagram
Crystal
OSC
Buffer
Data Bus
Interface
A2 − A0
D7 − D0
CS
CHSEL
IOR
IOW
INTA
INTB
TXRDYA
TXRDYB
MFA
MFB
RESET
XTAL1
XTAL2
BAUD
Rate
Gen
16 Byte Tx FIFO
16 Byte Rx FIFO
Tx
Rx
UART Channel A
BAUD
Rate
Gen
16 Byte Tx FIFO
16 Byte Rx FIFO
Tx
Rx
UART Channel B
CTSA
DTRA
DSRA, RIA, CDA
RTSA
CTSB
DTRB
DSRB, RIB, CDB
RTSB
V
CC
GND
TXA
RXA
TXB
RXB
UART Regs
UART Regs
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
A. MF output allows selection of OP, BAUDOUT, or RXRDY per channel.
DEVICE INFORMATION
TERMINAL FUNCTIONS
TERMINAL
NAME FN NO. RHB NO.
A0 10 3 I Address 0 select bit. Internal registers address selection
A1 14 6 I Address 1 select bit. Internal registers address selection
A2 15 7 I Address 2 select bit. Internal registers address selection
CDA, CDB 42, 30 – I B. A low on these pins indicates that a carrier has been detected by the modem for that
CHSEL 16 8 I
CS 18 10 I
CTSA,
CTSB
40, 28 25, 17 I data from the 2552. Status can be tested by reading MSR bit 4. These pins only affect the
I/O DESCRIPTION
Carrier detect (active low). These inputs are associated with individual UART channels A and
channel. The state of these inputs is reflected in the modem status register (MSR).
Channel select. UART channel A or B is selected by the state of this pin when CS is a logic 0.
A logic 0 on the CHSEL selects the UART channel B while a logic 1 selects UART channel A.
CHSEL could just be an address line from the user CPU such as A3. Bit 0 of the alternate
function register (AFR) can temporarily override CHSEL function, allowing the user to write to
both channel register simultaneously with one write cycle when CS is low. It is especially
useful during the initialization routine.
UART chip select (active low). This pin selects channel A or B in accordance with the state of
the CHSEL pin. This allows data to be transferred between the user CPU and the 2552.
Clear to send (active low). These inputs are associated with individual UART channels A and
B. A logic low on the CTS pins indicates the modem or data set is ready to accept transmit
transmit and receive operations when auto CTS function is enabled through the enhanced
feature register (EFR) bit 7, for hardware flow control operation.
Submit Documentation Feedback
3
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
DEVICE INFORMATION (continued)
TERMINAL FUNCTIONS (continued)
TERMINAL
NAME FN NO. RHB NO.
D0-D4 2 - 6 27 - 31 Data bus (bidirectional). These pins are the eight bit, 3-state data bus for transferring
D5-D7 7 - 9 32, 1, 2
DSRA, and B. A logic low on these pins indicates the modem or data set is powered on and is ready
DSRB for data exchange with the UART. The state of these inputs is reflected in the modem status
DTRA,
DTRB
GND 12, 22 20 Signal and power ground.
INTA, INTB 34, 17 21, 9 O the interrupt enable register (IER). Interrupt conditions include: receiver errors, available
IOR 24 14 I internal register defined by address bits A0-A2 onto the TL16C2552 data bus (D0-D7) for
IOW 20 11 I data bus (D0-D7) from the external CPU to an internal register that is defined by address bits
NC – 18, 19 No internal connection
MFA, MFB 35, 19 – O
RESET 21 12 I output and the receiver input will be disabled during reset time. See TL16C2552 external
RIA, RIB 43, 31 – I
RTSA, Writing a 1 in the modem control register (MCR bit 1) sets these pins to low, indicating data is
RTSB available. After a reset, these pins are set to high. These pins only affects the transmit and
RXA, RXB 39, 25 24, 15 I 2552. During the local loopback mode, these RX input pins are disabled and TX data is
TXA, TXB 38, 26 23, 16 O the 2552. During the local loopback mode, the TX input pin is disabled and TX data is
TXRDYA, Transmit ready (active low). TXRDY A and B go low when there are at least a trigger level
TXRDYB numbers of spaces available. They go high when the TX buffer is full.
V
CC
41, 29 – I
37, 27 – O These pins can be controlled through the modem control register. Writing a 1 to MCR bit 0
36, 23 22, 13 O
1, 32 – O
33, 44 26 I Power supply inputs.
I/O DESCRIPTION
I/O information to or from the controlling CPU. D0 is the least significant bit and the first data bit in
a transmit or receive serial data stream.
Data set ready (active low). These inputs are associated with individual UART channels A
register (MSR).
Data terminal ready (active low). These outputs are associated with individual UART channels
A and B. A logic low on these pins indicates that theTLl16C2552 is powered on and ready.
sets the DTR output to low, enabling the modem. The output of these pins is high after writing
a 0 to MCR bit 0, or after a reset.
Interrupt A and B (active high). These pins provide individual channel interrupts, INT A and B.
INT A and B are enabled when MCR bit 3 is set to a logic 1, interrupt sources are enabled in
receiver buffer data, available transmit buffer space or when a modem status flag is detected.
INTA-B are in the high-impedance state after reset.
Read input (active low strobe). A high to low transition on IOR will load the contents of an
access by an external CPU.
Write input (active low strobe). A low to high transition on IOW will transfer the contents of the
A0-A2 and CSA and CSB
Multi-function output. This output pin can function as the OP, BAUDOUT, or RXRDY pin. One
of these output signal functions can be selected by the user programmable bits 1-2 of the
alternate function register (AFR). These signal functions are described as follows:
1. OP - When OP (active low) is selected, the MF pin is a logic 0 when MCR bit 3 is set to
a logic 1 (see MCR bit 3). MCR bit 3 defaults to a logic 1 condition after a reset or
power-up.
2. BAUDOUT - When BAUDOUT function is selected, the 16× baud rate clock output is
available at this pin.
3. RXRDY - RXRDY (active low) is intended for monitoring DMA data transfers.
If it is not used, leave it unconnected.
Reset. RESET will reset the internal registers and all the outputs. The UART transmitter
reset conditions for initialization details. RESET is an active-high input.
Ring indicator (active low). These inputs are associated with individual UART channels A and
B. A logic low on these pins indicates the modem has received a ringing signal from the
telephone line. A low to high transition on these input pins generates a modem status
interrupt, if enabled. The state of these inputs is reflected in the modem status register (MSR)
Request to send (active low). These outputs are associated with individual UART channels A
and B. A low on the RTS pin indicates the transmitter has data ready and waiting to send.
receive operation when auto RTS function is enabled through the enhanced feature register
(EFR) bit 6, for hardware flow control operation.
Receive data input. These inputs are associated with individual serial channel data to the
internally connected to the UART RX input internally.
Transmit data. These outputs are associated with individual serial transmit channel data from
internally connected to the UART RX input.
4
Submit Documentation Feedback
www.ti.com
RCV
FIFO
Serial to
Parallel
Flow
Control
XMT
FIFO
Parallel
to Serial
Flow
Control
Parallel
to Serial
Flow
Control
Serial to
Parallel
Flow
Control
XMT
FIFO
RCV
FIFO
ACE1 ACE2
D7−D0
RX TX
RTS CTS
TX RX
CTS RTS
D7−D0
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
DEVICE INFORMATION (continued)
TERMINAL FUNCTIONS (continued)
TERMINAL
NAME FN NO. RHB NO.
XTAL1 11 4 I
XTAL2 13 5 O
Detailed Description
Autoflow Control (see Figure 1 )
Autoflow control is comprised of auto- CTS and auto- RTS. With auto- CTS, the CTS input must be active before
the transmitter FIFO can emit data. With auto- RTS, RTS becomes active when the receiver needs more data
and notifies the sending serial device. When RTS is connected to CTS, data transmission does not occur unless
the receiver FIFO has space for the data; thus, overrun errors are eliminated using ACE1 and ACE2 from a
TLC16C2552 with the autoflow control enabled. If not, overrun errors occur when the transmit data rate exceeds
the receiver FIFO read latency.
I/O DESCRIPTION
Crystal or external clock input. XTAL1 functions as a crystal input or as an external clock
input. A crystal can be connected between XTAL1 and XTAL2 to form an internal oscillator
circuit (see Figure 5 ). Alternatively, an external clock can be connected to XTAL1 to provide
custom data rates.
Output of the crystal oscillator or buffered clock. See also XTAL1. XTAL2 is used as a crystal
oscillator output or buffered a clock output.
Figure 1. Autoflow Control (Auto- RTS and Auto- CTS) Example
Auto- RTS (See Figure 2 and Figure 3 )
Auto- RTS data flow control originates in the receiver timing and control block (see functional block diagram) and
is linked to the programmed receiver FIFO trigger level. When the receiver FIFO level reaches a trigger level of
1, 4, or 8 (see Figure 3 ), RTS is deasserted. With trigger levels of 1, 4, and 8, the sending ACE may send an
additional byte after the trigger level is reached (assuming the sending ACE has another byte to send) because
it may not recognize the deassertion of RTS until after it has begun sending the additional byte. RTS is
automatically reasserted once the RCV FIFO is emptied by reading the receiver buffer register.
When the trigger level is 14 (see Figure 5 ), RTS is deasserted after the first data bit of the 16th character is
present on the RX line. RTS is reasserted when the RCV FIFO has at least one available byte space.
Submit Documentation Feedback
5
www.ti.com
Start Bits 0−7 Start Bits 0−7 Start Bits 0−7
Stop Stop Stop
SOUT
CTS
Start Byte N Start Byte N+1 Start Byte
Stop Stop Stop
SIN
RTS
RD
(RD RBR)
1 2
N N+1
Byte 14 Byte 15
SIN
RTS
RD
(RD RBR)
Start Byte 18 StopStart Byte 16 Stop
RTS Released After the
First Data Bit of Byte 16
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Auto- CTS (See Figure 2 )
The transmitter circuitry checks CTS before sending the next data byte. When CTS is active, it sends the next
byte. To stop the transmitter from sending the following byte, CTS must be released before the middle of the last
stop bit that is currently being sent (see Figure 2 ). The auto- CTS function reduces interrupts to the host system.
When flow control is enabled, CTS level changes do not trigger host interrupts because the device automatically
controls its own transmitter. Without auto- CTS, the transmitter sends any data present in the transmit FIFO and
a receiver overrun error may result.
Enabling Autoflow Control and Auto- CTS
Autoflow control is enabled by setting modem control register bits 5 (autoflow enable or AFE) and 1 ( RTS) to a
1. Autoflow incorporates both auto- RTS and auto- CTS. When only auto- CTS is desired, bit 1 in the modem
control register should be cleared (this assumes that a control signal is driving CTS).
Auto- CTS and Auto- RTS Functional Timing
Figure 2. CTS Functional Timing Waveforms
Figure 3. RTS Functional Timing Waveforms, RCV FIFO Trigger Level = 1, 4, or 8 Bytes
Figure 4. RTS Functional Timing Waveforms, RCV FIFO Trigger Level = 14 Bytes
6
Submit Documentation Feedback
www.ti.com
Receiver
Buffer
Register
Divisor
Latch (LS)
Divisor
Latch (MS)
Baud
Generator
Receiver
FIFO
Line
Status
Register
Transmitter
Holding
Register
Modem
Control
Register
Modem
Status
Register
Line
Control
Register
Transmitter
FIFO
Interrupt
Enable
Register
Interrupt
Identification
Register
FIFO
Control
Register
Select
and
Control
Logic
Interrupt
Control
Logic
S
e
l
e
c
t
Data
Bus
Buffer
RXA, B
TXA, B
CTSA, B
DTRA, B
DSRA, b
CDA,B
RIA, B
INTA, B
40, 28
37, 27
41, 29
42, 30
43, 31
34, 17
38, 26
39, 25
A0
10
D(7−0)
9−2
Internal
Data Bus
14
15
18
16
13
21
24
20
11
1
35
A1
A2
CS
CHSEL
XTAL2
RESET
IOR
IOW
XTAL1
TXRDYA
MFA
S
e
l
e
c
t
Receiver
Shift
Register
Receiver
Timing and
Control
Transmitter
Timing and
Control
Transmitter
Shift
Register
Modem
Control
Logic
8
33, 44
12, 22
V
CC
GND
Power
Supply
RTSA, B
36, 23
Autoflow
Control
(AFE)
8
8
8
8
8
8
8
32
19
TXRDYB
MFB
Crystal
OSC
Buffer
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
A. Pin numbers shown are for 44-pin PLCC FN package.
Figure 5. Functional Block Diagram
Submit Documentation Feedback
7
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
ABSOLUTE MAXIMUM RATINGS
over operating free-air temperature range (unless otherwise noted)
Supply voltage range, V
Input voltage range at any input, V
Output voltage range, V
Operating free-air temperature, TA, TL16C2552 0°C to 70°C
Operating free-air temperature, TA, TL16C2552I -40°C to 85°C
Storage temperature range, T
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds 260°C
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to VSS.
(2)
CC
I
O
stg
RECOMMENDED OPERATING CONDITIONS
over operating free-air temperature range (unless otherwise noted)
1.8 V ±10% MIN NOM MAX UNIT
V
CC
V
I
V
IH
V
IL
V
O
I
OH
I
OL
Supply voltage 1.62 1.8 1.98 V
Input voltage 0 V
High-level input voltage 1.4 1.98 V
Low-level input voltage -0.3 0.4 V
Output voltage 0 V
High-level output current (all outputs) 0.5 mA
Low-level output current (all outputs) 1 mA
Oscillator/clock speed 10 MHz
(1)
UNIT
-0.5 V to 7 V
-0.5 V to 7 V
-0.5 V to 7 V
-65°C to 150°C
CC
CC
V
V
2.5 V ±10% MIN NOM MAX UNIT
V
CC
V
I
V
IH
V
IL
V
O
I
OH
I
OL
Supply voltage 2.25 2.5 2.75 V
Input voltage 0 V
CC
High-level input voltage 1.8 2.75 V
Low-level input voltage -0.3 0.6 V
Output voltage 0 V
CC
High-level output current (all outputs) 1 mA
Low-level output current (all outputs) 2 mA
Oscillator/clock speed 16 MHz
3.3 V ±10% MIN NOM MAX UNIT
V
CC
V
I
V
IH
V
IL
V
O
I
OH
I
OL
Supply voltage 3 3.3 3.6 V
Input voltage 0 V
High-level input voltage 0.7V
CC
Low-level input voltage 0.3V
Output voltage 0 V
CC
CC
CC
High-level output current (all outputs) 1.8 mA
Low-level output current (all outputs) 3.2 mA
Oscillator/clock speed 20 MHz
5 V ±10% MIN NOM MAX UNIT
V
CC
V
I
Supply voltage 4.5 5 5.5 V
Input voltage 0 V
CC
V
V
V
V
V
V
V
8
Submit Documentation Feedback
www.ti.com
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
RECOMMENDED OPERATING CONDITIONS (continued)
over operating free-air temperature range (unless otherwise noted)
5 V ±10% MIN NOM MAX UNIT
V
IH
V
IL
V
O
I
OH
I
OL
High-level input voltage All except XTAL1, XTAL2 2 V
XTAL1, XTAL2 0.7V
CC
Low-level input voltage All except XTAL1, XTAL2 0.8 V
XTAL1, XTAL2 0.3V
Output voltage 0 V
High-level output current (all outputs) 4 mA
Low-level output current (all outputs) 4 mA
Oscillator/clock speed 24 MHz
ELECTRICAL CHARACTERISTICS
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
1.8 V Nominal
PARAMETER TEST CONDITIONS MIN TYP
V
High-level output voltage
OH
V
Low-level output voltage
OL
I
Input current V
I
I
High-impedance-state output V
OZ
current mode or chip deselected
I
Supply current V
CC
C
Clock input impedance 15 20 pF
i(CL
K)
C
Clock output impedance 20 30 pF
O(C
LK)
C
Input impedance 6 10 pF
I
C
Output impedance 10 20 pF
O
(1) All typical values are at V
(2) These parameters apply for all outputs except XTAL2.
(2)
(2)
IOH= -0.5 mA 1.3 V
IOL= 1 mA 0.5 V
CC
floating
CC
CC
CTSA, CTSB, RIA, and RIB at 1.4 V, All other inputs at 0.4 V,
XTAL1 at 10 MHz, No load on outputs
V
CC
TA= 25°C, All other terminals grounded
= 1.8 V and TA= 25°C.
CC
= 1.98 V, V
= 1.98 V, V
= 0, VI= 0 to 1.98 V, All other terminals 10 µA
SS
= 0, VI= 0 to 1.98 V, Chip selected in write ±20 µA
SS
= 1.98 V, TA= 0°C, RXA, RXB, DSRA, DSRB, CDA, CDB, 1.5 mA
= 0, V
= 0, f = 1 MHz,
SS
TL16C2552
CC
CC
(1)
V
MAX UNIT
ELECTRICAL CHARACTERISTICS
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
2.5 V Nominal
PARAMETER TEST CONDITIONS MIN TYP
V
V
I
I
I
OZ
I
CC
High-level output voltage
OH
Low-level output voltage
OL
Input current V
High-impedance-state output V
current write mode or chip deselected
Supply current V
(1) All typical values are at V
(2) These parameters apply for all outputs except XTAL2.
ADDED SPACE
(2)
IOH= -1 mA 1.8 V
(2)
IOL= 2 mA 0.5 V
floating
CDB, CTSA, CTSB, RIA, and RIB at 1.8 V, All other inputs at
0.6 V, XTAL1 at 16 MHz, No load on outputs
= 2.5 V and TA= 25°C.
CC
= 2.75 V, V
CC
= 2.75 V, V
CC
= 2.75 V, TA= 0°C, RXA, RXB, DSRA, DSRB, CDA, 2.5 mA
CC
= 0, VI= 0 to 2.75 V, All other terminals 10 µA
SS
= 0, VI= 0 to 2.75 V, Chip selected in ±20 µA
SS
Submit Documentation Feedback
(1)
MAX UNIT
9
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
ELECTRICAL CHARACTERISTICS (continued)
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
2.5 V Nominal
PARAMETER TEST CONDITIONS MIN TYP
C
C
C
C
ELECTRICAL CHARACTERISTICS
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
V
V
I
I
I
OZ
I
CC
C
C
C
C
(1) All typical values are at V
(2) These parameters apply for all outputs except XTAL2.
Clock input impedance 15 20 pF
i(CLK)
Clock output impedance 20 30 pF
O(CLK)
Input impedance 6 10 pF
I
Output impedance 10 20 pF
O
V
= 0, V
CC
TA= 25°C, All other terminals grounded
= 0, f = 1 MHz,
SS
3.3 V Nominal
PARAMETER TEST CONDITIONS MIN TYP
OH
OL
High-level output voltage
Low-level output voltage
Input current V
High-impedance-state output V
current write mode or chip deselected
Supply current V
(2)
IOH= -1.8 mA 2.4 V
(2)
IOL= 3.2 mA 0.5 V
= 3.6 V, V
CC
floating
= 3.6 V, V
CC
= 3.6 V, TA= 0°C, RXA, RXB, DSRA, DSRB, CDA, 4 mA
CC
CDB, CTSA, CTSB, RIA, and RIB at 2 V, All other inputs
= 0, VI= 0 to 3.6 V, All other terminals 10 µA
SS
= 0, VI= 0 to 3.6 V, Chip selected in ±20 µA
SS
at 0.8 V, XTAL1 at 20 MHz, No load on outputs
i(CLK)
O(CLK)
I
O
Clock input impedance 15 20 pF
Clock output impedance 20 30 pF
Input impedance 6 10 pF
V
= 0, V
CC
TA= 25°C, All other terminals grounded
= 0, f = 1 MHz,
SS
Output impedance 10 20 pF
= 3.3 V and TA= 25°C.
CC
(1)
MAX UNIT
(1)
MAX UNIT
10
Submit Documentation Feedback
www.ti.com
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
ELECTRICAL CHARACTERISTICS
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
5 V Nominal
PARAMETER TEST CONDITIONS MIN TYP
V
V
I
I
I
OZ
I
CC
C
C
C
C
High-level output voltage
OH
Low-level output voltage
OL
Input current V
High-impedance-state output V
current write mode or chip deselected
Supply current V
Clock input impedance 15 20 pF
i(CLK)
Clock output impedance 20 30 pF
O(CLK)
Input impedance 6 10 pF
I
Output impedance 10 20 pF
O
(1) All typical values are at V
(2) These parameters apply for all outputs except XTAL2.
(2)
(2)
= 5 V and TA= 25°C.
CC
IOH= -4 mA 4 V
IOL= 4 mA 0.4 V
= 5.5 V, V
CC
terminals floating
= 5.5 V, V
CC
= 5.5 V, TA= 0°C, RXA, RXB, DSRA, DSRB, 7.5 mA
CC
CDA, CDB, CTSA, CTSB, RIA, and RIB at 2 V, All
= 0, VI= 0 to 5.5 V, All other 10 µA
SS
= 0, VI= 0 to 5.5 V, Chip selected in ±20 µA
SS
other inputs at 0.8 V, XTAL1 at 24 MHz, No load on
outputs
V
= 0, V
CC
TA= 25°C, All other terminals grounded
= 0, f = 1 MHz,
SS
TL16C2552
(1)
MAX UNIT
TIMING REQUIREMENTS
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER FIGURE 1.8 V 2.5 V 3.3 V 5 V UNIT
t
Pulse duration, RESET t
w8
t
Pulse duration, clock high t
w1
t
Pulse duration, clock low t
w2
t
Cycle time, read (tw7+ td8+ th7) RC 8 115 80 62 57 ns
cR
t
Cycle time, write (tw6+ td5+ th4) WC 7 115 80 62 57 ns
cW
t
Pulse duration, IOW or CS t
w6
t
Pulse duration, IOR or CS t
w7
t
Setup time, data valid before IOW↑ or CS↑ t
SU3
t
Hold time, address valid after IOW↑ or CS↑ t
h4
t
Hold time, data valid after IOW↑ or CS↑ t
h5
t
Hold time, data valid after IOR↑ or CS↑ t
h7
t
Delay time, address valid before IOW↓ or CS↓ t
d5
t
Delay time, address valid to IOR↓ or CS↓ t
d8
t
Delay time, IOR↓ or CS↓ to data valid t
d10
t
Delay time, IOR↑ or CS↑ to floating data t
d11
t
Write cycle to write cycle delay 7 100 75 60 50 ns
d12
t
Read cycle to read cycle delay 8 100 75 60 50 ns
d13
ALT. TEST
SYMBOL CONDITIONS
RESET
XH
XL
IOW
IOR
DS
WA
DH
RA
AW
AR
RVD
HZ
6 40 25 20 18 ns
7 80 55 45 40 ns
8 80 55 45 40 ns
7 25 20 15 15 ns
7 20 15 10 10 ns
7 15 10 5 5 ns
8 20 15 10 10 ns
7 15 10 7 7 ns
8 15 10 7 7 ns
8 CL= 30 pF 55 35 25 20 ns
8 CL= 30 pF 40 30 20 20 ns
MIN MAX MIN MAX MIN MAX MIN MAX
1 1 1 1 µs
LIMITS
BAUD GENERATOR SWITCHING CHARACTERISTICS
over recommended ranges of supply voltage and operating free-air temperature, CL= 30 pF (for FN package only)
LIMITS
PARAMETER FIGURE 1.8 V 2.5 V 3.3 V 5 V UNIT
t
Pulse duration, BAUDOUT low t
w3
t
Pulse duration, BAUDOUT high t
w4
t
Delay time, XIN ↑ to BAUDOUT↑ t
d1
t
Delay time, XIN ↑ ↓ to BAUDOUT↓ t
d2
ALT. TEST
SYMBOL CONDITIONS
LW
HW
BLD
BHD
6 CLK ÷ 2 80 50 42 35 ns
6 CLK ÷ 2 80 50 42 35 ns
6 55 40 30 25 ns
6 55 40 30 25 ns
MIN MAX MIN MAX MIN MAX MIN MAX
Submit Documentation Feedback
11
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
RECEIVER SWITCHING CHARACTERISTICS
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER FIGURE 1.8 V 2.5 V 3.3 V 5 V UNIT
t
Delay time, RCLK to sample t
d12
t
Delay time, stop to set INT or read RBR to LSI t
d13
interrupt or stop to RXRDY↓ 11, 12 cycle
t
Delay time, read RBR/LSR to reset INT t
d14
t
Delay time, RCV threshold byte to RTS↑ 19 CL= 30 pF 2 baudout
d26
t
Delay time, read of last byte in receive FIFO to 19 CL= 30 pF 2 baudout
d27
RTS↓ cycles
t
Delay time, first data bit of 16th character to RTS↑ 20 CL= 30 pF 2 baudout
d28
t
Delay time, RBRRD low to RTS↓ 20 CL= 30 pF 2 baudout
d29
ALT. TEST
SYMBOL CONDITIONS
SCD
SINT
RINT
9 20 15 10 10 ns
8, 9, 10, 1 1 1 1 RCLK
8, 9, 10, CL= 30 pF 100 90 80 70 ns
11, 12
MIN MAX MIN MAX MIN MAX MIN MAX
(1) In the FIFO mode, the read cycle (RC) = 1 baudclock (min) between reads of the receive FIFO and the status registers (interrupt
identification register or line status register).
(2) A baudout cycle is equal to the period of the input clock divided by the programmed divider in DLL, DLM.
TRANSMITTER SWITCHING CHARACTERISTICS
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER ALT. SYMBOL FIGURE 1.8 V 2.5 V 3.3 V 5 V UNIT
t
Delay time, initial write to transmit start t
d15
t
Delay time, start to INT t
d16
t
Delay time, IOW (WR THR) to reset INT t
d17
t
Delay time, initial write to INT (THRE
d18
t
Delay time, read IOR↑ to reset INT (THRE
d19
t
Delay time, write to TXRDY inactive t
d20
t
Delay time, start to TXRDY active t
d21
t
Setup time, CTS↑ before midpoint of stop bit 18 30 20 10 10 ns
SU4
t
Delay time, CTS low to TX ↓ 18 CL= 30 pF 24 24 24 24 baudout
d25
(1)
) t
(1)
) t
IRS
STI
HR
SI
IR
WXI
SXA
14 8 24 8 24 8 24 8 24 baudout
14 8 10 8 10 8 10 8 10 baudout
14 CL= 30 pF 70 60 50 50 ns
14 16 34 16 34 16 34 16 34 baudout
14 CL= 30 pF 70 50 35 35 ns
15, 16 CL= 30 pF 60 45 35 35 ns
15, 16 CL= 30 pF 9 9 9 9 baudout
(1) THRE = Transmitter Holding Register Empty; IIR = Interrupt Identification Register.
TEST
CONDITIONS
MIN MAX MIN MAX MIN MAX MIN MAX
LIMITS
LIMITS
(1)
(2)
cycles
cycles
cycles
cycles
cycles
cycles
cycles
cycles
MODEM CONTROL SWITCHING CHARACTERISTICS
over operating free-air temperature range (unless otherwise noted)
PARAMETER FIGURE 1.8 V 2.5 V 3.3 V 5 V UNIT
t
Delay time, WR MCR to output t
d22
t
Delay time, modem interrupt to set INT t
d23
t
Delay time, RD MSR to reset INT t
d24
12
ALT. TEST
SYMBOL CONDITIONS
MDO
SIM
RIM
Submit Documentation Feedback
LIMITS
MIN MAX MIN MAX MIN MAX MIN MAX
17 CL= 30 pF 90 70 60 50 ns
17 CL= 30 pF 60 50 40 35 ns
17 CL= 30 pF 80 60 50 40 ns
www.ti.com
f − Frequency − MHz
0.0
0.1
0.2
0.3
0.4
0.5
0 1 2 3 4 5 6 7 8 9 10
VCC = 1.8 V
TA = 22°C
I
CC
− Supply Current − mA
G001
Divisor = 1
Divisor = 2
Divisor = 3
Divisor = 10
Divisor = 255
f − Frequency − MHz
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
0 2 4 6 8 10 12 14 16
VCC = 2.5 V
TA = 22°C
I
CC
− Supply Current − mA
G002
Divisor = 1
Divisor = 2
Divisor = 3
Divisor = 10
Divisor = 255
f − Frequency − MHz
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
0 2 4 6 8 10 12 14 16 18 20
VCC = 3.3 V
TA = 22°C
I
CC
− Supply Current − mA
G003
Divisor = 1
Divisor = 2
Divisor = 3
Divisor = 10
Divisor = 255
f − Frequency − MHz
0.0
0.4
0.8
1.2
1.6
2.0
2.4
2.8
3.2
3.6
4.0
0 4 8 12 16 20 24
VCC = 5 V
TA = 22°C
I
CC
− Supply Current − mA
G004
Divisor = 1
Divisor = 2
Divisor = 3
Divisor = 10
Divisor = 255
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Typical Characteristics
Supply Current Supply Current
vs vs
Frequency Frequency
TL16C2552
Figure 6. Figure 7.
Supply Current Supply Current
vs vs
Frequency Frequency
Figure 8. Figure 9.
Submit Documentation Feedback
13
www.ti.com
MFA,B
(1/1)
XTAL
MFA,B
(1/2)
MFA,B
(1/3)
MFA,B
(1/N)
(N > 3)
t
d2
t
d1
t
d2
t
w1
t
w2
t
d1
2 XIN Cycles
t
w3
t
w4
N
(N−2) XIN Cycles
t
su3
t
h5
Valid Data
Valid Address
CHSEL,
A2−A0
D7−D0
IOW
CS
t
d5
t
w6
t
d12
t
h4
t
su3
t
h5
Valid Data
t
d5
t
h4
t
w6
t
w6
Valid Address
t
w6
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006

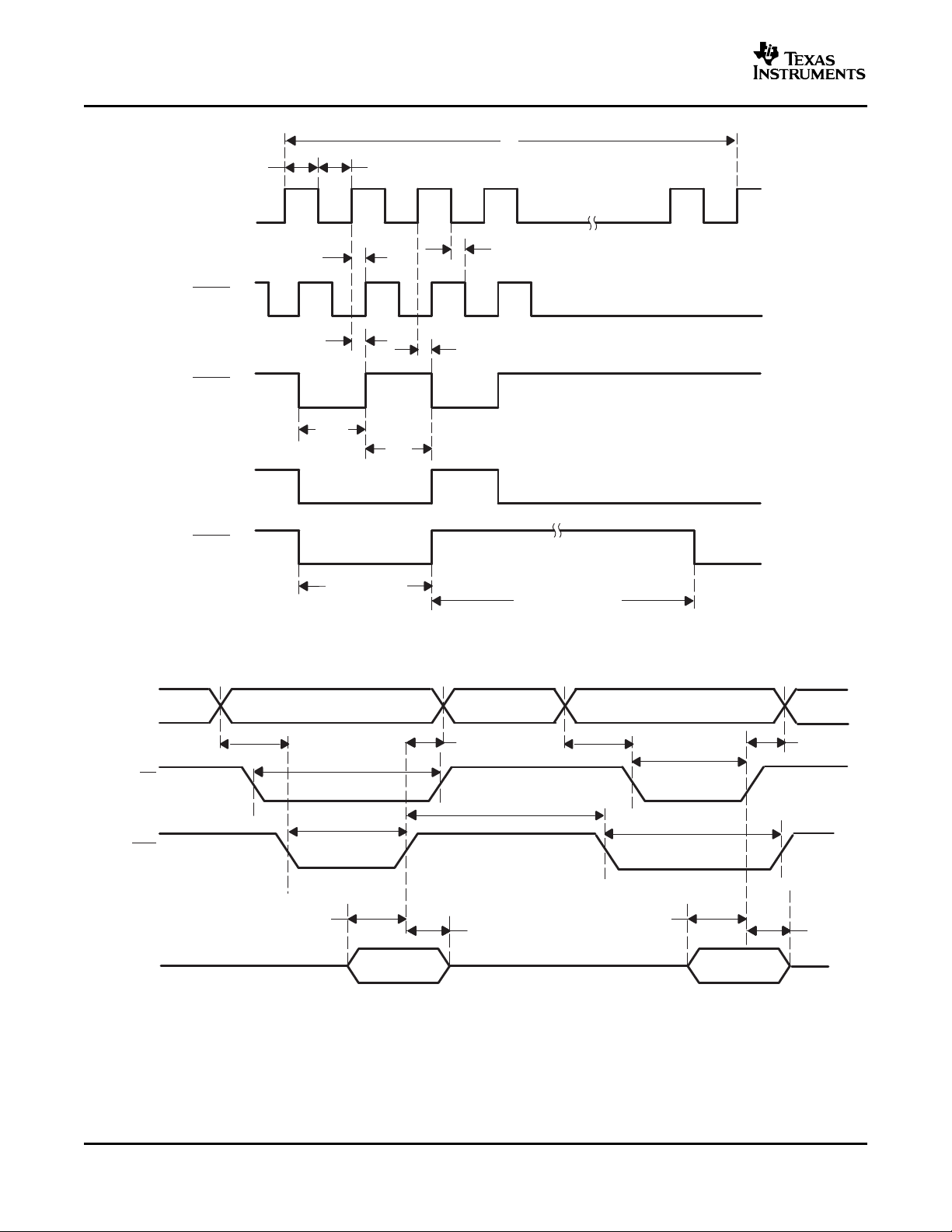

Figure 10. Input Clock and Baud Generator Timing Waveforms
(For FN Package Only) (When AFR2:1 = 01)
Figure 11. Write Cycle Timing Waveforms
14
Submit Documentation Feedback
www.ti.com
t
d10
t
d11
Valid Data
Valid Address
CHSEL,
A2−A0
D7−D0
IOR
CS
t
d8
t
w7
t
d13
t
h7
t
h11
Valid Data
t
d8
t
h7
t
w7
t
w7
Valid Address
t
w7
t
d10
t
d13
Active
Active
IOR
(read RBR)
RCLK
(Internal)
t
d14
t
d14
t
d12
Parity StopStart Data Bits 5−8
Sample Clock
(Internal)
TL16C450 Mode:
Sample Clock
RXA, RXB
INT
(data ready)
INT
(RCV error)
IOR
(read LSR)
50%50%
50%
50%
50%
50%
8 CLKs
Figure 12. Read Cycle Timing Waveforms
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Figure 13. Receiver Timing Waveforms
Submit Documentation Feedback
15
www.ti.com
t
d13
(see Note A)
t
d14
Stop
Data Bits 5−8
Sample Clock
(Internal)
RXA, RXB
Trigger Level
INT
(FCR6, 7 = 0, 0)
INT
Line Status
Interrupt (LSI)
t
d14
IOR
(RD LSR)
IOR
(RD RBR)
Active
Active
(FIFO at or above
trigger level)
(FIFO below
trigger level)
50%50%
50%
50%
50%
50%
t
d13
(see Note A)
t
d14
Stop
Top Byte of FIFO
Sample Clock
(Internal)
RXA, RXB
Time-Out or
Trigger Level
Interrupt
Line Status
Interrupt (LSI)
t
d13
(FIFO at or above
trigger level)
(FIFO below
trigger level)
IOP
(RD LSR)
IOR
(RD RBR)
Active Active
t
d14
Previous Byte
Read From FIFO
50%
50%
50%50%
50%
50% 50%
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Figure 14. Receive FIFO First Byte (Sets DR Bit) Waveforms
Figure 15. Receive FIFO Bytes Other Than the First Byte (DR Internal Bit Already Set) Waveforms
16
Submit Documentation Feedback
www.ti.com
t
d13
(see Note B)
t
d14
Stop
Sample Clock
(Internal)
RXA, RXB
(first byte)
Active
IOR
(RD RBR)
RXRDYA, RXRDYB
See Note A
50%
50%
50%
t
d13
(see Note B)
t
d14
Sample Clock
(Internal)
RXA, RXB
(first byte that reaches
the trigger level)
Active
IOR
(RD RBR)
RXRDYA, RXRDYB
See Note A
50%
50%50%
t
d16
Parity Stop
Start
Data Bits
TXA, TXB
Start
t
d15
t
d17
t
d17
t
d18
t
d19
INT
(THRE)
IOW
(WR THR)
IOR
50% 50% 50% 50% 50%
50%
50%
50%
50%
50%
50%
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Figure 16. Receiver Ready ( RXRDY) Waveforms, FCR0 = 0 or FCR0 = 1 and FCR3 = 0 (Mode 0)
Figure 17. Receiver Ready ( RXRDY) Waveforms, FCR0 = 1 and FCR3 = 1 (Mode 1)
Figure 18. Transmitter Timing Waveforms
Submit Documentation Feedback
17
www.ti.com
t
d20
IOW
(WR THR)
t
d21
Parity
Stop
Data
Start
Byte 1
TXA, TXB
TXRDYA, TXRDYB
50%
50%
50%
50%
IOW
(WR THR)
Parity
Stop
Data
Start
Byte 16
TXA, TXB
TXRDYA
, TXRDYB
FIFO Full
t
d20
t
d21
50%
50%
50%
50%
IOW
(WR MCR)
RTSA, RTSB, DTRA,
DTRB, OPA, OPB
CTSA, CTSB, DSRA,
DSRB, CDA, CDB
t
d23
t
d24
t
d23
INT
(modem)
IOR
(RD MSR)
RI
50% 50%
50% 50%
50%
50%
50%
50%
50%
50%
t
d22
t
d22
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Figure 19. Transmitter Ready ( TXRDY) Waveforms, FCR0 = 0 or FCR0 = 1 and FCR3 = 0 (Mode 0)
18
Figure 20. Transmitter Ready ( TXRDY) Waveforms, FCR0 = 1 and FCR3 = 1 (Mode 1)
Figure 21. Modem Control Timing Waveforms
Submit Documentation Feedback
www.ti.com
Midpoint of Stop Bit
t
d25
t
su4
CTSA, CTSB
TXA, TXB
50% 50%
50%
t
d27
RXA, RXB
50%
t
d26
50%
50%
Midpoint of Stop Bit
RTSA
,
RTSB
IOR
RXA,
RXB
50%
t
d28
50%
50%
Midpoint of Data Bit 0
RTSA,
RTSB
IOR
15th Character 16th Character
t
d29
Figure 22. CTS and TX Autoflow Control Timing (Start and Stop) Waveforms
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Figure 23. Auto- RTS Timing for RCV Threshold of 1, 4, or 8 Waveforms
Figure 24. Auto- RTS Timing for RCV Threshold of 14 Waveforms
Submit Documentation Feedback
19
www.ti.com
D7−D0
MEMR or I/OR
MEMW or I/OW
INTR
RESET
A0
A1
A2
CS
EIA-232-D
Drivers
and Receivers
XTAL2
XTAL1
RIA, B
CTSA, B
CDA, B
DSRA, B
DTRA, B
RTSA, B
TXA, B
RXA, B
INTA, B
D7−D0
IOR
IOW
RESET
A0
A1
A2
CS
TL16C2552
3.072 MHz
C
P
U
B
u
s
(Optional)
A3
CHSEL
33 pF
33 pF
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
APPLICATION INFORMATION
Figure 25. Basic TL16C2552 Configuration
20
Submit Documentation Feedback
www.ti.com
Buffer
(Optional)
Address
Decoder
A0−A23
AD0−AD15
RSI/ABT
PHI1 PHI2
PHI1 PHI2
CPU
RSTO
A0−A2
CHSEL
CS
RESET
D0−D7
D0−D7
IOR
IOW
XTAL1
XTAL2
DTRA, B
RTSA, B
RIA, B
CDA, B
DSRA, B
CTSA, B
RXA, B
TXA, B
INTA, B
GND
(VSS)
V
CC
12, 22
33, 44
Alternate
Crystal Control
TL16C2552
EIA-232-D
Connector
20
1
8
6
5
2
3
7
1
11
13
37, 27
36, 23
43, 31
42, 30
41, 29
40, 28
39, 25
34, 17
38, 26
20
24
21
16
18
TCU
WR
RD
(Optional)
10, 14, 15
2−9
33 pF
33 pF
APPLICATION INFORMATION (continued)
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
A. Pin numbers shown are for 44-pin PLCC FN package.
Figure 26. Typical TL16C2552 Connection
Submit Documentation Feedback
21
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
PRINCIPLES OF OPERATION
Register Selection
Table 1. Register Selection
(1)
DLAB
0 L L L Receiver buffer (read), transmitter holding register (write)
0 L L H Interrupt enable register
0 L H L Interrupt identification register (read only)
0 L H L FIFO control register (write)
X L H H Line control register
X H L L Modem control register
X H L H Line status register
X H H L Modem status register
X H H H Scratch register
1 L L L Divisor latch (LSB)
1 L L H Divisor latch (MSB)
1 L H L Alternate function register (AFR)
(1) The divisor latch access bit (DLAB) is the most significant bit of the line control register. The DLAB signal is controlled by writing to this
bit location (see Table 4 ).
A2 A1 A0 REGISTER
Table 2. ACE Reset Functions
REGISTER/SIGNAL RESET CONTROL RESET STATE
Interrupt enable register Master reset All bits cleared (0 - 3 forced and 4 - 7 permanent)
Interrupt identification register Master reset Bit 0 is set, bits 1, 2, 3, 6, and 7 are cleared, and bits
FIFO control register Master reset All bits cleared
Line control register Master reset All bits cleared
Modem control register Master reset All bits, except bit 3, cleared (6 - 7 permanent), MCR
Line status register Master reset Bits 5 and 6 are set; all other bits are cleared
Modem status register Master reset Bits 0 - 3 are cleared; bits 4 - 7 are input signals
TX Master reset High
INT Master reset MCR3 Output buffer enabled
Interrupt condition (receiver error flag) Read LSR/MR Low
Interrupt condition (received data available) Read RBR/MR Low
Interrupt condition (transmitter holding register Read IR/write THR/MR Low
empty)
Interrupt condition (modem status changes) Read MSR/MR Low
OP Master reset Low
RTS Master reset High
DTR Master reset High
Scratch register Master reset No effect
Divisor latch (LSB and MSB) registers Master reset No effect
Receiver buffer register Master reset No effect
Transmitter holding register Master reset No effect
RCVR FIFO MR/FCR1 - FCR0/DFCR0 All bits cleared
XMIT FIFO MR/FCR2 - FCR0/DFCR0 All bits cleared
Alternate function register (AFR) Master reset All bits cleared
4 - 5 are permanently cleared
3 set
22
Submit Documentation Feedback
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Accessible Registers
The system programmer, using the CPU, has access to and control over any of the ACE registers that are
summarized in Table 2 . These registers control ACE operations, receive data, and transmit data. Descriptions of
these registers follow Table 3 .
Table 3. Summary of Accessible Registers
BIT REGISTER ADDRESS
NO.
0 0 1 2 2 3 4 5 6 7 0 1 2
Receiver Transmitte Interrupt Interrupt FIFO Line Modem Line Modem Scratch Divisor Divisor Alternate
Buffer r Holding Enable Ident Control Control Control Status Status Register Latch Latch Function
Register Register Register .Register Register Register Register Register Register (LSB) (MSB) Register
(Read (Write (Read (Write
Only) Only) Only) Only)
RBR THR IER IIR FCR LCR MCR LSR MSR SCR DLL DLM AFR
0 Data Bit Data Bit 0 Enable 0 if FIFO Word Data Data Delta Clear Bit 0 Bit 0 Bit 8 Concurrent
(1)
0
1 Data Bit 1 Data Bit 1 Enable Interrupt ID Receiver Word Request to Overrun Delta Data Bit 1 Bit 1 Bit 9 BAUDOUT
2 Data Bit 2 Data Bit 2 Enable Interrupt ID Transmitter Number of OUT1 Parity Error Trailing Bit 2 Bit 2 Bit 10 RXRDY
3 Data Bit 3 Data Bit 3 Enable Interrupt ID DMA Mode Parity INT Framing Delta Data Bit 3 Bit 3 Bit 11 0
4 Data Bit 4 Data Bit 4 0 0 Reserved Even Parity Loop Break Clear to Bit 4 Bit 4 Bit 12 0
5 Data Bit 5 Data Bit 5 0 0 Reserved Stick Parity Autoflow Transmitter Data Set Bit 5 Bit 5 Bit 13 0
6 Data Bit 6 Data Bit 6 0 FIFOs Receiver Break 0 Transmitter Ring Bit 6 Bit 6 Bit 14 0
7 Data Bit 7 Data Bit 7 0 FIFOs Receiver Divisor 0 Error in Data Bit 7 Bit 7 Bit 15 0
Received Interrupt Enable Length Terminal Ready to Send Write
Data Pending Select Bit 0 Ready (DR) ( ∆ CTS)
Available (WLS0) (DTR)
Interrupt
(ERBI)
Transmitter Bit 1 FIFO Length Send Error (OE) Set Ready Select
Holding Reset Select Bit 1 (RTS) ( ∆ DSR)
Register (WLS1)
Empty
Interrupt
(ETBEI)
Receiver Bit 2 FIFO Stop Bits (PE) Edge Ring Select
Line Status Reset (STB) Indicator
Interrupt (TERI)
(ELSI)
Modem Bit 3
Status (PEN) Control Detect
Interrupt ( ∆ DCD)
(EDSSI)
(2)
(2)
Enabled
(2)
Enabled
(1) Bit 0 is the least significant bit. It is the first bit serially transmitted or received.
(2) These bits are always 0 in the TL16C450 mode.
DLAB = 0 DLAB = 1
Select Enable Enable, OP Error (FE) Carrier
Select Interrupt Send
(EPS) (BI) (CTS)
Control Holding Ready
Enable Register (DSR)
(AFE) (THRE)
Trigger Control Empty Indicator
(LSB) (TEMT) (RI)
Trigger Latch RCVR Carrier
(MSB) Access Bit FIFO
(DLAB) (DCD)
(2)
Detect
FIFO Control Register (FCR)
The FCR is a write-only register at the same location as the IIR, which is a read-only register. The FCR enables
and clears the FIFOs, sets the receiver FIFO trigger level, and selects the type of DMA signaling.
• Bit 0: This bit, when set, enables the transmitter and receiver FIFOs. Bit 0 must be set when other FCR bits
are written to or they are not programmed. Changing this bit clears the FIFOs.
• Bit 1: This bit, when set, clears all bytes in the receiver FIFO and clears its counter. The shift register is not
cleared. The 1 that is written to this bit position is self-clearing.
• Bit 2: This bit, when set, clears all bytes in the transmit FIFO and clears its counter. The shift register is not
cleared. The 1 that is written to this bit position is self-clearing.
• Bit 3: When FCR0 is set, setting FCR3 causes RXRDY and TXRDY to change from level 0 to level 1.
• Bits 4 and 5: These two bits are reserved for future use.
• Bits 6 and 7: These two bits set the trigger level for the receiver FIFO interrupt (see Table 4 ).
Submit Documentation Feedback
23
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Table 4. Receiver FIFO Trigger Level
BIT 7 BIT 6 RECEIVER FIFO TRIGGER LEVEL (BYTES)
0 0 01
0 1 04
1 0 08
1 1 14
FIFO Interrupt Mode Operation
When the receiver FIFO and receiver interrupts are enabled (FCR0 = 1, IER0 = 1, IER2 = 1), a receiver interrupt
occurs as follows:
1. The received data available interrupt is issued to the microprocessor when the FIFO has reached its
programmed trigger level. It is cleared when the FIFO drops below its programmed trigger level.
2. The IIR receive data available indication also occurs when the FIFO trigger level is reached, and like the
interrupt, it is cleared when the FIFO drops below the trigger level.
3. The receiver line status interrupt (IIR = 06) has higher priority than the received data available (IIR = 04)
interrupt.
4. The data ready bit (LSR0) is set when a character is transferred from the shift register to the receiver FIFO.
It is cleared when the FIFO is empty.
When the receiver FIFO and receiver interrupts are enabled:
1. FIFO time-out interrupt occurs if the following conditions exist:
a. At least one character is in the FIFO.
b. The most recent serial character was received more than four continuous character times ago (if two
stop bits are programmed, the second one is included in this time delay).
c. The most recent microprocessor read of the FIFO has occurred more than four continuous character
times before. This causes a maximum character received command to interrupt an issued delay of
160 ms at a 300-baud rate with a 12-bit character.
2. Character times are calculated by using the RCLK input for a clock signal (makes the delay proportional to
the baud rate).
3. When a time-out interrupt has occurred, it is cleared and the timer is cleared when the microprocessor reads
one character from the receiver FIFO.
4. When a time-out interrupt has not occurred, the time-out timer is cleared after a new character is received or
after the microprocessor reads the receiver FIFO.
When the transmitter FIFO and THRE interrupt are enabled (FCR0 = 1, IER1 = 1), transmit interrupts occur as
follows:
1. The transmitter holding register empty interrupt [IIR (3 -0) = 2] occurs when the transmit FIFO is empty. It is
cleared [IIR (3 -0) = 1] when the THR is written to (1 to 16 characters may be written to the transmit FIFO
while servicing this interrupt) or the IIR is read.
2. The transmitter holding register empty interrupt is delayed one character time minus the last stop bit time
when there have not been at least two bytes in the transmitter FIFO at the same time since the last time that
the FIFO was empty. The first transmitter interrupt after changing FCR0 is immediate if it is enabled.
FIFO Polled Mode Operation
With FCR0 = 1 (transmitter and receiver FIFOs enabled), clearing IER0, IER1, IER2, IER3, or all four to 0 puts
the ACE in the FIFO polled mode of operation. Because the receiver and transmitter are controlled separately,
either one or both can be in the polled mode of operation.
In this mode, the user program checks receiver and transmitter status using the LSR. As stated previously:
• LSR0 is set as long as one byte is in the receiver FIFO.
• LSR1 - LSR 4 specify which error(s) have occurred. Character error status is handled the same way as
when in the interrupt mode; the IIR is not affected since IER2 = 0.
• LSR5 indicates when the THR is empty.
• LSR6 indicates that both the THR and TSR are empty.
24
Submit Documentation Feedback
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
• LSR7 indicates whether any errors are in the receiver FIFO.
There is no trigger level reached or time-out condition indicated in the FIFO polled mode. However, the
receiver and transmitter FIFOs are still fully capable of holding characters.
Interrupt Enable Register (IER)
The IER enables each of the five types of interrupts (see Table 5) and enables INTRPT in response to an
interrupt generation. The IER can also disable the interrupt system by clearing bits 0 through 3. The contents of
this register are summarized in Table 3 and are described in the following bullets.
• Bit 0: When set, this bit enables the received data available interrupt.
• Bit 1: When set, this bit enables the THRE interrupt.
• Bit 2: When set, this bit enables the receiver line status interrupt.
• Bit 3: When set, this bit enables the modem status interrupt.
• Bits 4 through 7: These bits are not used (always cleared).
Interrupt Identification Register (IIR)
The ACE has an on-chip interrupt generation and prioritization capability that permits a flexible interface with the
most popular microprocessors.
The ACE provides four prioritized levels of interrupts:
• Priority 1 - Receiver line status (highest priority)
• Priority 2 - Receiver data ready or receiver character time-out
• Priority 3 - Transmitter holding register empty
• Priority 4 - Modem status (lowest priority)
When an interrupt is generated, the IIR indicates that an interrupt is pending and encodes the type of interrupt in
its three least significant bits (bits 0, 1, and 2). The contents of this register are summarized in Table 3 and
described in Table 5 . Details on each bit is as follows:
• Bit 0: This bit is used either in a hardwired prioritized or polled interrupt system. When bit 0 is cleared, an
interrupt is pending. If bit 0 is set, no interrupt is pending.
• Bits 1 and 2: These two bits identify the highest priority interrupt pending as indicated in Table 3 .
• Bit 3: This bit is always cleared in TL16C450 mode. In FIFO mode, bit 3 is set with bit 2 to indicate that a
time-out interrupt is pending.
• Bits 4 and 5: These two bits are not used (always cleared).
• Bits 6 and 7: These bits are always cleared in TL16C450 mode. They are set when bit 0 of the FIFO control
register is set.
Table 5. Interrupt Control Functions
INTERRUPT IDENTIFICATION PRIORITY INTERRUPT TYPE INTERRUPT SOURCE INTERRUPT RESET
REGISTER LEVEL METHOD
BIT 3 BIT 2 BIT 1 BIT 0
0 0 0 1 None None None None
0 1 1 0 1 Receiver line status Overrun error, parity Read the line status
error, framing error, or register
break interrupt
0 1 0 0 2 Received data available Receiver data available in Read the receiver buffer
the TL16C450 mode or register
trigger level reached in
the FIFO mode
1 1 0 0 2 Character time-out No characters have been Read the receiver buffer
indication removed from or input to register
the receiver FIFO during
the last four character
times, and there is at
least one character in it
during this time
Submit Documentation Feedback
25
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Table 5. Interrupt Control Functions (continued)
INTERRUPT IDENTIFICATION PRIORITY INTERRUPT TYPE INTERRUPT SOURCE INTERRUPT RESET
BIT 3 BIT 2 BIT 1 BIT 0
0 0 1 0 3 Transmitter holding Transmitter holding Read the interrupt
0 0 0 0 4 Modem status Clear to send, data set Read the modem status
Line Control Register (LCR)
The system programmer controls the format of the asynchronous data communication exchange through the
LCR. In addition, the programmer is able to retrieve, inspect, and modify the contents of the LCR; this eliminates
the need for separate storage of the line characteristics in system memory. The contents of this register are
summarized in Table 3 and described in the following bulleted list.
• Bits 0 and 1: These two bits specify the number of bits in each transmitted or received serial character.
These bits are encoded as shown in Table 6 .
• Bit 2: This bit specifies either one, one and one-half, or two stop bits in each transmitted character. When bit
2 is cleared, one stop bit is generated in the data. When bit 2 is set, the number of stop bits generated is
dependent on the word length selected with bits 0 and 1. The receiver clocks only the first stop bit
regardless of the number of stop bits selected. The number of stop bits generated in relation to word length
and bit 2 are shown in Table 7 .
REGISTER LEVEL METHOD
register empty register empty identification register (if
source of interrupt) or
writing into the transmitter
holding register
ready, ring indicator, or register
data carrier detect
Table 6. Serial Character Word Length
BIT 1 BIT 0 WORD LENGTH
0 0 5 bits
0 1 6 bits
1 0 7 bits
1 1 8 bits
Table 7. Number of Stop Bits Generated
BIT 2 Word Length Selected by Bits 1 and 2 Number of Stop Bits Generated
0 Any word length 1
1 5 bits 1 ½
1 6 bits 2
1 7 bits 2
1 8 bits 2
• Bit 3: This bit is the parity enable bit. When bit 3 is set, a parity bit is generated in transmitted data between
the last data word bit and the first stop bit. In received data, if bit 3 is set, parity is checked. When bit 3 is
cleared, no parity is generated or checked.
• Bit 4: This bit is the even parity select bit. When parity is enabled (bit 3 is set) and bit 4 is set, even parity
(an even number of logic 1s in the data and parity bits) is selected. When parity is enabled and bit 4 is
cleared, odd parity (an odd number of logic 1s) is selected.
• Bit 5: This bit is the stick parity bit. When bits 3, 4, and 5 are set, the parity bit is transmitted and checked as
cleared. When bits 3 and 5 are set and bit 4 is cleared, the parity bit is transmitted and checked as set. If bit
5 is cleared, stick parity is disabled.
• Bit 6: This bit is the break control bit. Bit 6 is set to force a break condition; i.e., a condition where TX is
forced to the spacing (cleared) state. When bit 6 is cleared, the break condition is disabled and has no effect
on the transmitter logic; it only effects TX.
26
Submit Documentation Feedback
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
• Bit 7: This bit is the divisor latch access bit (DLAB). Bit 7 must be set to access the divisor latches of the
baud generator during a read or write. Bit 7 must be cleared during a read or write to access the receiver
buffer, the THR, or the IER.
Line Status Register (LSR)
NOTE:
The line status register is intended for read operations only; writing to this register is
not recommended outside of a factory testing environment.
The LSR provides information to the CPU concerning the status of data transfers. The contents of this register
are summarized in Table 3 and described in the following bulleted list.
• Bit 0: This bit is the data ready (DR) indicator for the receiver. DR is set whenever a complete incoming
character has been received and transferred into the RBR or the FIFO. DR is cleared by reading all of the
data in the RBR or the FIFO.
NOTE:
Bits 1 through 4 are the error conditions that produce a receiver line status interrupt.
• Bit 1: This bit is the overrun error (OE) indicator. When OE is set, it indicates that before the character in the
RBR was read, it was overwritten by the next character transferred into the register. OE is cleared every
time the CPU reads the contents of the LSR. If the FIFO mode data continues to fill the FIFO beyond the
trigger level, an overrun error occurs only after the FIFO is full, and the next character has been completely
received in the shift register. An overrun error is indicated to the CPU as soon as it happens. The character
in the shift register is overwritten, but it is not transferred to the FIFO.
• Bit 2: This bit is the parity error (PE) indicator. When PE is set, it indicates that the parity of the received
data character does not match the parity selected in the LCR (bit 4). PE is cleared every time the CPU
reads the contents of the LSR. In the FIFO mode, this error is associated with the particular character in the
FIFO to which it applies. This error is revealed to the CPU when its associated character is at the top of the
FIFO.
• Bit 3: This bit is the framing error (FE) indicator. When FE is set, it indicates that the received character did
not have a valid (set) stop bit. FE is cleared every time the CPU reads the contents of the LSR. In the FIFO
mode, this error is associated with the particular character in the FIFO to which it applies. This error is
revealed to the CPU when its associated character is at the top of the FIFO. The ACE tries to resynchronize
after a framing error. To accomplish this, it is assumed that the framing error is due to the next start bit. The
ACE samples this start bit twice and then accepts the input data.
• Bit 4: This bit is the break interrupt (BI) indicator. When BI is set, it indicates that the received data input was
held low for longer than a full-word transmission time. A full-word transmission time is defined as the total
time to transmit the start, data, parity, and stop bits. BI is cleared every time the CPU reads the contents of
the LSR. In the FIFO mode, this error is associated with the particular character in the FIFO to which it
applies. This error is revealed to the CPU when its associated character is at the top of the FIFO. When a
break occurs, only one 0 character is loaded into the FIFO. The next character transfer is enabled after RX
goes to the marking state for at least two RCLK samples and then receives the next valid start bit.
• Bit 5: This bit is the THRE indicator. THRE is set when the THR is empty, indicating that the ACE is ready to
accept a new character. If the THRE interrupt is enabled when THRE is set, an interrupt is generated. THRE
is set when the contents of the THR are transferred to the TSR. THRE is cleared concurrent with the loading
of the THR by the CPU. In the FIFO mode, THRE is set when the transmit FIFO is empty; it is cleared when
at least one byte is written to the transmit FIFO.
• Bit 6: This bit is the transmitter empty (TEMT) indicator. TEMT bit is set when the THR and the TSR are
both empty. When either the THR or the TSR contains a data character, TEMT is cleared. In the FIFO
mode, TEMT is set when the transmitter FIFO and shift register are both empty.
• Bit 7: In the TL16C450 mode, this bit is always cleared. In the FIFO mode, LSR7 is set when there is at
least one parity, framing, or break error in the FIFO. It is cleared when the microprocessor reads the LSR
and there are no subsequent errors in the FIFO.
Submit Documentation Feedback
27
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Modem Control Register (MCR)
The MCR is an 8-bit register that controls an interface with a modem, data set, or peripheral device that is
emulating a modem. The contents of this register are summarized in Table 3 and are described in the following
bulleted list.
• Bit 0: This bit (DTR) controls the DTR output.
• Bit 1: This bit (RTS) controls the RTS output.
• Bit 2: This bit (OUT1) is reserved for output and can also be used for loopback mode.
• Bit 3: This bit (OUT2) controls the high-impedance state output buffer for the INT signal and the OP output.
When low, the INT signal is in a high-impedance state and OP is high. When high, the INT signal is enabled
and OP is low. OP is presented on MF when AFR (2:1) = 00.
• Bit 4: This bit (LOOP) provides a local loop back feature for diagnostic testing of the ACE. When LOOP is
set, the following occurs:
– The transmitter TX is set high.
– The receiver RX is disconnected.
– The output of the TSR is looped back into the receiver shift register input.
– The four modem control inputs ( CTS, DSR, CD, and RI) are disconnected.
– The four modem control outputs ( DTR, RTS, OUT1, and OUT2) are internally connected to the four
modem control inputs.
– The four modem control outputs are forced to the inactive (high) levels.
• Bit 5: This bit (AFE) is the autoflow control enable. When set, the autoflow control as described in the
detailed description is enabled.
In the diagnostic mode, data that is transmitted is immediately received. This allows the processor to verify
the transmit and receive data paths to the ACE. The receiver and transmitter interrupts are fully operational.
The modem control interrupts are also operational, but the modem control interrupt's sources are now the
lower four bits of the MCR instead of the four modem control inputs. All interrupts are still controlled by the
IER.
The ACE flow can be configured by programming bits 1 and 5 of the MCR as shown in Table 8 .
Table 8. ACE Flow Configuration
MCR BIT 5 (AFE) MCR BIT 1 (RTS) ACE FLOW CONFIGURATION
1 1 Auto- RTS and auto- CTS enabled (autoflow control enabled)
1 0 Auto- CTS only enabled
0 X Auto- RTS and auto- CTS disabled
Modem Status Register (MSR)
The MSR is an 8-bit register that provides information about the current state of the control lines from the
modem, data set, or peripheral device to the CPU. Additionally, four bits of this register provide change
information; when a control input from the modem changes state, the appropriate bit is set. All four bits are
cleared when the CPU reads the MSR. The contents of this register are summarized in Table 3 and are
described in the following bulleted list.
• Bit 0: This bit is the change in clear-to-send ( ∆ CTS) indicator. ∆ CTS indicates that the CTS input has
changed state since the last time it was read by the CPU. When ∆ CTS is set (autoflow control is not enabled
and the modem status interrupt is enabled), a modem status interrupt is generated. When autoflow control is
enabled ( ∆ CTS is cleared), no interrupt is generated.
• Bit 1: This bit is the change in data set ready ( ∆ DSR) indicator. ∆ DSR indicates that the DSR input has
changed state since the last time it was read by the CPU. When ∆ DSR is set and the modem status
interrupt is enabled, a modem status interrupt is generated.
• Bit 2: This bit is the trailing edge of the ring indicator (TERI) detector. TERI indicates that the RI input to the
chip has changed from a low to a high level. When TERI is set and the modem status interrupt is enabled, a
modem status interrupt is generated.
• Bit 3: This bit is the change in data carrier detect ( ∆ DCD) indicator. ∆ DCD indicates that the DCD input to
the chip has changed state since the last time it was read by the CPU. When ∆ DCD is set and the modem
status interrupt is enabled, a modem status interrupt is generated.
28
Submit Documentation Feedback
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
• Bit 4: This bit is the complement of the clear-to-send ( CTS) input. When the ACE is in the diagnostic test
mode (LOOP [MCR4] = 1), this bit is equal to the MCR bit 1 (RTS).
• Bit 5: This bit is the complement of the data set ready ( DSR) input. When the ACE is in the diagnostic test
mode (LOOP [MCR4] = 1), this bit is equal to the MCR bit 0 (DTR).
• Bit 6: This bit is the complement of the ring indicator ( RI) input. When the ACE is in the diagnostic test mode
(LOOP [MCR4] = 1), this bit is equal to the MCR bit 2 (OUT1).
• Bit 7: This bit is the complement of the data carrier detect ( DCD) input. When the ACE is in the diagnostic
test mode (LOOP [MCR4] = 1), this bit is equal to the MCR bit 3 (OUT2).
Programmable Baud Generator
The ACE contains a programmable baud generator that takes a clock input in the range between dc and 16
MHz and divides it by a divisor in the range between 1 and (216 -1). The output frequency of the baud generator
is sixteen times (16 y) the baud rate. The formula for the divisor is:
divisor = XIN frequency input P (desired baud rate y 16)
Two 8-bit registers, called divisor latches, store the divisor in a 16-bit binary format. These divisor latches must
be loaded during initialization of the ACE in order to ensure desired operation of the baud generator. When
either of the divisor latches is loaded, a 16-bit baud counter is also loaded to prevent long counts on initial load.
Table 9 and Table 10 illustrate the use of the baud generator with crystal frequencies of 1.8432 MHz and 3.072
MHz respectively. For baud rates of 38.4 kbits/s and below, the error obtained is small. The accuracy of the
selected baud rate is dependent on the selected crystal frequency (see Figure 27 for examples of typical clock
circuits).
Table 9. Baud Rates Using a 1.8432-MHz Crystal
DESIRED BAUD DIVISOR USED TO GENERATE 16× PERCENT ERROR DIFFERENCE BETWEEN DESIRED AND
RATE CLOCK ACTUAL
50 2304
75 1536
110 1047 0.026
134.5 857 0.058
150 768
300 384
600 192
1200 96
1800 64
2000 58 0.69
2400 48
3600 32
4800 24
7200 16
9600 12
19200 6
38400 3
56000 2 2.86
Table 10. Baud Rates Using a 3.072-MHz Crystal
DESIRED BAUD DIVISOR USED TO GENERATE 16×
RATE CLOCK
50 3840
75 2560
110 1745 0.026
134.5 1428 0.034
Submit Documentation Feedback
29
www.ti.com
Driver
Optional
Driver
External
Clock
Optional
Clock
Output
Oscillator Clock
to Baud Generator
Logic
XIN
XOUT
V
CC
Crystal
XIN
RX2
V
CC
XOUT
C1
R
P
C2
Oscillator Clock
to Baud Generator
Logic
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Table 10. Baud Rates Using a 3.072-MHz Crystal (continued)
DESIRED BAUD DIVISOR USED TO GENERATE 16×
RATE CLOCK
150 1280
300 640
600 320
1200 160
1800 107 0.312
2000 96
2400 80
3600 53 0.628
4800 40
7200 27 1.23
9600 20
19200 10
38400 5
Figure 27. Typical Clock Circuits
Table 11. Typical Crystal Oscillator Network
CRYSTAL R
3.072 MHz 1 M Ω 1.5 k Ω 10 - 30 pF 40 - 60 pF
1.8432 MHz 1 M Ω 1.5 k Ω 10 - 30 pF 40 - 60 pF
16 MHz 1 M Ω 0 k Ω 33 pF 33 pF
P
RX2 (optional) C1 C2
Receiver Buffer Register (RBR)
The ACE receiver section consists of a receiver shift register (RSR) and a RBR. The RBR is actually a 16-byte
FIFO. Timing is derived from the input clock divided by the programmed devisor. Receiver section control is a
function of the ACE line control register.
The ACE RSR receives serial data from RX. The RSR then concatenates the data and moves it into the RBR
FIFO. In the TL16C450 mode, when a character is placed in the RBR and the received data available interrupt is
enabled (IER0 = 1), an interrupt is generated. This interrupt is cleared when the data is read out of the RBR. In
the FIFO mode, the interrupts are generated based on the control setup in the FIFO control register.
Scratch Register
The scratch register is an 8-bit register that is intended for the programmer's use as a scratchpad in the sense
that it temporarily holds the programmer's data without affecting any other ACE operation.
30
Submit Documentation Feedback
www.ti.com
TL16C2552
SLWS163A – SEPTEMBER 2005 – REVISED JUNE 2006
Transmitter Holding Register (THR)
The ACE transmitter section consists of a THR and a transmitter shift register (TSR). The THR is actually a
16-byte FIFO. Timing is derived from the input clock divided by the programmed devisor. Transmitter section
control is a function of the ACE line control register.
The ACE THR receives data off the internal data bus and when the shift register is idle, moves it into the TSR.
The TSR serializes the data and outputs it at TX. In the TL16C450 mode, if the THR is empty and the
transmitter holding register empty (THRE) interrupt is enabled (IER1 = 1), an interrupt is generated. This
interrupt is cleared when a character is loaded into the register. In the FIFO mode, the interrupts are generated
based on the control setup in the FIFO control register.
Alternate Function Register (AFR) - Read/Write
This register is used to select specific modes of MF operation and to allow both UART register sets to be written
concurrently.
AFR[0]: Concurrent Write Mode
When this bit is set, the CPU can write concurrently to the same register in both UARTs. This function is
intended to reduce the dual UART initialization time. It can be used by the CPU when both channels are
initialized to the same state. The external CPU can set or clear this bit by accessing either register set. When
this bit is set, the channel select pin still selects the channel to be accessed during read operations. The user
should ensure that LCR bit 7 of both channels are in the same state before executing a concurrent write to the
registers at addresses 0, 1, or 2.
• Logic 0 = No concurrent write (default)
• Logic 1 = Register set A and B are written concurrently with a single external CPU I/O write operation.
AFR[2:1]: MF Output Select
These bits select a signal function for output on the MF A/B pins. These signal functions are described as: OP,
BAUDOUT, or RXRDY. Only one signal function can be selected at a time.
MF Function
Bit 2 Bit 1 MF Function
0 0 OP (default)
0 1 BAUDOUT
1 0 RXRDY
1 1 Reserved
AFR[7:3]: Reserved
All are initialized to logic 0.
Table 12. Typical Package Thermal Resistance Data
Package
32-Pin TQFP RHB θJA= xx ° C/W θJC= xx ° C/W
44-Pin PLCC FN θJA= 46.2 ° C/W θJC= 22 ° C/W
Table 13. Typical Package Weight
Package Weight in Grams
32-Pin TQFP RHB 0.15
44-Pin PLCC FN 0.5
Submit Documentation Feedback
31
MECHANICAL DATA
MPLC004A – OCT OBER 1994
FN (S-PQCC-J**) PLASTIC J-LEADED CHIP CARRIER
20 PIN SHOWN
Seating Plane
0.004 (0,10)
D
D1
13
4
E1E
8
9
NO. OF
PINS
**
D/E
19
13
18
14
0.032 (0,81)
0.026 (0,66)
0.050 (1,27)
0.008 (0,20) NOM
D1/E1
MINMAXMIN
MAX
D2/E2
MIN
0.180 (4,57) MAX
0.120 (3,05)
0.090 (2,29)
0.020 (0,51) MIN
D2/E2
D2/E2
0.021 (0,53)
0.013 (0,33)
0.007 (0,18)
MAX
M
20
28
44
52
68
84
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. Falls within JEDEC MS-018
0.385 (9,78)
0.485 (12,32)
0.685 (17,40)
0.785 (19,94)
0.985 (25,02)
1.185 (30,10)
0.395 (10,03)
0.495 (12,57)
0.695 (17,65)
0.795 (20,19)
0.995 (25,27)
1.195 (30,35)
0.350 (8,89)
0.450 (11,43)
0.650 (16,51)
0.750 (19,05)
0.950 (24,13)
1.150 (29,21)
0.356 (9,04)
0.456 (11,58)
0.656 (16,66)
0.756 (19,20)
0.958 (24,33)
1.158 (29,41)
0.141 (3,58)
0.191 (4,85)
0.291 (7,39)
0.341 (8,66)
0.441 (11,20)
0.541 (13,74)
0.169 (4,29)
0.219 (5,56)
0.319 (8,10)
0.369 (9,37)
0.469 (11,91)
0.569 (14,45)
4040005/B 03/95
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
1
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications,
enhancements, improvements, and other changes to its products and services at any time and to discontinue
any product or service without notice. Customers should obtain the latest relevant information before placing
orders and should verify that such information is current and complete. All products are sold subject to TI’s terms
and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI
deems necessary to support this warranty. Except where mandated by government requirements, testing of all
parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for
their products and applications using TI components. To minimize the risks associated with customer products
and applications, customers should provide adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right,
copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process
in which TI products or services are used. Information published by TI regarding third-party products or services
does not constitute a license from TI to use such products or services or a warranty or endorsement thereof.
Use of such information may require a license from a third party under the patents or other intellectual property
of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of information in TI data books or data sheets is permissible only if reproduction is without
alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction
of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for
such altered documentation.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that
product or service voids all express and any implied warranties for the associated TI product or service and
is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.
Following are URLs where you can obtain information on other Texas Instruments products and application
solutions:
Products Applications
Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DSP dsp.ti.com Broadband www.ti.com/broadband
Interface interface.ti.com Digital Control www.ti.com/digitalcontrol
Logic logic.ti.com Military www.ti.com/military
Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork
Microcontrollers microcontroller.ti.com Security www.ti.com/security
Telephony www.ti.com/telephony
Video & Imaging www.ti.com/video
Wireless www.ti.com/wireless
Mailing Address: Texas Instruments
Post Office Box 655303 Dallas, Texas 75265
Copyright 2006, Texas Instruments Incorporated
Loading...
