TEXAS INSTRUMENTS NA555 Technical data

现货库存、技术资料、百科信息、热点资讯,精彩尽在鼎好!
www.ti.com
1 2 3 4
8 7 6 5
GND
OUT
RESET
V
CC
DISCH THRES CONT
3 2 1 20 19
9 10 11 12 13
4 5 6 7 8
18 17 16 15 14
NC DISCH NC THRES NC
NC
NC
OUT
NC
NC
GND
NC
CONT
NC
VCCNC
NC
RESET
NC
NC – No internal connection
NA555...D OR P PACKAGE
NE555...D, P, PS, OR PW PACKAGE
SA555...D OR P PACKAGE
SE555...D, JG, OR P PACKAGE
(TOPVIEW)
SE555...FK PACKAGE
(TOPVIEW)
NA555 , NE555 , SA555 , SE555
PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
FEATURES
Timing From Microseconds to Hours Adjustable Duty Cycle
Astable or Monostable Operation TTL-Compatible Output Can Sink or Source
up to 200 mA
DESCRIPTION/ORDERING INFORMATION
These devices are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.
The threshold and trigger levels normally are two-thirds and one-third, respectively, of V altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low. The reset (RESET) input can override all other inputs and can be used to initiate a new timing cycle. When RESET goes low, the flip-flop is reset, and the output goes low. When the output is low, a low-impedance path is provided between discharge (DISCH) and ground.
The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply, output levels are compatible with TTL inputs.
. These levels can be
CC
PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright © 1973–2006, Texas Instruments Incorporated
On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.
www.ti.com
NA555 , NE555 , SA555 , SE555 PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
ORDERING INFORMATION
V
T
A
THRES
MAX PACKAGE
V
= 15 V
CC
PDIP P Tube of 50 NE555P NE555P
SOIC D NE555
0 ° C to 70 ° C 11.2 V
SOP PS Reel of 2000 NE555PSR N555
TSSOP PW N555
PDIP P Tube of 50 SA555P SA555P
–40 ° C to 85 ° C 11.2 V Tube of 75 SA555D
SOIC D SA555
PDIP P Tube of 50 NA555P NA555P
–40 ° C to 105 ° C 11.2 V Tube of 75 NA555D
SOIC D NA555
PDIP P Tube of 50 SE555P SE555P
–55 ° C to 125 ° C 10.6 Reel of 2500 SE555DR
SOIC D SE555D
CDIP JG Tube of 50 SE555JG SE555JG LCCC FK Tube of 55 SE555FK SE555FK
(1) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
(1)
Tube of 75 NE555D Reel of 2500 NE555DR
Tube of 150 NE555PW Reel of 2000 NE555PWR
Reel of 2000 SA555DR
Reel of 2000 NA555DR
Tube of 75 SE555D
ORDERABLE PART NUMBER TOP-SIDE MARKING
FUNCTION TABLE
RESET OUTPUT
Low Irrelevant Irrelevant Low On High <1/3 V High >1/3 V High >1/3 V
(1) Voltage levels shown are nominal.
TRIGGER THRESHOLD DISCHARGE
VOLTAGE
(1)
DD DD DD
VOLTAGE
Irrelevant High Off >2/3 V <2/3 V
(1)
DD DD
Low On
As previously established
SWITCH
2
Submit Documentation Feedback
www.ti.com
1
S
R
R1
TRIG
THRES
V
CC
CONT
RESET
OUT
DISCH
GND
Pin numbers shown are for the D, JG, P, PS, and PW packages. NOTE A: RESET can override TRIG, which can override THRES.
4
8
5
6
2
1
7
3
FUNCTIONAL BLOCK DIAGRAM
NA555 , NE555 , SA555 , SE555
PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
Submit Documentation Feedback
3
www.ti.com
NA555 , NE555 , SA555 , SE555 PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
V
CC
V
I
I
O
θ
JA
θ
JC
T
J
Supply voltage Input voltage CONT, RESET, THRES, TRIG V Output current ± 225 mA
Package thermal impedance
Package thermal impedance
Operating virtual junction temperature 150 ° C Case temperature for 60 s FK package 260 ° C Lead temperature 1, 6 mm (1/16 in) from case for 60 s JG package 300 ° C
T
stg
Storage temperature range –65 150 ° C
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) All voltage values are with respect to GND. (3) Maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any allowable ambient
temperature is PD= (TJ(max) - TA)/ θ (4) The package thermal impedance is calculated in accordance with JESD 51-7. (5) Maximum power dissipation is a function of TJ(max), θJC, and TC. The maximum allowable power dissipation at any allowable case
temperature is PD= (TJ(max) - TC)/ θJC. Operating at the absolute maximum TJof 150 ° C can affect reliability. (6) The package thermal impedance is calculated in accordance with MIL-STD-883.
(2)
(1)
D package 97
(3) (4)
P package 85 PS package 95 PW package 149
(5) (6)
FK package 5.61 JG package 14.5
Operating at the absolute maximum TJof 150 ° C can affect reliability.
JA.
MIN MAX UNIT
18 V
CC
V
° C/W
° C/W
Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
V
CC
V
I
I
O
T
A
Supply voltage V
Input voltage CONT, RESET, THRES, and TRIG V Output current ± 200 mA
Operating free-air temperature ° C
MIN MAX UNIT
NA555, NE555, SA555 4.5 16 SE555 4.5 18
NA555 –40 105 NE555 0 70 SA555 –40 85 SE555 –55 125
V
CC
4
Submit Documentation Feedback
www.ti.com
NA555 , NE555 , SA555 , SE555
PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
Electrical Characteristics
V
= 5 V to 15 V, TA= 25 ° C (unless otherwise noted)
CC
PARAMETER TEST CONDITIONS UNIT
SE555 NE555
MIN TYP MAX MIN TYP MAX
V
= 15 V 9.4 10 10.6 8.8 10 11.2
THRES voltage level V
THRES current
(1)
TRIG voltage level V
CC
V
= 5 V 2.7 3.3 4 2.4 3.3 4.2
CC
30 250 30 250 nA
V
= 15 V
CC
V
= 5 V
CC
TA= –55 ° C to 125 ° C 3 6
TA= –55 ° C to 125 ° C 1.9
4.8 5 5.2 4.5 5 5.6
1.45 1.67 1.9 1.1 1.67 2.2
TRIG current TRIG at 0 V 0.5 0.9 0.5 2 µ A
RESET voltage level V
RESET current mA
TA= –55 ° C to 125 ° C 1.1 RESET at V
CC
RESET at 0 V –0.4 –1 –0.4 –1.5
DISCH switch off-state current
V
= 15 V
CONT voltage
CC
TA= –55 ° C to 125 ° C 9.6 10.4
(open circuit)
V
= 5 V
CC
V
= 15 V, IOL= 10 mA
CC
V
= 15 V, IOL= 50 mA
CC
V
= 15 V, IOL= 100 mA
Low-level output voltage TA= –55 ° C to 125 ° C 2.7 V
High-level output voltage V
CC
V
= 15 V, IOL= 200 mA 2.5 2.5
CC
V
= 5 V, IOL= 3.5 mA TA= –55 ° C to 125 ° C 0.35
CC
V
= 5 V, IOL= 5 mA
CC
V
= 5 V, IOL= 8 mA 0.15 0.25 0.15 0.4
CC
V
= 15 V, IOL= –100 mA
CC
= 15 V, IOH= –200 mA 12.5 12.5 V
CC
V
= 15 V, IOL= –100 mA
CC
Output low, No load
Supply current mA
Output high, No load
TA= –55 ° C to 125 ° C 2.9 3.8
TA= –55 ° C to 125 ° C 0.2
TA= –55 ° C to 125 ° C 1
TA= –55 ° C to 125 ° C 0.8
TA= –55 ° C to 125 ° C 12
TA= –55 ° C to 125 ° C 2 V
= 15 V 10 12 10 15
CC
V
= 5 V 3 5 3 6
CC
V
= 15 V 9 10 9 13
CC
V
= 5 V 2 4 2 5
CC
0.3 0.7 1 0.3 0.7 1
0.1 0.4 0.1 0.4
20 100 20 100 nA
9.6 10 10.4 9 10 11
2.9 3.3 3.8 2.6 3.3 4
0.1 0.15 0.1 0.25
0.4 0.5 0.4 0.75
2 2.2 2 2.5
0.1 0.2 0.1 0.35
13 13.3 12.75 13.3
3 3.3 2.75 3.3
(1) This parameter influences the maximum value of the timing resistors RAand RBin the circuit of Figure 12 . For example,
when V
= 5 V, the maximum value is R = RA+ RB≈ 3.4 M , and for V
CC
= 15 V, the maximum value is 10 M .
CC
NA555 SA555
V
Submit Documentation Feedback
5
www.ti.com
NA555 , NE555 , SA555 , SE555 PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
Operating Characteristics
V
= 5 V to 15 V, TA= 25 ° C (unless otherwise noted)
CC
PARAMETER UNIT
TEST
CONDITIONS
(1)
SE555 NE555
MIN TYP MAX MIN TYP MAX
Initial error of timing
(2)
interval Temperature coefficient of ppm/
timing interval ° C Supply-voltage sensitivity of
timing interval
Each timer, monostable Each timer, astable Each timer, monostable Each timer, astable Each timer, monostable Each timer, astable
Output-pulse rise time 100 200
Output-pulse fall time 100 200
(3)
TA= 25 ° C 0.5 1.5
(5)
(3)
TA= MIN to MAX 30 100
(5)
(3)
TA= 25 ° C 0.05 0.2
(5)
1.5 2.25
90 150
0.15 0.3
CL= 15 pF, TA= 25 ° C
CL= 15 pF, TA= 25 ° C
(4)
(4)
(4)
(4)
(4)
(1) For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions. (2) Timing interval error is defined as the difference between the measured value and the average value of a random sample from each
process run. (3) Values specified are for a device in a monostable circuit similar to Figure 9 , with the following component values: RA= 2 k to 100 k ,
C = 0.1 µ F. (4) On products compliant to MIL-PRF-38535, this parameter is not production tested. (5) Values specified are for a device in an astable circuit similar to Figure 12 , with the following component values: RA= 1 k to 100 k ,
C = 0.1 µ F.
NA555 SA555
1 3
50
0.1 0.5
100 300 ns
100 300 ns
%
%/V
6
Submit Documentation Feedback
www.ti.com
TA = 125°C
TA = 25°C
IOL − Low-Level Output Current − mA
VCC = 5 V
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
TA = −55°C
0.1
0.04
0.01 1 2 4 7 10 20 40 70 100
0.07
1
0.4
0.7
10
4
7
0.02
0.2
2
− Low-Level Output Voltage − VV OL
VCC = 10 V
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
− Low-Level Output Voltage − VV OL
I
OL
− Low-Level Output Current − mA
0.1
0.04
0.01 1 2 4 7 10 20 40 70 100
0.07
1
0.4
0.7
10
4
7
0.02
0.2
2
TA = 125°C
TA = 25°C
TA= −55°C
TA = 125°C
TA = 25°C
TA = −55°C
VCC = 15 V
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
− Low-Level Output Voltage − VV OL
IOL − Low-Level Output Current − mA
0.1
0.04
0.01 1 2 4 7 10 20 40 70 100
0.07
1
0.4
0.7
10
4
7
0.02
0.2
2
1
0.6
0.2 0
1.4
1.8
2.0
0.4
1.6
0.8
1.2
IOH − High-Level Output Current − mA
TA = 125°C
TA = 25°C
100704020107421
VCC = 5 V to 15 V
TA = −55°C
V
CC
V
OH
− Voltage Drop − V
)
(
DROP BETWEEN SUPPLY VOLTAGE AND OUTPUT
vs
HIGH-LEVEL OUTPUT CURRENT
NA555 , NE555 , SA555 , SE555
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
TYPICAL CHARACTERISTICS
Data for temperatures below 0 ° C and above 70 ° C are applicable for SE555 circuits only.
PRECISION TIMERS
Figure 1. Figure 2.
Figure 3. Figure 4.
Submit Documentation Feedback
7
www.ti.com
5
4
2 1 0
9
3
5 6 7 8 9 10 11
− Supply Current − mA
7
6
8
SUPPLY CURRENT
vs
SUPPLY VOLTAGE
10
12 13 14 15
T
A
= 25°C
T
A
= 125°C
T
A
= −55°C
Output Low, No Load
CC
I
VCC − Supply Voltage − V
1
0.995
0.990
0.985 0 5 10
1.005
1.010
NORMALIZED OUTPUT PULSE DURATION
(MONOSTABLE OPERATION)
vs
SUPPLY VOLTAGE
1.015
15 20
CC
VPulse Duration Relative to Value at = 10 V
VCC − Supply Voltage − V
1
0.995
0.990
0.985
−75 −25 25
1.005
1.010
NORMALIZED OUTPUT PULSE DURATION
(MONOSTABLE OPERATION)
vs
FREE-AIR TEMPERATURE
1.015
75 125
TA − Free-Air Temperature − °C
−50 0 50 100
VCC = 10 V
Pulse Duration Relative to Value at T
A
= 255C
150
100
50
0
200
250
300
− Propagation Delay Time − ns
PROPAGATION DELAY TIME
vs
LOWEST VOLTAGE LEVEL
OF TRIGGER PULSE
Lowest Voltage Level of Trigger Pulse
T
A
= −55°C
T
A
= 125°C
T
A
= 25°C
t
PD
T
A
= 0°C
T
A
= 70°C
0 0.1 x V
CC
0.2 x V
CC
0.3 x V
CC
0.4 x V
CC
NA555 , NE555 , SA555 , SE555 PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
TYPICAL CHARACTERISTICS (continued)
Data for temperatures below 0 ° C and above 70 ° C are applicable for SE555 circuits only.
8
Figure 5. Figure 6.
Figure 7. Figure 8.
Submit Documentation Feedback
www.ti.com
V
CC
(5 V to 15 V)
R
A
R
L
Output
GND
OUT
V
CC
CONT
RESET DISCH
THRES TRIGInput
5
8
4 7
6 2
3
1
Pin numbers shown are for the D, JG, P, PS, and PW packages.
NA555 , NE555 , SA555 , SE555
PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
APPLICATION INFORMATION
Monostable Operation
For monostable operation, any of these timers can be connected as shown in Figure 9 . If the output is low, application of a negative-going pulse to the trigger (TRIG) sets the flip-flop ( Q goes low), drives the output high, and turns off Q1. Capacitor C then is charged through R threshold voltage of the threshold (THRES) input. If TRIG has returned to a high level, the output of the threshold comparator resets the flip-flop ( Q goes high), drives the output low, and discharges C through Q1.
until the voltage across the capacitor reaches the
A
Figure 9. Circuit for Monostable Operation
Monostable operation is initiated when TRIG voltage falls below the trigger threshold. Once initiated, the sequence ends only if TRIG is high at the end of the timing interval. Because of the threshold level and saturation voltage of Q1, the output pulse duration is approximately tw= 1.1R constant for various values of R the supply voltage, V
. The timing interval is, therefore, independent of the supply voltage, so long as the
CC
and C. The threshold levels and charge rates both are directly proportional to
A
C. Figure 11 is a plot of the time
A
supply voltage is constant during the time interval. Applying a negative-going trigger pulse simultaneously to RESET and TRIG during the timing interval discharges
C and reinitiates the cycle, commencing on the positive edge of the reset pulse. The output is held low as long as the reset pulse is low. To prevent false triggering, when RESET is not used, it should be connected to V
Submit Documentation Feedback
.
CC
9
www.ti.com
− Output Pulse Duration − s
C − Capacitance − µF
10
1
10
−1
10
−2
10
−3
10
−4
1001010.10.01
10
−5
0.001
t
w
R
A
= 10 M
R
A
= 10 k
R
A
= 1 k
R
A
= 100 k
R
A
= 1 M
Voltage − 2 V/div
Time − 0.1 ms/div
Capacitor Voltage
Output Voltage
Input Voltage
RA = 9.1 k CL = 0.01 µF RL = 1 k See Figure 9
Voltage − 1 V/div
Time − 0.5 ms/div
t
H
Capacitor Voltage
Output Voltage
t
L
RA = 5 kW R
L
= 1 kW
RB = 3 kW See Figure 12 C = 0.15 µF
GND
OUT
V
CC
CONT RESET DISCH
THRES TRIG
C
R
B
R
A
Output
R
L
0.01 µF
V
CC
(5 V to 15 V)
(see Note A)
NOTE A: Decoupling CONT voltage to ground with a capacitor can
improve operation. This should be evaluated for individual applications.
Open
5 8
4 7
6 2
3
1
Pin numbers shown are for the D, JG, P, PS, and PW packages.
NA555 , NE555 , SA555 , SE555 PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
APPLICATION INFORMATION (continued)
Figure 10. Typical Monostable Waveforms Figure 11. Output Pulse Duration vs Capacitance
Astable Operation
As shown in Figure 12 , adding a second resistor, RB, to the circuit of Figure 9 and connecting the trigger input to the threshold input causes the timer to self-trigger and run as a multivibrator. The capacitor C charges through R
and R
A
RB. This astable connection results in capacitor C charging and discharging between the threshold-voltage level
( 0.67 × V times (and, therefore, the frequency and duty cycle) are independent of the supply voltage.
10
and then discharges through R
B
) and the trigger-voltage level ( 0.33 × V
CC
Figure 12. Circuit for Astable Operation Figure 13. Typical Astable Waveforms
only. Therefore, the duty cycle is controlled by the values of R
B
). As in the monostable circuit, charge and discharge
CC
Submit Documentation Feedback
and
A
www.ti.com
tH+ 0.693 (RA) RB)C tL+ 0.693 (RB)C
Other useful relationships are shown below.
period + tH) tL+ 0.693 (RA) 2RB) C frequency [
1.44
(RA) 2RB) C
Output driver duty cycle +
t
L
tH) t
L
+
R
B
RA) 2R
B
Output waveform duty cycle
+
t
L
t
H
+
R
B
RA) R
B
Low-to-high ratio
+
t
H
tH) t
L
+ 1–
R
B
RA) 2R
B
f − Free-Running Frequency − Hz
C − Capacitance − µF
100 k
10 k
1 k
100
10
1
1001010.10.01
0.1
0.001
R
A
+ 2 RB = 10 M
R
A
+ 2 RB = 1 M
R
A
+ 2 RB = 100 k
R
A
+ 2 RB = 10 k
R
A
+ 2 RB = 1 k
Time − 0.1 ms/div
Voltage − 2 V/div
VCC = 5 V RA = 1 k C = 0.1 µF See Figure 15
Capacitor Voltage
Output Voltage
Input Voltage
VCC (5 V to 15 V)
DISCH
OUT
V
CC
RESET
R
L
R
A
A5T3644
C
THRES
GND
CONT
TRIG
Input
0.01 µF
Output
4 8
3
7
6
2
5
1
Pin numbers shown are shown for the D, JG, P, PS, and PW packages.
NA555 , NE555 , SA555 , SE555
PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
APPLICATION INFORMATION (continued)
Figure 13 shows typical waveforms generated during astable operation. The output high-level duration tHand low-level duration tLcan be calculated as follows:
Missing-Pulse Detector
The circuit shown in Figure 15 can be used to detect a missing pulse or abnormally long spacing between consecutive pulses in a train of pulses. The timing interval of the monostable circuit is retriggered continuously by the input pulse train as long as the pulse spacing is less than the timing interval. A longer pulse spacing, missing pulse, or terminated pulse train permits the timing interval to be completed, thereby generating an output pulse as shown in Figure 16 .
Figure 15. Circuit for Missing-Pulse Detector Figure 16. Completed Timing Waveforms for
Submit Documentation Feedback
Figure 14. Free-Running Frequency
Missing-Pulse Detector
11
www.ti.com
Voltage − 2 V/div
Time − 0.1 ms/div
Capacitor Voltage
Output Voltage
Input Voltage
VCC = 5 V RA = 1250 C = 0.02 µF See Figure 9
NA555 , NE555 , SA555 , SE555 PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
APPLICATION INFORMATION (continued)
Frequency Divider
By adjusting the length of the timing cycle, the basic circuit of Figure 9 can be made to operate as a frequency divider. Figure 17 shows a divide-by-three circuit that makes use of the fact that retriggering cannot occur during the timing cycle.
Figure 17. Divide-by-Three Circuit Waveforms
12
Submit Documentation Feedback
www.ti.com
THRES
GND
C
R
A
R
L
VCC (5 V to 15 V)
Output
DISCH
OUT
V
CC
RESET
TRIG
CONT
Modulation
Input
(see Note A)
Clock
Input
NOTE A: The modulating signal can be direct or capacitively coupled
to CONT. For direct coupling, the effects of modulation source voltage and impedance on the bias of the timer should be considered.
4 8
3
7
6
2
5
Pin numbers shown are for the D, JG, P, PS, and PW packages.
1
Voltage − 2 V/div
Time − 0.5 ms/div
Capacitor Voltage
Output Voltage
Clock Input Voltage
RA = 3 k C = 0.02 µF RL = 1 k See Figure 18
ППППППП
ППППППП
Modulation Input Voltage
NA555 , NE555 , SA555 , SE555
PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
APPLICATION INFORMATION (continued)
Pulse-Width Modulation
The operation of the timer can be modified by modulating the internal threshold and trigger voltages, which is accomplished by applying an external voltage (or current) to CONT. Figure 18 shows a circuit for pulse-width modulation. A continuous input pulse train triggers the monostable circuit, and a control signal modulates the threshold voltage. Figure 19 shows the resulting output pulse-width modulation. While a sine-wave modulation signal is shown, any wave shape could be used.
Figure 18. Circuit for Pulse-Width Modulation Figure 19. Pulse-Width-Modulation Waveforms
Submit Documentation Feedback
13
www.ti.com
Voltage − 2 V/div
R
A
= 3 k
RB = 500 R
L
= 1 k
See Figure 20
Capacitor Voltage
Output Voltage
ООООООО
ООООООО
ООООООО
Modulation Input Voltage
Time − 0.1 ms/div
R
B
Modulation
Input
(see Note A)
CONT
TRIG
RESET V
CC
OUT
DISCH
VCC (5 V to 15 V)
R
L
R
A
C
GND
THRES
NOTE A: The modulating signal can be direct or capacitively coupled
to CONT. For direct coupling, the effects of modulation source voltage and impedance on the bias of the timer should be considered.
Pin numbers shown are for the D, JG, P, PS, and PW packages.
4 8
3
7
6
2
5
Output
NA555 , NE555 , SA555 , SE555 PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
APPLICATION INFORMATION (continued)
Pulse-Position Modulation
As shown in Figure 20 , any of these timers can be used as a pulse-position modulator. This application modulates the threshold voltage and, thereby, the time delay, of a free-running oscillator. Figure 21 shows a triangular-wave modulation signal for such a circuit; however, any wave shape could be used.
Figure 20. Circuit for Pulse-Position Modulation Figure 21. Pulse-Position-Modulation Waveforms
14
Submit Documentation Feedback
www.ti.com
S
V
CC
RESET V
CC
OUT
DISCH
GND
CONT
TRIG
4 8
3
7
6
1
5
2
THRES
R
C
C
C
0.01
CC = 14.7 µF RC = 100 k
Output C
RESET V
CC
OUT
DISCH
GND
CONT
TRIG
4 8
3
7
6
1
5
2
THRES
R
B
33 k
0.001
0.01
µF
CB = 4.7 µF RB = 100 k
Output BOutput A
RA = 100 k
CA = 10 µF
µF
0.01
µF
0.001
33 k
RA
THRES
2
5
1
6
7
3
84
TRIG
CONT
GND
DISCH
OUT
V
CC
RESET
µF
µF
C
B
C
A
Pin numbers shown are for the D, JG, P, PS, and PW packages. NOTE A: S closes momentarily at t = 0.
Voltage − 5 V/div
t − Time − 1 s/div
See Figure 22
Output A
Output B
Output C
t = 0
twC = 1.1 RCC
C
twC
twB = 1.1 RBC
B
twA = 1.1 RAC
A
twA
twB
NA555 , NE555 , SA555 , SE555
PRECISION TIMERS
SLFS022F – SEPTEMBER 1973 – REVISED JUNE 2006
APPLICATION INFORMATION (continued)
Sequential Timer
Many applications, such as computers, require signals for initializing conditions during start-up. Other applications, such as test equipment, require activation of test signals in sequence. These timing circuits can be connected to provide such sequential control. The timers can be used in various combinations of astable or monostable circuit connections, with or without modulation, for extremely flexible waveform control. Figure 22 shows a sequencer circuit with possible applications in many systems, and Figure 23 shows the output waveforms.
Figure 23. Sequential Timer Waveforms
Figure 22. Sequential Timer Circuit
Submit Documentation Feedback
15
PACKAGE OPTION ADDENDUM
www.ti.com
PACKAGING INFORMATION
Orderable Device Status
JM38510/10901BPA ACTIVE CDIP JG 8 1 TBD A42 SNPB N / A for Pkg Type
NA555D ACTIVE SOIC D 8 75 Green (RoHS &
NA555DG4 ACTIVE SOIC D 8 75 Green (RoHS &
NA555DR ACTIVE SOIC D 8 2500 Green (RoHS &
NA555DRG4 ACTIVE SOIC D 8 2500 Green (RoHS &
NA555P ACTIVE PDIP P 8 50 Pb-Free
NA555PE4 ACTIVE PDIP P 8 50 Pb-Free
NE555D ACTIVE SOIC D 8 75 Green (RoHS &
NE555DE4 ACTIVE SOIC D 8 75 Green (RoHS &
NE555DG4 ACTIVE SOIC D 8 75 Green (RoHS &
NE555DR ACTIVE SOIC D 8 2500 Green (RoHS &
NE555DRE4 ACTIVE SOIC D 8 2500 Green (RoHS &
NE555DRG4 ACTIVE SOIC D 8 2500 Green (RoHS &
NE555P ACTIVE PDIP P 8 50 Pb-Free
NE555PE4 ACTIVE PDIP P 8 50 Pb-Free
NE555PSLE OBSOLETE SO PS 8 TBD Call TI Call TI
NE555PSR ACTIVE SO PS 8 2000 Green (RoHS &
NE555PSRE4 ACTIVE SO PS 8 2000 Green (RoHS &
NE555PW ACTIVE TSSOP PW 8 150 Green (RoHS &
NE555PWE4 ACTIVE TSSOP PW 8 150 Green (RoHS &
NE555PWR ACTIVE TSSOP PW 8 2000 Green (RoHS &
NE555PWRE4 ACTIVE TSSOP PW 8 2000 Green (RoHS &
NE555Y OBSOLETE 0 TBD Call TI Call TI SA555D ACTIVE SOIC D 8 75 Green (RoHS &
SA555DE4 ACTIVE SOIC D 8 75 Green (RoHS &
SA555DG4 ACTIVE SOIC D 8 75 Green (RoHS &
(1)
Package
Type
Package Drawing
Pins Package
Qty
Eco Plan
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
no Sb/Br)
(RoHS)
(RoHS)
(RoHS)
(RoHS)
(2)
Lead/Ball Finish MSL Peak Temp
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU N / A for Pkg Type
CU NIPDAU N / A for Pkg Type
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU N / A for Pkg Type
CU NIPDAU N / A for Pkg Type
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
31-Jul-2006
(3)
Addendum-Page 1
PACKAGE OPTION ADDENDUM
www.ti.com
Orderable Device Status
(1)
Package
Type
Package Drawing
Pins Package
Qty
Eco Plan
SA555DR ACTIVE SOIC D 8 2500 Green (RoHS &
(2)
Lead/Ball Finish MSL Peak Temp
CU NIPDAU Level-1-260C-UNLIM
31-Jul-2006
(3)
no Sb/Br)
SA555DRE4 ACTIVE SOIC D 8 2500 Green (RoHS &
CU NIPDAU Level-1-260C-UNLIM
no Sb/Br)
SA555DRG4 ACTIVE SOIC D 8 2500 Green (RoHS &
CU NIPDAU Level-1-260C-UNLIM
no Sb/Br)
SA555P ACTIVE PDIP P 8 50 Pb-Free
CU NIPDAU N / A for Pkg Type
(RoHS)
SA555PE4 ACTIVE PDIP P 8 50 Pb-Free
CU NIPDAU N / A for Pkg Type
(RoHS)
SE555D ACTIVE SOIC D 8 75 TBD CU NIPDAU Level-1-220C-UNLIM
SE555DR ACTIVE SOIC D 8 2500 TBD CU NIPDAU Level-1-220C-UNLIM
SE555FKB ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type
SE555JG ACTIVE CDIP JG 8 1 TBD A42 SNPB N / A for Pkg Type
SE555JGB ACTIVE CDIP JG 8 1 TBD A42 SNPB N / A for Pkg Type
SE555N OBSOLETE PDIP N 8 TBD Call TI Call TI SE555P ACTIVE PDIP P 8 50 Pb-Free
CU NIPDAU N / A for Pkg Type
(RoHS)
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in
a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device.
(2)
Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check
http://www.ti.com/productcontent for the latest availability information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined. Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements
for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)
(3)
MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder
temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
Addendum-Page 2
MECHANICAL DATA
MCER001A – JANUARY 1995 – REVISED JANUARY 1997
JG (R-GDIP-T8) CERAMIC DUAL-IN-LINE
0.400 (10,16)
0.355 (9,00)
0.063 (1,60)
0.015 (0,38)
0.100 (2,54)
8
1
5
4
0.065 (1,65)
0.045 (1,14)
0.020 (0,51) MIN
0.023 (0,58)
0.015 (0,38)
0.280 (7,11)
0.245 (6,22)
0.310 (7,87)
0.290 (7,37)
0.200 (5,08) MAX Seating Plane
0.130 (3,30) MIN
0°–15°
0.014 (0,36)
0.008 (0,20)
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice. C. This package can be hermetically sealed with a ceramic lid using glass frit. D. Index point is provided on cap for terminal identification.
E. Falls within MIL STD 1835 GDIP1-T8
4040107/C 08/96
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
MECHANICAL DATA
MLCC006B – OCTOBER 1996
FK (S-CQCC-N**) LEADLESS CERAMIC CHIP CARRIER
28 TERMINAL SHOWN
A SQ
B SQ
20
22
23
24
25
19
21
12826 27
12
1314151618 17
0.020 (0,51)
0.010 (0,25)
MIN
0.342 (8,69)
0.442
0.640
0.739
0.938
1.141
A
0.358 (9,09)
0.458
(11,63)
0.660
(16,76)
0.761
(19,32)(18,78)
0.962
(24,43)
1.165
(29,59)
(10,31)
(12,58)
(12,58)
NO. OF
TERMINALS
**
11
10
9
8
7
6
5
432
20
28
44
52
68
84
0.020 (0,51)
0.010 (0,25)
(11,23)
(16,26)
(23,83)
(28,99)
MINMAX
0.307 (7,80)
0.406
0.495
0.495
0.850 (21,6)
1.047 (26,6)
0.080 (2,03)
0.064 (1,63)
B
MAX
0.358 (9,09)
0.458
(11,63)
0.560
(14,22)
0.560
(14,22)
0.858 (21,8)
1.063 (27,0)
0.055 (1,40)
0.045 (1,14)
0.028 (0,71)
0.022 (0,54)
0.050 (1,27)
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice. C. This package can be hermetically sealed with a metal lid. D. The terminals are gold plated.
E. Falls within JEDEC MS-004
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
0.045 (1,14)
0.035 (0,89)
0.045 (1,14)
0.035 (0,89)
4040140/D 10/96

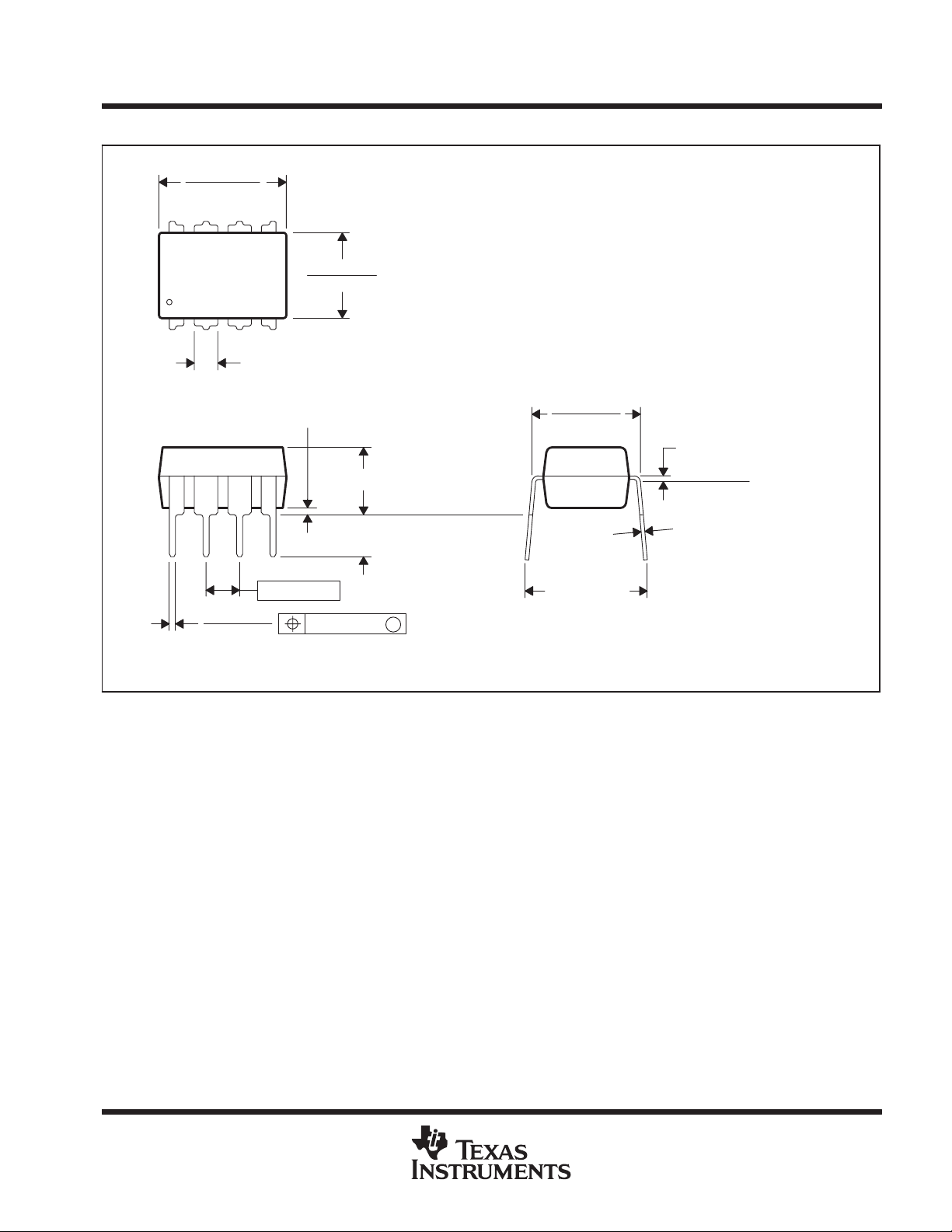

MECHANICAL DATA
MPDI001A – JANUARY 1995 – REVISED JUNE 1999
P (R-PDIP-T8) PLASTIC DUAL-IN-LINE
0.400 (10,60)
0.355 (9,02)
8
5
0.260 (6,60)
0.240 (6,10)
1
0.021 (0,53)
0.015 (0,38)
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice. C. Falls within JEDEC MS-001
4
0.070 (1,78) MAX
0.020 (0,51) MIN
0.200 (5,08) MAX
0.125 (3,18) MIN
0.100 (2,54)
0.010 (0,25)
Seating Plane
M
0.325 (8,26)
0.300 (7,62)
0.015 (0,38)
Gage Plane
0.010 (0,25) NOM
0.430 (10,92) MAX
4040082/D 05/98
For the latest package information, go to http://www.ti.com/sc/docs/package/pkg_info.htm
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
MECHANICAL DATA
MTSS001C – JANUARY 1995 – REVISED FEBRUARY 1999
PW (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE
14 PINS SHOWN
0,65
1,20 MAX
14
0,30 0,19
8
4,50 4,30
PINS **
7
Seating Plane
0,15 0,05
8
1
A
DIM
6,60 6,20
14
0,10
M
0,10
0,15 NOM
2016
0°–8°
Gage Plane
24
0,25
0,75 0,50
28
A MAX
A MIN
NOTES: A. All linear dimensions are in millimeters.
B. This drawing is subject to change without notice. C. Body dimensions do not include mold flash or protrusion not to exceed 0,15. D. Falls within JEDEC MO-153
3,10
2,90
5,10
4,90
5,10
4,90
6,60
6,40
7,90
7,70
9,80
9,60
4040064/F 01/97
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty . Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products Applications
Amplifiers amplifier.ti.com Audio www.ti.com/audio Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DSP dsp.ti.com Broadband www.ti.com/broadband Interface interface.ti.com Digital Control www.ti.com/digitalcontrol Logic logic.ti.com Military www.ti.com/military Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork Microcontrollers microcontroller.ti.com Security www.ti.com/security Low Power Wireless www.ti.com/lpw Telephony www.ti.com/telephony
Video & Imaging www.ti.com/video Wireless www.ti.com/wireless
Mailing Address: Texas Instruments
Post Office Box 655303 Dallas, Texas 75265
Copyright 2006, Texas Instruments Incorporated
Loading...
