Texas Instruments MSP43 series Getting Started Manual

TI-RTOS 2.16 for MSP43x

Getting Started Guide

Literature Number: SPRUHU4D

February 2016

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1 About TI-RTOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.1 What is TI-RTOS? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 What are the TI-RTOS Components?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3 How Can I Find Example Projects? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.4 What Compilers and Targets are Supported? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.5 What Boards and Devices Have TI-RTOS Driver Examples? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.6 What Drivers Does TI-RTOS Include? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.7 For More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2 Installing TI-RTOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.2 Installing Code Composer Studio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.3 Installing TI-RTOS in Code Composer Studio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.4 Installing TI-RTOS for Use in IAR Embedded Workbench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.5 Installing TI-RTOS as a Standalone Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3 Examples for TI-RTOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.1 Creating Example Projects Using the Resource Explorer in CCS . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.1.1 Creating an Empty TI-RTOS Project . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.1.2 Creating Examples to Build via a Command Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2 Creating Examples with IAR Embedded Workbench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.3 Driver Examples: Readme Files and Common Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.4 MSP430 MSP-EXP430F5529LP Settings and Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.5 MSP430 MSP-EXP430FR5969LP Settings and Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.6 MSP430 MSP-EXP430FR6989LP Settings and Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.7 MSP432 MSP-EXP432P401RLP Settings and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3.8 BoosterPacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.8.1 SD Card BoosterPack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.8.2 TMP006 BoosterPack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.8.3 Sharp Memory LCD BoosterPack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.8.4 CC3100 BoosterPacks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.8.5 RF430CL330 NFC Transponder Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.8.6 TPL0401EVM Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.9 Installing USB Drivers for the USB Device Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4 Configuring TI-RTOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4.1 Starting the Configuration Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

4.2 Configuring TI-RTOS Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4.2.1 Configuring System Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4.3 Configuring Components of TI-RTOS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

SPRUHU4D—February 2016 Contents 2

Submit Documentation Feedback

About This Manual

This manual describes TI-RTOS for MSP43x. The version number as of the publication of this manual is
v2.16.

Notational Conventions

This document uses the following conventions:

•

Program listings, program examples, and interactive displays are shown in a special typeface.
Examples use a bold version of the special typ efac e for empha si s.

Here is a sample program listing:

#include <xdc/runtime/System.h>
int main(void)
{
System_printf("Hello World!\n");
return (0);
}

Preface

SPRUHU4D—February 2016

Read This First

•

Square brackets ( [ and ] ) identify an optional parameter. If you use an optional parameter, you
specify the information within the brackets. Unless the square brackets are in a bold typeface, do not
enter the brackets themselves.

Trademarks

Registered trademarks of Texas Instruments include Stellaris and StellarisWare.
Trademarks of Texas Instruments include: the Texas Instruments logo, Texas Instruments, TI, TI.COM,

C2000, C5000, C6000, Code Composer, Code Composer Studio, Concerto, controlSUITE, DSP/BIOS,
MSP430, MSP430Ware, MSP432, SimpleLink, Sitara, SPOX, TI-RTOS, Tiva, TivaWare, TMS320,
TMS320C5000, TMS320C6000, and TMS320C2000.

ARM is a registered trademark, and Cortex is a trademark of ARM Limited.
Windows is a registered trademark of Microsoft Corporation.
Linux is a registered trademark of Linus Torvalds.
IAR Systems and IAR Embedded Workbench are registered trademarks of IAR Systems AB.
All other brand or product names are trademarks or registered trademarks of their respective companies

or organizations.

February 9, 2016

SPRUHU4D—February 2016 Read This First 3

Submit Documentation Feedback

This chapter provides an overview of TI-RTOS for MSP43x.

1.1 What is TI-RTOS? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 What are the TI-RTOS Components? . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3 How Can I Find Example Projects? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.4 What Compilers and Targets are Supported? . . . . . . . . . . . . . . . . . . . 7

1.5 What Boards and Devices Have TI-RTOS Driver Examples? . . . . . . . 7

1.6 What Drivers Does TI-RTOS Include? . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.7 For More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Topic Page

Chapter 1

SPRUHU4D—February 2016

About TI-RTOS

1.1 What is TI-RTOS?

TI-RTOS is a scalable, one-stop embedded tools ecosystem for TI devices. It
scales from a real-time multitasking kernel (SYS/BIOS) to a complete RTOS
solution including additional middleware components and device drivers. By
providing essential system software components that are pre-tested and pre­integrated, TI-RTOS enables you to focus on creating your application.

TI-RTOS is not installed automatically as part of the Code Composer Studio v6.x
installation. You can install TI-RTOS from the CCS App Center (choose View >
CCS App Center in CCS). Choose the version of TI-RTOS for your device family.
If you use devices in multiple families, you can install multiple TI-RTOS versions. See Section 2.3 for
details.

If you do not use CCS, you can download and install TI-RTOS as a standalone product (see Section 2.5).
In addition to the Texas Instruments Code Generation Tools, TI-RTOS includes support for the IAR tool
chain (see Section 2.4).

TI-RTOS is provided with full source code and requires no up-front or runtime license fees.

SPRUHU4D—February 2016 About TI-RTOS 4

Submit Documentation Feedback

www.ti.com What are the TI-RTOS Components?

1.2 What are the TI-RTOS Components?

TI-RTOS contains its own source files, pre-compiled libraries (both instrumented and non-instrumented),
and examples. Additionally, TI-RTOS contains a number of components within its "
subdirectory. The components of TI-RTOS for MSP43x are as follows.

Table 1–1. TI-RTOS Components

TI-RTOS Component Name PDF Documentation Location

TI-RTOS TI-RTOS examples Chapter 3 of this Getting Started Guide
TI-RTOS Kernel SYS/BIOS SYS/BIOS (TI-RTOS Kernel) User’s Guide -- SPRUEX3

products

"

TI-RTOS Drivers and Board
Support

TI-RTOS Instrumentation UIA System Analyzer User’s Guid e -- SPRUH43
TI-RTOS File System FatFS TI-RTOS User's Guide -- SPRUHD4
TI-RTOS USB USB stack TI-RTOS User's Guide -- SPRUHD4

The components in the "

•

TI-RTOS Kernel — SYS/BIOS. SYS/BIOS is a scalable real-time kernel. It is designed to be used
by applications that require real-time scheduling and synchronization or real-time instrumentation. It
provides preemptive multi-threading, hardware abstraction, real-time analysis, and configuration
tools. SYS/BIOS is designed to minimize memory and CPU requirements on the target.

•

TI-RTOS Drivers and Board Support. TI-RTOS includes drivers for a number of peripherals. These
drivers are thread-safe for use with the TI-RTOS Kernel. The drivers have a common framework, so
using multiple drivers in your application is easy. Both instrumented and non-instrumented versions
of the drivers are provided. Board support files to configure the drivers is provided for several targets.

•

TI-RTOS Instrumentation — UIA. The Unified Instrumentation Architecture (UIA) provides target
content that aids in the creation and gathering of instrumentation data (for example, Log data).

•

MSPWare. This software is an extensive suite of drivers, code examples, and design resources
designed to simplify and speed development of MSP43x microcontroller applications. This
component is customized and built as a library to support MSP430F5xx_6xx devices and MSP432
devices with TI-RTOS.

•

XDCtools. This core component provides the underlying tooling for configuring and building TI­RTOS and its components. XDCtools is installed as part of CCS v6.x. If you install TI-RTOS outside
CCS, a comp atibl e versi on of XD Ctool s is inst alle d aut omatica lly. XDCtools is inst alle d in a di rector y
at the same level as TI-RTOS, not in the "products" directory of the TI-RTOS installation.

Drivers and MSPWare TI-RTOS User's Guide -- SPRUHD4

products

1

" subdirectory are:

1. Customization details for MSPWare and instructions for building MSPWare's driverlib librar ies for MS P430F 5xx 6xx fam ilies are provided
in the TI-RTOS.README in the top-level directory of the MSPWare component.

SPRUHU4D—February 2016 About TI-RTOS 5

Submit Documentation Feedback

How Can I Find Example Projects? www.ti.com

1.3 How Can I Find Example Projects?

TI-RTOS and its components provide numerous examples that you can import using the Resource
Explorer in Code Composer Studio (CCS). These examples use TI-RTOS and its components and have

all the settings needed for your device. Expand the tree in the Resource Explorer to see the examples
that are available for your device. Resource Explorer provides TI-RTOS examples for both the TI and
GNU tool chains.

•

Driver Examples are TI-RTOS driver examples.

•

Instrumentation Examples are UIA examples.

•

Kernel Examples are the SYS/BIOS examples.

•

Network Examples show how to use capabilities such as WiFi, PPP, Ethernet, and HTTP/HTTPS.

Follow the steps in Section 3.1 to import, build, and run these examples.

6 About TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com What Compilers and Targets are Supported?

1.4 What Compilers and Targets are Supported?

The following code generation tool (compilers and linkers) used to build the TI-RTOS libraries and to
perform testing. More recent versions are expected to be compatible.

•

T exas Instruments: MSP430 CodeGen Tools 4.4.2 (for MSP430)

•

T exas Instruments: ARM CodeGen Tools 5.2.4 (for MSP432)

•

IAR Workbench for MSP430: 6.20 (for MSP430)

•

IAR Workbench for ARM: 7.40.3 (for MSP432)

The configuration uses a "target" specification during the build. This specification is sometimes called the
"RTSC target." The targets supported are:

•

ti.targets.msp430.elf.MSP430X (for MSP430)

•

iar.targets.msp430.MSP430X_small (for MS P43 0)

•

ti.targets.arm.elf.M4F (for MSP432)

1.5 What Boards and Devices Have TI-RTOS Driver Examples?

Currently, TI-RTOS provides driver examples for the following boards:

Family Device on Board Board

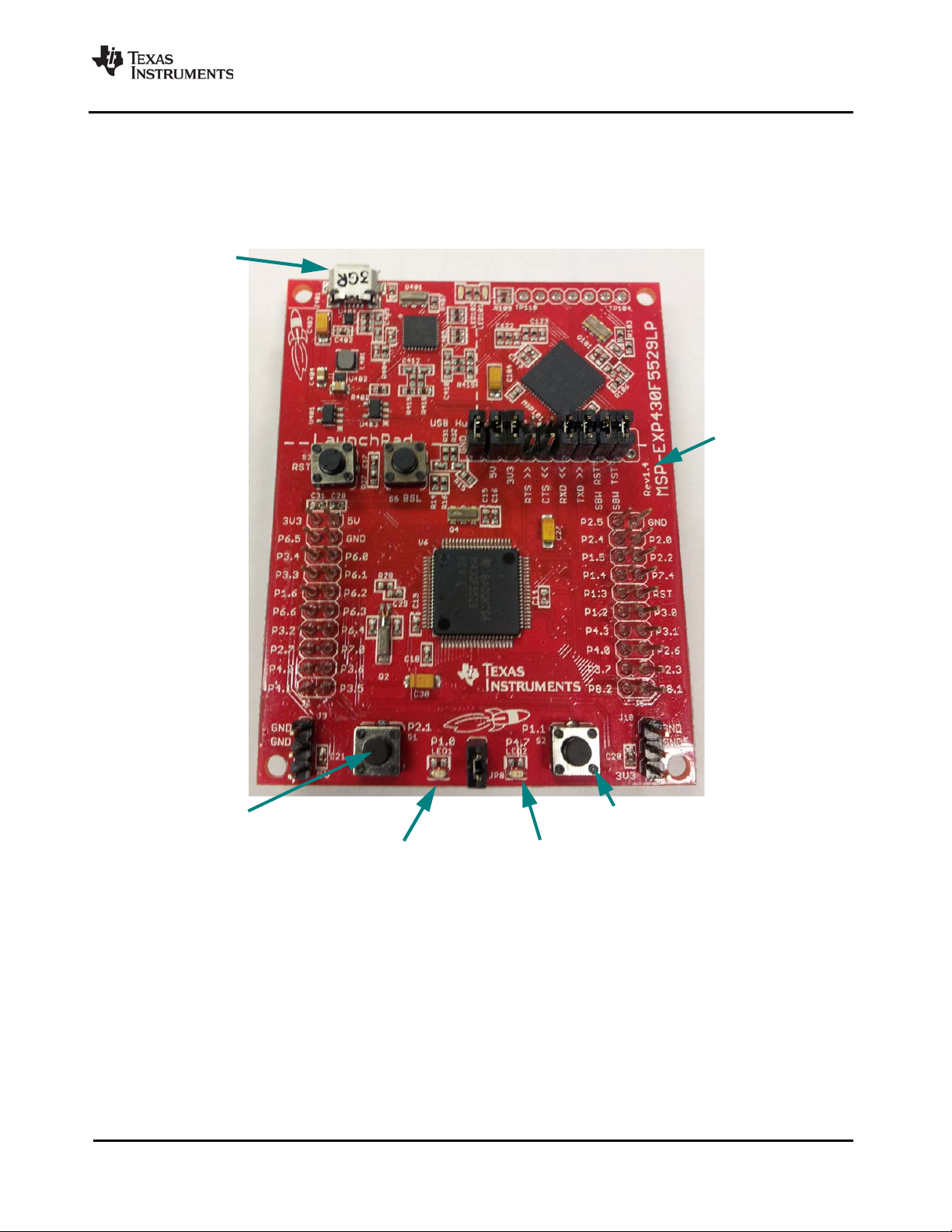

MSP430F5xx MSP430F5529 MSP-EXP430F5529LP LaunchPad
MSP430FR5xx MSP430FR5969 MSP-EXP430FR5969LP LaunchPad

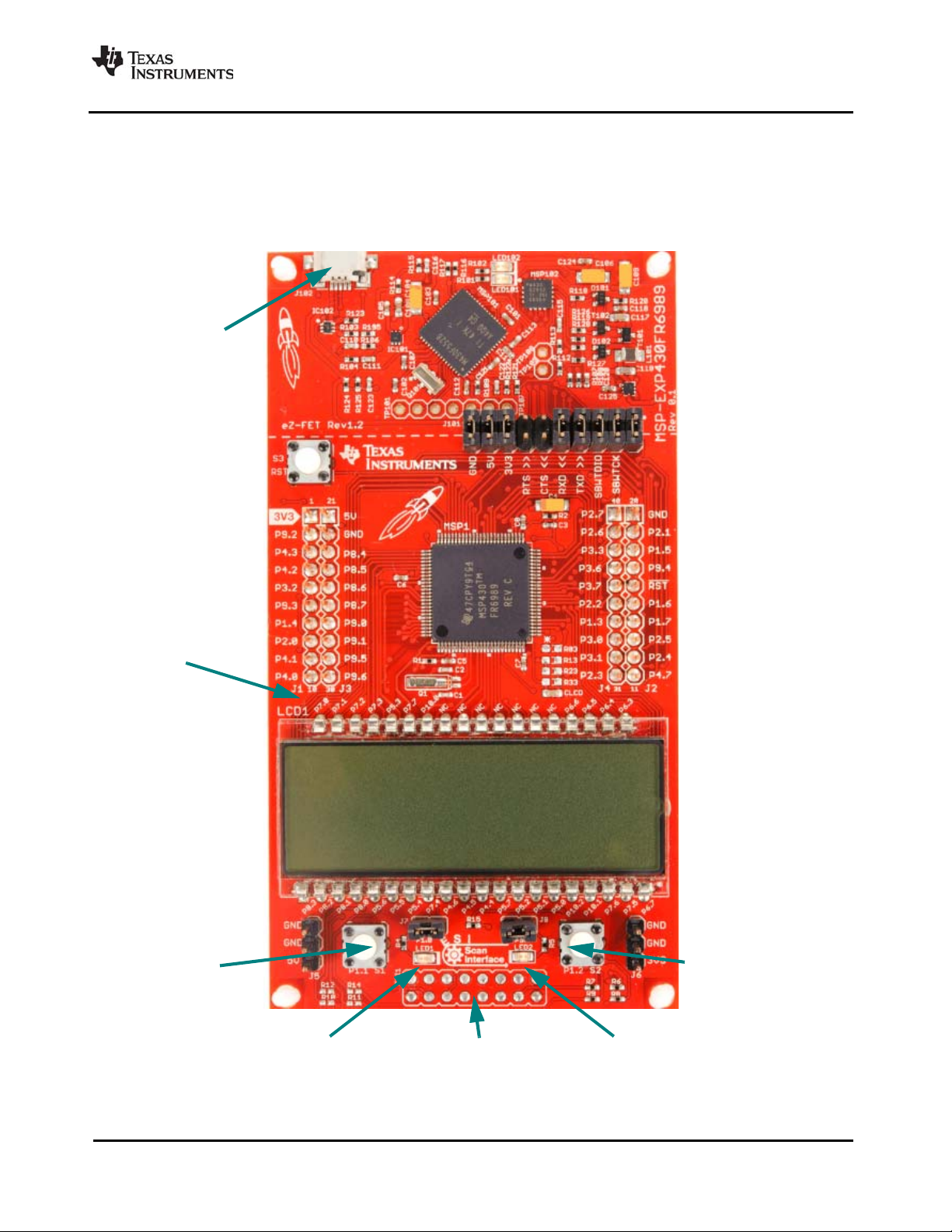

MSP430FR6xx MSP430FR6989 MSP-EXP430FR6989LP LaunchPad

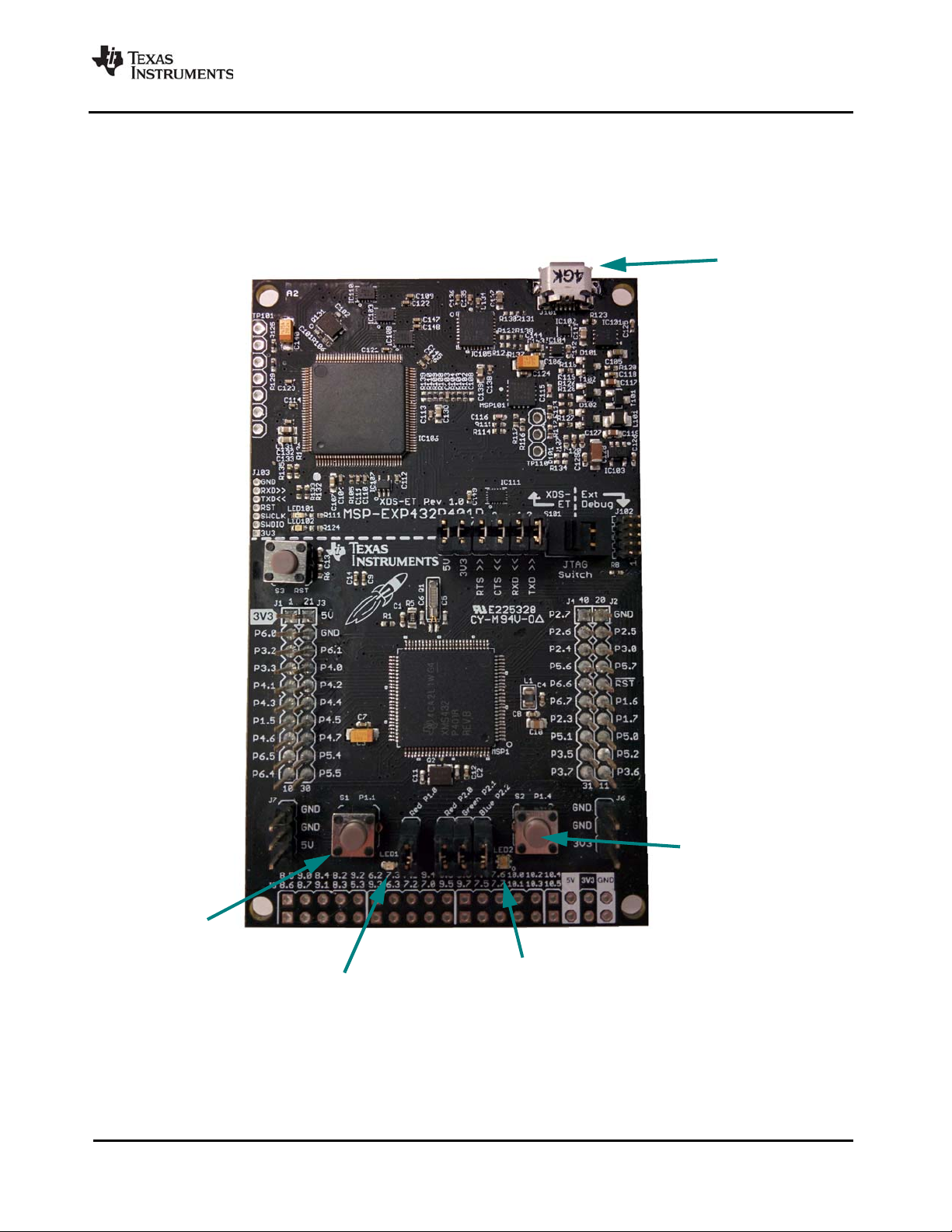

MSP432 MSP432P401R MSP-EXP432P401RLP LaunchPad

Examples are provided specifically for the supported boards, but libraries are provided for each of these
device families, so that you can port the examples to similar boards. Porting information for TI-RTOS is
provided on the Texas Instruments Wiki.

For MSP43x devices, TI-RTOS drivers are prebuilt only for MSP430F5529, MSP430FR5969, and
MSP432P401R devices. TI-RTOS drivers for other MSP43x devices must be added into the TI-RTOS
build system. See "Rebuilding MSPWare's driverlib for TI-RTOS and its Drivers" in the TI-RTOS User’s

Guide (SPRUHD4) for details.

1.6 What Drivers Does TI-RTOS Include?

TI-RTOS includes drivers for the following peripherals. These drivers are in the

<install_dir>/products/tidrivers_<version>/packages/ti/drivers

examples show how to use these drivers. Note that all of these drivers are built on top of MSPWare.
The TI-RTOS installation installed drivers for multiple device families. The following list indicates which

drivers can be use with MSP43x targets:

•

GPIO. API set intended to be used directly by the application or middleware to manage the GPIO
interrupts, pins, and ports.

•

I2C. API set intended to be used directly by the application or middleware.

•

Power. Power management framework. See the TI-RTOS Power Management User’s Guide
(SPRUI18).

directory. TI-RTOS

SPRUHU4D—February 2016 About TI-RTOS 7

Submit Documentation Feedback

For More Information www.ti.com

•

PWM. API set intended to be used directly by the application or middleware to generate Pulse Width
Modulated signals.

•

SPI. API set intended to be used directly by the application or middleware to communicate with the
Serial Peripheral Interface (SPI) bus. SPI is sometimes called SSI (Synchronous Serial Interface).

•

SDSPI. Driver for SD cards using a SPI (SSI) bus. This driver is used by the FatFS and not intended
to be called directly by the application.

•

UART. API set intended to be used directly by the application to communicate with the UART.

•

Other USB functionality . See the USB examples for reference modules that provide support for the
Human Interface Device (HID) class (mouse and keyboard) and Communications Device Class
(CDC). This code is provided as part of the examples, not as a separate driver.

•

Watchdog. API set intended to be used directly by the application or middleware to manage the
watchdog timer.

•

WiFi. Driver used by a Wi-Fi device's host driver to exchange commands, data, and events between
the host MCU and the wireless network processor. Not intended to be called directly.

1.7 For More Information

To see release notes for a component, go to the subdirectory for that component within the TI-RTOS
products directory. For example,
contains release notes for SYS/BIOS.

C:\ti\tirtos_msp43x_2_##_##_##\products\bios_6_40_##_##

To see user guide PDFs and other documentation for a component, go to the "docs" subdirectory within
the directory that contains the release notes.

To learn more about TI-RTOS and its components, refer to the following documentation:

•

TI-RTOS
— TI-RTOS User’s Guide (SPRUHD4)
— In the TI-RTOS Release Notes, follow the Documentation Overview link. In the Documentation

Overview page, choose the TI-RTOS Drivers Runtime APIs (doxygen) item.
— TI-RTOS on the Texas Instruments Wiki
— TI-RTOS forum on TI’s E2E Community
— TI-RTOS Porting Guide
— Embedded Software Download Page

•

Code Composer Studio (CCS)
— CCS online help
— CCSv6 on the Texas Instruments Wiki
— Code Composer forum on TI’s E2E Community

•

SYS/BIOS
— SYS/BIOS User’s Guide (SPRUEX3)
— SYS/BIOS API and configuration reference. In the TI-RTOS Release Notes, follow the

Documentation Overview link. In the Documentation Overview page, choose the TI-RTOS

Kernel Runtime APIs and Configuration (cdoc) item.
— SYS/BIOS on the Texas Instruments Wiki
— TI-RTOS forum on TI’s E2E Community
— SYS/BIOS 6.x Product Folder

8 About TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com For More Information

•

XDCtools
— SYS/BIOS User’s Guide (SPRUEX3)
— XDCtools online reference. Open from CCS help or run <xdc_install>/docs/xdctools.chm.
— RTSC-Pedia Wiki
— TI-RTOS forum on TI’s E2E Community

•

UIA
— System Analyzer User’s Guide (SPRUH43)
— UIA API and configuration reference. In the TI-RTOS Release Notes, follow the Documentation

Overview link. In the Documentation Overview page, choose the TI-RTOS Instrumentation

Runtime APIs and Configuration (cdoc) item.
— System Analyzer on the Texas Instruments Wiki

•

MSPWare
— Documents in <tirtos_install>/products/MSPWare_##/doc
— MSPWare Product Folder

•

FatFS API
— Open source documentation
— TI-RTOS User’s Guide (SPRUHD4)

•

General microcontroller information
— Microcontrollers forum on TI’s E2E Community

•

MSP43x boards and devices
— MSP-EXP430F5529LP LaunchPad Evaluation Kit
— MSP430 USB Developers Package (which includes the USB Descriptor Tool)
— MSP430F5529 Microcontroller
— MSP-EXP430FR5969LP LaunchPad Evaluation Kit
— MSP430FR6989 Microcontroller
— MSP-EXP430FR6989LP LaunchPad Evaluation Kit

•

BoosterPacks
— EM Adapter BoosterPack
— RF430CL330H NFC Dynamic Tag Target Board
— MicroSD BoosterPack
— SD Card BoosterPack
— TMP006 BoosterPack
— I2C TPL0401EVM BoosterPack

•

SD Cards
— Specification

•

I2C
— Specification

•

WiFi
— SimpleLink Wi-Fi CC31xx/CC32xx Wiki Page
— CC3100 Product Folder
— CC3200 Product Folder
— SimpleLink Wi-Fi Smar tCon fig Apps

SPRUHU4D—February 2016 About TI-RTOS 9

Submit Documentation Feedback

Chapter 2

2.1 System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.2 Installing Code Composer Studio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.3 Installing TI-RTOS in Code Composer Studio . . . . . . . . . . . . . . . . . . 11

2.4 Installing TI-RTOS for Use in IAR Embedded Workbench. . . . . . . . . 12

2.5 Installing TI-RTOS as a Standalone Product . . . . . . . . . . . . . . . . . . . 12

Topic Page

SPRUHU4D—February 2016

Installing TI-RTOS

This chapter covers the steps to install TI-RTOS within Code Composer Studio or as a standalone
software product.

2.1 System Requirements

The Microsoft Windows version of TI-RTOS can be installed on systems running Windows 8, Windows 7,
Windows Vista, or Windows XP (SP2 or SP3).

The Linux version of TI-RTOS can be installed on systems that are running Linux RedHat v4 and higher
or Ubuntu v10.04 and higher.

Separate versions of TI-RTOS are available for various Texas Instruments device families.
In order to install TI-RTOS, you must have at least 1 GB of free disk space. (If you have not yet installed

Code Composer Studio, you will also need at least 4 GB of disk space for that installation.)

SPRUHU4D—February 2016 Installing TI-RTOS 10

Submit Documentation Feedback

www.ti.com Installing Code Composer Studio

2.2 Installing Code Composer Studio

TI-RTOS is used in conjunction with Code Composer Studio 6.1 or higher. (TI-RTOS can also be used
with the IAR Embedded Workbench IDE. See page 12 for more information.) CCS is availab le for
Microsoft Windows and Linux.

For Windows installations, we recommend that you install CCS in the default installation directory of

c:\ti

. If you install in c:\Program Files (or c:\Program Files (x86) with Windows 7), you are likely to run

into problems related to Windows security permissions.

Note: Do not install CCS in a location that contains any spaces in the full path. For example,

CCS should not be installed in c:\Program Files. Makefiles may not function correctly
with directory paths that include spaces.

To install CCS 6.x, go to the "Download CCS" page on the Texas Instruments wiki and follow a link to
download the software for your license type. For multi-user licenses, see the CCS product page.

Run the installer, and answer the prompts as appropriate.

2.3 Installing TI-RTOS in Code Composer Studio

TI-RTOS is not installed automatically as part of the Code Composer Studio v6.x
installation. Instead, you can install it through the CCS App Center as described
in this section, for use in IAR Workbench as described in Section 2.4, or as a
standalone product as described in Section 2.5.

Follow these steps to install TI-RTOS in CCS:

1. Run CCS v6.1 or higher.

2. Choose View > CCS App Center in CCS.

3. Select the version of TI-RTOS for your device family. If you use devices from multiple families, you
can select multiple TI-RTOS versions.

4. Click the Install Software button near the top of the App Center view.

5. Answer the prompts as neces sa ry to compl ete the TI-RTOS installation.

6. Restart CCS in order for TI-RTOS and its components to be available.

SPRUHU4D—February 2016 Installing TI-RTOS 11

Submit Documentation Feedback

Installing TI-RTOS for Use in IAR Embedded Workbench www.ti.com

2.4 Installing TI-RTOS for Use in IAR Embedded Workbench

You can install TI-RTOS for use with IAR Embedded Workbench as follows:

1. Install IAR Embedded Workbench for T exas Instruments MSP430 devices. See Section 1.4 for the
supported versions of IAR Workbench.

2. Download the Windows installer for TI-RTOS for MSP43x. For example,

tirtos_setupwin32_msp43x_2_##_##_##.exe

3. Run the downloaded file to install the full TI-RTOS product. Y ou can install TI-RTOS in a standalone
directory. Installing in a directory path that contains spaces, such as
not supported.

Note: TI-RTOS installs the core functiona lity of the XDCtools component if you have not al ready
installed the necessary version as part of a CCS installation. TI-RTOS places XDCtools in a separate
directory at the same level where you install TI-RTOS. For example, if the TI-RTOS installation
directory is

C:\ti\xdctools_3_31_##_##_core

C:\ti\tirtos_msp43x_2_##_##_##

.

Follow the instructions in Section 3.1.2 to complete the installation of the TI-RTOS examples. See

Section 3.2 to build the examples with the IAR compiler and to load and run the examples with IAR

Embedded Workbench.

.

C:\Program Files (x86)

, the XDCtools directory will be

, is

2.5 Installing TI-RTOS as a Standalone Product

If you do not use Code Composer Studio, you can install TI-RTOS as a standalone product. In addition
to compiling and linking with the Texas Instruments Code Generation Tools, TI-RTOS includes support
for the IAR tool chain.

1. Download the Windows or Linux installer for TI-RTOS for the device family you use. For example,

tirtos_setupwin32_msp43x_2_##_##_##.exe

2. Run the downloaded file to install TI-RTOS. You can install TI-RTOS in a standalone directory.
Installing in a directory path that contains spaces, such as
supported.

Note: TI-RTOS installs the core functiona lity of the XDCtools component if you have not al ready
installed the necessary version as part of a CCS installation. TI-RTOS places XDCtools in a separate
directory at the same level where you install TI-RTOS. For example, if the TI-RTOS installation
directory is located in

C:\ti\xdctools_3_31_##_##_core

C:\ti\tirtos_msp43x_2_##_##_##

.

Follow the instructions in Section 3.1.2 to complete the installation of the TI-RTOS examples.

or

tirtos_setuplinux_msp43x_2_##_##_##.bin

C:\Program Files (x86)

, is not

, the XDCtools directory will be in

.

12 Installing TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

Chapter 3

3.1 Creating Example Projects Using the Resource Explorer in CCS . . 14

3.2 Creating Examples with IAR Embedded Workbench. . . . . . . . . . . . . 18

3.3 Driver Examples: Readme Files and Common Features. . . . . . . . . . 18

3.4 MSP430 MSP-EXP430F5529LP Settings and Resources. . . . . . . . . . 19

3.5 MSP430 MSP-EXP430FR5969LP Settings and Resources . . . . . . . . 21

3.6 MSP430 MSP-EXP430FR6989LP Settings and Resources . . . . . . . . 23

3.7 MSP432 MSP-EXP432P401RLP Settings and Resources . . . . . . . . . 25

3.8 BoosterPacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.9 Installing USB Drivers for the USB Device Examples . . . . . . . . . . . . 31

Topic Page

SPRUHU4D—February 2016

Examples for TI-RTOS

TI-RTOS comes with a number of examples that illustrate on how to use the individual components. This
chapter explains how to create and use these examples.

SPRUHU4D—February 2016 Examples for TI-RTOS 13

Submit Documentation Feedback

Creating Example Projects Using the Resource Explorer in CCS www.ti.com

3.1 Creating Example Projects Using the Resource Explorer in CCS

You can use the Resource Explorer in Code Composer Studio (CCS) to create example projects that
use TI-RTOS and its components and have all the settings needed for your device. Follow these steps:

1. Open CCS. If you do not see the Resource Explorer, make sure you are in the CCS Edit perspective
and choose View > Resource Explorer (Exa mpl es) from the menus.

2. Type the name or part of the name of your device in the enter search keyword field to hide all the
examples that don’t apply to your device. Or, type "Driver Examples" to find driver examples.

3. Expand the tree until you see the examples for your device. Any Driver Examples listed are TI-
RTOS driver examples. Any Instrumentation Examples listed are UIA examples. The Kernel
Examples are the TI-RTOS Kernel (SYS/BIOS) examples. Network Examples use capabilities such
as WiFi, PPP, Ethernet, and HTTP/HTTPS.

4. Select the example you want to create. A description of the selected example is shown to the right
of the example list.

14 Examples for TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com Creating Example Projects Using the Resource Explorer in CCS

5. Click the Step 1 link in the right pan e of t he Reso ur ce Ex plor er to Import the e xample proje ct into
CCS. This adds a new project to your Project Explorer view. Once you have completed a step for a
particular example and device, a green checkmark will be shown next to that step.

6. The project created will have a name with the format <example_name>_<board>. You can expand
the project to see the source code, configuration, and other files in the project.

7. The page shown when you select an example in the Resource Explorer provides additional links to
perform common actions with that example. Use the Step 2 link when you are ready to build the
project. If you want to change any build options, right click on the project and select Properties from
the context menu. For example, you can change compiler, linker, and RTSC (XDCtools) options.

SPRUHU4D—February 2016 Examples for TI-RTOS 15

Submit Documentation Feedback

Creating Example Projects Using the Resource Explorer in CCS www.ti.com

8. Use the Step 3 link to change the connection used to communicate with the board. The current
setting is shown in the Resource Explorer page for the selected example. (If you want to use a
simulator instead of a hardware connection, double-click the *.ccxml file in the targetConfigs folder
of the project to open the Target Configuration File editor. Change the Connection as needed, and
click Save.)

9. You will see the Debugger Configuration dialog. Choose an emulator. For MSP430 devices, choose
the TI MSP430 USB1, and for MSP432 devices, choose the TI XDS 110 USB Emulator.

10. Use the Step 4 link to launch a debug session for the project and switch to the CCS Debug
Perspective.

3.1.1 Creating an Empty TI-RTOS Project

TI-RTOS provides blank projects you can use as a starting point for creating your own projects that utilize
TI-RTOS. Both "Empty" and "Empty (Minimal)" versions are provided. The "Empty" version enables more
kernel features and debug capabilities at the cost of large footprint. The "Empty (Minimal)" version
disables various kernel features and debug capabilities to minimize the footprint. See the "Memory Usage
with TI-RTOS" chapter in the TI-RTOS User’s Guide (SPRUHD4) for details about techniques used to
minimize the footprint.

Empty TI-RTOS driver projects can be created with the Resource Explorer (see Section 3.1).
After you create the example, the files in the empty project example include:

•

Key C files: empty.c, <board>.c/.h

•

Key configuration files: empty.cfg

•

Linker command file: <board>.cmd

Add to the example as needed to implement your application.

16 Examples for TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com Creating Example Projects Using the Resource Explorer in CCS

3.1.2 Creating Examples to Build via a Command Line

TI-RTOS has a command-line utility called

examplesgen

that generates example projects along with the
makefiles needed to build the examples for all supported tool chains—TI and IAR. The files are created
in a location you specify on the command line. The

tirtos.mak

file in the top level directory of your TI-

RTOS installation can be used to run examplesgen.

Note: If you installed TI-RTOS using the standalone installer (Section 2.5 or Section 2.4), this

step is not necessary because pre-generated examples are included as part of the
installation for all supported boards and tool chains. The provided examples are
located in the

TIRTOS_INSTALL_DIR\tirtos_msp43x_2_##_##_##_examples

directory. Pre-generated examples are not provided if you installed TI-RTOS through
the CCS App Center.

You only need to perform these steps once:

1. If you installed TI-RTOS in a location other than the default location of C:\ti, edit the

tirtos.mak

file
in the TI-RTOS installation directory. Modify the following variables as needed to make them point to
the correct locations.

— DEFAULT_INSTALL_DIR: Full path to the location where TI tools are installed.
— IAR_COMPILER_INSTALL_DIR: Full path to the IAR code generation tools installation.
— GCC_INSTALLATION_DIR: Full path to the GCC code generation tools installation. (GCC is not

supported for this device family.)

— TIRTOS_INSTALL_DIR: Full path to the TI-RTOS installation.
— XDCTOOLS_INSTALL_DIR: Full path to the XDCtools installation.

2. If you plan to use TI-RTOS with IAR, set the IAR_BUILD variable in the

IAR_BUILD ?= true

tirtos.mak

file to true.

3. Open a command line window, and use the following commands to run the examplesgen utility. (If
you installed TI-RTOS in a protected directory, you should run the command window as the
administrator.)

> cd <tirtos_install>
> ..\xdctools_3_31_##_##_core\gmake -f tirtos.mak examplesgen DEST="YOURPATH"

For the destination path, use a UNIX-style path. That is, use forward slashes (/) instead of
backslashes (\). For example,

DEST="C:/myfiles"

The output from this command is a

tirtos_msp43x_2_##_##_##_examples

.

directory tree containing
folders for the supported boards. Each board folder contains folders for all the examples available for
that board.

Examples for TI and IAR are generated for boards supported by TI-RTOS. Each board directory contains

makedefs

a

makefile
makefile

file that can be modified to specify other installation paths or compiler/linker options and a
that can be used to build all the examples for that board. Each example directory has its own
that can be used to build that example specifically.

SPRUHU4D—February 2016 Examples for TI-RTOS 17

Submit Documentation Feedback

Creating Examples with IAR Embedded Workbench www.ti.com

3.2 Creating Examples with IAR Embedded Workbench

For information about using TI-RTOS examples with IAR Embedded Workbench, see the wiki page on

Creating TI-RTOS Applications in IAR Embedded Workbench on the Texas Instruments wiki.

3.3 Driver Examples: Readme Files and Common Features

Details about the driver examples are provided in the readme files in the example projects. There is a
separate <example_name>_readme file for each of the examples. These files are added to your CCS
project when you use the Resource Explorer to create a project. You can open the
<example_name>_readme file within CCS. The <example_name>_readme files contain the following
types of information:

•

Actions performed by functions in the example.

•

Hardware-specific descriptions of buttons, LEDs, etc…

•

Which external components are (or may be) needed to run with particular examples.

There are several TI-RTOS example categories. The Empty and Empty (Minimal) projects are configured
to make TI-RTOS available but do not contain specific code that uses TI-RTOS. The Demo examples use
several peripherals working together. The remaining examples show how to use a specific peripheral.

The Driver Examples share the following features:

•

Most TI-RTOS driver examples use the SysMin System Support module. See the readme files in the
individual example projects for details.

•

The empty, demo, and most UART examples use the ti.uia.sysbios.LoggingSetup module with stop
mode data collection. The UART Console example uses run-time data collection during Idle thread
processing. For more details on data collection, see Chapter 2 of the TI-RTOS User’s Guide
(SPRUHD4).

•

Driver Examples for a particular target all have the same <board>.c and <board>.h files. These files
perform board-specific configuration of the drivers provided by TI-RTOS. For more details, see
Chapter 4 of the TI-RTOS User’s Guide (SPRUHD4).

The sections that follow list settings required to run the TI-RTOS examples on the supported boards.
They also list the hardware resources that TI-RTOS and its dependent components use by default. Some
of these resources offer flexible options, whereas others are fixed in the current design or
implementation.

18 Examples for TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com MSP430 MSP-EXP430F5529LP Settings and Resources

Micro-B USB for

power, emulation,

UART examples,

and USB examples

Board_LED0
(MSP_EXP430F5529LP_LED1)

Board_BUTTON0
(MSP_EXP430F5529LP_S1)

Board_BUTTON1
(MSP_EXP430F5529LP_S2)

Board_LED1
(MSP_EXP430F5529LP_LED2)

Rev 1.4+
required for all
booster-packs

3.4 MSP430 MSP-EXP430F552 9LP Set t ings and Resource s

The MSP-EXP430F5529LP board contains an MSP430 MSP430F5529 device.

MSP-EXP430F5529LP connections:

Jumper settings:

•

Set RXD << and TXD >> to provide UART communications via the onboard USB debugger.

If you use a BoosterPack with this board (Section 3.8), the BoosterPack fits over J1 and J5.

SPI Loopback example pin connections:

The SPI loopback example is not supported on MSP430F5529.

SPRUHU4D—February 2016 Examples for TI-RTOS 19

Submit Documentation Feedback

MSP430 MSP-EXP430F5529LP Settings and Resources www.ti.com

Resources Used:

The following list shows which MSP_EXP430F5529LP resources are used by TI-RTOS applications on
that platform. TI-RTOS examples control which peripherals (and which ports) are used.

•

TI-RTOS Kernel (SYS/BIOS). Uses the first general-purpose timer available and that timer's
associated interrupts. Generally, this will be T imer0_A0. The TI-RTOS Kernel manages the interrupt
controller statically without an interrupt dispatcher.

•

TI-RTOS.
— SD Card. Uses FatFs and the SDSPI driver on USCI_B0 without interrupts to read and write to

files.

2

—I

C. The I2C driver is configured on USCI_B0 to support various BoosterPacks.

—GPIOs. The GPIO driver is used on 2 onboard LEDs: LED1 (P1.0) and LED2 (P4.7) as output

pins and 2 switches S1 P2.1 and S2 P1.1 as inputs.

—Serial. The UART driver uses USCI_A1, which is attached to the onboard EZ-FET MSP430 USB

chip to facilitate serial communications.

—SPI. The SPI driver is configured to use USCI_B1 and USCI_B0 for SPI communications. Each

instance requires 2 DMA channels; therefore, only one SPI instance can be used at a time.

—USB. The USB reference examples use the USB library and the USB controller with its

associated interrupts.

— Watchdog. The Watchdog driver example uses Watchdog Timer A.
— WiFi. The WiFi examples for use with the CC3100 use GPIO pins P2.0, P2.2, and P6.5 as well

as the GPIO interrupt for port 2. In addition, it uses P3.0 and P3.2 for SPI communications.

For MSP430, USB drivers are stored in the USB_config folder in TI-RTOS USB examples in CCS. The
USB reference modules for MSP430 use a set of descriptor files that were generated with the MSP430
USB Descriptor Tool.

20 Examples for TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com MSP430 MSP-EXP430FR5969LP Settings and Resources

Micro-B USB for

power, emulation,

and UART examples

Board_LED0
(MSP_EXP430FR5969_LED1)

Board_BUTTON0
(MSP_EXP430FR5969_S2)

Board_BUTTON1
(MSP_EXP430FR5969_S1)

Board_LED1
(MSP_EXP430FR5969_LED2)

Rev 1.4+
required for all
booster-packs

3.5 MSP430 MSP-EXP430FR5969LP Settings and Resources

The MSP-EXP430FR5969LP board contains an MSP430FR5969 device. This device has an FRAM
memory unit.

MSP-EXP430FR5969LP connections:

SPRUHU4D—February 2016 Examples for TI-RTOS 21

Submit Documentation Feedback

MSP430 MSP-EXP430FR5969LP Settings and Resources www.ti.com

Jumper settings:

•

Set RXD << and TXD >> to provide UART communications via the onboard USB debugger.

If you use a BoosterPack with this board (Section 3.8), the BoosterPack fits over J4 and J5.

SPI Loopback example pin connections:

The SPI loopback example is not supported on the MSP_EXP430FR5969LP.

Resources Used:

The following list shows which MSP_EXP430FR5969LP resources are used by TI-RTOS applications on
that platform. TI-RTOS examples control which peripherals (and which ports) are used.

•

TI-RTOS Kernel (SYS/BIOS). Uses the first general-purpose timer available and that timer's
associated interrupts. Generally, this will be T imer0_A3. The TI-RTOS Kernel manages the interrupt
controller statically without an interrupt dispatcher.

•

TI-RTOS.
— SD Card. Uses FatFs and the SDSPI driver on EUSCI_B0 without interrupts to read and write to

files.

2

—I

C. The I2C driver is configured on EUSCI_B0 to support various BoosterPacks.

—GPIOs. The GPIO driver is used on 2 onboard LEDs: LED1 (P4.6) and LED2 (P1.0) as output

pins and 2 switches S1 P4.5 and S2 P1.1 as inputs.

—Serial. The UART driver uses EUSCI_A0, which is attached to the onboard EZ-FET MSP430

USB chip to facilitate serial communications.

—SPI. The SPI driver is configured to use EUSCI_B0 for SPI communications. This instance

requires 2 DMA channels for the SPI transfer, one for transfer and one for receive.

— Watchdog. The Watchdog driver example uses Watchdog Timer A.
— WiFi. The WiFi examples for use with the CC3100 use GPIO pins P1.2, P3.0, and P4.2 as well

as the GPIO interrupt for port 1. In addition, it uses the EUSCI_B0 pins for SPI communications.

22 Examples for TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com MSP430 MSP-EXP430FR6989LP Settings and Resources

Micro-B USB for

power, emulation,

and UART examples

Board_LED0
(MSP_EXP430FR6989_LED1)

Board_BUTTON0
(MSP_EXP430FR6989_S1)

Board_BUTTON1

(MSP_EXP430FR6989_S2)

Board_LED1
(MSP_EXP430FR6989_LED2)

Segmented LCD

Extended Scan
Interface

3.6 MSP430 MSP-EXP430FR6989LP Settings and Resources

The MSP-EXP430FR6989LP board contains an MSP430FR6989 device. This device has an FRAM
memory unit.

MSP-EXP430FR6989LP connections:

SPRUHU4D—February 2016 Examples for TI-RTOS 23

Submit Documentation Feedback

MSP430 MSP-EXP430FR6989LP Settings and Resources www.ti.com

Jumper settings:

•

Set RXD << and TXD >> to provide UART communications via the onboard USB debugger.

If you use a BoosterPack with this board (Section 3.8), the BoosterPack fits over J1 through J4.

SPI Loopback example pin connections:

The SPI loopback example is not supported on the MSP_EXP430FR6989LP.

Resources Used:

The following list shows which MSP_EXP430FR6989LP resources are used by TI-RTOS applications on
that platform. TI-RTOS examples control which peripherals (and which ports) are used.

•

TI-RTOS Kernel (SYS/BIOS). Uses the first general-purpose timer available and that timer's
associated interrupts. Generally, this will be T imer0_A0. The TI-RTOS Kernel manages the interrupt
controller statically without an interrupt dispatcher.

•

TI-RTOS.
— SD Card. Uses FatFs and the SDSPI driver on EUSCI_B0 without interrupts to read and write to

files.

2

—I

C. The I2C driver is configured on EUSCI_B0 to support various BoosterPacks.

—GPIOs. The GPIO driver is used on 2 onboard LEDs: LED1 (P1.0) and LED2 (P9.7) as output

pins and 2 switches S1 P1.1 and S2 P1.2 as inputs.

—Serial. The UART driver uses EUSCI_A1, which is attached to the onboard EZ-FET MSP430

USB chip to facilitate serial communications.

—SPI. The SPI driver is configured to use EUSCI_B0 for SPI communications. This instance

requires 2 DMA channels for the SPI transfer, one for transfer and one for receive.

— Watchdog. The Watchdog driver example uses Watchdog Timer A.
— WiFi. The WiFi examples for use with the CC3100 use GPIO pins P1.5, P3.2, and P2.1 as well

as the GPIO interrupt for port 2. In addition, it uses the EUSCI_B0 pins for SPI communications.

24 Examples for TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com MSP432 MSP-EXP432P401RLP Settings and Resources

Micro-B USB for

power, emulation,

and UART examples

Board_LED0
(MSP_EXP432P401RLP_LED1)

Board_BUTTON0
(MSP_EXP432P401RLP_S1)

Board_BUTTON1
(MSP_EXP432P401RLP_S2)

Board_LED1 (MSP_EXP432P401RLP_LED_RED)
Board_LED2 (MSP_EXP432P401RLP_LED_GREEN)
Board_LED3 (MSP_EXP432P401RLP_LED_BLUE)

3.7 MSP432 MSP-EXP432P401RLP Settings and Resources

The MSP-EXP432P401RLP board contains an MSP432P401R device.

MSP-EXP432P401RLP connections:

SPRUHU4D—February 2016 Examples for TI-RTOS 25

Submit Documentation Feedback

MSP432 MSP-EXP432P401RLP Settings and Resources www.ti.com

Jumper settings:

•

Set RXD << and TXD >> to provide UART communications via the onboard USB debugger.

•

If you use a BoosterPack with this board (Section 3.8), the BoosterPack fits over J1 and J5.

SPI Loopback example pin connections:

When wiring for SPI loopback, pins on a single board are wired to other pins on the same board.

Master Pin (Function) Slave Pin (Function)

P1.5 (EUSCI_B0_CLK)

P1.6 (EUSCI_B0_SIMO)

P1.7 (EUSCI_B0_SOMI)

Resources Used:

The following list shows which MSP_EXP432P401RLP resources are used by TI-RTOS applications.
TI-RTOS examples control which peripherals (and which ports) are used.

•

TI-RTOS Kernel (SYS/BIOS). Uses the first general-purpose timer available and that timer's
associated interrupts. Generally, this will be T imer0_A0. The TI-RTOS Kernel manages the interrupt
controller statically without an interrupt dispatcher.

•

TI-RTOS.
—GPIO. The GPIO driver is used on 2 onboard LEDs: LED1 (P1.0) and LED2 (P2.0) as output pins

and 2 switches S1 (P1.1) and S2 (P1.4) as inputs.

2

—I

C. The I2C driver is configured on EUSCI_B0 to support various BoosterPacks.

—PWM. The PWM driver uses the onboard RGB LED (G:P2.1 and B:P2.2). These pins are

configured for the PWM driver. While these pins can also be used by the GPIO driver, your
application's board file must ensure that the pins are not simultaneously used by the GPIO and
PWM drivers.

— SD Card. Uses FatFs and the SDSPI driver on EUSCI_B0 without interrupts to read and write to

files.

P3.5 (EUSCI_B1_CLK)

P3.6 (EUSCI_B1_SIMO)

P3.7 (EUSCI_B1_SOMI)

—SPI. The SPI driver is configured to use EUSCI_B0 and EUSCI_B1 for SPI communications.
—Serial. The UART driver uses EUSCI_A0, which is attached to the onboard emulator to facilitate

serial communications.

— Watchdog. The Watchdog driver example uses the Watchdog Timer A peripheral.
— WiFi. The WiFi examples for the CC3100 use the following GPIO pins: P4.1 (enable), P3.0 (chip

select), and P2.5 as the CC3100 interrupt pin (interrupt is created for the port). The driver also
uses an SPI driver instance (EUSCI_B0) and associated DMA channels.

26 Examples for TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com BoosterPacks

J5: Position 2

J6: Open

3.8 BoosterPacks

Several BoosterPack boards are used with the TI-RTOS examples. This section described those boards
and provides any special notes about installing the board.

3.8.1 SD Card BoosterPack

A microSD BoosterPack or SD Card BoosterPack should be used with examples that require an SD Card
reader on target boards that do not include an SD Card reader. This board may be used with the MSP­EXP430F5529LP, MSP-EXP430FR5969LP, MSP-EXP430FR6989LP, and MSP-EXP432P401RLP.

The figure below shows the jumper needed on the microSD BoosterPack to make it pin-compatible with
the SD Card BoosterPack.

3.8.2 TMP006 BoosterPack

The I2C TMP006 example uses the TMP006 BoosterPack to connect the TMP006EVM circuit board to
the LaunchPad. The TMP006 BoosterPack kit, which includes a TMP006EVM circuit board, is available
online. This board may be used with the MSP-EXP430F5529LP, MSP-EXP430FR5969LP, MSP­EXP430FR6989LP, and MSP-EXP432P401RLP.

3.8.3 Sharp Memory LCD BoosterPack

The LCD BoosterPack has a 96 x 96 pixel display that should be used with the graphics library demo
example on the MSP-EXP430FR5969LP. This board may also be used with the MSP-EXP430F5529LP
and MSP-EXP432P401RLP for applications you create. It is available on the TI eStore.

SPRUHU4D—February 2016 Examples for TI-RTOS 27

Submit Documentation Feedback

BoosterPacks www.ti.com

3.8.4 CC3100 BoosterPacks

The TI CC3100 is a self-contained wireless network processor that simplifies the implementation of
Internet connectivity. TI’s SimpleLink Wi-Fi solution minimizes the software requirements of the host
microcontroller (MCU) and is thus the ideal solution for embedded applications using any low-cost and
low-power MCU.

The CC3100 BoosterPack is available to be used with the following boards (pictures are provided to show
the correct way to mount the booster pack onto each board):

•

MSP-EXP430F5529LP

•

MSP-EXP430FR5969LP

28 Examples for TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com BoosterPacks

•

MSP-EXP430FR6989LP

•

MSP-EXP432P401R

SPRUHU4D—February 2016 Examples for TI-RTOS 29

Submit Documentation Feedback

BoosterPacks www.ti.com

R12

+5V

+5V

3.8.5 RF430CL330 NFC Transponder Module

The I2C RF430CL330 Load example uses the I2C driver to communicate with a RF430CL330 NFC

transponder module. This board may be used with the MSP-EXP430F5529LP , MSP-EXP430FR5969LP ,

MSP-EXP430FR6989LP, and MSP-EXP432P401RLP.
A Wireless Connectivity Adaptor board is also required in order to use the NFC Transponder Module with

a LaunchPad board.
Hardware Modification Note: In order to use the RF430CL330 module with a Wireless Connectivity

Adapter board, you need to remove R12 from the RF430CL330H board.

3.8.6 TPL0401EVM Board

The I2C TPL0401EVM example requires an attached TPL0401EVM board. This board may be used with
the MSP-EXP430F5529LP, MSP-EXP430FR5969LP, MSP-EXP430FR6989LP, and MSP­EXP432P401RLP.

A wire like the one shown in the following figure should be added to provide power to the TPL0401EVM
board. This figure shows the wire on an MSP-EXP430F5529LP board. Similar wiring is required to
connect the TPL0401EVM board to other boards supported by this example. A 5V power supply is
recommended to provide sufficient LED brightness.

30 Examples for TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com Installing USB Drivers for the USB Device Examples

3.9 Installing USB Drivers for the USB Device Examples

The USB examples build upon the examples provided with MSPWare. Because the examples mimic the
same functionality, you can use the same drivers delivered with standalone installations of MSPWare.

USB drivers for MSP430 are located in each example's

USB_config

folder.

The Windows menus and dialogs you see may be slightly different from those shown here, depending
on your version of Windows.

To install the USB driver, follow these steps:

1. Load and run a USB device reference example—USB Keyboard Device, USB Mouse Device, or USB
CDC Mouse Device.

2. While the example is running, connect the device to the Windows PC via a USB cable. At this point,
Windows will detect the device and attempt to enumerate it.

3. Open the Windows Device Manager by right-clicking on the My Computer desktop icon or
Computer in the Start Menu and selecting Manage.

4. If you are prompted by a security warning in Windows 7, click Yes.

SPRUHU4D—February 2016 Examples for TI-RTOS 31

Submit Documentation Feedback

Installing USB Drivers for the USB Device Examples www.ti.com

5. Select the Device Manager category in the left pane.

6. In the center pane, select the unknown driver that you are trying to install. For example, the device
shown here is for the USB CDC driver.

7. Right-click on the device, and select Update Driver Software.

8. Select Browse my computer for driver software and browse to the location of the Windows USB
drivers. Make sure the box to Include subfolders is checked.

9. Click Next to run the installation wizard. If you see a Window Security prompt, click Install.

10. After the driver is installed, you can determine the COM port number for the CDC (Virtual COM Port)
device.

32 Examples for TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

Chapter 4

4.1 Starting the Configuration Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

4.2 Configuring TI-RTOS Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4.3 Configuring Components of TI-RTOS . . . . . . . . . . . . . . . . . . . . . . . . . 36

Topic Page

SPRUHU4D—February 2016

Configuring TI-RTOS

This chapter describes how to configure TI-RTOS and its components for use by your application.

SPRUHU4D—February 2016 Configuring TI-RTOS 33

Submit Documentation Feedback

Starting the Configuration Tool www.ti.com

4.1 Starting the Configuration Tool

Note: The graphical configuration tool is not available within IAR Embedded Workbench. If

you are using IAR, edit the project’s *.cfg file within IAR as a text-based source file. See
the Texas Instruments Wiki for more about using IAR with TI-RTOS.

This section shows how to open the Graphical Configuration Tool (XGCONF) to view the System
Overview. For details on using XGCONF, see Chapter 2 of the SYS/BIOS User’s Guide (SPRUEX3).

To use CCS to open the graphical tool for editing configuration files (XGCONF), follow these steps:

1. Make sure you are in the CCS Edit perspective of CCS. If you
are not in that perspective, click the CCS Edit icon to switch back.

2. Double-click on the *.cfg configuration file for a TI-RTOS
example project in the Project Explorer tree. (See Section 3.1 if
you need to create an example project.) While XGCONF is
opening, the CCS status bar shows that the configuration is
being processed and validated.

3. When XGCONF opens, you see the Welcome sheet for TI-RTOS if you are using a Driver example.
(If this is the configuration file for a Kernel example or an Instrumentation example, the Welcome
sheet for SYS/BIOS opens first, instead.) The Welcome sheet provides links to documentation
resources.

4. Click the System Overview link to see a diagram of the components available through TI-RTOS.
(SYS/BIOS modules are shown if you are using a Kernel example or an Instrumentation example.)
A green check mark indicates the modules that are being used by the application.

34 Configuring TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

www.ti.com Configuring TI-RTOS Drivers

5. You also see a list of Available Products in a pane on the left of the
CCS window. This list allows you to select the TIRTOS module
and any configurable modules in the products TI-RTOS provides.

6. Click a blue box in the System Overview to go to the configuration
page for a module.

Note: If the configuration is shown in a text editor instead of XGCONF ,
close the text editor window. Then, right-click on the *.cfg file and
choose Open With > XGCONF. If you are comfortable editing
configuration scripts with a text editor, you can do that. However, you
should not have the file open in both types of editor at the same time.

4.2 Configuring TI-RTOS Drivers

In the System Overview display for the TIRTOS module, click on the
TI-RTOS Drivers block.

You can choose to use either the instrumented or non-instrumented driver libraries when linking with TI­RTOS. The instrumented libraries process Log events while the non-instrumented libraries do not. See
the section on "Using Instrumented or Non-Instrumented Libraries" in the TI-RTOS User’s Guide
(SPRUHD4) for more information. This setting affects all the TI-RTOS drivers listed in Section 1.6
together.

All of the TI-RTOS drivers are available to your application without being separately enabled. To reduce
code size, only the driver code that your application needs to use will be compiled into your application.

4.2.1 Configuring System Support

The SysCallback module lets you configure the functions that handle System output—for example,
System_printf() and System_abort(). This module handles transmissions to System output only; it does
not handle responses received. See the chapter on "TI-RTOS Utilities" in the TI-RTOS User’s Guide
(SPRUHD4) for more about the SysCallback module.

SPRUHU4D—February 2016 Configuring TI-RTOS 35

Submit Documentation Feedback

Configuring Components of TI-RTOS www.ti.com

Other SystemSupport implementations are provided with XDCtools.

•

SysMin stores Syst em_ printf() string s in an inte rnal buffer in RAM. SysMin requires RAM, so it not
ideal for devices with minimal RAM.

•

SysStd writes System_printf() strings to STDOUT (the CCS Console window). By default, SysStd
allows System_printf() to be called from Tasks only (not Swis or hardware interrupts); it can be
modified to allow calls from Swis and Hwis, but this impacts real-time performance.

4.3 Configuring Components of TI-RTOS

For information about configuring individual sub-components of TI-RTOS, see the documentation for that
component. Chapter 2 of the SYS/BIOS User’s Guide (SPRUEX3) provides details about XGCONF.
Within XGCONF, you can see the full file path to the version of the component being used by hovering
your mouse cursor over a component in the "Other Products" list in the Available Products area.

36 Configuring TI-RTOS SPRUHU4D—February 2016

Submit Documentation Feedback

Index

SPRUHU4D—February 2016

Index

A

App Center 11
Available Products list 35

B

BoosterPacks 27

RF430CL330 30
SD Card 27
TMP006 27

C

CCS

creating a project 6, 14
installation 11

other documentation 8
CCS App Center 4, 11
CDC device 8
components 5
Concerto

other documentation 9
configuration 33

graphical editor 34

D

disk space 10
documentation 8

G

GPIO driver 7

resources used 20, 22, 24, 26

H

HID device 8

I

I2C driver 7
installation

CCS 11

directory 11
instrumentation 5
instrumented libraries 35

K

kernel examples 6

L

LaunchPad

MSP-EXP430F5529LP 19
LEDs

managed by GPIO driver 7
LoggingSetup module 18

E

Empty Project example 16
empty.c fil e 16
examples 13

F

FatFs API, documentation 9
forum 8

SPRUHU4D—February 2016 37

Submit Documentation Feedback

M

MSP430F5529 7, 19
MSP430FR5 969 7, 21, 25
MSP430FR6 989 7, 23
MSP430Ware 5
MSP432P401R 7
MSP-EXP430F5529LP 7, 19
MSP-EXP430FR5969LP 7, 21, 25
MSP-EXP430FR6989LP 7, 23
MSP-EXP432P401RLP 7

www.ti.com

N

non-instrumented librari es 35

P

Power driver 7
products directory 5
PWM driver 8

R

readme.txt file 18
Resource Explorer 6, 14
RF430CL330 module 30

S

SD Card BoosterPack 27
SDSPI driver 8

resources used 20, 22, 24, 26

SPI driver 8

resources used 20, 22, 24, 26

SYS/BIOS 5

other documentation 8
SysCallback module, configuration 35
SysMin module 18
System Overview configuration 34
system requirements 10

T

target configuration file 16
TMP006 BoosterPack 27
TPL0401EVM board 30

U

UART driver 8

resources used 20, 22, 24, 26

UIA 5

other documentation 9
USB Descriptor Tool 20
USB driver

resources used 20
USB drivers 8
USB_config folder 20

W

Watchdog driver 8

resources used 20, 22, 24, 26
WiFi driver 8

resources used 20, 22, 24, 26
wiki 8

X

XDCtools 5

other documentation 9
XGCONF

configuring other components 36

starting 34

SPRUHU4D—February 2016 Index 38

Submit Documentation Feedback

IMPORTANT NOTICE

T exas Instr uments Incorporated an d its subsidiaries (TI) reserv e the right to make corrections , enhancements, impro vements and
other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service
per JESD48, latest i ssue. Buyers should obtain the lates t re lev an t information before placing orders and should verify that such
information is curre nt and comple te. All sem iconductor pr oducts (also referred to herein as “c omponent s”) are sold s ubject to TI’s
terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty
in TI’s terms and co nditions of sale o f semicondu ctor products. Testing an d other quality con trol techniques are used to the extent
TI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each
component is not necessarily performed.

TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products
and applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should
provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask
work right, or ot her intellectual property right re lating to any combination, m achine, or proc ess in which TI component s or services
are used. Information p ublished by TI regar ding third-party pro ducts or services do es not constitute a lic ense to use such products
or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the
patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of sig nificant p ortions of T I informati on in TI dat a book s or dat a sheet s is p ermissible o nly if repr oduction i s without
alteration and is a ccomp an ied by al l ass ociate d warra nties , condi tions , limi tati ons, a nd n otice s. TI is not res ponsi ble or l iable f or
such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI compone nts or se rvices with sta tement s dif ferent from or b eyond the p aramete rs stat ed by TI for that component or
service voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive
business practice. TI is not responsible or liable for any such statements.

Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related require­ments concerning its products, and any use of TI components in its applications, notwithstanding any applications-related infor­mation or suppo rt t hat ma y be provided by TI. Buyer represents and agrees that it has al l t he nec es sa ry ex pertise to create and
implement safeguards which anticipate dangerous consequences of failures, monitor failures and their consequences, lessen
the likelihood of failures that might cause harm and take appropriate remedial actions. Buyer will fully indemnify TI and its
representatives against any damages arising out of the use of any TI components in safety-critical applications.

In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s
goal is to help enable customers to design and create their own end-product solutions that meet applicable functional safety
standards and requirements. Nonetheless, such components are subject to these terms.

No TI components a re authorize d for use in FDA Clas s III (or simil ar life-crit ical medi cal equipmen t) unless au thorized of fi cers of
the parties have executed a special agreement specifically governing such use.

Only those TI c omponents which TI ha s specifical ly designated as milit ary grade or “e nhanced plas tic” are des igned and in tended
for use in military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use
of TI components which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for
compliance with all legal and regulatory requirements in connection with such use.

TI has specificall y designated certain co mponents as meeting ISO/TS16949 requirements , mainly for automotive use . In any case
of use of non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.

Products Applications

Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive
Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications
Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers
DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps
DSP dsp.ti.com Energy and Lighting www.ti.com/energy
Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial
Interface interface.ti.com Medical www.ti.com/medical
Logic logic.ti.com Security www.ti.com/security
Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense
Microcontrollers microcontroller.ti.com Video & Imaging www.ti.com/video
RFID www.ti-rfid.com
OMAP Mobile Processors www.ti.com/omap TI E2E Community e2e.ti.com
Wireless Connectivity www.ti.com/wirelessconnectivity

Mailing Address: Texas Instruments, Post Office Box 655303 Dallas, Texas 75265

Copyright © 2016, Texas Instruments Incorporated
