Texas Instruments MSP430FG4618, MSP430FF2013 User Manual

MSP430FG4618/F2013 Experimenter’s Board

User's G uide

User's Guide

SLAU213A

October 2007 Mixed Signal Products

EVM TERMS AND CONDITIONS

Texas Instruments (TI) provides the enclosed Evaluation Module and related material (EVM) to you, the user,

(you or user) SUBJECT TO the terms and conditions set forth below. By accepting and using the EVM, you are

indicating that you have read, understand and agree to be bound by these terms and conditions. IF YOU DO
NOT AGREE TO BE BOUND BY THESE TERMS AND CONDITIONS, YOU MUST RETURN THE EVM AND
NOT USE IT.

This EVM is provided to you by TI and is intended for your INTERN AL ENGINEERING DEVELOPMENT OR
EVALUATION PURPOSES ONLY. It is provided ”AS IS” and ”WITH ALL FAULTS.” It is not considered by TI to

be fit for commercial use. As such, the EVM may be incomplete in terms of required design−, marketing−, and/or
manufacturing related protective considerations, including product safety measures typically found in the end
product. As a prototype, the EVM does not fall within the scope of the European Union directive on
electromagnetic compatibility and therefore may not meet the technical requirements of the directive.

Should this EVM not meet the specifications indicated in the EVM User’s Guide, it may be returned within 30
days from the date of delivery for a full refund of any amount paid by user for the EVM, which user agrees shall
be user’s sole and exclusive remedy. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE
BY TI TO USER, AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY,
INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE OR
NON−INFRINGEMENT.

TI shall have no obligation to defend any claim arising from the EVM, including but not limited to claims that the
EVM infringes third party intellectual property. Further, TI shall have no liability to user for any costs, losses or
damages resulting from any such claims. User shall indemnify and hold TI harmless against any damages,
liabilities or costs resulting from any claim, suit or proceeding arising from user’s handling or use of the EVM,
including but not limited to, (i) claims that the EVM infringes a third party’s intellectual property, and (ii) claims
arising from the user’s use or handling of the EVM. TI shall have no responsibility to defend any such claim, suit
or proceeding.

User assumes all responsibility and liability for proper and safe handling and use of the EVM and the evaluation
of the EVM. TI shall have no liability for any costs, losses or damages resulting from the use or handling of the
EVM. User acknowledges that the EVM may not be regulatory compliant or agency certified (FCC, UL, CE, etc.).
Due to the open construction of the EVM it is the user’s responsibility to take any and all appropriate precautions
with regard to electrostatic discharge.

EXCEPT TO THE EXTENT OF THE USER’S INDEMNITY OBLIGATIONS SET FORTH ABOVE, NEITHER
PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES WHETHER TI IS NOTIFIED OF THE POSSIBILITY OR NOT.

TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not
exclusive.

TI assumes no liability for applications assistance, customer product design, software performance, or
infringement of patents or services described herein.

User agrees to read the EVM User’s Guide and, specifically, the EVM warnings and Restrictions notice in the
EVM User’s Guide prior to handling the EVM and the product. This notice contains important safety information
about temperatures and voltages.

It is user’s responsibility to ensure that persons handling the EVM and the product have electronics training and
observe good laboratory practice standards.

By providing user with this EVM, product and services, TI is NOT granting user any license in any patent or other
intellectual property right.

Mailing Address: Texas Instruments Post Office Box 655303 Dallas, Texas 75265

Copyright © 2007, Texas Instruments Incorporated

If You Need Assistance

Support for the MSP430 device and the experimenter’s board
is provided by the Texas Instruments Product Information

Center (PIC). Contact information for the PIC can be found on

the TI web site at www.ti.com
information can be found on the MSP430 web site at

www.ti.com/msp430

Note: IAR KickStart is supported by Texas Instruments

Although IAR KickStart is a product of IAR, Texas Instruments provides
the support for it. Therefore, please do not request support for Ki
from IAR. Please consult the extensive documentation provided with
KickStart before requesting assistance.

FCC Warning

This equipment is intended for use in a laboratory test
environment only. It generates, uses, and can radiate radio
frequency energy and has not been tested for compliance with
the limits of computing devices pursuant to subpart J of part 15
of FCC rules, which are designed to provide reasonable
protection against radio frequency interference. Operation of
this equipment in other environments may cause interference
with radio communications, in which case the user at his own
expense will be required to take whatever measures may be
required to correct this interference.

. Additional device-specific

.

ckStart

1. Getting Started

The MSP430FG4618/F2013 experimenter’s board is a comprehensive
development target board that can be used for a number of applications. The

MSP-EXP430FG4618 kit comes with one MSP430FG4618/F2013 experimenter’s

board shown in Figure 1 and two AAA 1.5 V batteries.

2. Devices Supported

The MSP430FG4618/F2013 experimenter’s board is based on the Texas
Instruments ultra-low power MSP430 family of microcontrollers [1, 2]. Residing on
this board are the MSP430FG4618 [3] and the MSP430F2013 [4] microcontrollers.

3. Tools Requirement

An MSP430 Flash Emulation Tool (MSP-FET430UIF) is required to download
code and debug the MSP430FG4618 and MSP430F2013. Two separate JTAG
headers are available, supporting independent debug environments. The
MSP430FG4618 uses the standard 4-wire JTAG connection while the
MSP430F2013 uses the Spy-Bi-wire (2-wire) JTAG interface allowing all port pins
to be used during debug. For more details on the Flash Emulation Tool, refer to
the MSP430 Flash Emulation Tool (FET) User’s Guide [5], which covers two
different debug environments: IAR Embedded Workbench and TI Code Composer
Essentials (CCE). Detailed information of their use is included in Appendix A.

Figure 1: MSP430FG4618/F2013

Experimenter’s Board

1

4. Functional Overview

The MSP430FG4618/F2013 experimenter’s board supports various applications
through the use of the on-chip peripherals connecting to a number of on-board
components and interfaces as shown in Figure 2.

Wireless

CC1100/

2420/2500

EMK

Interface

F2013

FG4618

LCD

Analog

Out

Buzzer

RS-232

Microphone

2

JTAG2 JTAG1

Capacitive

Buttons

Touch

Pad

Figure 2: Experimenter’s

Board Block Diagram

Wireless communication is possible through the expansion header which is
compatible with all Chipcon Wireless Evaluation Modules from Texas Instruments.

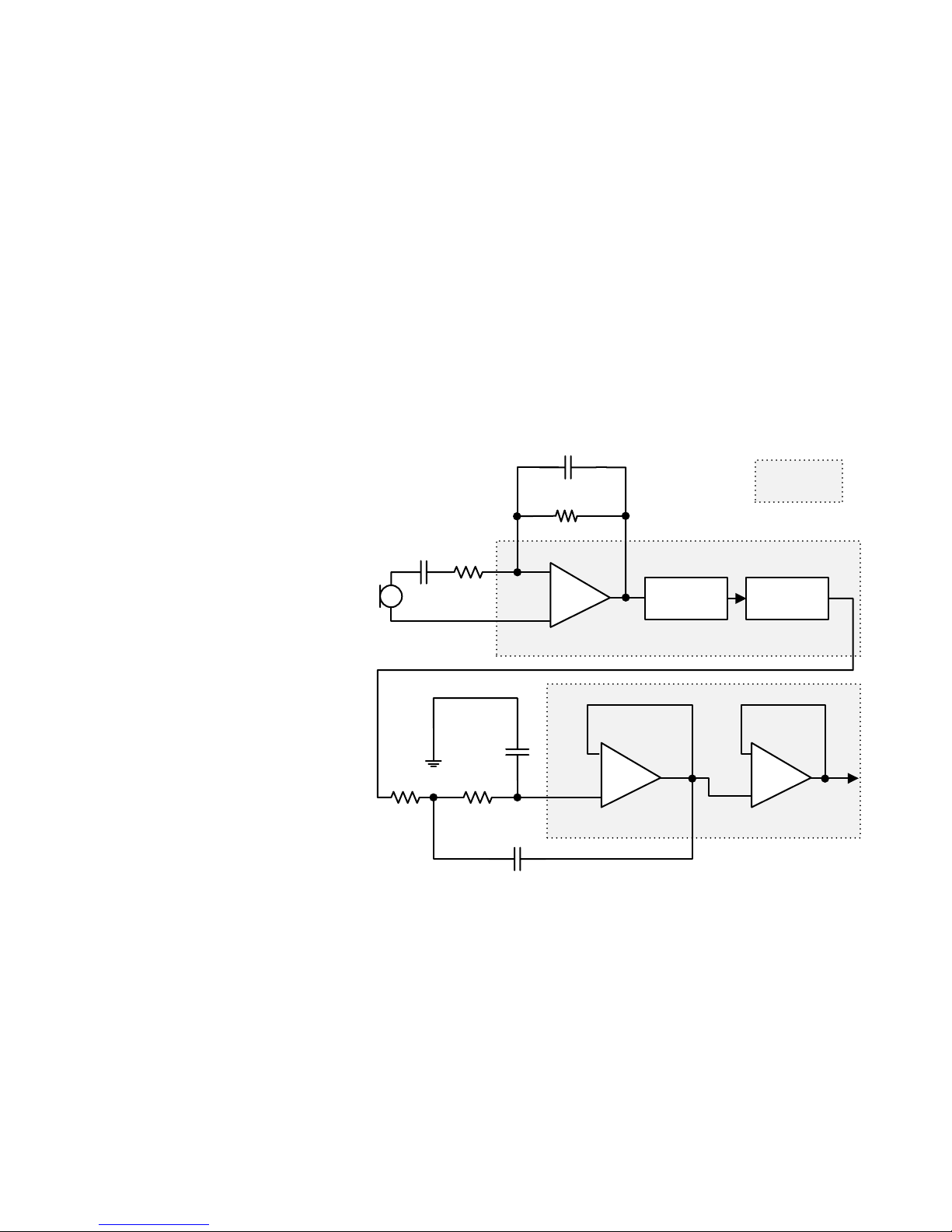

Interface to a 4-mux LCD, UART connection, microphone, audio output jack,
buzzer, and

single touch capacitive touch pad enable the development of a variety
of applications. Communication between the two on-board microcontrollers is also
possible. In addition, all pins of the MSP430FG4618 are made available either via
headers or interfaces for easy debugging. Sample code for this board is available
online at www.ti.com/msp430

.

5. Hardware Installation

Power may be provided locally from two on-board AAA batteries, externally from a
Flash emulation tool (FET), or an external supply. The power source is selected
by configuring jumpers VCC_1, VCC_2, and BATT. PWR1 and PWR2 will supply
power to each MSP430 independently. Appendix B has information on the exact
location of these jumpers. Figure 3 shows the jumper hierarchy and configuration
options.

Figure 3: Jum

per Settings for Power Selection

The battery jumper BATT is used to select the on-board batteries to power the

system, independent of the FET connections. The user must ensure that this
voltage meets the requirement for proper functionality of the MSP430.

The power selection jumpers VCC_1 and VCC_2 select the power connections

between the board and each FET interface. These jumpers are two rows of 3-pin

headers, one for each MSP430 on-board. VCC_1, the bottom row, is for the
MSP430FG4618 and, VCC_2 on the top row, is for the MSP430F2013. A jumper
placed on the rightmost 2-pins (FET) selects the JTAG FET as the power source.
A jumper placed on the leftmost 2-pins (LCL) would enable local power (either

from the batteries or an external supply) to be applied to each FET for proper logic
threshold level matching during program/debug.

Headers PWR1 and PWR2 have been provided to enable power to the individual
MSP430s. A jumper placed on PWR1 provides power to the MSP430FG4618 and
a jumper placed on PWR2 provides power to the MSP430F2013. Individual device

current consumption can be measured via each of these jumpers. Care should be
taken that MSP430 interconnections are not made that could influence such a
measurement.

Once the required power selections have been made the experimenter’s board is
ready to be used. Both the MSP430FG4618 and MSP430F2013 are factory
programmed. After power up, the MSP430FG4618 executes an ultra-low power

real-time clock displayed on the LCD. The MSP430F2013 pulses LED3 from

LPM3 using the VLO as a periodic wake-up time base.

3
