MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

1

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

D

Low Supply Voltage Range 2.5 V – 5.5 V

D

Ultra Low-Power Consumption

D

Low Operation Current, 330 µA at 1 MHz,3 V

D

Two Power Saving Modes:
– Standby Mode: 1.5 µA
– RAM Retention Off Mode: 0.1 µA

D

Wake-up From Standby Mode in 6 µs
Maximum

D

16-Bit RISC Architecture, 200 ns Instruction
Cycle Time

D

Basic Clock Module Configurations:
– Various Internal Resistors
– Single External Resistor
– 32 kHz Crystal
– High Frequency Crystal
– Resonator
– External Clock Source

D

Single Slope A/D Converter With External
Components

D

16-Bit Timer With 3 Capture/Compare
Registers

D

Serial Onboard Programming

D

Program Code Protection by Security Fuse

D

Family Members Include:
MSP430C111: 2k Byte ROM,128 Byte RAM
MSP430C112: 4k Byte ROM, 256 Byte RAM
MSP430P1 12: 4k Byte OTP, 256 Byte RAM

D

EPROM Version Available for Prototyping:
– PMS430E112: 4k Byte EPROM, 256 Byte

RAM

D

Available in a 20-Pin Plastic Small-Outline
Wide Body (SOWB) Package, 20-Pin
Ceramic Dual-In-Line (CDIP) Package
(EPROM Only)

description

The T exas Instruments MSP430 series is an ultra
low-power microcontroller family consisting of
several devices featuring different sets of
modules targeted to various applications. The
microcontroller is designed to be battery operated
for an extended application lifetime. With 16-bit
RISC architecture, 16 bit integrated registers on
the CPU, and the constant generator, the MSP430
achieves maximum code efficiency. The digitally­controlled oscillator provides fast wake-up from all
low-power modes to active mode in less than 6 ms.

Typical applications include sensor systems that capture analog signals, convert them to digital values, and then
process the data and display them or transmit them to a host system. Stand alone RF sensor front-end is another
area of application. The I/O port inputs provide single slope A/D conversion capability on resistive sensors. The
MSP430x1 1x series is an ultra low-power mixed signal microcontroller with a built in 16-bit timer and fourteen
I/O pins.

1
2
3
4
5
6
7
8
9
10

20
19
18
17
16
15
14
13
12
11

TEST/VPP

VCC

P2.5/R

OSC

VSS

Xout/TCLK

Xin

RST

/NMI

P2.0/ACLK

P2.1/INCLK

P2.2/TA0

P1.7/TA2/TDO/TDI
P1.6/TA1/TDI
P1.5/TA0/TMS
P1.4/SMCLK/TCK
P1.3/TA2
P1.2/TA1
P1.1/TA0
P1.0/TACLK
P2.4/TA2
P2.3/TA1

DW PACKAGE

(TOP VIEW)

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Copyright  2000, Texas Instruments Incorporated

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

2

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

AVAILABLE OPTIONS

PACKAGED DEVICES

T

A

SOWB
20-Pin

(DW)

CDIP

20-Pin

(JL)

°

°

MSP430C111IDW

–

40°C to 85°C

MSP430C112IDW

MSP430P112IDW

°

25°C

—

PMS430E112JL

functional block diagram

Oscillator

System Clock

ACLK
SMCLK

2/4 kB ROM

4 kB OTP

’C’: ROM

128/256B

RAM

Power-on-

Reset

I/O Port

8 I/O’s, All With

Interrupt

CPU

Incl. 16 Reg.

Test

JTAG

Bus

Conv.

MAB, 16 Bit

MDB, 16 Bit

MAB, 4 Bit

MDB, 8 Bit

MCB

XIN XOut

V

CC

V

SS

RST/NMI P1.0–7

DCOR
ACLK

P2.0–5

Rosc

TEST/VPP

’P’: OTP

Outx

Timer_A

3 CC Register

CCR0/1/2

Watchdog

Timer

15/16 Bit

MCLK

’E’: EPROM

x = 0, 1, 2

ACLK

SMCLK

Outx
CCIxA

CCIxB

TACLK or
INCLK

INCLK

Out0

CCI0B
CCI1B

JTAG

CCIxA

TACLK

SMCLK

I/O Port 2

6 I/O’s All With

8

6

Capabililty

Interrupt

Capabililty

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

3

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Terminal Functions

TERMINAL

NAME NO.

I/O

DESCRIPTION

P1.0/TACLK 13 I/O General-purpose digital I/O pin/Timer_A, clock signal T ACLK input
P1.1/TA0 14 I/O General-purpose digital I/O pin/Timer_A, Capture: CCI0A input, Compare: Out0 output
P1.2/TA1 15 I/O General-purpose digital I/O pin/Timer_A, Capture: CCI1A input, Compare: Out1 output
P1.3/TA2 16 I/O General-purpose digital I/O pin/Timer_A, Capture: CCI2A input, Compare: Out2 output
P1.4/SMCLK/TCK 17 I/O General-purpose digital I/O pin/SMCLK signal output/T est clock, input terminal for device programming

and test

P1.5/TA0/TMS 18 I/O General-purpose digital I/O pin/Timer_A, Compare: Out0 output/test mode select, input terminal for

device programming and test.
P1.6/TA1/TDI 19 I/O General-purpose digital I/O pin/Timer_A, Compare: Out1 output/test data input terminal.
P1.7/TA2/TDO/TDI 20 I/O General-purpose digital I/O pin/Timer_A, Compare: Out2 output/test data output terminal or data input

during programming.
P2.0/ACLK 8 I/O General-purpose digital I/O pin/ACLK output
P2.1/INCLK 9 I/O General-purpose digital I/O pin/Timer_A, clock signal at INCLK
P2.2/TA0 10 I/O General-purpose digital I/O pin/Timer_A, Capture: CCI0B input, Compare: Out0 output
P2.3/TA1 11 I/O General-purpose digital I/O pin/Timer_A, Capture: CCI1B input, Compare: Out1 output
P2.4/TA2 12 I/O General-purpose digital I/O pin/Timer_A, Compare: Out2 output
P2.5/R

OSC

3 I/O General-purpose digital I/O pin/Input for external resistor that defines the DCO nominal frequency
RST/NMI 7 I Reset or nonmaskable interrupt input
TEST/VPP 1 I Select of test mode for JTAG pins on Port1/programming voltage input during EPROM programming
VCC 2 Supply voltage
VSS 4 Ground reference
Xin 6 I Input terminal of crystal oscillator
Xout/TCLK 5 I/O Output terminal of crystal oscillator or test clock input

detailed description

processing unit

The processing unit is based on a consistent, and orthogonally designed CPU and instruction set. This design
structure results in a RISC-like architecture, highly transparent to the application development and
distinguished by ease of programming. All operations other than program-flow instructions are consequently
performed as register operations in conjunction with seven addressing modes for source and four modes for
destination operations.

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

4

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

detailed description (continued)

CPU

All sixteen registers are located inside the CPU,
providing reduced instruction execution time. This
reduces a register-register operation execution
time to one cycle of the processor.

Four registers are reserved for special use as a
program counter, a stack pointer , a status register,
and a constant generator. The remaining twelve
registers are available as general-purpose
registers.

Peripherals are connected to the CPU using a
data address and control buses and can be
handled easily with all instructions for memory
manipulation.

instruction set

The instructions set for this register-register architecture provides a powerful and easy-to-use assembly
language. The instruction set consists of 51 instructions with three formats and seven addressing modes.
T able 1 provides a summation and example of the three types of instruction formats; the addressing modes are
listed in Table 2.

Table 1. Instruction Word Formats

Dual operands, source-destination e.g. ADD R4, R5 R4 + R5 → R5
Single operands, destination only e.g. CALL R8 PC → (TOS), R8 → PC

Relative jump, un-/conditional e.g. JNE Jump-on equal bit = 0

Most instructions can operate on both word and byte data. Byte operations are identified by the suffix B.
Examples: Instructions for word operation Instructions for byte operation

MOV EDE,TONI MOV.B EDE,TONI
ADD #235h,&MEM ADD.B #35h,&MEM
PUSH R5 PUSH.B R5
SWPB R5 —

Table 2. Address Mode Descriptions

ADDRESS MODE s d SYNTAX EXAMPLE OPERATION

Register √ √ MOV Rs, Rd MOV R10, R11 R10 → R11
Indexed √ √ MOV X(Rn), Y(Rm) MOV 2(R5), 6(R6) M(2 + R5) → M(6 + R6)
Symbolic (PC relative) √ √ MOV EDE, TONI M(EDE) → M(TONI)
Absolute √ √ MOV &MEM, &TCDAT M(MEM) → M(TCDAT)
Indirect √ MOV @Rn, Y(Rm) MOV @R10, Tab(R6) M(R10) → M(Tab + R6)
Indirect autoincrement √ MOV @Rn+, RM MOV @R10+, R11 M(R10) →R11, R10 + 2 → R10
Immediate √ MOV #X, TONI MOV #45, TONI #45 → M(TONI)

NOTE: s = source d = destination Rs/Rd = source register/destination register Rn = register number

Program Counter

General-Purpose Register

PC/R0

Stack Pointer

SP/R1

Status Register

SR/CG1/R2

Constant Generator

CG2/R3

R4

General-Purpose Register

R5

General-Purpose Register R14

General-Purpose Register

R15

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

5

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

instruction set (continued)

Computed branches (BR) and subroutine calls (CALL) instructions use the same addressing modes as the other
instructions. These addressing modes provide

indirect

addressing, ideally suited for computed branches and
calls. The full use of this programming capability permits a program structure different from conventional 8- and
16-bit controllers. For example, numerous routines can easily be designed to deal with pointers and stacks
instead of using flag type programs for flow control.

operation modes and interrupts

The MSP430 operating modes support various advanced requirements for ultra low-power and ultra low-energy
consumption. This is achieved by the intelligent management of the operations during the different module
operation modes and CPU states. The advanced requirements are fully supported during interrupt event
handling. An interrupt event awakens the system from each of the various operating modes and returns with
the

RETI

instruction to the mode that was selected before the interrupt event. The different requirements of the
CPU and modules, which are driven by system cost and current consumption objectives, necessitate the use
of different clock signals (see Figure 1):

D

Auxiliary clock ACLK (from LFXTCLK/crystal’s frequency), used by the peripheral modules

D

Main system clock MCLK, used by the CPU and system

D

Subsystem clock SMCLK, used by the peripheral modules.

DIVA

XIN

High Frequency
XT Oscillator, XTS=1

ACLK

OSCOff XTS

Low Power
LF Oscillator, XTS = 0

/1, /2, /4, /8

2

DIVM

/1, /2, /4, /8, Off

22

SELM CPUOff

Auxiliary Clock

MCLK

Main System Clock

DIVS

/1, /2, /4, /8, Off

2

SELS SCG1

SMCLK

Sub-System Clock

XOUT

SMCLKGEN

LFXTCLK

MCLKGEN

ACLKGEN

DCOMOD

DCOCLK

Digital Controlled Oscillator (DCO)

+

Modulator (MOD)

DC

Generator

53

DCO MODR

sel

SCG0

DCOR

The DCO-Generator is connected to pin P2.5/R

OSC

if DCOR control bit is set.

The port pin P2.5/R

OSC

is selected if DCOR control bit is reset (initial state).

P2.5

V

CC

V

CC

0

1

P2.5/R

OSC

3

2

0

1

Figure 1. Clock Signals

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

6

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

operation modes and interrupts (continued)

Two clock sources, LFXTCLK and DCOCLK, can be used to drive the MSP430 system. The LFXTCLK is defined
by connecting a low power, low frequency crystal to the oscillator , by connecting a high frequency crystal to the
oscillator, or by applying an external clock source. The high frequency crystal oscillator is used if the control bit
XTS is set. The crystal oscillator may be switched off when the LFXTCLK oscillator is not needed for the present
operation mode. The DCOCLK is active and the frequency is selected or adjusted by the software. The
DCOCLK is inactive or stopped when it is not used by the CPU or peripheral modules. The dc-generator can
be stopped when SCG0 is reset and DCOCLK is not needed. The dc-generator defines the basic DCO
frequency and can be defined by one external resistor or it is adjusted in eight steps with the integrated resistors.

NOTE:

The system clock generator always starts with the DCOCLK selected for MCLK (CPU clock) to
ensure proper start of program execution. The software then defines the final system clock, via
control bit manipulation.

low-power consumption capabilities

The various operating modes are controlled by the software through controlling the operation of the internal
clock system. This clock system provides many combinations of hardware and software capabilities to run the
application with the lowest power consumption and with optimized system costs:

D

Use the internal clock (DCO) generator without any external components.

D

Select an external crystal or ceramic resonator for lowest frequency or cost.

D

Select and activate the proper clock signals (LFXTCLK and/or DCOCLK) and clock pre-divider function.

D

Apply an external clock source.

Four of the control bits that influence the operation of the clock system and support fast turnon from low power
operating modes are located in the status register SR. The four bits that control the CPU and the system clock
generator are SCG1, SCG0, OscOff, and CPUOff:

status register R2

Reserved For Future

Enhancements

15 9 8 7 0

V SCG1 SCG0 OscOff

CPUOff GIE N Z C

rw-0 rw-0 rw-0 rw-0 rw-0 rw-0 rw-0 rw-0 rw-0 rw-0

6543 21

The bits CPUOff, SCG1, SCG0, and OscOff are the most important low-power control bits when the basic
function of the system clock generator is established. They are pushed onto the stack whenever an interrupt
is accepted and thereby saved so that the previous mode of operation can be retrieved after the interrupt
request. During execution of an interrupt handler routine, the bits can be manipulated via indirect access of the
data on the stack. That allows the program to resume execution in another power operating mode after the
return from interrupt (RETI).

SCG1: The clock signal SMCLK, used for peripherals, is enabled when the bit is reset or disabled if the

bit is set.

SCG0: The dc-generator is active when it is reset. The DCO can be deactivated only if the SCG0 bit is

set and the DCOCLK signal is not used for MCLK or SMCLK. The current consumed by the

dc-generator defines the basic frequency of the DCOCLK. It is a dc current.

NOTE:

When the current is switched off (SCG0=1) the start of the DCOCLK is delayed slightly . The delay
is in the µs-range. See device parameters for the specified values.

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

7

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

status register R2 (continued)

OscOff: The LFXT crystal oscillator is active when the OscOff bit is reset. The LFXT oscillator can only be

deactivated if the OscOff bit is set and it is not used for MCLK or SMCLK. The setup time to start
a crystal oscillation needs consideration when the oscillator off option is used. Mask
programmable (ROM) devices can disable this feature so that the oscillator can never be switched

off by software.
CPUOff: The clock signal MCLK, used for the CPU, is active when the bit is reset or stopped if it is set.
DCOCLK: The clock signal DCOCLK is deactivated if it is not used for MCLK or SMCLK or if the SCG0 bit

is set. There are two situations when the SCG0 bit cannot switch off the DCOCLK signal:

1. DCOCLK frequency is used for MCLK (CPUOff=0 and SELM.1=0).

2. DCOCLK frequency is used for SMCLK (SCG1=0 and SELS=0).

interrupt vector addresses

The interrupt vectors and the power-up starting address are located in the ROM with an address range of
0FFFFh-0FFE0h. The vector contains the 16-bit address of the appropriate interrupt handler instruction
sequence.

INTERRUPT SOURCE INTERRUPT FLAG SYSTEM INTERRUPT WORD ADDRESS PRIORITY

Power-up, external reset, watchdog

WDTIFG (see Note1)

Reset 0FFFEh 15, highest

NMI, oscillator fault

NMIIFG, OFIFG (see Note 1)

(non)-maskable,

(non)-maskable

0FFFCh 14
0FFFAh 13

0FFF8h 12

0FFF6h 11
Watchdog Timer WDTIFG maskable 0FFF4h 10
Timer_A CCIFG0 (see Note 2) maskable 0FFF2h 9

Timer_A

CCIFG1, CCIFG2, TAIFG

(see Notes 1 and 2)

maskable 0FFF0h 8

0FFEEh 7

0FFECh 6

0FFEAh 5

0FFE8h 4
I/O Port P2 (eight flags – see Note 3)

P2IFG.0 to P2IFG.7
(see Notes 1 and 2)

maskable 0FFE6h 3

I/O Port P1 (eight flags)

P1IFG.0 to P1IFG.7
(see Notes 1 and 2)

maskable 0FFE4h 2

0FFE2h 1

0FFE0h 0, lowest

NOTES: 1. Multiple source flags

2. Interrupt flags are located in the module

3. There are eight Port P2 interrupt flags, but only six Port P2 I/O pins (P2.0–5) are implemented on the 11x devices.

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

8

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

special function registers

Most interrupt and module enable bits are collected into the lowest address space. Special function register bits
that are not allocated to a functional purpose are not physically present in the device. Simple software access
is provided with this arrangement.

interrupt enable 1

7654 0

OFIE WDTIE

321

rw-0 rw-0 rw-0

Address
0h

NMIIE

WDTIE: Watchdog Timer enable signal
OFIE: Oscillator fault enable signal
NMIIE: Non-maskable interrupt enable signal

interrupt flag register 1

7654 0

OFIFG WDTIFG

321

rw-0 rw-1 rw-0

Address
02h NMIIFG

WDTIFG: Set on overflow or security key violation

OR
Reset on V

CC

power-on or reset condition at RST/NMI-pin
OFIFG: Flag set on oscillator fault
NMIIFG: Set via RST/NMI-pin

Legend rw:

rw-0:

Bit can be read and written.
Bit can be read and written. It is reset by PUC
SFR bit is not present in device.

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

9

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

memory organization

Int. Vector

2 kB ROM

128B RAM

16b Per.

8b Per.

SFR

FFFFh
FFE0h

FFDFh

F800h

027Fh
0200h

01FFh

0100h

00FFh

0010h

000Fh

0000h

MSP430C111

Int. Vector

4 kB

EPROM

256B RAM

16b Per.

8b Per.

SFR

FFFFh
FFE0h

FFDFh

02FFh

0200h

01FFh

0100h
00FFh
0010h
000Fh

0000h

MSP430P112
PMS430E112

Int. Vector

4 kB ROM

256B RAM

16b Per.

8b Per.

SFR

FFFFh
FFE0h

FFDFh

F000h

02FFh

0200h
01FFh
0100h

00FFh
0010h
000Fh
0000h

MSP430C112

F000h

peripherals

Peripherals are connected to the CPU through data, address, and control buses and can be handled easily with
instructions for memory manipulation.

digital I/O

There are two eight-bit I/O ports, Port P1 and Port P2 – implemented (1 1x parts only have six Port P2 I/O signals
available on external pins). Both ports, P1 and P2, have seven control registers to give maximum flexibility of
digital input/output to the application:

• All individual I/O bits are programmable independently.

• Any combination of input, output, and interrupt conditions is possible.

• Interrupt processing of external events is fully implemented for all eight bits of port P1 and for six bits of

Port P2.

• Provides read/write access to all registers with all instructions.

The seven registers are:

• Input register 8 bits at Port P1/P2 contains information at the pins

• Output register 8 bits at Port P1/P2 contains output information

• Direction register 8 bits at Port P1/P2 controls direction

• Interrupt edge select 8 bits at Port P1/P2 input signal change necessary for interrupt

• Interrupt flags 8 bits at Port P1/P2 indicates if interrupt(s) are pending

• Interrupt enable 8 bits at Port P1/P2 contains interrupt enable bits

• Selection (Port or Mod.) 8 bits at Port P1/P2 determines if pin(s) have port or module function

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

10

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

digital I/O (continued)

All these registers contain eight bits. Two interrupt vectors are implemented: one commonly used for any
interrupt event on Port P1.0 to Port P1.7, and one commonly used for any interrupt event on Port P2.0 to P2.7.

NOTE:

Six bits of Port P2, P2.0 to P2.5, are available on external pins – but all control and data bits for Port
P2 are implemented.

Watchdog Timer

The primary function of the Watchdog Timer (WDT) module is to perform a controlled system restart after a
software problem has occurred. If the selected time interval expires, a system reset is generated. If this
watchdog function is not needed in an application, the module can work as an interval timer, which generates
an interrupt after the selected time interval.

The Watchdog Timer counter (WDTCNT) is a 16-bit up-counter which is not directly accessible by S/W. The
WDTCNT is controlled through the Watchdog Timer control register (WDTCTL), which is a 16-bit read/write
register. W riting to WDTCTL is, in both operating modes (watchdog or timer), only possible by using the correct
password in the high-byte. The low-byte stores data written to the WDTCTL. The high-byte must be the
password 05Ah. If any value other than 05Ah is written to the high-byte of the WDTCTL, a system reset PUC
is generated. When the password is read, its value is 069h. This minimizes accidental write operations to the
WDTCTL register. In addition to the Watchdog Timer control bits, there are two bits included in the WDTCTL
register that configure the NMI pin.

Timer_A (3 capture/compare registers)

The Timer_A module on 11x devices offers one sixteen bit counter and three capture/compare registers. The
timer clock source can be selected to come from two external sources T ACLK (SSEL=0) or INCLK (SSEL=3),
or from two internal sources, the ACLK (SSEL=1) or SMCLK (SSEL=2). The clock source can be divided by
one, two, four, or eight. The timer can be fully controlled (in word mode) since it can be halted, read, and written.
It can be stopped, run continuously , counted up or up/down, using one compare block to determine the period.
The three capture/compare blocks are configured by the application to run in capture or compare mode.

The capture mode is primarily used to measure external or internal events using any combination of positive,
negative, or both edges of the signal. Capture mode can be started and stopped by software. Three different
external events T A0, TA1, and TA2 can be selected. At capture/compare register CCR2 the ACLK is the capture
signal if CCI2B is selected. Software capture is chosen if CCISx=2 or CCISx=3 (see Figure 2).

The compare mode is primarily used to generate timings for the software or application hardware, or to generate
pulse-width modulated output signals for various purposes like D/A conversion functions or motor control. An
individual output module is assigned to each of the three capture/compare registers. The output modules can
run independently of the compare function, or can be triggered in several ways.

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

11

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Timer_A (3 capture/compare registers) (continued)

P1.1
P1.5
P2.2

P1.2
P1.6

P2.3

P1.3
P1.7

P2.4

Input

Divider

CLK

16-Bit Timer

SSEL0SSEL1

TACLK

ACLK

SMCLK

0
1
2
3

RC

INCLK

ID1

ID0

15

0

Data

32 kHz to 8 MHz

Timer Clock

POR/CLR

Mode

Control

MC1 MC0

Equ0

Carry/Zero

Set_TAIFG

16-Bit Timer

Capture

Mode

CCIS00CCIS01

CCI0A
CCI0B

GND

0
1
2
3

V

CC

CCI0 CCM00

CCM01

Capture/Compare

Register CCR0

15

0

Comparator 0

15

0

Output Unit 0

OM02 OM00OM01

TA0

Capture

EQU0

Capture/Compare Register CCR0Timer Bus

Capture

Mode

CCIS10CCIS11

CCI1A
CCI1B

GND

0
1
2
3

V

CC

CCI1 CCM10

CCM11

Capture/Compare

Register CCR1

15

0

Comparator 1

15

0

Output Unit 1

OM12 OM10OM1 1

Capture

EQU1

Capture/Compare Register CCR1

Capture

Mode

CCIS20CCIS21

CCI2A
CCI2B

GND

0
1
2
3

V

CC

CCI2 CCM20

CCM21

15

0

Comparator 2

15

0

Output Unit 2

OM22 OM20OM21

Capture

EQU2

Capture/Compare Register CCR2

P1.0

P2.1

P1.1
P2.2

P1.2
P2.3

P1.3

ACLK

Out 0

Out 1

Out 2

Capture/Compare

Register CCR2

Figure 2. Timer_A, MSP430x11x Configuration

Two interrupt vectors are used by the Timer_A module. One individual vector is assigned to capture/compare
block CCR0, and one common interrupt vector is implemented for the timer and the other two capture/compare
blocks. The three interrupt events using the same vector are identified by an individual interrupt vector word.
The interrupt vector word is used to add an offset to the program counter to continue the interrupt handler
software at the corresponding program location. This simplifies the interrupt handler and gives each interrupt
event the same overhead of 5 cycles in the interrupt handler.

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

12

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

peripheral file map

PERIPHERALS WITH WORD ACCESS

Watchdog Watchdog/T imer Control WDTCTL 0120h
Timer_A Timer_A Interrupt V ector

Timer_A Control
Cap/Com Control
Cap/Com Control
Cap/Com Control
Reserved
Reserved
Reserved
Reserved
Timer_A Register
Cap/Com Register
Cap/Com Register
Cap/Com Register
Reserved
Reserved
Reserved
Reserved

TAIV
TACTL
CCTL0
CCTL1
CCTL2

TAR
CCR0
CCR1
CCR2

012Eh
0160h
0162h
0164h
0166h
0168h
016Ah
016Ch
016Eh
0170h
0172h
0174h
0176h
0178h
017Ah
017Ch
017Eh

PERIPHERALS WITH BYTE ACCESS

System Clock Basic Clock Sys. Control2

Basic Clock Sys. Control1
DCO Clock Freq. Control

BCSCTL2
BCSCTL1
DCOCTL

058h
057h
056h

EPROM EPROM Control EPCTL 054h
Port P2 Port P2 Selection

Port P2 Interrupt Enable
Port P2 Interrupt Edge Select
Port P2 Interrupt Flag
Port P2 Direction
Port P2 Output
Port P2 Input

P2SEL
P2IE
P2IES
P2IFG
P2DIR
P2OUT
P2IN

02Eh
02Dh
02Ch
02Bh
02Ah
029h
028h

Port P1 Port P1 Selection

Port P1 Interrupt Enable
Port P1 Interrupt Edge Select
Port P1 Interrupt Flag
Port P1 Direction
Port P1 Output
Port P1 Input

P1SEL
P1IE
P1IES
P1IFG
P1DIR
P1OUT
P1IN

026h
025h
024h
023h
022h
021h
020h

Special Function SFR Interrupt Flag1

SFR Interrupt Enable1

IFG1
IE1

002h
000h

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

13

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

absolute maximum ratings

†

Voltage applied at VCC to VSS –0.3 V to 6 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage applied to any pin (referenced to VSS) –0.3 V to VCC+0.3 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Diode current at any device terminal ±2 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature, T

stg

(unprogrammed device) –55°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature, T

stg

(programmed device) –40°C to 85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE: All voltages referenced to VSS.

recommended operating conditions

MIN NOM MAX UNITS

MSP430C11x 2.5 5.5

Supply voltage, V

CC

MSP430P1 12 2.7 5.5

V

PMS430E1 12 2.7 5.5 V

pp

p

MSP430P112 4.5 5 5.5 V

Suppl

y v

oltage during programming, V

CC

MSP430E112 4.5 5 5.5 V
MSP430C11x

Operating free-air temperature range, T

A

MSP430P112

–

40

85

°C

PMS430E112 25

XTAL frequency, f

(XTAL)

,(ACLK signal) 32768 Hz

VCC = 3 V dc 2

Processor frequency f

(system)

(PMS430P/E112) (MCLK signal)

VCC = 5 V dc 5.35

MH

z

VCC = 3 V dc 2.73

Processor frequency f

(system)

(MCLK signal) (MSP430C11x)

VCC = 5 V dc 5.35

MH

z

Low-level input voltage (TCK, TMS, TDI, RST/NMI), VIL (excluding Xin, Xout)

V

SS

VSS+0.8 V

High-level input voltage (TCK, TMS, TDI, RST/NMI), VIH (excluding Xin, Xout)

V

CC

=

3 V/5 V

0.7V

CC

V

CC

V

p

V

IL(Xin, Xout)

V

SS

0.2×V

CC

Input levels at Xin, Xout

V

IH(Xin, Xout)

V

CC

= 3

V/5 V

0.8×V

CC

V

CC

V

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

14

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

5

3

2

1

0

01 2344567

2.2 MHz
at 2.5 V

Minimum

VCC – Supply Voltage – V

5.35 MHz
at 5 V

f

(system)

– Maximum Processor

Frequency – MHz

Figure 3. C Version Frequency vs Supply Voltage

NOTE: Minimum processor frequency is defined by system clock.

5

3

2

1.1

0

01 2344567

1.1 MHz
at 2.7 V

Minimum

VCC – Supply Voltage – V

5.35 MHz
at 5 V

f

(system)

– Maximum Processor

Frequency – MHz

Figure 4. P/E Version Frequency vs Supply Voltage

NOTE: Minimum processor frequency is defined by system clock.

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

15

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended ranges of supply voltage and operating free-air
temperature (unless otherwise noted)

supply current (into VCC) excluding external current (f

(system)

= 1 MHz)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

TA = –40°C +85°C, f

(

MCLK

)

= f

(

SMCLK

)

= 1 MHz,

VCC = 3 V 330 400

A (MCLK) (SMCLK)

f

(ACLK)

= 32,768 Hz

VCC = 5 V 630 700

µ

A

C11

x

TA = –40°C +85°C,

VCC = 3 V 3.4 4

A

f

(MCLK)

= f

(SMCLK)

= f

(ACLK)

= 4096 Hz

VCC = 5 V 7.8 10

µ

A

I

(AM)

Active mode

TA = –40°C +85°C,

VCC = 3 V 400 500

P112

f

MCLK

=

f

(SMCLK)

= 1

MHz

,

f(ACLK)

= 32,768 Hz

VCC = 5 V 730 900

µ

A

P112

TA = –40°C +85°C,

VCC = 3 V 3.4 4

A

f

(MCLK)

= f

(SMCLK)

= f

(ACLK)

= 4096 Hz

VCC = 5 V 7.8 10

µ

A

TA = –40°C +85°C, f

MCLK

= 0 MHz,

VCC = 3 V 51 60

Low power mode,

C11

x

A MCLK

f

(SMCLK)

= 1 MHz, f

(ACLK)

= 32,768 Hz

VCC = 5 V 120 150

I

(CPUOff)

(LPM0)

TA = –40°C +85°C, f

(

MCLK

)

= 0 MHz,

VCC = 3 V 70 85

µ

A

P112

A (MCLK)

f

(SMCLK)

= 1 MHz, f

(ACLK)

= 32,768 Hz

VCC = 5 V 125 170

p

TA = –40°C +85°C,

VCC = 3 V 8 22

I

(LPM2)

Low power mode, (LPM2)

f

(MCLK)

=

f

(SMCLK)

= 0

MHz

,

f

(ACLK)

= 32,768 Hz, SCG0 = 0, Rsel = 3

VCC = 5 V 16 35

µ

A

TA = –40°C

f

= f

= 0 MHz

,

2 2.6

TA = 25°C

f

(MCLK)

f

(SMCLK)

0

MHz,

f

(ACLK)

= 32,768 Hz,

VCC = 3 V

1.5 2.2

p

TA = 85°C

()

SCG0 = 1

1.85 2.2

I

(LPM3)

Low power mode, (LPM3)

TA = –40°C

6.3 8

µ

A

TA = 25°C

f

(MCLK)

=

f

(SMCLK)

=

0 MH

z,

=

=

VCC = 5 V

5.1 7

TA = 85°C

f

(ACLK)

= 32,

768 Hz, SCG0 = 1

5.1 7

TA = –40°C

f

= f

= 0 MHz

,

0.1 0.8

I

(LPM4)

Low power mode, (LPM4)

TA = 25°C

f

(MCLK)

f

(SMCLK)

0

MHz,

f

(ACLK)

= 0 Hz,

V

CC

= 3

V/

0.1 0.8

µA

()

TA = 85°C

()

SCG0 = 1

5

V

0.4 1

NOTE: All inputs are tied to VSS or VCC. Outputs do not source or sink any current.

current consumption of active mode versus system frequency

I

AM

= I

AM[1 MHz]

× f

system

[MHz]

current consumption of active mode versus supply voltage

IAM = I

AM[3 V]

+ 175 µA/V × (VCC–3 V)

standard inputs RST/NMI

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

V

IL

Low-level input voltage

V

SS

VSS+0.8

V

IH

High-level input voltage

V

CC

= 3

V/5 V

0.7V

CC

V

CC

V

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

16

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended ranges of supply voltage and operating free-air
temperature (unless otherwise noted) (continued)

Schmitt-trigger inputs Port 1 to Port P2; P1.0 to P1.7, P2.0 to P2.5

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

p

VCC = 3 V 1.2 2.1

V

IT+

Positive-going input threshold voltage

VCC = 5 V 2.3 3.4

V

p

VCC = 3 V 0.7 1.5

V

IT–

Negative-going input threshold voltage

VCC = 5 V 1.4 2.3

V

p

VCC = 3 V 0.3 1

V

hys

Input voltage hysteresis, (V

IT+

–

V

IT–

)

VCC = 5 V 0.6 1.4

V

outputs Port 1 to P2; P1.0 to P1.7, P2.0 to P2.5

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

p

I

(OH)

= – 1.5 mA, VCC = 3 V/5 V, See Note 4 VCC–0.4 V

CC

VOHHigh-level output voltage

I

(OH)

= – 4.5 mA, VCC = 3 V/5 V, See Note 5 VCC-0.6 V

CC

V

p

I

(OL)

= 1.5 mA, VCC = 3 V/5 V, See Note 4 V

SS

VSS+0.4

VOLLow-level output voltage

I

(OL)

= 4.5 mA, VCC = 3 V/5 V, See Note 5 V

SS

VSS+0.6

V

NOTES: 4. The maximum total current, IOH and IOL, or all outputs combined, should not exceed ±12 mA to hold the maximum voltage drop

specified.

5. The maximum total current, IOH and IOL, or all outputs combined, should not exceed ±36 mA to hold the maximum voltage drop
specified.

leakage current (see Note 6)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

p

Port P1: P1.x, 0 ≤ ×≤ 7
(see Note 7)

VCC = 3 V/5 V,

±50

I

lkg(Px.x)

High-impendance leakage current

Port P2: P2.x, 0 ≤ ×≤ 5
(see Note 7)

VCC = 3 V/5 V,

±50

nA

NOTES: 6. The leakage current is measured with VSS or VCC applied to the corresponding pin(s), unless otherwise noted.

7. The leakage of the digital port pins is measured individually. The port pin must be selected for input and there must be no optional
pullup or pulldown resistor.

optional resistors, individually programmable with ROM code (see Note 8)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

R

(opt1)

VCC = 3 V/5 V 2.1 4.1 6.2 kΩ

R

(opt2)

VCC = 3 V/5 V 3.1 6.2 9.3 kΩ

R

(opt3)

VCC = 3 V/5 V 6 12 18 kΩ

R

(opt4)

VCC = 3 V/5 V 10 19 29 kΩ

R

(opt5)

Resistors, individually programmable with ROM code, all port pins,

VCC = 3 V/5 V 19 37 56 kΩ

R

(opt6)

yg

values applicable for pulldown and pullup

VCC = 3 V/5 V 38 75 113 kΩ

R

(opt7)

VCC = 3 V/5 V 56 112 168 kΩ

R

(opt8)

VCC = 3 V/5 V 94 187 281 kΩ

R

(opt9)

VCC = 3 V/5 V 131 261 392 kΩ

R

(opt10)

VCC = 3 V/5 V 167 337 506 kΩ

NOTE 8: Optional resistors R

optx

for pulldown or pullup are not programmed in standard OTP or EPROM devices MSP430P112 or PMS430E1 12.

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

17

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended ranges of supply voltage and operating free-air
temperature (unless otherwise noted) (continued)

inputs Px.x, TAx

PARAMETER TEST CONDITIONS VCC MIN NOM MAX UNIT

3 V/ 5 V 1.5 cycle

t

(int)

External Interrupt timing

Port P1, P2: P1.x to P2.x,

p

3 V 540

()

External trigger signal for the interru t flag, (see Note 9)

5 V 270

ns

3 V/ 5 V 1.5 cycle

t

(cap)

Timer_A, capture timing TA0, TA1, TA2. (see Note 10)

3 V 540

()

5 V 270

ns

NOTES: 9. The external signal sets the interrupt flag every time the minimum t

int

cycle and time parameters are met. It may be set even with

trigger signals shorter than t

int

. Both the cycle and timing specifications must be met to ensure the flag is set.

10. The external capture signal triggers the capture event every time when the minimum t

cap

cycles and time parameters are met. A

capture may be triggered with capture signals even shorter than t

cap

. Both the cycle and timing specifications must be met to ensure

a correct capture of the 16-bit timer value and to ensure the flag is set.

internal signals TAx, SMCLK at Timer_A

PARAMETER TEST CONDITIONS VCC MIN NOM MAX UNIT

p

3 V dc 10

f

(IN)

Input frequenc

y

Internal TA0, TA1, TA2, t

H

=

t

L

5 V dc 15

MH

z

f

(TAint)

Timer_A clock frequency Internally, SMCLK signal applied 3 V/5 V dc f

System

outputs P2x, TAx

PARAMETER TEST CONDITIONS VCC MIN NOM MAX UNIT

f

(P20)

p

P2.0/ACLK, CL = 20 pF 3 V/5 V 1.1

f

(TAx)

Output frequenc

y

TA0, TA1, TA2, CL = 20 pF 3 V/5 V dc f

System

MH

z

f

P20

= 1.1 MHz 40% 60%

t

(Xdc)

P2.0/ACLK, CL = 20 pF

f

P20

= f

XTCLK

3 V/ 5 V

35% 65%

()

Duty cycle of O/P frequency

f

P20

= f

XTCLK/n

50%

t

(TAdc)

TA0, TA1, TA2, CL = 20 pF,
Duty cycle = 50%

3 V/ 5 V 0 ±50 ns

PUC/POR

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

t

(POR_delay)

150 250 µs

TA = –40°C 1.5 2.4 V

V

(POR)

POR

TA = 25°C

1.2 2.1 V

()

TA = 85°C

V

CC

= 3

V/5 V

0.9 1.8 V

V

(min)

0 0.4 V

t

(reset)

PUC/POR Reset is accepted internally 2 µs

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

18

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended ranges of supply voltage and operating free-air
temperature (unless otherwise noted) (continued)

VCC

POR

V

t

V

(POR)

V

(min)

POR

No POR

Figure 5. Power-On Reset (POR) vs Supply Voltage

1.8

2.1

2.4

0.9

1.2

1.5

0

0.5

1

1.5

2

2.5

3

–40 –20 0 20 40 60 80

Temperature [°C]

25°C

V POR [V]

Figure 6. V

(POR)

vs Temperature

crystal oscillator, Xin, Xout

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

C

(Xin)

Capacitance at input VCC = 3 V/5 V 12 pF

C

(Xout)

Capacitance at output VCC = 3 V/5 V 12 pF

RAM

PARAMETER MIN NOM MAX UNIT

V

(RAMh)

CPU halted (see Note 11) 1.8 V

NOTE 1 1: This parameter defines the minimum supply voltage VCC when the data in the program memory RAM remains unchanged. No program

execution should happen during this supply voltage condition.

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

19

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended ranges of supply voltage and operating free-air
temperature (unless otherwise noted) (continued)

DCO (MSP430P112)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

°

VCC = 3 V 0.12

f

(DCO03)

R

sel

= 0,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 0.13

MH

z

°

VCC = 3 V 0.19

f

(DCO13)

R

sel

= 1,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 0.21

MH

z

°

VCC = 3 V 0.31

f

(DCO23)

R

sel

= 2,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 0.34

MH

z

°

VCC = 3 V 0.5

f

(DCO33)

R

sel

= 3,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 0.55

MH

z

°

VCC = 3 V 0.5 0.8 1.1

f

(DCO43)

R

sel

= 4,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 0.6 0.9 1.2

MH

z

°

VCC = 3 V 0.9 1.2 1.55

f

(DCO53)

R

sel

= 5,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 1.1 1.4 1.7

MH

z

°

VCC = 3 V 1.7 2 2.3

f

(DCO63)

R

sel

= 6,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 2.1 2.4 2.7

MH

z

°

VCC = 3 V 2.8 3.1 3.5

f

(DCO73)

R

sel

=

7

,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 3.8 4.2 4.5

MH

z

°

F

DCO40FDCO40FDCO40

f

(DCO47)

R

sel

= 4,

DCO

= 7,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

V

CC

= 3

V/5 V

DCO40

x1.8

DCO40

x2.2

DCO40

x2.6

MH

z

S

(Rsel)

SR = f

Rsel+1/fRsel

VCC = 3 V/5 V 1.4 1.65 1.9

S

(DCO)

S

DCO

= f

DCO+1/fDCO

VCC = 3 V/5 V 1.07 1.12 1.16

ratio

Temperature drift, R

sel

= 4, DCO = 3,

VCC = 3 V –0.31 –0.36 –0.40

°

D

t

sel

MOD = 0 (see Note 12)

VCC = 5 V –0.33 –0.38 –0.43

%/°C

D

V

Drift with VCC variation, R

sel

= 4, DCO = 3,

MOD = 0 (see Note 12)

VCC = 3 V to 5 V 0 5 10 %/V

NOTE 12: These parameters are not production tested.

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

20

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended ranges of supply voltage and operating free-air
temperature (unless otherwise noted) (continued)

DCO (MSP430C111, C112)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

°

VCC = 3 V 0.04 0.07 0.10

f

(DCO03)

R

sel

= 0,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 0.04 0.07 0.10

MH

z

°

VCC = 3 V 0.08 0.13 0.18

f

(DCO13)

R

sel

= 1,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 0.08 0.13 0.18

MH

z

°

VCC = 3 V 0.15 0.22 0.30

f

(DCO23)

R

sel

= 2,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 0.15 0.22 0.30

MH

z

°

VCC = 3 V 0.26 0.36 0.47

f

(DCO33)

R

sel

= 3,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 0.26 0.36 0.47

MH

z

°

VCC = 3 V 0.4 0.6 0.8

f

(DCO43)

R

sel

= 4,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 0.4 0.6 0.8

MH

z

°

VCC = 3 V 0.8 1.1 1.4

f

(DCO53)

R

sel

= 5,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 0.8 1.1 1.4

MH

z

°

VCC = 3 V 1.3 1.7 2.1

f

(DCO63)

R

sel

= 6,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 1.5 1.9 2.3

MH

z

°

VCC = 3 V 2.4 2.9 3.4

f

(DCO73)

R

sel

=

7

,

DCO

= 3,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

VCC = 5 V 3.1 3.8 4.5

MH

z

°

F

DCO40FDCO40FDCO40

f

(DCO47)

R

sel

= 4,

DCO

= 7,

MOD

= 0,

DCOR

= 0,

T

A

=

25°C

V

CC

= 3

V/5 V

DCO40

x1.8

DCO40

x2.2

DCO40

x2.6

MH

z

S

(Rsel)

SR = f

Rsel+1/fRsel

VCC = 3 V/5 V 1.4 1.65 1.9

S

(DCO)

S

DCO

= f

DCO+1/fDCO

VCC = 3 V/5 V 1.07 1.12 1.16

ratio

Temperature drift, R

sel

= 4, DCO = 3,

VCC = 3 V –0.31 –0.36 –0.40

°

D

t

sel

MOD = 0 (see Note 12)

VCC = 5 V –0.33 –0.38 –0.43

%/°C

D

V

Drift with VCC variation, R

sel

= 4, DCO = 3,

MOD = 0 (see Note 12)

VCC = 3 V to 5 V 0 5 10 %/V

NOTE 12. These parameters are not production tested.

35

V

CC

Max

Min

Max

Min

f

(DCOx7)

f

(DCOx0)

Frequency Variance

01234567

DCO Steps

1

f

DCOCLK

Figure 7. DCO Characteristics

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

21

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended ranges of supply voltage and operating free-air
temperature (unless otherwise noted) (continued)

principle characteristics of the DCO

D

Individual devices have a minimum and maximum operation frequency. The specified parameters for
f

DCOx0

to f

DCOx7

are valid for all devices.

D

The DCO control bits DCO0, DCO1 and DCO2 have a step size as defined in parameter S

DCO

.

D

The modulation control bits MOD0 to MOD4 select how often f

DCO+1

is used within the period of 32 DCOCLK

cycles. f

DCO

is used for the remaining cycles. The frequency is an average = f

DCO

× (2

MOD/32

).

wake-up from lower power modes (LPMx)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

t

(LPM0)/

t

(LPM2)

VCC = 3 V/5 V 100 ns

t

(LPM3)

Del

ay time

R

Sel

= 4, DCO = 3, MOD = 0 VCC = 3 V/5 V 2.6 6 µs

t

(LPM4)

R

Sel

= 4, DCO = 3, MOD = 0 VCC = 3 V/5 V 2.8 6 µs

JTAG/programming

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

VCC = 3 V dc 5

f

(TCK)

JTAG/test

TCK frequenc

y

VCC = 5 V dc 10

MH

z

Fuse blow voltage, C versions (see Note 14) VCC = 3 V/ 5 V 5.5 6

V

(FB)

Fuse blow voltage, E/P versions (see Note 14) VCC = 3 V/ 5 V 11 13

V

I

(FB)

JTAG/fuse (see Note 13)

Supply current on Test/VPP during fuse is blown 100 mA

t

(FB)

Time to blow the fuse 1 ms

V

(PP)

Programming voltage, applied to Test/VPP 12 12.5 13 V

I

(PP)

Current from programming voltage source 70 mA

t

(pps)

Programming time, single pulse 5 ms

t

(ppf)

Programming time, fast algorithm 100 µs

P

(n)

EPROM P- and E-versions

only (see Note 15

)

Number of pulses for successful programming 4 100 Pulse

only (see Note 15)

Erase time wave length 2537 Å at 15 Ws/cm2 (UV lamp of
12 mW/ cm2)

30 min

t

(erase)

Write/erase cycles 1000
Data retention Tj < 55°C 10 Year

NOTES: 13. Once the JT AG fuse is blown no further access to the MSP430 JT AG/test feature is possible. The JTAG block is switched to by-pass

mode.

14. The power source to blow the fuse is applied to Test/VPP pin during blowing the fuse.

15. Refer to the Recommended Operating Conditions for the correct VCC during programing.

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

22

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

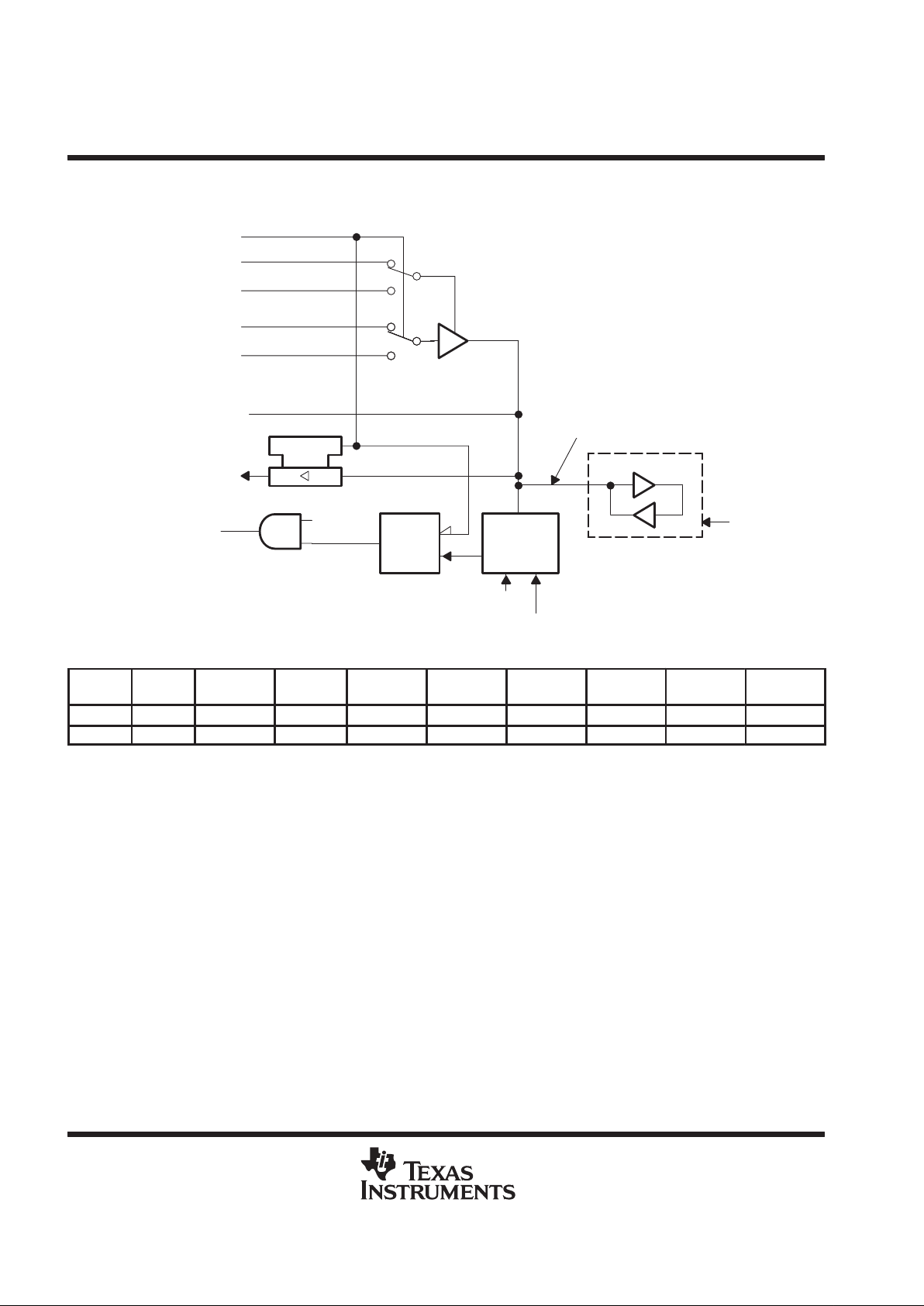

input/output schematic

Port P1, P1.0 to P1.3, input/output with Schmitt-trigger

EN

D

(See Note 16)

(See Note 17)

(See Note 17)

(See Note 16)

GND

V

CC

P1.0 – P1.3

0
1

0
1

Interrupt

Edge

Select

EN

Set

Q

P1IE.x

P1IFG.x

P1IRQ.x

Interrupt
Flag

P1IES.x

P1SEL.x

Module X IN

P1IN.x

P1OUT.x

Module X OUT

Direction Control

From Module

P1DIR.x

P1SEL.x

Pad Logic

NOTE: x = Bit Identifier, 0 to 3 For Port P1

PnSel.x PnDIR.x

Dir. Control

from module

PnOUT.x

Module X

OUT

PnIN.x

Module X

IN

PnIE.x PnIFG.x PnIES.x

P1Sel.0 P1DIR.0 P1DIR.0 P1OUT.0 VSS P1IN.0 TACLK

†

P1IE.0 P1IFG.0 P1IES.0

P1Sel.1 P1DIR.1 P1DIR.1 P1OUT.1 Out0 signal

†

P1IN.1 CCI0A

†

P1IE.1 P1IFG.1 P1IES.1

P1Sel.2 P1DIR.2 P1DIR.2 P1OUT.2 Out1 signal

†

P1IN.2 CCI1A

†

P1IE.2 P1IFG.2 P1IES.2

P1Sel.3 P1DIR.3 P1DIR.3 P1OUT.3 Out2 signal

†

P1IN.3 CCI2A

†

P1IE.3 P1IFG.3 P1IES.3

†

Signal from or to Timer_A

NOTES: 16. Optional selection of pullup or pulldown resistors with ROM (masked) versions.

17. Fuses for optional pullup and pulldown resistors can only be programmed at the factory.

CMOS INPUT (RST/NMI)

V

CC

(see Note 16)

(see Note 16)

GND

(see Note 17)

(see Note 17)

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

23

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

Port P1, P1.4 to P1.7, input/output with Schmitt-trigger and in-system access features

EN

D

See Note 16
See Note 17

See Note 17

See Note 16

GND

V

CC

P1.4–P1.7

0
1
0

1

Interrupt

Edge

Select

EN

Set

Q

P1IE.x

P1IFG.x

P1IRQ.x

Interrupt
Flag

P1IES.x

P1SEL.x

Module X IN

P1IN.x

P1OUT.x

Module X OUT

Direction Control

From Module

P1DIR.x

P1SEL.x

Pad Logic

Bus Keeper

TST

Fuse

60 kΩ

Fuse
Blow

Control

VPP_Internal

Control By JTAG

0
1

TDO

Controlled By JTAG

P1.x

TDI

P1.x

TST

TST

TMS

TST

TCK

TST

Controlled by JTAG

TS

T

P1.x

P1.x

P1.7/TDI/TDO

P1.6/TDI

P1.5/TMS

P1.4/TCK

Typical

Test/VPP

GND

NOTES:The test pin should be protected from potential EMI and

ESD voltage spikes. This may require a smaller
external pulldown resistor in some applications.

x = Bit identifier, 4 to 7 for port P1
During programming activity and during blowing
the fuse, the pin TDO/TDI is used to apply the test
input for JTAG circuitry.

PnSel.x PnDIR.x

Dir. Control

from module

PnOUT.x

Module X

OUT

PnIN.x

Module X

IN

PnIE.x PnIFG.x PnIES.x

P1Sel.4 P1DIR.4 P1DIR.4 P1OUT.4 SMCLK P1IN.4 unused P1IE.4 P1IFG.4 P1IES.4
P1Sel.5 P1DIR.5 P1DIR.5 P1OUT.5 Out0 signal

†

P1IN.5 unused P1IE.5 P1IFG.5 P1IES.5

P1Sel.6 P1DIR.6 P1DIR.6 P1OUT.6 Out1 signal

†

P1IN.6 unused P1IE.6 P1IFG.6 P1IES.6

P1Sel.7 P1DIR.7 P1DIR.7 P1OUT.7 Out2 signal

†

P1IN.7 unused P1IE.7 P1IFG.7 P1IES.7

†

Signal from or to Timer_A

NOTES: 16. Optional selection of pullup or pulldown resistors with ROM (masked) versions.

17. Fuses for optional pullup and pulldown resistors can only be programmed at the factory.

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

24

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

Port P2, P2.0 to P2.4, input/output with Schmitt-trigger

EN

D

See Note 16

See Note 17

See Note 17

See Note 16

GND

V

CC

P2.0 – P2.4

0
1

0
1

Interrupt

Edge

Select

EN

Set

Q

P2IE.x

P2IFG.x

P2IRQ.x

Interrupt
Flag

P2IES.x

P2SEL.x

Module X IN

P2IN.x

P2OUT.x

Module X OUT

Direction Control

From Module

P2DIR.x

P2SEL.x

Pad Logic

NOTE: x = Bit Identifier, 0 to 4 For Port P2

0: Input
1: Output

PnSel.x PnDIR.x

Dir. Control

from module

PnOUT.x

Module X

OUT

PnIN.x

Module X

IN

PnIE.x PnIFG.x PnIES.x

P2Sel.0 P2DIR.0 P2DIR.0 P2OUT.0 ACLK P2IN.0 unused P2IE.0 P2IFG.0 P1IES.0
P2Sel.1 P2DIR.1 P2DIR.1 P2OUT.1 VSS P2IN.1 INCLK

†

P2IE.1 P2IFG.1 P1IES.1

P2Sel.2 P2DIR.2 P2DIR.2 P2OUT.2 Out0 signal

†

P2IN.2 CCI0B

†

P2IE.2 P2IFG.2 P1IES.2

P2Sel.3 P2DIR.3 P2DIR.3 P2OUT.3 Out1 signal

†

P2IN.3 CCI1B

†

P2IE.3 P2IFG.3 P1IES.3

P2Sel.4 P2DIR.4 P2DIR.4 P2OUT.4 Out2 signal

†

P2IN.4 unused P2IE.4 P2IFG.4 P1IES.4

†

Signal from or to Timer_A

NOTES: 16. Optional selection of pullup or pulldown resistors with ROM (masked) versions.

17. Fuses for optional pullup and pulldown resistors can only be programmed at the factory.

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

25

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

Port P2, P2.5, input/output with Schmitt-trigger and R

OSC

function for the Basic Clock module

EN

D

See Note 16

See Note 17

See Note 17

See Note 16

GND

V

CC

P2.5

0

1

0

1

Interrupt

Edge

Select

EN

Set

Q

P2IE.5

P2IFG.5

P2IRQ.5

Interrupt
Flag

P2IES.5

P2SEL.5

Module X IN

P2IN.5

P2OUT.5

Module X OUT

Direction Control

From Module

P2DIR.5

P2SEL.5

Pad Logic

NOTE: DCOR: Control bit from basic clock module if it is set, P2.5 is disconnected from P2.5 pad

Bus Keeper

0

1

0

1

V

CC

Internal to
Basic Clock
Module

DCOR

DC
Generator

0: Input

1: Output

PnSel.x PnDIR.x

Director

Control from

module

PnOUT.x

Module X

OUT

PnIN.x

Module X

IN

PnIE.x PnIFG.x PnIES.x

P2Sel.5 P2DIR.5 P2DIR.5 P2OUT.5 VSS P2IN.5 unused P2IE.5 P2IFG.5 P2IES.5

NOTES: 16. Optional selection of pullup or pulldown resistors with ROM (masked) versions.

17. Fuses for optional pullup and pulldown resistors can only be programmed at the factory.

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

26

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

Port P2, un-bonded bits P2.6 and P2.7

EN

D

0

1

0

1

Interrupt

Edge

Select

EN

Set

Q

P2IE.x

P2IFG.x

P2IRQ.x

Interrupt
Flag

P2IES.x

P2SEL.x

Module X IN

P2IN.x

P2OUT.x

Module X OUT

Direction Control

From Module

P2DIR.x

P2SEL.x

Bus Keeper

0

1

0: Input
1: Output

Node Is Reset With PUC

PUC

NOTE: x = Bit identifier, 6 to 7 for Port P2 without external pins

P2Sel.x

P2DIR.x

Dir. Control

from module

P2OUT.x

Module X

OUT

P2IN.x

Module X

IN

P2IE.x P2IFG.x P2IES.x

P2Sel.6 P2DIR.6 P2DIR.6 P2OUT.6 VSS P2IN.6 unused P2IE.6 P2IFG.6 P2IES.6
P2Sel.7 P2DIR.7 P2DIR.7 P2OUT.7 VSS P2IN.7 unused P2IE.7 P2IFG.7 P2IES.7

NOTE: A good use of the unbonded bits 6 and 7 of port P2 is to use the interrupt flags. The interrupt flags can not be influenced from any signal

other than from software. They work then as soft interrupt.

JTAG fuse check mode

MSP430 devices that have the fuse on the TEST terminal have a fuse check mode that tests the continuity of
the fuse the first time the JT AG port is accessed after a power-on reset (POR). When activated, a fuse check
current can flow from the TEST pin to ground if the fuse is not burned. Care must be taken to avoid accidentally
activating the fuse check mode and increasing overall system power consumption.

When the TEST pin is taken back low after a test or programming session, the fuse check mode and sense
currents are terminated.

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

27

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL DATA

DW (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE

16 PIN SHOWN

4040000/D 02/98

Seating Plane

0.400 (10,15)

0.419 (10,65)

0.104 (2,65) MAX

1

0.012 (0,30)

0.004 (0,10)

A

8

16

0.020 (0,51)

0.014 (0,35)

0.293 (7,45)

0.299 (7,59)

9

0.010 (0,25)

0.050 (1,27)

0.016 (0,40)

(15,24)

(15,49)

PINS **

0.010 (0,25) NOM

A MAX

DIM

A MIN

Gage Plane

20

0.500

(12,70)

(12,95)

0.510

(10,16)

(10,41)

0.400

0.410

16

0.600

24

0.610

0.004 (0,10)

M

0.010 (0,25)

0.050 (1,27)

0°–8°

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion not to exceed 0.006 (0,15).
D. Falls within JEDEC MS-013

MSP430x11x
MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

28

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430C111IDW, MSP430C112IDW, MSP430P112IDW, pin out

1
2
3
4
5
6
7
8
9
10

20
19
18
17
16
15
14
13
12

11

TEST/VPP

VCC

P2.5/R

OSC

VSS

Xout/TCLK

Xin

RST

/NMI

P2.0/ACLK

P2.1/INCLK

P2.2/TA0

P1.7/TA2/TDO/TDI
P1.6/TA1/TDI
P1.5/TA0/TMS
P1.4/SMCLK/TCK
P1.3/TA2
P1.2/TA1
P1.1/TA0
P1.0/TACLK
P2.4/TA2
P2.3/TA1

DW PACKAGE

(TOP VIEW)

PMS430E112 pin out

1
2
3
4
5
6
7
8
9
10

20
19
18
17
16
15
14
13
12
11

TEST/VPP

VCC

P2.5/R

OSC

VSS

Xout/TCLK

Xin

RST

/NMI

P2.0/ACLK

P2.1/INCLK

P2.2/TA0

P1.7/TA2/TDO/TDI
P1.6/TA1/TDI
P1.5/TA0/PMS
P1.4/SMCLK/TCK
P1.3/TA2
P1.2/TA1
P1.1/TA0
P1.0/TACLK
P2.4/TA2
P2.3/TA1

JL PACKAGE

(TOP VIEW)

MSP430x11x

MIXED SIGNAL MICROCONTROLLERS

SLAS196B– DECEMBER 1998 – REVISED APRIL 2000

29

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

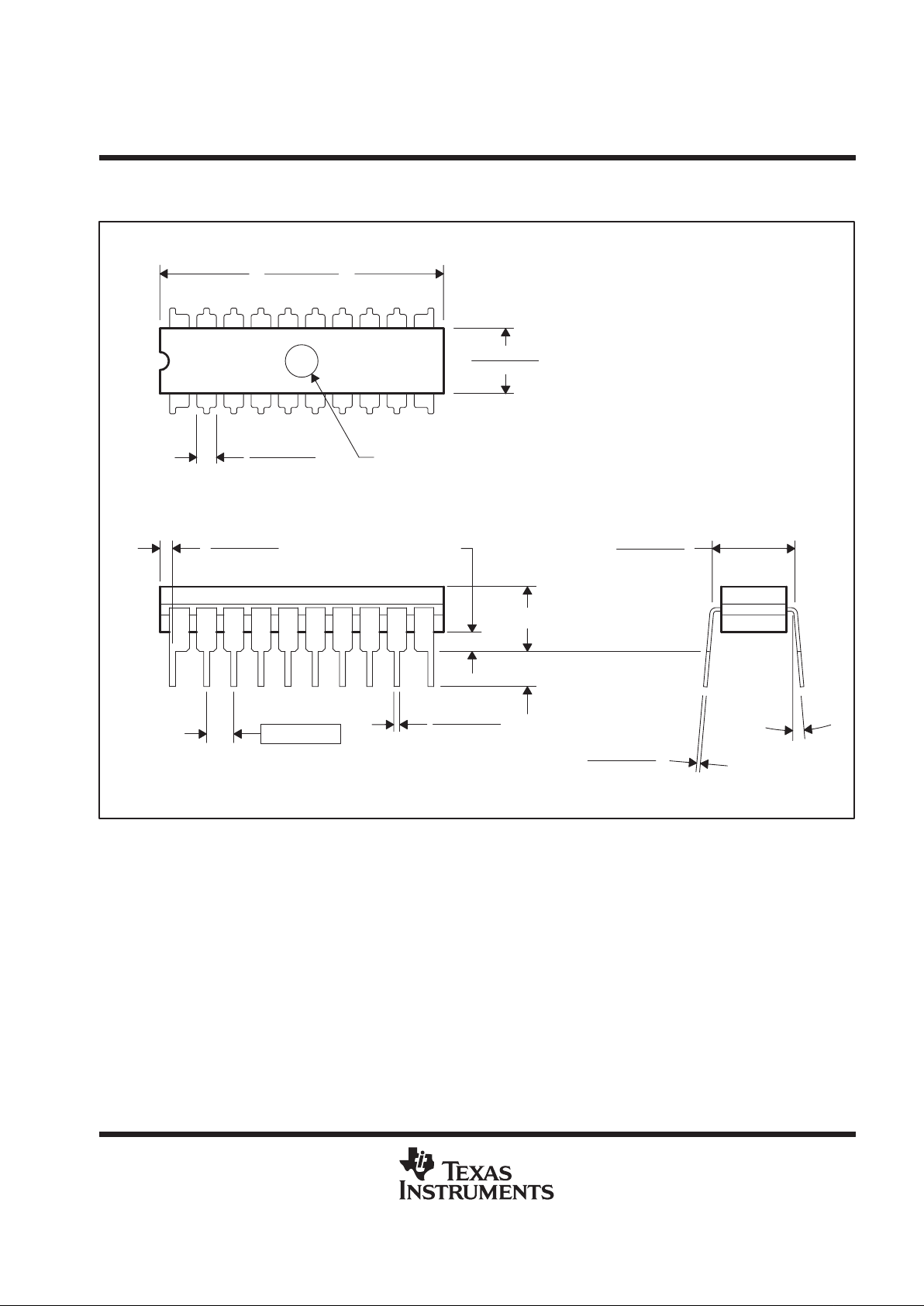

MECHANICAL DATA

JL (R-GDIP-T20) CERAMIC DUAL-IN-LINE PACKAGE

0.200 (5,08) MAX

0.310 (7,87)

0.290 (7,37)

0.130 (3,30) MIN

0.008 (0,20)

0.014 (0,36)

Seating Plane

4040109/C 08/96

11

0.020 (0,51) MIN

Window

10

0.015 (0,38)

0.050 (1,27)

0.050 (1,27)

0.015 (0,38)

0.975 (24,76)

0.930 (23,62)

20

1

0.023 (0,58)

0.015 (0,38)

0.245 (6,22)

0.300 (7,62)

0.100 (2,54)

0°–15°

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.
C. This package can be hermetically sealed with a ceramic lid using glass frit.
D. Index point is provided on cap for terminal identification only on press ceramic glass frit seal only
E. Falls within MIL-STD-1835 GDIP1-T20

IMPORTANT NOTICE

T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those
pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.

Customers are responsible for their applications using TI components.
In order to minimize risks associated with the customer’s applications, adequate design and operating

safeguards must be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent

that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.

Copyright  2000, Texas Instruments Incorporated
