About This Manual
This user’s guide documents the MSP430 gang programmer MSP−GANG430.
How to Use This Manual
This document contains the following chapters:
Information About Cautions and Warnings
Preface

- Chapter 1 – Introduction, Installation, and Setup
- Chapter 2 – Operation
- Chapter 3 – Firmware
- Chapter 4 – Dynamic Link Library GANG430.DLL
- Chapter 5 – Hardware
- Chapter 6 – Schematics
Information About Cautions and Warnings
This book may contain cautions and warnings.
This is an example of a caution statement. A caution statement describes a situation that could potentially
damage your software or equipment.
This is an example of a warning statement. A warning statement describes a situation that could potentially
cause harm to you
.
iii
Trademarks
The information in a caution or a warning is provided for your protection. Please read each caution and warning carefully.
Trademarks
Windows is a trademark of the Microsoft Corporation.
If You Need Assistance. . .
Support for the MSP430 device and the MSP−GANG430 is provided by the Texas Instruments Product Information Center (PIC). Contact information for the PIC can be found on the Texas Instruments web site at www.ti.com Additional device-specific information can be found on the MSP430 web site at www.ti.com/msp430.
.
iv
Contents

1 Introduction, Installation, and Setup 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 Introduction 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Software Installation 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Hardware Installation 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Operation 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 Programming MSP430 Flash Devices Using the GUI 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.1 Procedure 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.2 Description of the MSP-GANG430 GUI 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.3 Status Messages 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.4 Error Messages 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.5 Description of the Gang430.ini File 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.6 Target Connector Functional Check 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Programming MSP430 Flash Devices in Standalone Mode 2-9. . . . . . . . . . . . . . . . . . . . . . .
2.3 Programming MSP430 Flash Devices With User-Configured UART Handler 2-9. . . . . . . .
2.4 Programming the MSP430 Devices With GANG430.DLL 2-10. . . . . . . . . . . . . . . . . . . . . . . .
3 Firmware 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Commands 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 Firmware Interface Protocol 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3 Synchronization Sequence 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4 Data Frame 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.1 Frame Structure 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.2 Checksum 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5 Commands—Detailed Description 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.1 General 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.2 Load Parameters 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.3 Start 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.4 Transmit Diagnostic 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.5 Erase Image 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.6 Load Image Block 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.7 Write Target Selective 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.8 Read Target Selecive 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.9 Set Target VCC 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.10 Load Image Checksum 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.11 Select Baud Rate 3-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.12 Execute Self Test 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.13 Set Signals 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5.14 Firmware Commands 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
v
Contents
4 Dynamic Link Library GANG430.DLL 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 GANG430.DLL Description 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 Return Values/Error Codes From the GNAG430.DLL 4-8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Hardware 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1 Specifications 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 Programming Times vs Code Size for the Gang Programmer 5-2. . . . . . . . . . . . . . . . . . . . .
5.3 Recommendations for Target Connections 5-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.4 MSP-GANG430 Target Connector Signals 5-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.5 MSP-GANG430 Schematics 5-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

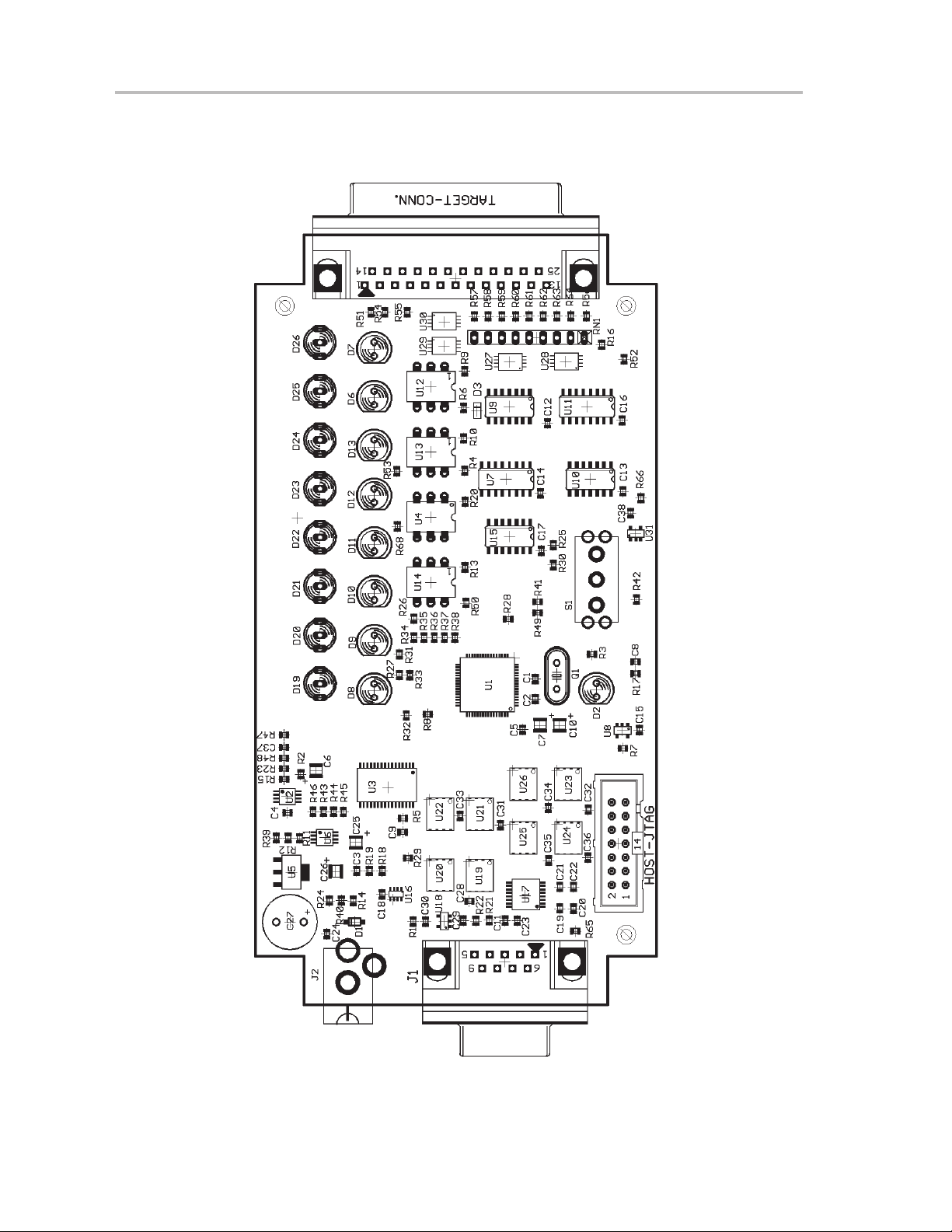

5.6 MSP-GANG430 Component Locations 5-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

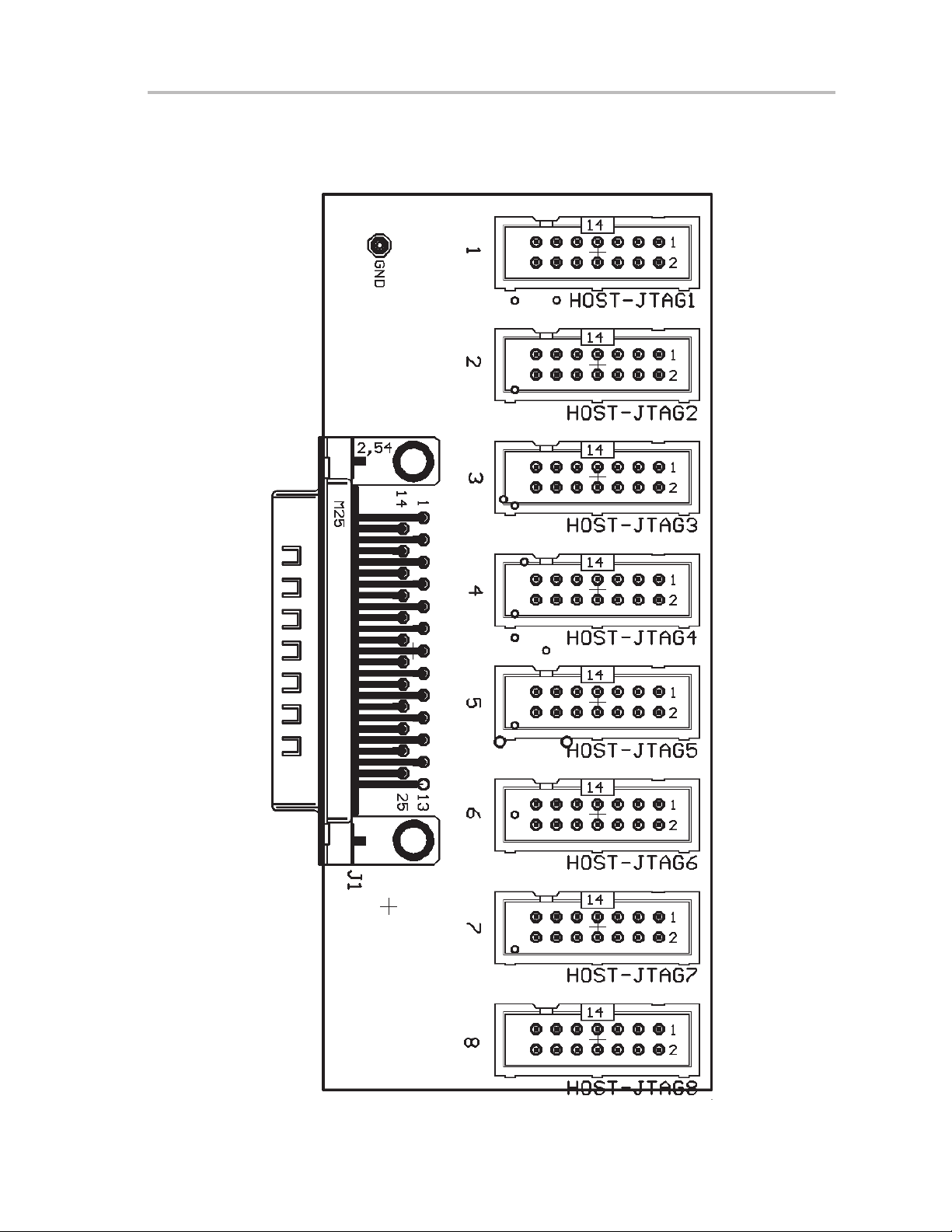

5.7 Gang_Exp Target Expansion Board Layout 5-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

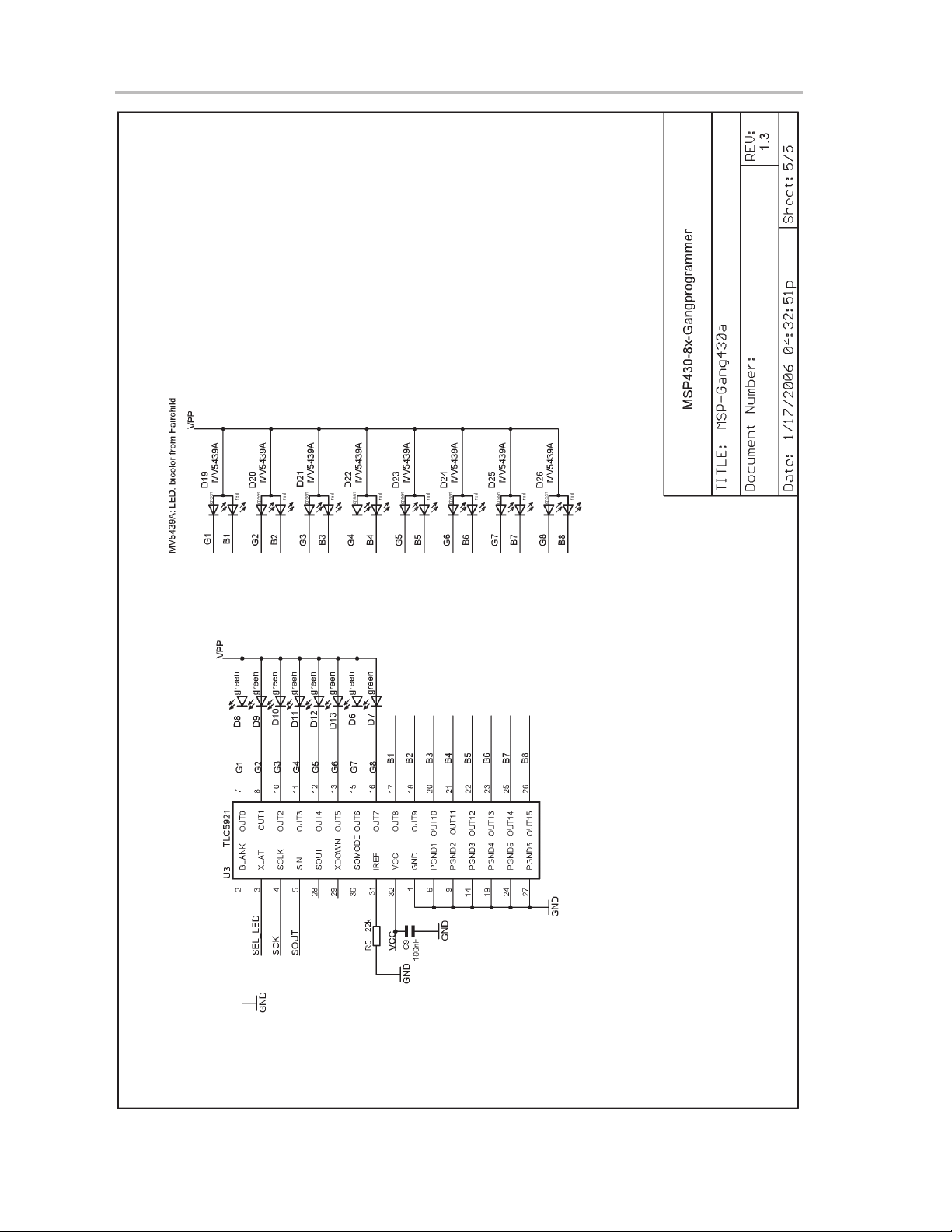

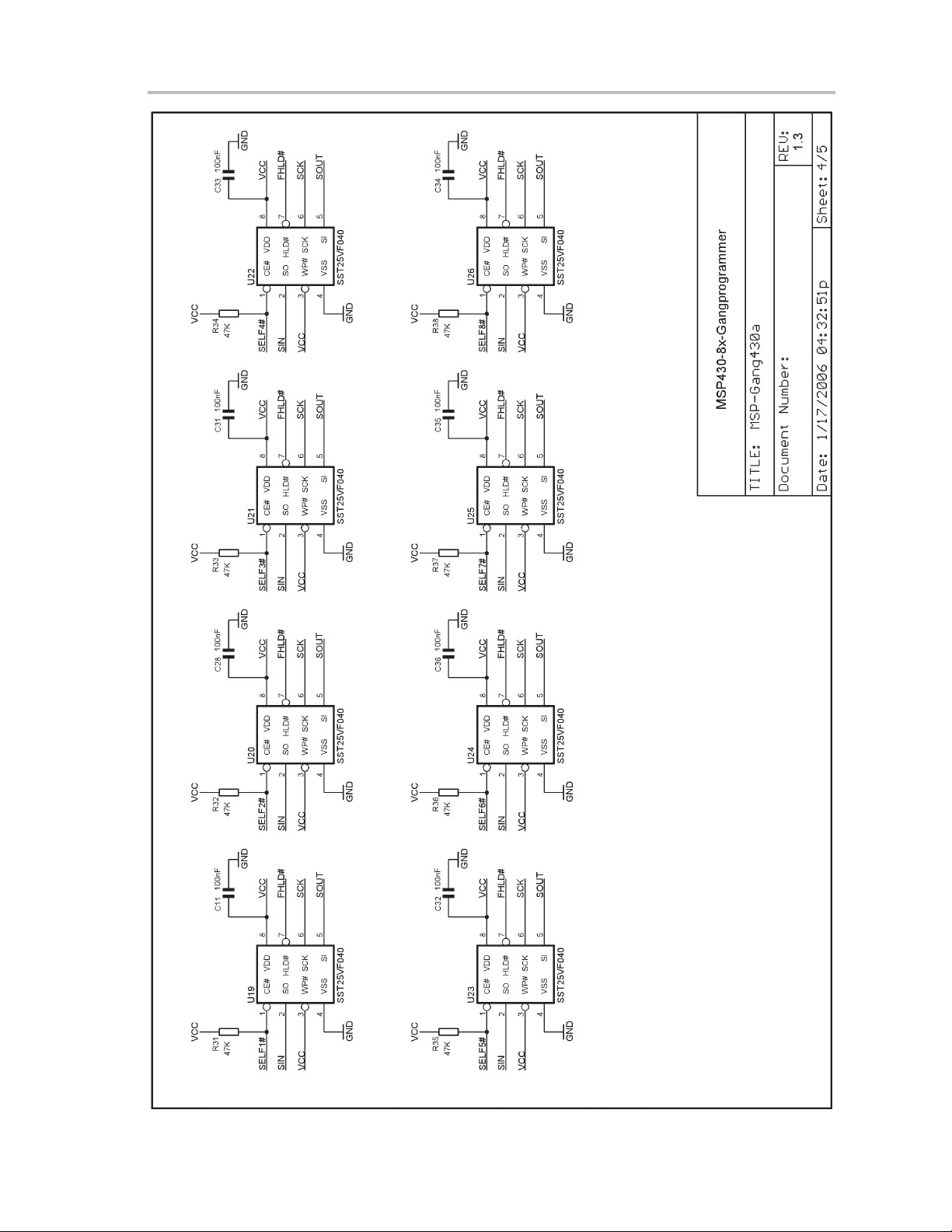

6 Schematics 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A Intel Hex Object Format A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A.1 Intel Hex Object Format A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A.2 TI-TXT File Format A-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1−1 MSP-GANG430 Gang Programmer 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2−1 MSP-GANG430 GUI 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5−1 25-Pin Sub-D at the MSP-GANG430 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5−2 14-Pin Connector at the End of the Interconnect Cable 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5−3 5−4
5−5 MSP-GANG430 Component Locations 5-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5−6 Gang_Exp Layout 5-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A−1. Intel Hex Object Format A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Signal Connections for 4-Wire JTAG Communication 5-6. . . . . . . . . . . . . . . . . . . . . . . . .
Signal Connections for 2-Wire JTAG Communication (Spy-Bi-Wire) 5-7. . . . . . . . . . . .

2−1 Function Buttons and Descriptions 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2−2 Status Messages 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2−3 Error Messages 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2−4 Control Bit Definitions for Target Connector Pins 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3−1 Data Frame of Firmware Commands 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5−1 MSP-GANG430 Hardware Specifications 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5−2 MSP-GANG430 Target Connector Signal Functions 5-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5−3 MSP-GANG430 Signal Levels 5-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
vi
Chapter 1
   
This chapter introduces the MSP-GANG430 and guides you through the installation of the software and hardware.
Topic Page
1.1 Introduction 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Software Installation 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Hardware Installation 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction, Installation, and Setup
1-1
Introduction
1.1 Introduction
The MSP-GANG430 is an MSP430 device programmer that can program up to eight MSP430 flash devices at the same time. The MSP-GANG430 connects to the host PC using a standard RS232 serial connection. The MSP-GANG430 provides flexible device programming options as described in Chapter 2.
The MSP-GANG430 is not a gang programmer in the traditional sense; there are not eight sockets provided to program the target devices. Instead, the MSP-GANG430 is designed to connect to the target devices in-circuit (i.e., the target devices are mounted in the customer’s final circuit/system). The MSP-GANG430 accesses the target devices using connectors to the JTAG signals.

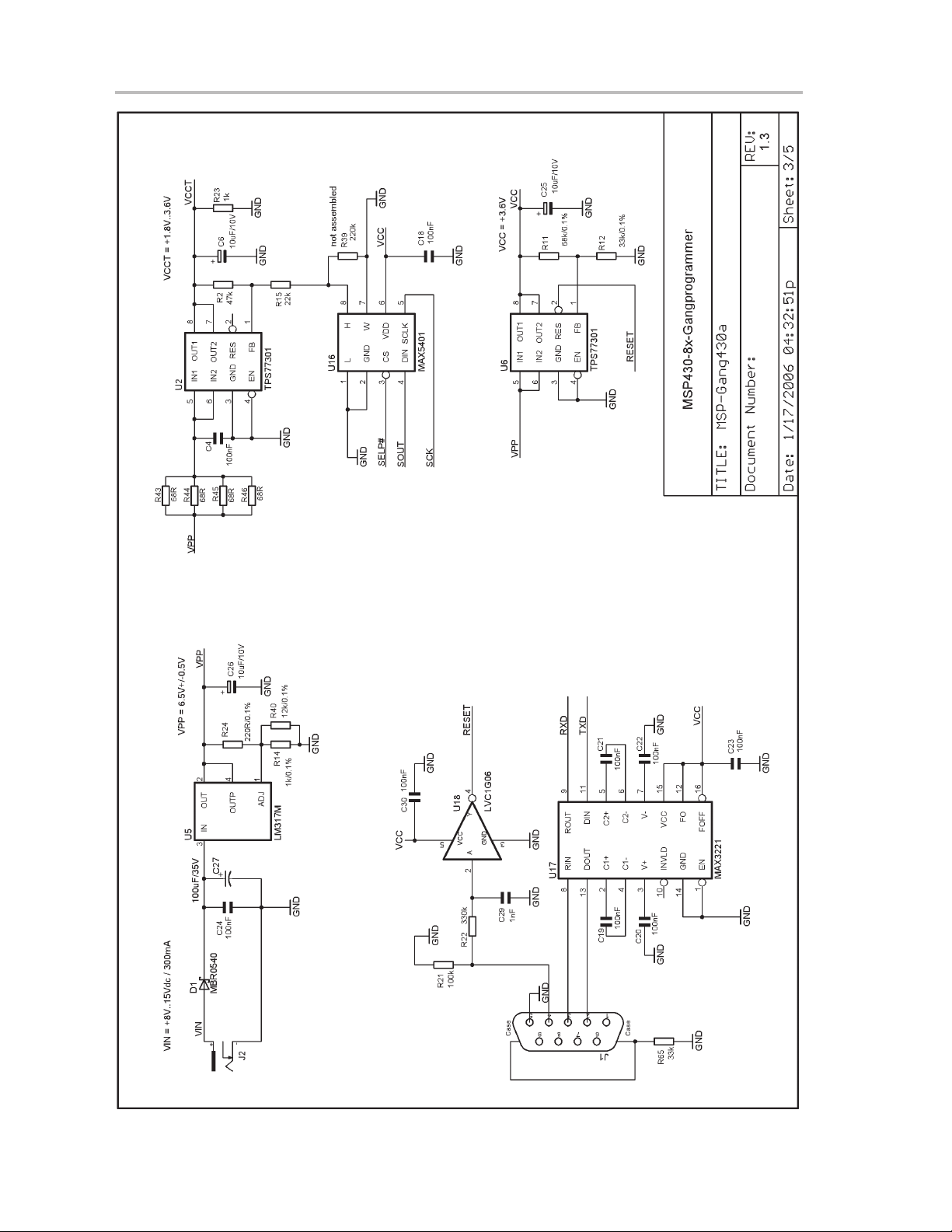

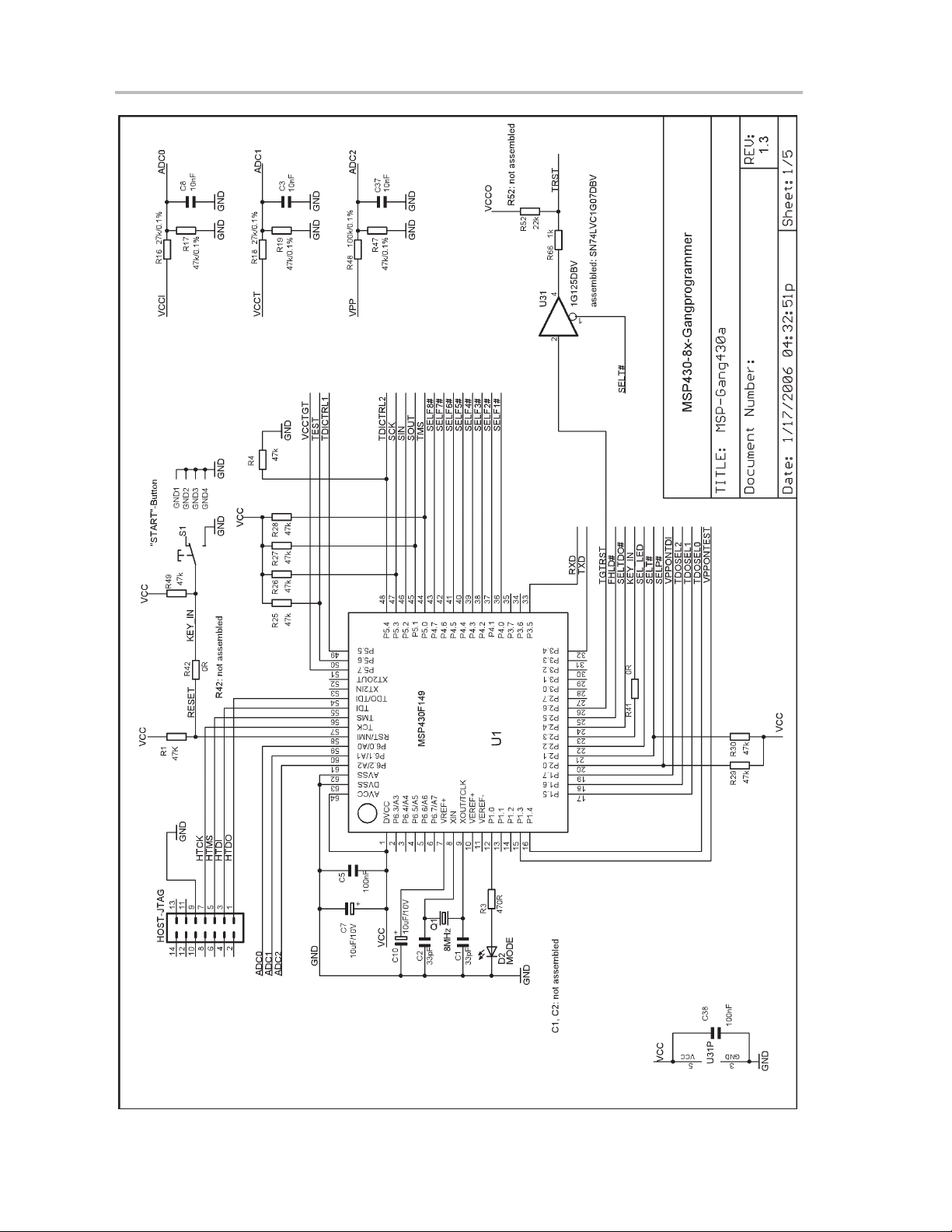

Chapter 6 contains a schematic that documents how the signals from the MSP-GANG430 can be brought out to each of the target devices via an MSP430-standard JTAG connector. The circuit could easily be modified to connect the signals to the target device pins directly (via a socket) if a traditional gang programmer was desired.
The MSP−GANG430 is provided with an expansion board that implements the interconnections between the MSP−GANG430 and multiple target devices. Eight cables are provided that connect the expansion board to eight target devices (via a JTAG connector).
1-2
1.2 Software Installation
To install the MSP-GANG430 software:
1) Insert the MSP430 CD-ROM into the CD-ROM drive of the computer. The setup routine automatically opens the default browser of the computer and displays the MSP430 start page. Alternatively, open the file index.htm located in the root directory of the CD-ROM using a browser. The MSP430 start page is displayed in the browser window.
2) Select Tool Software
3) Select MSP-GANG430 Gang Programmer
4) Select Save this program to disk under the File Download options and click OK. A Save As dialog is displayed.
5) Using the Save As dialog, save the GANG430_Rxxx.exe program to the computer. Make a note of the directory path to this file.
6) Navigate to this file (GANG430_Rxxx.exe) and execute it. A welcome message is displayed on the screen.
7) The setup program guides you through the installation process. Follow the setup instructions on the screen.
Software Installation
8) On completion of the setup program execution, the MSP-GANG430 program icons are created in the selected folder. Click on the GANG430 Read Me First icon to obtain important information about the MSP-GANG430 hardware and software.
9) The appropriate program group and icons are added to the Windows program manager.
10) To start the MSP-GANG430 software, click the GANG430 icon in the selected program group (the default program group is ADT430).
1.3 Hardware Installation
To install the MSP-GANG430 hardware:
1) Connect the MSP-GANG430 to the serial port (COM1−COM15 or extension board) of the PC using the 9-pin SUB-D connector.
2) Connect an external power supply to the MSP-GANG430. The voltage of the power supply must be between 9 V and 15 V dc and must be capable of providing a minimum current of 300 mA. The center post of the power supply connector on the MSP-GANG430 is the positive voltage terminal.
The power supply connection status is indicated by the yellow system LED on the MSP-GANG430.
3) The expansion board should be attached to the 25-pin SUB-D connector on the MSP−GANG430. It provides connectivity for up to eight targets, via the included eight 14-pin cables. The target MSP430 flash devices can be in standalone sockets or can be on an application’s PCB and are accessed via the JTAG signals.
Introduction, Installation, and Setup
1-3
Hardware Installation
Note: Maximum Signal Path Length: 60 cm
The maximum length of the signal path between the 25-pin SUB-D connector on the MSP-GANG430 and a target device is 60 cm. If cables between the programmer and targets are longer then 20 cm, serial resistors of 100 should be inserted on signals TCK and TMS on the expansion board. TCK is on pin 4 and TMS is on pin 3 of the 25-pin SUB-D connector.
4) The MSP−GANG430 provides the selected power supply voltage V (VCC_MSP on pins 7 and 14 of the 25-pin SUB-D target connector; pin 2 on the 14-pin cable) to the target devices in application PCBs. A maximum total current of 150 mA can be provided by the programmer to the targets.
5) When an external supply voltage V should also be fed into the sense input pin (MSP_VCC_IN on pin 15 of the 25-pin SUB-D target connector; pin 4 on the 14-pin cable) of the programmer. This connection allows the integrated level shifters to match the target JTAG signal levels with the external supply voltage.
When an external supply voltage is used for the target systems, it is very important to disconnect VCC_MSP from the targets to avoid power supply conflicts that could potential damage the MSP-GANG430 and the targets. Connect the external supply voltage to MSP_VCC_IN.
It is not possible to use the MSP-GANG430 with targets powered by the MSP-GANG430 and with targets powered by an external supply simultaneously.
Figure 1−1.MSP-GANG430 Gang Programmer
Power supply
is used for the target systems, it
CC
CC
RS232
from
PC
1-4
8−15 V
300 mA
RS232
MODE START
ERR
12345678
MSP430 Gang Programmer
MSP-GANG430
TI
OK
TARGET
JTAG connector
for eight
MSP430 devices
Chapter 2

This chapter describes the various methods for programming MSP430 flash devices using the MSP-GANG430.
Topic Page
2.1 Programming MSP430 Flash Devices Using the GUI 2-2. . . . . . . . . . . . .
2.2 Programming MSP430 Flash Devices in Standalone Mode 2-9. . . . . . . .
2.3 Programming MSP430 Flash Devices With User-Configured UART
Handler 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4 Programming MSP430 Devices With GANG430.DLL 2-9. . . . . . . . . . . . . .
Operation
2-1
Programming MSP430 Flash Devices Using the GUI
2.1 Programming MSP430 Flash Devices Using the GUI
2.1.1 Procedure
The following sequence must be followed to start the GUI and program MSP430 flash devices using the MSP-GANG430:
1) Connect the MSP-GANG430 hardware and the targets as suggested in Section 1.3.
2) Click on the GANG430 icon located in the program group specified during installation of the software (default: ADT430). The MSP430 FLASH Gang Programmer GUI is displayed on the screen (see Figure 2−1). The status line in the GUI displays the message MSP-GANG430 Gang Programmer connected. If this message is not displayed, check the CO in the communication settings and the MSP-GANG430 connections.
M Port selection
3) Select the required device using the D
4) Select the object code file to be programmed into the device(s) using the
ame menu. The formats supported for the object code file are TI TXT
File N
(.txt) and Intel hex (.a43, .hex, .int).
5) Use the L sum to the MSP-GANG430. The data is written to an internal memory called the image buffer.
6) Select the supply voltage using the Su
7) Select the options in Main Process as required.
8) Click on the S operation. The progress and completion of the operation is displayed in status. Before the gang programming operation starts, the reset of all targets is performed. The duration of the reset pulse and the delay after reset is specified by “Settling Time”. The reset feature is available on hardware V1.30 and later.
oad Image button to download the object code file and its check-
tart button in Main Process to start the gang programming
evice Type menu.
pply Voltage menu.
2-2
Figure 2−1.MSP-GANG430 GUI
Programming MSP430 Flash Devices Using the GUI
Operation
2-3
Programming MSP430 Flash Devices Using the GUI
Executes the function(s) selected
function(s) selected
in Main Process
Load Image –Target
Load Image –Target
Program/Device
Erase/Check Erase
Maintenance
Settings
2.1.2 Description of the MSP-GANG430 GUI
Table 2−1 describes the function buttons and option settings in the MSP-GANG430 GUI.
Table 2−1.Function Buttons and Descriptions
Button Group Functions Description
Erase Erase the target’s flash memories as selected on the panel
Erase/Check Erase
Start – Main Process
in Main Process
Target Power
Program/Device
Execute –
JTAG
Communication
Erase check Check if the target’s memories are erased as selected on the
panel Erase/Check Erase Program Program the image buffer into the target’s flash memory Verify Compare the target’s flash memory and the image buffer Blow fuse Blow the target’s JTAG fuse after successful completion of the
selected operations Supplied by
programmer Switch VCC off The supply voltage provided by the VCC_MSP pin is switched off
Supply voltage Select the voltage supplied to the targets Settling time Time to allow the target capacitors to fully charge Load image Load the selected object code file into the image buffer. Device Type Select the memory model of the target Device Information Memory details of the selected device type File name The file containing the object code Main memory Check if the main memory should be erased or checked according
Info memory Check if the info memory should be erased or checked according
Calibration data Check if the calibration protected info memory should be erased
H/W self test Initiate hardware self test. All green LEDs on – test pass. All red
Update firmware Update MSP-GANG430 firmware with the firmware update file Read out Target Read out exclusively one of eight target modules. Erase image Erase the image buffer Target connector
(test) Use SpyBiWire Check this box if the 2-wire SpyBiWire interface should be used
COM port Select the PC serial port used to communicate with the
Baud rate Select the baud rate of the serial port
The connected targets are powered by the MSP-GANG430 via
VCC_MSP pin.
after programming the targets.
to setting in group Main Process
to setting in group Main Process
and/or checked according to setting in group Main Process. If this
check box is checked, the calibration data is lost. It can be used
if the calibration data is not needed in the application.
LEDs on – test fail.
Set the selected pin on the 25-pin target connector of the
MSP-GANG430.
for device operation. This option is not available for all devices.
Note: The 2-wire SpyBiWire interface operation is slower than the
regular 4-wire JTAG.
MSP-GANG430.
2-4
Programming MSP430 Flash Devices Using the GUI
System menu
Progress
System
Setting
Maintenance
Button Group
Functions Description
System menu mode
Lock settings All settings on the GUI are locked. Only the Start button, the Result
Unlock settings The locked settings and the hidden group boxes are enabled. Help Opens the user help window About gang
programmer
2.1.3 Status Messages
Table 2−2 shows the status messages that can be displayed in the MSP-GANG430 GUI during operation.
Table 2−2.Status Messages
Status Type Status Messages
Progress
System
Setting
Maintenance
Executing main process... Erasing image buffer... Loading image buffer... Loading checksum of image buffer... Erasing firmware section... Loading firmware section... Initializing firmware... Changing baud rate... Executing self test... Setting signals at target connector... Operation successful MSP-GANG430 gang programmer connected. Result of the operation: See the result section. COM port settings modified. MSP-GANG430 gang programmer connected. Target power settings modified Operation successful Selftest passed
The System Menu is displayed by clicking on the icon at the upper left corner of GUI (or {Alt} and {Space} pressed together).
group box, and the Status group box are displayed. Other group boxes are hidden.
Desktop application software and firmware version and filename information is displayed (or press F1)
Operation
2-5
Programming MSP430 Flash Devices Using the GUI
Communication
Setting System
Maintenance
Windows
2.1.4 Error Messages
Table 2−3 shows the error messages that can be displayed in the MSP-GANG430 GUI when an error occurs during operation.
Table 2−3.Error Messages
Error Type Error Message
Communication
Setting System
Maintenance
Windows
ERROR: Unable to read Target! ERROR: Unable to open COM port − already in use? ERROR: Unable to close COM port! ERROR: Synchronization failed. Programmer connected? ERROR: Time out during operation − Correct COM port selected? ERROR: Communication − Frame has errors! ERROR: Select baud rate command not accepted! WARNING: Target voltage too low for erase / program operation! Set to > 2.7−V. WARNING: Could not set target voltage − Externally supplied? ERROR: Value wrong or out of range! ERROR: Selected file is of unrecognizable format! ERROR: Selected file is not a firmware update file! ERROR: Firmware section cannot be erased! ERROR: Unable to load firmware. Correct file format? ERROR: Unable to refresh gang programmer system parameters! ERROR: Unable to load Image buffer! Image buffer erased? Correct file format? ERROR: Result of operation not received! FATAL ERROR: Image memory corrupted or erased! ERROR: Unexpected end of file! ERROR: File contains invalid record! ERROR: Wrong target device connected! ERROR: Image range XXXX−YYYY placed outside of existing memory General error! ERROR: Self test failed – No access to one ore more image buffer devices! ERROR: Self test failed − No JTAG access to one or more target channels! ERROR: Self test failed − Target voltage generator (V ERROR: Self test failed – system voltage (VCC) not in range! ERROR: Self test failed − blow fuse voltage (VPP) not in range! ERROR: Unable to open file! ERROR: Error during file I/O! ERROR: Unable to open INI file!
) does not work properly!
CCT
2.1.5 Description of the Gang430.ini File
The Gang430.ini file contains the MSP-GANG430 default settings and the last used GUI settings.
2-6
2.1.5.1 Section [System]
The last used settings of the MSP-GANG430 GUI are stored in the Gang430.ini file before exiting the GUI application program. This information is stored under the [System] section of the file. There is one entry in this section which setting can be not changed via GUI: JtagSpeed = 0 (default value is 0). Setting it to a value of 1 makes the JTAG connection slower. It can be used for quality testing of the cable between target devices and the MSP-GANG430.
2.1.5.2 Section [User]
The initial settings for the following parameters are in the [User] section and may be modified by the user:
CaptionIndexed = 0 (default) The caption of the MSP-GANG430 GUI in the default state is MSP430 FLASH Gang Programmer. When CaptionIndexed = 1, the caption is extended with a suffix [n] to allow multiinstance operation for programming in automated production environment that uses caption titles for process control. The suffix n represents the unique COMn port number for that instance. E.g. for COM3, the caption is displayed as MSP430 FLASH Gang Programmer [3].
Programming MSP430 Flash Devices Using the GUI
2.1.5.3 Section [Timing]
The [Timing] section shows the approximate time that has elapsed in milliseconds for various operations of the MSP-GANG430. The parameters under this section are updated after the associated operations are successful. The information on the elapsed time is useful for development and setup. The parameter that is most interesting is the time taken to complete a gang programming cycle, represented by TimeGangProg under this section.
2.1.5.4 Section [Diagnostic]
The [Diagnostic] section is useful for automatic production using the MSP-GANG430. During gang programming operation, Busy = 1. After completion of the operation, the information in the Result group box in the GUI is also listed in this section for the following: Connected, EraseChecked, Verified, FuseBlown, OverAll, and MiscErrors, if any. A Busy = 0 terminates that process and the diagnostics can be read from the .ini file.
For Example:
OverAll=239 (hexadecimal 0xEF) means: All channels except channel 5 were successfully processed (channel 1 represents the LSB, channel 8 represents the MSB of a byte).
Note:
When MiscErrors is nonzero, the diagnostic values are not valid for evalua­tion. Possible values for MiscErrors are shown below.
Operation
2-7
Programming MSP430 Flash Devices Using the GUI
MiscErrors Description
0
Operation successful
1 FATAL ERROR: Image memory could be corrupted or
erased 11 ERROR: Main process parameters not yet set 16
ERROR: Could not set target voltage (VCCT) −
MSP_VCC_IN pin connected?
2.1.6 Target Connector Functional Check
The MSP-GANG430 GUI diagnostics support a functional check of the target connector pins. The functional check is invoked by selecting the Target Connector category in the Maintenance group box, and clicking the Execute button with the appropriate Set Signals defined. The Set Signals value is the decimal value that represents the combination of the appropriate control bits. The defined pin’s signal level is available for measurement after execution of the functional check. The signal levels remain unchanged until another configuration is set. The target connector functional check must always be terminated by executing the End of Check setting (0x8000 = 32768) or by executing an H/W self test to initialize the MSP-GANG430. Table 2−4 shows the details of the control bits.
Table 2−4.Control Bit Definitions for Target Connector Pins
Bits Pin Function and Levels Signal Level Connector Pins
0x0000 Select TDO/TDI1 1,8 0x0001 Select TDO/TDI2 9 0x0002 Select TDO/TDI3 10 0x0003 Select TDO/TDI4 11 0x0004 Select TDO/TDI5 12 0x0005 Select TDO/TDI6 13 0x0006 Select TDO/TDI7 25 0x0007 Select TDO/TDI8 24 0x0008 Logic level at TDO/TDIx pin
Logic level at TDI/VPP pin 0x0010 Logic level at TCK pin VCC or 0 4 0x0020 Logic level at TMS pin VCC or 0 3 0x0040 Logic level at TEST/VPP pin VCC −0.25V or 0 17 0x0080 Logic level at TDI/VPP pin VCC or 0 2 0x0100 VCC on/off at VCC_MSP pin VCC or 0 7, 14 0x0200 VPP on/off at TDI/VPP pin, overwrites bit 0x0080 VPP or 0 2 0x0400 VPP on/off at TEST/VPP pin VPP or 0 17 0x7800 Reserved 0x8000 End of check, reinitialize MSP-GANG430 initial all
VCC or 0
/VPP or 0
V
CC
1, 8−13, 25, 24, 2
2-8
Programming MSP430 Flash Devices in Standalone Mode
Example 1: To check the logic high level on TDO/TDI3 and VPP voltage level on TEST/VPP:
Enter 0x040A (0x0002 + 0x0008 + 0x0400) into Set Signal and click Exe- cute. The V pins remain at 0 V. The connector case is electrically grounded, as are pins 19−23.
Example 2: To let free run target 3 programmed via SpyBiWire (2-Wire Mode):
Select TDO/TDI3 0x0002 Logic Level at TDO/TDIx 0x0008 VCC on at VCC_MSP pin 0x0100 Enter 0x010a (0x0002 + 0x0008 + 0x0100) into Set Signal and click Execute.
at pin 10 and VPP at pin 17 can be measured now. All other
CC
2.2 Programming MSP430 Flash Devices in Standalone Mode
The MSP-GANG430 supports a standalone mode of programming the target MSP430 flash devices.
The programming options for the MSP-GANG430 while operating in standalone mode are configured using the GUI. When the Start button in Main Process is clicked, all selected options are downloaded into the flash memory of the MSP-GANG430. Once the download is complete, the MSP-GANG430 can be disconnected from the PC and used standalone to program the target devices. The START push-button on the MSP-GANG430 operates identical to the Start button of the GUI. Progress of the operation in standalone mode is indicated by the flashing yellow LED.
The result status is represented by the rows of green and red LEDs on the MSP-GANG430. For each channel, a green LED indicates a successful operation and a red LED indicate a failed operation. If both red and green LEDs are off for a channel, the target device connected to that channel is not accessible or is not connected.
In standalone mode, the H/W self test of the MSP-GANG430 can be initiated by pressing the START key for more than three seconds. The progress of the test is indicated by alternate flashing of green and red LEDs in groups of four. Upon completion of the self test, all eight green LEDs are on if the self test passes. Any other combinations of the LEDs indicate a failed self test.
2.3 Programming MSP430 Flash Devices With User-Configured UART Handler
The MSP-GANG430 programmer supports programming the MSP430 flash devices by using generic firmware commands. The generic firmware commands and protocol are described in Chapter 3.
Operation
2-9
Loading...
+ 43 hidden pages
