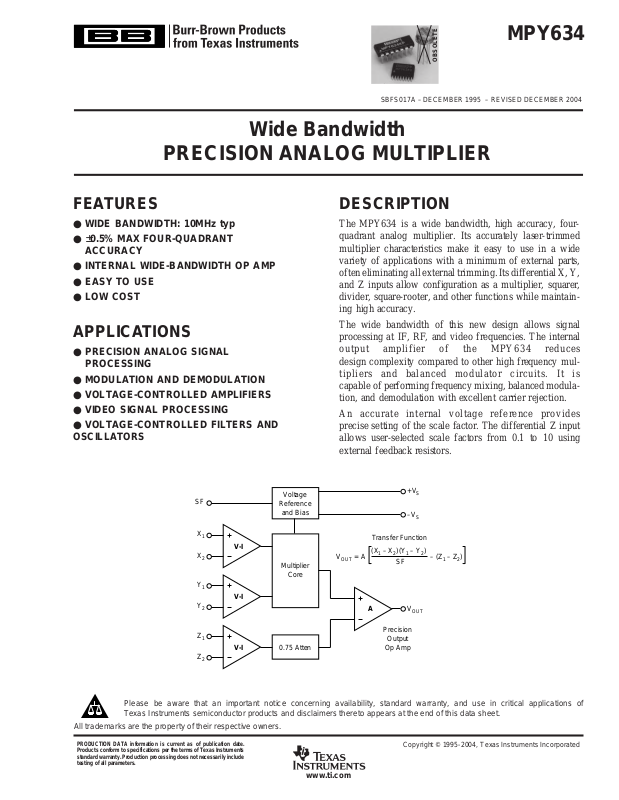

TEXAS INSTRUMENTS MPY634Wide Technical data

OBSOLETE

SBFS017A – DECEMBER 1995 – REVISED DECEMBER 2004

Wide Bandwidth

PRECISION ANALOG MUL TIPLIER

MPY634

FEATURES

● WIDE BANDWIDTH: 10MHz typ

● ±0.5% MAX FOUR-QUADRANT

ACCURACY

● INTERNAL WIDE-BANDWIDTH OP AMP

● EASY TO USE

● LOW COST

APPLICATIONS

● PRECISION ANALOG SIGNAL

PROCESSING

● MODULATION AND DEMODULATION

● VOLTAGE-CONTROLLED AMPLIFIERS

● VIDEO SIGNAL PROCESSING

● VOLTAGE-CONTROLLED FILTERS AND

OSCILLATORS

SF

Voltage

Reference

and Bias

DESCRIPTION

The MPY634 is a wide bandwidth, high accuracy, four­quadrant analog multiplier. Its accurately laser-trimmed
multiplier characteristics make it easy to use in a wide
variety of applications with a minimum of external parts,
often eliminating all external trimming. Its differential X, Y,
and Z inputs allow configuration as a multiplier, squarer,
divider, square-rooter, and other functions while maintain­ing high accuracy.

The wide bandwidth of this new design allows signal
processing at IF, RF, and video frequencies. The internal
output amplifier of the MPY634 reduces
design complexity compared to other high frequency mul­tipliers and balanced modulator circuits. It is
capable of performing frequency mixing, balanced modula­tion, and demodulation with excellent carrier rejection.

An accurate internal voltage reference provides
precise setting of the scale factor. The differential Z input
allows user-selected scale factors from 0.1 to 10 using
external feedback resistors.

+V

S

–V

S

X

1

X

2

Y

1

Y

2

Z

1

Z

2

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

All trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.

V-I

V-I

V-I

Multiplier

Core

0.75 Atten

V

OUT

www.ti.com

Transfer Function
(X1 – X2)(Y1 – Y2)

= A – (Z1 – Z2)

A

SF

V

OUT

Precision

Output

Op Amp

Copyright © 1995-2004, Texas Instruments Incorporated

SPECIFICATIONS

ELECTRICAL

At TA = +25°C and VS = ±15VDC, unless otherwise noted.

MPY634KP/KU MPY634AM MPY634BM MPY634SM

MODEL MIN TYP MAX MIN TYP MAX MIN TYP MAX MIN TYP MAX UNITS

OBSOLETE

OBSOLETE

MULTIPLIER
PERFORMANCE

Transfer Function **
Total Error

(1)

(X1 – X2) (Y1 – Y2)

10V

+ Z

2

(X1 – X2) (Y1 – Y2)

10V

+ Z

2

(–10V ≤ X, Y ≤ +10V) ±2.0 ±1.0 ±0.5 * %

T

= min to max ±2.5 ±1.5 ±1.0 ±2.0 %

A

Total Error vs Temperature ±0.03 ±0.022 ±0.015 ±0.02 %/°C
Scale Factor Error

(SF = 10.000V Nominal)

(2)

±0.25 ±0.1 * * %

Temperature Coefficient of

Scaling Voltage ±0.02 ±0.01 ±0.01 * %/°C
Supply Rejection (±15V ±1V) ±0.01 ±0.01 * * %
Nonlinearity

X (X = 20Vp-p, Y = 10V) ±0.4 ±0.4 0.2 ±0.3 * %

Y (Y = 20Vp-p, X = 10V) ±0.01 ±0.01 * ±0.1 * %
Feedthrough

(3)

X (Y Nulled, X = 20Vp-p, 50Hz) ±0.3 ±0.3 ±0.15 ±0.3 * %

Y (X Nulled, Y = 20Vp-p, 50Hz) ±0.01 ±0.01 * ±0.1 * %

Both Inputs (500kHz, 1Vrms)

Unnulled 40 50 45 55 * 60 * * dB

Nulled 556055656070**dB
Output Offset Voltage ±50 ±100 ±5 ±30 * ±15 * * mV
Output Offset Voltage Drift * ±200 ±100 * ±500 µV/°C

DYNAMICS

Small Signal BW,

(V

= 0.1Vrms) 6 10 8 10 * * 6 * MHz

OUT

1% Amplitude Error

(C

= 1000pF) 100 100 * * kHz

LOAD

Slew Rate (V
Settling Time

(to 1%, ∆V

= 20Vp-p) 20 20 * * V/µs

OUT

= 20V) 2 2 * * µs

OUT

NOISE

Noise Spectral Density:

SF = 10V 0.8 0.8 * * µV/√Hz

Wideband Noise:

f = 10Hz to 5MHz 1 1 * * mVrms
f = 10Hz to 10kHz 90 90 * * µVrms

OUTPUT

Output Voltage Swing ±11 ±11 * * V
Output Impedance (f ≤ 1kHz) 0.1 0.1 * * Ω
Output Short Circuit Current

(R

= 0, TA = min to max) 30 30 * * mA

L

Amplifier Open Loop Gain

(f = 50Hz) 85 85 * * dB

INPUT AMPLIFIERS (X, Y and Z)

Input Voltage Range

Differential V
Common-Mode V
(see Typical Performance Curves)

(VCM = 0) ±12 ±12 * * V

IN

(V

= 0) ±10 ±10 * * V

IN

DIFF

Offset Voltage X, Y ±25 ±100 ±5 ±20 ±2 ±10 * * mV
Offset Voltage Drift X, Y 200 100 50 * µV/°C
Offset Voltage Z ±25 ±100 ±5 ±30 ±2 ±15 * * mV
Offset Voltage Drift Z 200 200 100 500 µV/°C
CMRR 60 80 60 80 70 90 * * dB
Bias Current 0.8 2.0 0.8 2.0 * * * * µA
Offset Current 0.1 0.1 * * 2.0 µA
Differential Resistance 10 10 * * MΩ

DIVIDER PERFORMANCE

Transfer Function (X
Total Error

(1)

> X2) **

1

untrimmed

(Z2 – Z1)

10V + Y

(X1 – X2)

(Z2 – Z1)

1

10V + Y

(X1 – X2)

1

(X = 10V, –10V ≤ Z ≤ +10V) 1.5 ±0.75 ±0.35 ±0.75 %
(X = 1V, –1V ≤ Z ≤ +1V) 4.0 ±2.0 ±1.0 * %
(0.1V≤ X ≤ 10V, –10V ≤ Z ≤ 10V) 5.0 ±2.5 ±1.0 * %

SQUARE PERFORMANCE

Transfer Function **

(X1 – X2)

10V

2

+ Z

2

(X1 – X2)

10V

2

+ Z

2

Total Error (–10V ≤ X ≤ 10V) ±1.2 ±0.6 ±0.3 * %

OBSOLETE

2

www.ti.com

MPY634

SBFS017A

SPECIFICATIONS (CONT)

ELECTRICAL

At TA = +25°C and VS = ±15VDC, unless otherwise noted.

MPY634KP/KU MPY634AM MPY634BM MPY634SM

MODEL MIN TYP MAX MIN TYP MAX MIN TYP MAX MIN TYP MAX UNITS
SQUARE-ROOTER

PERFORMANCE

Transfer Function (Z
Total Error

POWER SUPPLY

Supply Voltage:

Supply Current, Quiescent 4 6 4 6 * * * * mA

TEMPERATURE RANGE

Specification –40 +85 –25 +85 * * –55 +125 °C
Storage –40 +85 –65 +150 * * * * °C

* Specification same as for MPY634AM.
Gray indicates obsolete parts.
NOTES: (1) Figures given are percent of full scale, ±10V (i.e., 0.01% = 1mV). (2) May be reduced to 3V using external resistor between –V
component due to nonlinearity; excludes effect of offsets.

(1)

Rated Performance ±15 ±15 * * VDC
Operating ±8 ±18 ±8 ±18 * * * ±20 VDC

≤ Z2) **

1

(1V ≤ Z ≤ 10V) ±2.0 ±1.0 ±0.5 * %

√10V (Z2 – Z1) +X

OBSOLETE

2

√10V (Z2 – Z1) +X

OBSOLETE

2

PIN CONFIGURATIONS

OBSOLETE

and SF. (3) Irreducible

S

Top View

X

1

X

2

SF

2

Y

3

1

OBSOLETE

Y

TO-100: MPY634AM/BM/SM

10

1

4

2

5

–V

+V

S

9

8

7

6

Z

2

S

Out

Z

X
X

Scale Factor

1

Y
Y

Input

1

Input

2

Input

1

Input

2

NC

NC

1
2
3
4
5
6
7

ABSOLUTE MAXIMUM RATINGS

PARAMETER MPY634AM/BM MPY634KP/KU MPY634SM

Power Supply Voltage ±18 * ±20
Power Dissipation 500mW * *
Output Short-Circuit

to Ground Indefinite * *

Input Voltage ( all X,

Y and Z) ±V

Temperature Range:

Operating –25°C/+85°C –40°C/+85°C –55°C/+125°C
Storage –65°C/+150°C –40°C/+85°C*

Lead Temperature

(soldering, 10s) +300°C* *
SOIC ‘KU’ Package +260°C

* Specification same as for MPY634AM/BM.
NOTE: Gray indicates obsolete parts.

OBSOLETE OBSOLETE

S

**

1

1

2

Input

NC

NC
Input
Input

NC

1
2
3
4
5
6
7
8

SOIC: MPY634KUDIP: MPY634KP

X

14

+V

S

13

NC

12

Output

11

Z

Input

1

10

Z

Input

2

9

NC

8

–V

S

X2 Input

Scale Factor

Y
Y

16

+V

S

15

NC

14

Output

13

Z

Input

1

12

Z

Input

2

11

NC

10

–V

S

9

NC

ORDERING INFORMATION

Basic Model Number
Performance Grade

K: U: –40°C to +85°C

Package Code

P: Plastic 14-pin DIP
U: 16-pin SOIC

NOTE: (1) Performance grade identifier may not be marked on the SOIC
package; a blank denotes “K” grade.

(1)

MPY634 ( )( )

PACKAGE INFORMATION

PRODUCT PACKAGE NUMBER

MPY634KP 14-Pin PDIP 010
MPY634KU 16-Pin SOIC 211

NOTE: (1) For the most current package and ordering information, see the
Package Option Addendum located at the end of this data sheet.

(1)

PACKAGE DRAWING

MPY634

SBFS017A

www.ti.com

3

TYPICAL PERFORMANCE CURVES

At TA = +25°C, VS = ±15VDC, unless otherwise noted.

–20

FEEDTHROUGH vs FREQUENCY

–40

X Feedthrough

–60

Y Feedthrough

–80

Feedthrough Attenuation (dB)

–100

100 1k 10k 1M 10M 100M

100k

Frequency (Hz)

COMMON-MODE REJECTION RATIO vs FREQUENCY

90
80
70
60

Typical for all inputs

50
40

CMRR (dB)

30
20
10

0

100 100M

10k 1M 10M

Frequency (Hz)

10

FREQUENCY RESPONSE AS A MULTIPLIER

Normal Connection

0

CL = 0pF

–10

With X10 Feedback

–20

Output Response (dB)

Attenuator

–30

1k 10k 100k 1M 10M 100M

Frequency (Hz)

FEEDTHROUGH vs TEMPERATURE

–50

–60

fY = 500kHz
V

= nulled

X

–70

nulled at 25°C

Feedthrough Attenuation (dB)

–80

–60

–20 20 60 100 140–40 0 40 80 120

Temperature (°C)

C

= 1000pF

L

NOISE SPECTRAL DENSITY

1.5

1.25

1

0.75

Noise Spectral Density (µV/√Hz)

0.5
10 100 10k 100k

vs FREQUENCY

1k

Frequency (Hz)

4

www.ti.com

60

FREQUENCY RESPONSE AS A DIVIDER

VX = 100mVDC
V

= 10mVrms

40

(dB)

2

/V

0

20

Output, V

Z

= 1VDC

V

X

V

= 100mVrms

Z

= 10VDC

V

X

V

= 100mVrms

Z

0

–20

1k 10k 100k 1M 10M 100M

Frequency (Hz)

MPY634

SBFS017A

TYPICAL PERFORMANCE CURVES (CONT)

TA = +25°C, VS = ±15VDC, unless otherwise noted.

INPUT/OUTPUT SIGNAL RANGE

14

12

Output, RL ≥ 2kΩ

10

8

6

Peak Positive or Negative Signal (V)

4

81012 161820

vs SUPPLY VOLTAGES

All inputs, SF = 10V

14

Positive or Negative Supply (V)

THEORY OF OPERATION

The transfer function for the MPY634 is:

V

OUT

where:

A = open-loop gain of the output amplifier (typically

85dB at DC).

SF = Scale Factor. Laser-trimmed to 10V but adjustable

over a 3V to 10V range using external resistors.

X, Y, Z are input voltages. Full-scale input voltage
is equal to the selected SF. (Max input voltage =
±1.25 SF).

An intuitive understanding of transfer function can be gained
by analogy to the op amp. By assuming that the open-loop
gain, A, of the output operational amplifier is infinite,

MPY634

SBFS017A

(X1 – X2) (Y1 – Y2)

= A – (Z1 – Z2)

SF

www.ti.com

inspection of the transfer function reveals that any V

OUT

can
be created with an infinitesimally small quantity within the
brackets. Then, an application circuit can be analyzed by
assigning circuit voltages for all X, Y and Z inputs and
setting the bracketed quantity equal to zero. For example,
the basic multiplier connection in Figure 1, Z1 = V

OUT

and

Z2 = 0. The quantity within the brackets then reduces to:

(X1 – X2) (Y1 – Y2)

– (V

SF

OUT

– 0) = 0

This approach leads to a simple relationship which can be
solved for V

to provide the closed-loop transfer function.

OUT

The scale factor is accurately factory adjusted to 10V and is
typically accurate to within 0.1% or less. The scale factor
may be adjusted by connecting a resistor or potentiometer
between pin SF and the –VS power supply. The value of the
external resistor can be approximated by:

5

RSF = 5.4kΩ

SF

10 – SF

Internal device tolerances make this relationship accurate to
within approximately 25%. Some applications can benefit
from reduction of the SF by this technique. The reduced
input bias current, noise, and drift achieved by this technique
can be likened to operating the input circuitry in a higher
gain, thus reducing output contributions to these effects.
Adjustment of the scale factor does not affect bandwidth.

The MPY634 is fully characterized at V

= ±15V but

S

operation is possible down to ±8V with an attendant reduc­tion of input and output range capability. Operation at
voltages greater than ±15V allows greater output swing to be
achieved by using an output feedback attenuator (Figure 1).

As with any wide bandwidth circuit, the power supplies
should be bypassed with high frequency ceramic capacitors.
These capacitors should be located as near as practical to the
power supply connections of the MPY634. Improper by­passing can lead to instability, overshoot, and ringing in the
output.

X Input
±10V FS
±12V PK

Y Input
±10V FS
±12V PK

+V

X

1

X

Out

2

MPY634

SF Z

Y

1

Y

–V

2

+15V

S

1

Z

2

–15V

S

10kΩ

V

, ±12V PK

OUT

= (X

– X2) (Y1 – Y2)

1

(Scale = 1V)

90kΩ

Optional
Peaking

Capacitor

C

= 200pF

F

FIGURE 1. Connections for Scale-Factor of Unity.

BASIC MULTIPLIER CONNECTION

Figure 2 shows the basic connection as a multiplier. Accu­racy is fully specified without any additional user-trimming
circuitry. Some applications can benefit from trimming of
one or more of the inputs. The fully differential inputs
facilitate referencing the input quantities to the source volt­age common terminal for maximum accuracy. They also
allow use of simple offset voltage trimming circuitry as
shown on the X input.

The differential Z input allows an offset to be summed in
V

. In basic multiplier operation, the Z2 input serves as

OUT

the output voltage ground reference and should be connected
to the ground of the driven system for maximum accuracy.

A method of changing (lowering) SF by connecting to the
SF pin was discussed previously. Figure 1 shows an alterna­tive method of changing the effective SF of the overall
circuit by using an attenuator in the feedback connection to
Z1. This method puts the output amplifier in a higher gain
and is thus accompanied by a reduction in bandwidth and an

+15V

V

OUT

– X2) (Y1 – Y2)

(X

1

=

–15V

, ±12V PK

10V

Optional

Summing

Z, ±10V PK

+ Z2

Input,

+15V

50kΩ

–15V

Optional Offset

Trim Circuit

X Input
±10V FS
±12V PK

470kΩ

Y Input
±10V FS
±12V PK

1kΩ

+V

X

1

X

Out

2

MPY634

SF Z

Y

1

Y

–V

2

S

1

Z

2

S

FIGURE 2. Basic Multiplier Connection.
increase in output offset voltage. The larger output offset

may be reduced by applying a trimming voltage to the high
impedance input, Z

.

2

The flexibility of the differential Z inputs allows direct
conversion of the output quantity to a current. Figure 3
shows the output voltage differentially-sensed across a se­ries resistor forcing an output-controlled current. Addition
of a capacitor load then creates a time integration function
useful in a variety of applications such as power computa­tion.

X Input
±10V FS
±12V PK

Y Input
±10V FS
±12V PK

+V

X

1

X

Out

2

MPY634

SF Z

Y

1

Y

–V

2

S

1

Z

2

S

+15V

I

=

OUT

– X2) (Y1 – Y2)

(X

1

x

10V

Current

Sensing

Resistor,

R

, 2kΩ

–15V

S

min

1

R

S

Integrator
Capacitor
(see text)

FIGURE 3. Conversion of Output to Current.

SQUARER CIRCUIT (FREQUENCY DOUBLER)

Squarer, or frequency doubler, operation is achieved by
paralleling the X and Y inputs of the standard multiplier
circuit. Inverted output can be achieved by reversing the
differential input terminals of either the X or Y input.
Accuracy in the squaring mode is typically a factor of two
better than the specified multiplier mode with maximum
error occurring with small (less than 1V) inputs. Better
accuracy can be achieved for small input voltage levels by
reducing the scale factor, SF.

DIVIDER OPERATION

The MPY634 can be configured as a divider as shown in
Figure 4. High impedance differential inputs for the numera­tor and denominator are achieved at the Z and X inputs,

Hello

6

www.ti.com

MPY634

SBFS017A

respectively. Feedback is applied to the Y2 input, and Y1 is

g

normally referenced to output ground. Alternatively, as the
transfer function implies, an input applied to Y1 can be
summed directly into V

. Since the feedback connection

OUT

is made to a multiplying input, the effective gain of the
output op amp varies as a function of the denominator input
voltage. Therefore, the bandwidth of the divider function is
proportional to the denominator voltage (see Typical Perfor­mance Curves).

Output, ±12V PK

+15V

V

= + Y1

OUT

Z Input

(Numerator)

±10V FS,

±12V PK

10V(Z

(X1 – X2)

2

– Z1)

X Input

(Denominator)

0.1V ≤ X ≤ 10V

Optional

Summing Input

±10V PK

+

–

+V

X

1

X

Out

2

MPY634

SF Z

Y

1

S

1

Z

2

+15V

+V

X

Optional

Summing

Input, X,
±10V PK

1

X

2

SF Z

Y

1

Y

2

MPY634

Out

–V

S

1

Z

2

S

Z Input
10V FS
12V PK

–15V

FIGURE 5. Square-Rooter Connection.

APPLICATIONS

Output, ±12V PK

V

= 10V(Z2 – Z1) + X

OUT

Reverse

this and
X inputs

for

Negative

Outputs

R

L

(Must be
provided)

2

Y

–V

2

S

–15V

FIGURE 4. Basic Divider Connection.

Accuracy of the divider mode typically ranges from 1.0% to

2.5% for a 10 to 1 denominator range depending on device
grade. Accuracy is primarily limited by input offset voltages
and can be significantly improved by trimming the offset of
the X input. A trim voltage of ±3.5mV applied to the “low
side” X input (X2 for positive input voltages on X1) can
produce similar accuracies over 100 to 1 denominator range.
To trim, apply a signal which varies from 100mV to 10V at
a low frequency (less than 500Hz). An offset sine wave or
ramp is suitable. Since the ratio of the quantities should be
constant, the ideal output would be a constant 10V. Using
AC coupling on an oscilloscope, adjust the offset control for
minimum output voltage variation.

SQUARE-ROOTER

A square-rooter connection is shown in Figure 5. Input
voltage is limited to one polarity (positive for the connection
shown). The diode prevents circuit latch-up should the input
go negative. The circuit can be configured for negative input
and positive output by reversing the polarity of both the X
and Y inputs. The output polarity can be reversed by revers­ing the diode and X input polarity. A load resistance of
approximately 10kΩ must be provided. Trimming for im­proved accuracy would be accomplished at the Z input.

A sin (2π 10MHz t)

B sin (2π 10MHz t + )

Multiplier connection followed by a low-pass filter forms phase
detector useful in phase-locked-loop circuitry. R
PLL circuitry to provide desired loop-dampin

θ

+V

X

1

X

2

MPY634

SF Z

Y

1

Y

–V

2

Out

S

1

Z

2

S

+15V

1kΩ

–15V

X

characteristics.

FIGURE 6. Phase Detector.

+15V

–15V

+

E

C

–

2kΩ 2kΩ

+

E

S

–

+V

X

1

X

2

MPY634

SF Z

Y

1

Y

–V

2

S

V

O

1

Z

2

S

–15V

V

= (AB/20) cos

O

0.1µF

R

X

is often used in

VO = 10 • E

OPA606

A

1

39kΩ

1kΩ

C

θ

• ES

MPY634

SBFS017A

Minor gain adjustments are accomplished with the 1kΩ variable resistor
connected to the scale factor adjustment pin, SF. Bandwidth of this circuit
is limited by A

, which is operated at relatively high gain.

1

FIGURE 7. Voltage-Controlled Amplifier.

www.ti.com

7

18kΩ

y

10kΩ

Input, E

0 to +10V

θ

X

+V

1

X

Out

2

MPY634

SF Z

Y

1

Y

–V

2

S

1

Z

2

S

4.7kΩ

4.3kΩ

–15V

+15V

V

OUT

Where

θ

= (π/2) (E /10V)

3kΩ

= (10V) sin

With a linearly changing 0-10V input, this circuit’s output follows
0° to 90° of a sine function with a 10V peak output amplitude.

Modulation

Input, ±E

M

θ

θ

Carrier Input

E

sin ωt

C

+V

X

1

X

Out

2

MPY634

SF Z

Y

1

Y

–V

2

S

1

Z

2

S

–15V

+15V

V

OUT

1 ± (E

=

/10V) EC sin ωt

M

By injecting the input carrier signal into the output through connection
to the Z

input, conventional amplitude modulation is achieved.

2

Amplification can be achieved by use of the SF pin, or Z attenuator
(at the expense of bandwidth).

FIGURE 9. Linear AM Modulator.FIGURE 8. Sine-Function Generator.

A sin ω t

Squaring a sinusoidal input creates an output frequency of
twice that of the input. The DC output component is
removed b

AC-coupling the output.

FIGURE 10. Frequency Doubler.

Modulation
Input, ±E

M

470kΩ

Carrier

Null

+15V –15V

Carrier Input

E

C

1kΩ

sin ω t

X

1

X

2

MPY634

SF Z

Y

1

Y

2

+V

X

1

X

2

MPY634

SF Z

Y

1

Y2–V

Out

+V

S

+15V

(A2/20) cos (2 ω t)

Out

C

R

–V

1

Z

2

S

–15V

Frequency Doubler

Input Signal: 20Vp-p, 200kHz

Output Signal: 10Vp-p, 400kHz

+15V

S

V

OUT

1

Z

2

S

–15V

The basic muliplier connection performs balanced modulation.
Carrier rejection can be improved by trimming the offset voltage
of the modulation input. Better carrier rejection above 2MHz is
typically achieved by interchanging the X and Y inputs (carrier
applied to the X input).

FIGURE 11. Balanced Modulator.

8

www.ti.com

Carrier: fC = 2MHz, Amplitude = 1Vrms
Signal: f

= 120kHz, Amplitude = 10V peak

S

MPY634

SBFS017A

PACKAGE OPTION ADDENDUM

www.ti.com

22-Oct-2007

PACKAGING INFORMATION

Orderable Device Status

(1)

Package

Type

Package

Drawing

Pins Package

Qty

Eco Plan

MPY634AM OBSOLETE TO-100 LME 10 TBD Call TI Call TI
MPY634BM OBSOLETE TO-100 LME 10 TBD Call TI Call TI

MPY634KP ACTIVE PDIP N 14 25 Green (RoHS &

no Sb/Br)

MPY634KPG4 ACTIVE PDIP N 14 25 Green (RoHS &

no Sb/Br)

MPY634KU ACTIVE SOIC DW 16 48 Green (RoHS &

no Sb/Br)

MPY634KU/1K ACTIVE SOIC DW 16 1000 Green (RoHS &

no Sb/Br)

MPY634KU/1KE4 ACTIVE SOIC DW 16 1000 Green (RoHS &

no Sb/Br)

MPY634KUE4 ACTIVE SOIC DW 16 48 Green (RoHS &

no Sb/Br)

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in

a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU N / A for Pkg Type

CU NIPDAU N / A for Pkg Type

CU NIPDAU Level-3-260C-168 HR

CU NIPDAU Level-3-260C-168 HR

CU NIPDAU Level-3-260C-168 HR

CU NIPDAU Level-3-260C-168 HR

(3)

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check

http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements

for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and
package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS
compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder

temperature.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI
to Customer on an annual basis.

Addendum-Page 1

PACKAGE MATERIALS INFORMATION

www.ti.com

TAPE AND REEL INFORMATION

11-Mar-2008

*All dimensions are nominal

Device Package

MPY634KU/1K SOIC DW 16 1000 330.0 16.4 6.5 10.3 2.1 8.0 16.0 Q1

Type

Package
Drawing

Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

A0 (mm) B0 (mm) K0 (mm) P1

(mm)W(mm)

Pin1

Quadrant

Pack Materials-Page 1

PACKAGE MATERIALS INFORMATION

www.ti.com

11-Mar-2008

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

MPY634KU/1K SOIC DW 16 1000 375.0 340.0 57.0

Pack Materials-Page 2

MECHANICAL DATA

MMBC006 – MARCH 2001

1

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DSP dsp.ti.com Broadband www.ti.com/broadband
Clocks and Timers www.ti.com/clocks Digital Control www.ti.com/digitalcontrol
Interface interface.ti.com Medical www.ti.com/medical
Logic logic.ti.com Military www.ti.com/military
Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork
Microcontrollers microcontroller.ti.com Security www.ti.com/security
RFID www.ti-rfid.com Telephony www.ti.com/telephony
RF/IF and ZigBee® Solutions www.ti.com/lprf Video & Imaging www.ti.com/video

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2008, Texas Instruments Incorporated

Wireless www.ti.com/wireless
