Texas Instruments LED171596AEVM User Manual

User's Guide

SNVU546C–October 2017–Revised May 2018

Using the LED171596AEVM Evaluation Module

The Texas Instruments LED171596A evaluation module (EVM) helps designers evaluate the operation and performance of the LED171596A 96-LED driver. The LED171596A is an LED matrix driver that can individually control up to 96 LEDs. To control the 96 LEDs it uses four high-side PMOS switches and 24 low-side programmable current sinks. The driver has 9-bit duty cycle and 8-bit current control of each low side LED current sink. They can be individually controlled through the I2C-compatible or SPI interface.

The EVM contains one LED171596A (see Table 1) and one LEDARRAYEVM with 96 white LEDs. The TIVA EK-TM4C123GXL Launchpad, NOT included in the EVM kit, is required to run the GUI software.

Contents

1 Introduction ................................................................................................................... 3

2 Setup .......................................................................................................................... 3

2.1 Input/Output Connector Description.............................................................................. 3

2.2 Operation ............................................................................................................ 4

3 EVM Software................................................................................................................ 4

3.1 Minimum Procedure for Turning on the LEDs .................................................................. 5

3.2 EVM and Tiva LaunchPad Setup................................................................................. 5

3.3 Tiva ICDI Driver installation in Windows 7 ...................................................................... 7

3.4 Tiva ICDI Driver installation in Windows 10..................................................................... 7

3.5 Programming the Firmware ....................................................................................... 8

3.6 EVM Software Installation ......................................................................................... 8

3.7 EVM Software Launch............................................................................................ 10

3.8 Status Bar .......................................................................................................... 10

3.9 Main Menu ......................................................................................................... 11

3.10 Information View................................................................................................... 11

3.11 Register View ...................................................................................................... 12

3.12 Control Menu....................................................................................................... 13

4 Board Layout................................................................................................................ 25

5 Schematic ................................................................................................................... 30

6 Bill of Materials (BOM)..................................................................................................... 32

1 LED171596AEVM ........................................................................................................... 4

2 Set Jumper Pins ............................................................................................................. 4

3 Tiva LaunchPad (EK-TM4C123GXL) and LED171596A EVM ........................................................ 5

4 USB Cable Connection and PWR Switch Setting, TM4C123GXL .................................................... 5

5 Connect Evaluation Board and LaunchPad .............................................................................. 6

6 Win7 Stellaris Virtual Serial Port on Device Manager .................................................................. 7

7 Win7 Stellaris In-Circuit Debug Interface on Device Manager......................................................... 7

8 Win10 Stellaris Virtual Serial Port on Device Manager................................................................. 7

9 Win10 Stellaris In-Circuit Debug Interface on Device Manager ....................................................... 7

10 LM Flash Programmer ...................................................................................................... 8

11 Ready to Install .............................................................................................................. 8

12 Setup LED171596A EVM................................................................................................... 9

13 LED171596AEVM Setup Wizard......................................................................................... 10

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

List of Figures

Using the LED171596AEVM Evaluation Module

www.ti.com

14 Desktop Icon................................................................................................................ 10

15 Status Bar (Hardware Connected)....................................................................................... 10

16 Main Menu .................................................................................................................. 11

17 Information View............................................................................................................ 11

18 Register View (Collapsed) ................................................................................................ 12

19 Register View (Expanded) ................................................................................................ 12

20 Control View (Control Tab)................................................................................................ 13

21 I2C/SPI Selection .......................................................................................................... 14

22 Enable Pin, IFSET/Latch Pin ............................................................................................. 14

23 LED ON/OFF Control...................................................................................................... 15

24 LED Brightness or Current Control ...................................................................................... 15

25 LED Setting Values ........................................................................................................ 16

26 Group Set Button........................................................................................................... 16

27 Group Selection ............................................................................................................ 17

28 Grouped LEDs.............................................................................................................. 17

29 Display Disable Set Button................................................................................................ 17

30 Disabled Selection ......................................................................................................... 18

31 Disabled LEDs.............................................................................................................. 18

32 Sloper Selection ............................................................................................................ 19

33 Sloper Set Button .......................................................................................................... 19

34 Sloper LEDs ................................................................................................................ 19

35 SW Latch and Auto Latch Selection..................................................................................... 20

36 Register Direct Access .................................................................................................... 20

37 ISET.......................................................................................................................... 20

38 Enable Bit Control.......................................................................................................... 20

39 LED Driver Register Information ......................................................................................... 21

40 LED Driver Register Configuration....................................................................................... 21

41 PWM Register Information................................................................................................ 21

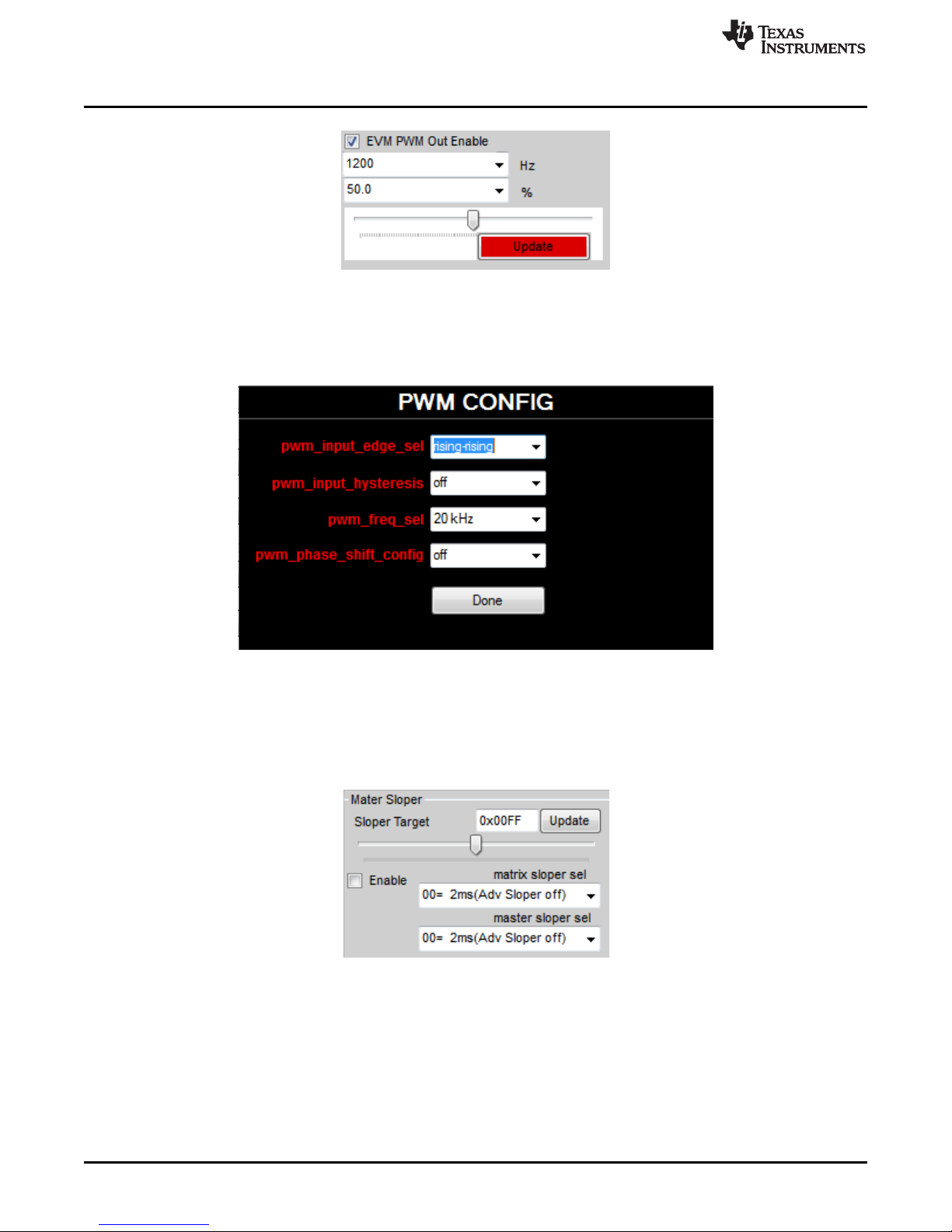

42 External PWM .............................................................................................................. 22

43 CONFIG_PWM Register Configuration ................................................................................. 22

44 Master Sloper Setting...................................................................................................... 22

45 Status Register ............................................................................................................. 23

46 Interrupt Status/Mask/Clear............................................................................................... 23

47 Log ........................................................................................................................... 23

48 Console...................................................................................................................... 24

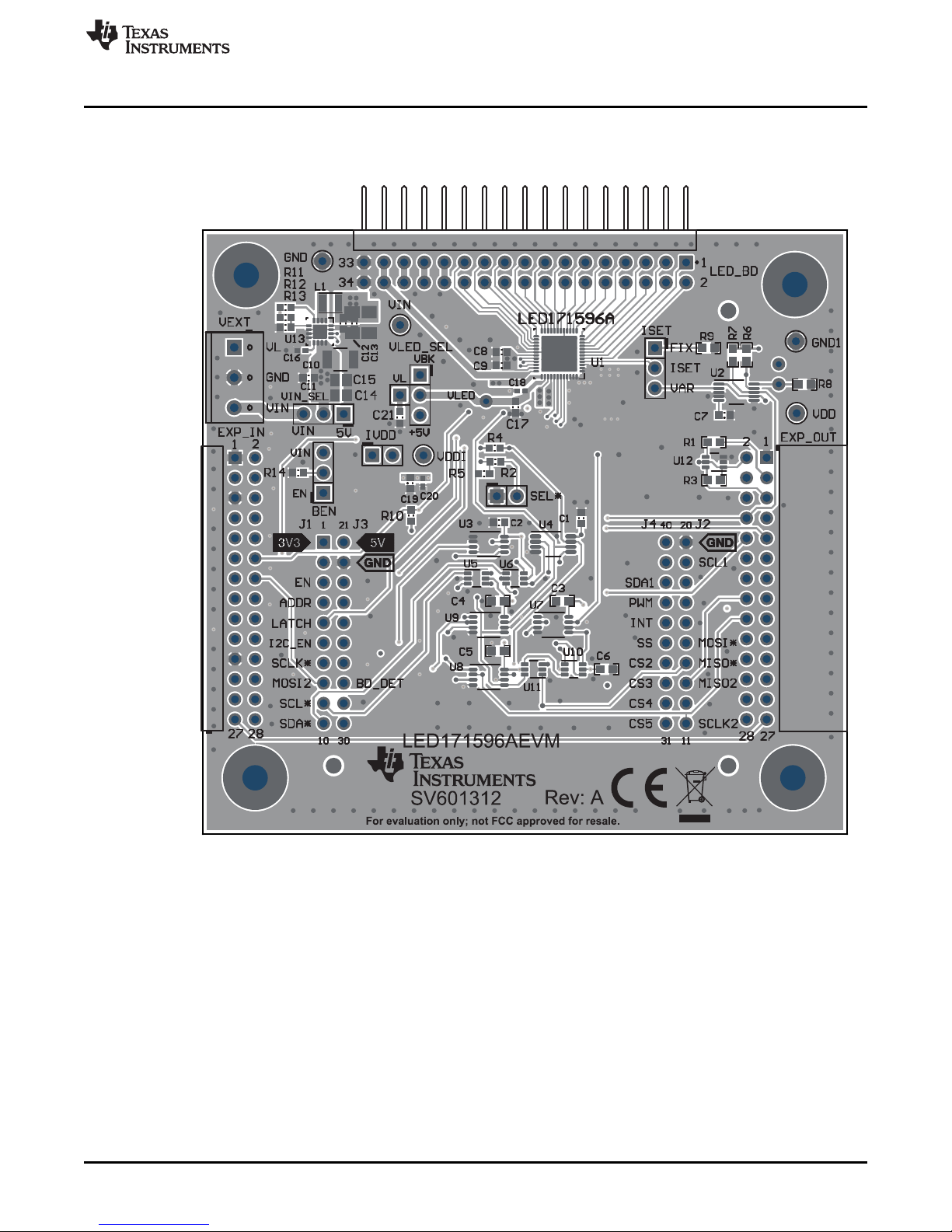

49 Top Assembly Layer....................................................................................................... 25

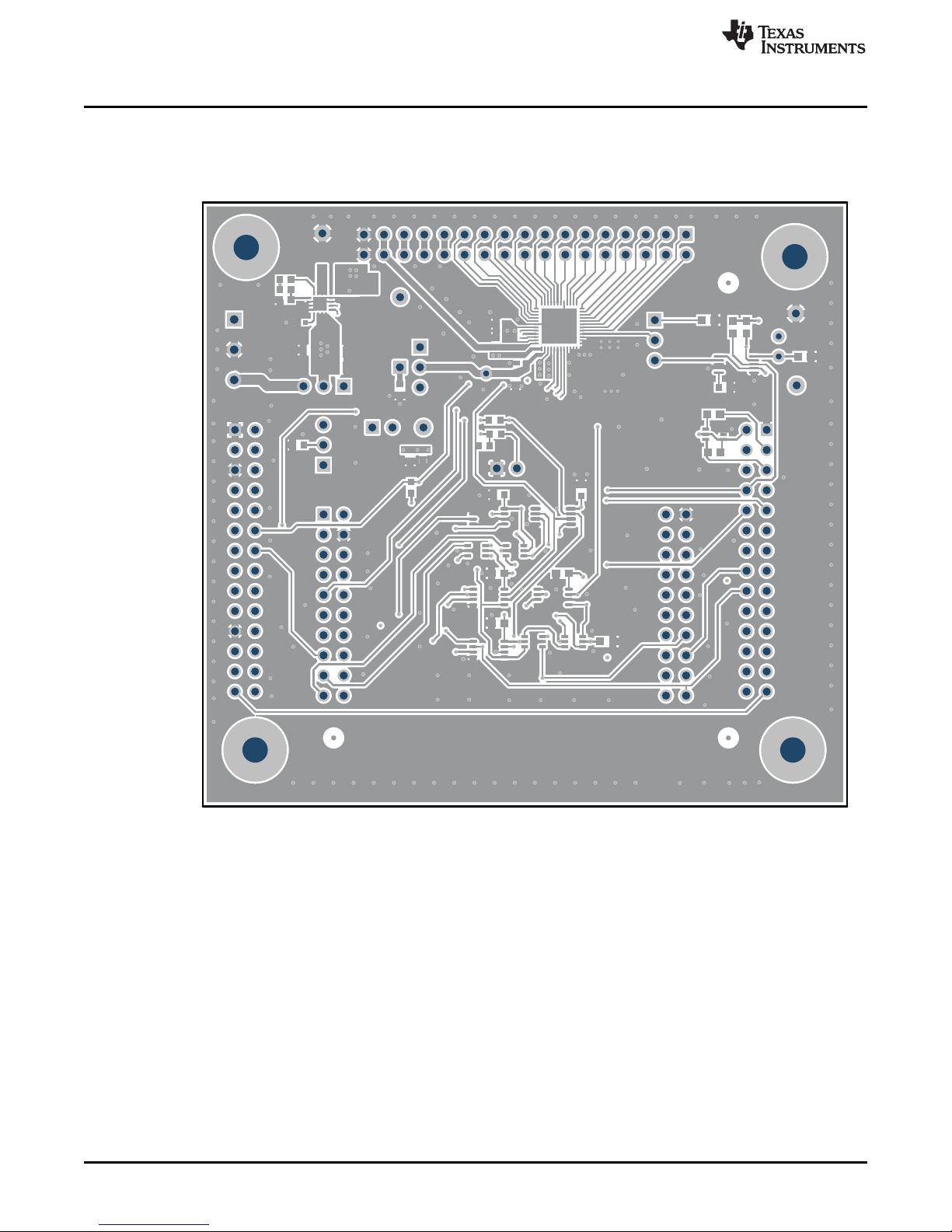

50 Top Layer Routing ......................................................................................................... 26

51 Mid Layer 1 Routing ....................................................................................................... 27

52 Mid Layer 2 Routing ....................................................................................................... 28

53 Bottom Layer Routing ..................................................................................................... 29

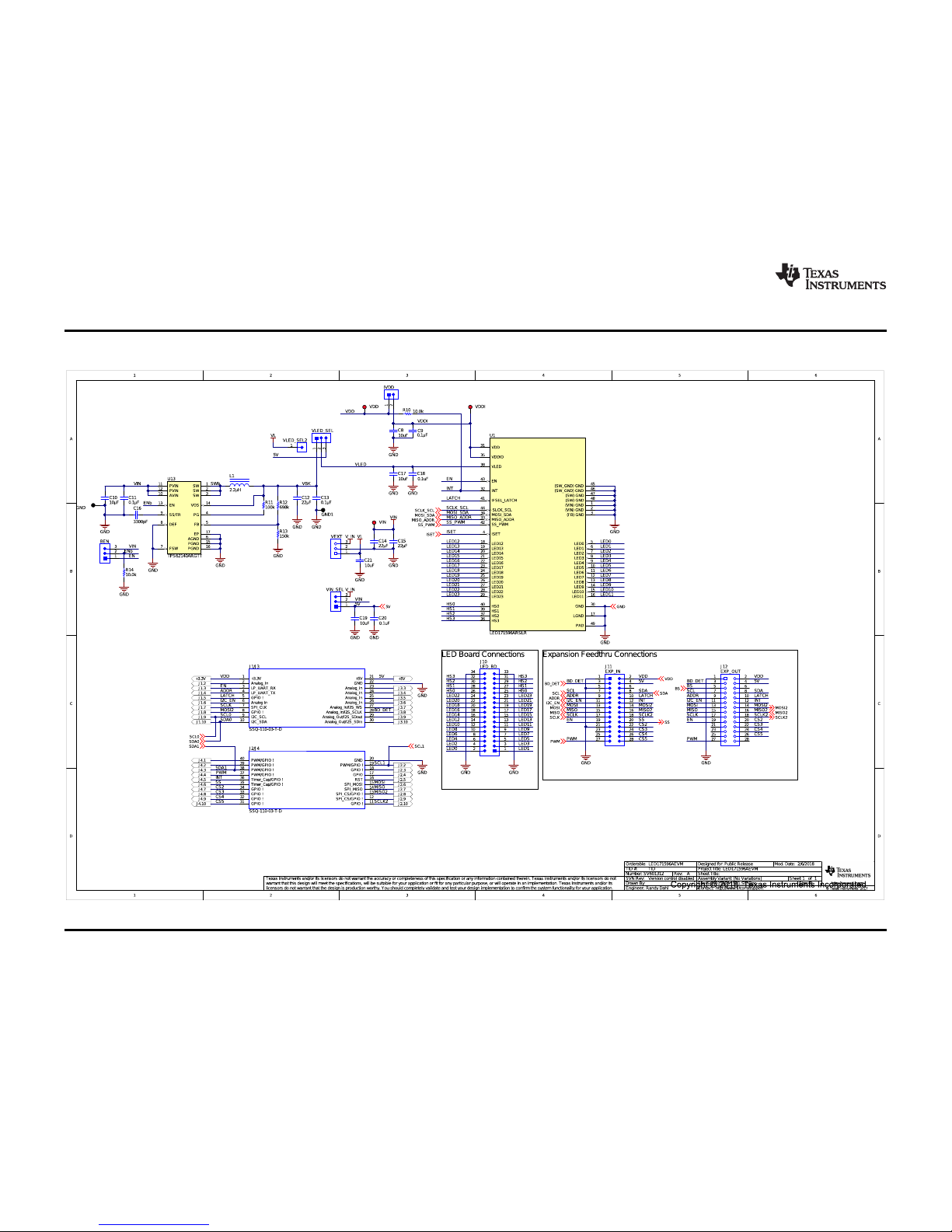

54 Schematic Page1 .......................................................................................................... 30

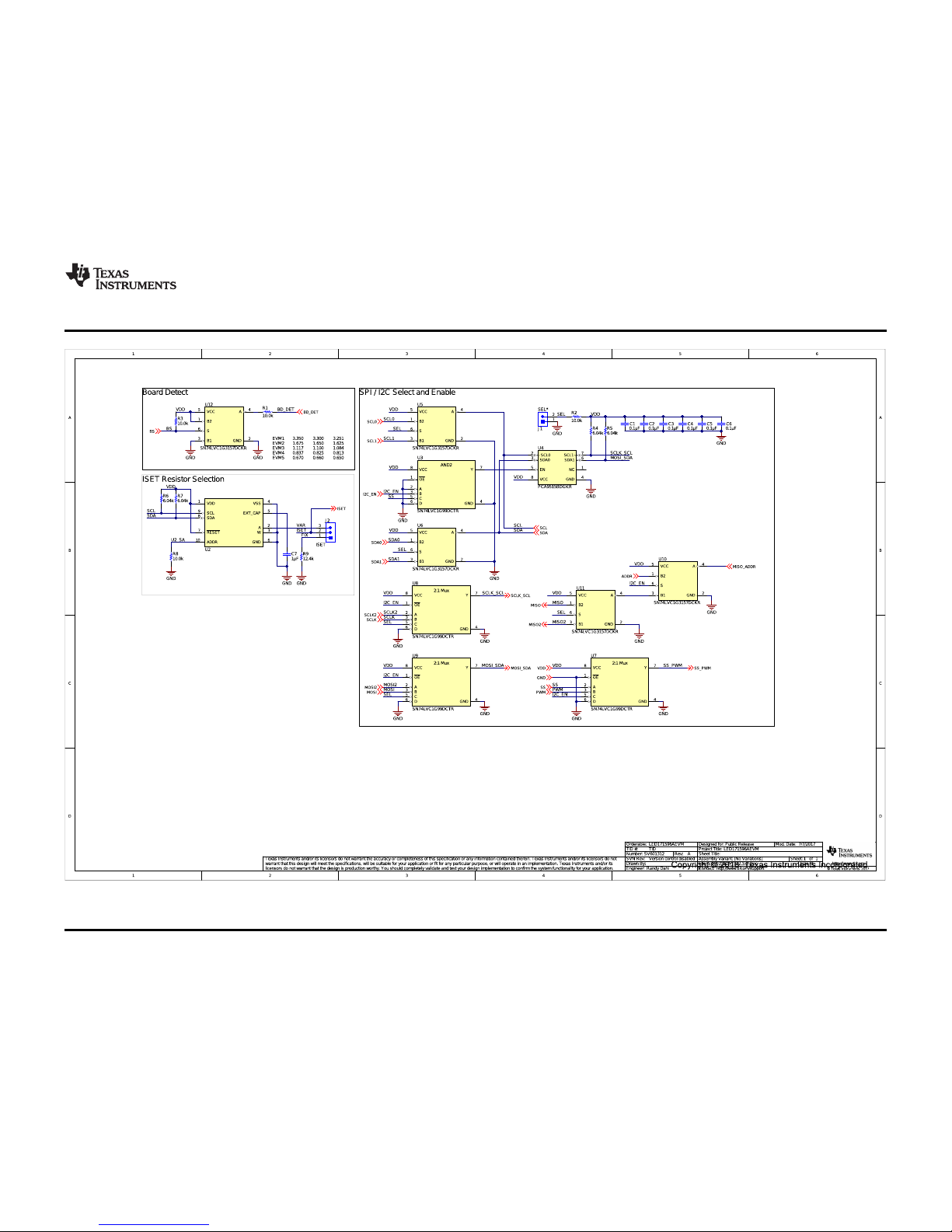

55 Schematic Page2........................................................................................................... 31

Trademarks

Tiva is a trademark of Texas Instruments. Stellaris is a registered trademark of Texas Instruments. Windows is a registered trademark of Microsoft Corporation. All other trademarks are the property of their respective owners.

Using the LED171596AEVM Evaluation Module

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

1 Introduction

Table 1. Device and Package Configurations

CONVERTER IC PACKAGE

U1 LED171596A VQFN (48)

2 Setup

This section describes the jumpers and connectors on the EVM as well as how to properly connect, set up, and use the LED171596AEVM. The input voltage range for VINis 0 V to 17 V with the input voltage range for VLis 0 V to 6.1 V.

2.1 Input/Output Connector Description

• SEL* (J1) – is provided to allow LED171596A EVM to work with multiple TI Launchpad. The jumper

should be installed between J1-1 and J1-2 for normal operation with EVM GUI (Tiva Launchpad).

• J1/J3 and J2/J4 – is the TI Launchpad connector interface.

• ISET (J2) – is provided to configure the max output current setting via fixed resistor or I2C

programmable rheostat. The recommended setting is with a jumper installed between J2-2 and J2-3 for I2C programmable rheostat control of ISET.

• IVDD (J3) – is provided to easily measure VDD supply current. The jumper must be installed between

J3-1 and J3-2 for normal operation.

• VLED_SEL (J4, J5, J6) – creates a star jumper and is provided to select the VLED supply. The jumper

should be installed between J4-1 and J4-2 for normal operation (VLED supplied by TPS62140).

• VEXT (J7) – is provided to connect an external supply to The LED171596AEVM. Use J7-3 (VIN) and

J7-2 (GND) to supply power to the TPS62140. Use J7-1 (VL) and J7-2 (GND) when using external supply for VLED power.

• BEN (J8) – is provided to disable the TPS62140 when using either 5 V or external power connection to

VLED. The jumper should be installed between J8-1 and J8-2 for normal operation (VLED supplied by TPS62140). When the jumper is removed the TPS62140 output will be disabled.

• VIN_SEL (J9) – is provided to select either 5V supply from Tiva Launchpad or external power supply.

The connection from Tiva Launchpad is limited by PC USB current limit and should only be used under low LED brightness/current conditions. The jumper should be installed between J9-2 and J9-3 for normal operation (external supply).

• LED_BD (J10) – is the output connector to external LEDARRAY board.

• EXP_IN (J11) – is the expansion input connector and is provided to allow expansion of up the 4

additional LED171596AEVM (5 total).

• EXP_OUIT (J12) – is the expansion output connector and is provided to allow expansion of up the 4

additional LED171596AEVM (5 total).

Introduction

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Using the LED171596AEVM Evaluation Module

Setup

2.2 Operation

For proper operation of the LED171596A, IVDD, VLED_SEL, SEL*, ISET, VIN_SEL, BEN must be properly configured. The recommended setting, using shorting blocks is as follows:

• IVDD : Shunt installed between pins J3-1 and J3-2.

• VLED_SEL: Shunt installed between pins J4-1 and J4-2.

• VIN_SEL: Shunt installed between pins J9-2 and J9-3.

• SEL*: Shunt installed between pins J1-1 and J1-2 (Tiva Launchpad).

• ISET: Shunt installed between pins J2-2 and J2-3 (Rheostat variable ISET control).

• BEN: Shunt installed between pins J8-1 and J8-2 (TPS62140 enabled). Refer to Figure 2 for all jumper positions. Set up jumper pins as shown in Figure 2.

www.ti.com

Figure 1. LED171596AEVM

3 EVM Software

EVM software is available for download from the TI website. The LED171596AEVM is connected via USB to the computer and controlled with special EVM software (Windows®7/10 compatible). An EKTM4C123GXL, Tiva™ LaunchPad (http://www.ti.com/tool/ek-tm4c123gxl), is used with the EVM to provide I2C/SPI communication, and external PWM, EN, IFSEL/LATCH pin control with the LED171596A via USB.

Using the LED171596AEVM Evaluation Module

Figure 2. Set Jumper Pins

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

Figure 3. Tiva LaunchPad (EK-TM4C123GXL) and LED171596A EVM

3.1 Minimum Procedure for Turning on the LEDs

The minimum procedure for turning on the LEDs is as follows:

1. Set the Power Select Switch on Tiva LaunchPad to debug (refer to Figure 4).

2. Connect the LaunchPad board to the LED171596AEVM board (refer to Figure 5).

3. Verify jumper pin setting (refer to Figure 2).

4. Connect micro USB cable to the debug port of LaunchPad board and connect PC (refer to Figure 4).

5. Install Tiva ICDI driver.

6. Verify the “Tiva Stellaris®Virtual Serial Port” and “Stellaris In-Circuit Debug Interface” on Windows

Device Manager.

7. Connect optional external power and ground to the board.

8. Turn on the external supplies (if used).

9. Install and run EVM software.

10. Make sure the “Hardware Connected” message on the status bar.

11. Click “Control” menu.

12. Click “Enable Pin” button.

13. Click “Enable Backlight” checkbox.

EVM Software

3.2 EVM and Tiva LaunchPad Setup

Connect a micro USB cable to the debug port (power/ICDI) and set the power select switch (PWR SELECT) to debug (ICDI).

Figure 4. USB Cable Connection and PWR Switch Setting, TM4C123GXL

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Using the LED171596AEVM Evaluation Module

EVM Software

Connect Tiva LaunchPad and EVM (BOOSTXL-LED171596A) as shown in Figure 5.

Connect external power and ground to the EVM board (BOOSTXL-LED171596A).

www.ti.com

Figure 5. Connect Evaluation Board and LaunchPad

Using the LED171596AEVM Evaluation Module

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

3.3 Tiva ICDI Driver installation in Windows 7

To use Tiva LaunchPad, install Stellaris ICDI Drivers. The driver file can be downloaded from www.ti.com and the document Stellaris® In-Circuit Debug Interface (ICDI) and Virtual COM Port” provides more detail information about how to install the driver.

Connect USB cable to PC. Open “Control Panel → Device Manager” and verify the “Stellaris Virtual Serial Port” and “Stellaris In-Circuit Debug Interface”. If those steps do not work, reinstall Tiva ICDI Driver.

Figure 6. Win7 Stellaris Virtual Serial Port on Device Manager

Figure 7. Win7 Stellaris In-Circuit Debug Interface on Device Manager

3.4 Tiva ICDI Driver installation in Windows 10

The first step is to check that the driver for Tiva Launchpad is installed correctly on the system. If the driver is installed correctly, you should see the virtual com port show up in Device Manager as shown in

Figure 8. Note that the actual COM number will vary . The COM port should be identified as “Stellaris

Serial Virtual Port (COMX)”. If the COM port is identified as “USB Serial Device (COMX)”, the ICDI driver is not installed correctly.

Navigate to the folder where the driver is downloaded, right click on the file stellaris_icdi_com.inf, and select install (see Figure 9). Once installation is complete the name of the virtual com port will change from “USB Serial Device (COMX)” to “Stellaris Virtual Serial Port (COMX)”.

EVM Software

Figure 8. Win10 Stellaris Virtual Serial Port on Device Manager

Figure 9. Win10 Stellaris In-Circuit Debug Interface on Device Manager

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Using the LED171596AEVM Evaluation Module

EVM Software

3.5 Programming the Firmware

The very first time GUI is connected to the EVM via Launchpad; it will attempt to reprogram the Launchpad firmware. The firmware reprogramming is required for GUI to properly communicate with the EVM. The firmware on a fresh Tiva Launchpad will show a constantly changing color LED. Once the Launchpad is reprogrammed by the GUI the LED color and pattern will change as follows:

• When there is no communication the LED will be solid blue color.

• When there is communication the LED will be blinking red/purple color. The first time the GUI updates the firmware it can take up to 5 minutes. If the update takes more than 5

minutes the firmware will need to be installed using LM Flash Programmer. The LM Flash Programmer can be downloaded from www.ti.com . Launch the programmer, select “TM4C123G Launchpad” in “Configuration tab” (refer to Figure 10). Then select “Program” tab; navigate to the folder where GUI is installed. By default installation, it should be “C:\Program Files (x86)\Texas Instruments\LED171596A EVM”, select tivafw.bin and click the [Program Button].

www.ti.com

Figure 10. LM Flash Programmer

3.6 EVM Software Installation

Execute setup_LED171596A_EVM.msi file: If it is compressed in zip file format, unzip first in any location and then click “Run” button though Windows security warning message appears. Click next button.

Using the LED171596AEVM Evaluation Module

Figure 11. Ready to Install

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

EVM Software

Figure 12. Setup LED171596A EVM

Check to accept the agreement and click “Next” button to proceed with installation. Click “Next” button. By default, program will be installed in C:\Program Files (x86)\Texas

Instruments\LED171596A folder and Texas Instruments\LED171596AEVM in start menu. Click ‘Next’” button to proceed with installation. Check to create a desktop icon for the program and check to launch EVM software after installation.

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Using the LED171596AEVM Evaluation Module

EVM Software

www.ti.com

3.7 EVM Software Launch

Run ‘C:\Program Files (x86)\Texas Instruments\ LED171596A EVM\LED171596A_EVM.exe’ if default installation folder was not modified in the “EVM software installation” step or click the desktop icon “LED171596A EVM”.

3.8 Status Bar

The status bar at the bottom of EVM software screen provides information regarding hardware connection status, I2C/SPI communication status, and software versions. Once the EVM software is connected to the hardware and starts to communicate with the firmware of Tiva LaunchPad, “Hardware Connected” and Light Blue sign is displayed.

Figure 13. LED171596AEVM Setup Wizard

Figure 14. Desktop Icon

Figure 15. Status Bar (Hardware Connected)

Using the LED171596AEVM Evaluation Module

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

3.9 Main Menu

There are three available views of main menu: “Info”, “Register”, and “Control”. The components in each view are synchronized so any changes performed in one view of menu are automatically updated in the others.

3.10 Information View

The Information view is shown when EVM software is started or ‘Info’ icon is clicked, and it provides brief information of the LED171596A. For more detail information, refer to the LED171596A datasheet.

EVM Software

Figure 16. Main Menu

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Figure 17. Information View

Using the LED171596AEVM Evaluation Module

EVM Software

3.11 Register View

The register view is shown when ‘Register’ icon is clicked, and it provides the register values, field values, and descriptions.

www.ti.com

Figure 18. Register View (Collapsed)

Using the LED171596AEVM Evaluation Module

Figure 19. Register View (Expanded)

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

Enter the desired hex value to the registers (“Current Value” column), perform a bit-wise configuration of any register fields by double-clicking on the corresponding register bit or configure a register field by entering the desired hex value in the "Value" column located under the "Field View". "Field View" displays the description of all fields of the selected register. Each register can be read independently or all registers can be read at once by utilizing the “Read” and “Read All” buttons, respectively. The data is written to the register(s) in one of two ways, depending on the “Update Mode” field selection: In Immediate mode, the register data is written immediately following a “Current Value”, an individual bit or a "Value" change. In “Deferred” mode, the displayed data is written to all registers upon depression of the “Write” button.

Press “Read All” button to read back all the registers and the values will be updated on this table. If any register values need to be changed, simply double click on the individual bit values to change it in this table or press “Write Register” button to write all the registers at a time if “Deferred” is selected instead of “Immediate” from dropdown box.

Register settings can be saved to text file format by clicking "Save" button or selecting “Save Registers” from file menu.

Register settings saved as text file format can be opened and programmed automatically by clicking "Load" button or selecting “Load Register” from file menu.

3.12 Control Menu

The Control view is shown when ‘Control’ icon is clicked, and it provides easy ways to control registers and pin values.

There are two tabs available under the “Control” view: "Control” and "Log”. The left side of these tabs contains the controls for the corresponding block of the LED171596A. The right side contains data log. Differently to the Registers view control, the Control view does not provides deferred mode but provides immediately mode only.

EVM Software

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Figure 20. Control View (Control Tab)

Using the LED171596AEVM Evaluation Module

EVM Software

3.12.1 Establishing I2C/SPI Communication

I2C or SPI is can be selected. IFSEL pin need to be set to high when I2C is selected because IFSEL_LATCH is used for selecting between I2C-compatible and SPI after rising edge of EN pin.

Figure 21. I2C/SPI Selection

3.12.2 EN and IFSEL/Latch Pin Control

EN and IFSEL_LATCH pins can be controlled by using the Enable Pin button and the IFSeL Pin button respectively, but the Enable Pin button is not valid if a Tiva Launchpad is not connected to PC. The button color is turned red when the pin value is set to high and gray is low. IFSEL pin selects I2C-compatible or SPI interfaces at rising edge of EN pin (see Figure 22). After detecting interface “IFSEL Pin” is turned to a latch pin to support latch input for brightness and current register buffers when in normal mode. As a default, “Latch pin” button is disabled because the evaluation software supports automatic latch pin control every time when a value written to SRAM. “Latch pin” button is enable when automatic latch is disabled (see Section 3.12.8).

www.ti.com

Figure 22. Enable Pin, IFSET/Latch Pin

3.12.3 LED Brightness and Current Control

Individual LED’s current and brightness can be controlled through the LED buttons, LED brightness trackbar/text, and LED current trackbar/text. There are buttons and texts, which are ordered in the same order as the LEDs on the LED171596AEVM. Simply, a LED can be turned on or turned off is available when a button is clicked. Brightness 0 is written into the LEDxx_BRI(0x160 + LED number) reigster when the LED is turned off, LED brightness/current values configured by trackbars are written to LEDxx_BRI(0x160 + LED number) register and LEDxx_CUR(0x100+LED number) register at once. Therefore, LED must be turned off and then turn on to change the brightness or the current settings.

Using the LED171596AEVM Evaluation Module

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

Clicking buttons with Left-Ctrl key provides a way to change the brightness value or the current value independently, or to control more than one LED simultaneously. The selected buttons turn red, and the update buttons are shown on the LED brightness track bar and LED current track bar. The brightness or current value of LEDs marked in red are updated when the update button is clicked. It turns back to normal mode if a button clicked without Left-Ctrl key.

EVM Software

Figure 23. LED ON/OFF Control

Figure 24. LED Brightness or Current Control

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Using the LED171596AEVM Evaluation Module

EVM Software

3.12.4 LED Setting Values

All the setting value regarding each LEDs can be verified on the LED button and texts. The value on the LED button in hexa format is LEDxx_BRI register(0x160+ LED number) value and the value of tool tip is LEDxx_CUR regsier (0x100+LED number) value. The tool tip of the button will be shown when mouse point moves on a LED button. If the bits of group, disable, or sloper of LED are set, the information is shown under the LED button. For example, G2 means the LED is grouped as Group 2, D means the LED is disabled and S means the Slope bit of the LED is set.

www.ti.com

Figure 25. LED Setting Values

3.12.5 LED Group Setting

LED Group registers(0x1DE – 0x1F1) can be set through the “Group Selection” pop-up window shown when “Group Set” button is clicked.

Figure 26. Group Set Button

Using the LED171596AEVM Evaluation Module

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

EVM Software

LED Buttons for group selection are ordered in the same order as the LEDs on the LED171596A evaluation board and current group selection value is displayed on the button. To change group selection value, select the LED or LEDs and then click “Group1”, “Group2”, “Group3” or “UnGroup” button. All Group1 LEDs can be set to ungroup value at once if click “UnGroup 1” button. “UnGroup 2” and “UnGroup 3” buttons provide same function for the Group2/3 LEDs. The newly configured values are transferred to EVM when “Done” button is clicked, and the grouped LEDs display own group number.

3.12.6 LED Disable Setting

LED Disable registers(0x1C1 – 0x1CC) can be set through the “Disable Selection” pop-up window shown when “Disable Set” button is clicked.

Figure 27. Group Selection

Figure 28. Grouped LEDs

Figure 29. Display Disable Set Button

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Using the LED171596AEVM Evaluation Module

EVM Software

www.ti.com

LED Buttons for disable selection are ordered in the same order as the LEDs on the LED171596AEVM and current disable selection value is displayed on the button. To change disable selection value, select the LED or LEDs and then click “Disable” or “Enable” button. The newly configured values are transferred to the EVM when “Done” button is clicked, and the disabled LEDs display own status as ‘D’.

3.12.7 LED Sloper Setting

LED Sloper registers(0x1CF – 0x1DA) can be set through “Sloper Selection” pop-up window shown when the “Sloper Set” button is clicked.

Figure 30. Disabled Selection

Figure 31. Disabled LEDs

Using the LED171596AEVM Evaluation Module

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

EVM Software

LED Buttons for sloper selection are ordered in the same order as the LEDs on the LED171596AEVM and current sloper selection value is displayed on the button. To change sloper selection value, select the LED or LEDs and then click “UnSloper” or “Sloper” button. The newly configured values are transferred to EVM when “Done” button is clicked, and the sloper LEDs display their status as ‘S’.

3.12.8 SW Latch and Auto Latch

By default, the evaluation software supports automatic latch pin control so latch pin set high and low every time when a value is written to SRAM to trigger updates of SRAM buffer. If ‘Auto Latch’ is unchecked, Auto latch function is disabled, and a latch pin signal is required manually. There are two ways to control latch signal. One is to click “latch pin” button. Another way is to write 1b data into Bit[0] of LATCH register (0x02), “SW Latch” button.

Figure 32. Sloper Selection

Figure 33. Sloper Set Button

Figure 34. Sloper LEDs

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Using the LED171596AEVM Evaluation Module

EVM Software

Figure 35. SW Latch and Auto Latch Selection

3.12.9 Register Direct Access

The Direct Access provides another way to access to the registers. To read a register put the register number into “Reg(hex)” text box and click the ‘Read’ button. To write the specific value into a register put the register number and the data into “Reg(hex)” and “Data(hex)” text boxes respectively, and then click ‘Write’ button. The buttons from ‘00’ to ‘15’ provides bit data writing. Red color means bit data ‘1b’, and gray color bit data ‘0b’. When the bit button is clicked, the bit data is reversed and register data is written immediately.

3.12.10 ISET Control

The maximum current reference of the LED driver (constant-current sink) can be set using ISET. The EVM GUI provides 10 mA, 12.5 mA, 20 mA, 30 mA, 40 mA, 50 mA, and 60 mA. Disable the LED171596A backlight before changing the ISET jumper setting or the ISET value.

www.ti.com

Figure 36. Register Direct Access

3.12.11 Enable Backlight Control

The bit 0 of register 0x00 can be controlled using “Enable Backlight” check box:

• Unchecked - LED driving disabled. Device stays in STANDBY.

• Checked - LED driving enabled.

3.12.12 LED Driver Control

the LED driver group box provides information and control of LED_DRIVER_CONTROL Register (0x21).

Figure 37. ISET

Figure 38. Enable Bit Control

Using the LED171596AEVM Evaluation Module

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

The button “LED Driver Config” provides a pop-up to select hs_en_ghost_cancel, drv_en_ghost_level, drv_en_ghost_cancel, and drv_headroom bits. The selected values are transferred to EVM when the “Done” button is clicked.

EVM Software

Figure 39. LED Driver Register Information

3.12.13 PWM Control

The PWM group box provides information and control of CONFIG_PWM Register (0x00) and external PWM signal generation. Simply, enable_pwm_detector bit, Bit[5] of Register 0x00, can be controlled and other bit information are displayed.

The external PWM signal setting generated by Tiva LaunchPad can be enabled only when I2C interface is selected. PWM frequency and duty can be controlled when “update” button is pressed. Frequencies from 100 Hz to 20 kHz are available.

Figure 40. LED Driver Register Configuration

Figure 41. PWM Register Information

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Using the LED171596AEVM Evaluation Module

EVM Software

The button “PWM Config” provides a popup to select pwm_input_edge_sel, pwm_input_hysteresis, and pwm_phase_shift_config bits. The selected values are transferred to EVM when the “Done” button is clicked.

www.ti.com

Figure 42. External PWM

Figure 43. CONFIG_PWM Register Configuration

3.12.14 Master Sloper Setting

The Master Sloper group box provides the interface to control of SLOPER_TARGET (0x1CE) register and SLPERS_CONFIG (0x1CD) register.

3.12.15 Status Register

The Status group box provides the information of STATUS (0x3) register.

Figure 44. Master Sloper Setting

Using the LED171596AEVM Evaluation Module

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

3.12.16 Interrupt Status/Mask/Clear

The Interrupt group box provides the information and the interface to control INT_STATUS (0x4) register, INT_MASK (0x5) register, and INT_CLEAR (0x6) register.

Figure 46. Interrupt Status/Mask/Clear

3.12.17 Log Tab

The Log tab provides the commands that have been sent to EVM and status of evaluation software. Displayed logs can be cleared by clicking the button, ‘Clear’.

EVM Software

Figure 45. Status Register

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Figure 47. Log

Using the LED171596AEVM Evaluation Module

EVM Software

3.12.18 Console

The Console window can be used to read and write any of the registers or run a predefined macro file. The console window can be opened from Help → Console and the list of available commands can be verified by typing ‘help’ and pressing Enter Key. Predefined macro file can be loaded and run through clicking the button, ‘Load File’, and the default folder path is “C:\Users\[ID]\Documents\Texas Instruments\LED171596A\LED171596A”.

www.ti.com

Using the LED171596AEVM Evaluation Module

Figure 48. Console

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

4 Board Layout

Board Layout

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Figure 49. Top Assembly Layer

Using the LED171596AEVM Evaluation Module

Board Layout

www.ti.com

Using the LED171596AEVM Evaluation Module

Figure 50. Top Layer Routing

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

Board Layout

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Figure 51. Mid Layer 1 Routing

Using the LED171596AEVM Evaluation Module

Board Layout

www.ti.com

Using the LED171596AEVM Evaluation Module

Figure 52. Mid Layer 2 Routing

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

Board Layout

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Figure 53. Bottom Layer Routing

Using the LED171596AEVM Evaluation Module

Schematic

www.ti.com

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Using the LED171596AEVM Evaluation Module

5 Schematic

Figure 54. Schematic Page1

www.ti.com

Schematic

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Using the LED171596AEVM Evaluation Module

Figure 55. Schematic Page2

Bill of Materials (BOM)

6 Bill of Materials (BOM)

DESIGNATOR QTY. VALUE DESCRIPTION

C1, C2, C3, C4,

C5, C6, C9,

C11, C13

C7 1 1 µF

C8, C17, C19,

C21 C10 1 10 µF

C12 1 22 µF

C16 1 3300pF

C14, C15 2 22 µF

GND, GND1 2 Test Point, Miniature, Black, TH

H1, H2, H3, H4 4 HEX STANDOFF 4-40 ALUMINUM 3/4"

H5, H6, H7, H8 4

H9 1 LEDARRAYEVM (SV601316-001) LEDARRAYEVM

J1, J3 2 Header, 100mil, 2x1, Gold, TH 2x1 header TSW-102-07-G-S Samtec

J1/J3, J2/J4 2 Receptacle, 2.54mm, 10x2, Tin, TH

J2, J4, J8, J9 4 Header, 100mil, 3x1, Gold, TH 3x1 header TSW-103-07-G-S Samtec

J5 2 Header, 100mil, 1pos, Gold, TH Testpoint TSW-101-07-G-S Samtec J7 1

J10 1 Header, 100mil, 17x2, Gold, R/A, TH

J11 1 Header, 2.54mm, 14x2, Gold, R/A, TH

J12 1

L1 1 2.2 µH

R1, R2, R3, R8,

R10, R14

R4, R5, R6, R7 4 6.04k RES, 6.04k, 1%, 0.1 W, 0603 0603 CRCW06036K04FKEA Vishay-Dale

R9 1 12.4k RES, 12.4 k, 1%, 0.1 W, 0603 0603 CRCW060312K4FKEA Vishay-Dale R11 1 100k RES, 100 k, 1%, 0.1 W, 0603 0603 CRCW0603100KFKEA Vishay-Dale R12 1 698k RES, 698 k, 1%, 0.1 W, 0603 0603 CRCW0603698KFKEA Vishay-Dale R13 1 150k RES, 150 k, 1%, 0.1 W, 0603 0603 CRCW0603150KFKEA Vishay-Dale

SH1, SH2, SH3, SH4,

SH5, SH6

U1 1 96-Channel Driver, RSL0048B RSL0048B LED171596ARSL Texas Instruments

U2 1

U3, U7, U8, U9 4

9 0.1 µF

4 10 µF

6 10.0k RES, 10.0 k, 1%, 0.1 W, 0603 0603 CRCW060310K0FKEA Vishay-Dale

6 1x2 Shunt, 100mil, Flash Gold, Black

Table 2. LED171596AEVM BOM

CAP, CERM, 0.1 µF, 25 V, +/- 10%, X5R, 0603

CAP, CERM, 1 µF, 25 V, +/- 10%, X5R, 0603

CAP, CERM, 10 µF, 6.3 V, +/- 10%, JB, 0603

CAP, CERM, 10 µF, 25 V, +/- 10%, X7R, 1210

CAP, CERM, 22 µF, 10 V, +/- 20%, X5R, 0603

CAP, CERM, 3300 pF, 50 V, +/- 10%, X7R, 0402

CAP, CERM, 22 µF, 35 V, +/- 20%, X5R, 0805

Machine Screw, Round, #4-40 x 1/4, Nylon, Philips panhead

Terminal Block Receptacle, 3x1,

3.81mm, R/A, TH

Receptacle, 2.54mm, 14x2, Gold, R/A, TH

Inductor, Shielded, Powdered Iron, 2.2 µH, 2.3 A, 0.082 ohm, SMD

1024-/256-Position, 1% Resistor Tolerance Error, I2C Interface and 50TP Memory Digital Rheostat, MSOP-10

Ultra-Configurable Multiple-Function Gate With 3-State Output, DCT0008A

www.ti.com

PACKAGE

REFERENCE

0603 GRM188R61E104KA01D MuRata

0603 GRM188R61E105KA12D MuRata

0603 C1608JB0J106K090AB TDK

1210 C1210C106K3RACTU Kemet

0603 C1608X5R1A226M080AC TDK

0402 GRM155R71H332KA01D MuRata

0805 C2012X5R1V226M125AC TDK

Black Miniature

Testpoint

HEX

STANDOFF 4-

40 ALUMINUM

3/4"

screw NY PMS 440 0025 PH

10x2

Receptacle

Term Block, 3

pos

17x2 R/A

header

Header,

2.54mm, 14x2, R/A, TH

Receptacle,

2.54mm, 14x2, R/A, TH

2.5x1.2x2 mm DFE252012F-2R2M=P2 MuRata Toko

Closed top

100mil shunt

MSOP-10 AD5272BRMZ-100 Analog Devices

DCT0008A SN74LVC1G99DCTR Texas Instruments

PART NUMBER MANUFACTURER

5001 Keystone

2204 Keystone

B&F Fastener Supply

(SV601316-001)

SSQ-110-03-T-D Samtec

1727023 Phoenix Contact

TSW-117-08-G-D-RA Samtec

PRPC014DBAN-M71RC

PPPC142LJBN-RC

SPC02SYAN

ANY

Sullins Connector Solutions

Using the LED171596AEVM Evaluation Module

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

Table 2. LED171596AEVM BOM (continued)

DESIGNATOR QTY. VALUE DESCRIPTION

Dual Bidirectional I2C Bus and SMBus

U4 1

U5, U6, U10,

U11, U12

U13 1

VDD, VDDI,

VIN

3 Red Test Point, Miniature, Red, TH

Repeater, 2 Channel Width, 2.3 to 3.6 V, -40 to 85 degC, 8-pin MSOP (DGK), Green (RoHS & no Sb/Br)

Single-Pole Double-Throw Analog Switch, DCK0006A (SOT-6)

Buck Step Down Regulator with 3 to 17 V Input and 0.9 to 6 V Output, -40 to 85 degC, 16-Pin QFN (RGT), Green (RoHS & no Sb/Br)

Bill of Materials (BOM)

PACKAGE

REFERENCE

DGK0008A PCA9515BDGKR Texas Instruments

DCK0006A SN74LVC1G3157DCKR Texas Instruments

RGT0016C TPS62140RGTT Texas Instruments

Red Miniature

Testpoint

PART NUMBER MANUFACTURER

5000 Keystone

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Using the LED171596AEVM Evaluation Module

Revision History

www.ti.com

Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from B Revision (March 2018) to C Revision .................................................................................................. Page

• Changed Instructions for Windows 7 Tiva ICDI driver installation .................................................................. 7

• Added Instructions for Windows 10 Tiva ICDI driver installation.................................................................... 7

• Added Programming firmware instructions............................................................................................. 8

Revision History

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

www.ti.com

Revision History

Changes from A Revision (March 2018) to B Revision ....................................................................................................... Page

• Added and one LEDARRAYEVM with 96 white LEDs. The TIVA EK-TM4C123GXL Launchpad, NOT included in the

EVM kit, is required to run the GUI software. ........................................................................................ 1

• Updated photos Figure 1 and Figure 2 and Figure 3 and Figure 5................................................................. 4

Changes from Original (October 2017) to A Revision .................................................................................................... Page

• Updated Figure 49 through Figure 55 and Table 2 for A version of EVM (previous version was E1)........................ 24

SNVU546C–October 2017–Revised May 2018

Submit Documentation Feedback

Revision History

STANDARD TERMS FOR EVALUATION MODULES

1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.

1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions set forth herein but rather shall be subject to the applicable terms that accompany such Software

1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned, or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production system.

2 Limited Warranty and Related Remedies/Disclaimers:

2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License Agreement.

2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the nonconformity was caused by neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have been altered or modified in any way by an entity other than TI, (b) the nonconformity resulted from User's design, specifications or instructions for such EVMs or improper system design, or (c) User has not paid on time. Testing and other quality control techniques are used to the extent TI deems necessary. TI does not test all parameters of each EVM. User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within ten (10) business days after delivery, or of any hidden defects with ten (10) business days after the defect has been detected.

2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or credit User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day warranty period.

3 Regulatory Notices:

3.1 United States

3.1.1 Notice applicable to EVMs not FCC-Approved:

FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is subject to the condition that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference. Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must operate under the authority of an FCC license holder or must secure an experimental authorization under part 5 of this chapter.

3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:

CAUTION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC Interference Statement for Class A EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Interference Statement for Class B EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

3.2 Canada

3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210 or RSS-247

Concerning EVMs Including Radio Transmitters:

This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may

cause undesired operation of the device.

Concernant les EVMs avec appareils radio:

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Concerning EVMs Including Detachable Antennas:

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Concernant les EVMs avec antennes détachables

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur

3.3 Japan

3.3.1 Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に

輸入される評価用キット、ボードについては、次のところをご覧ください。

http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page

3.3.2 Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified by TI as conforming to Technical Regulations of Radio Law of Japan.

If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required to follow the instructions set forth by Radio Law of Japan, which includes, but is not limited to, the instructions below with respect to EVMs (which for the avoidance of doubt are stated strictly for convenience and should be verified by User):

1. Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for Enforcement of Radio Law of Japan,

2. Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to EVMs, or

3. Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.

【無線電波を送信する製品の開発キットをお使いになる際の注意事項】開発キットの中には技術基準適合証明を受けていないものがあります。技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの措置を取っていただく必要がありますのでご注意ください。

1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用いただく。

2. 実験局の免許を取得後ご使用いただく。

3. 技術基準適合証明を取得後ご使用いただく。

なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。

上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。日本テキサス・インスツルメンツ株式会社東京都新宿区西新宿６丁目２４番１号西新宿三井ビル

3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page

電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/

/www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page

3.4 European Union

3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive): This is a class A product intended for use in environments other than domestic environments that are connected to a

low-voltage power-supply network that supplies buildings used for domestic purposes. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

4 EVM Use Restrictions and Warnings:

4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.

4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices. The notices contain important safety information related to, for example, temperatures and voltages.

4.3 Safety-Related Warnings and Restrictions:

4.3.1 User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in the user guide, other available documentation provided by TI, and any other applicable requirements and employ reasonable and customary safeguards. Exceeding the specified performance ratings and specifications (including but not limited to input and output voltage, current, power, and environmental ranges) for the EVM may cause personal injury or death, or property damage. If there are questions concerning performance ratings and specifications, User should contact a TI field representative prior to connecting interface electronics including input power and intended loads. Any loads applied outside of the specified output range may also result in unintended and/or inaccurate operation and/or possible permanent damage to the EVM and/or interface electronics. Please consult the EVM user guide prior to connecting any load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative. During normal operation, even with the inputs and outputs kept within the specified allowable ranges, some circuit components may have elevated case temperatures. These components include but are not limited to linear regulators, switching transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the information in the associated documentation. When working with the EVM, please be aware that the EVM may become very warm.

4.3.2 EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with the dangers and application risks associated with handling electrical mechanical components, systems, and subsystems. User assumes all responsibility and liability for proper and safe handling and use of the EVM by User or its employees, affiliates, contractors or designees. User assumes all responsibility and liability to ensure that any interfaces (electronic and/or mechanical) between the EVM and any human body are designed with suitable isolation and means to safely limit accessible leakage currents to minimize the risk of electrical shock hazard. User assumes all responsibility and liability for any improper or unsafe handling or use of the EVM by User or its employees, affiliates, contractors or designees.

4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international, federal, state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User assumes all responsibility and liability for compliance in all respects with such laws and regulations. User assumes all responsibility and liability for proper disposal and recycling of the EVM consistent with all applicable international, federal, state, and local requirements.

5. Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as accurate as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information on its websites as accurate, complete, reliable, current, or error-free.

6. Disclaimers:

6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY MATERIALS PROVIDED WITH THE EVM (INCLUDING, BUT NOT LIMITED TO, REFERENCE DESIGNS AND THE DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH ALL FAULTS." TI DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS, INCLUDING BUT NOT LIMITED TO ANY EPIDEMIC FAILURE WARRANTY OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADE SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.

6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS SHALL BE CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY OTHER INDUSTRIAL OR INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD PARTY, TO USE THE EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY INVENTION, DISCOVERY OR IMPROVEMENT, REGARDLESS OF WHEN MADE, CONCEIVED OR ACQUIRED.

7. USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES, LOSSES, EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION WITH ANY HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS. THIS OBLIGATION SHALL APPLY WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR ANY OTHER LEGAL THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.

8. Limitations on Damages and Liability:

8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF THESE TERMS OR THE USE OF THE EVMS , REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED TO, COST OF REMOVAL OR REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, RETESTING, OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS, LOSS OF SAVINGS, LOSS OF USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION SHALL BE BROUGHT AGAINST TI MORE THAN TWELVE (12) MONTHS AFTER THE EVENT THAT GAVE RISE TO THE CAUSE OF ACTION HAS OCCURRED.

8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY USE OF AN EVM PROVIDED HEREUNDER, INCLUDING FROM ANY WARRANTY, INDEMITY OR OTHER OBLIGATION ARISING OUT OF OR IN CONNECTION WITH THESE TERMS, , EXCEED THE TOTAL AMOUNT PAID TO TI BY USER FOR THE PARTICULAR EVM(S) AT ISSUE DURING THE PRIOR TWELVE (12) MONTHS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE CLAIMED. THE EXISTENCE OF MORE THAN ONE CLAIM SHALL NOT ENLARGE OR EXTEND THIS LIMIT.

9. Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of EVM(s) will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or otherwise not in a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery violates the applicable order, User should contact TI. All refunds will be made in full within thirty (30) working days from the return of the components(s), excluding any postage or packaging costs.

10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of Texas, without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of or relating to these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas County, Texas. Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES

Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products; by downloading, accessing or using any particular TI Resource in any way, you (individually or, if you are acting on behalf of a company, your company) agree to use it solely for this purpose and subject to the terms of this Notice.

TI’s provision of TI Resources does not expand or otherwise alter TI’s applicable published warranties or warranty disclaimers for TI products, and no additional obligations or liabilities arise from TI providing such TI Resources. TI reserves the right to make corrections, enhancements, improvements and other changes to its TI Resources.

You understand and agree that you remain responsible for using your independent analysis, evaluation and judgment in designing your applications and that you have full and exclusive responsibility to assure the safety of your applications and compliance of your applications (and of all TI products used in or for your applications) with all applicable regulations, laws and other applicable requirements. You represent that, with respect to your applications, you have all the necessary expertise to create and implement safeguards that (1) anticipate dangerous consequences of failures, (2) monitor failures and their consequences, and (3) lessen the likelihood of failures that might cause harm and take appropriate actions. You agree that prior to using or distributing any applications that include TI products, you will thoroughly test such applications and the functionality of such TI products as used in such applications. TI has not conducted any testing other than that specifically described in the published documentation for a particular TI Resource.

You are authorized to use, copy and modify any individual TI Resource only in connection with the development of applications that include the TI product(s) identified in such TI Resource. NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO ANY OTHER TI INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT OF TI OR ANY THIRD PARTY IS GRANTED HEREIN, including but not limited to any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information regarding or referencing third-party products or services does not constitute a license to use such products or services, or a warranty or endorsement thereof. Use of TI Resources may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

TI RESOURCES ARE PROVIDED “AS IS” AND WITH ALL FAULTS. TI DISCLAIMS ALL OTHER WARRANTIES OR REPRESENTATIONS, EXPRESS OR IMPLIED, REGARDING TI RESOURCES OR USE THEREOF, INCLUDING BUT NOT LIMITED TO ACCURACY OR COMPLETENESS, TITLE, ANY EPIDEMIC FAILURE WARRANTY AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS.

TI SHALL NOT BE LIABLE FOR AND SHALL NOT DEFEND OR INDEMNIFY YOU AGAINST ANY CLAIM, INCLUDING BUT NOT LIMITED TO ANY INFRINGEMENT CLAIM THAT RELATES TO OR IS BASED ON ANY COMBINATION OF PRODUCTS EVEN IF DESCRIBED IN TI RESOURCES OR OTHERWISE. IN NO EVENT SHALL TI BE LIABLE FOR ANY ACTUAL, DIRECT, SPECIAL, COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF TI RESOURCES OR USE THEREOF, AND REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

You agree to fully indemnify TI and its representatives against any damages, costs, losses, and/or liabilities arising out of your noncompliance with the terms and provisions of this Notice.

This Notice applies to TI Resources. Additional terms apply to the use and purchase of certain types of materials, TI products and services. These include; without limitation, TI’s standard terms for semiconductor products http://www.ti.com/sc/docs/stdterms.htm), evaluation

modules, and samples (http://www.ti.com/sc/docs/sampterms.htm).

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Texas Instruments LED171596AEVM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
