Telexper tXPER User Manual
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
IP CCTV Solution
Central Management System - Lite
User Manual
©Copyright VisionSoft Inc. 1992-2010
©Copyright Telexper International Inc. 1992-20 10
Version 2.0.0.8 NCSc
PDF created with pdfFactory trial version www.pdffactory.com
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
Copyright Notice
Information in this document is subject to change without notice. Telexper International Inc. may
make improvements or changes in this manual and CMS-Lite Software if necessary. The software,
which includes the information contained described in this document is furnished under a license
agreement and may be used or copied only in accordance with the terms of the agreement. It is
against the law of copyright to duplicate the software except as specifically allowed in the license
agreement. No part of this manual may be reproduced or transmitted in any form or by any means,
including photocopy or duplicate, for any purpose without prior written permission by Telexper
International Inc.
This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received including interference that may cause undesired
operation.
Safety Instructions
Warnings & Cautions
Please read the following safety warnings and keep this manual in a place which you can read
whenever you need.
1. Keep the Video Servers away from water, wet, hot, flammable area or with heavy moisture
2. Check the existing electric environment if it’s applicable (90V~240V AC) before use
3. Avoid to operate it in high temperature environment
4. Please put the Video Server and Hub in a flat stable place to operate
5. Do not disassemble the product arbitrarily.
This symbol indicates that personal injury may occur or the product may be
damaged when you fail to follow the given instruction
This symbol indicates that property loss may occur or the product may
malfunction when you fail to fol
low the given instruction
W
W
W
A
A
A
R
R
R
N
N
N
I
I
I
N
N
N
G
G
G
C
C
C
A
A
A
U
U
U
T
T
T
I
I
I
O
O
O
N
N
N
PDF created with pdfFactory trial version www.pdffactory.com
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
Table of Contents
Chapter 1 Overview........................................................................................................................1
Chapter 2 Aopplication CD and System Requirements..............................................................4
Application CD for CMS-Lite......................................................................................................................4
System Requirements for the LVC and Remote CMS Software...............................................................5
Chapter 3 System Setup................................................................................................................6
System Setup Flow Chart...........................................................................................................................6
IP CCTV Solution Configuration................................................................................................................7
Chapter 4 CMS-Lite - General Operations....................................................................................8
Getting Started CMS-Lite............................................................................................................................8
Change the password of the user.........................................................................................................................9

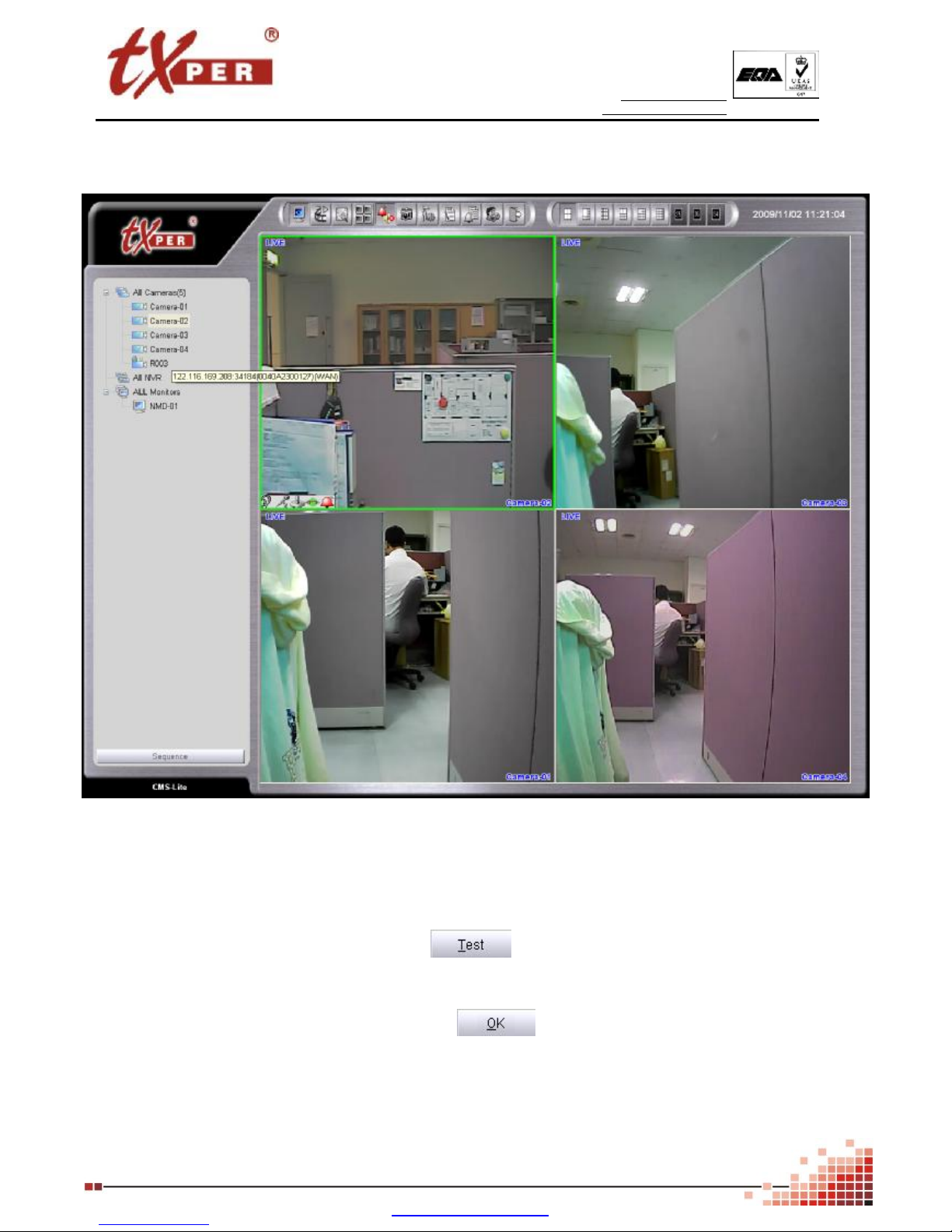

Chapter 5 CMS-Lite - Main Menu (Live Mode)............................................................................10
Main Menu Buttons Overview..................................................................................................................10
Hot Key......................................................................................................................................................12
Device Directory........................................................................................................................................13
Sequence...................................................................................................................................................13
Screen Display..........................................................................................................................................14
Shortcut to Device Settings, PTZ.............................................................................................................15
Chapter 6 CMS-Lite – Setup Menu..............................................................................................17

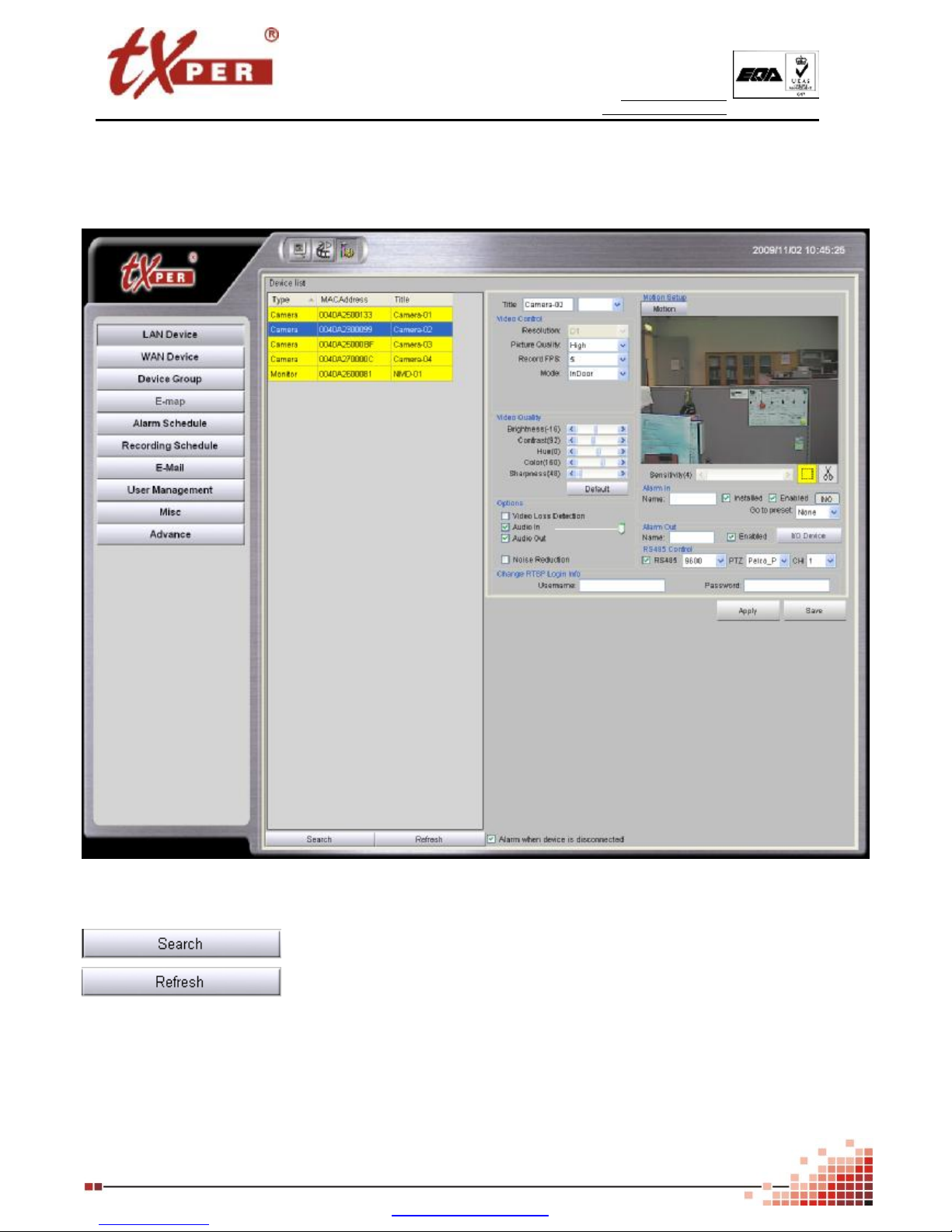

LAN Device................................................................................................................................................17

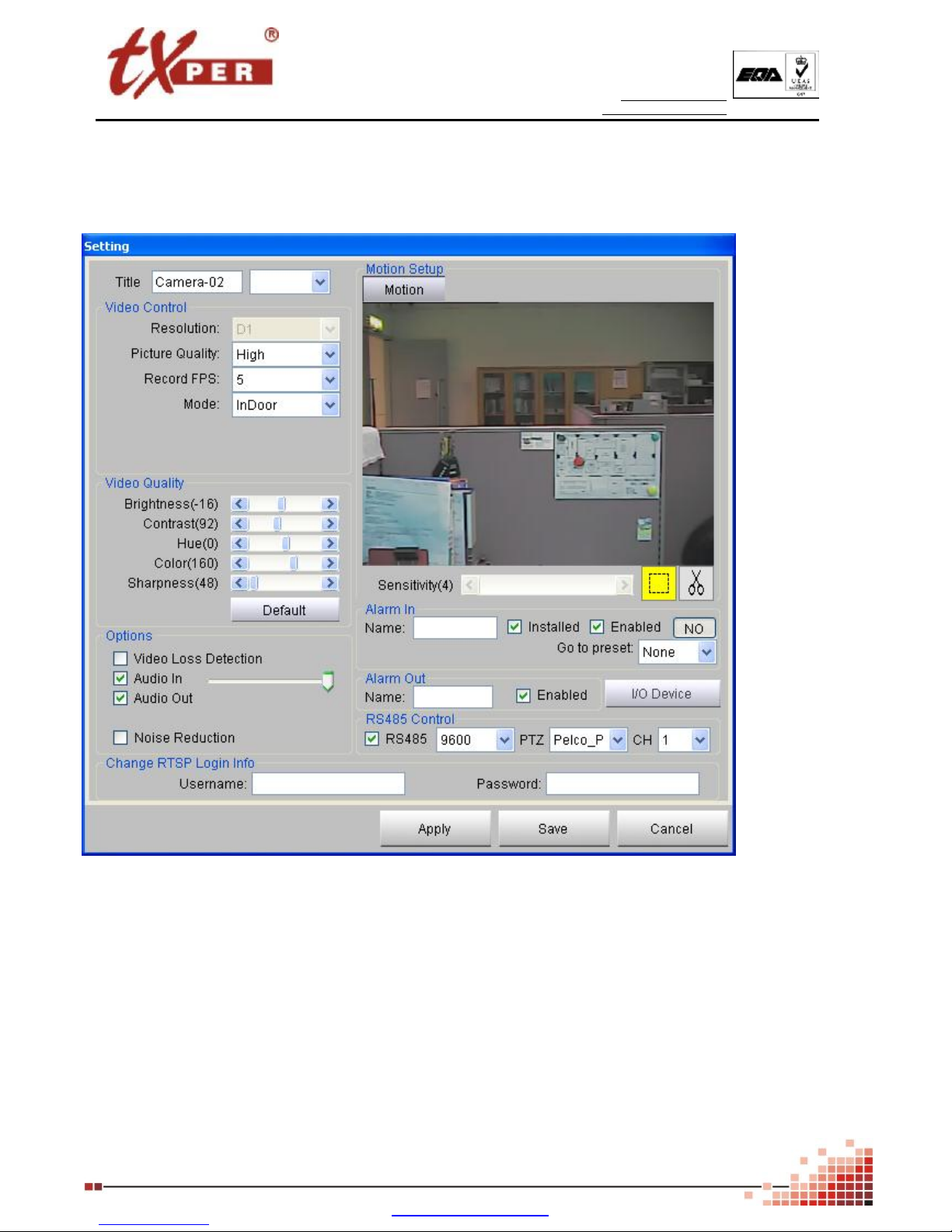

Video Server / IP Camera.....................................................................................................................................18

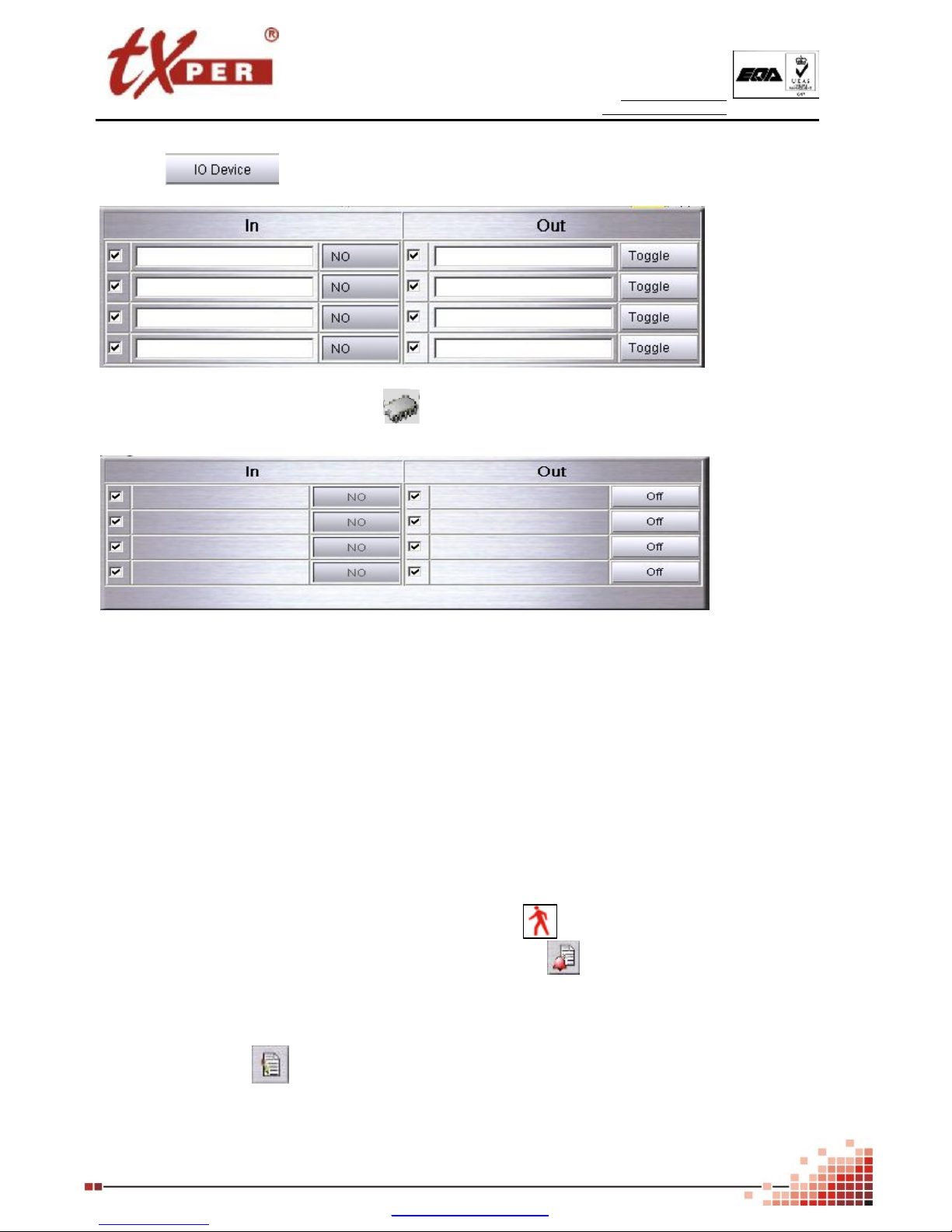

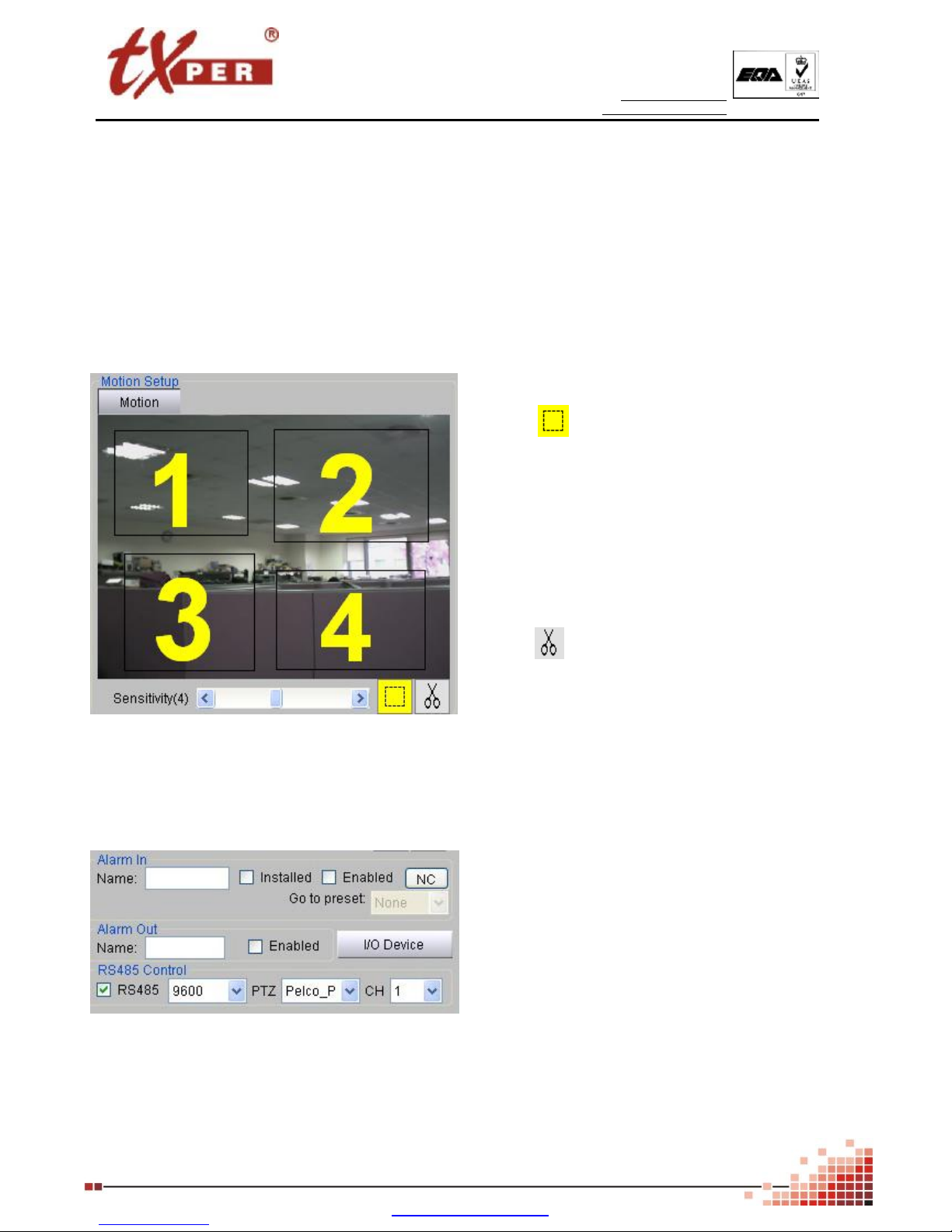

Alarm In and Alarm Out Setting..........................................................................................................................19

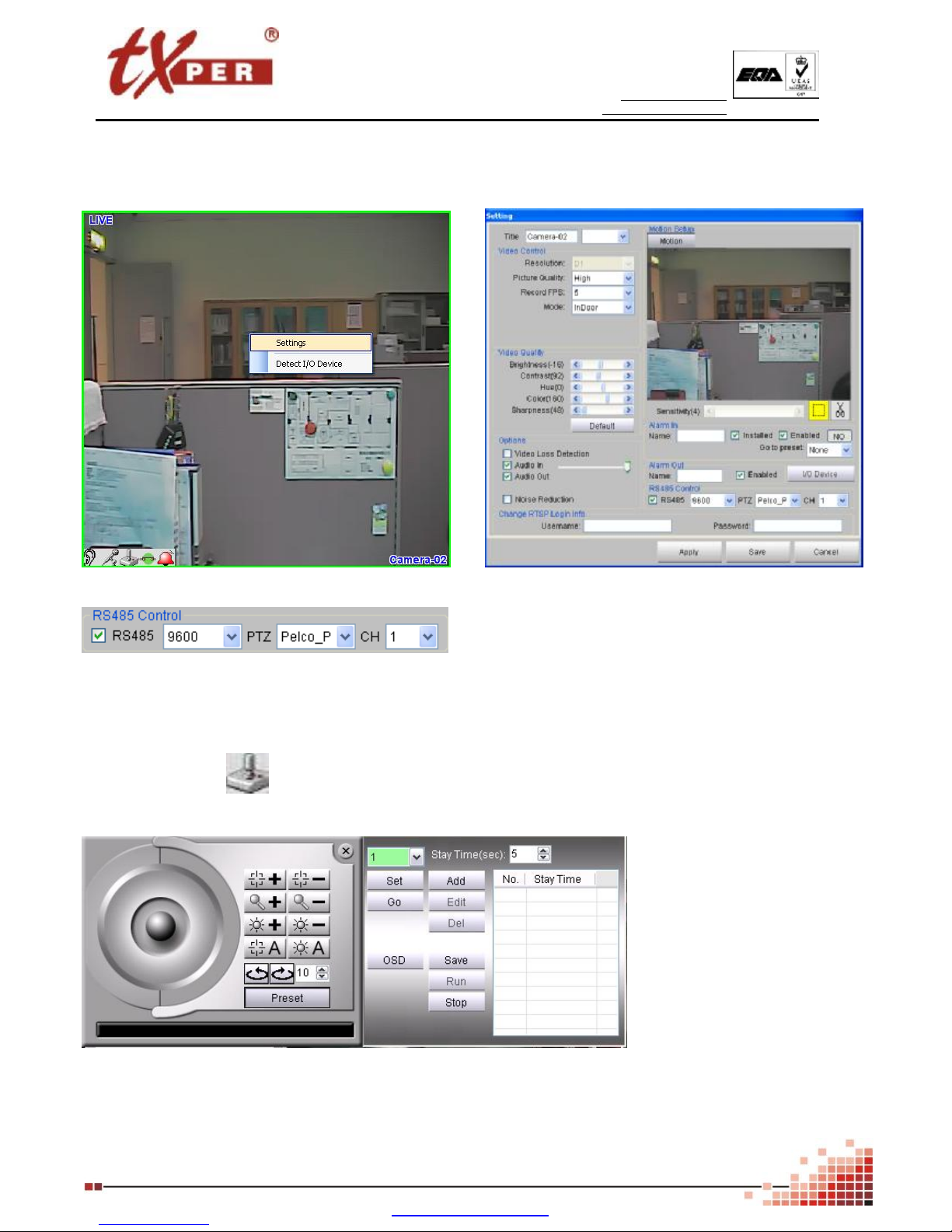

RS485 and PTZ Control.......................................................................................................................................20
Acknowledge Alarm Event..................................................................................................................................20
Monitor (Video Decoder).....................................................................................................................................21

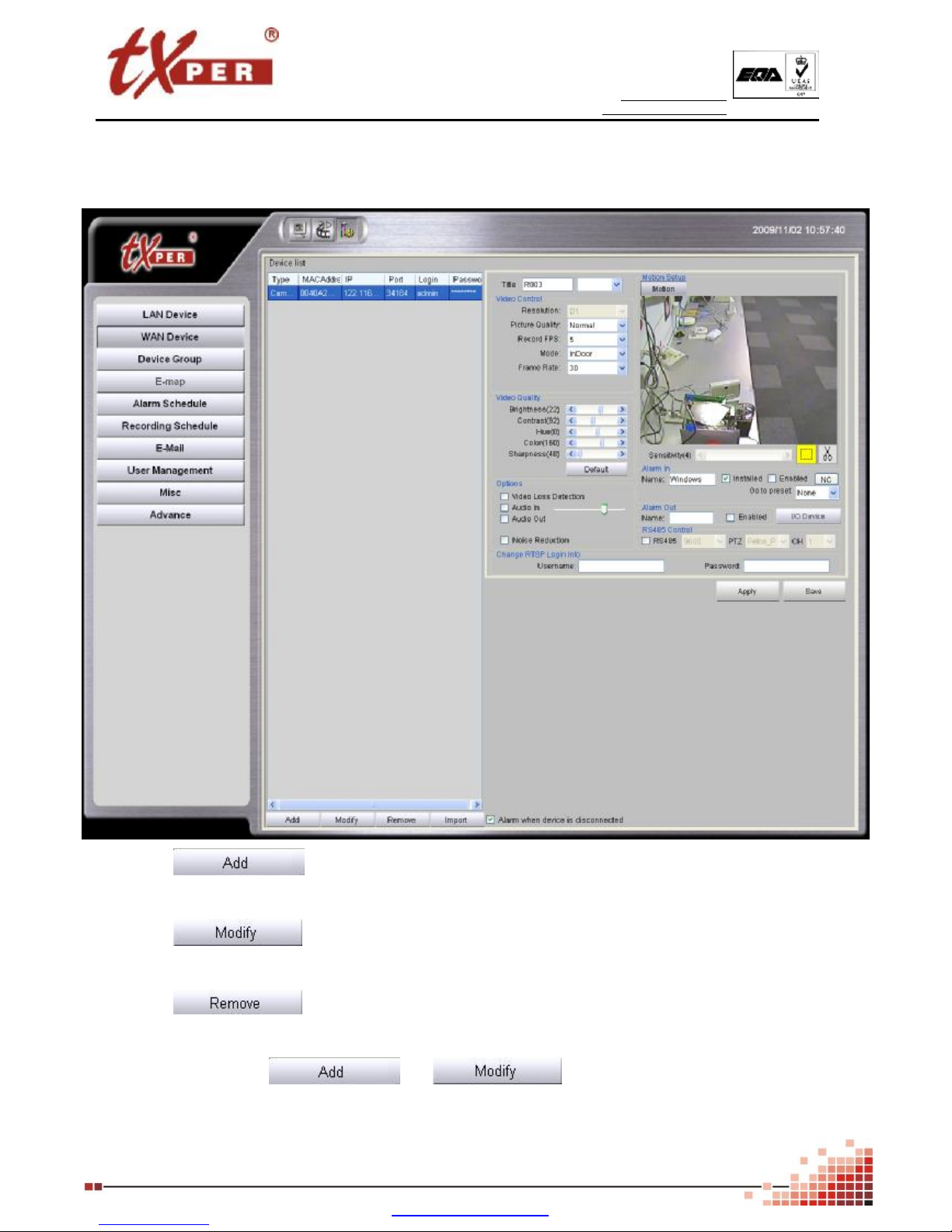

WAN Device...............................................................................................................................................24

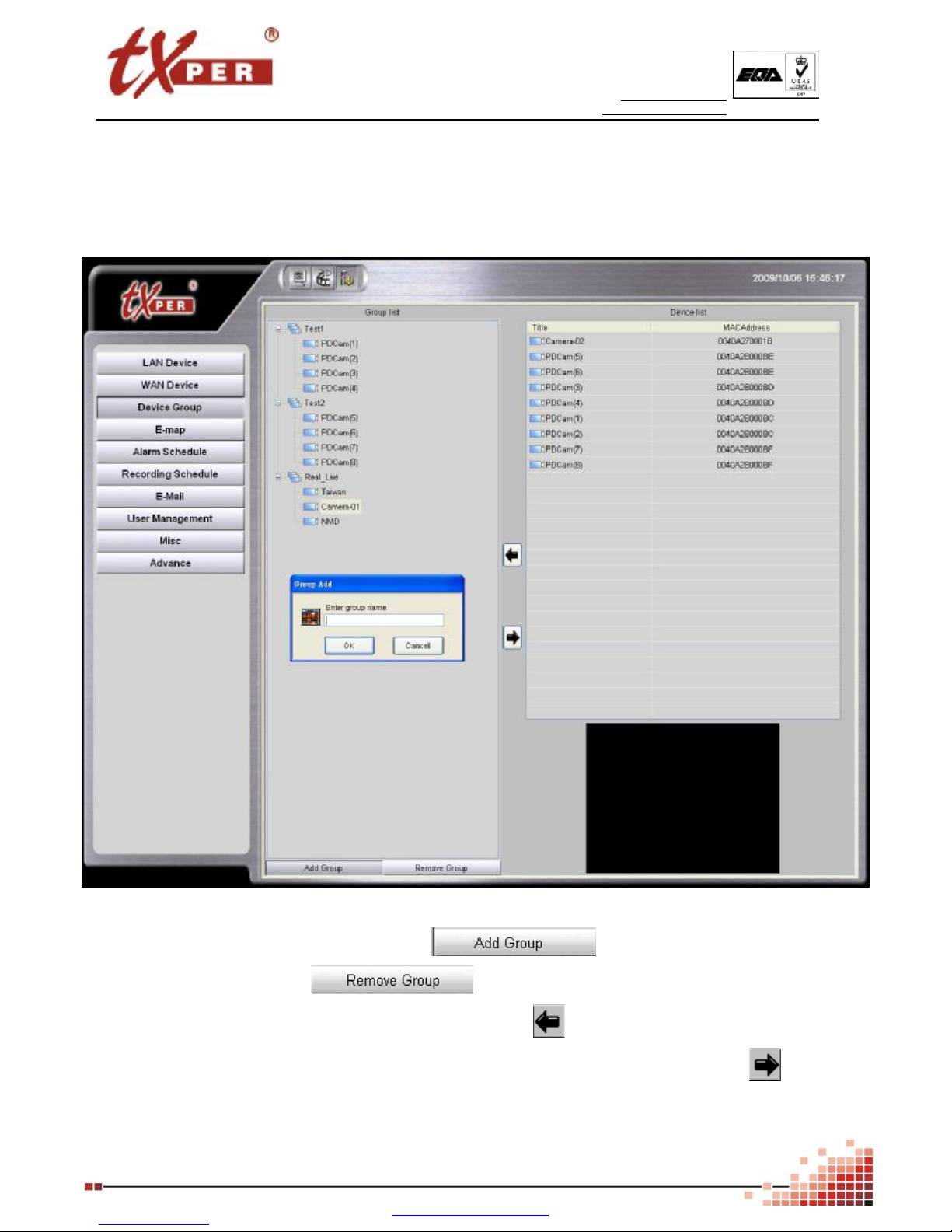

Device Group............................................................................................................................................27
E-map.........................................................................................................................................................28
Alarm Schedule.........................................................................................................................................29

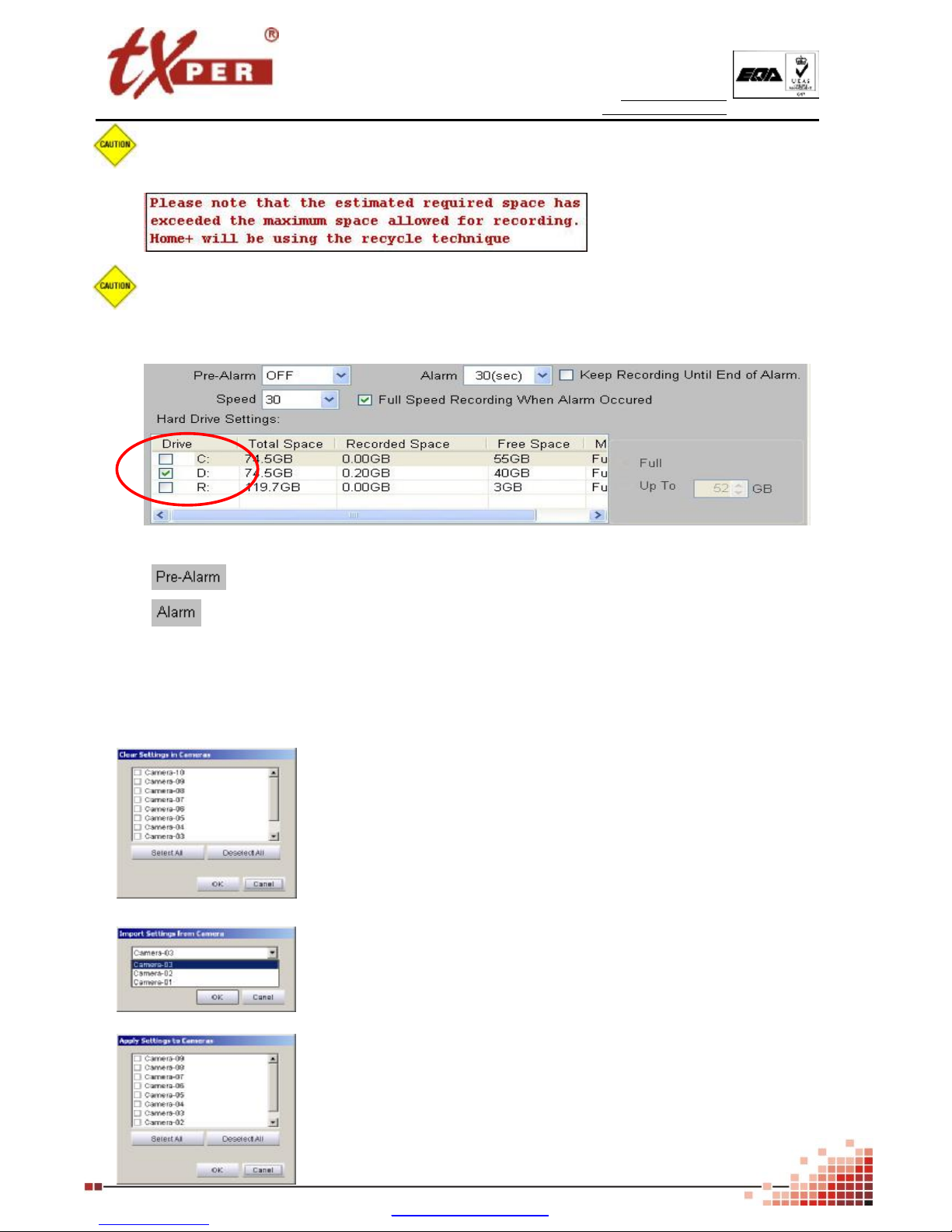

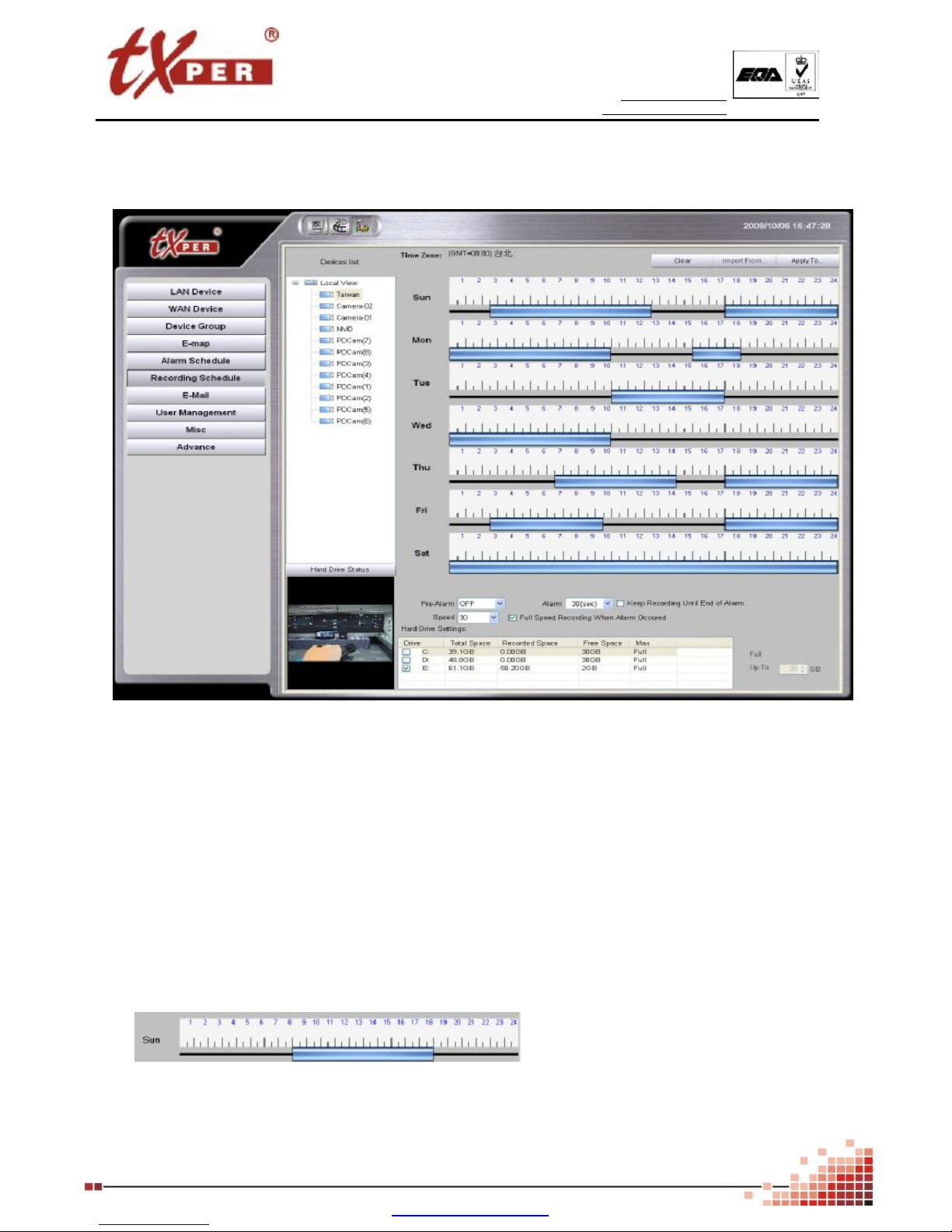

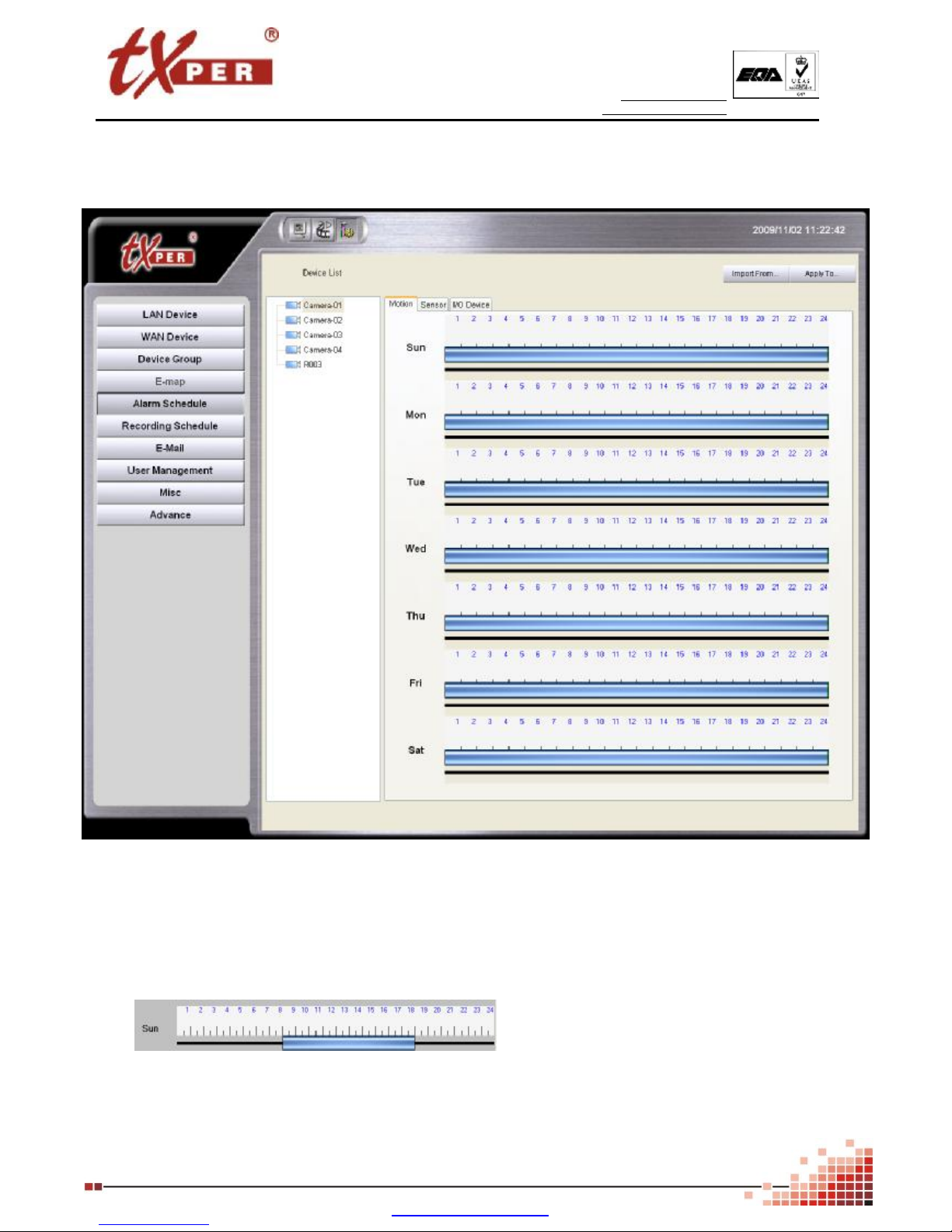

Recording Schedule.................................................................................................................................30

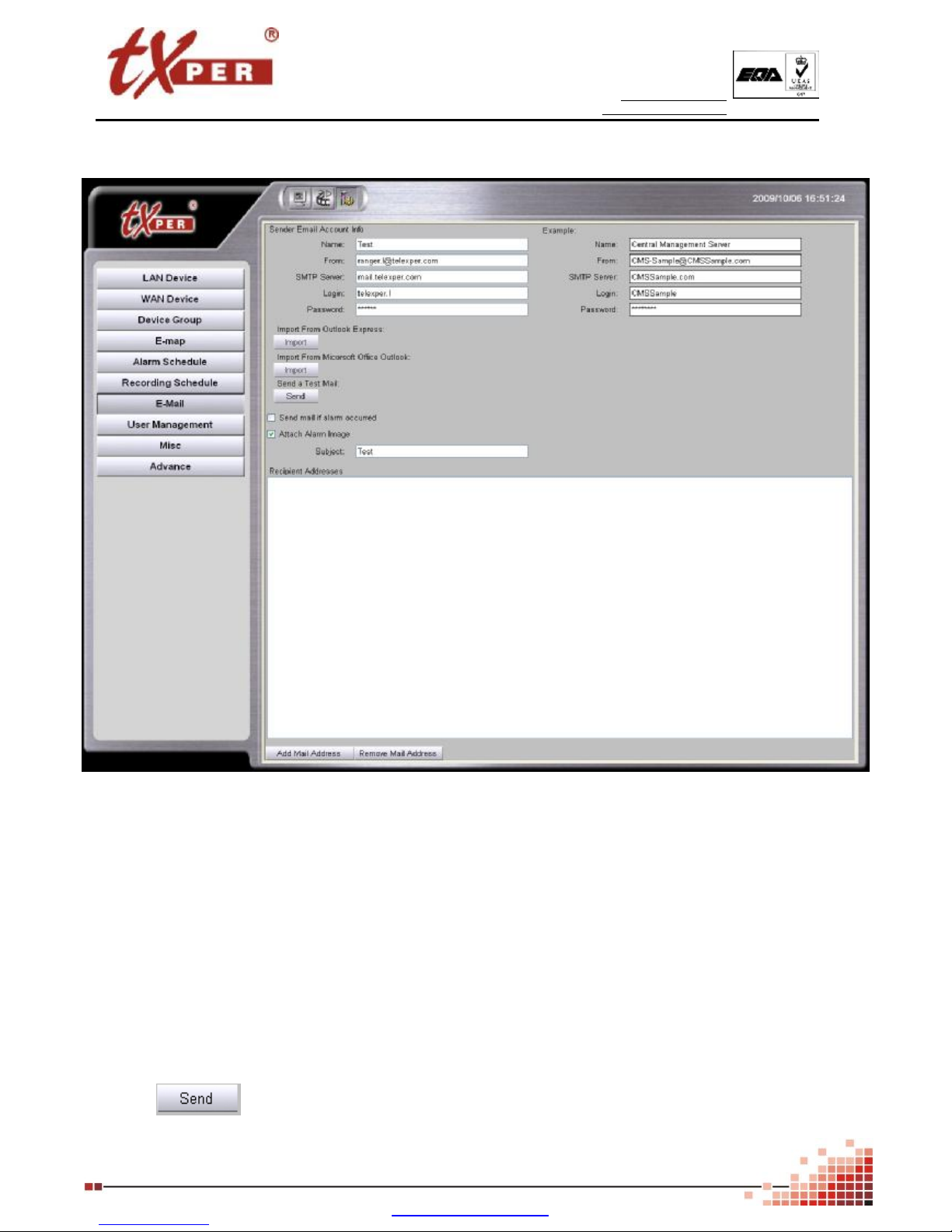

E-Mail.........................................................................................................................................................33

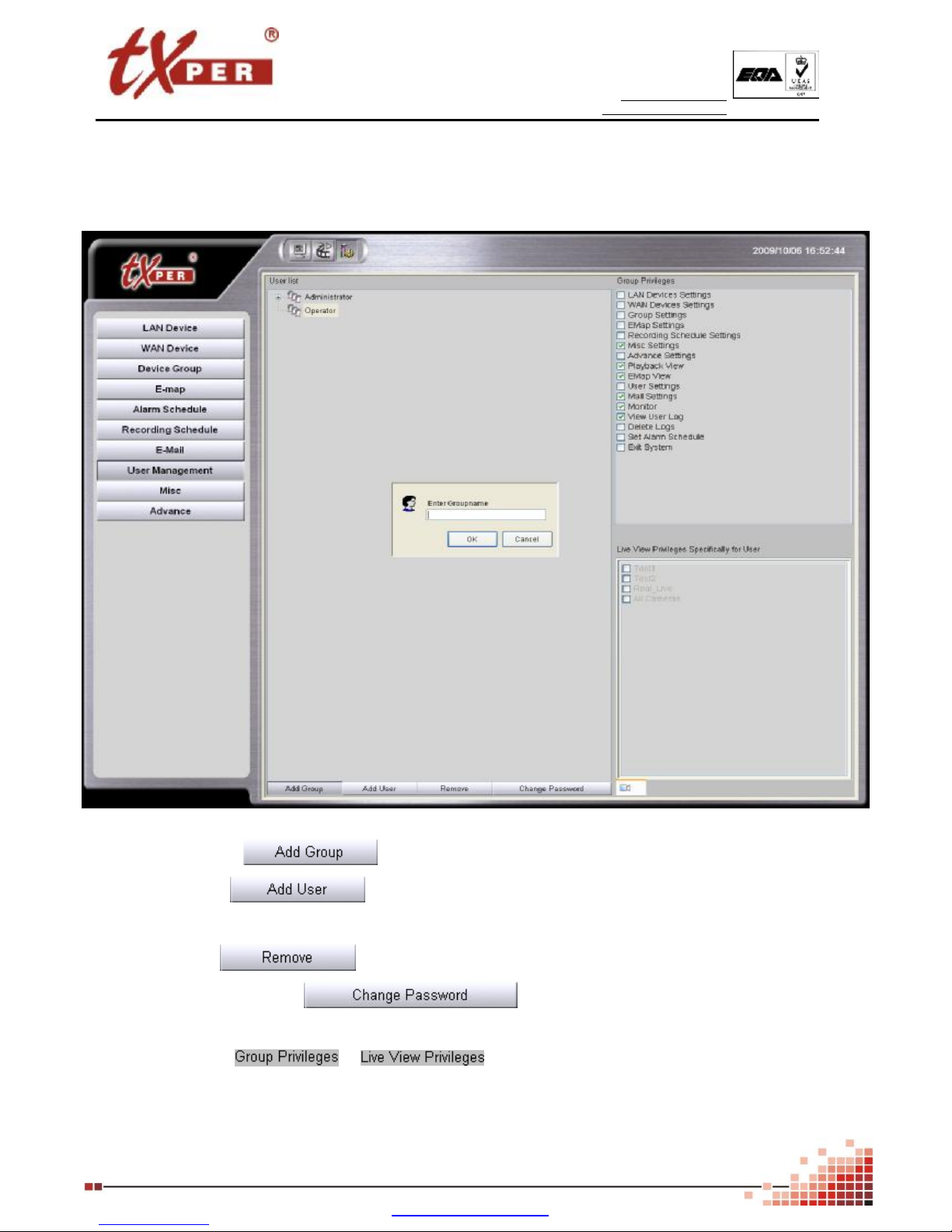

User Management.....................................................................................................................................34

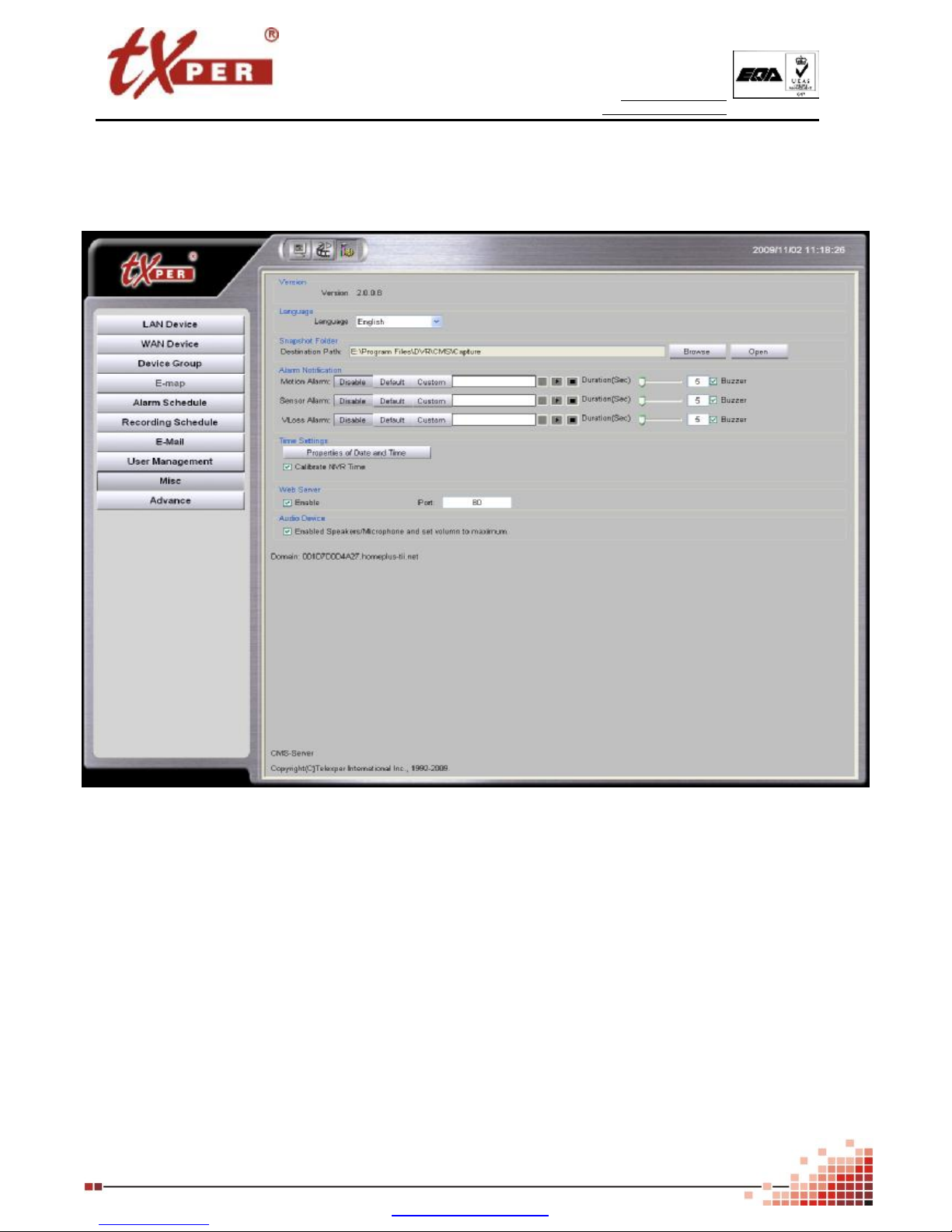

Miscellaneous...........................................................................................................................................35

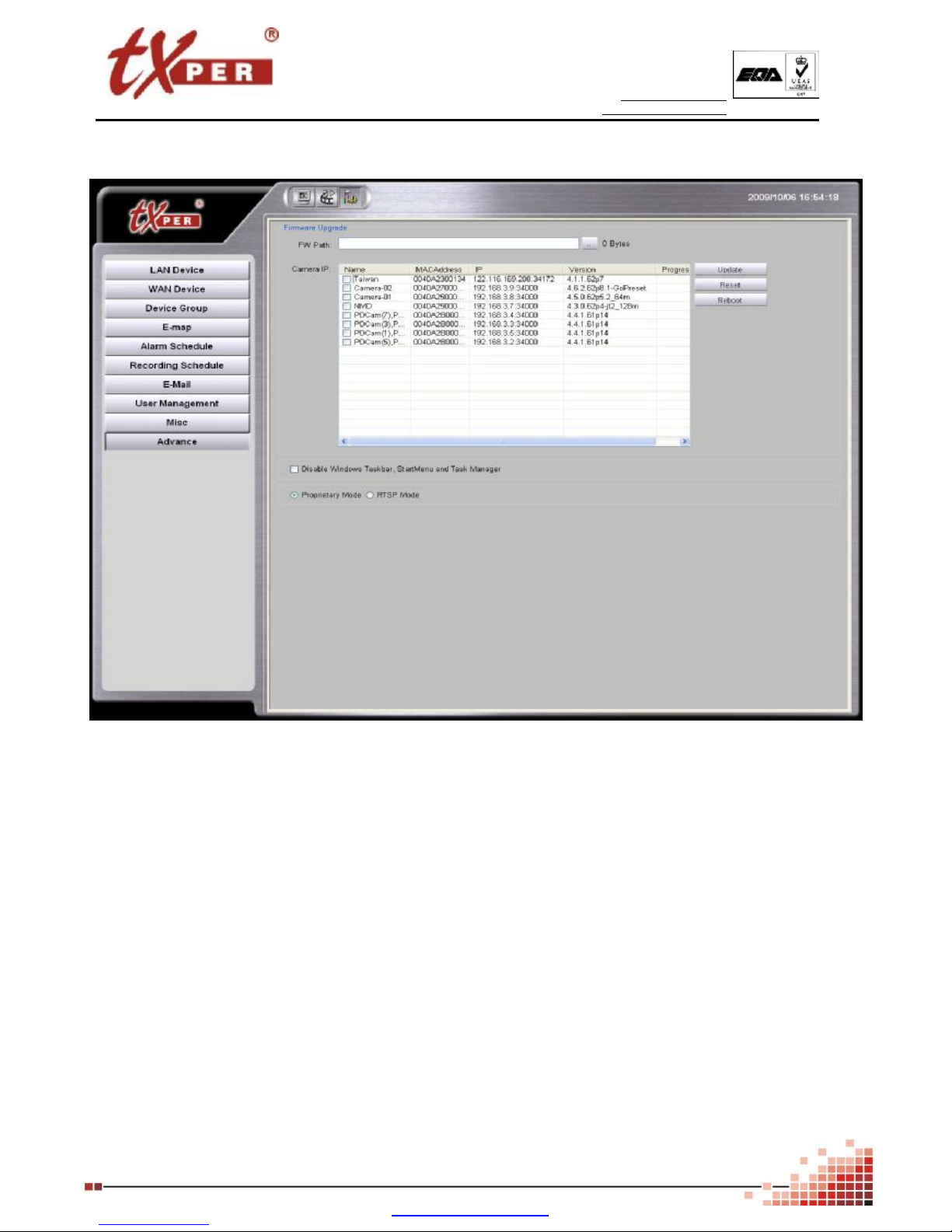

Advance.....................................................................................................................................................36

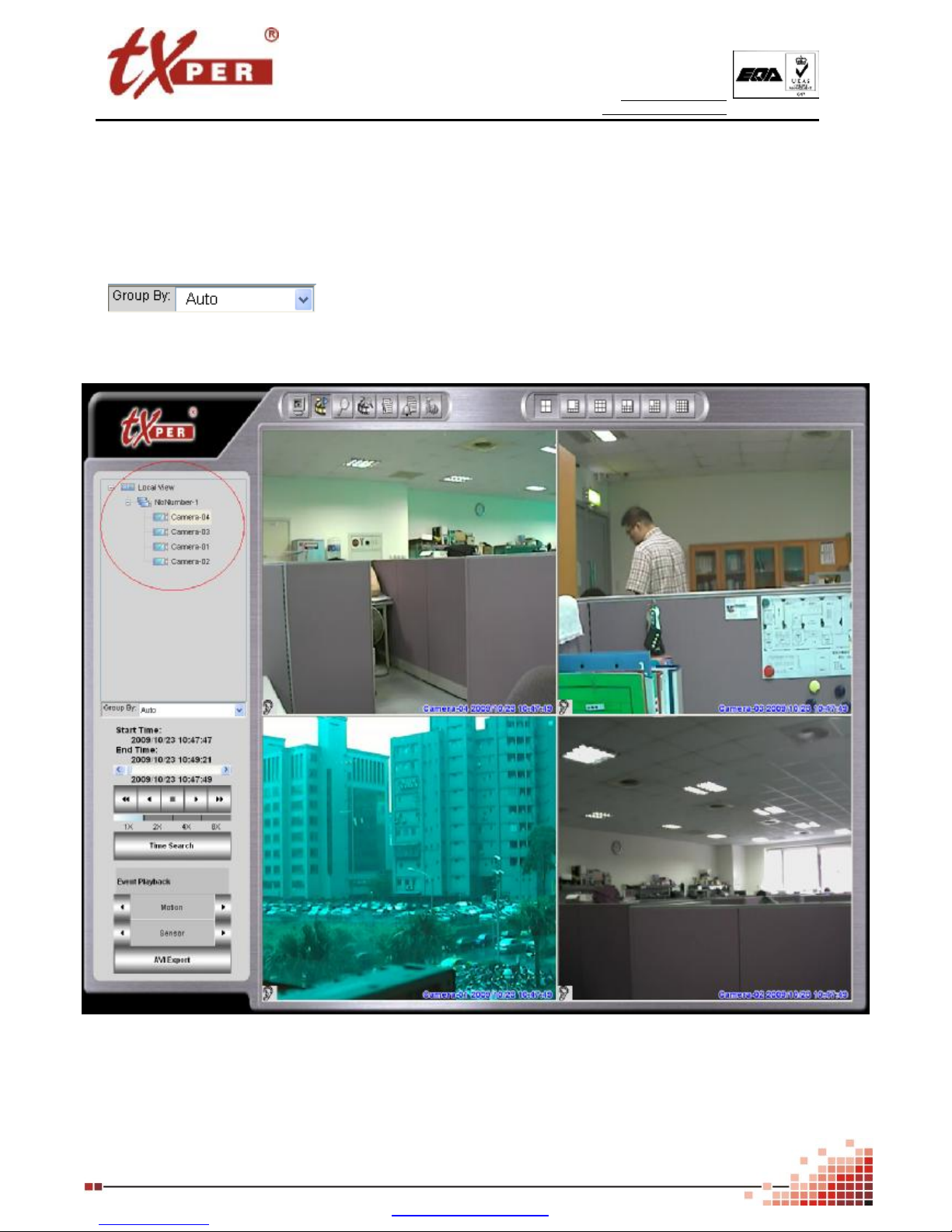

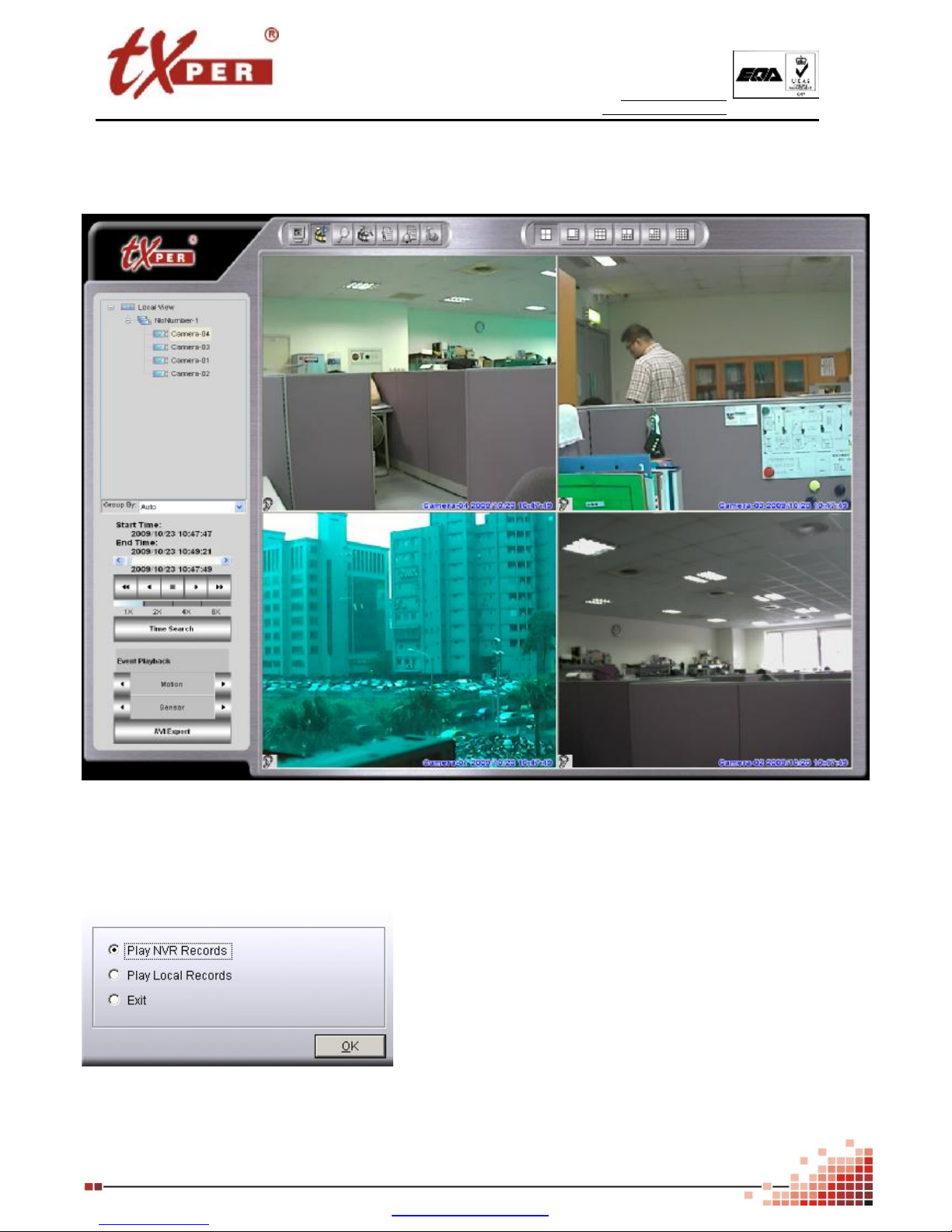

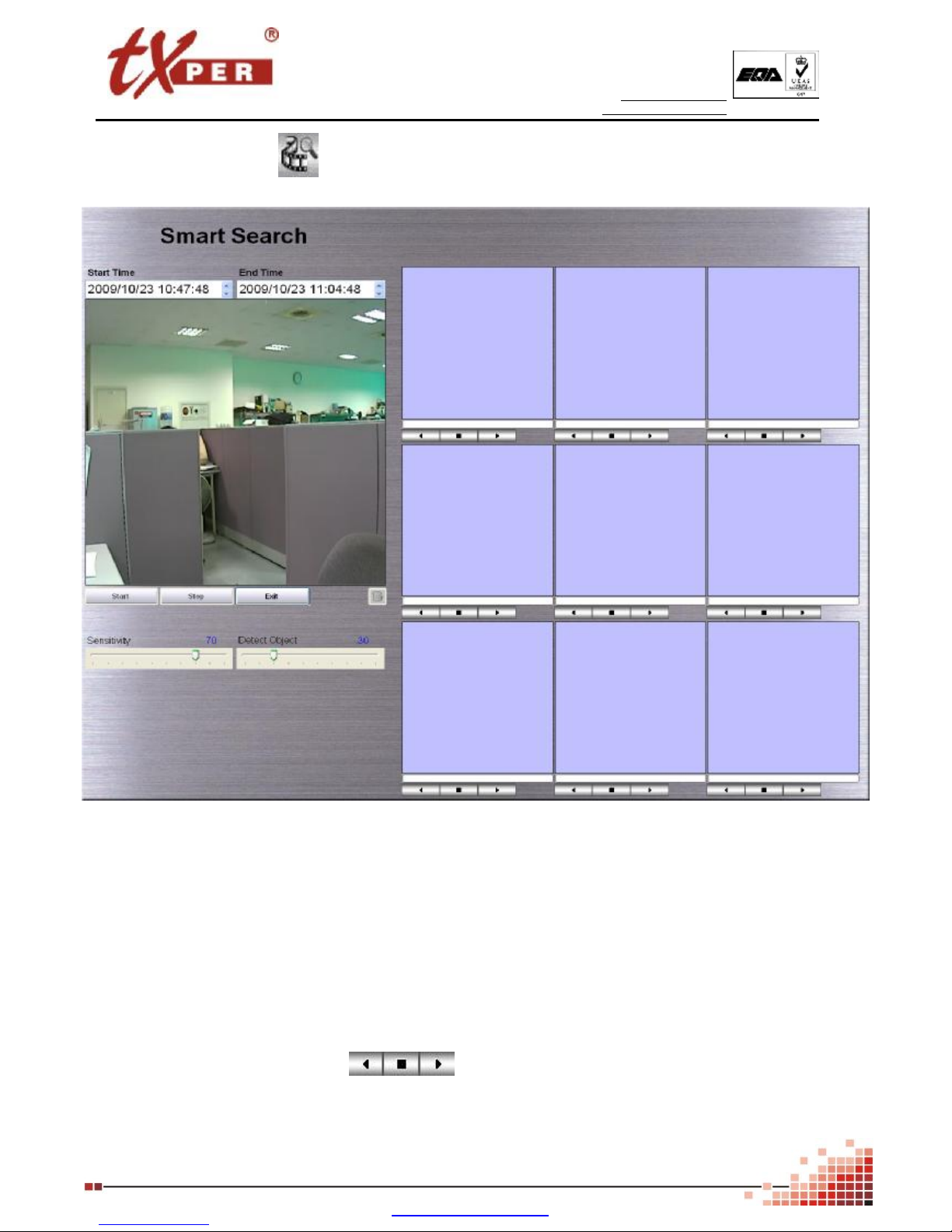

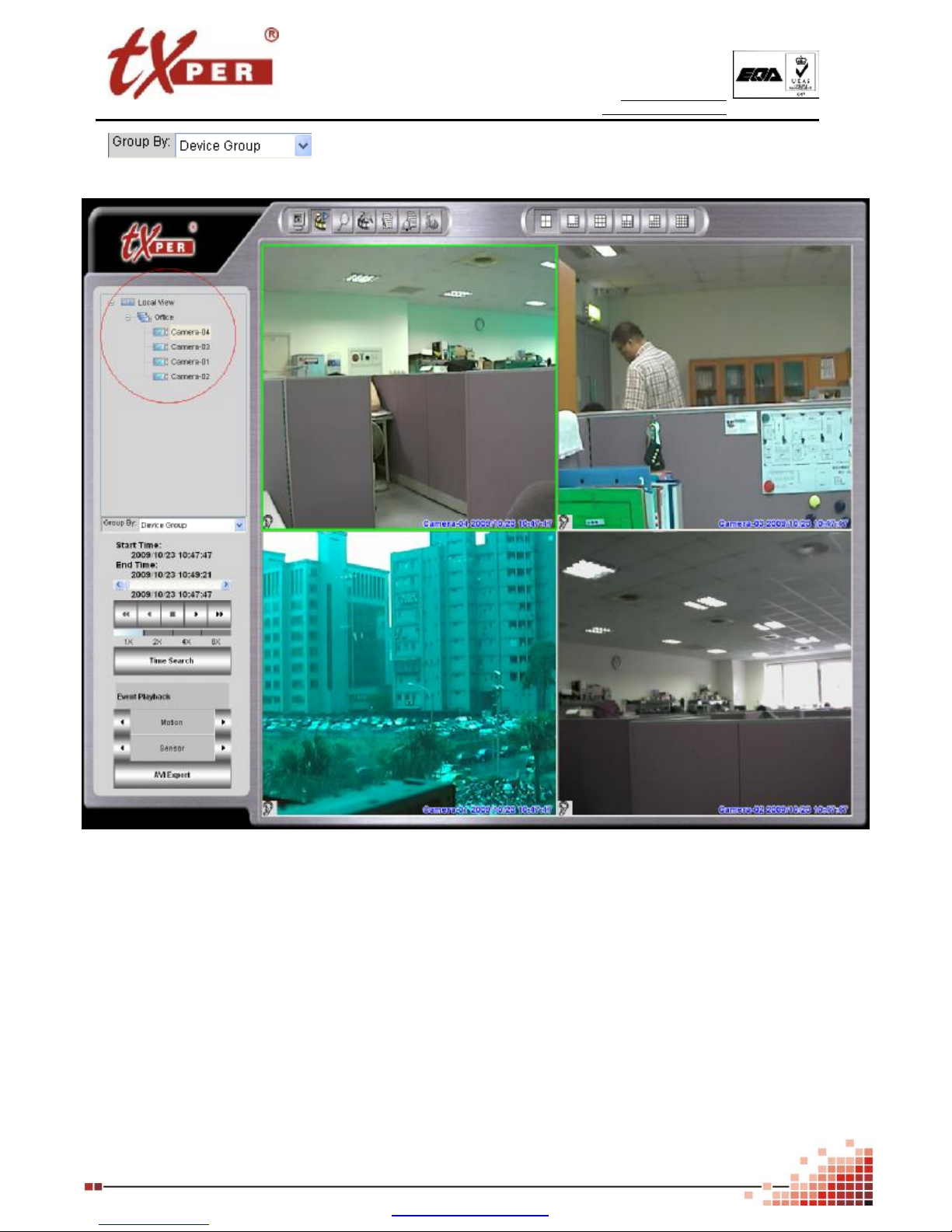

Chapter 7 CMS-Lite – Playback Mode.........................................................................................37
Basic Playback..........................................................................................................................................40
PDF created with pdfFactory trial version www.pdffactory.com
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft

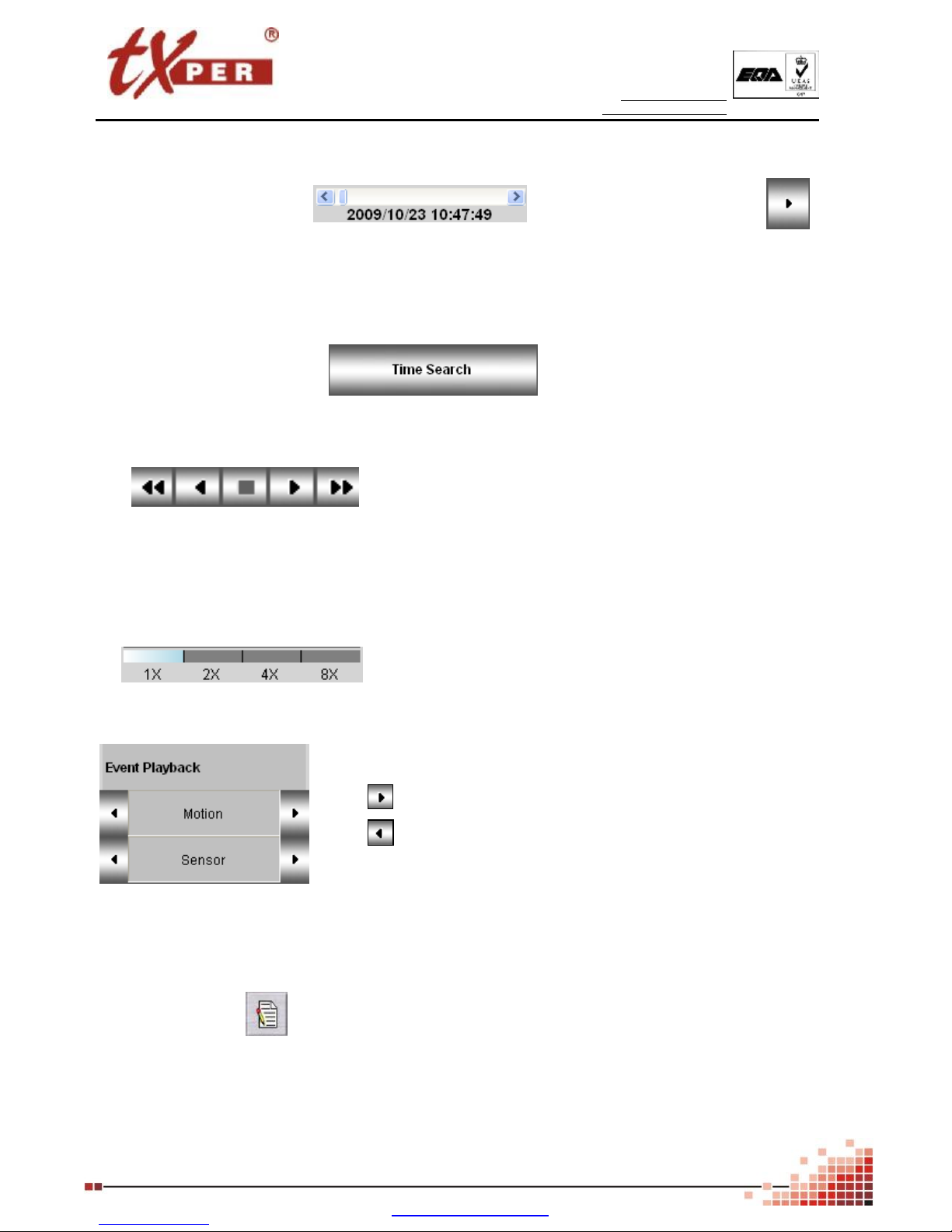

Time Search Playback..............................................................................................................................40
Event Playback..........................................................................................................................................40

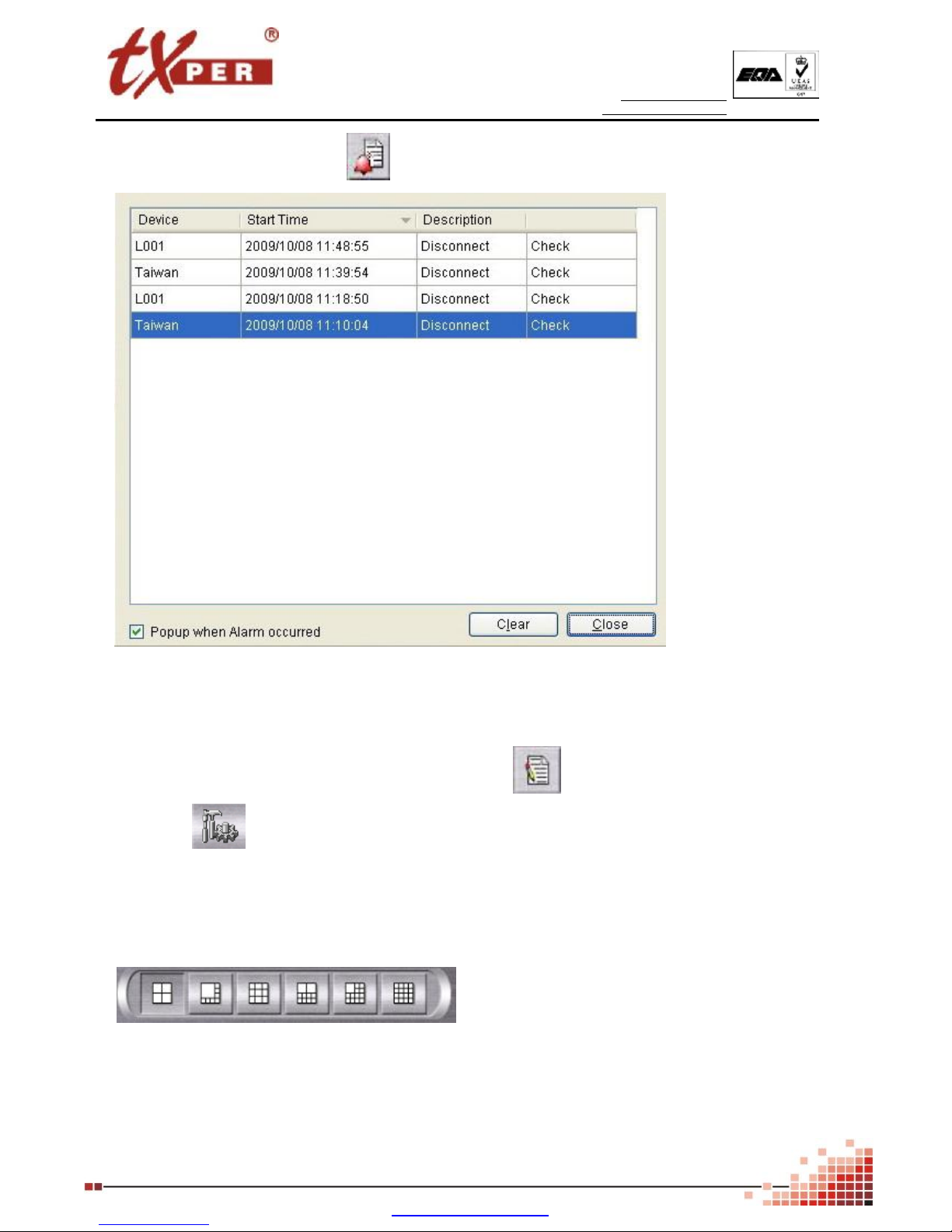

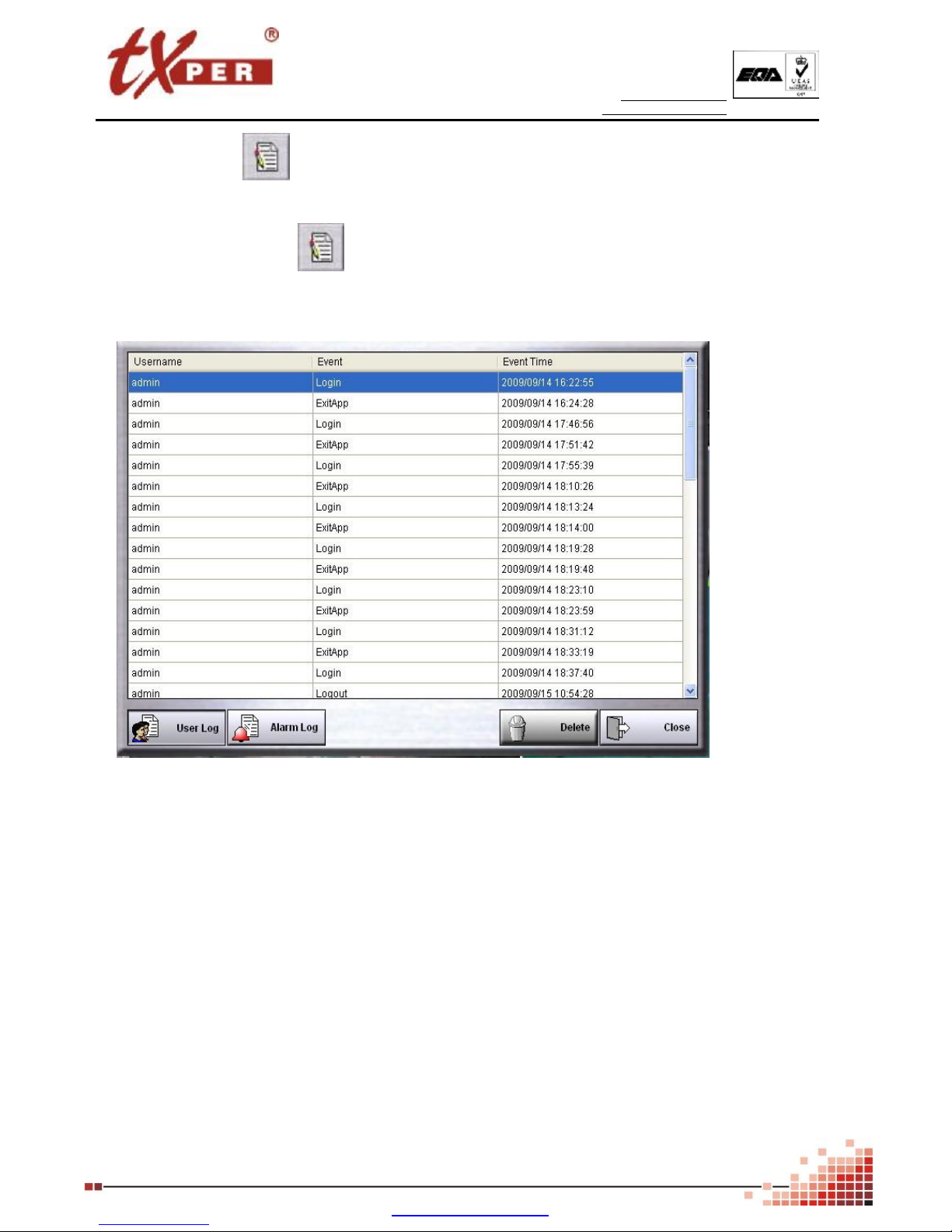

Alarm Log..................................................................................................................................................40
Set Time Search........................................................................................................................................41

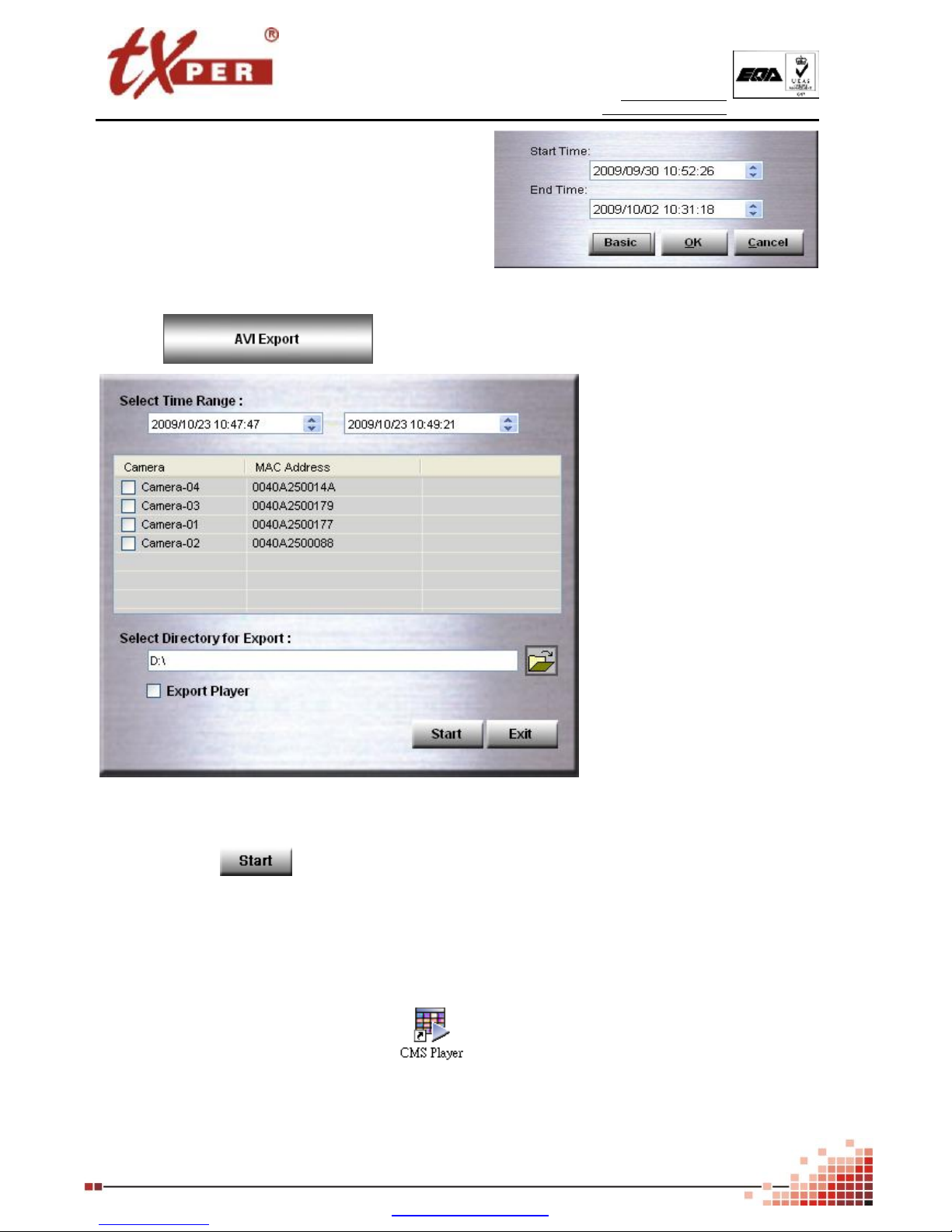

AVI Export.................................................................................................................................................41
Playback Main Menu Buttons...................................................................................................................42
Screen Display..........................................................................................................................................45

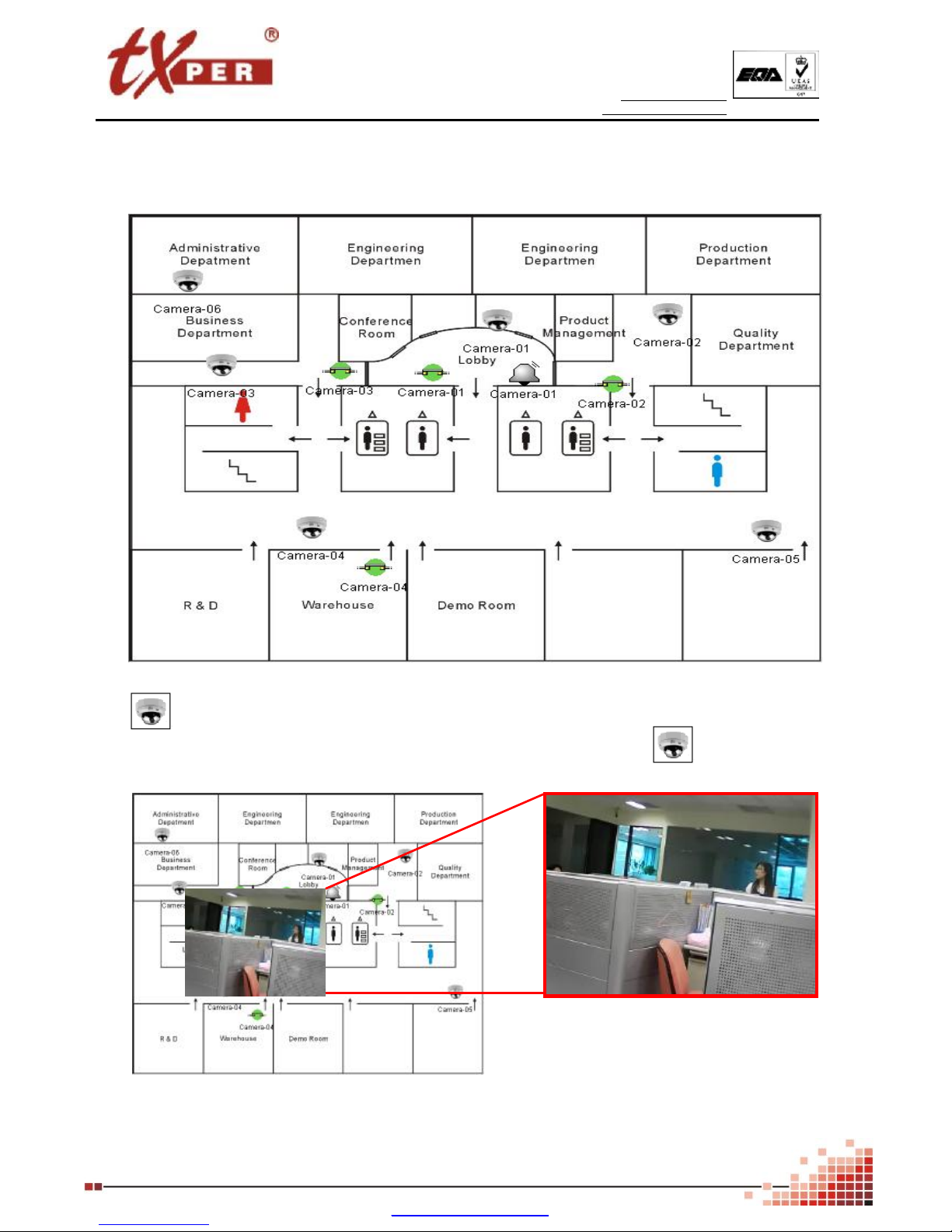

Chapter 8 CMS-Lite – E-Map Mode..............................................................................................46

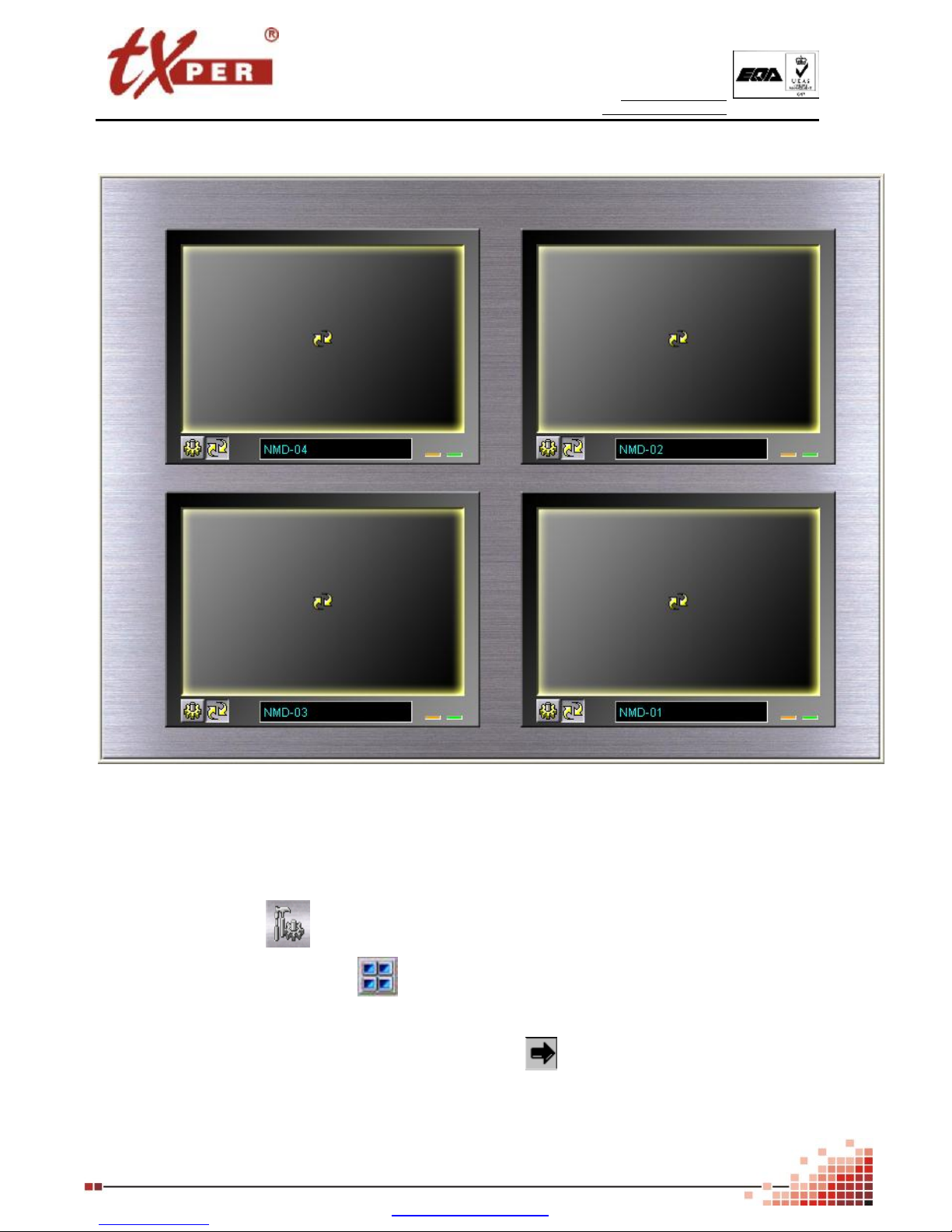

Chapter 9 CMS-Lite – Monitor Mode...........................................................................................48

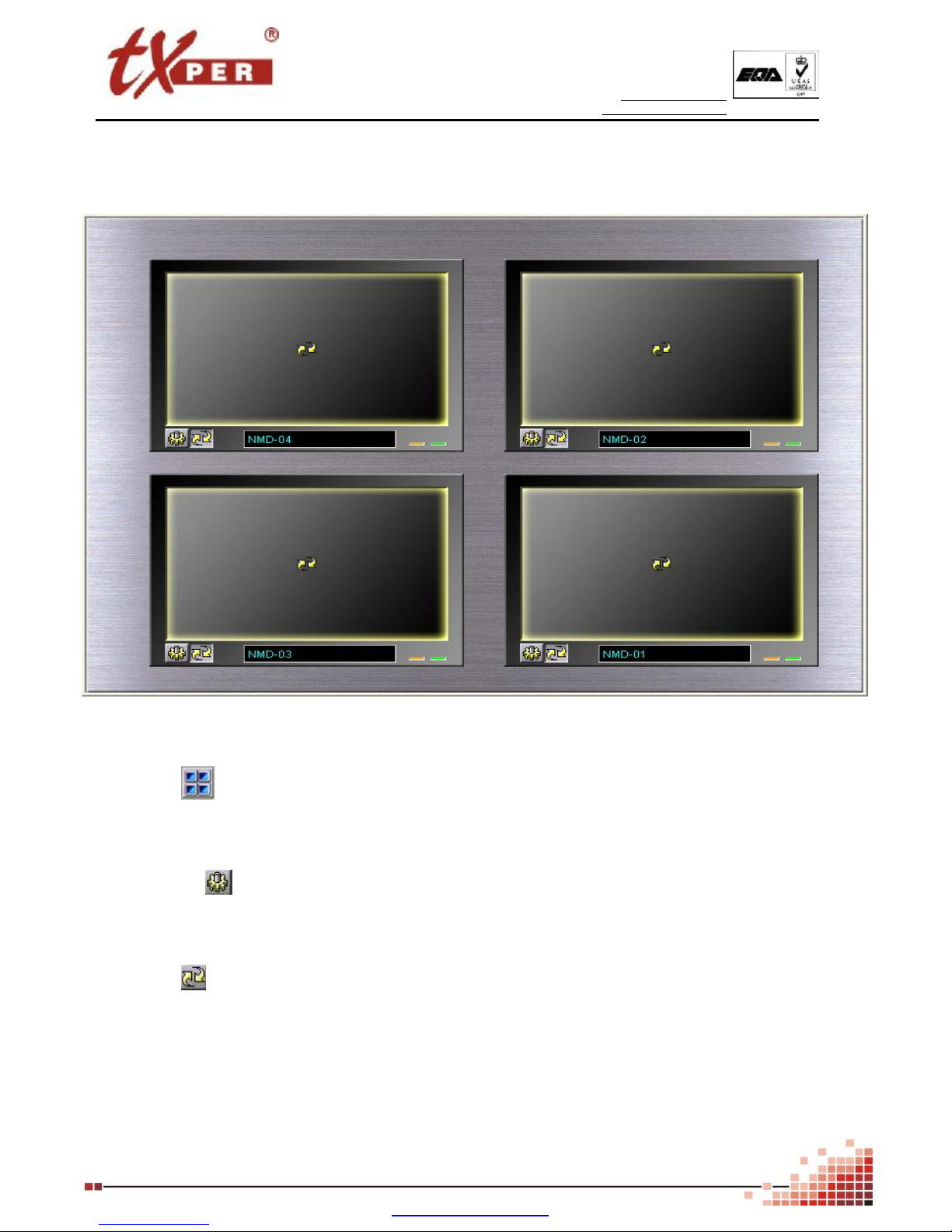

Single Monitor/Dual Monitor....................................................................................................................48
Appendix A – Technical Support.....................................................................................................49
Appendix B – Warranty Information................................................................................................50
PDF created with pdfFactory trial version www.pdffactory.com
1
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
Chapter 1 Overview
Introduction
Thank you for using Telexper IP CCTV Solution!
Please remember that all of our devices provide you the easiest configuration and fastest
installation than other products, and they should be placed under the IP sharing device like
Router or IP Sharing.
The most popular router provided by the hardware vendor at local market is recommended.
Such as D-Link, 3COM, Cisco.etc,.
PDF created with pdfFactory trial version www.pdffactory.com
2
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
The Telexper IP CCTV Solution includes below major components:
- Video Server
* nVS-1P : 1ch H.264 Video Server with POE function
* nVS-1 : 1ch H.264 Video Server
* nVS-64 : 64ch H.264 Video Server
- Gigabit POE HUB
* nHub-4P :4 ports 10/100/1000Base-TX Hub with POE function
- Commander Station Basic Series
(Includes Hardware; Central Management Server software; Remote/Local View Client
Software; Video Recorder; Video Matrix)
* nCS-16 : 16ch Central Management Server software built-in
* nCS-32 : 32ch Central Management Server software built-in
* nCS-48 : 48ch Central Management Server software built-in
- Commander Station Ultimate Series
(Includes Hardware; Central Management Server software; Remote/Local View Client
Software; Video Recorder; Video Matrix)
* nCS-64 : 64ch Central Management Server software built-in
* nCS-128 : 128ch Central Management Server software built-in
* nCS-256 : 256ch Central Management Server software built-in
* nCS-512 : 512ch Central Management Server software built-in
* nCS-1024 : 1024ch Central Management Server software built-in
* nCS-2048 : 2048ch Central Management Server software built-in
- Network Video Recorder
* nVR-4 : 4 HDDs, max 64ch record available
* nVR-10/15/15Raid : Max support 15 HDDs and 64ch record available,
15 Raid included Disk Array.
PDF created with pdfFactory trial version www.pdffactory.com
3
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
- Video Decoder
* nMD-D : POE Video Decoder with Full/Quad Matrix video display, up to D1 resolution.
* nMD-H : POE Video Decoder with Full/Quad Matrix video display, up to HDTV resolution,
included OSD, IR remote control and RS485 device connection.
- Central Management Server Software
* CMS-Lite for nCS Basic/Ultimate series: Please contact us to confirm the spec if you need to
purchase the Commander Station
* CMS-Lite: 16ch Central Management Server Software (only CMS-Lite is for Free )
- Client Software
* Remote CMS-Lite: Remote CMS-Lite Software
(For CMS-Lite; nCS Basic series; nCS Ultimate series)
* LVC: Local View Client (for nCS Basic series; nCS Ultimate series)
Central Management Server Software is a dedicated application allowing users to monitor and
control Surveillance devices via the Ethernet LAN. It works with the H.264 Video Server which
supports POE (Power over Ethernet).
The Video Server gets its power from the Gigabit POE HUB through the RJ-45 so the user does
not need to provide the DC power. Also the Network Video Server (POE version) provides DC
12V output for the cameras. You can connect and control over unlimited Video Servers at the best
performance in cost and time.
Features
- Upgrade any Traditional Analogue Camera to the IP CCTV Solution
- H.264 & JPEG Dual-type Codec Design
- No Power Cable to Camera Required
--Less Maintenance Cost than Analogue System and Reduce minimum 50% of Installation Cost
- Up to 30pps @D1 Resolution Display & Recording
- Dynamic & Static IP supported
PDF created with pdfFactory trial version www.pdffactory.com
4
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
Chapter 2 Aopplication CD and System Requirements
Application CD for CMS-Lite
Application CD contains:
Main Menu Page:
* Acrobat Reader: To install Acrobat Reader
Software
* Manual: PDF User Manual File
* Software: Go to Software List Page
NOTE: Your CMS-Lite is built in nCS already.
Thus, it is not recommended to install
the nCS again.
Software List Page:
* CMS-Lite: Central Management System
Actual CMS-Lite is varied on the nCS
computer.
* IE Surveillance Software: To install the
Remote CMS software.
* IP address Setup: To install the IP tool.
* Previous: Go back to main menu page
NOTE: 1. We could not be allowed to install both CMS-Lite and LVC on the same computer.
2. CMS-Lite Version does not include Local View Client software.
Please notice that we do not recommend that the customer to install the third party software on the
nCS (Network Commander Station), because it will low down the performance and even cause the
crash of the CMS-Lite system.
If you have to install the extra software provided by third party then please remembers -
Do not install the software on the system driver, please attached the HDD and install the
software on the HDD, to install the extra software on the system driver C will cause the system
crash.
PDF created with pdfFactory trial version www.pdffactory.com
5
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
System Requirements for the LVC and Remote CMS
Software
Telexper IP CCTV Solution provides the best performance, stability and reliability for you all to
have the best quality on the Surveillance and security.
Regarding the LVC (Local View Client), or Remote CMS-Lite, please refer to the Recommended
Hardware Environment as below requirements.
Computer Requirements for LVC (Local View Client):
- Operating System: Better to have the Windows XP SP2 at least or most updated patch
- CPU: Intel Dual-Core 2.66G, or higher
- Ram: 2GB Memory or more
- HDD: Minimum 300MB space size for software application installation
- Display: Best Recommended Resolution at 1680x1050
Computer Requirements for Remote CMS-Lite:
- Operating System: Better to have the Windows XP SP2 at least or most updated patch
- CPU: Intel Celeron Dual-Core DC-E1200 1.6G, or higher
- Ram: 2GB Memory or more
- HDD: Minimum 300MB space size for software application installation
- Display: Best Recommended Resolution at 1680x1050
PDF created with pdfFactory trial version www.pdffactory.com
6
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
Chapter 3 System Setup
System Setup Flow Chart
Prepare
the computer that is
Install the
Telexper CMS
-
Lite
Connect
the nVS
-
1P by using the
CAT
-
6
LAN cable
to nHUB
-
4P
Connect
C
ameras
by using the
75 Ohm
coaxial video cable
to
nVS
-
1P
Connect
the nHUB
-
4P by using the
CAT-6 LAN cable to nCS
Check the Monitors, Keyboard, Mouse,
Power cord…etc are connected
Finish, system start working
Power on the
computer and the CMS
-
Lite will
automatically finish system settings while
the first boot the system
Log on the CMS-Lite user name and password.
PDF created with pdfFactory trial version www.pdffactory.com
7
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
IP CCTV Solution Configuration
Power cord
Power cord
Connect Cameras by
using the 75 Ohm coaxial
video cable to nVS-1P
Connect the nVS-1P by
using the CAT-6 Ethernet
cable to nHUB-4P
Connect the nHUB-4P by
using the CAT-6 Ethernet
cable to nCS-16
Check the Monitors,
Keyboard, Mouse,
Power cord…etc are
connected correctly
PDF created with pdfFactory trial version www.pdffactory.com
8
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
Chapter 4 CMS-Lite - General Operations
Getting Started CMS-Lite
Login CMS-Lite (Central Management Server Software)
Double-click the CMS-Lite shortcut icon to begin the software.
Then, there will be a window pop-up, key in username and password on it.
Press Keyboard button, the On-Screen Keyboard will be enable for input.
For the first-time login, CMS-Lite will detect automatically and display all cameras on the main
screen.
After the first-time login, go to Setup, click Search and Refresh to detect and update
new devices.
Default Username:
a
dmin
Default Password: 99999999
PDF created with pdfFactory trial version www.pdffactory.com
9
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
Change the password of the user
Check on “Change Password”, the dialog window will expand.
key-in the new password, and input again to confirm the new password,
then, press “OK” to finish the modification.
The “Change Password” function is also available in CMS-Lite-Setup Menu.
Please help to refer the Chapter 6 CMS-Lite-Setup Menu à “User Management”.
PDF created with pdfFactory trial version www.pdffactory.com
10
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
Chapter 5 CMS-Lite - Main Menu (Live Mode)
For the first-time login, CMS-Lite will detect automatically and display all cameras on the main screen.
After the first-time login, go to Setup, click Search and Refresh to detect and update new devices.
Main Menu Buttons Overview
Live
Playback
E-Map Monitor (TV Wall)
Alarm Notify
Snapshot Setup View Log
Alarm Message List Log off Exit
Current Date & Time
Devices
Directory
Screen Display
(4/8/9/10/13/16/25/36/64)
Main Menu Buttons
Control Status:
-Audio In
-Audio Out
-PTZ
-Alarm In
-Alarm Out
Camera Name
Status:
-LIVE
-REC
Sequence Buttons
Alarm Status:
-Motion Alarm
-
Sensor Alarm
PDF created with pdfFactory trial version www.pdffactory.com
11
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
Live: Default mode for viewing the live view of the all camera channels
Playback: Switch to playback mode, please reference to Playback Mode chapter.
E-Map: Enable the E-Map mode; please reference to E-Map Chapter
Monitor: Enable the Monitor mode, please reference to Monitor Chapter
Disable / Enable Alarm Notify: Disable or enable the alarm sound.

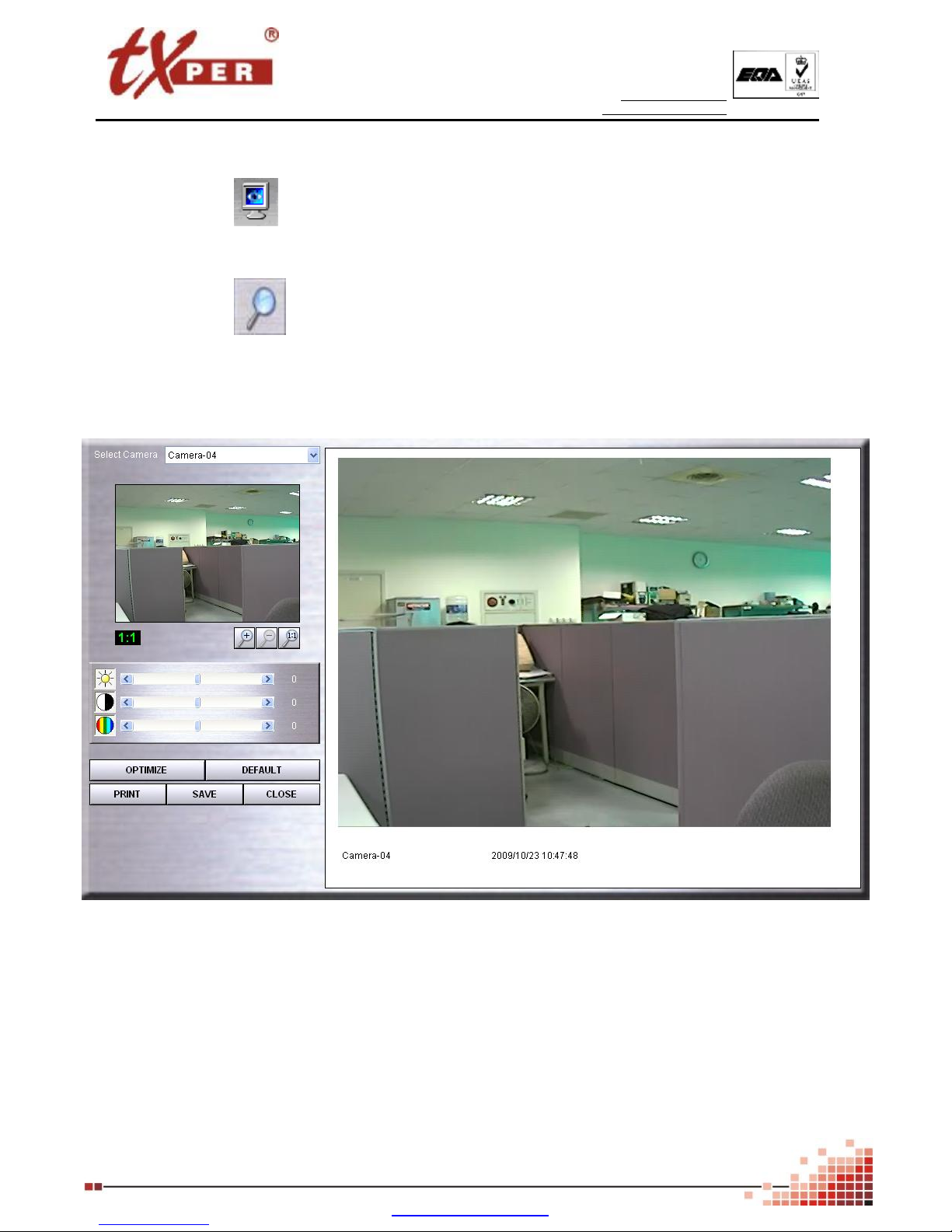

Snapshot: Take a screen photo of currently selected camera screen.
Setup: Switch to the CMS-Lite Setup page. Please reference to the CMS-Lite Setup chapter
View Log: Open the log of System and Alarm list.
Alarm Message List: List of the 50 latest alarm messages. Click on the highlighted event
to acknowledge the alarm.
Check Popup with Alarm Occurred box to bring up Alarm
Message List when an alarm is triggered.
Double click the Check cell to remove the event from the list.
The full list of alarm events can be found in Alarm Log
Log off: Log off the current to switch to another log in user.
Exit: Close the CMS-Lite server system.
PDF created with pdfFactory trial version www.pdffactory.com
12
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
Hot Key
Alt + Enter: Switch the Camera display area to Full-Screen.
Camera Live Window
No Device
No Device picture appears when a camera device has not
been installed to this channel or the installed camera cannot
be detected by CMS-Lite.
Video Loss
Video Loss picture appears when there is a disconnection
between CMS-Lite and camera or the camera is broken.
PDF created with pdfFactory trial version www.pdffactory.com
13
Telexper International Inc.
3F-3, No.2, Chien Pa Rd., Chung Ho City,
Taipei 235, Taiwan, R.O.C.
Tel: 886-2-6620-5898 Fax: 886-2-6620-6909
E-mail: sales@telexper.com
http://www.telexper.com
ISO 9001:2000
A member of VisionSoft
Device Directory
All Cameras: It will show all cameras which are auto-detected by the CMS-Lite.
Click on the camera icon to view live video display on the right side.
Right-Click the mouse button on the camera will allow you to
setup the camera.
All NVR: It will show all the NVR (Network Video Recorder) devices which are
auto-detected by the CMS-Lite.
Right-Click the mouse button on the NVR will allow you to reboot or
shutdown the NVR.
All Monitors: It will show all the monitor devices which are auto-detected by
the CMS-Lite.
Except the directories tree of auto-detected devices, the system allow you to
create your own device groups* to manage all the devices on the system.
For device group settings, please refer to the Ch6 CMS-Lite – Setup Menu.
*Only the customer defined groups can start up the E-Map function.
*All Cameras does not count as a group, and it only shows all the cameras which were
auto-detected by CMS-Lite system.
Sequence
Sequence rotates and plays camera groups in every designed time frame.
1. Click Sequence, check boxes of the group you wish to play,
and then select the time interval (5-60sec/min/hr).
2. Click Start Sequence to start or click Exit to cancel.
3. Click Stop Sequence to return to normal live view.
PDF created with pdfFactory trial version www.pdffactory.com
Loading...
