Quick Installation Guide
Hybrid DVR
Page 2
1
nHybrid DVR Quick Installation Guide
Introduction: nHybrid-16 / 32 / 48
4HDD Hybrid DVR Front View 8HDD Hybrid DVR Front View
16ch Hybrid DVR Rear View
32ch /48ch Hybrid DVR Rear View
Page 3
2
Installation Diagram
Connect the
nHUB-4P by
using the CAT-6
Power Cord
RJ-45 cable to
nHybrid
Note: For dual monitor function (
Live view + E-Map
), please have 2 monitors
connected to video output connectors on the back of nHybrid before staring the
system.
Page 4
3

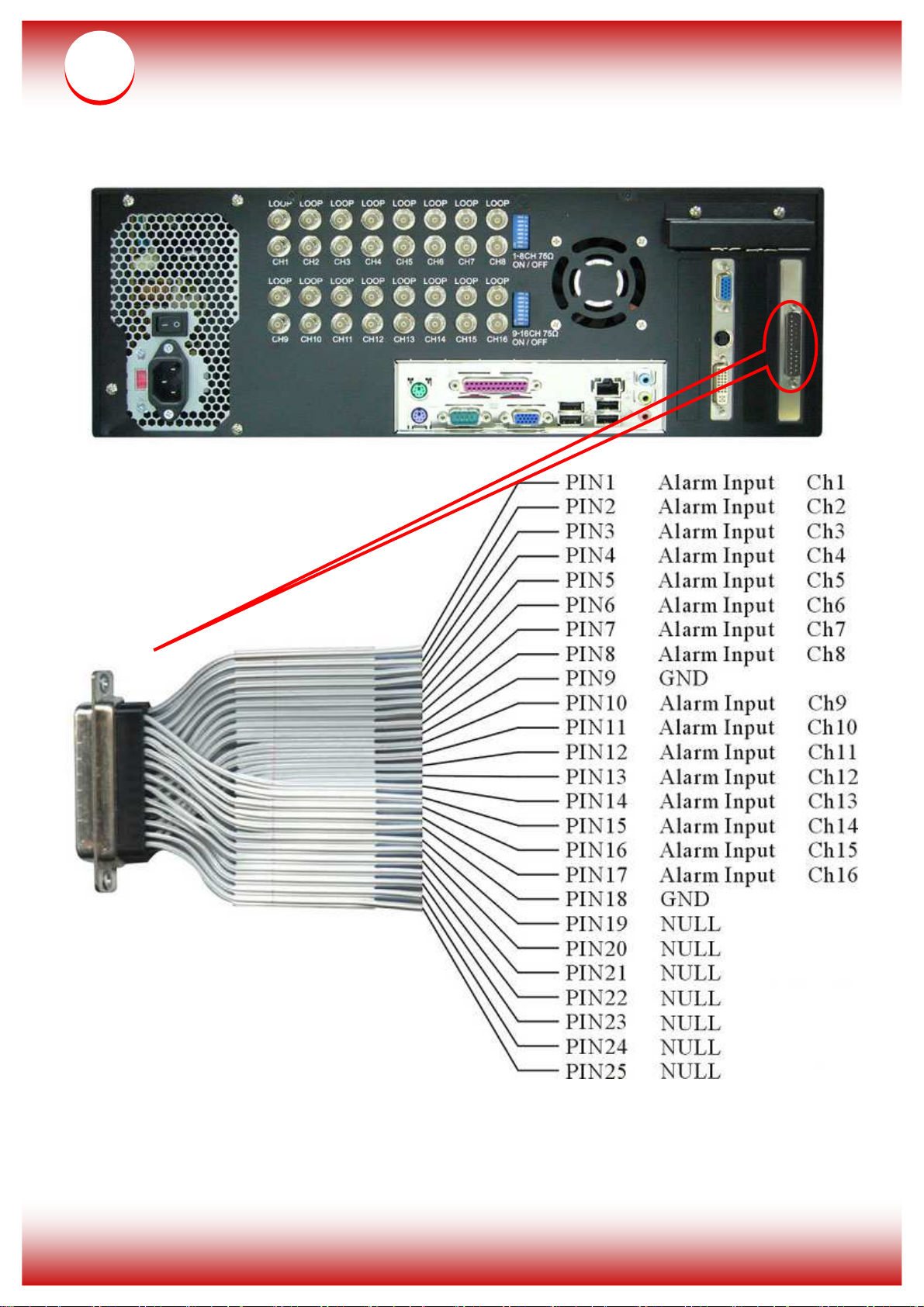

Alarm In Cable
Page 5
For IP cameras, conn
ect directly to PoE Hub
Log in to CMS
4
System Setup Flow Chart
recommended. Ensure to lock the HDD power switch or
coaxial video cable and then connect to the back of the
Take out nHybrid from the carton box
(Important: Please ensure power-in switch on
the back of nHybrid is the local voltage)
Install HDD to caddy case
(Important: 3.5” SATA II, III HDD is strongly
else the system will not detect the HDD!)
Connect Cameras by using the 75 Ohm
system
Check the Monitors, Keyboard,
Mouse, Power cord…etc are
connected
Power on the system, it would auto-setup at first launch
First-time launch with new HDD: Choose Format ALL
Adding new HDD to the system: Choose Format
(For first time installation, CMS will start after 3-5 times
reboot)
Username: admin
Password: 99999999
Finish, system start
working
Page 6
5
CMS Setup

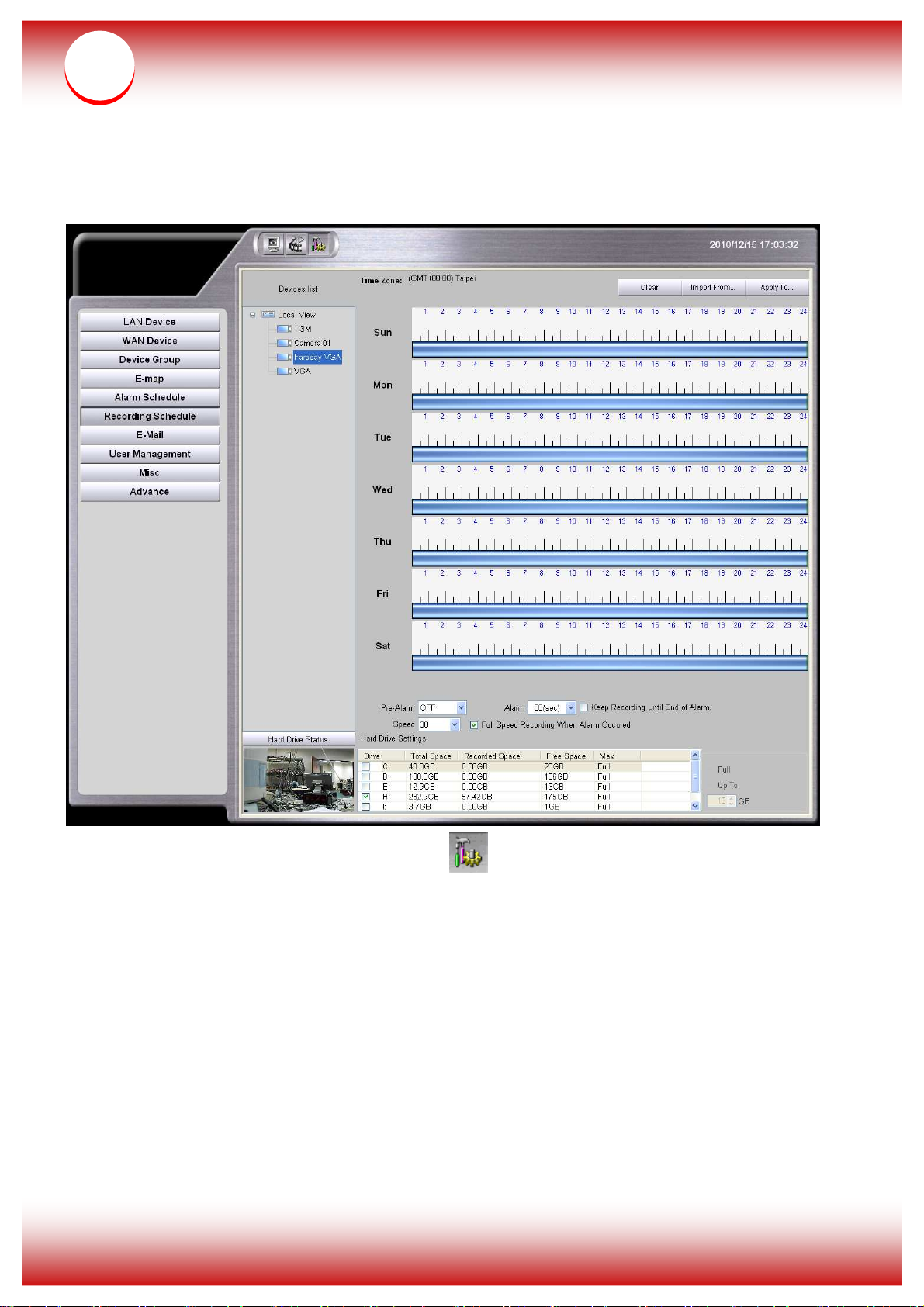

Set up Recording Schedule
1. On the Main screen, enter Setup page.
2. On the Setup page, enter Recording Schedule.
3. Hard Drive Selection:
Select the Hard Drive you want to save for recording video/audio files.
CMS will display the Estimated Total Hard Drive Storage automatically.
4. Setup Storage Space: At least 1GB shall be reserved for REC.
5. REC Speed Setting: Recording speed: 1~30 fps for the cameras
6. Full Speed Recording When Alarm
Check on the box to enable Full speed recording (30fps) when alarm.
7. REC Schedule Setting
Draw time bar to schedule and enable video/audio REC for each camera.
Page 7
6

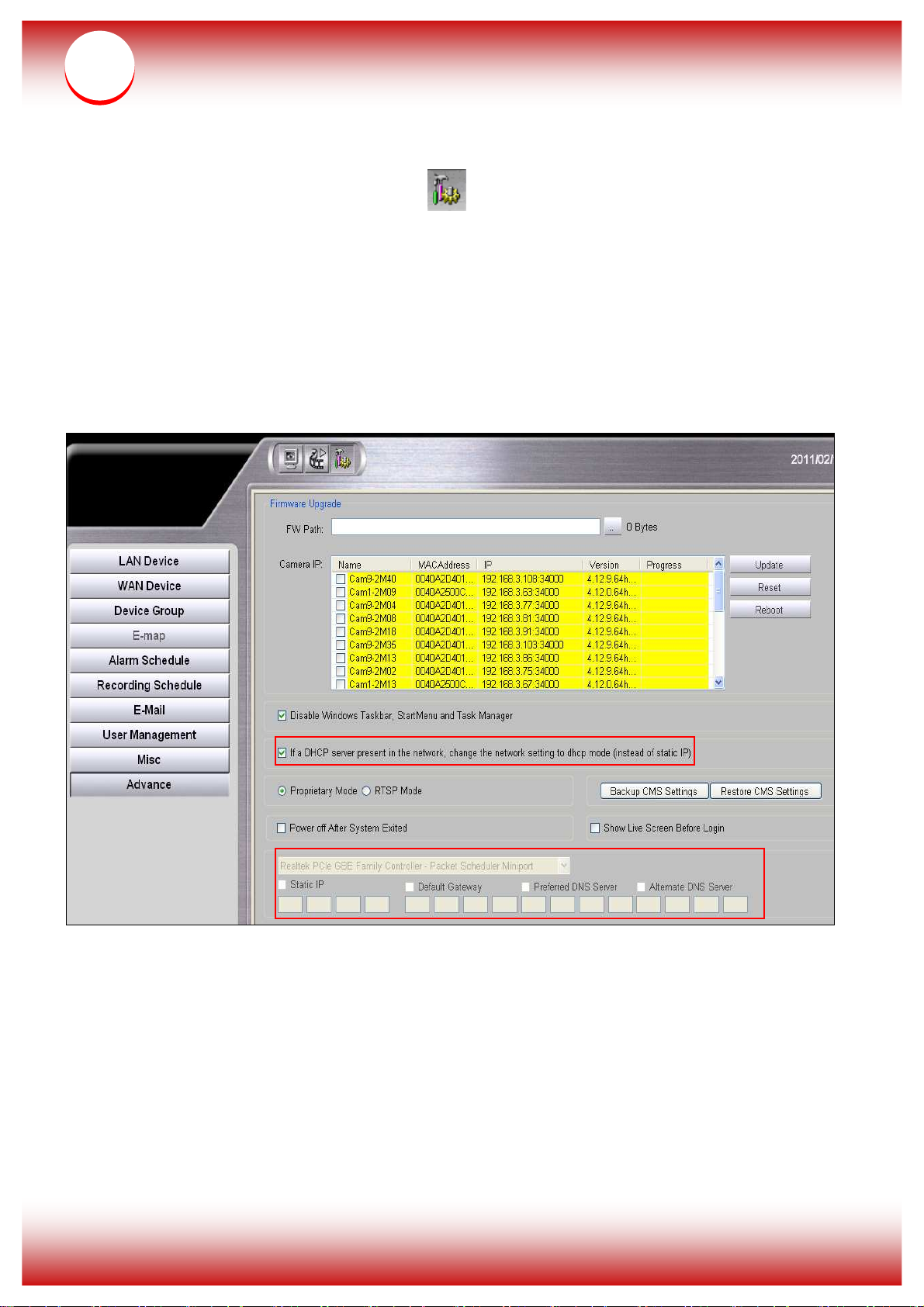

How to Set up Static IP
1. On the Main screen, enter Setup page.
2. On the Setup page, enter Advance.
3. Uncheck “If a DHCP server present in the network, change the network
setting to dhcp mode (instead of static IP)”
4. Select Realtek Ethernet Card, and then insert information such as Static IP and
Default Gateway.
5. Before returning to Live Mode, the system will ask if you want to save the
changes. Click Yes to complete setup.
Page 8
7

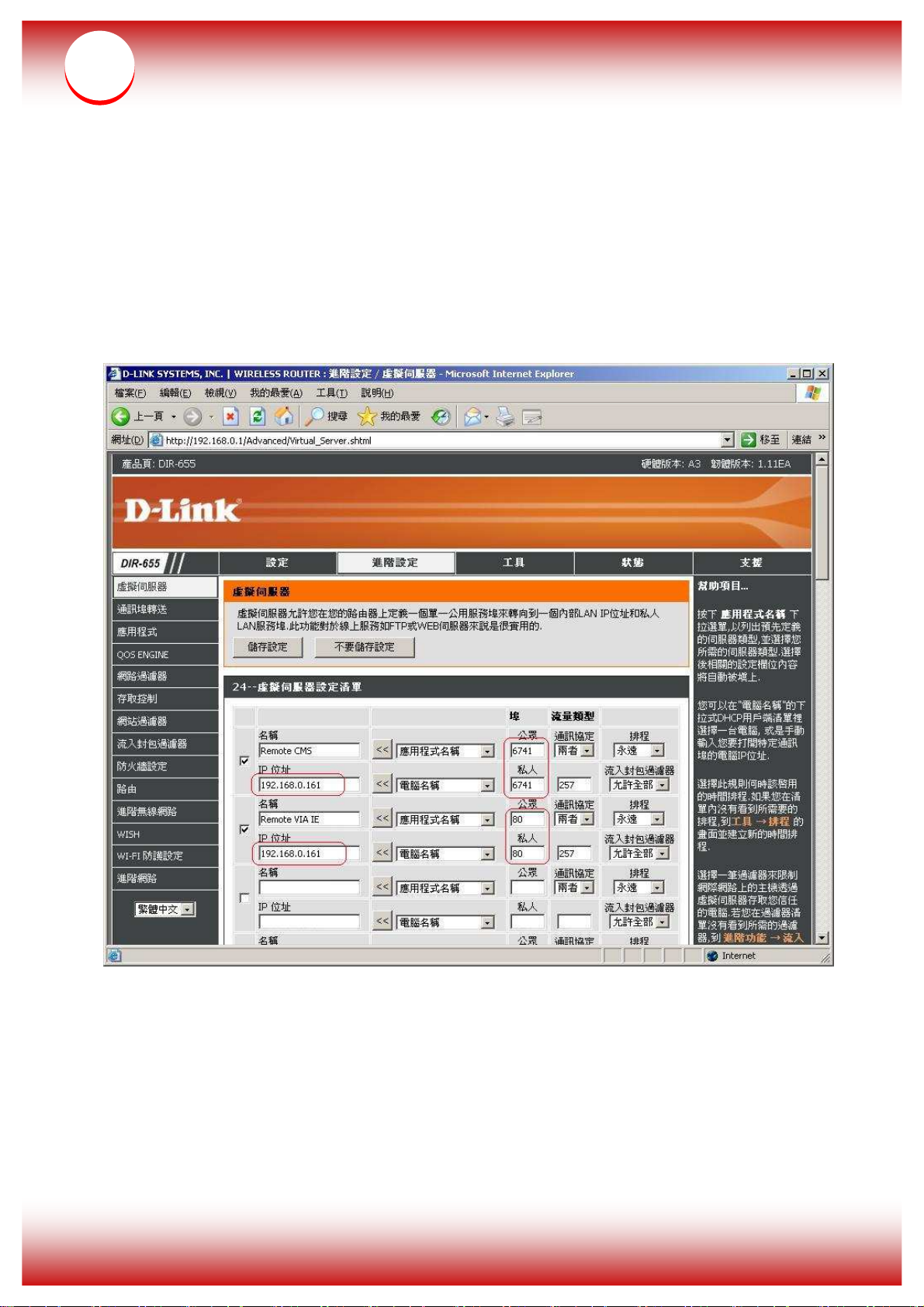

When the Network Environment is managed by Router,
how to Set up Port Forwarding
1. Please log in to your router
2. Enter the Virtual Server, set port “80” and “6741” for nHybrid.
For example, if the nHybrid’s IP is 192.168.0.161, please set assign port “80”
and “6741” for IP 192.168.0.161
3. After finishing set up, please save and log out the router.
