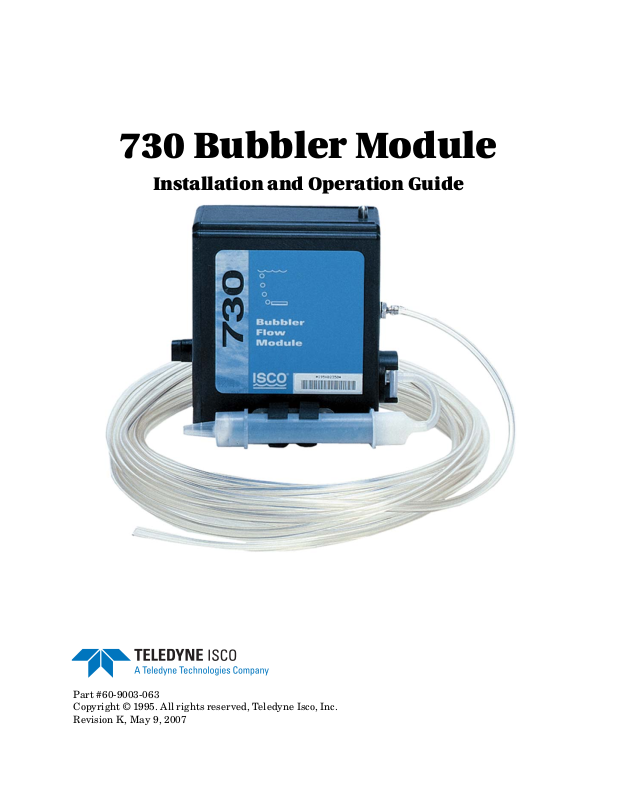

Teledyne 730 User Manual

730 Bubbler Module

Installation and Operation Guide

Part #60-9003-063
Copyright © 1995. All rights reserved, Teledyne Isco, Inc.
Revision K, May 9, 2007

Foreword

This instruction manual is designed to help you gain a thorough understanding of the
operation of the equipment. Teledyne Isco recommends that you read this manual
completely before placing the equipment in service.

Although Teledyne Isco designs reliability into all equipment, there is always the possi­bility of a malfunction. This manual may help in diagnosing and repairing the malfunc­tion.

If the problem persists, call or e-mail the Teledyne Isco Technical Service Department
for assistance. Simple difficulties can often be diagnosed over the phone.

If it is necessary to return the equipment to the factory for service, please follow the
shipping instructions provided by the Customer Service Department, including the
use of the Return Authorization Number specified. Be sure to include a note
describing the malfunction. This will aid in the prompt repair and return of the
equipment.

Teledyne Isco welcomes suggestions that would improve the information presented in
this manual or enhance the operation of the equipment itself.

Teledyne Isco is continually improving its products and reserves the right to
change product specifications, replacement parts, schematics, and instruc­tions without notice.

Customer Service

Phone: [phone] (USA, Canada, Mexico)

Fax: [phone]

Email: [e-mail]

Technical Service

Phone: [phone] (Analytical)

Email: [e-mail]

Return equipment to: 4700 Superior Street, Lincoln, NE 68504-1398

Other Correspondence

Mail to: P.O. Box 82531, Lincoln, NE 68501-2531

Email: [e-mail]

Web site: www.isco.com

Contact Information

[phone] (Outside North America)

[phone] (Samplers and Flow Meters)

Revised September 15, 2005

730 BubblerModule

Safety

730 BubblerModule

Safety

General Warnings Before installing, operating, or maintaining this equipment, it is

imperative that all hazards and preventive measures are fully
understood. While specific hazards may vary according to
location and application, take heed in the following general
warnings:

WARNING

This instrument has not been certified for use in
“hazardous locations” as defined by the National Electrical
Code.

WARNING

Avoid hazardous practices! If you use this instrument in
any way not specified in this manual, the protection
provided by the instrument may be impaired; this will
increase your risk of injury.

AVERTISSEMENT

Éviter les usages périlleux! Si vous utilisez cet instrument
d’une manière autre que celles qui sont specifiées dans ce
manuel, la protection fournie de l’instrument peut être
affaiblie; cela augmentera votre risque de blessure.

This product is often installed in confined spaces. Some examples
of confined spaces are manholes, pipelines, digesters, and storage
tanks. These spaces may become hazardous environments that
can prove fatal for those unprepared. These spaces are governed
by OSHA 1910.146 and require a permit before entering.

Hazard Severity Levels This manual applies Hazard Severity Levels to the safety alerts,

These three levels are described in the following sample alerts.

CAUTION

Cautions identify a potential hazard, which if not avoided, may
result in minor or moderate injury. This category can also warn
you of unsafe practices, or conditions that may cause property
damage.

WARNING

Warnings identify a potentially hazardous condition, which
if not avoided, could result in death or serious injury.

iii

730 BubblerModule
Safety

Hazard Symbols The equipment and this manual use symbols used to warn of

Warnings and Cautions

DANGER

DANGER – limited to the most extreme situations
to identify an imminent hazard, which if not
avoided, will result in death or serious injury.

hazards. The symbols are explained below.

Hazard Symbols

The exclamation point within the triangle is a warning sign alerting you of
important instructions in the instrument’s technical reference manual.

The lightning flash and arrowhead within the triangle is a warning sign alert­ing you of “dangerous voltage” inside the product.

Symboles de sécurité

Warnungen und Vorsichtshinweise

Pinch point. These symbols warn you that your fingers or hands will be seri­ously injured if you place them between the moving parts of the mechanism
near these symbols.

Ce symbole signale l’existence d’instructions importantes relatives au pro­duit dans ce manuel.

Ce symbole signale la présence d’un danger d’électocution.

Risque de pincement. Ces symboles vous avertit que les mains ou les
doigts seront blessés sérieusement si vous les mettez entre les éléments
en mouvement du mécanisme près de ces symboles

Das Ausrufezeichen in Dreieck ist ein Warnzeichen, das Sie darauf
aufmerksam macht, daß wichtige Anleitungen zu diesem Handbuch
gehören.

Der gepfeilte Blitz im Dreieck ist ein Warnzeichen, das Sei vor “gefährlichen
Spannungen” im Inneren des Produkts warnt.

Vorsicht Quetschgefahr! Dieses Symbol warnt vor einer unmittelbar dro­henden Verletzungsgefahr für Finger und Hände, wenn diese zwischen die
beweglichen Teile des gekennzeichneten Gerätes geraten.

iv

730 Bubbler Module

Table of Contents

Section 1 Introduction

1.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2 Connecting to the Sampler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1.3 Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1.4 Calibrating the Bubbler Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1.5 Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1.6 General Mounting Considerations for the Bubbler. . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.6.1 Line Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.6.2 Attach the Bubble Line to the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.6.3 Bubble Line Position in the Stream . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.6.4 Bubble Line Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

1.6.5 Installing the Bubble Line in a Primary Device . . . . . . . . . . . . . . . . . . . . . 1-4

Section 2 Programming the Module

2.1 Module Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.2 Programmed Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.3 Data Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.3.1 Recovering Module Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.4 Operation of the Bubbler System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.4.1 Purges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.4.2 Automatic Drift Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.5 Alternative Flow Measurement Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Section 3 Installation Methods

3.1 Installation in Round Pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.1.1 Flow Metering Inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.1.2 Spring Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3.1.3 Scissors Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

3.1.4 Street Level Installation System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

3.2 Other Installation Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

3.2.1 Rectangular, Trapezoidal, and Earthen Channels . . . . . . . . . . . . . . . . . . . 3-5

3.2.2 U-Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

3.2.3 Non-Standard Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Section 4 Maintenance

4.1 Desiccant Reactivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.2 Hydrophobic Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4.3 Bubble Line Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4.4 Repairing The Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4.5 Flash Memory and Software Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Appendix A Accessories List

v

730 Bubbler Module
Table of Contents

Appendix B Technical Specifications

Appendix C Material Safety Data Sheets

List of Figures

1-1 730 Module Mounted on Sampler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

2-1 Sample Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2-2 Sampler Programming: 730 Module Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2-3 Sampler Programming: 730 Module Setup Screens . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2-4 Sampler Programming: 730 Module Quick View Screens . . . . . . . . . . . . . . . . . . . 2-5

3-1 Spring Ring (6 to 15 inches) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3-2 Scissors Ring Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

3-3 Bubbler Carrier Mounted on Scissors Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

3-4 Typical installation methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

List of Tables

2-1 Flow Conversion Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

A-1 Parts and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

B-1 Technical Specifications for the 730 Bubbler Module . . . . . . . . . . . . . . . . . . . . . . B-1

vi

730 Bubbler Module

Section 1 Introduction

1.1 Introduction The 730 Bubbler Module is one of Teledyne Isco’s inter-

changeable modules for the Avalanche and 6700 Series Sam­plers. The module uses a differential pressure transducer and a
flow of bubbles to measure liquid levels up to ten feet. The
bubbler is unaffected by wind, fluctuations in air or liquid tem­peratures, turbulence, steam, foam on the surface, corrosive
chemicals, debris, oil, floating grease, or lightning.

You can install the module only on a 6712 or 6700 controller. The
bubble line can be used in nearly any location with a known
level-to-flow relationship.

Figure 1-1 730 Module Mounted on Sampler

The module has not been approved for use in hazardous
locations as defined by the National Electrical Code.
Installation of this module in a hazardous location may
cause fire or explosion resulting in death, personal injury,
or property damage. Before installing any device in a
dangerous location, review safety precautions in your
sampler manual. Check applicable guidelines, codes and
regulations of federal, state, city, and county agencies.

WARNING

1-1

730 Bubbler Module
Section 1 Introduction

1.2 Connecting to the Sampler

To install the module:

1. Turn the sampler off.

2. Remove the connector cap in the module bay and move it
aside.

3. Slide the module into the bay.

4. Push against the module to be sure the connector is fully
seated.

To remove the module:

1. Turn the sampler off.

2. Press the silver button on top of the module and pull the
module from the bay.

3. Replace the connector cap in the module bay.

1.3 Installation Checklist 1. Check the desiccant cartridge. Make sure the desiccant is

active (blue in color) and remove the red cap.

2. Install the module and turn the sampler on.

3. Install the bubble line in the flow stream.

4. Connect the bubbler line to the module.

5. Program the sampler and calibrate the module’s level read­ing.

6. Run the program.

Note

You should install the module before turning the controller on.
When the controller is turned on, it looks for a module. The
controller will not recognize a newly installed module if it is not
seen during this power-up routine. If you install a module while
the controller is already on, turn the controller off and then on
again to reconfigure the controller to use with the module.

1.4 Calibrating the Bubbler Module

1.5 Power Consumption The 730 Module consumes a considerable amount of power. A

After the sampler, module, and bubble line have been installed at
the site, calibrate the module by measuring the depth of the
water and adjust the reading to match.

It is possible to calibrate the module in a container of water. Use
a bubble line of the same length as the one at the installation site
to get an accurate and reliable calibration.

nickel–cadmium battery may not be sufficient to finish a sample
routine. For example, the battery should be expected to complete
three sampling routines of 24 samples, each sample 200 ml, at
one sample per hour with a 10 foot suction line and a 5 foot head.
But if the routine is changed to 24 samples, 4 samples per bottle,
each sample 250 ml, at 15 minute intervals, with the same
suction line and head height, the battery does not have the
capacity to complete one routine. Teledyne Isco recommends
using a lead–acid battery or a 913 or 923 power pack when using
the 730 Bubbler Module.

1-2

730 Bubbler Module

Section 1 Introduction

1.6 General Mounting Considerations for the Bubbler

This section contains some general information regarding the
installation of the 730 module. More detailed installation infor­mation can be found in Section 3 Installation Methods.

1.6.1 Line Length A standard 25 foot (7.6 m) length of shipped with the module. We recommend that you do not use lengths longer than 25 feet. Please consult with the factory if your installation requires a nonstandard setup.

Cut the bubble line to the shortest usable length. This will min­imize friction head effects in the line and also will reduce the
amount of line exposed to cuts, kinks, etc. This will also improve
the response time to changing levels and make the purge more
effective.

The bubble line should be routed and secured so that it does not
disturb the flow. Do not kink the tubing or restrict the airflow by
over-tightening the mounting hardware.

1.6.2 Attach the Bubble Line

to the Module

The vinyl bubble line attaches directly to the barbed fitting.
Simply push the tubing over the fitting.

1

/8" (0.32 cm) ID vinyl line is

1.6.3 Bubble Line Position in

the Stream

Recommended

Bubble Outlet Depth

B

Zero

A

A. The recommended depth ranges from
the bottom to 1 inch below the zero level.

B. This position would be unable to
measure low levels through the primary
device.

Barbed Fitting

Vinyl Bubble Line

The bubble line outlet does not need to be at the bottom of the
stream. In fact, positioning the bubble line outlet above the
bottom can be beneficial if the stream carries large amounts of
solids or is subject to silting.

The simplest installation method attaches the bubble line to the
side of the flow stream with the bubble line outlet positioned
below the lowest expected level.

To measure the liquid level down to the actual “zero” level of the
primary device, Teledyne Isco recommends placing the bubble
line outlet at least 1 to 2 inches (2.5 to 5.1 cm) below the
primary device “zero” level to avoid measurement failures when
the liquid level is even with the outlet. The module cannot accu-

rately measure levels that are even with or below the bubble line
outlet.

1-3

730 Bubbler Module
Section 1 Introduction

1.6.4 Bubble Line

Extensions

1.6.5 Installing the Bubble

Line in a Primary
Device

For some applications, a stainless steel tube may be easier to
install in the flow stream than the plastic bubble line because of
its relative rigidity. The vinyl bubble line attaches by simply
slipping the vinyl tube over the end of the extension. Contact
your Teledyne Isco representative about purchasing a stainless
steel bubble line extension.

A copper extension to the bubble line is advantageous in applica­tions where algae tends to grow in the bubble line. The copper
salts released by the tubing are algicides that tend to inhibit the
growth of algae. However, the copper tubing may not be com­patible with the flow stream. Attach the copper bubble line
extensions to the bubble line in the same way as the stainless
steel extensions.

Primary devices such as weirs or flumes will usually specify a
head (level) measurement point. It is important to place the
bubble line outlet at this point to convert levels to flow rates cor­rectly. For more details about locating the head measurement
point, refer to the Isco Open Channel Flow Measurement
Handbook, or to information provided by the primary device
manufacturer.

Flume Bubble Line Fittings – Because of the variety of
primary measuring devices and installations, no comprehensive
bubble line installation instructions are practical. However, there
are valid general observations on bubble line installation that
can be made. You can have most flumes specified to include a
bubbler fitting. In new construction, this is highly recommended.
It may even be possible to modify an existing installation to
include a permanent bubbler fitting.

Stilling Wells – If the primary device includes a stilling well,
you should install the bubble line in the stilling well. However,
not all stilling wells are suitable for bubble line installation. If
the well is subject to silting or buildup of foreign material, you
should probably avoid it and mount the bubble line in the flow
stream proper.

Open Channel Installation – Attach the bubble line to the
side of the flow channel or flume. Make the attachment so it
causes a minimum amount of disturbance to the flow stream. If
possible, cut a groove in the side of the channel, place the bubble
line in the groove, and then grout over the groove.

Alternately, you can attach the bubble line to the side of the
channel, and then grout over the line to form smooth, sloped
lead-in and lead-out surfaces. However, you may simply attach
the bubble line to the side of the channel or the upstream side of
a weir.

1-4

Note

When installing the bubble line in a high-velocity flow stream
(exceeding 5 ft/sec or 1.5 m/sec), please consult with the Tele­dyne Isco Customer Service Department for recommenda­tions.

730 Bubbler Module

Section 2 Programming the Module

2.1 Module Screens When the controller is configured with the module, it adds the

necessary screens for programming. The screens appear on the
following pages in Figures 2-2 through 2-4. These figures outline
the steps for module programming and calibration. For 6712 pro­gramming and general programming information refer to the
sampler manual.

2.2 Programmed Enable When the 730 Module is installed, additional sampler enable

options are available. If programmed for LEVEL ONLY the
option will be LEVEL. If programmed for FLOW METER the
options will be LEVEL and FLOW. For more information about
programmed enables, refer to the sampler manual.

2.3 Data Storage When the sampler is configured for use with the module, a

memory partition is reserved. The module readings are stored in
this sampler memory partition. For more information on data
storage and partition management, see the sampler manual.

2.3.1 Recovering Module

Data

The stored module data can be collected or viewed as “reports.”
Three of the sampler reports contain module information, and
are shown in Figure 2-1. Refer to the Sampler Instruction
Manual for collecting and reading the reports.

Note

An * (asterisk) appears next to the reading if the module was
unable to take a reading. If an asterisk appears, the reading
displayed is the last available reading.

2-1

730 Bubbler Module
Section 2 Programming the Module

Settings Report

SAMPLER ID# 11343009 15:25 13-SEP-03
*********** PROGRAM SETTINGS ***********

---------­ SITE DESCRIPTION:
"FACTORY "

---------­ UNITS SELECTED:
LENGTH: ft

---------­ UNITS SELECTED:
FLOW RATE: cfs
FLOW VOLUME: Mgal

---------­ BUBBLER MODULE:
WEIR
90
V-NOTCH

---------­ 1 MINUTE
DATA INTERVAL

---------­ 24, 1000 ml BTLS
10 ft SUCTION LINE

---------­ PACING:
TIME, EVERY
0 HOURS, 15 MINUTES

---------­ DISTRIBUTION:
SEQUENTIAL
200 ml SAMPLES

---------­ 5 MINUTE DELAY TO
FIRST SAMPLE
RUN PROGRAM ONCE

---------------------------------------

Combined Report

SAMPLER ID# 11343009 15:25 13-SEP-03
BUBBLER MODULE: 638324458
*********** COMBINED RESULTS ***********
SITE: FACTORY
Program Started at 08:41 SAT 13-SEP-03
Nominal Sample Volume = 200 ml

FLOW TOTAL
RATE FLOW
SAMPLE BOTTLE TIME cfs Mgal

------- ------ ---- --------- ---------­ 1 1 08:41 2.495 0.000000
1 2 08:56 2.576 0.016941
1 3 09:11 2.666 0.034698
1 4 09:26 2.773 0.052914
1 5 09:41 2.773 0.071707
1 6 09:56 2.798 0.090520
1 7 10:11 2.798 0.109314
1 8 10:26 2.798 0.128112
1 9 10:41 2.751 0.146911
1 10 10:56 2.773 0.165698
1 11 11:11 2.798 0.184556
1 12 11:26 3.728 0.206933
1 13 11:41 3.728 0.232024
1 14 11:56 3.728 0.257108
1 15 12:11 3.728 0.282171
1 16 12:26 5.273 0.317318
1 17 12:41 5.239 0.352755
1 18 12:56 6.651 0.396903
1 19 13:11 6.651 0.441689
1 20 13:26 6.651 0.486476
1 21 13:41 6.651 0.531238
1 22 13:56 6.651 0.575999
1 23 14:11 3.404 0.611500
1 24 14:26 3.425 0.634426

----------------------------------------

Summary Report

Flow Summary - 13 SEP-03 (FR)

Flow at "FACTORY " Site
On 13-SEP-03

BUBBLER MODULE: 638324458
Day's Flow: 0.678964 Mgal
Average Flow Rate: 3.466 cfs
12:45 Maximum Flow Rate: 6.689 cfs
14:49 Minumum Flow Rate: 1.442 cfs

Hourly Average Flow Rate:
00:00-01:00: NO DATA 12:00-13:00: 5.385 cfs
01:00-02:00: NO DATA 13:00-14:00: 6.651 cfs
02:00-03:00: NO DATA 14:00-15:00: 2.591 cfs
03:00-04:00: NO DATA 15:00-16:00: 1.593 cfs
04:00-05:00: NO DATA 16:00-17:00: END DATA
05:00-06:00: NO DATA 17:00-18:00: NO DATA
06:00-07:00: NO DATA 18:00-19:00: NO DATA
07:00-08:00: BEGIN DATA 19:00-20:00: NO DATA
08:00-09:00: 2.519 cfs 20:00-21:00: NO DATA
09:00-10:00: 2.747 cfs 21:00-22:00: NO DATA
10:00-11:00: 2.791 cfs 22:00-23:00: NO DATA
11:00-12:00: 3.456 cfs 23:00-24:00: NO DATA

* - - - + - - - + - - - + - - - + - - - + - - - + *

12.00 + +
I I
I I
I I
I I

10.00 + +
I I
I I
I I
I I

8.00 + +
I I
I I
I I
I # I

6.00 + # +
I # I
I # # I
I # # I
I # # I

4.00 + # # +
I # # I
I # # # I
I # # # I
I # # # # # # # I

2.00 + # # # # # # # +
I # # # # # # # I
I # # # # # # # # I
I # # # # # # # # I
I # # # # # # # # I

0.00 + # # # # # # # # +

* - - - + - - - + - - - + - - - + - - - + - - - + *

Hour Ending: 04:00 08:00 12:00 16:00 20:00 24:00

Units are 'cfs'

Figure 2-1 Sample Reports

2-2

730 Bubbler Module

Section 2 Programming the Module

MODULE INSERTED--

DOWNLOAD DATA NOW

OR LOSE ALL DATA!

DONE

Standard

6712 SAMPLER

STANDARD PROGRAMMING

FOR HELP AT ANY

SCREEN PRESS ? KEY

RUN

PROGRAM

VIEW REPORT

OTHER FUNCTIONS

NO

PROGRAM MODULE?

YES NO

YES

This screen appears only when a module has been
changed or if the module was unplugged while
the sampler was powered. If NO is selected,
the sampler responds as if there is no module.

Extended

6712 SAMPLER

EXTENDED PROGRAMMING

FOR HELP AT ANY

SCREEN PRESS ? KEY

RUN "EXTENDED 1'

PROGRAM

VIEW REPORT

OTHER FUNCTIONS

See

sampler

manual.

SITE DESCRIPTION

"FACTORY"

CHANGE?

YES NO

SELECTED UNITS FOR

LENGTH:

ft m

SELECT UNITS FOR

FLOW RATE:

cfs gps gpm Mgd

lps m3s m3h m3d

PROGRAM NAME"

"EXTENDED 1"

CHANGE?

YES NO

To program the module or
run a program that requires

SELECT UNITS FOR

FLOW VOLUME:

cf gal Mgal

m3 lit

a module, you must plug in
the module before turning
on the 6712 controller.

Note:

See

sampler

manual.

See Figure 2-3, Module Setup.

NEW MODULE SETUP --

DOWNLOAD DATA NOW

OR LOSE ALL DATA!

DONE

CURRENT LEVEL IS

__.__ ft

ADJUST LEVEL TO

__.__ ft

DATA STORAGE

INTERVAL IN MINUTES

1 2 5

10 15 30

Continue with sampler programming sequence

(see sampler manual).

If applicable. This screen appears
only when a selection is changed.
Selecting NO will cause the sampler
to not accept the module setup changes.

__.__ ft

ARE YOU SURE?

YES NO

INTERVAL CHANGED -­DOWNLOAD DATA NOW

OR LOSE ALL DATA!

DONE

Figure 2-2 Sampler Programming: 730 Module Screens

If applicable. This screen appears only
when the adjustment differs from the
current reading by more than 0.5 ft.

If applicable. This screen
appears only when the interval
is changed. If NO was selected
the storage interval will not change.

2-3

730 Bubbler Module
Section 2 Programming the Module

Module Setup

MODE OF OPERATION:

FLOWMETER

LEVEL ONLY

WEIR FLUME

DATA POINTS

EQUATION MANNING

FLOW-INSERT

EDIT DATA POINTS

CLEAR DATA SET
SELECT NEW SET

CHANGE NAME

PALMER-BOWLUS

(ft, cfs)

1. (____.____)

2. (____,____)

3. (____,____)

V-NOTCH

RECTANGULAR

CIPOLLETTI

Weir

Flume

PARSHALL

TRAPEZOIDAL

H

V-NOTCH WEIR ANGLE:

120 90 60

45 30 22.5

END CONTRACTIONS ON

RECTANGULAR WEIR?

YES NO

ENTER CREST LENGTH:

_.__ ft

(min, max)

PALMER-BOWLUS SIZE:

4" 6" 8" 10"

12" 15" 18" 21"

24" 27" 30" 48"

PARSHALL SIZE:

1" 2" 3" 6" 9"

1' 1.5' 2' 3' 4'

5' 6' 8' 10' 12'

Flow-Insert

Manning

WEIR/ORIFICE TYPE

V-NOTCH

ROUND

ROUND PIPE

U-CHANNEL

RECTANGULAR CHANNEL

TRAPEZOIDAL CHANNEL

PLEASE WAIT!

...SORTING DATA

CLEAR DATA SET!

ARE YOU SURE

YES NO

"DATA SET 1"
"DATA SET 2"
"DATA SET 3"
"DATA SET 4"

DATA SET __________

ABCDEFGHIJKLMNOPQRST

UVWXYZ -&"0123456789

BACKUP DONE

FLOW INSERT SIZE:

6" 8" 10" 12"

SLOPE= _.____

ROUGHNESS= _.___

DIAMETER = __.___ft

SLOPE= _.____

ROUGHNESS= _.___

TOP WIDTH= __.___ft

BOTTOM= __.___ft

Stop

INVALID ENTRY!

...DUPLICATE DEPTH

SAVE CHANGES?

YES NO

TRAPEZOIDAL SIZE:

2" 45 WSC

12" 45 SRCRC

LG 60 V

H FLUME SIZE:

0.5' 0.75' 1.0'

2.0' 2.5'

3.0' 4.5'

Continue

SLOPE = _.____

ROUGHNESS= _.___

TOP WIDTH= __.___ft

BOTTOM= __.___ft

Figure 2-3 Sampler Programming: 730 Module Setup Screens

2-4

730 Bubbler Module

Section 2 Programming the Module

MODULE INSERTED--

DOWNLOAD DATA NOW

OR LOSE ALL DATA!

DONE

Standard

6712 SAMPLER

STANDARD PROGRAMMING

FOR HELP AT ANY

SCREEN PRESS ? KEY

RUN

PROGRAM

VIEW REPORT

OTHER FUNCTIONS

sampler
manual.

This screen appears only when a module has been
changed or if the module was unplugged while
the sampler was powered. If NO is selected,
the sampler responds as if there is no module.

Extended

EXTENDED PROGRAMMING

SCREEN PRESS ? KEY

RUN "EXTENDED 1"

See

SITE DESCRIPTION:

"FACTORY"

UNITS SELECTED:

LENGTH: ft

UNITS SELECTED:

FLOW RATE: cfs

FLOW VOLUME:Mgal

6712 SAMPLER

FOR HELP AT ANY

PROGRAM

VIEW REPORT

OTHER FUNCTIONS

PROGRAM NAME:

"EXTENDED 1"

SITE DESCRIPTION

"FACTORY

SELECTED UNITS FOR

LENGTH:

ft m

SELECT UNITS FOR

FLOW RATE:
cfs gps gpm Mgd
lps m3s m3h m3d

SELECT UNITS FOR

FLOW VOLUME:

cf gal Mgal

m3 lit

Note:

To program the module or
run a program that requires
a module, you must plug in
the module before turning
on the 6712 controller.

See
sampler
manual.

BUBBLER MODULE

WEIR

90

V-NOTCH

CURRENT LEVEL IS

__.__ft

__ MINUTE

DATA INTERVAL

Continue with the sampler programming

sequence (see sampler manual).

CURRENT LEVEL IS

ADJUST LEVEL TO

INTERVAL IN MINUTES:

DATA STORAGE

10 15 30

See Figure 2-3, Module Setup.

__.__ ft

__.__ ft

1 2 5

Figure 2-4 Sampler Programming: 730 Module Quick View Screens

__.__ ft

ARE YOU SURE?

YES NO

2-5

730 Bubbler Module
Section 2 Programming the Module

2.4 Operation of the Bubbler System

When measuring flow rate, the module is used with a primary
measuring device (typically a weir or a flume) or other open
channel flow arrangement where a known relationship exists
between level and flow rate (refer to Table 2-1 Flow Conversion
Types). The level measuring device is a bubbler which measures
the liquid level in the flow stream. The level reading is converted
into a properly scaled flow rate value.

The module contains microprocessor-controlled circuitry to cal­culate level from the signals produced by the pressure trans­ducer, and communicate with the 6712 controller.

The module’s bubbler system works as follows: A small com­pressor pumps air into a reservoir. This air is slowly released by
an orifice into a bubble line. The other end of this tube is sub­merged in the flow stream. Inside the module, the bubble line
also connects to one side of a differential pressure transducer. As
air is released slowly into the bubble line by the orifice, pressure
builds inside the line to force the air out of the line into the flow
stream. When there is enough pressure to counteract the hydro­static pressure of the flow stream, a bubble will be forced from
the end of the line. The amount of pressure required to force the
bubble from the end of the line is directly dependent on the
hydrostatic pressure of the flow stream over the end of the
bubble line.

The pressure transducer inside the module senses this pressure
and converts it into an electrical signal that the module converts
into level. The 6712 controller then calculates flow rate and total
flow from the level measurement and lookup tables for the
primary device you are using.

The module produces the pressurized air supply, regulates the
rate of air to the bubbler tube, measures the pressure in the
bubbler tube, purges the air line, compensates for drift, and other
functions.

2.4.1 Purges Periodically, the module releases a high pressure, unregulated burst of air directly into the bubble line. This is done to clear the line and prevent any buildup of debris at the bubble line outlet.

2.4.2 Automatic Drift

Compensation

2-6

The module measures the output of the pressure transducer at
zero pressure. When the module is first turned on, and every 15
minutes after that, the processor actuates the automatic drift
compensation valve, which connects the input port of the
pressure transducer to the reference port. With the two ports
connected, it then measures the output offset.

The module stores this offset reading in memory and uses it in
level calculations. The repetition of this process causes any
pressure transducer or amplifier drift to cancel out, eliminating
the most significant cause of drift, especially when operating at
low water levels.

730 Bubbler Module

Section 2 Programming the Module

The following table contains programming information for each
of the conversion types.

Table 2-1 Flow Conversion Types

Conversion Type Device, Formula, or Table Size or Parameters

Weir V- Notch Weir 22.5, 30, 45, 60, 90, 120 degrees

Rectangular Weir with End
Contractions

Rectangular Weir without End
Contractions

Cipoletti Weir Crest length

Flume Palmer-Bowlus Flume 4, 6, 8, 10, 12, 15, 18, 21, 24, 27, 30, 48 inches

Parshall Flume 1, 2, 3, 6, 9 inches

Trapezoidal Flume Large 60-degree V

“H” Flume 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4.5 feet.

b+c

d

Equation Q = a x H

Data Points User-developed tables for level-to-flow

rate. Includes data points from a user
derived flow profile.

Manning Equation Round Pipe Slope, Roughness, Diameter

U-Channel Pipe Slope, Roughness, Width

Rectangular Pipe Slope, Roughness, Width

Trapezoidal Slope, Roughness, Bottom Width, Top Width

Flow Metering Insert V-Notch 6, 8, 10, 12 inch

Round 6, 8, 10, 12 inch

x H

Crest length

Crest length

1, 1.5, 2, 3, 4, 5, 6, 8, 10, 12 feet

2-inch, 45-degree WSC

12-inch, 45-degree SRCRC

Q = flow

H = head

a, b, c, & d = entered values

3 to 50 data points

2.5 Alternative Flow Measurement Systems

Because of the characteristics of bubbler flow measurement,
there may be some installations where the bubbler method is
either unreliable or inaccurate. In these instances, it is worth­while to consider using an alternate method of flow mea­surement.

In addition to the 730 Module, Teledyne Isco offers three other
types of plug-and-play flow modules in the 700 Series: the 720
Submerged Probe Module, the 710 Ultrasonic Module, and the
750 Area-Velocity Module.

Information about these flow modules is available from the
factory. Call for more information or visit our Web site at
www.isco.com.

2-7

730 Bubbler Module
Section 2 Programming the Module

2-8

730 Bubbler Module

Section 3 Installation Methods

The bubble line may be installed in many different channel
types, which are summarized here. For more detailed infor­mation about mounting options, consult your Isco Mounting
Rings Installation and Operation Guide. See Figure 3-4 for
examples of the mounting methods described in this section.

3.1 Installation in Round Pipes

3.1.1 Flow Metering Inserts Flow metering inserts are available for use with the module that

Teledyne Isco offers four systems for installing bubble line in
round pipes:

• Flow Metering Inserts

• Isco Spring Rings
(for pipe diameters of 15 inches or less)

• Scissors Rings
(for pipe diameters from 16 to 80 inches)

• Street Level Installation System

you can temporarily install inside round pipe sewers and flow
streams to create a primary device inside the pipe. These inserts
are available to fit 6", 8", 10", and 12" pipes and install from
street level.

The inserts create a restriction in the flow stream and may cause
clogging. Where this could be a problem, we suggest using one of
the other three installation systems instead.

Because the flow metering inserts are installed from street level,
it is not possible to measure the level. Instead, you must set the
level to zero before installing the flow metering insert in the pipe.
Set the level to zero using the following instructions:

1. Install the module in the Sampler and remove the red
cap from the desiccant cartridge.

2. Assemble the flow metering insert to the length that will
be installed.

3. Attach the bubble line to the module. The inside of the
bubble line must be dry and unobstructed.

4. Turn on the sampler and wait 2 to 3 minutes to allow the
bubbler’s air system to stabilize.

5. Select Program from the sampler’s main menu and step
through the screens until the “Current Level” screen
appears. (Detailed programming instructions appear in the
sampler manual.)

6. Adjust the level to read zero (0.00 feet or meters).

3-1

730 Bubbler Module
Section 3 Installation Methods

You may exit the programming after setting the current
level to zero. When you install the flow metering insert, the
bubbler module will then provide liquid level readings
based on this zero level.

7. Proceed with installing the insert into the pipe.

3.1.2 Spring Rings Consult your Isco Mounting Rings instruction manual for

detailed hardware information.

Stainless steel spring rings simplify probe installation in 6 to 15
inch round pipes. Teledyne Isco offers five diameter sizes: 6, 8,
10, 12, and 15 inches (15.2, 20.3, 25.4, 30.5, and 38 cm). A typical
spring ring is shown in Figure 3-1.

This self-expanding device compresses to slide into a pipe. When
released, the ring secures itself against the wall with an inherent
outward force.

Figure 3-1 Spring Ring (6 to 15 inches)

Preparing the Spring Ring:

First attach the bubble line to the bubbler carrier assembly
(contact your Teledyne Isco representative to purchase the
bubbler carrier). Then fit the carrier onto the mounting tabs of
the ring, making sure the tabs completely engage the slots in the
carrier. This method of attaching the bubble line to the ring
allows for easy removal in case service is needed later.

Bubble Line Carrier

3-2

Plastic
Ties

F

l

o

w

Spring Ring Preparation

730 Bubbler Module

Section 3 Installation Methods

Route the vinyl bubble line away from the carrier and along the
spring ring’s edge with holes. Secure the line in position by
placing plastic ties through the holes and then locking them
around the line. To prevent debris from collecting, attach the line
so that it offers as little resistance to the flow as possible. Avoid
loops or slack sections. Attach it neatly and closely to the spring
ring.

Installing the Spring Ring:

After the bubble line and carrier have been attached to the
spring ring, the actual installation procedure is fairly simple.
First, lower the spring ring assembly into the area of the pipe.
Next, grasp the spring ring and compress it into a tight circle.
Then push the ring up into the pipe the desired distance.

When you have the ring positioned, release the ring, allowing it
to expand outward. It may be necessary to rotate the ring to
position the bubble line outlet in the bottom center of the pipe.
This completes the installation.

Under conditions of high velocity (greater than five feet per
second or 1.5 meters per second), the spring ring may not have
sufficient outward force to keep it tight against the pipe. The flow
could lift the ring off the bottom of the pipe, or even carry it
downstream.

This problem is more prevalent in the larger diameter pipes (10,
12, and 15 inch) and in pipes with a smooth inner surface
(plastic, for example). If any of these conditions are present, or if
movement of the spring ring is detected or suspected, you must
anchor the ring in place. You can do this by shooting studs
through the ring into the pipe or by other appropriate means. In
some cases, it may be sufficient to increase the outward force of
the ring by bending it into a less rounded shape.

3.1.3 Scissors Rings Consult your Isco Mounting Rings instruction manual for

detailed hardware information.

For pipes larger than 15" in diameter, Teledyne Isco offers the
adjustable Scissors Ring (also known as the Universal Mounting
Ring). This device consists of two or more metal strips that lock
together with tabs to form a single assembly. There is a base
section where the sensors are mounted, one or more extension
sections (usually), and a scissors section at the top that expands
the entire assembly and tightens it inside the pipe. The scissors
mechanism includes a long screw that increases the width as it is
tightened.

The assembled rings fit pipe diameters from 16" to 80". Secure
the unit in place by tightening the scissors mechanism with a

5

/8"
socket wrench or other suitable tool. Ring sections are .040" thick
half-hard 301 stainless steel sheet. All other parts are also
stainless steel, except for the plastic cable ties in the hardware
kit.

Each extension, 1, 2, 3, and 4, adds 9.0", 21.5", 31.5", or 41.5",
respectively, to the circumference of the ring. Used alone, the
base section fits pipe that is approximately 16" to 18" in

3-3

730 Bubbler Module
Section 3 Installation Methods

diameter. The 9.0" (the smallest) extension exists so that in
larger pipe sizes, where large variations in circumference can
occur, you can use one or two of these extensions to take up or
remove slack, to bring the scissors mechanism into a position
where it can be effectively tightened.

Mounting ring kits are available for different pipe sizes. A kit is
also available for partial pipe applications (see your Isco
Mounting Rings Installation and Operation Guide). For a listing
of part numbers and ordering information, see Appendix A.

To prevent debris from catching on the cable, it is important to
attach the cable to the mounting ring so it offers as little resis­tance to the flow as possible. Attach the sensor cable to the down­stream edge of the ring, using the self-locking plastic ties
supplied with the ring. Place the ties through the holes in the
edge of the mounting ring and then lock them around the cable.

Scissors Assembly

Figure 3-2 Scissors Ring Adjustment

Extensions

Base Section Tightening the scissors assembly expands the ring to

press firmly against the pipe wall, securing the ring.

3-4

Figure 3-3 Bubbler Carrier Mounted on Scissors Ring

730 Bubbler Module

Section 3 Installation Methods

3.1.4 Street Level Installation System

3.2 Other Installation Methods

3.2.1 Rectangular, Trapezoidal, and Earthen Channels

Sensor Mounting Plate

The Street Level Installation System provides a way to install
the probe in a round pipe without entering a manhole. This
system uses multi-section poles and expansion rings that fit 6, 8,
10, 12, and 15 inch round pipes in manholes as deep as 15 feet.
The system includes an instruction manual.

Teledyne Isco’s mounting hardware can be installed or adapted
for use in many channels. The paragraphs below list additional
bubble line installation methods.

Teledyne Isco offers the Sensor Mounting Plate for these
channels. The stainless steel plate has tabs to mount up to three
sensors. The bubble line carrier also attaches to the tabs (see
figure in the left margin). It is secured in concrete channels by
driving studs into the channel bottom and bolting the plate to the
studs. In an earthen channel, the plate can be held in place by
driving in stakes.

3.2.2 U-Channels It is possible to mount the bubble line retainer in a U-channel

with a scissors ring base section. Attach the base section to the
channel wall with studs fired from a power-activated stud gun.
Consult the factory for more information, if you must mount the
bubble line in a U-channel.

3.2.3 Non-Standard Installations

If you are not using a primary device, or if your primary device is
not listed in Figure 3-4, please consult with the Teledyne Isco
Customer Service Department for installation recommendations.

3-5

730 Bubbler Module
Section 3 Installation Methods

Weir

Parshall Flume

Sensor

Mounting Plate

Line attached

to integral bubble tube

Round Pipe

Spring Ring

Round Pipe

Metering Insert

Figure 3-4 Typical installation methods

3-6

Street Level

Installation System

Round Pipe

730 Bubbler Module

Section 4 Maintenance

The 730 Bubbler Module has no user serviceable parts. It is com­pletely sealed to protect the internal components. If you think
the module requires repair, contact Teledyne Isco’s Customer
Service Department.

4.1 Desiccant Reactivation

A cartridge on the side of the module dries the air inside the
module and probe reference line. It contains a silica gel desiccant
with a color indicator that changes from blue to pink, or yellow to
green, when saturated. Pink or green desiccant cannot remove
moisture and must be replaced or reactivated.

A saturated desiccator will let moisture into the bubbler system,
which can cause several undesireable effects, including:

· The moisture may block internal tubing and cause
reading errors.

· The air in many installations contains fumes that
will form acids in the presence of moisture. These
acids may corrode internal components.

· At temperatures near or below freezing, there could
be permanent damage if ice forms inside the air
pump.

To reactivate the desiccant, pour the desiccant out of the car­tridge into a heat-resistant container. Never heat the plastic car­tridge; it will melt. Heat the silica gel in a vented convection oven
at 212° to 350° F (100° to 175° C) for two to three hours, or until
the blue or yellow color returns. Allow the desiccant to cool and
then refill the cartridge.

CAUTION

Desiccant may produce irritating fumes when heated. Observe
the following precautions:

• Use a vented oven in a well-ventilated room.

• Do not remain in the room while the regeneration is taking
place.

• Use the recommended temperature. Avoid heating the desic­cant at higher than recommended temperatures.

The desiccant’s ability to remove moisture may lessen with each
saturation/reactivation cycle, resulting in a need for more fre­quent service. After several cycles, the desiccant may no longer
be effective as it saturates too quickly. At this point, replace the
desiccant.

4-1

730 Bubbler Module
Section 4 Maintenance

The filters in the end caps keep small pieces of the desiccant
material from falling out of the cartridge. When the filters
become soiled, clean with dish soap and water, then allow to dry.

4.2 Hydrophobic Filter The hydrophobic filter prevents

water from entering the module.
Any amount of water will plug

Fitting

Hydrophobic Filter

the filter. If the filter becomes
plugged replace it.

To remove the filter, turn it coun­terclockwise while making sure
the black fitting does not rotate.

Replacement hydrophobic filters,
Isco P/N 60-2005-003, are
available from Teledyne Isco.

4.3 Bubble Line Maintenance

Periodically inspect the bubble line to make sure that it has not
become kinked or damaged in any way. If you find damage to the
bubble line, replace it. A leaking or obstructed line will cause
inaccurate level readings and lower battery life. (The pump must
run more frequently.) If you need to replace the bubble line,
install a new line the same way you installed the original. Gen­erally, the new line should be the same length as the old.

If you replace the bubble line or if you change the outlet either by
cutting off the tip or by installing a bubble line extension, you
must recalibrate the level.

Inspect the outlet of the bubble line regularly for any signs of
clogging. Sediment or debris from the flow stream and algae can
all clog the line. If the line is blocked, you can either clean it out,
or simply cut off the tip.

If algae growth is a problem, consider using a copper bubble line
extension. The copper salts formed on a copper line will prevent
algae growth.

4.4 Repairing The Module The module has no user-serviceable parts. Its case is completely

sealed to protect the internal components. To repair the unit, the
case must be broken open and replaced. If you think your module
requires repair, contact Teledyne Isco’s Customer Service
Department for information on returning it to the factory.

4.5 Flash Memory and Software Upgrades

4-2

The module has Flash memory to store its software. With Flash
technology, you can upgrade your module’s software without
sending it back to the factory or replacing a chip.

To update the module software, install the module in a 6712
sampler. Then connect the sampler power source and turn the
sampler on. Connect the sampler to a computer and follow the
instructions received with your Flash Update program.

730 Bubbler Module

Appendix A Accessories List

The following table contains information about replacement
parts and accessories. Replacement parts and accessories can be
purchased by contacting Teledyne Isco’s Customer Service
Department.

Table A-1 Parts and Accessories

Part Description Part Number

730 Bubbler Module (includes module, bubble line, and manual) 60-6700-050

Bubble Line 25’ 60-9003-281

Bulk Bubble Line 100’ 68-1700-003

4’ SST Extension 60-1873-043

Bubbler Carrier Assembly 60-3204-007

Accessory Package (includes desiccator cartridge and hydrophobic filter) 60-9004-144

Replacement Hydrophobic Filter 60-2005-003

Isco Open Channel Flow Measurement Handbook 60-3003-041

Spring Ring - 6” Dia. 68-3200-007

Spring Ring - 8” Dia. 68-3200-008

Spring Ring - 10” Dia. 68-3200-009

Spring Ring - 12” Dia. 68-3200-010

Spring Ring - 15” Dia. 68-3200-011

(Each spring ring includes plastic ties to fasten the bubble line.)

Scissors Ring for 16” - 23” Pipe 68-3000-042

Scissors Ring for 16” - 36” Pipe 68-3000-043

Scissors Ring for 39” - 43” Pipe 68-3000-044

Scissors Ring for 45” - 49” Pipe 68-3000-045

Scissors Ring for 58 to 62” Pipe 68-3000-046

Scissors Ring for 72” Pipe 68-3000-047

Scissors Ring for 16” - 80” Pipe 68-3000-048

(Each scissors ring includes a base section, scissors mechanism, extensions, plastic ties,
and installation instructions)

Mounting Ring Base Assembly (Includes plastic ties and installation instructions) 60-3004-169

Scissors Mechanism 60-3004-170

Pair of 7.5” Extensions for Scissors Ring 68-3000-038

Pair of 20” Extensions for Scissors Ring 68-3000-039

A-1

730 Bubbler Module
Appendix A Accessories List

Table A-1 Parts and Accessories (Continued)

Pair of 30” Extensions for Scissors Ring 68-3000-040

Pair of 40” Extensions for Scissors Ring 68-3000-041

Part Description Part Number

Street Level Installation System Multi-Section Pole.

(Includes instruction manual. To complete your system, you must also order a
Street Level Mounting Ring.)

Street Level Mounting Ring for 6“ diameter pipe 60-3204-014

Street Level Mounting Ring for 8“ diameter pipe 60-3204-015

Street Level Mounting Ring for 10“ diameter pipe 60-3204-016

Street Level Mounting Ring for 12“ diameter pipe 60-3204-017

Street Level Mounting Ring for 15“ diameter pipe 60-3204-018

6” Metering Insert 68-3230-005

8” Metering Insert 68-3230-006

10” Metering Insert 68-3230-007

12” Metering Insert 68-3230-008

(Metering inserts include poles, pump, hose, attachable 60 degree V-notch weir plate, and instruction manual.)

60-3204-012

Probe Extension 68-3200-012

Sensor Mounting Plate 68-3000-051

A-2

730 Bubbler Module

Appendix B Technical Specifications

The following table contains information covering the technical
specifications of the 730 Module.

General Notes:

1. All weights may vary ± 0.2 lb (± 0.1 kg).

2. All lengths may vary ± 0.25 inch (± 0.64 cm).

Table B-1 Technical Specifications for the 730 Bubbler Module

Item Specification

Weight 1.5 lbs. (0.7 kg)

Dimensions 4.9 x 5.7 x 2.0 inches (12.4 x 14.5 x 5.1 cm)

Material Polystyrene

Operational Temperature 32° to 120° F (0° to 49° C)

Storage Temperature 0° to 140° F (-18° to 60° C)

Enclosure NEMA 4X and 6, IP67

Power Provided by the sampler.

Memory Nonvolatile programmable Flash; can be field updated through the sampler.

Readings Programmable through the sampler at 1, 2, 5, 10, 15, and 30 minute intervals.

Bubble Line Vinyl: inside diameter: 1/8 “ (0.32 cm) length: 25 feet (7.6 cm)

Range 0.010 ft (0.003 m) minimum water level above bubble outlet.

Level Measurement Accuracy 0.01 to 5.0 ft: 0.01 ft

Temperature Coefficient 0.01 to 5.0 ft: ± 0.0006 x level in feet x temperature change from 77° F

Automatic Drift Correction ±0.002 ft (±0.0006 m) at 15 minute intervals

Level Resolution 0.001 ft (0.0003 m)

10 ft. (3.038 m) maximum water level above bubble outlet.

0.01 to 10.0 ft: 0.035 ft

0.003 to 1.524 m: 0.003 m

0.003 to 3.048 m: 0.011 m

Includes linearlity, repeatability, and hysteresis at 77° F (25° C). Does not include
the temperature coefficient. Level is the distance between the bubble outlet and the
liquid surface.

0.01 to 10.0 ft: ± 0.0005 x level in feet x temperature change from 77° F

0.003 to 1.524 m: ± 0.00108 x level in meters x temperature change from 25° C

0.003 to 3.048 m: ± 0.0009 x level in meters x temperature change from 25° C

Temperature coefficient is the maximum error within the operating temperature
range per degree of temperature change. Add to Level Accuracy.

B-1

730 Bubbler Module
Appendix B Technical Specifications

B-2

730 Bubbler Module

Appendix C Material Safety Data Sheets

This appendix provides Material Safety Data Sheets for the des­iccant used by the 730 Bubbler Module.

Teledyne Isco cannot guarantee the accuracy of the data. Specific
questions regarding the use and handling of the products should
be directed to the manufacturer listed on the MSDS.

C-1

730 Bubbler Module
Appendix C Material Safety Data Sheets

Material Safety Data Sheet

Manufacturer
:

Address:

Phone Number (For Information):
Emergency Phone

Number:

MULTISORB TECHNOLOGIES, INC.

(formerly Multiform Desiccants, Inc.)

325 Harlem Road
Buffalo, NY 14224

716/824-8900

716/824-8900

Identity (Trade Name as Used on Label)

MSDS Number* : M75

CAS Number* :

Date Prepared:
Prepared By* :

Indicating Silica Gel

July 6, 2000
G.E. McKedy

Section 1 - Material Identification and Information

Components - Chemical Nam e & Common Names

(Hazardous Components 1% or greater; Carcinogens 0.1% or

Silica Gel SiO

2

greater)

Cobalt Chloride >2.0 0.05mg/m

Non-Hazardous Ingredients

TOTAL

%* OSHA

98.0 6mg/m

PEL

(total dust)

(TWA cobalt
metal dust &

fume)

100

Section 2 - Physical/Chemical Characteristics

Boiling
Point
Vapor Pressure
(mm Hg and Temperature
Vapor
Density
(Air =1)
Solubility
in Water
Appearance
and Odor

Insoluble, but will adsorb moisture.

Purple crystals, no odor.

N/A

N/A

N/A

Specific Gravity

0 = 1)

(H

2

Melting
Point
Evaporation Rate
(__________=1)

Water
Reactive

Not reactive, but will adsorb moisture.

3

3

ACGIH

TLV

3

10mg/m

(total dust)

3

.05mg/m

(Cobalt, TWA)

2.1

N/A

N/A

OTHER LIMITS

RECOMMENDE

D

C-2

Section 3 - Fire and Explosion Hazard Data

Flash Point and
Methods Used
Extinguisher
Media
Special Fire
Fighting Procedures
Unusual Fire and
Explosion Hazards

Dry chemical, carbon dioxide and foam can be used.

N/A

Water will generate heat due to the silica gel which will adsorb water and liberate heat.
When exposed to water, the silica gel can get hot enough to reach the boiling point of water. Flooding with

water will reduce the temperature to safe limits.

Auto-Ignition
Temperature

N/A

Section 4 - Reactivity Hazard Data

STABILITY

Stable
Unstable

Incompatibility
(Materials to Avoid)
Hazardous
Decomposition
Products

HAZARDOUS POLYMERIZATION

May Occur

*Optional Indicating Silica Gel

Conditions
To Avoid

Moisture and high humidity environments.

Water.

Carbon dioxide, carbon monoxide, water

Conditions
To Avoid

None.

Flammability Limits in
Air % by Volume

N/A

LEL UEL

Section 5 - Health Hazard Data

730 Bubbler Module

Appendix C Material Safety Data Sheets

Page 2

PRIMARY ROUTES Inhalation Ingestion
OF ENTRY
HEALTH HAZARDS

Signs and Symptoms
of Exposure
Medical Conditions
Generally Aggravated by Exposure
EMERGENCY FIRST AID PROCEDURES - Seek medical assistance for further treatm ent, observation and support if necess ary.
Eye Contact

Skin
Contact
Inhalation

Ingestion

Flush with water for at least 15 minutes.
Wash affected area with soap and water.

Remove affected person to fresh air.
Drink at least 2 glasses of water.

Skin Absorption Not Hazardous
Acute
Chronic

May cause eye, skin and mucous membrane irritation.
Prolonged inhalation may cause lung damage.

Drying and irritation.

Asthma.

CARCINOGEN
LISTED IN

NTP OSHA
IARC Monograph Not Listed

Section 6 - Control and Protective Measures

Respiratory Protection
(Specify Type)
Protective
Gloves

VENTILATION
TO BE USED

Other Protective
Clothing and Equipment
Hygienic Work
Practices

Use NIOSH approved dust mask or respirator.

Light cotton gloves.

Local Exhaust Mechanical (General) Special

Other (Specify)

Eye Protection

Safety glasses.

None.
Avoid raising dust. Avoid contact with skin, eyes and clothing.

Section 7 - Precautions for Safe Handling and Use/Leak Procedures

Steps to be Taken if Material
Is
Spilled Or Released
Waste Disposal
Methods
Precautions to be
Taken
In Handling and
Storage
Other Precautions and/or Special
Hazards

Sweep or vacuum up and place the spilled material in a waste disposal container. Avoid raising dust.

Dispose in an approved landfill according to federal, state and local regulations.

Cover promptly to avoid blowing dust. Wash after handling.

Keep in sealed containers away from moisture. The silica gel will readily adsorb moisture.

*Optional Indicating Silica Gel

C-3

730 Bubbler Module
Appendix C Material Safety Data Sheets

MATERIAL SAFETY DATA SHEET

Effective Date
MSDS Number

Section 1 – Product and Company Information

Product Name: Silica gel, indicating, yellow

Product Use:
Grades:
Synonyms:

Company;
Street Address:
City, State, Zip, Country:

Telephone Number:
Fax Number:
Website / E-Mail :

Desiccant, absorbent
Silica gel, indicating
Amorphous silica gel, SiO

Multisorb Technologies, Inc.
325 Harlem Road
Buffalo, NY 14224-1893 USA

[phone] [USA] Monday - Friday (8:00 - 5:00 EDT)
[phone] [USA]
multisorb.com

Section 2 – Composition / Information on Ingredients

Component Name CAS Number % by Weight

Synthetic amorphous silica gel (SiO

Phenolphthalein 77-09-08 100 ppm

While this material is not classified, this MSDS contains valuable information critical to the safe handling
and proper use of this product. This MSDS should be retained and available for employees and other users
of this product.

) 112926-00-8 100

2

March 8, 2005
M163

, silicon dioxide (amorphous)

2

C-4

Section 3 – Hazard Identification

Emergency Overview:

Potential Health Effects:
Eyes:

Skin:

Ingestion:

Inhalation:

Medical Effects Generally Aggravated by Exposure:

Chronic Effects/Carcinogenity:

Dust and or product may cause eye discomfort and irritation seen as tearing and reddening.

The product dust may cause drying of the skin. Silica gel may get hot enough to burn skin
when it adsorbs moisture rapidly. Use an excess of water to cool the silica gel.

Material is not toxic and will pass through the body normally.

Slight irritation is possible but none is expected.

A yellow bead or granular material that poses little or no immediate hazard.
This material is not combustible.

Respiratory ailments.

May cause eye, skin and mucous membrane irritation and drying.

Section 4 – First Aid Measures

730 Bubbler Module

Appendix C Material Safety Data Sheets

Eyes:

Skin:

Ingestion:

Inhalation:

Notes to Physician:

Rinse the eyes well with water while lifting the eye lids. If irritation persists, consult a
physician.

Wash affected area with soap and water.

Ingestion is unlikely, this material will pass through the body normally.

Remove the affected person to fresh air and get medical attention if necessary.

Not applicable

Section 5 – Fire Fighting Measures

Flammable Properties:

Flash Point:

Flammable Limits:

Lower Flammability Limit:

Upper Flammability Limit:

Autoignition Temperature:

Hazardous Combustion Products:

Extinguishing Media:

Not flammable

Not applicable

Not flammable

Not applicable

Use extinguishing media that is appropriate for the surrounding fire. Silica gel is
not combustible.

Not applicable

Not applicable

Not applicable

Method:

Not applicable

Fire Fighting Instructions:

Unusual Fire and Explosion Hazards:

Not combustible

Section 6 – Accidental Release Measures

Sweep or vacuum up and place the spilled material in a waste disposal container. Avoid raising dust.

Spill:

Wash with soap and water after handling.

Section 7 – Handling and Storage

Handling:

Storage:

Avoid raising dust and minimize the contact between worker and the material. Practice
good hygienic work practices.

Store in a cool, dry location. Keep in sealed containers away from moisture. The silica gel
will readily adsorb moisture.

None

C-5

730 Bubbler Module
Appendix C Material Safety Data Sheets

Section 8 – Exposure Controls/Personal Protection

Engineering Controls:

Use exhaust ventilation to keep the airborne concentrations below the exposure
limits.

Respiratory Protection:

Skin Protection:

Eye Protection:

Use NIOSH approved respirator when the air quality levels exceed the TLV's.

Light gloves will protect against abrasion and drying of the skin.

Safety glasses.

Component Name Exposure Limits

OSHA

Silica gel TWA 20 mppcf

Phenolphthalein Not Applicable Not Applicable Not Applicable

PEL

(80 mg / m

3

Section 9 – Physical and Chemical Properties

Appearance:

Odor:

Physical State:

PH:

Vapor Pressure:

Yellow beads or granules

None

Solid bead

Not applicable

Not applicable

% SiO2)

ACGIH

TLV

TWA 10 mg / m

Vapor Density:

Boiling Point:

Melting Point:

Solubility:

Specific Gravity:

Other

Recommended

3

Limits

NIOSH REL

TWA 6 mg / m

IDLH 3000 mg / m

Not applicable

4046q F (2230q C)

3110q F (1710q C)

Insoluble in water

2.1

3

3

C-6

Section 10 – Stability and Reactivity

Stability:

Conditions to avoid:

Incompatibility:

Hazardous Decomposition Products:

Hazardous Polymerization:

Stable

Moisture and high humidity environments.

Water, fluorine, oxygen difluoride, chlorine trifluoride

None

Will not occur

Section 11 – Toxicological Information

This product and its components are not listed on the NTP or OSHA Carcinogen lists.

Animal Toxicology Tests for DOT Hazard classification
( Tests Conducted on finely ground silica gel)

1 - hour LC

(rat) > 2 mg / l

50

48 - hour oral LD
48 - hour dermal LD
Considered an ocular irritant

Human Toxicology Silica gel is a synthetic amorphous silica not to be confused with crystalline silica.
Epidemiological studies indicate low potential for adverse health effects. In the activated form, silica gel
acts as a desiccant and can cause a drying irritation of the mucous membranes and skin in cases of severe
exposure. Multisorb Technologies Inc. knows of no medical conditions that are abnormally aggravated by
exposure to silica gel. The primary route of entry is inhalation of dust.

Section 12 – Ecological Information

Not known to have any adverse effect on the aquatic environment. Silica gel is insoluble and non-toxic.

Appendix C Material Safety Data Sheets

(rat) est. > 31,600 mg / kg

50

(rabbit) est. > 2,000 mg / kg

50

730 Bubbler Module

Section 13 – Disposal Information

Disposal Information If this product as supplied becomes a waste, it does not meet the criteria of a

hazardous waste as defined under the Resource Conservation and Recovery Act (RCRA) 40 CFR 261.
Materials of a hazardous nature that contact the product during normal use may be retained on the product.
The user of the product must identify the hazards associated with the retained material in order to assess the
waste disposal options. Dispose according to federal, state and local regulations.

Section 14 – Transportation Information

U.S. Department of Transportation Shipping Name:

Not classified as a hazardous material. Not regulated.

Section 15 – Regulatory Information (Not meant to be all inclusive - selected regulations represented)

TSCA Listed:

DSL/NDSL (Canadian) Listed:

OSHA:

NIOSH:

ACGIH:

DOT:

Yes

Yes

TWA 20 mppcf (80 mg / m

REL TWA 6 mg / m
Animal tests conducted in 1976 - 1978. 18 month exposure at 15 mg / m

3

% SiO2) for Silica gel

3

IDLH 3,000 mg / m3for silica gel

3

showed silica

deposition in respiratory macrophages and lymph nodes, minimum lung impairment, no silicosis.

TLV - 10 mg / m

3

for Silica gel

Not classified as a hazardous material.

C-7

730 Bubbler Module
Appendix C Material Safety Data Sheets

Section 16 – Other Information

HMIS – Hazardous Materials Identification System

0 - minimal hazard, 1 - slight hazard, 2 - moderate hazard, 3 - serious hazard, 4 - severe hazard

This MSDS was prepared by: George E. Mckedy
Senior Applications Development Specialist
Multisorb Technologies, Inc.

This data and recommendations presented in this data sheet concerning the use of our product and the materials
contained therein are believed to be correct but does not purport to be all inclusive and shall be used only as a guide.
However, the customer should determine the suitability of such materials for his purpose before adopting them on a
commercial scale. Since the use of our products is beyond our control, no guarantee, expressed or implied, is made and
no responsibility assumed for the use of this material or the results to be obtained therefrom. Information on this form
is furnished for the purpose of compliance with Government Health and Safety Regulations and shall not be used for
any other purposes. Moreover, the recommendations contained in this data sheet are not to be construed as a license to
operate under, or a recommendation to infringe, any existing patents, nor should they be confused with state, municipal
or insurance requirements, or with national safety codes.

HMIS Rating

Health
Flammability
Reactivity

0
0
0

C-8

Compliance Statements

DECLARATION OF CONFORMITY

Application of Council Directive: 89/336/EEC – The EMC Directive

73/23/EEC – The Low Voltage Directive

Manufacturer's Name: Teledyne Isco, Inc.

Manufacturer's Address: 4700 Superior, Lincoln, Nebraska 68504 USA

Mailing Address: P.O. Box 82531, Lincoln, NE 68501

Equipment Type/Environment: Laboratory Equipment for Light Industrial/Commercial Environments

Trade Name/Model No: 730 Bubbler Module

Year of Issue: 2001

Standards to which Conformity is Declared: EN 61326-1998 EMC Requirements for Electrical Equipment for

Measurement, Control, and Laboratory Use

EN 61010-1 Safety Requirements for Electrical Equipment for Measurement,

Control, and Laboratory Use

Standard Description Severity Applied Performance Criteria

EN61000-4-2 Electrostatic Discharge Level 2 - 4kV contact discharge

Level 3 - 8kV air discharge

rmity

o

B
B

EN61000-4-3 Radiated RF Immunity 80 MHz to 1000MHz 80% AM at 1kHz

Level 1 – 10V/m

on of Conf

EN61000-4-4 Electrical Fast Transient Level 2 – 2kV on ac lines B

EN61000-4-5 Surge on AC Lines 2kV common mode,

EN61000-4-6 Conducted RF on AC lines 150 kHz to 80 MHz,

CE Declara

EN61000-4-11 Voltage Dips/Short Interruptions 0.5 cycle, each polarity/100% B

CISPR11/
EN 55011

EN61000-3-2, 3-3 Harmonic, Flicker

We, the undersigned, hereby declare that the design of the equipment specified above conforms to the above Directive(s) and
Standards as of March 6, 2001.

William Foster
USA Representative

RF Emissions Group 1, Class A Industrial, Scientific, and

ti

1KV differential mode

3V rms, 80% modulated

Medical Equipment

A

B

B

William Foster

Director of Engineering
Teledyne Isco, Inc.
4700 Superior Street
Lincoln, Nebraska 68504

Phone: [phone]
Fax: [phone]

60-9002-071

Rev. A

Warran ty

Teledyne Isco One Year

Limited Factory Service Warranty *

Teledyne Isco warrants covered products
against failure due to faulty parts or
workmanship for a period of one year (365
days) from their shipping date, or from the
date of installation by an authorized Teledyne
Isco Service Engineer, as may be appropriate.

replacements, and labor shall be provided at
no charge. Teledyne Isco’s liability is strictly
limited to repair and/or replacement, at
Teledyne Isco’s sole discretion.

Failure of expendable items (e.g., charts,
ribbon, tubing, lamps, glassware, seals,
filters, fittings, and wetted parts of valves), or
from normal wear, accident, misuse,
corrosion, or lack of proper maintenance, is
not covered. Teledyne Isco assumes no
liability for any consequential damages.

* This warranty applies to the USA and countries where Teledyne Isco Inc. does not have an authorized dealer. Customers in countries outside

the USA, where Teledyne Isco has an authorized dealer, should contact their Teledyne Isco dealer for warranty service.

This warranty does not cover loss, damage,
or defects resulting from transportation
between the customer’s facility and the repair
facility.

Teledyne Isco specifically disclaims any
warranty of merchantability or fitness for a
particular purpose.During the warranty period, repairs,

This warranty applies only to products sold
under the Teledyne Isco trademark and is
made in lieu of any other warranty, written or
expressed.

No items may be returned for warranty
service without a return authorization number
issued from Teledyne Isco.

The warrantor is Teledyne Isco, Inc.
4700 Superior, Lincoln, NE 68504, U.S.A.

In the event of instrument problems, always contact the Teledyne Isco Service Department, as problems can
often be diagnosed and corrected without requiring an on-site visit. In the U.S.A., contact Teledyne Isco Service
at the numbers listed below. International customers should contact their local Teledyne Isco agent or Teledyne
Isco International Customer Service.

Return Authorization

A return authorization number must be issued prior to shipping. Following authorization,
Teledyne Isco will pay for surface transportation (excluding packing/crating) both ways for 30
days from the beginning of the warranty period. After 30 days, expense for warranty shipments
will be the responsibility of the customer.

Shipping Address: Teledyne Isco, Inc. - Attention Repair Service

4700 Superior Street
Lincoln NE 68504 USA

Mailing address: Teledyne Isco, Inc.

PO Box 82531
Lincoln NE 68501 USA

Phone: Repair service: [phone]

[phone]
Sales & General Information [phone]

(lab instruments)

(samplers & flow meters)

(USA & Canada)

Fax: [phone]

Email: [e-mail] Web site: www.isco.com

February 1, 2006 P/N 60-1002-040 Rev C
