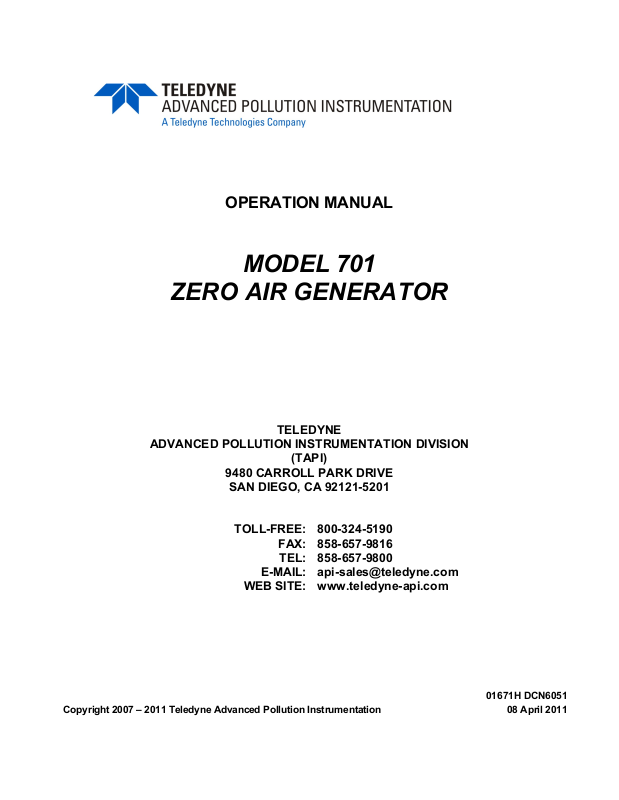

Teledyne 701 User Manual

OPERATION MANUAL

MODEL 701

ZERO AIR GENERATOR

TELEDYNE

ADVANCED POLLUTION INSTRUMENTATION DIVISION

(TAPI)

9480 CARROLL PARK DRIVE

SAN DIEGO, CA 92121-5201

TOLL-FREE: 800-324-5190

FAX: [phone]

TEL: [phone]

E-MAIL: [e-mail]

WEB SITE: www.teledyne-api.com

Copyright 2007 – 2011 Teledyne Advanced Pollution Instrumentation

01671H DCN6051

08 April 2011

ABOUT THIS MANUAL

This M701 Zero Air Generator operation manual is comprised of multiple documents as
listed below.

Part No. Rev Name/Description

01671 H Operation Manual

02052 M List, Spare Parts (in Appendix A) with Sales for most recent version.

06172 C List, Recommended Spares Stocking Levels (RSSL), (in Appendix A)

06477 B Level I Spares Kit (in Appendix A)

06619 B Schematic, Controller Board (in Appendix B)

NOTE

We recommend that this manual be read in its entirety before any attempt

is made to operate the instrument.

01671H (DCN6051) i

REVISION HISTORY

M701 Manual 01671

2011 April 8, Rev H, per DCN 6051

Document P/N Rev DCN Change Summary

Operation Manual 01671 H 6051

2010 November 5 , Rev G, per DCN 5875

Document P/N Rev DCN Change Summary

Operation Manual 01671 G 5875

List, Spare Parts 02052 M 5895 Updated
List, RSSL 06172 C 5895 Updated
Level I Spares Kit 06477 B 5895 Updated
Schematic, Controller Board 06619 B 5874 New; replaces 04285

(The following list captures the construct of this manual with its initial Revision History section).

2010 January 20, Rev F, per DCN 5630:

Document P/N Rev DCN Change Summary

Schematic, Controller w/DewPt 04285 C n/a current Rev for manual’s initial release
List, Spare Parts 02052 L n/a current Rev for this manual’s initial release
List, RSSL 06172 B n/a current Rev for this manual’s initial release
Level 1 Spares Kit 06477 A n/a current Rev for this manual’s initial release
Expendables Kit 01598 A n/a current Rev for this manual’s initial release

 Correct name in title: from “…Module” to

“…Generator”

 Replaced pressure switch with pressure

sensor.

 Replaced controller with new.
 Updated hydrocarbon scrubber content.
 Added Section on Electro-static Discharge

ii 01671H (DCN6051)

SAFETY MESSAGES

Important safety messages are provided throughout this manual for the purpose of avoiding personal
injury or instrument damage. Please read these messages carefully. Each safety message is associated
with a safety alert symbol, and are placed throughout this manual and inside the instrument. The symbols
with messages are defined as follows:

WARNING: Electrical Shock Hazard

HAZARD: Strong oxidizer

GENERAL WARNING/CAUTION: Read the accompanying message for specific

information.

CAUTION: Hot Surface Warning

Do Not Touch: Touching some parts of the instrument without protection or proper tools

could result in damage to the part(s) and/or the instrument.

Technician Symbol: All operations marked with this symbol are to be performed by
qualified maintenance personnel only.

Electrical Ground: This symbol inside the instrument marks the central safety grounding
point for the instrument.

CAUTION

This instrument should only be used for the purpose and in the manner described in
this manual. If you use this instrument in a manner other than that for which it was

intended, unpredictable behavior could ensue with possible hazardous consequences

NEVER use any gas analyzer to sample combustible gas(es)!

Note

For Technical Assistance regarding the use and maintenance of this instrument or any other
Teledyne API product, contact Teledyne API’s Customer Service Department:

Telephone: [phone]

Email: [e-mail]

or access any of the service options on our website at http://www.teledyne-api.com/

01671H (DCN6051) iii

.
