OPERATING INSTRUCTIONS FOR

Model 3000PA-EU

Percent Oxygen Analyzer

D ANGER

HIGHLY TOXIC AND OR FLAMMABLE LIQUIDS OR GASES MAY BE PRESENT IN THIS MONITORING SYSTEM.

PERSONAL PROTECTIVE EQUIPMENT MAY BE REQUIRED WHEN SERVICING THIS SYSTEM. HAZARDOUS VOLTAGES EXIST ON CERTAIN COMPONENTS INTERNALLY WHICH MAY PER-

SIST FOR A TIME EVEN AFTER THE POWER IS TURNED OFF AND DISCONNECTED. ONLY AUTHORIZED PERSONNEL SHOULD CONDUCT MAINTENANCE AND/OR SERVICING.

BEFORE CONDUCTING ANY MAINTENANCE OR SERVICING CONSULT WITH AUTHORIZED SUPERVISOR/MANAGER.

Teledyne Analytical Instruments

P/N M66317

12/22/00

ECO#00-0542

Model 3000PModel 3000P

Model 3000P

Model 3000PModel 3000P

All Rights Reserved. No part of this manual may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Teledyne Analytical Instruments, 16830 Chestnut Street, City of Industry, CA 91749-1580.

Warranty

This equipment is sold subject to the mutual agreement that it is warranted by us free from defects of material and of construction, and that our liability shall be limited to replacing or repairing at our factory (without charge, except for transportation), or at customer plant at our option, any material or construction in which defects become apparent within one year from the date of shipment, except in cases where quotations or acknowledgments provide for a shorter period. Components manufactured by others bear the warranty of their manufacturer. This warranty does not cover defects caused by wear, accident, misuse, neglect or repairs other than those performed by Teledyne or an authorized service center. We assume no liability for direct or indirect damages of any kind and the purchaser by the acceptance of the equipment will assume all liability for any damage which may result from its use or misuse.

We reserve the right to employ any suitable material in the manufacture of our apparatus, and to make any alterations in the dimensions, shape or weight of any parts, in so far as such alterations do not adversely affect our warranty.

Important Notice

This instrument provides measurement readings to its user, and serves as a tool by which valuable data can be gathered. The information provided by the instrument may assist the user in eliminating potential hazards caused by his process; however, it is essential that all personnel involved in the use of the instrument or its interface, with the process being measured, be properly trained in the process itself, as well as all instrumentation related to it.

The safety of personnel is ultimately the responsibility of those who control process conditions. While this instrument may be able to provide early warning of imminent danger, it has no control over process conditions, and it can be misused. In particular, any alarm or control systems installed must be tested and understood, both as to how they operate and as to how they can be defeated. Any safeguards required such as locks, labels, or redundancy, must be provided by the user or specifically requested of Teledyne at the time the order is placed.

Therefore, the purchaser must be aware of the hazardous process conditions. The purchaser is responsible for the training of personnel, for providing hazard warning methods and instrumentation per the appropriate standards, and for ensuring that hazard warning devices and instrumentation are maintained and operated properly.

Teledyne Analytical Instruments, the manufacturer of this instrument, cannot accept responsibility for conditions beyond its knowledge and control. No statement expressed or implied by this document or any information disseminated by the manufacturer or its agents, is to be construed as a warranty of adequate safety control under the

user’s process conditions.

Teledyne Analytical Instruments

Percent Oxygen AnalyzerPercent Oxygen Analyzer

Percent Oxygen Analyzer

Percent Oxygen AnalyzerPercent Oxygen Analyzer

Specific Model Information

The instrument for which this manual was supplied may incorporate one or more options not included with the standard instrument. Commonly available options are listed below, with check boxes. Any that are incorporated in the instrument for which this manual is supplied are indicated by a check mark in the box.

Instrument Serial Number _______________________

includes the following options:

❑❑

❑ 3000PA-C: In addition to all standard features, this model also has

❑❑

separate ports for zero and span gases, and built-in control valves. The internal valves are entirely under the control of the 3000PA electronics, to automatically switch between gases in synchronization with the analyzer’s operations

❑❑

❑ 3000PA-S: In models with this option, all wetted parts are made

❑❑

from 316 stainless steel.

❑❑

❑ 3000PA-M: In models with this option, the 4-20 mA Analog Current

❑❑

output is active. (In the standard units, it is not active.)

❑❑

❑ 19" Rack Mnt: The 19" Relay Rack Mount units are available with

❑❑

either one or two 3000 series analyzers installed on a 19" panel, and ready to mount in a standard rack.

❑❑

❑ Cell Class: ___________________ See Maintenance for Specs.

❑❑

Enter Class Designation.

Teledyne Analytical Instruments

iii

Model 3000PModel 3000P

Model 3000P

Model 3000PModel 3000P

Model 3000PA-EU complies with all of the requirements of the Commonwealth of Europe (CE) for Radio Frequency Interference, Electromagnetic Interference (RFI/EMI), and Low Voltage Directive (LVD).

The following International Symbols are used throughout the Instruction Manual for your visual and immediate warnings and when you have to attend CAUTION while operating the instrument:

STAND-BY, Instrument is on Stand-by,

but circuit is active

GROUND

Protective Earth

CAUTION, The operator needs to refer to the manual

for further information. Failure to do so may compromise the safe operation of the equipment.

CAUTION, Risk of Electric Shock

D ANGER

COMBUSTIBLE GAS USAGE WARNING

This is a general purpose instrument designed for usage in a nonhazardous area. It is the customer's responsibility to ensure safety especially when combustible gases are being analyzed since the potential of gas leaks always exist.

The customer should ensure that the principles of operating of this equipment is well understood by the user . Misuse of this product in any manner , tampering with its components, or unauthorized substitution of any component may adversely affect the safety of this instrument.

Since the use of this instrument is beyond the control of T eledyne, no responsibility b y T eledyne, its affiliates, and agents for damage or injury from misuse or neglect of this equipment is implied or assumed.

Teledyne Analytical Instruments

Percent Oxygen AnalyzerPercent Oxygen Analyzer

Percent Oxygen Analyzer

Percent Oxygen AnalyzerPercent Oxygen Analyzer

Table of Contents

1 Introduction

1.1 Overview........................................................................ 1-1

1.2 Typical Applications ....................................................... 1-1

1.3 Main Features of the Analyzer ....................................... 1-1

1.4 Model Designations ....................................................... 1-2

1.5 Front P anel (Operator Interf ace) ..................................... 1-3

1.6 Rear Panel (Equipment Interface).................................. 1-5

2 Operational Theory

2.1 Introduction .................................................................... 2-1

2.2 Micro-Fuel Cell Sensor .................................................. 2-1

2.2.1 Principles of Operation ............................................ 2-1

2.2.2 Anatomy of a Micro-Fuel Cell .................................. 2-2

2.2.3 Electrochemical Reactions...................................... 2-3

2.2.4 The Effect of Pressure.............................................. 2-4

2.2.5 Calibration Characteristics ...................................... 2-4

2.2.6 Micro-Fuel Cell “Class” .......................................... 2-5

2.3 Sample System.............................................................. 2-6

2.4 Electronics and Signal Processing ................................ 2-8

3 Installation

3.1 Unpacking the Analyzer................................................. 3-1

3.2 Mounting the Analyzer ................................................... 3-1

3.3 Rear Panel Connections................................................ 3-2

3.3.1 Gas Connections ................................................... 3-3

3.3.2 Electrical Connections........................................... 3-4

3.3.2.1 Primary Input Po wer....................................... 3-4

3.3.2.2 50-Pin Equipment Interface Connector.......... 3-5

3.3.2.3 RS-232 Port................................................... 3-9

3.4 Installing the Micro-Fuel Cell .........................................3-10

3.5 Testing the System.........................................................3-12

4 Operation

4.1 Introduction .................................................................... 4-1

4.2 Using the Data Entry and Function Buttons ................... 4-2

4.3 The

4.3.1 Setting the Display................................................. 4-4

4.3.2 Setting up an Auto-Cal........................................... 4-5

4.3.3 Pass w ord Protection.............................................. 4-5

System

4.3.3.1 Entering the Password................................... 4-6

Function ..................................................... 4-3

Teledyne Analytical Instruments

Model 3000PModel 3000P

Model 3000P

Model 3000PModel 3000P

4.3.3.2 Installing or Changing the Password ............. 4-7

4.3.4 Logout.................................................................... 4-8

4.3.5 System Self-Diagnostic Test .................................. 4-9

4.3.6 Version Screen ...................................................... 4-9

4.4 The

4.4.1 Cell Failure ............................................................ 4-10

4.4.2 Span Cal................................................................ 4-11

4.4.2.1 Auto Mode Spanning ..................................... 4-11

4.4.2.2 Manual Mode Spanning................................. 4-12

4.5 The

4.6 The

4.6.1 Setting the Analog Output Ranges......................... 4-15

4.6.2 Autoranging Analysis ............................................. 4-16

4.6.3 Fixed Range Analysis ............................................ 4-16

4.7 The

4.8 Signal Output ................................................................. 4-17

Zero Span

Alarms Range

Analyze

Functions .............................................. 4-10

Function...................................................... 4-12

Function ...................................................... 4-15

Function.................................................... 4-17

Maintenance

5.1 Routine Maintenance..................................................... 5-1

5.2 Cell Replacement .......................................................... 5-1

5.2.1 Storing and Handling Replacement Cells ............... 5-1

5.2.2 When to Replace a Cell........................................... 5-2

5.2.3 Removing the Micro-Fuel Cell ................................. 5-3

5.2.4 Installing a New Micro-Fuel Cell.............................. 5-5

5.2.5 Cell W arranty ........................................................... 5-5

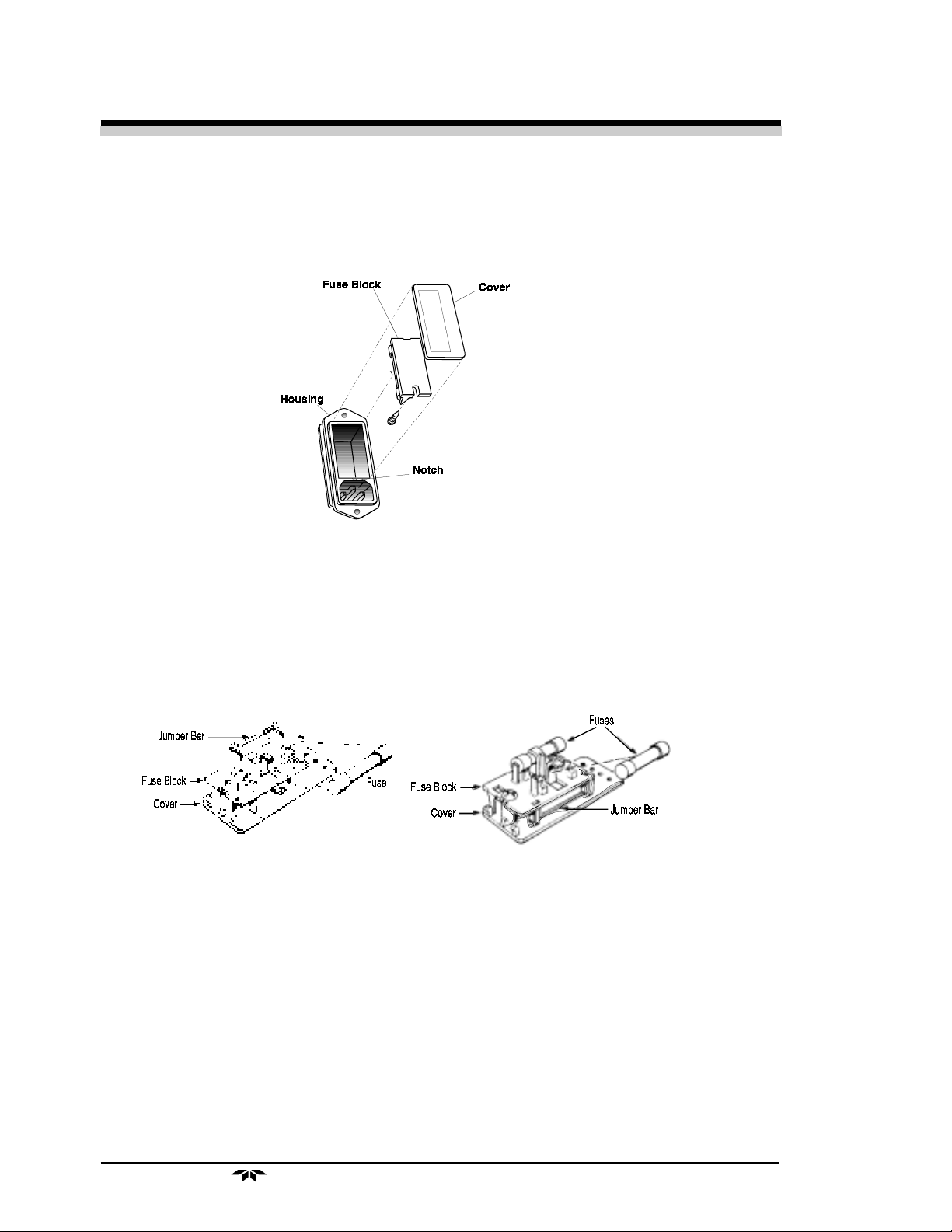

5.3 Fuse Replacement ......................................................... 5-6

5.4 System Self Diagnostic Test........................................... 5-6

5.5 Major Internal Components............................................ 5-7

5.6 Cleaning ........................................................................ 5-8

5.7 Troubleshooting ............................................................. 5-9

Appendix

A-1 Model 3000PA Specifications ........................................ A-1

A-2 Recommended 2-Year Spare Parts List ......................... A-3

A-3 Drawing List................................................................... A-4

A-4 19-Inch Relay Rack Panel Mount................................... A-4

A-5 Application Notes on Restrictors, Pressures & Flow...... A-5

A-5 Zero Functions............................................................... A-8

Teledyne Analytical Instruments

Percent Oxygen Analyzer Introduction 1

Introduction

1.1 Overview

The Teledyne Analytical Instruments Model 3000PA Percent Oxygen Analyzer is a versatile microprocessor-based instrument for detecting the percentage of oxygen in a variety of background gases. This manual covers only the Model 3000PA General Purpose flush-panel and/or rack-mount units with CE mark. These units are for indoor use in a nonhazardous environment.

1.2 Typical Applications

A few typical applications of the Model 3000PA are:

• Monitoring inert gas blanketing

• Air separation and liquefaction

• Chemical reaction monitoring

• Semiconductor manufacturing

• Petrochemical process control

• Quality assurance

• Gas analysis certification.

1.3 Main Features of the Analyzer

The Model 3000PA Percent Oxygen Analyzer is sophisticated yet simple to use. The main features of the analyzer include:

• A 2-line alphanumeric display screen, driven by microprocessor electronics, that continuously prompts and informs the operator.

• High resolution, accurate readings of oxygen content from low percent levels through 100 %. Large, bright, meter readout.

Teledyne Analytical Instruments

1-1

1 Introduction1 Introduction

1 Introduction Model 3000PA

1 Introduction1 Introduction

• Advanced Micro-Fuel Cell, designed for percent oxygen analysis. Several options are available.

• Versatile analysis over a wide range of applications.

• Microprocessor based electronics: 8-bit CMOS microprocessor with 32 kB RAM and 128 kB ROM.

• Three user definable output ranges (from 0-1% through 0-100 %) allow best match to users process and equipment.

• Air-calibration range for convenient spanning at 20.9 %.

• Auto Ranging allows analyzer to automatically select the proper preset range for a given measurement. Manual override allows the user to lock onto a specific range of interest.

• Two adjustable concentration alarms and a system failure alarm.

• Extensive self-diagnostic testing, at startup and on demand, with continuous power-supply monitoring.

• CE Compliance.

• RS-232 serial digital port for use with a computer or other digital communication device.

• Analog outputs for percent-of-range and for range identification. 0–1 V dc. (Isolated 4–20 mA dc optional)

• Convenient and versatile, steel, flush-panel or rack-mountable case with slide-out electronics drawer.

1.4 Model Designations

3000PA: Standard model. 3000PA-C: In addition to all standard features, this model also has

3000PA-M: This model has current output signals (4-20 mA) for

percent-of-range and range ID, in addition to voltage outputs.

3000PA-S: A Stainless Steel Probe and Probe Holder are used in this

model, for use where resistance to corrosion is important.

1-2

Teledyne Analytical Instruments

Percent Oxygen Analyzer Introduction 1

3000PA-V: Gas flow through the cell block in this model is driven by

vacuum downstream from the cell block, instead of by pressure upstream. The internal restrictor is located downstream from the cell block to support this configuration. All other standard features are present in this model.

All of the above options are available in combination. For example,

the -C and -V options are combined as Model 3000PA-C-V.

1.5 Front Panel (Operator Interface)

The standard 3000PA is housed in a rugged metal case with all controls and displays accessible from the front panel. See Figure 1-1. The front panel has thirteen buttons for operating the analyzer, a digital meter, an alphanumeric display, and a window for viewing the sample flowmeter.

Figure 1-1: Model 3000PA Front Panel

Function Keys: Six touch-sensitive membrane switches are used to change the specific function performed by the analyzer:

• Analyze Perform analysis for oxygen content of a sample gas.

Teledyne Analytical Instruments

1-3

1 Introduction1 Introduction

1 Introduction Model 3000PA

1 Introduction1 Introduction

• System Perform system-related tasks (described in detail in

chapter 4, Operation.).

• Span Span calibrate the analyzer.

• Zero Zero calibrate the analyzer.

• Alarms Set the alarm setpoints and attributes.

• Range Set up the 3 user definable ranges for the instrument.

Data Entry Keys: Six touch-sensitive membrane switches are used to

input data to the instrument via the alphanumeric VFD display:

• Left & Right Arrows Select between functions currently

displayed on the VFD screen.

• Up & Down Arrows Increment or decrement values of

functions currently displayed.

• Enter Moves VFD display on to the next screen in a series.

If none remains, returns to the

• Escape Moves VFD display back to the previous screen in a

series. If none remains, returns to the

Digital Meter Display: The meter display is a LED device that

produces large, bright, 7-segment numbers that are legible in any lighting environment. It produces a continuous readout from 0-100 %. It is accurate across all ranges without the discontinuity of analog range switching.

Alphanumeric Interface Screen: The VFD screen is an easy-to-use

interface from operator to analyzer. It displays values, options, and messages that give the operator immediate feedback.

Flowmeter: Monitors the flow of gas past the sensor. Readout is 0.2

to 2.4 standard liters per minute (SLPM).

 Standby Button: The Standby turns off the display and outputs,

but circuitry is still operating.

Analyze

screen.

CAUTION: The power cable must be unplugged to fully

disconnect power from the instrument. When chassis is exposed or when access door is open and power cable is connected, use extra care to avoid contact with live electrical circuits.

Access Door: To provide access to the Micro-Fuel Cell and the front

panel electronics, the front panel swings open when the latch in the upper right corner of the panel is pressed all the way in with a narrow gauge tool.

1-4

Teledyne Analytical Instruments

Percent Oxygen Analyzer Introduction 1

Accessing the other circuit board requires unfastening the rear panel screws and sliding the electronics drawer out of the case.

1.6 Recognizing Difference Between LCD & VFD

LCD has GREEN background with BLACK characters. VFD has DARK background with GREEN characters. In the case of VFD - NO CONTRAST ADJUSTMENT IS NEEDED.

1.7 Rear Panel (Equipment Interface)

The rear panel, shown in Figure 1-2, contains the gas and electrical connectors for external inlets and outlets. The Zero and Span gas connectors, and the Current signal outputs are optional and may not appear on your instrument. The connectors are described briefly here and in detail in the Installation chapter of this manual.

Figure 1-2: Model 3000PA Rear Panel

• Power Connection Universal AC power source.

• Gas Inlet and Outlet One inlet (must be externally valved)

and one exhaust out. Three inlets when “C” option is ordered.

• 9-Pin RS-232 Port Serial digital concentration signal

output and control input.

• 50-Pin Equipment Interface Port

Teledyne Analytical Instruments

1-5

1 Introduction1 Introduction

1 Introduction Model 3000PA

1 Introduction1 Introduction

• Analog Outputs 0-1 V dc concentration output, plus

0-1 V dc range ID.

• Alarm Connections 2 concentration alarms and 1 system

alarm.

• Remote Valve Used in the 3000PA for controlling

external solenoid valves only.

• Remote Span/Zero Digital inputs allow external control

of analyzer calibration. (See Note, below.)

• Calibration Contact To notify external equipment that

instrument is being calibrated and readings are not monitoring sample.

• Range ID Contacts Four separate, dedicated, range relay

contacts. Low, Medium, High, Cal.

• Network For future expansion. Not

implemented at this printing.

Optional:

• Calibration Gas Ports Separate fittings for zero, span and

sample gas input, and internal valves for automatically switching the gases.

• Current Signal Output Additional isolated 4-20 mA dc plus

4-20 mA dc range ID.

Note: If you require highly accurate Auto-Cal timing, use external

Auto-Cal control where possible. The internal clock in the Model 3000PA is accurate to 2-3 %. Accordingly, internally scheduled calibrations can vary 2-3 % per day.

1-6

Teledyne Analytical Instruments

erer

cent Oxygcent Oxyg

cent Oxyg

erer

cent Oxygcent Oxyg

en Analen Anal

en Anal

en Analen Anal

yzyz

erer

er Operational Theory 2

yzyz

erer

Operational Theory

2.1 Introduction

The analyzer is composed of three subsystems:

1. Micro-Fuel Cell Sensor

2. Sample System

3. Electronic Signal Processing, Display and Control

The sample system is designed to accept the sample gas and transport it through the analyzer without contaminating or altering the sample prior to analysis. The Micro-Fuel Cell is an electrochemical galvanic device that translates the amount of oxygen present in the sample into an electrical current. The electronic signal processing, display and control subsystem simplifies operation of the analyzer and accurately processes the sampled data. The microprocessor controls all signal processing, input/output and display functions for the analyzer.

2.2 Micro-Fuel Cell Sensor

2.2.1 Principles of Operation

The oxygen sensor used in the Model 3000P series is a Micro-Fuel Cell designed and manufactured by Analytical Instruments. It is a sealed plastic disposable electrochemical transducer.

The active components of the Micro-Fuel Cell are a cathode, an anode, and the 15% aqueous KOH electrolyte in which they are immersed. The cell converts the energy from a chemical reaction into an electrical current in an external electrical circuit. Its action is similar to that of a battery.

There is, however, an important difference in the operation of a battery as compared to the Micro-Fuel Cell: In the battery, all reactants are stored within the cell, whereas in the Micro-Fuel Cell, one of the reactants (oxygen) comes from outside the device as a constituent of the sample gas being

Teledyne Analytical Instruments

2-1

2 2

2 Operational Theory Model 3000PA

2 2

analyzed. The Micro-Fuel Cell is therefore a hybrid between a battery and a true fuel cell. (All of the reactants are stored externally in a true fuel cell.)

2.2.2 Anatomy of a Micro-Fuel Cell

The Micro-Fuel Cell is a cylinder only 1¼ inches in diameter and 1 inch thick. It is made of extremely inert plastic, which can be placed confidently in practically any environment or sample stream. It is effectively sealed, although one end is permeable to oxygen in the sample gas. The other end of the cell is a contact plate consisting of two concentric foil rings. The rings mate with spring-loaded contacts in the sensor block assembly and provide the electrical connection to the rest of the analyzer. Figure 2-1 illustrates the external features.

Figure 2-1: Micro-Fuel Cell

Refer to Figure 2-2, Cross Section of a Micro-Fuel Cell, which illus- trates the following internal description.

Figure 2-2. Cross Section of a Micro-Fuel Cell (not to scale)

At the top end of the cell is a diffusion membrane of Teflon, whose thickness is very accurately controlled. Beneath the diffusion membrane lies

2-2

Teledyne Analytical Instruments

erer

cent Oxygcent Oxyg

cent Oxyg

erer

cent Oxygcent Oxyg

en Analen Anal

en Anal

en Analen Anal

yzyz

erer

er Operational Theory 2

yzyz

erer

the oxygen sensing element—the cathode—with a surface area almost 4 cm2. The cathode has many perforations to ensure sufficient wetting of the upper surface with electrolyte, and it is plated with an inert metal.

The anode structure is below the cathode. It is made of lead and has a proprietary design which is meant to maximize the amount of metal available for chemical reaction.

At the rear of the cell, just below the anode structure, is a flexible membrane designed to accommodate the internal volume changes that occur throughout the life of the cell. This flexibility assures that the sensing membrane remains in its proper position, keeping the electrical output constant.

The entire space between the diffusion membrane, above the cathode, and the flexible rear membrane, beneath the anode, is filled with electrolyte. Cathode and anode are submerged in this common pool. They each have a conductor connecting them to one of the external contact rings on the contact plate, which is on the bottom of the cell.

2.2.3 Electrochemical Reactions

The sample gas diffuses through the Teflon membrane. Any oxygen in the sample gas is reduced on the surface of the cathode by the following HALF REACTION:

O2 + 2H2O + 4e

––

–

––

→ 4OH

––

–

––

(cathode)

(Four electrons combine with one oxygen molecule—in the presence of water from the electrolyte—to produce four hydroxyl ions.)

When the oxygen is reduced at the cathode, lead is simultaneously oxidized at the anode by the following HALF REACTION:

Pb + 2OH

––

–

––

→ Pb+2 + H2O + 2e

––

–

––

(anode)

(Two electrons are transferred for each atom of lead that is oxidized. Therefore it takes two of the above anode reactions to balance one cathode reaction and transfer four electrons.)

The electrons released at the surface of the anode flow to the cathode surface when an external electrical path is provided. The current is proportional to the amount of oxygen reaching the cathode. It is measured and used to determine the oxygen concentration in the gas mixture.

The overall reaction for the fuel cell is the SUM of the half reactions above, or:

2Pb + O2 → 2PbO

Teledyne Analytical Instruments

2-3

2 2

2 Operational Theory Model 3000PA

2 2

(These reactions will hold as long as no gaseous components capable of oxidizing lead—such as iodine, bromine, chlorine and fluorine—are present in the sample.)

The output of the fuel cell is limited by (1) the amount of oxygen in the cell at the time and (2) the amount of stored anode material.

In the absence of oxygen, no current is generated.

2.2.4 The Effect of Pressure

In order to state the amount of oxygen present in the sample as a percentage of the gas mixture, it is necessary that the sample diffuse into the cell under constant pressure.

If the total pressure increases, the rate that oxygen reaches the cathode through the diffusing membrane will also increase. The electron transfer, and therefore the external current, will increase, even though the oxygen concentration of the sample has not changed. It is therefore important that the sample pressure at the fuel cell (usually vent pressure) remain constant between calibrations.

2.2.5 Calibration Characteristics

Given that the total pressure of the sample gas at the surface of the Micro-Fuel Cell input is constant, a convenient characteristic of the cell is that the current produced in an external circuit is directly proportional to the rate at which oxygen molecules reach the cathode, and this rate is directly proportional to the concentration of oxygen in the gaseous mixture. In other words it has a linear characteristic curve, as shown in Figure 2-3. Measuring circuits do not have to compensate for nonlinearities.

In addition, since there is zero output in the absence oxygen, the characteristic curve has close to an absolute zero. In the percent ranges, the cell itself does not need to be zeroed. In practical application zeroing is still used to compensate for zero offsets in the electronics. (The electronics is zeroed automatically when the instrument power is turned on.)

2-4

Teledyne Analytical Instruments

erer

cent Oxygcent Oxyg

cent Oxyg

erer

cent Oxygcent Oxyg

en Analen Anal

en Anal

en Analen Anal

yzyz

erer

er Operational Theory 2

yzyz

erer

Figure 2-3. Characteristic Input/Output Curve for a Micro-Fuel Cell

2.2.6 Micro-Fuel Cell “Class”

TBE manufactures Micro-Fuel Cells with a variety of characteristics to give the best possible performance for any given sample conditions. A few typical Micro-Fuel Cells are listed below with their typical use and electrical specifications.

2.2.6.1 Class A-3 Cell

The class A-3 cell is for use in applications where it is exposed continuously to carbon dioxide concentrations between 1 % and 100 % in the sample gas.

Nominal output in air is 0.20 mA, and 90 % response time is 45 s. Expected life in flue gas is 8 months.

2.2.6.2 Class A-5 Cell

The class A-5 cell is for use in applications where it is exposed intermittently to carbon dioxide concentrations up to 100 % in the sample gas.

Teledyne Analytical Instruments

2-5

2 2

2 Operational Theory Model 3000PA

2 2

Nominal output in air is 0.19 mA, and 90 % response time is 45 s.

Expected life in flue gas is 8 months.

2.2.6.3 Class B-1 Cell

The class B-1 cell is for use in applications where it is exposed to less

than 0.1 % of carbon dioxide, and where fast response is important.

Nominal output in air is 0.50 mA, and 90 % response time is 7 s.

Expected life in air is 8 months.

2.2.6.4 Class B-3 Cell

The class B-3 cell is for use in applications where a slightly longer

response time is acceptable in order to have a longer cell life.

Nominal output in air is 0.30 mA, and 90 % response time is 13 s.

Expected life in air is 12 months.

2.2.6.5 Class C-3 Cell

The class B-1 cell is for use in applications where it is exposed to less than 0.1 % of carbon dioxide, and where a longer response time is acceptable in order to have a longer cell life.

Nominal output in air is 0.20 mA, and 90 % response time is 30 s. Expected life in air is 18 months.

2.2.6.6 Hydrogen and/or Helium Service

If the sample gas contains 10 % or more hydrogen and/or helium, “clamp” cells are used. These Micro-Fuel cells are identified by the suffix -C added to the cell class number.

2.3 Sample System

The sample system delivers gases to the Micro-Fuel Cell sensor from the analyzer rear panel inlet. Depending on the mode of operation either sample or calibration gas is delivered.

The Model 3000P sample system is designed and fabricated to ensure that the oxygen concentration of the gas is not altered as it travels through the sample system. The sample encounters almost no dead space. This mini-

2-6

Teledyne Analytical Instruments

erer

cent Oxygcent Oxyg

cent Oxyg

erer

cent Oxygcent Oxyg

en Analen Anal

en Anal

en Analen Anal

mizes residual gas pockets that can interfere with very low level oxygen analysis.

The sample system for the standard instrument incorporates ¼ inch tube fittings for sample inlet and outlet connections at the rear panel. For metric system installations, 6 mm adapters are supplied with each instrument. The sample or calibration gas flow through the system is monitored by a flowmeter downstream from the cell. Figure 2-4 shows the piping layout for the standard model.

yzyz

erer

er Operational Theory 2

yzyz

erer

Figure 2-4: Piping Layout and Flow Diagram for Standard Model

Figure 2-5 is the flow diagram for the sampling system. In the standard instrument, calibration gases (zero and span) can be connected directly to the Sample In port by teeing to the port with appropriate valves. The shaded portion of the diagram shows the components added when the –C option is ordered. The valving is installed inside the 3000PA-C enclosure and is regulated by the instrument's internal electronics.

Teledyne Analytical Instruments

2-7

2 2

2 Operational Theory Model 3000PA

2 2

Span In

Zero In

Sample In

In vacuum service the restrictor should be placed here.

In normal service the restrictor should be placed here.

Solenoid Valves

Components in the shaded area are in the -C option (internal control valves) only and are not shown in the piping diagram above.

Cell

Flowmeter

Exhaust Out

Restrictor

Figure 2-5: Flow Diagram

2.4 Electronics and Signal Processing

The Model 3000P Percent Oxygen Analyzer uses an 8031 microcontroller with 32 kB of RAM and 128 kB of ROM to control all signal processing, input/output, and display functions for the analyzer. System power is supplied from a universal power supply module designed to be compatible with any international power source. Figure 2-6 shows the location of the power supply and the main electronic PC boards.

2-8

Figure 2-6: Location of Electronic Components

Teledyne Analytical Instruments

erer

cent Oxygcent Oxyg

cent Oxyg

erer

cent Oxygcent Oxyg

en Analen Anal

en Anal

en Analen Anal

The signal processing electronics including the microprocessor, analog to digital, and digital to analog converters are located on the motherboard at the bottom of the case. The preamplifier board is mounted on top of the motherboard as shown in the figure. These boards are accessible after removing the back panel. Figure 2-7 is a block diagram of the Analyzer electronics.

yzyz

erer

er Operational Theory 2

yzyz

erer

Figure 2-7: Block Diagram of the Model 3000P Electronics

Teledyne Analytical Instruments

2-9

2 2

2 Operational Theory Model 3000PA

2 2

In the presence of oxygen the cell generates a current. A current to voltage amplifier converts this current to a voltage, and then the voltage is amplified in the second stage amplifier.

The second stage amplifier also supplies temperature compensation for the oxygen sensor output. This amplifier circuit incorporates a thermistor, which is physically located in the cell block. The thermistor is a temperature dependent resistance that changes the gain of the amplifier in proportion to the temperature changes in the block. This change is inversely proportional to the change in the cell output due to the same temperature changes. The result is a signal that is temperature independent. The output from the second stage amplifier is sent to an 18 bit analog to digital converter controlled by the microprocessor.

The digital concentration signal along with input from the control panel is processed by the microprocessor, and appropriate control signals are directed to the display, alarms and communications port. The same digital information is also sent to a 12 bit digital to analog converter that produces the 0-1 V dc analog percent-of-range signal output and the analog range ID output. Models with the –MA option also have a 4-20 mA dc percent-ofrange signal output and analog range ID output.

Signals from the power supply are also monitored by the microprocessor, and the system failure alarm is activated if a malfunction is detected.

2-10

Teledyne Analytical Instruments

Percent Oxygen Analyzer Installation 3

Installation

Installation of the Model 3000PA Analyzer includes:

1. Unpacking

2. Mounting

3. Gas connections

4. Electrical connections

5. Installing the Micro-Fuel Cell

6. Testing the system.

3.1 Unpacking the Analyzer

The analyzer is shipped with all the materials you need to install and prepare the system for operation. Carefully unpack the analyzer and inspect it for damage. Immediately report any damage to the shipping agent.

3.2 Mounting the Analyzer

The Model 3000PA is for indoor use in a general purpose area. It is NOT for use in hazardous environments of any type.

The standard model is designed for flush panel mounting. Figure 3-1 is an illustration of the 3000PA standard front panel and mounting bezel. There are four mounting holes—one in each corner of the rigid frame. The Drawings section in the rear of this manual contains outline dimensions and mounting hole spacing diagrams.

On special order, a 19" rack-mounting panel can be provided. For rack mounting, one or two 3000 series analyzers are flush-panel mounted on the rack panel. See Appendix for dimensions of the mounting panel.

3-1Teledyne Analytical Instruments

3 Installation3 Installation

3 Installation Model 3000PA

3 Installation3 Installation

Figure 3-1: Front Panel of the Model 3000PA

All operator controls are mounted on the control panel, which is hinged on the left edge and doubles as the door that provides access to the sensor and cell block inside the instrument. The door is spring loaded and will swing open when the button in the center of the latch (upper right corner) is pressed all the way in with a narrow gauge tool (less than 0.18 inch wide), such as a small hex wrench or screwdriver Allow clearance for the door to open in a 90-degree arc of radius 7.125 inches. See Figure 3-2.

Figure 3-2: Required Front Door Clearance

3.3 Rear Panel Connections

Figure 3-3 shows the Model 3000PA rear panel. It contains all of the gas and electrical inputs and outputs. Some ports are optional equipment. Refer to page iii in the front of this manual for options included in your instrument. Be sure to note the instrument serial number.

3-2

Teledyne Analytical Instruments

Percent Oxygen Analyzer Installation 3

Figure 3-3: Rear Panel of the Model 3000PA

3.3.1 Gas Connections

Before using this instrument, it should be determined if the unit will be used for pressurized service or vacuum service and low pressure applications. Inspect the restrictor kit that came with the unit. The kit consist of two restrictors and a union for 1/4” diameter tubing. Notice that the two 1 3/4” long, 1/4” diameter tubing are restrictors. It has an open end and a closed end with a small circular orifice. The restrictor without the blue sticker is for ;ow pressure and vacuum service. For high pressure (5 to 50 psig) applications, use the restrictor that has a blue sticker on the body.

For pressurized service, use the restrictor without the blue dot and union from the restrictor kit and attach it to the Sample In port. The small circular orifice should face away from the back of the unit (against the direction of gas flow). Use the restrictor without the blue dot sticker in the same manner for low pressure applications (less than 5 psig).

For vacuum service (5-10 in Hg), use the restrictor without the blue dot sticker and union but attach it to the Exhaust Out port. The small circular orifice should face toward the back of the unit (against the direction of gas flow).

Remove the blue sticker from the restrictor before using.

WARNING: Operating the unit without restrictors can cause damage to t

the micro-fuel cell.

3-3Teledyne Analytical Instruments

3 Installation3 Installation

3 Installation Model 3000PA

3 Installation3 Installation

The unit is manufactured with 1/4 inch tube fittings. Six millimeter

adapters are supplied for metric system installations. For a safe connection:

1. Insert the tube into the tube fitting, and finger-tighten the nut until the tubing cannot be rotated freely, by hand, in the fitting. (This may require an additional 1/8 turn beyond finger-tight.)

2. Hold the fitting body steady with a backup wrench, and with another wrench rotate the nut another 11/4 turns.

SAMPLE IN: In the standard model, gas connections are made at the

SAMPLE IN and EXHAUST OUT connections. Calibration gases must be

Tee'd into the Sample inlet with appropriate valves.

Ensure that the gas pressure is reasonably regulated. Pressures between 3 and 40 psig are acceptable as long as the pressure, once established, will keep the front panel flowmeter reading in an acceptable range (0.1 to 2.4 SLPM). Exact figures will depend on your process.

If greater flow is required for improved response time, install a bypass in the sampling system upstream of the analyzer input.

Note: If the unit is for vacuum serice, the above numbers apply

instead to the vacuum at the EXHAUST OUT connector, described below, with minus signs before the pressure readings.

EXHAUST OUT: Exhaust connections must be consistent with the hazard level of the constituent gases. Check Local, State, and Federal laws, and ensure that the exhaust stream vents to an appropriately controlled area if required.

Note: If the unit is for vacuum service, see

pressure/flow considerations.

ZERO IN and SPAN IN (Optional): These are additional input ports for span gas and zero gas. There are electrically operated valves inside for automatic switching between sample and calibration gases. These valves are under control of the 3000P Electronics. They can be externally controlled only indirectly through the Remote Cal Inputs, described below.

Pressure, flow, and safety considerations are the same as prescribed for the SAMPLE IN inlet, above.

Sample In

, above, for gas

3.3.2 Electrical Connections

For safe connections, no uninsulated wiring should be able to come in contact with fingers, tools or clothing during normal operation.

CAUTION: Use Shielded Cables. Also, use plugs that provide

excellent EMI/RFI protection. The plug case must be

3-4

Teledyne Analytical Instruments

Percent Oxygen Analyzer Installation 3

connected to the cable shield, and it must be tightly fastened to the analyzer with its fastening screws. Ultimately, it is the installer who ensures that the connections provide adequate EMI/RFI shielding.

3.3.2.1 Primary Input Power

The power cord receptacle and fuse block are located in the same

assembly. Insert the power cord into the power cord receptacle.

CAUTION: Power is applied to the instrument's circuitry as

long as the instrument is connected to the power source. The switch on the front panel is for switching power on or off to the displays and outputs only.

The universal power supply requires a 85–250 V ac, 47-63 Hz source. Fuse Installation: The fuse block, at the right of the power cord

receptacle, accepts US or European size fuses. A jumper replaces the fuse in whichever fuse receptacle is not used. Fuses are not installed at the factory. Be sure to install the proper fuse as part of installation. (See Fuse Replace- ment in chapter 5, maintenance.)

3.3.2.2 50-Pin Equipment Interface Connector

Figure 3-4 shows the pin layout of the Equipment Interface connector. The arrangement is shown as seen when the viewer faces the rear panel of the analyzer. The pin numbers for each input/output function are given where each function is described in the paragraphs below.

Figure 3-4: Equipment Interface Connector Pin Arrangement

Analog Outputs: There are four DC output signal pins—two pins per output. For polarity, see Table 3-1. The outputs are:

0–1 V dc % of Range: Voltage rises linearly with increasing oxygen, from

0 V at 0 % to 1 V at full scale. (Full scale = 100% of programmable range.)

0–1 V dc Range ID: 0.25 V = Low Range, 0.5 V = Medium Range,

0.75 V = High Range, 1 V = Air Cal Range.

3-5Teledyne Analytical Instruments

3 Installation3 Installation

3 Installation Model 3000PA

3 Installation3 Installation

4–20 mA dc % Range: (Optional) Current increases linearly with increasing

oxygen, from 4 mA at 0 % to 20 mA at full scale. (Full scale = 100% of range.)

4–20 mA dc Range ID: (Optional) 8 mA = Low Range, 12 mA = Medium

Range, 16 mA = High Range, 20 mA = Air Cal Range.

Table 3-1: Analog Output Connections

Pin Function

3 (Optional) + Range ID, 4-20 mA, floating 4 (Optional) – Range ID, 4-20 mA, floating 5 (Optional) + % Range, 4-20 mA, floating 6 (Optional) – % Range, 4-20 mA, floating

8 + Range ID, 0-1 V dc 23 – Range ID, 0-1 V dc, negative ground 24 + % Range, 0-1 V dc

7 – % Range, 0-1 V dc, negative ground

Alarm Relays: The nine alarm-circuit connector pins connect to the

internal alarm relay contacts. Each set of three pins provides one set of Form C relay contacts. Each relay has both normally open and normally closed contact connections. The contact connections are shown in Table 3-2. They are capable of switching up to 3 amperes at 250 V ac into a resistive load. The connectors are:

Threshold Alarm 1: • Can be configured as high (actuates when concen-

tration is above threshold), or low (actuates when concentration is below threshold).

• Can be configured as failsafe or nonfailsafe.

• Can be configured as latching or nonlatching.

• Can be configured out (defeated).

Threshold Alarm 2: • Can be configured as high (actuates when concen-

tration is above threshold), or low (actuates when concentration is below threshold).

• Can be configured as failsafe or nonfailsafe.

• Can be configured as latching or nonlatching.

• Can be configured out (defeated).

System Alarm: Actuates when DC power supplied to circuits is

unacceptable in one or more parameters. Permanently

3-6

Teledyne Analytical Instruments

Percent Oxygen Analyzer Installation 3

configured as failsafe and latching. Cannot be defeated. Actuates if self test fails.

(Reset by pressing press

tem

Further detail can be found in chapter 4, section 4-5.

Table 3-2: Alarm Relay Contact Pins

Pin Contact

45 Threshold Alarm 1, normally closed contact 28 Threshold Alarm 1, moving contact 46 Threshold Alarm 1, normally open contact 42 Threshold Alarm 2, normally closed contact 44 Threshold Alarm 2, moving contact 43 Threshold Alarm 2, normally open contact 36 System Alarm, normally closed contact 20 System Alarm, moving contact 37 System Alarm, normally open contact

Digital Remote Cal Inputs: Accept 0 V (off) or 24 V dc (on) inputs

for remote control of calibration. (See Remote Calibration Protocol below.) See Table 3-3 for pin connections.

again and any other button EXCEPT

to resume.

button to remove power. Then

Sys-

Zero: Floating input. 5 to 24 V input across the + and – pins puts

the analyzer into the grounded at the source of the signal. 0 to 1 volt across the terminals allows synchronous signal must open and close the external zero valve appropriately. See Remote Probe Connector. (The –C option internal valves operate automatically.)

Span: Floating input. 5 to 24 V input across the + and – pins puts

the analyzer into the grounded at the source of the signal. 0 to 1 volt across the terminals allows synchronous signal must open and close external span valve appropriately. See Figure 3-5 Remote Probe Connector. (The –C option internal valves operate automatically.)

Cal Contact: This relay contact is closed while analyzer is spanning

and/or zeroing. (See Remote Calibration Protocol below.)

Zero

mode. Either side may be

Zero

mode to terminate when done. A

Span

mode. Either side may be

Span

mode to terminate when done. A

3-7Teledyne Analytical Instruments

3 Installation3 Installation

3 Installation Model 3000PA

3 Installation3 Installation

Table 3-3: Remote Calibration Connections

Pin Function

9 + Remote Zero 11 – Remote Zero 10 + Remote Span 12 – Remote Span 40 Cal Contact 41 Cal Contact

Remote Calibration Protocol: To properly time the Digital Remote

Cal Inputs to the Model 3000PA Analyzer, the customer's controller must monitor the Cal Relay Contact.

When the contact is OPEN, the analyzer is analyzing, the Remote Cal

Inputs are being polled, and a zero or span command can be sent.

When the contact is CLOSED, the analyzer is already calibrating. It

will ignore your request to calibrate, and it will not remember that request.

Once a zero or span command is sent, and acknowledged (contact closes), release it. If the command is continued until after the zero or span is complete, the calibration will repeat and the Cal Relay Contact (CRC) will close again.

For example:

1) Test the CRC. When the CRC is open, Send a zero command until the CRC closes (The CRC will quickly close.)

2) When the CRC closes, remove the zero command.

3) When CRC opens again, send a span command until the CRC closes. (The CRC will quickly close.)

4) When the CRC closes, remove the span command.

When CRC opens again, zero and span are done, and the sample is

being analyzed.

Note: The Remote Valve connections (described below) provides

signals to ensure that the zero and span gas valves will be controlled synchronously. If you have the –C Internal valve option—which includes additional zero and span gas inputs— the 3000P automatically regulates the zero, span and sample gas flow.

Range ID Relays: Four dedicated Range ID relay contacts. The first

three ranges are assigned to relays in ascending order—Low range is as-

3-8

Teledyne Analytical Instruments

Percent Oxygen Analyzer Installation 3

signed to Range 1 ID, Medium range is assigned to Range 2 ID, and High range is assigned to Range 3 ID. The fourth range is reserved for the Air Cal Range (25%). Table 3-4 lists the pin connections.

Table 3-4: Range ID Relay Connections

Pin Function

21 Range 1 ID Contact 38 Range 1 ID Contact 22 Range 2 ID Contact 39 Range 2 ID Contact 19 Range 3 ID Contact 18 Range 3 ID Contact 34 Range 4 ID Contact (Air Cal) 35 Range 4 ID Contact (Air Cal)

Network I/O: A serial digital input/output for local network protocol.

At this printing, this port is not yet functional. It is to be used for future options to the instrument. Pins 13 (+) and 29 (–).

Remote Valve Connections: The 3000PA is a single-chassis instru-

ment, which has no Remote Valve Unit. Instead, the Remote Valve connections are used as a method for directly controlling external sample/zero/span gas valves. See Figure 3-5.

Figure 3-5: Remote Valve Connections

The voltage from these outputs is nominally 0 V for the OFF and 15 V dc for the ON conditions. The maximum combined current that can be pulled from these output lines is 100 mA. (If two lines are ON at the same time, each must be limited to 50 mA, etc.) If more current and/or a different voltage is required, use a relay, power amplifier, or other matching circuitry to provide the actual driving current.

3-9Teledyne Analytical Instruments

3 Installation3 Installation

3 Installation Model 3000PA

3 Installation3 Installation

In addition, each individual line has a series FET with a nominal ON resistance of 5 ohms (9 ohms worst case). This can limit the obtainable voltage, depending on the load impedance applied. See Figure 3-6.

Figure 3-6: FET Series Resistance

3.3.2.3 RS-232 Port: The digital signal output is a standard RS-232

serial communications port used to connect the analyzer to a computer, terminal, or other digital device. It requires a standard 9-pin D connector.

The data is status information, in digital form, updated every two seconds. Status is reported in the following order:

• The concentration in percent

• The range in use (HI, MED, LO)

• The span of the range (0-10 %, etc)

• Which alarms—if any—are disabled (AL–x DISABLED)

• Which alarms—if any—are tripped (AL–x ON).

Each status output is followed by a carriage return and line feed.

Four input functions using RS-232 have been implemented to date. They are described in Table 3-1.

Table 3-1: Commands via RS-232 Input

Command Description as<enter> Immediately starts an autospan. az<enter> Immediately starts an autozero. co<enter> Reports "Raw Cell Output" (current output of the sensor

itself) in µA. For example—

3-10

Raw Cell Output: 99 µA.

Teledyne Analytical Instruments

Percent Oxygen Analyzer Installation 3

st<enter> Toggling input. Stops/Starts any status message output from

the RS-232, until st<enter> is sent again.

The RS-232 protocol allows some flexibility in its implementation. Table 3-2 lists certain RS-232 values that are required by the 3000PA implementation.

Table 3-2: Required RS-232 Options

Parameter Setting

Baud 2400

Byte 8 bits

Parity none

Stop Bits 1

Message Interval 2 seconds

3.4 Installing the Micro-Fuel Cell

The Micro-Fuel Cell is not installed in the cell block when the instrument is shipped. It must be installed before the analyzer is placed in service.

Once it is expended, or if the cell is exposed to air for too long, the Micro-Fuel Cell will need to be replaced. The cell could also require replacement if the instrument has been idle for too long.

When the micro-Fuel Cell needs to be installed or replaced, follow the procedures in chapter 5, Maintenance, for removing and installing cells.

3.5 Testing the System

Before plugging the instrument into the power source:

• Check the integrity and accuracy of the gas connections. Make sure there are no leaks.

• Check the integrity and accuracy of the electrical connections. Make sure there are no exposed conductors.

• Check that sample pressure is between 3 and 40 psig, according to the requirements of your process.

Power up the system, and test it by performing the following

operations:

1. Repeat the Self-Diagnostic Test as described in chapter 4, section

4.3.5.

3-11Teledyne Analytical Instruments

3 Installation3 Installation

3 Installation Model 3000PA

3 Installation3 Installation

3-12

Teledyne Analytical Instruments

Percent Oxygen Analyzer Operation 4

Operation

4.1 Introduction

Once the analyzer has been installed, it can be configured for your

application. To do this you will:

• Set system parameters:

• Establish a security password, if desired, requiring Operator

to log in.

• Establish and start an automatic calibration cycle, if desired.

• Calibrate the instrument.

• Define the three user selectable analysis ranges. Then choose autoranging or select a fixed range of analysis, as required.

• Set alarm setpoints, and modes of alarm operation (latching, failsafe, etc).

Before you configure your 3000PA these default values are in effect:

Ranges: LO = 1 %, MED = 5 %, HI = 10 % Auto Ranging: ON Alarm Relays: Defeated, 10 %, HI, Not failsafe, Not latching Zero: Auto, every 0 days at 0 hours Span: Auto, at 20.9 %, every 0 days at 0 hours

If you choose not to use password protection, the default password is automatically displayed on the password screen when you start up, and you simply press

Enter

for access to all functions of the analyzer.

Teledyne Analytical Instruments

4-1

4 Operation4 Operation

4 Operation Model 3000PA

4 Operation4 Operation

4.2 Using the Data Entry and Function Buttons

Data Entry Buttons: The < > arrow buttons select options from the

menu currently displayed on theVFD screen. The selected option blinks.

When the selected option includes a modifiable item, the

buttons can be used to increment or decrement that modifiable item.

The

Enter

button is used to accept any new entries on the VFD screen.

The

Escape

are not yet accepted by use of the

Figure 4-1 shows the hierarchy of functions available to the operator via

the function buttons. The six function buttons on the analyzer are:

button is used to abort any new entries on the VFD screen that

Enter

button.

•

Analyze.

monitors the oxygen content of the sample, displays the percent of oxygen, and warns of any alarm conditions.

•

System.

regulate the internal operations of the analyzer:

• Set LCD screen contrast

• Setup Auto-Cal

• Assign Password

• Initiate Self -Test

• Check software version

• View sensor output

This is the normal operating mode. The analyzer

The system function consists of six subfunctions that

Contrast Function is

(Refer to Section 1.6)

∆∆

∆∇ arrow

∆∆

DISABLED

• Log out.

•

Zero

. Used to set up a zero calibration.

•

Span.

•

Alarms.

each alarm will be active or defeated, HI or LO acting, latching, and/or failsafe.

•

Range.

automatically with auto-ranging or used as individual fixed ranges.

Any function can be selected at any time by pressing the appropriate button (unless password restrictions apply). The order as presented in this manual is appropriate for an initial setup.

4-2

Used to set up a span calibration.

Used to set the alarm setpoints and determine whether

Used to set up three analysis ranges that can be switched

Teledyne Analytical Instruments

Percent Oxygen Analyzer Operation 4

Contrast Function is

(Refer to Section 1.6)

DISABLED

Figure 4-1: Hierarchy of Functions and Subfunctions

Each of these functions is described in greater detail in the following procedures. The VFD screen text that accompanies each operation is reproduced, at the appropriate point in the procedure, in a Monospaced type style. Pushbutton names are printed in

Oblique

type.

4.3 The

The subfuctions of the procedures for their use follow the descriptions:

• Auto-Cal: Used to define an automatic calibration sequence

and/or start an Auto-Cal.

• PSWD: Security can be established by choosing a 5 digit

password (PSWD) from the standard ASCII character set. (See Installing or Changing a Password, below, for a table of ASCII characters available.) Once a unique password is assigned and

System

Teledyne Analytical Instruments

Function

System

function are described below. Specific

4-3

4 Operation4 Operation

4 Operation Model 3000PA

4 Operation4 Operation

activated, the operator MUST enter the UNIQUE password to gain access to set-up functions which alter the instrument's operation, such as setting the instrument span or zero setting, adjusting the alarm setpoints, or defining analysis ranges.

After a password is assigned, the operator must log out to activate it. Until then, anyone can continue to operate the instrument without entering the new password.

Only one password can be defined. Before a unique password is assigned, the system assigns TBEAI by default. This allows access to anyone. After a unique password is assigned, to defeat the security, the password must be changed back to TBEAI.

• Logout: Logging out prevents an unauthorized tampering with

analyzer settings.

• More: Select and enter More to get a new screen with additional

subfunctions listed.

• SelfTest: The instrument performs a self-diagnostic test to

check the integrity of the power supply, output boards and amplifiers.

• Version: Displays Manufacturer, Model, and Software Version

of instrument.

4.3.1 Setting the Display

Contrast Function is

(Refer to Section 1.6)

If you cannot read anything on the display after first powering up:

1. Observe LED readout.

a. If LED meter reads all eights and periods, go to step 3. b. If LED meter displays anything else, go to step 2.

2. Press  button twice to turn Display OFF and ON again. LED

meter should now read all eights and periods. Go to step 3.

DISABLED

4-4

Teledyne Analytical Instruments

Percent Oxygen Analyzer Operation 4

4.3.2 Setting up an Auto-Cal

When proper automatic valving is connected (see chapter 3, installation), the Analyzer can cycle itself through a sequence of steps that automati-

cally zero and span the instrument.

Note: If you require highly accurate Auto-Cal timing, use external

Auto-Cal control where possible. The internal clock in the Model 3000PA is accurate to 2-3 %. Accordingly, internally scheduled calibrations can vary 2-3 % per day.

To setup an AutoCal cycle:

Choose

System

from the Function buttons. The VFD will display five

subfunctions.

Contrast Function is

(Refer to Section 1.6)

Use < > arrows to blink AutoCal, and press

DISABLED

Contrast AutoCal PSWD Logout More

Enter

. A new screen for

Span/Zero set appears.

Span OFF Nxt: 0d 0h Zero OFF Nxt: 0d 0h

Press < > arrows to blink Span (or Zero), then press

Enter

won’t be able to set OFF to ON if a zero interval is entered.) A Span Every ... (or Zero Every ...) screen appears.

Span Every 0 d Start 0 h from now

∆∆

Use

∆∇ arrows to set an interval value, then use < > arrows to move to

∆∆

the start-time value. Use

∆∆

∆∇ arrows to set a start-time value.

∆∆

To turn ON the Span and/or Zero cycles (to activate Auto-Cal): Press

System

again, choose AutoCal, and press

Enter

again. When the Span/

Zero screen appears, use the < > arrows to blink the Span (or Zero) OFF/

ON field. Use

∆∆

∆∇ arrows to set the OFF/ON field to ON. You can now turn

∆∆

these fields ON because there is a nonzero span interval defined.

again. (You

4.3.3 Password Protection

If a password is assigned, then setting the following system parameters can be done only after the password is entered: span and zero settings, alarm setpoints, analysis range definitions, switching between autoranging and manual override, setting up an auto-cal, and assigning a new password. However, the instrument can still be used for analysis or for initiating a selftest without entering the password.

Teledyne Analytical Instruments

4-5

4 Operation4 Operation

4 Operation Model 3000PA

4 Operation4 Operation

If you have decided not to employ password security, use the default password TBEAI. This password will be displayed automatically by the microprocessor. The operator just presses the Enter key to be allowed total access to the instrument’s features.

NOTE: If you use password security, it is advisable to keep a copy of

the password in a separate, safe location.

4.3.3.1 Entering the Password

To install a new password or change a previously installed password, you must key in and

ENTER

is in effect, pressing the

the old password first. If the default password

ENTER

button will enter the default TBEAI

password for you.

Press

System

to enter the

System

mode.

Contrast AutoCal PSWD Logout More

Contrast Function is

(Refer to Section 1.6)

Use the < > arrow keys to scroll the blinking over to PSWD, and press

Enter

to select the password function. Either the default TBEAI password or

AAAAA place holders for an existing password will appear on screen

depending on whether or not a password has been previously installed.

T B E A I Enter PWD

A A A A A Enter PWD

The screen prompts you to enter the current password. If you are not using password protection, press

Enter

to accept TBEAI as the default

password. If a password has been previously installed, enter the password using the < > arrow keys to scroll back and forth between letters, and the arrow keys to change the letters to the proper password. Press

Enter

to enter

the password.

If the password is accepted, the screen will indicate that the password restrictions have been removed and you have clearance to proceed.

DISABLED

∆∆

∆∇

∆∆

In a few seconds, you will be given the opportunity to change this password or keep it and go on.

4-6

Teledyne Analytical Instruments

PSWD Restrictions Removed

Percent Oxygen Analyzer Operation 4

Change Password? <ENT>=Yes <ESC>=No

Press

Escape

below.

If you want to install a password, or change an existing password, proceed as above in Entering the Password. When you are given the opportunity to change the password:

Press

Enter

previously assigned password), or press word and move on.

to move on, or proceed as in Changing the Password,

4.3.3.2 Installing or Changing the Password

Change Password? <ENT>=Yes <ESC>=No

to change the password (either the default TBEAI or the

Escape

to keep the existing pass-

If you chose

Enter

to change the password, the password assignment

screen appears.

T B E A I <ENT> To Proceed

A A A A A <ENT> To Proceed

Enter the password using the < > arrow keys to move back and forth between the existing password letters, and the

∆∆

∆∇ arrow keys to change the

∆∆

letters to the new password. The full set of 94 characters available for password use are shown in the table below.

Characters Available for Password Definition:

ABCDEFGHIJ KLMNOPQRST UVWXYZ[¥]^ _`abcdefgh ijklmnopqr stuvwxyz{| } → !"#$%&'( )*+'-./012 3456789:;< =>?@

When you have finished typing the new password, press

Enter

. A verification screen appears. The screen will prompt you to retype your password for verification.

Teledyne Analytical Instruments

4-7

4 Operation4 Operation

4 Operation Model 3000PA

4 Operation4 Operation

A A A A A Retype PWD To Verify

Wait a moment for the entry screen. You will be given clearance to

proceed.

A A A A A <ENT> TO Proceed

Use the arrow keys to retype your password and press

Enter

when finished. Your password will be stored in the microprocessor and the system will immediately switch to the

Analyze

screen, and you now have access to

all instrument functions.

If all alarms are defeated, the

0.0 % Anlz Range: 0  10

Analyze

screen appears as:

If an alarm is tripped, the second line will change to show which alarm

it is:

0.0 % Anlz AL1

Note: If you log off the system using the logout function in the

system menu, you will now be required to re-enter the password to gain access to Span, Zero, Alarm, and Range functions.

4.3.4 Logout

The Logout function provides a convenient means of leaving the analyzer in a password protected mode without having to shut the instrument off. By entering Logout, you effectively log off the instrument leaving the system protected against use until the password is reentered. To log out, press the

System

button to enter the

System

function.

Use the < > arrow keys to position the blinking over the Logout function, and press

4-8

Contrast AutoCal PSWD Logout More

Enter

to Log out. The screen will display the message:

Protected Until Password Reentered

Contrast Function is

(Refer to Section 1.6)

Teledyne Analytical Instruments

DISABLED

Percent Oxygen Analyzer Operation 4

4.3.5 System Self-Diagnostic Test

The Model 3000PA has a built-in self-diagnostic testing routine. Preprogrammed signals are sent through the power supply, output board and sensor circuit. The return signal is analyzed, and at the end of the test the status of each function is displayed on the screen, either as OK or as a number between 1 and 3. (See System Self Diagnostic Test in chapter 5 for number code.)

The self diagnostics are run automatically by the analyzer whenever the instrument is turned on, but the test can also be run by the operator at will. To initiate a self diagnostic test during operation:

Press the

Contrast Function is

(Refer to Section 1.6)

Use the < > arrow keys to blink More, then press

System

DISABLED

button to start the

Contrast AutoCal PSWD Logout More

Version SelfTest Cell Output: ### µA

System

function.

Enter

Use the < > arrow keys again to move the blinking to the SelfTest function. The screen will follow the running of the diagnostic.

RUNNING DIAGNOSTIC Testing Preamp  83

During preamp testing there is a countdown in the lower right corner of the screen. When the testing is complete, the results are displayed.

Power: OK Analog: OK Preamp: 3

The module is functioning properly if it is followed by OK. A number indicates a problem in a specific area of the instrument. Refer to Chapter 5 Maintenance and Troubleshooting for number-code information. The results screen alternates for a time with:

Press Any Key To Continue...

Then the analyzer returns to the initial System screen.

4.3.6 Version Screen

Move the < > arrow key to More and press blinking, press

Enter

. The screen displays the manufacturer, model, and

software version information.

Teledyne Analytical Instruments

Enter

. With Version

4-9

4 Operation4 Operation

4 Operation Model 3000PA

4 Operation4 Operation

4.4 The

The analyzer is calibrated using span gas.

NOTE: Zero is not necessary for Percent (%) level measurements.

Additional information on ZERO functions is provided in the Appendix A-6 of this manual.

Although the instrument can be spanned using air, a span gas with a known oxygen concentration in the range of 70–90% of full scale of the range of interest is recommended. Since the oxygen concentration in air is

20.9 %, the cell can take longer to recover if the instrument is used for less than 1 % oxygen analysis immediately following calibration in air.

Connect the calibration gases to the analyzer according to the instructions given in Section 3.4.1, Gas Connections, observing all the prescribed precautions.

Shut off the gas pressure before connecting it to the analyzer, and be sure to limit the pressure to 40 psig or less when turning it back on.

Readjust the gas pressure into the analyzer until the flowrate (as read on the analyzer’s SLPM flowmeter) settles between 0.5 and 2.4 SLPM (approximately 1-5 scfh).

Span

Functions

If you are using password protection, you will need to enter your password to gain access to either of these functions. Follow the instructions in section 4.3.3 to enter your password. Once you have gained clearance to proceed, you can enter the

4.4.1. Cell Failure

When the sensor in the 3000PA begins to fail, the analyzer will usually require more and more frequent calibration. If the 3000PA analysis readings drift downward uncharacteristically, try recalibration. If recalibration raises the readings temporarily, the cell may be failing.

You can check the output of the cell itself by going to the function, selecting More, and pressing on the second line of the display.

The “good” reading depends on the class of cell your analyzer is using.

Although the B-1 cell is standard in the 3000PA, check Specific Model

Information in the Front Matter in this manual for the class of cell you

Zero

Span

function.

Enter

. The cell output reading will be

Version SelfTest

Cell Output: ### µA

System

4-10

Teledyne Analytical Instruments

Percent Oxygen Analyzer Operation 4

purchased. Then check Cell Replacement in chapter 5 Maintenance, and do the prescribed calculations.

If a weak cell is indicated, replace the cell as described there in chapter

4.4.2 Span Cal

The

Span

button on the front panel is used to span calibrate the ana-

lyzer. Span calibration can be performed using the automatic mode, where an internal algorithm compares consecutive readings from the sensor to determine when the output matches the span gas concentration. Span calibration can also be performed manual mode, where the operator determines when the span concentration reading is acceptable and then manually exits the function.

4.4.2.1 Auto Mode Spanning

Press

Span

to enter the span function. The screen that appears allows you to select whether the span calibration is to be performed automatically or manually. Use the

∆∆

∆∇ arrow keys to toggle between AUTO and MAN span

∆∆

settling. Stop when AUTO appears, blinking, on the display.

Span: Settling: AUTO <ENT> For Next

Press

Enter

to move to the next screen.

Span Val: 20.90 <ENT>Span <UP>Mod #

Use the

the < > arrow keys to blink the digit you are going to modify. Use the

∆∆

∆∇ arrow keys to enter the oxygen-concentration mode. Use

∆∆

∆∇

∆∆

arrow keys again to change the value of the selected digit. When you have finished typing in the concentration of the span gas you are using (20.90 if you are using air), press

Enter

to begin the Span calibration.

#### % Span Slope=#### ppm/s

The beginning span value is shown in the upper left corner of the display. As the span reading settles, the screen displays and updates information on Slope. Spanning automatically ends when the slope is less than 1/50 of the displayed value of the oxygen concentration (in ppm) for three minutes. Then the instrument automatically returns to the analyze mode.

Teledyne Analytical Instruments

4-11

4 Operation4 Operation

4 Operation Model 3000PA

4 Operation4 Operation

4.4.2.2 Manual Mode Spanning

Span

Press you to select whether the span calibration is to be performed automatically or manually.

Use the ∆∇ keys to toggle between AUTO and MAN span settling. Stop when MAN appears, blinking, on the display. Press the next screen.

Press ∆ (<UP>) to permit modification (Mod #) of span value.

Use the arrow keys to enter the oxygen concentration of the span gas you are using (20.90 if you are using air). The < > arrows chose the digit, and the ∆∇ arrows choose the value of the digit.

to start the

Span

function. The screen that appears allows

Span: Settling:MAN <ENT> For Next

Enter

Span Val: 20.90 <ENT>Span <UP>Mod #

to move to

Press

Enter

to enter the span value into the system and begin the span

calibration.

Once the span has begun, the microprocessor samples the output at a predetermined rate. It calculates the difference between successive samplings and displays this difference as Slope on the screen. It takes several seconds for the first Slope value to display. Slope indicates rate of change of the Span reading. It is a sensitive indicator of stability.

#### % Span Slope=#### ppm/s

When the Span value displayed on the screen is sufficiently stable, press

Enter

. (Generally, when the Span reading changes by 1 % or less of the full scale of the range being calibrated for a period of five minutes it is sufficiently stable.) Once correct value. The instrument then automatically enters the tion.

4.5 The

The Model 3000PA is equipped with 2 fully adjustable concentration alarms and a system failure alarm. Each alarm has a relay with a set of form “C" contacts rated for 3 amperes resistive load at 250 V ac. See Figure in Chapter 3, Installation and/or the Interconnection Diagram included at the back of this manual for relay terminal connections.

Enter

Alarms

is pressed, the Span reading changes to the

Analyze

func-

Function

4-12

Teledyne Analytical Instruments

Percent Oxygen Analyzer Operation 4

The system failure alarm has a fixed configuration described in chapter

3 Installation.

The concentration alarms can be configured from the front panel as

either high or low alarms by the operator. The alarm modes can be set as

latching or non-latching, and either failsafe or non-failsafe, or, they can be defeated altogether. The setpoints for the alarms are also established using

this function.

Decide how your alarms should be configured. The choice will depend

upon your process. Consider the following four points:

1. Which if any of the alarms are to be high alarms and which if any are to be low alarms?

Setting an alarm as HIGH triggers the alarm when the oxygen concentration rises above the setpoint. Setting an alarm as LOW triggers the alarm when the oxygen concentration falls below the setpoint.

Decide whether you want the alarms to be set as:

• Both high (high and high-high) alarms, or

• One high and one low alarm, or

• Both low (low and low-low) alarms.

2. Are either or both of the alarms to be configured as failsafe? In failsafe mode, the alarm relay de-energizes in an alarm

condition. For non-failsafe operation, the relay is energized in an alarm condition. You can set either or both of the concentration alarms to operate in failsafe or non-failsafe mode.

3. Are either of the alarms to be latching? In latching mode, once the alarm or alarms trigger, they will

remain in the alarm mode even if process conditions revert back to non-alarm conditions. This mode requires an alarm to be recognized before it can be reset. In the non-latching mode, the alarm status will terminate when process conditions revert to nonalarm conditions.

4. Are either of the alarms to be defeated? The defeat alarm mode is incorporated into the alarm circuit so

that maintenance can be performed under conditions which would normally activate the alarms.

The defeat function can also be used to reset a latched alarm. (See procedures, below.)

Teledyne Analytical Instruments

4-13

4 Operation4 Operation

4 Operation Model 3000PA

4 Operation4 Operation

If you are using password protection, you will need to enter your

password to access the alarm functions. Follow the instructions in section

4.3.3 to enter your password. Once you have clearance to proceed, enter the

Alarm

function.

Press the

Make sure that AL1 is blinking.

Set up alarm 1 by moving the blinking over to AL1 using the < >

arrow keys. Then press

Five parameters can be changed on this screen:

• To define the setpoint, use the < > arrow keys to move the

Alarm

• Value of the alarm setpoint, AL–1 #### % (oxygen)

• Out-of-range direction, HI or LO

• Defeated? Dft–Y/N (Yes/No)

• Failsafe? Fs–Y/N (Yes/No)

• Latching? Ltch–Y/N (Yes/No).

blinking over to AL–1 ####. Then use the ∆∇ arrow keys to change the number. Holding down the key speeds up the incrementing or decrementing. (Remember, the setpoint units are percent-of-oxygen.)

button on the front panel to enter the

AL1 AL2 Choose Alarm

Enter

to move to the next screen.

AL1 1.00 % HI DftN FsN LtchN

Alarm

function.

4-14

• To set the other parameters use the < > arrow keys to move the

blinking over to the desired parameter. Then use the ∆∇ arrow keys to change the parameter.

• Once the parameters for alarm 1 have been set, press Alarms again, and repeat this procedure for alarm 2 (AL–2).

• To reset a latched alarm, go to Dft and then press either ∆ two times or ∇ two times. (Toggle it to Y and then back to N.)

–OR –

Go to Ltch and then press either ∆ two times or ∇ two times. (Toggle it to N and back to Y.)

Teledyne Analytical Instruments

Percent Oxygen Analyzer Operation 4

4.6 The

The Range function allows the operator to program up to three concentration ranges to correlate with the DC analog outputs. If no custom ranges are defined by the user, the instrument defaults to:

The Model 3000PA is set at the factory to default to autoranging. In this mode, the microprocessor automatically responds to concentration changes by switching ranges for optimum readout sensitivity. If the current range limits are exceeded, the instrument will automatically shift to the next higher range. If the concentration falls slightly below full scale of the next lower range, the instrument will switch to that range. A corresponding shift in the DC percent-of-range output, and in the range ID outputs, will be noticed.

The autoranging feature can be overridden so that analog output stays on a fixed range regardless of the oxygen concentration detected. If the concentration exceeds the upper limit of the range, the DC output will saturate at 1 V dc.

Range

Function

Low = 0–1.00 % Med = 0–5.00 % High = 0–10.00 %.

However, the digital readout and the RS-232 output of the concentration are unaffected by the fixed range. They continue to read accurately with full precision. See Front Panel description in Chapter 1.

4.6.1 Setting the Analog Output Ranges

To set the ranges, enter the range function mode by pressing the

Range

(M), or high (H).

begin at 0 %). Repeat for each range you want to set. Press the values and return to

Note: The ranges must be increasing from low to high. For example,

button on the front panel.

L1.00 M5.00 H10.00 ModeAUTO

Use the < > arrow keys to blink the range to be set: low (L), medium

Use the ∆∇ arrow keys to enter the upper value of the range (all ranges

Enter

to accept

Analyze

if range 1 is set as 0–1 % and range 2 is set as 0–10 %, range 3 cannot be set as 0–5 % since it is lower than range 2.

mode. (See note below.)

Teledyne Analytical Instruments

4-15

4 Operation4 Operation

4 Operation Model 3000PA

4 Operation4 Operation

4.6.2 Autoranging Analysis

Set your analysis ranges as in 4.6.1, above. Leave Mode in Auto, or

use the arrow buttons to change back to Auto.

When operating in autoranging, if the oxygen concentration in your sample goes ABOVE your HIGHEST range setting, the analyzer will go into the special 25 % cal range.

However, if one of your range settings is below 0-25 % and another is set above 0-25 %, the special 0-25 % Air Cal range will NOT activate as the oxygen level goes through 25 %. Nevertheless, if the oxygen concentration in your sample goes ABOVE your HIGHEST range setting, the analyzer will THEN drop back down into the special 25 % cal range.

Once the oxygen concentration drops back down into your highest range setting, the analyzer will automatically switch back to that range.

CAUTION: While the analyzer is in the Air Cal range, the oxygen

reading cannot go over 25 %, even if the oxygen concentration is higher than 25 %.

4.6.3 Fixed Range Analysis

The autoranging mode of the instrument can be overridden, forcing the analyzer DC outputs to stay in a single predetermined range.

To switch from autoranging to fixed range analysis, enter the range function by pressing the

Use the < > arrow keys to move the blinking over AUTO.

Use the ∆∇ arrow keys to switch from AUTO to FX/LO, FX/MED, or FX/HI to set the instrument on the desired fixed range (low, medium, or high).

Range

button on the front panel.

L1.00 M5.00 H10.00 ModeFX/LO

L1.00 M5.00 H10.00 ModeFX/MED

L1.00 M5.00 H10.00 ModeFX/HI

4-16

Teledyne Analytical Instruments

Percent Oxygen Analyzer Operation 4

Press

Escape

NOTE:When performing analysis on a fixed range, if the oxygen

concentration rises above the upper limit (or default value) as established by the operator for that particular range, the output saturates at 1 V dc. However, the digital readout and the RS-232 output continue to read the true value of the oxygen concentration regardless of the analog output range.

to re-enter the

Analyze

mode using the fixed range.

4.7 The

Normally, all of the functions automatically switch back to the

function when they have completed their assigned operations. Pressing the

Escape lyze

to return to analyzing your sample.

button in many cases also switches the analyzer back to the

function. Alternatively, you can press the

Analyze

Function

Analyze

Ana-

button at any time

4.8 Signal Output

The standard Model 3000PA Percent Oxygen Analyzer is equipped with two 0–1 V dc analog output terminals accessible on the back panel (one concentration and one range ID). The –MA option also has two isolated 4– 20 mA dc current outputs (one concentration and one range ID).

See Rear Panel in Chapter 3, Installation, for illustration.

The signal output for concentration is linear over the currently selected analysis range. For example, if the analyzer is set on range that was defined as 0–10 % O2, then the output would be:

Voltage Signal Current Signal

% O

0 0.0 4.0 1 0.1 5.6 2 0.2 7.2 3 0.3 8.8 4 0.4 10.4 5 0.5 12.0 6 0.6 13.6 7 0.7 15.2 8 0.8 16.8 9 0.9 18.4

10 1.0 20.0

Output (V dc) Output (mA dc)

Teledyne Analytical Instruments

4-17

4 Operation4 Operation

4 Operation Model 3000PA

4 Operation4 Operation

The analog output signal has a voltage which depends on the oxygen concentration AND the currently activated analysis range. To relate the signal output to the actual concentration, it is necessary to know what range the instrument is currently on, especially when the analyzer is in the autoranging mode.

To provide an indication of the range, a second pair of analog output terminals are used. They generate a steady preset voltage (or current if you have current outputs) to represent a particular range. The following table gives the range ID output for each analysis range:

Range Voltage (V) Current (mA)

LO 0.25 8 MED 0.50 12 HI 0.75 16 CAL (0-25%) 1.00 20

4-18

Teledyne Analytical Instruments

Percent Oxygen Analyzer Operation 4

Teledyne Analytical Instruments

4-19

4 Operation4 Operation

4 Operation Model 3000PA

4 Operation4 Operation

4-20

Teledyne Analytical Instruments

Percent Oxygen Analyzer Maintenance 5

Maintenance

5.1 Routine Maintenance

Aside from normal cleaning and checking for leaks at the gas connections, routine maintenance is limited to replacing Micro-Fuel cells and fuses, and recalibration. For recalibration, see Section 4.4 Calibration.

WARNING: SEE WARNINGS ON THE TITLE PAGE OF THIS

MANUAL.

5.2 Cell Replacement

The Micro-Fuel Cell is a sealed electrochemical transducer with no electrolyte to change or electrodes to clean. When the cell reaches the end of its useful life, it is replaced. The spent fuel cell should be discarded according to local regulations. This section describes fuel cell care as well as when and how to replace it.

5.2.1 Storing and Handling Replacement Cells

To have a replacement cell available when it is needed, TAI recommends that one spare cell be purchased 4-5 months after commissioning the 3000PA, or shortly before the end of the cell warranty period.

CAUTION: Do not stockpile cells. The warranty period starts

on the day of shipment.

The spare cell should be carefully stored in an area that is not subject to large variations in ambient temperature (75 °F nominal) or to rough handling.

WARNING: THE SENSOR USED IN THE MODEL 3000PA PER-

CENT OXYGEN ANALYZER USES ELECTROLYTES WHICH CONTAIN TOXIC SUBSTANCES, MAINLY

Teledyne Analytical Instruments

5-1

5 Maintenance5 Maintenance

5 Maintenance Model 3000P

5 Maintenance5 Maintenance

LEAD AND POTASSIUM HYDROXIDE, THAT CAN BE HARMFUL IF TOUCHED, SWALLOWED, OR INHALED. AVOID CONTACT WITH ANY FLUID OR POWDER IN OR AROUND THE UNIT. WHAT MAY APPEAR TO BE PLAIN WATER COULD CONTAIN THESE TOXIC SUBSTANCES. IN CASE OF EYE CONTACT, IMMEDIATELY FLUSH EYES WITH WATER FOR AT LEAST 15 MINUTES. CALL PHYSICIAN. (SEE APPENDIX, MATERIAL SAFETY DATA SHEET.)

CAUTION: Do not disturb the integrity of the cell package until

the cell is to actually be used. If the cell package is punctured and air is permitted to enter, the cell will require a longer time to reach zero after installation.

5.2.2 When to Replace a Cell

When the sensor in the 3000PA begins to fail, the analyzer usually requires more frequent calibration. If the 3000PA analysis readings drift downward uncharacteristically, try recalibration. If recalibration raises the readings temporarily, suspect the cell, but first check for leaks downstream from the cell where gases may be leaking into the system.

You can check the output of the cell itself by going to the function, selecting More, and pressing be on the second line of the display.

Version SelfTest

Cell Output: ### µA

The “good” cell output range depends on the class of cell your analyzer is using. The B-1 cell is standard in the 3000PA, but others can be specified.

Check Specific Model Information in the Front Matter in this manual for the class of cell you purchased. Then check Table 5-1, the

cell index table below, and do the simple calculation. If the resulting value is below the Cell Output reading, replace the cell.

Enter

. The cell output reading will

System

To find out if your cell is too weak:

1. Flow span gas through the analyzer, and allow time to purge.

2. With span gas flowing, read the raw output of the cell from the

System

5-2

function display.

Teledyne Analytical Instruments

Percent Oxygen Analyzer Maintenance 5

3. Divide the raw output reading by the percent oxygen concentration of your span gas.

If the quotient is less than the Index value for the cell class you are

using, replace the cell.

Table 5-1: Cell Indices

Cell Class Index

A-3 1.818 A-5 1.818 B-1 4.545 B-3 3.716 B-5 1.244 B-7 1.515

The Micro-Fuel cell is located inside the nylon Probe behind the front

panel. (See Figure 5-1.) To remove an existing cell:

WARNING! Risk of electric shock High voltage exposed at the end of enclosure!

C-3 2.488 C-5 0.606

5.2.3 Removing the Micro-Fuel Cell

1. Remove power to the instrument by unplugging the power

cord at the power source.

2. Open the front panel door by pressing the release button on

the top right corner of the door all the way in and releasing it.

3. Pull up on the nylon Probe, with a slight rocking motion, to

release it from the Probe Receptacle.

4. Do Not remove the O-rings unless they are worn and no

longer hold the Probe tightly. (If worn, replace them.)

5. When it is free, unscrew the Cap from the nylon Probe.

Hold the Probe vertically to prevent dropping the cell out of the probe.

6. Remove the Cell from the Probe, and dispose of it in an

environmentally safe manner.

Teledyne Analytical Instruments

5-3

5 Maintenance5 Maintenance

5 Maintenance Model 3000P

5 Maintenance5 Maintenance

5-4

Figure 5-1: Removing or Installing a Micro-Fuel Cell

Teledyne Analytical Instruments

Percent Oxygen Analyzer Maintenance 5

5.2.4 Installing a New Micro-Fuel Cell

CAUTION: Do not touch the sensing surface of the cell. It is

covered with a delicate Teflon membrane that can leak if punctured. The sensor must be replaced if the membrane is damaged.

1. Place the Cell in the Probe with the sensing surface facing outward (toward the screen in the Cap).

2. Screw the Probe Cap onto the Probe until it stops.

3. With the O-rings in place, push the assembled Probe down into the Cell Holder—Cap Down—with a slight rocking motion until it is seated on the bottom of the holder. This forces the holder into position and forms a gas-tight seal.

5.2.5 Cell Warranty

The Class B-1 Micro-Fuel cell is standard in the Model 3000PA. This cell is warranted for 6 months from the date of shipment. Check the Spe- cific Model Information, and note any Addendum that might be attached to the front of this manual for special information applying to the Cell in your instrument.

The warranty period for spare cells begins on the date of shipment. Do not purchase more than one spare cell per instrument. Do not stockpile spare cells.

The B-1 cell is not designed for applications where CO2 is a major component in the sample, however slight amounts will not adversely

effect the cell performance. Consult TAI for available options for either intermittent or continuous CO2 exposure.

If a cell was working satisfactorily, but ceases to function before the warranty period expires, the customer will receive credit toward the purchase of a new cell.

If you have a warranty claim, you must return the cell in question to the factory for evaluation. If it is determined that failure is due to faulty

workmanship or material, the cell will be replaced at no cost to you.

NOTE:Evidence of damage due to tampering or mishandling will

render the cell warranty null and void.

Teledyne Analytical Instruments

5-5

5 Maintenance5 Maintenance

5 Maintenance Model 3000P

5 Maintenance5 Maintenance

5.3 Fuse Replacement

1. Place small screwdriver in notch, and pry cover off, as shown in Figure 5-2.

Figure 5-2: Removing Fuse Block from Housing

2. To change between American and European fuses, remove the single retaining screw, flip Fuse Block over 180 degrees, and replace screw.

3. Replace fuse as shown in Figure 5-3.

4. Reassemble Housing as shown in Figure 5-2.

American Fuses European Fuses

Figure 5-3: Installing Fuses

5.4 System Self Diagnostic Test

1. Press the

2. Use the < > arrow keys to move to More, and press

3. Use the < > arrow keys to move to Self-Test, and press

The following failure codes apply:

5-6

System

Teledyne Analytical Instruments

button to enter the system mode.

Enter

Percent Oxygen Analyzer Maintenance 5

Table 5-1: Self Test Failure Codes

Power

0OK 1 5 V Failure 2 15 V Failure 3 Both Failed

Analog

0OK 1 DAC A (0–1 V Concentration) 2 DAC B (0–1 V Range ID) 3 Both Failed

Preamp

0OK 1 Zero too high 2 Amplifier output doesn't match test input 3 Both Failed

5.5 Major Internal Components

The Micro-Fuel cell is accessed by unlatching and swinging open the front panel, as described earlier. Other internal components are accessed by removing the rear panel and sliding out the entire chassis. See Figure 5-4, below. The gas piping is illustrated in Figure 2-4, and the major electronic components locations are shown in Figure 2-5, in chapter 2.

WARNINGS:See warnings on the title page of this manual.

The 3000PA contains the following major components:

• Analysis Section Micro Fuel Cell (B-1 standard—others available) Nylon Probe and Holder Sample System

• Power Supply

• Microprocessor

• Displays 5 digit LED meter 2 line, 20 character, alphanumeric, VFD display

• RS-232 Communications Port.

See the drawings in the Drawings section in back of this manual

for details.

Teledyne Analytical Instruments

5-7

5 Maintenance5 Maintenance

5 Maintenance Model 3000P

5 Maintenance5 Maintenance

X X X

Figure 5-4: Rear-Panel Screws

To detach the rear panel, remove only the 14 screws marked with an X.

5.6 Cleaning

If instrument is unmounted at time of cleaning, disconnect the instrument from the power source. Close and latch the front-panel access door. Clean outside surfaces with a soft cloth dampened slightly with plain clean water. Do not use any harsh solvents such as paint thinner or benzene.

For panel-mounted instruments, clean the front panel as prescribed in the above paragraph. DO NOT wipe front panel while the instrument is controlling your process.

5-8

Teledyne Analytical Instruments

Percent Oxygen Analyzer Maintenance 5

5.7 Troubleshooting

Problem:

Erratic readings of the Oxygen concentration as reported by the analyzer.

Possible Cause:

The analyzer may have been calibrated in an inaccurate fashion.

Solution:

Turn the analyzer off, then back on again. Press the System key when prompted by the analyzer "Press System for default Values". This will return the analyzer to its default settings in calibration and zero values. If erratic behavior continues replace the sensor.

Possible Cause:

Atmospheric Oxygen may be diffusing in through the vent and affecting the oxygen level which the sensor sees.

Solution:

Increase flow rate and/or length or vent tubing in order to dilute of minimize the diffusion of oxygen from the vent back to the sensor.

Problem:

Inaccurate zero operation (i.e. the user has zeroed the analyzer accidentally on gas much higher than one would normally use for a zero gas).

Solution:

Teledyne Analytical Instruments

5-9

5 Maintenance5 Maintenance

5 Maintenance Model 3000P

5 Maintenance5 Maintenance

5-10

Teledyne Analytical Instruments

Percent Oxygen Analyzer Appendix

Appendix

A-1 Model 3000PA Specifications

Packaging: General Purpose

• Flush panel mount (Standard).

• Rack mount — Relay rack mounted to

contain either one or two instruments in one 19" relay rack mountable plate (Optional).

Sensor: Class B-1 Micro-Fuel Cell (standard). Others

available.

Cell Block: Nylon.

90 % Response Time: 10 seconds at 25 °C (77 °F).

Ranges: Three user definable ranges from 0-1 % to

0-1 00 %, plus air calibration range of 0-25 %.

Alarms: One system-failure alarm contact to detect

power failure. Two adjustable concentration threshold alarms

with fully programmable setpoints.

Displays: 2 line by 20 character, alphanumeric, VFD

screen. One 5 digit LED display.

Digital Interface: Full duplex RS-232 communications port.

Power: Universal power supply 85-250 V ac, at

47-63 Hz, 0.9 A MAX.

Operating Temperature: 0-50 °C (32-122 °F).

Relative Humidity: 99%

Altitude: 1,609 m

Teledyne Analytical Instruments

A-1

AppendixAppendix

Appendix Model 3000PA

AppendixAppendix

Accuracy: ±2% of full scale at constant temperature.

±5% of full scale over operating temperature range, on factory default analysis ranges, once thermal equilibrium has been reached.

Analog outputs: 0-1 V dc percent-of-range (Standard)

0-1 V dc range ID (Standard) 4-20 mA dc—isolated— percent-of-range (Optional) 4-20 mA dc—isolated— range ID (Optional)

Dimensions: 19 cm high × 24.9 cm wide × 31 cm deep

(5.96″ × 8.7″ × 12.2″).

A-2

Teledyne Analytical Instruments

Percent Oxygen Analyzer Appendix

A-2 Recommended 2-Year Spare Parts List

Qty Part Number Description

1 C65507-B Back Panel Board 1 C62371 Front Panel Board 1 C62368-B Percent Preamplifier Board 1* C62365-B Main Computer Board (std) 1* C62365-C Main Computer Board (4-20 mA) 2 F1296 Fuse, 2 A, 250 V, 5 × 20 mm, Slow Blow 2 O38 O-ring 1** C6689-B1 Micro-Fuel Cell (for options see**) __________________ * Order -B or -C, not both. ** Check Specific Model Information for cell in your instrument.

A minimum charge is applicable to spare parts orders.

NOT E: Orders for replacement parts should include the part number (if

available) and the model and serial number of the instrument for which the parts are intended.

Orders should be sent to:

TELEDYNE Analytical Instruments

16830 Chestnut Street City of Industry, CA 91749-1580

Phone (626) 934-1500, Fax (626) 961-2538 TWX (910) 584-1887 TDYANYL COID

Web: www.teledyne-ai.com or your local representative.

Teledyne Analytical Instruments

A-3

AppendixAppendix

Appendix Model 3000PA

AppendixAppendix

A-3 Drawing List

D-66317 Final Assembly/Outline Drawing

A-4 19-inch Relay Rack Panel Mount

A-4

Figure A-1: Single and Dual 19" Rack Mounts

Teledyne Analytical Instruments

Percent Oxygen Analyzer Appendix

A-5

3000 SERIES ANALYZERS

APPLICATION NOTES ON RESTRICTORS,

PRESSURES, AND FLOW RECOMMENDATIONS

3000 series analyzers require reasonably regulated sample pressures. While the 3000 analyzers are not sensitive to variations of incoming pressure (provided they are properly vented to atmospheric pressure) the pressure must be maintained as to provide a useable flow rate trough the analyzer. Any line attached to sample vent should be 1/4 or larger in diameter.

FLOW RATE RECOMMENDATIONS:

A usable flow rate for a 3000 series analyzer is one which can be measured on the flowmeter. This is basically .2 - 2.4 SLPM . The optimum flow rate is 1 SLPM (mid scale). Note: response time is dependent on flow rate, a low flow rate will result in slow response to O2 changes in the sample stream. The span flow rate should be the approximately same as the sample flow rate.

CELL PRESSURE CONCERNS:

The sensors used in 3000 series analyzers are optimized to function at atmospheric pressure. At pressures other than atmospheric the diffusion rate of O2 will be different than optimum value. Higher pressures will produce faster O2 diffusion rates resulting in higher O2 reading and shorter cell life. To use a 3000 series analyzer at a cell pressure other than atmospheric, the analyzer must be calibrated with a known calibration gas at the new cell pressure to adjust for the different diffusion rate. Cell pressures below 2/3 atmospheric are not recommended because as they tend to cause excessive internal expansion which may result in seal failure.

For operation at cell pressures other than atmospheric care must be taken not to change the sample pressure rapidly or cell damage may occur. For cell pressures above atmospheric, caution must be exercised to avoid over pressuring the cell holder. ( percent analyzers will require some type of cell retainer to prevent the cell from being pushed out by the pressure .) For operation at pressures below atmospheric pressure a suffix C ( clamped) cell is required.

RESTRICTION DEVICES:

For proper operation, all 3000 series analyzers require a flow restriction device. This device is typically a restrictor or a valve. This restriction device serves two functions in the sample path. The first function is to limit the flow rate of the sample through the analyzer. A restrictor is chosen to operate over a range of pressures and provide a useable flow rate over that range.

The second function that the restriction device provides is a pressure drop. This device is selected to provide the only significant pressure drop in the sample path.

Teledyne Analytical Instruments

A-5

AppendixAppendix

Appendix Model 3000PA

AppendixAppendix

RESTRICTOR KIT

The current revision of the 3000 series analyzers are supplied with a kit containing two restrictors and a union which are user installed. These parts supplied to give the end user more flexibility when installing the analyzer. The restrictor kit is suitable for high and low positive pressure applications as well as vacuum service ( atmospheric pressure sample) applications ( see manual for installation instructions). The standard restrictor ( BLUE DOT ) is recommended for pressures between 5 PSIG and 50 PSIG. For positive low pressure application ( 5 psig or less ) the un-marked restrictor is better suited . For none pressurized sample applications the marked restrictor should be used and configured for vacuum service. Note: for extremely low positive pressure applications ( less then 2 psig) the vacuum service configuration should provide higher performance ( higher flow rates). For vacuum service the end user must supply a vacuum pump and a by-pass valve for the pump. A vacuum level of 5 10 inches of mercury should provide the optimum flow rate. CAUTION: flow

restrictors have very small orifices and may be plugged by small particles ( .005” dia or larger) A sample filter must be included in the sample line prior to the restrictor! ( a 60 micron filter is recommended)

3000PA EXAMPLES:

Example 1, with a incoming pressure of 10 psig the std restrictor (blue dot) will provide a flow rate of .76 SLPM. Up-stream of the restrictor the sample line pressure will be 10 psig, while down stream ( including the cell) the pressure will be at atmospheric pressure.( analyzer vented to atmospheric pressure) Note, all other pressure drops in the sample path are insignificant at these flow rates. This insures that the cell operates at atmospheric pressure. At very high flow rates ( off scale of flow-meter), pressure drops other than the restriction device could become significant , and result in pressurizing the cell.

Example 2, 3000PA is configured for vacuum service as follows. The un-marked restrictor is placed in the sample vent port. The down stream end of the restrictor is then connected to a vacuum pump and by-pass valve. The bypass valve is adjusted to provide a flow rate of 1 SLPM. The sample pressure between the pump and the restrictor will be approximately -7 inches of mercury, while the pressure in the balance of the sample system including the cell will be approximately at atmospheric pressure. ( provided the sample flow into the analyzer is not blocked.)

BY-PASS:

To improve the system response, a by-pass can be added to increase the sample flow rate to the analyzer by a factor of ten. A by-pass provides a sample flow path around the analyzer of 2 - 18 SCFH. typically.

CALIBRATION GAS:

3000 series analyzer requirements for units with Auto-Cal options. The

A-6

Teledyne Analytical Instruments

Percent Oxygen Analyzer Appendix

customer must supply a control valves (or restrictors) for any SPAN or ZERO gas source which is attached to the Auto-Cal ports. The valve should be adjusted to the same flow rate as the sample gas . When restrictors are used, the gas pressure must be adjusted to achieve the proper flow rate.

OPERATION WITHOUT A RESTRICTOR DEVICE:

Operation without a restrictor device is not recommend as mentioned above. A 3000PA without any flow restrictor device was tested on 11-19-97. This results in a flow rate of 2.4 SLPM @ 1 PSIG. This is a cv of 0.023 for the standard sample sys.

REFERENCE: FLOW_1.XLS & FLOW_2.XLS for information on flow rates at various pressures.

TAI PART NUMBERS

RESTRICTOR KIT: A68729 UNION (SS) U11 LP. RESTRICTOR R2323 ( LOW PRESSURE / VAC. SERVICE ) STD.. RESTRICTOR R2324 BLUE DOT NUT N73 FERRULE F73 FERRULE F74 BOTH FERRULES ARE

REQUIRED

CONVERSIONS:

1 PSI = 2.04 INCHES OF MERCURY (in. Hg.) 1 SCFH = 0.476 SLPM

Teledyne Analytical Instruments

A-7

AppendixAppendix

Appendix Model 3000PA

AppendixAppendix

A-6 Zero Cal

The

Zero

button on the front panel is used to enter the zero calibration

function. Zero calibration can be performed in either the automatic or manual mode. In the automatic mode, an internal algorithm compares consecutive readings from the sensor to determine when the output is within the acceptable range for zero. In the manual mode, the operator determines when the reading is within the acceptable range for zero. Make sure the zero gas is connected to the instrument. If zeroing is becoming more and more dificult, skip to section 4.4.1.3 Cell Failure.

Auto Mode Zeroing

Press

Zero

to enter the zero function mode. The screen allows you to

select whether the zero calibration is to be performed automatically or manually. Use the ∆∇ arrow keys to toggle between AUTO and MAN zero settling. Stop when AUTO appears, blinking, on the display.

Zero: Settling: AUTO <ENT> To Begin

Press

Enter

to begin zeroing.

#### % Zero Slope=#### ppm/s

The beginning zero level is shown in the upper left corner of the dis-

play. As the zero reading settles, the screen displays and updates information on Slope (unless the Slope starts within the acceptable zero range and does not need to settle further).

Then, and whenever Slope is less than 0.08 for at least 3 minutes,

instead of Slope you will see a countdown: 5 Left, 4 Left, and so fourth. These are five steps in the zeroing process that the system must complete, AFTER settling, before it can go back to

#### % Zero 4 Left=### ppm/s

The zeroing process will automatically conclude when the output is within the acceptable range for a good zero. Then the analyzer automatically returns to the

Analyze

mode.

Analyze

Manual Mode Zeroing

Press

Zero

to enter the

you to select between automatic or manual zero calibration. Use the ∆∇ keys

A-8

Teledyne Analytical Instruments

Zero

function. The screen that appears allows

Percent Oxygen Analyzer Appendix

to toggle between AUTO and MAN zero settling. Stop when MAN appears, blinking, on the display.

Zero: Settling: Man <ENT> To Begin

Press

Enter

to begin the zero calibration. After a few seconds the first of five zeroing screens appears. The number in the upper left hand corner is the first-stage zero offset. The microprocessor samples the output at a predetermined rate. It calculates the differences between successive samplings and displays the rate of change as Slope= a value in parts per million per second (ppm/s).

#### % Zero Slope=#### ppm/s

NOT E: It takes several seconds for the true Slope value to display. Wait about

10 seconds. Then, wait until Slope is sufficiently close to zero before pressing

Enter

to finish zeroing .

Generally, you have a good zero when Slope is less than 0.05 ppm/s

for about 30 seconds. When Slope is close enough to zero, press

Enter

. In a

few seconds, the screen will update.

Once span settling completes, the information is stored in the

microprocessor, and the instrument automatically returns to the

Analyze

mode.

NOTE: The MSDS on this material is available upon request

through the Teledyne Environmental, Health and Safety Coordinator. Contact at (626) 934-1592

Teledyne Analytical Instruments

A-9

AppendixAppendix

Appendix Model 3000PA

AppendixAppendix

A-10

Teledyne Analytical Instruments

Percent Oxygen Analyzer Appendix

A-5 Material Safety Data Sheet

Section I – Product Identification

Product Name: Micro-Fuel Cells and Super Cells, all classes except A-2C, A-3,

and A-5.

Electrochemical Oxygen Sensors, all classes except R-19. Mini-Micro-Fuel Cells, all classes.

Manufacturer: Teledyne Analytical Instruments

Address: 16830 Chestnut Street, City of Industry, CA 91749

Phone: (818) 961-9221 Customer Service: Extension 222 Environmental Health and Safety: Extension 230

Date Prepared : 04/26/95

Section II – Hazardous Ingredients/Composition

Material or Component C.A.S. # Quantity OSHA PEL ACGIH TLV

Lead (Pb) 7439-92-1 3–20 gms 0.05 mg/m

Potassium Hydroxide 1310-58-3 1–5 ml None 2 mg/m Solution 15% (KOH)

Section III – Physical/Chemical Characteristics

Material Appearance or Component

Lead

Boiling Point (°C)

1744

Specific Gravity

11.34

Vapor Pressure

Melting Point (°C)

328

Density

Evap. Rate

Solubility in Water

Insoluble

0.15 mg/m

Odor

Solid, silve gray, odorl

Potassium Hydroxide

1320

2.04 na

360

Teledyne Analytical Instruments

Complete

A-11

White or slightly yellow, no odor

AppendixAppendix

Appendix Model 3000PA

AppendixAppendix

Section IV – Fire and Explosion Hazard Data

Flash Point: na Flammable Limits: na LEL: na UEL: na Extinguishing Media: Use extinguishing media appropriate to surrounding fire

conditions. No specific agents recommended.

Special Fire Fighting Equipment:

Wear NIOSH/OSHA approved self-contained breathing apparatus and protective clothing to prevent contact with skin and eyes.

Unusual Fire and Explosion Hazards:

Emits toxic fumes under fire conditions.

Section V – Reactivity Data

Stability: Stable Incompatibilities: Aluminum, organic materials, acid chlorides, acid

anhydrides, magnesium, copper. Avoid contact with acids

Hazardous Decomposition of Byproducts:

Hazardous Polymerization: Will not occur. Conditions to Avoid:

and hydrogen peroxide > 52%. Toxic fumes

Section VI – Health Hazard Data

Routes of Entry: Inhalation: Highly unlikely

Ingestion: May be fatal if swallowed.

Skin: The electrolyte (potassium hydroxide) is corrosive; skin

contact may cause irritation or chemical burns.

Eyes: The electrolyte (potassium hydroxide) is corrosive; eye

contact may cause irritation or severe chemical burns.

Acute Effects: The electrolyte is harmful if swallowed, inhaled or

adsorbed through the skin. It is extremely destructive to tissue of the mucous membranes, stomach, mouth, upper respiratory tract, eyes and skin.

Chronic Effects: Prolonged exposure with the electrolyte has a destructive

effect on tissue. Chronic exposure to lead may cause disease of the blood

and blood forming organs, kidneys and liver, damage to the reproductive systems and decrease in fertility in men and women, and damage to the fetus of a pregnant woman. Chronic exposure from the lead contained in this product is extremely unlikely.

A-12

Teledyne Analytical Instruments

Percent Oxygen Analyzer Appendix

Signs and Symptoms of Exposure:

Carcinogenicity: Lead is classified by the IARC as a class 2B carcinogen

OSHA: Where airborne lead exposures exceed the OSHA action

NTP: na Medical Conditions Generally

Aggravated by Exposure:

Emergency First Aid Procedures:

Contact of electrolyte with skin or eyes will cause a burning sensation and/or feel soapy or slippery to touch.

Other symptoms of exposure to lead include loss of sleep, loss of appetite, metallic taste and fatigue.

(possibly carcinogenic to humans)

level, refer to OSHA Lead Standard 1910.1025.

Lead exposure may aggravate disease of the blood and blood forming organs, hypertension, kidneys, nervous and possibly reproductive systems. Those with preexisting skin disorders or eye problems may be more susceptible to the effects of the electrolyte.

In case of contact with the skin or eyes, immediately flush with plenty of water for at least 15 minutes and remove all contaminated clothing. Get medical attention immediately.

If ingested, give large amounts of water and DO NOT INDUCE VOMITING. Obtain medical attention immediately.

If inhaled, remove to fresh air and obtain medical attention immediately.

Section VII – Precautions for Safe Handling and Use

NOTE: The oxygen sensors are sealed, and under normal circumstances,

the contents of the sensors do not present a health hazard. The following information is given as a guide in the event that a cell leaks.

Protective measures during cell replacement:

Cleanup Procedures: Wipe down the area several times with a wet paper towel.

Before opening the bag containing the sensor cell, check the sensor cell for leakage. If the sensor cell leaks, do not open the bag. If there is liquid around the cell while in the instrument, wear eye and hand protection.

Use a fresh towel each time. Contaminated paper towels are considered hazardous waste.

Teledyne Analytical Instruments

A-13

AppendixAppendix

Appendix Model 3000PA

AppendixAppendix

Section VIII – Control Measures

Eye Protection: Chemical splash goggles Hand Protection: Rubber gloves Other Protective Clothing: Apron, face shield Ventilation: na

Section IX – Disposal

Both lead and potassium hydroxide are considered poisonous substances and are regulated under TSCA and SARA Title III.

EPA Waste Number: D008 California Waste Number: 181 DOT Information: RQ Hazardous Waste Solid N.O.S. (Lead) Class 9

NA3077 PG III Follow all Federal, State and Local regulations.

Section X – References

Material Safety Data Sheets from J.T. Baker Chemical, Aldrich, Malinckrodt, ASARCO U.S. Department of Labor form OMB No. 1218-0072 Title 8 California Code of Regulations TSCA SARA Title III CFR 49 CFR 29 CFR 40

NOTE: The above information is believed to be correct and is offered for your

information, consideration, and investigation. It should be used as a guide. Teledyne Brown Engineering Analytical Instruments shall not be held liable for any damage resulting from handling or from contact with the above product.

A-14

Teledyne Analytical Instruments

Teledyne 3000PAEU User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
