User Manual
TSG95 Pathfindert
PAL/NTSC Signal Generator
070-8916-07
www.tektronix.com
Copyright © Tektronix. All rights reserved. Licensed software products are
owned by Tektronix or its subsidiaries or suppliers, and are protected by
national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and
pending. Information in this publication superc edes that in al l previously
published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14200 SW Karl Braun Dri ve
P.O. Box 500
Beaverton, OR 97077
USA
For product information, sales, service, and techni cal support:
H In North America, call 1-800-833-9200.
H Worldwide, visit www.tektronix.com to find contacts in your area.
Warranty 2
Tektronix warrants that this product will be free from defects in materials and
workmanship for a period of one (1) year from the date of shipment. If any such product
proves defective during this warranty period, Tektronix, at its option, either will repair the
defective product without charge for parts and labor, or will provide a replacement in
exchange for the defective product. Parts, modules and replacement products used by
Tektronix for warranty work may be new or reconditioned to like new performance. All
replaced parts, modules and products become the property of Tektronix.
In order to obtain service under this warranty, Customer must notify Tektronix of the
defect before the expiration of the warranty period and make suitable arrangements for the
performance of service. Customer shall be responsible for packaging and shipping the
defective product to the service center designated by Tektronix, with shipping charges
prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to
a location within the country in which the Tektronix service center is located. Customer
shall be responsible for paying all shipping charges, duties, taxes, and any other charges for
products returned to any other locations.
This warranty shall not apply to any defect, failure or damage caused by improper use or
improper or inadequate maintenance and care. Tektronix shall not be obligated to furnish
service under this warranty a) to repair damage resulting from attempts by personnel other
than Tektronix representatives to install, repair or service the product; b) to repair damage
resulting from improper use or connection to incompatible equipment; c) to repair any
damage or malfunction caused by the use of non-Tektronix supplies; or d) to service a
product that has been modified or integrated with other products when the effect of such
modification or integration increases the time or difficulty of servicing the product.
THIS WARRANTY IS GIVEN BY TEKTRONIX WITH RESPECT TO THE
PRODUCT IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED.
TEKTRONIX AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TEKTRONIX’ RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE
PRODUCTS IS THE SOLE AND EXCLUSIVE REMEDY PROVIDED TO THE
CUSTOMER FOR BREACH OF THIS WARRANTY. TEKTRONIX AND ITS
VENDORS WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER TEKTRONIX
OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGES.
Table of Contents
General Safety Summary v............................
Getting Started 1.....................................
Supplying Power 2....................................
Connecting the TSG95 3...............................
Keypad and Display Conventions 4.......................
Definitions 5.........................................
Preliminary Settings 6.................................
Choose the Video Standard/Signal Set 6................
Set the Battery Type 6...............................
Enable (Disable) Auto Power Down 6..................
Other Settings 7......................................
Operating Basics 9...................................
Using Y our TSG95 9..................................
Outputting Test Signals 11............................
Outputting Audio Tones 12............................
Selecting the Audio Frequency 12......................
Setting the Audio Tone Level (Amplitude) 13.............
Inserting Channel--ID Clicks in the Audio 13.............
Inserting ID Messages 13.............................
Editing ID Messages 14..............................
Positioning ID Messages 14...........................
Saving ID Messages 15...............................
Recalling ID Messages 15............................
Setting up an ID Cycle 16.............................
Saving (Storing) Presets 17............................
Recalling Presets 18.................................
Reference 19.........................................
The Utility Menu 19....................................
Creating/Editing the User Signal Set 22....................
The Calibration Submenu 25.............................
Characteristics 29.....................................
Safety Standard Compliance 29...........................
EC Declaration of Conformity --- EMC 30................
Specification Tables 31..................................
PAL Waveform Diagrams 46.............................
NTSC Waveform Diagrams 59............................
TSG95 Pathfinder™ User Manual
i
Table of Contents
NTSC JAPAN (No Setup) Waveform Diag rams 70............
Replaceable Parts 73...................................
User Service 75.......................................
Battery Hints 75.......................................
The BATTERY LOW Message 75......................
Low Battery Shutdown 75............................
Preventive Maintenance 76..............................
List of Figures
Figure 1: PAL 75% Color Bars 46.......................
Figure 2: PAL 100% Color Bars 46......................
Figure 3: PAL 75% Red and Red Field 47.................
Figure 4: PAL 100% Red 47............................
Figure 5: PAL Convergence (vertical lines) 48.............
Figure 6: PAL Convergence (horizontal lines) 48...........
Figure 7: PAL Pluge 49................................
Figure 8: PAL Green Field 49...........................
Figure 9: PAL Safe Area 50.............................
Figure 10: PAL Blue Field 51...........................
Figure 11: PAL 100% Flat Field and Bounce (High) 51......
Figure 12: PAL 50% Flat Field 52.......................
Figure 13: PAL 0% Flat Field and Bounce (Low) 52........
Figure 14: PAL Multiburst 52...........................
Figure 15: PAL Reduced Sweep 53.......................
Figure 16: PAL 5-Step (Gray Scale) 53...................
Figure 17: PAL Modulated 5-Step 54.....................
Figure 18: PAL Matrix Signal — CCIR 17 54..............
Figure 19: PAL Matrix Signal — CCIR Line 330 55........
Figure 20: PAL Matrix Signal — CCIR Line 331 55........
ii
TSG95 Pathfinder™ User Manual
Table of Contents
Figure 21: PAL Matrix Signal — CCIR 18 56..............
Figure 22: PAL Matrix Signal — Sin(x)/x 56...............
Figure 23: PAL Matrix Signal — 15 kHz Square Wave 57...
Figure 24: PAL Matrix Signal — Shallow Ramp 57.........
Figure 25: PAL Matrix Signal — UK ITS 1 58.............
Figure 26: PAL Matrix Signal — UK ITS 2 58.............
Figure 27: NTSC 75% Color Bars 59.....................
Figure 28: NTSC Convergence Components 59............
Figure 29: SMPTE (NTSC) Color Bar Components 60......
Figure 30: NTSC Safe Area Signal Components 61.........
Figure 31: NTSC Red Field 63..........................
Figure 32: NTSC 30 IRE and 50 IRE F lat Fields 63.........
Figure 33: NTSC 100 IRE Flat Field, Field Square Wave,
and Bounce (High) 64...............................
Figure 34: NTSC Black Burst 64.........................
Figure 35: NTSC 5-Step Staircase (Gray Scale ) 65..........
Figure 36: NTSC Multiburst 65.........................
Figure 37: NTC7 (NTSC) Composite 66...................
Figure 38: NTC7 (NTSC) Combination 66.................
Figure 39: FCC (NTSC) Composite 67....................
Figure 40: NTSC Cable Multiburst 67....................
Figure 41: NTSC Cable Sweep 68........................
Figure 42: NTSC SIN(X)/X 68...........................

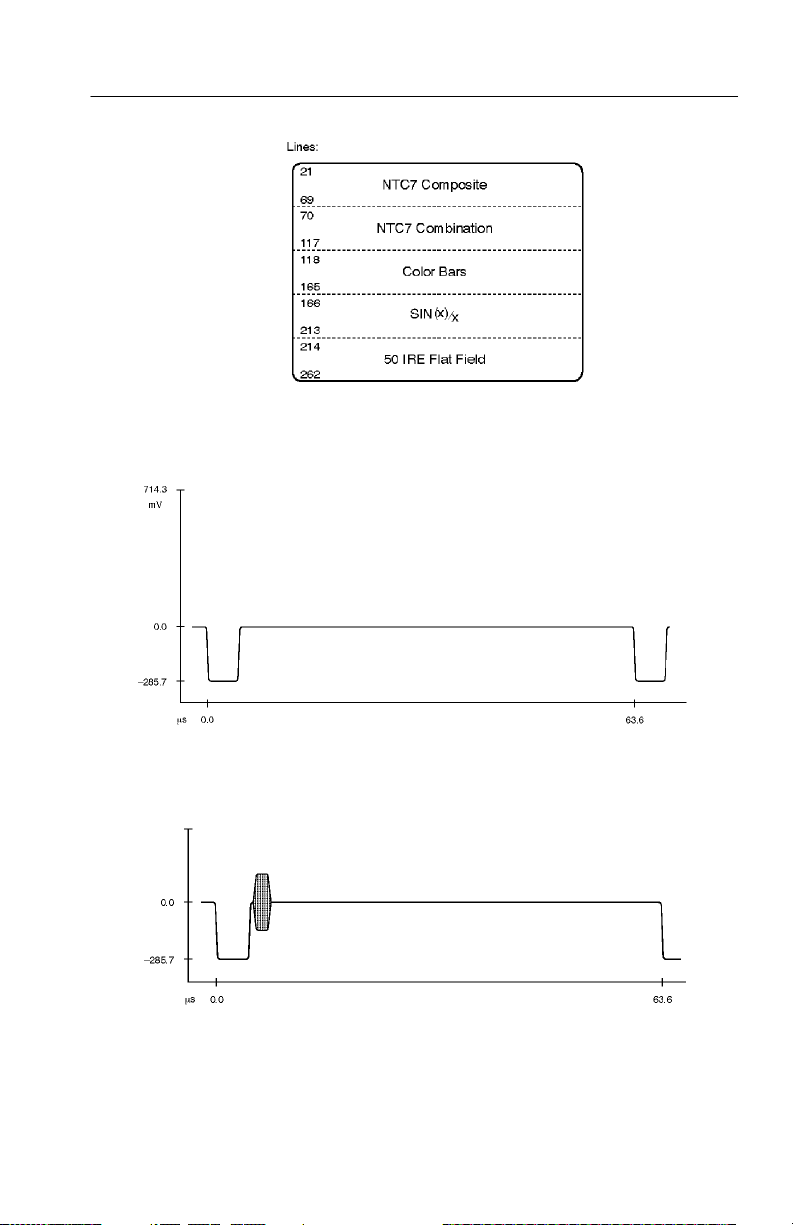

Figure 43: NTSC Matrix 69.............................
Figure 44: NTSC 0 IRE No Burst 69......................
Figure 45: NTSC Bounce (Low) 69.......................
Figure 46: SMPTE (NTSC) Color Bars, No Setup 70........
Figure 47: NTSC 75% Color Bars, No Setup 71............
Figure 48: NTSC Red Field, No Setup 71..................
Figure 49: NTSC Black Burst, No Setup 71................
TSG95 Pathfinder™ User Manual
iii
Table of Contents
List of Tables
Table 1: TSG95 Video Test Signals 11....................
Table 2: General PAL Test Signal Characteristics 31.......
Table 3: Individual PAL Test Signal Characteristics 33.....
Table 4: PAL Vertical Interval Test Signals (VITS) 35......
Table 5: General NTSC Test Signal Characteristics 36......
Table 6: Individual NTSC T est Signal Characteristics 38....
Table 7: NTSC JAPAN Test Signal Characteristics 42......
Table 8: NTSC and NTSC JAPAN VITS 43...............
Table 9: Character Identification 43.....................
Table 10: Audio Tone 43...............................
Table 11: Power Supply 44.............................
Table 12: Physical Characteristics 44....................
Table 13: Environmental Characteristics 45...............
Table 14: Power Cords 73..............................
iv
TSG95 Pathfinder™ User Manual
General Safety Summary
Review the following safety precautions to avoid injury and prevent
damage to this product or any products connected to it.
To avoid potential hazards, use this product only as specified.
Only qualified personnel should perform service procedures.
To Avoid Fire or Personal Injury
Use Proper Power Cord. Use only the power cord specified for this
product and certified for the country of use.
Connect and Disconnect Properly. Do not connect or disconnect probes
or test leads while they are connected to a voltage source.
Ground the Product. This product is grounded through the grounding
conductor of the power cord. To avoid electric shock, t he grounding
conductor must be connected to earth ground. Before making
connections to the input or output terminals of the product, ensure that
the product is properly grounded.
Observe All Terminal Ratings. To avoid fire or shock hazard, observe
all ratings and markings on the product. Consult the product manual
for further ratings information before making connections to the
product.
Do not apply a potential to any terminal, including the common
terminal, that exceeds the maximum rating of that terminal.
Power Disconnect. The power cord disconnects the product from the
power source. Do not block the power cord; it must remain accessible
to the user at all times.
Do Not Operate Without Covers. Do not operate this product with
covers or panels removed.
Do Not Operate With Suspected Failures. If you suspect there is
damage to this product, have it inspected by qualified service
personnel.
Avoid Exposed Circuitry. Do not touch exposed connections and
components when power is present.
Replace Batteries Properly. Replace batteries only with the specified
type and rating.
TSG95 Pathfinder™ User Manual
v
General Safety Summary
Recharge Batteries Properly. Recharge batteries for the recommended
charge cycle only.
Use Proper AC Adapter. Use onl y the AC adapter specified for this
product.
Use Proper Fuse. Use only the fuse type and rating specified for this
product.
Do Not Operate in Wet/Damp Conditions.
Do Not Operate in an Explosive Atmosphere.
Keep Product Surfaces Clean and Dry.
Terms in this Manual
These terms may appear in this manual:
WARNING. Warning statements identify conditions or practices that
could result in injury or loss of life.
CAUTION. Caution statements identify conditi ons or practices that
could result in damage to this product or other property.
Symbols and Terms on the Product
These terms may appear on the product:
H DANGER indicates an injury hazard immediately accessible as
you read the marking.
H WARNING indicates an injury hazard not immediately accessible
as you read the marking.
H CAUTION indicates a hazard to property incl uding the product.
The following symbol(s) may appear on the product:
CAUTION
Refer to Manual
vi
Double
Insulated
TSG95 Pathfinder™ User Manual
Environmental Considerations
This section provides information about the environment al impact of
the product.
Product End-of-Life Handling
Observe the following guidelines when recycling an instrument or
component:
Equipment Recycling. Production of this equipment required the extraction and use of natural resources. The equipment may contain substances that could be harmful to the environment or human health if
improperly handled at the product’s end of life. In order to avoid release of such substances into the environment and to reduce the use of
natural resources, we encourage you to recycle this product in an appropriate system that will ensure that most of the materials are reused
or recycled appropriately.
The symbol shown to the left indicates that this
product complies with the European Union’s
requirements acc ording to Directive 2002/96/EC
on waste electrical and electronic equipment
(WEEE). For information about recycling options, check the Support/Service section of the
Tektronix Web site (www.tektronix.c om).
Battery Recycling. This product may contain a Nickel Cadmium
(NiCd) rechargeable battery, which must be recycled or disposed of
properly. Please properly dispose of or recycle the battery according
to local government regula tions.
Restriction of Hazardous Substances
This product has been classified as Monitoring and Control equipment, and is outside the scope of the 2002/95/EC RoHS Directive.
This product is known to contain lead, cadmium, and hexavalent
chromium.
TSG95 Pathfinder™ User Manual
vii
Environmental Considerations
viii
TSG95 Pathfinder™ User Manual
Getting Started
Please read the following statements before using your new TSG95
Pathfinder, then see the rest of the section for tips on supplying power, making preliminary settings, and connecting the instrument.
WARNING. Install or replace batteries only with the instrument
switched OFF and the AC adapter disconnected. Electrical shock or
equipment damage can result.
CAUTION. Do not attempt to operate the TSG95 with an improper
AC adapter. Damage to the instrument can result.
For best results, use the AC adapter and power cord supplied with
the instrument. If the supplied power cord is incorrect for the local
AC power supply, contact your nearest Tektronix representative.
The adapter voltage must be 9 to 15 VDC with an open-circuit voltage less than 18 VDC; the adapter connector must have the negative
(--) polarity contact in the center.
CAUTION. The AC adapter connector has +12 V on the outer casing.
Damage may result if it is allowed to come in contact with live
circuitry or other equipment. To prevent this, unplug the adapter
from the AC source before you unplug the adapter from the TSG95.
NOTE. Internal batteries are recommended when using an external
power adapter. A loose adapter connector can cause the loss of some
user settings and unexpected results the next time the instrument is
powered on.
The battery type, disposable or rechargeable, must be selected using
through the Utility menu (see page 6). Failure to select the proper
battery type can result in damage to the batteries and product.
TSG95 Pathfinder™ User Manual
1
Getting Started
Replace the batteries only wit h standa rd AA batteries (1.2--1.5 V,
nominal), or the Tektronix rechargeable battery pack listed on
page 73.
For more information, please contac t your nearest Tektronix representative or field office. In the United States and Canada, you can
also call the Tektronix information number, 1-800-TEK-WIDE
(1-800-835-9433), between 8:00 am and 5:00 pm Pacific time.
Supplying Power
The TSG95 is DC powered. You may power it with the standard AC
adapter, the optional 9.6 V NiCad battery pack, eight standard AA
batteries, or a “BP” type battery pack with the correct voltage and
polarity. The external DC power connector is on the left side of the
instrument.
To install AA batteries or the battery pack, open the battery compartment of the TSG95 by pressing down on the cover and sliding it in
the direction of the inscribed arrow, as shown above. When the cover
tabs line up with the slots in the case, lift the cover away from the
instrument. Install batteries in alternating directions as indicated by
the graphic molded into the “floor” of the battery compartment. If
using the optional battery pack, take the time to identify both contacts and install the pack properly.
When selecting a power source for your TSG95, pl ease remember:
H Attempting to use an improper AC adapter can damage the
instrument. See the Caution statement on the previous page.
2
TSG95 Pathfinder™ User Manual
Getting Started
H There is no need to remove the optional NiCad battery pack for
recharging. The TSG95 will “trickle charge” the battery pack
whenever the standard AC adapter is used. Recharging the
battery pack fully can take up to 16 hours. Note that charging
will occur only if the adapter supplies at least 12V; make sure
that the adapter you use is appropriate for the local AC supply.
H AA batteries are not included with the instrument; obtain them
locally. Rechargeable AA batteries may be used, but they will
NOT be recharged automaticall y by the AC adapter. To recharge
AA batteries, remove them from the instrument and use an
appropriate battery charger. For safety, read and follow the
battery charger instructions. Do NOT attempt to recharge
standard alkaline batteries.
H After a minute with no key-press, the TSG95 will automatically
switch to lock out mode (as if you had pressed the Lock Out
key); the display back light will shut off to conserve battery
charge. When you want to resume keypad input, press
exit lock out mode.
H To guard against battery discharge if you forget to turn the
TSG95 off after use, enable Auto Power Down through the
Utility menu (see page 6).
Lock Out to
H The TSG95 can sense low battery voltage. It will warn you when
the charge is sufficient for approximately ten more minutes of
operation. The instrument will shut itself down when the battery
voltage becomes too low for reliable operation. For proper function of these features, the Battery Type must be set correctly in
the Utility menu.. Please see “Setting the Battery Type,” which
follows.
The ON key toggles instrument power On and Off.
Connecting the TSG95
Connect the Pathfinder to your equipment as you would any television test signal generator. Use 75Ω coaxial cable (for video) and be
sure that the signal path is properly terminated.
TSG95 Pathfinder™ User Manual
3
Getting Started
You may wish to confirm proper operation of your TSG95—and
gain familiarity with it—by first connecting it directly to a video or
waveform monitor.
A performance verification procedure, which some users may require
for acceptance testing, is included in the optional TSG95 service
manual (Tek p/n 070-8917-0x). To order a service manual, please
contact your nearest Tektronix representative or field office.
Keypad and Display Conventions
Please see the Instruction card (p/n 070-8915-00) supplied with your
TSG95 for a “tour” of the keypad and an explanation of the display
symbols. For your convenience, the following panels are taken from
the card.
12
3
Pin1=GND
Pin2=POS(+)
Pin3=NEG(--)
4
TSG95 Pathfinder™ User Manual
Getting Started
Definitions
There are two phrases used in this manual that deserve a little explanation. We at Tektronix sincerely hope that these explanations do
not confuse you further.
Signal Set— The group of signals that can be selected through the
TSG95 keypad at a given time. In the preprogrammed signal sets, all
of the signals are the same video standard. You may create a “User”
signal set, however, that contains both PAL and NTSC signals assigned to the letter keys of your choice, for easy selection.
Tone Level— One of four predefined audio output amplitudes that
may be selected through the Tone menu. The levels (1 through 4) are
“named” --10, 0, +4, and +8 dBu and calibrated to those amplitudes
when the TSG95 is manufactured. Qualified personnel, with the appropriate equipment, can rename and readjust the levels between --10
and +10 dBu. See page 26 for more discussion; see the Service
manual for instructions.
TSG95 Pathfinder™ User Manual
5
Getting Started
Preliminary Settings
Once the Pathfinder is up and running, you should choose some settings depending on how you’ll be using the instrument. These settings are made through the Utility menu. Invoke the Utility menu by
holding
directions to set the Video Standard and Bat tery Type, and enable
Auto Power Down (if desired).
Choose the Video Standard/Signal Set
1. Use the Y and B keys to scroll to the SELECT STNDRD menu
Lock Out down while pressing the ON key, then follow these
item.
2. Select, with the
that is appropriate to your application. The choices are: PAL;
NTSC; NTSC JAPAN, which includes NTSC signals with 0%
setup; and USER SIG SET, the user-configurable signal set tha t
can contain up to 26 signals of your choice—see page 22 for
more information.
3. When the name of the desired signal set is displayed, continue to
the Battery Type, or press any rectangular key to exi t the Utility
menu and return to normal operation.
A and " keys, the signal standard or “signal set”
Set the Battery Type
1. While still in the Utility menu, use the Y and B keys to scroll to
the BATTERY TYPE item.
2. Toggle to the selection that matches the type of battery you have
installed in your TSG95 by pressing either
are “rechargeable” and “disposable.” Select rechargeable when
using NiCad AA cells or the optional battery pack; choose disposable when you are using common Alkaline AA batteries,
which cannot be recharged.
3. When the correct battery type is displayed, continue to Auto
Power Down, or press any rectangular key to exit the Utility
menu and return to normal operation.
A or ". The choices
Enable (Disable) Auto Power Down
“Auto Power Down” will switch the instrument off when ten minutes
have passed without a key press. Enable this feature when you are
6
TSG95 Pathfinder™ User Manual
Getting Started
using battery power and operating in an environment in which unplanned shutdown of the TSG95 is permissible.
1. While still in the Utility menu, use the
the AUTO PWR DOWN item.
2. Disable/enable Auto Power Down by pressing either
new state will be in effect when you return to normal operation.
Enabled Auto Power Down is indicated by a “rotating line” symbol in the upper-right corner of the Pathfinder display.
3. Use the
press any rectangular key to exit the menu and resume normal
operation.
Other Settings
There are other, less important TSG95 settings that are configured
through the Utility menu and its Calibration submenu. See “The
Utility Menu,” beginning on page 19 for more information.
Y and B keys to scroll to
A or ".The
Y and B keys to access other Utility menu items, or
TSG95 Pathfinder™ User Manual
7
Getting Started
8
TSG95 Pathfinder™ User Manual
Operating Basics
To begin using the instrument as quickly as possible, see “Using your
TSG95,” below. For even more information on selected topics, turn
to the Reference section of this manual, beginning on page 19.
Using Your TSG95
Here’s what you can do with your TSG95. Instructions for each use
begin on the indicated page.
H Output either PAL or NTSC video test signals (page 11). You
can configure the instrument to generate:
h PAL signals
TSG95 Pathfinder™ User Manual
9
Operating Basics
h NTSC signals
h “NTSC JAPAN” signals that have 0 IRE (as opposed to 7.5
h A “User Signal Set” that can contain selections from all three
See page 19 in the Getting Started section for information on
choosing a video standard/signal set. Directions for creating (or
editing) your own User signal set begin on page 22.
H Generate audio tones (page 12). You may:
h Choose one of 13 discrete “factory” frequencies, or select a
h Designate three “User Frequencies” in the same range
h Select a factory-calibrated audio output level of --10, 0, +4, or
IRE, used in North America) setup
lists, as well as VITS a nd non --VITS versions of the same
signal (permitting you to choose VITS without entering the
Utility menu). If you want, the User signal set can even include both PAL and NTSC signals.
frequency sweep that sweeps repeatedly from 50 Hz to
20 kHz (page 12)
(page 25) and later output one of these frequencies
+8 dBu (page 13)
10
h Recalibrate the audio output to permit selection of any whole
dB level between --10 and --3 dBu, or 0 through +10 dBu
(qualified service technicians only—page 26)
h Include channel-ID “clicks” i n the audi o output (page 13)
H Add an ID message to the video signal (pages 13), edit it (page
14), and place it in the vertical interval or position it where
desired in the active video (page 14)
H Store up to eight ID messages for later use (page 15)
H Create a sequence of (up to four) stored ID messages that will
cycle continuously in the output (page 16)
H Save all the current instrument settings as a “Preset” for later
recall (page 17)
TSG95 Pathfinder™ User Manual
Operating Basics
Outputting Test Signals
1. Connect the TSG95 to your system and make t he appropriate
preliminary settings as described in the Getting Started section of
this manual.
2. Switch the instrument on or return to normal operation by pressing either the Bars or Other Signals key. By default, the instrument “powers up” with the settings that were in effect when it
was last switched off.
3. Select the desired test signal one of four ways:
h Press the Bars key repeatedly to select among the available
color bars signals. The signal will be output as soon as the
name is displayed on the TSG95 LCD.
h Press the Other Signals key repeatedly to select among the
“non-bars” signals. Again, the signal will be output as soon as
its name is displayed on the LCD.
h Use the
Y and B keys to scroll through the full list of signals
until you get to the desired signal.
h Press the appropriate letter key (A through U) to “direct-se-
lect” the signal. The available signals and their corresponding
keys are listed in Table 1, below.
Table 1: TSG95 Video Test Signals
PAL
Signal Set
75% Bars SMPTE Bars SMPTE Bars* A
100% Bars 75% Bars 75% Bars* B
75% Bars/Red Convergence SNG Bars* C
100% Bars/Red Safe Area Convergence D
Convergence Red Field Safe Area E
Pluge 50IRE Flat Field Red Field* F
Safe Area 100IRE Flat Field 50IRE Flat Field G
Green Field Black Burst 100IRE Flat Field H
Blue Field 5-Step Black Burst* I
Red Field Multiburst 5-Step J
100% Flat Field NTC7 Composite Multiburst K
NTSC
Signal Set
NTSC JAPAN
Signal Set Key
TSG95 Pathfinder™ User Manual
11
Operating Basics
Table 1: TSG95 Video Test Signals (Cont.)
PAL
Signal Set
50% Flat Field NTC7 Combination NTC7 Composite L
0% Flat Field FCC Composite NTC7 Combination M
Multiburst Cable Multiburst FCC Composite N
60% Sweep Cable Sweep Cable Multiburst O
5-Step SIN X/X Cable Sweep P
Mod. 5-Step Matrix SIN X/X Q
Matrix 0IRE,noBurst Matrix* R
Field Square Wave Field Square Wave 0IRE,noBurst S
Bounce Bounce Field Square Wave T
— — Bounce U
* These signals differ from those in the NTSC signal set.
NTSC
Signal Set
NTSC JAPAN
Signal Set
Key
Outputting Audio Tones
H Toggle the audio output On/Off by pressing the Tone On/Off key.
Selecting the Audio Frequency
1. Enter the Tone menu (press Shift, then Tone On/Off). The first menu
item is TONE FREQ.
12
2. Use the
A and " keys to select the desired frequency. The
choices are:
50, 63, 125, 250, and 400 Hz;
1, 2, 4, 8, 10, 12.5, 16, and 20 kHz;
USER1, USER2, USER3; and
SWEEP 50--20K (a 50 Hz--20 kHz sweep)
You may specify the USER# frequencies through the Utility/Calibration menu; see page 25. (Note that there is no default value
for USER3; therefore, the USER3 choice will not appear in a
new—or reset—instrument.)
You can pause a sweep at any of its 27 frequency steps (listed in
Table 10 in the Characteristics section) by pressing
Enter when in
the TONE FREQ menu item and SWEEP 50--20K is selected.
TSG95 Pathfinder™ User Manual
Operating Basics
The message SWEEP PAUSED will appear on the display. You
may find this capability useful for checking a problem noticed at
a particular frequenc y while sweeping. Press
Enter a second time
to resume the frequency sweep.
3. Tone frequencies are in effect as soon as they are i ndicated on the
display. Scroll down to other Audio menu items with the
B key,
or exit the menu by pressing any rectangular key.
Setting the Audio Tone Level (Amplitude)
1. In the Audio menu, use the B or Y keytoreachtheTONE
LEVEL item.
2. Use the
A and " keys to select the desired level. When manufac-
tured, the four TSG95 tone levels are designated as --10, 0, +4,
and +8 dBu and calibrated to those amplitudes. Qualified technicians may rename and recalibrate the tone levels to any integer
value in the ranges of --10 to --3 dBu and 0 to +10 dBu. See page
26 for more information; see the optional Service manual for
instructions.
3. The new tone level will be in effect immediately. Scroll to other
Audio menu items with the
B or Y key, or exit the menu by
pressing any rectangular key.
Inserting Channel- ID Clicks in the Audio
When click is enabled, the instrument will insert a single click into
channel 1, and a double click into channel 2.
1. In the Audio menu, use the
2. Use the
A and " keys to toggle the ID clicks On/Off.
3. Scroll to other Audio menu items with the
B or Y key to reach the CLICK item.
B or Y key, or exit the
menu by pressing any rectangular key.
Inserting ID Messages
H Toggle the ID message or cycle on and off by pressing the ID
On/Off
key. The status of the ID—on, off, or cyc (cycle)—is
indicated on the second line of the TSG95 display, as shown in
the next illustration.
TSG95 Pathfinder™ User Manual
13
Operating Basics
Editing ID Messages
In the TSG95, only the current ID message may be edited. The “current” message is the ID that will appear in the output if ID=on. (The
current ID will not appear in the output when ID=off, and may not
appear in the output if ID=cyc, but it can still be edited and saved in
either case.)
1. Press
ID Edit. The current ID message will appear on the LCD.
2. Use the arrow keys to position the blinking underline cursor and
enter text with the alphanumeric keys.
3. Press
Enter or one of the rectangular keys to terminate the ID edit;
the new ID will become the current ID. If ID=on, the new ID will
be inserted into the video output. Note tha t if a stored ID or preset is recalled before new current ID is saved (see “Saving ID
Messages,” page 15), the changes will be overwritten and lost.
Positioning ID Messages
The current ID can be positioned within the safe area of active video,
or the first line can be placed in the vertical interval.
1. Press
2. Change the horizontal (H) position with the A / " keys and the
Shift, then ID Edit. The LCD will look something like this:
vertical (V) position with the
Y / B keys.
The H position can range from ØØ (left edge of safe area) to
69--3n,wheren is the number (1--16) of the right-most character
position occupied by the message. Note that, when editing a short
message (n<16) that has been placed as far to the right as pos-
sible, the end character positi ons will be occupie d by
symbols.
You will not be able to put characters in those positions unt il the
message is repositioned to the left.
14
TSG95 Pathfinder™ User Manual
Operating Basics
The V setting can range from ØØ (top of safe area) to 41 (bottom). The vertical i nterval is indicated by V=vert; it is one
Y
key-press above V=ØØ. Only t he fi rst ID message line will fit
into the vertical interval.
3. When the ID message is in the desired position, press any rectangular key to resume normal operation. Note that the position of
an ID message is part of its definition. You must save the ID message (see below) to save its new location. If a stored ID or preset
is recalled before the current ID (in its new location) is saved, the
new location will be lost.
Saving ID Messages
The contents and position of the current ID can be stored in one of
eight ID# locations for later recall or inclusion in an ID cycle.
1. Press
Shift, then Recall. The display will change to resemble this
illustration:
The first line of the current message will occupy the bottom half
of the display. You may scroll between the first and second lines
of the message with the
2. Use the
A and " keys to select the ID# location (1 through 8) in
B and Y keys.
which the current message is to be stored. Note that the previous
contents of that location will be overwritten.
3. When the desired storage number is displayed, press
Enter to save
the message; press any rectangular key to abort the operation and
return the instrument to normal operation.
Recall the message later with the
Recall key, as described next.
Recalling ID Messages
1. Press the Recall key.
2. Use the
ID# 1 through ID# 8. The first line of the message wil l appear on
the second display line; press the
A and " keys to select one of the ID message numbers,
B key to see the second line of
TSG95 Pathfinder™ User Manual
15
Operating Basics
the message. For example, if the saved ID# 1 is “TEKTRONIX
TSG95 PAL/NTSC,” the display will first look like this:
Pressing the B key will change it to this:
Note that an empty character position will show as a black space
in the video, while the
video will show through a Blank.
symbol indicates a “Blank.” Underlyi ng
3. Press
Enter to recall the ID message.
4. Press any rectangular key to exit the Recall menu and resume
normal operation.
Setting up an ID Cycle
An ID cycle is a sequence of up to four stored ID messages. Once
you set up a cycle, it will be inserted in the video output if: ID is
toggled On with the
menu is set to “on.” When those two conditions are met, the TSG95
display will indicate ID=cyc during normal operation.
1. Edit and save the ID messages that you want to cycle (see
“Editing ID messages,” page 14). Note the numbers of the IDs,
and the order in which they should appear.
2. Enter the ID menu by pressing
3. Press
B twice to reach the CYCLE SETUP item, then press Enter.
The display will resemble the following illustration.
ID On/Off key, and the ID CYCLE item of the ID
Shift, then ID On/Off.
16
TSG95 Pathfinder™ User Manual
Operating Basics
4. Use the
A / " keys to move the underline cursor to one of the
four sequence “time intervals.” The IDs will appear in the order
that their numbers appear—from left to right—on the display.
5. Use the
Y / B keys to select the number of the ID to appear
during each interval. Choose the hyphen (it’s below #1) to
eliminate the interval. If you want a blank interval (that is, a time
gap between ID messages), you must create an all-blank ID to put
in that interval.
6. When the correct ID numbers occupy all four time interval positions, press a rectangular key to exit the ID menu. The cycle sequence information will be written to the instrument’s memory.
Note that the TSG95 “remembers” the ID#, not the actual
message. Therefore, if you save a new message as ID# 1, the new
message will appear the next time an ID cycle comes to a time
interval in which ID# 1 is displayed.
7. To set the duration of each cycle time interval, re-enter the ID
menu (by pressing
Shift, then ID On/Off), then press the B key to
reach the CYCLE TIME menu item. Use the horizontal arrow
keys to select the duration between one and nine seconds.
8. To insert the ID cycle instead of the current ID, scroll up the ID
menu to the ID CYCLE (on/off) selection. Press
A or " to toggle
the selection. The cycle will appear in the picture if toggled on
with the
ID On/Off key.
Saving (Storing) Presets
1. Press Shift and then Recall.
2. Scroll through the “STORE ID” (#1 through #8) and “STO PRESET” (#1 through #4) locations with the
of the current ID will be displayed on the sec ond line of the LCD.
3. When the desired storage number is displayed, press
the current instrument settings. Remember that storing the current
settings will overwrite the contents of the selected PRESET#
location.
4. Press any rectangular key to exit the Store function.
A preset includes most of the instrument settings in effect when the
preset is saved.. The settings not stored in a preset are: Standard/signal set; auto power down status; user tone frequencies; and battery
TSG95 Pathfinder™ User Manual
A / " keys. The first line
Enter to save
17
Operating Basics
type. While the current tone level (one of four possible; see page 5)
becomes part of the preset, its name and actual amplitude—both set
through the Calibration menu—are not.
Note also that while the current ID is saved, the particular messages
used in a saved cycle are not stored. Thus, if the cycle stored with a
preset “remembers” to display ID# 4 (for example), the latest message in ID# 4 will appear whenever that preset is recalled. Remember, editing an ID message can have an affect on what you get when
you recall a preset.
Recalling Presets
1. Press Recall.
2. Scroll through the “RECALL ID” (#1 through #8) and “RCL
PRESET” (#1 through #4) locations with the
line of the preset’s “current” ID message will occupy the bott om
line of the display; use the
A / " keys. The first
B key to see the second line.
3. When the desired storage number is displayed, press
Enter to
recall the preset. The video and audio output of the TSG95 will
return to the signal and tone that was select ed when the preset
was stored.
4. Press any rectangular key to exit the Recall menu.
18
TSG95 Pathfinder™ User Manual
Reference
This section discusses several aspects of the TSG95 that are manipulated or configured through the Utility menu. Important topics that
are not discussed elsewhere in this manual include:
H Editing the User signal set, page 22
H Selecting User tone frequencies, page 25
H Audio Tone Level CAUTIONs, page 26
H Factory Reset, page 28
The Utility Menu
To enter the Utility menu, hold the Lock Out button down while
pressing the ON button. To exit the Utility menu and resume normal
operation, press any of the rectangular buttons at the top of the keypad, or scroll to the EXIT MENU item and press
Enter.
The Utility menu items are listed below. Use the up (
(
B) arrow keys to scroll up and down the list. Note that there are two
submenus: Calibration (CALIB) and Diagnostic (DIAGN). These
submenus are discussed in separate sections, below.
Y
B
1 SELECT STNDRD
PAL A"
1. Standard/Signal Set select; use the A or " key to select the desired set of signals. The choices are: PAL, NTSC, NTSC JAPAN
(which includes NTSC signals with 0% Setup), and USER SIG
SET.
Y
B
2 SEL USER SIGS
Press Enter
2. This item permits construction or editing of a custom “User Signal Set” that can contain up to 26 signals chosen from a list of all
the signals that the TSG95 can generate. Thus you can create a
User signal set that has both PAL and NTSC signals. Or you can
make a signal set that contains only the signals that you use regu-
TSG95 Pathfinder™ User Manual
Y) and down
19
Reference
larly and “bind” them to letter keys that are easy for you to remember. For example, you can assign the Bounce signal to
Matrix without VITS to
Field to
R. (Note that control of VITS insertion through the next
M, a Matrix with VITS to N,andtheRed
Utility menu item is disabled when the User signal set is active.)
Instructions for editing the Use signal set—with a list of all
available signals—begin on page 22.
Y
B
3 VITS SIGNALS
VITS SIGNALS A"
3. VITS (Vertical Interval Test Signals); use the A or " key to
toggle between VITS SIGNALS and NO VITS SIGS. When
VITS SIGNALS is selected, the listed signals will include VITS
(see Tables 4 and 8 in the Characteristics section) whenever they
are output.. This utility is disabled when the User signal set is
selected.
Signals that can include VITS
PAL 100% FLD
PAL 50% FLD
PAL 0% FIELD
PAL MATRIX
NTSC 100 IRE
NTSC 50 IRE
NTSC BLK BRST
NTSC MATRIX
JPN 100 IRE
JPN 50 IRE
JPN BLCK BRST
JPN MATRIX
B,a
20
Y
B
4 AUTO POWR
DOWN
disable A"
4. Auto power down; use the left (A)orright(") arrow key to
toggle between enabled and disable d.
TSG95 Pathfinder™ User Manual
Reference
The Auto Power Down function shuts the TSG95 off to conserve
battery charge when there has been no key press for approximately 10 minutes. The Auto Power Down symbol (a rotating line)
appears in the upper-right corner of the display when the func tion
is enabled.
Y
B
5 BATTERY TYPE
disposable A"
5. Battery type; use the A or " key to toggle between disposable
(Alkaline AA cells) or rechargeable (NiCad cells or the optional
battery pack). For best results when operating the TSG95 under
battery power, this setting must match the installed type of battery.
Y
B
6CALIBSUBMENU
Press Enter
6. Press Enter to “drop into” the Calibration submenu. This submenu
includes items for specifying the User tone frequencies, choosing
and calibrating audio tone amplitudes, and performing a “Factory
Reset.” Please see the Calibration Submenu section, which begins
immediately after this discussion of top level items.
Y
B
7 DIAGN SUBMENU
Press Enter
7. Press Enter to “drop into” the Diagnostic submenu. T he Diagnostic submenu functions are intended for use when the instrument is
manufactured or serviced. Plea se see the optiona l Service manual
(Tektronix p/n 070-8917-0
Y
B
EXIT MENU
Press Enter
8. To exit the Utility menu, scroll to this item and press Enter.The
instrument will resume normal operation (notice that changes
made through the Utility menu items and submenus will take effect immediately).
TSG95 Pathfinder™ User Manual
X) for more information.
21
Reference
Creating/Editing the User Signal Set
1. When in the top level of the Utility menu, use the Y / B keys to
scroll the the SEL USER SIGS item.
Y
B
2 SEL USER SIGS
Press Enter
2. Press Enter to edit the User signal set. The display will become:
Key: A A" Enter
Y
NO SIGNAL
B
3. Select a letter key from A to Z with the A and " keys, or simply
press the letter key itself.
4. Use the
Y and B keys to choose the signal (PAL, NTSC, or
NTSC JAPAN) to be “associated” with the letter key. The available signals are listed in order below. Signals that include a VITS
are indicated by an asterisk (*). The “No Signal” selections that
separate the PAL, NTSC, and JPN portions of the list may be
used to designate a letter key as “undefined.”
The specified signal will become part of the User signal set. You
can select it (when the User signal set is active) with normal signal selection techniques: see t he Operating Basics sect ion of this
manual or the TSG95 Instruction card for details.
5. Add more signals to the User set by selecting additional letter
keys (step 3) and choosing new signals for them (step 4). When
you’re done, press
Enter to exit the “SEL USER SIGS” item.
Signals available f or the User Signal Set
PAL 75% BARS
PAL 100% BARS
PAL75%/RED
PAL 100% / RED
PAL CONVERGENCE
PAL PLUGE
PAL SAFE AREA
PAL GREEN FIELD
22
TSG95 Pathfinder™ User Manual
Signals available f or the User Signal Set (Cont.)
PAL BLUE FIELD
PAL RED FIELD
PAL 100% FIELD
PAL 100% FLD VT*
PAL 50% FIELD
PAL 50% FLD VT*
PAL 0% FIELD
PAL 0% FIELD VT*
PAL MULTIBURST
PAL 60% SWEEP
PAL 5-STEP
PAL MOD 5-STEP
PAL MATRIX
PAL MATRIX VTS*
PAL FLD SQ WAVE
PAL BOUNCE
NO SIGNAL
NTSC SMPTE BARS
NTSC 75% BARS
NTSC CONVERGENCE
NTSC SAFE AREA
NTSC RED FIELD
NTSC 100 IRE
NTSC 100 IRE VT*
NTSC 50 IRE
NTSC 50 IRE VT*
NTSC BLK BURST
NTSC BLK BRST V*
NTSC 5-STEP
NTSC MULTIBURST
NTSC NTC7 CMPST
NTSC NTC7 COMB.
NTSC FCC CMPST
NTSC CABLE MB
Reference
TSG95 Pathfinder™ User Manual
23
Reference
Signals available f or the User Signal Set (Cont.)
NTSC CABLE SWP
NTSC SIN X/X
NTSC MATRIX
NTSC MATRIX VTS*
NTSC 0IREnoBRST
NTSC FLD SQ WAV
NTSC BOUNCE
NO SIGNAL
JPN SMPTE BAR S
JPN 75% BARS
JPN SNG BARS
JPN CONVERGENCE
JPN SAFE AREA
JPN RED FIELD
JPN 100 IRE
JPN 100 IRE VTS*
JPN 50 IRE
JPN 50 IRE VTS*
JPN BLACK BRST
JPN BLCK BRST V*
JPN 5-STEP
JPN MULTIBURST
JPN NTC7 CMPST
JPN NTC7 COMB.
JPN FCC CMPST
JPN CABLE MB
JPN CABLE SWP
JPN SIN X/X
JPN MATRIX
JPN MATRIX VTS*
JPN 0IRE NoBRST
JPN FLD SQ WAVE
JPN BOUNCE
* Includes VITS (Vertical Interval Test Signal)
24
TSG95 Pathfinder™ User Manual
The Calibration Submenu
Only the “SET USR# TONE” items of this menu are intended for use
by the typical TSG95 user. Be sure you know what you are doing
before using or changing any of the other submenu items.
Y
1 CALIBRATION
B
UNLOCKED A"
1. Toggle calibration from UNLOCKED to LOCKED with the A or
" key. When calibration is locked, only this and the E XIT SUB-
MENU menu items will be visible; when unlocked, all items in
the calibration submenu will be available.
Y
B
2 SET USR1 TONE
10395 Hz A"
2. Set the “USER1” tone frequency with either the A and " keys, or
through direct input from the keypad. The keypad is automatically shift ed when in this menu item, and only the number keys
(0--9) are ac tive. The selection range is 50 through 20000 Hz; the
factory default is 10395 Hz.
Reference
Y
B
3 SET USR2 TONE
7867 Hz A"
3. Set the “USER2” tone frequency, again with e ither the A and "
keys, or through direct input from the keypad. Factory default is
7867 Hz.
Y
B
4 SET USR3 TONE
-- HzA"
4. Set the “USER3” tone frequency, again with e ither the A and "
keys, or through direct input from the keypad. Disable the User
tone by pressing “--” (D). Factory default is no selection/disabled ,
as illustrated.
TSG95 Pathfinder™ User Manual
25
Reference
Y
B
5 TONE MIN LEVL
ADJUST POT
5. Used during manufacture to set tone level DC offset. See the
TSG95 Service manual for more information.
Y
B
6 NAME TONE LV1
--10dBu A"
6. Name tone level 1: combined with the next menu item, this permits qualified users with the appropriate equipment to change
tone level 1 from the factory default value of --10 dBu to a value
of their choice. The possible selections are --10 to --3 dBu and 0
to +10 dBu. This item only changes the name of the level as it
appears in the Tone menu.
CAUTION. Changing a tone level name (menu items 6, 8, A, and C)
without recalibrating the amplitude through the following menu item
is not recommended. Please see the Service manual (Tektronix p/n
070-8917-0
X) for more information. A FACTORY RESET will NOT
restore the tone level names to their original values.
26
Y
B
7 CAL TONE L V1
--10dB: Low 17 A"
7. Calibrate tone level 1: this item is used during manufacture to
calibrate the first tone level to --10 dBu. Qualified users may also
use it to readjust the tone amplitude to accurately reflect the level
name chosen in the previous menu item. The range of adjustment
is Low 00 to Hgh (high) 99.
CAUTION. Changing the “CAL TONE LV#” settings (menu items 7, 9,
B, and D) will affect the audio tone amplitude and can give unexpected or inaccurate results. A FACTORY RESET will NOT restore
these settings to their original values. These settings should be
changed by Qualified Service Personnel ONLY. Ple ase see the
TSG95 Service manual (p/n 070-8917-0
X) for more information.
TSG95 Pathfinder™ User Manual
Reference
To ensure your ability to restore the original factory tone
calibration settings in the case of inadvertent changes, please
record the following information:
TSG95 serial number:
Original --10 dB setting: (e.g., Low 17)
Also take the time to record the settings for the remaining tone
levels in menu (list) items 9, B (11), and D (13).
Y
8 NAME TONE LV2
B
0dBu A"
8. Name tone level 2: use this—and the next menu item—to change
tone level 2 from the factory default value of 0 dBu to a value of
your choice. See menu/list item 6, above.
Y
B
9 CAL TONE L V2
0dB: Hgh 00 A"
9. Calibrate tone level 2: please see menu/list item 7, above.
Original 0 dB setting:
Y
A NAME TONE LV3
B
+4dBu A"
10. Name tone level 3: use this—with the next menu item—to
change tone level 3 from the factory default value of +4 dBu to a
value of your choice. See menu/list item 6, above.
Y
B
B CAL TONE L V3
+4dB: Hgh 25 A"
11. Calibrate tone level 3: please see menu/list item 7, above.
Original +4 dB setting:
TSG95 Pathfinder™ User Manual
(e.g., Low 99)
(e.g., Hgh 25)
27
Reference
Y
B
C NAME TONE LV4
+8dBu A"
12. Name tone level 4: combined with the next menu item, this permits qualified users with the appropriate equipment to change
tone level 4 from the factory default value of +8 dBu to a value
of their choice. See menu/list item 6, above.
Y
B
D CAL TONE LV4
+8dB: Hgh 65 A"
13. Calibrate tone level 4: please see menu/list item 7, above.
Original +8 dB setting:
Y
E VIDEO CAL SIG
B
(e.g., Hgh 65)
NORMAL SIG A"
14. This item selects special output signals used during manufacture.
Y
FFACTORYRESET
B
15. Press En ter to restore most of the original “as manufactured”
instrument settings. WARNING: All user selections, ID Mes-
sages, and Presets will be lost. A factory reset may be appropriate when you wish to “ erase” the User signal set, all ID messages,
or all Presets. Factory Reset will not restore the original audio
tone level names or calibration.
Y
B
EXIT SUBMENU
Press Enter
16. To exit the Calibration submenu, scroll to this item and press
Enter. The instrument will return to the “CALIB SUBMENU”
item in the Utility menu. To exit the entire Utility menu from this
point, and resume normal instrument operation, press any rectangular key.
28
TSG95 Pathfinder™ User Manual
Characteristics
The information in this section is included for the convenience of the
TSG95 operator. It is not intended as a complete list of guaranteed
specifications. The waveform illustrations represent properly decoded output. For a full list of instrument specifications, as well as
performance verification and adjustment procedures, please see the
TSG95 Service Manual (Tektronix p/n 070-8917-0
NOTE. Shielded cables were used in the EMI certification of this
instrument; t herefore, it i s recommended that shielded cables be used
when operating. (EC 92)
Safety Standard Compliance
The following safety standards apply to the TSG95:
H ANSI S82 — Safety Standard for Electrical and Electronic Test,
Measuring, Controlling, and Related E quipment, 1988.
H CAN/CSA C22.2 No. 231 M89 — CSA Safety Requirements for
Electrical and Electronic Measuring and Test Equipment.
H IEC1010-1 — Safety Requirements for Electrical Equipment for
Measurement, Control, and Laboratory Use (1990).
X).
H UL1244 — Standard for Electrical and Electronic Measuring and
Testing Equipment, Second Edition (1980).
TSG95 Pathfinder™ User Manual
29
Characteristics
EC Declaration of Conformity - EMC
Meets intent of Directive 89/336/EEC for Electromagnetic Compatibility. Compliance was demonstrated to the following specifications
as listed in the Official Journal of the European Communities:
EN 55103. Product family standard for audio, video, audio-visual and
entertainment lighting control apparatus for professional use.
H Environment E2 — commercial and light industrial
H Part 1 Emission
h EN 55022. Class B radiated and conducted emissions
h EN 55103--1 Annex A. Radiated magnetic field emissions
h EN 55103--1 Annex B. Inrush current
H Part 2 Immunity
h IEC 61000--4--2. Electrostatic discharge immunity
h IEC 61000--4--3. RF electromagnetic fie ld immunity
h IEC 61000--4--4. El ectrical fast transient / burst immunity
30
h IEC 61000--4--5. Power line surge immunity
h IEC 61000--4--6. Conducted RF Immunity
h IEC 61000--4--11. Voltage dips and interruptions immunity
EN 61000- 3- 2. AC power line harmonic emissions
Australia / New Zealand Declaration of Conformity - EMC
Complies with EMC provision of Radiocommunications Act per these standard(s):
H AS/NZS 2064.1/2. Industrial, Scientific, and Medical Equipment:
1992
NOTE. High quality shielded cables must be used to ensure
compliance.
TSG95 Pathfinder™ User Manual
Specification Tables
Table 2: General PAL Test Signal Characteristics
CharacteristicsCharacteristics
Characteristic
Luminance Amplitude
Accuracy
Chrominance-to-Luminance Gain
Blanking Level 0V± 50 mV
Rise Time Accuracy ± 10% Except where otherwise specified
Burst Amplitude 300 mV ± 2% of 700 mV
Sync Amplitude 300 mV± 2% of 700 mV
Sync Rise Time 250 ns
Output Impedance 75 Ω
Return Loss ≥ 36 dB at 4.2 MHz
Subcarrier Stability 4.43361875 MHz ±10 Hz Over a temperature range of 0 to
Signal-to-Noise Ratio ≥ 60 dB; Signal passed through a
Chrominance-to-luminance
Delay
SCH Phase 0°±5°
Frequency Response
to 4.8 MH z
to 5.8 MH z
Field Tilt ≤ 0.5%
Line Tilt ≤ 0.5%
5-Step Linerarity Error ≤ 1% Relative step matching.
Differential Gain ≤ 1% Averaged, ≤ 5% typical
Differential Phase ≤ 1° Averaged
2T Pulse K -Factor ≤ 0.5% Ringing ≤ 1.5% peak.
Performance
Requirements
± 1% of 700 mV
± 2% of 700 mV 1% typical.
≤ 10 ns ≤ 5nstypical.
Flat within ± 2%
Flat within ± 3%
Supplemental Information
+40° C. Annual adjustment
required.
continuous random noise
measurement low pass filter,
Fc=5 MHz.
Sin(X)/X ± 1dBto5MHz
REV AUG 1994
TSG95 Pathfinder™ User Manual
31
Characteristics
Table 2: General PAL Test Signal Characteristics (Cont.)
Characteristic
Luminance Rise Time Digitally derived 250 ns ±50 ns
Chrominance Rise Time Digitally derived 350 ns ±50 ns
Burst Rise Time Digitally derived 350 ns ±50 ns; greater than BBC
Line Timing Digitally derived All signals comply with PAL timing
Front Porch D uration Digitally derived 1.55 μs minimum
Line Blanking Interval Digitally derived 12.0μs ±0.15 μs, measured at
Breezeway Duration Digitally derived 900ns ±50 ns
Line Sync Duration Digitally derived 4.7μs ±50 ns at half-amplitude
Vertical Serration Duration Digitally derived 4.7μs ±50 ns at half-amplitude
Equalizing Pulse Duration Digitally derived 2.35μs ±50 ns at half-amplitude
Burst
Delay from Sync
Duration
Performance
Requirements
Digitally derived
Supplemental Information
Except where otherw ise specified
Except where otherw ise specified
specifications to prevent ringing.
specifications; see Figures 1
through 26.
the 50% point of active video.
5.6μs ±50 ns from half-amplitude point of Sync
2.25μs ±0.1 μs (10 cycles of
subcarrier)
32
TSG95 Pathfinder™ User Manual
Table 3: Individual PAL Test Signal Characteristics
Characteristic Information
75% Bars
Luminance Rise Times
SeeFigure1
150 ns
Luminance Subcarrier Subcarrier
Packet Characteristics:
Amplitude Amplitude Phase
(mV) (mV
White
Yellow
Cyan
Green
Magenta
Red
Blue
100% Bars
Luminance Rise Times
700.0 0.0 0.0
465.1 470.5 167.1
368.0 663.8 283.5
308.2 620.1 240.7
216.8 620.1 60.7
157.0 663.8 103.5
59.9 470.5 347.1
SeeFigure2
150 ns
Luminance Subcarrier Subcarrier
Packet Characteristics:
Amplitude Amplitude Phase
(mV) (mV
White
Yellow
Cyan
Green
Magenta
Red
Blue
75% Bars over Red
Luminance Rise Times
700.0 0.0 0.0
620.2 627.3 167.1
490.7 885.1 283.5
410.9 826.8 240.7
289.1 826.8 60.7
209.3 885.1 103.5
79.8 627.3 347.1
See Figures 1 and 3
150 ns
Field Timing
Color Bars
Red
Packet Characteristics
100% Bars over Red
Luminance Rise Times
Lines 24--166 & 336--478
Lines 167--310 & 479--622
See 75% Bars, above.
See Figures 2 and 4
150 ns
Field Timing
Color Bars
Red
Bars Packet Chars.
Red Luminance Pedestal
Red Chrominance Ampl.
Red Chrominance Phase
Lines 24--166 & 336--478
Lines 167--310 & 479--622
See 100% Bars, above.
209.3 mV
885.1 mV
p--p
103.5°
) (degrees)
p--p
) (degrees)
p--p
CharacteristicsCharacteristics
TSG95 Pathfinder™ User Manual
33
Characteristics
Table 3: Indi vidual PAL Test Signal Characteristics (Cont.)
InformationCharacteristic
Convergence
Amplitude
Pattern
Pulse HAD
Pluge
Pluge Levels
Lum Ref Levels
Safe Area
Amplitude
Green Field
Luminance Pedestal
Chrominance Amplitude
Chrominance Phase
Blue Field
Luminance Pedestal
Chrominance Amplitude
Chrominance Phase
Red Field
Luminance Pedestal
Chrominance Amplitude
Chrominance Phase
See Figures 5 and 6
525.0 mV
19 vertical lines and 14 horizontal lines per field
225 ns
SeeFigure7
--14 mV and +14 mV
700 mV, 450 mV, 200 mV, and 110 mV
SeeFigure9
525 mV
SeeFigure8
308.2 mV
620.1 mV
p--p
240.7°
SeeFigure10
59.9 mV
470.5 mV
p--p
347.1°
SeeFigure4
157.0 mV
663.8 mV
p--p
103.5°
Flat Field
100%
50%
0%
Multiburst
White Bar Amplitude
Packet Amplitudes
Pedestal
Burst Frequencies
Packet Rise Time
60% Reduced Line Sweep
Frequency
Amplitude
Markers
5--Step (Grey Scale)
Amplitude
700 mV (see Figure 11)
350 mV (see Figure 12)
0 mV (see Figure 13)
SeeFigure14
420 mV
p--p
420 mV
(Equal width packets)
p--p
350 mV
0.5, 1.0, 2.0, 4.0, 4.8, and 5.8 MHz
350 ns typical
SeeFigure15
500 Hz to 6.5 MHz
420 mV
p--p
1, 2, 3, 4, 5, and 6 MHz
SeeFigure16
700 mV
34
TSG95 Pathfinder™ User Manual
Table 3: Indi vidual PAL Test Signal Characteristics (Cont.)
InformationCharacteristic
Modulated 5 Step
Luminance Amplitude
Chrominance Amplitude
Chrominance Phase
Matrix (Signal)
CCIR 17
CCIR 330
CCIR 331
CCIR 18
75% Color Bars
Sin(X)/X
75% Red Field
15 kHz Square Wave
50% Flat Field
Shallow Ramp
UK ITS 1
UK ITS 2
Field Square Wave
SeeFigure17
700, 560, 420, 280, and 140 mV
280.0 mV
p--p
60.7°
(Lines)
24--47 & 336--359 See Figure 18
48--71 & 360--383 See Figure 19
72--95 & 384--407 See Figure 20
96--119 & 408--431 See Figure 21
120--143 & 432--455 See Figure 1
144--166 & 456--478 See Figure 22
167--190 & 479--502 See Figure 3
191--214 & 503--526 See Figure 23
215--238 & 527--550 See Figure 12
239--262 & 551--574 See Figure 24
263--286 & 575--598 See Figure 25
287--310 & 599--622 See Figure 26
See Figures 11 and 13
Field Timing
Lines (White)
Lines at Blanking
Amplitude
Bounce
Amplitude
Rate
Lines 89--244 (and 401--556)
All remaining active lines
700 mV
See Figures 11 and 13
0 or 700 mV flat field
≈ 1.0 second high, ≈ 1.0 second low
CharacteristicsCharacteristics
Table 4: PAL Vertical Interval Test Signals (VITS)
Waveform Line(s)
CCIR 17
CCIR 18
ITS 1
ITS 2
CCIR 330
CCIR 331
17
18
19 and 332
20 and 333
330
331
TSG95 Pathfinder™ User Manual
35
Characteristics
Table 5: General NTSC Test Signal Characteristics
Characteristic
Luminance Amplitude
Accuracy
Chrominance-to-Luminance Gain
Blanking Level 0V± 50 mV
Rise Time Accuracy ± 10% Except where otherwise specified
Burst Amplitude 285.7 mV (40 IRE) ± 2%
Sync Amplitude 285.7 mV (40 IRE) ± 2%
Sync Rise Time 140 ns ± 20 ns
Output Impedance 75 Ω
Return Loss ≥ 36 dB at 4.2 MHz
Subcarrier Stability 3.579545 MHz ± 10 Hz Over a temperature range of
Signal-to-Noise Ratio ≥ 60 dB; Signal passed through a
Chrominance-to-Luminance Delay
SCH Phase 0°±5°
Frequency Response Flat within ± 2%
Field Tilt ≤ 0.5%
Line Tilt ≤ 0.5%
5-Step Linearity Error ≤ 1% Relative step matching.
Differential Gain ≤ 1% Averaged
Differential Phase ≤ 1° Averaged
2T Pulse K -Factor ≤ 0.5% Ringing ≤ 1.5% peak.
Luminance Rise Time Digitally derived 250 ns
Performance
Requirements
± 1% of 714.3 mV
(100 ± 1IRE)
± 2% of 714.3 mV
(100 ± 2IRE)
of 100 IRE
of 100 IRE
≤ 15 ns 10 ns typical. Measured with the
to 4.2 MH z
Supplemental Information
1% typical.
0to+40° C. Annual adjustment
required.
continuous random noise measurement low pass filter, Fc=5
MHz.
NTC7 Composite signal.
Sin(X)/X ± 1dBto4.2MHz
36
REV AUG 1994
TSG95 Pathfinder™ User Manual
Table 5: General NTSC Test Signal Characteristics (Cont.)
CharacteristicsCharacteristics
Characteristic
Chrominance Rise Time Digitally derived 400 ns
Burst Rise Time Digitally derived 400 ns
Line Timing Digitally derived See Figures 27 through 49
Front Porch D uration Digitally derived 1.5 μs ± 0.1 μs
Line Blanking Interval Digitally derived 10.9 μs ± 0.2 μs, measured at
Breezeway Duration Digitally derived 600 ns ± 100 ns
Line Sync Duration Digitally derived 4.7 μs ± 100 ns
Vertical Serration Duration Digitally derived 4.7 μs ± 100 ns (HAD)
Equalizing Pulse Duration Digitally derived 2.3 μs ± 100 ns (HAD)
Burst
Delay from Sync
Duration
Performance
Requirements
Digitally derived
Supplemental Information
the 20 IRE point of active video.
Half-amplitude duration (HAD)
5.308 μs ±35 ns (19 cycles of
subcarrier)
2.51 μs ± 0.1 μs (9 cycles of
subcarrier)
TSG95 Pathfinder™ User Manual
37
Characteristics
Table 6: Individual NTSC Test Signal Characteristics
Characteristic Information
SMPTE Bars
Rise Times
Luminance
Chrominance
-- I
Q
Field Timing
Color Bars
ReverseBlueBars
IYQB
Packet Characteristics:
White
Yellow
Cyan
Green
Magenta
Red
Blue
-- I
Q
75% Color Bars SeeFigure27
Convergence
Amplitude
Pattern
Pulse HAD
Safe Area
Amplitude
Safe Title
Horizontal Bar
Vertical Timing
Safe Action
Horizontal Bar
Vertical Timing
SeeFigure29
140 ns
250 ns
833 ns
Lines 21-182 See Figure 29a
Lines 183-202 See Figure 29b
Lines 203-262 See Figure 29c
Luminance Subcarrier Subcarrier
Amplitude Amplitude Phase
(Pedestal, mV) (p--p, mV) (degrees)
549.1 00.0 00.0
492.6 443.3 167.1
400.9 626.6 283.5
344.5 585.2 240.7
258.2 585.2 60.7
201.7 626.6 103.5
110.1 443.3 347.1
53.6 285.7 303.0
53.6 285.7 33.0
Full Field Color Bars, 75% Amplitude, 7.5% Setup,
100 IRE White Flag.
SeeFigure28
549.3 mV (76.9 IRE)
Crosshatch: 14 horizontal/17 vertical lines per field
225 ns
SeeFigure30
549.1 mV (76.9 IRE)
Lines 45 and 238
14.925 and 56.525 μs
Lines 33 and 250
12.325 and 59.125 μs
38
TSG95 Pathfinder™ User Manual
Table 6: Indi vidual NTSC Test Signal Characteristics (Cont.)
InformationCharacteristic
Red Field
Luminance Pedestal
Chrominance Amplitude
Chrominance Phase
50 IRE Flat Field
Amplitude
100 IRE Flat Field
Amplitude
Black Burst
Amplitude
(SIN X)⁄X
Spectrum
5-Step Staircase
Amplitude
Multiburst
SeeFigure31
201.74 mV (28.3 IRE)
626.66 mV
(87.8 IRE)
p-p
103.5_
SeeFigure32
357.2 mV
SeeFigure33
714.3 mV
SeeFigure34
53.57 mV (7.5 IRE)
SeeFigure42
-3 dB at 4.75 MHz
SeeFigure35
714.3 mV (100 IRE)
SeeFigure36
Amplitudes
White Reference Bar
Packets
Pedestal
Burst Frequencies
500 mV (70 IRE)
428.6 mV
(60 IRE), equal width packets
p-p
285.7 mV (40 IRE)
0.5, 1.0, 2.0, 3.0, 3.58, and 4.2 MHz
Packet Rise Time
0.5 MHz
All Other Packets
NTC7 Composite
140 ns typical (sine-squared packets)
400 ns typical (sine-squared packets)
SeeFigure37
Bar
Amplitude
Rise Time
714.3 mV (100 IRE)
125 ns
2T Pulse
Amplitude
HAD
714.3 mV (100 IRE)
250 ns
Modulated Sin2Pulse
Phase
Amplitude
HAD
60.8°±1°
714.3 mV (100 IRE) at peak amplitude
1.563 μs
Modulate 5-Step Staircase
Luminance
Chrominance
642.9 mV (90 IRE)
285.7 mV (40 IRE)
CharacteristicsCharacteristics
TSG95 Pathfinder™ User Manual
39
Characteristics
Table 6: Indi vidual NTSC Test Signal Characteristics (Cont.)
InformationCharacteristic
NTC7 Combination
SeeFigure38
Multiburst
Amplitudes
White Bar
Packets
Pedestal
Burst Frequencies
714.3 mV (100 IRE)
357.2 mV (50 IRE)
357.2 mV (50 IRE)
0.5, 1.0, 2.0, 3.0, 3.58, and 4.2 MHz
Packet Rise Times
0.5 and 1.0 MHz
All Other Packets
140 ns typical (sine-squared packets)
400 ns typical (sine-squared packets)
Modulated Pedestal
Pedestal Amplitude
Chrominance Ampl.
357.2 mV (50 IRE)
142.9 mV (20 IRE),
285.7 mV (40 IRE), and
571.4 mV (80 IRE)
Phase
Rise Time
FCC Composite
90°
400 ns
SeeFigure39
Bar
Amplitude
Rise Time
714.3 mV (100 IRE)
250 ns
2T Pulse
Amplitude
HAD
714.3 mV (100 IRE)
250 ns
Modulated Sin2Pulse
Phase
Amplitude
HAD
60.8°±1°
714.3 mV (100 IRE)
1.563 μs
Modulate 5-Step Staircase
Luminance
Chrominance
Rise Time
Cable Multiburst
571.4 mV (80 IRE)
285.7 mV (40 IRE)
375 ns
SeeFigure40
Amplitudes
White Ref. Bar
Packets
Pedestal
Burst Frequencies
428.6 mV (60 IRE)
428.6 mV
(60 IRE), equal width packets
p-p
214.3 mV (30 IRE)
0.5, 1.25, 2.0, 3.0, 3.75, and 4.0 MHz
Packet Rise Time
0.5 MHz
All Other Packets
140 ns typical (sine-squared packets)
400 ns typical (sine-squared packets)
40
TSG95 Pathfinder™ User Manual
Table 6: Indi vidual NTSC Test Signal Characteristics (Cont.)
InformationCharacteristic
Cable Sweep
Frequency
Amplitude
Markers
Matrix
NTC7 Composite
NTC7 Combination
Color Bars
Sin(X)/X
50 IRE Flat Field
SeeFigure41
100 Hz to 4.2 MHz, lines 21--202
714.28 mV
(100 IRE)
p--p
.5, 1, 2, 3, 3.75, and 4 MHz, lines 203--263
Field Lines (inclusive; see Figure 43)
21--69
70--117
118--165
166--213
214--262
0 IRE No Burst SeeFigure44
0mV
Field Square Wave
SeeFigure33
Field Timing
Lines (White)
Lines at Blanking
Amplitude
Bounce
Amplitude
Rate
Lines 70-213
All remaining active lines
714.3 mV (100 IRE)
See Figures 45 and 33
0 or 100 IRE flat field
≈ 1.0 second high, ≈ 1.0 second low
CharacteristicsCharacteristics
TSG95 Pathfinder™ User Manual
41
Characteristics
Table 7: NTSC JAPAN Test Signal Characteristics
Characteristic Information
SMPTE Bars, No Setup
SeeFigure46
Rise Times
Luminance
140 ns
Chrominance
-- I
Q
250 ns
833 ns
Field Timing
Color Bars
ReverseBlueBars
IYQB
Lines 21-182 See Figure 46a
Lines 183-202 See Figure 46b
Lines 203-262 See Figure 46c
Luminance Subcarrier Subcarrier
Packet Characteristics:
Amplitude Amplitude Phase
(Pedestal, mV) (p--p, mV) (degrees)
White
Yellow
Cyan
Green
Magenta
Red
Blue
-- I
Q
535.1 00.0 00.0
476.8 479.3 167.1
375.0 677.5 283.5
316.1 632.6 240.7
219.6 632.6 60.7
160.7 677.5 103.5
58.9 479.3 347.1
0.0 285.7 303.0
0.0 285.7 33.0
75% Color Bars, No Setup SeeFigure47
Full Field Color Bars; 75% Amplitude, No Setup with a
100 IRE White Flag.
SNG Bars (Matrix)
30 IRE Flat Field
SMPTE Bars, 0 Setup
IYQB
Red Field, No Setup
Luminance Pedestal
Chrominance Ampl.
Chrominance Phase
Field Lines (inclusive):
21--162 and 209--262 See Figure 32
163--197 See Figure 46a
198--208 See Figure 46c
SeeFigure48
160.14 mV (22.4 IRE)
677.08 mV
(94.8 IRE)
p-p
103.5
Black Burst, No Setup SeeFigure49
0mV(0IRE)
42
TSG95 Pathfinder™ User Manual
CharacteristicsCharacteristics
Table 8: NTSC and NTSC JAPAN VITS
Waveform Line(s)
NTC7 Composite
NTC7 Combination
17
280
Table 9: Character Identification
Characteristic Information
Number of Characters Displayed
Display Position Movable within the Safe Action area of the picture. One
Character Amplitude, PAL
Character Amplitude, NTSC
Two lines of up to 16 characters per line
line (the first) may be in the Vertical Blanking Interval.
Black: 105 mV; White: 630 mV
Black: 85.7 mV (12 IRE); White: 585.7 mV (82 IRE)
Table 10: Audio Tone
Characteristic Information
Amplitude Factory calibrated: --10, 0, +4, or +8 dBu into 600 Ω;
may be readjusted by user (qualified personnel only)
Amplitude Accuracy ± 0.25 dBu, as adjusted during manufacture
Connector Polarity Pin1=GND;Pin2=POS(+);Pin3=NEG(--)
Output Impedance 50 Ω
Frequency 50, 63, 125, 250, and 400 Hz; 1, 2, 4, 8, 10, 12.5, 16, and
20 kHz; Sw eep, and three user selections
Frequency Accuracy ± 0.5 Hz
Sweep 1 kHz for 5 s followed by 0.5 s at each of the following
frequencies:
50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630,
and 800 Hz; then 1, 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10,
12.4, 16, and 20 kHz.
Distortion (THD) ≤ 1% (20 kHz bandwidth)
Audio ID “click” (click ON) Channel 1, 1 click
Channel 2, 2 clicks
Channel clicks are offset for positive channel identification.
TSG95 Pathfinder™ User Manual
43
Characteristics
Table 11: Power Supply
Characteristic Information
Altitude
Operating
Storage
to 15,000 feet (4572 m); IEC 1010-1 compliance to 2000 m
to 50,000 feet (15420 m)
DC Input Range 9to15VDC
Fuse 2A,32Vmin
Power Limit
without adapter
with adapter
Power Consumption
Audio and Back light off
Audio and Back light on
3.25 W
5.25 W
Typical (not charging):
2.0 W
2.5 W
Peak Inrush Current 1.95 A @230 VAC, Environment E2
Table 12: Physical Characteristics
Characteristic Performance Information
Height 5.6 cm (2.2 in)
Width 9.1 cm (3.6 in)
Depth 19.1 cm (7.5 in)
Net Weight
TSG95
TSG with battery pack
Shipping Weight 1.50 kg (3.31 lb) with AC adapter
0.48 kg (1.06 lb)
0.68 kg (1.5 lb)
44
TSG95 Pathfinder™ User Manual
CharacteristicsCharacteristics
Table 13: Environmental Characteristics
Characteristic Information
Temperature
Operating
Storage
Altitude
Operating
Storage
Equipment Type Test
Equipment Class Class III (as defined in IEC 1010-1, Annex H)
Installation Category Category II (as definded in IEC 1010-1, Annex J)
Pollution Degree Pollution Degree 2 (as defined in IEC 1010-1)
Transportation Meets the requirements of NTSB Test Procedure 1A, category
0° Cto+50° C (32 to +122° F); IEC 1010-1 compliance to
+40° C
-- 3 0 ° Cto+65° C (--22 to +149° F)
to 15,000 feet (4572 m); IEC 1010-1 compliance to 2000 m
to 50,000 feet (15420 m)
Note: Rated for indoor use only.
II (24 inch drop)
TSG95 Pathfinder™ User Manual
45
Characteristics
PAL Waveform Diagrams
NOTE. Time references in the following wave form diagrams apply to
the signal’s half-amplitude points or pulse peaks, unless indicated
otherwise.
Figure 1: PAL 75% Color Bars
Figure 2: PAL 100% Color Bars
46
TSG95 Pathfinder™ User Manual
Figure 3: PAL 75% Red and Red Field
CharacteristicsCharacteristics
Figure 4: PAL 100% Red
TSG95 Pathfinder™ User Manual
47
Characteristics
Figure 5: PAL Convergence (vertical lines)
Figure 6: PAL Convergence (horizontal lines)
48
TSG95 Pathfinder™ User Manual
Figure 7: PAL Pluge
CharacteristicsCharacteristics
Figure 8: PAL Green Field
TSG95 Pathfinder™ User Manual
49
Characteristics
Figure 9: PAL Safe Area
50
TSG95 Pathfinder™ User Manual
Figure 10: PAL Blue Field
CharacteristicsCharacteristics
Figure 11: PAL 100% Flat Field and Bounce (High)
TSG95 Pathfinder™ User Manual
51
Characteristics
Figure 12: PAL 50% Flat Field
Figure 13: PAL 0% Flat Field and Bounce (Low)
Figure 14: PAL Multiburst
52
TSG95 Pathfinder™ User Manual
Figure 15: PAL Reduced Sweep
CharacteristicsCharacteristics
Figure 16: PAL 5-Step (Gray Scale)
TSG95 Pathfinder™ User Manual
53
Characteristics
Figure 17: PAL Modulated 5-Step
Figure 18: PAL Matrix Signal — CCIR 17
54
TSG95 Pathfinder™ User Manual
Figure 19: PAL Matrix Signal — CCIR Line 330
CharacteristicsCharacteristics
Figure 20: PAL Matrix Signal — CCIR Line 331
TSG95 Pathfinder™ User Manual
55
Characteristics
Figure 21: PAL Matrix Signal — CCIR 18
Figure 22: PAL Matrix Signal — Sin(x)/x
56
TSG95 Pathfinder™ User Manual
Figure 23: PAL Matrix Signal — 15 kHz Square Wave
CharacteristicsCharacteristics
Figure 24: PAL Matrix Signal — Shallow Ramp
TSG95 Pathfinder™ User Manual
57
Characteristics
Figure 25: PAL Matrix Signal — UK ITS 1
Figure 26: PAL Matrix Signal — UK ITS 2
58
TSG95 Pathfinder™ User Manual
NTSC Waveform Diagrams
Figure 27: NTSC 75% Color Bars
CharacteristicsCharacteristics
Figure 28: NTSC Convergence Components
TSG95 Pathfinder™ User Manual
59
Characteristics
Figure 29: SMPTE (NTSC) Color Bar Components
60
TSG95 Pathfinder™ User Manual
CharacteristicsCharacteristics
Figure 30: NTSC Safe Area Signal Components
TSG95 Pathfinder™ User Manual
61
Characteristics
62
Figure 30 (cont.): NTSC Safe Area Signal Components
TSG95 Pathfinder™ User Manual
Figure 31: NTSC Red Field
CharacteristicsCharacteristics
Figure 32: NTSC 30 IRE and 50 IRE Flat Fields
TSG95 Pathfinder™ User Manual
63
Characteristics
Figure 33: NTSC 100 IRE Flat Fi eld, Field Square Wave, and Bounce (High)
Figure 34: NTSC Black Burst
64
TSG95 Pathfinder™ User Manual
Figure 35: NTSC 5-Step Staircase (Gray Scale)
CharacteristicsCharacteristics
Figure 36: NTSC Multiburst
TSG95 Pathfinder™ User Manual
65
Characteristics
Figure 37: NTC7 (NTSC) Composite
Figure 38: NTC7 (NTSC) Combination
66
TSG95 Pathfinder™ User Manual
Figure 39: FCC (NTSC) Composite
CharacteristicsCharacteristics
Figure 40: NTSC Cable Multiburst
TSG95 Pathfinder™ User Manual
67
Characteristics
Figure 41: NTSC Cable Sweep
Figure 42: NTSC SIN(X)/X
68
TSG95 Pathfinder™ User Manual
Figure 43: NTSC Matrix
CharacteristicsCharacteristics
Figure 44: NTSC 0 IRE No Burst
Figure 45: NTSC Bounce (Low)
TSG95 Pathfinder™ User Manual
69
Characteristics
NTSC JAPAN (No Setup) Waveform Diagrams
Figure 46: SMPTE (NTSC) Color Bars, No Setup
70
TSG95 Pathfinder™ User Manual
Figure 47: NTSC 75% Color Bars, No Setup
CharacteristicsCharacteristics
Figure 48: NTSC Red Field, No Setup
Figure 49: NTSC Black Burst, No Setup
TSG95 Pathfinder™ User Manual
71
Characteristics
72
TSG95 Pathfinder™ User Manual
Replaceable Parts
The following replaceable parts for the TSG95 Pathfinder are available through your local Tektronix, Inc. field office or representative.
It is important when ordering parts to include the following information in your order: Part number; instrument type and numbe r; i nstrument serial number; and modification number, if applicable.
Description Tektronix Part No.
Instructions (card) 070-8915-xx
Service Manual (Optional accessory) 070-8917-xx
Rechargeable Battery Pac k (Optional a ccessory) 119-4488-02
Carrying Pouch 016-1229-00
AC Adapter 119-7284-xx
Power Cord See Table 14
Case Assembly, Top 614-0925-00
Case Assembly, Bottom 614-0913-00
Stand, Black Vinyl Plastic 386-6787-01
Battery Door 200-4075-00
LCD Display 119-5566-00
Rear Panel Assembly 333-4065-00
Fuse 2.0A, 125V, Slow Blow 159-0378-00
Table 14: Power Cords
Option Description Part Number
A0 North America power 161--0066-00
A1 Universal EURO power 161-0066-09
A2 United Kingdom power 161-0066-10
A3 Australia power 161-0066-13
TSG95 Pathfinder™ User Manual
73
Replaceable Parts
Table 14: Power Cords (Cont.)
Option Part NumberDescription
A6 Japan power 161-0298-00
A10 China power 161-0304-00
74
TSG95 Pathfinder™ User Manual
User Service
Battery Hints
For optimal battery life and capacity, use the rechargeable NiCad
battery pack (Tektronix p/n 119-4488-00) in full charge/discharge
cycles. In other words, fully discharge the battery pack before recharging, and then charge the battery pack until fully charged,
approximately 16 hours. A new battery pack will take a few charge/
discharge cycles to reach full capacity.
WARNING. Install or replace batteries only with the instrument
switched OFF and the AC adapter disconnected. Failure to do so
could result in injury or death.
Replace the batteries only wit h standard AA batteries (1.2--1.5 V,
nominal), or with the optional rechargeable battery pack.
Setting the Auto Power Down (page 20) and Battery Type (page 21)
functions in the diagnostic menu also have an impact on battery life.
The battery types are disposable (Alkaline) or rechargeable (NiCad).
Setting the battery type changes the voltage thresholds for both the
BATTERY LOW display message and low-battery shutdown.
The BATTERY LOW Message
The warning “BATTERY LOW” will appear on the second line of
the TSG95 display when the battery voltage drops below a predetermined level. The level depends on the Battery Type set in the Diagnostic menu (see page 21). The TSG will operate for approximately
ten minutes after the message first appears. For best results, replace
or recharge the batteries when you first see this warning.
Low Battery Shutdown
To prevent erratic operation at very low power levels, the TSG95
will shut itself down if the battery voltage drops below a second,
lower threshold that also depends on the Battery Type setting.
Low-battery shutdown can happen with little or no warning if, for
instance, the instrument has been left on by mistake with Auto Power
TSG95 Pathfinder™ User Manual
75
User Service
Down disabled. In such cases, the TSG95 is likely to shut itself
down almost immediately the next time you switch it on. If this happens:
h Install fresh batteries or operate the instrument with the AC
adapter, and
h Confirm that the Utility menu Battery Type setting is ap-
propriate.
The shutdown threshold is higher for rechargeable batteries than for
disposable. Therefore, you will receive a false BATTERY LOW
message and may experience premature shutdown if using Alkaline
batteries when the Battery Type is set to “ rechargeable.” On the other hand, NiCad batteries may be damaged—they can lose their “rechargeability”—if they are discharged to the TSG95 threshold for
disposable batteries. Be sure to select the correct Battery Type.
Preventive M aintenance
Under average conditions, the TSG95 should receive preventive
maintenance every 2000 hours. This is approximately one year of
operation. Preventive maintenance includes cleaning, visual inspection, a performance check and, if necessary, calibration. See the Service manual for performance verification and adjustment procedures.
76
CAUTION. The TSG95 case is made of molded plastic. Do not allow
water to get inside any enclosed assembly or component. Do not
clean any plastic materials with organic cleaning solvents—benzene,
toluene, xylene, acetone, or similar c ompounds—because they may
damage the plastic.
TSG95 Pathfinder™ User Manual
Loading...
