Teka IR 321.1 Installation Instructions Manual

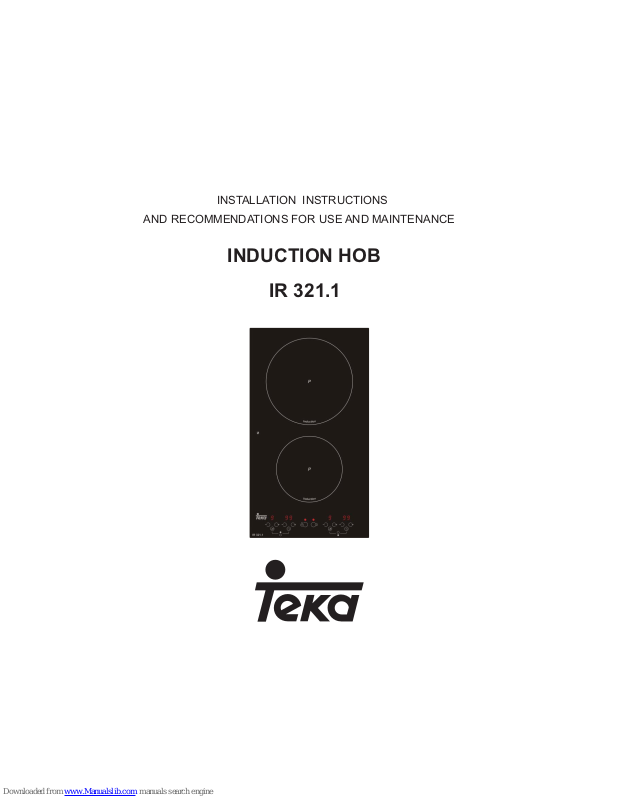

INSTALLATION INSTRUCTIONS

AND RECOMMENDATIONS FOR USE AND MAINTENANCE

INDUCTION HOB

IR 321.1

Disposing of the device

When disposing of the device,do not bring it to regular

municipal waste containers.Instead, bring it to electrical

and electronic waste recycling and reuse center. A relevant label has

been put on the device, its instructions manual, or the package.

The device has been manufactured of recyclable material. by

bringing old device to recycling collection center, you show that you

care about nature.

Ask your local environmental care authority for information on

location of such facilities.

WARNING..................................................................................................1-2

INSTALLATION.............................................................................................3

1.CUTTING THE CUPBOARD.............................................................3

2.PLACE OF INSTALLATION...............................................................4

3.PREPARING THE HOTPLATE..........................................................5

4.ELECTRICAL CONNECTION...........................................................5

WHAT’S SPECIAL ABOUT INDUCTION COOKING ?.................................6

1.POWER AND SAVINGS....................................................................6

2.SAFETY.............................................................................................6

3.CLEANING........................................................................................7

FUNCTIONING.............................................................................................8

1.DESCRIPTION OF THE HOB...........................................................8

2.USING THE TOUCH CONTROL.......................................................8

3.TIMER FUNCTION ...........................................................................9

4.PAN .................................................................................................10

WHAT SHOULD I DO IF.............................................................................11

TECHNICAL DETAILS ...............................................................................12

CONTENTS

WARNING

•In case of failure,only the Authorised Technical
Service may repare this hob. Otherwise the
guarantee will be null and void.

•The technical and identification data for the hob
figure on the reference plate fixed to the appliance.

•This refernence plate must be consulted before
making the electrical connections.

•The electrical connections must be made by a
specialist aware to the legal and regulatory,
requirtements in each country.

•Fill in table on the front cover with the data from the
appliance referance plate.

•This appliances is not intended for use by persons
(including children) with reduced physical.Sensory or
mental capabilities,or lack of experience and
knowledge,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.

•Children should be supervised to ensure that they do
not play with the appliance.

WARNING: if the surface is cracked,switch off the
appliance to avoid the possibility of electric shock.

•Metallic objects such as knives,forks,spoons and lids
should not be place on the hob surface since they can
get hot.

•The appliance is not intended to be operated by
means of an external timer or separate remote­control sysetm.

1

2

WARNING:The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements.

Children less than 8 years of age shall be kept
away unless continuously supervised.

--The appliance can be used by children aged
from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved.

--Children shall not play with the appliance.

Cleaning and user maintenance shall not be
made by children without supervision.

--The instruction for ovens shall include the
substance of the following:
WARNING: Accessible parts may become hot
during use. Young children should be kept away.
