User Manual
CL 600 S/CL 600 W/CL 610 INOX/CL 610 S/
CL 610 S CHILE/CL 610 W
EN
www.teka.com
1, en_US
10.03.2021COOKER HOOD USER GUIDE ENGLISH2
Table of contents
Table of contents
1 Technical Drawing.............................................................. 4
2 WARNING AND SAFETY PRECAUTIONS......................... 5
2.1 LETHAL RISK, DANGER OF POISONING.................. 7
3 USAGE WITH AND WITHOUT CARBON FILTER............ 11
4 Carbon Filter Replacement.............................................. 12
5 CLEANING AND PREVENTIVE MAINTENANCE............. 14
5.1 ALUMINIUM FILTER CLEANING............................... 15
5.2 Washing in Dishwasher.............................................. 15
5.3 Hand Wash................................................................. 15
6 APPLIANCE POSITION..................................................... 16
7 CLEANING AND PREVENTIVE MAINTENANCE............. 17
7.1 Installation and Unpacking of the Appliance............... 17
7.2 Recommendations for Energy Saving........................ 17
8 CONTENT OF PACKAGE.................................................. 18
9 ASSEMBLY OF PRODUCT............................................... 19
10 USE OF PRODUCT............................................................ 20
10.1 Slider Rocker Button Use......................................... 20
11 REPLACING THE LAMPS................................................. 21
11.1 Plug Lamp Replacement........................................... 21
12 AUTHORIZED SERVICE.................................................... 22
13 TECHNICAL TABLE.......................................................... 24
10.03.2021 COOKER HOOD USER GUIDE ENGLISH 3
537
548
35,5
35,5
5
2
0
;45
0
1
9
8
149.5
5
0
0
4
9
8
,
59
8
Ø
1
1
8
.
5
3
9
7
5
,
9
8
8
A
B
C
D
Technical Drawing
1 Technical Drawing
Fig. 1
10.03.2021COOKER HOOD USER GUIDE ENGLISH4
WARNING AND SAFETY PRECAUTIONS
2 WARNING AND SAFETY PRECAUTIONS
WARNING AND SAFETY PRECAUTIONS
n This appliance can be used by children of 8 years and older,
people with physical, sensory or mental capability deficiency or
people with lack of experience or knowledge; as long as they
are provided supervision or instructions for the safe use of the
appliance and they comprehend the dangers.
n Children should not tamper with the appliance. Cleaning and
user maintenance operations must not be performed by children unless supervised.
n This product is designed for home use.
n Usage voltage of your product is 220-240 Volt~50-60 Hz.
n Power cord of your product is fitted with a grounded plug. This
cord must be plugged into a grounded outlet.
n The whole electrical wiring must be installed by a qualified
electrician.
n Installation by unauthorized persons could lead to poor opera-
tion performance, damage to the product, and accidents.
n Feeder cable of the appliance mustn't be exposed to jamming
or crashing during assembly. Feeder cable mustn't be placed
near the cooker. In such cases, it might melt down and lead to
fire.
n Do not plug in the appliance before the installation.
n Make sure that the installation place allows the user to easily
unplug the power cable in case of any danger.
n Do not touch your product's lamps when they work for a long
time. The lamps may burn your hand as they will be hot.
n Kitchen hoods are manufactured for household use in normal
home cooking. There is a risk of malfunction in other types of
use, and the product guarantee will be void.
n Comply with the rules and instructions regarding discharge of
outgoing air, stipulated by the relevant authorities. (This
warning does not apply to uses without flue.)
n Flammable foods must not be cooked under the appliance.
n Start your product after you place pot, pan etc. on the stoves.
Otherwise, high temperature may cause same parts of your
products to deform.
n Turn off the cooker's burner before taking the saucepan, pan,
etc. off the cooker.
n Do not leave boiling oil on the stove. Pots that contain boiling
oil may catch fire by itself.
n Since oils could catch fire when you cook fried foods in partic-
ular, be careful about your curtains and tablecloths.
n Ensure timely replacement of the filters. Filters not replaced in
a timely manner pose risk of fire due to accumulated grease
deposits on them.
n Do not use non-fire-resistant filtering materials instead of the
filter.
n Do not operate your product without filter, and do not remove
the filters when the product is in operation.
n In case of any fire, de-energize the hood and any other cooking
devices. (Plug off the appliance or turn off the main switch.)
10.03.2021 COOKER HOOD USER GUIDE ENGLISH 5
WARNING AND SAFETY PRECAUTIONS
n If your product's periodic cleaning is not made in a timely
manner, it could pose risk of fire.
n De-energize the appliance before any maintenance operations.
(Plug off the appliance or turn off the main switch.)
n When electric cooker hood and devices fed with energies other
than electricity operate simultaneously, the negative pressure
in the room must not exceed 4 Pa ( 4 X 10 bar ).
n Gas or fuel oil burning appliances, such as room heaters,
which share the same environment with your product, must be
fully insulated from the exhaust of this product or they must be
hermetical.
n When you make a flue connection for your product, use pipes
with a diameter of 150mm or 120 mm. The length of the duct
connection as well as the number of elbows must be as minimum as possible.
n Children must not play with the appliance.
n For your safety, use ”MAX 6 A” fuse in the hood system.
n Since the packing materials could be dangerous, keep them
away from children.
n If the feeder cable is damaged, it must be replaced by its man-
ufacturer or its authorized technical service or any other personnel qualified at the same level, in order to avoid any dangerous situation.
n In case of any deflagration, de-energize the cooker hood and
cooking appliances, and cover the flame. Never use water to
extinguish the fire.
n When cooking appliances are in operation, their accessible
parts could be hot.
n This appliance is not intended to be used by people with phys-
ical, sensory and mental disabilities (including children) or
those who do not have adequate experience and knowledge
regarding its use, unless they are under the supervision of a
person responsible for the safety of the appliance.
n After the installation of the hood, the minimum distance must
be 65 cm between the product and any electric cooker; and 75
cm between it and any gas ranges or cookers burning other
fuels.
n Output of the hood must not be connected to air ducts, where
smoke from other sources could exist.
n You must be careful when using the appliance spontaneously
with other appliances (e.g. gas, diesel fuels, coal, wood, etc.
burning heaters, shower heaters), which use the same air in
the same environment. Attention must be paid when using
them simultaneously. It is because the hood could adversely
affect the combustion, by discharging the ambient air.
n This warning does not apply to uses without flue.
n When electric cooker hood is used simultaneously with devices
that use gas or other fuels, there must be sufficient ventilation
in the room (might not apply to devices that discharges the air
back into the room).
10.03.2021COOKER HOOD USER GUIDE ENGLISH6
WARNING AND SAFETY PRECAUTIONS

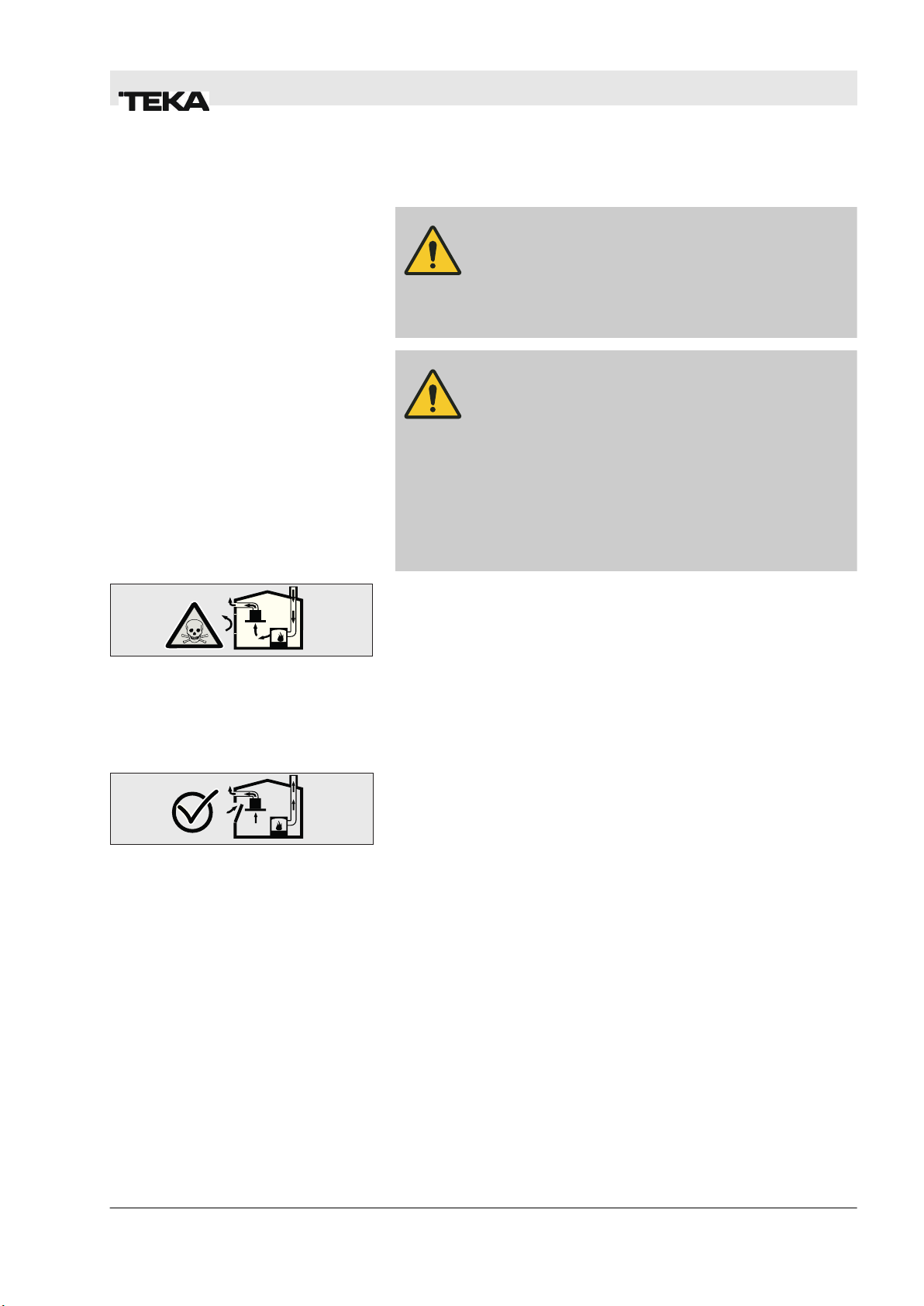

2.1 LETHAL RISK, DANGER OF POISONING
DANGER!
Warning - Choking Hazard
The packaging materials are dangerous for children. Never allow children to play with packaging
materials.
DANGER!
Warning - Death Hazard
There are life-threatening danger and poisoning
danger due to reabsorbed combustion gases.
During the air discharge outlet use, unless sufficient air supply is provided, do not use the appliance simultaneously with devices that discharge
toxic gases through flue such as ventilated, gas,
oil, wood or coal burning heaters, shower heaters,
water heaters, etc.Fig. 2
LETHAL RISK, DANGER OF POISONING
Fig. 2: Poisoning Danger
Fig. 3
Ventilated goods (e.g. gas, oil, wood or coal burning heaters,
shower heaters, water heaters) take combustion air from the installation location, and discharge the waste gas through a waste gas
system (e.g. flue). When the cooker hood is active, it absorbs air
from the kitchen and neighbouring rooms. If adequate air entry is
not provided, vacuum emerges. In such a case, the toxic gases are
absorbed from the flue and waste gas channel, and are taken into
the door again. Fig. 2
n Therefore, adequate fresh air ingress must always be
ensured.Fig. 3
10.03.2021 COOKER HOOD USER GUIDE ENGLISH 7
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
WARNING!
Fire danger!
– The oil residue in the oil filter may catch
– The oil residue in the oil filter may catch fire.
– Hot oils and fats catch fire easily. Hot oils and
– Gas operated cookers that do not have a
– Operating multiple gas cookers simultaneously
fire.Clean the oil filter at least once every 3
months.Never operate the device without the
oil filter.
Never work with open flame (ex. flambe) near
the device. The apparatus is allowed to be
installed near a solid fuel (e.g. wood or coal)
heater only if it has a non-removable cover. No
sparks should be scattered.
fats should never be left unattended. Never try
to put out fire with water. Turn off the cooker.
Kill the flames carefully using a cover, fire
blanket or a similar material.
cooking pot on create high heat during operation. A ventilation device placed over the
cookers can be damaged or burned for this
reason. Operate gas cookers only when there
is a cooking pot on them.
creates high heat. A ventilation device placed
over the cookers can be damaged or burned
for this reason. Never operate two gas cookers
longer than 15 minutes on high flame setting. A
large burner over 5kW (Wok) has the power of
two gas burners.
WARNING!
Electrocution hazard!
– A malfunctioning device may cause electric
shock. Never turn on a malfunctioning device.
Pull the power plug and switch off the circuit
breaker. Call customer service.
– Unsuitable repairs pose hazards. Repairs and
replacement of damaged power cords must be
performed only by a customer services technician trained by us. If the device is malfunctioning pull the power plug and switch off the
circuit breaker. Call customer service.
– Water leaking into the device may cause elec-
tric shock. High pressure or steam cleaners
must not be used.
10.03.2021COOKER HOOD USER GUIDE ENGLISH8
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
DANGER!
Danger of physical injury!
– During the installation, there is a danger of
physical injury due to the sharp edges. Use
protective gloves throughout the installation
process of the appliance.
– Due to risk of dropping the appliance,
assembly of all safety bolts and covers must be
performed as specified in the user manual.
– Objects placed on the appliance may fall over.
Do not place any objects on the device.
– LED lights are very bright and may damage
eyes (Risk group 1). You must not look directly
at running LED lights for longer than 100 seconds.
WARNING!
Risk of burn, risk of electric shock!
– Allow the appliance to cool before cleaning or
maintenance process. Switch off the fuse or
pull out the mains plug from the socket.
– There is risk of damage due to ingress of mois-
ture in the electronics. Do not clean the control
components with a wet cloth.
– The surface could be damaged due to a wrong
cleaning process. Clean stainless steel surfaces only in their brushing direction. Do not
use a stainless steel cleaner for the control elements.
– The surface could be damaged due to aggres-
sive and abrasive cleaning agents. Never use
aggressive and abrasive cleaning agents.
WARNING!
Dangers of fire and physical injury!
In case of repairing that is not performed according
to the rules or as required, turn off the fuse or
unplug the feeder cable of your appliance.
Repairing must be performed only by the authorized technical service or authorized experts.
NOTICE!
If the appliance is faulty or damaged, turn off the
fuse or unplug the feeder cable of your appliance
and call the authorized service.
10.03.2021 COOKER HOOD USER GUIDE ENGLISH 9
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
NOTICE!
If the feeder cable is damaged, it must be replaced
by its manufacturer or its authorized technical
service or any other personnel qualified at the
same level, in order to avoid any dangerous situation.
NOTICE!
When the bulbs of the device malfunction, switch
off the circuit breaker and unplug the device's
power plug from the socket. Replace the defective
bulbs immediately (leave bulbs to cool down first),
in order to protect the remaining bulbs against
overloading.
CAUTION!
Accessible components might be heated when
used with cooking devices.
DANGER!
Air outlet pipe of this appliance mustn't be connected in the flue used to discharge the fume generated by devices that use gas or other fuels.
Damage reasons
CAUTION!
Damage hazard due to corrosion. Always run the
appliance to prevent condensate formation while
cooking. Condensates may cause corrosion
damage. Replace the malfunctioning lamp right
away to prevent overloading of other lamps. Moisture intrusion in electronic parts poses a risk of
damage. Never clean the control elements with a
wet cloth. The surface could be damaged due to a
wrong cleaning process. Clean stainless steel surfaces only in their brushing direction. Do not use a
stainless steel cleaner for the control elements.
The surface could be damaged due to aggressive
and abrasive cleaning agents. Never use aggressive and abrasive cleaning agents. There is a risk
of damage due to condensate liquid backflow.
Install the air exit canal with a small downward
inclination (1° inclination) from the appliance.
10.03.2021COOKER HOOD USER GUIDE ENGLISH10
USAGE WITH AND WITHOUT CARBON FILTER
3 USAGE WITH AND WITHOUT CARBON FILTER
You can use this appliance in exhaust air mode
and ventilated air mode.
Exhaust air mode
The absorbed air is cleaned by the grease filters, and is discharged
through a piping system.Fig. 4
NOTICE!
Exhaust air must not be transferred to an active
smoke or waste gas flue; or a flue used for ventilation of the places, where heat sources are
installed.
Fig. 4: Air Outlet without Carbon Filter
Fig. 5: Air Circulation with Carbon
Filter
n If you want to transfer exhaust air to an inactive smoke or
waste gas flue, you need to obtain permission from an authorized chimney sweep.
n If exhaust air is discharged through the external wall, a tele-
scopic wall safe must be used.
Ventilated air mode
Absorbed air is cleaned by the grease filters and
an active carbon filter, and then it is transferred
back to the kitchen.Fig. 5
You need to install an active carbon filter, in order
to catch the substances, which cause stink in the
circulating air. Consult your authorized dealer to
know the different opportunities available for enabling the appliance to function in circulating air
mode. You can buy the accessories required for
this process from the relevant outlets, authorized
technical service or online sales center.
10.03.2021 COOKER HOOD USER GUIDE ENGLISH 11
Carbon Filter Replacement
4 Carbon Filter Replacement
CARBON FILTER
Fig. 6
Air is filtered through the carbon filter and ensures it leaves from
the 120 mm diameter pipe or the ventilation holes on the product
with the help of N-RV funnel. This method is used in kitchens
without flue outlet or where the installation is not possible to the
point with flue outlet. If you want to use the product without a
funnel, follow the steps below.
Remove the aluminium cartridge filters on the product.
Then remove the long throttle on the motor case (Fig. 6).
Fig. 7: short throttle
Fig. 8
Install the short throttle found in the installation accessories
instead of the long throttle (Fig. 7).
Insert blind plug provided with the installation accessories of
your appliance to the flue outlet (Fig. 8).
10.03.2021COOKER HOOD USER GUIDE ENGLISH12
Carbon Filter Replacement
n 1-Place the carbon filter in its housing (Fig. 9).
n 2-Rotating the carbon filter clockwise, ensure that it is com-
pletely fit (Fig. 9).
Fig. 9: CARBON FILTER
If carbon filter does not fit in completely, it might
drop and damage your product.
DANGER!
Never wash the carbon filters.
Keep carbon filters away from children.
10.03.2021 COOKER HOOD USER GUIDE ENGLISH 13
CLEANING AND PREVENTIVE MAINTENANCE
5 CLEANING AND PREVENTIVE MAINTENANCE
CAUTION!
Cleaning and user maintenance of the appliance
shall not be performed by unattended children.
n The surface could be damaged due to aggressive and abrasive
cleaning agents. Never use aggressive and abrasive cleaning
agents. Procure your cleaning and protective substances that
are appropriate for your appliance from the authorized technical service. Surface of appliance and control units are sensitive to scratching.
n Clean the surfaces with a soft and damp cloth, dish-washing
liquid or mild glass cleaning agent. Soften the dry, sticky dirt
with a damp cloth. Do not scrape!
n It is not appropriate to use dry cloths, sponges that may
scratch, materials that require rubbing, and other aggressive
cleaning agents containing sand, soda, acid or chlorine.
n Clean the stainless steel surfaces in their brushing direction
only.
n Do not use stainless steel cleaning agents and wet clothes for
control units. Cleaning of metal grease filters Used metal
grease filters retain the greasy particles in the moisture and
vapour generated in the kitchen. Clean the metal grease filters
about every three months, under normal use conditions (1 to 2
hours a day).
n Do not use excessively effective, acidic or alkaline cleaning
agents.
n For cleaning the metal grease filters, clean the holder parts of
the metal grease filters in the appliance, with a damp cloth as
well.
n You can clean the metal grease filters in the dishwasher or by
hand.
n Do not apply spray cleaning supplies directly to the product.
n Do not keep flammable and/or heavy decorative items on the
product.
10.03.2021COOKER HOOD USER GUIDE ENGLISH14
1
CLEANING AND PREVENTIVE MAINTENANCE
5.1 ALUMINIUM FILTER CLEANING
1 Aluminium Filter Tab
n Press the aluminium filter tab (1) and pull the aluminium filter to
the direction of the arrow (Fig. 10).
n As you remove the aluminium filter, hold it with your other hand
to prevent it from dropping.
n As you remove the aluminium filter, in order to prevent the
Fig. 10
accumulated oil to drip, keep the filter surface parallel to the
floor.
5.2 Washing in Dishwasher
Hand Wash
Clean the aluminium oil filters periodically every 3
months.
5.3 Hand Wash
In case of washing in dishwasher, a slight change might occur in
colour. This has no effect on the function of the metal grease filter.
n Do not clean too dirty metal grease filters together with utensils
in the dishwasher.
n Place the metal grease filters loosely and freely in the dish-
washer. Metal grease filters must be placed in the dishwasher
without jamming.
For stubborn dirts, you can use a special grease
solvent. You can buy such an agent from the
authorized sales centre.
– Soften the metal grease filters in a hot water
with dish-washing liquid.
– Use a brush for cleaning and wait for the liquid
in metal grease filters to flow off completely.
– Rinse the filters thoroughly after cleaning.
10.03.2021 COOKER HOOD USER GUIDE ENGLISH 15
Min.65 cm
Min.75 cm
APPLIANCE POSITION
6 APPLIANCE POSITION
Fig. 11
After completing the installation of hood, the minimum distance
must be 65 cm between the product and any electric cooker; and
75 cm between it and any gas ranges or cookers burning other
fuels (Fig. 11).
10.03.2021COOKER HOOD USER GUIDE ENGLISH16
CLEANING AND PREVENTIVE MAINTENANCE
Recommendations for Energy Saving
7 CLEANING AND PREVENTIVE MAINTENANCE
7.1 Installation and Unpacking of the Appliance
n Check that your appliance is not deformed.
n Report any transport issues immediately to transport operator.
n Any faults encountered shall be reported to the dealer, too.
n Do not allow children to play with the packaging materials!
7.2 Recommendations for Energy Saving
n Replace the carbon filters on a regular basis.
n Regularly clean your aluminium filters. Since dirty filters would
block the air passage, you might have to use the appliance at a
higher speed.
n Use your product according to its normal speeds.
n Use at higher speed would cause an increase in the energy
consumption.
10.03.2021 COOKER HOOD USER GUIDE ENGLISH 17
CONTENT OF PACKAGE
8 CONTENT OF PACKAGE
Fig. 12
1- Product
2- Short Throttle
3- Long Throttle
4- Hanging Hook
5- User Manual
6- 2x Ø10mm Plastic Dowel
7- 4x 4x40 Chipboard Screw
10.03.2021COOKER HOOD USER GUIDE ENGLISH18
9 ASSEMBLY OF PRODUCT
E
F
A B
C
D
Tap 2 plastic dowels provided with the installation accessories of
your appliance to points E, F. Insert L hanger screws provided with
the installation accessories of your appliance to these dowels
(Fig. 13).
Fig. 13
Hang your appliance to the E,F points you have installed and then
screw from A,B,C,D points (Fig. 14).
Fig. 14
Install the plastic funnel found in the installation accessories to the
funnel exit of the product. Slide the tabs on the plastic funnel over
the tabs on the body funnel exit and turn the plastic funnel in clockwise direction (Fig. 15).
ASSEMBLY OF PRODUCT
Fig. 15
Fig. 16
Perform the flexible flue connection of your appliance (Fig. 16).
Since twists and bends will lead to reduction in the
air suction power, avoid using them as much as
possible.
10.03.2021 COOKER HOOD USER GUIDE ENGLISH 19
0 1 2 3
1 2 3
4
5
6
USE OF PRODUCT
Slider Rocker Button Use
10 USE OF PRODUCT
10.1 Slider Rocker Button Use
Fig. 17
1. Bring to this position to turn off the lamp (Fig. 17).
2. Bring to this position to turn on the lamp ( Fig. 17 ).
3. Bring to this position to turn off the lamp (Fig. 17).
4. Bring to this position when you want to operate the product in
5. Bring to this position when you want to operate the product in
6. Bring to this position when you want to operate the product in
1. speed ( Fig. 17 ).
2. speed ( Fig. 17 ).
3. speed ( Fig. 17 ).
10.03.2021COOKER HOOD USER GUIDE ENGLISH20
11 REPLACING THE LAMPS
11.1 Plug Lamp Replacement
WARNING!
Disconnect the electrical supply of the hood. Leave
the lamps to cool down first because they could
burn your hands when they are hot.
It indicates the maximum power consumption of the lamp. A lamp
with same power rating should be used when replacing the lamp.
To find out the power rating used in the product,
see the declaration label in the product.
Remove the aluminium cartridge filter. Remove the faulty bulb and
replace with a new one with the same rating.Fig. 18
REPLACING THE LAMPS
Plug Lamp Replacement
Fig. 18: Spark Plug Lamp Replacement
Bulb
Bulb Power (W) 3
Receptacle/Socket E 14
Bulb Voltage (V) 220-240
Size (mm) 10X35
ILCOS Code DRBB/F-3-220-240-E14-35/100
10.03.2021 COOKER HOOD USER GUIDE ENGLISH 21
AUTHORIZED SERVICE
12 AUTHORIZED SERVICE
If Lighting is Not Functioning:
n Make sure that the plug is plugged in, and that the fuses are
intact.
n Check the bulbs. Make sure you unplugged the device before
performing this check. Tighten the bulbs if they are loose; you
can replace the bulbs if they still don't work.
Possible Faults and Things that
You can do Before Calling Technical Service:
A) If the device does not run in any
way:
n Check to see if the hood is plugged in or if the plug fits properly
into the socket.
n Check the fuse, to which the appliance is connected, as well as
the main fuse of your house.
If the device performance is not
enough and it creates high noise
while running:
Troubleshooting
n Is the outlet diameter of the appliance's flue adequate? (min.
120 mm).
n Are the metal filters clean? Please check.
n If you use the hood without flue, make sure that the carbon fil-
ters are not older than 6 months.
n Be attentive to ventilate your kitchen adequately, in order to
provide an airflow. If you are still not satisfied with the performance of the appliance, consult the authorized technical service.
Fault description Cause Remedy
Product Does Not Work Check the power
connection.
Illumination lamp does not
operate
Illumination lamp does not
operate
Illumination lamp does not
operate
Product's Air Intake is Weak Check The Alumi-
Product's Air Intake is Weak Check The Air Outlet
Product's Air Intake is Weak Check The Carbon
Check the power
connection.
Check the lamp
switch.
Check the bulbs. Bulbs must be operative.
nium Filter.
Flue.
Filter.
Mains voltage must be 220-240 V, and product
must be plugged into a grounded socket.
Mains voltage must be 220-240 V, and product
must be plugged into a grounded socket.
Lamp switch must be at "on" position.
The aluminium cartridge filter should be washed
once a month under normal conditions.
Air Outlet Flue Must Be Open.
In products that work with carbon filters, carbon
filter must be replaced once in every 3 months
under normal conditions.
10.03.2021COOKER HOOD USER GUIDE ENGLISH22
Fault description Cause Remedy
AUTHORIZED SERVICE
It Does Not Discharge Air (in
flueless use)
It Does Not Discharge Air (in
flueless use)
Check The Aluminium Filter.
Check The Carbon
Filter.
The aluminium cartridge filter should be washed
once a month under normal conditions.
In products that work with carbon filters, carbon
filter must be replaced once in every 3 months
under normal conditions.
10.03.2021 COOKER HOOD USER GUIDE ENGLISH 23
TECHNICAL TABLE
13 TECHNICAL TABLE
Supply Voltage 220 - 240 V 50Hz
Insulation Class of Motor F
Insulation Class CLASS I
This product complies with the 2014/30/EC (Regulation on Electromagnetic Compliance) and 2014/35/EC (Regulation on Low
Voltage Devices (LVD)) Directives.
This device complies with the Directive on the Control of Waste
Electrical and Electronic Equipment.
Specifications of the device and this manual may be modified
without prior notification.
10.03.2021COOKER HOOD USER GUIDE ENGLISH24
www.teka.com
Asped mo
v
Loading...
