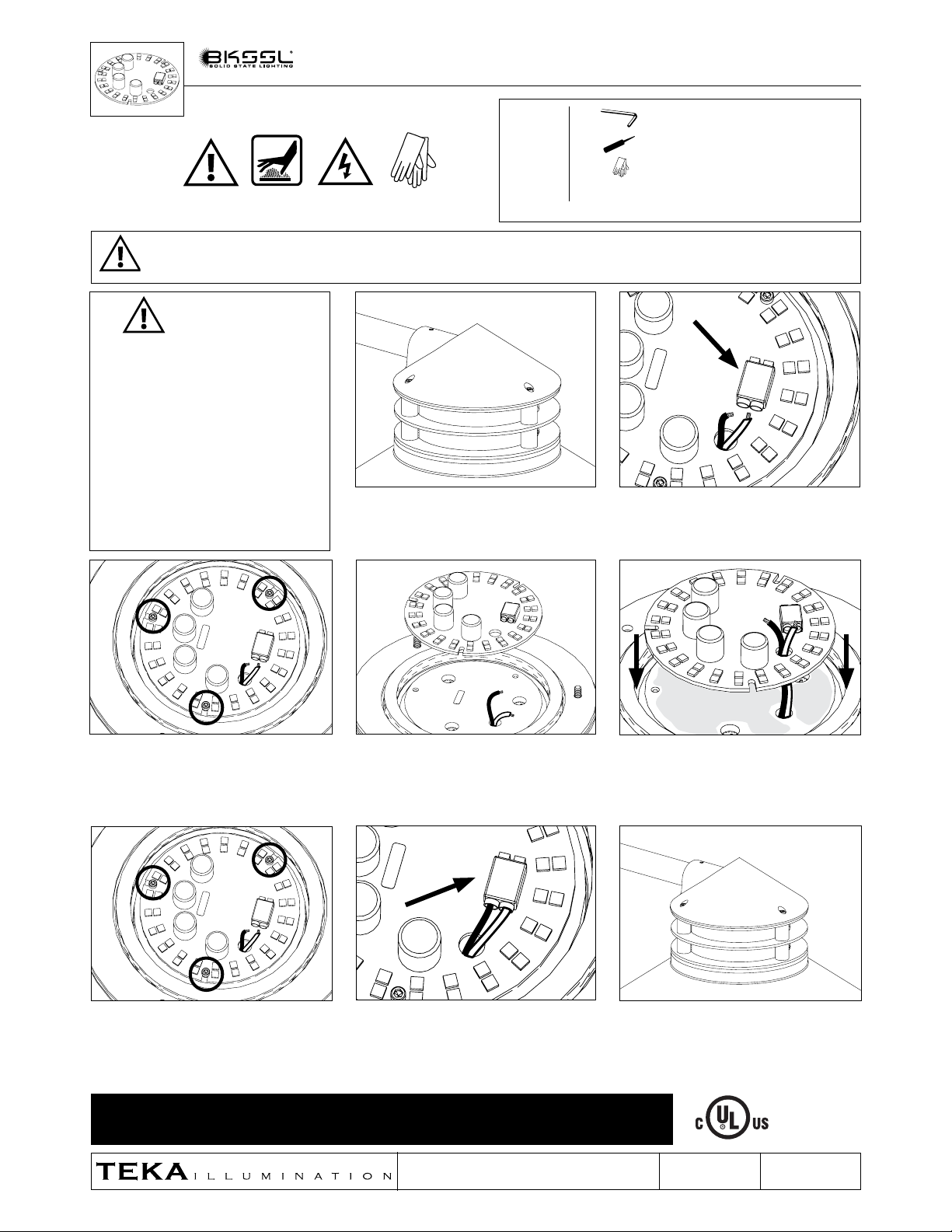

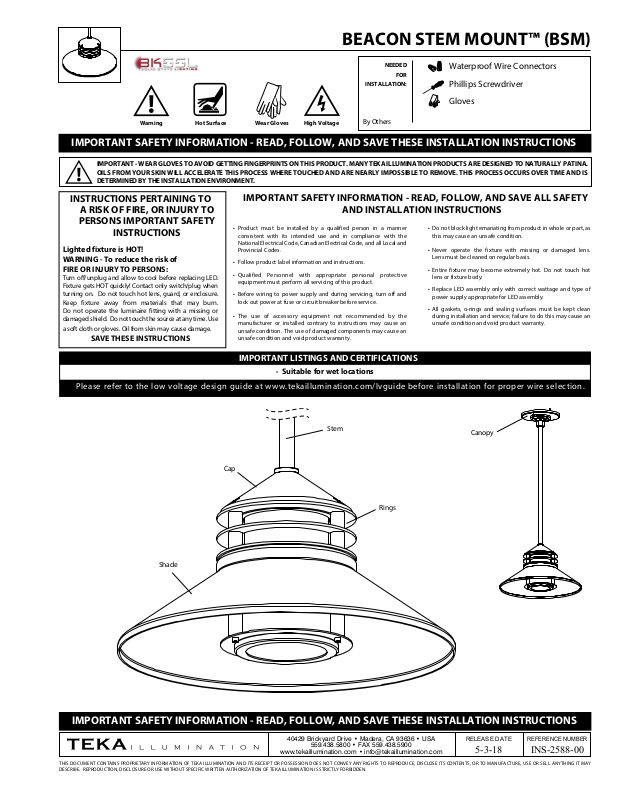

Teka BEACON STEM MOUNT Quick Start Manual

BEACON STEM MOUNT™ (BSM)

NEEDED

FOR

INSTALLATION:

Waterproof Wire Connectors

Phillips Screwdriver

Gloves

Warning Hot Surface

Wear Gloves

High Voltage

By Others

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS

IMPORTANT - WEAR GLOVES TO AVOID GETTING FINGERPRINTS ON THIS PRODUCT. MANY TEKA ILLUMINATION PRODUCTS ARE DESIGNED TO NATURALLY PATINA.
OILS FROM YOUR SKIN WILL ACCELERATE THIS PROCESS WHERE TOUCHED AND ARE NEARLY IMPOSSIBLE TO REMOVE. THIS PROCESS OCCURS OVER TIME AND IS
DETERMINED BY THE INSTALLATION ENVIRONMENT.

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, OR INJURY TO

PERSONS IMPORTANT SAFETY

INSTRUCTIONS

Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:

Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use

a soft cloth or gloves. Oil from skin may cause damage.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY

AND INSTALLATION INSTRUCTIONS

• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.

• Follow product label information and instructions.

• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.

• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.

• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.

• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.

• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.

• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.

• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.

• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.

IMPORTANT LISTINGS AND CERTIFICATIONS

· Suitable for wet locations

Please refer to the low voltage design guide at www.tekaillumination.com/lvguide before installation for proper wire selection.

Stem

Cap

Rings

Shade

Canopy

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS

40429 Brickyard Drive • Madera, CA 93636 • USA

www.tekaillumination.com • [e-mail]

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TEKA ILLUMINATION AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF TEKA ILLUMINATION IS STRICTLY FORBIDDEN.

559.438.5800 • FAX [phone]

RELEASE DATE

5-3-18

REFERENCE NUMBER

INS-2588-00

Phase 1 - Rough In

Installation of Back box

BEACON STEM MOUNT™ (BSM)

Additional Info

• Please follow National and Local electrical codes for your area.

• Suitable for through wire.

• Suitable for installation into combustible materials.

• Rated for 90° C.

• Junction box, universal mounting ring screws, box mounting hardware
and gaskets (By Others)

Use heavy-duty pendant adapter if luminaire weight exceeds 50 lbs.

Junction box must be secured to a structural member suitable for

weight of the luminaire and other weight likely to be placed upon it.

1. Install Conduit (By Others) to be used with
this product.

Installation of Fixture

1. Hand loosen then remove two (2) decorative
cover nuts, then slide decorative canopy down
stem to expose mounting plate.

2. Install junction box so that front face is flush
with finished ceiling. Seal building envelope
as per NEC.

2. Make watertight connections from primary
branch circuit wiring to fixture leads using
waterproof wire connectors (By Others).
Connect green fixture wire to green incoming
ground wire. See wiring diagram.

3. Connect box to conduit and pull wires for
connections (See wiring diagram).

LINE

GROUND

COM

WIRING DIAGRAM

LINE

GROUND

COM

FIXTURE

3. Secure canopy plate to junction box with
two (2) #6-32 Phillips screws using Phillips
screwdriver.

NEC. Do not overtighten.

Seal building envelope as per

4. Slide decorative canopy cover up stem into
place and secure to mounting plate by hand­tightening provided two (2) decorative cover
nuts.

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

40429 Brickyard Drive • Madera, CA 93636 • USA

www.tekaillumination.com • [e-mail]

559.438.5800 • FAX [phone]

RELEASE DATE

5-3-18

REFERENCE NUMBER

INS-2588-00
