Tecsun PL-390 instruction manual

TECSUN TECSUN

PL-390

FM stereo / SW / MW / LW DSP RECEIVER

OPERATION MANUAL

Auto Tuning storage (ATS) status

SLEEP

TECSUN ELECTRONIC IND. LTD.

Address: Rm 11, 13/F, Block A, Hoi Luen Ind. Ctr.,
55 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong.
E-mail: [e-mail]
Website: www.tecsun.com.cn

TECSUN ELECTRONIC IND. LTD.

PL-390

Functional Block Diagram

PL-390 is using DSP si4734 Microchips (from Silicon Labs in
USA) to digitalize the analog AM/FM broadcasting signal base
on the modern software technology and radio principles. It can
highly improve on radio's sensitivity, selectivity, S/N ratio and
anti-interference.

MW/ LW

CONTR OL LE R

INTERFACE
CONTROL

Functional Block Diagram

PL-390

ANT

AMPLIFIER

SW LP F

FM AN T

SPECIFICATIONS

SPECIFICATIONS

1. Frequency range

FM 87~108 MHz

Russia 64~108MHz

Japan 76~108 MHz

Eu, USA 87.5~108 MHz

MW 522~1620 (USA 520~1710) kHz

LW 153~513 kHz

SW 2300~21950 kHz

2. Sensitivity

F M (S/N=30dB) Less than 3μV

MW (S/N=26dB) Less than 1mV/m

LW (S/N=26dB) Less than 10mV/m

SW (S/N=26dB) Less than 20μV

3. Selectivity

F M ＞60 dB (±150kHz)

MW ＞60 dB (BW=3kHz, ±9kHz)

LW ＞60 dB (BW=3kHz, ±9kHz)

SW ＞60 dB (BW=3kHz, ±5kHz)

4. FM Stereo crosstalk Less than 35 dB

5. Memory 550

6. Output (Distortion 10%) 180 mW X 2

7. Power UM3 or AA X 3

USB 5V DC

8. Speaker (2 speakers) 57mm, 250mW/8 Ohm

9. Earphone Jack 3.5mm, 8~32 Ohm, Stereo type

φ

φ

10. Dimensions Approx. 186(W) X 89(H) X 29(D) mm

11. Weight 315g (Batteries not included)

PL-3 90 PL-3 90 29

TABLE OF CONTENTS

Control Locations……………………………………………….
LCD display …………………………………………………….

How to turn ON/OFF the radio……………………….............

Tune in stations…………………………………………………

●

Easy Tuning Mode (ETM)

●

Manual tuning

●

Auto browse station

●

Direct Keypad entry

Working with station memories…………………....................

●

Auto Tuning Storage (ATS)

●

Manual storing station

●

Semi-auto storing station

Listening to stored stations………………………..............…

Delete memory………………………………………...........…

Sleep function……………………………………............……

Clock Setting…………………………………….................…

Working with alarm function……….....................................

Snooze function...................................................................

How to change the display mode........................................

Key-lock function………………...........................................

Working with intelligent light………….....……………………

FM ST. (FM Stereo) ……………………….....................……

AM BW (Bandwidth) ………………………………..…………
System setting…………………………………………………
Intelligent charging function………………………….………

How to improve FM / SW reception....................................

Line-in function………………………………………………...
Important matters for using batteries
Trouble shooting

………………………………………………

………………............

"B" sound function list ........................................................

Specifications ……………………………………………....…

2
4
5
6

9

11
12
14
14
15
17
17
17
18
19
19
20
21
22
22
23
24
26
29

PL-3 90 1

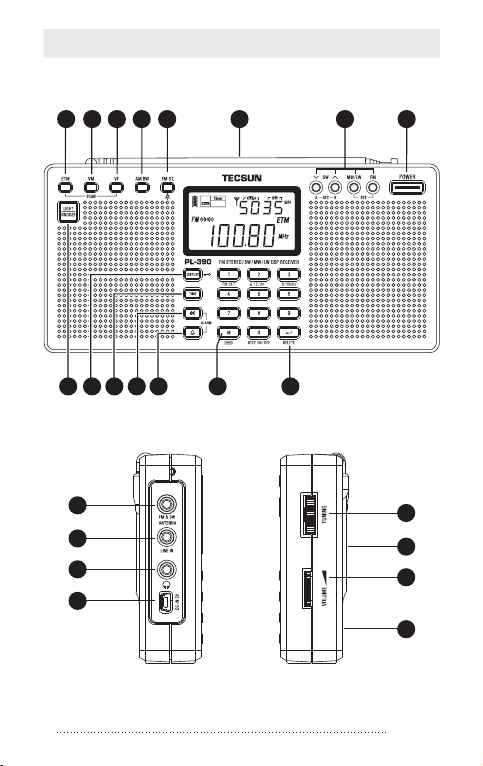

CONTROL LOCATIONS

34

SLEEP

10 11 12 13 14 15

9

16

17

18

19

125678

20

21

22

23

PL-3 902

1

Power on/off button

2

Band Selector & ATS button

3

FM & SW Telescopic Antenna

4

FM Stereo button

5

AM / BW button

6

View frequency (VF) & SCAN button

7

View memory (VM) & SCAN button

8

Easy Tuning Mode

9

Light / Snooze button

10

Display mode / key lock button

11

Time Set

12

Alarm by Radio

13

Alarm by Buzzer

14

Memory button

15

Delete / Confirm [ ] button

16

FM & SW External Antenna Jack

17

Line in Jack

18

Earphone Jack

19

USB 5V DC-Jack

20

Multifunctional Tuning Knob

21

Back Stand

22

Volume Knob

23.

Battery Compartment

PL-3 90 3

LCD DISPLAY

1

2 4 6

SLEEP

18

395

7

8

17

Battery consumption indicator /

1

Charging indicator

Sleep timer indicator

2

Alarm on/off indicator

3

" " alarm on by radio
" " alarm on by buzzer

4

Temperature (Temp.)

5

AM, PM indicator for 12-hour
format clock

6

Signal indicators
dBu: signal strength unit
dB : Signal to Noise Ratio
(S/N) unit

7

Alarm time indicator

8

SW meter band indicator

9

ETM indicator

Tuning speed:

10

" " Slow Tuning
" " Fast Tuning

10

11

15 14

16

13

12

kHz: frequency unit for MW,

11

LW & SW
MHz: frequency unit for FM

12

Digital number display (4 Digits)

With radio off: world time, alarm
time, temperature
With radio on: word time, signal
strength / SNR, alarm time,
temperature, local time, memory
address, meter band.

13

Preset memory address

14

Digital number display
With radio off: local time
With radio on: frequency display,
band display

15

Key-lock indicator

16

FM stereo status indicator

17

Band indicator

18

Rechargeable batteries indicator

PL-3 90

HOW TO TURN ON/OFF THE RADIO

1. Open the battery compartment located on the back of the
unit, install 3 x AA alkaline batteries observing the battery
polarity diagram on the back of the radio. Close the
battery door.

Installing batteries

2. Press the [POWER] button to turn on/off the radio.

Press

Note:

If the radio is unable to be turned on. Please check if the
batteries were installed correctly, battery capacity is

sufficient or the lock function had been applied with " "
displays on screen (press & hold the [ ] button to
unlock.)

PL-3 90 5

TUNE IN STATIONS

Press the [POWER] button to turn on your radio, then
select your desired band by pressing the [FM], [MW/LW]、
SW[ ] or [ ] button. In case of receiving FM/ SW

broadcasting, fully extend the telescopic antenna for a
better reception. When receiving MW and LW broadcasting,
please rotate the radio or change it's location to achieve
optimum reception. You can rotate the [VOLUME] knob to
adjust to appropriate volume from 0 to 30 levels.
Now, you can turn into your favorite stations with any of the
below tuning methods:

METHOD 1: ETM (EASY TUNING MODE)

ETM is the unique tuning method designed by Tecsun. It
skillfully combines the reception circuitry & control
procedure to pre-select the suspected radio station and
temporarily auto stores them into the ETM memory (not the
regular 550 memories). This highly enhances the efficiency
when tuning into radio stations. Employing ETM to tune
preferred frequencies. you can easily tune into your desired
stations from those preferred frequencies.

1. Press the [ETM] button with
[ETM] shows on screen to enter
Easy Tuning Mode.

2. Press & hold the [ETM] button until
the frequency start running to
auto scan and store stations into
ETM memory, within the present
band.

3. When the frequency stop running,
turn around the [TUNING] knob to
select those stored stations.

Frequency
changing

SLEEP

flashing

Preset station
number ETM

Notes: While operating ETM to search for stations, a few
stations might be missed if there is interference in the
surrounding. In this case, you can simply key-in the
frequency, then press the [ETM] button to manually store it
into ETM memory.

PL-3 906

Tips:

FM station: When you are in a different city or country, you
should perform the ETM function again in stead of using
ATS function, because this will not delete any of the
stations already stored within the memory.

MW station: It is recommendable to perform the ETM
function during night time, because there are usually many
stations starting broadcasting at night.

SW station: It is recommendable to perform the ETM
function in the morning, afternoon as well as night time,
because the transmitting signal of SW is very unstable and
usually there are more stations that start broadcasting in
the late afternoon.

METHOD 2: MANUAL TUNING

Frequency searching: Press the [VF] button to switch into
frequency mode, and then rotate the [TUNING] knob to
select your desired station.

FAST/SLOW tuning is shown in the chart below for each band.

band

FM
MW
LW
SW

step

Slow tuning mode

turning step

0.01 MH z
1kH z

1 kHz
1 kHz

Fast tuning mode

turning step

0.1 M Hz

9 /10kH z

9 kHz
5 kHz

Memory searching: Press the [VM] button to switch into
memory mode, and then rotate the [TUNING] knob to
select those stored stations.

PL-3 90 7

METHOD 3: AUTO BROWSE STATION

1.Turn on the radio and press the
[VF] button to switch into
frequency mode.

2.Press & hold the [VF] button
with [ ] advancing to scan
from one station to another,

Frequency
changing

SLEEP

advancing

staying on each station for
about 5 seconds.

3.To stop the auto browse
function, simply press the [VF]
button

Auto browse station

Note: While operating the “Auto Browse Station” function,
you can press the [M] button anytime to store the station
into memory, and the radio will keep on auto browsing the
next available station.

METHOD 4: DIRECT KEYPAD ENTRY

To search for frequency, turn on the radio and press the
[VF] button to switch into frequency mode, press the
numeric keys [0] - [9] to enter the station frequency directly.

To search for memory, press the [VM] button to switch into
memory mode, then press the numeric keys [0] - [9] to
enter the preset memory number directly.

Notes:

1. Ignore the decimal point for FM band when inputting the
frequency numbers.
For example, FM 89.3 MHz, just enter 8 9 3.

2. If the entered frequency rate is not within the covering
area, the display would display “Err” (error) symbol.

PL-3 908

WORKING WITH STATION MEMORIES

There are total 550 preset memories within the unit. 100
preset memories for each FM, MW, and LW band, and 250
for SW.

FM ATS:

1. Fully extend the telescopic
antenna and press the [FM]
button to select FM band.

2. Press & hold the [FM] button
with “PRESET ” flashing and the
frequency start running, then
you can scan and store your

SLEEP

desired stations within the
present band. When the
frequency stop running, it
means the ATS operation has
been completed; then rotate
the [TUNING] knob for those

Auto Tuning storage (ATS)
status

scanned and stored stations.

MW/LW ATS:

Press the [MW/LW] button to select MW/LW band, then
follow step 2 of FM ATS.

SW ATS:

Fully extend the telescopic antenna and press the SW[ ]
or [ ] button to select SW band. There are two modes for
SW ATS tuning:

Mode A: Press & hold the [ ] button to ATS the stations
within all meter bands
Mode B: Press & hold the [ ] button to ATS the stations
within present meter band only.rotate the radio for better
location (MW & LW).

flashing

PL-3 90 9

Notes:

1. During ATS process in FM, MW / LW or SW (mode A),
pre-stored radio stations will be replaced automatically
by the new searched stations.

2. With ATS in SW (mode B), those existing memories will
not be replaced; all the newly found radio stations would
be stored in the blank memories addresses.

3. If there is too many interference in you surrounding or
many mirror/blank station being stored during ATS, you
should contract the telescopic antenna (FM & SW) or
rotate the radio for better location (MW & LW).

METHOD 2: MANUAL STORING STATON

1. Select band and tune to your desired station.

2. Press the [M] button with “preset” flashing

3. Press the [M] button again to store the station into
memory.
You can also wait for 3 seconds to auto store the station
into memory.

METHOD 3: SEMI-AUTO STORING STATION

While operating the “Auto Browse Station” function, you
can simply press on the [M] button to store the station into
memory to avoid storing unwanted stations and interfering
signals.

1. Press the [VF] button to switch into frequency mode.

2. Press & hold the [VF] button with “ “ advancing to
auto browse from one station to another.

3. While tuning to your favor station, press the [M] button
with “PRESET ” flashing to direct store the station into the
next available memory. The unit will keep on browsing
until you deactivate it by pressing on the [VF] button
again.

PL-3 9010

LISTENING TO STORED STATIONS

METHOD 1: MANUAL MEMORY TUNING

Press the press [VM] button to
enter the frequency mode, then

Memory address

SLEEP

rotate the [TUNING] knob to tune
into the stored station one by one.

address state

METHOD 2: AUTO BROWSE MEMORY

1. Press the [VM] button with
memory page shows in the
upper right corner to enter
the frequency mode.

SLEEP

flashing

2. Press & hold the [VM] button
until “PRESET ” flashing to auto
scan from one memory to
another, staying on each station
for about 5 seconds.

Auto browse preset station

To stop auto search memory,
simply press the [VM] button.

METHOD 3: DIRECT KEY IN MEMORY ADDRESS

1. Press the [VM] button to enter the memory mode.

2. Press the numeric keys [0] - [9] to enter the memory
address directly, and then press the button to
confirm.

Note: If the display shows “ - - - - ”symbol after entering
the number, it means the entered memory address
does not exist.

PL-3 90 11

DELETE MEMORY

METHOD 1: MANUAL DELETE SINGLE MEMORY

1. Press the [VM] button to
enter the memory mode.

2. Rotate the [TUNING] knob to
select the memory that you
want to delete.

3. Press & hold the [DELETE]
button with “ ” flashing;
then press the [DELETE]
button to remove the unwanted
memory address.

Note: If " " is flashing more than 3 seconds without
confirmation, it will exit the delete function automatically.

METHOD 2: SEMI-AUTO DELETE MEMORY

Feature: using the Auto-Browse function of memory to
quickly delete unwanted station.

1. Press the [VM] button to enter
the memory mode.

2. Press & hold the [VM] button
with [PRESET] flashing to auto
scan from one memory to
another, staying on each station
memory for about 5 seconds.

3. Once previewing your unwanted
station, simply press the
[DELETE] button with “ ”
shows on display to delete the
station, then keep on browsing
other stations.

flashing

SLEEP

Timer

Delete a single station

SLEEP

Timer

Delete memory

PL-3 9012

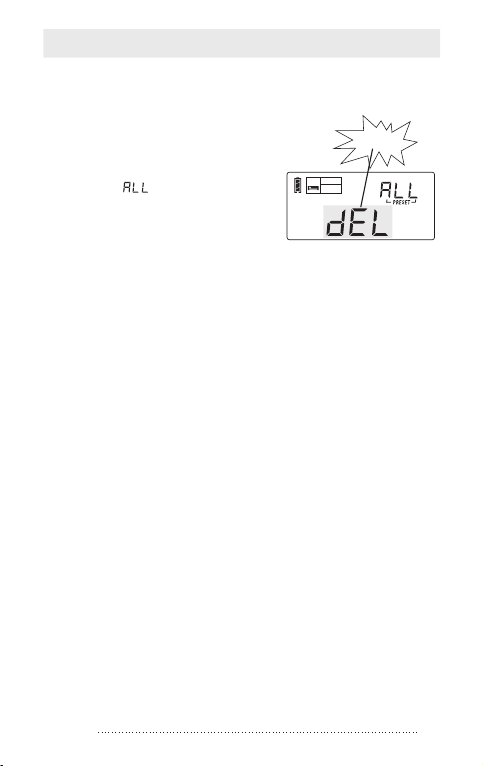

METHOD 3: MANUAL DELETE ALL
MEMORY WITHIN THE BAND

1. Press the [VM] button to enter
the memory mode.

2. Press & hold the [DELETE]
button for 3 seconds and
notices “ ” flashing in the

flashing

SLEEP

Timer

upper right corner of display.

3. Press the [DELETE] button
again to delete all memory
within the selected band.

Delete all memories

Note: If the [DELETE] button has not been pressed within
3 seconds to confirm, it will exit the delete function
automatically.

PL-3 90 13

SLEEP FUNCTION

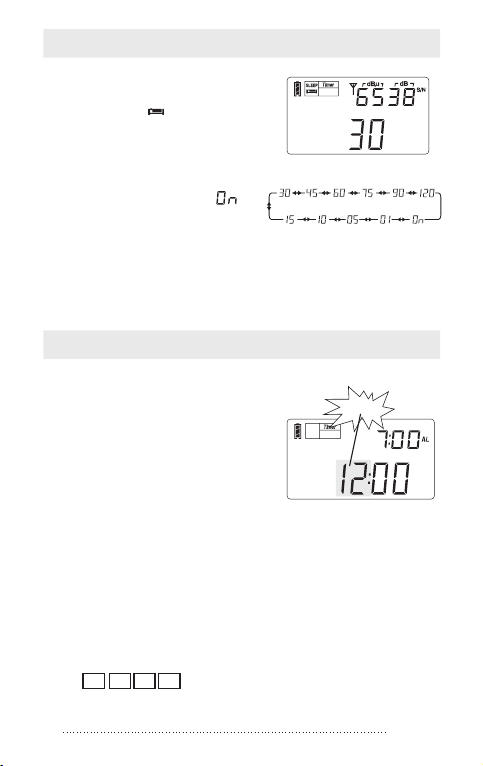

1. Press & hold the [POWER]
button with “ ” and “30”

SLEEP

symbols show on the display.

2. Rotate the [TUNING] knob
immediately to select sleep
timer from 1 ~ 120 minutes
or select permanently “ ”,
then wait till the radio auto
turn on to confirm the setting.

Sleep time range

Note:

The default setting of the auto-turn off time is 30 minutes.

CLOCK SETTING

1. Press & hold the [TIME] button
with hour flashing, then rotate
the [TUNING] knob to adjust
the hour.

2. Then press the [TIME]
button with minutes flashing,
and then rotate the [TUNING]
knob to adjust the minute.

3. Press again the [TIME] button to confirm the setting.

※ If the [TIME] button has not been pressed again within 3
seconds, the unit will automatically confirm the setting.

Note: You can also direct key-in the number to set the
clock after pressing & holding the [TIME] button.
Example: To set the clock to 6:35, press the numeric key to
enter 0 6 3 5 ; then you will hear a prolonged "B -"
sound suggesting that the time has been set up.

flashing

PL-3 9014

WORKING WITH ALARM

It is recommended to set the alarm by buzzer if you are not
familiar with the local radio frequency and air time.

SETTING THE ALARM (BY BUZZER)

1. Press & hold the [ ] button
with hour flashing in the upper
right corner, then rotate the
[TUNING] knob to adjust the
hour.

2. Press the [ ] button with
minutes flashing, then rotate
the [TUNING] knob to adjust
the minute.

3. Press the [ ] button with “ “
shows on display to confirm
the setting.

※ If the [ ] button has not been pressed again within 3
seconds, the unit will automatically confirm the alarm

setting.

SETTING THE ALARM (BY RADIO)

First preset the alarm station:

1. Turn on the radio, then tune into your favorite station for
alarm by radio and adjust your desired alarm volume
level.

2. Press the [M] button with “ PRESET ” flashing,

3. Press the [ ] button immediately and notice “ ”
shows on the display to confirm the preset alarm station.

Then set the alarm time:

1. Press & hold the [ ] button with hour flashing in the
upper right corner, then rotate the [TUNING] knob to
adjust the hour.

2. Press the [ ] button with minutes flashing, then rotate
the [TUNING] knob to adjust the minute.

Setting the alarm by buzzer

flashing

PL-3 90 15

3. Press the [ ] button again
with [30] shows on display,
then rotate the [TUNING] knob
to select 1 ~ 90 minutes to set
the Auto Alarm Off Timer.

4. Press the [ ] button again to
confirm.

Auto sleep timer

※ If the [ ] button has not been pressed again within 3
seconds; the unit will automatically confirm the setting.

The unit will turn on automatically with the preset station
when it reaches the alarm time. It will auto turn off as
well when it reaches the preset alarm off timer.

HOW TO ACTIVATE / DEACTIVATE THE ALARM

You can press the [ ] or [ ] button repeatedly to
activate/deactivate the alarm by buzzer / radio respectively.

- If “ ” shows on the display, it means the alarm by
buzzer is turned on.

- If “ ” shows on the display, it means the alarm by radio
is turned on.

- If “ ” / “ ” does not show on the display, it means the
alarm by buzzer / radio is turned off.

HOW TO TURN OFF WHEN ALARMING
Buzzer alarm: Press the [POWER] button to turn off the

alarm.
Radio alarm: Press once the [POWER] button to
continuously listening to the radio, press
twice to turn off the station alarm.

Note: If the preset alarm is activated when you are
listening to the radio, it will auto switch to the preset
radio station.

PL-3 9016

SNOOZE FUNCTION

When the preset alarm is activated, you can press the
[LIGHT / SNOOZE] to temporarily turn off the alarm, the
unit will start alarming again 5 minutes later.

HOW TO CHANGE THE DISPLAY MODE

With radio OFF: Repeat pressing

the [DISPLAY] button to view
Temperature or Alarm time display.

With radio ON: Press the
[DISPLAY] button to view Local time,
Alarm time, Temperature or Signal
strength/ SNR showing on the upper
right corner of the display.

Press

KEY-LOCK FUNCTION

Press & hold the [ ] button with “ ” symbol appears
on the display to activate the key lock function.
Press & hold it again with the “ ” symbol disappears to
deactivate the locking function.

PL-3 90 17

WORKING WITH INTELLIGENT LIGHT

This radio has an intelligent lighting function with which the
backlight would be on for 3 seconds when operating any
keys or knobs.

You can use the following methods to turn on / off the
backlight:

TEMPORARY ILLUMINATION:

Press the [LIGHT/SNOOZE] button with a “B” sound to
illuminates the LCD for 3 seconds.

PERMANENT ILLUMINATION:

Press & hold the [LIGHT/SNOOZE] button with a
prolonged “BB” sound heard for permanently illumination.
Press it again with a BB sound to turn off the backlight.

Notes:

1. When the unit is powered by the battery, please try to
avoid setting the backlight to permanent illumination so
as to reduce power consumption.

2. When the unit is turned off, the permanent illumination
function will be turned off automatically as well.

HOW TO TURN ON/OFF THE INTELLIGENT LIGHTING

Press & hold the [ ] key with the “OFF” shows in the
display to deactivate the lighting function;
press & hold the [ ] key again with “ON” shows up to
activate it.

Note:
After shutting off the intelligent lighting function, the
[LIGHT/SNOOZE] key is still workable for turning on or off
the backlight.

PL-3 9018

FM ST. (FM STEREO)

While listening to FM stereo stations, press the [FM ST.]
button with “ ” appears in the display to activate the
“ STEREO ” listening. If the received FM broadcast signal is
too weak, it is recommendable to turn off the stereo
function by pressing the [FM ST.] button again with “ ”
disappears.

Note: The stereo function will not be activated if the FM
station is not stereo broadcasting.

AM BW (BANDWIDTH)

Repeat pressing the [AM BW] button to select your desired
6, 4, 3, 2, 1 kHz bandwidth.

Wide band: It has better audio fidelity when receiving
strong signals or local stations.

Narrow band: It is suitable to receive weak & long distant
station as narrow band is able to limit the interference from
adjacent strong signal and reduce the background noise.

PL-3 90 19

SYSTEM SETTING

SETTING FM FREQUENCY RANGE: In radio off mode,

press & hold the [FM SET] button until 87.5-108MHz, 64­108MHz, 76-108MHz, or 87-108MHz appears in the
display. Quickly keep pressing on the [FM SET] button to
select suitable frequency range for your local FM.

SETTING 12/24 CLOCK FORMAT: In radio off mode,
press & hold [12/24] button with “12H/24H " shows on
display to select your desired clock format.

SETTING MW(AM) TUNING STEP: With radio off, press &
hold [9/10kHz] button until "9kHz" or "10kHz" appear in the
display to select your desired AM tuning step

TEMPERATUE: When the AM tuning step is 10 kHz, the
temperature displays will auto switch to Fahrenheit (℉).
When the AM tuning step is 9 kHz, the temperature
displays will auto switch to Centigrade (℃).

TURN ON/OFF THE LW: With radio off, press & hold the
[MW/LW] button until “LW ON” or “LW OFF” appears in the
display to turn ON or OFF the LW respectively.

TURN ON/OFF THE CHARGING FUNCTION &
EXCHANGE THE BATTERY CONSUMPTION DISPLAY:

With radio off, press & hold the [ ] key with “ ”
& “ ” show up to activate the consumption display of
rechargeable batteries and the built-in charging system.
Press & hold the [ ] key with “ “ shows up and
“ ” disappears to activate the consumption display of
regular batteries and turn off the built-in charging function.

Note: This radio is default to use regular batteries for
power supply. In case of using rechargeable batteries, you
should switch the radio system to rechargeable batteries
mode in order to show the correct power capacity.

PL-3 9020

TURN ON/OFF THE "Bi" SOUND: With radio off, press &
hold the [BEEP ON/OFF] button until "ON" or "OFF"
appears in the display to activate or deactivate the "Bi"
sound respectively.

INTELLIGENT CHARGING FUNCTION

With radio off, install 3 x UM3 (AA) rechargeable batteries
& then press & hold the [ ] key with “ ” and

“ ” display to activate the built-in charging function.
Use 5V external adaptor with USB plug to connect with the

radio. The symbol “ ” will advance from the bottom to top
during power charging. It stops when batteries are fully
charged.

Connect 5V external adaptor with USB plug

Notes:

1. Insist to use up all power of rechargeable batteries
before charging again. This could extend the life time of
battery and keep them in good conditions.

2. 3 pcs of batteries to be used as a group and don't
separate them for other usage and mix to use batteries
with different power capacity.

3. Don't charge on any non-rechargeable batteries in the
radio, this will cause a hazard or damage to your radio.

PL-3 90 21

HOW TO IMPROVE FM / SW RECEPTION

Plug in the external wire antenna to the [FM & SW]
antenna jack of this radio, and then hang its end outside
the window for better reception of FM and SW.

Wir e anten na

Win dow

Cau tion: D o not ins tall any ext ernal a ntenn a
at th e area wi th th under & l ighti ng!

Ext ernal
wal l

LINE-IN FUNCTION

This unit can be used as active speaker of laptop
computers, MP3 and other small audio players following
below steps:

1. Connect the audio cable to the [LINE IN] jack; then the
display will show a “ ” symbol confirming that the plug
has been connected with the radio.

2. Press the [POWER] button with the symbols “ ”
flashing to play; then rotate the [VOLUME] button to
adjust the volume.

3. Press again the [POWER] button to turn off the speaker
of the radio.

LIN E IN jack

MP3 e arpho ne jack

PL-3 9022

IMPORTANT MATTERS FOR USING BATTERIES

1. If no battery has been installed inside for long time, clock
of radio would stop to work. However, pre-stored
frequencies are still kept. Clock would work again after
new batteries being re-installed inside.

2. When the battery power is low, the " " symbol in the
display will flash to alert you for changing new batteries.
Besides it will turns off automatically when the power is
gone.

3. Mix using the used & new batteries would cause damage
of radio and also display the capacity of power incorrectly.

4. In case of radio not to be used for a long period, draw out
the batteries for preventing liquid leakage and damaging
the parts of radio.

PL-3 90 23

TROUBLE SHOOTING

QUES TIONS AN SWERS S OLUTI ONS

Can not turn on
the radio.

Radio goes off
when you are
listening.

Can not store
some stations
using ATS
Some station
store with noise
using ATS.

Only limited FM
stations can be
received in Japan.

-No power with the
batteries.

-Didn't install the
batteries properly.

-Power button is
locked.

-No power with the
batteries.

-Sleep timer is
activated.

-Frequency of
stations are too
weak.

-There are
interference near
by your area.

-FM frequency is
76~90MHz for
Japan.

-Replace the new
batteries.

-According to "+" or
"-" sign to install
the batteries again.

-Press the [ ]
button to unlocked.

-Replace the
batteries.

-Turn on the radio
again.

-Search the station
manually.

- Low down the
antenna or move
to other location
and try again.

-Turn the radio off
and press & hold
the [FM SET] button，
press [FM SET]
button again to
select 76~108MHz.

Received very
poor AM in USA.

24 PL-3 90

-USA is using
10kHz step for AM.

-Turn off the radio
press the [9/10kHz]
button to select
10kHz.

QUES TIONS AN SWERS S OL UTI ON S

When the alarm
activated (alarm
by radio), there is
only noise with
the broadcast.

No sound while
connecting with
external MP3.

radio malfunction.

-Did not set the
proper radio station
for the alarm.

-Or there are no
broadcasting at
that radio station.

-Or you are in
another city where
does not have a
radio station for
your preset
frequency.

Have not pressed
the [POWER]
button.

This may caused
by interference,
and the computer
microchip not
function properly.

-Preset your alarm
station properly
(see the above
setting).

-Make sure it has
radio broadcast in
your location.

-Or set the alarm by
buzzer.

Press the [POWER]
button until the “ ”
flashing on the
display to play

Remove the battery,
then you can reload.
If it is still not able to
work, please contact
your nearest dealer
for customer service.

PL-3 90 25

"Bi" SOUND VIA FUNCTIONS

Fun ction B utton S tatus S ound Di splay

Radio on or off

Adjust auto-off
time

FM

MW (AM) or
LW

SW BAND
METER BAND

ATS
(Auto Tuning
Storage)

ETM

Frequency
Scanning

Memory
Scanning

Auto browsing
(Scanning)

AM band width

Store memory

Delete memory

POWER

POWER

&
TUNING
KNOB

FM ST.FM STEREO

FM FM

MW/LW

or

FM
MW/LW
SW

or

( )

ETM

VF

VM

VF

VM

MEMORY

DEL ETE

Radio on

Radio off

Rotate at 30, 60, 90,
120 mins.

Radio permanently

STEREO

MONO.

MW

LW

SW

METER BAND

ATS on

ATS off

ETM On

Frequency mode

Memory mode

Frequency mode

Memory mode

1kHz, 2kHz, 3kHz, 4kHz,
6kHz

On

Confirmed / Auto confirm

Delete single memory

Delete all memory

Confirmed

B

" " display

BB

Display the time for auto-off

B

" " display

BB

B

" " display

BB

" " disappear

B

" " in the display

" " in the display

BB

" " in the display

B-- (long)

" " & SW frequency

B

Meter band on the right corner

B

Freq. & memory address are

B

running

Display 01 memory address

B-- (long)

and Frequency

B

" " in the display

Radio freq. numbers flashing.

BB

Memory address on the top

B

right corner

Radio freq. running

B

Memory address running

B

Display equivalent band

B

width
Memory address flashing

B

on the top right corner

Stopped

B-- (long)

Memory address and

B

" " are flashing

" " & " " are

BB

flashing

Back to Freq. display

B-- (long)

PL-3 9026

Fun ction B utton S tatus S ound Di splay

BACKLIGHT

SNOOZE

SNOOZE
LIGHT

SNOOZE
LIGHT

Lock

Time setting

Auto radio
on / off
function

In/out SW
meter band

FM freq. range

TIME

TUNING

FM SET

12/24 format 12/24

MW(AM) STEP

Charge
on/off

9/10kHz

Illuminate short time

/

Illuminate permanently

Turn off

/

Temporary off

Lock

Unlock

Hour setting

Minute setting

Confirm or Auto confirm

Hour setting

Minute setting

Adjust the length
of alarm

confirmed

Select alarm by radio

Select alarm by buzzer

Select alarm off

Inside SW meter band

Out of SW meter band

Select FM freq.

Select 12 format

Select 24 format

Select 9kHz step

Select 10kHz step

On

Off

Backlight on for 3 seconds

BB

B-- (long)

Backlight on

B

Backlight off
" " or " " and the

B

auto turn-on time are flashing

" " display

B-- (long)
B

" " disappear

" "

hour flashing

B

" "

minute flashing

BB

Flashing stop

B-- (long)

"hour" flashing

B

"minute" flashing

BB

1~90 minutes display,
" " and " " are

BB

flashing

B-- (long)

Display time

B

Display " "

BB

Display " "

" " and " " disappear

B-- (long)

Meter band appear on the

B

top right corner

Meter band disappear

B

87.5-108MHz,64-108MHz,

B

76-108MHz or 87-108MHz

B

" " in the display

" " in the display

BB

B

"9kHz" and " " in the display

"10kHz" and " " in the display

BB

" " & " "

B

in display

" " in display

BB

& " "disappeared

SLEEP

PL-3 90 27

Fun ction B utton S tatus S ound Di splay

" " in the display

“Bi” sound
on/off

Intelligent
lighting on/off

LW on / off

BEEP
ON/OFF

MW/LW

On

Off

On

Off

Off

On

B

" " in the display

BB

" " in the display

B

" " in the display

BB

BB

" " display

B

" " display

PL-3 9028
