TECHWOOD VL19TV1001 Operating Instructions Manual
VL19TV1001
OPERATING INSTRUCTIONS
MODE D'EMPLOI
COLOUR TELEVISION WITH REMOTE CONTROL
TELEVISEUR COULEUR A TELECOMMANDE
www.vestel-france.fr
English - 1 -
Contents
TV Setup ........................................................... 15
Setup ................................................................ 15
Media Browser .................................................. 19
Playing MP3 Files ............................................. 19
Viewing JPG Files ............................................. 19
Slideshow Options ............................................ 20
Video Playback ................................................. 20
Analogue TV Menu System .................................. 20
Picture Menu..................................................... 20
Sound Menu ..................................................... 21
Feature Menu ................................................... 21
Source Menu .................................................... 22
Install Menu ...................................................... 22
Program Table .................................................. 23
PC-VGA Mode Menu System ............................... 24
PC-VGA Position Menu .................................... 24
Displaying TV Information .................................... 24
Mute Function ....................................................... 24
Muting Speakers .............................................. 24
Muting the Headphones.................................... 24
Picture Mode Selection......................................... 24
Zoom Modes......................................................... 25
Auto .................................................................. 25
16:9 ................................................................... 25
4:3 ..................................................................... 25
Teletext ................................................................. 25
Tips ....................................................................... 26
Image Persistence ............................................ 26
No Power .......................................................... 26
Poor Picture ...................................................... 26
No Picture ......................................................... 26
Sound ............................................................... 26
Remote Control................................................. 26
Input Sources.................................................... 26
Appendix A: PC Input Typical Display Modes ....... 27
Appendix B: AV and HDMI Signal Compatibility
(Input Signal Types) .............................................. 28
Appendix C: Supported File Formats for USB
Mode..................................................................... 29
Specifi cations ....................................................... 30
Package Contents .................................................. 2
Features ................................................................. 2
Introduction ............................................................. 2
Preparation ............................................................. 3
Safety Precautions ................................................. 3
Power Source ..................................................... 3
Power Cord ......................................................... 3
Moisture and Water ............................................ 3
Cleaning.............................................................. 3
Ventilation ........................................................... 3
Heat and Flames ................................................ 3
Lightning ............................................................. 3
Replacement Parts ............................................. 3
Servicing ............................................................. 3
Waste Disposal ................................................... 3
Information for Users in European Union
Countries ............................................................ 4
Disconnecting the Device ................................... 4
Headphone Volume ............................................ 4
Installation........................................................... 4
LCD Screen ........................................................ 4
Warning .............................................................. 4
Connection to a Television Distribution System
(Cable TV etc.) from Tuner ................................. 4
Overview of the Remote Control ............................ 5
LCD TV and Operating Buttons .............................. 6
Viewing the Connections- Back Connectors .......... 6
Viewing the Connections - Side Connectors .......... 7
Power Connection .................................................. 7
Aerial Connection ................................................... 7
Connecting the LCD TV to a PC ............................. 8
Using Side USB Input ............................................. 8
USB Memory Connection ................................... 8
Connecting to a DVD Player................................... 9
Using Side AV Connectors ..................................... 9
Connecting Other Equipment via Scart .................. 9
Inserting Batteries into the Remote Control.......... 10
Switching the TV On/Off ....................................... 10
To Switch the TV On ......................................... 10
To Switch the TV Off ......................................... 10
Input Selection ...................................................... 10
Basic Operations .................................................. 10
Operation with the Buttons of the TV ................ 10
Operation with the Remote Control ...................11
Initial Settings ........................................................11
General Operation .................................................11
Electronic Programme Guide (EPG) .................... 12
Displaying Subtitles .......................................... 12
Digital Teletext (** for UK only) ......................... 12
Analogue Teletext ............................................. 12
Widescreen ....................................................... 12
IDTV Menu System .............................................. 13
Channel List ...................................................... 13
Timers ............................................................... 14
Conditional Access ........................................... 15
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 101_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 1 05.11.2010 10:26:4905.11.2010 10:26:49
English - 2 -
Package Contents
EXIT
/
GUIDE
WIDE
ABC
DEF
GHI
JKL MNO
PQR
STU
VWX
YZ
M
P<P
TV
DTV
i
I-II
INFO
--
VP
++
-/--
PP
0
1
2
3
4
5
6
7
8
9
PC
OK
Remote
Control
LCD TV
Instruction Book
Note: You should check the accessories after purchasing.
Make sure that each accessory is included.
Features
• Remote controlled colour LCD TV.
• Fully integrated digital TV (DVB-T).
• HDMI connectors for digital video and audio. This
connection is also designed to accept high defi nition
signals.
• 200 programmes from VHF, UHF(analogue).
• 500 programmes for digital mode (IDTV).
• OSD menu system.
• Scart socket for external devices (such as video,
video games, audio set, etc.).
• Stereo sound system.
• 10 page Teletext, fastext, TOP text.
• Headphone connection.
• Automatic programming system.
• Forward or backward manual tuning.
• Sleep timer.
• Child lock.
• Automatic sound mute when no transmission.
• NTSC playback.
• AVL (Automatic Volume Limiting).
• When no valid signal is detected, after 5 minutes the
TV switches automatically to standby mode.
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, Windows 7, ME, 2000,
XP, Vista, Windows 7.
• Game Mode.
Introduction
Thank you for choosing this product. This manual will
guide you for the proper operation of your
TV. Before operating the TV, please read
this manual thoroughly.
Please do keep this manual in a safe place
for future references.
This device is intended to receive and display TV
programs. The different connection options make
an additional expansion of the reception and display
sources possible (receiver, DVD player, DVD
recorder,VCR, PC etc.). This device is only suitable
for the operation in dry interiors.
This appliance is intended solely for private domestic
use and may not be used for industrial and commercial
purposes. We exclude liability in principle, if the device
is not used as intended, or unauthorized modifi cations
have been made. To operate your LCD-TV in extreme
ambient conditions may cause the damage of the
device.
Please read the corresponding instructions of this
handbook prior to the fi rst usage of the device, even
when the usage of electronic devices is familiar
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 201_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 2 05.11.2010 10:26:5105.11.2010 10:26:51
English - 3 -
Cleaning
Before cleaning, unplug the TV set from
the wall outlet. Do not use liquid or aerosol
cleaners. Use soft and dry cloth.
Ventilation
The slots and openings on the TV set are intended for
ventilation and to ensure reliable operation. To prevent
overheating, these openings must not be blocked or
covered in anyway.
Heat and Flames
The set should not be placed near to open
fl ames and sources of intense heat such
as an electric heater. Ensure that no open
fl ame sources, such as lighted candles,
are placed on top of the TV. Batteries
should not be exposed to excessive heat
such as sunshine, fi re or the like.
Lightning
In case of storm and lightning or when
going on holiday, disconnect the power
cord from the wall outlet.
Replacement Parts
When replacement parts are required, make sure that
the service technician has used replacement parts,
which are specifi ed by the manufacturer or have the
same specifi cations as the original one. Unauthorized
substitutions may result in fi re, electrical shock or
other hazards.
Servicing
Please refer all servicing to qualified
personnel. Do not remove the cover
yourself as this may result in an electric
shock.
Waste Disposal
Instructions for waste disposal:
• Packaging and packaging aids are recyclable and
should principally be recycled. Packaging materials,
such as foil bag, must be kept away from children.
• Batteries, including those which are heavy metal-
free, should not be disposed of with household
waste. Please dispose of used battery in an
environment friendly manner. Find out about the
legal regulations which apply in your area. Don’t try
to recharge batteries. Danger of explosion. Replace
batteries only with the same or equivalent type.
• Cold cathode fluorescent lamp in LCD PANEL
contains a small amount of mercury; please follow
the local laws or regulations for disposal.
to you. Notice especially the chapter SAFETY
PRECAUTIONS. Carefully keep the handbook as
future reference. When selling the device or giving it
away, absolutely give these direction for use.
Preparation
For ventilation, leave a free space of at least 10 cm
all around the set. To prevent any fault and unsafe
situations, please do not place any objects on top
of the set.
Use this device in moderate climates.
10 cm
10 cm
10 cm
Safety Precautions
Read the following recommended safety
precautions carefully for your safety.
Power Source
The TV set should be operated only from a 220-240
V AC, 50 Hz outlet. Ensure that you select the correct
voltage setting for your convenience.
Power Cord
Do not place the set, a piece of furniture, etc. on the
power cord (mains lead) or pinch the cord. Handle the
power cord by the plug. Do not unplug the appliance
by pulling from the power cord and never touch the
power cord with wet hands as this could cause a short
circuit or electric shock. Never make a knot in the cord
or tie it with other cords. The power cords should be
placed in such a way that they are not likely to be
stepped on. A damaged power cord can cause fi re or
give you an electric shock. When it is damaged and
needs to be replaced, it should be done by qualifi ed
personnel.
Moisture and Water
Do not use this device in a humid and
damp place (avoid the bathroom, the
sink in the kitchen, and near the washing
machine). Do not expose this device to
rain or water, as this may be dangerous
and do not place objects fi lled with liquids,
such as fl ower vases, on top. Avoid from
dripping or splashing.
If any solid object or liquid falls into the cabinet, unplug
the TV and have it checked by qualifi ed personnel
before operating it any further.
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 301_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 3 05.11.2010 10:26:5105.11.2010 10:26:51
English - 4 -
Information for Users in European
Union Countries
This symbol on the product or on its
packaging means that your electrical
and electronic device should be
disposed at the end of its service
life separately from your household
wastes. There are separate collection
systems for recycling in EU.
For more information, please contact the local
authority or the dealer where you purchased the
product.
Disconnecting the Device
The mains plug is used to disconnect TV set from
the mains and therefore it must remain readily
operable.
Headphone Volume
Excessive sound pressure from earphones
and headphones can cause hearing loss.
Installation
To prevent injury, this device must be securely
attached to the wall in accordance with the installation
instructions when mounted to the wall (if the option
is available).
LCD Screen
The LCD panel is a very high technology product with
about a million thin fi lm transistors, giving you fi ne
picture details. Occasionally, a few non-active pixels
may appear on the screen as a fi xed blue, green or
red point. Please note that this does not affect the
performance of your product.
Warning
Do not leave your TV in standby or operating mode
when you leave your house.
Connection to a Television
Distribution System (Cable TV etc.)
from Tuner
Device connected to the protective earthing of the
building installation through the mains connection or
through other apparatus with a connection to protective
earthing-and to a television distribution system using
coaxial cable, may in some circumstances create a
fi re hazard.
Connection to a cable distribution system has
therefore to be provided through a device providing
electrical isolation below a certain frequency range
(galvanic isolator, see EN 60728-11).
The Standby / On button doesn´t separate this
device completely from mains. Moreover the device
consumes power in the standby operation. In order to
separate the device completely from mains, the mains
plug has to be pulled from the mains socket. Because
of that the device should be set up in a way, that an
unobstructed access to mains socket is guaranteed,
so that in case of emergency the mains plug can be
pulled immediately. To exclude the danger of fi re, the
power cord should principally be separated from the
mains socket prior to a longer period of non-usage,
i.e. during vacations.
Electrical device not in the hands of children
Never let children use electrical device
unsupervised.
Children can´t always recognize properly the possible
dangers.
Batteries / accumulators can be life threatening when
swallowed. Store batteries unreachable for small
children. In case of swallowing a battery medical
aid has to be sought immediately. Also keep the
packaging foils away from children. There is danger
of suffocation.
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 401_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 4 05.11.2010 10:26:5105.11.2010 10:26:51
English - 5 -
Overview of the Remote Control
Standby1.
Current language (in DTV mode) (*)//Feature 2.
menu
Favourite mode (in DTV mode) (*) / Install menu3.
Previous programme 4.
Cursor up5.
Cursor right6.
Cursor down7.
TV / Digital TV8.
Mono/Stereo - Dual I-II 9.
Programme up/ (Page down in DTV mode) / 10.
Programme down/ (Page up in DTV mode)
Numeric buttons11.
Exit (in DTV mode)12.
Hold (in TXT mode) 13.
Update (in TXT mode) 14.
Index page (in TXT mode) / Electronic 15.
Programme Guide (EPG) (in DTV mode)
Reveal (in TXT mode) / Switch from TV to PC 16.
Picture menu / Page down / Subtitle on-off (in 17.
DTV mode) (*)
Sound menu / Page up / Channel list (*)(in DTV 18.
mode)
Menu on/off19.
OK / Select (analogue TV mode) / Channel list 20.
(in DTV mode) /
Cursor Left21.
AV / Source22.
Info23.
Volume up/down24.
Mute25.
Picture mode selection26.
Time / Subpage (in TXT mode) / Subtitle on-off 27.
(**)
Teletext on-off 28.
Mix (in TXT mode) 29.
Expand (in TXT mode) / Image size30.
(*) available for EU countries.
(**) available for UK country option.
EXIT
/
GUIDE
WIDE
ABC
DEF
GHI
JKL MNO
PQR
STU
VWX
YZ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
M
P<P
TV
DTV
i
I-II
INFO
--
VP
++
-/--
PP
0
1
2
3
4
5
6
7
8
9
PC
OK
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 501_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 5 05.11.2010 10:26:5205.11.2010 10:26:52
English - 6 -
LCD TV and Operating Buttons
FRONT and REAR VIEW SIDE VIEW Control Buttons
Up button1.
Down button2.
Programme/Volume / AV 3.
selection button
Standby / On button4.
Note:You can use “+/-” buttons to
change volume. If you want to change
channels, press P/V/AV button once
and then use “+/-” buttons. If you hold
the P/V/AV button about a few seconds,
source OSD will be displayed. Main
menu OSD cannot be displayed via
control buttons.
Viewing the Connections- Back Connectors
SCART socket inputs or outputs for external devices.1.
Connect the SCART cable between SCART socket on TV and
SCART socket on your external device (such as a VCR or a DVD
player).
Note: If an external device is connected via the SCART socket,
the TV will automatically switch to AV mode.
PC Input is for connecting a personal computer to the TV set. 2.
Connect the PC cable between the PC-VGA INPUT on the TV
and the PC output on your PC. Component Video Inputs (YPbPr)
are used for connecting component video.
You can use PC-VGA input to enable YPbPr signal connection
with a device that has component output. Connect the YPbPr to
PC cable between the PC INPUT on the TV and the component video outputs of your device.
SPDIF Coaxial Out3. outputs digital audio signals of the currently watched source. Dolby D Audio is
bypassed while in media browser mode only.
RF Input connects to an antenna or a cable system.4.
Note that if you use a media recorder, you should connect the aerial cable through the device to the
television with an appropriate antenna cable, as shown in the illustration in the following pages.
5. HDMI 1: HDMI 1 input
HDMI Input is for connecting a device that has an HDMI socket.
Your LCD Television is capable of displaying High Defi nition pictures from devices such as a High
Defi nition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets
or Component Socket. These sockets can accept either 480i, 480p, 576p, 576i, 720p, 1080i, 1080p
(Optional) signals. No sound connection is needed for an HDMI to HDMI connection.
When you use the wall mount kit (optional) with the LCD TV, we would defi nitely recommend to plug all your cables into the
back of the LCD before mounting to the wall.
SPDIF
SCART
VGA
Coax.OUT
HDMI 1
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 601_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 6 05.11.2010 10:26:5205.11.2010 10:26:52
English - 7 -

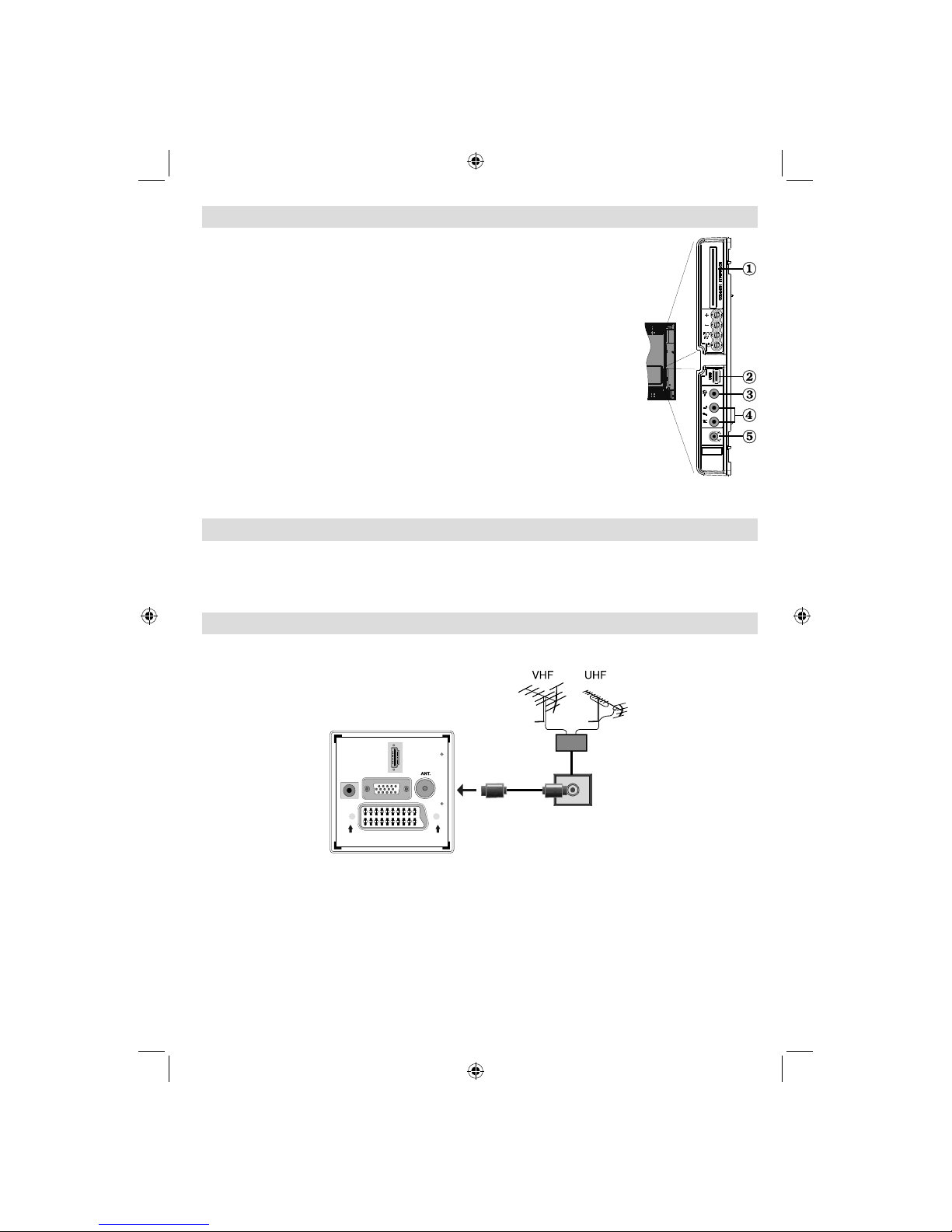

Viewing the Connections - Side Connectors
CI Slot is used for inserting a CI card. A CI card allows you to view all the 1.
channels that you subscribe to. For more information, see “Conditional Access”
section.
USB Input (functional in DTV mode only2.
Video Input is used for connecting video signals of external devices.Connect 3.
the video cable between the VIDEO IN socket on the TV and the VIDEO OUT
jack on your device.
Audio Inputs are used for connecting audio signals of external devices. 4.
Connect the audio cable between the AUDIO INPUTS on the TV and the
AUDIO OUTPUT jacks on your device.
Also to enable PC/YPbPr sound connection in such a case, use an
appropriate audio cable between the connected device’s audio outputs and the
TV’s audio inputs
Note: If you connect a device to the TV via the VIDEO or PC/YPbPr cable you
should also connect your device with an audio cable to the AUDIO INPUTS of
the TV to enable audio.
Headphone jack is used for connecting an external headphone to the system. 5.
Connect to the HEADPHONE jack to use headphones.
Power Connection
IMPORTANT : The TV set is designed to operate on 220-240V AC, 50 Hz.
• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the
mains.
• Plug the power cable to the mains socket outlet.
Aerial Connection
• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.
SPDIF
SCART
VGA
Coax.OUT
HDMI 1
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 701_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 7 05.11.2010 10:26:5305.11.2010 10:26:53
English - 8 -
Connecting the LCD TV to a
PC
For displaying your computer’s screen image on
your LCD TV, you can connect your computer to the
TV set.
• Power off both computer and display before making
any connections.
• Use 15-pin D-sub display cable to connect a PC
to the LCD TV. Use an audio cable between audio
inputs of the TV (side) and audio output of your PC
to enable sound connection.
• When the connection is made, switch to PC-VGA
source. See “Input selection” section.
• Set the resolution that suits your viewing requirements.
Resolution information can be found in the appendix
parts.
SPDIF
SCART
VGA
Coax.OUT
HDMI 1
PC audio cable
(not supplied)
to AUDIO INPUTS
on the TV
PC RGB cable
(not supplied)
to PC input
Audio
Inputs
PC Input
Using Side USB Input
• You can connect USB devices to your TV by using
the USB input of the TV. This feature allows you to
display/play music,photo or video fi les stored in a
USB stick.
• It is possible that certain types of USB devices (e.g.
MP3 Players) may not be compatible with this TV.
• You may back up your fi les before making any
connections to the TV set in order to avoid any
possible data loss. Note that manufacturer will not
be responsible for any fi le damage or data loss.
• The TV supports only FAT32 disk formatting. NTFS
format is not supported. If you connect a USB disk
with NTFS format, “usb is unformetted” osd will
be displayed.
• Do not pull out USB module while playing a fi le.
CAUTION: Quickly plugging and unplugging
USB devices, is a very hazardous operation.
Especially, do not repeatedly quickly plug
and unplug the drive. This may cause
physical damage to the USB player and
especially the USB device itself .
USB Memory Connection
• Plug your USB device to the USB input of the
TV.
Note: USB hard disk drives are not supported.
5Vdc-Max:500mA
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 801_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 8 05.11.2010 10:26:5405.11.2010 10:26:54
English - 9 -

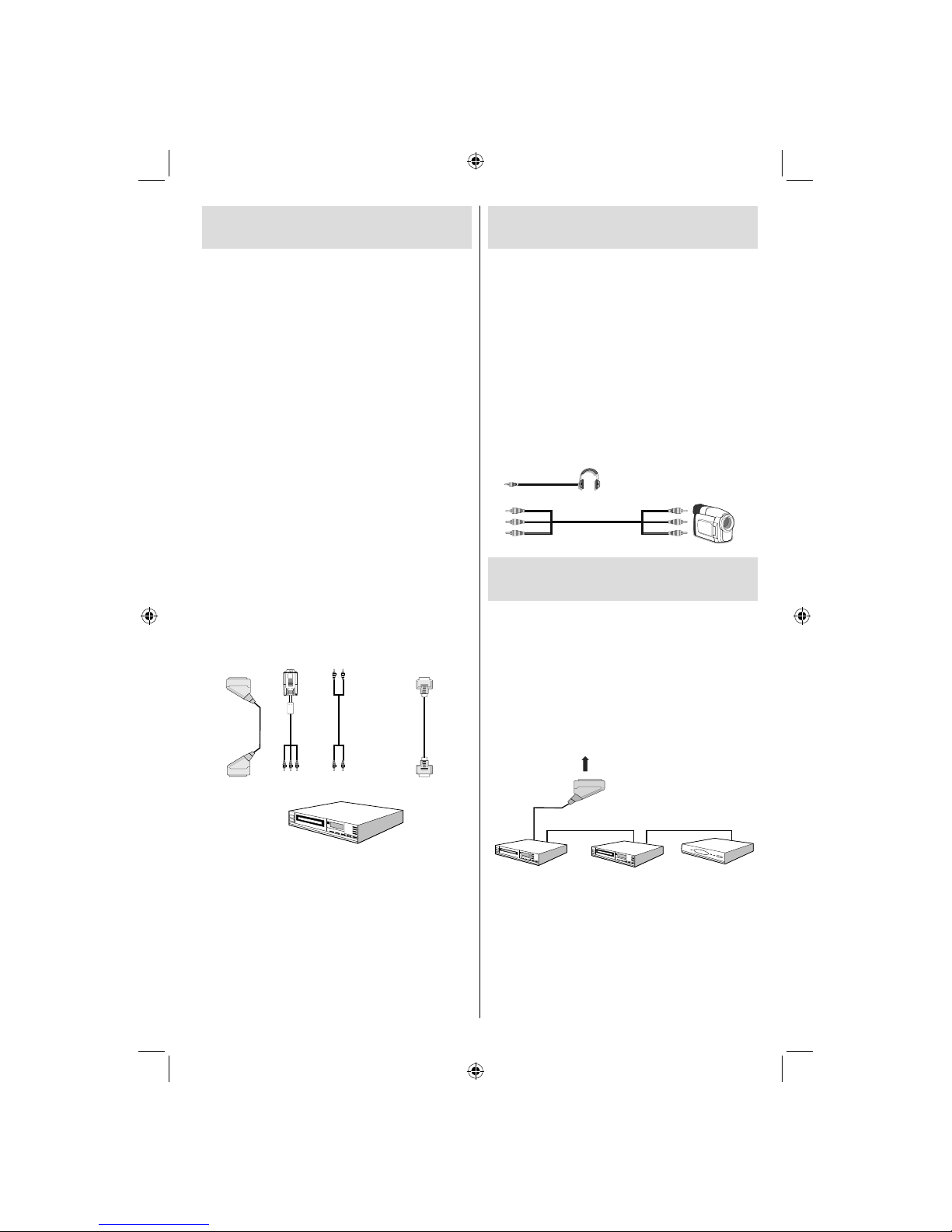

Connecting to a DVD Player
If you want to connect a DVD player to your LCD
TV, you can use connectors of the TV set. DVD
players may have different connectors. Please refer
to your DVD player’s instruction book for additional
information. Power off both the TV and the device
before making any connections.
Note: Cables shown in the illustration are not supplied.
• If your DVD player has an HDMI socket, you can
connect via HDMI. When you connect to DVD player
as illustrated below, switch to HDMI source. See,
“Input Selection” section.
• Most DVD players are connected through
COMPONENT SOCKETS. YPbPr can be used
only when you connect a device that has a YPbPr
output through the PC input with YPbPr to PC cable.
To enable sound connection, use AUDIO IN located
side of the TV (YPbPr cable is not supplied).
• When the connection is made, switch to YPbPr
source. See, “Input selection” section.
• You may also connect through the SCART socket.
Use a SCART cable as shown below.
HDMI
input
Scart socket
YPbPr to PC
cable (optional)
Component
audio
inputs
DVD Player
Note : These methods of connection perform the same
function but in different levels of quality. It is not necessary
to connect by all three methods.
Using Side AV Connectors
You can connect a range of optional equipment
to your LCD TV. Possible connections are shown
below. Note that cables shown in the illustration are
not supplied.
• For connecting a camcorder, connect to the VIDEO
IN socket and the AUDIO SOCKETS. For selecting
the related source, see the section “Input selection”
in the following parts.
• To listen the TV sound from headphones, connect
to the HEADPHONE jack of theTV.
Camcorder
Headphone
Connecting Other Equipment
via Scart
Most devices support SCART connection. You can
connect a; DVD recorder or a VCR to your LCD TV by
using the SCART socket. Note that cables shown in
the illustration are not supplied. Power off both the TV
and the devices before making any connections.
For more information, refer to your device’s own
instruction book.
SCART socket
Decoder
DVD Recorder
Video Recorder
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 901_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 9 05.11.2010 10:26:5505.11.2010 10:26:55
English - 10 -
Inserting Batteries into the
Remote Control
• Remove the battery cover located on the back of
the remote control by gently pulling backwards from
the indicated part.
• Insert two AAA/R3 or equivalent type batteries
inside.Observe the correct polarity (+/-) when
inserting batteries and replace the battery cover.
Note : Remove the battery from remote control when it is not
to be used for a long period. Otherwise it can be damaged
due to any leakage of batteries.
Switching the TV On/Off
To Switch the TV On
• Connect the power cord to the 220-240V AC, 50
Hz.
• Then the standby LED lights up.
To switch on the TV from standby mode either:
• Press the “
” button, P + / P - or a numeric button
on the remote control.
• Press the -P/CH or P/CH+ button on the TV. The TV
will then switch on.
Note: If you switch on your TV via standby button on the
remote control, the programme/source that you were watching
last will be reselected.
By either method the TV will switch on.
To Switch the TV Off
• Press the “ ” button on the remote control or
press the STANDBY switch, so the TV will switch
to standby mode.
• To power down the TV completely, unplug the
power cord from the mains socket.
Note: When the TV is switched to standby mode,
standby LED can blink to indicate that features such
as Standby Search, Over Air Download or Timer is
active.
Input Selection
Once you have connected external systems to your
TV, you can switch to different input sources.
• Press “
” button on your remote control for directly
changing sources.
or
• Select “Source” option from the main menu
by using “
” or “ ” button. Use then “ ” or
“ ” button to highlight an input and press “ ” button
to select.
Note : With the “ ” or “ ” buttons you can set Off or On.
When Off is selected; this source does not appear in the
OSD when you press the
“ ” button of the remote control.
(except for the TV source).
Note : YPbPr mode can be used only when you connect a
device that has a YPbPr output through the PC-VGA input with
YPbPr to PC cable (YPbPr cable is not supplied).
Basic Operations
You can operate your TV using both the
remote control and onset buttons.
Operation with the Buttons of the TV
Main menu OSD cannot be displayed via control
buttons. “+/-” buttons will function as volume up/down
as default. Even if you set other functions for these
buttons, “+/-” buttons will perform as default after a
short while.
Volume Setting
• Press “+/-” buttons to increase or decrease volume,
so a volume level scale (slider) will be displayed
on the screen.
Programme Selection
• Press P/V/AV button once and then use “+/-” buttons
to select the next or previous programme.
AV Mode
• Hold the “P/V/AV ” button, source OSD will be
displayed.Use “+/-” buttons to select the desired
source.
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 1001_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 10 05.11.2010 10:26:5505.11.2010 10:26:55
English - 11 -
Operation with the Remote Control
• The remote control of your TV is designed to control
all the functions of the model you selected. The
functions will be described in accordance with the
menu system of your TV.
• Functions of the menu system are described in the
following sections.
Volume Setting
• Press “V+” button to increase the volume. Press “V-”
button to decrease the volume. A volume level scale
(slider) will be displayed on the screen.
Programme Selection (Previous or Next
Programme)
• Press “ P - ” button to select the previous
programme.
• Press “ P + ” button to select the next programme.
Programme Selection (Direct Access)
• Press numeric buttons on the remote control to select
programmes between 0 and 9. The TV will switch
to the selected programme. To select programmes
between 10-500 (for IDTV) or 10-199 (for analogue),
press the numeric buttons consecutively.
• Press directly the programme number to reselect
single digit programmes.

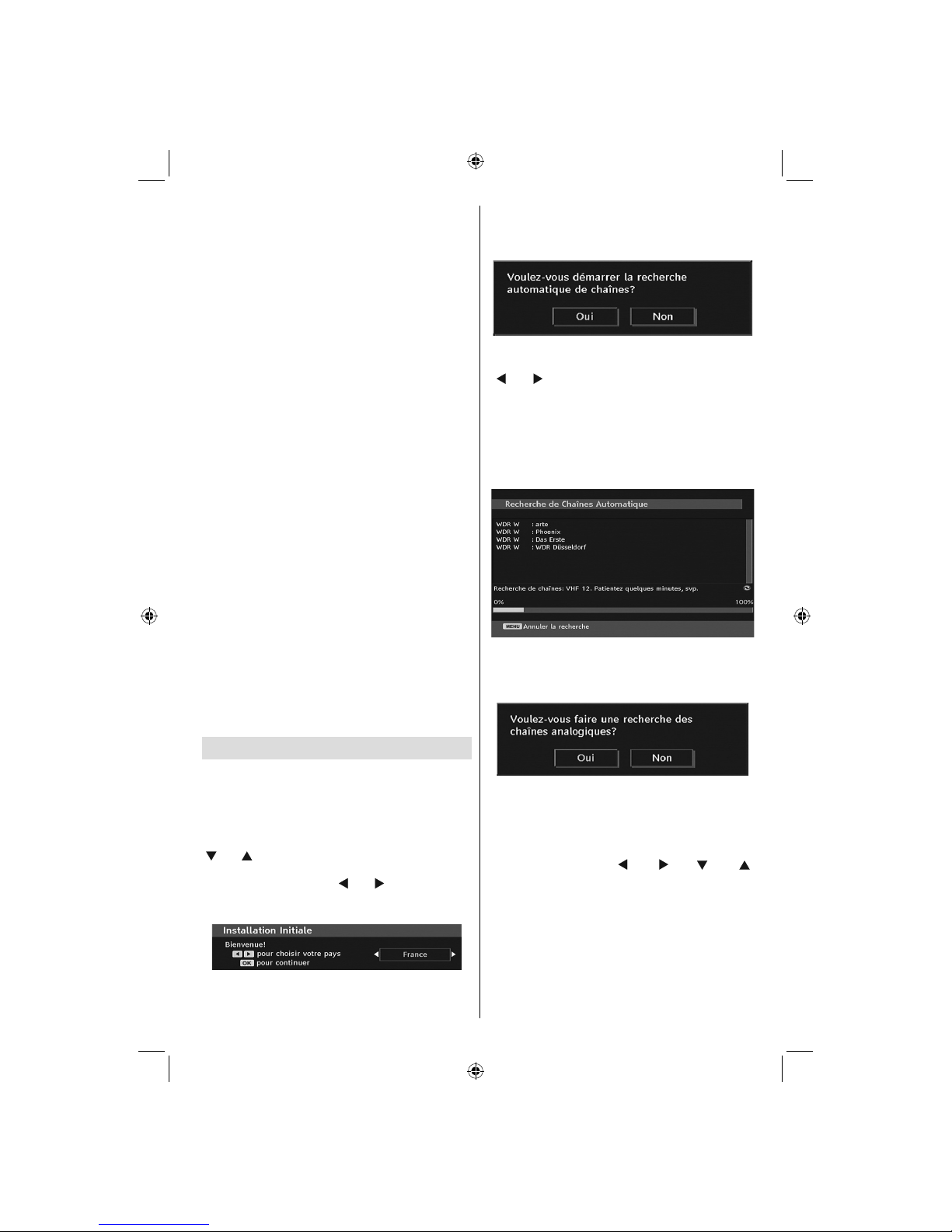

Initial Settings
When the TV is turned on for the fi rst time, the menu
for the language selection appears on the screen. The
message “Welcome please select your language!”
is displayed in all language options sequentially in
the OSD.
By pressing the “
” or “ ” buttons highlight the
language you want to set and press OK button.
Afterwards, “First time installation” OSD will appear
on the screen. By pressing “ ” or “ ” buttons, select
the country you want to set and press OK button (*
for EU countries).
Note: Country selection OSD will not be available for UK.
Press OK button on the remote control to continue
and the following message will be displayed on the
screen:
• To select the “Yes” or “No” option, highlight the item
by using “ ” or “ ” buttons and press the “OK”
button.
The IDTV will automatically tune to the UHF or VHF(*)
(* for EU countries) transmission channels, searching
for digital terrestrial TV broadcasts and displaying
the names of channels found. This process will take
about a few minutes.
After Automatic Search is completed, the following
message asking for analogue channel search appears
on the screen:
To search for analogue channels, select “Yes”. TV
switches to the analogue TV mode. The menu is
displayed to search for analogue channels.
Select your Country, Language and Text language
by using “
” or “ ” and “ ” or “ ” buttons. Press
OK or RED button to continue. To cancel, press the
BLUE button.
For more information on this process, see “Install
Menu” section.
Note : For proper functioning of digital teletext in DTV mode,
you should set country as UK in analogue AUTO PROGRAM
(for UK broadcasts only).
Do not turn off the TV while initializing fi rst time installation.
General Operation
Press the “ ” button on the remote control and
select DTV/USB to switch the TV set to digital
terrestrial television broadcasting.
Information Banner
• Whenever you change channel, using the P- / P+
button or the numeric buttons, the TV displays the
broadcast picture along with an information banner
at the bottom of the screen (available only in DTV
mode). This will remain on the screen for a few
seconds.
• The information banner can also be displayed at
any time while watching TV by pressing the “INFO”
button on the remote control:
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 1101_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 11 05.11.2010 10:26:5605.11.2010 10:26:56
English - 12 -
If the selected channel is locked, you must enter the
correct four numeric code to view the channel. “Enter
PIN” will be displayed on the screen in such a case:
Electronic Programme Guide
(EPG)
• Some, but not all, channels send information about
the current and next events. Press GUIDE button to
view the EPG menu. EPG appears on the screen. It
is able to get Information of the channel - programs
weekly by means of 7-DAY-EPG. All programs of
channels are displayed. On the bottom of the screen;
info bar, showing all the available commands, will
be displayed.
RED button (Shrink) : makes the info boxes
smaller.
GREEN button (Expand) : makes the info boxes
larger.
YELLOW button (Prev. Day) : displays the
programmes of previous day.
BLUE button (Next day) : displays the programmes
of the next day.
INFO (Details): displays the programmes in detail.
Numeric buttons (Jump) : go to preferred channel
directly via numeric buttons.
OK : view for current broadcast/reminders for future
programs.
P<P : jumps to the current broadcast.
• Press “0” button on the remote control to view Guide
Search menu. Using this feature, you can search the
programme guide database in accordance with the
genre selected or with name match.
Displaying Subtitles
With digital terrestrial broadcasting (DVB-T), some
programmes are being broadcasted with subtitles.
Press the “M” button to display the main menu, highlight
the Setup and then Language menu using “
” or “ ”
button and press the OK button to display the “Language
settings” menu.
Highlight the “Subtitle” item in “Language settings”
menu and use
” or “ button to set Subtitle to the
desired language.
Note: You can enable subtitles by pressing the GREEN button
of the remote control. Press GREEN button again to disable
subtitle function.
If “Subtitle” is on and a language option is set, pressing
the “ ” button causes the following warning message
display on the screen (** for UK only):
Digital Teletext (** for UK only)
• Press the “ ” button.
• The digital teletext information appears.
• Operate it with the coloured buttons, cursor buttons
and OK button.
The operation method may differ depending on the
contents of the digital teletext.
Follow the instructions displayed on digital teletext
screen.
• When Press “SELECT” button or similar message
appears on the screen, press the OK button.
• When the “ ” button is pressed, the TV returns to
television broadcasting.
• With digital terrestrial broadcasting (DVB-T), in
addition to digital teletext broadcasting together with
the normal broadcasting, there are also channels
with just digital teletext broadcasting.
• The aspect ratio (picture shape) when watching
a channel with just digital teletext broadcasting is
the same as the aspect ratio of the picture viewed
previously.
• When you press the “
” button again, the digital
teletext screen will be displayed.
Analogue Teletext
Use of teletext and its functions are identical to
the analogue text system. Please do refer to the
“TELETEXT” explanations.

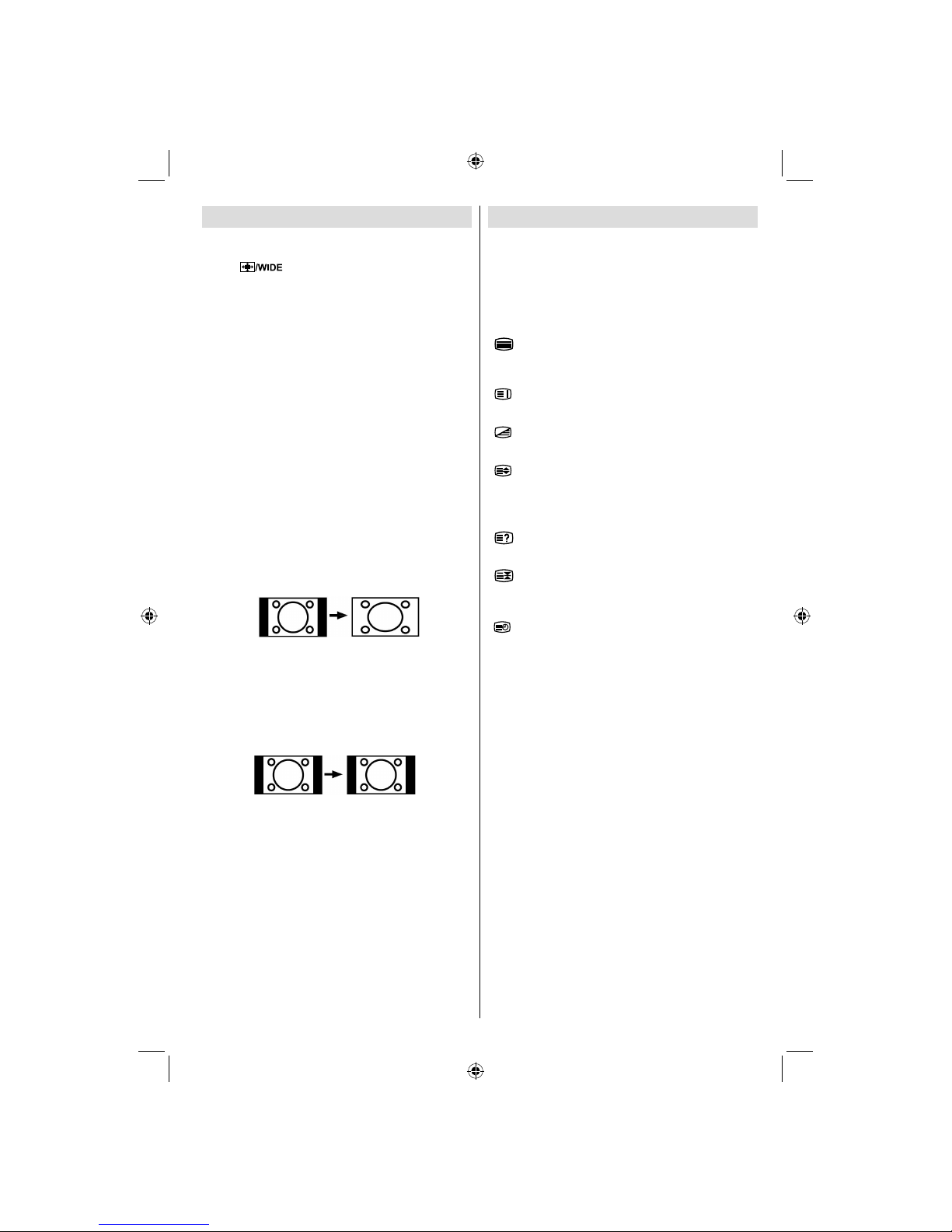

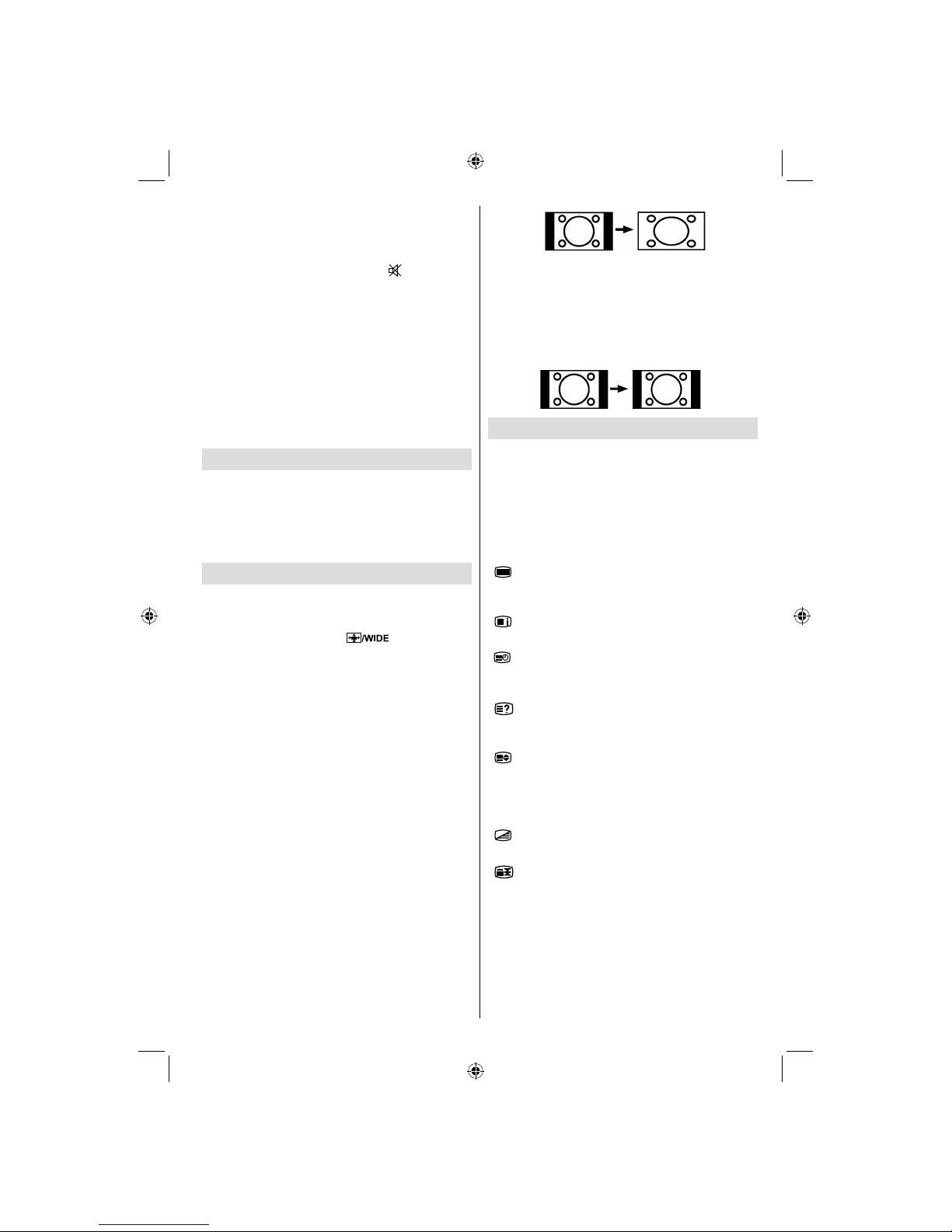

Widescreen
Depending on the type of the broadcast being
transmitted, programmes can be viewed in a number
of formats. Press the “ ” button repeatedly to
change screen format.
When Auto is selected, the format being displayed is
determined by the picture being broadcasted.
PLEASE NOTE : Menu size changes depending on the
chosen image size.
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 1201_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 12 05.11.2010 10:26:5605.11.2010 10:26:56
English - 13 -
Notice !
Dolby D audio type is not supported. In this case,
Tv sound will be muted. If the broadcast includes
AC3 stream, the following warning message will be
displayed on the screen:
If there is no audio available, the following warning
message will be displayed on the screen:
IDTV Menu System
Press the “M” button. Main menu will be displayed.
Channel List
Using the “ ” or “ ” button on the remote control, make
sure that the fi rst item, Channel List, is highlighted and
press the “OK” button to display the Channel List or
you can press the OK button during watching DVB-T
broadcasting and get to the Channel List directly.
Navigating the Entire Channel List
Press “ ” or “ ” button for selecting the previous or next
channel. You can press “RED” or “GREEN” button to
move page up or page down.
To watch a specifi c channel, highlight it using “
”
or “
” button and then press “ OK ” button, while the
“Select” item on Channel List menu is highlighted by
using “ ” or “ ” button.
Then the name and number of the selected channel will
be displayed in the top-left and top-right of the channel
display at the top-right of the screen, respectively.
Moving the channels in the channel list
• Press “ ” or “ ” buttons to select the channel that
will be moved.
• Press “ ” or “ ” buttons to select the “ Move ” item on
Channel List menu.
Following OSD will be displayed next to “ OK ” item
to indicate that enter a number by using the numeric
buttons on the remote control and press “ OK ” to
confi rm.
Note: If you enter the same programme number of the channel
that you want to move, “.... channel services will be replaced.
Do you want to continue?” OSD will be displayed. Press OK
to confi rm or select “No” to cancel.
Deleting the Channels in the Channel List
• Press “ ” or “ ” button to select the channel that
will be deleted.
• Press “
” or “ ” button to select the “Delete’’ item
on Channel List menu.
• Press the “ OK ” button to delete the highlighted
channel in the channel list. Then the message below
appears on the screen:
• Press “ ” or “ ” button to highlight the desired
option. If “ OK ” button is pressed while “ Yes ” is
highlighted, the highlighted channel is deleted.
Selecting “ No ” cancels the deletion.
Renaming Channels
To rename a specifi c channel, the channel must
be highlighted by pressing “ ” or “ ” button. Then
highlight the Edit Name item by pressing “ ” or “ ”
button as illustrated below. Press the “OK” button to
activate the rename feature.
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 1301_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 13 05.11.2010 10:26:5705.11.2010 10:26:57
English - 14 -
Now pressing “ ” or “ ” button moves to the previous/
next character. Pressing “ ” or “ ” button toggles
the current character, i.e., ‘b’ character becomes ‘a’
by “ ” and ‘c’ by “ ”. Pressing the numeric buttons
‘0...9’ replaces the highlighted character with the
characters printed above the button one by one as
the button is pressed.
Press the “M” button to cancel the editing or OK button
to save the new name.
Adding Locks to Channels
Channel locking provides a password-protected
access to channels selected by parents. In order to
lock a channel you should know the parental lock
password (default value is set to 0000 in the factory
and can only be changed from the Confi guration
menu).
Select the channel to be locked by highlighting it and
select the Lock option by pressing “
” or “ ” button.
When the “OK” button is pressed, a dialog OSD asking
for the password will be displayed.
Enter the password by using the numeric buttons on
the remote control. The lock icon “ ” will now be
displayed next to the selected channel. Repeat the
same operation to cancel the lock.
Setting Favourites
To set a favourite you should highlight the “Favourites”
item at the bottom of the Channel List menu. Then
press “OK” button and Edit Favourite List menu
appears on the screen.
How to Add a Channel to a Favourites List
• By pressing “ ” or “ ” buttons, highlight the channel
that you want to add to the favourite list.
• By pressing “OK” button, the highlighted channel is
added to the Favourite List.
• F icon indicates that a channel is added to Favourite
List.
Removing a Channel from Favourite List
• Highlight the channel that you want to remove from the
favourite list and press OK button to remove.You can
press “OK” button again to re-add a channel.
• To activate Favourites, go to the Confi guration menu
and select Favourite mode. Use “
” / “ ” to set
Favourite mode as on. To cancel Favourites, set
Favourite Mode to Off.
On Screen Help
For all menus, press the “INFO” button to display the
help information about the menu functions.
Programme Guide
This section is same with the instructions given in
the General Operations page. Please see Electronic
Programme Guide (EPG) section in the General
Operations part.
Timers
To display timers window, activate the item from the main
menu. To add a timer, press the YELLOW button on the
remote control. Then “Add Timer” window appears.
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 1401_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 14 05.11.2010 10:26:5705.11.2010 10:26:57
English - 15 -
Mode: Selects channel list mode.
Channel : “
” or “ ” keys will navigate the user through
the TV or Radio list.
Date : Starting date is entered via the Left/Right and the
numeric buttons.
Start : Starting time is entered via the Left/Right andcthe
numeric buttons.
End : Ending time is entered via the Left/Right and the
numeric buttons.
Duration: Duration between Start and End time.
Repeat: You can set a timer to be repeated as Once,
Daily or Weekly.
Change/Delete: permits or prohibits any modifi cations
for other users.
You can save the adjustments by pressing the GREEN
key or cancel the process by pressing the RED button.
You can edit the list via GREEN key and delete with
the RED button.
Conditional Access
• Press the “M” button to display the main menu and
use the “ ” or “ ” button to highlight the “Conditional
Access” line and press the “ OK ” button:
Some Digital Terrestrial channels operate on a Pay Per
View basis. These require a subscription and a external
device.
Obtain the Conditional Access Module (CAM) and the
viewing card by subscribing to a pay channel company,
then insert those to the TV using the following procedure.
• Switch off the TV and unplug from the mains.
• The CAM should be correctly inserted, it is impossible
to insert fully if reversed. The CAM or the TV terminal
may be damaged if the CAM is forcefully inserted.
• Connect the TV to the mains supply, switch on and then
wait for few moments until the card is activated.
• Some CAMs may require the following set up. Please
set the CAM by entering the IDTV menu, Conditional
Access then pressing the “OK” button. (CAM set up
menu is not displayed when it is not required.)
• To see the viewing contract information: enter IDTV;
press the “M” button, then highlight Conditional Access
and press the “ OK ” button.
• When no module is inserted, “No Conditional Access
module detected” message appears on the screen.
• Refer to the module instruction manual for details of the
settings.
Note: Insert or remove the CI module only when the TV is in
STANDBY mode or disconnected from the mains.
TV Setup
You can use this item to display the TV functions.
The digital TV Setup menu screen is accessed from
the main menu. Press the “M” button to display the
main menu and use “
” or “ ” button to highlight “TV
Setup”, press the “ OK ” button to display TV Setup
menu screen.
You can fi nd detailed information for all menu items in
“Analogue TV Menu System” section.
Setup
The adjustments in this menu are given as the following:
Confi guration
You can confi gure the settings of your TV. Select
Confi guration from Setup menu and press “ OK ” to
view this menu. Press the “EXIT” button on the remote
control to exit.
Hard of Hearing (* for EU countries
only) (optional)
Use “ ” or “ ” button to select Hard of Hearing and
then press “ ” or “ ” button to set this setting as
On or Off.
If the broadcaster enables any special signal
concerning the audio, you can set this setting as On
to receive such signals.
Favourite Mode
Use this function to enable or disable favourite
mode. Press “ ” / “ ” button to set this function as
on or off.
Channel List
Use “ ” or “ ” buttons to go to Channel List option.
Use “ ” or “ ” buttons to toggle Channel List Mode.
If you select “TV Only”, with the “ ” or “ ” buttons,
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 1501_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 15 05.11.2010 10:26:5805.11.2010 10:26:58
English - 16 -
you navigate through only TV channels. If you select
“Radio Only”, with the “ ” or “ ” buttons, you navigate
through only radio channels. If you select “Text Only”,
with the “ ” or “ ” buttons, you navigate through only
text channels.
Scan Encrypted
Scan Encrypted Channel feature will always be ON
after performing first time installation. When this
setting is on, search process will locate the encrypted
channels as well. If it is set as OFF manually, encrypted
channels will not be located while in automatic search
or manual search.
Use “
” or “ ” button to select Scan Encrypted and
then press “ ” or “ ” button to set this setting as
On or Off.
Standby Search (optional)
Use “ ” or “ ” button to select Standby Search and
then press “ ” or “ ” button to set this setting as On or
Off. If you change Standby Search to Off, this function
will be unavailable.
To use Standby search please make sure that you
select Standby Search as On.
Receiver Upgrade
Over Air Download (OAD)
This feature helps to keep your TV updated. It works
This feature helps to keep your TV updated. It works
automatically and searches for new information
automatically and searches for new information
when available. Note that this setting is inactive to be
when available. Note that this setting is inactive to be
modifi ed
modifi ed.. Please ensure that the TV is set to standby
mode. The TV automatically powers up at 3.00 A.M.
each day and searches for any new information which
may be broadcasted and will download this to your
receiver automatically. This operation will normally
take approximately 30 minutes.
Note: Your TV may start in First Time Installation mode after
OAD update.
Parental Control
Use “ ” or “ ” buttons to go to Parental Lock option.
Press OK button to enter the menu. A dialog box
asking for the lock key will be displayed. The key is set
to “0000” initially. Enter PIN. If it is incorrect, “Wrong
Pin” OSD will be displayed. If it is correct, the Parental
Control menu will be displayed:
Maturity Lock (optional) (*)
(*) If you set Country option as UK in the fi rst time
installation, Maturity Lock option will not be visible.
This setting is available only for EU countries.
When set, this option gets the maturity information
from the broadcast and if this maturity level is disabled,
does not show video-audio.
Menu Lock
In menu lock you can set locking for all menus, or the
Installation Menu to restrict access to these menus.
If the menu lock is disabled, there will be free access
to the menu system. Use “ ” or “ ” buttons to go to
Menu Lock option. Use “
” or “ ” buttons to choose
Menu Lock Mode.
DISABLED : All menus are unlocked.
ALL MENUS : All Menus are accessible only with
the correct lock key. So the user cannot add, delete,
rename, channels, cannot set timers.
INSTALLATION MENU : Installation menu is locked.
So the user can’t add channels. Changes will be
updated after exiting ‘Confi guration Menu’.
Set PIN
Use “ ” or “ ” buttons to go to “Set PIN” option.
Press “OK” to display the “Set PIN” window. Use
numeric buttons to enter new pin number you will need
to input your new pin a second time for verifi cation
purposes.The factory default pin number is 0000, if
you change the pin number make sure you write it
down and keep it safe.
Time Settings (Optional)
In the configuration menu, highlight the Time Settings
item by pressing “ ” or “ ” buttons.
Press “OK” and Time Settings sub menu will be
displayed on the screen. Current Time,Time Zone
Setting and Time Zone will be available.
Use “ ” or “ ” buttons to highlight the Time Zone
Setting. Time Zone Setting is set using “ ” or “ ”
buttons. It can be set to AUTO or MANUAL.
When AUTO is selected, Current Time and Time Zone
options will not be available to be set. If MANUAL
option is selected as the Time Zone Setting, Time
Zone can be altered:
• By pressing “
” or “ ” buttons select Time Zone.
Use “ ” or “ ” buttons to change the Time Zone
between GMT-12 or GMT+12. Current Time on the
top of the menu list will then change according to the
selected Time Zone.
Audio Description (Optional)
Audio description refers to an additional narration
track for blind and visually impaired viewers of
visual media, including television and movies. The
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 1601_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 16 05.11.2010 10:26:5805.11.2010 10:26:58
English - 17 -
description narrator talks through the presentation,
describing what is happening on the screen during the
natural pauses in the audio (and sometimes during
dialogue, if deemed necessary). You can use this
feature, only if the broadcaster supports that additional
narration track. Use “ ” or “ ” buttons to select an
item. Then use “ ” or “ ” buttons to set.
Audio Description (Optional)
This function enables or disables the audio description
feature by pressing the “ ” or “ ” buttons.
Preferred Language (Optional)
By pressing the “ ” or “ ” buttons the preferred audio
description language is being changed.
This setting can be used, only if it is available.
Relative Volume (Optional)
Using this option, the Audio Description volume level
can be increased or decreased relatively, according
to the general volume.
Language
In this menu the user can adjust the preferred
language. Language is changed by pressing “OK”
button.
Menu : shows the language of the system
Preferred
These settings will be used if available. Otherwise the
current settings will be used.
• Audio : by pressing “ ” or “ ” keys change the
audio language.
• Subtitle : alter the subtitle language with “
” or
“ ” keys. The chosen language will be seen in
subtitles.
Movie Subtitle (optional)
• In order to display subtitles properly, use this setting
to select a movie subtitle language.
• By pressing “
” or “ ” button, select the desired
language option.
• Guide : By pressing “
” or “ ” buttons change the
guide language.
Current
• Audio : if audio language is supported change the
audio language by pressing “ ” or “ ” buttons
• Subtitle : if subtitle is backed up, alter the subtitle
language with “
” or “ ” buttons. The chosen
language will be seen in subtitles.
Note: If the Country option is set to Denmark, Sweden,
Norway or Finland, the Language Settings menu will function
as described below:
Language Settings
In the confi guration menu, highlight the Language
Settings item by pressing “ ” or “ ” buttons. Press
“OK” and Language Settings submenu will be
displayed on the screen:
Use “
” or “ ” buttons to highlight the menu item
that will be adjusted and then press “ ” or “ ” button
to set.
Notes:
• System Language determines the on-screen menu
language.
• Audio Language is used for selecting the soundtrack
of a channels.
• Primary settings are the first priority when multiple
choices are available on a broadcast. Secondary
settings are the alternatives when the first options
are not available.
Installation
The Installation menu is mainly intended to help you
for creating a Channel Table in the most effi cient way.
Select Installation from the Confi guration menu by
pressing “ ” or “ ” buttons.
This menu includes the following items:
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 1701_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 17 05.11.2010 10:26:5905.11.2010 10:26:59
English - 18 -
(*) For Denmark, Sweden, Norway or Finland.
Auto Channel Scan (Retune)
Auto Channel Scan (Retune) is started by pressing
“OK” button while Auto Channel Scan (Retune) item
is highlighted.
The following message appears on the screen:
Highlight Yes or No by using “ ” or “ ” buttons and
press “OK” button to confi rm.
If Yes is selected, automatic search starts.
Selecting No cancels automatic search.
After search is completed for digital channels, a
message asking whether to search for analogue
channels appears on the screen:
Press the “OK” button to search for analogue
channels. The following menu appears on the screen
for analogue channel search:
Select your Country , Language and Text language
by using “
” or “ ” and “ ” or “ ” buttons. Press
“OK” or RED button to continue. To cancel, press
BLUE button. The following menu will be displayed
during the automatic tuning:
After APS is fi nalized, the programme table will appear
on the screen. In the programme table you will see
the programme numbers and names assigned to the
programmes.
Channel Search
In manual channel scan, the number of the multiplex is
entered manually and only that multiplex is searched
for the channels. For each valid channel number, signal
level and signal quality are shown on the screen.
In both manual and auto search any existing channel
in the database is not re-stored to avoid redundant
duplicates of that channel.
Clear Service List (*)
(*) This setting is visible only when the Country option is set
to Denmark, Sweden, Norway or Finland.
Use this setting to clear channels stored. Press “ ” or
“ ” button to select Clear Service List and then press
OK. The following OSD message will be displayed
on the screen:
Highlight NO and press OK to cancel. Select Yes by
pressing “ ” or “ ” button and press OK to delete all
of the channels.
First Time Installation
The user can use this item to load default settings,
which were loaded to the receiver at the factory.
To install factory settings, highlight “First Time
Installation” menu item and press “OK” button, then
you will be asked whether or not to delete the settings.
Selecting “Yes” by pressing “OK” button while “Yes” is
highlighted will delete the existing channel table.
Then you will be asked to confi rm for deleting all
channels and settings:
By selecting Yes and pressing the “OK” button, the
existing channel table will be deleted. After factory
settings are loaded, “First Time Installation” menu
will be displayed.
01_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 1801_MB46_[GB]_1205UK_IDTV_NICKEL15_19843W_10069993_50176012.indd 18 05.11.2010 10:27:0005.11.2010 10:27:00
Loading...
