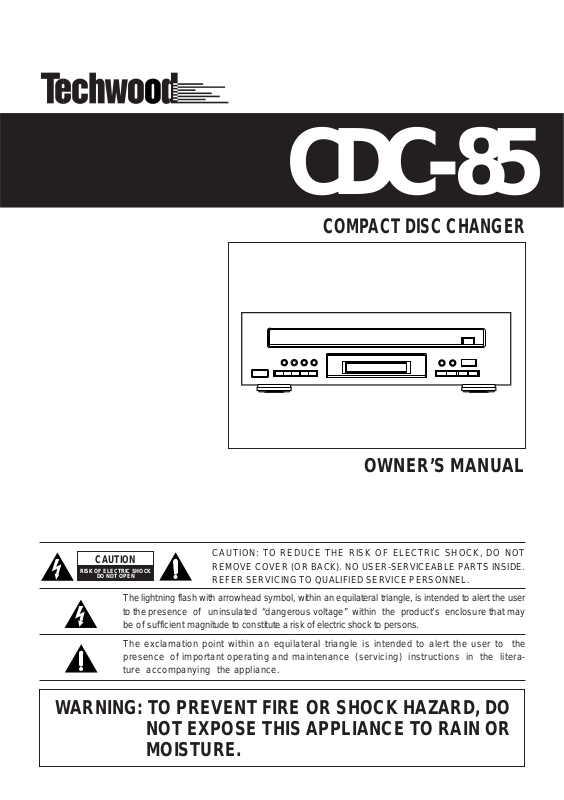

Techwood CDC85 User Manual

CDC-8

5

COMPACT DISC CHANGER

OWNER’S MANUAL

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user
to thepresence of uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the litera­ture accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO

NOT EXPOSE THIS APPLIANCE TO RAIN OR

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION:

• Read all of these instructions.

• Save these instructions for later use.

• Follow all warnings and instructions marked on the audio
equipment.

1) Read instructions - All the safety and operating instruc-

tions should be read before the product is operated.

2) Retain instructions - The safety and operating instructions

should be retained for future reference.

3) Heed Warnings - All warnings on the product and in the

operating instructions should be adhered to.

4) Follow Instructions - All operating and use instructions

should be followed.

5) Cleaning - Unplug this product from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.

6) Attachments - Do not use attachments not recommended

by the product manufacturer as they may cause hazards.

7) Water and Moisture - Do not use this product near water-

for example, near a bath tub, wash bowl, kitchen sink, or laun­dry tub; in a wet basement; or near a swimming pool; and the
like.

8) Carts and Stands - The product should be used only with a

cart or stand that is recommended by the manufacturer.

9) A product and cart combination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause
the product and cart combination to overturn.

10) Wall or Ceiling Mounting - The product should be mount-

ed to a wall or ceiling only as recommended by the manufac­turer.

11) Accessories - Do not place this product on an unstable

cart, stand, tripod, bracket, or table. The product may fall,
causing serious injury to a child or adult, and serious damage
to the product. Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer, or sold with the
product. Any mounting of the product should follow the manu­facturer’s instructions, and should use a mounting accessory
recommended by the manufacturer.

12) Ventilation - Slots and openings in the cabinet are provid-

ed for ventilation and to ensure reliable operation of the prod­uct and to protect it from overheating, and these openings
must not be blocked or covered. The openings should never
be blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ventila­tion is provided or the manufacturer’s instructions have been
adhered to.

13) Ventilation - The product should be situated so that its
location or position does not interfere with its proper ventila­tion. For ob a bed, sofa, rug, or similar surface that may block
the ventilation openings: or, placed in a built-in installation,
such as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.

14) Power Sources - This product should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.

15) Grounding or Polarization - This product may be
equipped with a polarized alternating-current line plug (a plug
having one blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature. If you
are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician
to replace your obsolete outlet. Do not defeat the safety pur­pose of the polarized plug.
Alternate Warnings - This product is equipped with a three­wire grounding-type power oltlet. This is a safety feature. If
outlet, contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the grounding- type plug.

16) Power-Cord Protection - Power-supply cords should be
routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention
to cords at plugs, convenience receptacles, and the point
where they exit from the product.

17) Protective Attachment plug - The product is equipped
with an attachment plug having overload protection. This is a
safety feature. See Instruction Manual for replacement or
resetting of protective device. If replacement of the plug is
required, be sure the service technician has used a replace­ment plug specified by the manufacturer that has the same
overload protection as the original plug.

18) Cleaning - The product should be cleaned only as recom­mended by the manufacturer.

19) Power Lines -An outdoor antenna should be located
away from power lines.

20) Outdoor Antenna Grounding - If an outside antenna or
cable system is connected to the product, be sure the antenna
or calbe system is grounded so as to provide some protection
against voltage surges and built-up static charges. Article 810
of the National Electrical Code, ANSI/NFPA 70, provides infor­mation with regard to proper grounding of the mast and sup­porting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of anten­na-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.

“Note to CATV system installer:

This reminder is provided to call the CATV system installer’s
attention to Section 820-40 of the NEC which provides guide­lines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of
them building, as close to the point of cable entry as practical.

2

Example of Antenna Grounding as per
National Electrical Code, ANSI/NFPA 70

GROUND
CLAMP

ELECTRIC
SERVICE
EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250,PART H)

ANTENNA
LEAD IN
WIRE

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

21) Lightning -For added protection for this product during a

lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and discon­nect the antenna or cable system. This will prevent damage to
the product due to lightning and power-line surges.

22) Power Lings -An outside antenna system should not be

located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such power lines
or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching such
power lines or circuits as contact with them might be fatal.

23) Overloading - Do not overload wall outlets, extension

cords, or integral convenience receptacles as this can result in
a risk of fire or electric shock.

24) Nonuse Periods - The power cord of the product should

be unplugged from the outlet when left unused for a long peri­od of time.

25) Object and Liquid Entry - Never push objects of any kind

into this product through openings as they may touch danger­ous voltage points or short-out parts that could result in a fire
or electric shock. Never spill liquid of any kind on the product.

26) Damage Requiring Service - Unplug this product from

the wall outlet and refer servicing to qualified service personnel
under the following conditions:

a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the

product.

c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the

operating instructions. Adjust only those controls that are cov­ered by the operat
ing instructions as an improper adjustment of other controls
may result in damage and will often require extensive work by
a qualified technician to restore the product to its normal operation.

e) If the product has been dropped or damaged in any way.
f) when the product exhibits a distinct change in performance-

this indicates a need for service.

27) Servicing - Do not attempt to service this product yourself

as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service
personnel.

28) Replacement Parts - When replacement parts are
required, be sure the service technician has used replacement
parts specified by the manufacturer or have the same charac­teristics as the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.

29) Safety Check - Upon completion of any service or repairs
to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating
condition.

30) Heat -The product should be situated away from heat
sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.

CAUTION : Any changes or modifications in construction
of this device which are not expressly approved by the
party responsible for compliance, could void the user’s
authority to operate the equipment.

NOTE : This equipment has been tested and found to com-

ply with the limits for a Class B digital device, pur­suant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate
radio frequence energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio communica ­tions. However, there is no guar antee that interfer­ence to radio or television reception, which can be
determined by turning the equipment off and on the
user is encouraged to try to correct the interference
by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the seperation between the equipment
and receiver.

- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connecte.

- Consult the dealer or an experienced radio/ TV
technician for help.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.

ATTENTION : POUR ÉVITER LES CHOCS ÉLECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA
BORNE CORRES PONDANTE DE LA PRISE ET
POUSSER JUSQU’AU FOND.

CAUTION

- Use of controls, adjustments or the performance of procedures
other than those spedified may result hazardous radiation
exposure.

- To prevent direct exposure to laser beam, do not try to

open the enclosure.

DO NOT STARE INTO BEAM.

3

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ................................................................................................................. 2

CONTENTS...............................................................................................................................................................4

PRECAUTIONS.........................................................................................................................................................5

Read This Before Operating..................................................................................................................................5

Handling the Discs ................................................................................................................................................5

CONNECTIONS ........................................................................................................................................................6

CONTROLS AND INDICATORS...............................................................................................................................7

Front Panel............................................................................................................................................................7

Display...................................................................................................................................................................8

OPERATIONS...........................................................................................................................................................9

Basic Operations...................................................................................................................................................9

Repeat Play...........................................................................................................................................................9

Program Play.......................................................................................................................................................10

Time Display........................................................................................................................................................11

Search function ...................................................................................................................................................12

Direct access to a track.......................................................................................................................................12

TROUBLESHOOTING ............................................................................................................................................13

SPECIFICATIONS...................................................................................................................................................14

4

PRECAUTIONS

Read This Before Operating

Choose the installation location of your unit carefully.
Avoid placing it in direct sunlight or close to a source of
heat. Also avoid locations subject to vibrations and
excessive dust, heat, cold or moisture.
Do not open the cabinet as this might result in damage
to the circuitry or electrical shock. If a foreign object
should get into the set, contact your dealer.
When removing the power plug from the wall outlet,
always pull directly on the plug, never yank the cord.
Do not attempt to clean the unit with chemical solvents
as this might damage the finish. Use a clean, dry cloth.
Keep this manual in a safe place for future reference.
Remove all of the discs in the tray when you move this
system, to prevent discs from becoming stuck.

Handling the Discs

This unit has been designed specifically for reproduction of
compact discs bearing the mark. No other discs can be
reproduced.

Always place the compact disc in the disc tray with the
label facing upward.

(compact discs can be played only on one side.)

To remove a disc from its storage case, press down on
the center of the case and lift the disc out, holding it care­fully by the edges.

How to remove the disc

How to hold the disc

Fingermarks and dust should be carefully wiped off the
disc’s recorded surface with a soft cloth.

Wipe radially

Never use chemicals such as record sprays, antistatic
sprays or fluid, benzine or thinner to clean compact discs.
Such chemicals will do irreparable damage to the disc’s
plastic surface.
Discs should be returned to their cases after use to avoid
serious scratches that could cause the laser pickup to
“skip”.
Do not expose discs to direct sunlight or high humidity
and temperature for extended periods.

Long exposure to high temperatures can warp the disc.
Do not stick paper or write anything with a ballpoint pen
on the surface of the label side.

5
