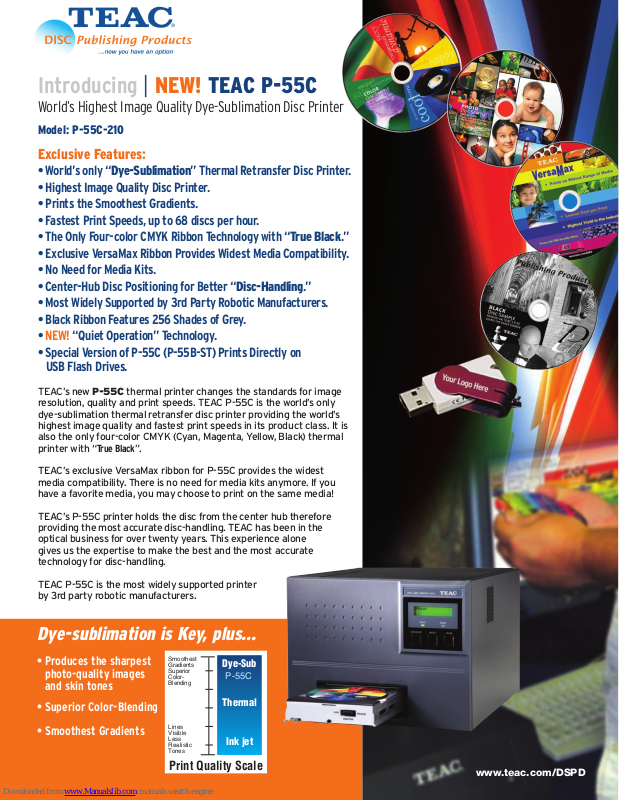

Teac P-55C-210 Brochure & Specs

Introducing | NEW! TEAC P-55C

World’s Highest Image Quality Dye-Sublimation Disc Printer

Model: P-55C-210

Exclusive Features:

• World’s only “Dye-Sublimation” Thermal Retransfer Disc Printer.

• Highest Image Quality Disc Printer.

• Prints the Smoothest Gradients.

• Fastest Print Speeds, up to 68 discs per hour.

• The Only Four-color CMYK Ribbon Technology with “True Black.”

• Exclusive VersaMax Ribbon Provides Widest Media Compatibility.

• No Need for Media Kits.

• Center-Hub Disc Positioning for Better “Disc-Handling.”

• Most Widely Supported by 3rd Party Robotic Manufacturers.

• Black Ribbon Features 256 Shades of Grey.

• NEW! “Quiet Operation” Technology.

• Special Version of P-55C (P-55B-ST) Prints Directly on
USB Flash Drives.

TEAC’s new P-55C thermal printer changes the standards for image
resolution, quality and print speeds. TEAC P-55C is the world’s only
dye-sublimation thermal retransfer disc printer providing the world’s
highest image quality and fastest print speeds in its product class. It is
also the only four-color CMYK (Cyan, Magenta, Yellow, Black) thermal
printer with “True Black”.

TEAC’s exclusive VersaMax ribbon for P-55C provides the widest
media compatibility. There is no need for media kits anymore. If you
have a favorite media, you may choose to print on the same media!

TEAC’s P-55C printer holds the disc from the center hub therefore
providing the most accurate disc-handling. TEAC has been in the
optical business for over twenty years. This experience alone
gives us the expertise to make the best and the most accurate
technology for disc-handling.

TEAC P-55C is the most widely supported printer
by 3rd party robotic manufacturers.

Dye-sublimation is Key, plus...

• Produces the sharpest

photo-quality images
and skin tones

• Superior Color-Blending

Smoothest
Gradients
Superior
Color­Blending

Dye-Sub

P-55C

Thermal

Lines

• Smoothest Gradients

Visible
Less
Realistic
Tones

Print Quality Scale

Ink jet

www.teac.com/DSPD

TEAC America, Inc., 7733 Telegraph Road, Montebello, CA 90640 • Phone [phone] • Fax [phone]
Email: [e-mail] http://www.teac.com/DSPD DSPD-88069A/10-08/5kDOT

©2009 TEAC America, Inc. Allrights reserved. Alltrademarks and registered trademarksmentioned hereinare the property oftheir respective companies.

• VERSAMAX Ribbon

Our exclusive VersaMax ribbon
offers you more media options
to print on.VersaMax allows
printing on most media available
in the market. Increasing your
media choices gives you more
options to reduce your overall
cost of printed discs. Plus, with
VersaMax, there is no need to
buy costly media kits anymore!

The Result:

• More media options

• Lowest costs per printed disc

• Highest yield in the industry

VersaMax Ribbon adds the proprietary adhesive layer
to the existing CMY panels. This panel makes it possible
to print on the widest range of media discs available in
the industry today.

• USB Flash Drive Printing

P-55B-ST

Special version of the P-55C printer,
the P-55B-ST is the only thermal
dye-sublimation printer that can
print directly on USB flash drives.

• 8cm Disc Printing

LEASE-to-Own and Extended Warranty Programs Available

TEAC also offers a simple “Lease-to-own”
program and a variety of warranty
upgrades and post-warranty upgrade
programs for worry-free maintenance.

Request a sample of

YOUR

artwork today?

Call us today to request a free printed sample of YOUR artwork
so you can see for yourself why the P-55C prints the best image
possible!

No need for media kits...

...print directly on your favorite media!

dye-sub sample inkjet sample

dye-sub sample inkjet sample

Photo Color VersaMax Black & White

Dye-sublimation, for
the sharpest color
blended images.

Four-color CMYK
printing with
“True-Black”

High-resolution color
printing with media
flexibility, for lowest
cost per printed disc

256 shades of grey
for high-resolution
black &white printing.

• TEAC P-55C, featuring 4 ribbons for various applications:

Plus, it’s all in the

G R A D ATION . . .

TEAC P-55C prints the
SMOOTHEST GRADIENTS!

others

P-55C

Printer Specifications

Model: P-55C-210
Printing Method: Dye-Sublimation, Thermal

Retransfer Technology

Media: 12cm and 8cm CD/DVD Discs
Ribbon Capacity / PrintSpeed: Versamax: 500 prints/ribbon / 68 discs per hour

Color: 500 prints/ribbon / 68 discs per hour
Photo: 500 prints/ribbon / 58 discs per hour

Black: 2000 prints/ribbon / 104 discs per hour

Print Resolution: 400 dpi
Interface: USB 2.0 & IEEE 1284 ECP
Printer Driver: Windows VISTA/XP, Linux Fedora 9, 32-bit
Power Voltage: 100-240Vac

50-60Hz (manual switch)

Power Consumption: 500W or less
Dimensions: 11.875"(W) x 9.5"(H) x 16"(D)
Weight: 48.5lbs

UV Protected & Waterproof too!

Advantages to dye-sublimation printing are very clear...

...the fixed cost per disc, the prints are professional, consistent looking, and
permanent, plus, they are durable, scratch, waterproof and fade-proof with
UV protection. Dye-sublimation is clearly the winner.

Why Dye-Sublimation
Technology?

Image Quality

Photo realistic images are achievable
with Dye-sublimation technology.
TEAC P-55C is the only dye-sublimation
thermal printer available.

Print Consistency (Quality & Quantity)

Each ribbon can print 500 discs. Each print is
identical. All Teac ribbonshave fixed yields
which will result in predictable costper print
and predictable print outputs.

Indelibility

No scratching, fading,
running or smudging!

Color Shift

Withthermal printingthereis no color shifting. Color
shifting occurs in inkjet technology when one of the
colors in a cartridge runs out. This causes overall
color accuracy to shift in the middle of arun.

Banding

With thermal printing, there is no banding
problem. Inkjet printing can create visible
horizontal lines (‘bands’) across the discas
ink runs out. Banding happens generally
with larger jobs that are set up torun
unattended.

Edge-to-Edge Printing

TEAC P-55C is able to print from the outer edge to the

inner Hub, taking full advantage of the media surface.

With Inkjet printing edge-to-edge printing can not be

done.

What Will Change Your
Bottom Line?
