Teac NR-7CD Owners Manual

D01307621A

ENGLISH

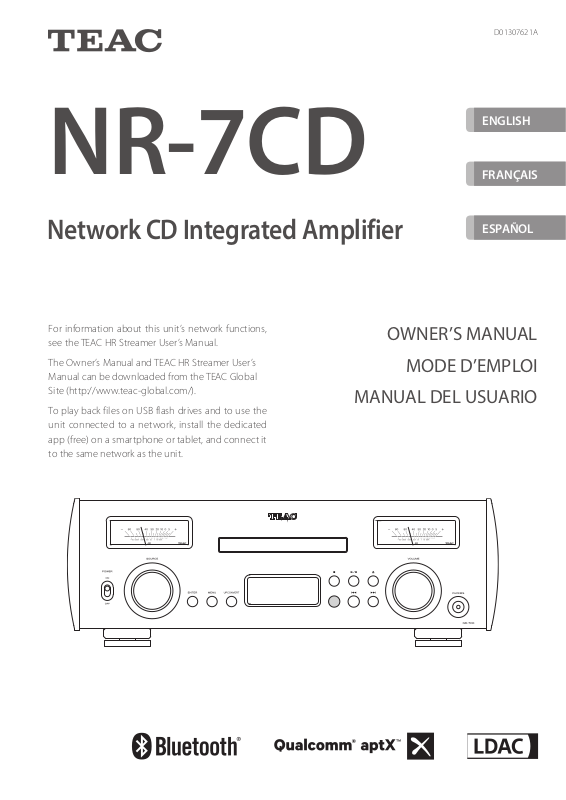

NR-7CD

Network CD Integrated Amplifier

For information about this unit’s network functions, see the TEAC HR Streamer User’s Manual.

The Owner’s Manual and TEAC HR Streamer User’s Manual can be downloaded from the TEAC Global Site (http://www.teac-global.com/).

MANUAL DEL USUARIO

To play back files on USB flash drives and to use the unit connected to a network, install the dedicated app (free) on a smartphone or tablet, and connect it to the same network as the unit.

OWNER’S MANUAL

FRANÇAIS

ESPAÑOL

MODE D’EMPLOI

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

o DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE

THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.

o IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT,

CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.

o USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

with the manufacturer’s instructions.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

o The apparatus draws nominal non-operating power from the

AC outlet with its POWER or STANDBY/ON switch not in the ON position.

o The mains plug is used as the disconnect device; the disconnect

device shall remain readily operable.

o Caution should be taken when using earphones or headphones

with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

CAUTION

o Do not expose this apparatus to drips or splashes. o Do not place any objects filled with liquids, such as vases, on

the apparatus.

o Do not install this apparatus in a confined space such as a

book case or similar unit.

o The apparatus should be located close enough to the AC

outlet so that you can easily reach the power cord plug at any time.

o If the product uses batteries (including a battery pack or

installed batteries), they should not be exposed to sunshine, fire or excessive heat.

o CAUTION for products that use replaceable lithium batter-

ies: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

WARNING

Products with Class ! construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.

IN USA/CANADA, USE ONLY ON 120 V SUPPLY.

Precautions concerning batteries

Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of nearby things. Please read and observe the following precautions carefully.

o Be sure to insert the batteries with correct positive (¥) and

negative (^) orientations.

o Use batteries of the same type. Never use different types of bat-

teries together.

o If the remote control is not used for a long time (more than a

month), remove the batteries to prevent them from leaking.

o If the batteries leak, wipe away the leakage inside the battery

compartment and replace the batteries with new ones.

o Do not use batteries of types other than those specified. Do not

mix new batteries with old ones or use different types of batteries together.

o Do not heat or disassemble batteries. Never throw batteries into

fire or water.

o Do not carry or store batteries with other metallic objects. The

batteries could short circuit, leak or explode.

o Never recharge a battery unless it is confirmed to be a recharge-

able type.

Laser information

This product contains a semiconductor laser system inside the cabinet and is classified as a “CLASS 1 LASER PRODUCT”. To prevent being exposed to the laser beam, do not try to open the enclosure.

Laser: Type: EP-C101 Manufacturer: GUANGDONG EVER BRIGHT GROUP CO.,LTD. Laser output: Less than 0.3 mW Wavelength: 790 ±25 nm

For European Customers

Disposal of electrical and electronic equipment and batteries and/or accumulators

a) All electrical/electronic equipment and waste batteries/

accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.

b) By disposing of electrical/electronic equipment and waste

batteries/accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.

c) Improper disposal of waste electrical/electronic equipment

and batteries/accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.

d) The Waste Electrical and Electronic Equipment (WEEE)

symbols, which show wheeled bins that have been crossed out, indicate that electrical/electronic equipment and batteries/accumulators must be collected and disposed of separately from household waste. If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC), then the chemical symbols for those elements will be indicated beneath the WEEE symbol.

e) Return and collection systems are available to end users. For

more detailed information about the disposal of old electrical/electronic equipment and waste batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Pb, Hg, Cd

Model for USA

This product has been designed and manufactured according to FDA regulations “title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968”, and is classified as class ! laser product. There is not hazardous invisible laser radiation during operation because invisible laser radiation emitted inside of this product is completely confined in the protective housings.

The label required in this regulation is as follows:

Wireless equipment precautions

Compliance of radio transmitter and interference

Model for USA

Declaration of Conformity

Responsible party: TEAC AMERICA, INC. Address: 1834 Gage Road, Montebello, California, U.S.A. Telephone number : 1-323-726-0303 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Labeling of authorization FCC ID: XEG-NR7CD

Model for Canada

Compliance of radio transmitter This device complies with Industry Canada RSS standard(s). Operation is subject to the following two conditions:

1) This device may not cause interference

2) This device must accept any interference, including interference that may cause undesired operation of the device.

Labeling of authorization IC: 1559C-NR7CD

Compliance of interference

This Class B digital apparatus complies with Canadian ICES-003.

Model for EEA (European Economic Area)

This product has the function of broadband transmitter using

2.4GHz Band.

CAUTION

Authorization of wireless devices are different in countries or regions. Please use only in the country where you purchased the product.

o Depending on the country, restrictions on the use of Bluetooth

wireless technology might exist.

Confirm the laws and regulations of the country or region where you want to use the unit before use.

Radiation Exposure requirements

This equipment meets the regulation, which is recognized internationally, for the case of human exposure to radio waves generated by the transmitter.

Statement of compliance

Model for USA

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency Exposure Guidelines.

Model for Canada

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.

Model for EEA (European Economic Area)

This equipment complies with EN.62311; Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields; the harmonised standard of DIRECTIVE 2014/53/EU.

Use frequency range: 2400 MHz – 2480 MHz Maximum output power: Bluetooth® Class 2 (less than 2.5 mW)

Hereby, TEAC Corporation declares that the radio equipment type is in compliance with Directive 2014/53/EU., and the other Directives, and Commission Regulations.

The full text of the EU declaration of conformity is available at the following internet address: Please contact us by e-mail. http://www.teac-audio.eu/en/

TEAC Corporation 1-47 Ochiai, Tama-shi, Tokyo, 206-8530, Japan

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Trademarks and copyrights

Information for interference (FCC requirements)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

o Reorient or relocate the equipment and/or the receiving

antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected. o Consult the dealer or an experienced radio/TV technician for

help.

“DSD” is a registered trademark.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TEAC CORPORATION is under license.

Qualcomm aptX is a product of Qualcomm Technologies International, Ltd.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission.

Wi-Fi is a trademark or registered trademark of Wi-Fi Alliance.

Apple, iPad, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

LDAC™ and LDAC logo are trademarks of Sony Corporation.

Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.

Information about copyrights and licensing related to open-source software is provided in the separate “Important Notice Regarding Software” document.

Contents

Included items

Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit. After reading it, keep it in a safe place for future reference. For information about this unit’s network functions, see the TEAC HR Streamer User’s Manual.

o The Owner’s Manual and TEAC HR Streamer User’s Manual can be

downloaded from the TEAC Global Site (http://www.teac-global. com/).

o To use network functions and USB playback, you must also use

an iPad or other iOS device that has the dedicated app (free) installed and is connected to the same network as the unit.

IMPORTANT SAFETY INSTRUCTIONS ...............................2

Wireless equipment precautions ...................................4

Trademarks and copyrights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Included items ....................................................6

Downloading the remote app .....................................6

Using the TEAC Global Site .........................................6

Product registration ...............................................6

Before use .........................................................7

Maintenance ......................................................7

Check to be sure the box contains all the included items shown below. Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.

Power cord × 1 Remote control (RC-1328) × 1 Batteries for remote control (AAA) × 2 Felt pads × 3 Owner’s manual (this document, including warranty) × 1

o For information about the warranty, users living in the USA and

Canada should see page 86 and the back cover (warranty document). Users living in Europe and other regions should see page 87.

o The TEAC HR Streamer User’s Manual can be downloaded from

the TEAC Global Site (http://www.teac-global.com/).

Downloading the remote app

To use network and USB playback functions, you must also use an iPad or other device that has the dedicated app (free) installed and is connected to the same network.

How to download the app for iOS devices including iPad

Search for “TEAC HR Streamer” in the App Store.

o Release is planned for an Android version (as of January 2017).

See the product website for details.

Using the remote control ..........................................7

Discs ..............................................................8

Connecting speakers ..............................................9

Connections ......................................................10

Network connections .............................................12

Names and functions of parts (remote control) ....................13

Names and functions of parts (main unit) .........................14

Connecting headphones .........................................15

Upconversion ....................................................16

Display ...........................................................17

Basic operation ...................................................18

Listening to CDs ..................................................21

Bluetooth® wireless technology ...................................23

Settings ..........................................................25

Troubleshooting ..................................................27

Specifications .....................................................29

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site:

http://teac-global.com/

1) Open the TEAC Global Site.

2) In the TEAC Downloads section, click the desired language to open the Downloads website page for that language.

NOTE

If the desired language does not appear, click Other Languages.

3) Click the “Search by Model Name” section to open the Downloads page for that product. (Users in Europe should click the product name in the “Products” section instead.)

4) Select and download the updates that are needed.

Product registration

Customers in the USA, please visit the following TEAC website to register your TEAC product online.

http://audio.teac.com/support/registration/

Before use Using the remote control

Placement precautions

o Do not install this unit in a location that could become hot.

This includes places that are exposed to direct sunlight or near a radiator, heater, stove or other heating equipment. Moreover, do not place it on top of an amplifier or other equipment that generates heat. Doing so could cause discoloration, deformation or malfunction.

Precautions for use

Misuse of batteries could cause them to rupture or

leak, which might result in fire, injury or the staining of nearby materials. Please carefully read and observe the precautions on page 3.

o When installing this unit, leave a little space (at least 3 cm or 1")

between it and walls and other devices in order to allow good heat dissipation. If you put it in a rack, for example, leave at least 5 cm (2") open above it and at least 10 cm (4") open behind it. Failure to provide these gaps could cause heat to build up inside and result in fire.

Note about pinpoint feet

High-precision metal pinpoint feet are attached firmly to the bottom plate of this unit.

The stands for these feet are loose, but when the unit is placed in position, it is supported by these pinpoint feet, which will effectively disperse vibrations.

Chassis Pinpoint foot (metal)

o When using the remote control, point it toward the remote con-

trol signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between the main unit and the remote control.

o The remote control might not work if the remote control signal

receiver on the unit is exposed to direct sunlight or bright light. If this occurs, try moving the unit.

o Beware that use of this remote control could cause the unin-

tentional operation of other devices that can be controlled by infrared rays.

Installing batteries

Remove the cover from the back of the remote control and insert two AAA batteries with their ¥/^ oriented as shown in the case. Replace the cover.

Foot-stand (metal)

o The included felt pads are intended to protect the surface where

the unit is placed. Apply them to the bottoms of the foot-stands.

Screws that attach foot-stand

Maintenance

Wipe dirt from the top cover and other panel surfaces using a soft cloth that has been slightly dampened with a diluted neutral cleanser. Do not wipe with chemical cleaning cloths, thinner or other chemical agents. Doing so could damage the surface.

For your safety, disconnect the power cord from

the outlet before cleaning.

When to replace batteries

If the distance required between the remote and the main unit decreases or if the unit stops responding to the remote buttons, replace both batteries with new ones. Dispose of the used batteries according to the instructions on them or requirements set by your local municipality.

Discs

The following marks appear on disc labels and disc cases. This unit can play discs that have these marks without using an adapter. This unit cannot play discs that do not have these marks.

Types of discs that can be played on this unit and their marks

CDs with the “COMPACT disc DIGITAL AUDIO” logo (12 cm, 8 cm)

o This logo appears on disc labels and packages.

If you try to play any other type of disc with this unit, loud noises that could damage speakers or harm hearing might occur. Never try to play any type of disc other than those shown above.

o This unit cannot play DVD video, DVD audio, video CD, DVD-ROM

and CD-ROM discs, for example.

o This unit might not be able to properly play Dual Discs, Copy

Control CDs or other special CDs that do not conform to the Red Book CD standard. Operation and sound quality cannot be guaranteed when special discs are used in this unit. If playback of a special disc should cause trouble, contact the seller of the disc.

o If the side of the disc that has the data encoded on it (unlabeled

side) becomes dirty with fingerprints or dust, use a soft cloth to wipe the surface from the center directly toward the edge. Always clean discs before storing them. Leaving a disc in an unclean state might degrade its sound quality.

o Never use record cleaners, antistatic treatments, thinners or

similar chemicals to clean discs. Such chemicals could harm the surface of the disc.

o Do not leave discs in places that are exposed to direct sunlight or

that are very humid or hot.

o When writing something on the label side of a disc, use a felt tip

permanent marker. The use of a ballpoint pen or other pen with a hard tip could damage the disc, making it unplayable.

o After you finish playing a disc, always put it back into its case for

storage. Failure to do so could result in warping and scratches.

o Do not apply labels or other materials to discs. Do not use a disc

that has sticky residue left on its surface after removing tape or a sticker, for example. If such a disc is loaded, it might become stuck in the unit or damage the unit.

CD-R/CD-RW discs

This unit can play CD-R/CD-RW discs that are in audio CD format.

o Be sure to finalize discs created by CD recorders.

Depending on the quality of the disc and the condition of the recording, playback might not be possible. For details, see the operation manual for the device you are using.

Handling discs

o Load discs with their labeled sides up.

(CDs only have one playable side.)

o To remove a disc from its case, always press down on the center

of the case first and then hold the disc by its edges.

Removal from case Holding by edges

o Never use commercially-available CD stabilizers. Doing so could

make the disc unplayable or damage the unit.

o Do not use cracked discs because they could damage the unit.

o Never use discs with irregular shapes, including heart-shaped

and octagonal discs, because they could damage the unit.

o Do not use printable discs, which allow printing on the label

side. Since the surface of such a disc has been specially treated, if loaded, it might become stuck in the unit or damage the unit.

If you have any questions about how to handle a CD-R or CD-RW disc, contact the manufacturer of the disc directly.

o Be careful when handling discs. If the side that contains the data

(unlabeled side) is scratched, smudged with fingerprints or otherwise dirty or marred, errors could occur during playback.

Connecting speakers

Notes about speaker cables

o Use commercially-available speaker cables to connect the

speakers.

o Use the shortest speaker cables possible. The longer the cable,

the greater the resistance value and the more that damping performance is reduced. Moreover, length also increases impedance and capacitance, degrading the sound quality of high frequencies.

o Use left and right speaker cables that have the same length.

How to connect speaker cables

Use commercially-available speaker cables to connect the ¥ terminal of the unit to the ¥ terminal of the speaker and the ^ terminal of the unit to the ^ terminal of the speaker.

o Use speakers with at least 4Ω impedance.

o If the exposed tip of the core wire of a speaker cable contacts

another cord or terminal, a short could occur. Never allow a speaker cable to short.

When using bare wires

Loosen the cap and insert the core wire into the hole in the terminal. Then, tighten the cap.

When using spade lugs

Loosen the cap and insert the lug between the cap and base of the terminal. Then, tighten the cap.

o When using a spade lug to connect, use one with an inside

diameter of at least 8 mm (3/8").

o Do not connect more than one amplifier to a speaker.

o Do not bundle speaker cables with power cords. Doing so could

cause noise.

The power plug should always be disconnected

when connecting speaker cables.

When using banana plugs

With the cap tightened, insert the plug into the opening in the end of the terminal.

o Carefully read the instructions for the banana plugs that you are

using.

Notice about the European model

In accordance with European safety regulations, connecting banana plugs to speaker terminals is not allowed on European models. The holes into which banana plugs could be inserted have been covered with black caps. Connect speakers using bare wires or spade lugs. If a black cap should become separated from its terminal, return it to its original position.

Connections

Right speaker Left speaker

Analog audio output device

Audio output

(LINE OUT, etc.)

RCA audio cables

A B

C D F

RCA coaxial digital cable

Optical digital cable

Included power cord

USB flash drive

LAN cable

DIGITAL OUT

(COAXIAL)

Digital audio output

device

Wall outlet

DIGITAL OUT

(OPTICAL)

Digital audio output

device

A SPEAKER terminals

Use commercially-available speaker cables to connect the ¥ terminal of the unit to the ¥ terminal of the speaker and the ^ terminal of the unit to the ^ terminal of the speaker (page 9).

B Analog audio input (LINE IN) connectors

Use these to input 2-channel analog audio signals. Connect an analog audio output device to these RCA connectors.

Use commercially-available cables for connections.

Connect this unit’s R input connector to the R output connector of the audio output device, and this unit’s L input connector to the L output connector of the other device.

RCA audio cables

C Digital audio input connectors

COAXIAL

Use this to input digital audio. Connect the coaxial digital audio output connector of a digital audio device to it.

Use a commercially-available RCA coaxial digital cable for connection.

E ETHERNET port

Connect a commercially-available LAN cable to this port when you want to connect this unit to a wired network or the Internet.

o When switching input sources, this port is labeled “NET”.

F USB port

Connect USB flash drives that contain audio files here.

o USB flash drive playback requires operation using a device

(with the dedicated app) that is on the same network as this unit.

Complete all other connections before turn-

ing the unit on.

o Carefully read the manuals of the devices that you are

connecting and follow their instructions when making connections.

o Do not bundle connecting cables with power cords. Doing

so could cause noise.

o Connect all plugs completely.

OPTICAL

Use these to input digital audio. Connect optical digital audio output connectors of digital audio devices to them.

Use commercially-available optical digital cables with rectangular connectors for connection.

D Power inlet (~IN)

Connect the supplied power cord here. After all other connections are complete, connect the power cord’s plug to a wall outlet.

Do not use any power cord other than the one

included with this unit. Use of other power cords could result in fire or electric shock. Unplug the cord from the outlet when not using the unit for a long time.

Network connections

Connection example

NAS

NR-7CD

To Internet

LAN cable

Wi-Fi™ router

o The Wi-Fi router must be connected to the

Internet when installing apps on the iPad or other device, when updating the NET firmware of this unit, and when listening to Internet radio.

iPad or other device

a NAS (Network Attached Storage)

Use to store audio files. Operation as a UPnP server is necessary to use it as a media server. MinimServer is the media server recommended for use with this unit.

b Wi-Fi

router

™

Use Wi-Fi to connect the iPad or other device to this unit and the NAS.

c iPad or other device

Install the app to control this unit (page 6).

d NR-7CD

This unit. The IP address is acquired from the DHCP server.

Names and functions of parts (remote control)

d FILTER button

Use to change the filter setting. This changes the filter according to the input (PCM or DSD).

e SHUFFLE button

Use to change the shuffle playback setting.

f REPEAT button

Use to change the repeat playback setting.

g Stop (

Press to stop CD, NET or Bluetooth playback.

) button

h MUTE button

Press this button to temporarily mute the sound.

i METER button

Use to set level meter brightness and turn operation on and off (page 20).

j DIMMER button

Use this button to change the brightness of the display.

k MENU button

Use to enter setting mode (page 25). Press when in setting mode to return to the previous screen.

l ENTER button

Press to confirm the selected item.

o When the main unit and the remote control both have but-

tons with the same functions, this manual explains how to use one of the buttons. The other corresponding button can be used in the same manner.

a STANDBY/ON button

Press to put the unit into standby mode or turn it on (page

18).

b Input selection buttons

Use to select the playback source.

o The USB button is not used with this unit.

Select NET and use the app to control USB flash drive playback.

o LINE 1 is the only line input for this device.

m Up/down (k/j) buttons

Use to select setting items.

n Skip (

.//

During CD playback

Use to skip to the previous or next track. Press and hold for at least one second during playback to search forward/backward (page 22).

During NET and Bluetooth playback

Use to skip to the previous or next track in the playlist.

) buttons

o Play/pause (7/9) button

When the input source is CD, NET or Bluetooth and playback is stopped or paused, press to start playback. Press during playback to pause.

p VOLUME (+/−) buttons

Use to adjust the speaker and headphone volumes.

c UPCONVERT button

Use to show and change the upconversion setting (page 16).

Names and functions of parts (main unit)

EDC F G H I J K L M N O

A B A

A Level meters

These show the output levels.

B Disc tray

Load a disc here.

C POWER switch

Use to turn the unit on and off (page 18).

o If the display or level meters are dark even though the

POWER switch is set to ON, one of the following conditions is possible.

o The power is on, but the display brightness is set to

DIMMER 0 and/or the level meter operation setting is DIM0 or OFF (page 26).

o The automatic power saving function has activated, put-

ting the unit into standby (page 27).

o The power cord is disconnected.

D SOURCE knob

Use to select the input source. Use to change setting values when a menu item is shown. Turn when the menu is open to change the item shown or the setting value.

F MENU button

Use to enter setting mode (page 25). Press when in setting mode to change the setting item.

G UPCONVERT button

Use to show and change the upconversion setting (page 16).

H Display

This display shows information about the audio playing back and menu screens (page 17).

I Stop (8) button

Press to stop CD, NET or Bluetooth playback.

J Play/pause (7/9) button

When the input source is CD, NET or Bluetooth and playback is stopped or paused, press to start playback.

Press during playback to pause.

K Remote control signal receiver

This receives signals from the remote control. When operating the remote control, point it at the remote control signal receiver.

E ENTER button

Press to confirm the selected item.

o Press when the unit is in standby to turn it on (page 19).

L Skip (.//) buttons

During CD playback

Use to skip to the previous or next track. Press and hold for at least one second during playback to search forward/backward (page 22).

During NET and Bluetooth playback

Use to skip to the previous or next track in the playlist.

M Tray open/close (-) button

Press to open and close the disc tray.

N VOLUME knob

Use to adjust the volume. Turn right to increase and left to decrease the volume.

o Volume settings are saved separately for speaker and head-

phone outputs.

O PHONES jack

Connecting headphones

Wiring illustration

Connect headphones (3.5mm stereo mini plug) here.

o This headphone amp circuit uses a four-pole connector with

independent left and right for grounding. Ordinary plugs with 3 or 4 poles can be used.

o If headphones are connected to this unit, audio will not be

output from the SPEAKER terminals on the rear panel.

NOTE

The following buttons on the unit and the remote control function with CD, NET and Bluetooth playback.

Stop (8) button Play/pause (7/9) button Skip (.//) buttons

o This unit cannot be used to create playlists, for example, on

another unit connected to it. Playlists must be created and other settings must be made to enable playback on connected devices.

L+ R+ L− R−

CAUTION

While wearing headphones, do not connect or disconnect them or turn the unit on or off. Doing so could result in a sudden loud noise that could harm your hearing. Always set the volume to minimum (−∞ dB) before putting headphones on.

Upconversion

The conversion function can be used when digital audio is being input (CD, NET*, Bluetooth, OPT1, OPT2, COAX).

Press the UPCONVERT button to show the current setting. Press it again to change the upconversion setting.

*For USB flash drive playback, set the input source to NET.

OFF

DSD

2Fs

4Fs

8Fs

Display example

UPCONV

OFF

Upconversion will not occur. The original input signal is sent as is directly to the D/A converter.

DSD 2Fs 4Fs 8Fs

The upconversion shown will be used.

The relationships between input sampling frequencies and sampling frequencies after upconversion are as follows.

Input source Upconversion setting

Input sampling

frequency

[kHz] [kHz] [MHz]

32 32 64 128 256 8.0

44.1 44.1 88.2 176.4 352.8 11.2

88.2 88.2 88.2 176.4 352.8 11.2

176.4 176.4 176.4 176.4 352.8 11.2

352.8 352.8 352.8 352.8 352.8 11.2 48 48 96 192 384 12.2 96 96 96 192 384 12.2

192 192 192 192 384 12.2 384 384 384 384 384 12.2

DSD [MHz] [MHz] [MHz]

2.8 2.8 2.8 2.8 2.8 2.8

5.6 5.6 5.6 5.6 5.6 5.6

DSD

OFF 2Fs 4Fs 8Fs DSD

Sampling frequency after upconversion

These values are not converted.

Display

When the unit is turned on

WELCOME

TEAC NR-7CD

After messages like the above appear, the input source will be shown on the display.

Input source information

The input source information screen will appear after turning the unit on as well as after about 10 seconds pass without operation on a setting screen.

Display example

Input source name

Input signal status

This shows the input source signal status.

UNLOCK!

The unit cannot synchronize with the input signal.

NOT AUDIO!

A signal with a format that cannot be played is being received.

NETWORK!

The input source is NET, but the unit is not connected to a network.

READY

The input source is NET and it is connected, but no audio signal is being received.

WAV 44k DSD 2.8M DSD 5.6M FLAC96k, etc.

These are abbreviations of the input signal type and sampling frequency.

SBC AAC aptX LDAC

When the input source is Bluetooth, abbreviations of the codec type and sampling frequency are shown.

OPT1 PCM 44k

Input signal status Volume

o Turning the VOLUME knob will change the volume, and the vol-

ume will appear to the right of the input signal status.

Input source name

This shows the name of the selected source. The names on the display correspond to the selected connectors as follows.

CD player in this unit

NET

ETHERNET port, USB port

COAX

RCA COAXIAL digital audio input connector

OPT1

Optical digital audio input connector 1

OPT2

Optical digital audio input connector 2

Volume display

The volume setting shown will be enlarged when you turn this unit’s VOLUME knob.

Display example

Volume -

.0dB

LINE

Analog audio input connectors

o When using Bluetooth, the name of the connected device is

shown.

Basic operation

1 Turn on the connected input source devices.

2 Shift the POWER switch to its ON position to

turn the unit on.

3 Turn the SOURCE knob to select an input

source.

The input sources will be shown in the following order

NET

Bluetooth

OPT1

OPT2

COAX

LINE

o You can also use the input selection buttons on the remote

control.

o If the input signal is not a digital audio signal or is an audio

signal format that is not supported by this unit, such as Dolby Digital or DTS, “NOT AUDIO!” will appear on the screen and no audio will be output. Set the digital output of the connected device to PCM audio output.

o To use NET or the USB port, install the dedicated app (page

6) on an iPad or other device, and connect it to the same network as this unit (page 12).

4 Start playback on the source device.

Refer to the operation manual of that device.

o CD and Bluetooth operation are explained in later sections

of this manual.

5 Play the source, and then adjust the volume by

turning the VOLUME knob.

o The volume operation screen will appear.

Automatic power saving function

When the automatic power saving function is ON, this unit will automatically enter standby mode if there is no playback and it is not operated for 30 minutes (page 27).

o Even when audio is playing back, automatic power saving will

also function if the VOLUME knob is set to a value at which sound cannot be heard.

Turning the unit on from standby

o Press the remote control STANDBY/ON button.

o Press the ENTER button on the front of the unit.

Basic operation (continued)

Dimmer

Each time you press the remote control DIMMER button, the brightness of the display changes as follows (page 26).

DIMMER3

DIMMER2

DIMMER1

DIMMER0

(normal brightness)

(Unlit)

Level meters

Press the remote control METER button to change level meter brightness and turn the meters on and off.

DIM3

DIM2

DIM1

DIM0

OFF

(Unlit)

(Unlit, meters stopped)

Muting playback

If you want to temporarily mute the volume of this unit, press the MUTE button on the remote control. Press the MUTE button on the remote control again to return to the previous volume level.

o When muted, adjusting the volume will unmute it.

Listening to CDs

1 Turn the SOURCE knob to select CD.

o You can also use the remote control CD button.

2 Press the tray open/close (-) button.

4 Press the tray open/close (-) button to close

it.

CAUTION

Be careful not to let your fingers be pinched when the tray closes.

“TOC READ” will appear on the display and the unit will start to read the disc.

o The unit takes some time to load the disc.

Wait until the total number of tracks and total playback time appear on the display.

3 Place a disc on the tray with the labeled side

up.

When reading completes, the display will appear as follows.

Display example

CD 10 56:03

Total number of tracks on disc

o “NO DISC” appears if no disc has been loaded. o “DISC!” appears if a disc that cannot be played is loaded.

Total playback time (minutes: seconds)

o Do not put more than one disc onto the tray at a time. o If the tray is closed while a disc is outside the center guides,

the disc might become stuck inside and the tray might not open. Be sure to always place discs within the guides at the center of the tray.

o When the tray is opening or closing, do not force it by hand.

Continued on the next page e

Listening to CDs (continued)

5 Press the play/pause (7/9) button.

Playback starts from the first track.

Display example

CD 1 00:02

Number of track being played

Elapsed time of track being played (minutes: seconds)

Skipping to search for a track

Use the skip (.//) buttons to skip to the previous or next track. Keep pressing until the desired track is selected.

o During playback, press the . button once to return to the

beginning of the current track. Press the . button repeatedly to return to an earlier track.

Searching for part of a track

Press for at least

1second

During playback, press a skip (.//) button for at least one second until searching forward/backward starts. When you find the point where you want to listen, press the play/pause (y/9) button.

Bluetooth® wireless technology

Bluetooth® notes

When using this unit with a mobile phone or other Bluetooth devices, they should be no more than about 10 m (33 ft) apart. Depending on the circumstances of use, however, the effective transmission distance might be shorter. Wireless communication with every device that supports Bluetooth wireless technology is not guaranteed. To determine the compatibility between this unit and another device that supports Bluetooth wireless technology, refer to that device’s operation manual or contact the shop where you purchased it.

Profiles

This unit supports the following Bluetooth profiles.

o A2DP (Advanced Audio Distribution Profile) o AVRCP (Audio/Video Remote Control Profile)

In order to transfer audio using Bluetooth wireless transmission, the Bluetooth device must support A2DP. In order to control playback on the Bluetooth device, it must support AVRCP. Even if a Bluetooth device supports the same profiles, though, its functions might differ according to its specifications.

Codecs

This unit supports the following codecs. It will automatically select one of them during audio transfer.

o SBC o AAC o Qualcomm® aptX™ o LDAC

The unit will select the appropriate codec to use according to the codec compatibility of the other Bluetooth device and communication conditions.

LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res) Audio content, even over a Bluetooth connection. Unlike other Bluetooth compatible coding technologies such as SBC, it operates without any down-conversion of the Hi-Res Audio content*, and allows approximately three times more data** than those other technologies to be transmitted over a Bluetooth wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.

* excluding DSD format contents ** in comparison with SBC (Subband Coding) when the bitrate of

990kbps (96/48kHz) or 909kbps (88.2/44.1kHz) is selected

NOTE

Transmission security

This unit supports security functions during Bluetooth wireless transmission in accordance with the Bluetooth standard specifications, but it does not guarantee the privacy of such transmissions. TEAC CORPORATION will bear no responsibility should an information leak occur during Bluetooth wireless transmission.

Pairing with another Bluetooth device

Pairing this unit with another Bluetooth device is necessary the first time it is used and when connecting to a different Bluetooth device for the first time.

1 Turn the SOURCE knob to select Bluetooth.

Bluetooth SELECT DEVICE?

o If no paired device is available, “NO PAIRED DEVICE” will

appear.

2 Enable Bluetooth transmission on the other

Bluetooth device.

3 Press and hold the ENTER button to enter pair-

ing mode.

Bluetooth PAIRING

o “PAIRING” blinks when pairing.

4 On the other Bluetooth device, select “NR-7CD”

(this unit).

After this unit enters pairing mode, pair with it from the other Bluetooth device. For details, refer to the operation manual of that Bluetooth device.

After connection, the display will show the input source.

o You cannot select the codec to be used by pressing a button, for

example.

o Due to characteristics of Bluetooth wireless technology, playback

from a Bluetooth device will be slightly delayed compared to playback from this unit.

Content protection

This unit supports SCMS-T as a form of content protection when transmitting audio, so it can play protected audio.

Bluetooth® wireless technology (continued)

Playback from a Bluetooth device

o Pair this unit the first time you use it and when you want to con-

nect it with a different Bluetooth device for the first time (page

23).

o When pairing or connecting with another Bluetooth device,

they should be within a few meters of each other. If they are too far apart, pairing and connection afterwards might become impossible.

1 Turn the SOURCE knob to select Bluetooth.

Bluetooth SELECT DEVICE?

o You can also use the Bluetooth button on the remote

control.

2 Enable Bluetooth transmission on the other

Bluetooth device.

4 Press the ENTER button to connect.

o If there are multiple paired devices, turn the SOURCE knob

to show other devices. When the name of the device that you want to connect is shown, press the ENTER button.

After connection, the display will show the input source.

Display example

Device name

Player_1 AAC 44k

Codec and sampling frequency

o The first 8 characters of the device name are shown. o If characters other than English letters and numbers are

included in the device name, it will not be shown properly.

ATTENTION

Regardless of the connection status of this unit and the other Bluetooth device, if the input source is not shown, restart both this unit and the other device and then connect them again.

3 When “SELECT DEVICE?” appears, press the

ENTER button to show Bluetooth devices that have already been paired.

The bottom line of the display shows the name of the last connected device.

ATTENTION

Depending on the source device, you might also need to conduct connection operations on it. If you are unable to connect it successfully, refer to the operation manual of the source device.

Display example

Bluetooth > Player_1

Name of last connected device

o Turn the SOURCE knob to change the device name shown. o The unit can remember a maximum of eight device pairings. o If no paired device is available, the display will appear as

follows.

5 Start playback on the other Bluetooth device.

o Confirm that the volume is turned up on the other Bluetooth

device. If you do not turn up the volume on the playback device, no sound might be output from this unit.

NOTE

Press and hold the MENU button to clear a paired device.

Bluetooth NO PAIRED DEVICE

Press and hold the ENTER button to enter pairing mode (page 23).

Settings

1 Press the MENU button repeatedly to show the

setting items.

The menu items appear in the following order.

PCM D-FILTER

DSD D-FILTER

DIMMER

3 When you are done changing settings, press

the MENU button repeatedly to show the input source again.

o If no operation occurs for about 10 seconds, the input source

will reappear.

METER

AUTO POWER SAVE

Input source information display

2 Turn the SOURCE knob to change the setting

value.

o You can also use the up and down (k, j) buttons on the

remote control.

o The currently set value is shown on the display.

Settings (continued)

PCM digital filter

This sets the type of digital filter used when converting PCM signals from digital to analog.

*PCM D-FILTER > OFF

OFF

No digital filter is used.

FIR SHARP

An FIR filter with a steep roll-off is used to sharply cut signals outside the audio band.

FIR SLOW

An FIR filter with a slow roll-off is used to gently cut signals outside the audio band.

SDLY SHARP

A short delay filter with a steep roll-off is used to sharply cut signals outside the audio band.

SDLY SLOW

A short delay filter with a slow roll-off is used to gently cut signals outside the audio band.

Display brightness

This sets the brightness of the display.

o Regardless of the brightness setting, however, error messages

will always be shown at normal brightness.

*DIMMER > DIMMER 3

DIMMER 3

Normal brightness

DIMMER 2

Slightly dim

DIMMER 1

Even dimmer

DIMMER 0

Unlit

o The display stays unlit even when the unit is on.

Level meter operation

Note about the digital filter during PCM playback

FIR-type digital filters

This type of filter has an established reputation for sound quality and features tonal quality with both dense, rich sound reverberations and crisp sound transients.

SDLY-type digital filters

This type of filter has no pre-echo in the impulse response and features natural sound attack and reverberation for a tonal quality that is close to the original.

DSD digital filter

This sets the type of digital filter used when converting DSD signals from digital to analog.

*DSD D-FILTER > CUTOFF 150kHz

CUTOFF 50kHz

50kHz cutoff frequency

This sets level meter brightness and turns operation on and off.

*METER > DIM3

DIM3

Level meter brightness: bright Level meter operation: on

DIM2

Level meter brightness: slightly dim Level meter operation: on

DIM1

Level meter brightness: even dimmer Level meter operation: on

DIM0

Level meter brightness: unlit Level meter operation: on

OFF

Level meter brightness: unlit Level meter operation: off

CUTOFF 150kHz

150kHz cutoff frequency

Troubleshooting

Automatic power saving function

This unit has an automatic power saving function.

o The automatic power saving function is on when the unit is

shipped new from the factory.

*AUTO POWER SAVE > ON

OFF

The automatic power saving function is disabled.

If no audio is played back for about 30 minutes, the unit will automatically enter standby mode.

o Even when audio is playing back, automatic power saving will

also function if the VOLUME knob is set to a value at which sound cannot be heard.

If you experience a problem with the unit, please take a moment to review the following information before requesting service. If it still does not operate correctly, contact the retailer where you purchased the unit.

General

The unit does not turn on.

e Check that the power cord is completely plugged into the

power outlet. If the outlet is switched, confirm that the switch is in the ON position.

e Connect a different electrical device to the outlet to confirm

that it is supplying power.

e If the automatic power saving function has caused the unit to

enter standby, press the remote control STANDBY/ON button to turn the unit on again.

No sound is output.

e Adjust the VOLUME knob. Turn it clockwise (right) to increase

the volume.

e Use the SOURCE knob to select the input that is connected to

the source that you want to hear.

e Reconfirm the connections with other equipment.

There is a humming noise.

e If a connecting cable is near a power cord, fluorescent light or

similar cause of interference, increase the distance between them as much as possible.

There is no sound from one side of the headphones.

e Confirm that the headphones plug is inserted completely.

Sound output suddenly stopped.

e Heat might have caused the protection circuit to activate.

Set the POWER switch to OFF once, and wait several minutes before restarting the unit.

The level meter lights are blinking and no sound is output.

e The + and − speaker cables might have shorted. In this case,

turn the unit off and check the speaker cable connections.

+ 61 hidden pages
